Fits 2024 2025 Ford Ranger Raptor

Fits 2022 and 2023 Next Gen Ranger Raptors (Non-USA versions)

Driving/Flood Pattern: longer and wider beam focuses for illumination further down the trail or road as well as peripheral angles
White LED light
Each Pod provides the following:

·         Theoretical max power 20watts

·         Actual power 19.8watts

·         Main White light is 2.06amps at 12v

·         Backlight Amber is 0.03amps at 12v

·         Theoretical max luminous flux 2,184 lm

·         Measured luminous flux (without lens) 1,970 lm

· Measured luminous flux (with lens) 1,474 lm

·         LEDs type: luminus SST-20 Ra70

·         Temperature: 6000k

·         LEDs number: 2pcs
Each LED light pod is attached to a metal bracket on each side
Size: 3.2in wide x 2.8in depth

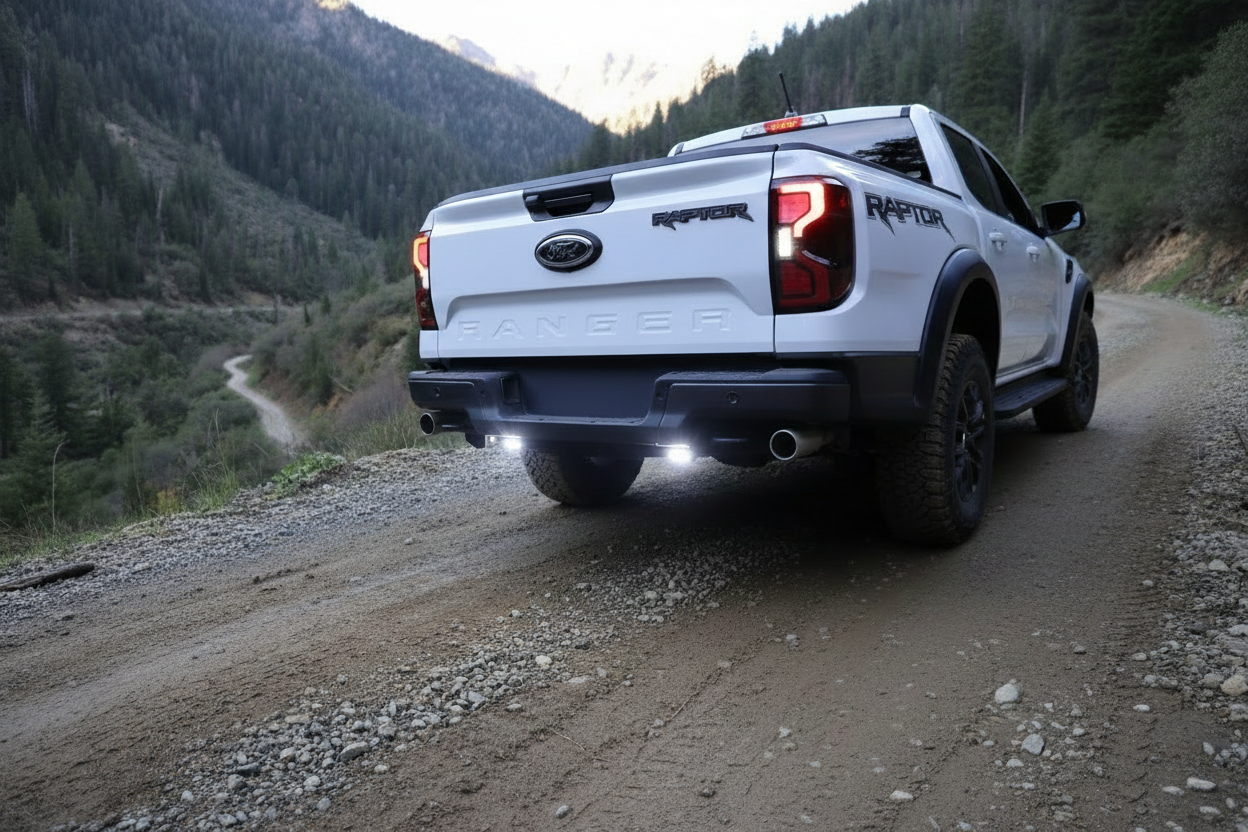

This in addition to factory reverse light. The factory reverse light doesn't provide enough light output at night. Install M&R reverse light with powerful white LED light that makes a huge difference.
Uses rear AUX wires or can tap into factory reverse wires
No cutting or drilling required. The kit is a complete bolt on
Metal bracket is powder coated black

Introducing our brand new LED lenses-PRO series with a unique appearance and optimal performance.

Uses TIR (Total Internal Reflection) lens is different from the conventional optics parts, which lose some light internally and produce glare. The TIR lens collects all of the light from the LED and directly leads them to where you need, drastically reducing glare and improving total efficiency.
Higher light efficiency: brighter, longer irradiation distance
Housing is upgraded to 304 aluminum. The surface is UV polyester powder coated to prevent against UV, salt water, corrosion, fading and scratch resistant.
Equipped with thermal management system that automatically adjusts the brightness output according to the external temperatures

👍Our light kits are for off-road use only.
