icon 2024+ Ford Ranger Raptor Single 40in Light Bar
WhiteAmberdual function: White light with Amber DRL backglow
$349.99
  • Product Description
  • Light Bar Specs
  • Shipping & Warranty
  • Fits 2024 2025 2026 Ford Ranger Raptor

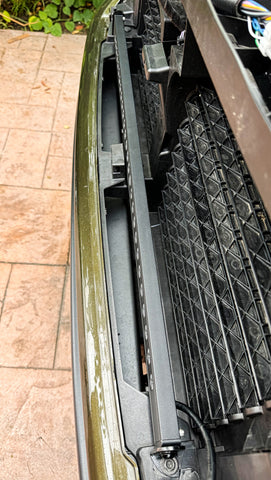

  • ***For Australian version, these light bars DONT  fit your truck. The only LED light bars that will fit is the single SLIM 30in and PRO 40in. Please see other listing. There is a slight behind grille variation. Reach out if you have questions.

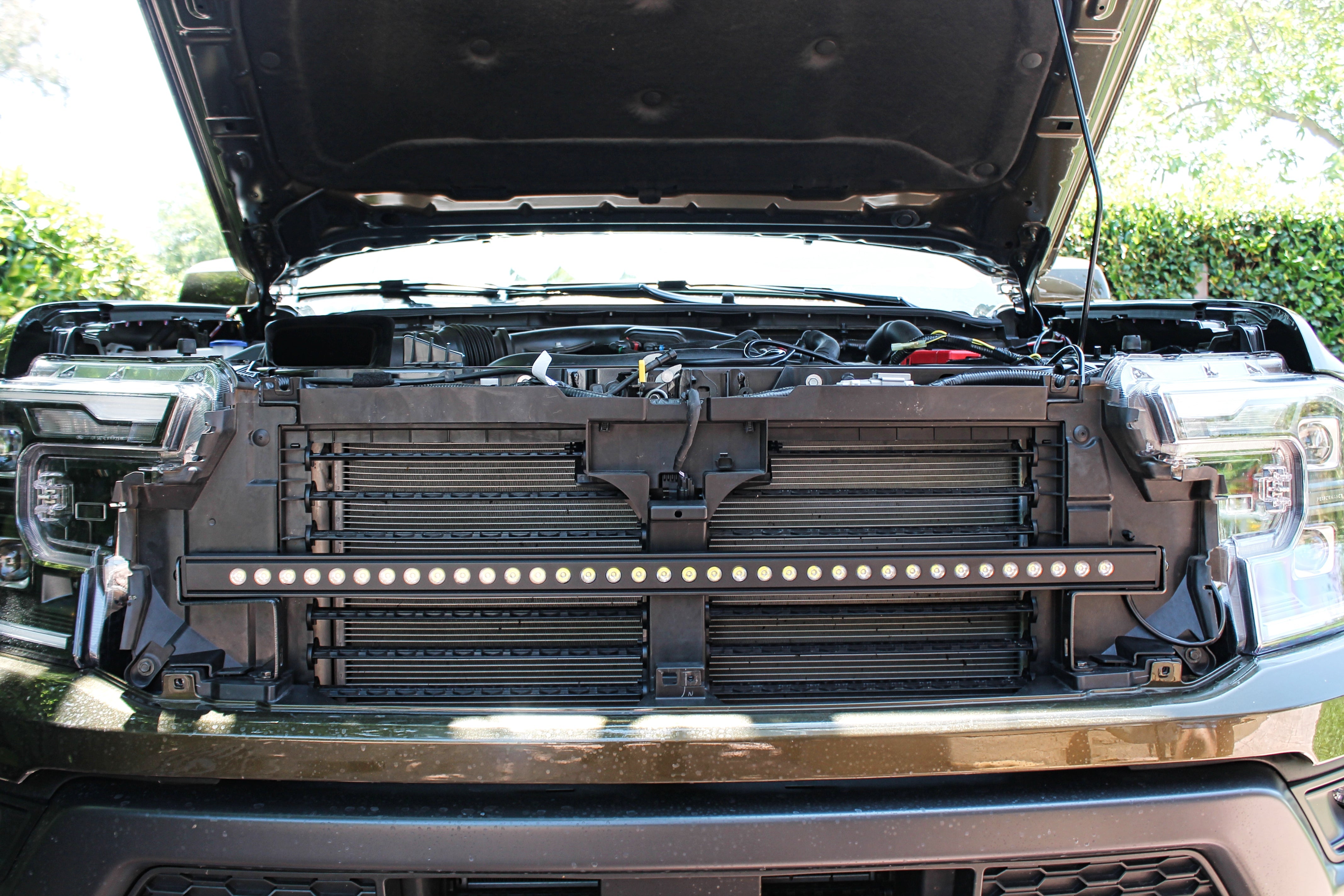

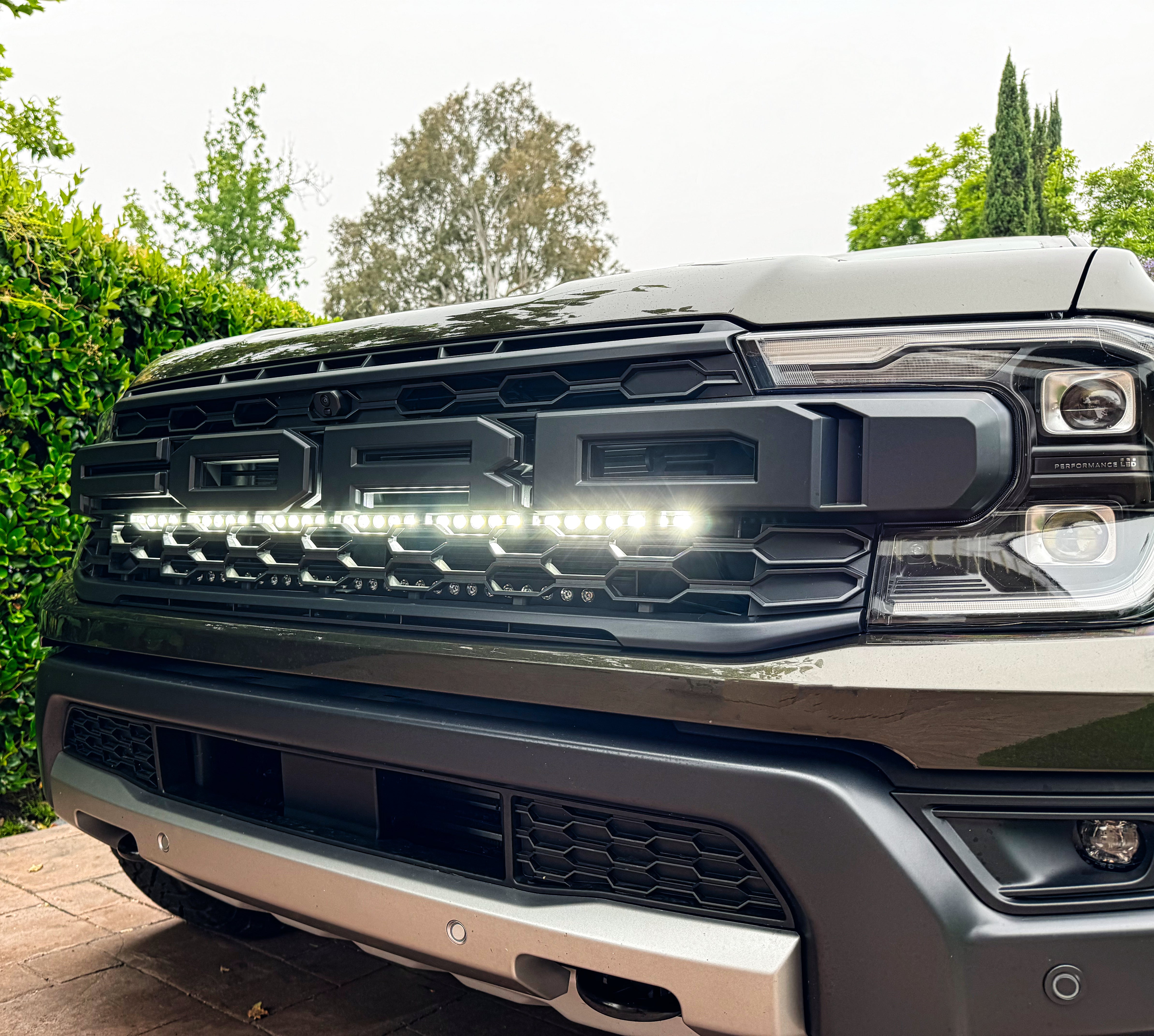

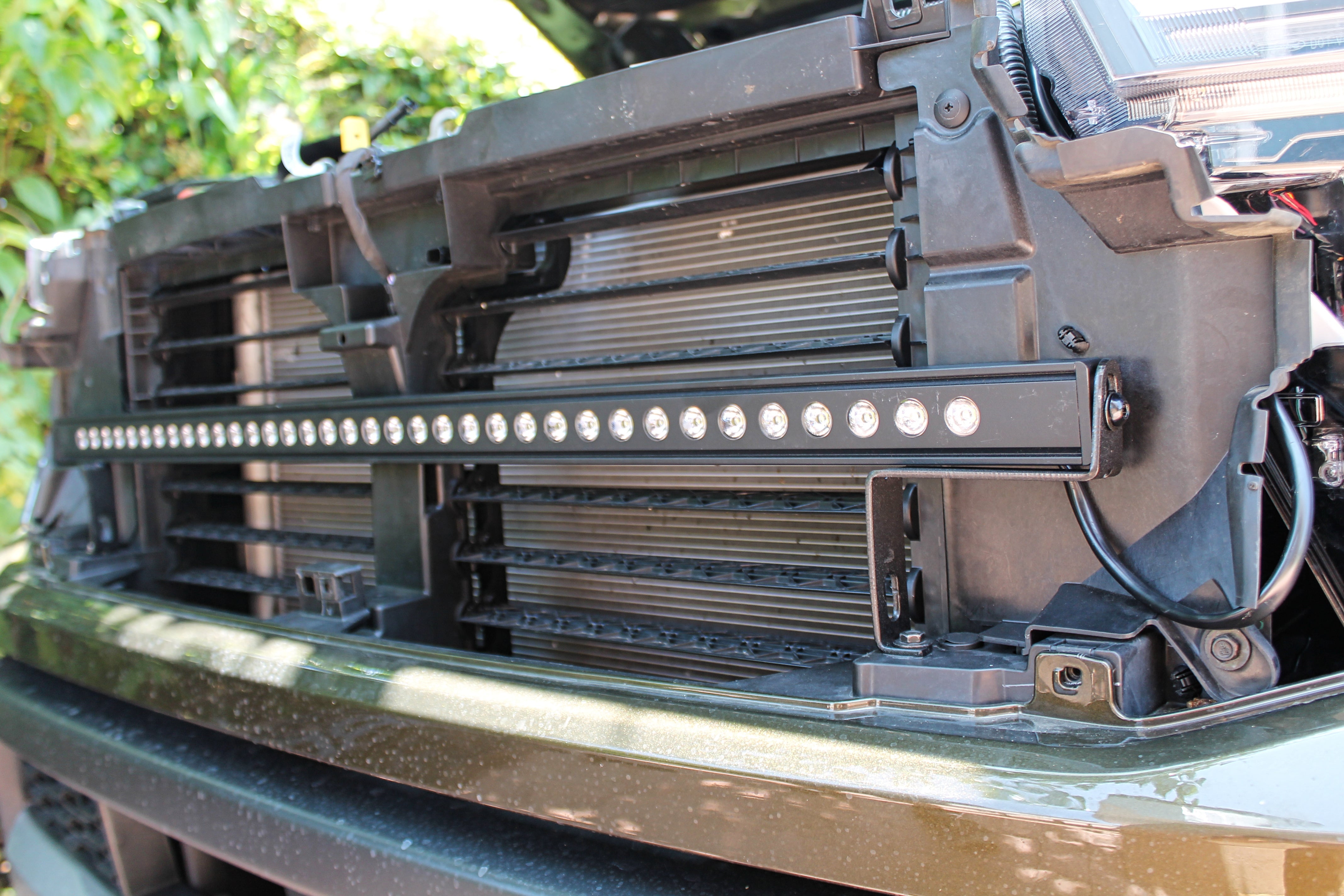

  • Installs in the lower grille

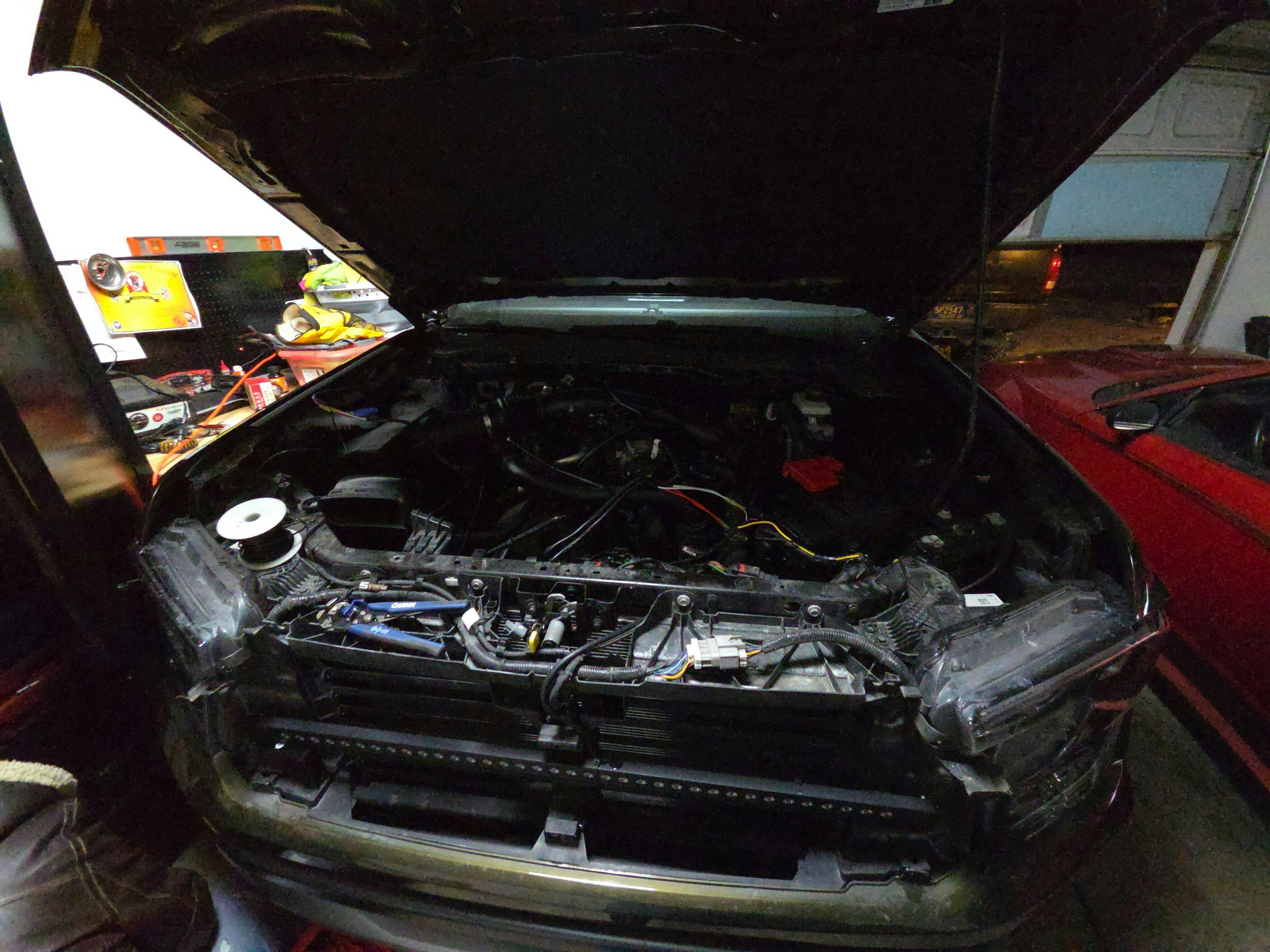

  • Must remove grille
  • No cutting or drilling required. The kit is a complete bolt on
  • WILL NOT interfere with active grille shutters
  • Metal bracket is powder coated black
  • Our unique light bars are very slim, allowing plenty of radiator air to go around


Choose your light bar color:

1) White LED -- Up to 15,000 lumens, bright and powerful. It will definitely provide you with enough light needed for all of your adventures. However, these are only for off-roading and can’t be used on the regular road. They will blind the in-coming traffic and also violates road safety.

2) Amber LED -- Up to 7,000 lumens, used in poor driving conditions such as dust, fog, snow and rain. It reflects through air particles much less than the white light. Therefore, making it ideal for poor driving conditions.

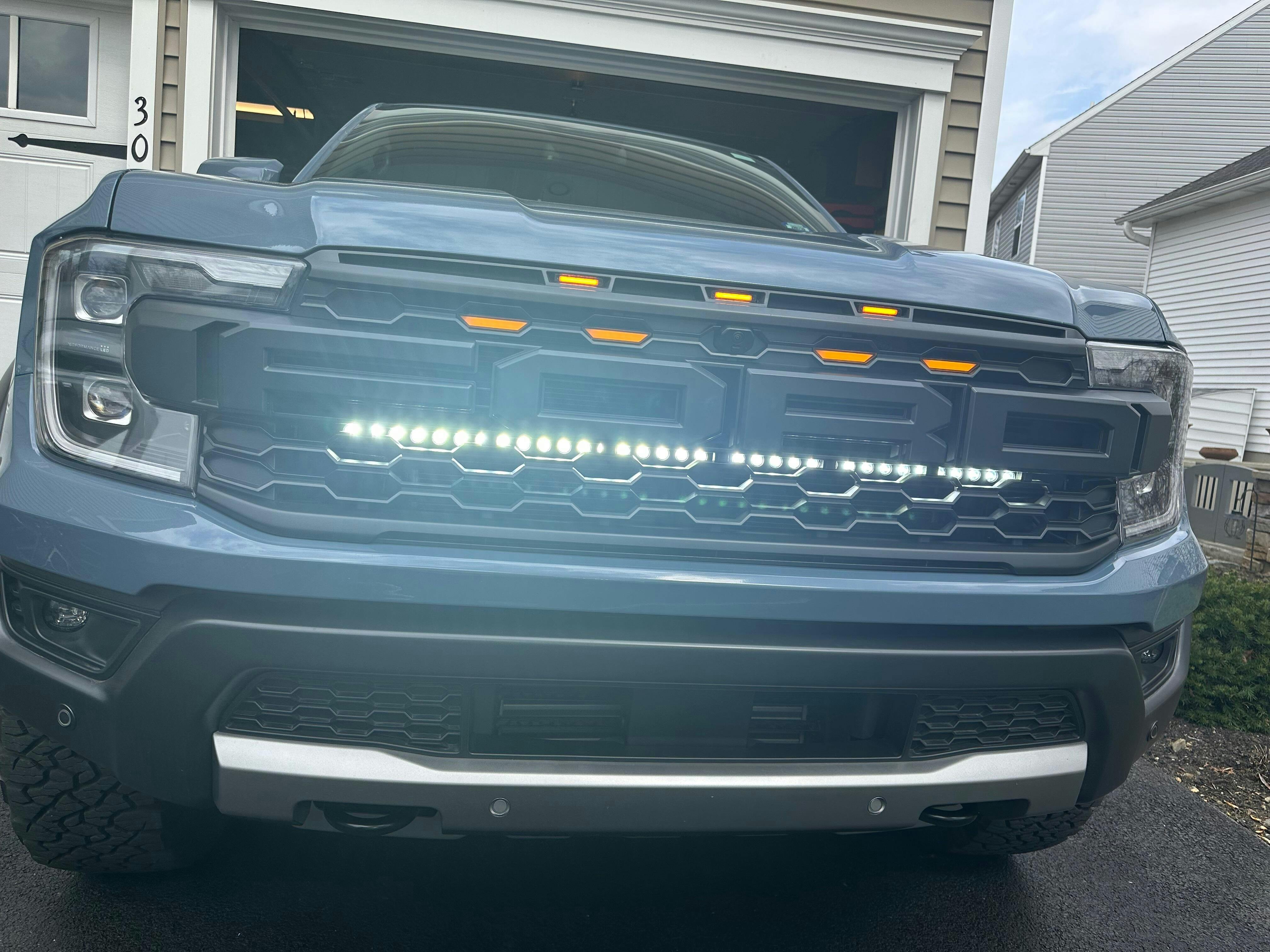

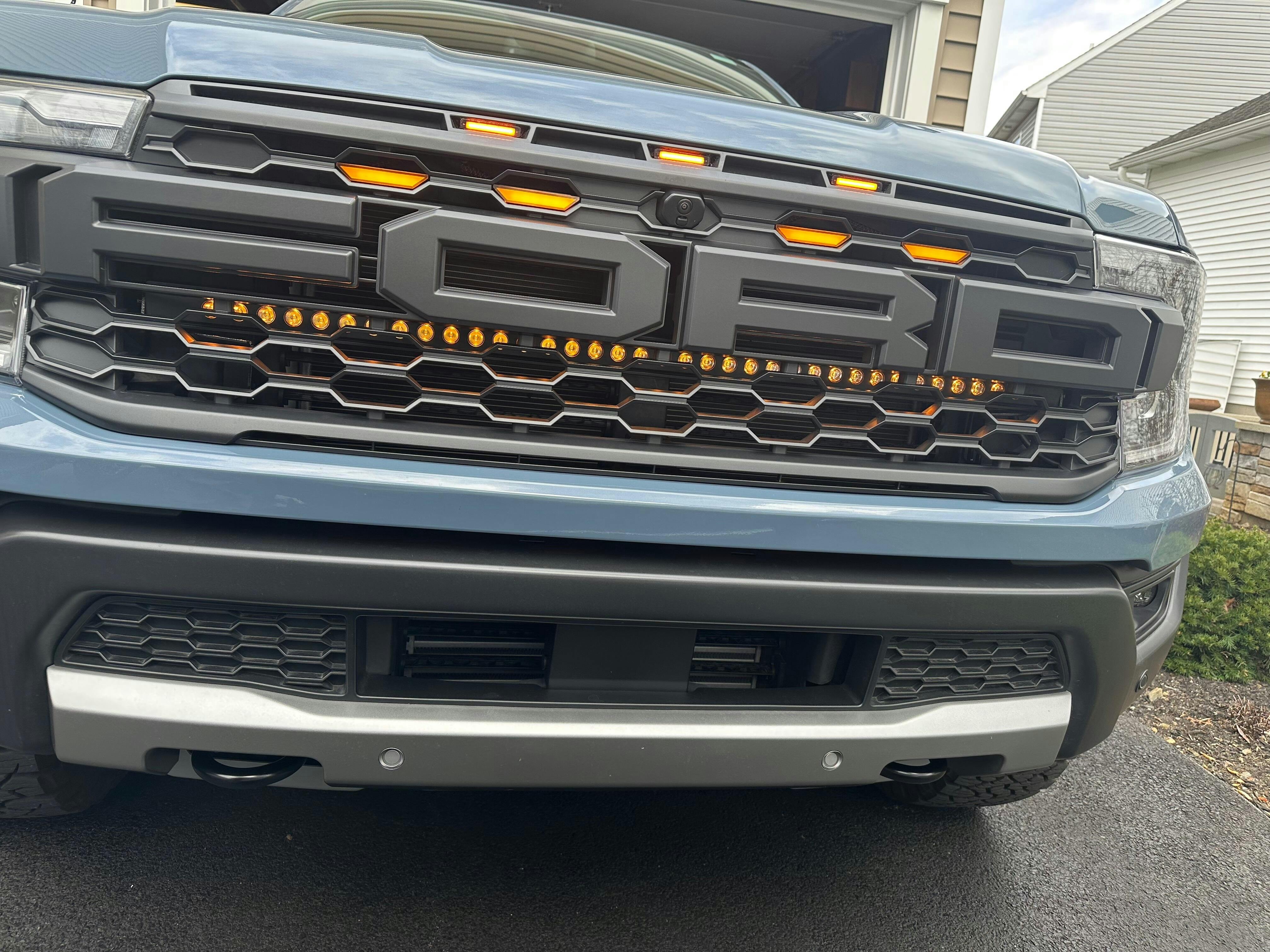

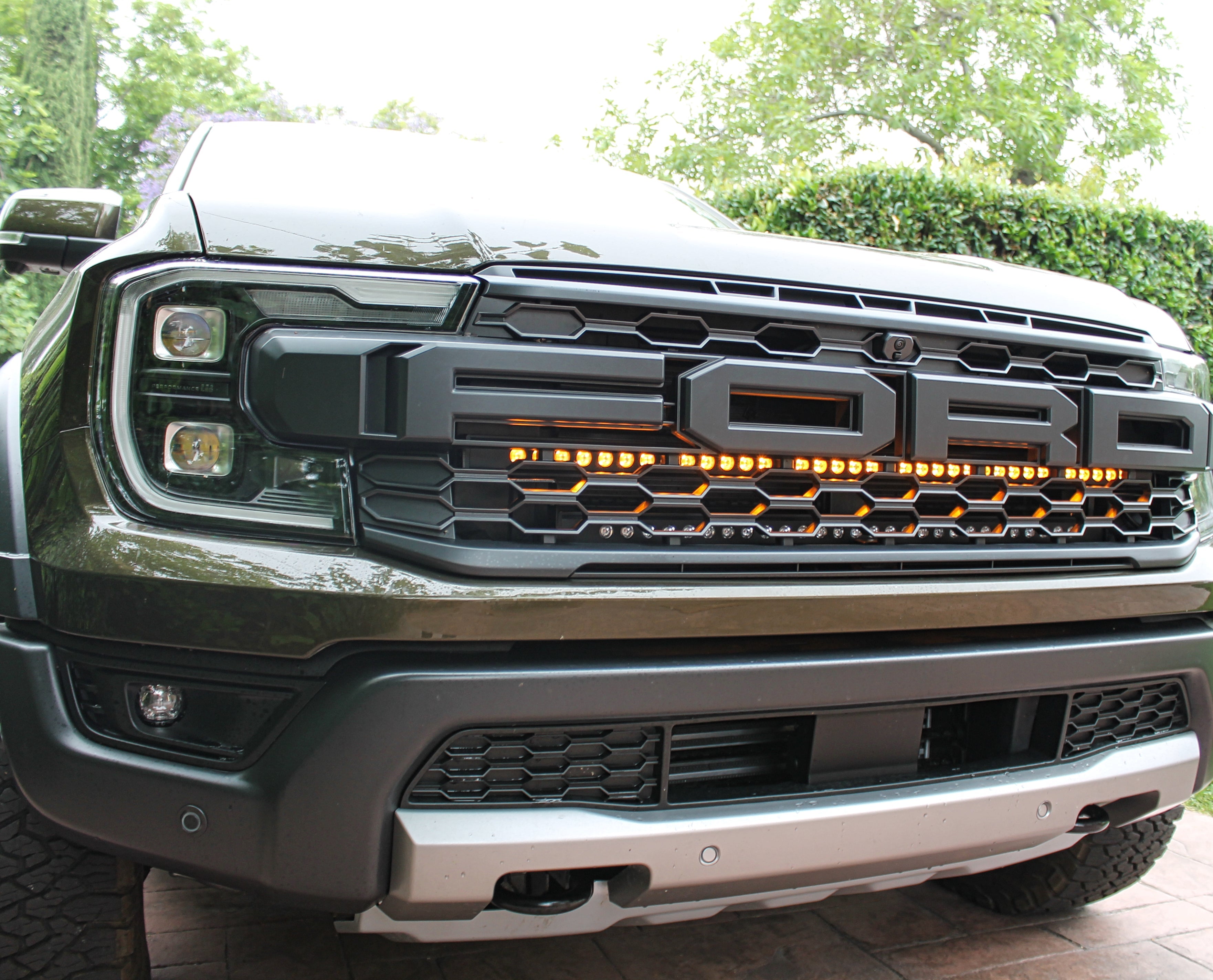

3) dual function: main White LED light with Amber DRL backglow -- the white LED light is same as described above, but the amber DRL “daytime running lights” acts purely for aesthetics. It doesn’t give out much light, but more of a beautiful amber backglow. Since it doesn’t give out much light, you can use this amber DRL feature on regular roads, it doesn't blind in-coming traffic.



Full in-depth video describing our lights bars CLICK HERE



👍Our light kits are for off-road use only.


WHAT'S INCLUDED?

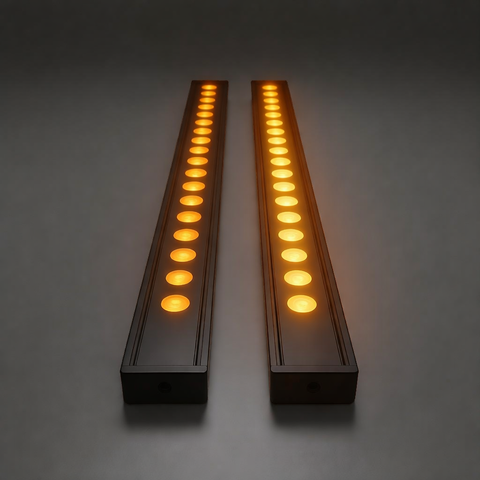

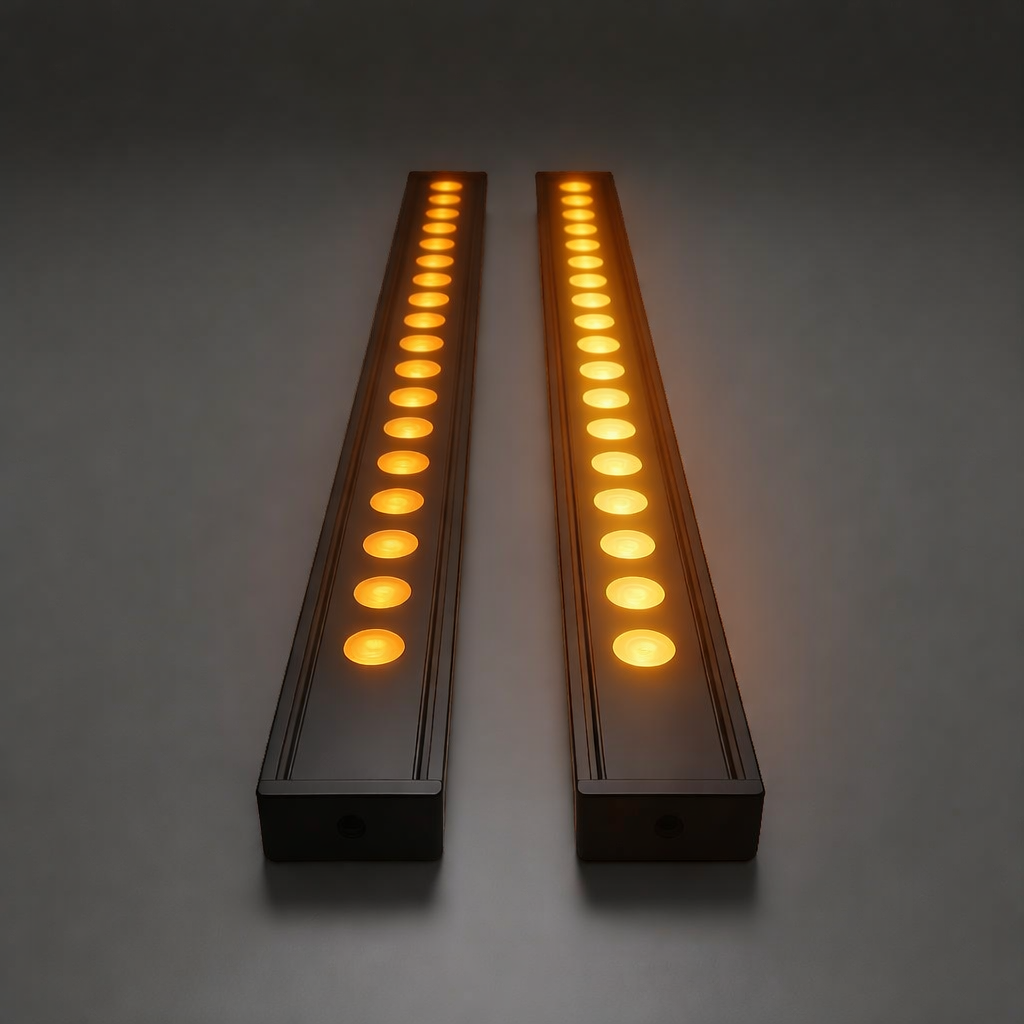

(1) 40in light bar - SLIM

(2) mounting brackets

All mounting hardware

WIRING

  • The light bar has 6ft of wire which is enough to reach AUX wires.




INSTALLATION INSTRUCTIONS



40in SLIM light bar


White:

  • Beam Pattern                               Spot
  • Theotetical max power              180watts
  • Actual power                                102watts
  • Voltage/current                          DC12v/6.5A
  • Theoretical max luminous flux                   21,060 lm
  • Measured luminous flux (without lens)    11,376 lm
  • Measured luminous flux (with lens)           8,340 lm
  • LEDs type                                     CREE XTE
  • Temperature                               6000k
  • LEDs number                               36pcs
  • Product size LxWxD (in)           38.93 x 0.75 x 1.63


40in SLIM light bar


Amber:

  • Beam Pattern                               Spot
  • Theotetical max power              140watts
  • Actual power                                78watts
  • Voltage/current                         DC12v/6.5A
  • Theoretical max luminous flux                   11,160 lm
  • Measured luminous flux (without lens)    7,380 lm
  • Measured luminous flux (with lens)           5,387 lm
  • LEDs type                                     CREE XP - E2 Amber
  • Temperature
  • LEDs number                               36pcs
  • Product size LxWxD (in)           38.93 x 0.75 x 1.63


White with Amber DRL

  • Beam Pattern                               Spot
  • Theotetical max power              180watts
  • Actual power                                102watts
  • Voltage/current main                 DC12v/6.5A
  • Voltage/current backlight          5.5W/0.46A
  • Theoretical max luminous flux                   21,060 lm
  • Measured luminous flux (without lens)    11,376 lm
  • Measured luminous flux (with lens)           8,340 lm
  • LEDs type                                     CREE XTE
  • Temperature                               6000k
  • LEDs number                               36pcs
  • Product size LxWxD (in)          38.93 x 0.75 x 1.63

All domestic (USA) orders are free shipping via USPS or UPS, depending on product size.
We typically ship in 3-7 business days. If we are anticipating a delay with your shipment due to availability of the product, we will reach out to you via email.

Canada, international or express shipping costs are calculated at checkout.

You will receive an email with tracking number when your order is shipped.

If you have a special request about your order, reach out, we try to accommodate as much as we can.

For a complete shipping policy click here.


We have a lifetime warranty on our light kits. We truly want our truck enthusiastic customers to enjoy their products as much as we enjoy designing them. However, we also understand that different situations arise with brackets or lights. For more information about our warranty and disclaimer click here.




*M&R Automotive is not responsible for misuse or improper installation of the product. Professional installation is recommended.
