- Product Description
- Light Bar Specs
- Shipping & Warranty
- Fits 2024 2025 2026 Ford Ranger Raptor
- Fits 2022 and 2023 Next Gen Ranger Raptors (Non-USA versions)

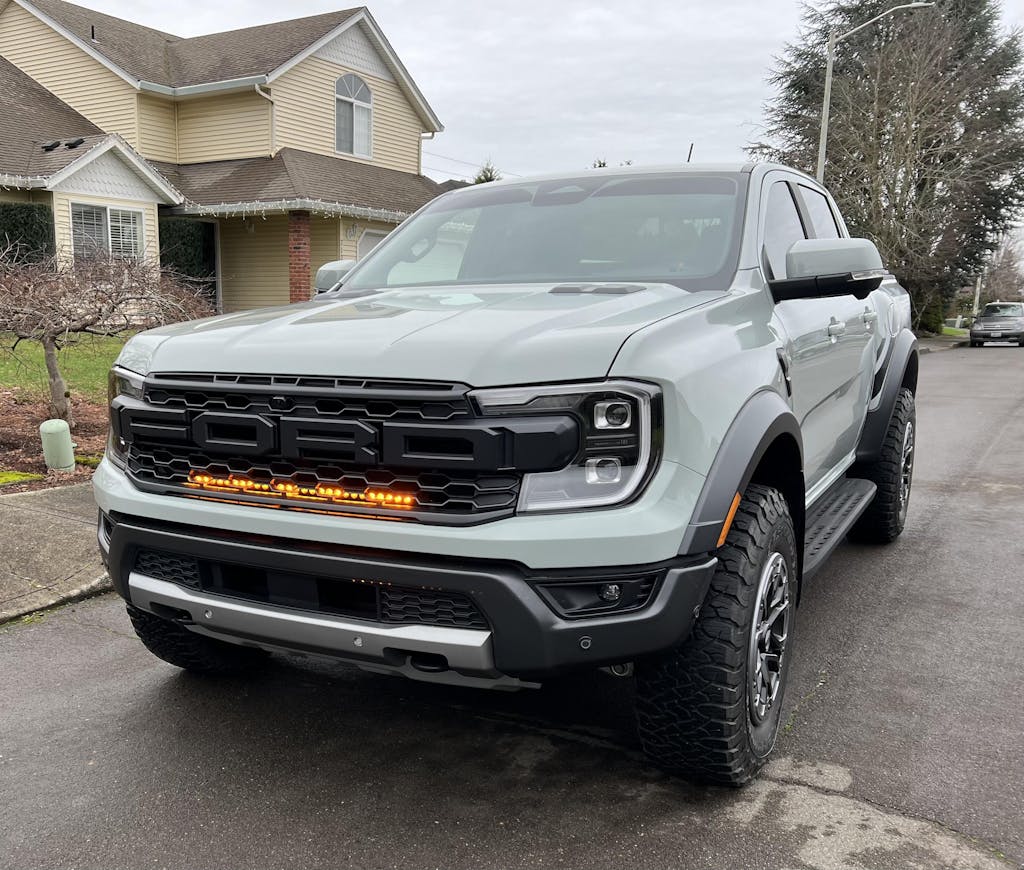

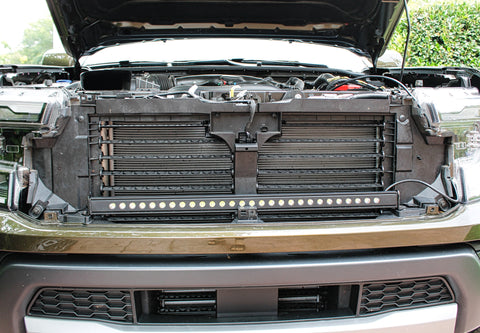

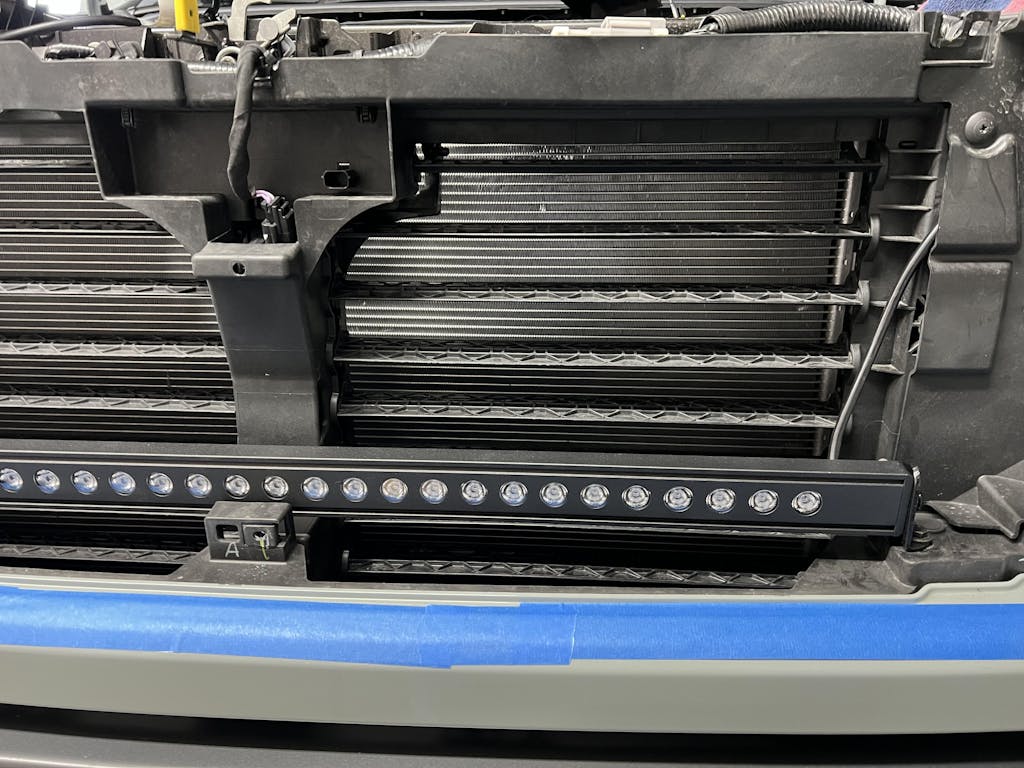

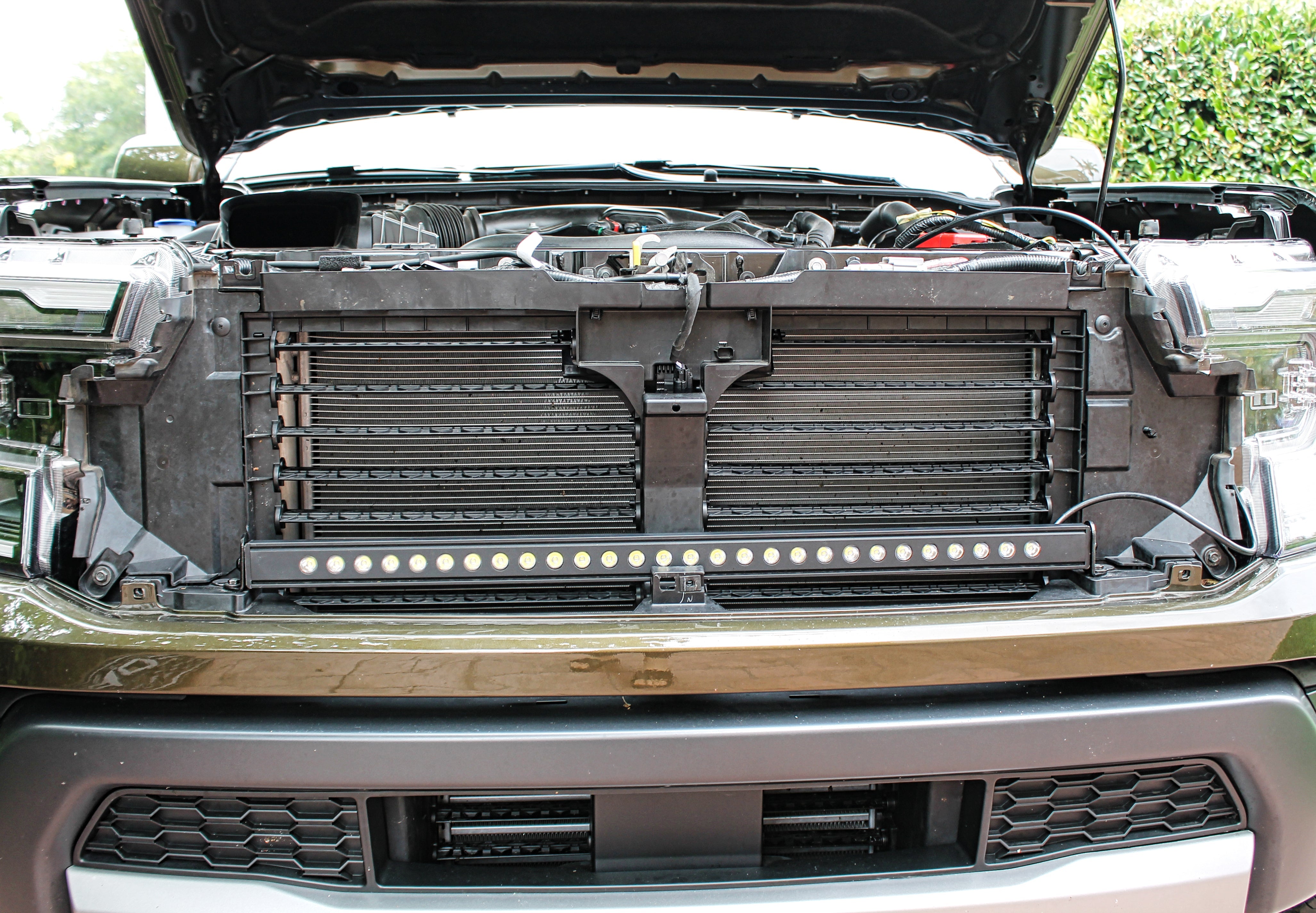

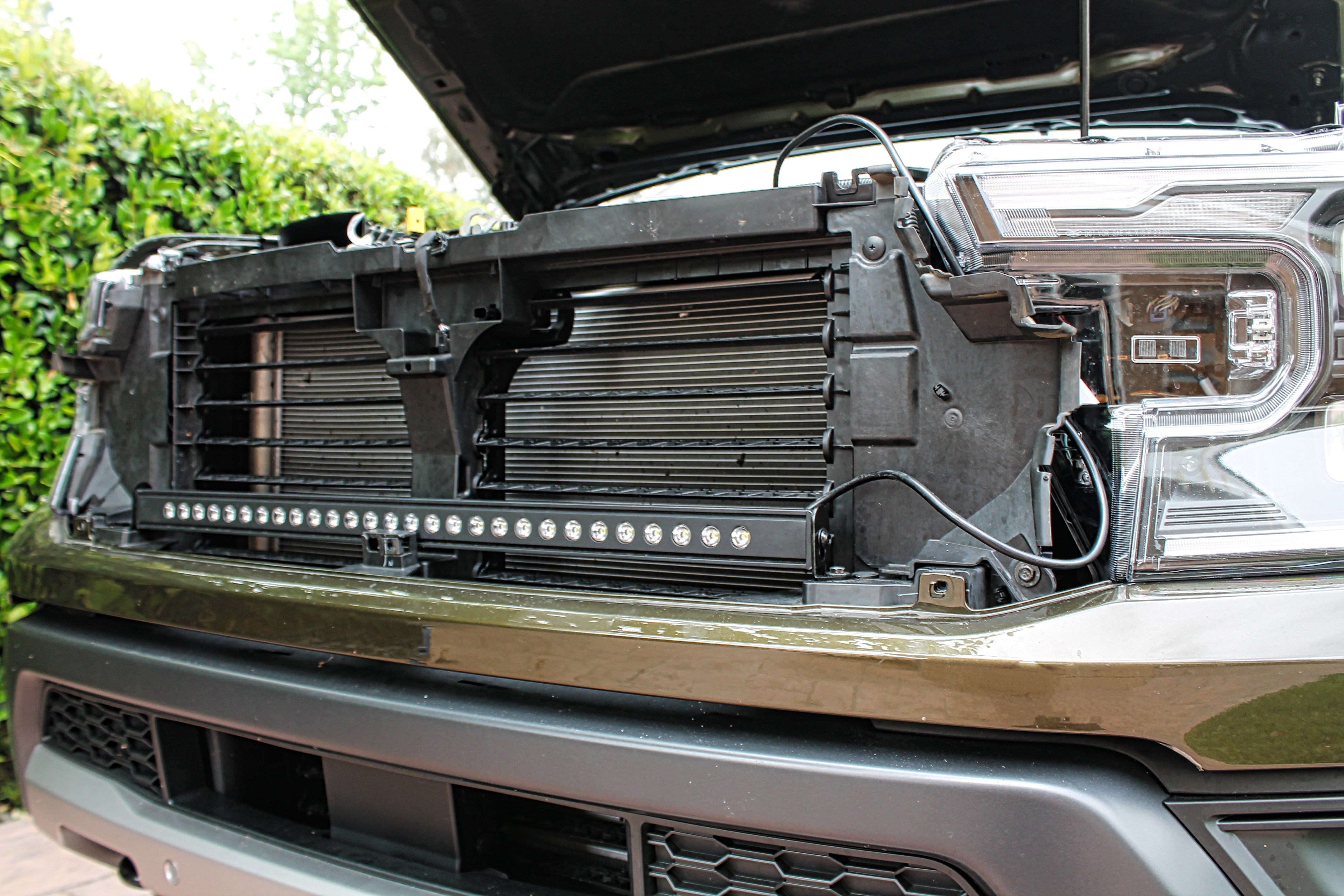

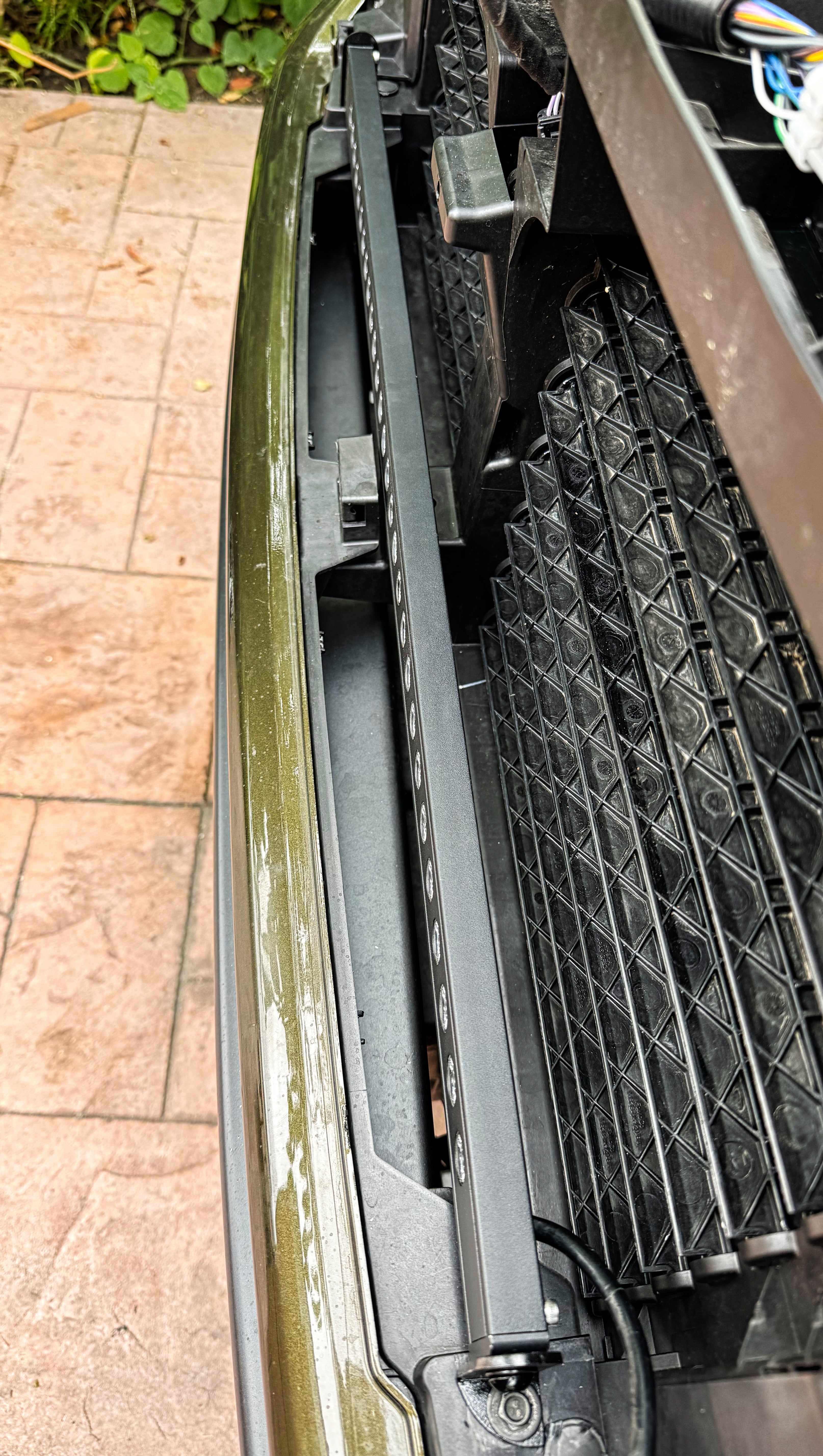

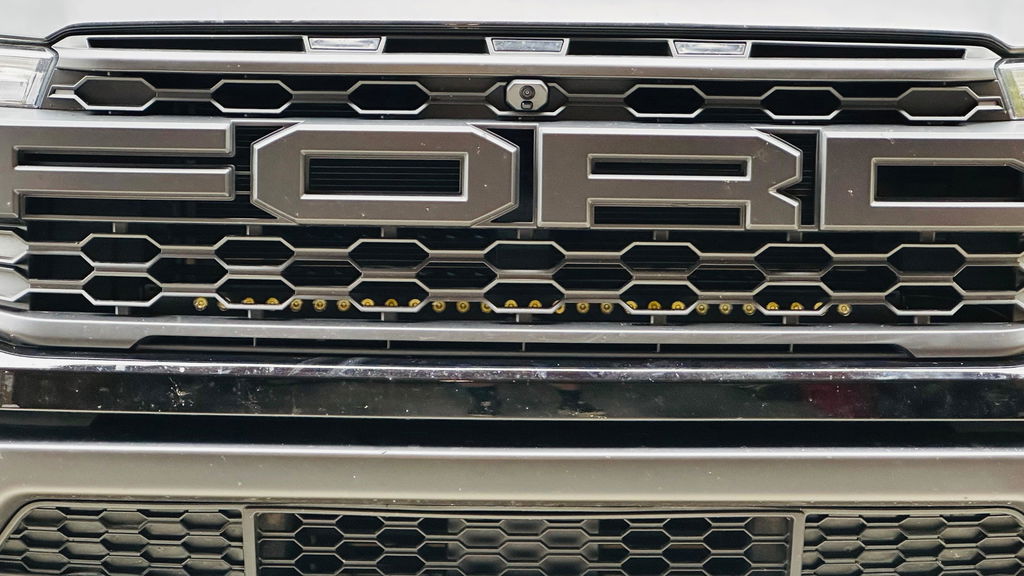

- Installs in the lower grille
- Must remove grille
- No cutting or drilling required. The kit is a complete bolt on
- WILL NOT interfere with active grille shutters

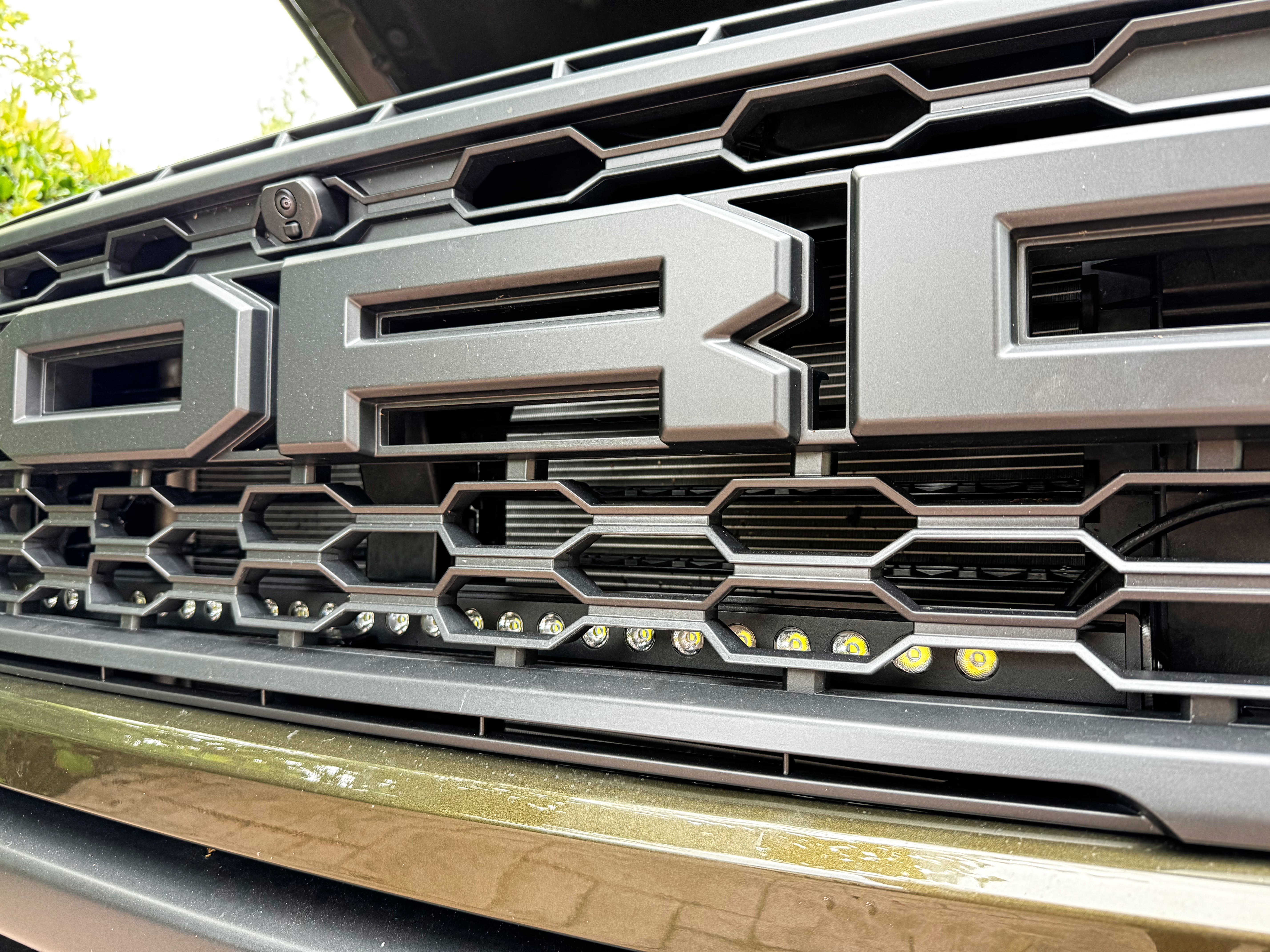

- Metal bracket is powder coated black

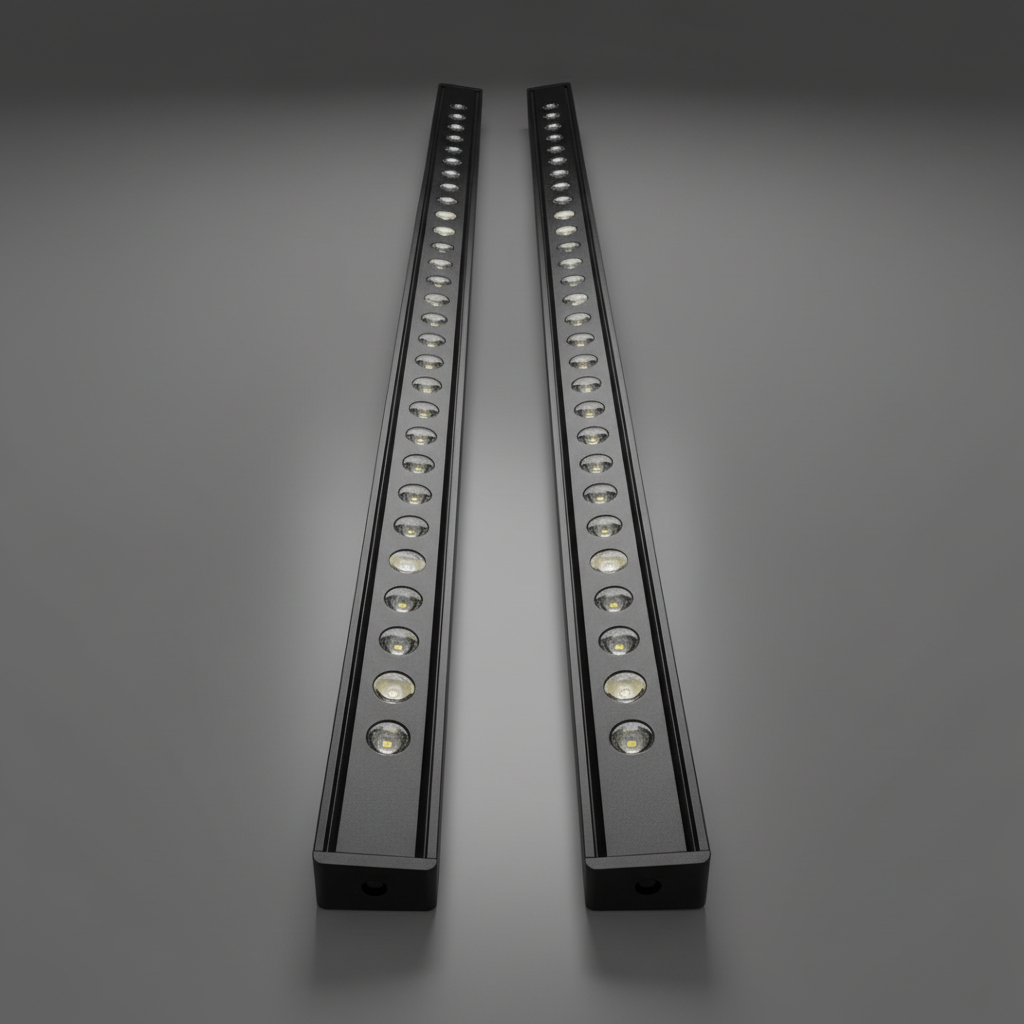

- Our unique light bars are very slim, allowing plenty of radiator air to go around

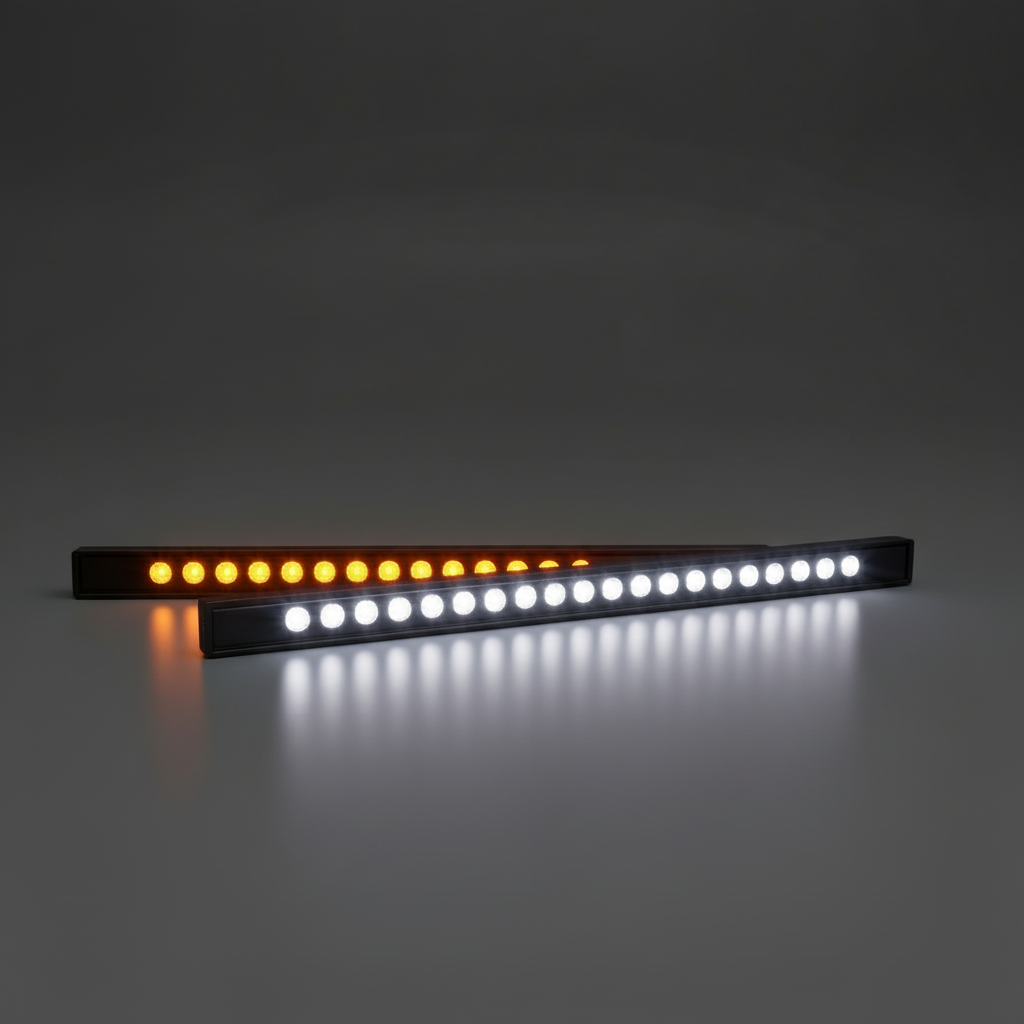

Choose your light bar color:

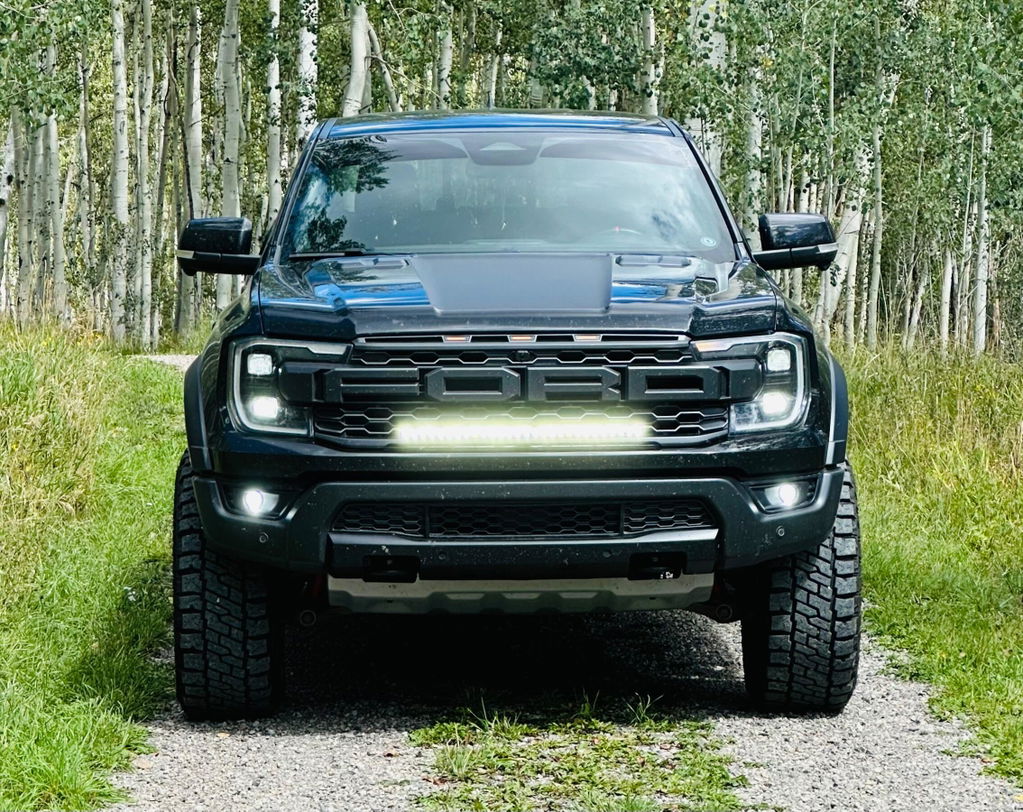

1) White LED -- Up to 11,760 lumens, bright and powerful. It will definitely provide you with enough light needed for all of your adventures. However, these are only for off-roading and can’t be used on the regular road. They will blind the in-coming traffic and also violates road safety.

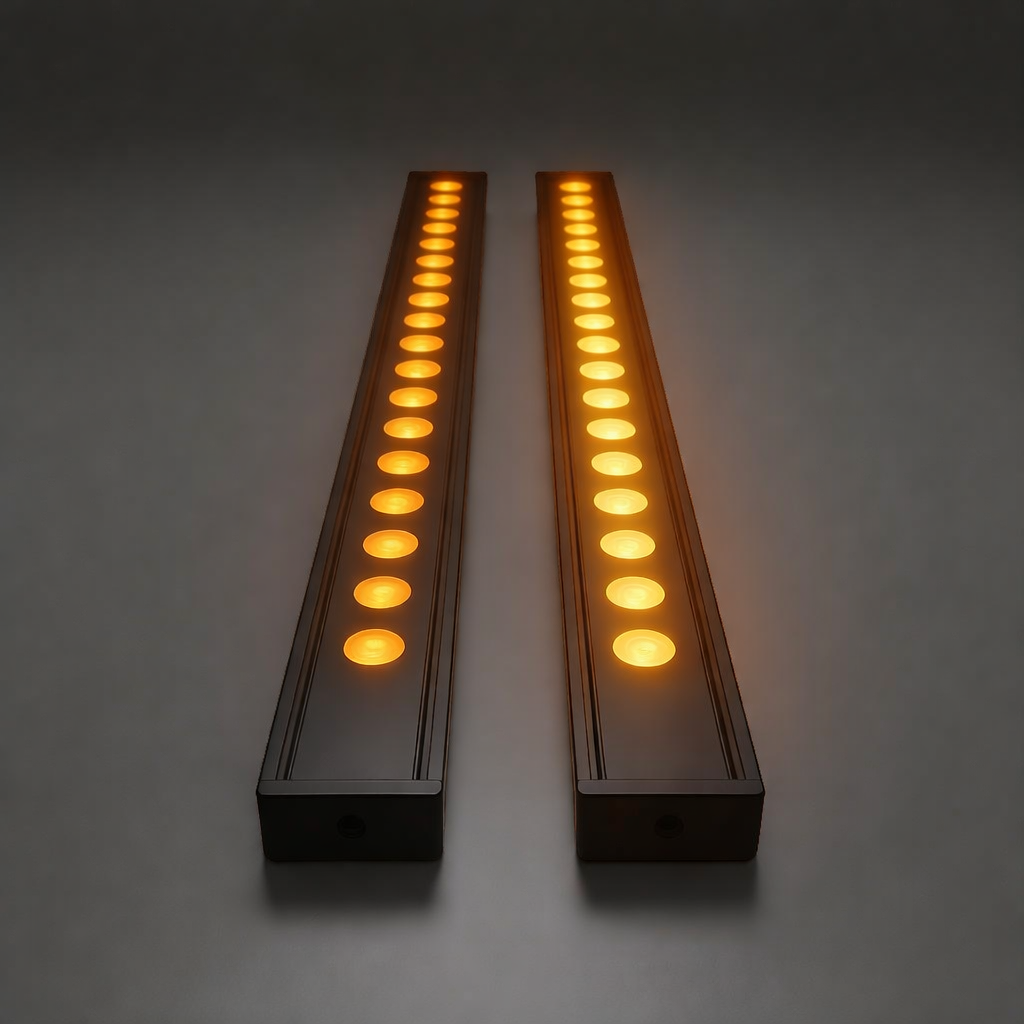

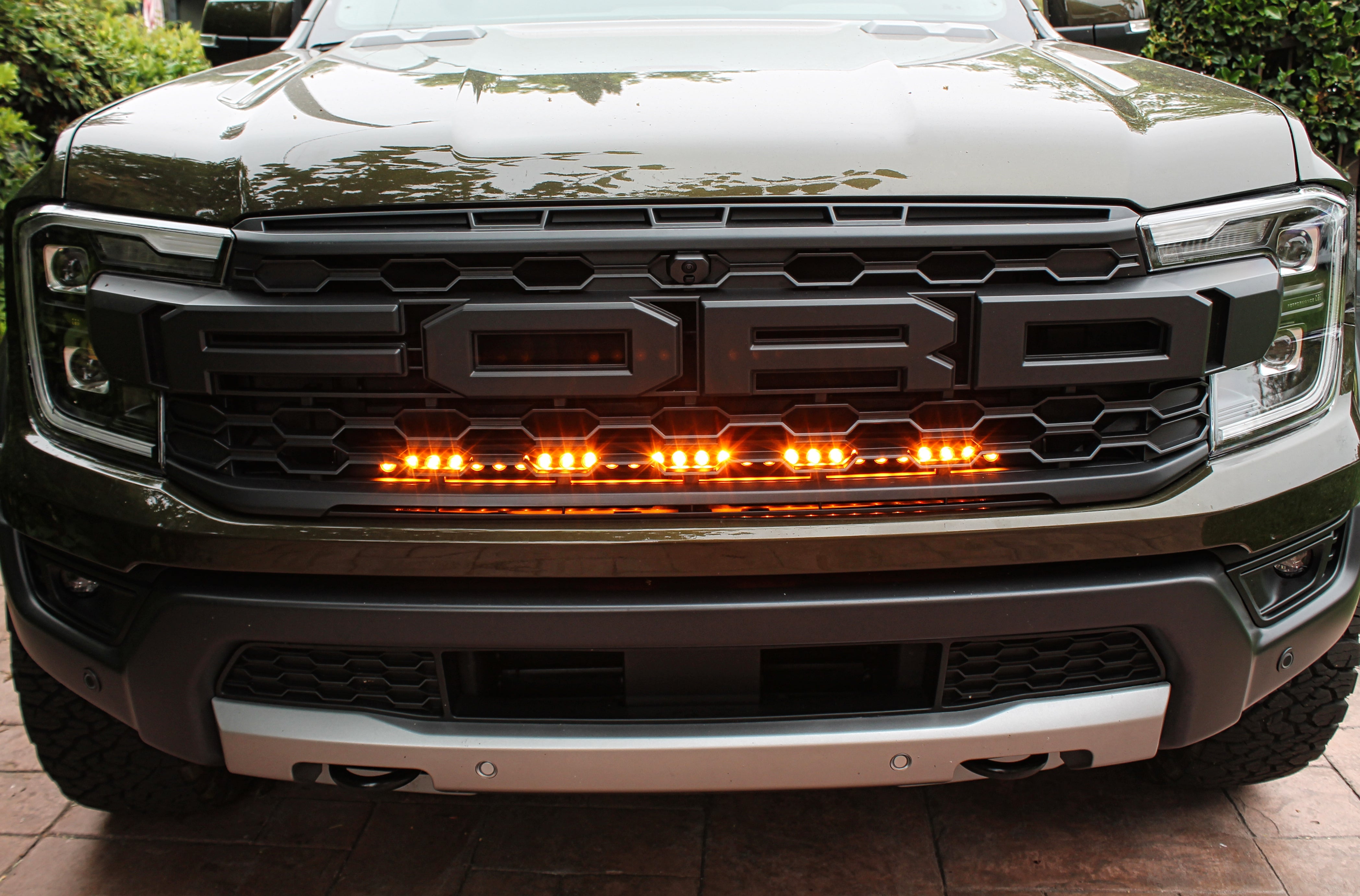

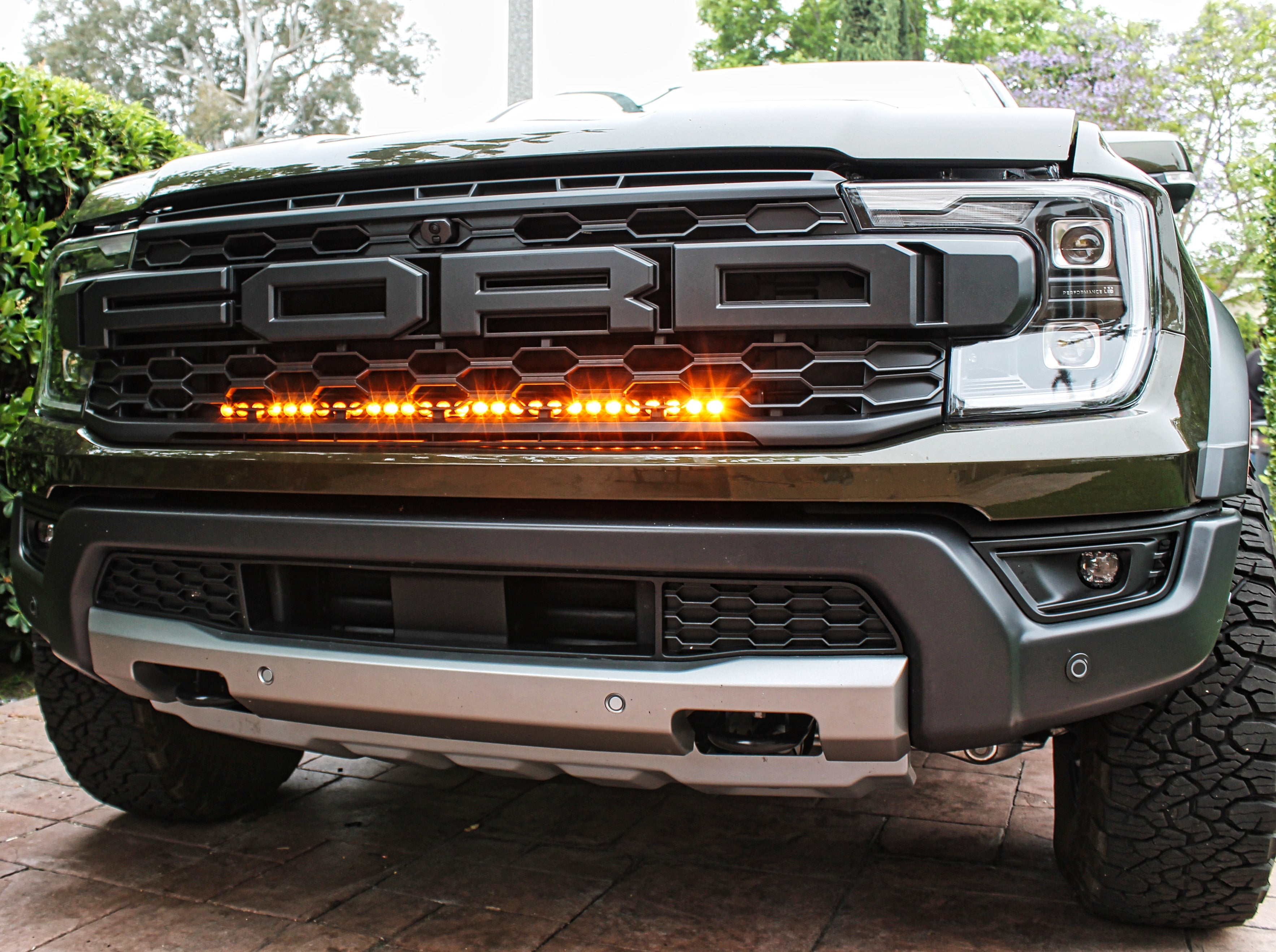

2) Amber LED -- Up to 5,500 lumens, used in poor driving conditions such as dust, fog, snow and rain. It reflects through air particles much less than the white light. Therefore, making it ideal for poor driving conditions.

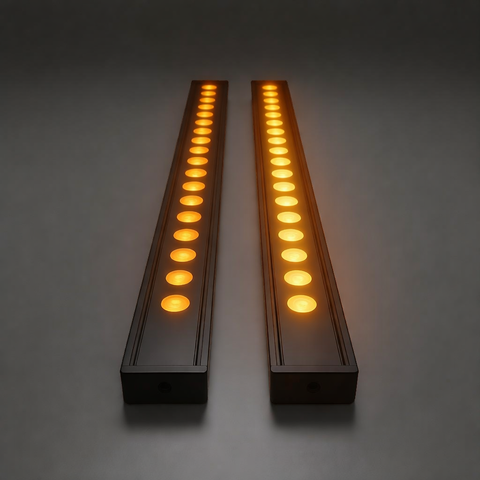

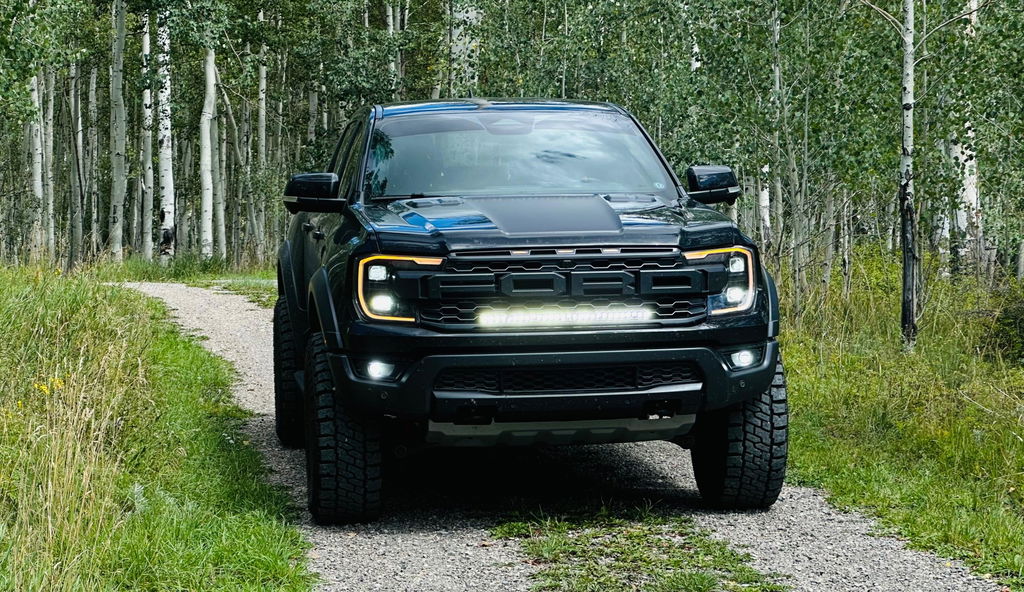

3) dual function: main White LED light with Amber DRL backglow -- the white LED light is same as described above, but the amber DRL “daytime running lights” acts purely for aesthetics. It doesn’t give out much light, but more of a beautiful amber backglow. Since it doesn’t give out much light, you can use this amber DRL feature on regular roads, it doesn't blind in-coming traffic.
Full in-depth video describing our lights bars CLICK HERE
👍Our light kits are for off-road use only.
WHAT'S INCLUDED?
(1) 30in light bar - SLIM
(2) mounting brackets
All mounting hardware
WIRING
- The light bar has 6ft of wire which is enough to reach AUX wires.
INSTALLATION INSTRUCTIONS
30in SLIM light bar
White:
- Beam Pattern Spot
- Theotetical max power 140watts
- Actual power 76watts
- Voltage/current DC12v/6.3A
- Theoretical max luminous flux 16,380 lm
- Measured luminous flux (without lens) 8,848 lm
- Measured luminous flux (with lens) 6,380 lm
- LEDs type CREE XTE
- Temperature 6000k
- LEDs number 28pcs
- Product size LxWxD (in) 31 x 0.75 x 1.63
30in SLIM light bar
Amber:
- Beam Pattern Spot
- Theotetical max power 109watts
- Actual power 56watts
- Voltage/current DC12v/4.7A
- Theoretical max luminous flux 8,680 lm
- Measured luminous flux (without lens) 5,740 lm
- Measured luminous flux (with lens) 4,133 lm
- LEDs type CREE XP - E2 Amber
- Temperature
- LEDs number 28pcs
- Product size LxWxD (in) 31 x 0.75 x 1.63
30in SLIM light bar
White with Amber DRL
- Beam Pattern Spot
- Theotetical max power 140watts
- Actual power 76watts
- Voltage/current main DC12v/6.3A
- Voltage/current backlight 4.3W/0.36A
- Theoretical max luminous flux 16,380 lm
- Measured luminous flux (without lens) 8,848 lm
- Measured luminous flux (with lens) 6,380 lm
- LEDs type CREE XTE
- Temperature 6000k
- LEDs number 28pcs
- Product size LxWxD (in) 31 x 0.75 x 1.63
We have a lifetime warranty on our light kits. We truly want our truck enthusiastic customers to enjoy their products as much as we enjoy designing them. However, we also understand that different situations arise with brackets or lights. For more information about our warranty and disclaimer click here.
*M&R Automotive is not responsible for misuse or improper installation of the product. Professional installation is recommended.
Customer Reviews

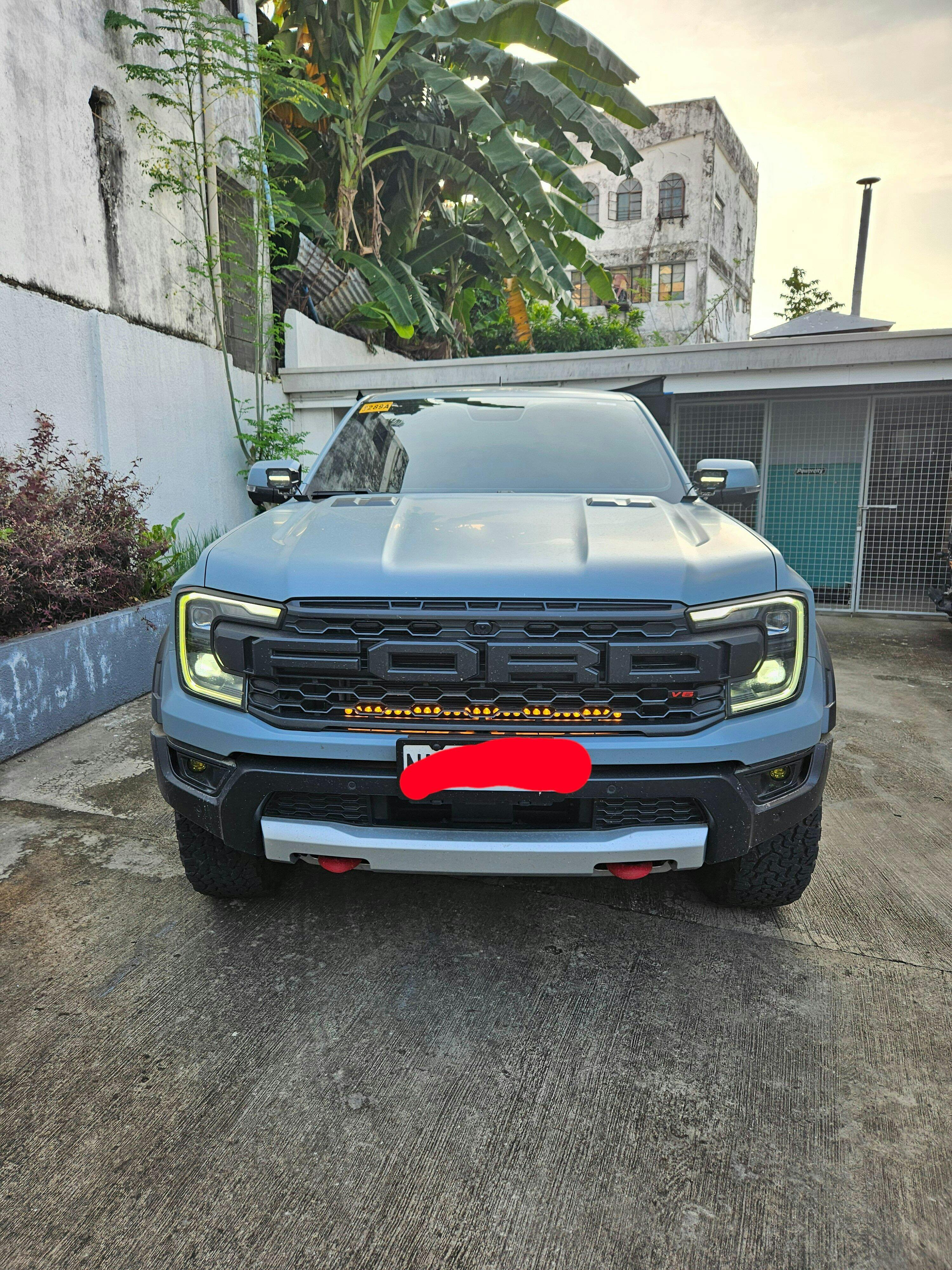

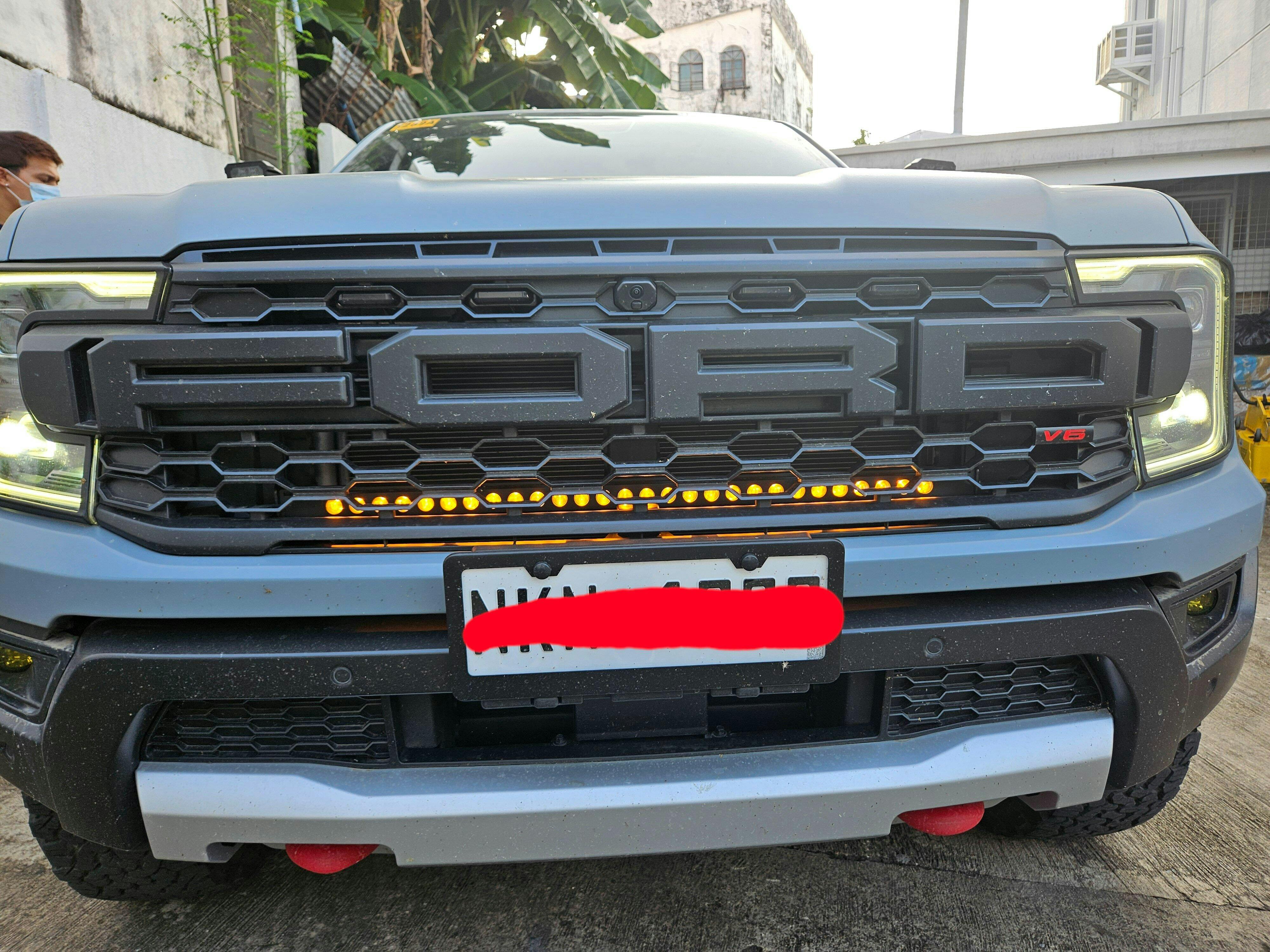

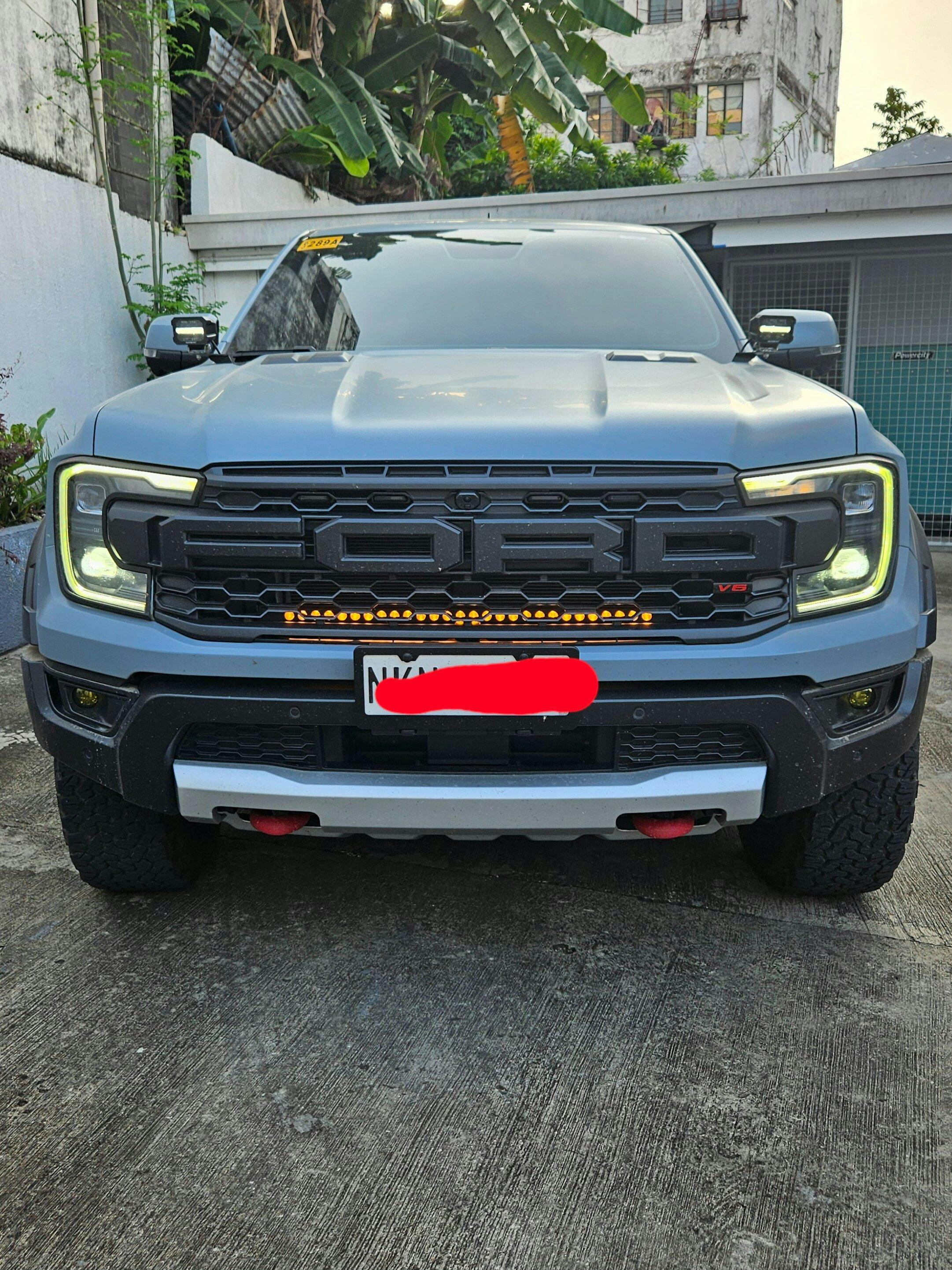

The amber lights are great, easy to install and out of sight until you want them
Good quality product. Recomendable

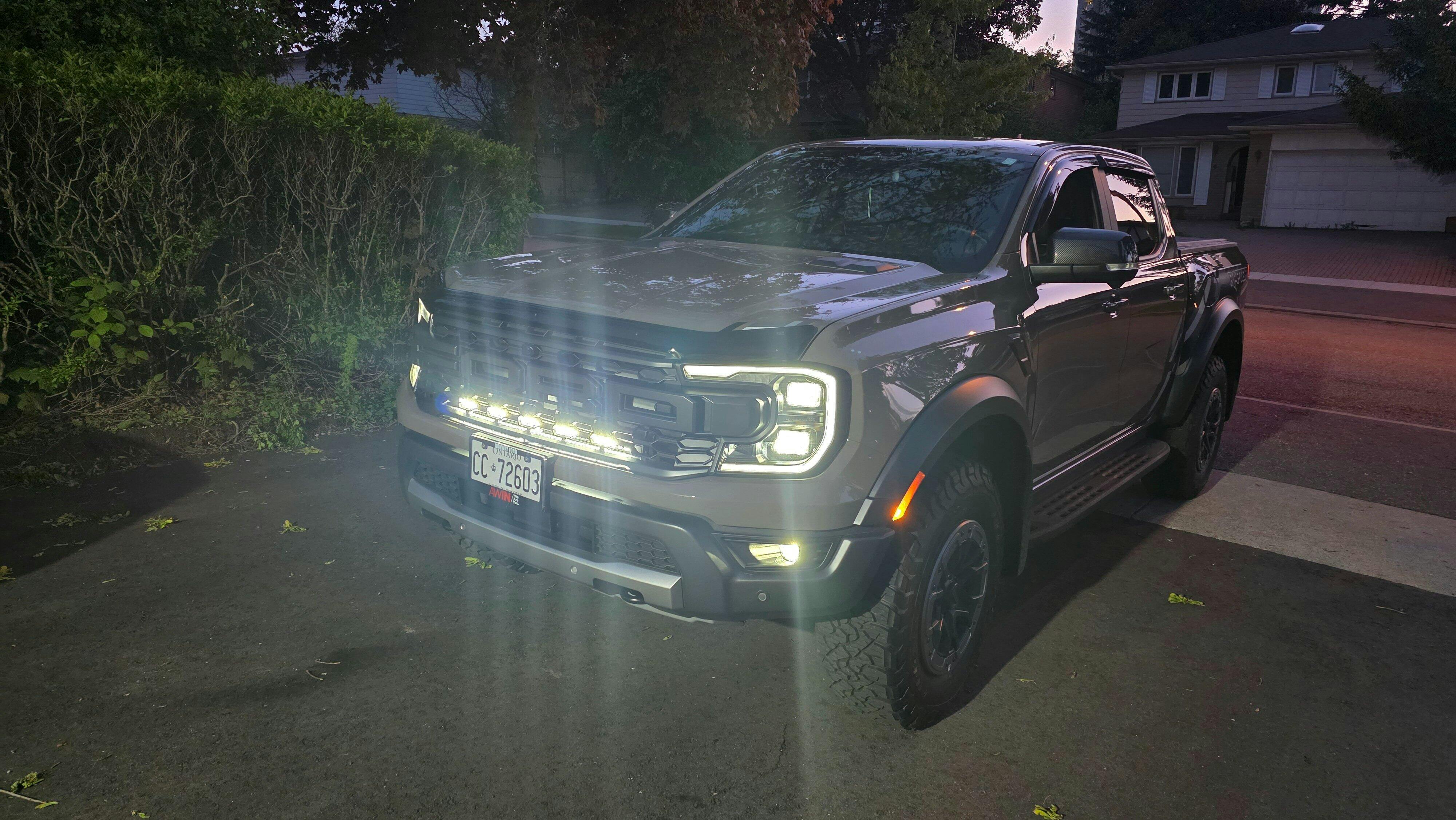

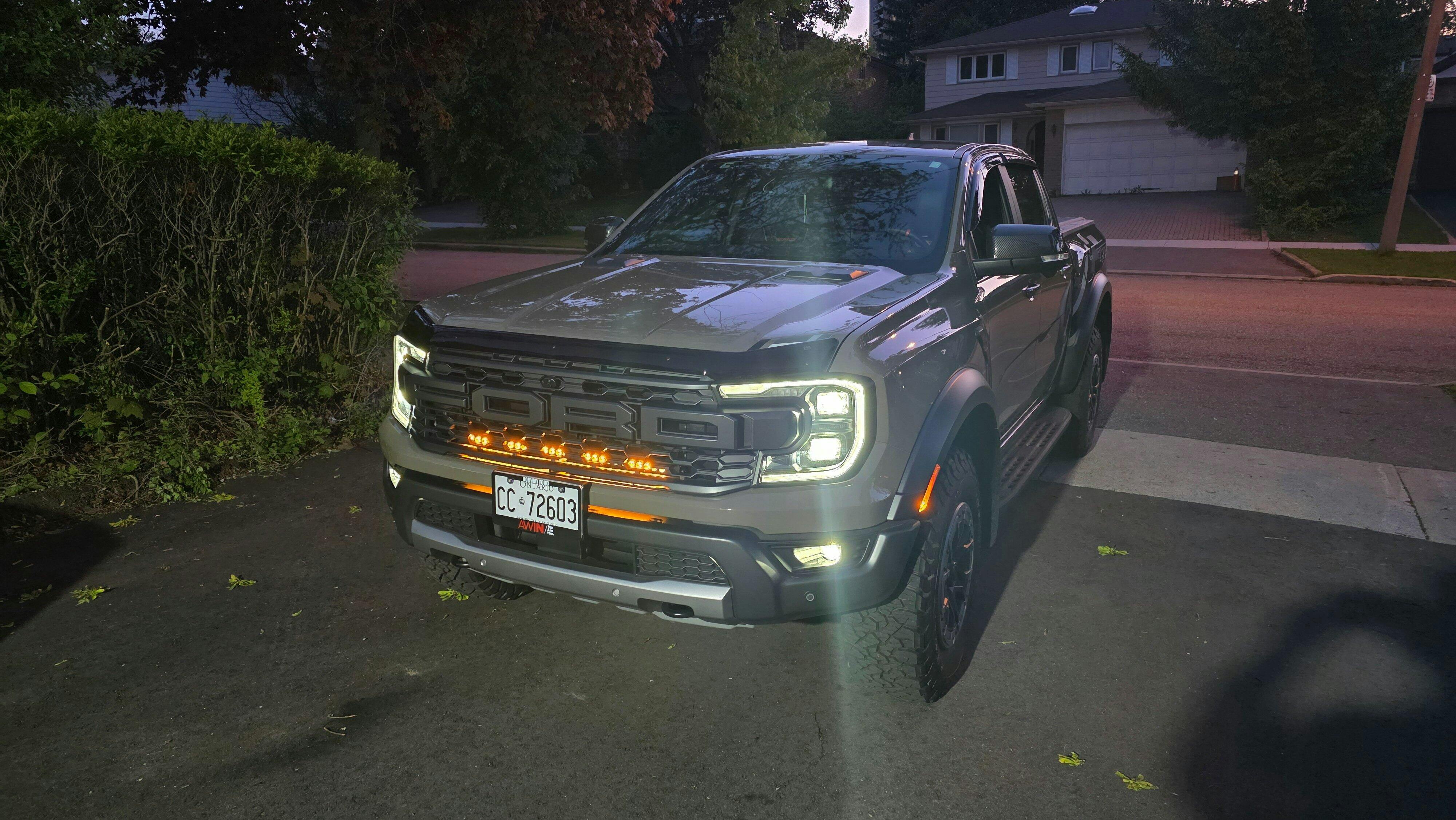

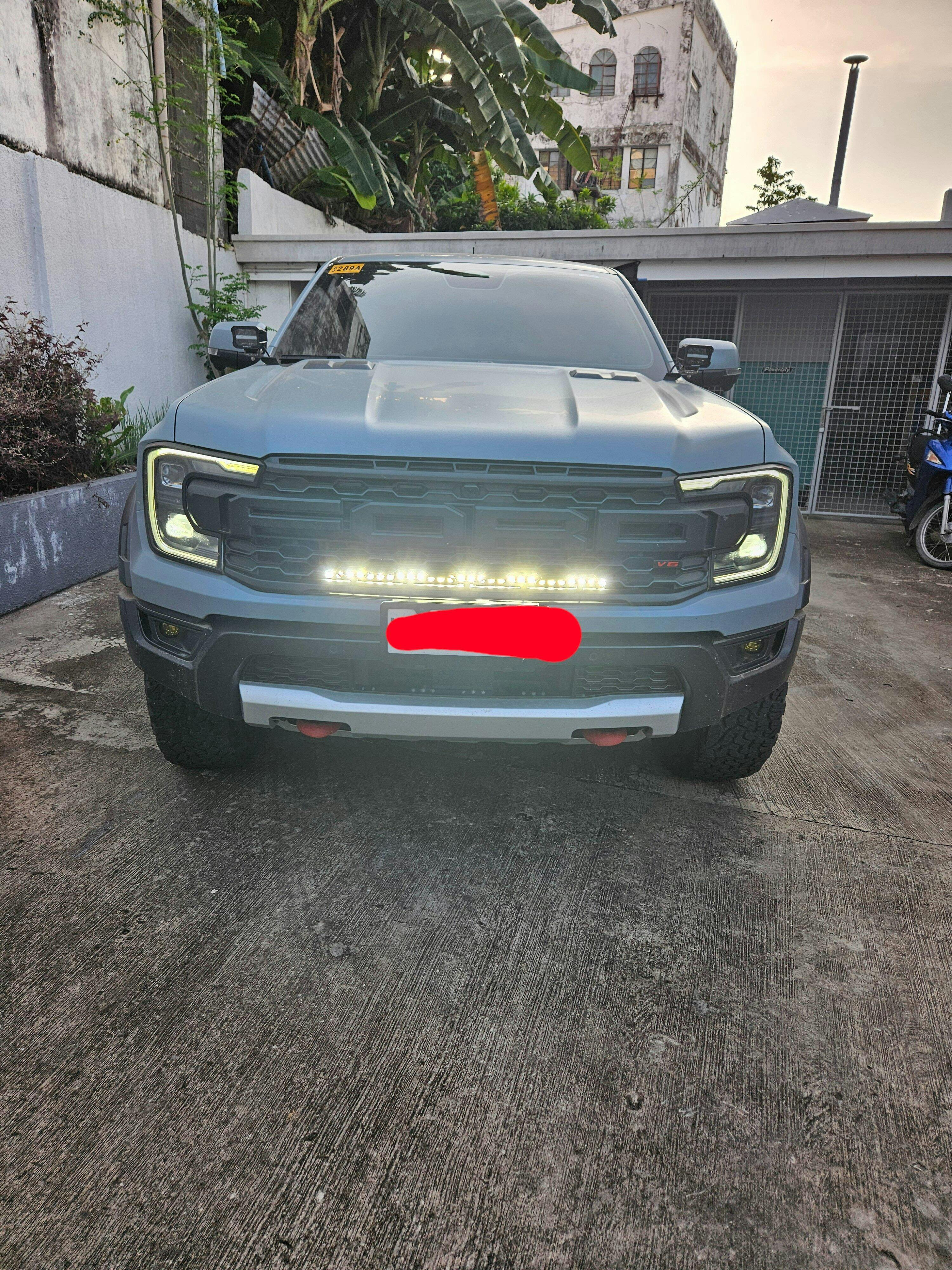

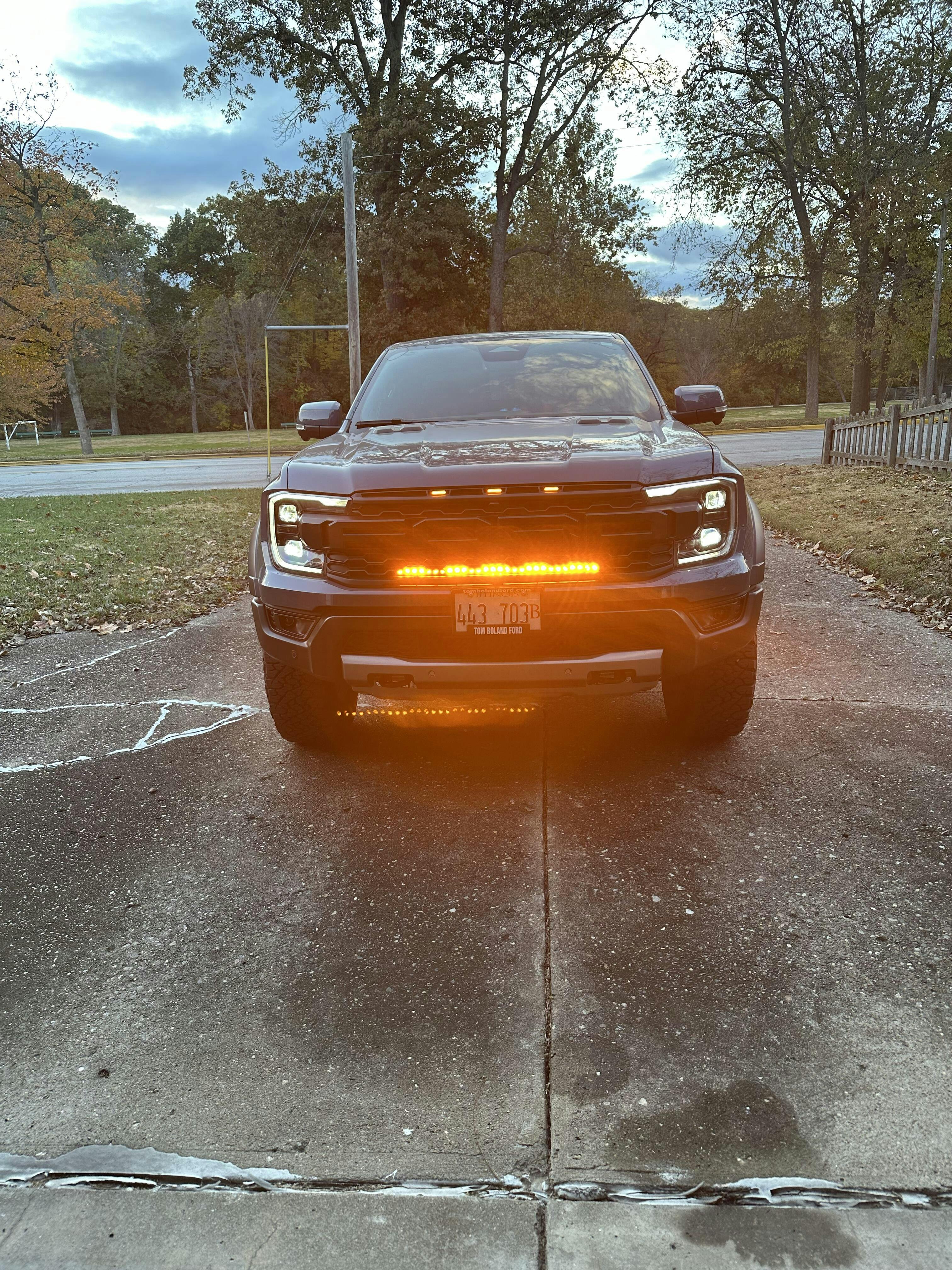

Got the 30 inch light bar with the drl function. Installation following the video is so easy no one can mess it up. I went with the drl option on the bar so I hook the yellow wire to aux 2 and the red wire to aux 6.
Great product with easy online installation instructions. Final install is made to look like it was meant to be there from the factory.
