icon 2024+ Ford Ranger Raptor Reverse Light
Search
Cart (0)
Search Close
$229.99
  • Product Description
  • Shipping & Warranty

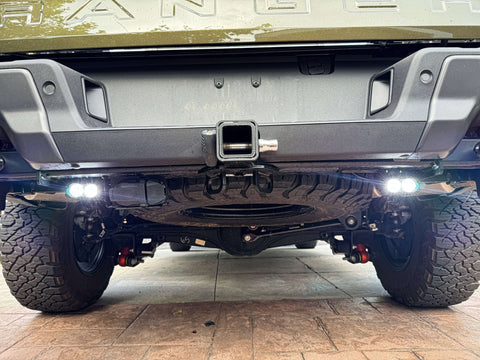

Fits 2024 2025 Ford Ranger Raptor

Fits 2022 and 2023 Next Gen Ranger Raptors (Non-USA versions)

  • Driving/Flood Pattern: longer and wider beam focuses for illumination further down the trail or road as well as peripheral angles
  • White LED light

  • Each Pod provides the following:

    ·         Theoretical max power 20watts

    ·         Actual power 19.8watts

    ·         Main White light is 2.06amps at 12v

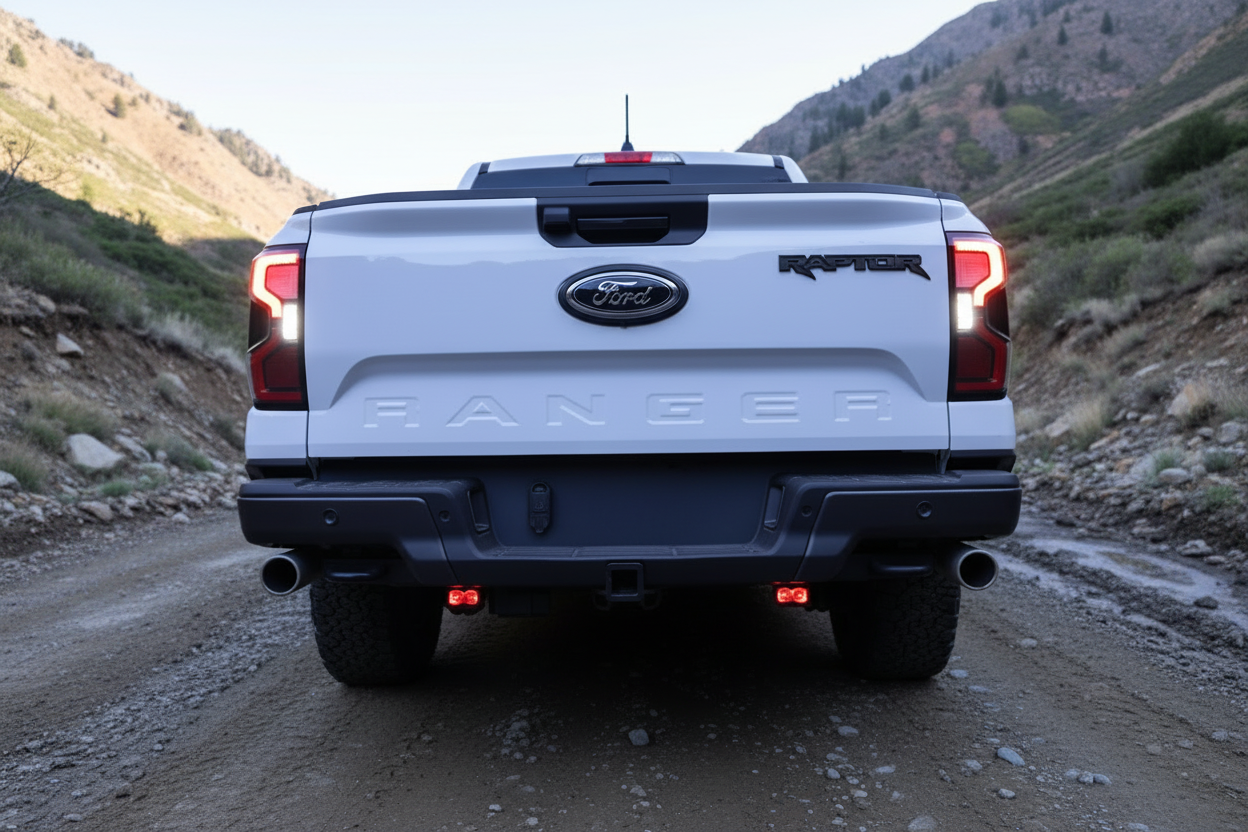

    ·         Backlight Amber is 0.03amps at 12v

    ·         Theoretical max luminous flux 2,184 lm

    ·         Measured luminous flux (without lens) 1,970 lm

    ·         Measured luminous flux (with lens) 1,474 lm

    ·         LEDs type: luminus SST-20 Ra70

    ·         Temperature: 6000k

    ·         LEDs number: 2pcs

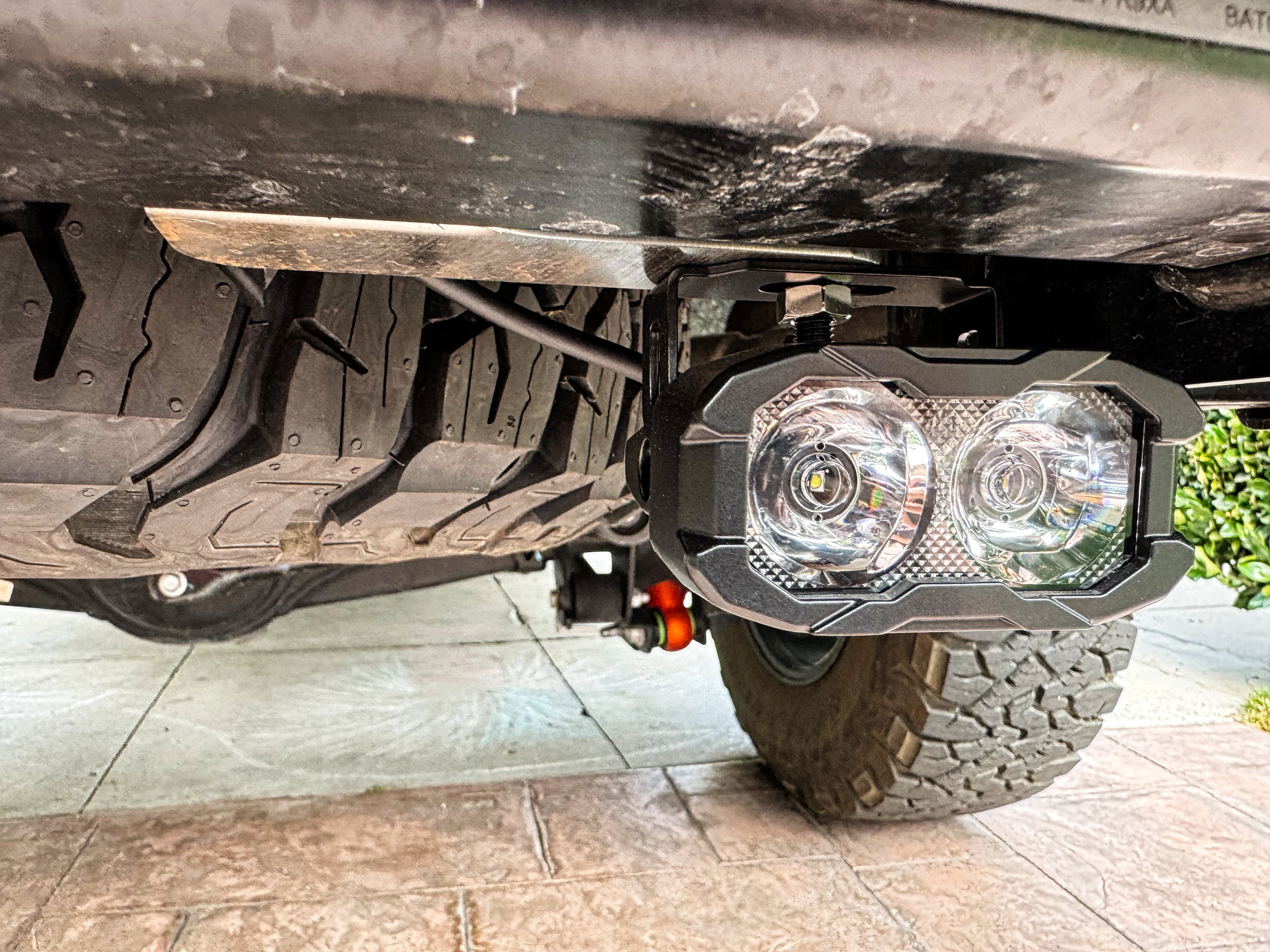

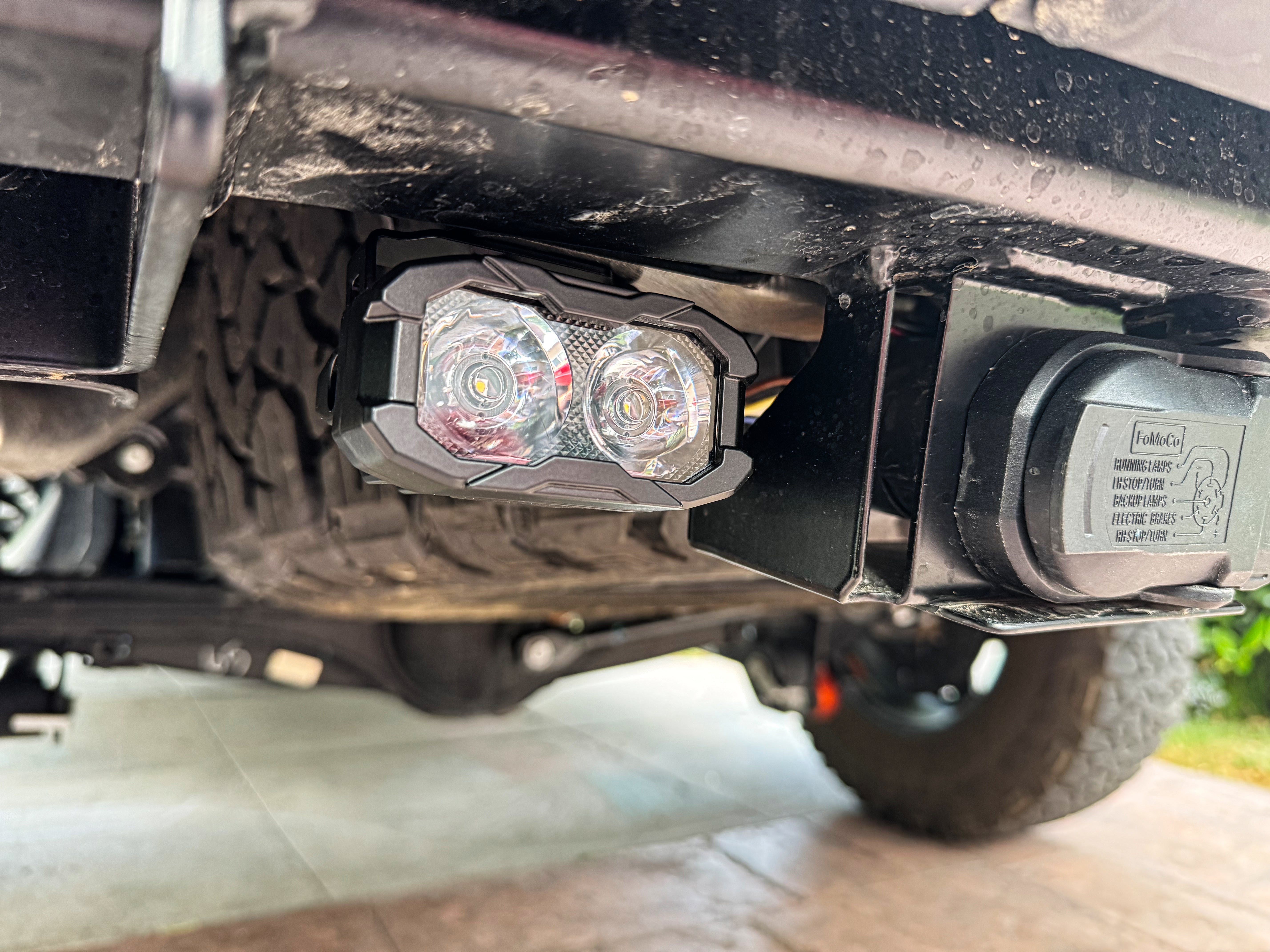

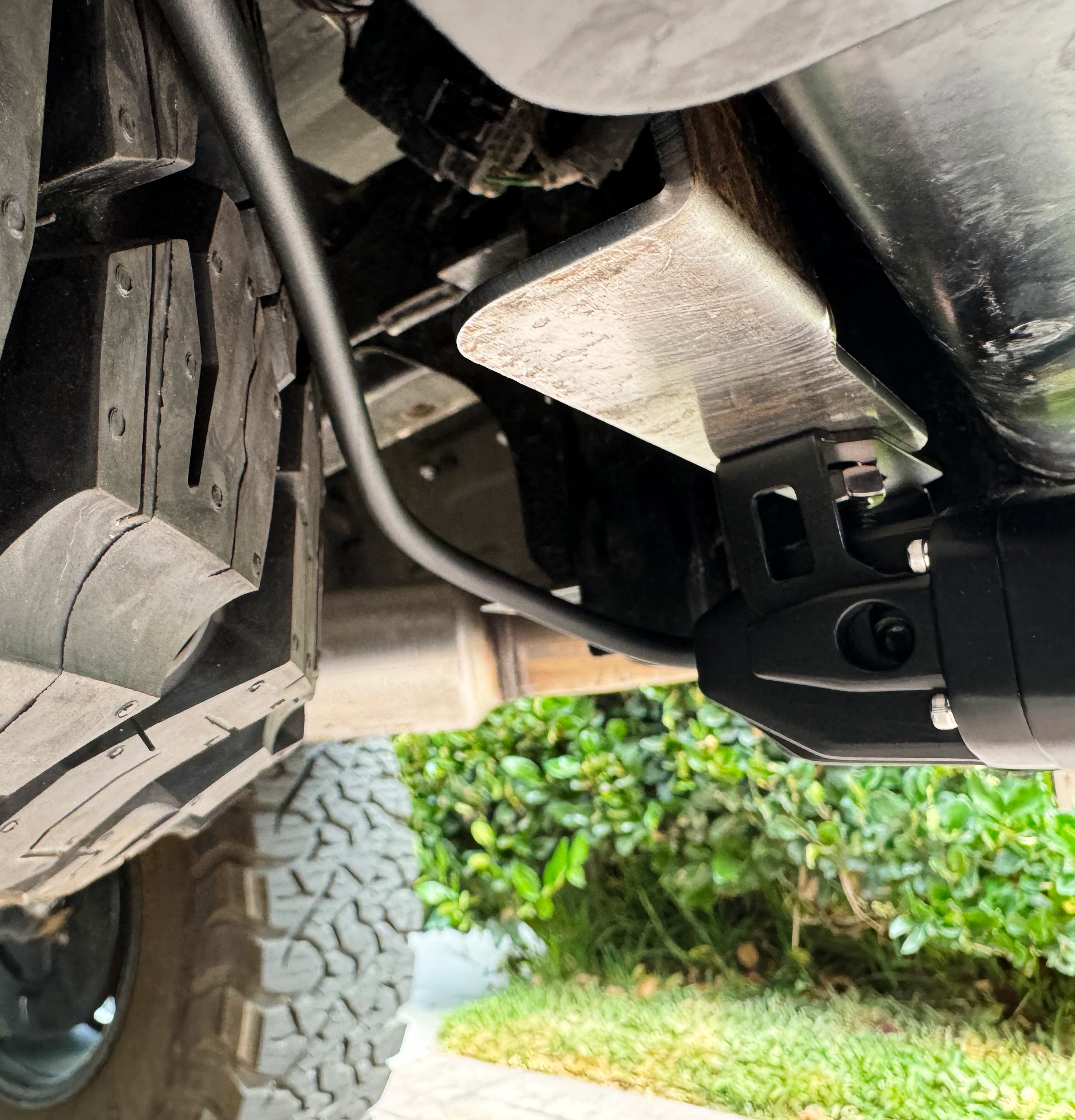

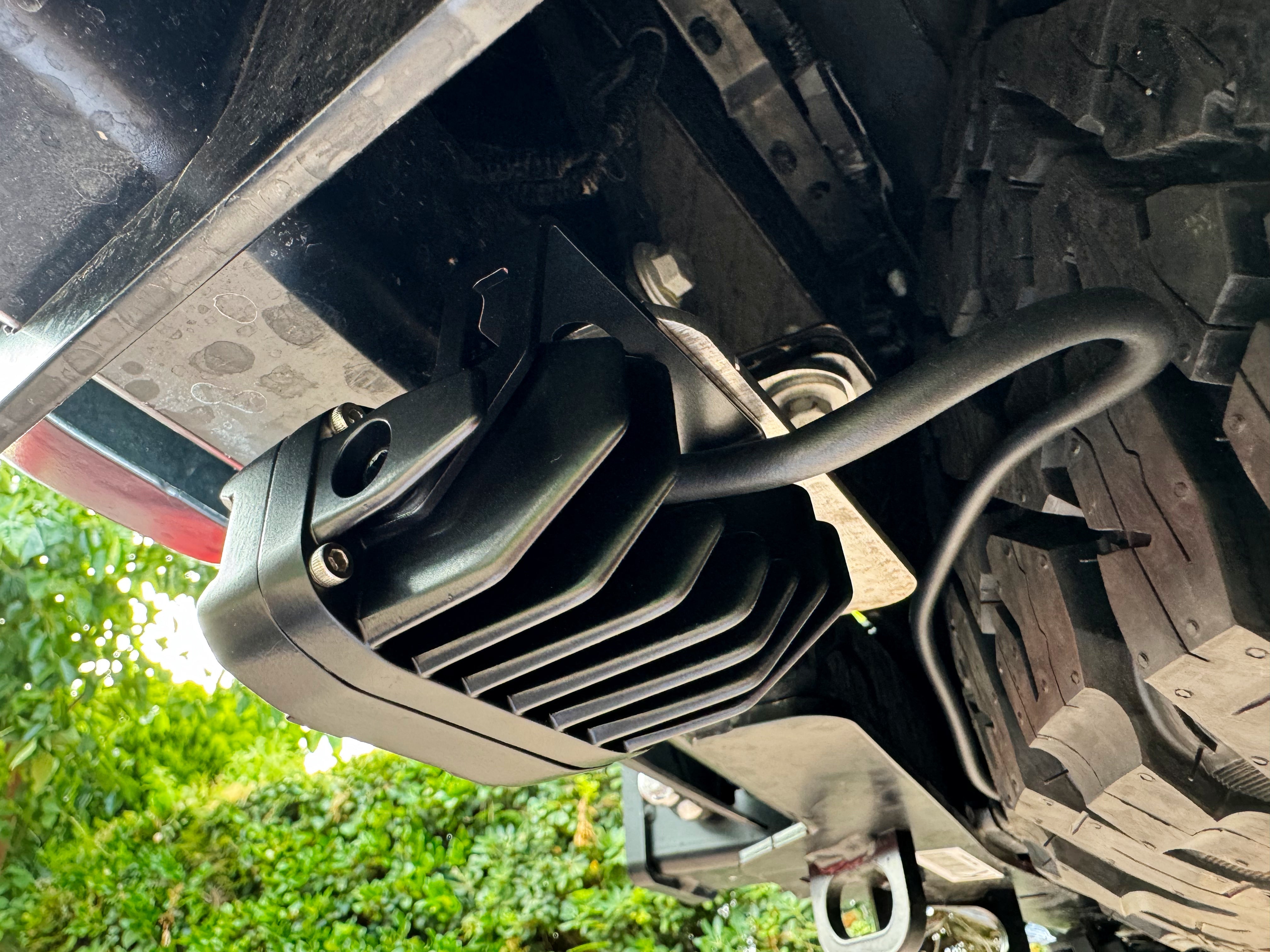

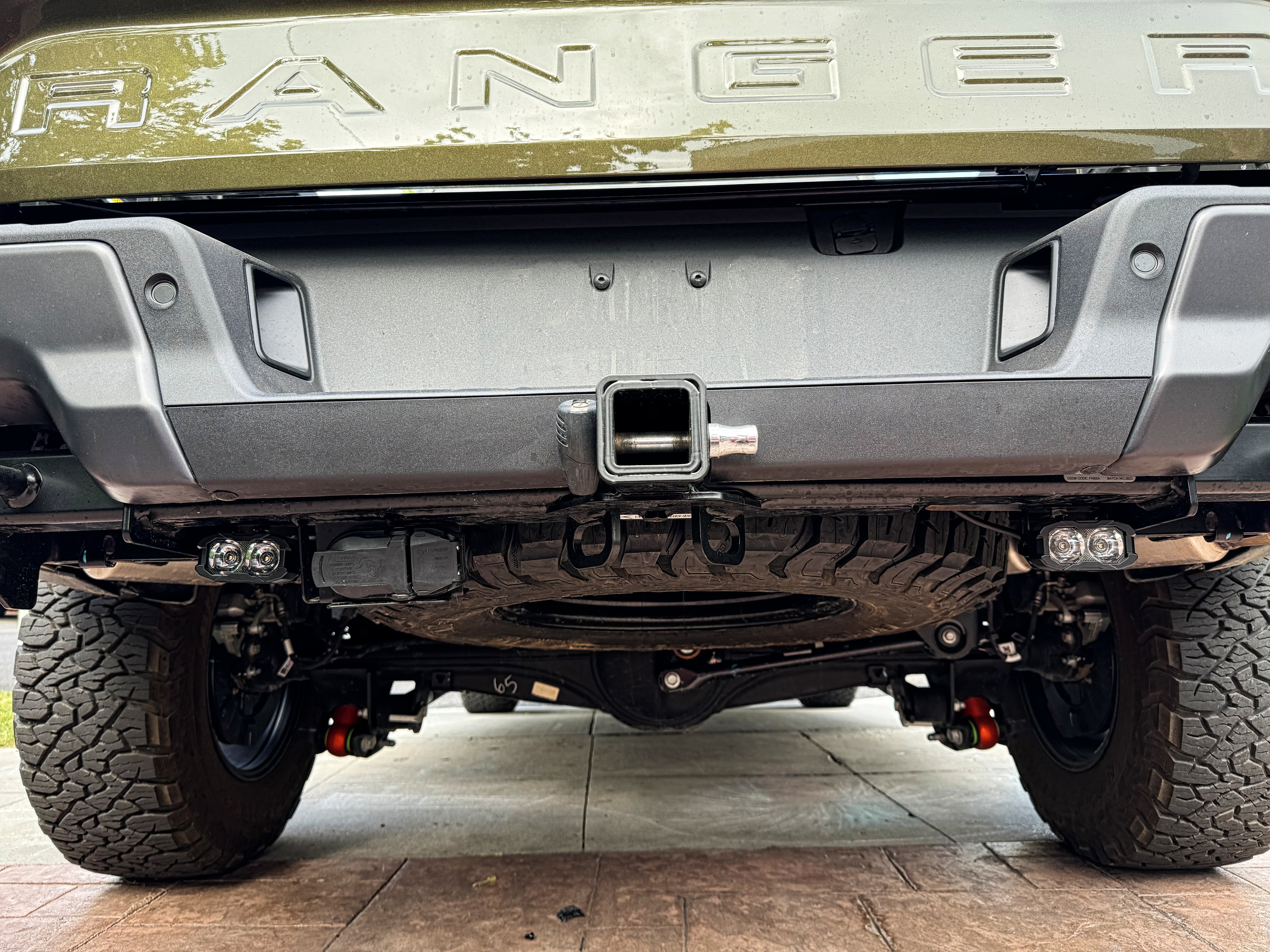

  • Each LED light pod is attached to a metal bracket on each side
  • Size: 3.2in wide x 2.8in depth

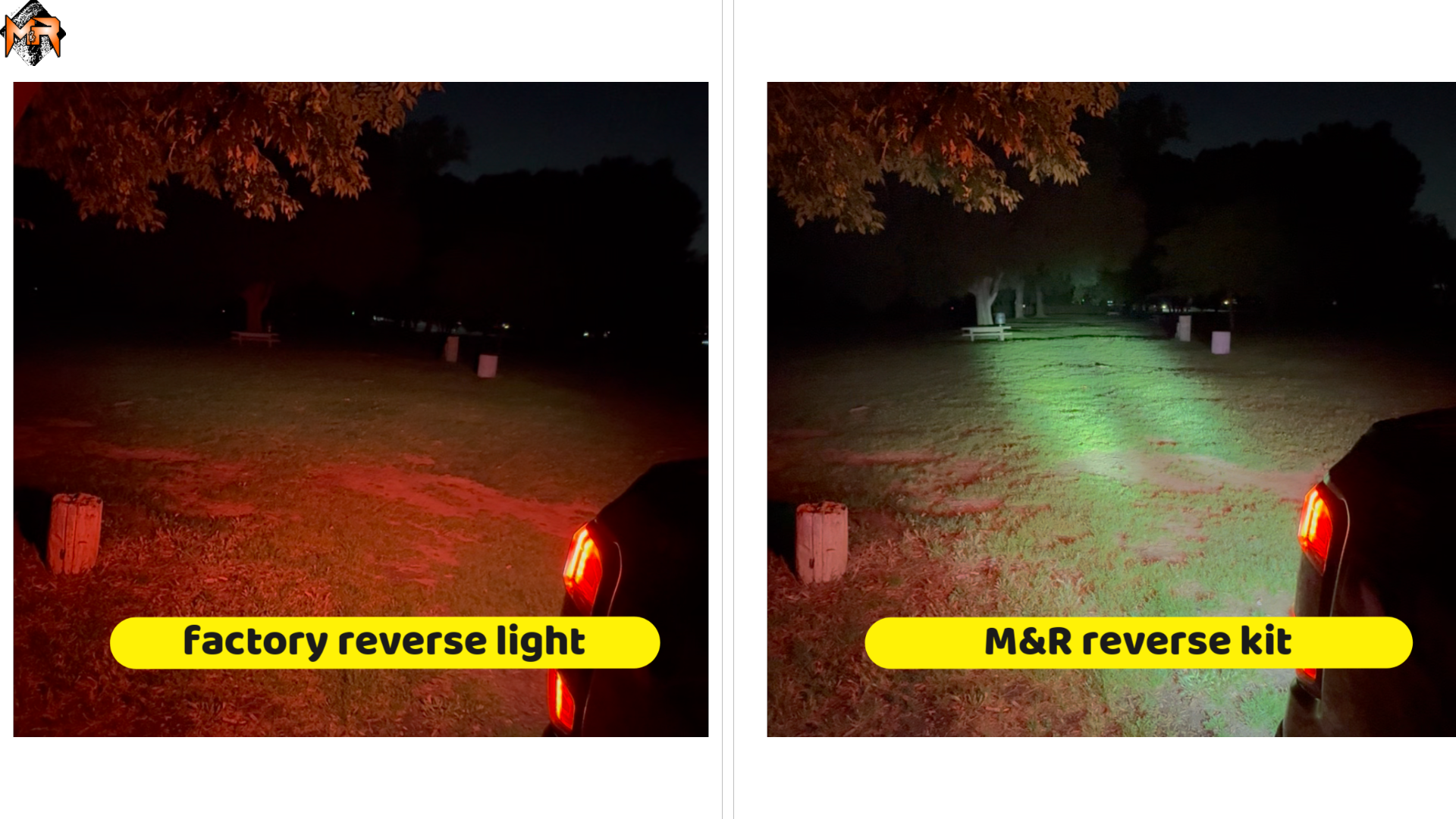

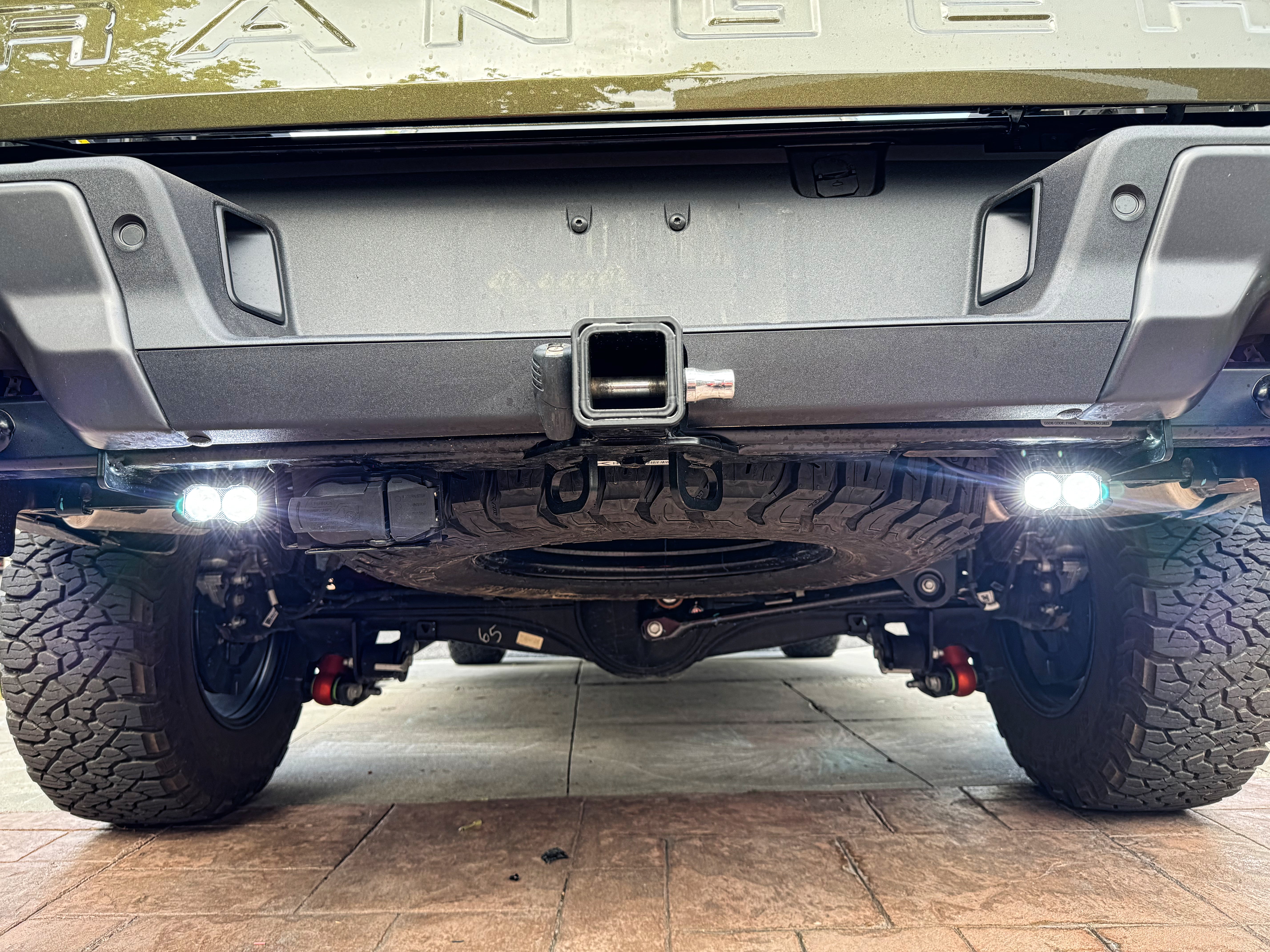

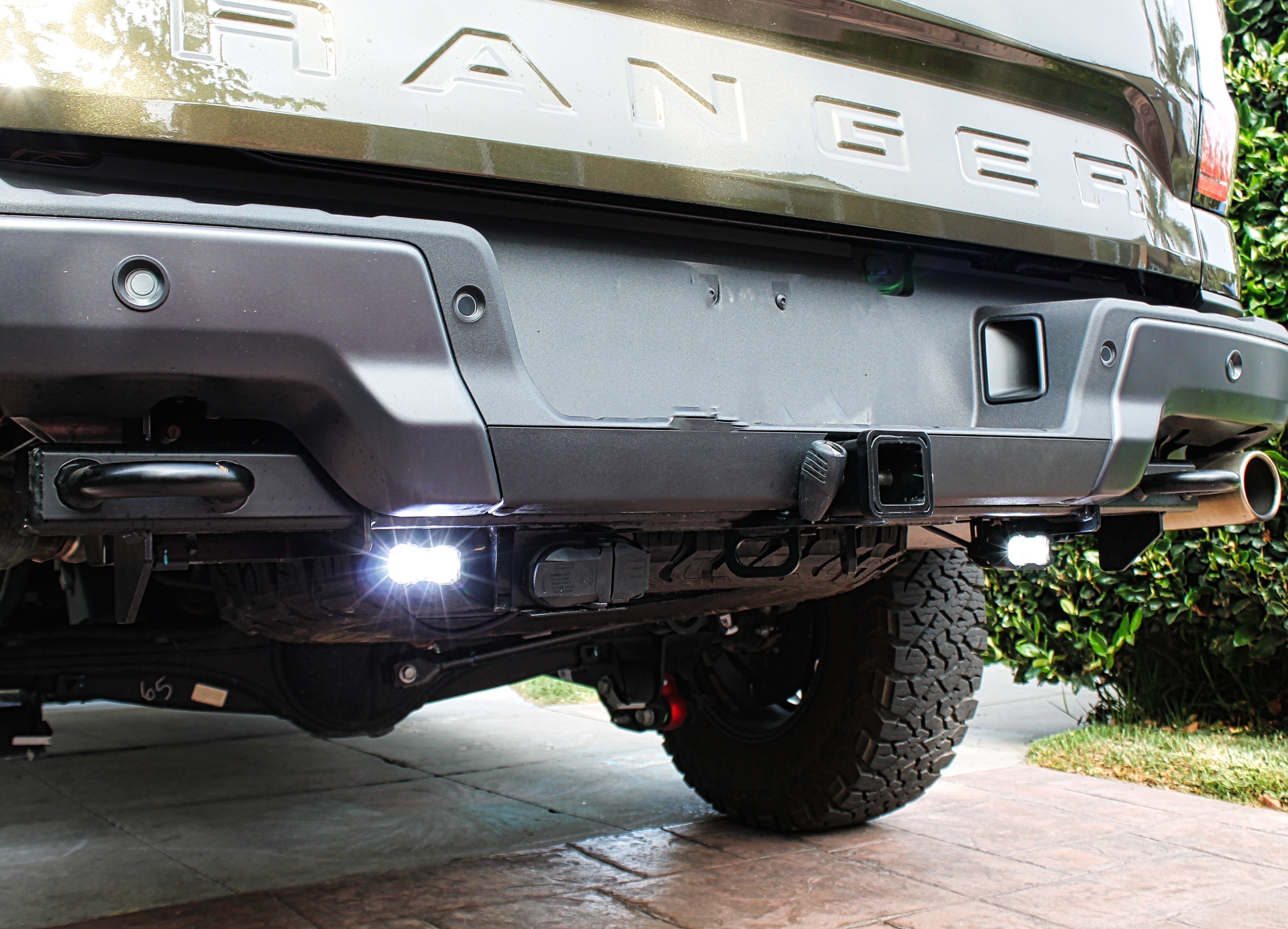

  • This in addition to factory reverse light. The factory reverse light doesn't provide enough light output at night. Install M&R reverse light with powerful white LED light that makes a huge difference.
  • Uses rear AUX wires or can tap into factory reverse wires
  • No cutting or drilling required. The kit is a complete bolt on
  • Metal bracket is powder coated black



Introducing our brand new LED lenses-PRO series with a unique appearance and optimal performance.

  • Uses TIR (Total Internal Reflection) lens is different from the conventional optics parts, which lose some light internally and produce glare. The TIR lens collects all of the light from the LED and directly leads them to where you need, drastically reducing glare and improving total efficiency.
  • Higher light efficiency: brighter, longer irradiation distance
  • Housing is upgraded to 304 aluminum. The surface is UV polyester powder coated to prevent against UV, salt water, corrosion, fading and scratch resistant.
  • Equipped with thermal management system that automatically adjusts the brightness output according to the external temperatures

👍Our light kits are for off-road use only.

WHAT'S INCLUDED?

(2) light pods

(2) mounting brackets

All mounting hardware

WIRING

M&R Automotive doesn’t provide a wiring harness. The light pods have 2ft of wire which is enough to reach rear AUX switches if your truck has them. Otherwise, you will need to purchase a generic wiring harness from Amazon/Ebay or create your own.


For this install, we used rear AUX switches. If you don't have AUX, we recommend using a wireless wiring harness. This makes it an easy, clean install since you don't have to run wires inside the cab.

Sale Off
wireless wiring harness 1.0

INCLUDES:

  • Rechargeable wireless controller, USB Type-C connector
  • Mounting plate that you attach to your preferred place inside the vehicle. The remote is magnetic for easy operation.
  • Sticker page to change the key icon to match the device connected to the control box.

Wireless Connectivity: With advanced wireless technology, connect and power various accessories without the need for traditional wiring. Enjoy a cleaner and more organized interior.  Wireless remote stays inside your vehicle without the need to run a wire through the firewall.

8 Switches: Total of 8 circuits: (2) 5amps, (2) 10amps, (2) 20amps, (2) 30amps

  • Max power: 1200watts
  • Max current Rating: 80amps
  • Voltage: DC 12V-24V

Plug-and-Play Compatibility: Installing accessories has never been easier. Designed with a user-friendly, plug-and-play interface, eliminating the need for complex wiring setups. Simply connect your accessories to the panel and you're ready for an adventure.



Universal Compatibility: Whether you're adding LED lights, off-road equipment, or other accessories, our wireless wiring harness is universally compatible. Seamlessly integrates with your vehicle's electrical system.



Enhanced Safety: Reduce the risk of electrical issues and potential hazards associated with traditional wiring systems. Engineered with safety in mind, featuring built-in safeguards to protect against overloads, short circuits, and other electrical mishaps.



Weatherproof Design: Built to withstand the toughest conditions, it is fully weatherproof. It has a rubber gasket around the fuse box and covered in epoxy.

$169.99
Sale Off
wireless wiring harness 2.0

➡️Special Features (only featured in this wireless 2.0)



Sleep Mode (Power-Saving Mode): If the input voltage of the Control Box falls below 13V (±0.2V), the Control Box will enter the sleep mode after 6 hours (default) of consecutively inactivity, then all loads will be shut down immediately and the Control Box will not respond to any commands from the Wireless Control Panel. When the input voltage rises above 13V (±0.2V), the Control Box will be awoken.

Low Voltage Protection: If the input voltage of the Control Box falls below 12.2V (±0.2V), the Control Box will enter the low voltage timing mode. After exceeding 30 minutes, the Control Box will start the low voltage protection, then all loads will be shut down immediately and the Control Box will not respond to any commands from the Wireless Control Panel.  When the input voltage rises above 13V (±0.2V), the Control Box will exit the low voltage protection.

Ultra-Low Voltage Protection: If the input voltage of the Control Box falls below 11.6V (±0.2V), the Control Box will enter the ultra-low voltage timing mode. After exceeding 10 seconds, the Control Box will start the ultra-low voltage protection, then all loads will be shut down immediately and the Control Box will not respond to any commands from the Wireless Control Panel. When the input voltage rises above 13V (±0.2V), the Control Box will exit the ultra-low voltage protection.

High Temperature Protection: If the temperature at the center of the Control Box's circuit board exceeds 100°C (±5°C), the Control Box will start the high temperature protection and immediately shut down all loads.





➡️Wireless Harness Specs

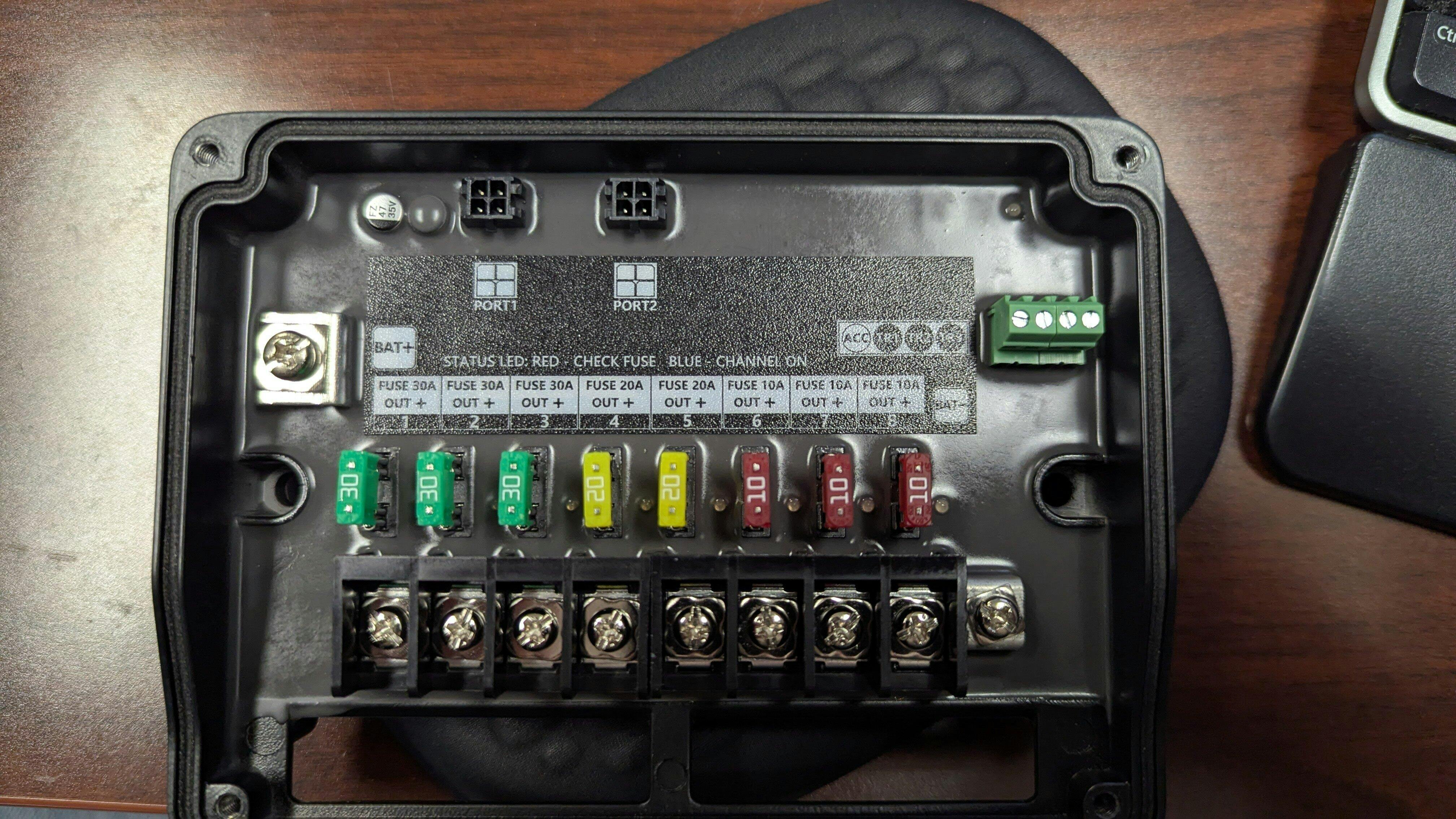

The main control box has 8 circuits, ranging in different amps.

(3) 10amps

(2) 20amps

(3) 30amps



The fuse box is  made out of high thermal conductivity die-case aviation aluminum housing. Allowing it to resist high-intensity impacts and is fully suitable for extreme off-road conditions. The surface is powder coated with UV-resistant polyester for weather resistance. The internal two-component thermally conductive mixture conducts and dissipates the heat generated by the circuity more quickly and effectively.





INCLUDES:

  • Rechargeable wireless controller, USB Type-C connector
  • Mounting plate that you attach to your preferred place inside the vehicle. The remote is magnetic for easy operation.

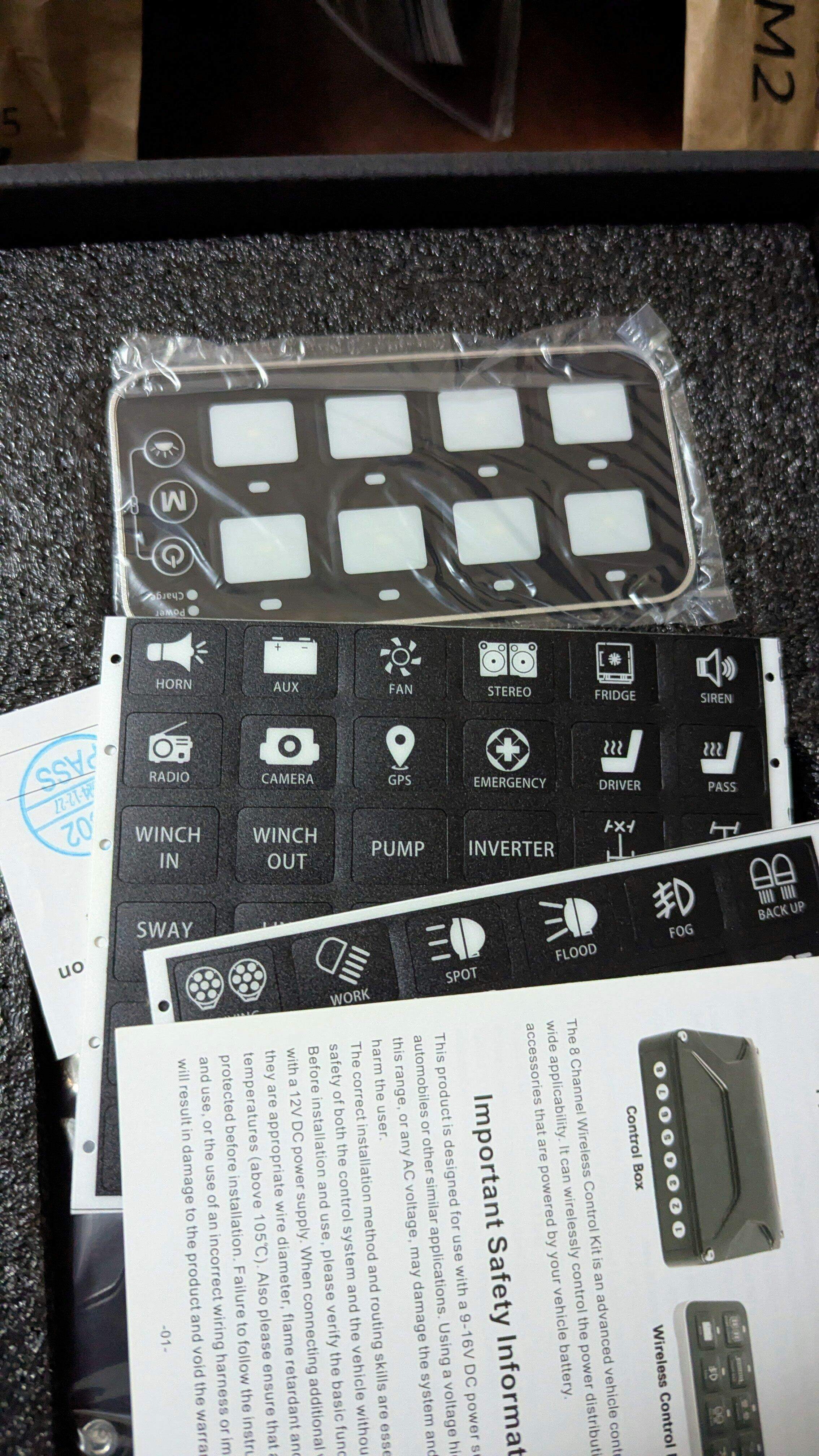

  • Sticker page to change the key icon to match the device connected to the control box.

Wireless Connectivity: With advanced wireless technology, connect and power various accessories without the need for traditional wiring. Enjoy a cleaner and more organized interior.  Wireless remote stays inside your vehicle without the need to run a wire through the firewall.



8 Switches: Total of 8 circuits: (3) 10amps, (2) 20amps, (3) 30amps

  • Max power: 1200watts
  • Max current Rating: 100amps
  • Voltage: DC 12V-24V



Plug-and-Play Compatibility: Installing accessories has never been easier. Designed with a user-friendly, plug-and-play interface, eliminating the need for complex wiring setups. Simply connect your accessories to the panel and you're ready for an adventure.



Universal Compatibility: Whether you're adding LED lights, off-road equipment, or other accessories, our wireless wiring harness is universally compatible. Seamlessly integrates with your vehicle's electrical system.



Enhanced Safety: Reduce the risk of electrical issues and potential hazards associated with traditional wiring systems. Engineered with safety in mind, featuring built-in safeguards to protect against overloads, short circuits, and other electrical mishaps.



Weatherproof Design: Built to withstand the toughest conditions, it is fully weatherproof. It has a rubber gasket around the fuse box and covered in epoxy.

$214.99



INSTALLATION INSTRUCTIONS

All domestic (USA) orders are free shipping via USPS or UPS, depending on product size.
We typically ship in 3-7 business days. If we are anticipating a delay with your shipment due to availability of the product, we will reach out to you via email.

Canada, international or express shipping costs are calculated at checkout.

You will receive an email with tracking number when your order is shipped.

If you have a special request about your order, reach out, we try to accommodate as much as we can.

For a complete shipping policy click here.


We have a lifetime warranty on our light kits. We truly want our truck enthusiastic customers to enjoy their products as much as we enjoy designing them. However, we also understand that different situations arise with brackets or lights. For more information about our warranty and disclaimer click here.




*M&R Automotive is not responsible for misuse or improper installation of the product. Professional installation is recommended.


Customer Reviews

Based on 8 reviews
88%
(7)
0%
(0)
0%
(0)
13%
(1)
0%
(0)
J
J.N.
Top rated company imho

Great instructional. cannot make it any easier. Thanks Mike.

User picture
J
J.c.j.
Lights not too bright

Brackets are awesome but they don't put out enough light

T
T.C.
Easy to hook up, nice and bright back up lights

The video directions are easy to follow ,took me about an hour at the most. Made a big difference compared to factory lights. Tested them a week ago and made backing up in tight wooded area much easier. Because of these i bpught the 40 inch curved pro too last week.

User picture
M
M.H.

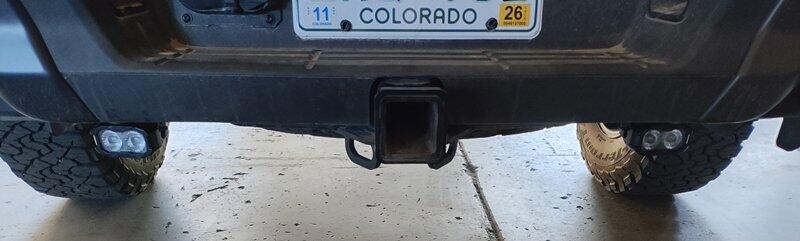

Powerful little guys

Good quality little pod lights! Easy to install yourself (DIY) love them!

User picture User picture User picture User picture
B
B.

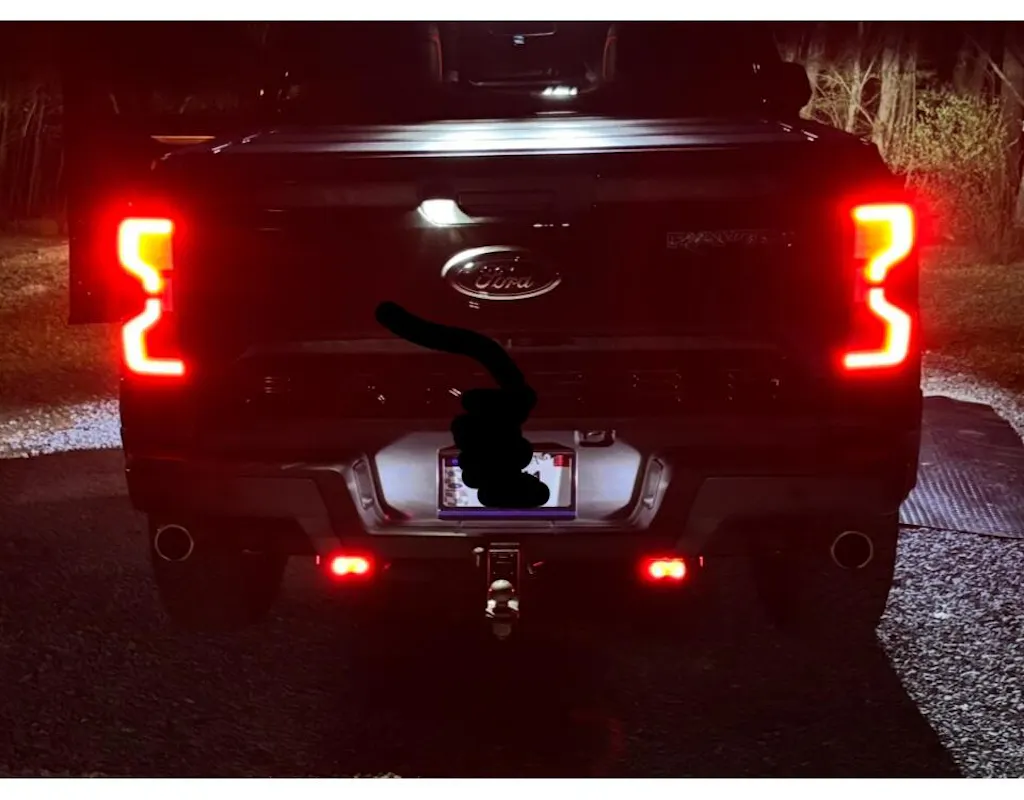

I can see now.

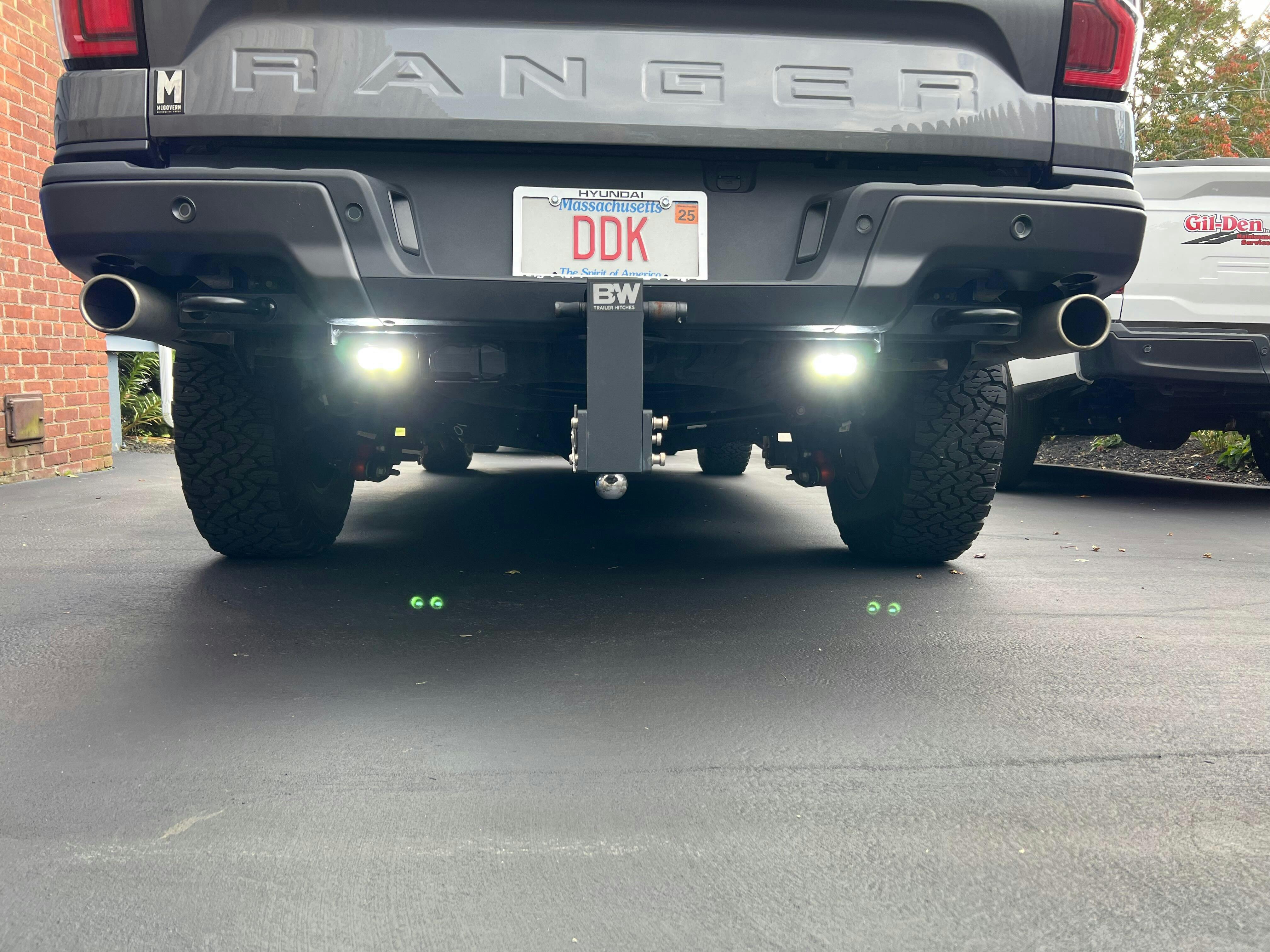

The reverse light pod kit works great. Paired with the Raptor Auxiliary switch setup it gives a clear night view behind the truck independent of the reverse gear. Perfect and easy to install.
