Fits 2025+ RAM 1500 RHO and Rebel model only
This is a new lightbar size for us and requires about 6 weeks for production. You can place your orders now. Shipping around 6/15/2025- 6/31/2025.
- Curved LED light bar PRO

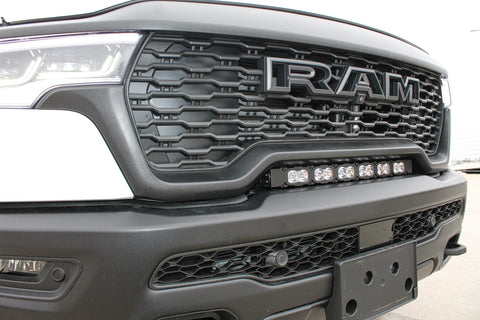

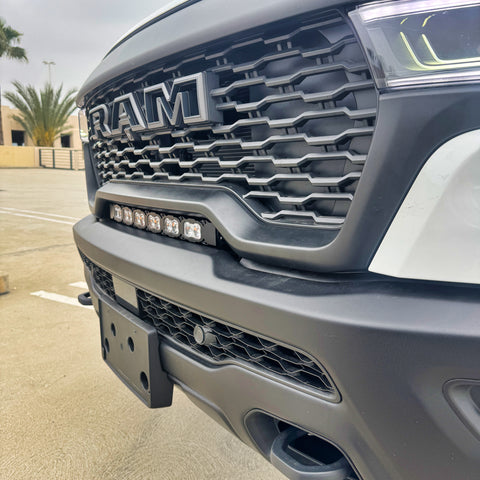

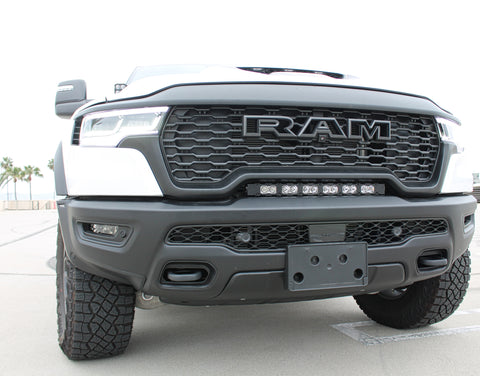

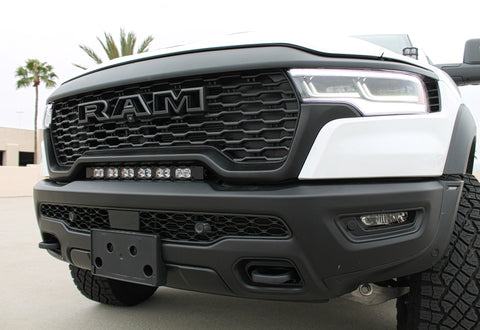

- Fits in between the grille and bumper
-
Slim and sleek, built in look
- Metal bracket is powder coated black
- Must remove grille, but don't need to remove the bumper
- No cutting or drilling required. The kit is a complete bolt on using factory openings and hardware.
- Doesn't interfere with radiator air flow
DUAL COLOR

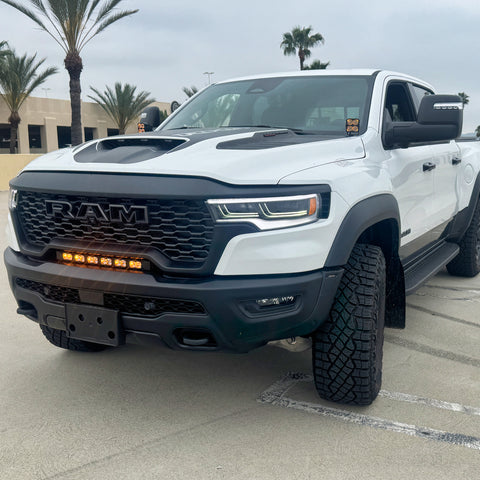

Main White LED Light with Amber DRL (daytime running lights)
-

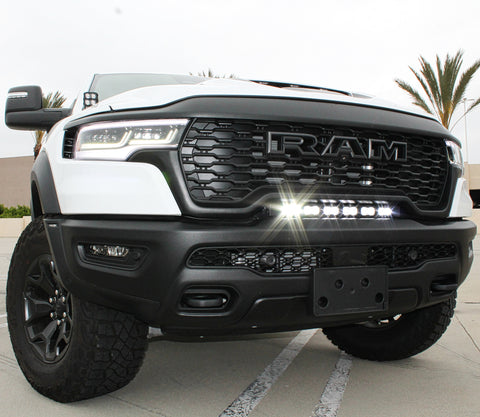

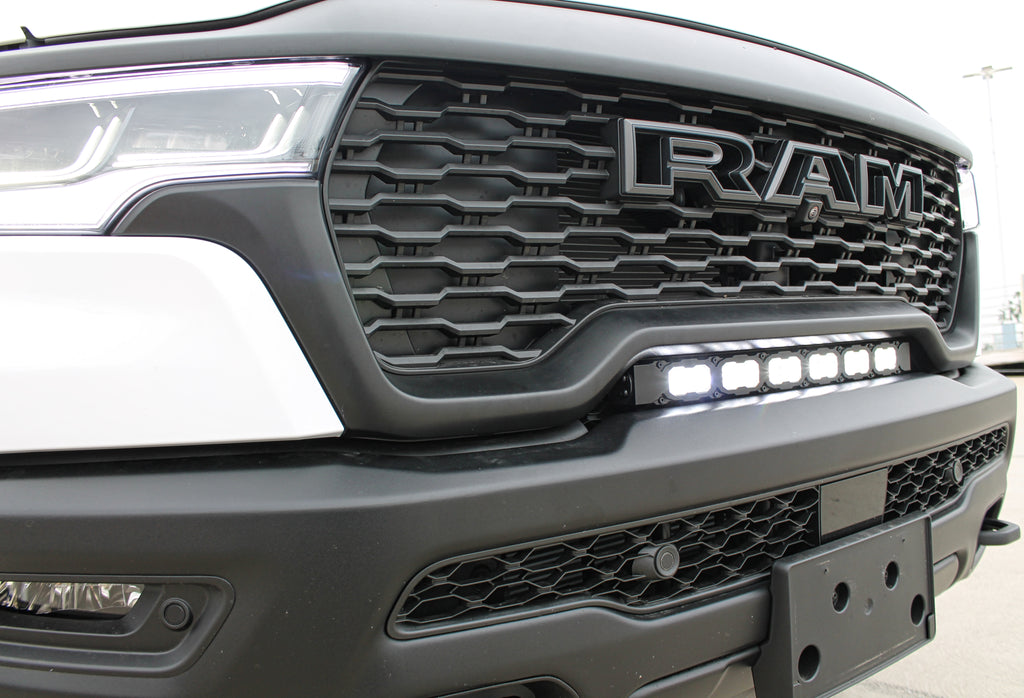

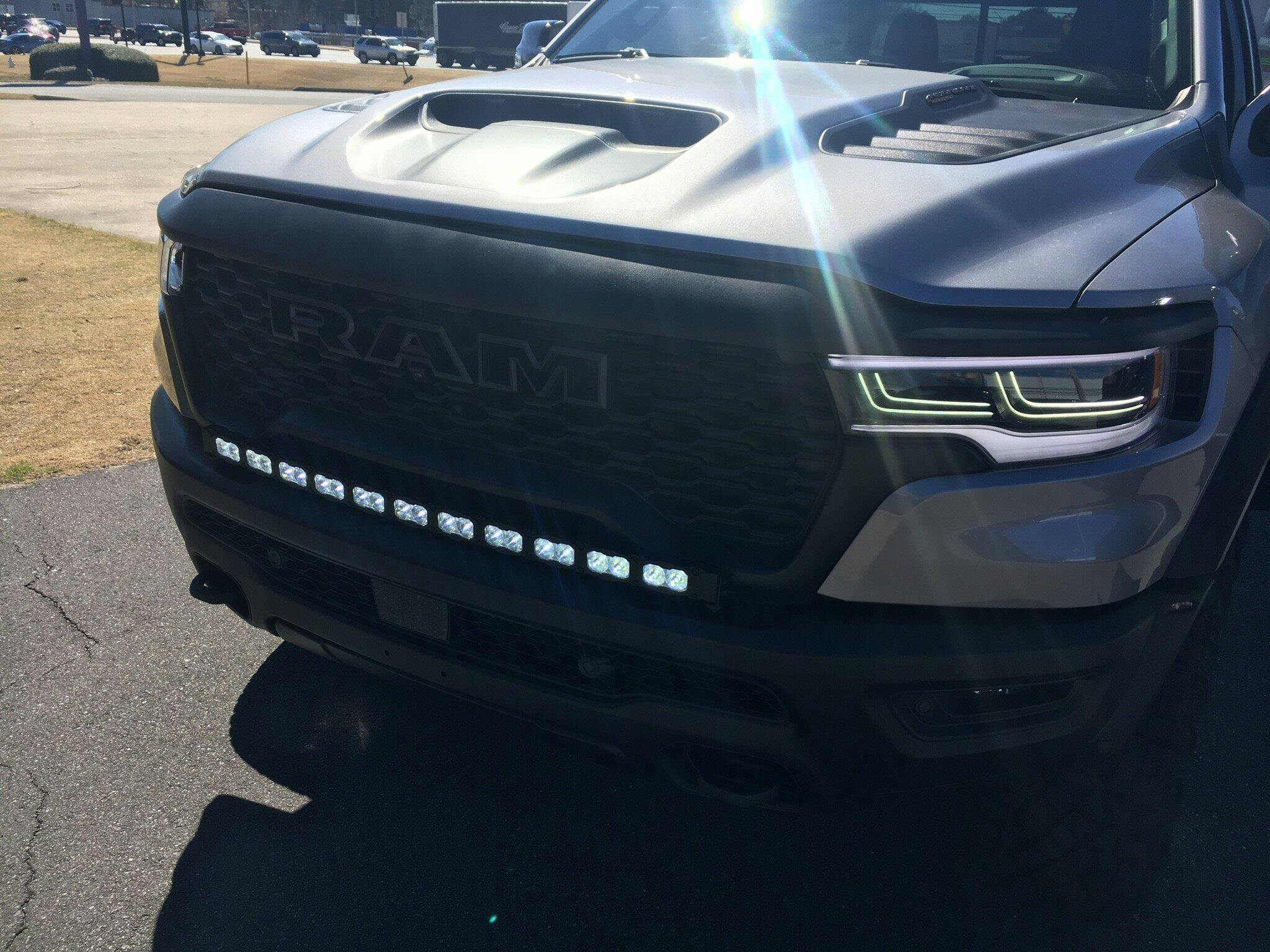

White LED -- Super bright and crisp white beam pattern. It will definitely provide you with enough light needed for all of your adventures. However, these are only for off-roading and can’t be used on the regular road. They will blind the in-coming traffic and also violates road safety.

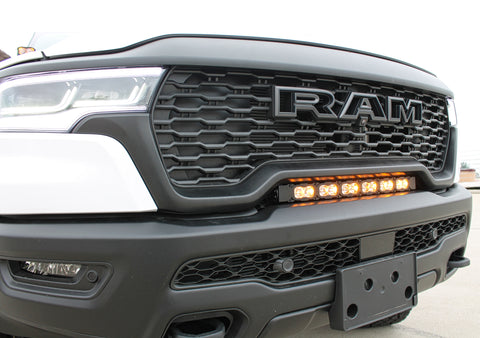

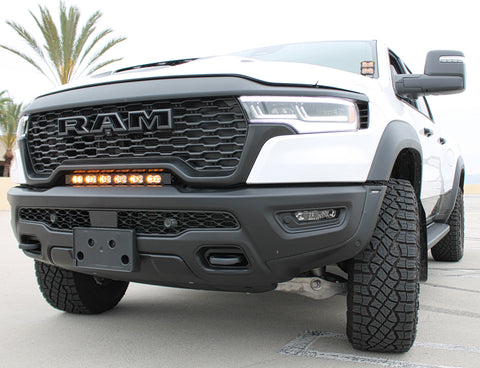

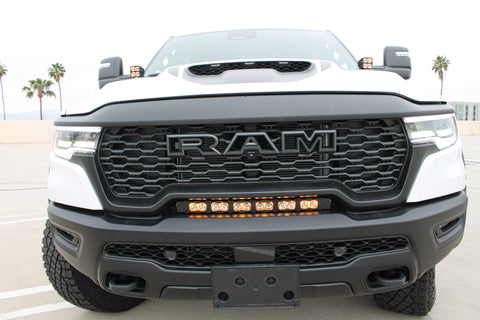

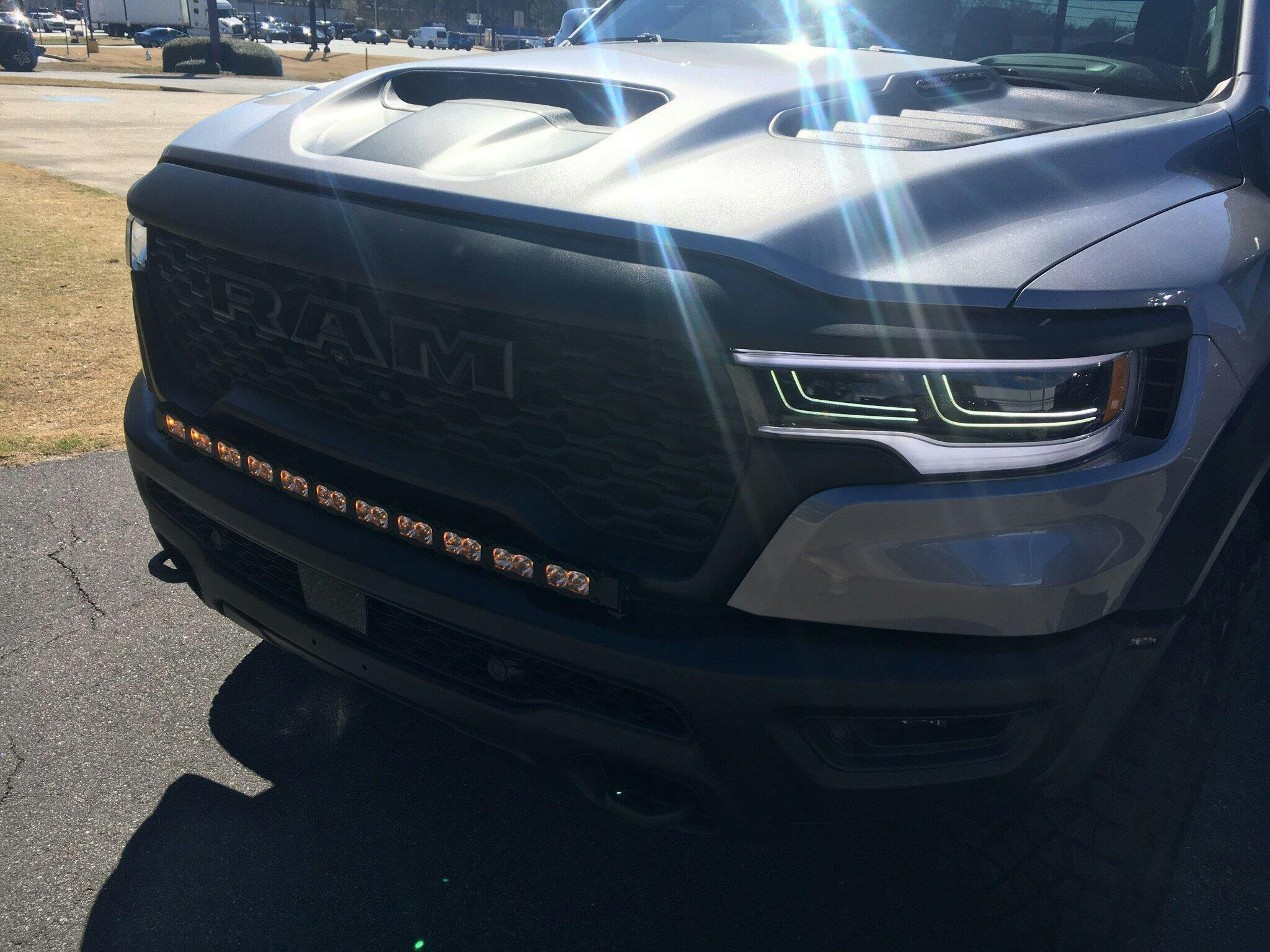

- Amber DRL -- amber DRL “daytime running lights” acts purely for aesthetics. Since it doesn’t give out much light, you can use this amber DRL feature on regular roads, it doesn't blind in-coming traffic.
Introducing our new LED light bar-PRO wiTh a unique appearance and optimal performance.
- Combo Pattern: combined spot and driving optics offers a balance between the distance and width
- Uses TIR (Total Internal Reflection) lens is different from our the regular slim light bar. The TIR lens collects all of the light from the LED and directly leads them to where you need, drastically reducing glare and improving total efficiency.
- Higher light efficiency: brighter, longer irradiation distance
- Housing is upgraded to 304 aluminum. The surface is UV polyester powder coated to prevent against UV, salt water, corrosion, fading and scratch resistant.
- Equipped with thermal management system that automatically adjusts the brightness output according to the external temperatures
👍Our light kits are for off-road use only.
WHAT'S INCLUDED?
(1) 23in curved light bar - PRO
(2) mounting brackets
All mounting hardware
WIRING
- M&R Automotive doesn’t provide a wiring harness.
- The light bar has 6ft of wire which is enough to reach AUX switches if your truck has them. Otherwise, you will need to purchase a generic wiring harness from Amazon/Ebay or create your own.
- We also sell a wireless wiring harness. This makes it an easy, clean install since you don't have to run wires inside the cab.
- We used AUX wires for a clean install.
INSTALLATION INSTRUCTIONS

23in Light Bar PRO
- Theoretical max power 120watts
- Actual power 72watts
- Main White light is 6amps at 12v
- Backlight Amber is .17amps at 12v
- Theoretical max luminous flux 13,080 lm
- Measured luminous flux (without lens) 8,832 lm
- Measured luminous flux (with lens) 7,024 lm
- LEDs type: luminus SST-20 Ra70
- Temperature: 6000k
- LEDs number: 12pcs
We have a lifetime warranty on our light kits. We truly want our truck enthusiastic customers to enjoy their products as much as we enjoy designing them. However, we also understand that different situations arise with brackets or lights. For more information about our warranty and disclaimer click here.
*M&R Automotive is not responsible for misuse or improper installation of the product. Professional installation is recommended.
