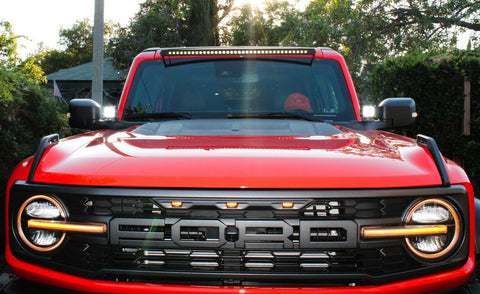

- Fits 2022 2023 2024 2025 2026 Ford Bronco Raptor.
- Fits hard and soft top

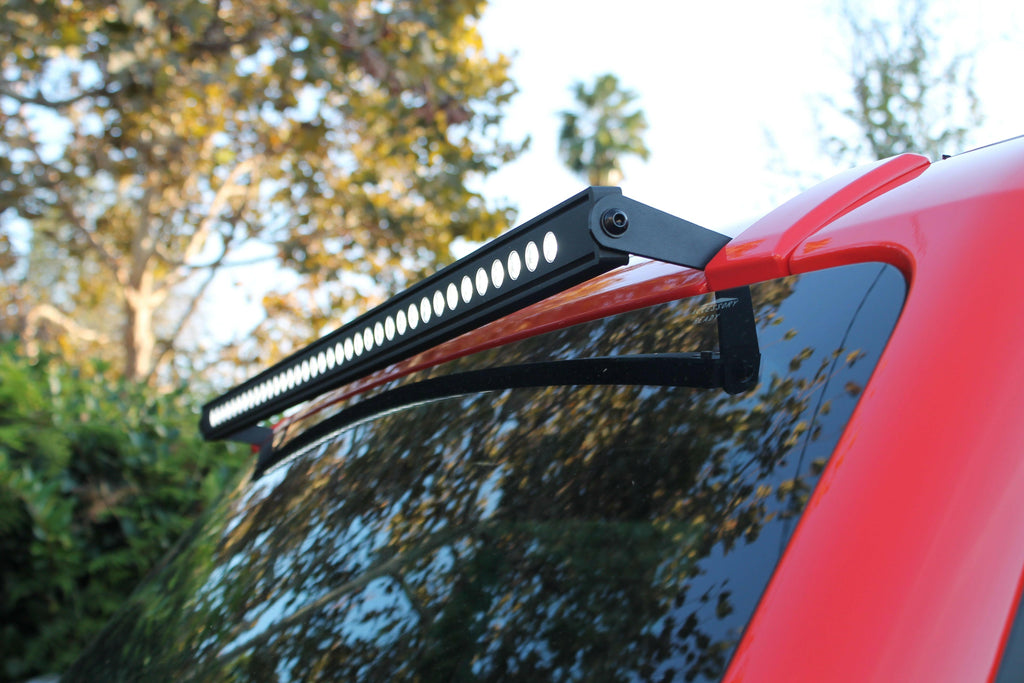

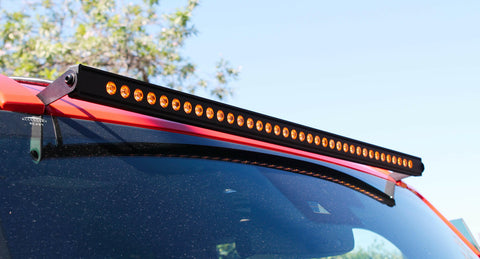

- We have tried to eliminate as much wind noise as possible by designing this as close to the windshield as we can without interfering with anything. However, as with all roof light bars, some wind noise is expected. We recommend to adjust the light bar a bit down at an angle to minimize the noise.

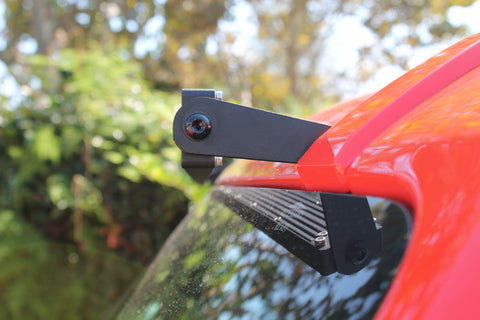

- Metal bracket is powder coated black
***If you will be using AUX switches, there is only (1) AUX power wire that is factory behind the visor. For single light bar color, it will be sufficient enough to use this (1) AUX switch. For dual function light bar, you will need to run your own power for the DRL function.
👍Our light kits are for off-road use only. They are not SAE and not DOT approved.

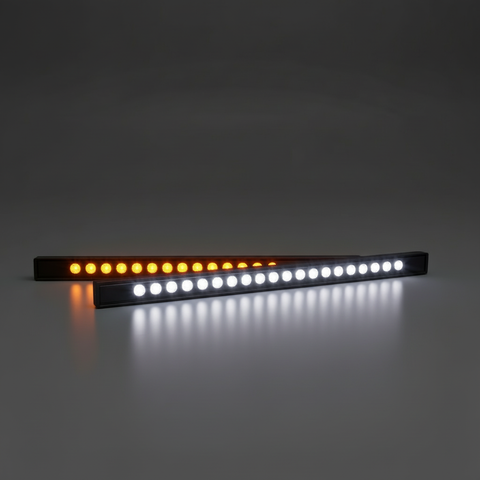

Choose your light bar color:
1) White LED --> Up to 15,000 lumens, bright and powerful. It will definitely provide you with enough light needed for all of your adventures. However, these are only for off-roading and can’t be used on the regular road. They will blind the in-coming traffic and also violates road safety.

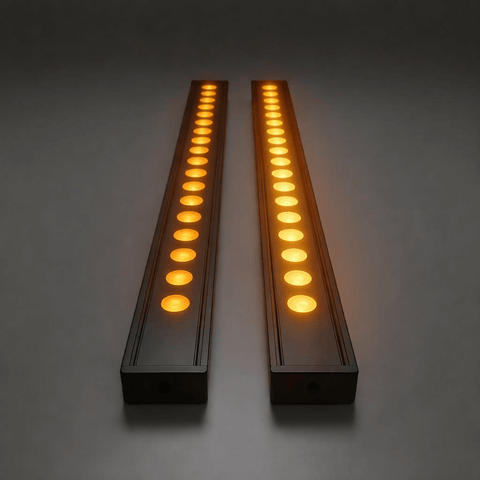

2) Amber LED --> Up to 7,000 lumens, used in poor driving conditions such as dust, fog, snow and rain. It reflects through air particles much less than the white light. Therefore, making it ideal for poor driving conditions.

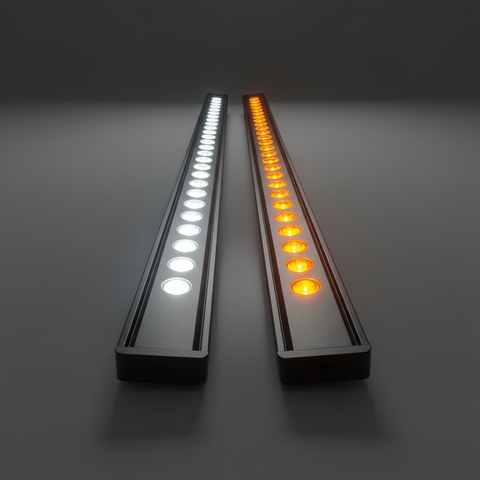

3) dual function: main White LED light with Amber DRL backglow --> the white LED light is same as described above, but the amber DRL “daytime running lights” acts purely for aesthetics. Since it doesn’t give out much light, you can use this amber DRL feature on regular roads, it doesn't blind in-coming traffic.
Full in-depth video describing our lights bars CLICK HERE
WHAT'S INCLUDED?
(1) 40in light bar - SLIM
(2) mounting brackets
All mounting hardware
WIRING
- M&R Automotive doesn’t provide a wiring harness.
- The light bar has 6ft of wire which is enough to reach AUX wires if your Bronco Raptor has them. Otherwise, you will need to purchase a generic wiring harness from Amazon/Ebay or create your own.
- We sell a wireless wiring harness that delivers a clean, hassle-free install—no need to run wires into the cab.

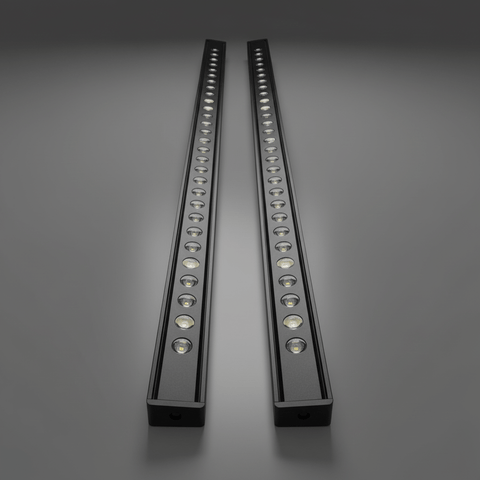

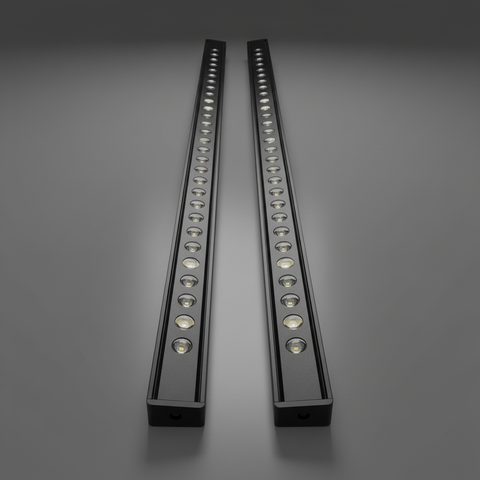

40in SLIM light bar
White:
- Beam Pattern Spot
- Theotetical max power 180watts
- Actual power 102watts
- Voltage/current DC12v/6.5A
- Theoretical max luminous flux 21,060 lm
- Measured luminous flux (without lens) 11,376 lm
- Measured luminous flux (with lens) 8,340 lm
- LEDs type CREE XTE
- Temperature 6000k
- LEDs number 36pcs
- Product size LxWxD (in) 38.93 x 0.75 x 1.63
40in SLIM light bar
Amber:
- Beam Pattern Spot
- Theotetical max power 140watts
- Actual power 78watts
- Voltage/current DC12v/6.5A
- Theoretical max luminous flux 11,160 lm
- Measured luminous flux (without lens) 7,380 lm
- Measured luminous flux (with lens) 5,387 lm
- LEDs type CREE XP - E2 Amber
- Temperature
- LEDs number 36pcs
- Product size LxWxD (in) 38.93 x 0.75 x 1.63
White with Amber DRL
- Beam Pattern Spot
- Theotetical max power 180watts
- Actual power 102watts
- Voltage/current main DC12v/6.5A
- Voltage/current backlight 5.5W/0.46A
- Theoretical max luminous flux 21,060 lm
- Measured luminous flux (without lens) 11,376 lm
- Measured luminous flux (with lens) 8,340 lm
- LEDs type CREE XTE
- Temperature 6000k
- LEDs number 36pcs
- Product size LxWxD (in) 38.93 x 0.75 x 1.63
We have a lifetime warranty on our light kits. We truly want our truck enthusiastic customers to enjoy their products as much as we enjoy designing them. However, we also understand that different situations arise with brackets or lights. For more information about our warranty and disclaimer click here.
*M&R Automotive is not responsible for misuse or improper installation of the product. Professional installation is recommended.
Customer Reviews

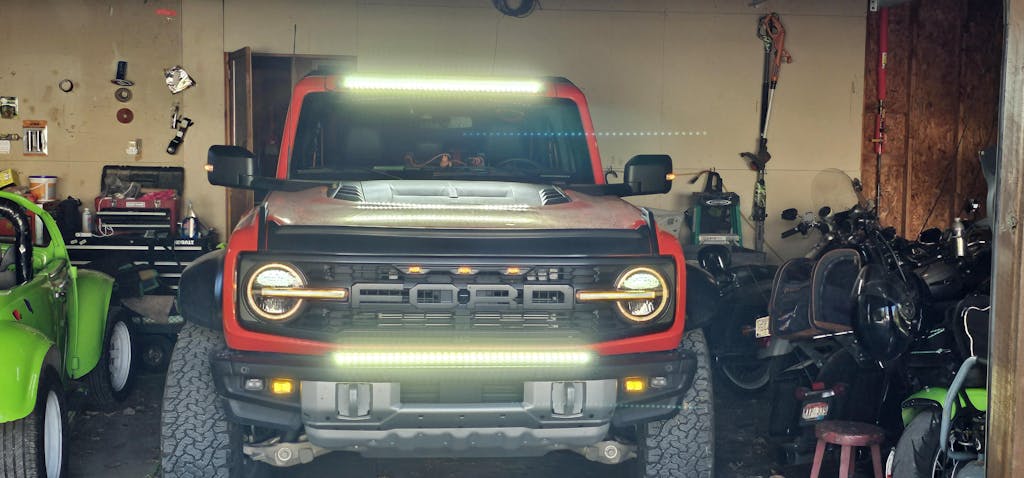

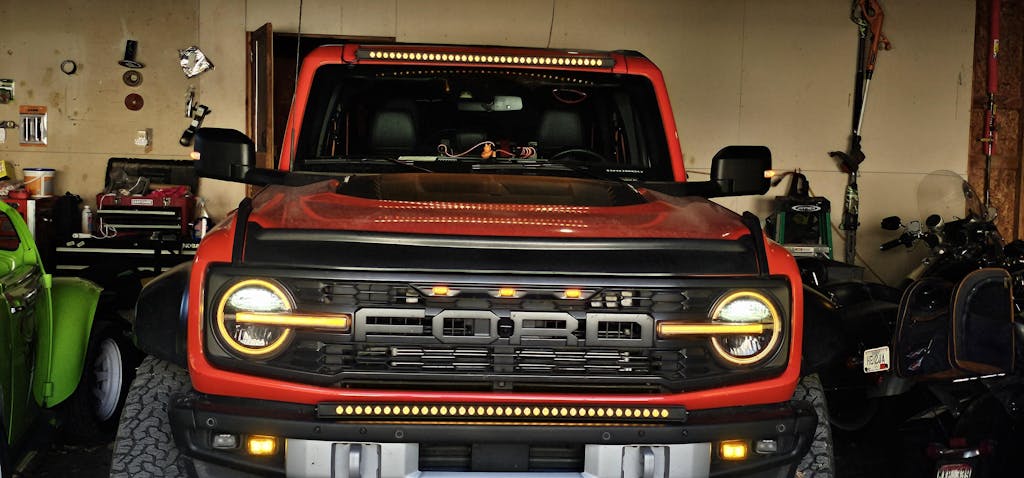

I Bought both the Roof Mount and the Bumper Mount 40" Bars for my Raptor and couldn't be happier. I drilled through the window frame, did not use the wire at the top of the window frame. Instead, made about a 5/16" hole and ran the whole harness down to the glovebox hookups. I tied the Amber DRL wires together in the engine bay. End result, I have both Amber DRLs on Aux Switch 4, the Roof white light on Aux 5, and the bumper white light on Aux 6. It is pretty sweet!
