$549.99
  • Product Description
  • Shipping & Warranty

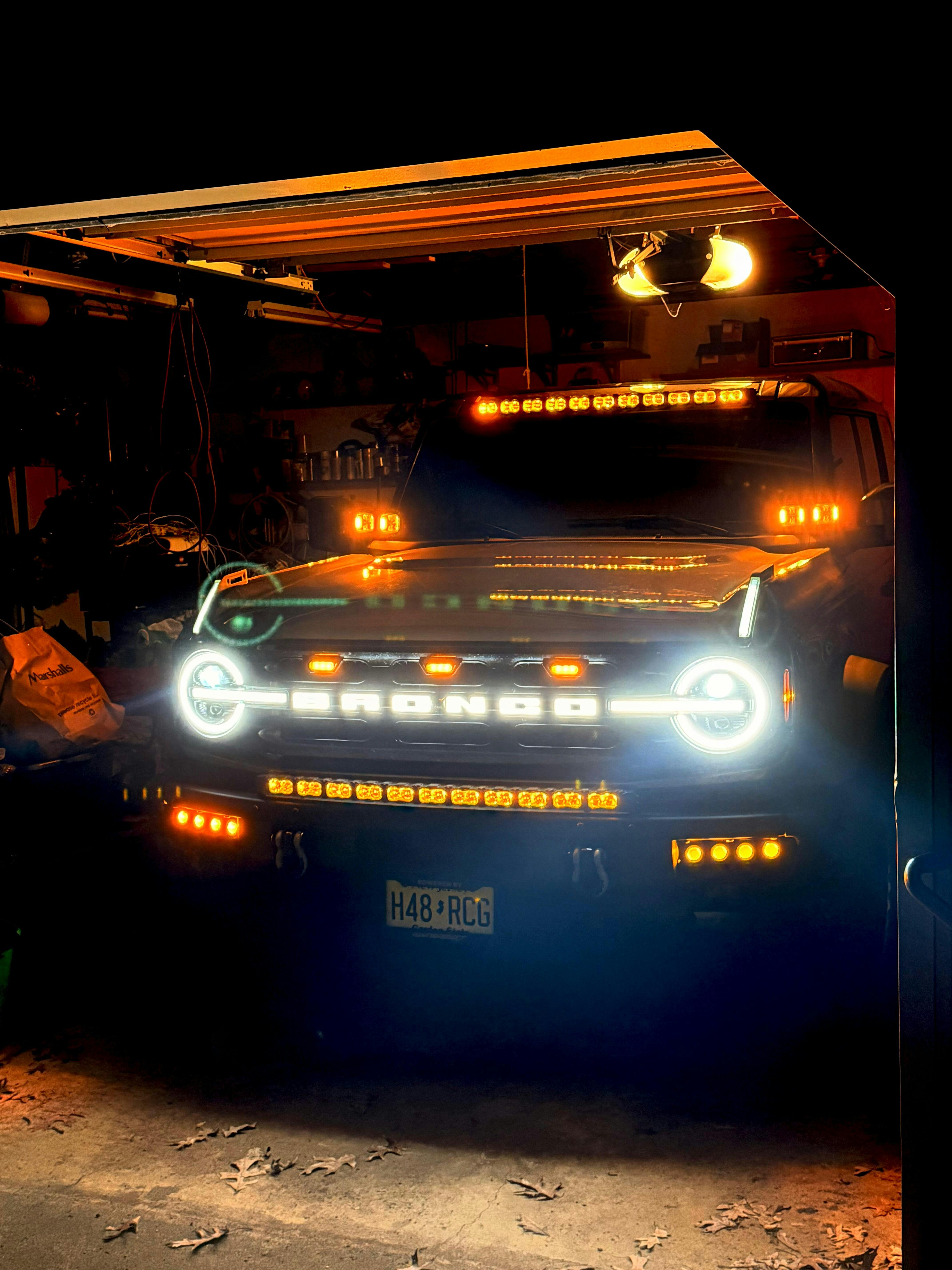

  • Fits 2021 2022 2023 2024 Ford Bronco



  • Curved LED light bar, stays slim to the roof

  • ·         Theoretical max power 220watts

    ·         Actual power 125watts

    ·         Main White light is 10.42amps at 12v

    ·         Backlight Amber is 0.25amps at 12v

    ·         Theoretical max luminous flux 24,024 lm

    ·         Measured luminous flux (without lens) 15,224 lm

    ·         Measured luminous flux (with lens) 12,108 lm

    ·         LEDs type: luminus SST-20 Ra70

    ·         Temperature: 6000k

    ·         LEDs number: 22pcs

  • Fits hard and soft top
  • Metal bracket is powder coated black
  • Easy install, reuses factory caps
  • We have tried to eliminate as much wind noise as possible by designing this as close to the windshield as we can without interfering with anything. However, as with all roof light bars, some wind noise is expected.



  • **PLEASE NOTE** If you will be using AUX switches, there is only (1) AUX power wire that is factory behind the visor. You will need two (2) AUX switches and therefore it needs to be connected to the main AUX in the engine bay. This light bar has 8ft of wire.

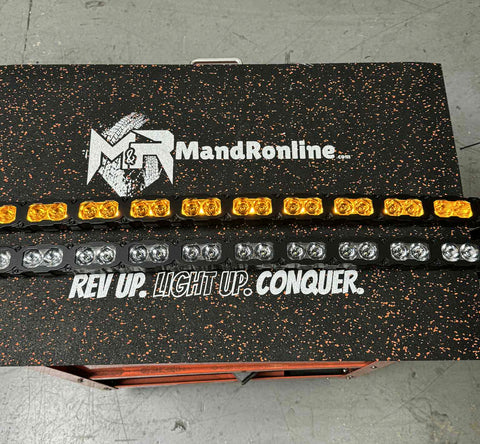

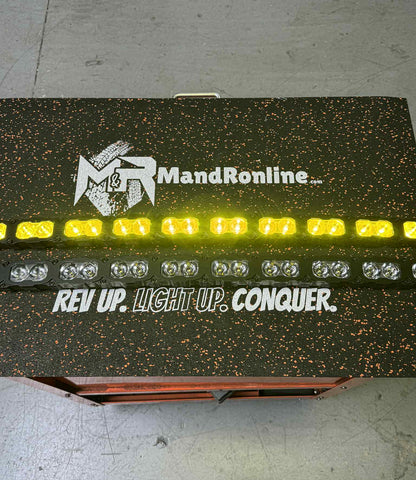

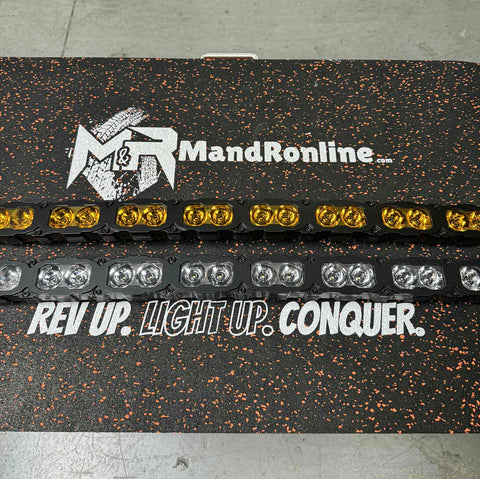

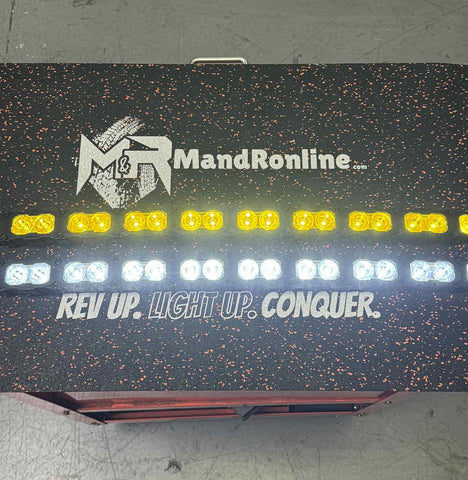

  • Dual Color: main White LED Light with Amber DRL (daytime running lights)

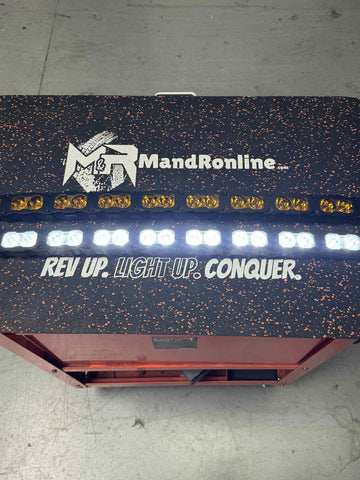

  • White LED -- Super bright and crisp white beam pattern. It will definitely provide you with enough light needed for all of your adventures. However, these are only for off-roading and can’t be used on the regular road. They will blind the in-coming traffic and also violates road safety.

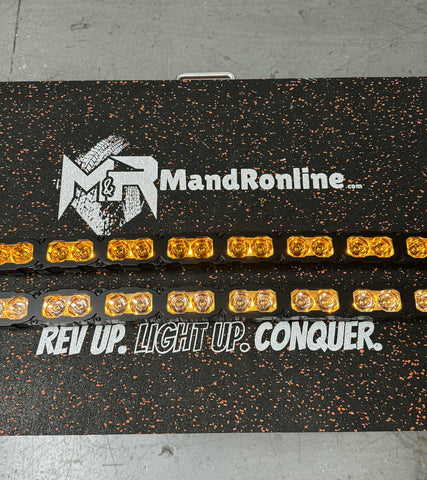

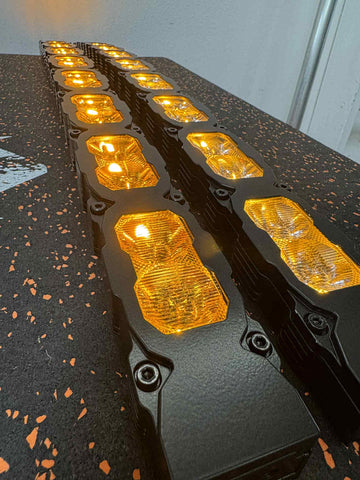

  • Amber DRL -- amber DRL “daytime running lights” acts purely for aesthetics.  Since it doesn’t give out much light, you can use this amber DRL feature on regular roads, it doesn't blind in-coming traffic. Matches the accent lights on the Ford Bronco Raptor. Amber DRL is the perfect match to drive around town

Introducing our new LED light bar-PRO with a unique appearance and optimal performance.

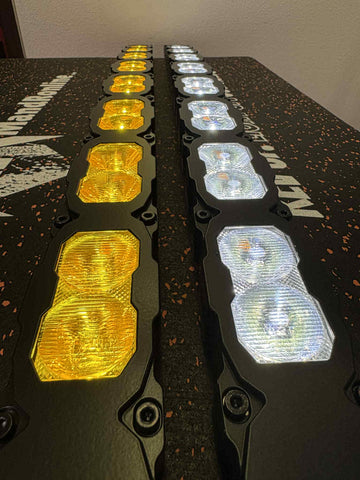

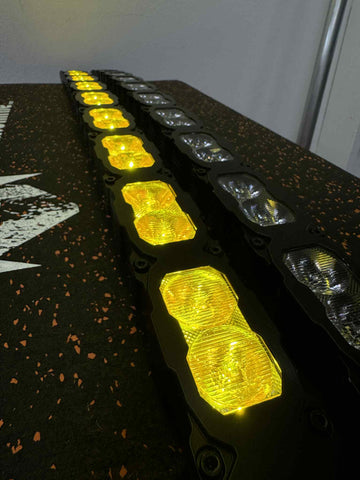

  • Uses TIR (Total Internal Reflection) lens is different from our the regular slim light bar. The TIR lens collects all of the light from the LED and directly leads them to where you need, drastically reducing glare and improving total efficiency.
  • Higher light efficiency: brighter, longer irradiation distance

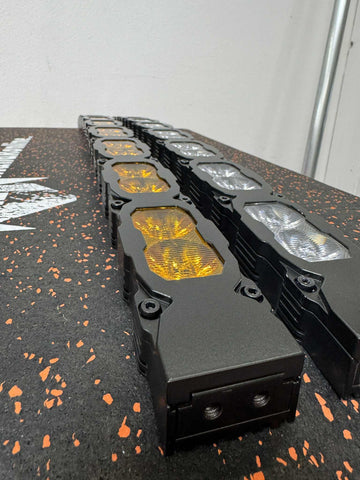

  • Housing is upgraded to 304 aluminum. The surface is UV polyester powder coated to prevent against UV, salt water, corrosion, fading and scratch resistant.
  • Equipped with thermal management system that automatically adjusts the brightness output according to the external temperatures
  • Combo Pattern: combined spot and driving optics offers a balance between the distance and width



👍Our light kits are for off-road use only.

WHAT'S INCLUDED?

(1) 40in light bar curved PRO

(2) mounting brackets

All mounting hardware

WIRING

  • M&R Automotive doesn’t provide a wiring harness. The light bar has 8ft of wire which is enough to reach AUX wires if your Bronco has them.
  • We drilled a hole through accessory cap on passenger side and ran the wire down to engine bay to reach AUX wires.

  • We sell Wireless Wiring Harness. This makes install much easier if you don't have AUX switches. No need to run any wires through the firewall, clean install. With this super easy installation, you can connect up to 8 different accessories (doesn't have to be lights), wirelessly.

Sale Off
Wireless 8 Circuit Wiring Harness 1.0

INCLUDES:

  • Rechargeable wireless controller, USB Type-C connector
  • Mounting plate that you attach to your preferred place inside the vehicle. The remote is magnetic for easy operation.
  • Sticker page to change the key icon to match the device connected to the control box.

Wireless Connectivity: With advanced wireless technology, connect and power various accessories without the need for traditional wiring. Enjoy a cleaner and more organized interior.  Wireless remote stays inside your vehicle without the need to run a wire through the firewall.

8 Switches: Total of 8 circuits: (2) 5amps, (2) 10amps, (2) 20amps, (2) 30amps

  • Max power: 1200watts
  • Max current Rating: 80amps
  • Voltage: DC 12V-24V

Plug-and-Play Compatibility: Installing accessories has never been easier. Designed with a user-friendly, plug-and-play interface, eliminating the need for complex wiring setups. Simply connect your accessories to the panel and you're ready for an adventure.



Universal Compatibility: Whether you're adding LED lights, off-road equipment, or other accessories, our wireless wiring harness is universally compatible. Seamlessly integrates with your vehicle's electrical system.



Enhanced Safety: Reduce the risk of electrical issues and potential hazards associated with traditional wiring systems. Engineered with safety in mind, featuring built-in safeguards to protect against overloads, short circuits, and other electrical mishaps.



Weatherproof Design: Built to withstand the toughest conditions, it is fully weatherproof. It has a rubber gasket around the fuse box and covered in epoxy.

$154.99
Sale Off
Wireless 8 Circuit Wiring Harness 2.0

➡️Special Features (only featured in this wireless 2.0)



Sleep Mode (Power-Saving Mode): If the input voltage of the Control Box falls below 13V (±0.2V), the Control Box will enter the sleep mode after 6 hours (default) of consecutively inactivity, then all loads will be shut down immediately and the Control Box will not respond to any commands from the Wireless Control Panel. When the input voltage rises above 13V (±0.2V), the Control Box will be awoken.

Low Voltage Protection: If the input voltage of the Control Box falls below 12.2V (±0.2V), the Control Box will enter the low voltage timing mode. After exceeding 30 minutes, the Control Box will start the low voltage protection, then all loads will be shut down immediately and the Control Box will not respond to any commands from the Wireless Control Panel.  When the input voltage rises above 13V (±0.2V), the Control Box will exit the low voltage protection.

Ultra-Low Voltage Protection: If the input voltage of the Control Box falls below 11.6V (±0.2V), the Control Box will enter the ultra-low voltage timing mode. After exceeding 10 seconds, the Control Box will start the ultra-low voltage protection, then all loads will be shut down immediately and the Control Box will not respond to any commands from the Wireless Control Panel. When the input voltage rises above 13V (±0.2V), the Control Box will exit the ultra-low voltage protection.

High Temperature Protection: If the temperature at the center of the Control Box's circuit board exceeds 100°C (±5°C), the Control Box will start the high temperature protection and immediately shut down all loads.





➡️Wireless Harness Specs



The main control box has 8 circuits, ranging in different amps.

(3) 10amps

(2) 20amps

(3) 30amps



The fuse box is  made out of high thermal conductivity die-case aviation aluminum housing. Allowing it to resist high-intensity impacts and is fully suitable for extreme off-road conditions. The surface is powder coated with UV-resistant polyester for weather resistance. The internal two-component thermally conductive mixture conducts and dissipates the heat generated by the circuity more quickly and effectively.





INCLUDES:

  • Rechargeable wireless controller, USB Type-C connector
  • Mounting plate that you attach to your preferred place inside the vehicle. The remote is magnetic for easy operation.
  • Sticker page to change the key icon to match the device connected to the control box.

Wireless Connectivity: With advanced wireless technology, connect and power various accessories without the need for traditional wiring. Enjoy a cleaner and more organized interior.  Wireless remote stays inside your vehicle without the need to run a wire through the firewall.



8 Switches: Total of 8 circuits: (3) 10amps, (2) 20amps, (3) 30amps

  • Max power: 1200watts
  • Max current Rating: 100amps
  • Voltage: DC 12V-24V



Plug-and-Play Compatibility: Installing accessories has never been easier. Designed with a user-friendly, plug-and-play interface, eliminating the need for complex wiring setups. Simply connect your accessories to the panel and you're ready for an adventure.



Universal Compatibility: Whether you're adding LED lights, off-road equipment, or other accessories, our wireless wiring harness is universally compatible. Seamlessly integrates with your vehicle's electrical system.



Enhanced Safety: Reduce the risk of electrical issues and potential hazards associated with traditional wiring systems. Engineered with safety in mind, featuring built-in safeguards to protect against overloads, short circuits, and other electrical mishaps.



Weatherproof Design: Built to withstand the toughest conditions, it is fully weatherproof. It has a rubber gasket around the fuse box and covered in epoxy.

$194.99



INSTALLATION INSTRUCTIONS

All domestic (USA) orders are free shipping via USPS or UPS, depending on product size.
We typically ship in 3-7 business days. If we are anticipating a delay with your shipment due to availability of the product, we will reach out to you via email.

Canada, international or express shipping costs are calculated at checkout.

You will receive an email with tracking number when your order is shipped.

If you have a special request about your order, reach out, we try to accommodate as much as we can.

For a complete shipping policy click here.


We have a lifetime warranty on our light kits. We truly want our truck enthusiastic customers to enjoy their products as much as we enjoy designing them. However, we also understand that different situations arise with brackets or lights. For more information about our warranty and disclaimer click here.




*M&R Automotive is not responsible for misuse or improper installation of the product. Professional installation is recommended.
