- Fits RAM 2500/3500, years 2019 2020 2021 2022 2023 2024
Each kit comes as a PAIR of pods
- main White LED light -- you choose your backlight (amber or red)
- 1) Amber back light that can be wired as turn signals
or
-
- 2) Red backlight that can be wired as turn signals or brake light
- Flood Pattern: longer and wider beam focuses for illumination further down the trail or road as well as peripheral angles
- Install M&R reverse light with powerful white LED light that makes a huge difference
- Each LED light pod attaches directly to factory bolt on the truck bumper
- No cutting or drilling required. The kit is a complete bolt on
- Uses TIR (Total Internal Reflection) lens is different from the conventional optics parts, which lose some light internally and produce glare. The TIR lens collects all of the light from the LED and directly leads them to where you need, drastically reducing glare and improving total efficiency.
- Higher light efficiency: brighter, longer irradiation distance
- Housing is upgraded to 304 aluminum. The surface is UV polyester powder coated to prevent against UV, salt water, corrosion, fading and scratch resistant.
- Equipped with thermal management system that automatically adjusts the brightness output according to the external temperatures
👍Our light kits are for off-road use only.
WHAT'S INCLUDED?
-(2) LED pods PRO - main white LED light and you choose your backlight option red of amber
-all hardware for installation
WIRING
- M&R Automotive doesn’t provide a wiring harness.
- The light pods have 2ft of wire which is enough to reach rear AUX switches if your truck has them. Otherwise, you will need to purchase a generic wiring harness from Amazon/Ebay or create your own.
- You can also use a wireless wiring harness. This makes it an easy, clean install since without running wires inside the cab.
INSTALLATION INSTRUCTIONS
The installation is very simple.
Installs straight to the rear bumper factory bolts and holes.

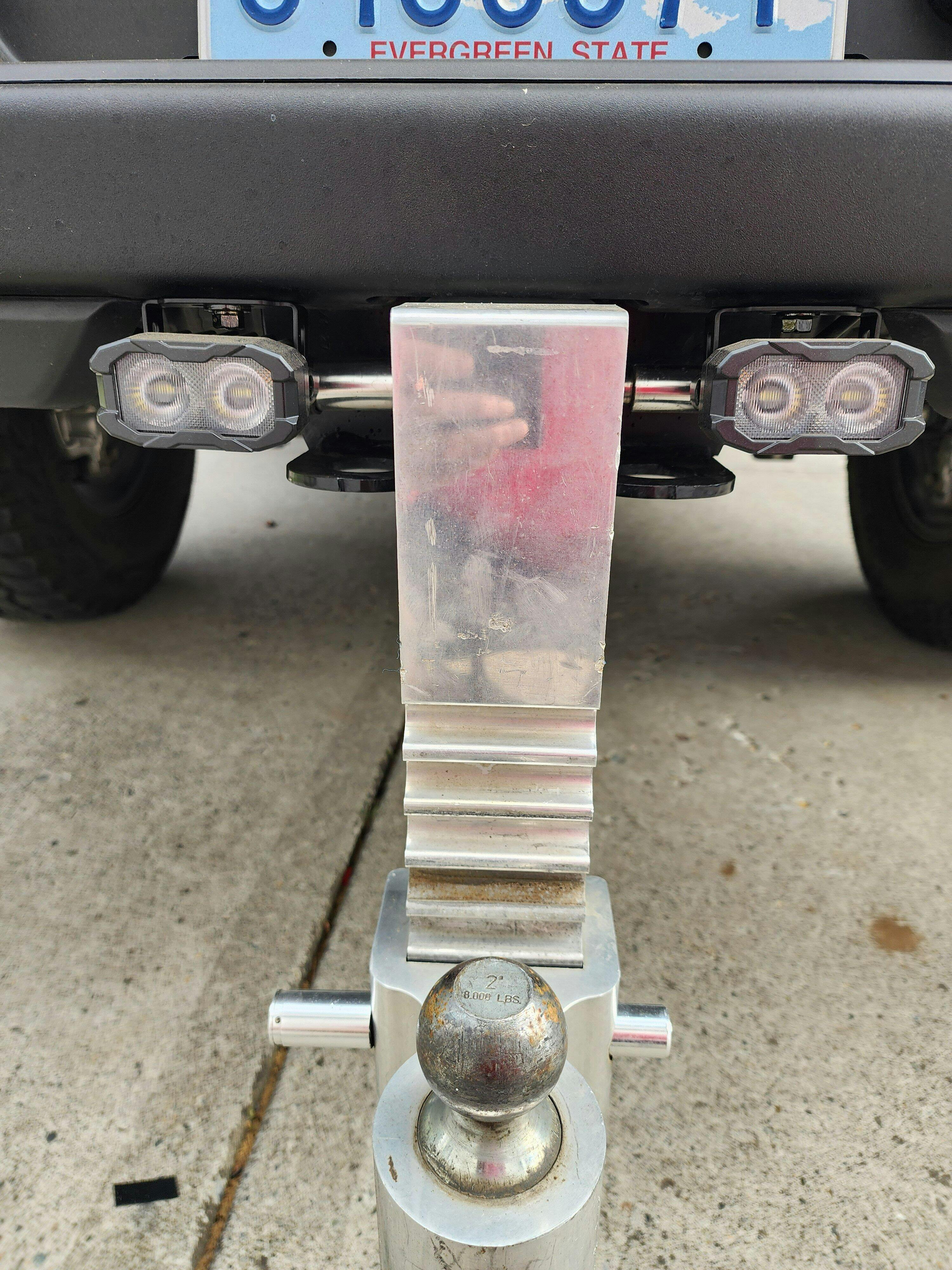

LED light pod reverse
Each Light Pod is:
- Theoretical max power 20watts
- Actual power 19.8watts
- Main White light is 2.06amps at 12v
- Backlight Amber is 0.03amps at 12v
- Theoretical max luminous flux 2,184 lm
- Measured luminous flux (without lens) 1,1970 lm
- Measured luminous flux (with lens) 1,474 lm
- LEDs type: luminus SST-20 Ra70
- Temperature: 6000k
- LEDs number: 2pcs
All domestic (USA) orders are free shipping via USPS or UPS, depending on product size.
We typically ship in 3-7 business days. If we are anticipating a delay with your shipment due to availability of the product, we will reach out to you via email.
You will receive an email with tracking number when your order is shipped.
If you have a special request about your order, reach out, we try to accommodate as much as we can.
For a complete shipping policy click here.
We have a lifetime warranty on our light kits. We truly want our truck enthusiastic customers to enjoy their products as much as we enjoy designing them. However, we also understand that different situations arise with brackets or lights. For more information about our warranty and disclaimer click here.
*M&R Automotive is not responsible for misuse or improper installation of the product. Professional installation is recommended.
