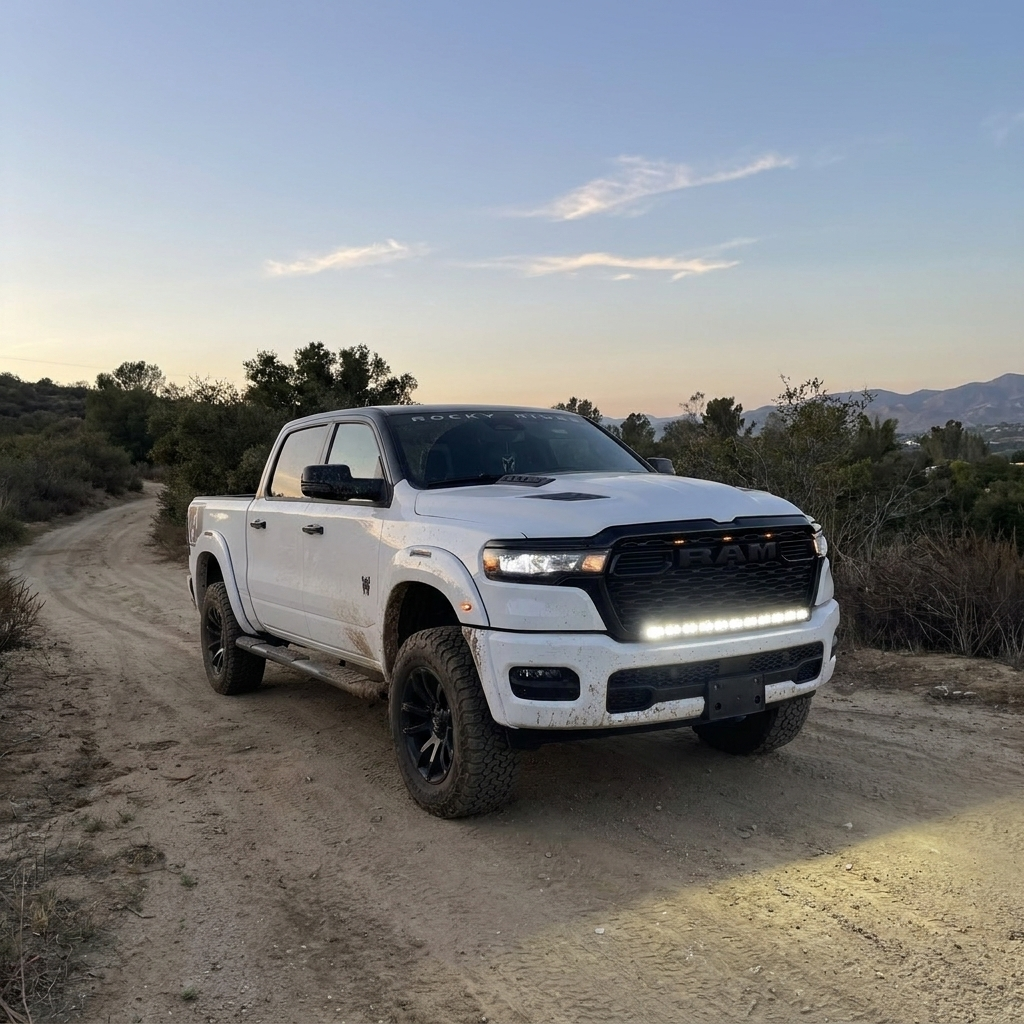

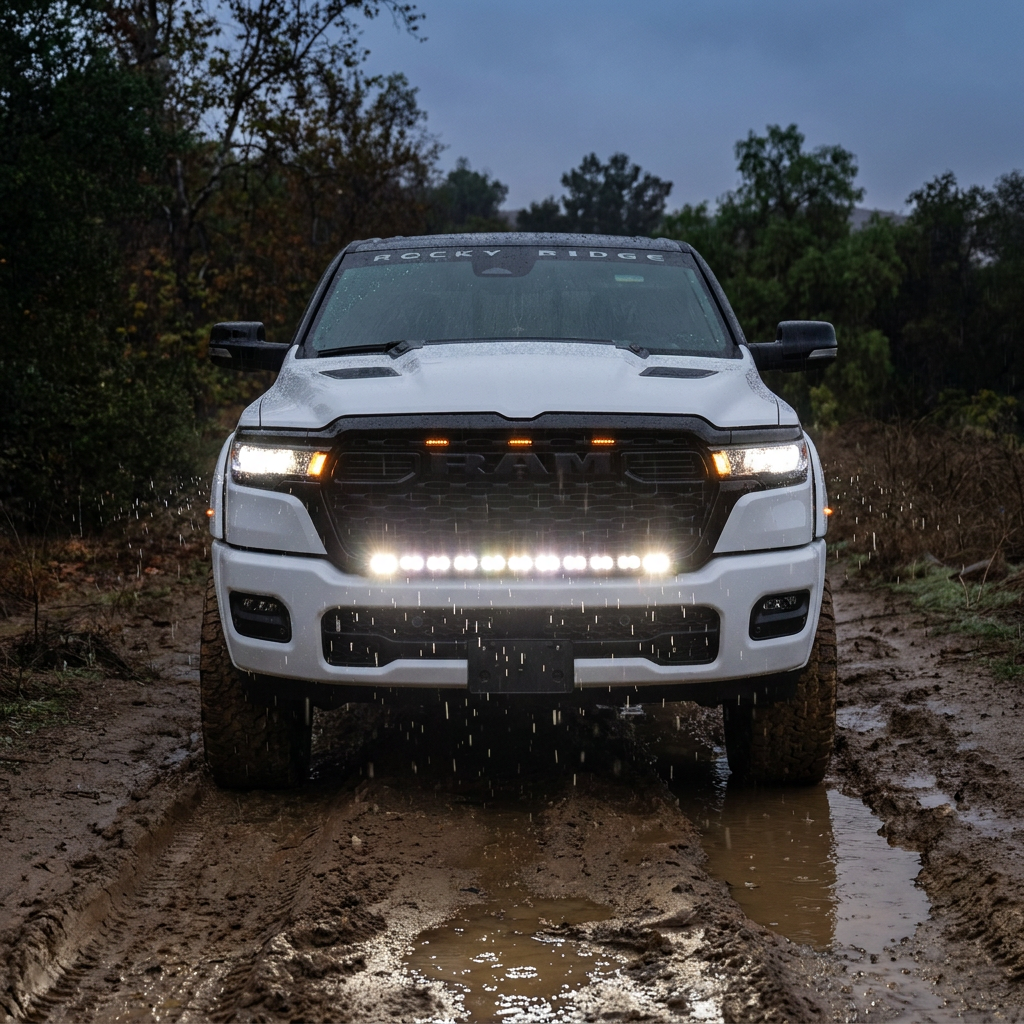

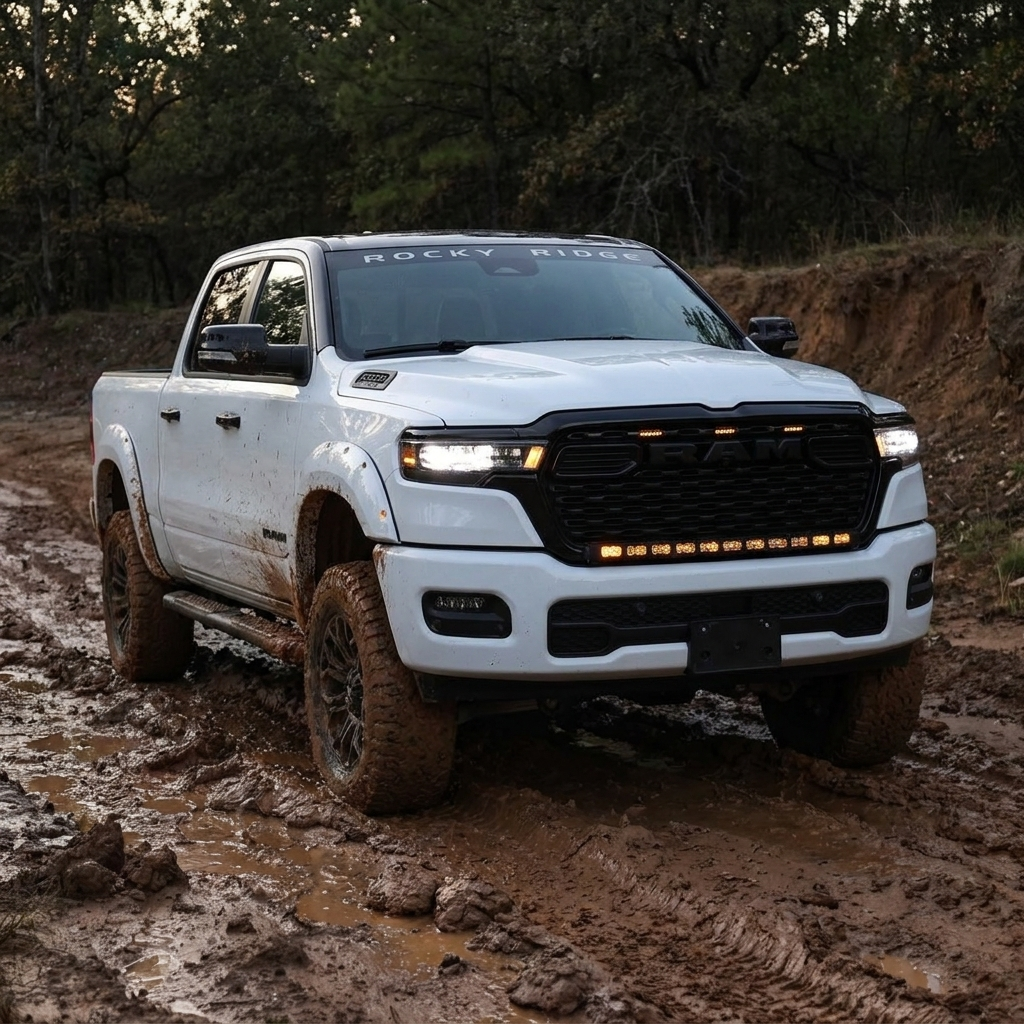

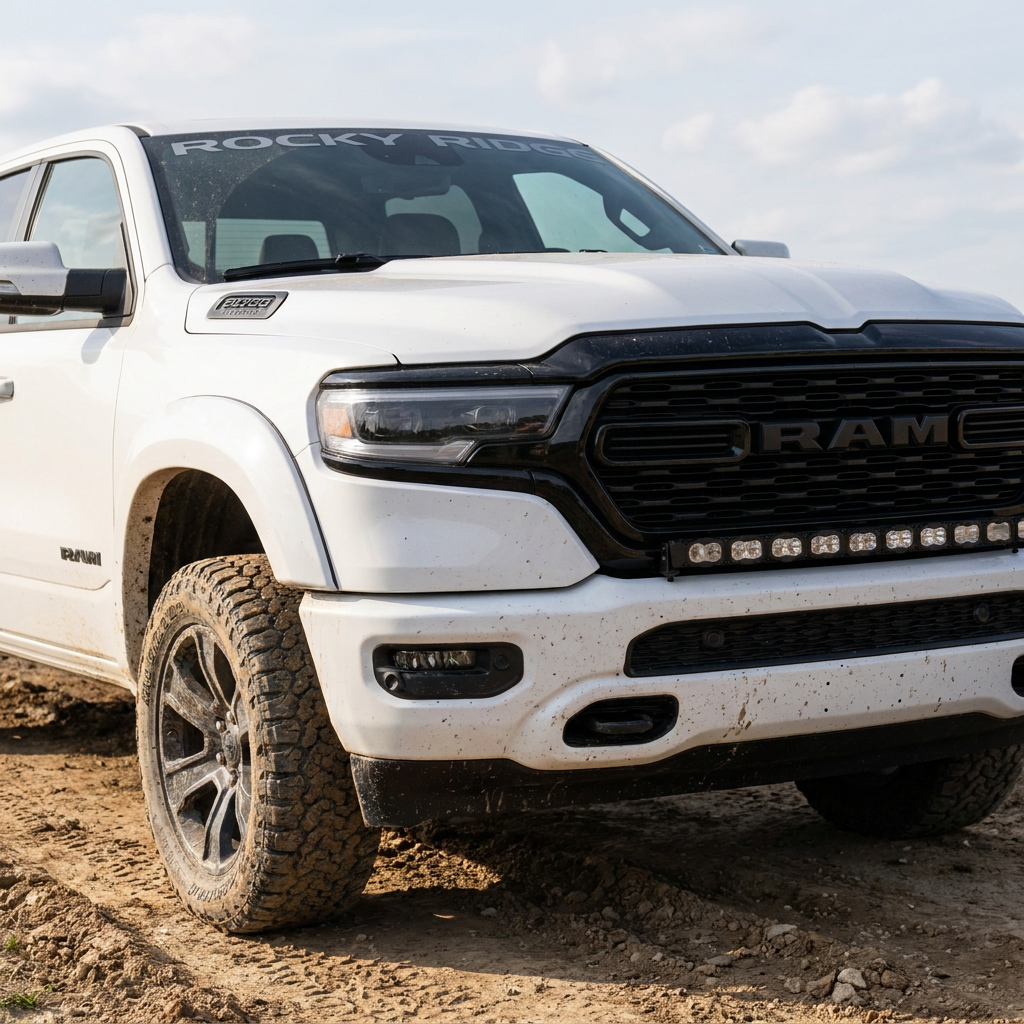

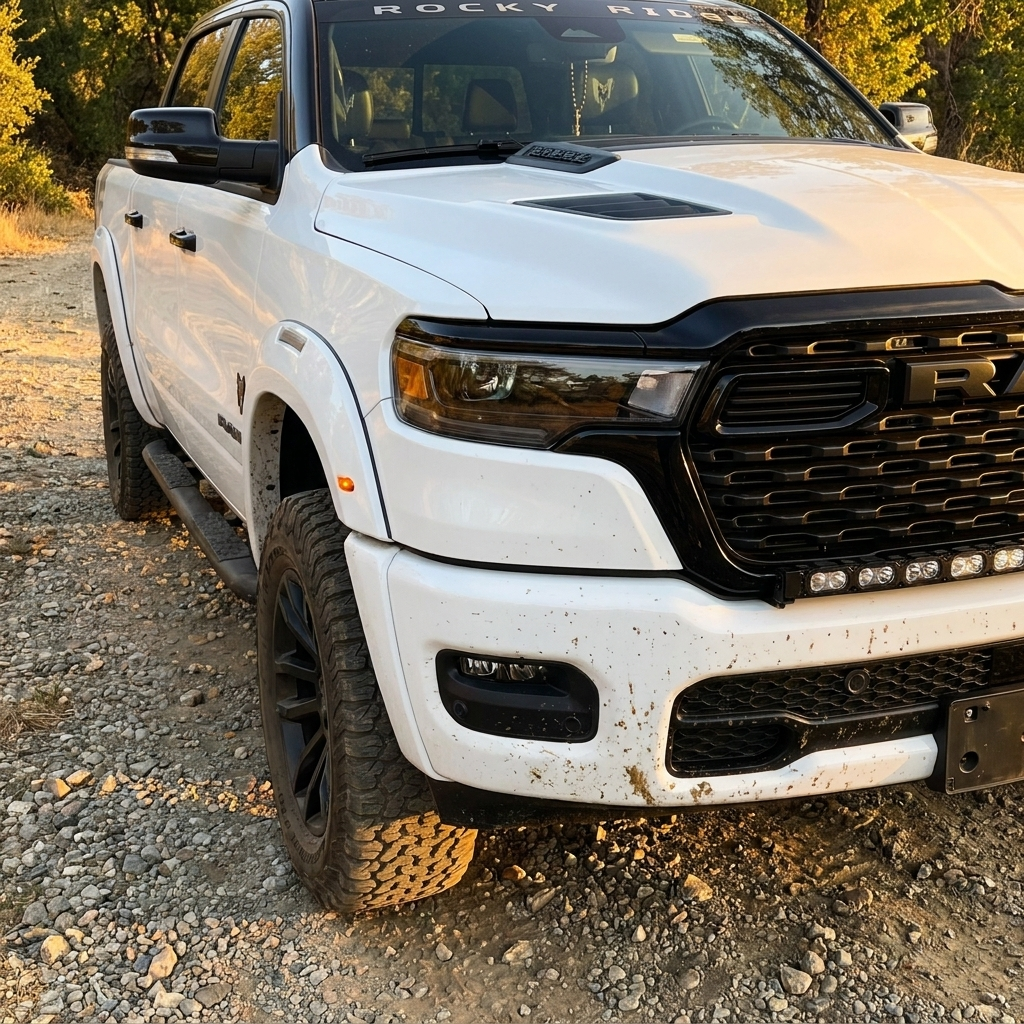

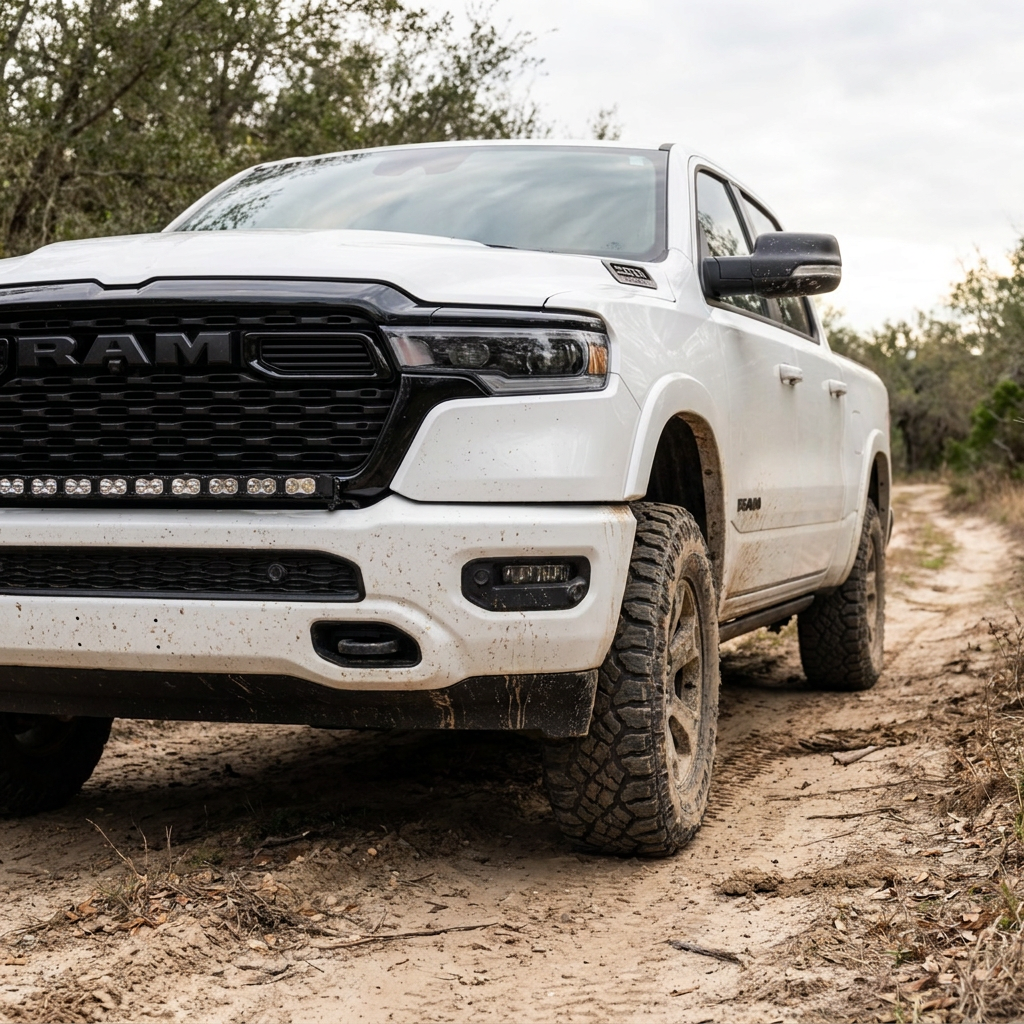

2026+ RAM 1500 HEMI 40in Light Bar PRO
What's in the Box
- (1) 40in curved light bar PRO
- (4) metal brackets
- All mounting hardware included
Need a shop to install it? Find a trusted installer near you →
Off-road Use Only
Bolt On, No Drilling
Lifetime Warranty
Fits: 2026+ RAM 1500 with 5.7L HEMI V8 engine
Will not work with 3.0L Hurricane motors — Hurricane trucks need our 2025+ RAM 1500 40in Light Bar PRO
Trims: RAM 1500 Tradesman, Express, Big Horn, Warlock, Laramie, Limited

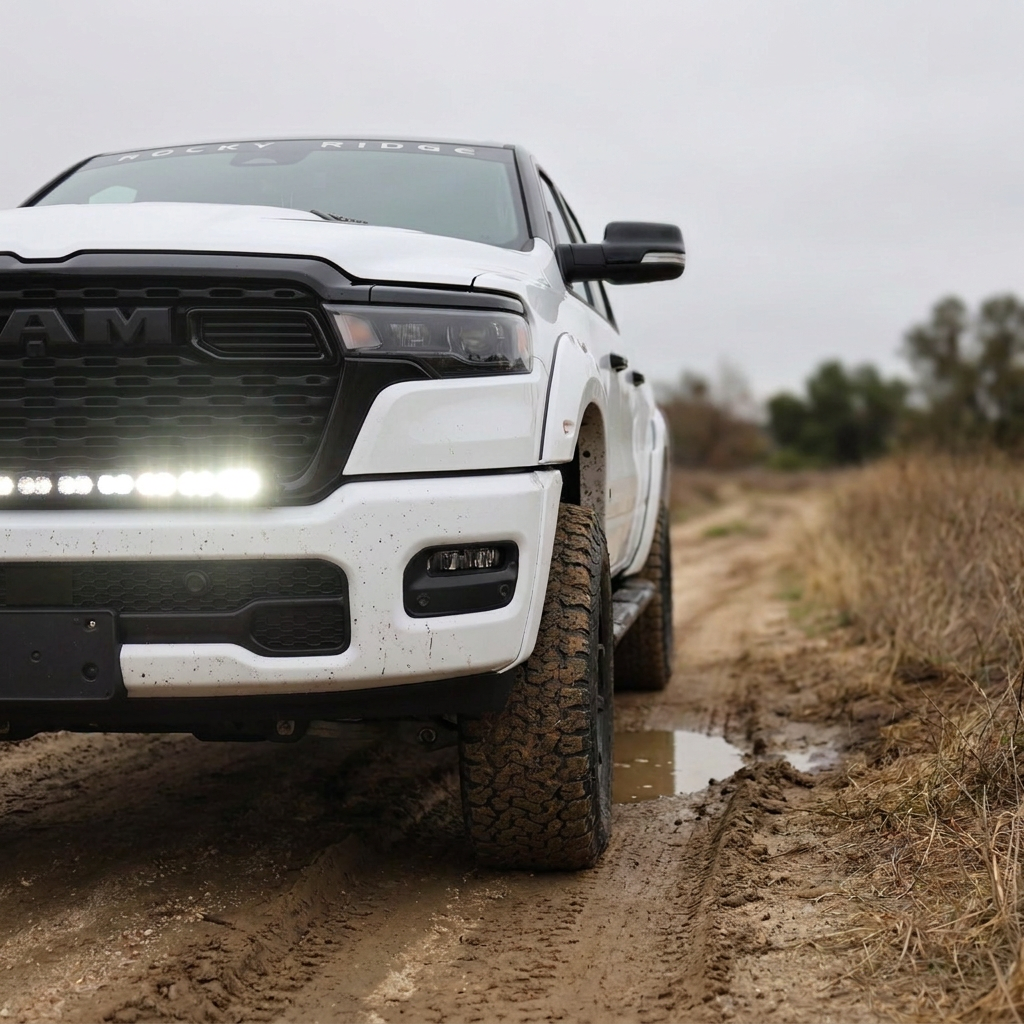

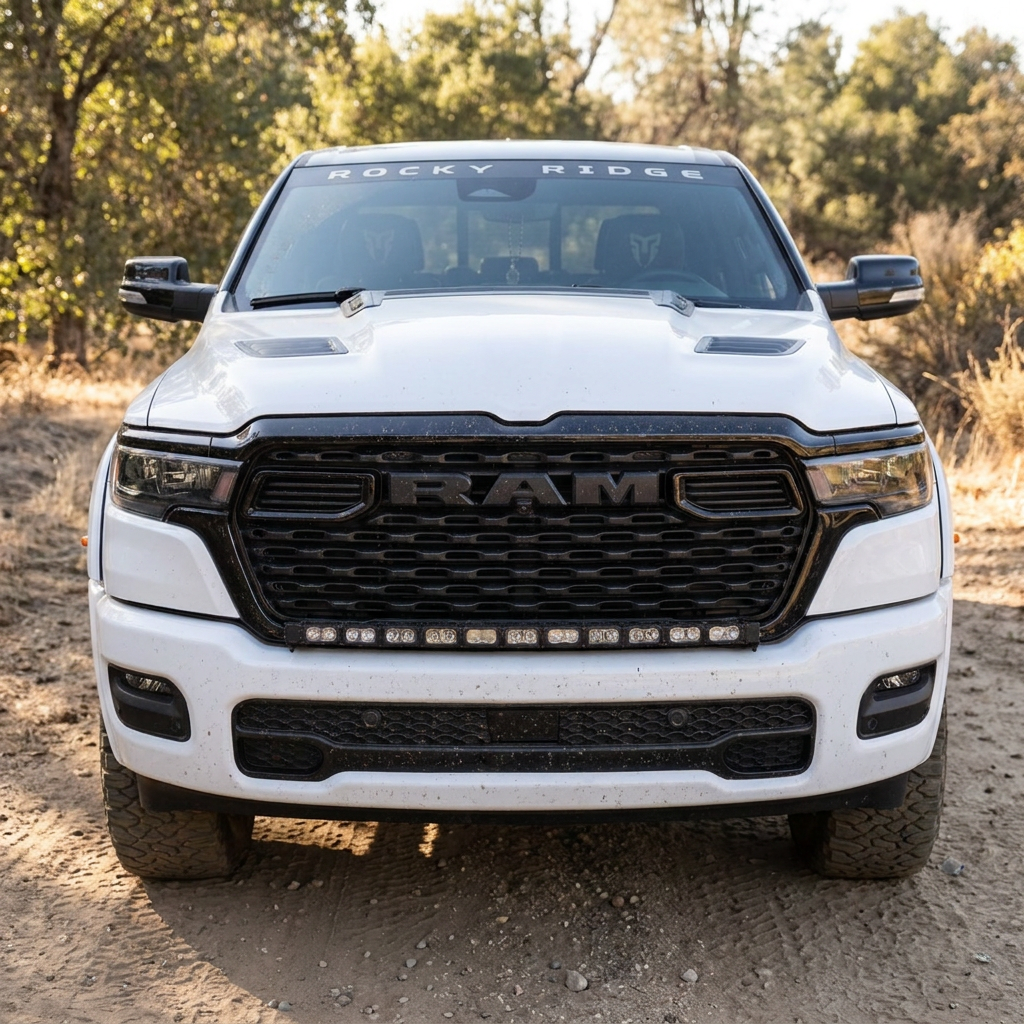

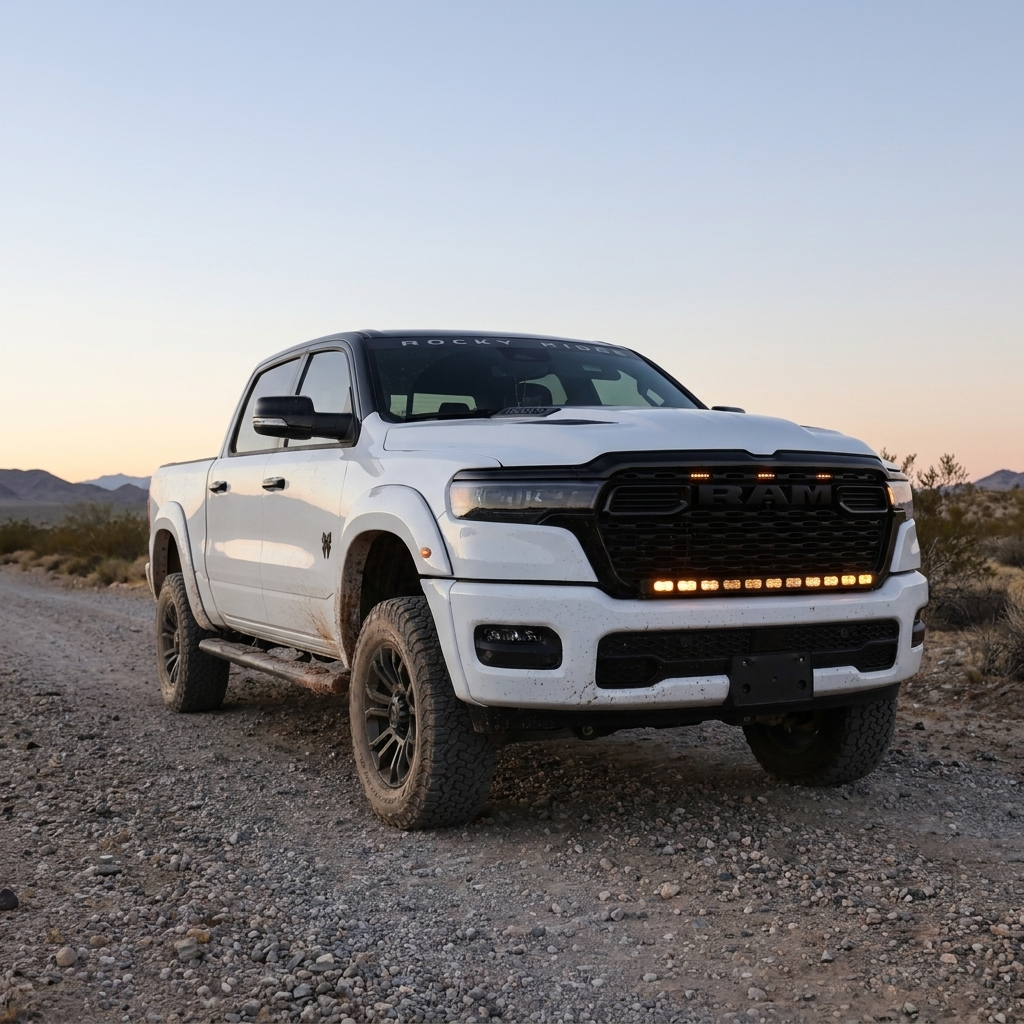

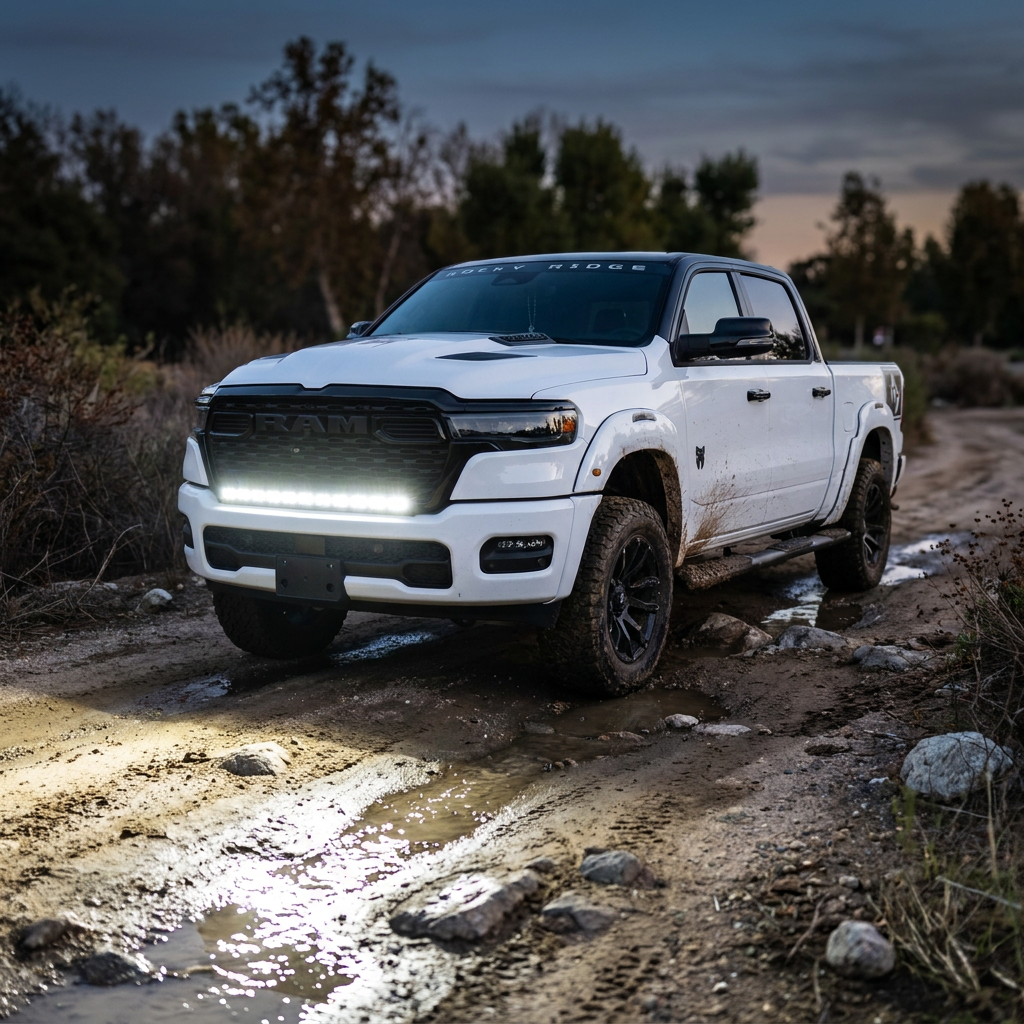

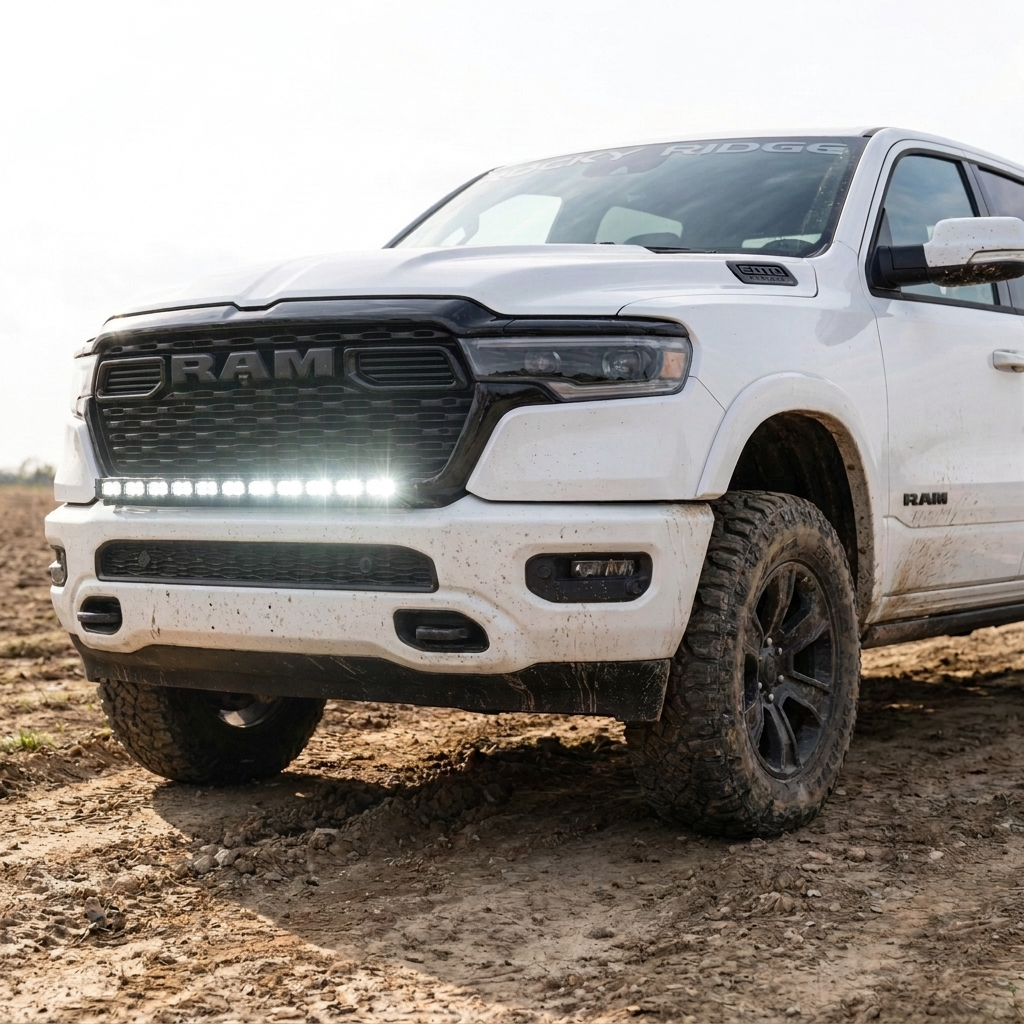

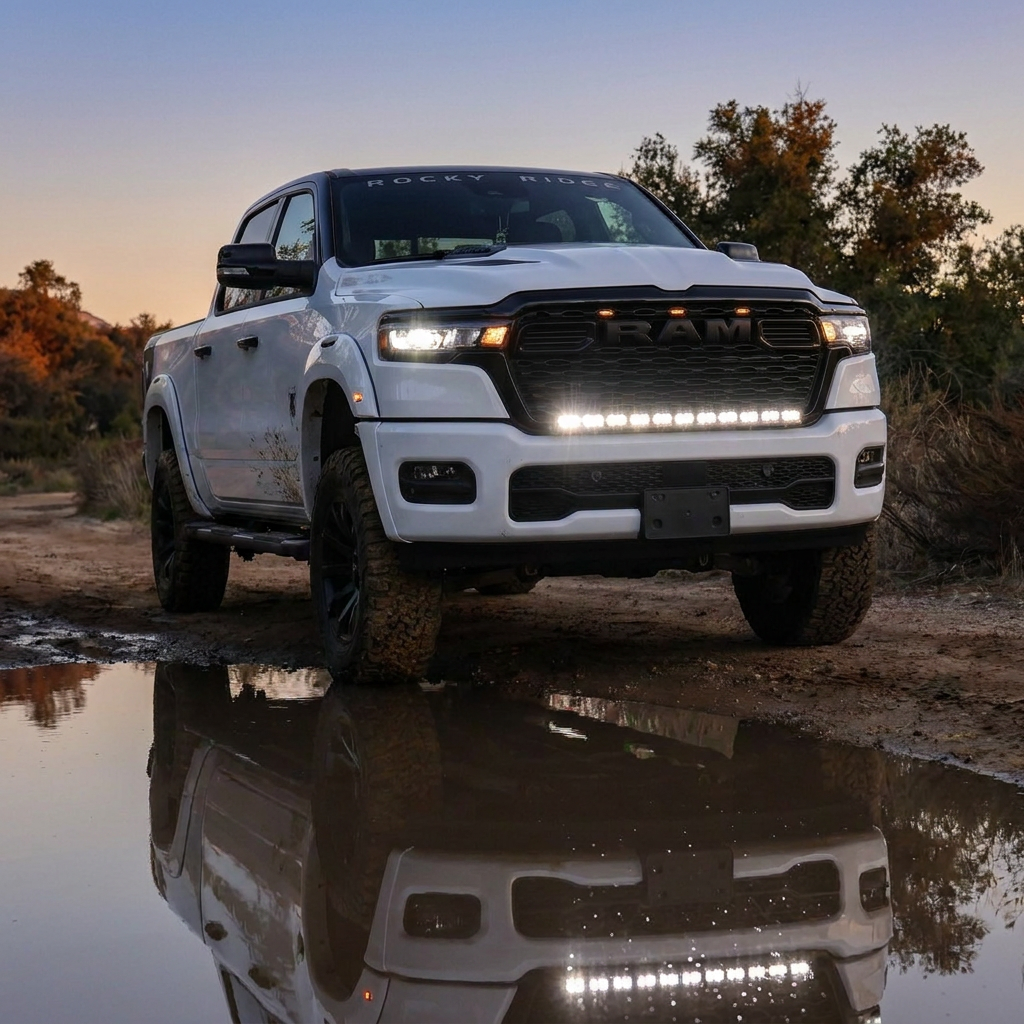

- Curved LED light bar PRO, stays slim to the grille for a sleek, built-in look
- Must remove grille
- No cutting or drilling required. The kit is a complete bolt on
- Metal bracket is powder coated black
- The light bar doesn’t cover any grille openings
- Full radiator airflow and factory cooling performance.
BUILD QUALITY:

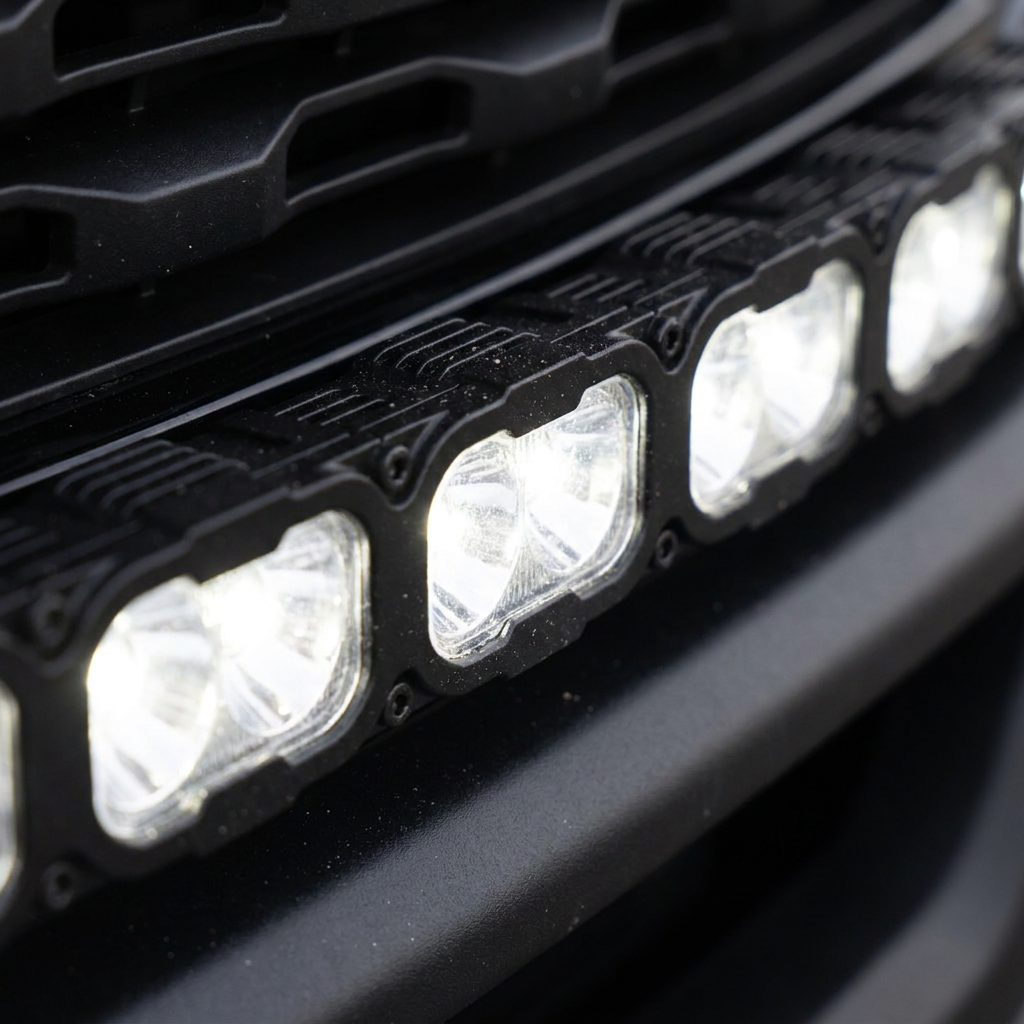

- Uses a TIR (Total Internal Reflection) lens, which is different from the conventional optics parts, which lose some light internally and produce glare. The TIR lens collects all of the light from the LED and directly leads them to where you need, drastically reducing glare and improving total efficiency.
- Higher light efficiency: brighter, longer irradiation distance
- Housing is upgraded to 304 aluminum. The surface is UV polyester powder coated to protect against UV, salt water, corrosion, fading and scratch resistant.
- Equipped with thermal management system that automatically adjusts the brightness output according to the external temperatures
- Rated for a 50,000 hour lifespan
40in PRO Light Bar
| Beam Pattern | Spot & Driving |
| Theoretical Max Power | 220 watts |
| Actual Power | 125 watts |
| Voltage / Current (Main) | DC 12V / 10.42A |
| Voltage / Current (Backlight) | DC 12V / 0.25A |
| Theoretical Max Luminous Flux | 24,024 lm |
| Measured Flux (without lens) | 15,224 lm |
| Measured Flux (with clear lens) | 12,108 lm |

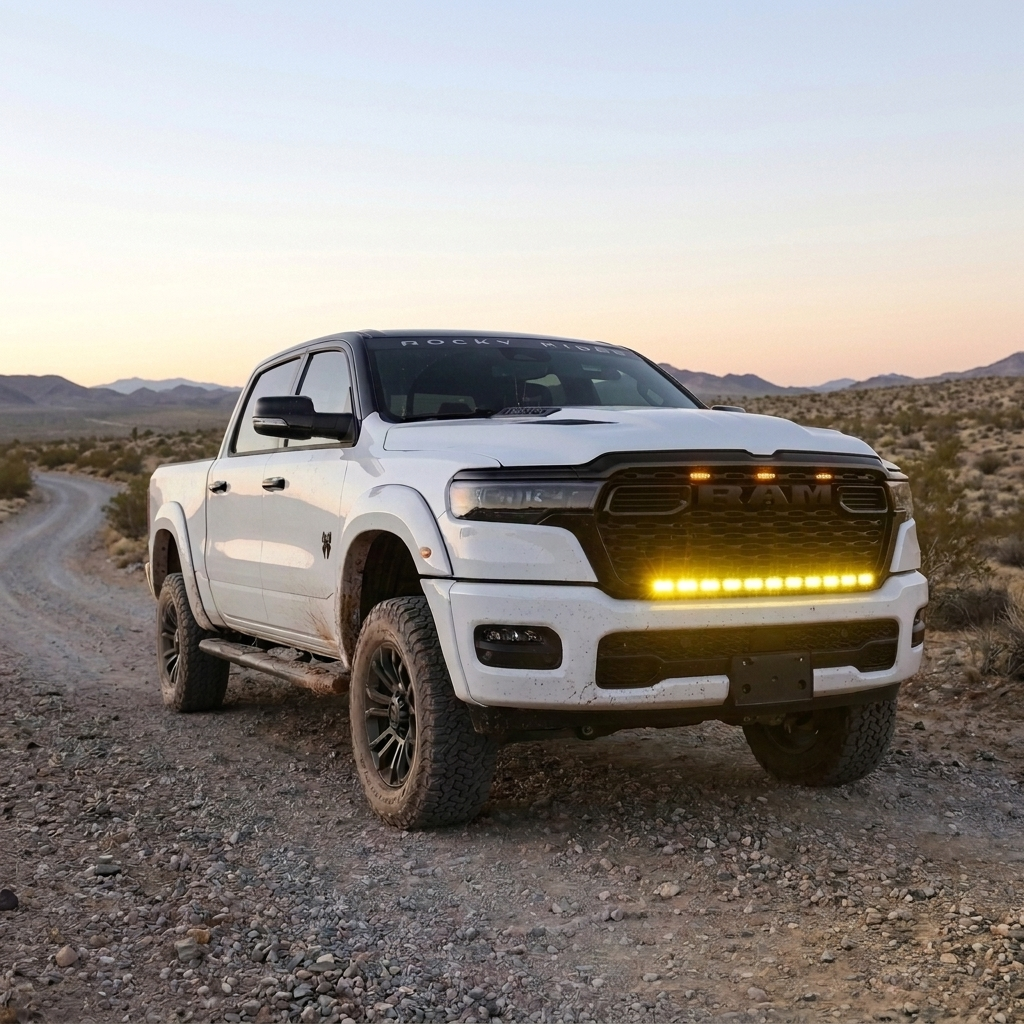

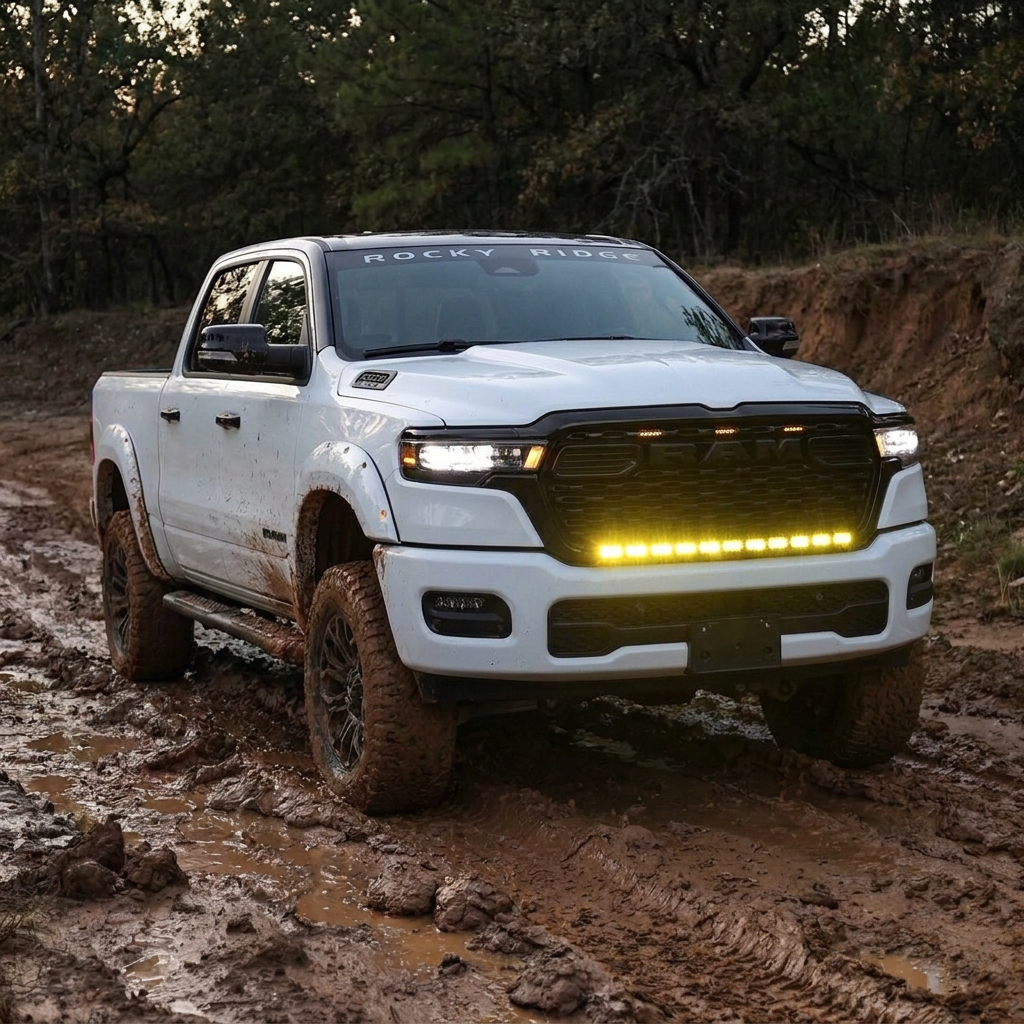

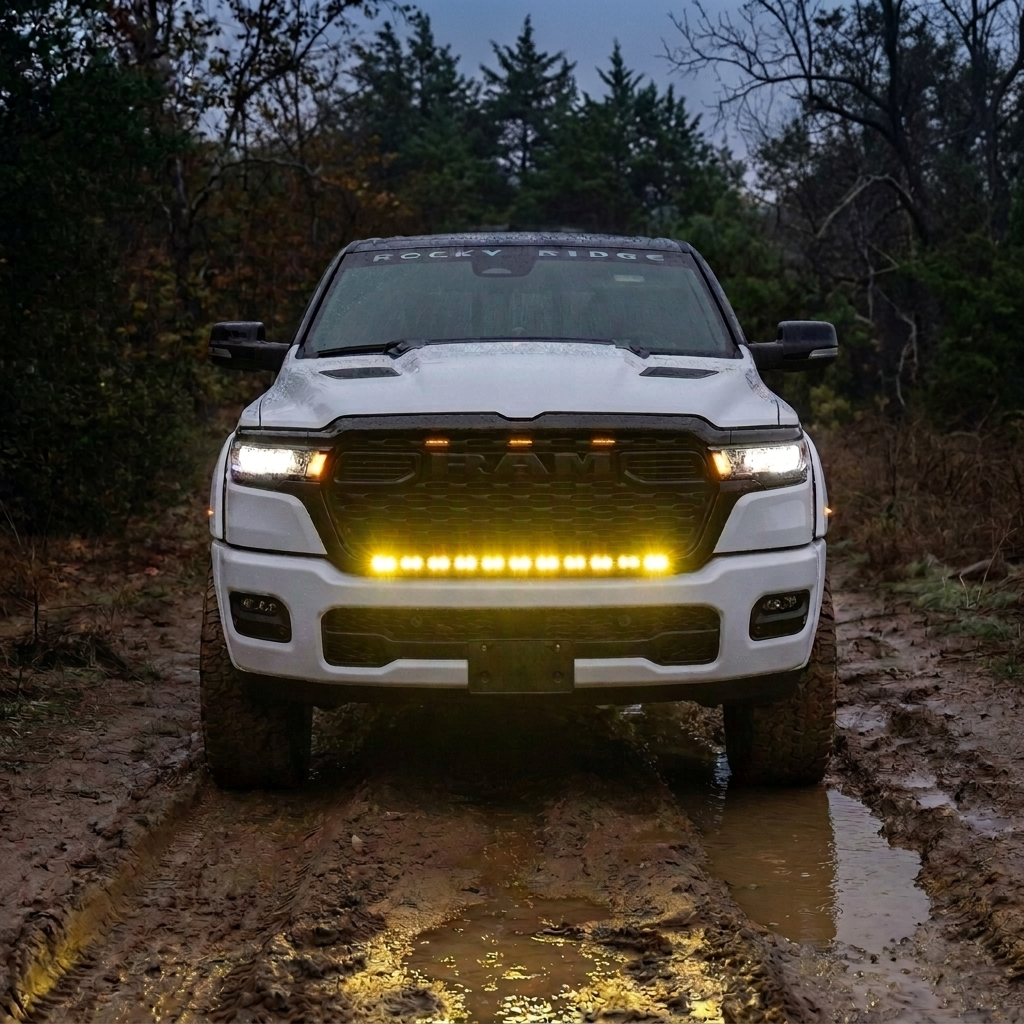

| Measured Flux (with yellow lens) | 9,505 lm |
| LED Type | Luminus SST-20 |
| Color Temperature | 6000K |
| Number of LEDs | 22 pcs |
| Product Size (L × W × D) | 38.90 × 1.89 × 1.00 in |
