- Product Description
- Light Bar Specs
- Shipping & Warranty

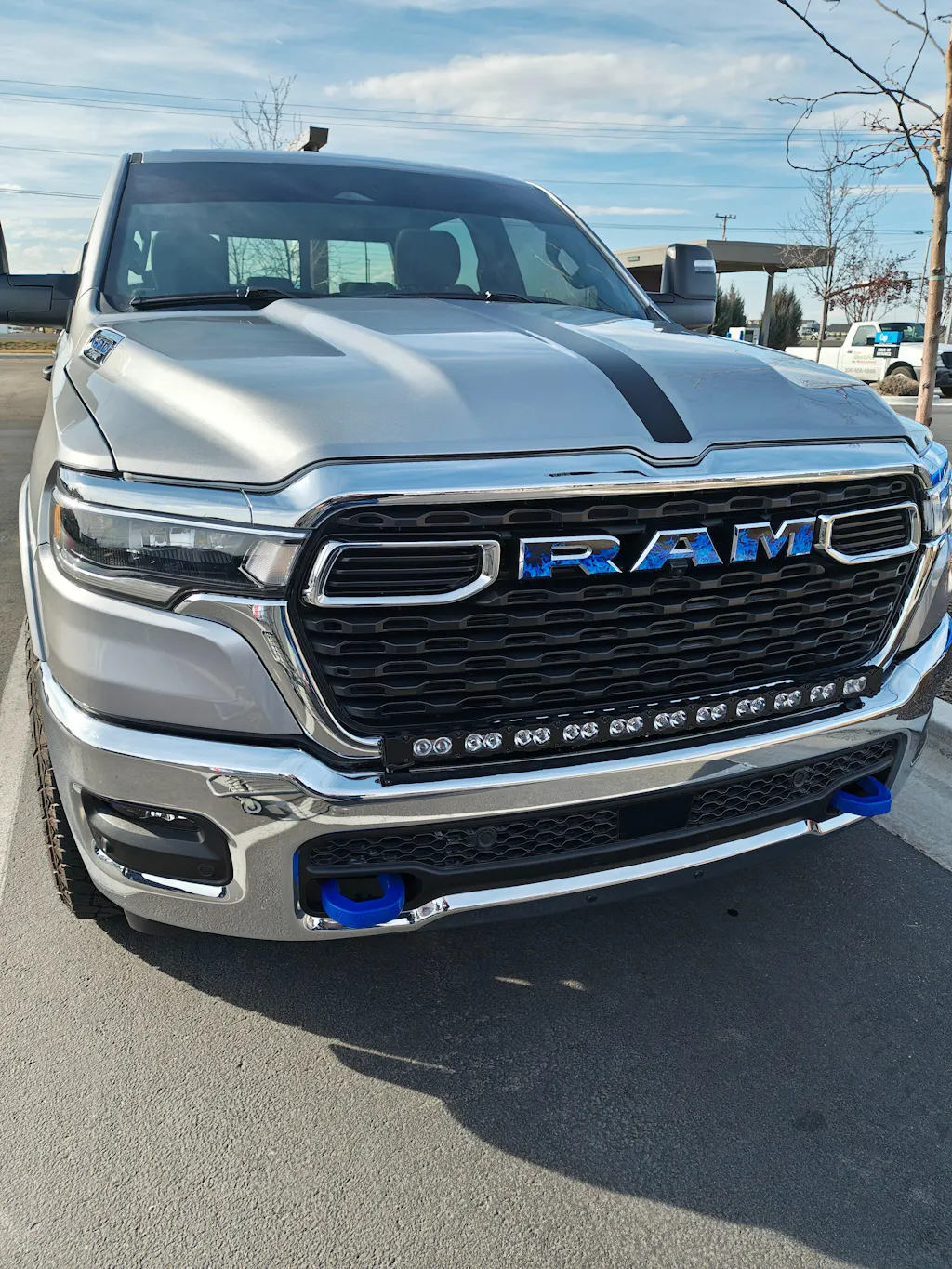

- Fits 2025 RAM 1500
- Trims: RAM 1500 Tradesman, Big Horn, Warlock, Laramie, Limited

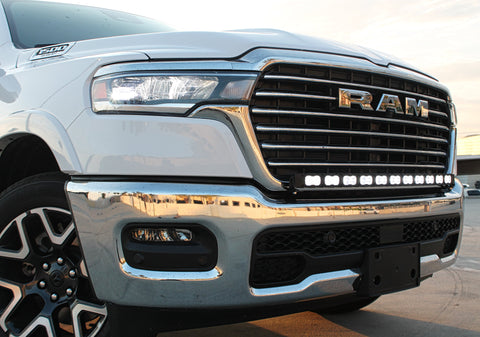

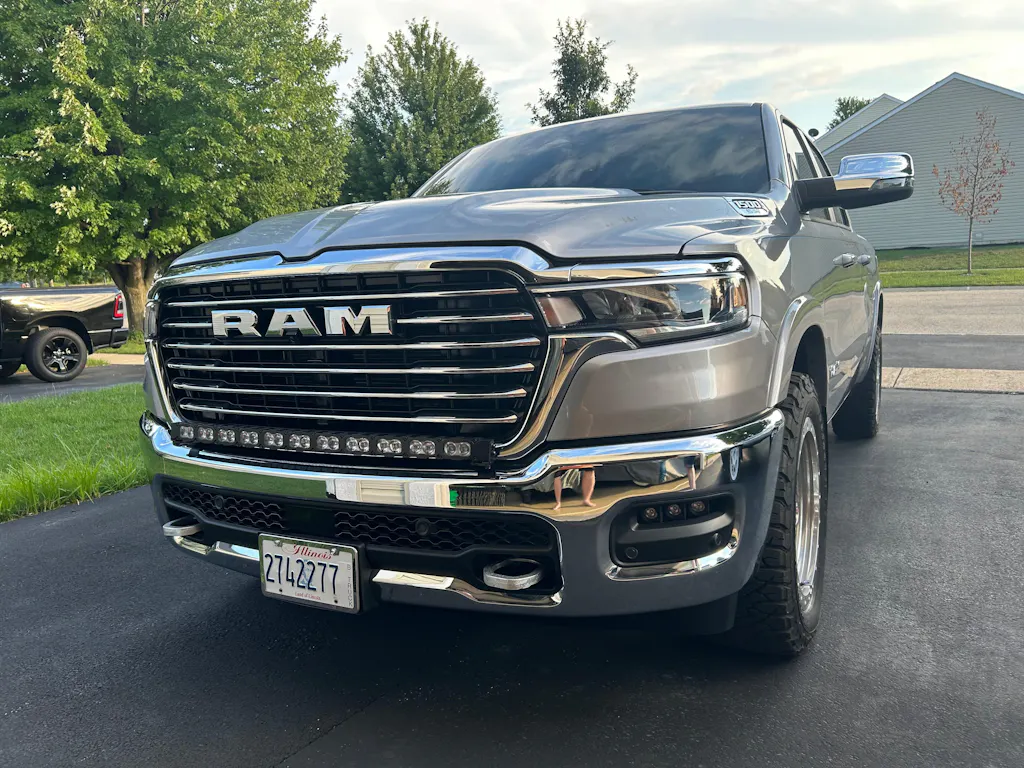

- Curved LED light bar PRO, stays slim to the grille for a sleek, built in look
- Must remove grille
- No cutting or drilling required. The kit is a complete bolt on
- WILL NOT interfere with active grille shutters
- Doesn't interfere with radiator air flow
- Metal bracket is powder coated black

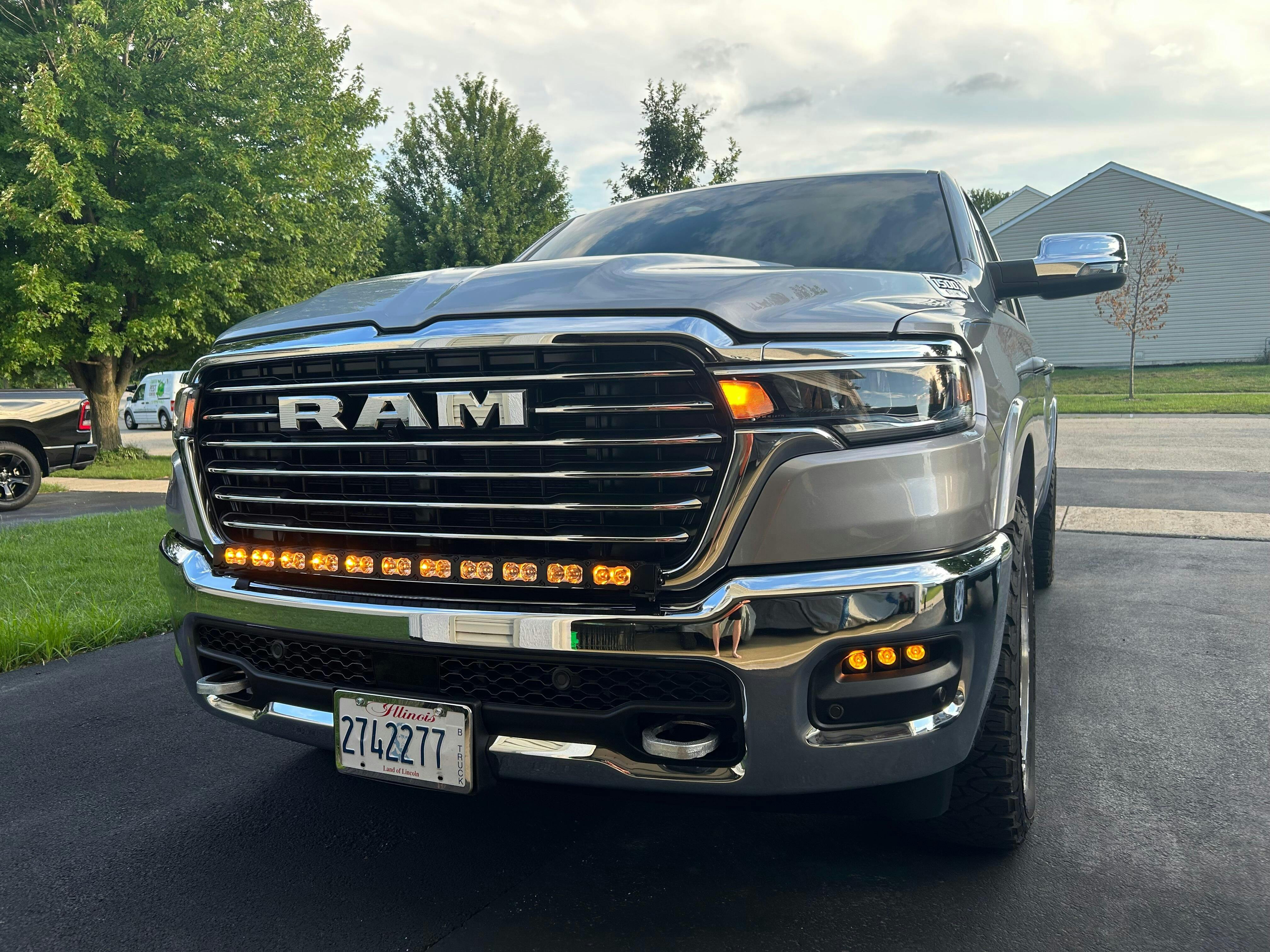

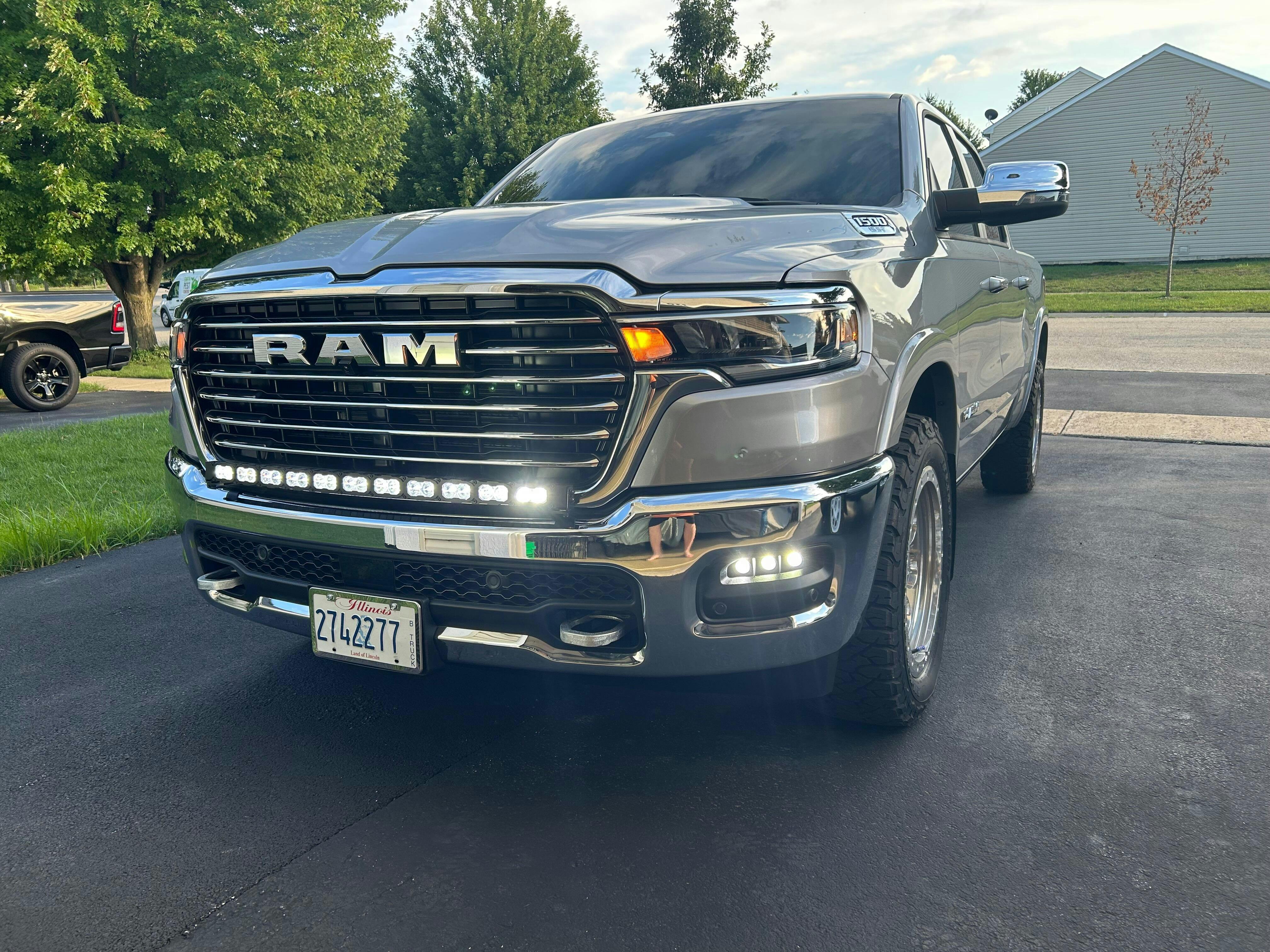

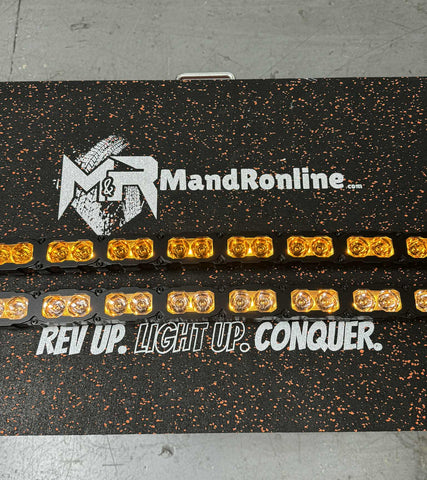

DUAL COLOR: White with Amber DRL
Main White LED Light with Amber DRL (daytime running lights)
-

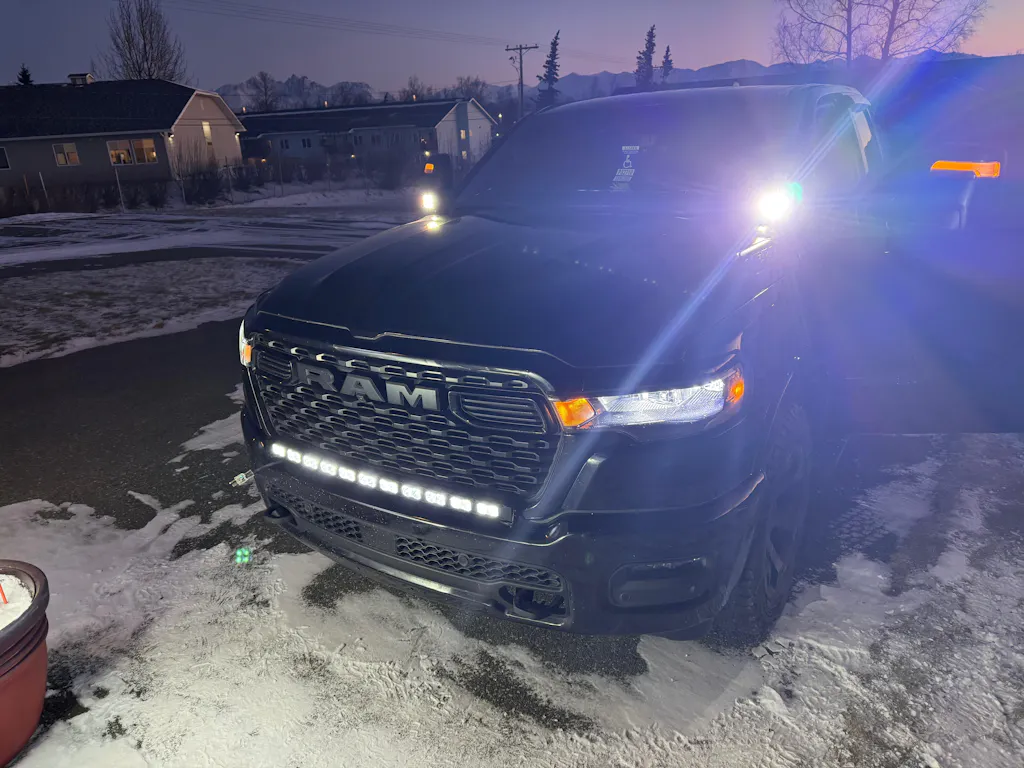

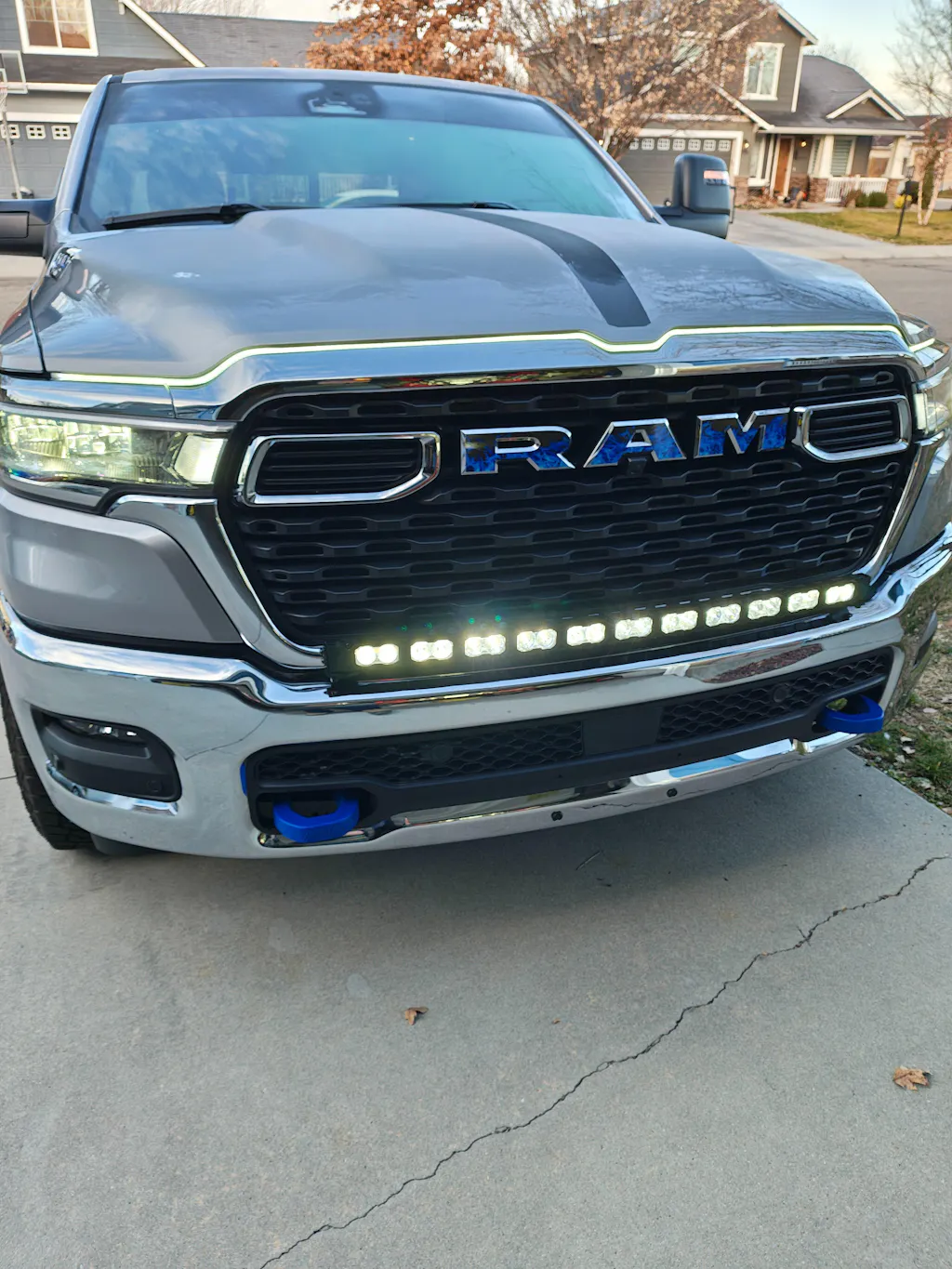

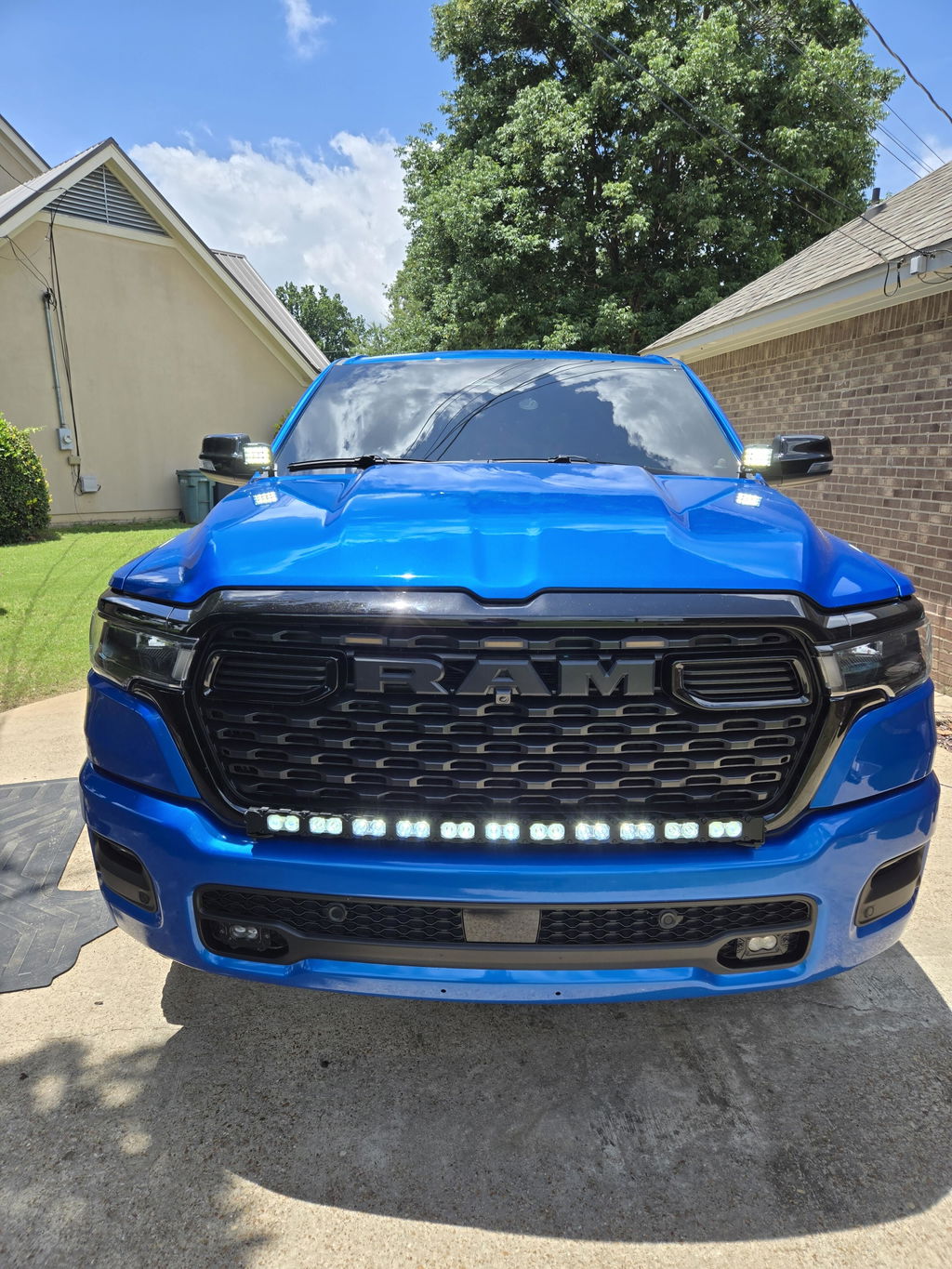

White LED -- Super bright and crisp white beam pattern. It will definitely provide you with enough light needed for all of your adventures. However, these are only for off-roading and can’t be used on the regular road. They will blind the in-coming traffic and also violates road safety.

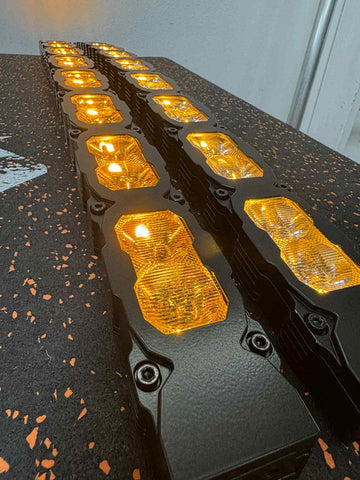

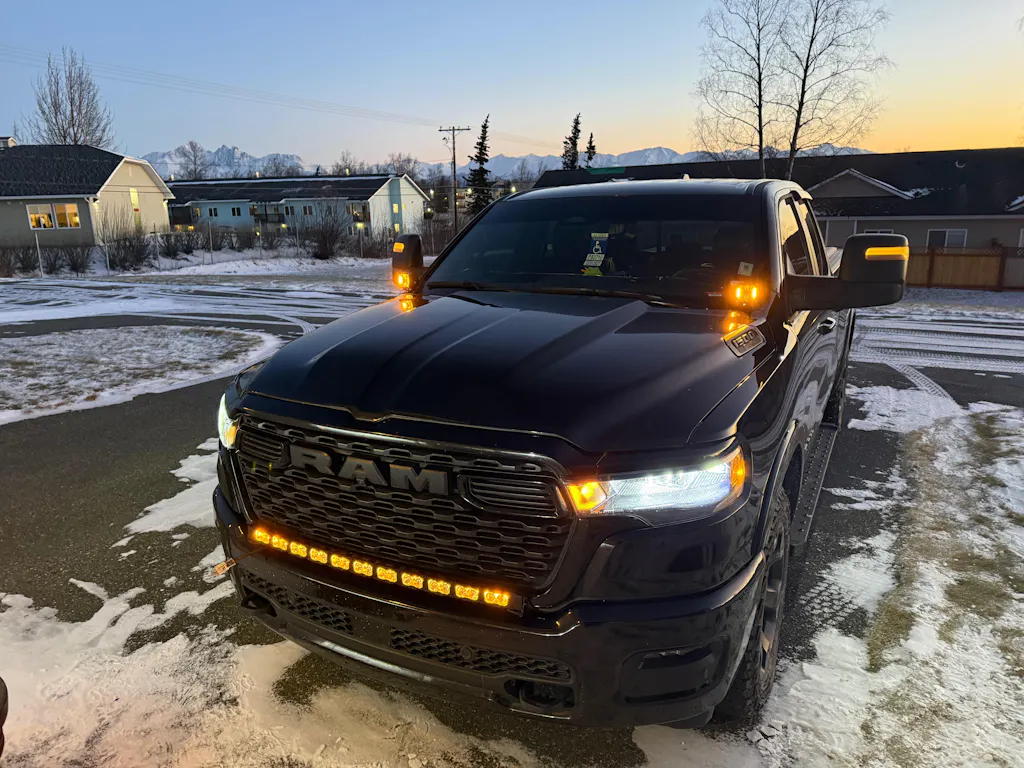

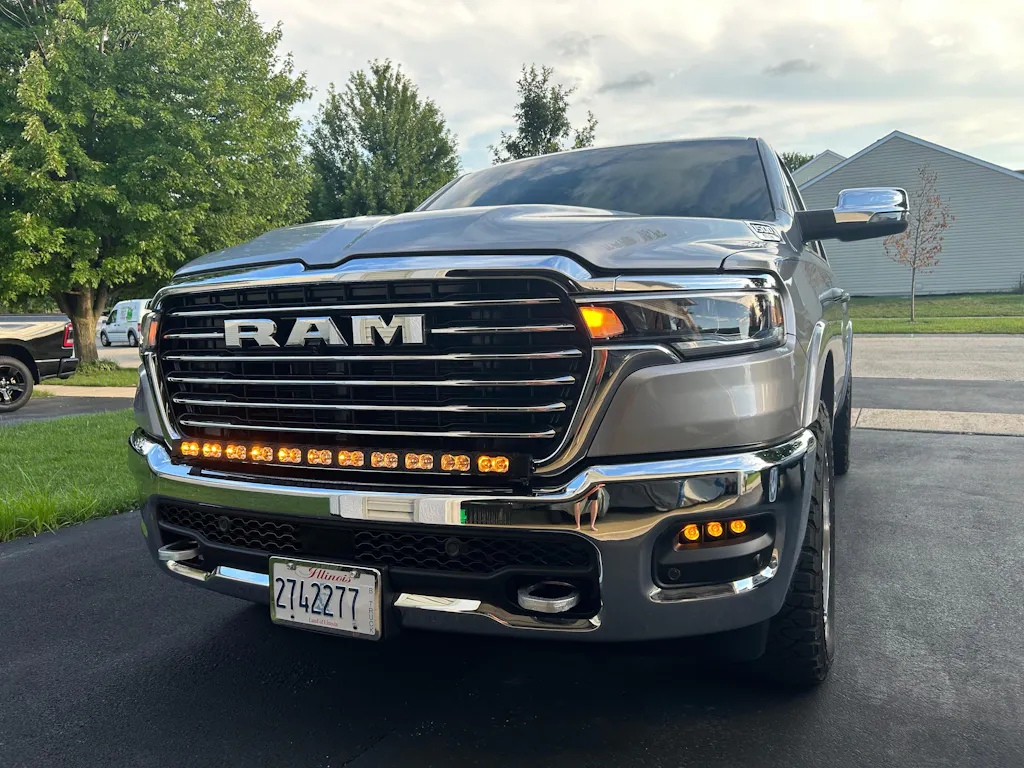

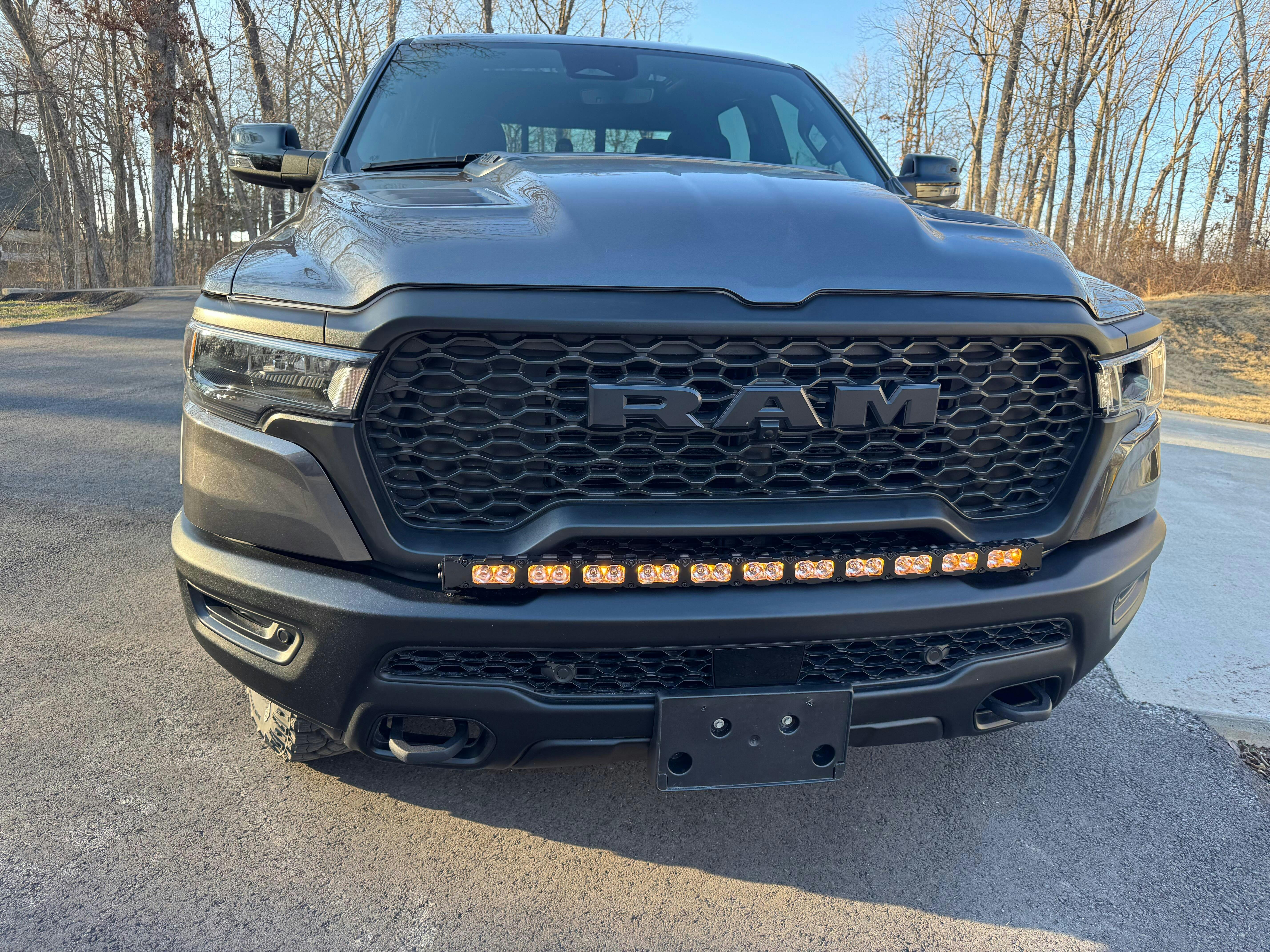

- Amber DRL -- amber DRL “daytime running lights” acts purely for aesthetics. Since it doesn’t give out much light, you can use this amber DRL feature on regular roads, it doesn't blind in-coming traffic.

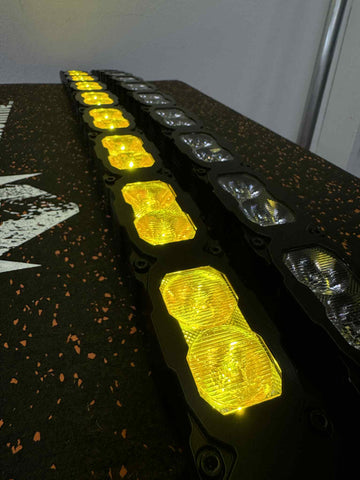

DUAL COLOR: Yellow with Amber DRL
Main Yellow LED Light with Amber DRL (daytime running lights)
-
Yellow LED -- used in poor driving conditions such as dust, fog, snow and rain. It reflects through air particles much less than the white light. Therefore, making it ideal for poor driving conditions. For off road use only.

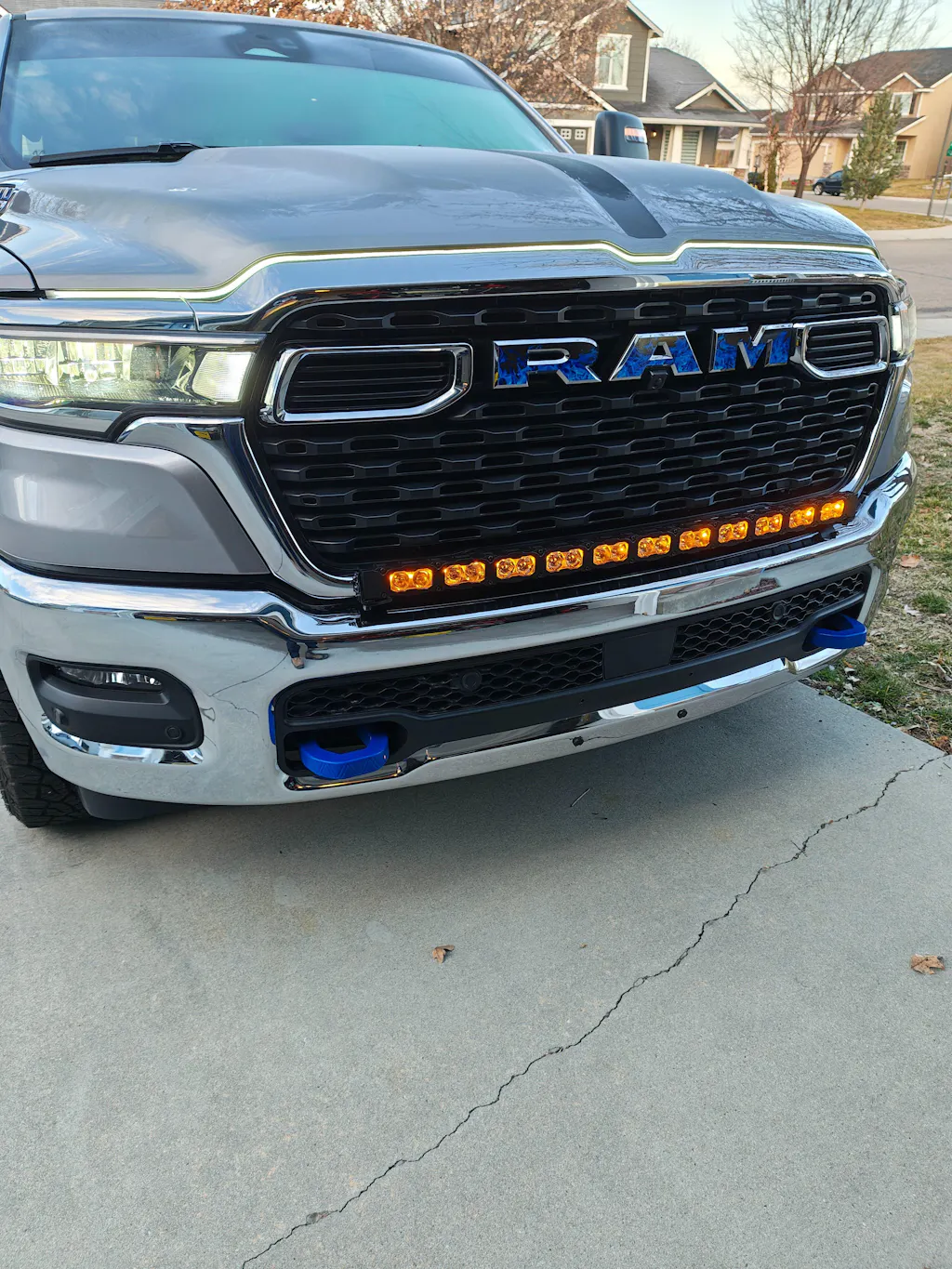

- Amber DRL -- amber DRL “daytime running lights” acts purely for aesthetics. Since it doesn’t give out much light, you can use this amber DRL feature on regular roads, it doesn't blind in-coming traffic.

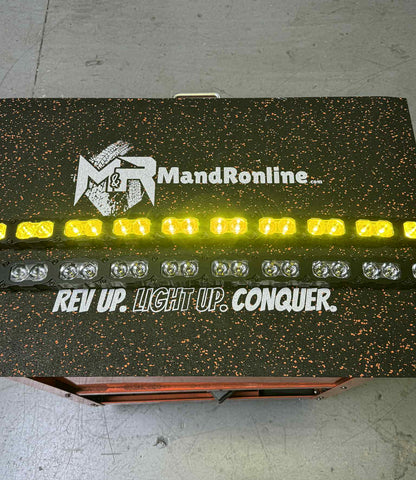

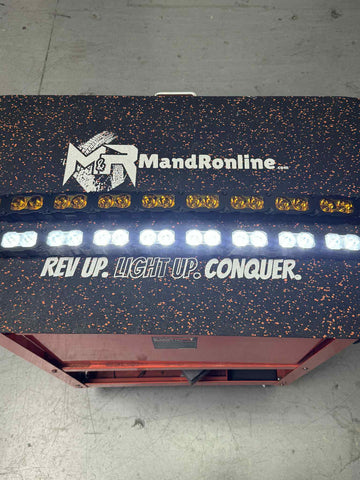

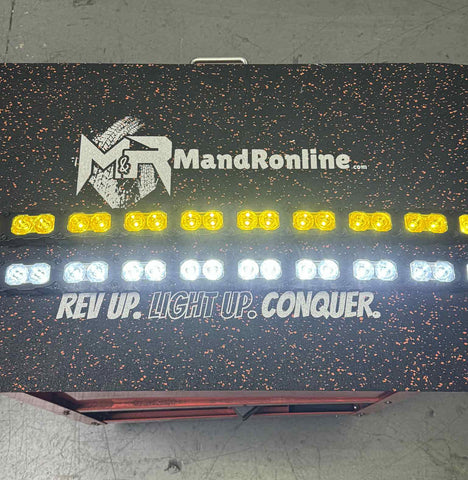

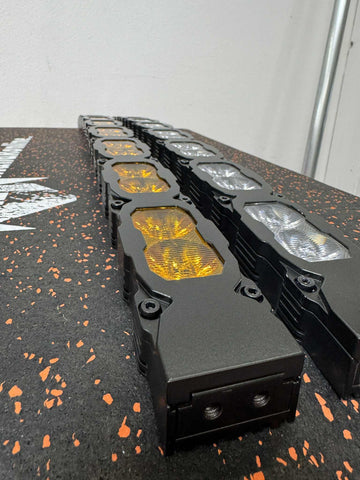

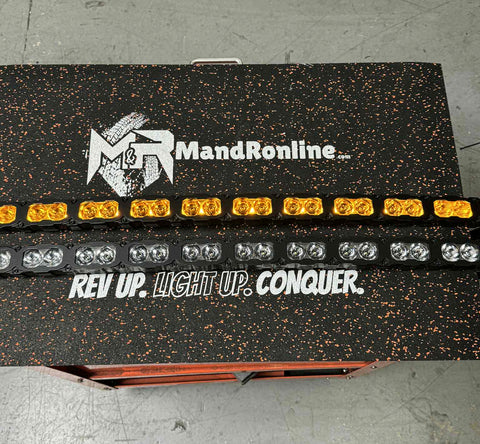

**Please note** The yellow lens alters the look of the amber DRL, making it appear a little darker than with the white lens. Check the photos to see the difference.
- Combo Pattern: combined spot and driving optics offers a balance between the distance and width

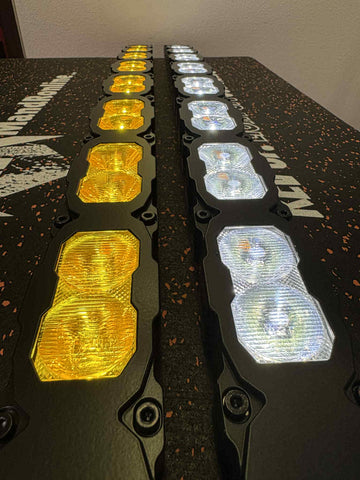

- Uses TIR (Total Internal Reflection) lens is different from the conventional optics parts, which lose some light internally and produce glare. The TIR lens collects all of the light from the LED and directly leads them to where you need, drastically reducing glare and improving total efficiency.
- Higher light efficiency: brighter, longer irradiation distance
- Housing is upgraded to 304 aluminum. The surface is UV polyester powder coated to prevent against UV, salt water, corrosion, fading and scratch resistant.
- Equipped with thermal management system that automatically adjusts the brightness output according to the external temperatures
👍Our light kits are for off-road use only.
WHAT'S INCLUDED?
(1) 40in curved light bar-PRO
(4) mounting brackets
All mounting hardware
WIRING
- M&R Automotive doesn’t provide a wiring harness. The light bar has 8ft of wire. This is long enough to connect to AUX switches or another power source..
- If your truck doesn't have AUX switches, you will need to purchase a generic wiring harness on Amazon/ Ebay or create your own.

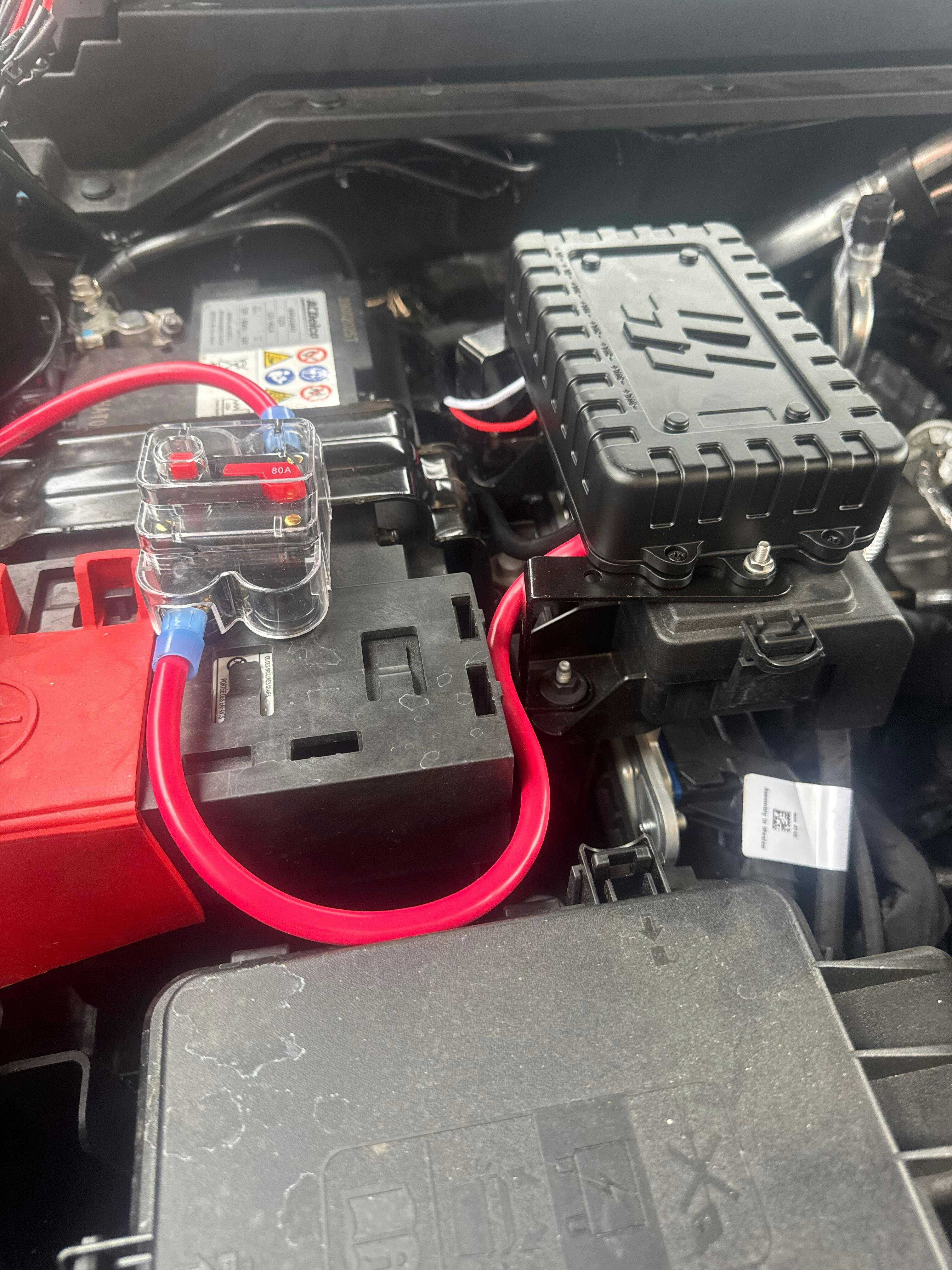

- For our installation, we used M&R wireless wiring harness. No need to run any wires through the firewall, clean install.
INSTALLATION INSTRUCTIONS
40in Light Bar PRO
- Theoretical max power 220watts
- Actual power 125watts
- Main White light is 10.42amps at 12v
- Backlight Amber is 0.25amps at 12v
- Theoretical max luminous flux 24,024 lm
- Measured luminous flux (without lens) 15,224 lm
- Measured luminous flux (with lens) 12,108 lm
- LEDs type: luminus SST-20 Ra70
- Temperature: 6000k
- LEDs number: 22pcs
We have a lifetime warranty on our light kits. We truly want our truck enthusiastic customers to enjoy their products as much as we enjoy designing them. However, we also understand that different situations arise with brackets or lights. For more information about our warranty and disclaimer click here.
*M&R Automotive is not responsible for misuse or improper installation of the product. Professional installation is recommended.
