WhiteAmberdual function: White light with Amber DRL backglow
$284.99
  • Product Description
  • Light Bar Specs
  • Shipping & Warranty
  • Fits RAM 2500/3500, years 2019 2020 2021 2022 2023 2024



  • The kit is a complete bolt on using factory openings and hardware
  • Metal bracket is powder coated black
  • Must remove the grille
  • **PLEASE NOTE** there is minimal trim of rubber/plastic cowl to fit the bracket. please reference video.



👍Our light kits are for off-road use only.


Choose your light bar color:

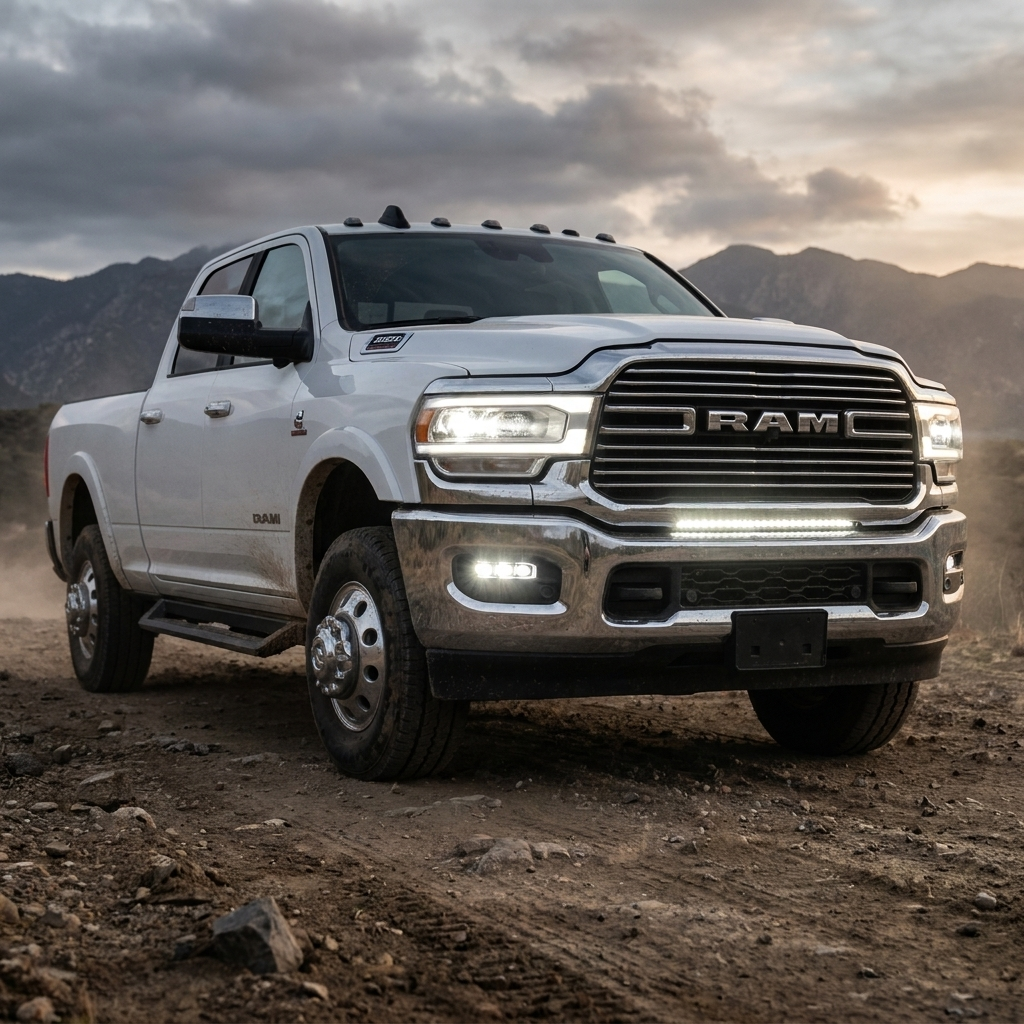

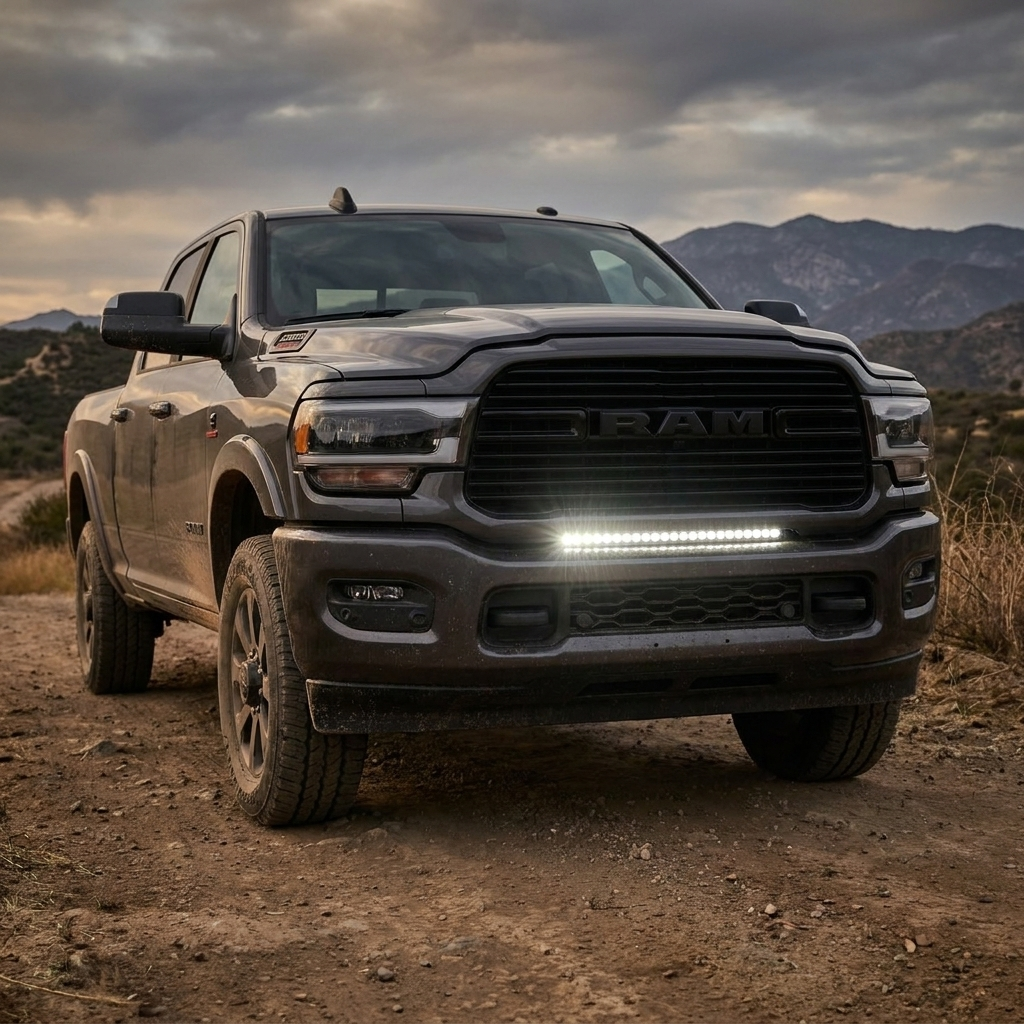

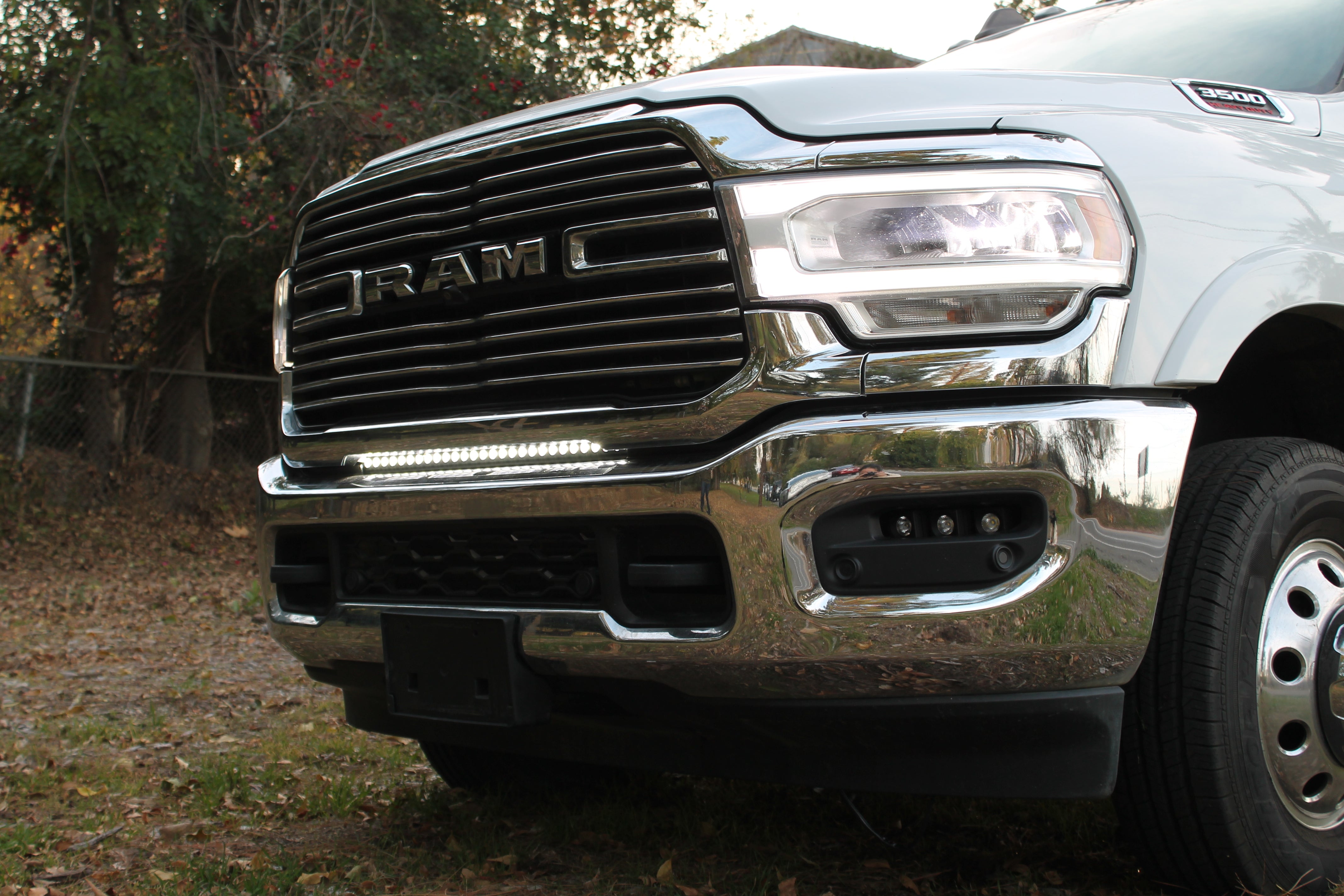

1) White LED -- Up to 11,760 lumens, bright and powerful. It will definitely provide you with enough light needed for all of your adventures. However, these are only for off-roading and can’t be used on the regular road. They will blind the in-coming traffic and also violates road safety.

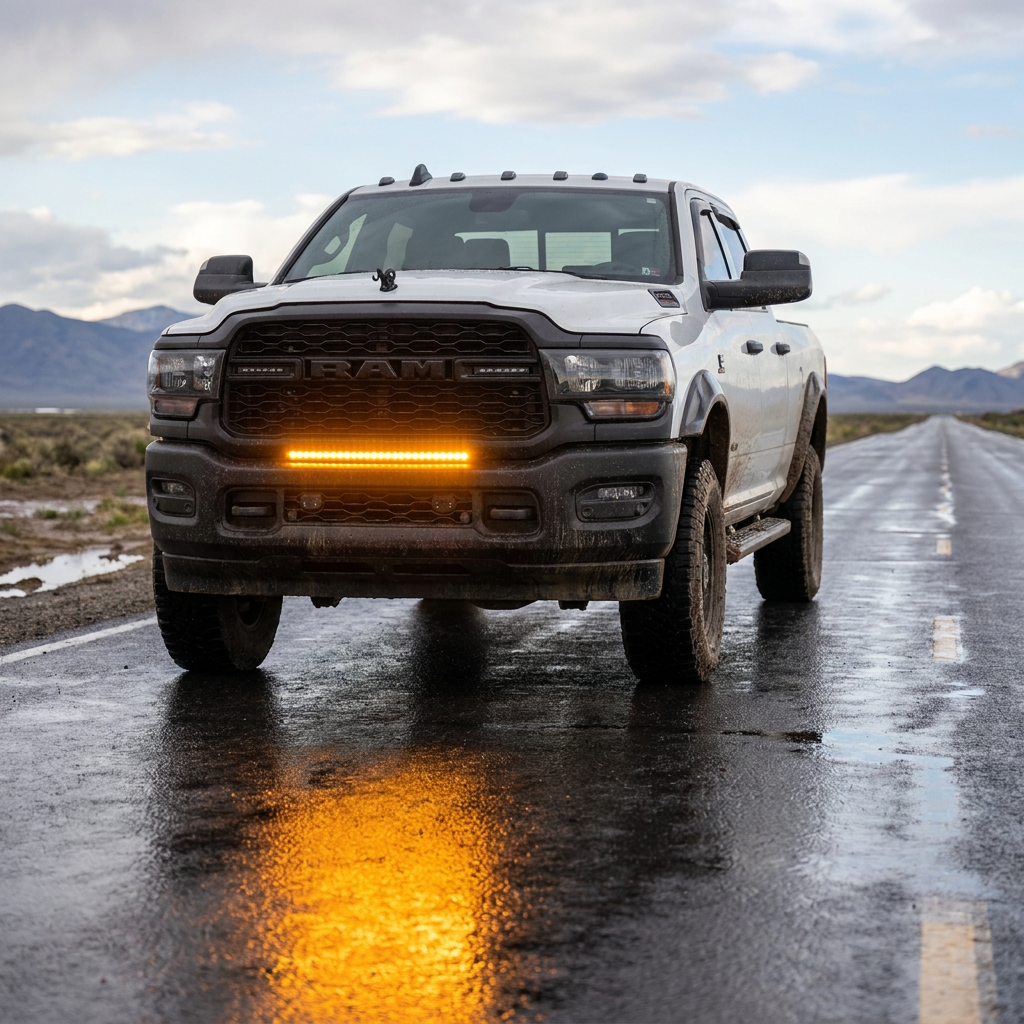

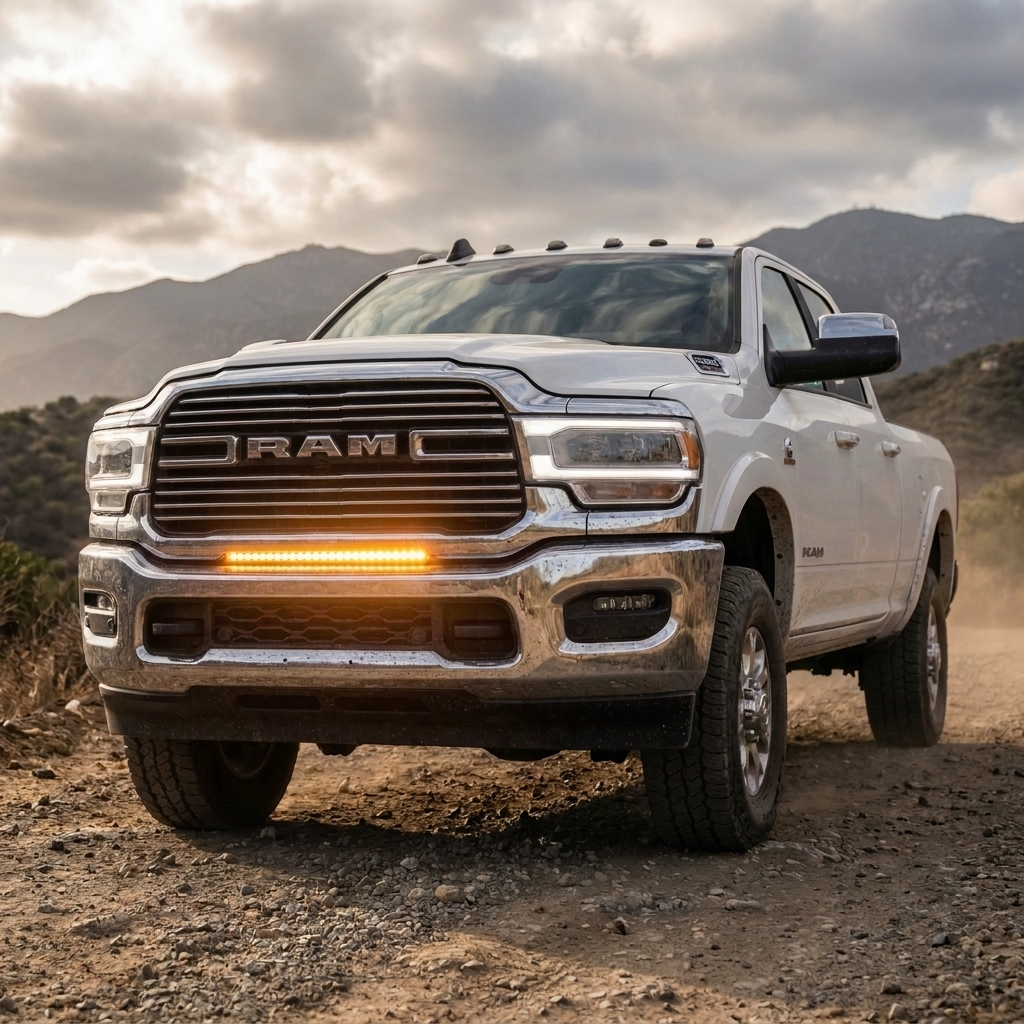

2) Amber LED -- Up to 5,500 lumens, used in poor driving conditions such as dust, fog, snow and rain. It reflects through air particles much less than the white light. Therefore, making it ideal for poor driving conditions.

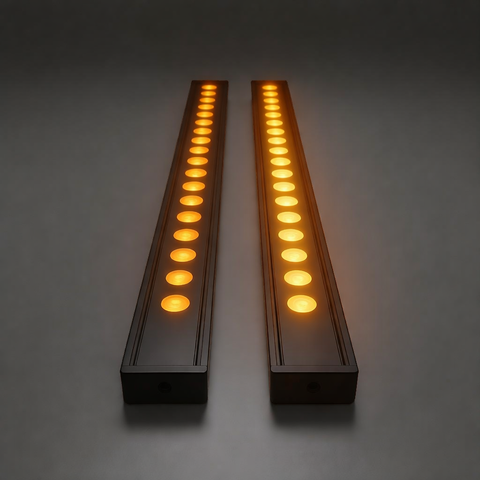

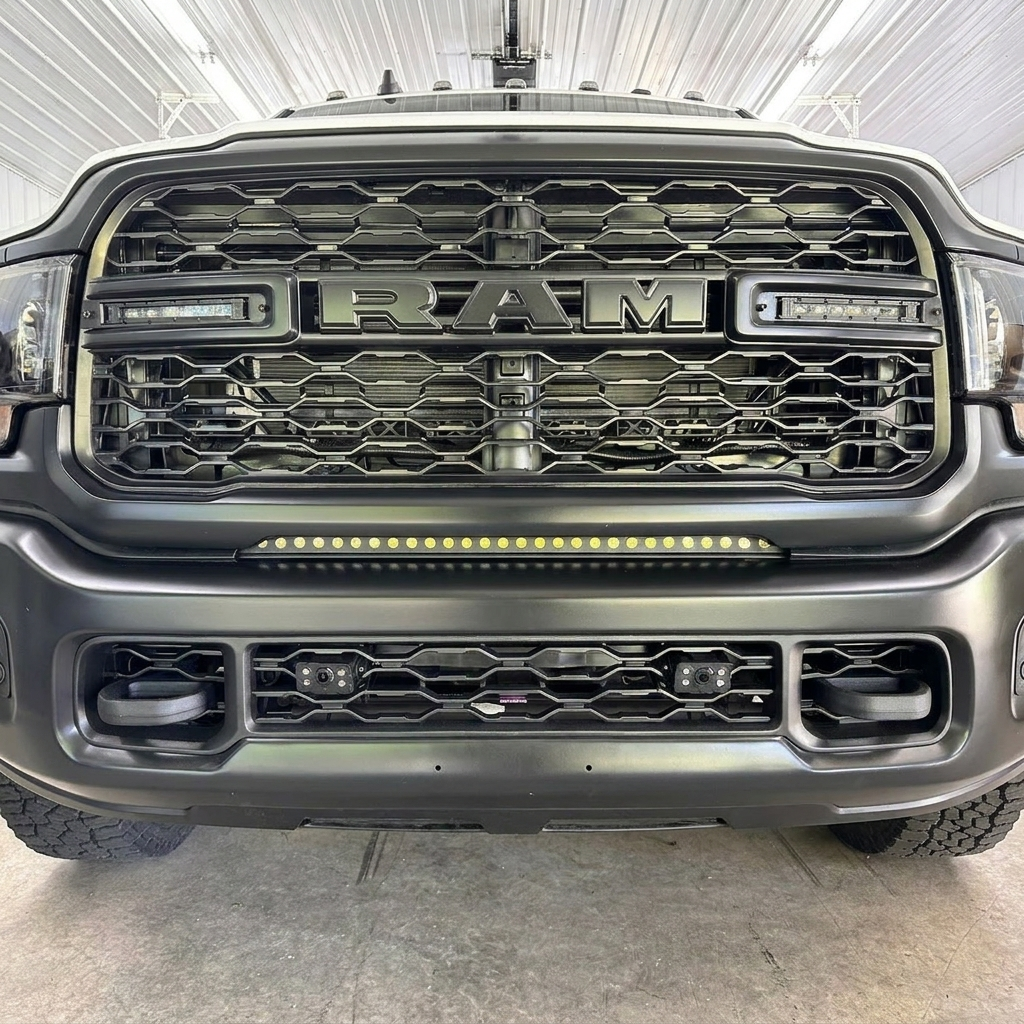

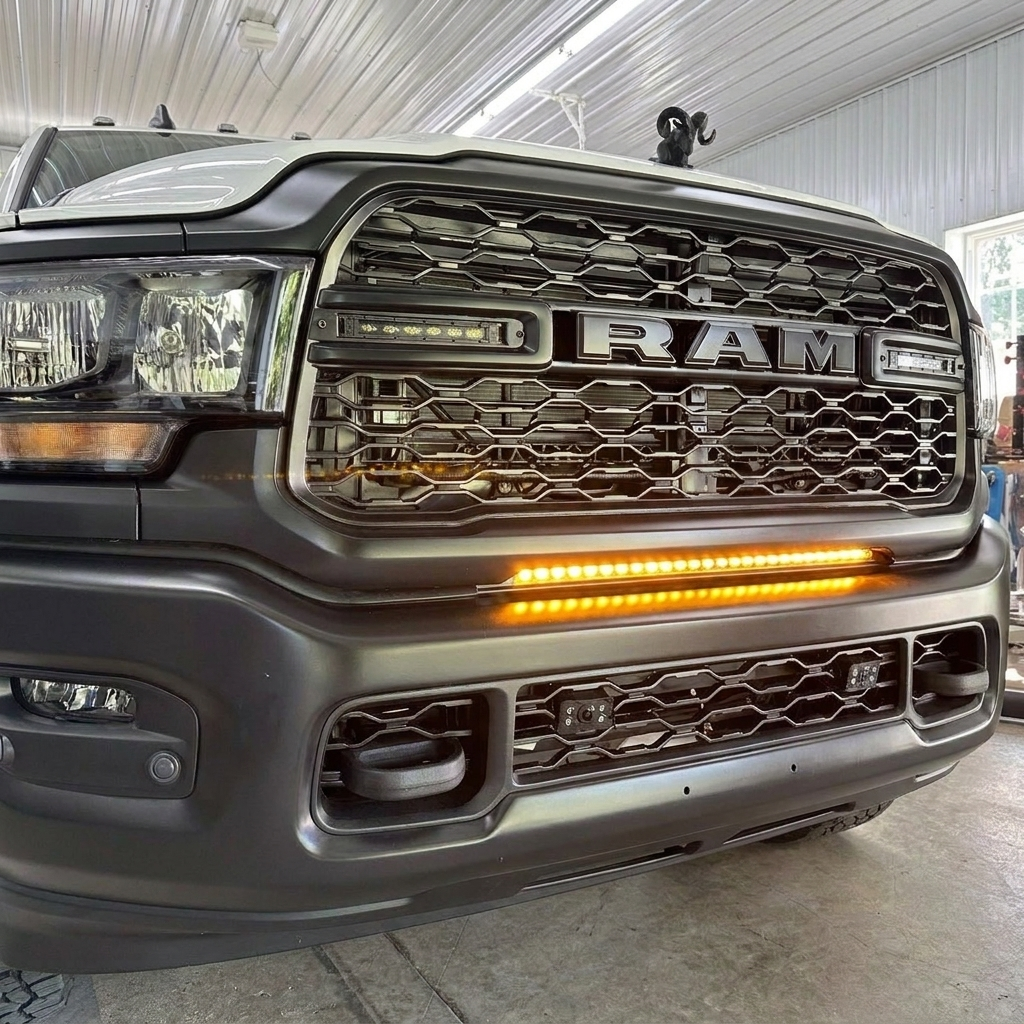

3) dual function: main White LED light with Amber DRL backglow -- the white LED light is same as described above, but the amber DRL “daytime running lights” acts purely for aesthetics. It doesn’t give out much light, but more of a beautiful amber backglow. Since it doesn’t give out much light, you can use this amber DRL feature on regular roads, it doesn't blind in-coming traffic.

Full in-depth video describing our lights bars CLICK HERE

WHAT'S INCLUDED?

(1) 30in light bar

(2) mounting brackets

All mounting hardware

WIRING

M&R Automotive doesn’t provide a wiring harness for this light bar kit. The light bar has 6ft of wire which is enough to reach AUX switches if your truck has them. Otherwise, you will need to purchase a generic wiring harness from Amazon/Ebay or create your own.


We now sell Wireless 8 Circuit Wiring Harness. This makes install much easier if you don't have AUX switches. No need to run any wires through the firewall, clean install.

INSTALLATION INSTRUCTIONS

This product has written instructions for download.


30in Light Bar Specs


All domestic (USA) orders are free shipping via USPS or UPS, depending on product size.
We typically ship in 3-7 business days. If we are anticipating a delay with your shipment due to availability of the product, we will reach out to you via email.

Canada, international or express shipping costs are calculated at checkout.

You will receive an email with tracking number when your order is shipped.

If you have a special request about your order, reach out, we try to accommodate as much as we can.

For a complete shipping policy click here.


We have a lifetime warranty on our light kits. We truly want our truck enthusiastic customers to enjoy their products as much as we enjoy designing them. However, we also understand that different situations arise with brackets or lights. For more information about our warranty and disclaimer click here.




*M&R Automotive is not responsible for misuse or improper installation of the product. Professional installation is recommended.


Sale Off
wireless wiring harness 1.0

INCLUDES:

  • Rechargeable wireless controller, USB Type-C connector
  • Mounting plate that you attach to your preferred place inside the vehicle. The remote is magnetic for easy operation.
  • Sticker page to change the key icon to match the device connected to the control box.

Wireless Connectivity: With advanced wireless technology, connect and power various accessories without the need for traditional wiring. Enjoy a cleaner and more organized interior.  Wireless remote stays inside your vehicle without the need to run a wire through the firewall.

8 Switches: Total of 8 circuits: (2) 5amps, (2) 10amps, (2) 20amps, (2) 30amps

  • Max power: 1200watts
  • Max current Rating: 80amps
  • Voltage: DC 12V-24V

Plug-and-Play Compatibility: Installing accessories has never been easier. Designed with a user-friendly, plug-and-play interface, eliminating the need for complex wiring setups. Simply connect your accessories to the panel and you're ready for an adventure.



Universal Compatibility: Whether you're adding LED lights, off-road equipment, or other accessories, our wireless wiring harness is universally compatible. Seamlessly integrates with your vehicle's electrical system.



Enhanced Safety: Reduce the risk of electrical issues and potential hazards associated with traditional wiring systems. Engineered with safety in mind, featuring built-in safeguards to protect against overloads, short circuits, and other electrical mishaps.



Weatherproof Design: Built to withstand the toughest conditions, it is fully weatherproof. It has a rubber gasket around the fuse box and covered in epoxy.

$169.99
Sale Off
wireless wiring harness 2.0

➡️Special Features (only featured in this wireless 2.0)



Sleep Mode (Power-Saving Mode): If the input voltage of the Control Box falls below 13V (±0.2V), the Control Box will enter the sleep mode after 6 hours (default) of consecutively inactivity, then all loads will be shut down immediately and the Control Box will not respond to any commands from the Wireless Control Panel. When the input voltage rises above 13V (±0.2V), the Control Box will be awoken.

Low Voltage Protection: If the input voltage of the Control Box falls below 12.2V (±0.2V), the Control Box will enter the low voltage timing mode. After exceeding 30 minutes, the Control Box will start the low voltage protection, then all loads will be shut down immediately and the Control Box will not respond to any commands from the Wireless Control Panel.  When the input voltage rises above 13V (±0.2V), the Control Box will exit the low voltage protection.

Ultra-Low Voltage Protection: If the input voltage of the Control Box falls below 11.6V (±0.2V), the Control Box will enter the ultra-low voltage timing mode. After exceeding 10 seconds, the Control Box will start the ultra-low voltage protection, then all loads will be shut down immediately and the Control Box will not respond to any commands from the Wireless Control Panel. When the input voltage rises above 13V (±0.2V), the Control Box will exit the ultra-low voltage protection.

High Temperature Protection: If the temperature at the center of the Control Box's circuit board exceeds 100°C (±5°C), the Control Box will start the high temperature protection and immediately shut down all loads.





➡️Wireless Harness Specs



The main control box has 8 circuits, ranging in different amps.

(3) 10amps

(2) 20amps

(3) 30amps



The fuse box is  made out of high thermal conductivity die-case aviation aluminum housing. Allowing it to resist high-intensity impacts and is fully suitable for extreme off-road conditions. The surface is powder coated with UV-resistant polyester for weather resistance. The internal two-component thermally conductive mixture conducts and dissipates the heat generated by the circuity more quickly and effectively.





INCLUDES:

  • Rechargeable wireless controller, USB Type-C connector
  • Mounting plate that you attach to your preferred place inside the vehicle. The remote is magnetic for easy operation.
  • Sticker page to change the key icon to match the device connected to the control box.

Wireless Connectivity: With advanced wireless technology, connect and power various accessories without the need for traditional wiring. Enjoy a cleaner and more organized interior.  Wireless remote stays inside your vehicle without the need to run a wire through the firewall.



8 Switches: Total of 8 circuits: (3) 10amps, (2) 20amps, (3) 30amps

  • Max power: 1200watts
  • Max current Rating: 100amps
  • Voltage: DC 12V-24V



Plug-and-Play Compatibility: Installing accessories has never been easier. Designed with a user-friendly, plug-and-play interface, eliminating the need for complex wiring setups. Simply connect your accessories to the panel and you're ready for an adventure.



Universal Compatibility: Whether you're adding LED lights, off-road equipment, or other accessories, our wireless wiring harness is universally compatible. Seamlessly integrates with your vehicle's electrical system.



Enhanced Safety: Reduce the risk of electrical issues and potential hazards associated with traditional wiring systems. Engineered with safety in mind, featuring built-in safeguards to protect against overloads, short circuits, and other electrical mishaps.



Weatherproof Design: Built to withstand the toughest conditions, it is fully weatherproof. It has a rubber gasket around the fuse box and covered in epoxy.

$214.99

Customer Reviews

Based on 27 reviews
81%
(22)
15%
(4)
4%
(1)
0%
(0)
0%
(0)
E
E.L.

Fit good. Looks good. Easy to follow directions. Recomend it.

S
S.
Well worth it

I wasn’t sure if the light was going to be worth the time and money. Was going to go with a much more expensive bigger name brand. After reading all the positive reviews decided to give the M&R kit a try. The installation was pretty straight forward nothing tricky about it. The light is very clear and bright and has a very full throw pattern. Definitely happy with the performance and installation. If you’re on the fence between the bigger brand named lights and this one, go with this one you will not be disappointed.

B
B.R.

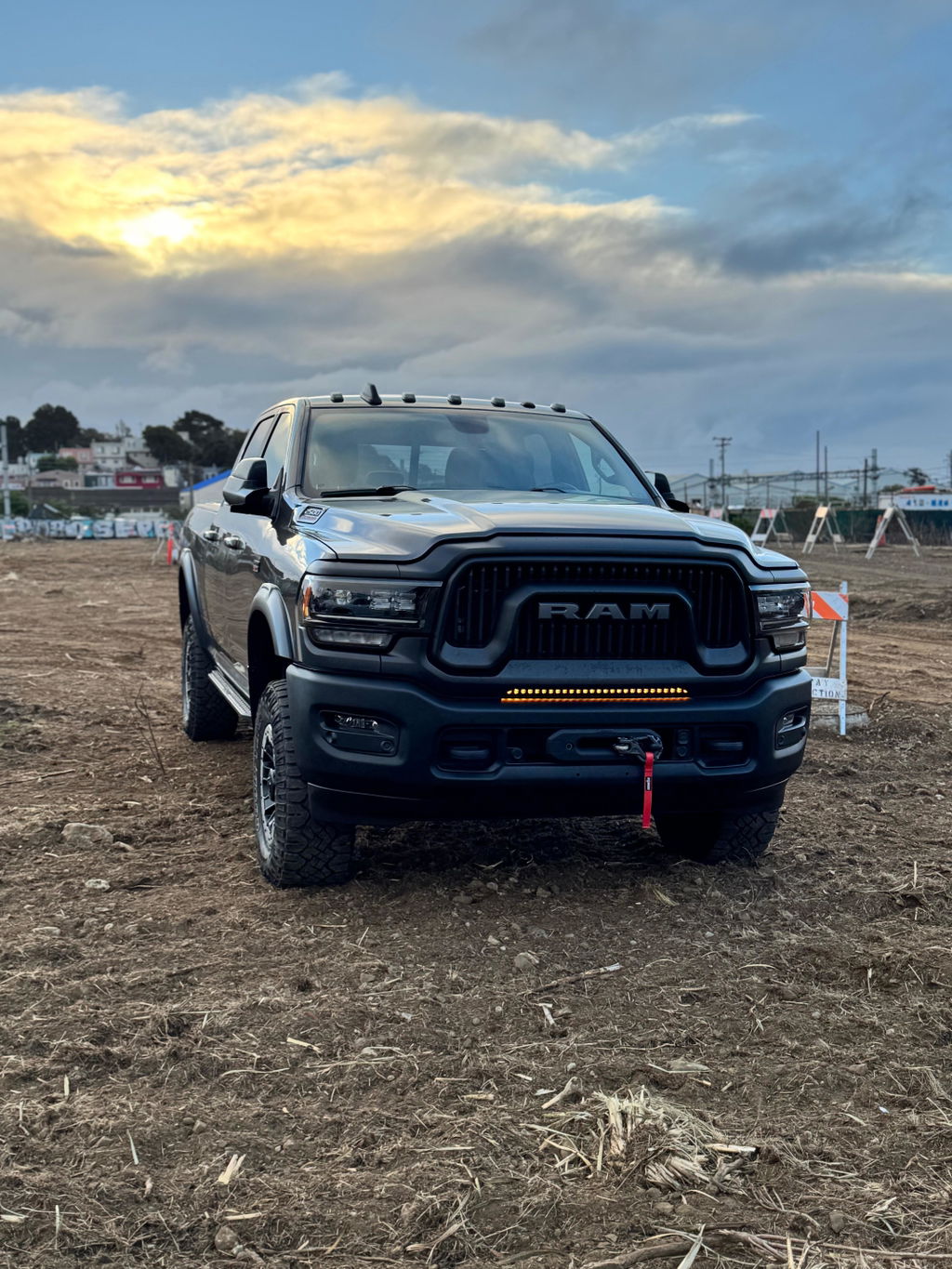

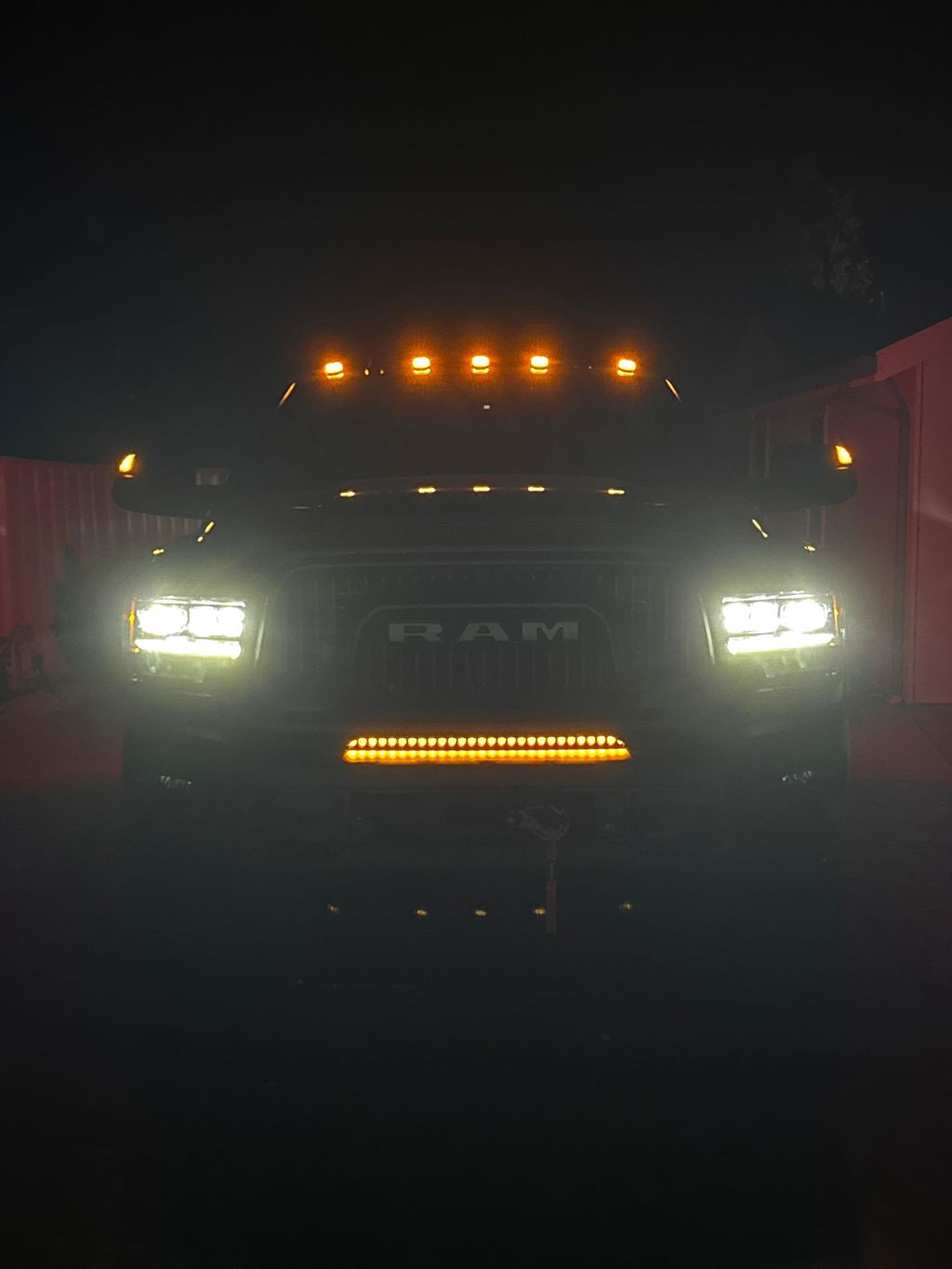

2023 RAM 2500 PowerWagon

LOVE the M&R Light Kit!!! This Light is BRIGHT and the Amber really sets off the truck at night. Hardest part is getting the bottom grill cover off and the PowerWagon you have to deal with the Winch in the way. Once figured out installation is a breeze. Light Bar really good. Strongly suggest the M&R Wireless Box w/remote to run your power.

User picture
S
S.S.
Slick

I like how slick and discreet their light bar is but still plenty bright and super effective. Shoulda bought it years ago

User picture
B
B.
Quality Light Bar

Light bar quality is good and I really liked the idea of the hidden look when I made the purchase. This is my first light bar so I don't have anything to compare the brightness to, but it seems to be good. My dislike for the bar is the installation. My 2024 Ram 2500 may be different than earlier models that the installation instructions were based on. If you buy one of these, throw the printed instructions in the trash. The online video is better. The printed instructions showed three bumper bolts that need to be loosed from underneath. The video shows five bolts. My truck had seven which the last two took some time to figure out. I had plastic alignment clips that broke when prying off the grill trim and had a plastic cover under the radiator that wasn't shown in the instructions. I had to cut the plastic rivets in order to get the radiator cover off in order to access the bolts that needed to be loosened. This cover wouldn't align correctly when reinstalling due the light bar. After having to cut pieces and broken alignment clips on an almost new truck, I would have gone with one of the lights that go behind the lower grill if I had to do it again. Installation would have been faster and I wouldn't have broken / cut up pieces.
