icon 2025+ RAM 1500 RHO 23in Light Bar PRO
main White light with Amber DRLmain Yellow light with Amber DRL
2
$419.99
  • Product Description
  • Light Bar Specs
  • Shipping & Warranty

Fits RAM 1500 RHO years 2025 2026. This will fit the Rebel model

    • Curved LED light bar PRO

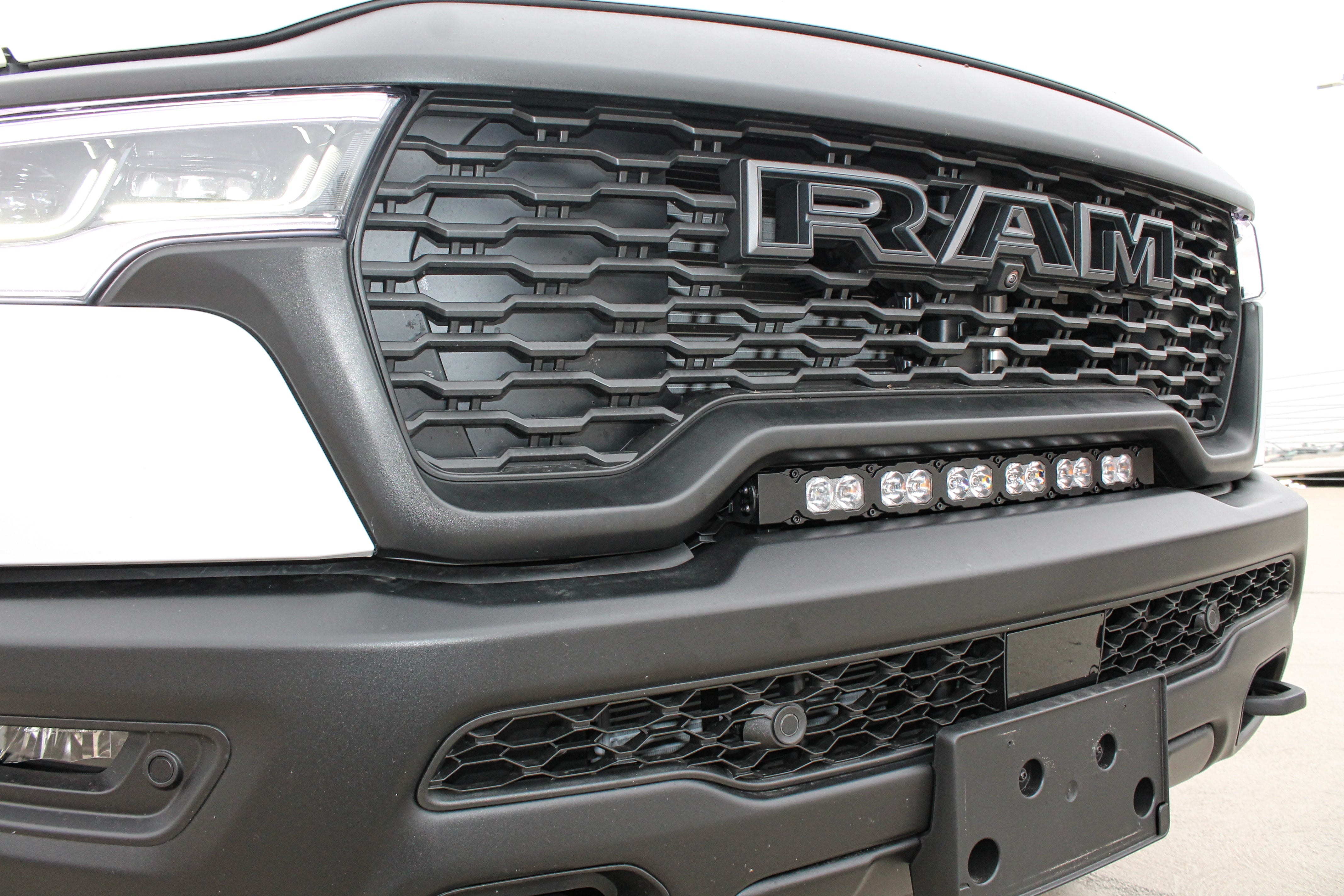

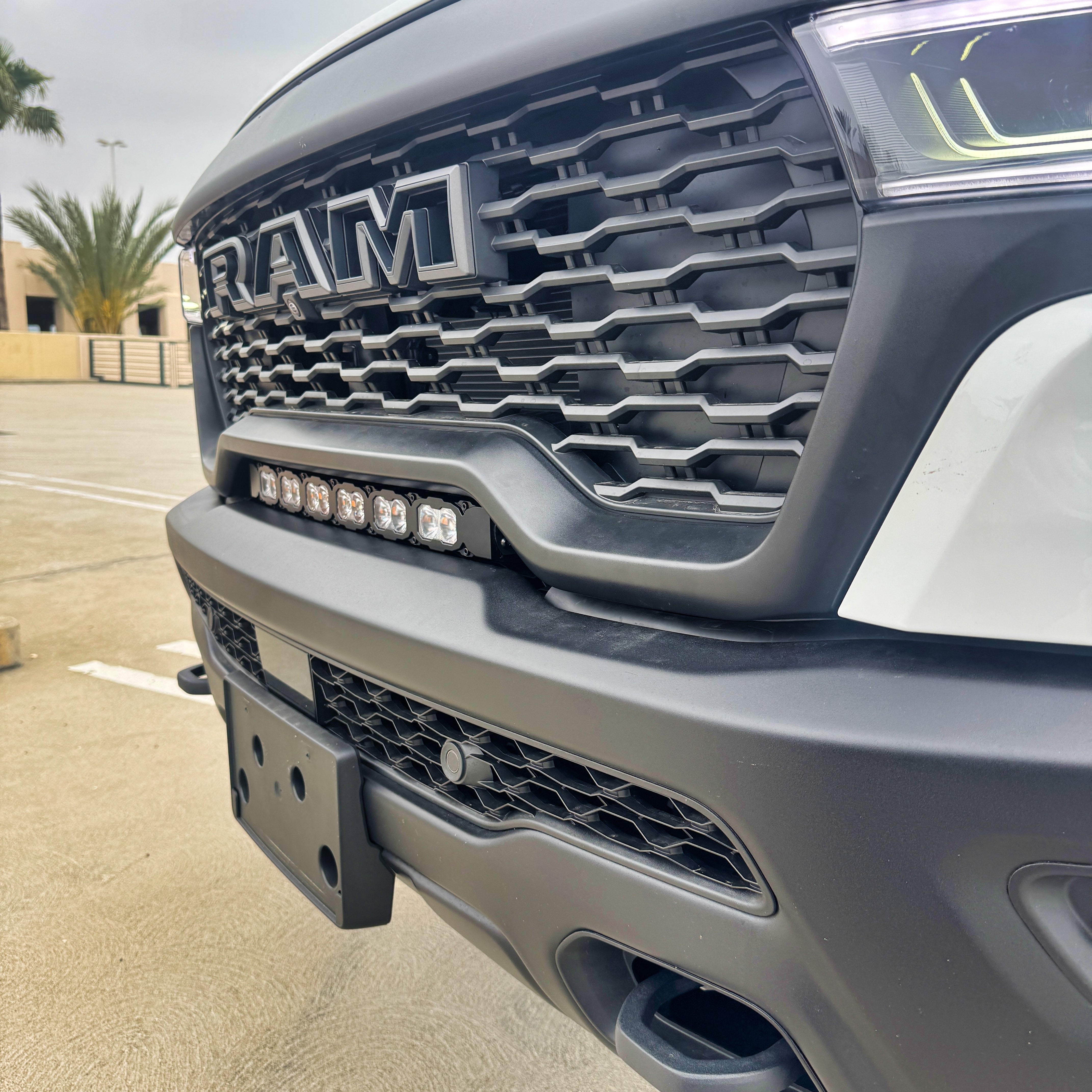

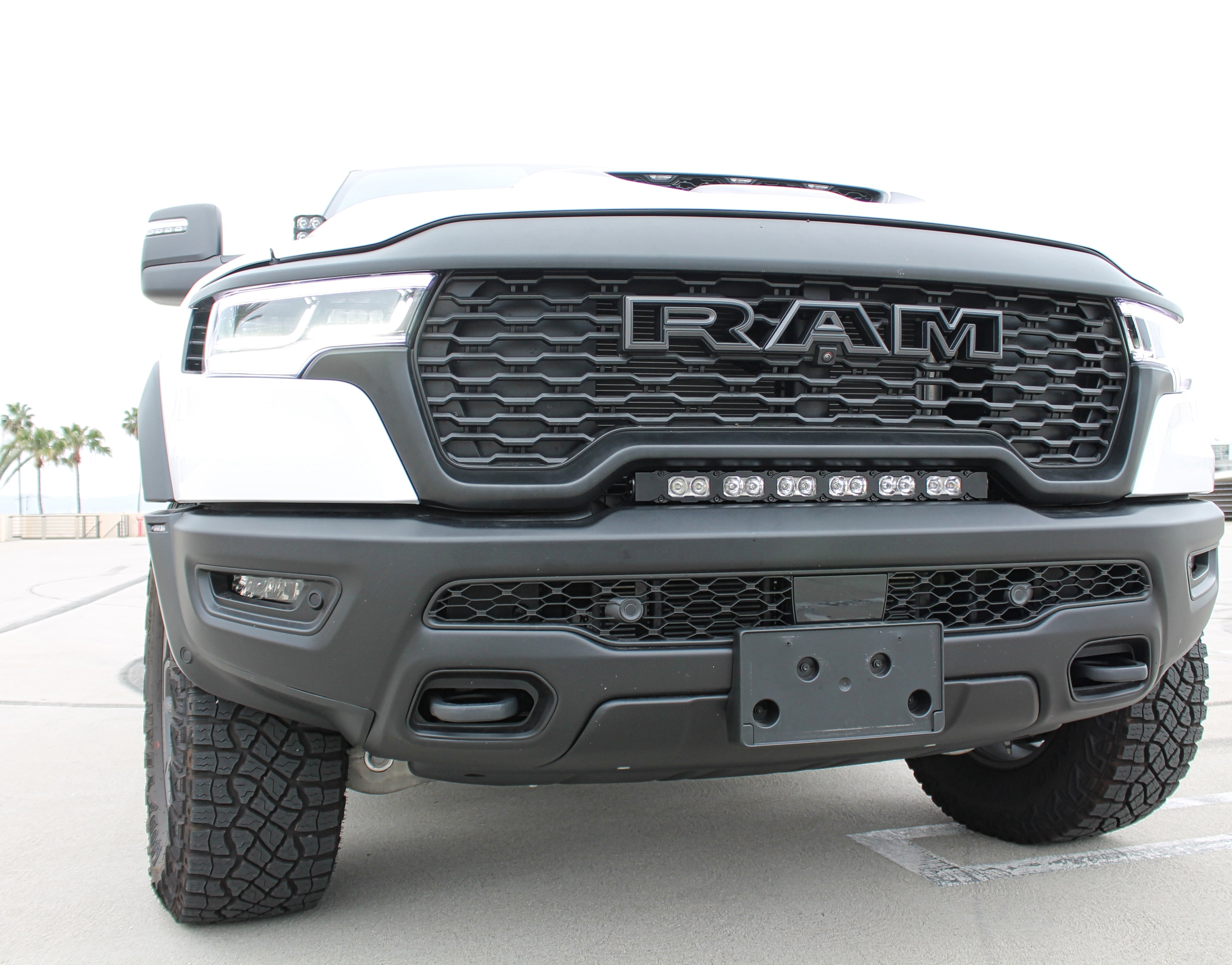

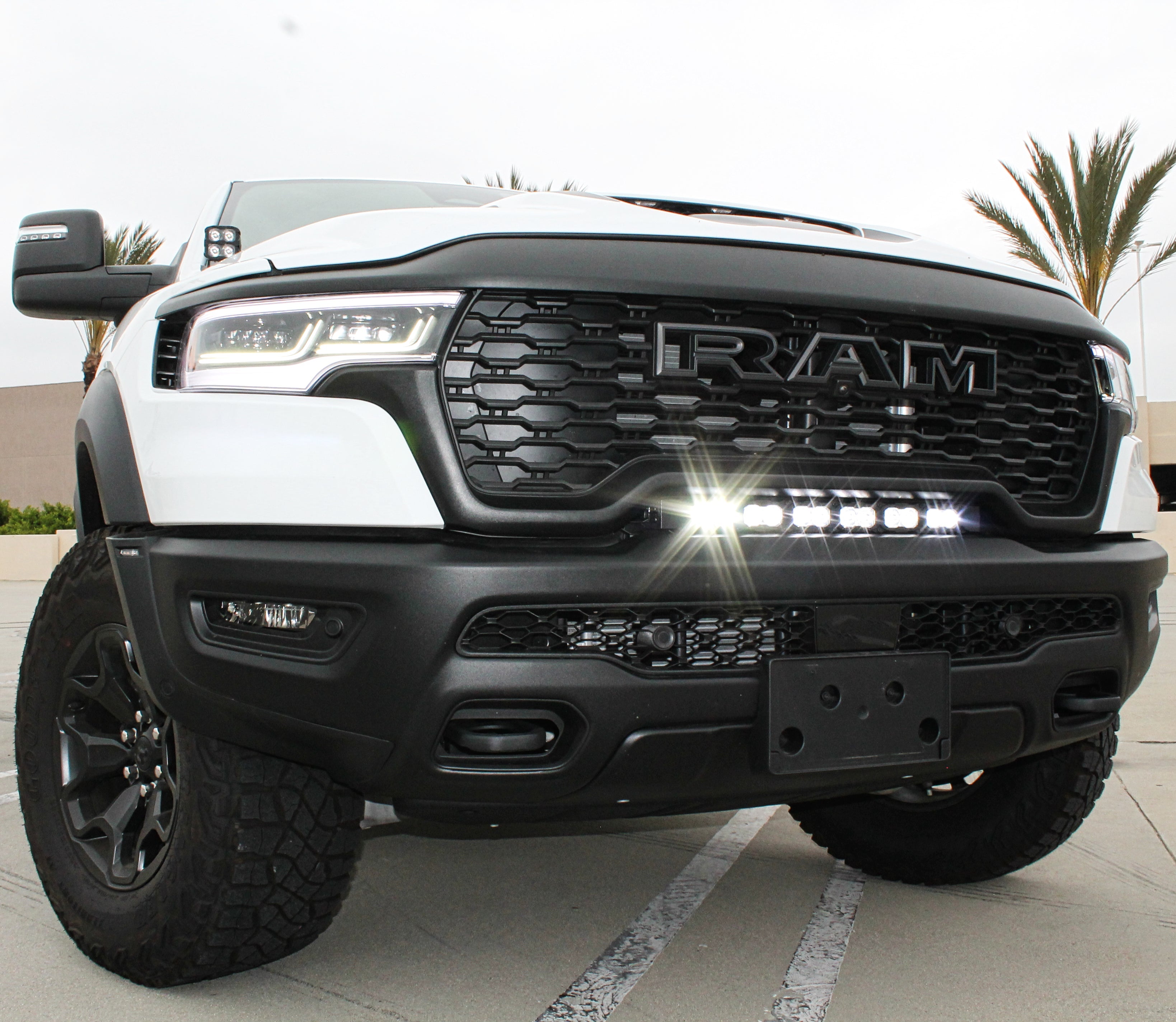

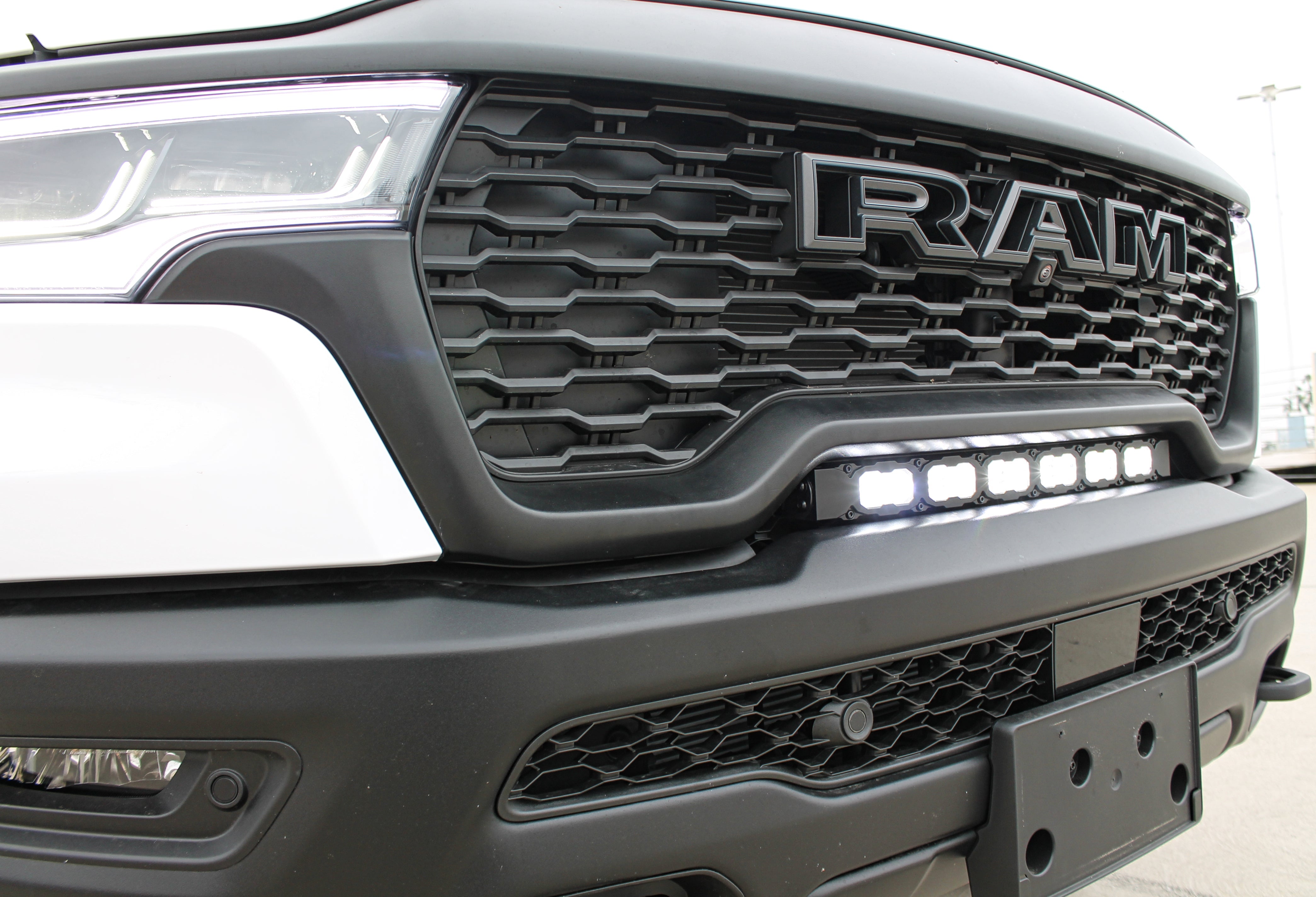

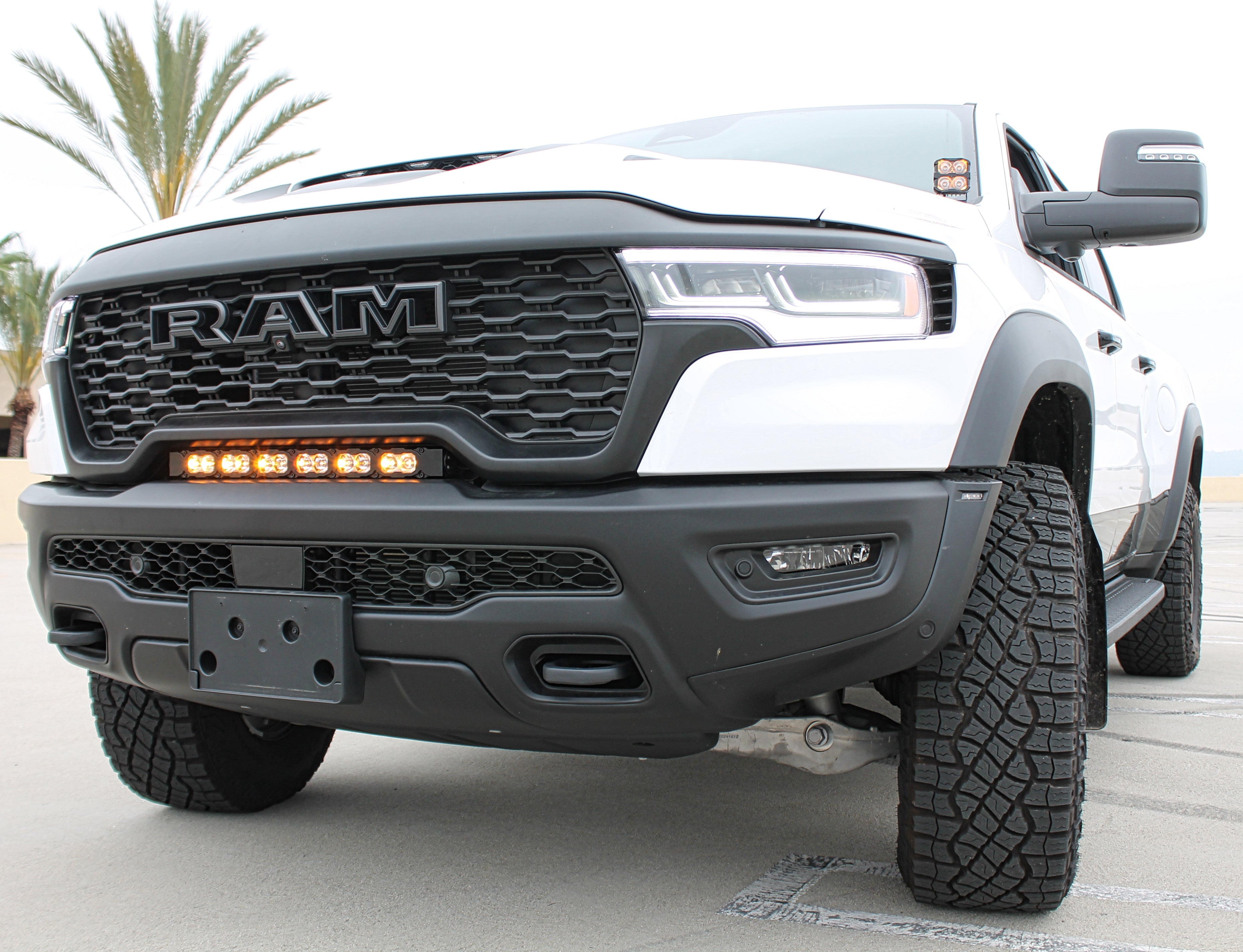

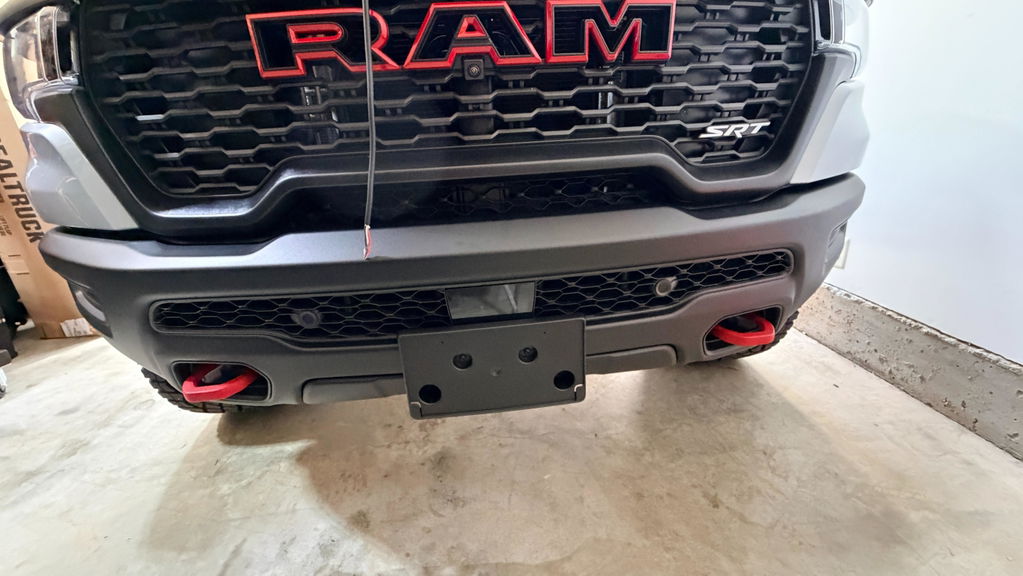

    • Fits in between the grille and bumper
    • Slim and sleek, built-in look
    • Metal bracket is powder coated black
    • There are 2 ways to install this light bar. You can remove the grille or not. Please watch both videos and judge for yourself which way you'd like to do the install.

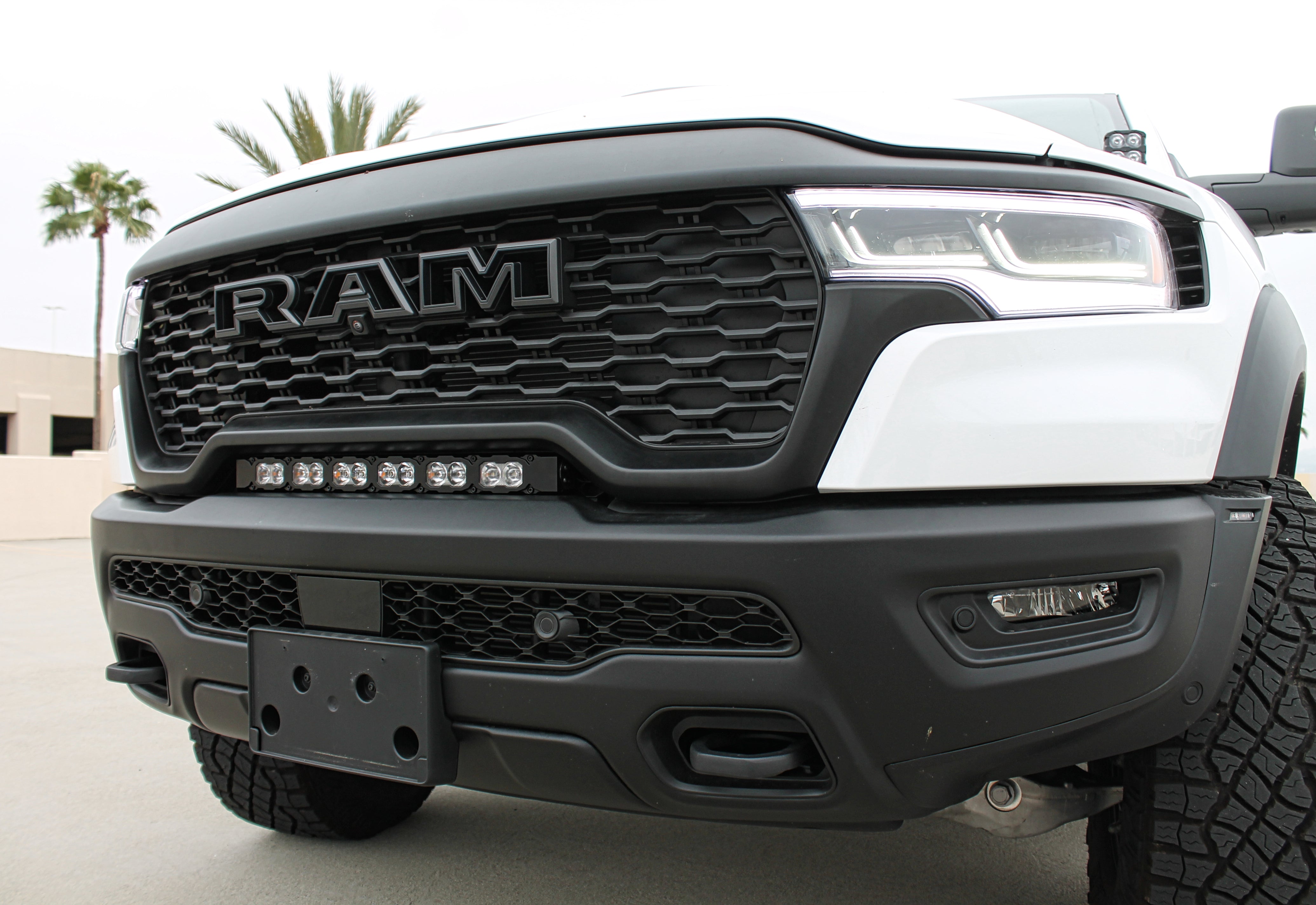

    • No cutting or drilling required. The kit is a complete bolt on using factory openings and hardware.
    • Doesn't interfere with radiator air flow

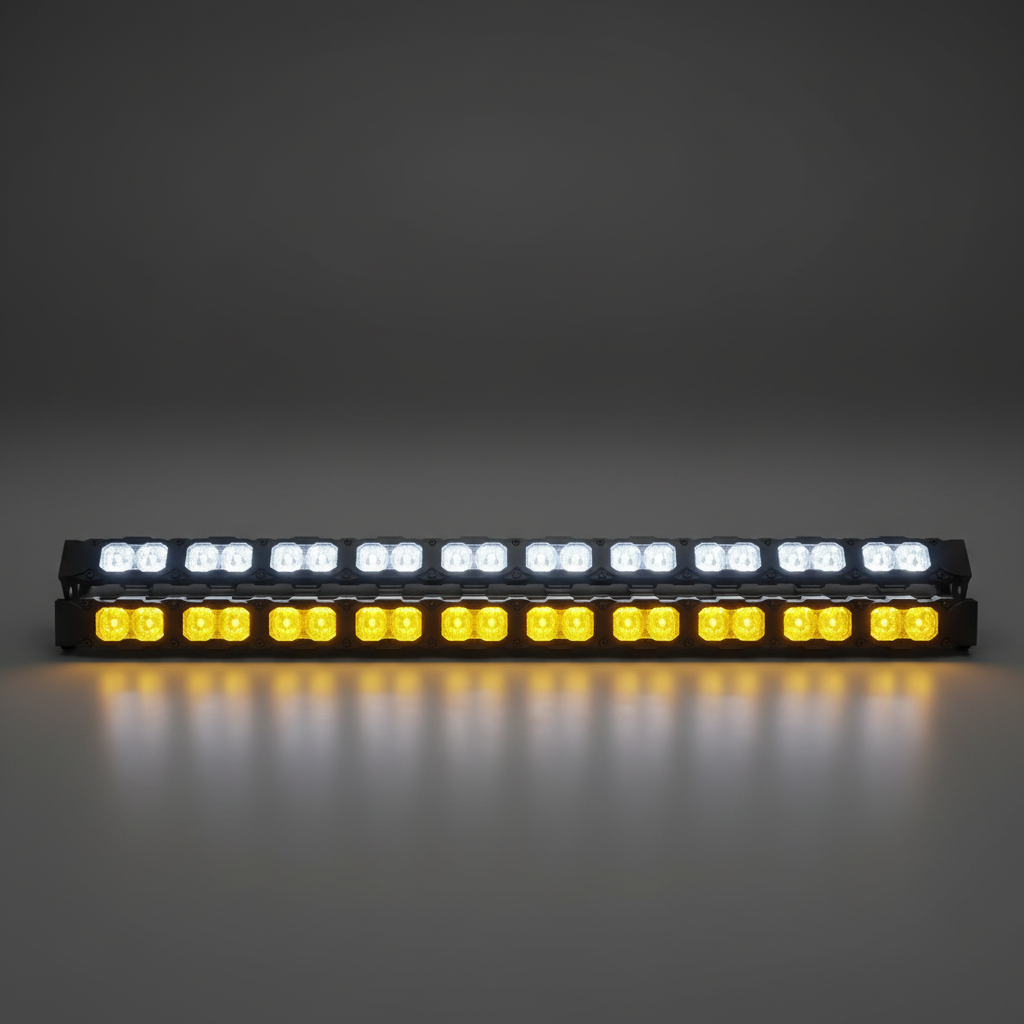

    DUAL COLOR

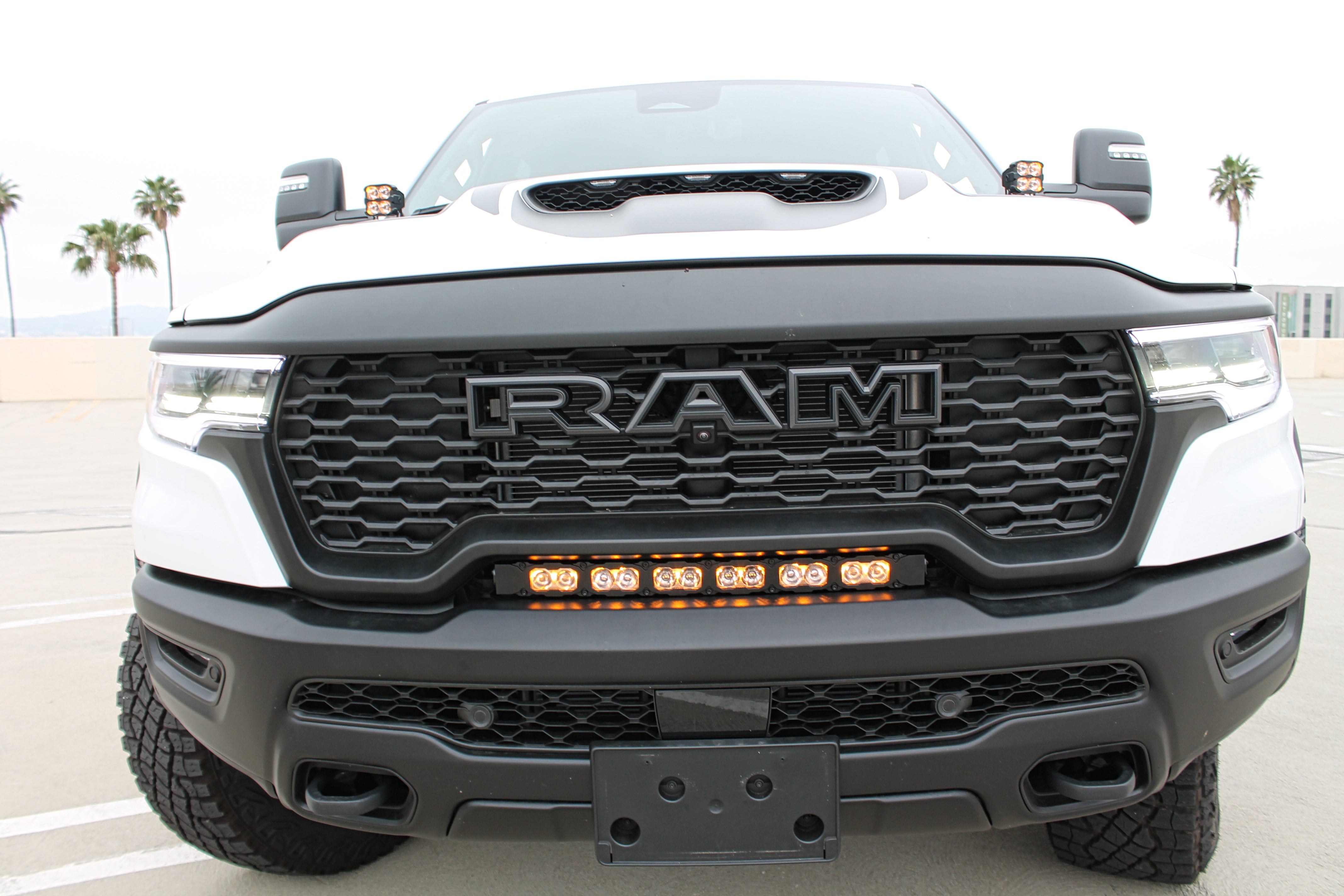

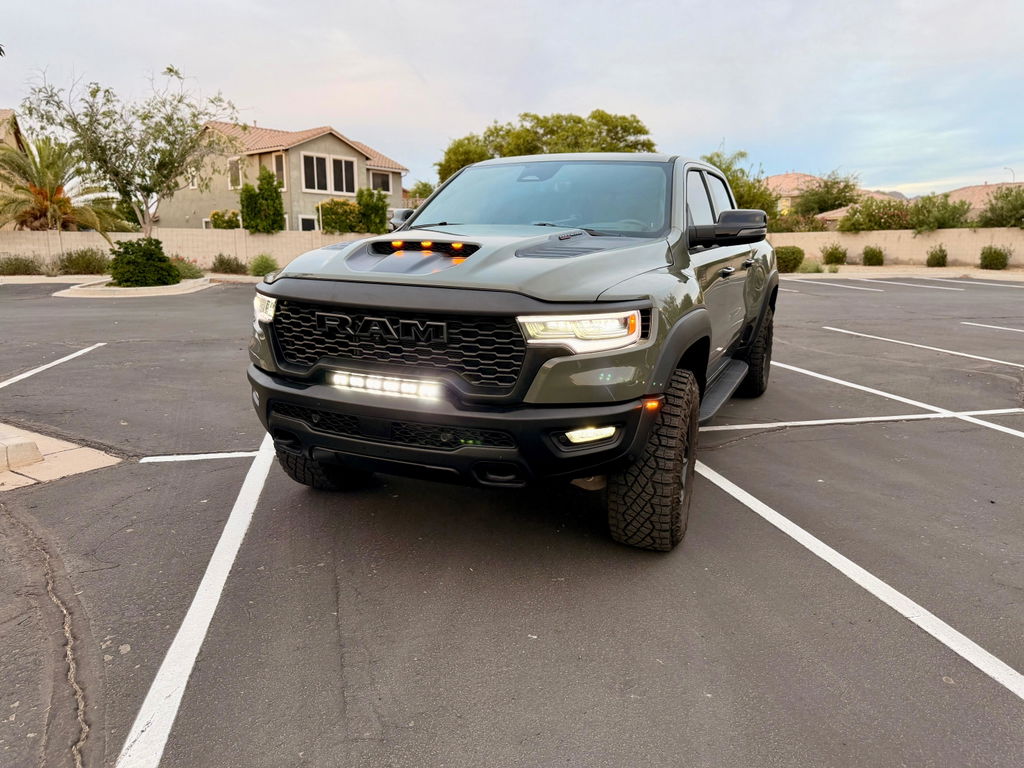

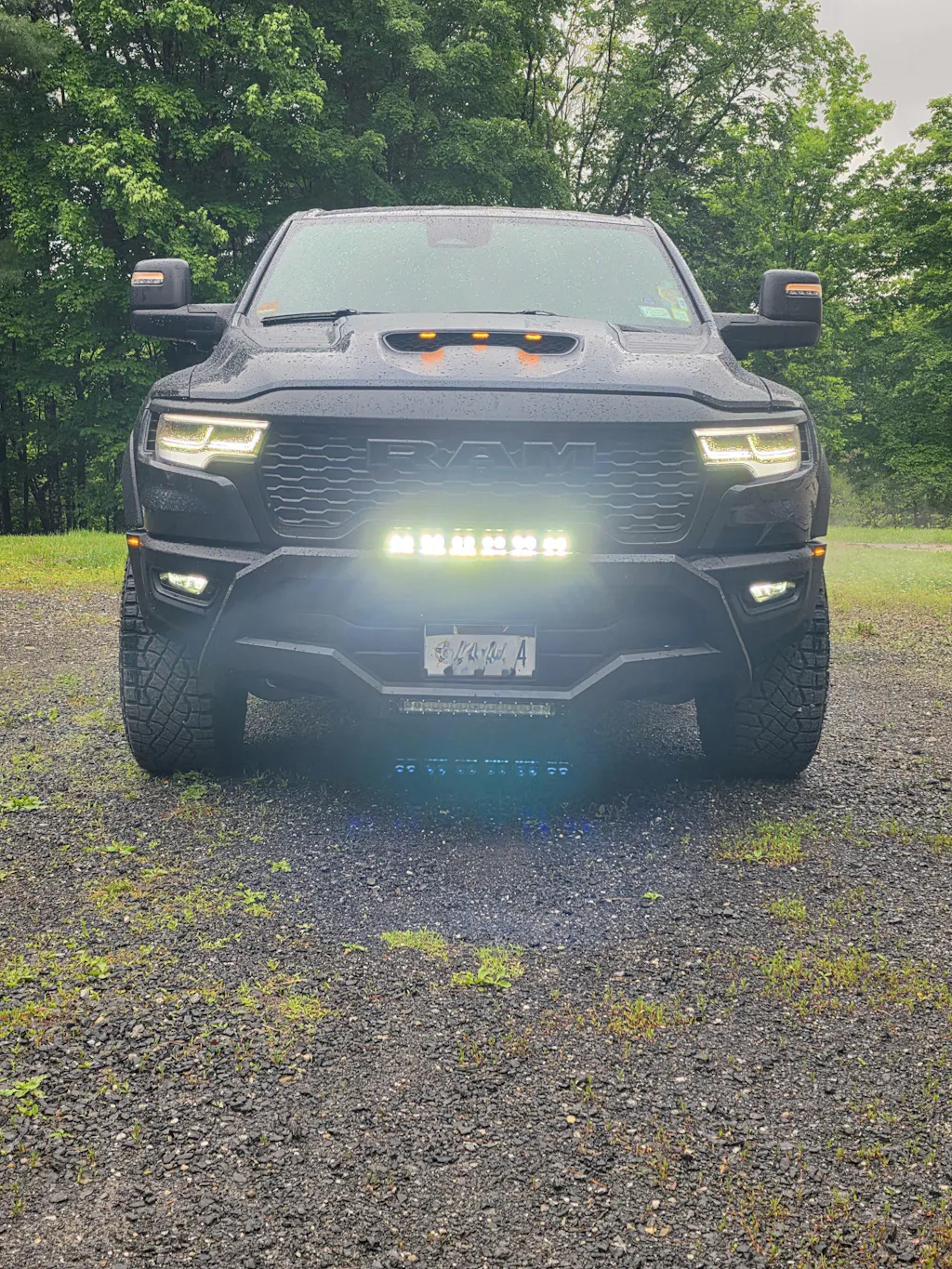

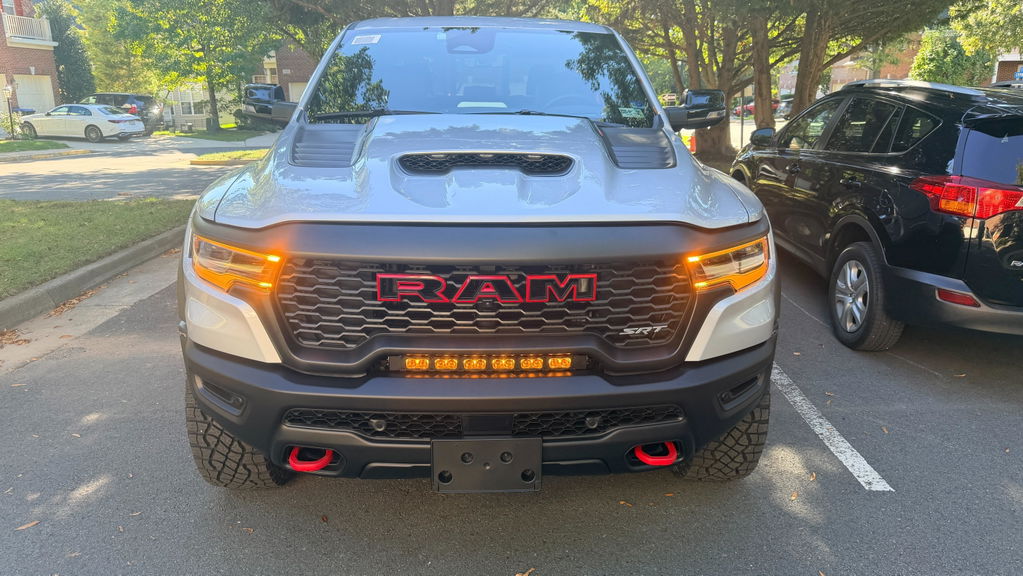

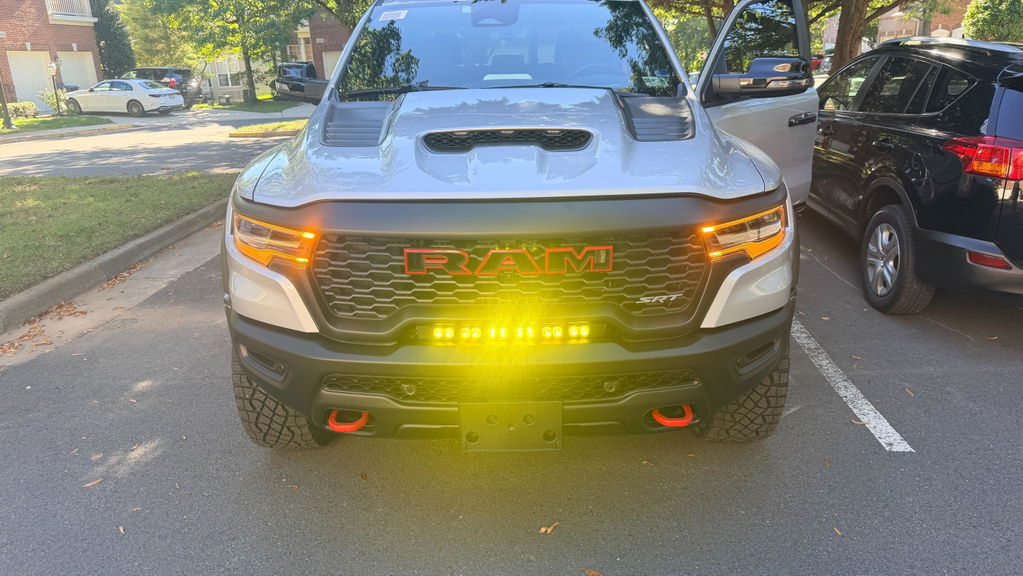

    Main White LED Light with Amber DRL (daytime running lights)

    • White LED -- Super bright and crisp white beam pattern. It will definitely provide you with enough light needed for all of your adventures. However, these are only for off-roading and can’t be used on the regular road. They will blind the oncoming traffic and also violate road safety.

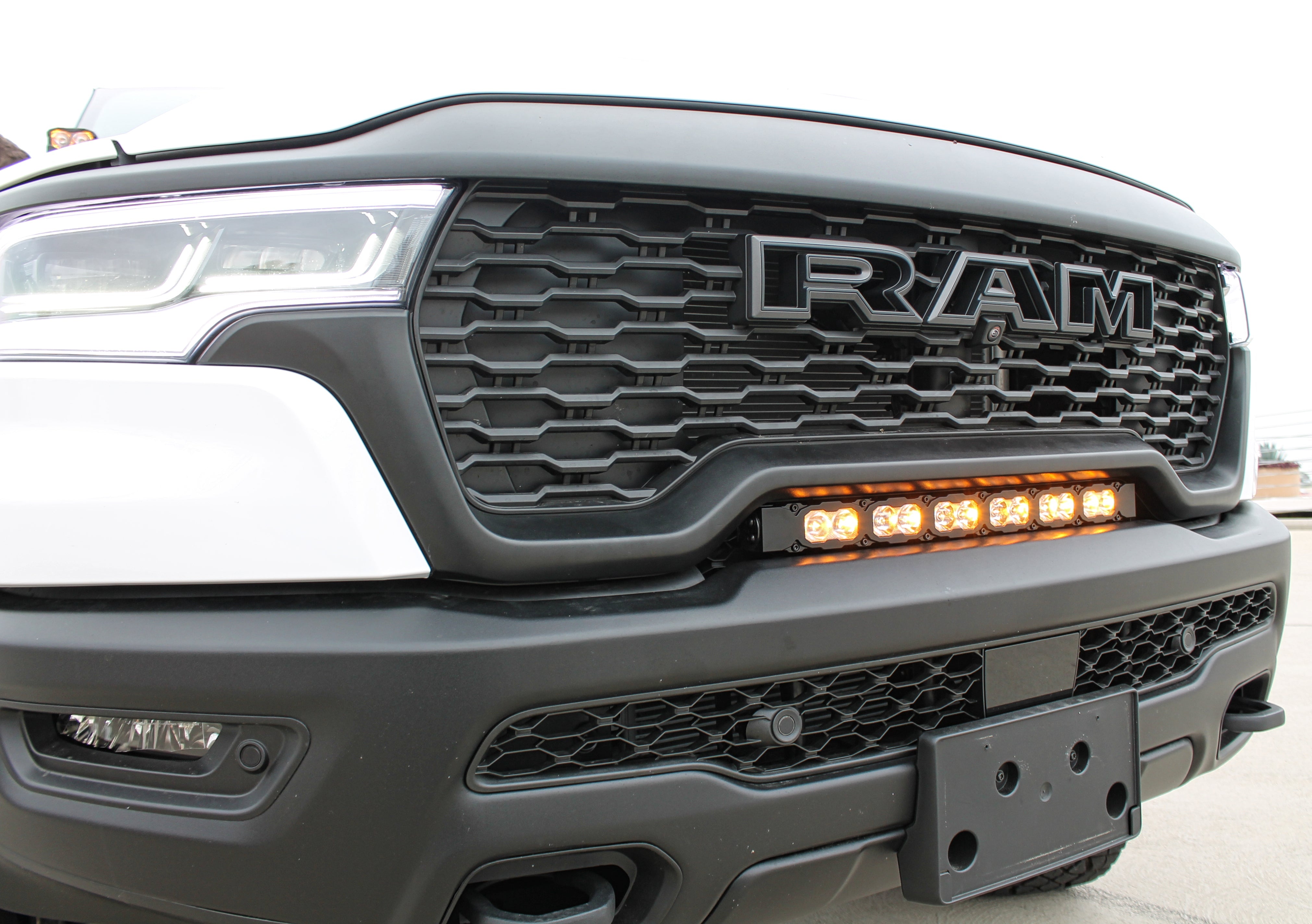

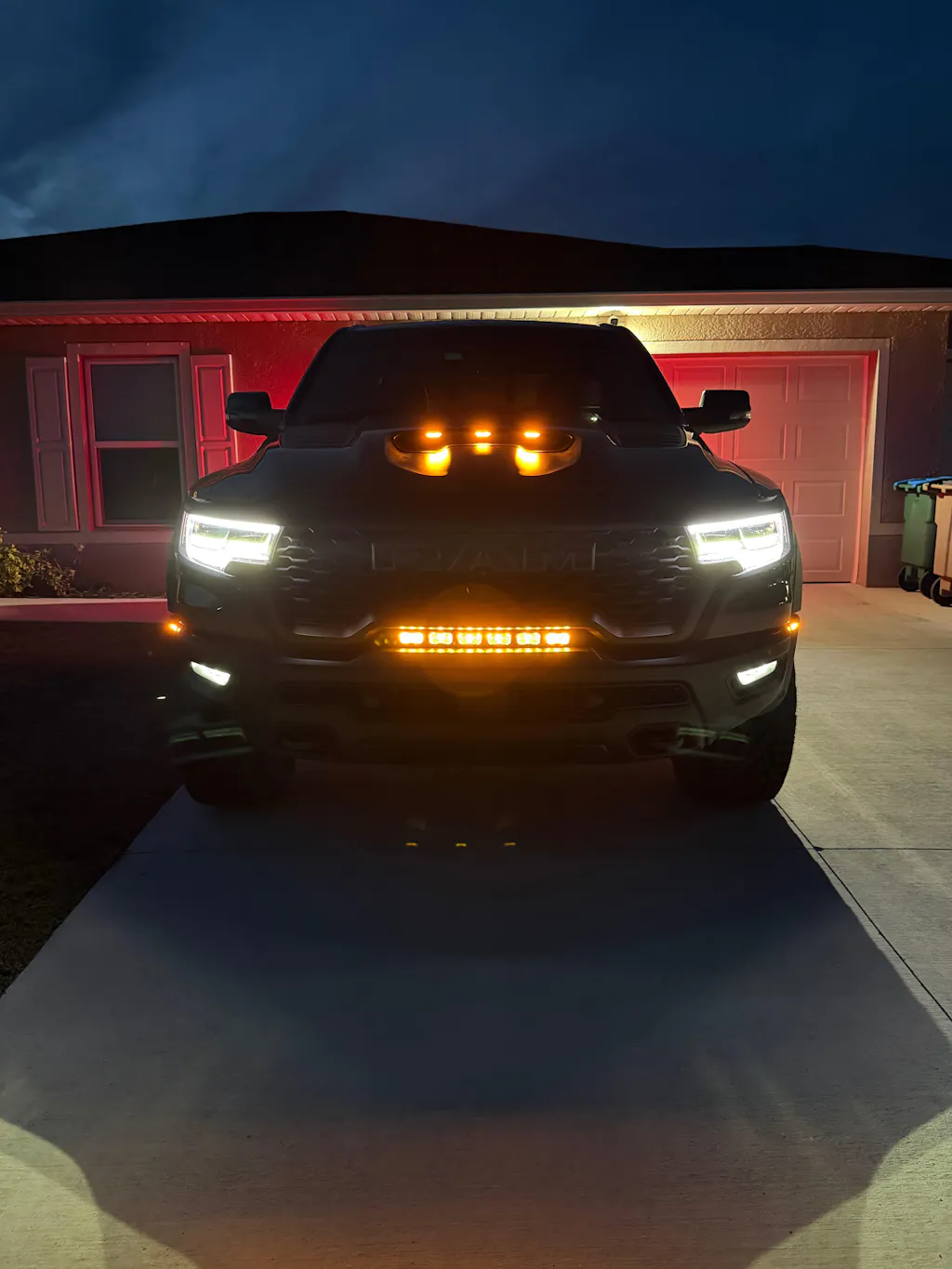

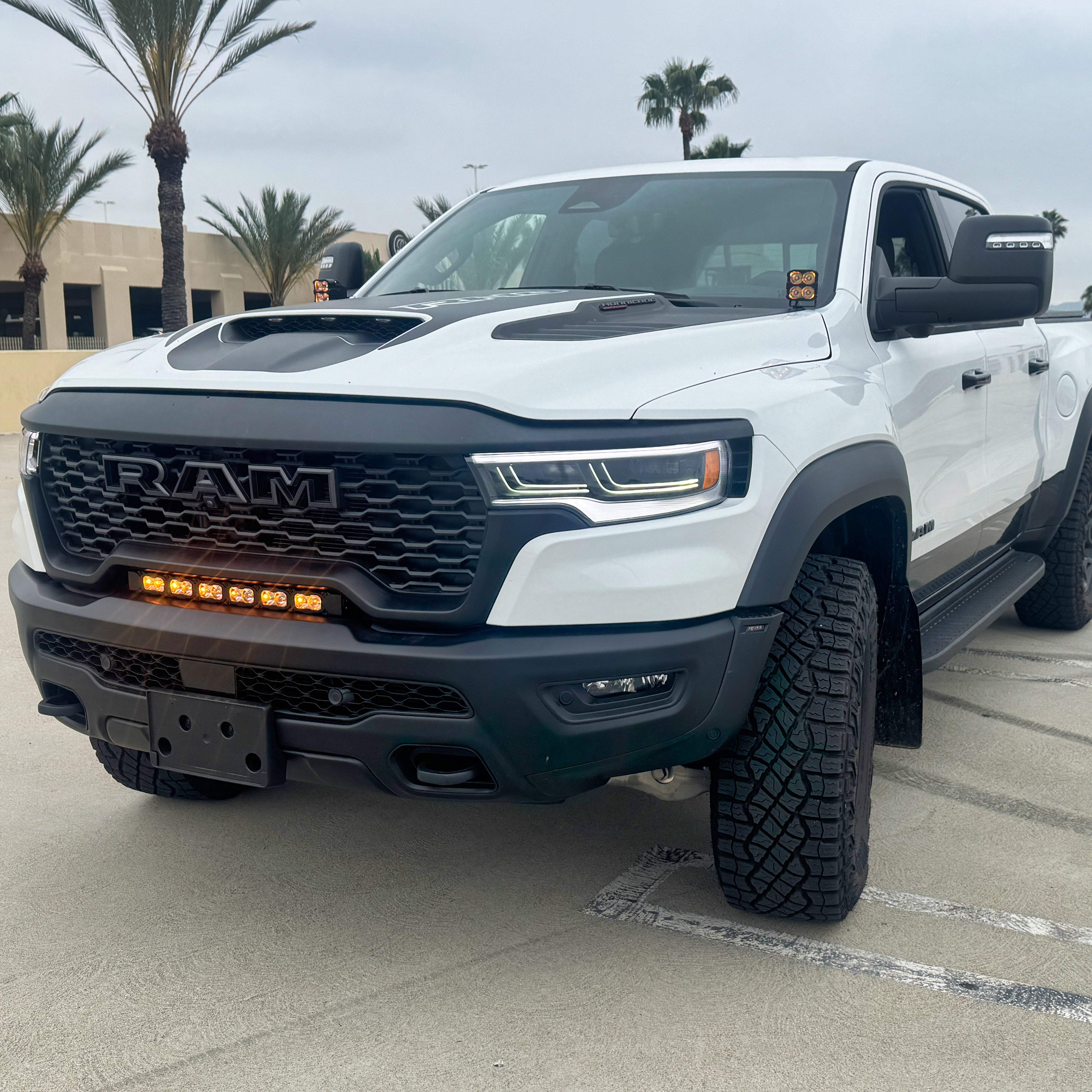

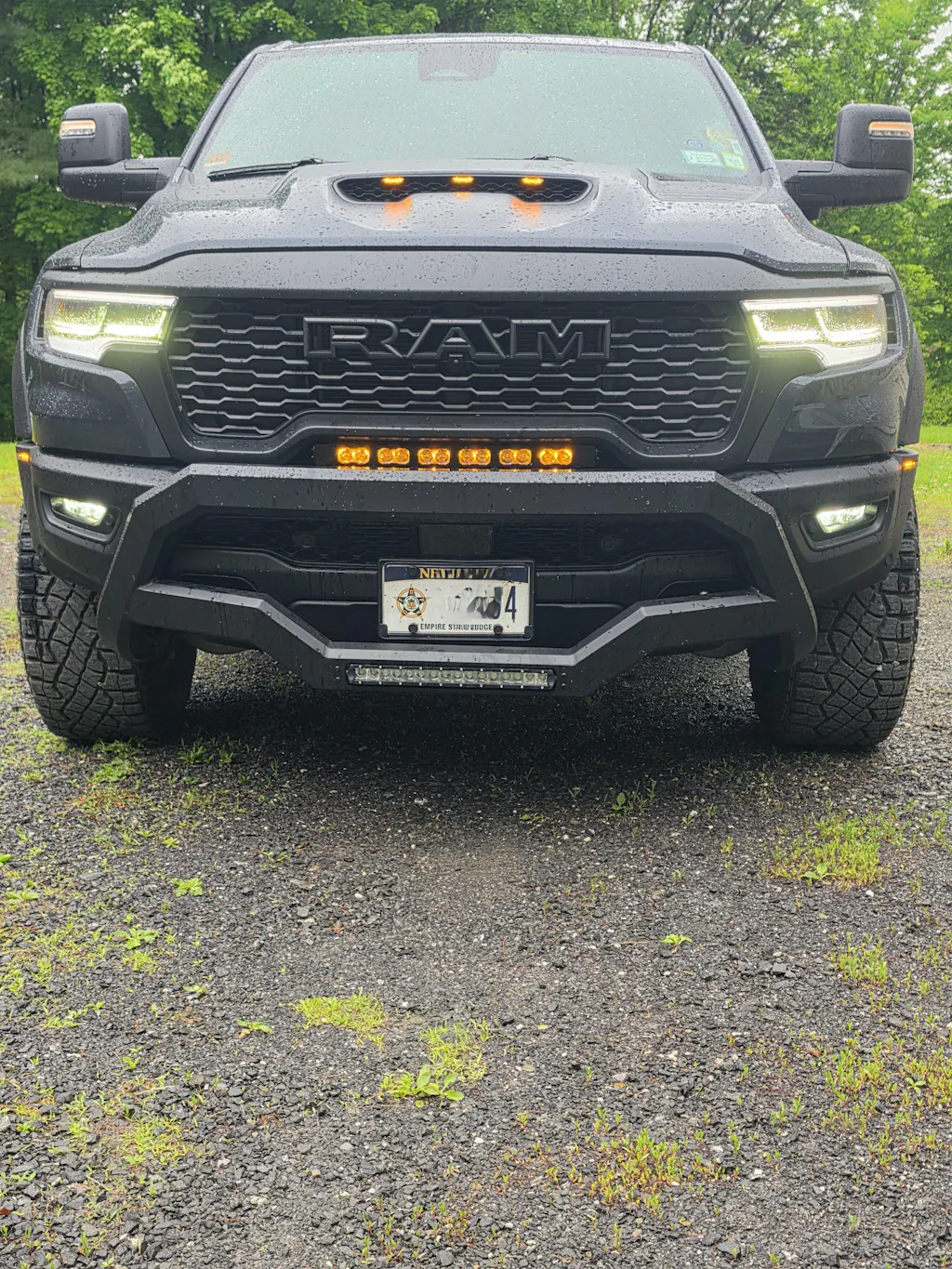

    • Amber DRL -- amber DRL “daytime running lights” acts purely for aesthetics. Since it doesn’t give out much light, you can use this amber DRL feature on regular roads; it doesn't blind oncoming traffic.

    Introducing our new LED light bar-PRO with a unique appearance and optimal performance.

    • Combo Pattern: combined spot and driving optics offer a balance between distance and width
    • Uses a TIR (Total Internal Reflection) lens, which is different from our regular slim light bar. The TIR lens collects all of the light from the LED and directly leads them to where you need, drastically reducing glare and improving total efficiency.
    • Higher light efficiency: brighter, longer irradiation distance

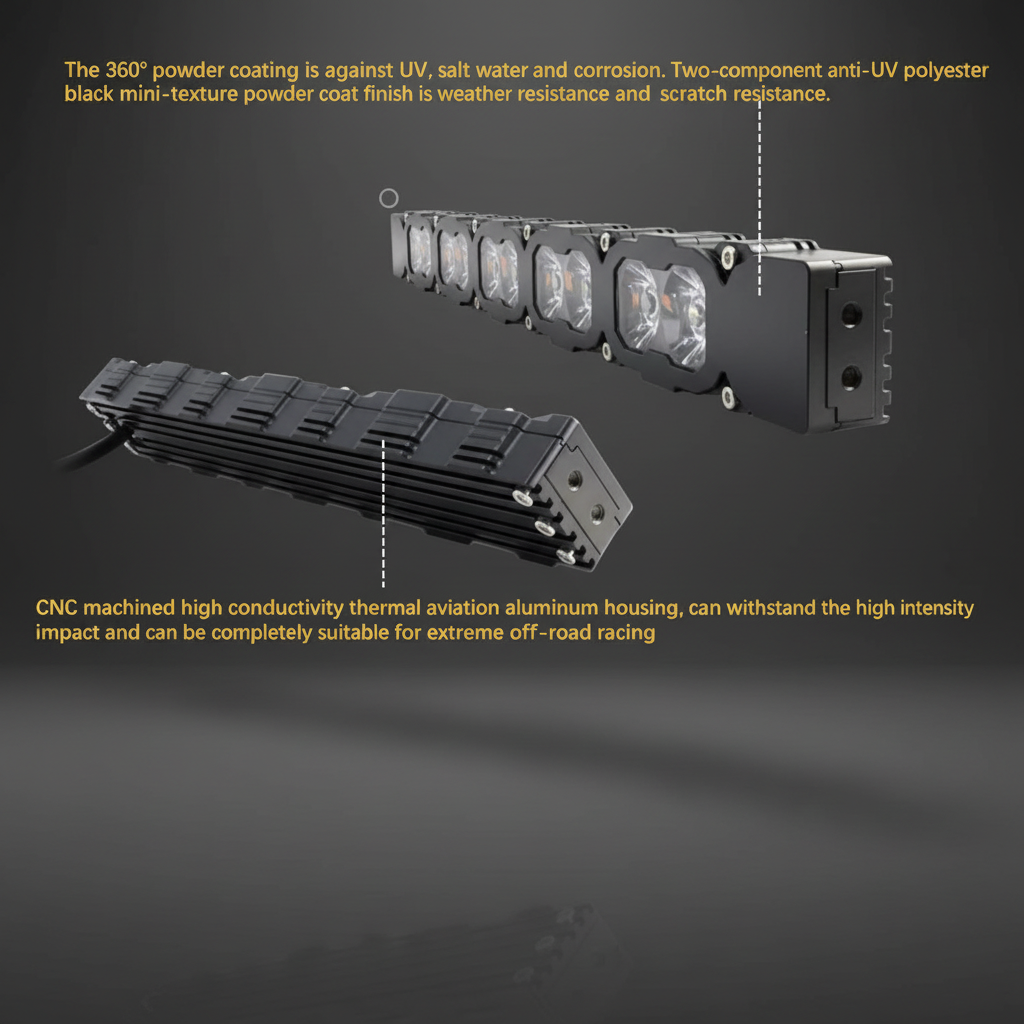

    • Housing is upgraded to 304 aluminum. The surface is UV polyester powder coated to protect against UV, salt water, corrosion, fading and scratch resistant.
    • Equipped with thermal management system that automatically adjusts the brightness output according to the external temperatures

    👍Our light kits are for off-road use only.


    WHAT'S INCLUDED?

    (1) 23in curved light bar - PRO

    (2) mounting brackets

    All mounting hardware

    WIRING

    • M&R Automotive doesn’t provide a wiring harness.
    • The light bar has 6ft of wire which is enough to reach AUX wires.
    • We used AUX wires for a clean install.

    INSTALLATION INSTRUCTIONS


    23in Light Bar PRO

    • Theoretical max power                120watts
    • Actual power                                  72watts
    • Main White light is                        6amps at 12v
    • Backlight Amber is                         .17amps at 12v
    • Theoretical max luminous flux                   13,080 lm
    • Measured luminous flux (without lens)    8,832 lm
    • Measured luminous flux (with lens)           7,024 lm
    • LEDs type:                  luminus SST-20 Ra70
    • Temperature:            6000k
    • LEDs number:            12pcs

    All domestic (USA) orders are free shipping via USPS or UPS, depending on product size.
    We typically ship in 3-7 business days. If we are anticipating a delay with your shipment due to availability of the product, we will reach out to you via email.

    Canada, international or express shipping costs are calculated at checkout.

    You will receive an email with tracking number when your order is shipped.

    If you have a special request about your order, reach out, we try to accommodate as much as we can.

    For a complete shipping policy click here.


    We have a lifetime warranty on our light kits. We truly want our truck enthusiastic customers to enjoy their products as much as we enjoy designing them. However, we also understand that different situations arise with brackets or lights. For more information about our warranty and disclaimer click here.




    *M&R Automotive is not responsible for misuse or improper installation of the product. Professional installation is recommended.


    Customer Reviews

    Based on 41 reviews
    98%
    (40)
    2%
    (1)
    0%
    (0)
    0%
    (0)
    0%
    (0)
    L
    L.A.
    RHO offroad lights

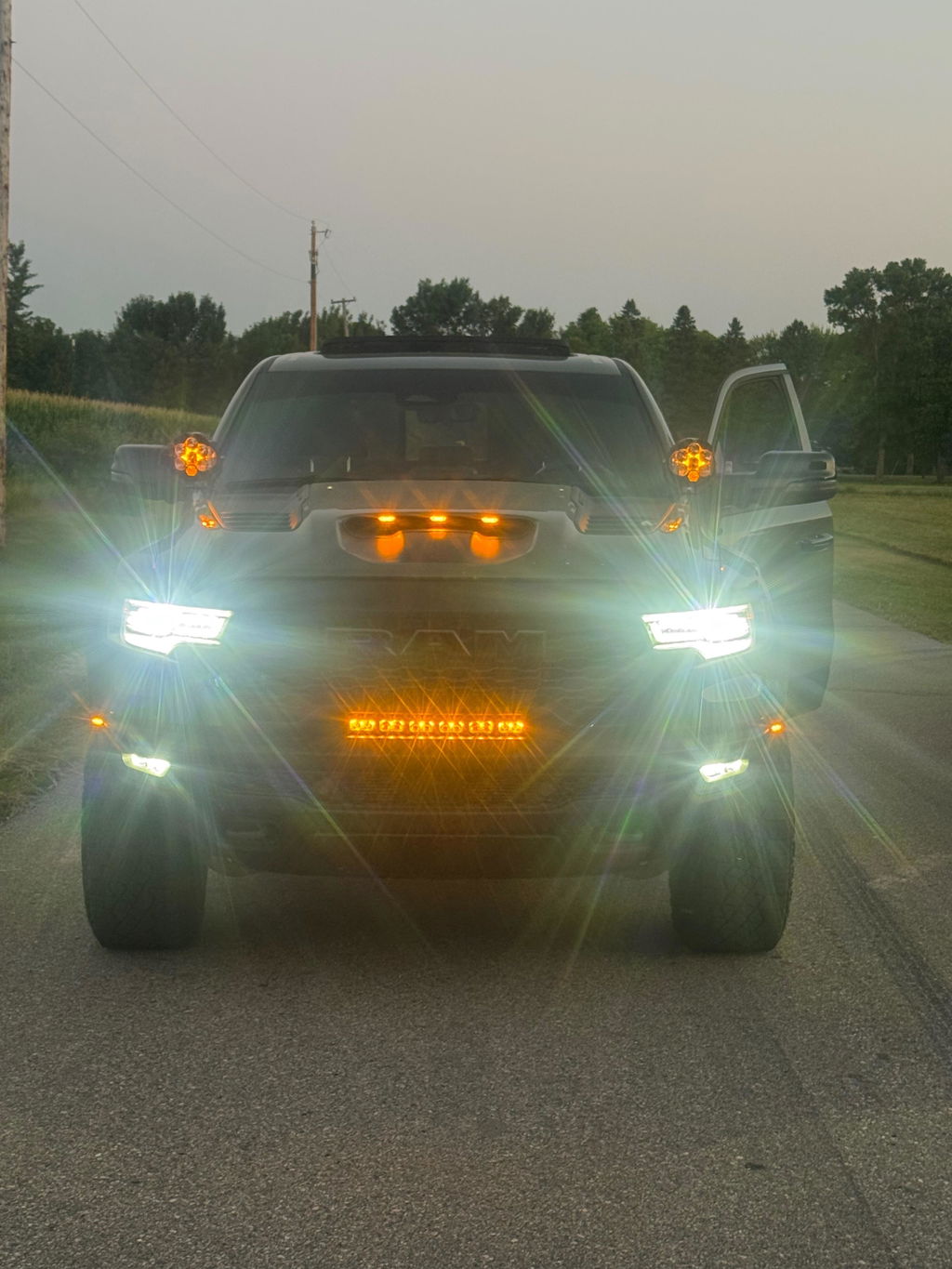

    I can see why these lights are for offroad only because they are bright as hell. I’ve got the front 23” light bar and backup light pods. The only difficult part of the install was squeezing my big hands in a few tight spots on the truck.
    I would definitely recommend this company and his products. Awesome customer service, quality products and very helpful installation videos..

    R
    R.
    23in Light Bar PRO

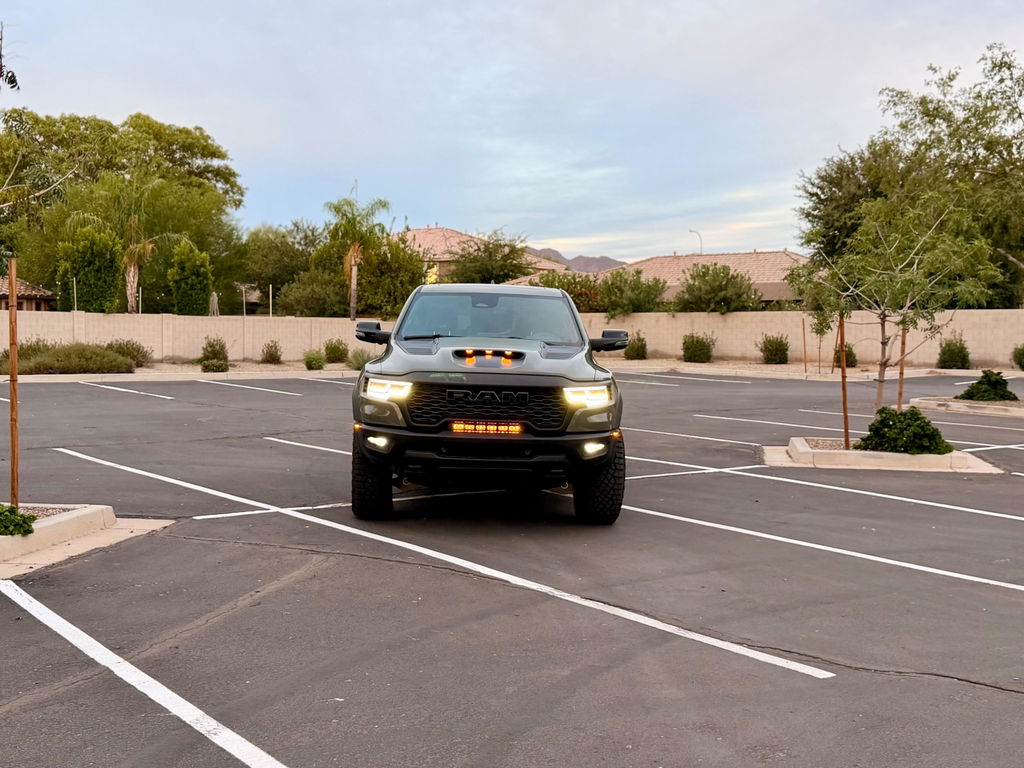

    Awesome light bar, white light is super bright, amber light is a nice accent to the front and matches the scoop lights perfectly. Very easy install. Highly recommended.

    W
    W.F.
    Easy Install and REALLY bright

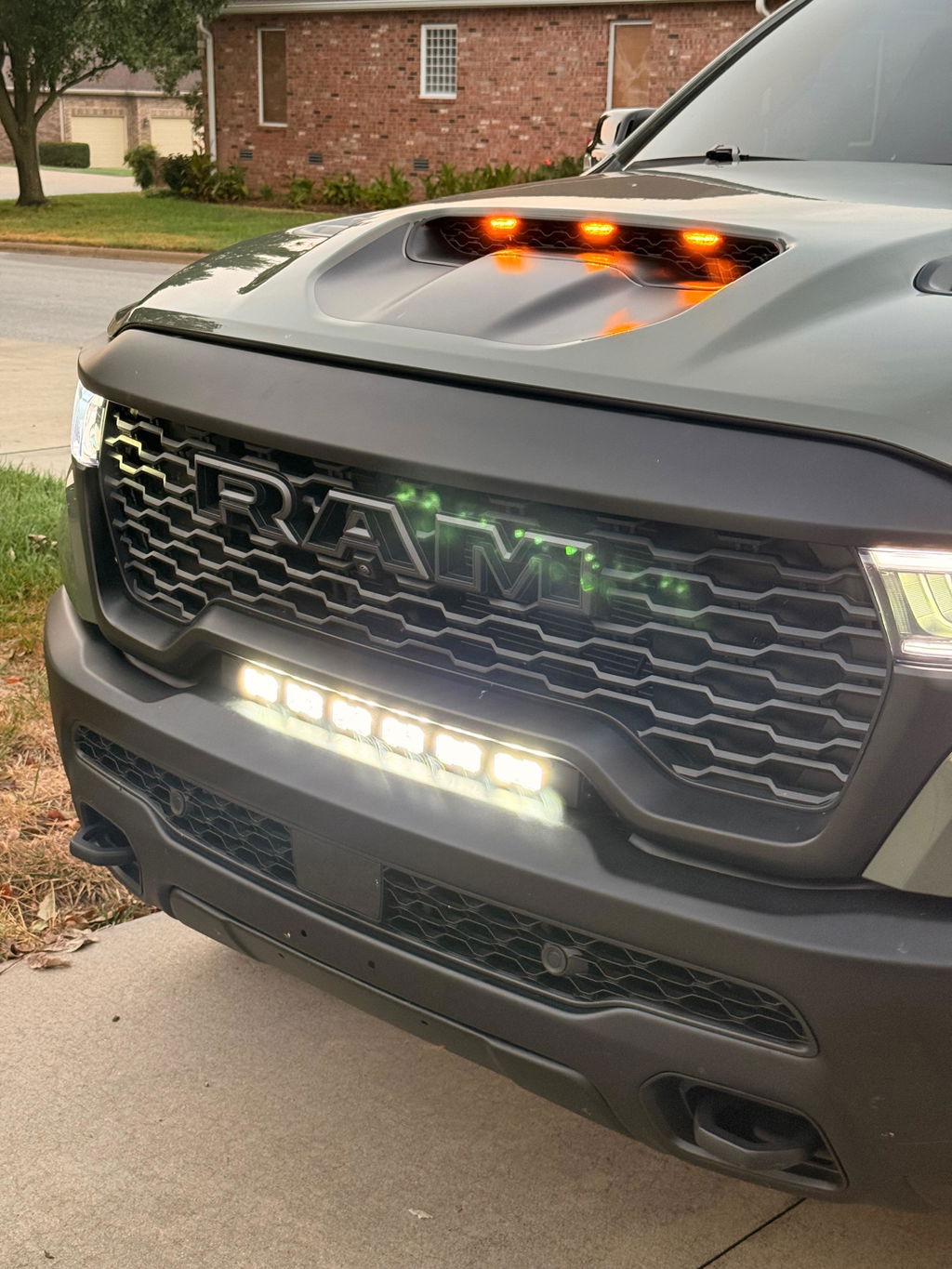

    One of the easiest installs I’ve ever completed myself. The quality of the bar, wiring and instructions are flawless. I really appreciate the installation instructions for removing the bumper or not. Ambers are crisp and visible during the day as DRLs. The main light of the pro lights up every aspect of the road. I love this lightbar!

    N
    N.
    Easy install and looks factory

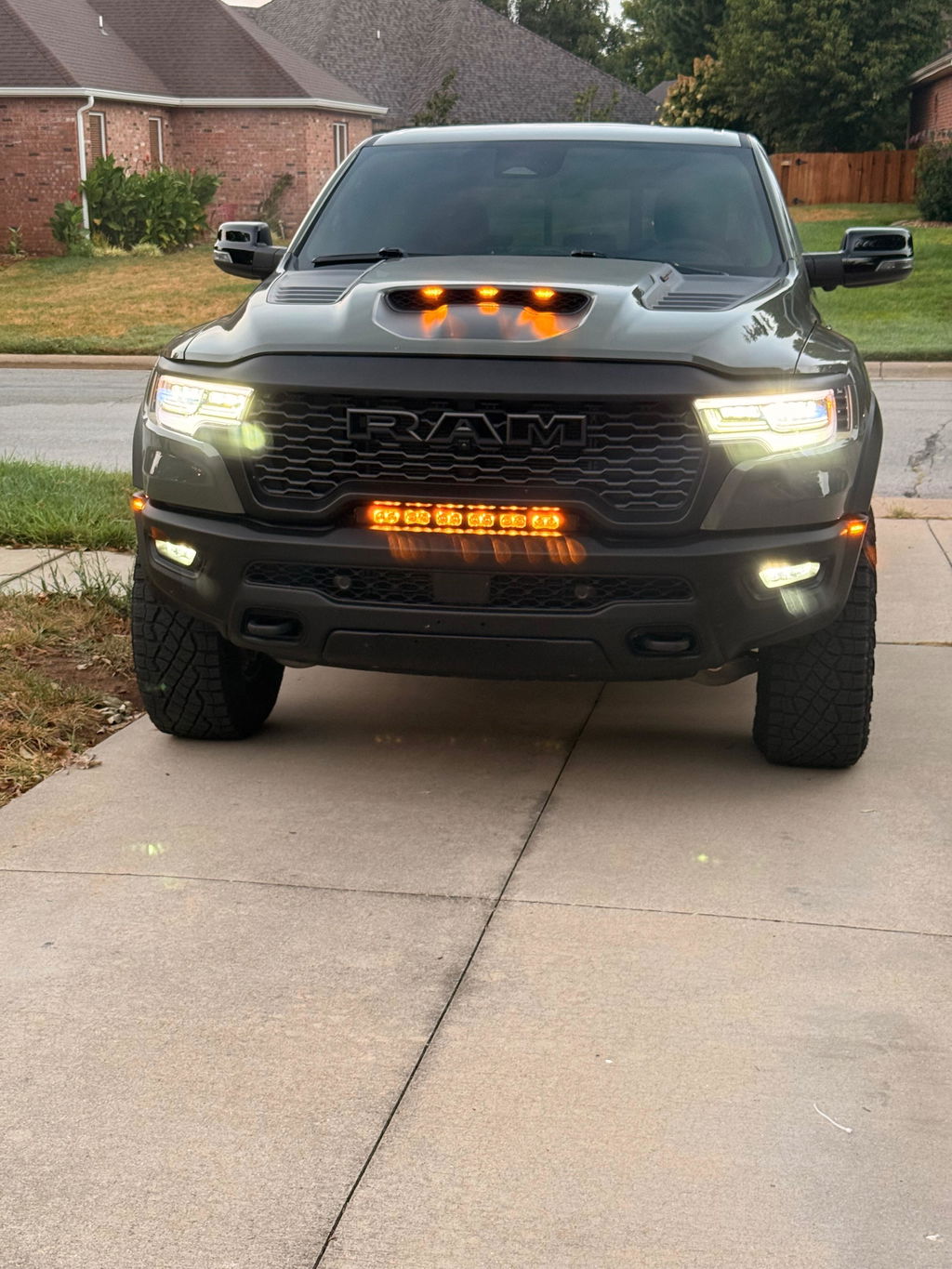

    Gotta give the M&R crew credit this was easy to install and looks factory. It should have come from the factory this way. Great job!
