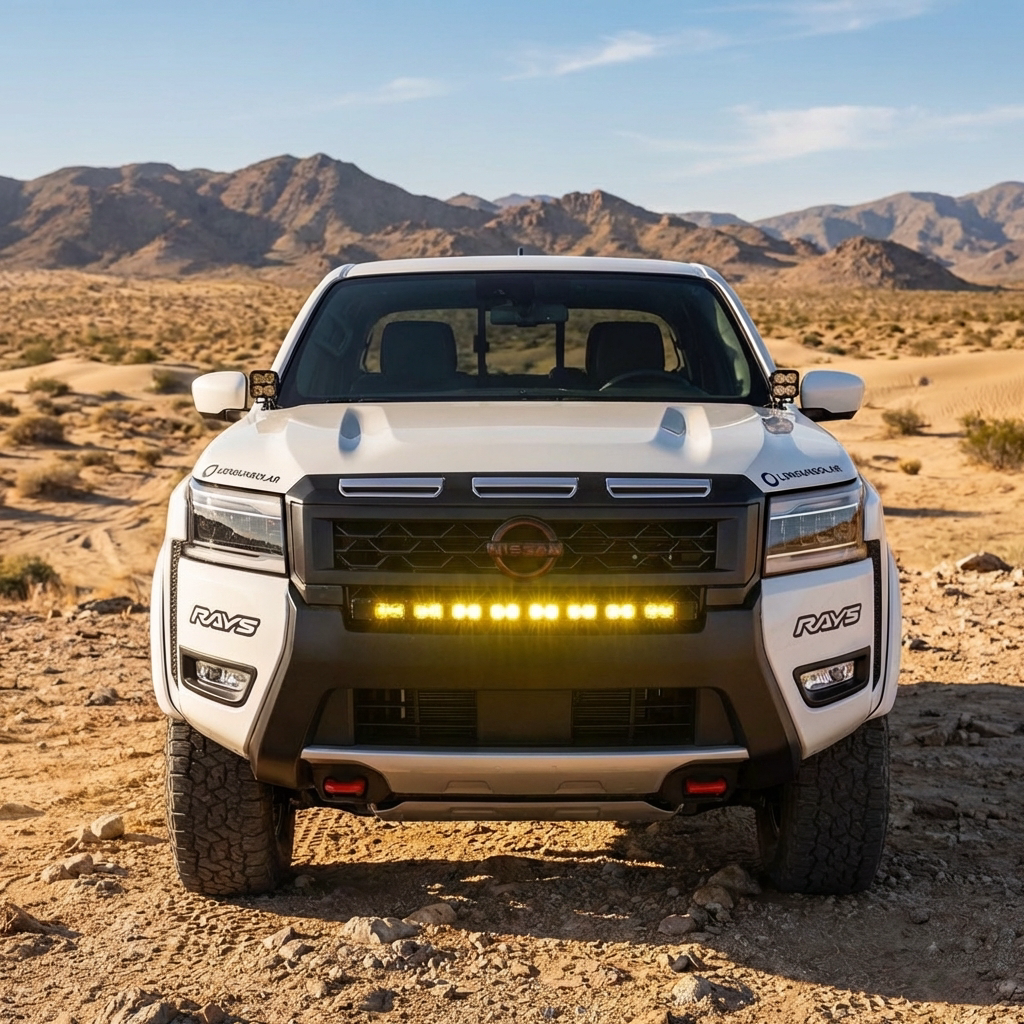

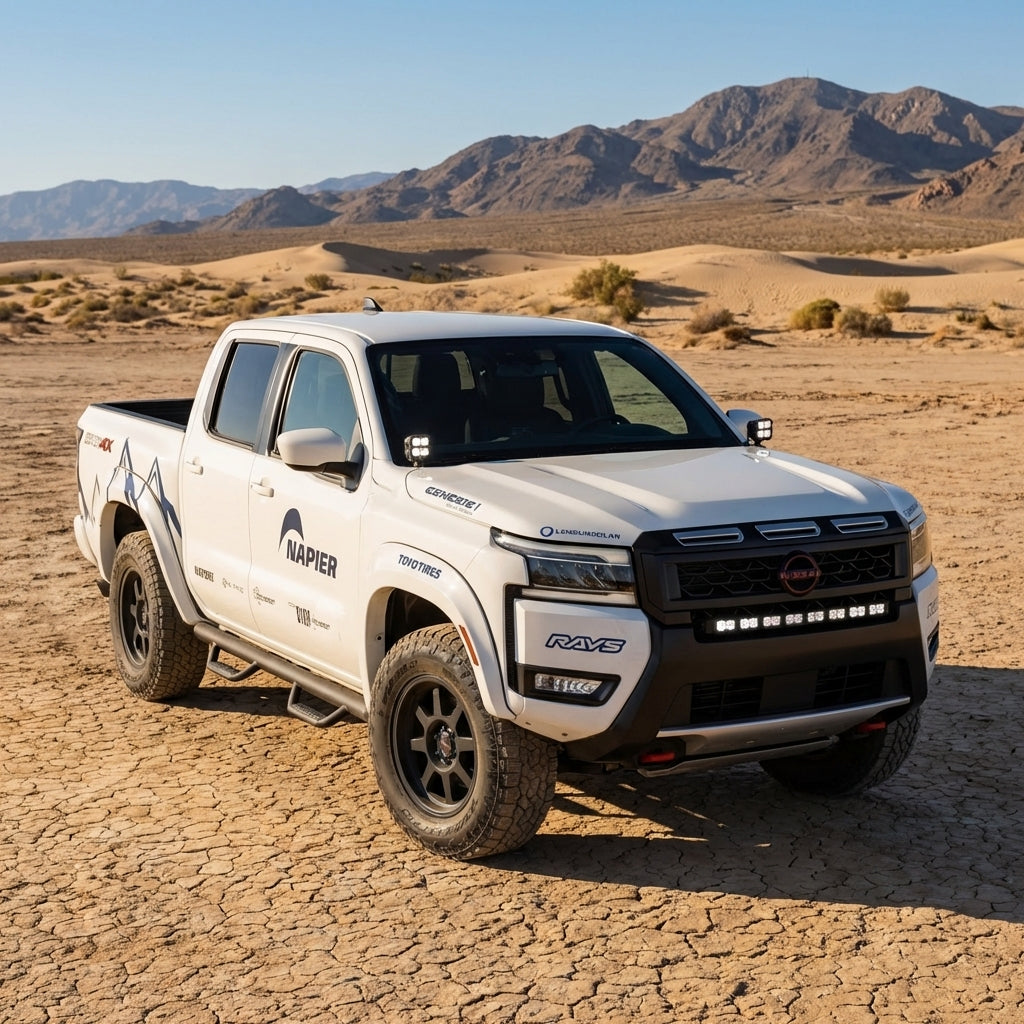

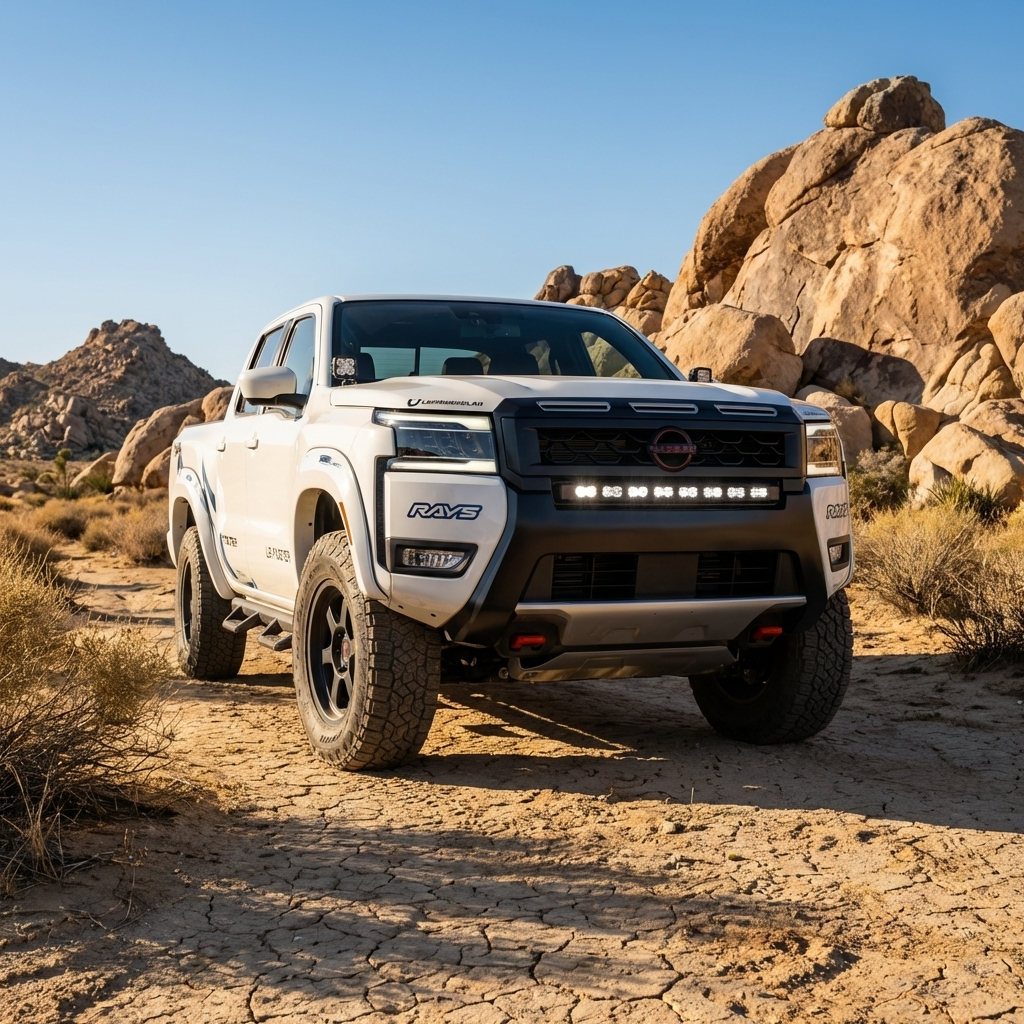

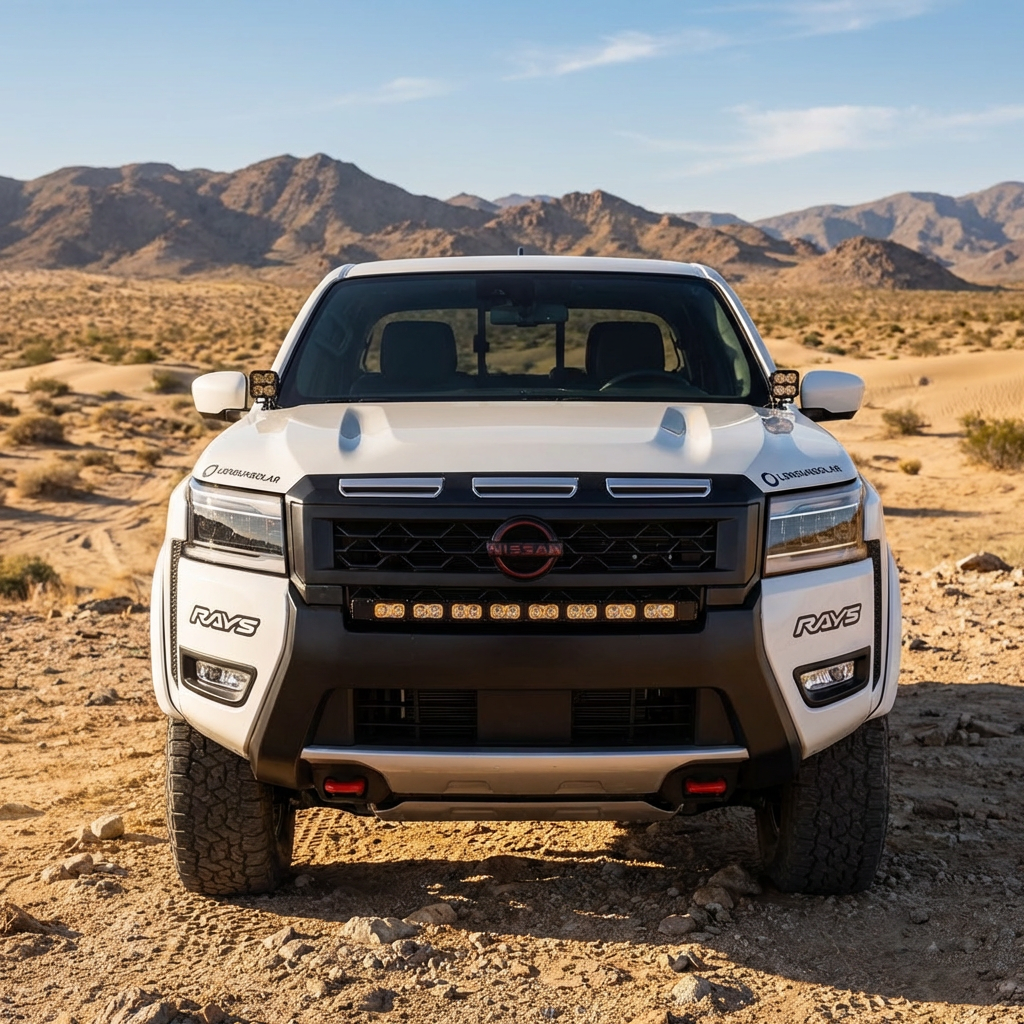

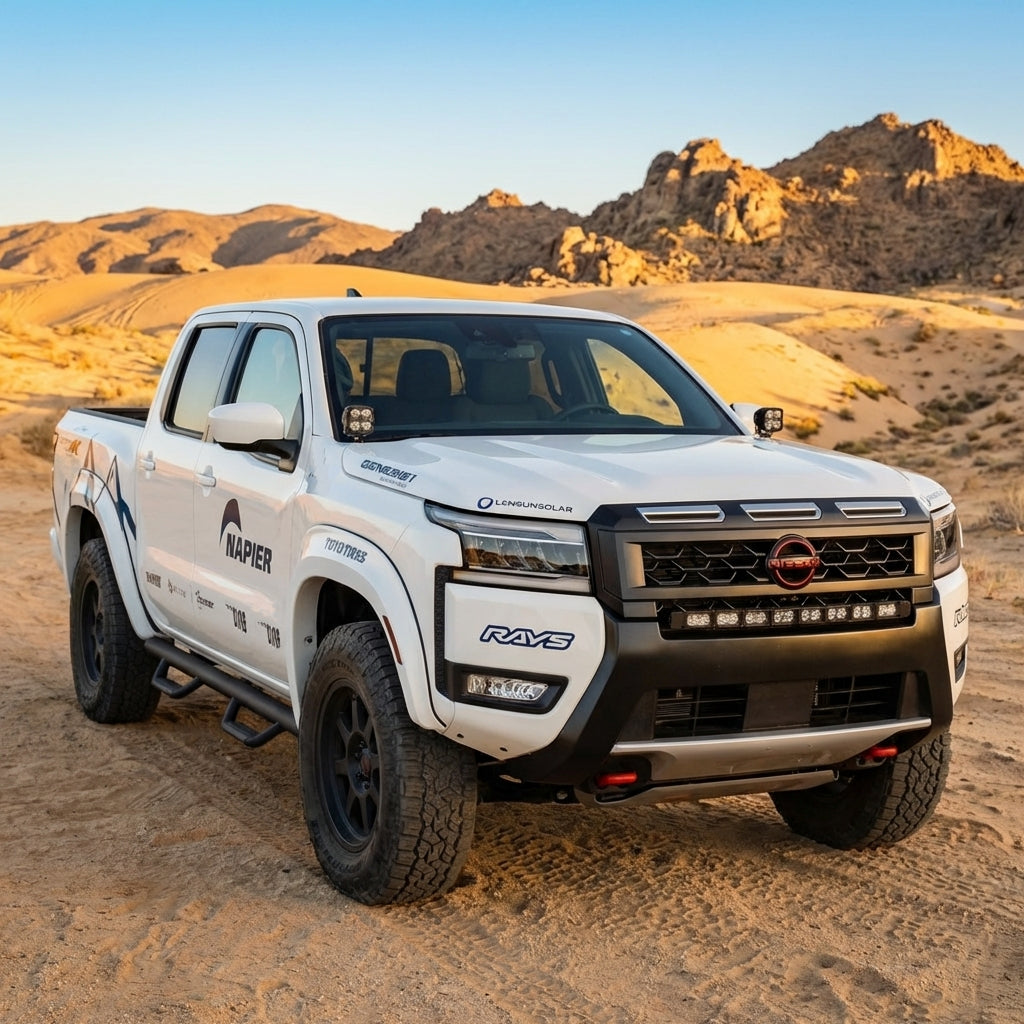

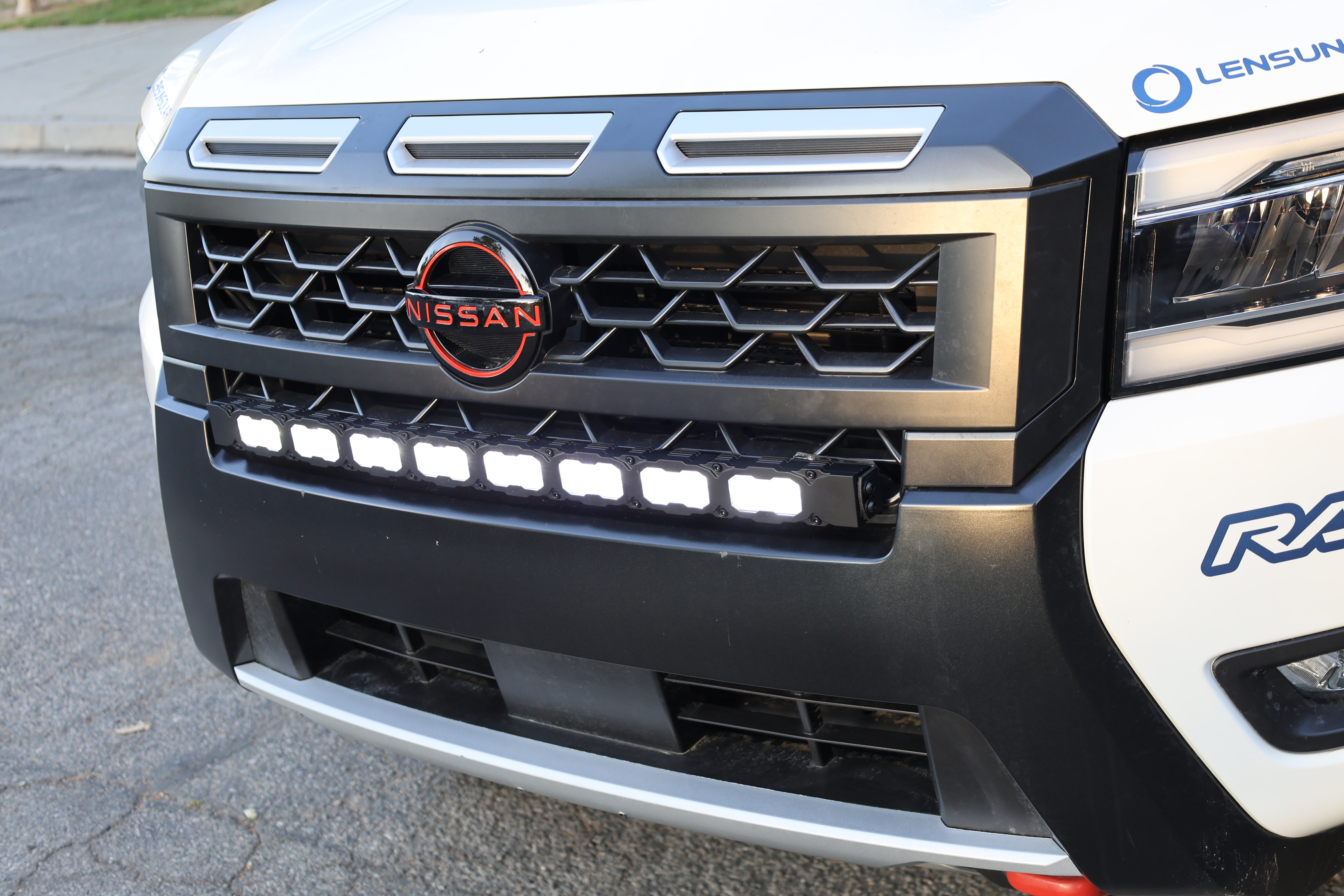

2025+ Nissan Frontier Single 30in Light Bar PRO
What's in the Box
- (1) 30in curved light bar PRO
- (4) metal brackets
- All mounting hardware included
Off-road use only
Bolt On, No Drilling
Vehicle Specific Design
Lifetime Warranty
Fits: 2025–2026 Nissan Frontier
Trims: S, SV, PRO-X, PRO-4X, SL

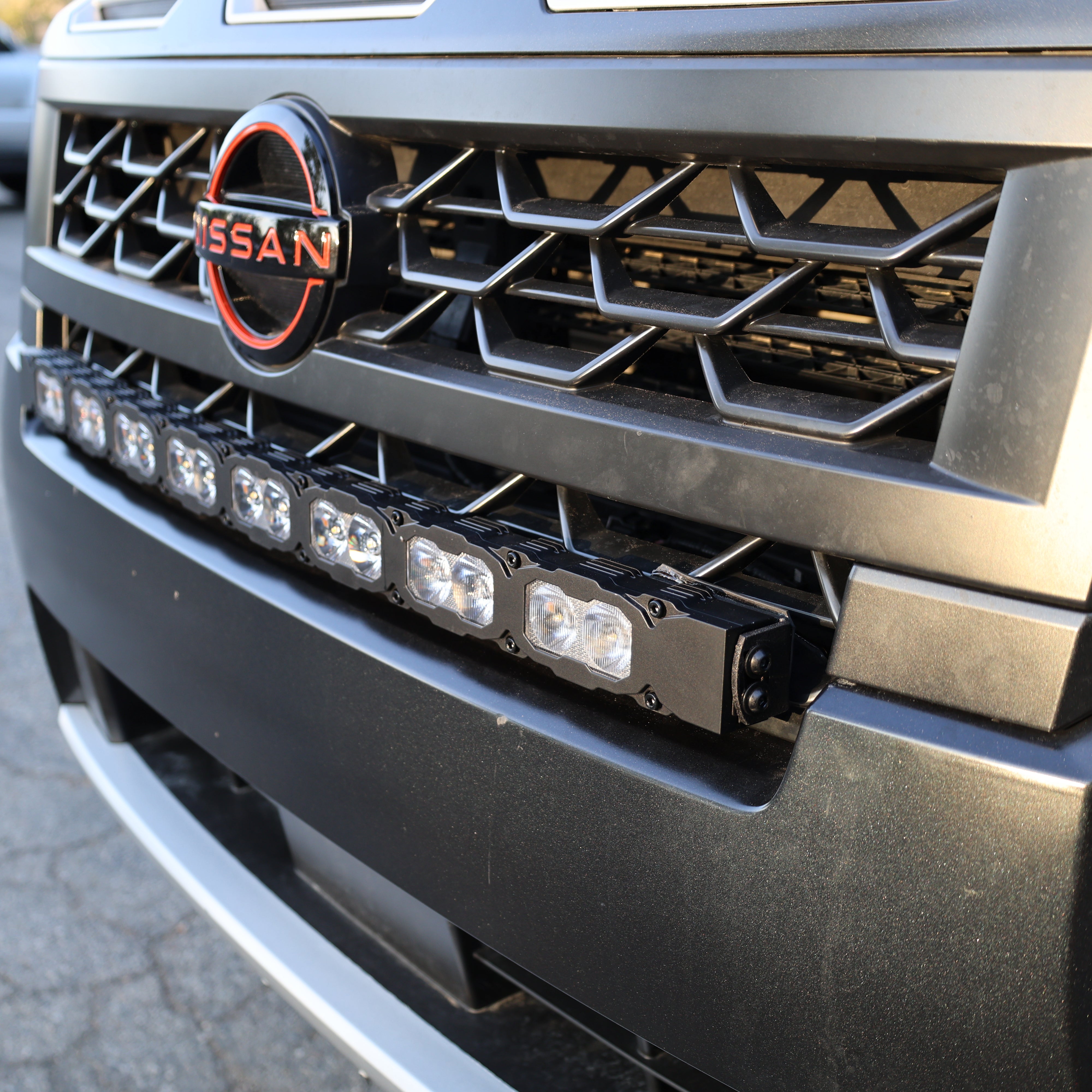

- No cutting or drilling required
- Very simple install

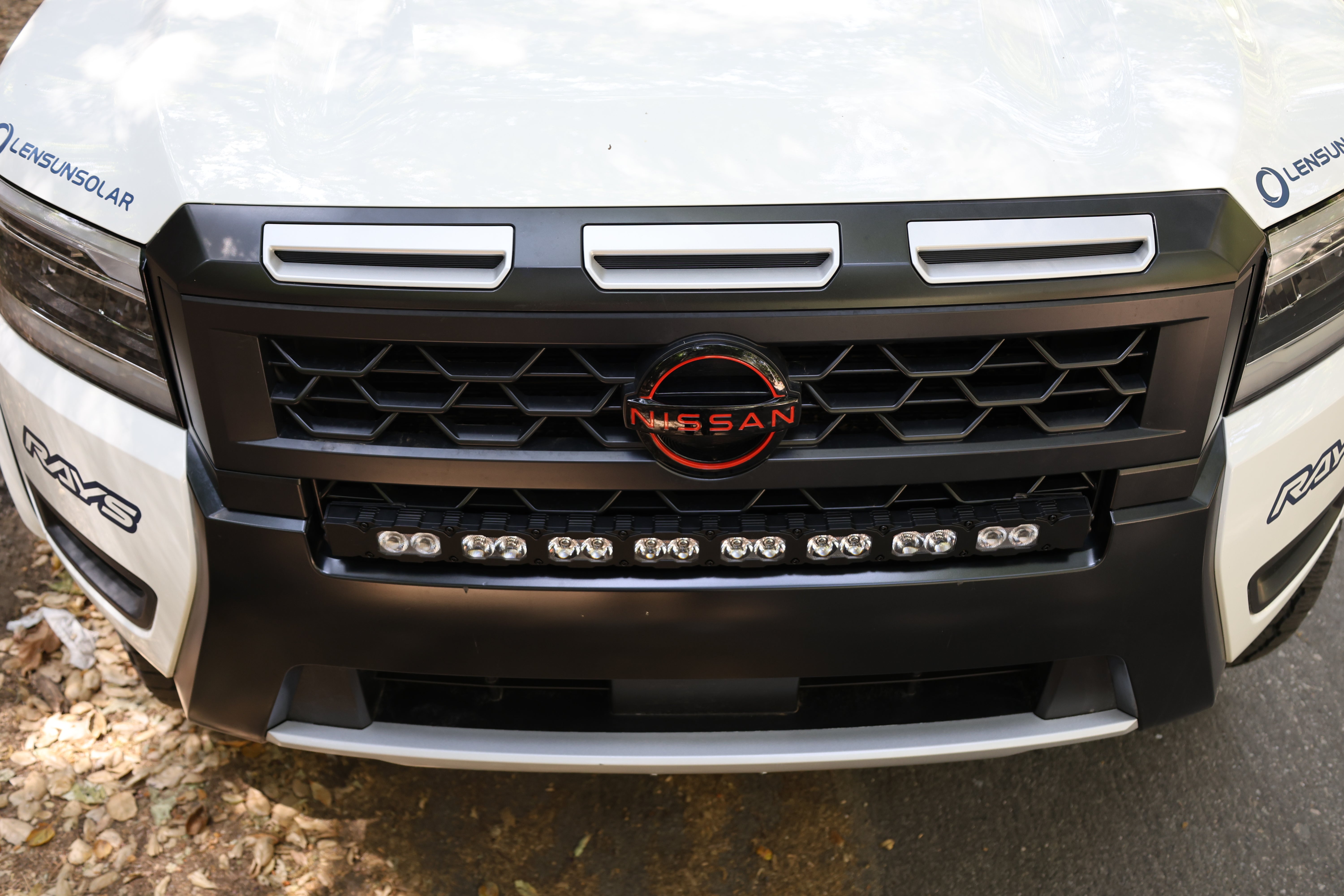

- No need to remove the entire grille
- WILL NOT interfere with active grille shutters
- Metal bracket is powder coated black
CHOOSE LIGHT OUTPUT COLOR:
The PRO light bar uses a Combo Pattern, blending spot and driving optics for a balance between distance and width.

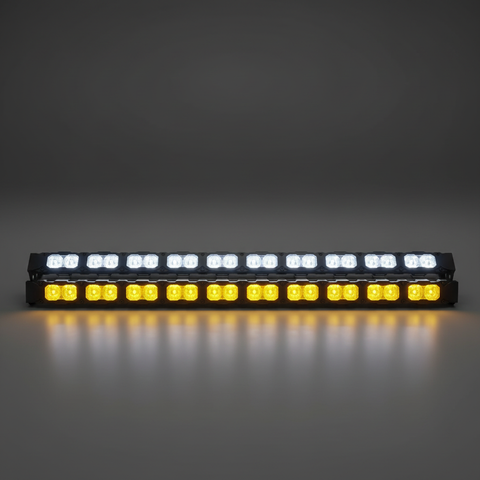

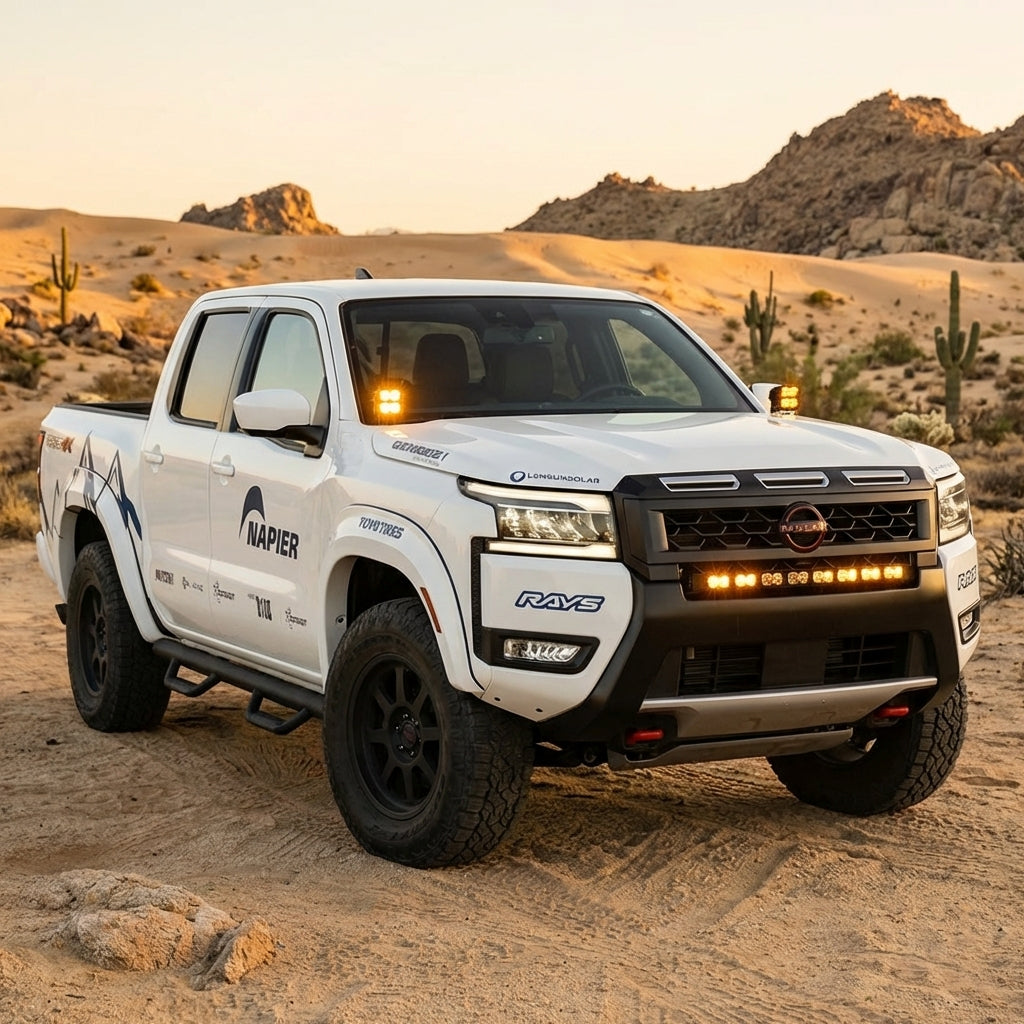

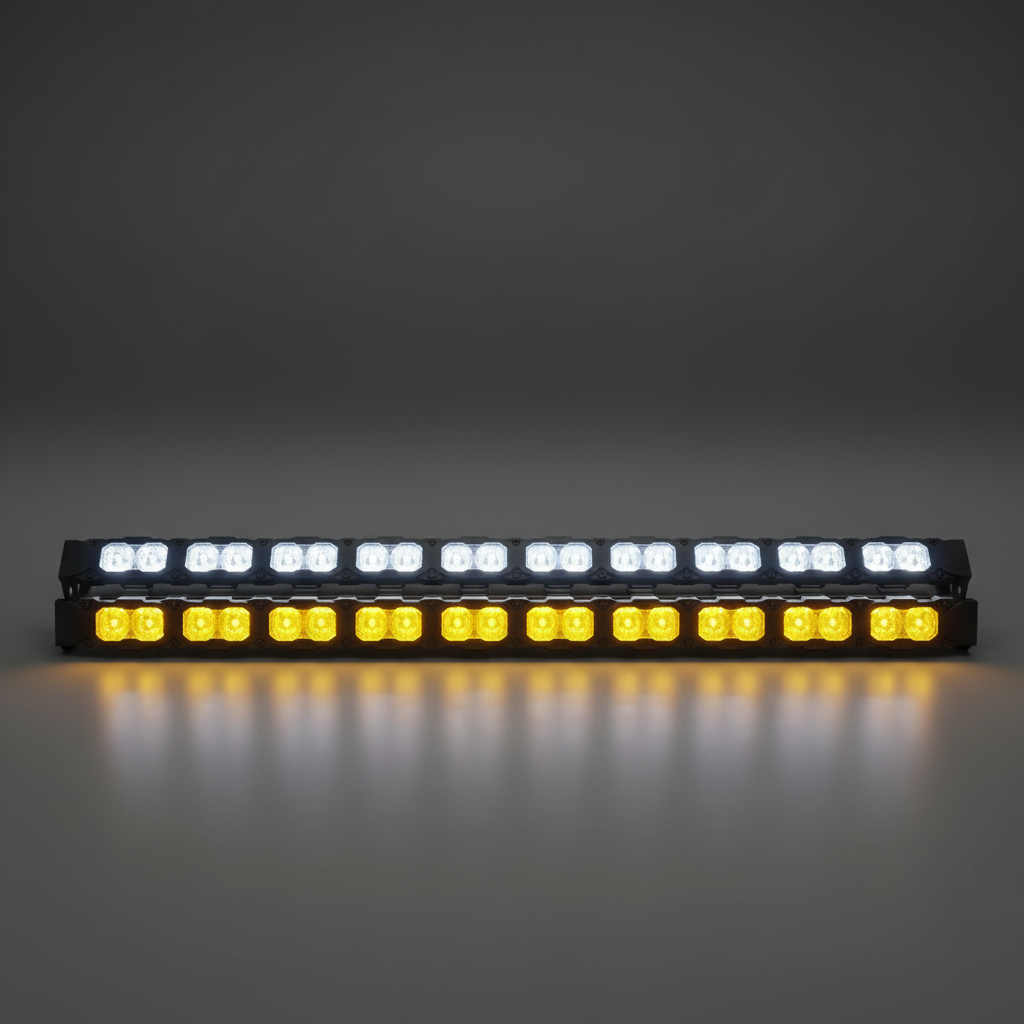

Every PRO bar is dual function — one main light and amber DRL (daytime running light) backglow.

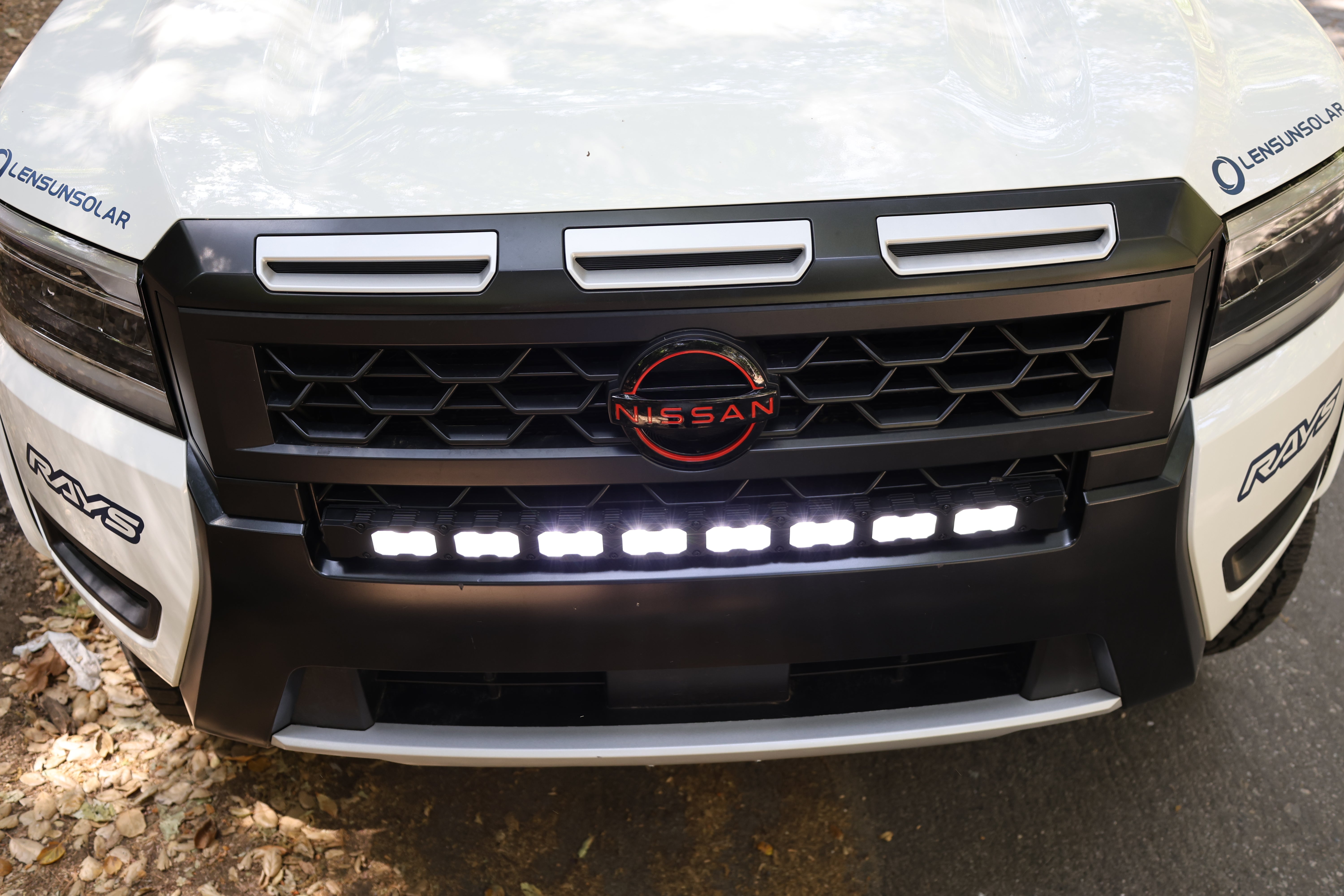

Option 1 — White + Amber DRL

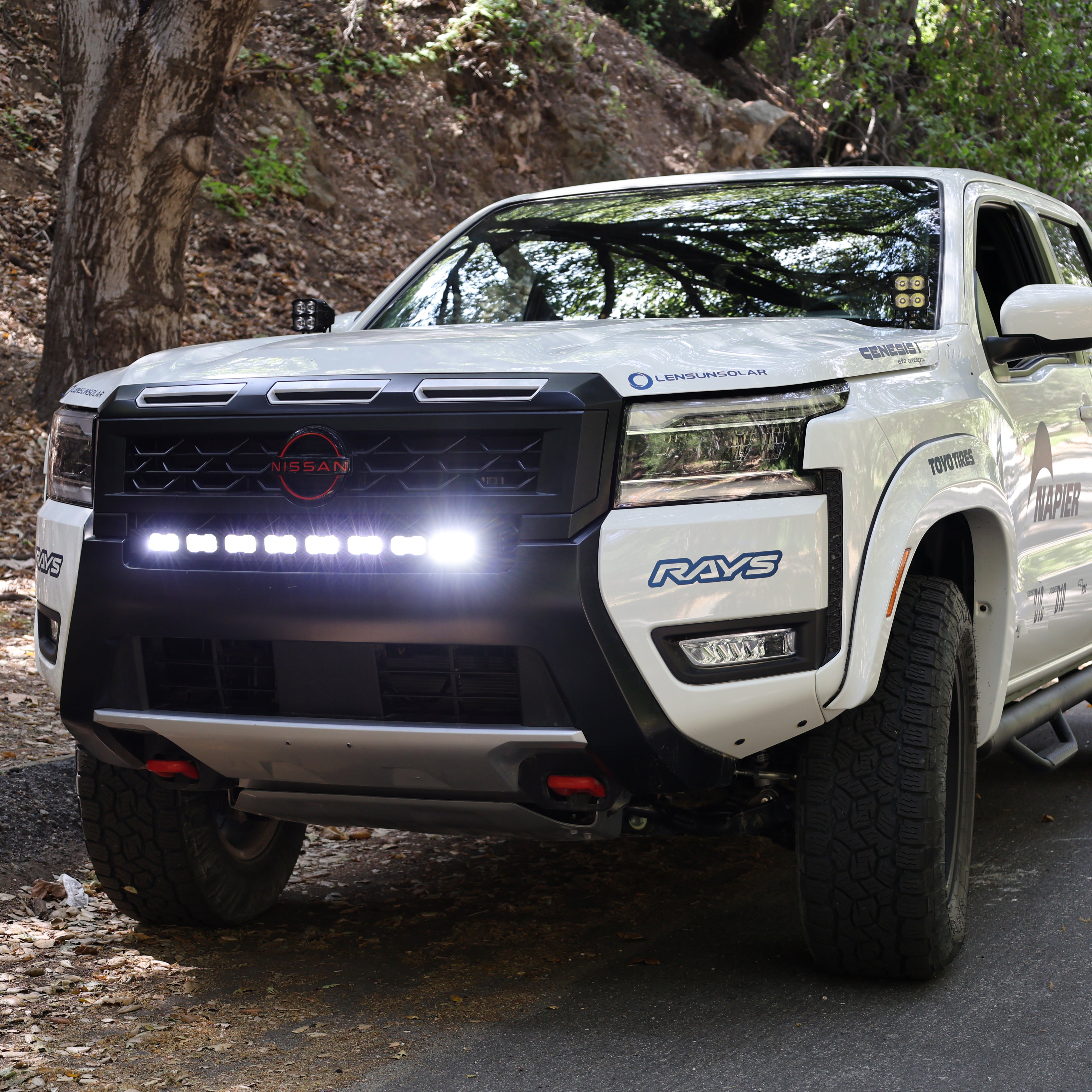

- White LED — Super bright, crisp white beam with plenty of light for any adventure. Off-road use only — the white beam blinds oncoming traffic and isn't street-legal.

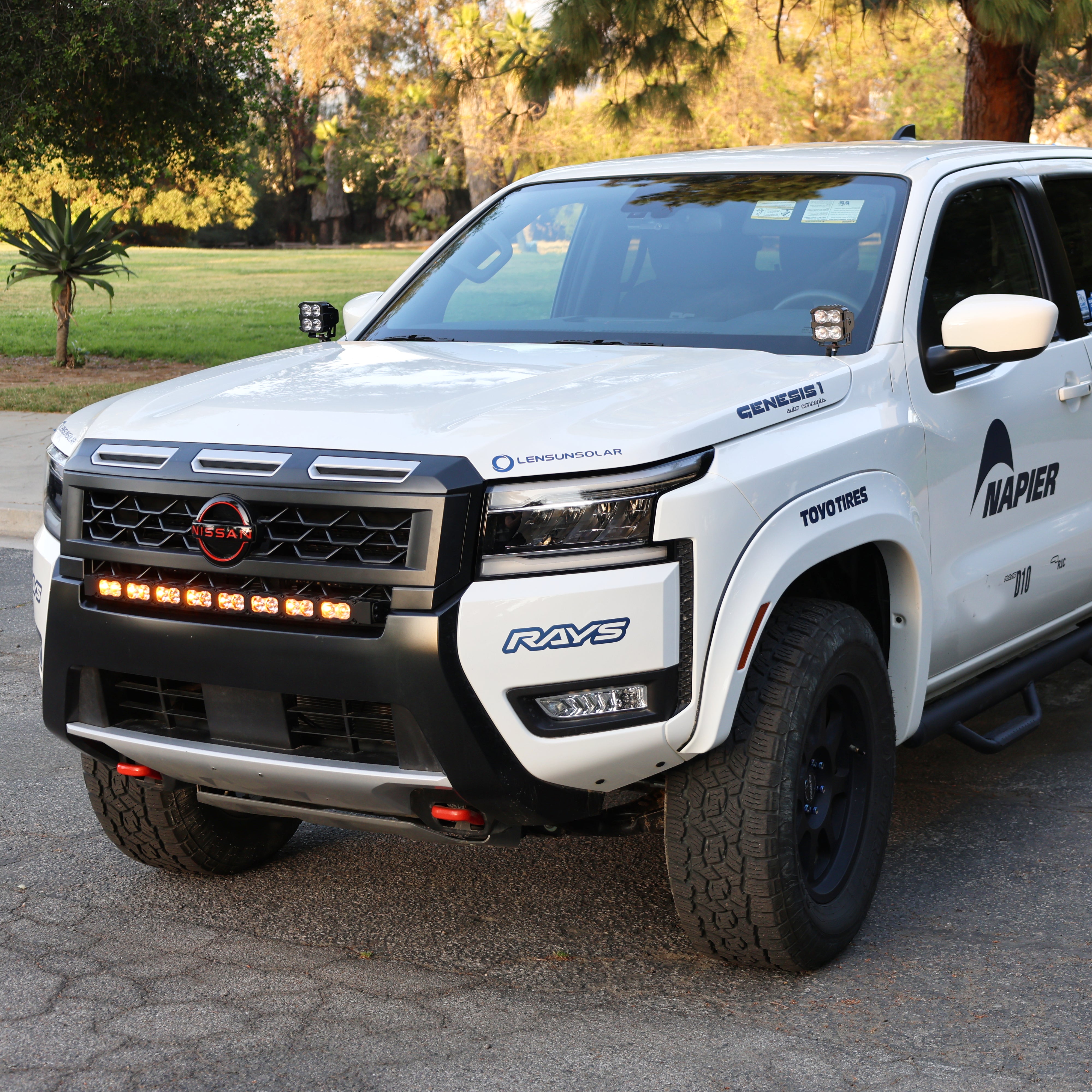

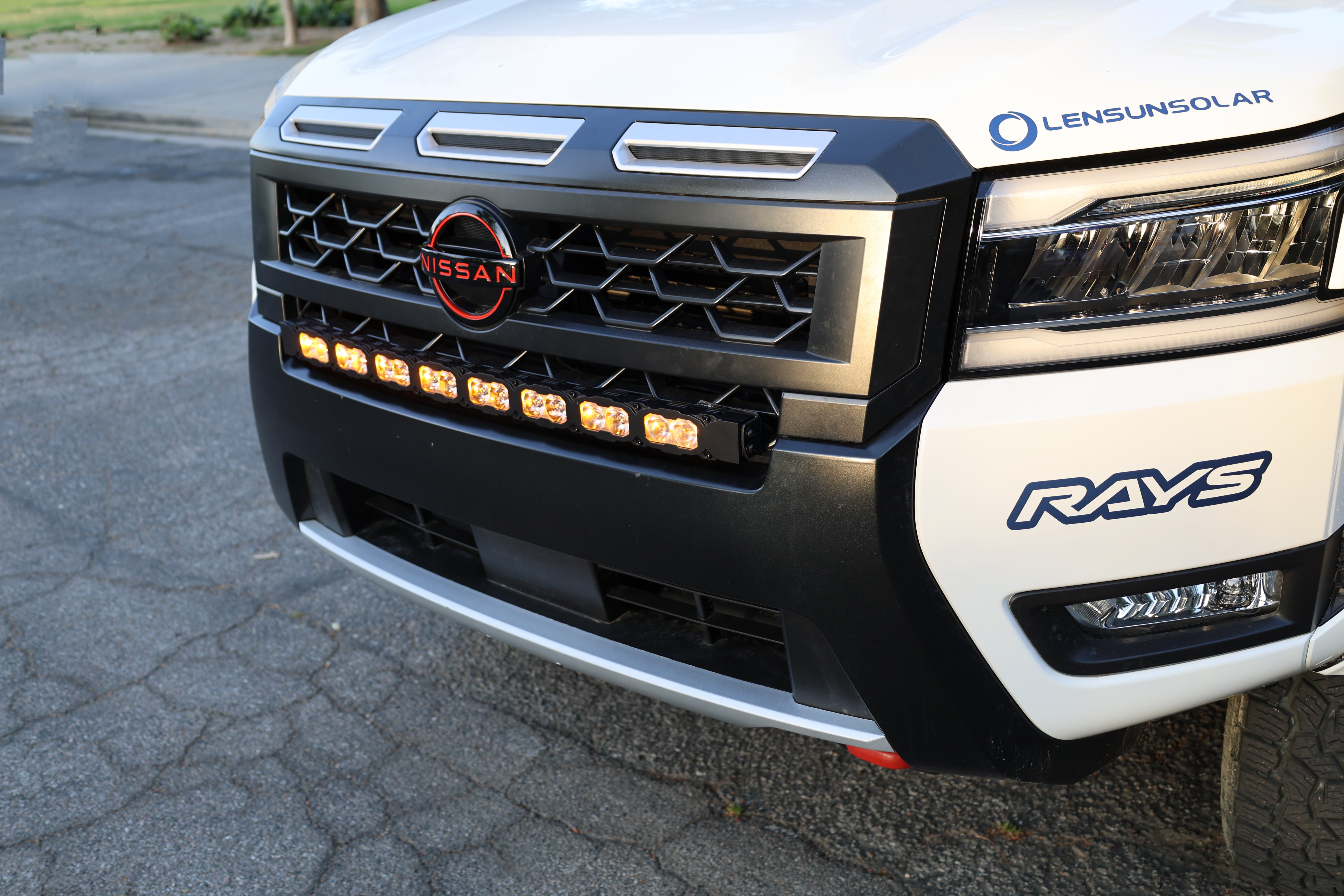

- Amber DRL — A daytime running light you can run day or night. Doesn't give off much light — just a bold amber backglow that makes your vehicle stand out on the road. Street-legal — won't blind oncoming traffic, so you can run it anywhere.

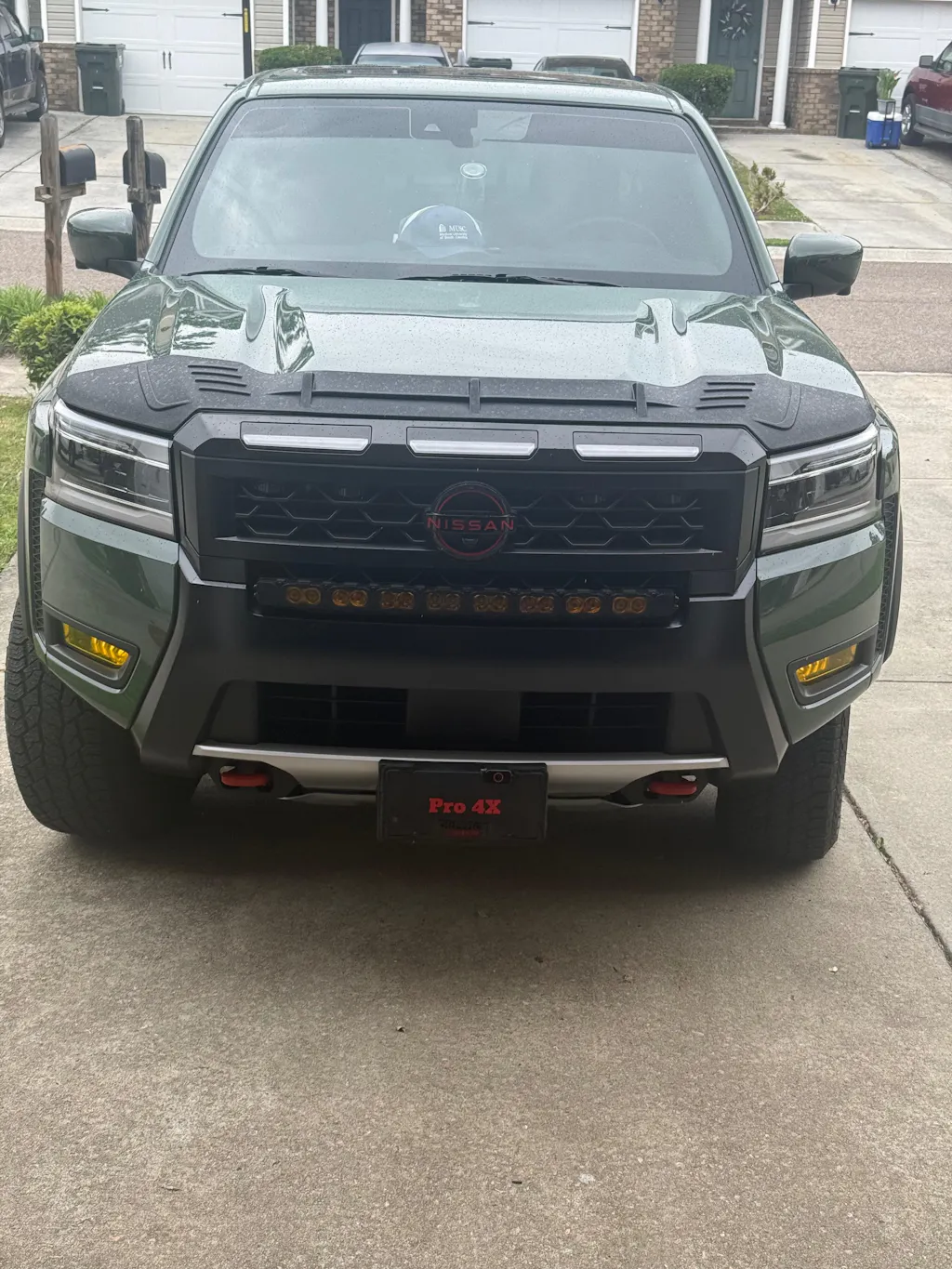

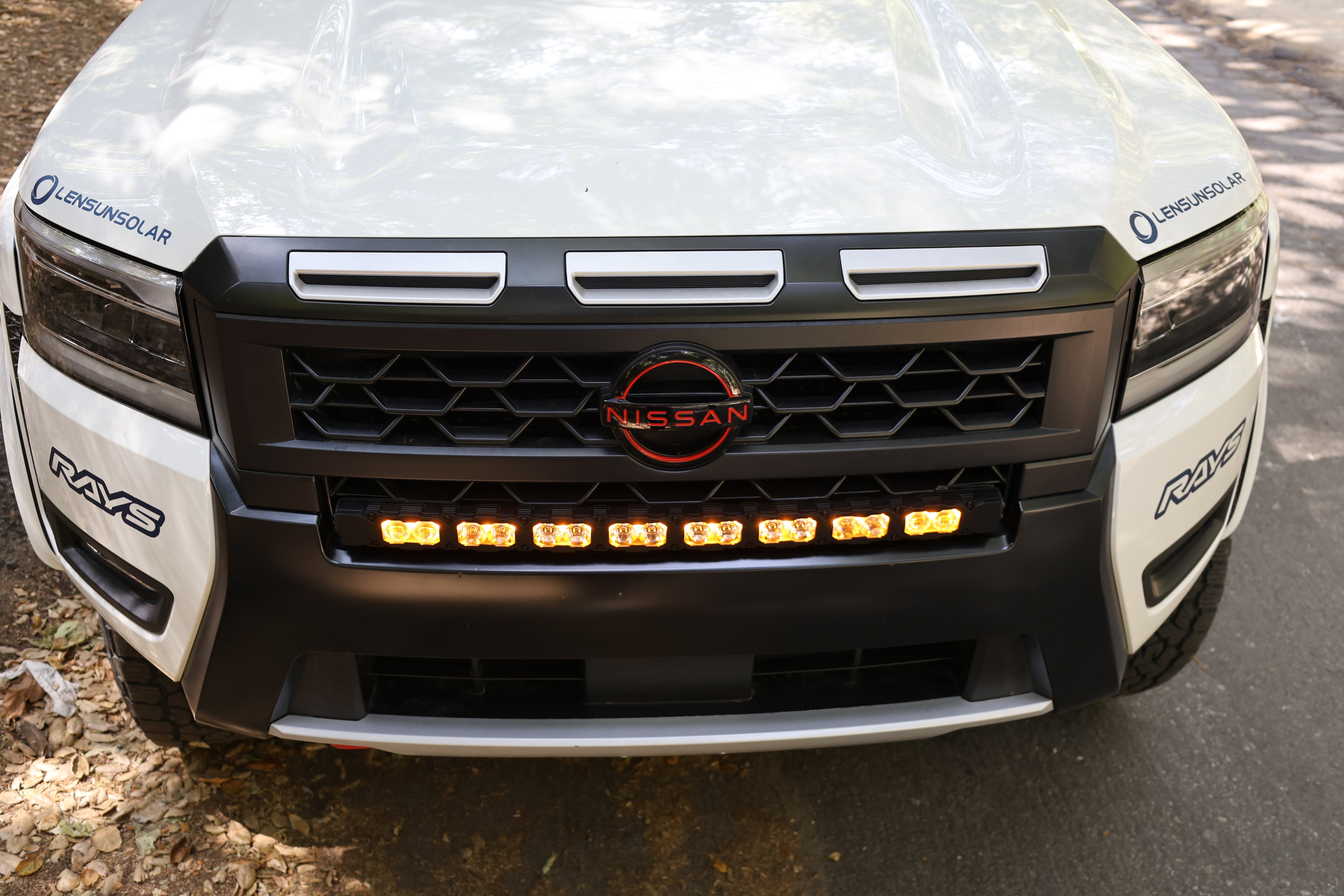

Option 2 — Yellow + Amber DRL
- Yellow LED — Cuts through dust, fog, snow, and rain far better than white light. Ideal for poor conditions. Off-road use only — the yellow beam blinds oncoming traffic and isn't street-legal.
- Amber DRL — A daytime running light you can run day or night. Doesn't give off much light — just a bold amber backglow that makes your vehicle stand out on the road. Street-legal — won't blind oncoming traffic, so you can run it anywhere.
BUILD QUALITY:
- Uses a TIR (Total Internal Reflection) lens, which is different from the conventional optics parts, which lose some light internally and produce glare. The TIR lens collects all of the light from the LED and directly leads them to where you need, drastically reducing glare and improving total efficiency.
- Higher light efficiency: brighter, longer irradiation distance

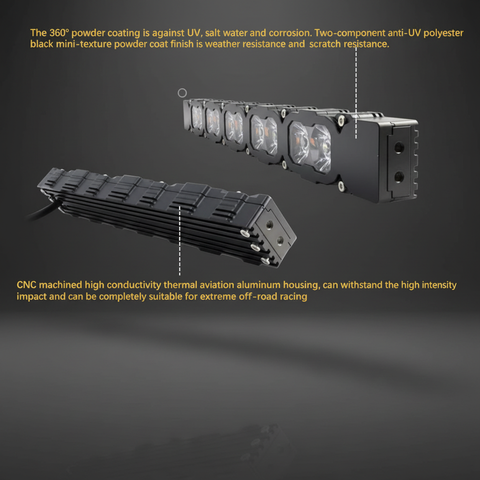

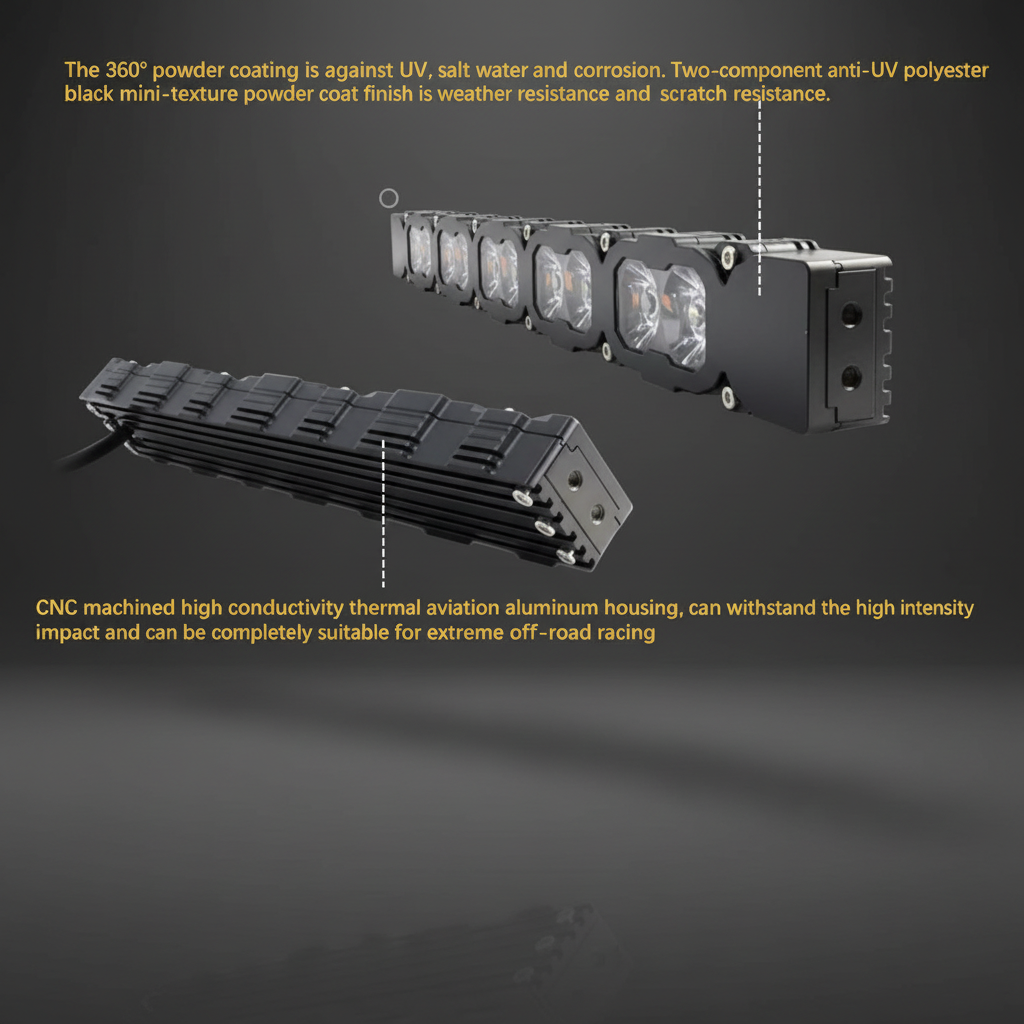

- Housing is upgraded to 304 aluminum. The surface is UV polyester powder coated to protect against UV, salt water, corrosion, fading and scratch resistant.
- Equipped with thermal management system that automatically adjusts the brightness output according to the external temperatures
- Rated for a 50,000 hour lifespan
30in PRO Light Bar
| Beam Pattern | Spot & Driving |
| Theoretical Max Power | 160 watts |
| Actual Power | 90 watts |
| Voltage / Current (Main) | DC 12V / 7.5A |
| Voltage / Current (Backlight) | DC 12V / 0.19A |
| Theoretical Max Luminous Flux | 17,472 lm |
| Measured Flux (without lens) | 11,072 lm |
| Measured Flux (with clear lens) | 8,806 lm |
| Measured Flux (with yellow lens) | 6,846 lm |
| LED Type | Luminus SST-20 |
| Color Temperature | 6000K |
| Number of LEDs | 16 pcs |
| Product Size (L × W × D) | 29.53 × 1.89 × 1.00 in |
Free ground shipping on all orders within the continental United States.
We process and ship orders within 3–5 business days. If we anticipate any delay, we'll reach out via email.
- Hawaii, Alaska & Puerto Rico — $20 flat rate for ground shipping.
- Canada & International — Shipping rates calculated at checkout. Customs fees, duties, and import taxes are the responsibility of the customer.
- Overnight & 2nd Day Air — Available at checkout. Orders must be placed by 12:00 PM Pacific Time for same-day shipment.
You'll receive a tracking number via email once your order ships. If you have a special request about your order, reach out — we'll do our best to accommodate. For our complete shipping policy, [click here].
Warranty
We have a lifetime warranty on all our light kits. We stand behind every kit we build — our lifetime warranty isn't fine print, it's a promise. For more information about our warranty and disclaimer, [click here].
M&R Automotive is not responsible for misuse or improper installation of the product. Professional installation is recommended.
HOW TO INSTALL?
Install Video

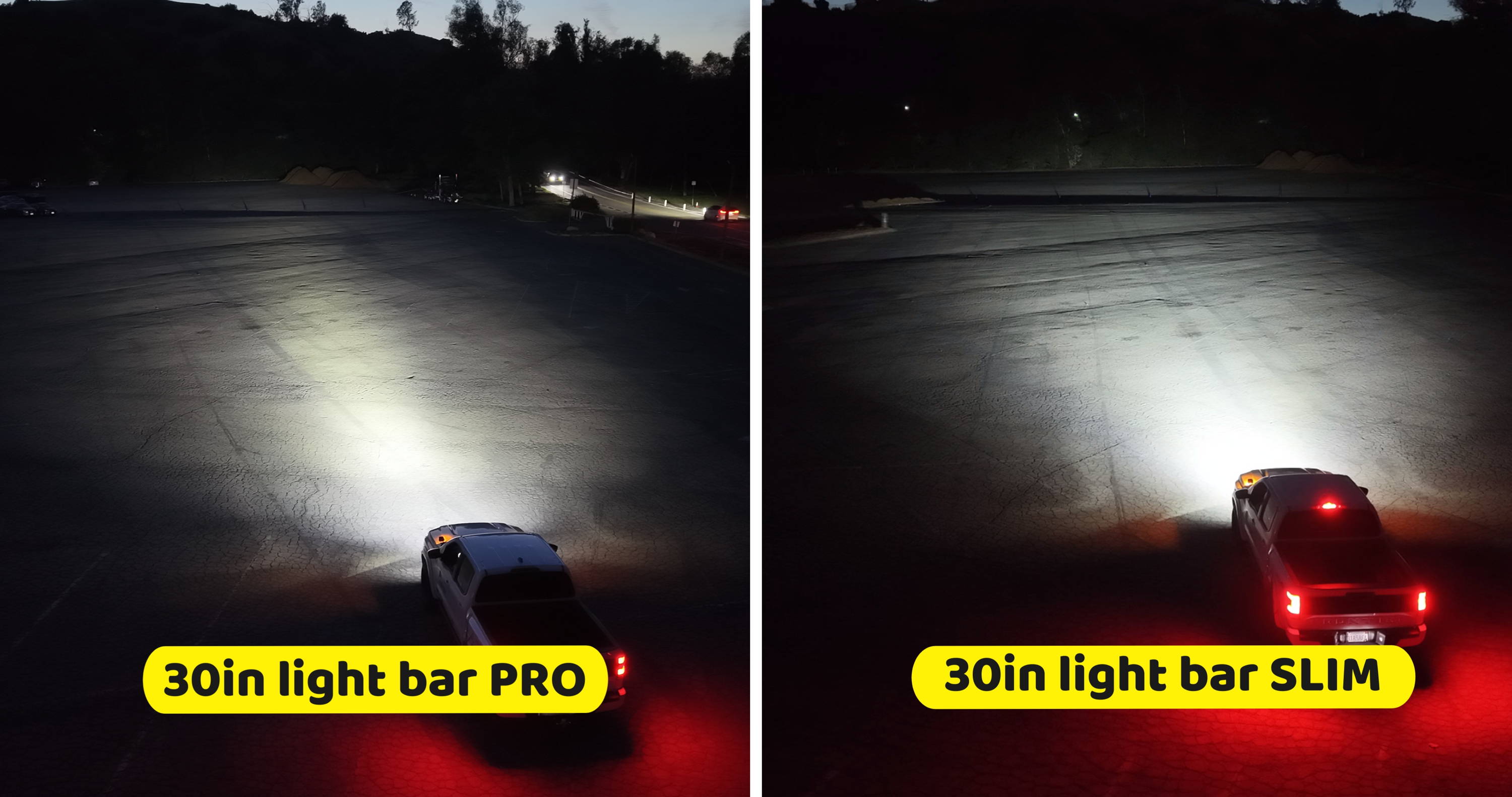

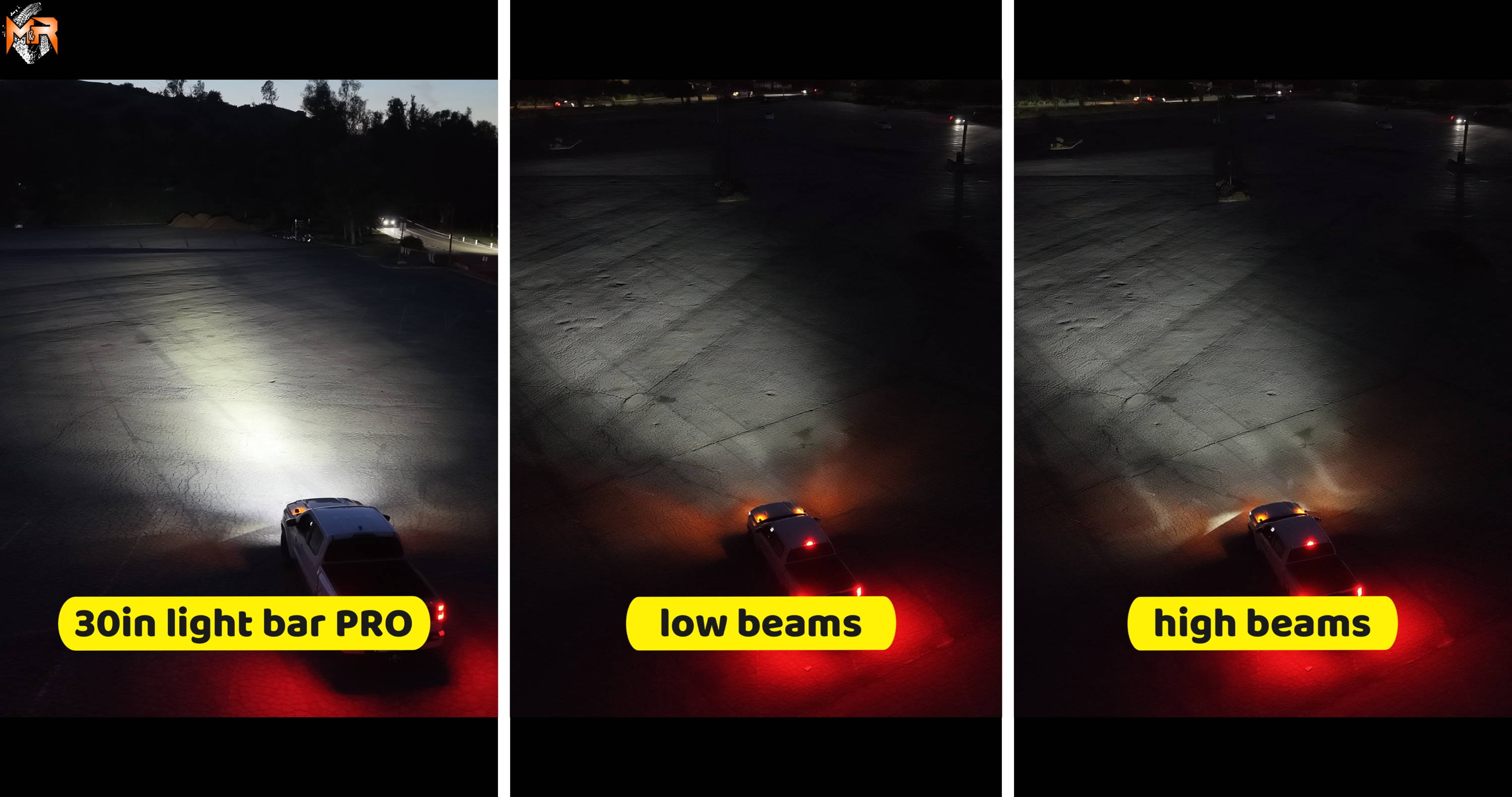

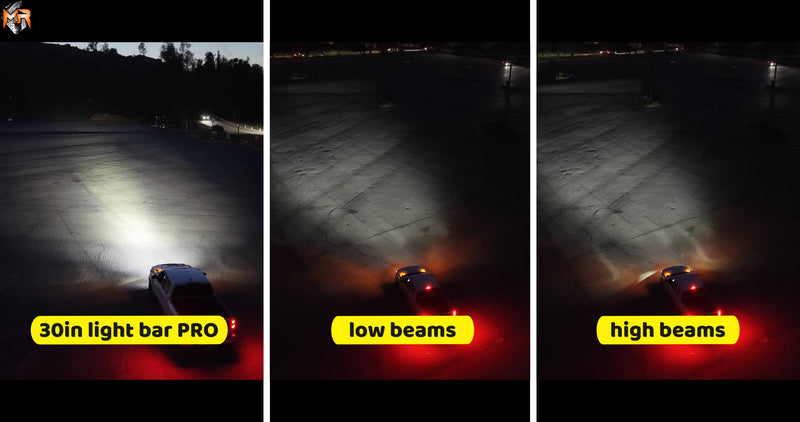

Light Output
