- Product Description
- Light Bar Specs
- Shipping & Warranty
- Fits 2022 2023 2024 GMC Hummer EV

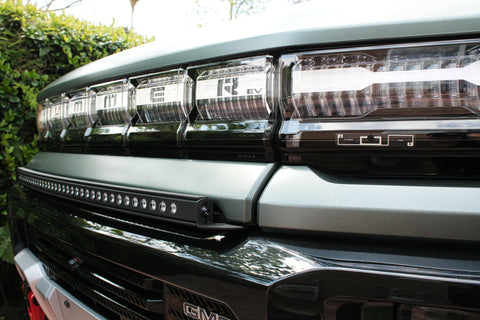

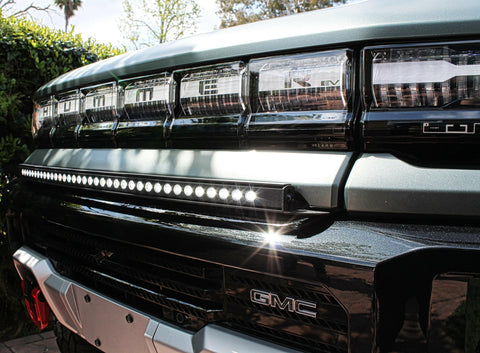

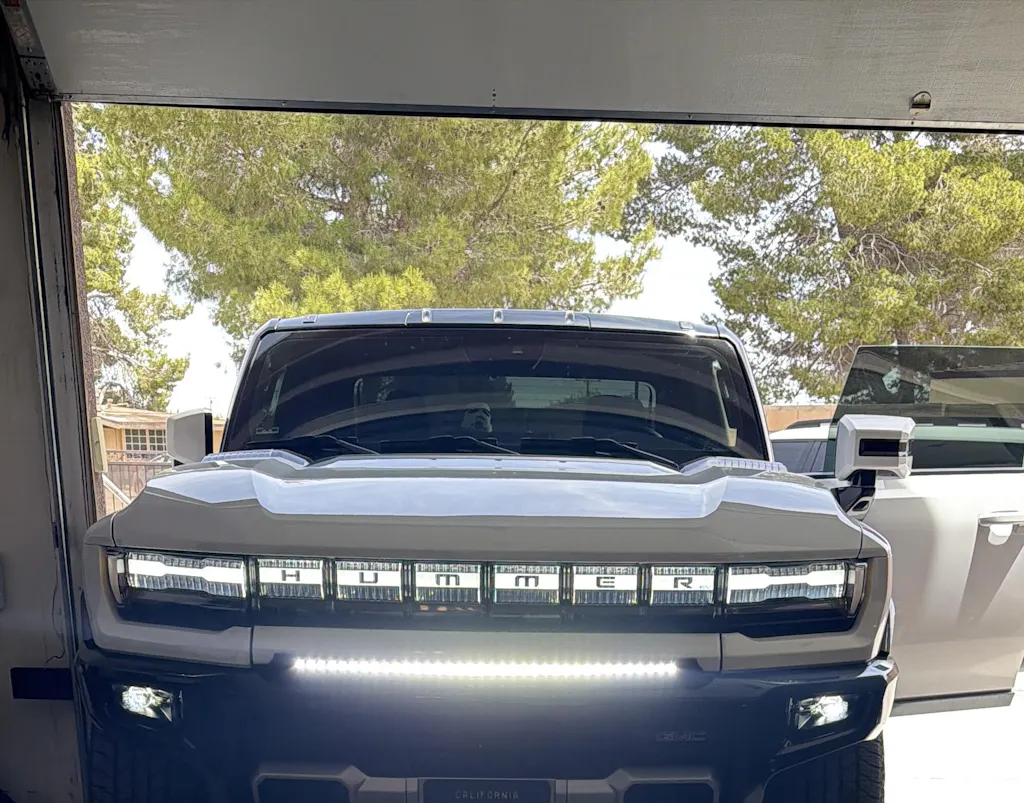

- Curved light bar, stays slim to the bumper for a sleek, built in look
- Metal bracket is powder coated black

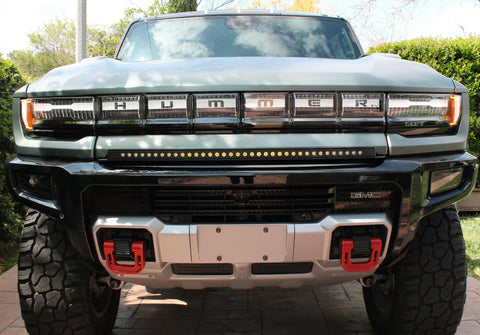

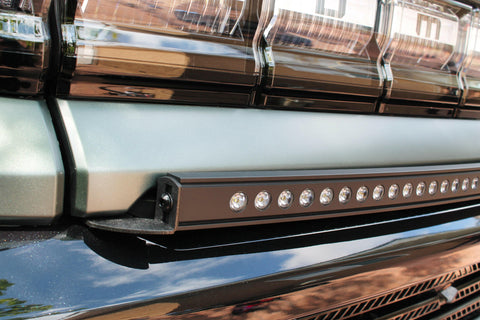

- The mounting bracket is bolted onto the frunk using factory hardware. The light bar weights around 4 pounds and doesn't interfere with the opening of the frunk.
- Easy install
- No cutting or drilling required. The kit is a complete bolt on using factory openings and hardware.
👍Our light kits are for off-road use only.
Choose your light bar color:

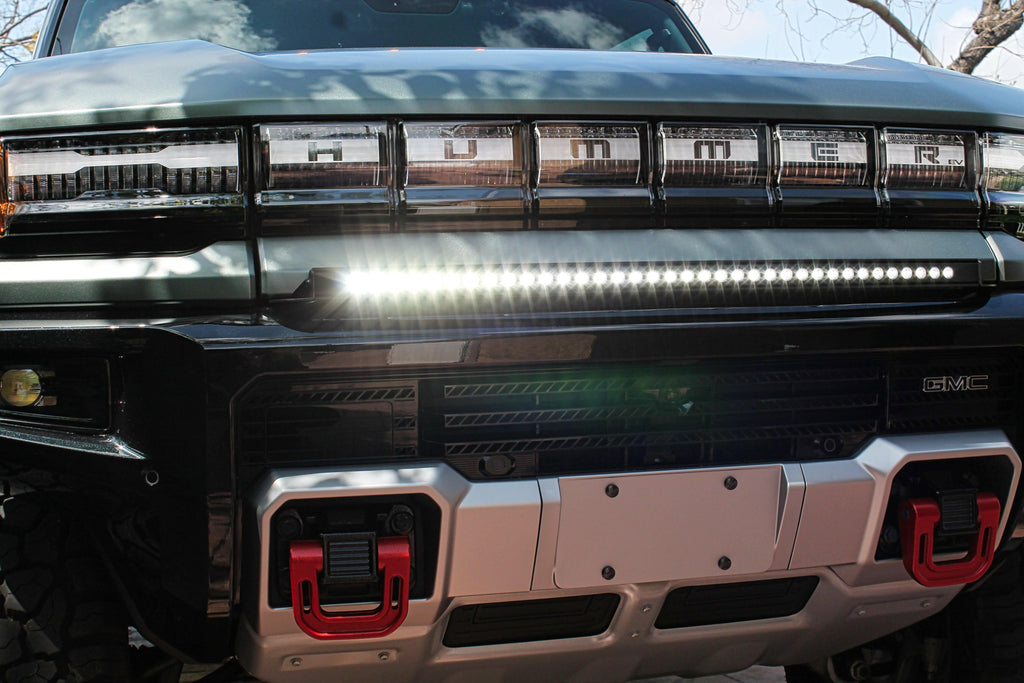

1) White LED -- Up to 15,000 lumens, bright and powerful. It will definitely provide you with enough light needed for all of your adventures. However, these are only for off-roading and can’t be used on the regular road. They will blind the in-coming traffic and also violates road safety.
2) Amber LED -- Up to 7,000 lumens, used in poor driving conditions such as dust, fog, snow and rain. It reflects through air particles much less than the white light. Therefore, making it ideal for poor driving conditions. For off road use only.

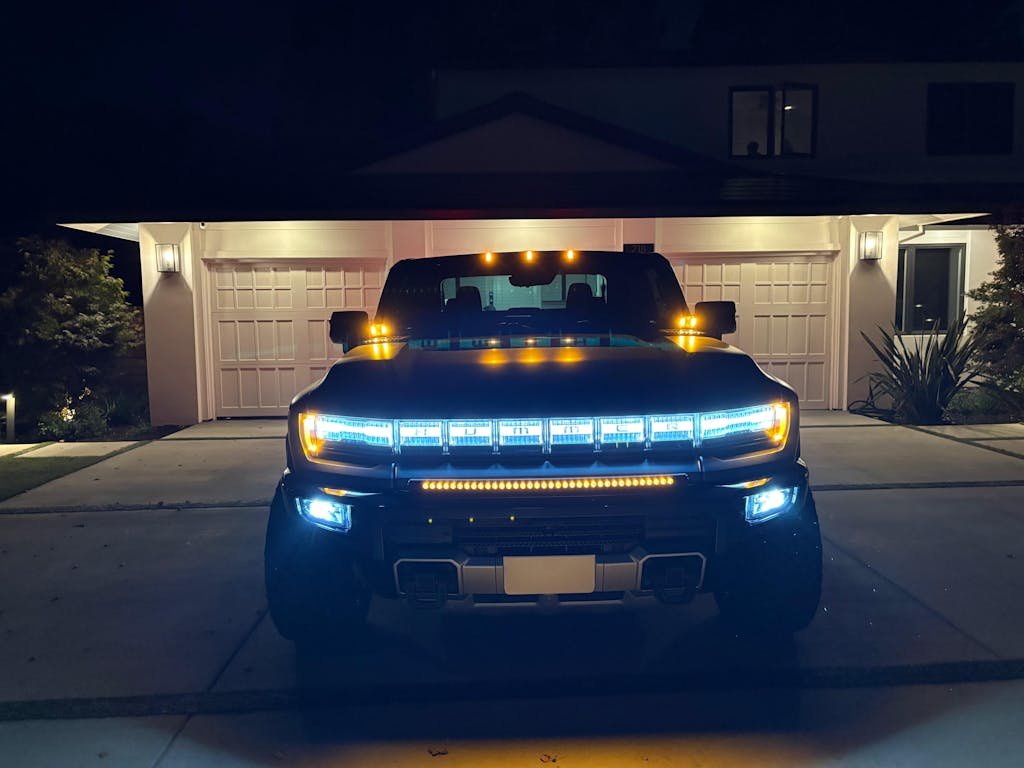

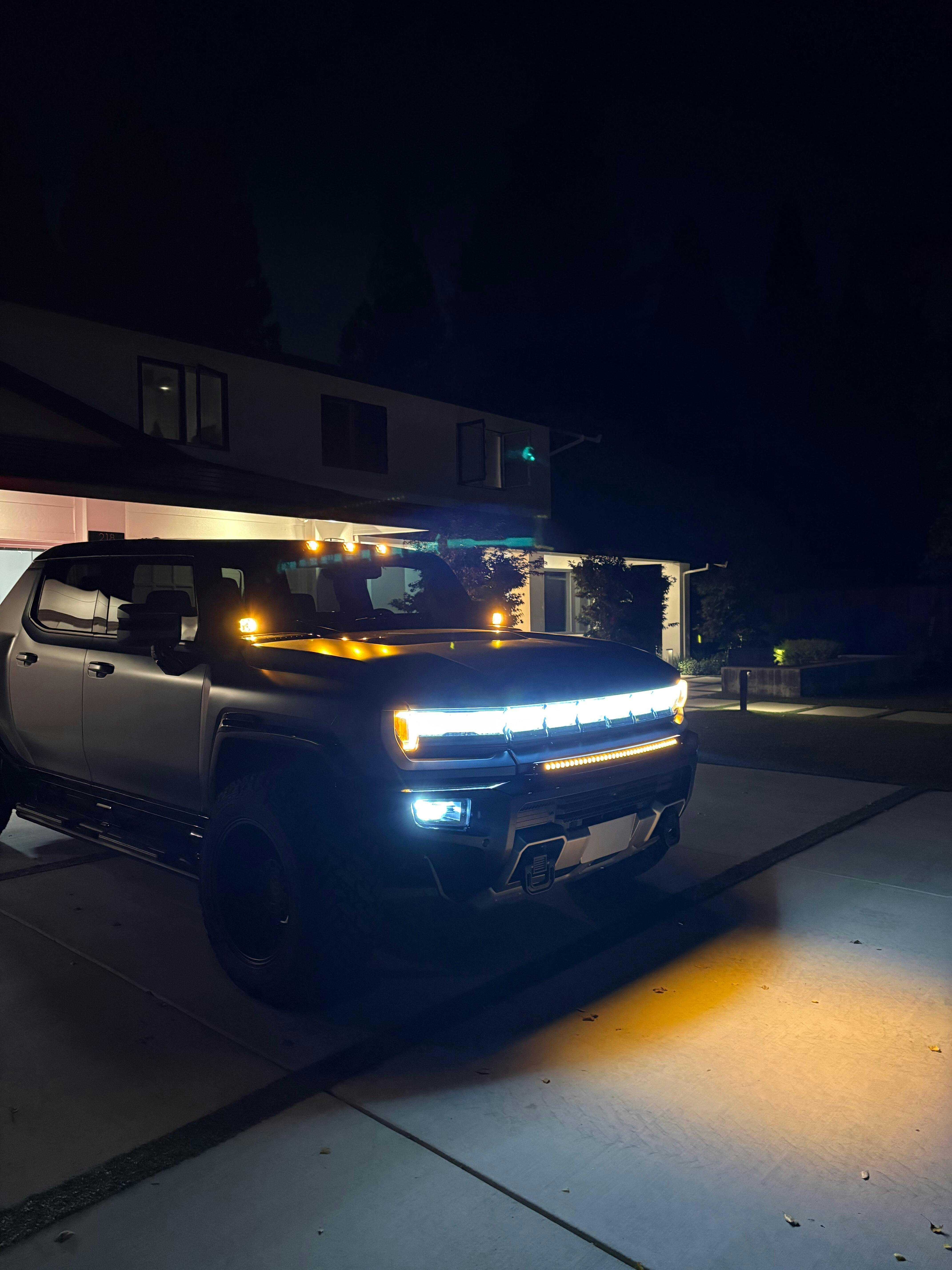

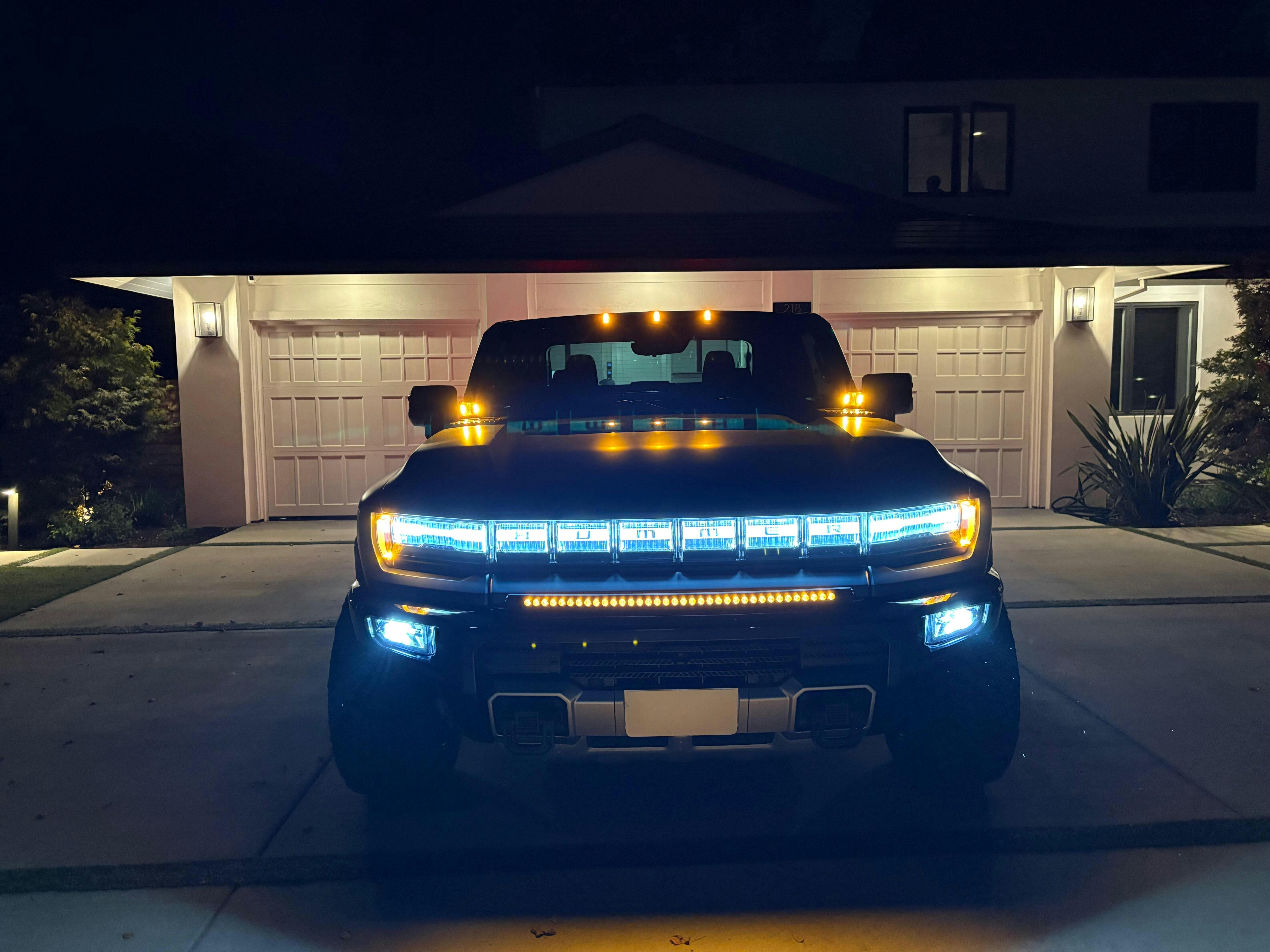

3) dual function: main White LED light with Amber DRL backglow -- the white LED light is same as described above, but the amber DRL “daytime running lights” acts purely for aesthetics. Since it doesn’t give out much light, you can use this amber DRL feature on regular roads, it doesn't blind in-coming traffic.
Full in-depth video describing our lights bars CLICK HERE
WHAT'S INCLUDED?
(1) 40in curved light bar - SLIM
(2) mounting brackets
All mounting hardware
WIRING
- M&R Automotive doesn’t provide a wiring harness.

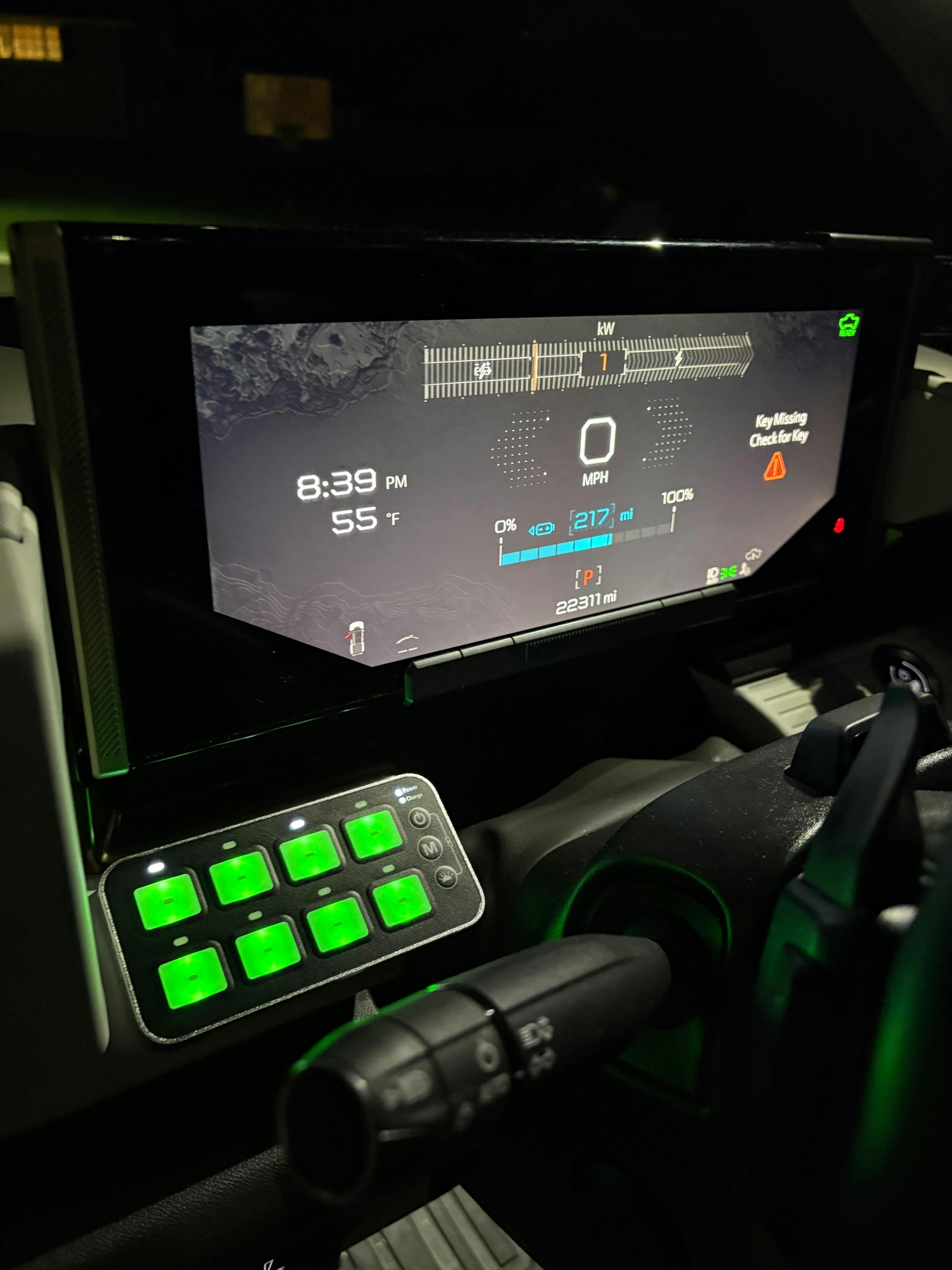

- The light bar has over 6ft of wire. This is long enough to be run under the hood to a power source (see pictures). If you want to use factory AUX switches you need to purchase "Accessory Touch Screen Control Switch Module" LINK HERE. M&R doesn't sell this module.
- We sell a wireless wiring harness that delivers a clean, hassle-free install—no need to run wires into the cab.
INSTALLATION INSTRUCTIONS
40in SLIM light bar
White:
- Beam Pattern Spot
- Theotetical max power 180watts
- Actual power 102watts
- Voltage/current DC12v/6.5A
- Theoretical max luminous flux 21,060 lm
- Measured luminous flux (without lens) 11,376 lm
- Measured luminous flux (with lens) 8,340 lm
- LEDs type CREE XTE
- Temperature 6000k
- LEDs number 36pcs
- Product size LxWxD (in) 38.93 x 0.75 x 1.63
40in SLIM light bar
Amber:
- Beam Pattern Spot
- Theotetical max power 140watts
- Actual power 78watts
- Voltage/current DC12v/6.5A
- Theoretical max luminous flux 11,160 lm
- Measured luminous flux (without lens) 7,380 lm
- Measured luminous flux (with lens) 5,387 lm
- LEDs type CREE XP - E2 Amber
- Temperature
- LEDs number 36pcs
- Product size LxWxD (in) 38.93 x 0.75 x 1.63
White with Amber DRL
- Beam Pattern Spot
- Theotetical max power 180watts
- Actual power 102watts
- Voltage/current main DC12v/6.5A
- Voltage/current backlight 5.5W/0.46A
- Theoretical max luminous flux 21,060 lm
- Measured luminous flux (without lens) 11,376 lm
- Measured luminous flux (with lens) 8,340 lm
- LEDs type CREE XTE
- Temperature 6000k
- LEDs number 36pcs
- Product size LxWxD (in) 38.93 x 0.75 x 1.63
We have a lifetime warranty on our light kits. We truly want our truck enthusiastic customers to enjoy their products as much as we enjoy designing them. However, we also understand that different situations arise with brackets or lights. For more information about our warranty and disclaimer click here.
*M&R Automotive is not responsible for misuse or improper installation of the product. Professional installation is recommended.
Customer Reviews

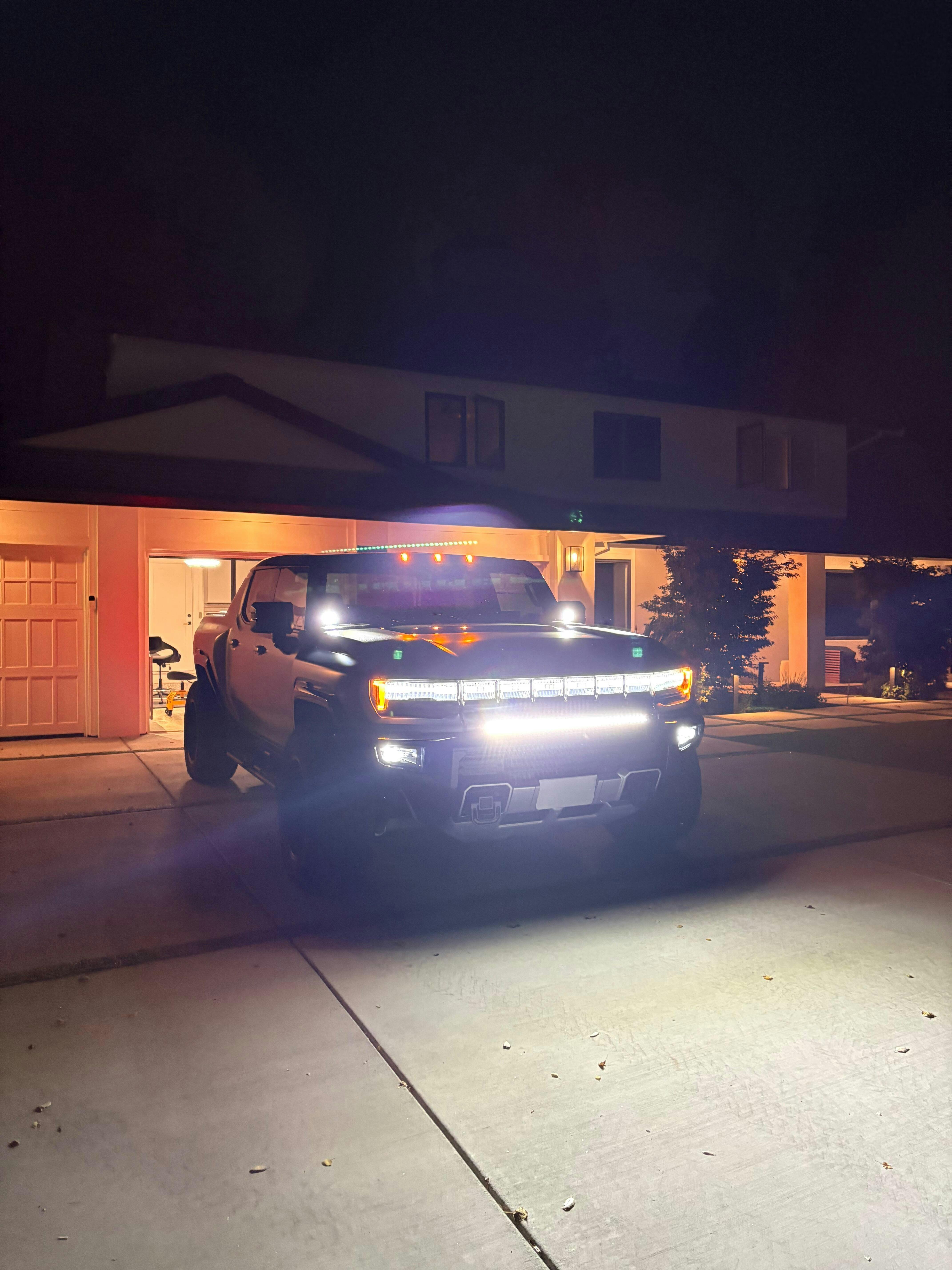

I love this light bar! It fits like a glove, doesn’t stick out as an “add on" part. This light bar uses seamless construction with the design of the SUV to be practically unnoticeable. I wired this light bar using the factory relay box so it can be operated with the SUV's touch screen. The light cast from the lightbar turns night into day. The light pattern does a good job illuminating the trail in front of you while not being totally blinding to oncoming vehicles
After I had bought my truck, I was looking at different lights to put on my car. I placed the order on Wednesday. The product was received by Saturday. Well package clear instructions or Mike was able to help me with some questions. I can’t say enough good thing about the product and the service I would highly recommend these guys. Thank you.
I have purchased three sets of lightbars and ditch lights. I installed all with the help of M&R’s youtube video. It’s excellent.
