2025+ RAM 1500 RHO Reverse Light
What's in the Box
- (2) 20w PRO pods
- (2) metal brackets
- All mounting hardware included
Off-road use only
Bolt On, No Drilling
Vehicle Specific Design
Lifetime Warranty
Fits: 2025–2026 RAM RHO
- Each LED light pod is attached to a metal bracket on each side
- Metal bracket is powder coated black

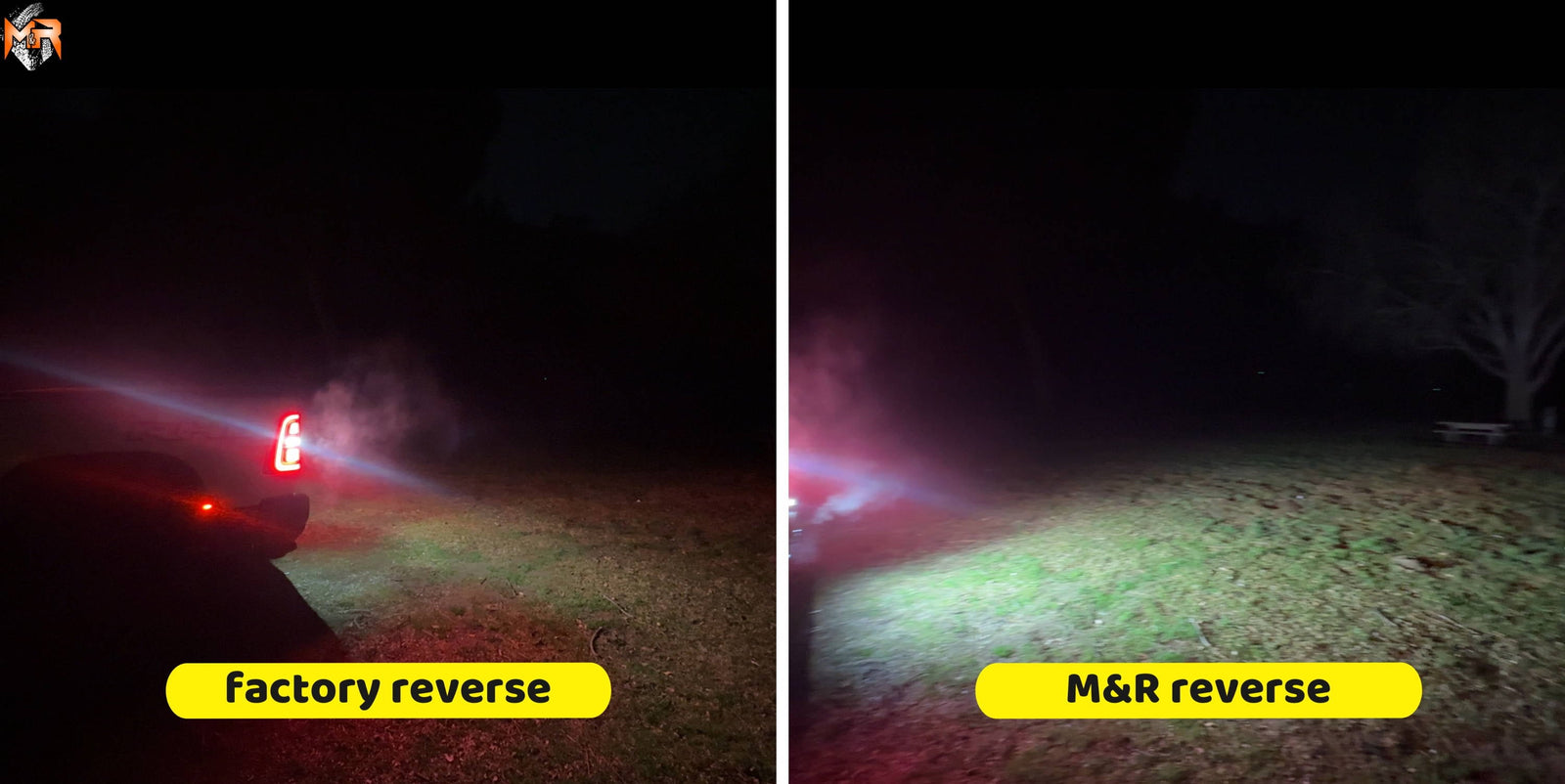

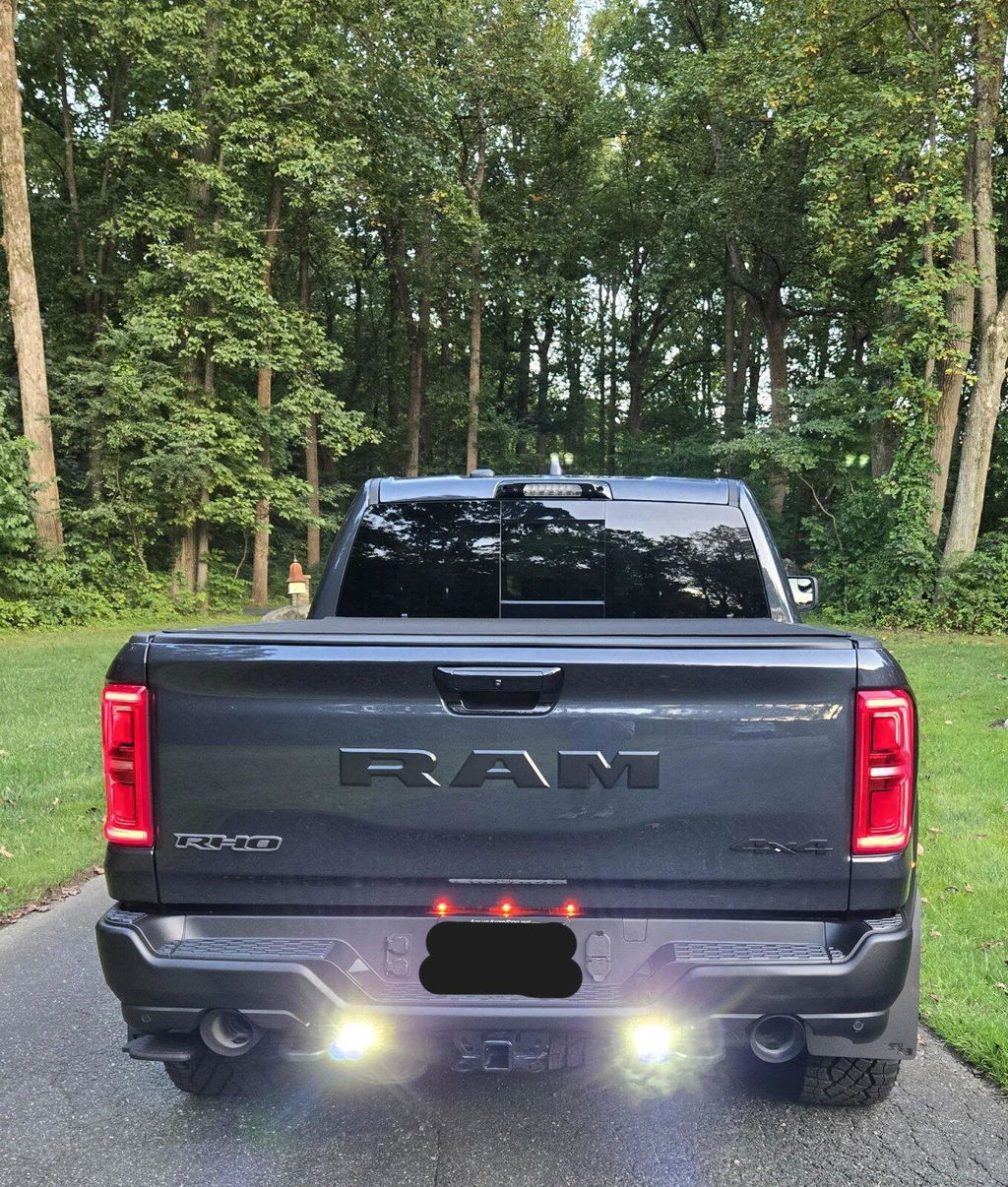

- This in addition to factory reverse light. The factory reverse light doesn't provide enough light output at night. Install M&R reverse light with powerful white LED light that makes a huge difference.
- No cutting or drilling required. The kit is a complete bolt on
CHOOSE LIGHT OUTPUT COLOR:
Each PRO light pod uses a Flood Pattern — the widest spread of the three beam types, built for close-range visibility all around the vehicle rather than long-distance throw.
Every kit is dual function — a white main light and your choice of backlight color.

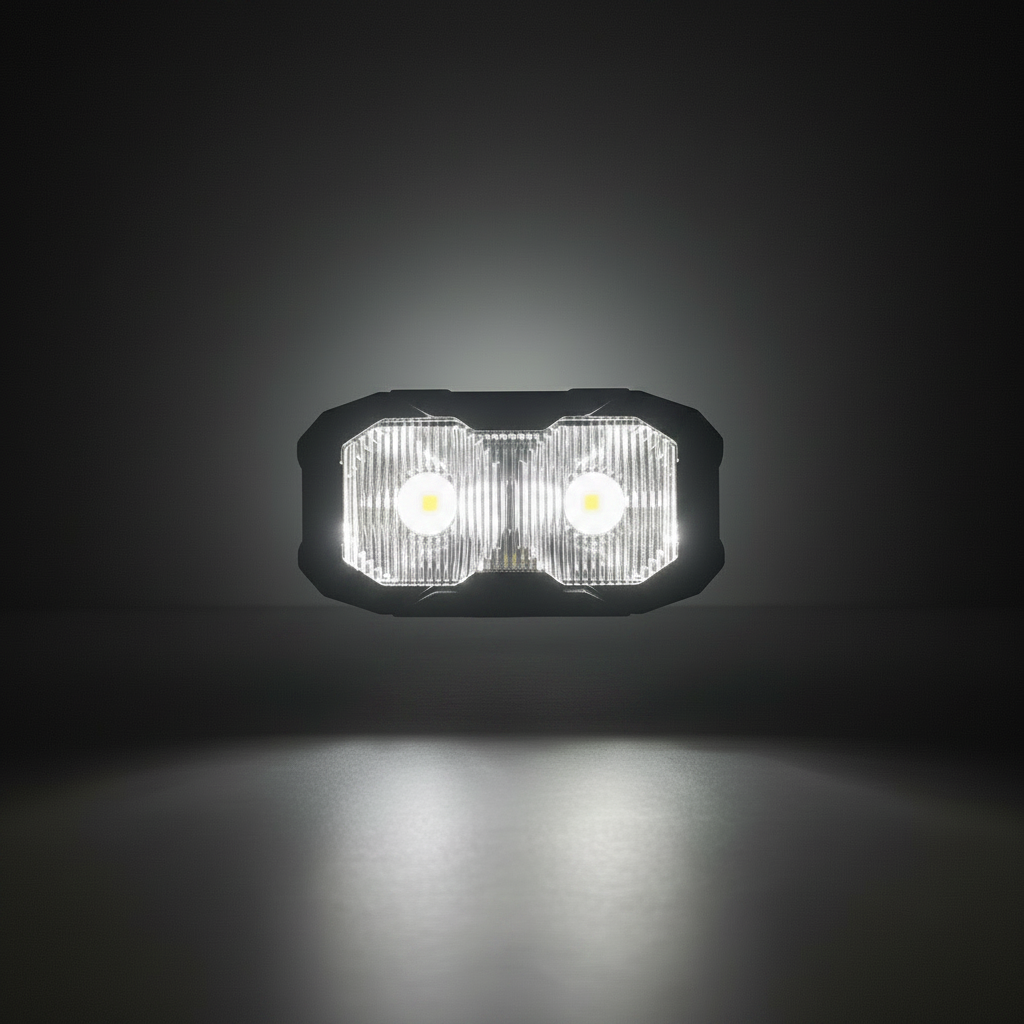

White LED — Off-road use only, it blinds oncoming traffic and isn't street-legal.

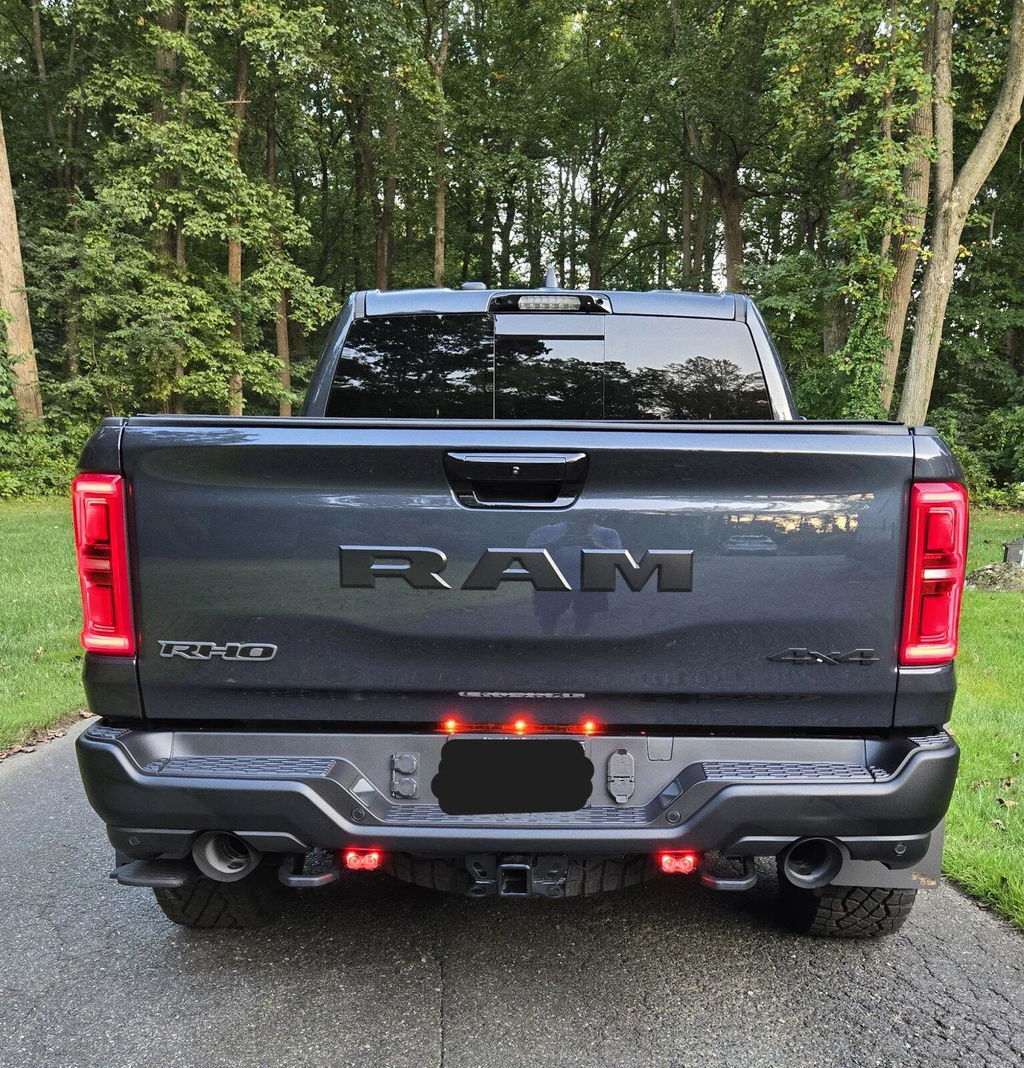

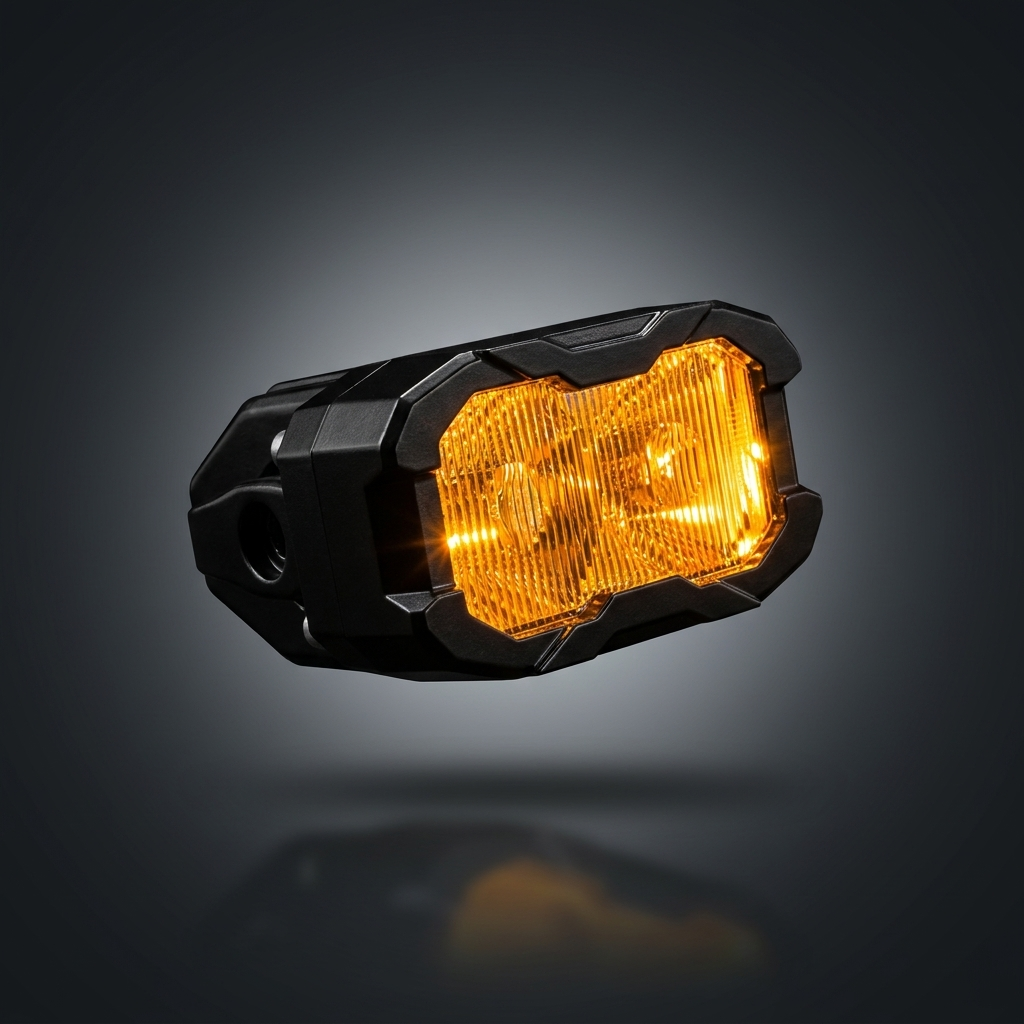

1) Amber backlight — can be wired as turn signals.

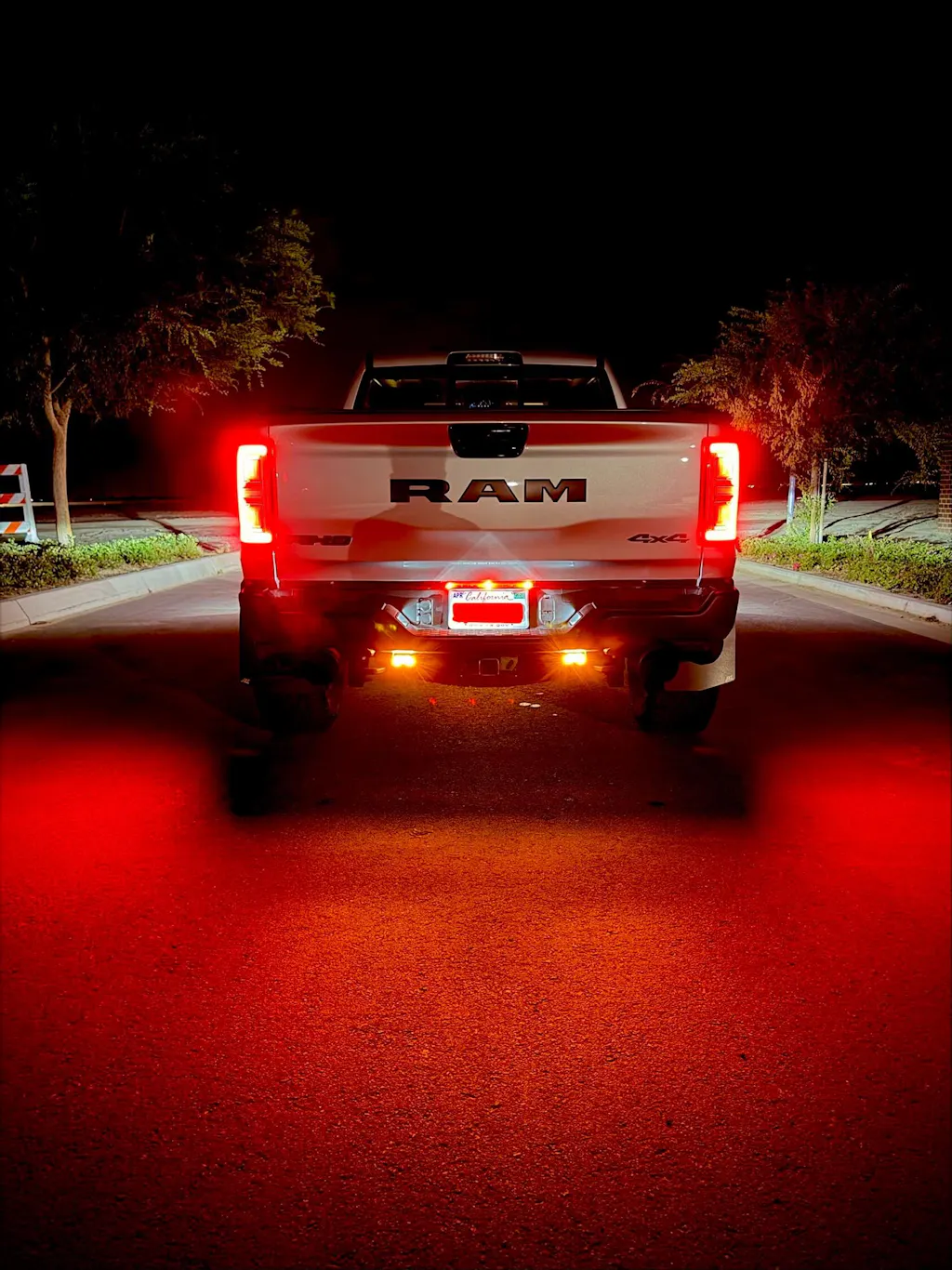

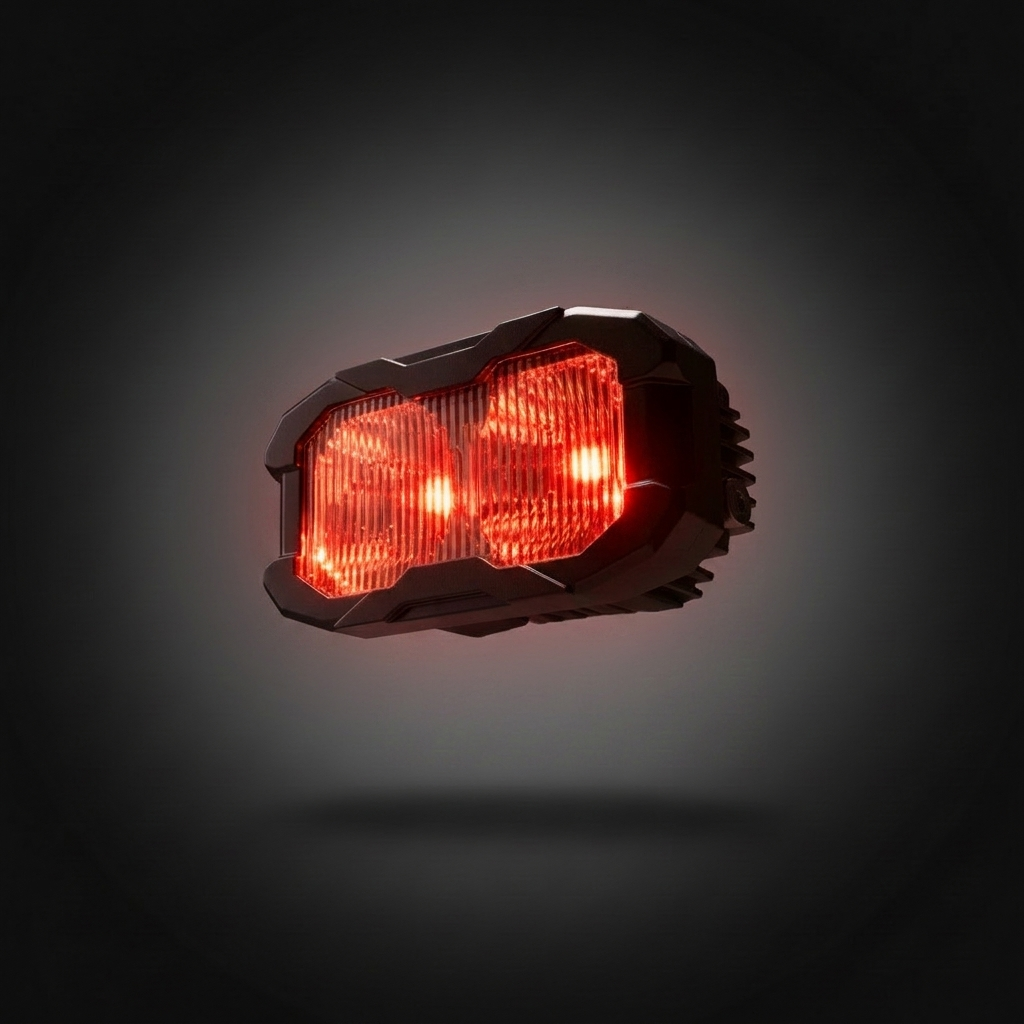

2) Red backlight — can be wired as turn signals or brake light.
BUILD QUALITY:

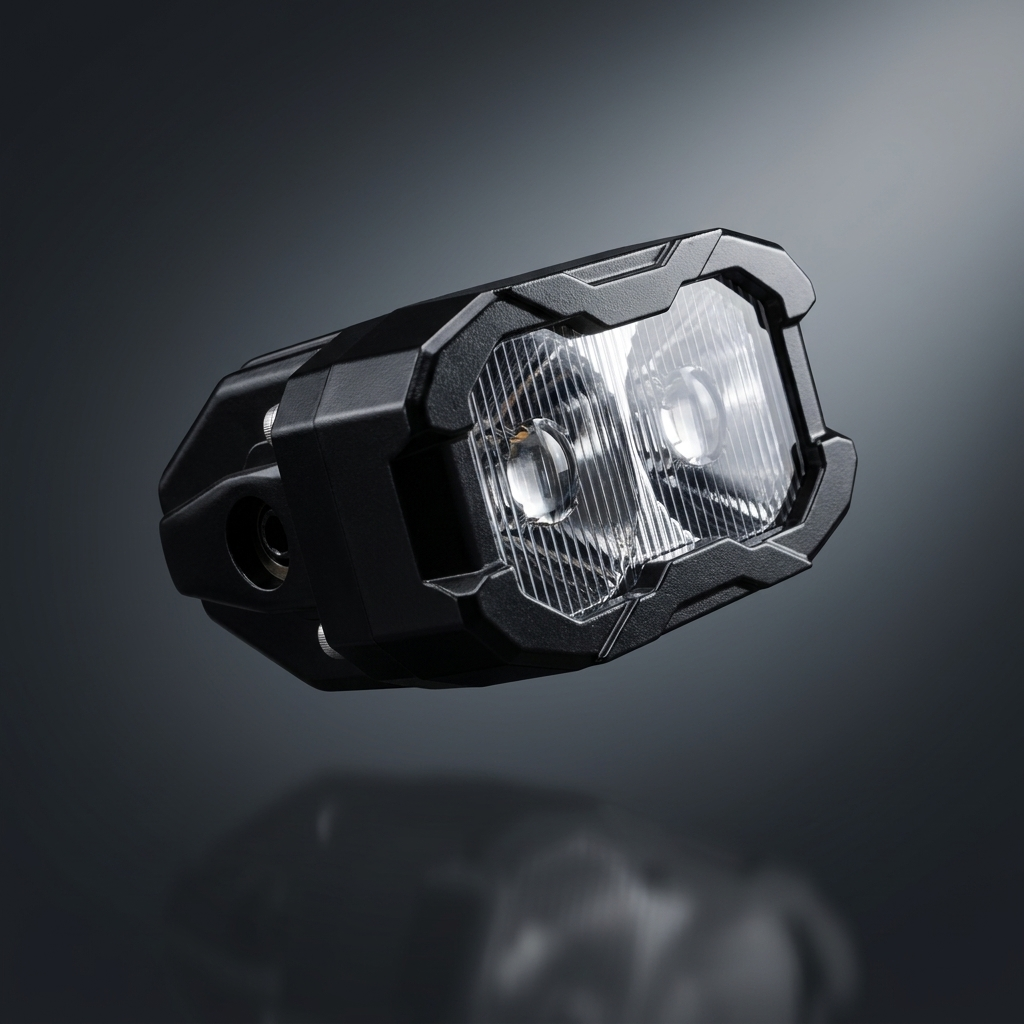

- Uses a TIR (Total Internal Reflection) lens, which is different from conventional optics that lose light internally and produce glare. The TIR lens collects all of the light from the LED and directs it exactly where you need it, drastically reducing glare and improving total efficiency.
- Higher light efficiency: brighter, longer irradiation distance
- Housing is upgraded to 304 aluminum. The surface is UV polyester powder coated to protect against UV, salt water, corrosion, fading, and scratches.
- Equipped with a thermal management system that automatically adjusts brightness output according to external temperature
- Rated for a 50,000 hour lifespan

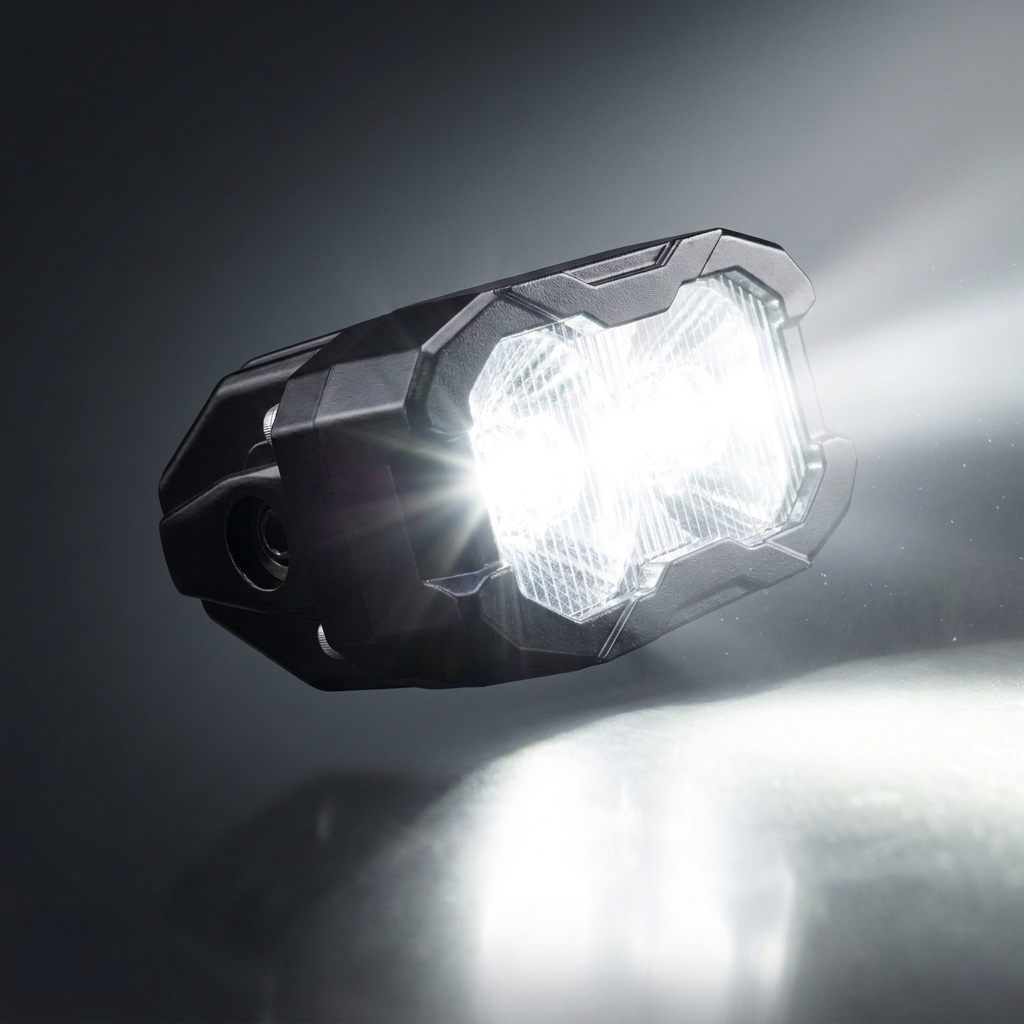

20W PRO LED Light Pod
| Beam Pattern | Flood |
| Theoretical Max Power | 20 watts |
| Actual Power | 19.8 watts |
| Voltage / Current (Main) | DC 12V / 2.06A |
| Voltage / Current (Backlight) | DC 12V / 0.03A |
| Theoretical Max Luminous Flux | 2,184 lm |
| Measured Flux (without lens) | 1,970 lm |
| Measured Flux (with lens) | 1,474 lm |
| LED Type | Luminus SST-20 |
| Color Temperature | 6000K |
| Number of LEDs | 2 pcs |
| Product Size (L × W × D) | 3.25 × 1.69 × 2.78 in |
Free ground shipping on all orders within the continental United States.
We process and ship orders within 3–5 business days. If we anticipate any delay, we'll reach out via email.
- Hawaii, Alaska & Puerto Rico — $20 flat rate for ground shipping.
- Canada & International — Shipping rates calculated at checkout. Customs fees, duties, and import taxes are the responsibility of the customer.
- Overnight & 2nd Day Air — Available at checkout. Orders must be placed by 12:00 PM Pacific Time for same-day shipment.
You'll receive a tracking number via email once your order ships. If you have a special request about your order, reach out — we'll do our best to accommodate. For our complete shipping policy, [click here].
Warranty
We have a lifetime warranty on all our light kits. We stand behind every kit we build — our lifetime warranty isn't fine print, it's a promise. For more information about our warranty and disclaimer, [click here].
M&R Automotive is not responsible for misuse or improper installation of the product. Professional installation is recommended.
HOW TO INSTALL?
Install Video

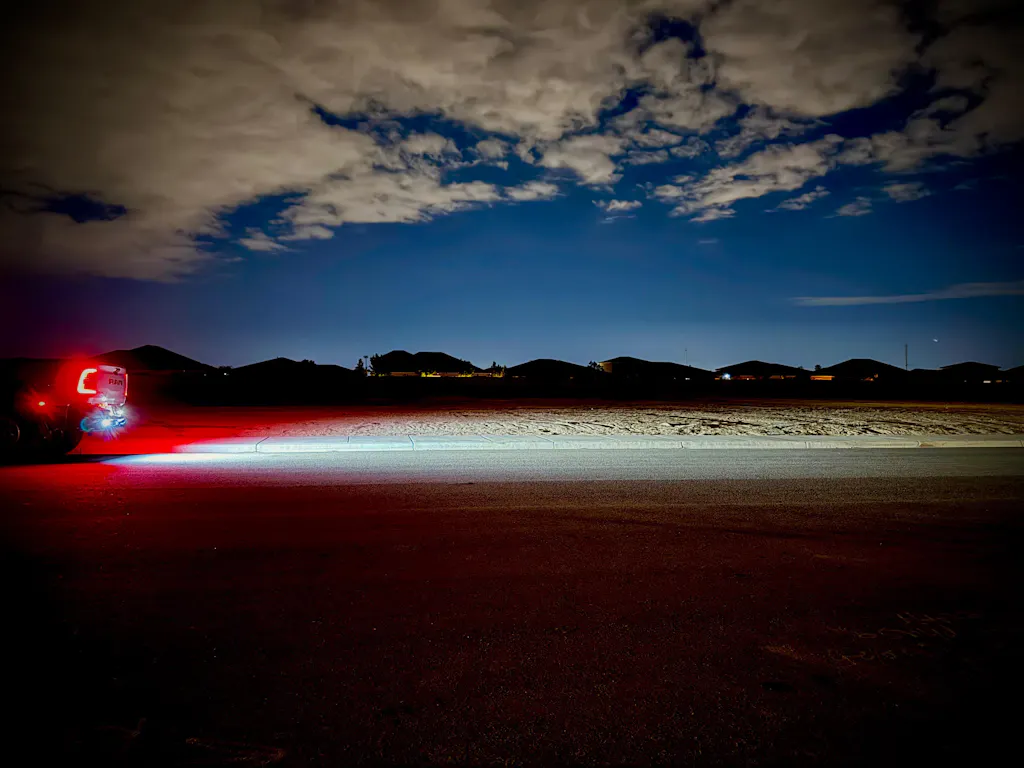

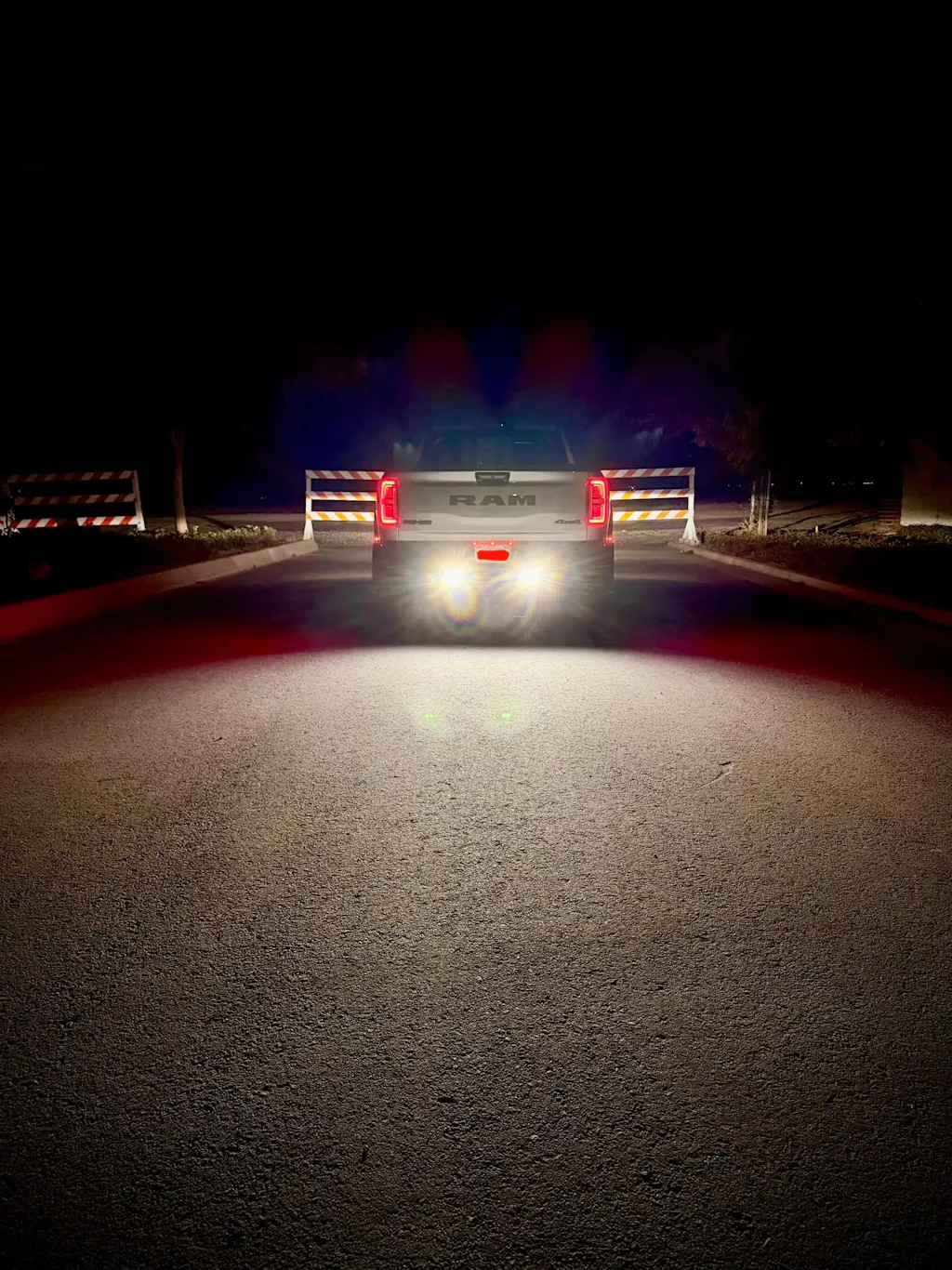

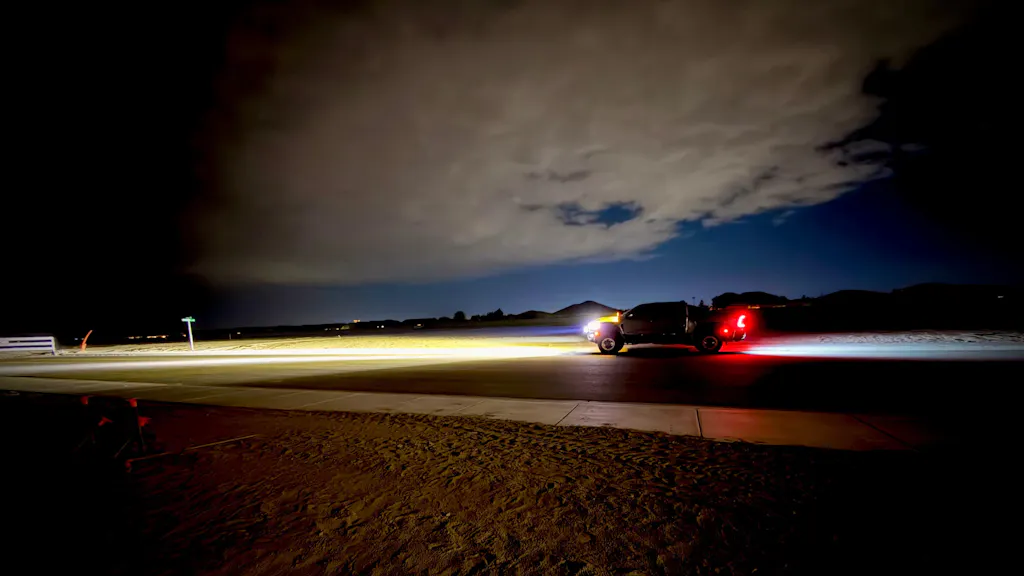

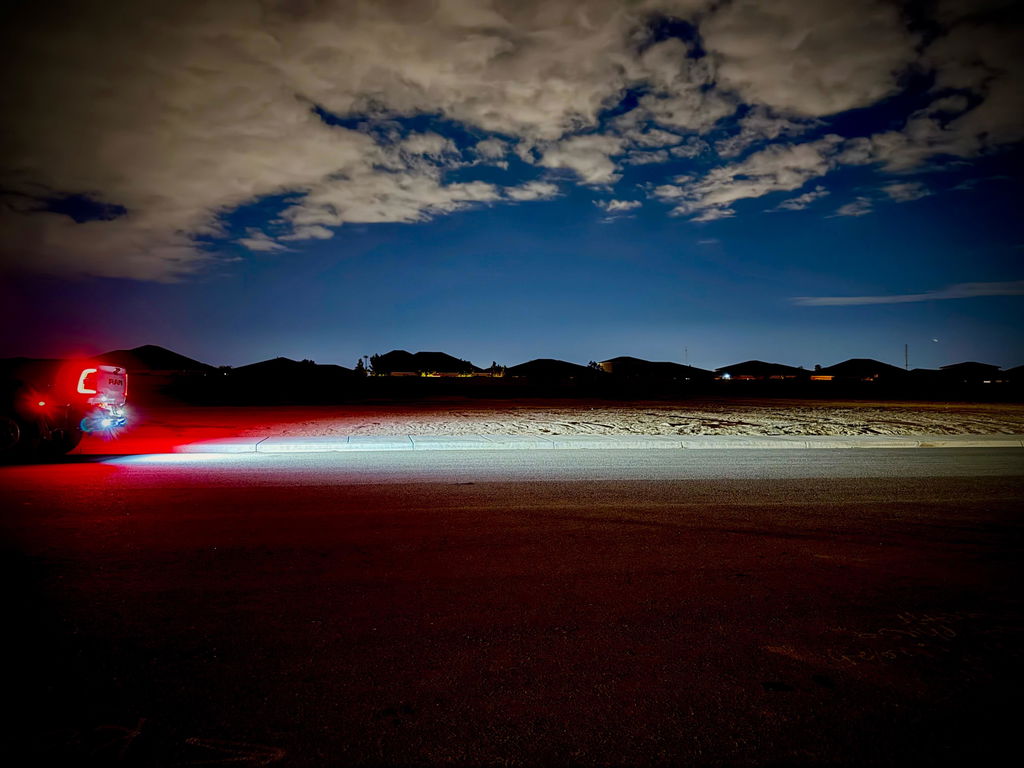

Light Output
