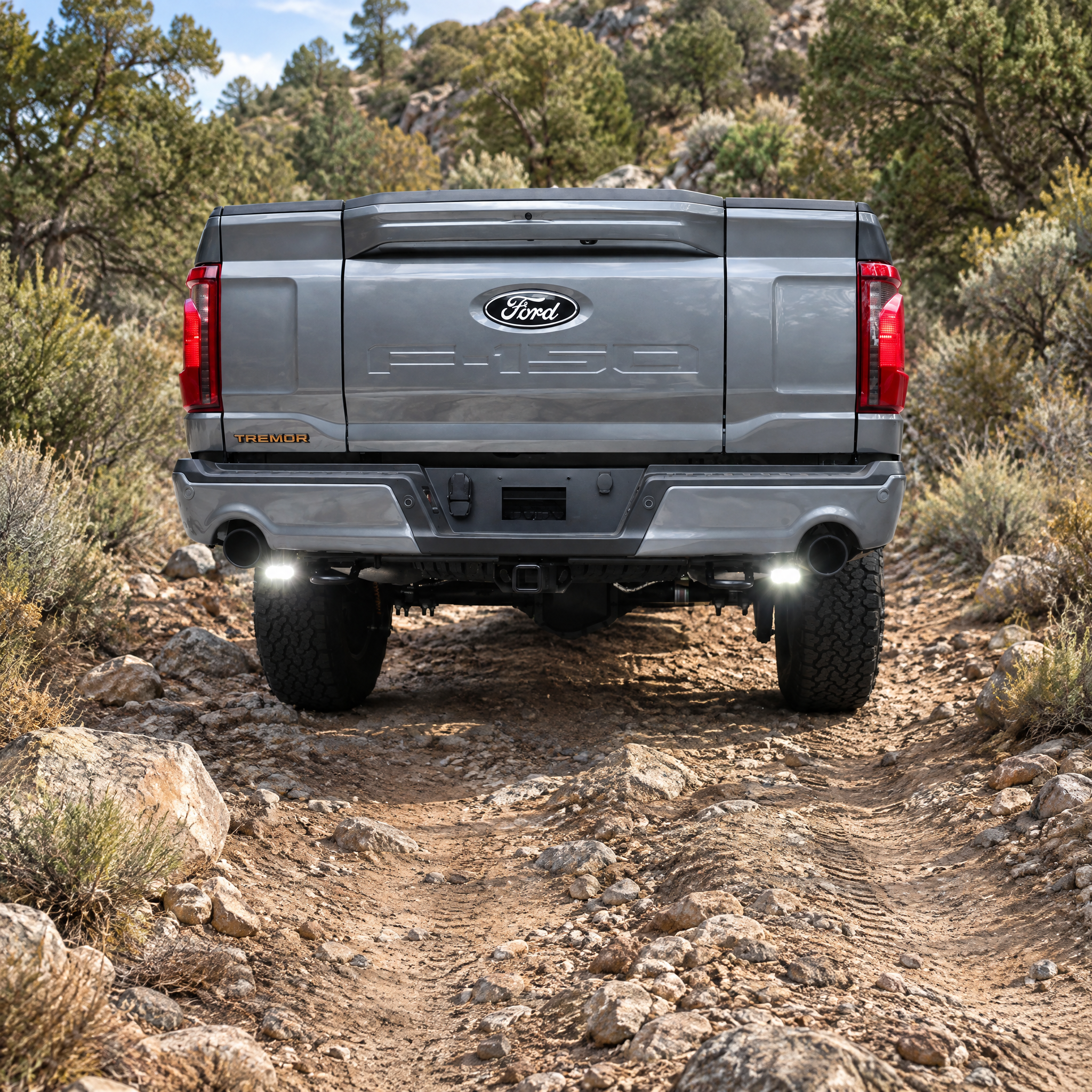

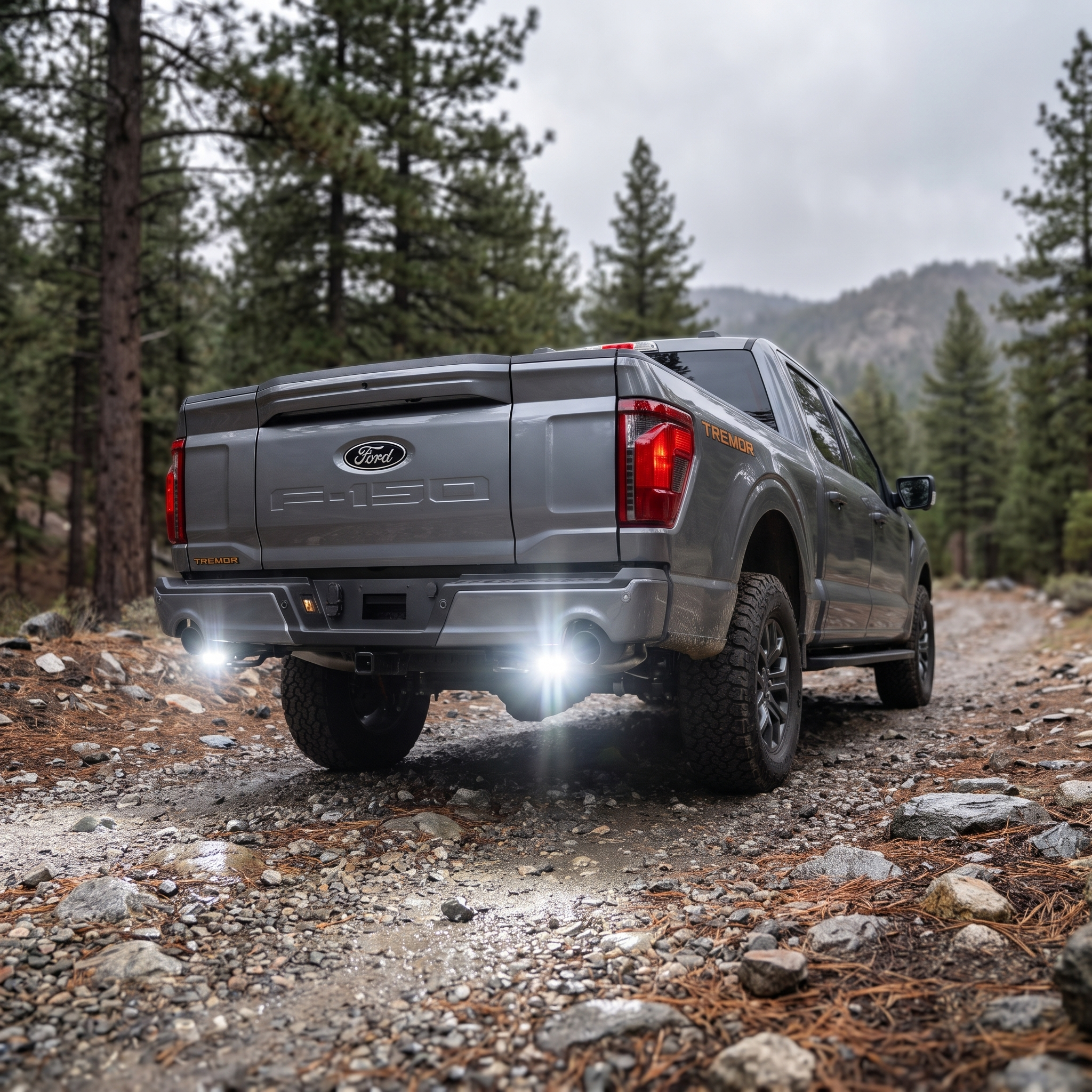

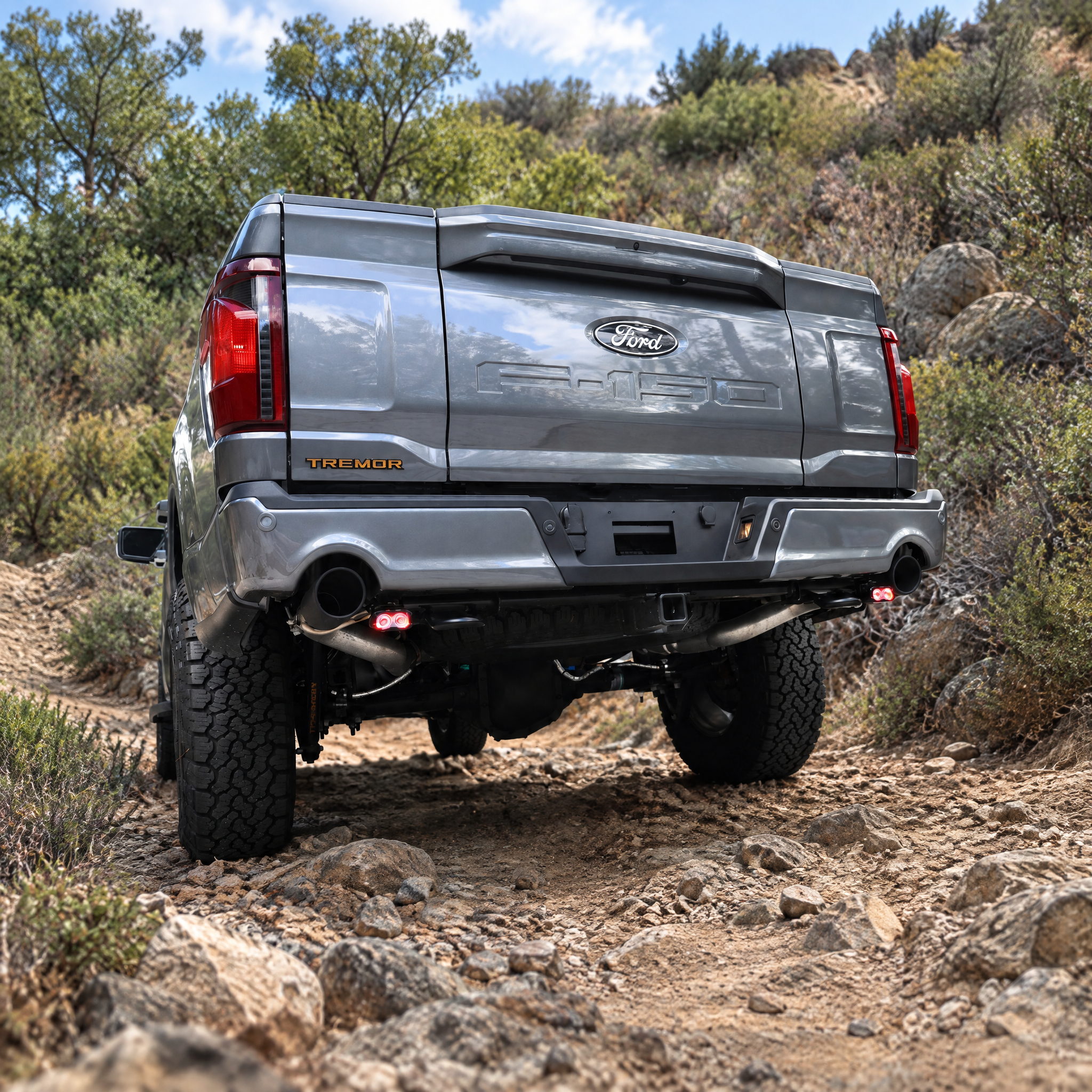

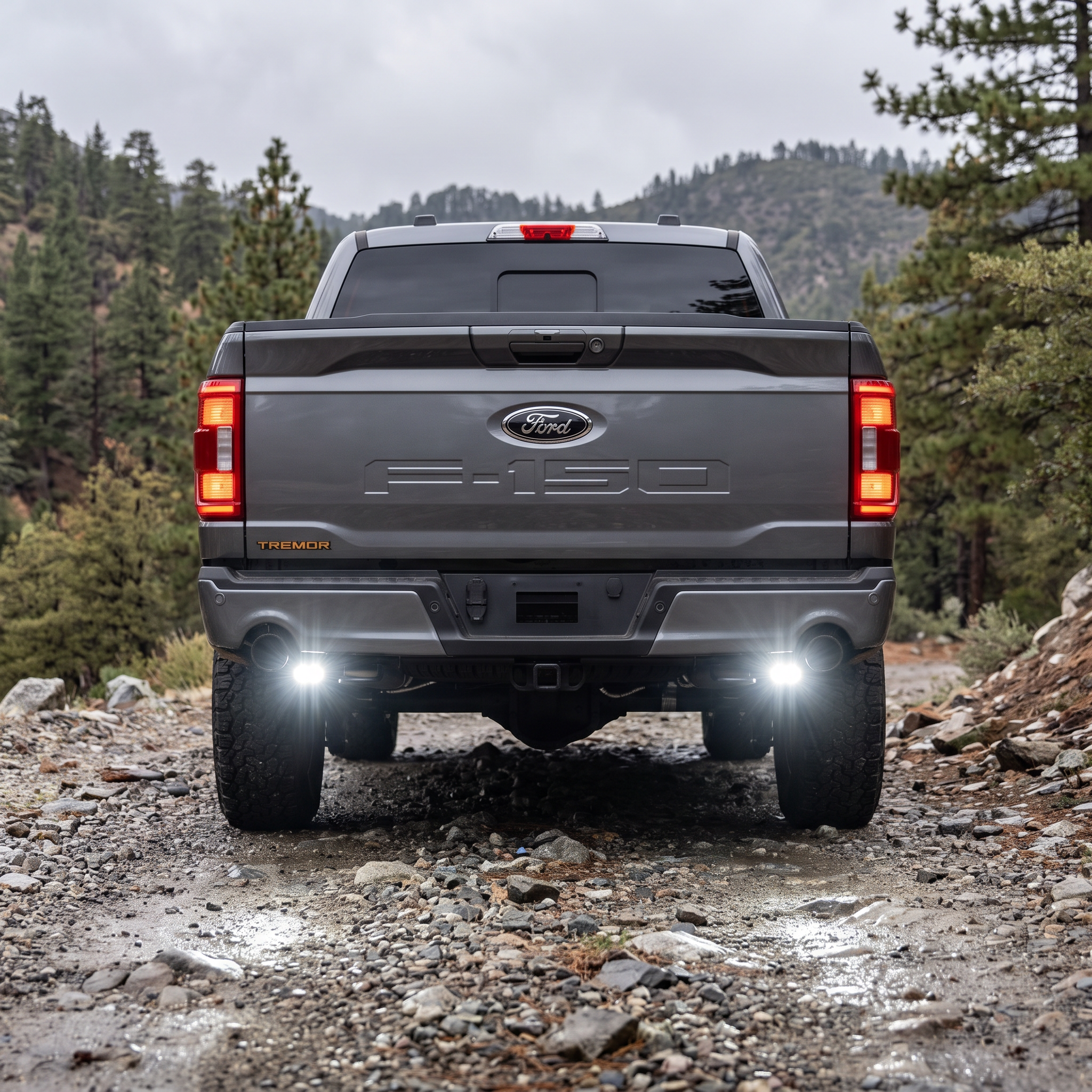

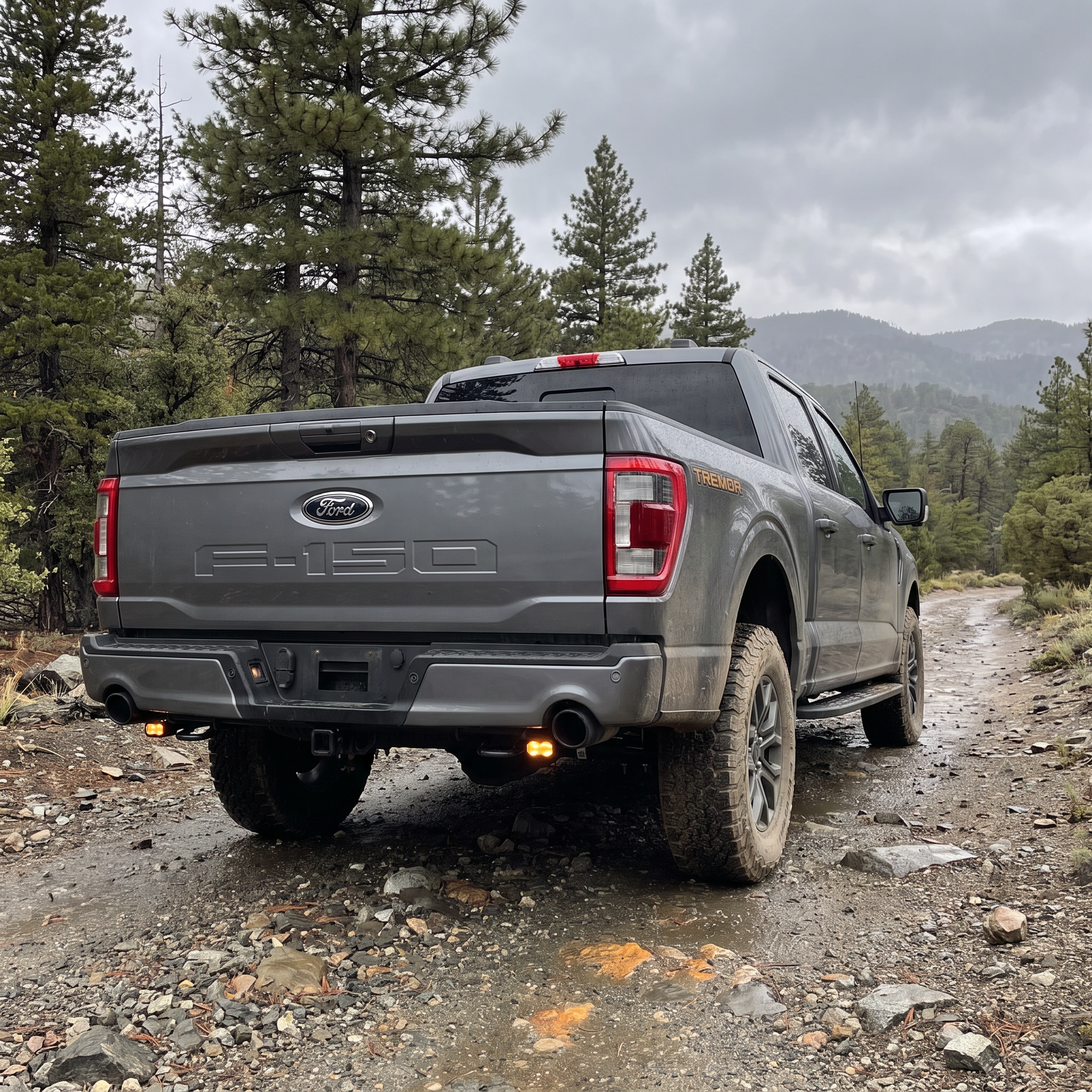

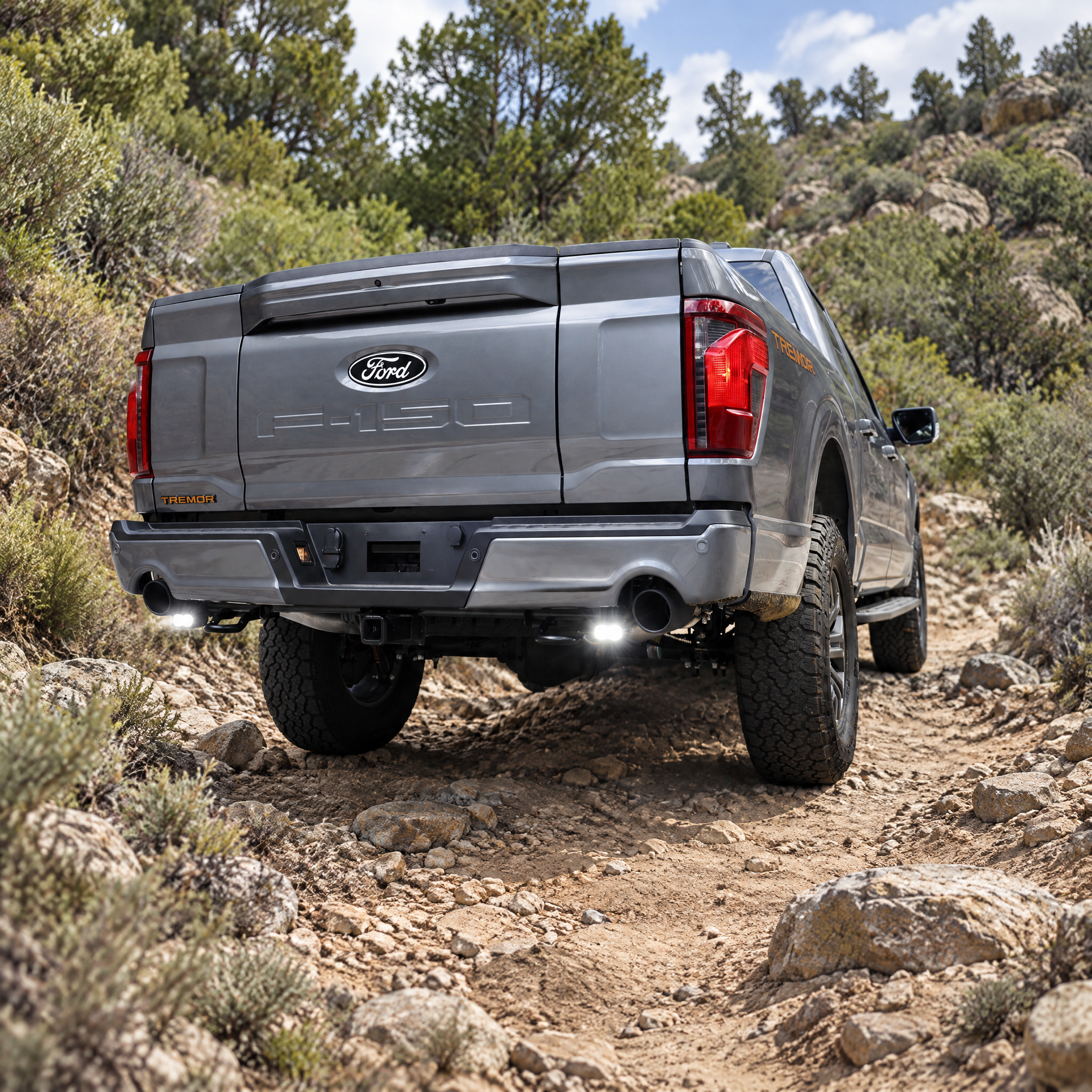

2021+ Ford F150 Reverse Light Kit
What's in the Box
- (2) 20w PRO pods
- (2) metal brackets
- All mounting hardware included
Need a shop to install it? Find a trusted installer near you →
Off-road Use Only
Bolt On, No Drilling
Lifetime Warranty
Fits: 2021–2026 Ford F150
Will not work with the F150 Raptor. 2024+ Raptor owners — get the 2024+ Ford F150 Raptor Gen 3 Refresh Reverse Light
Trims: All non-Raptor trims

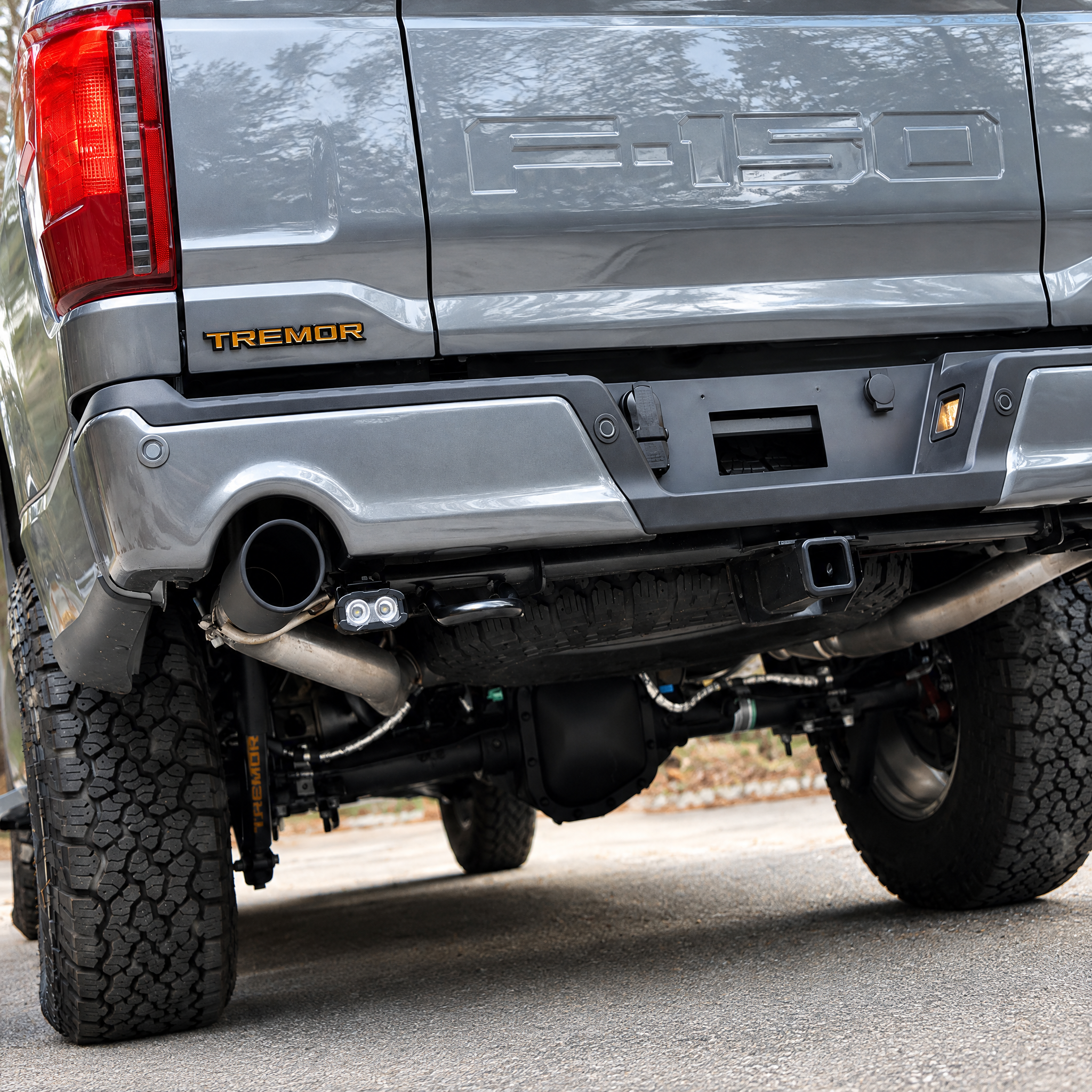

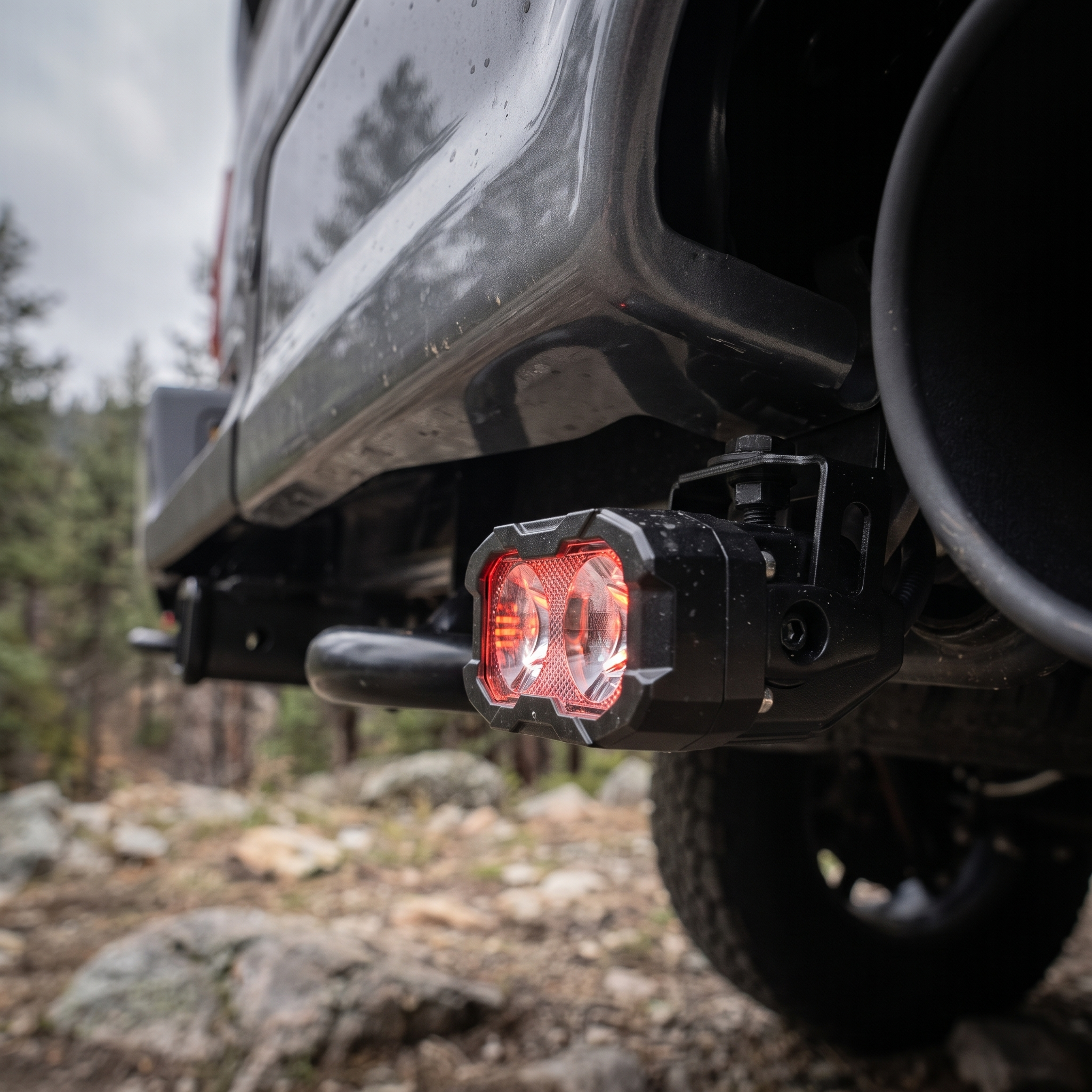

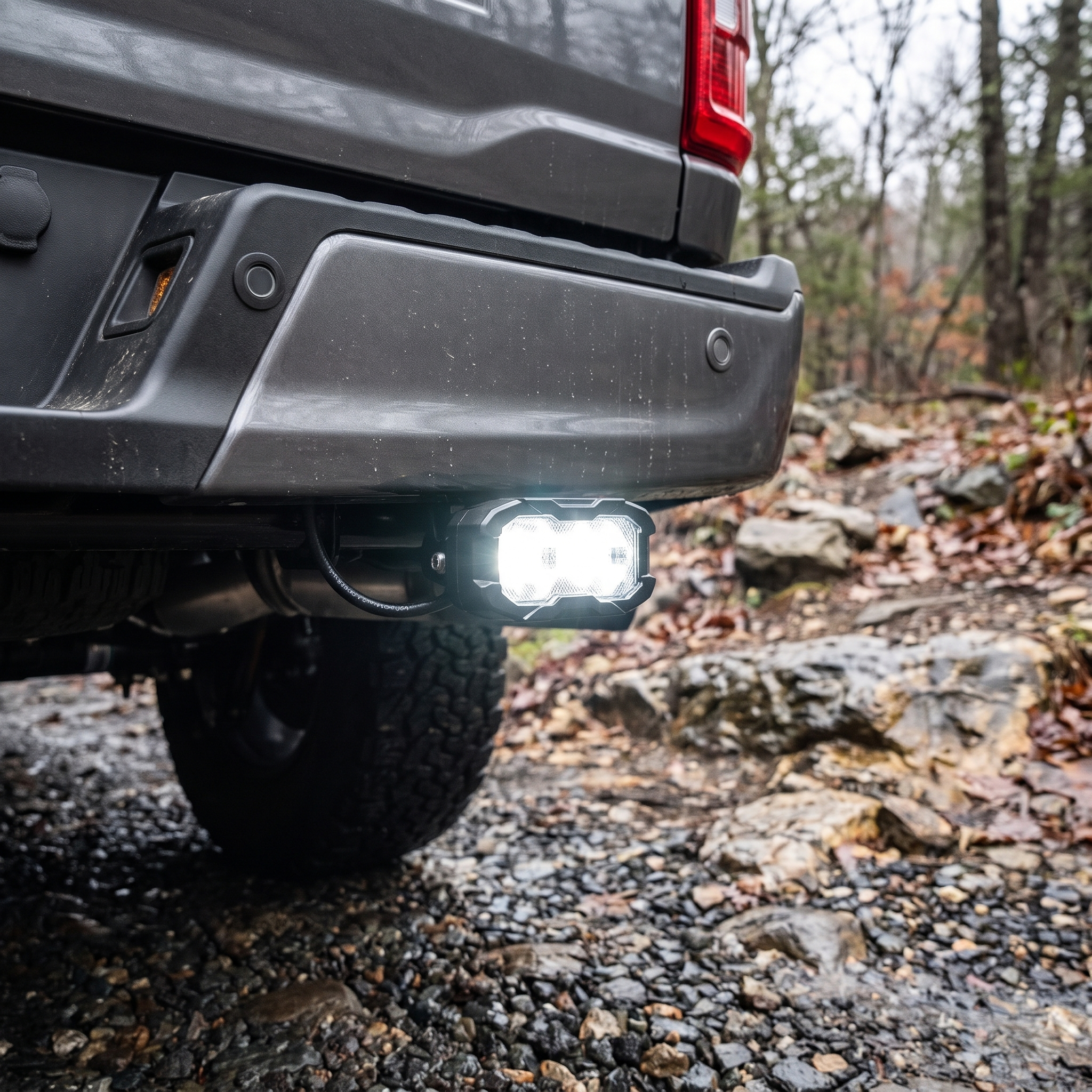

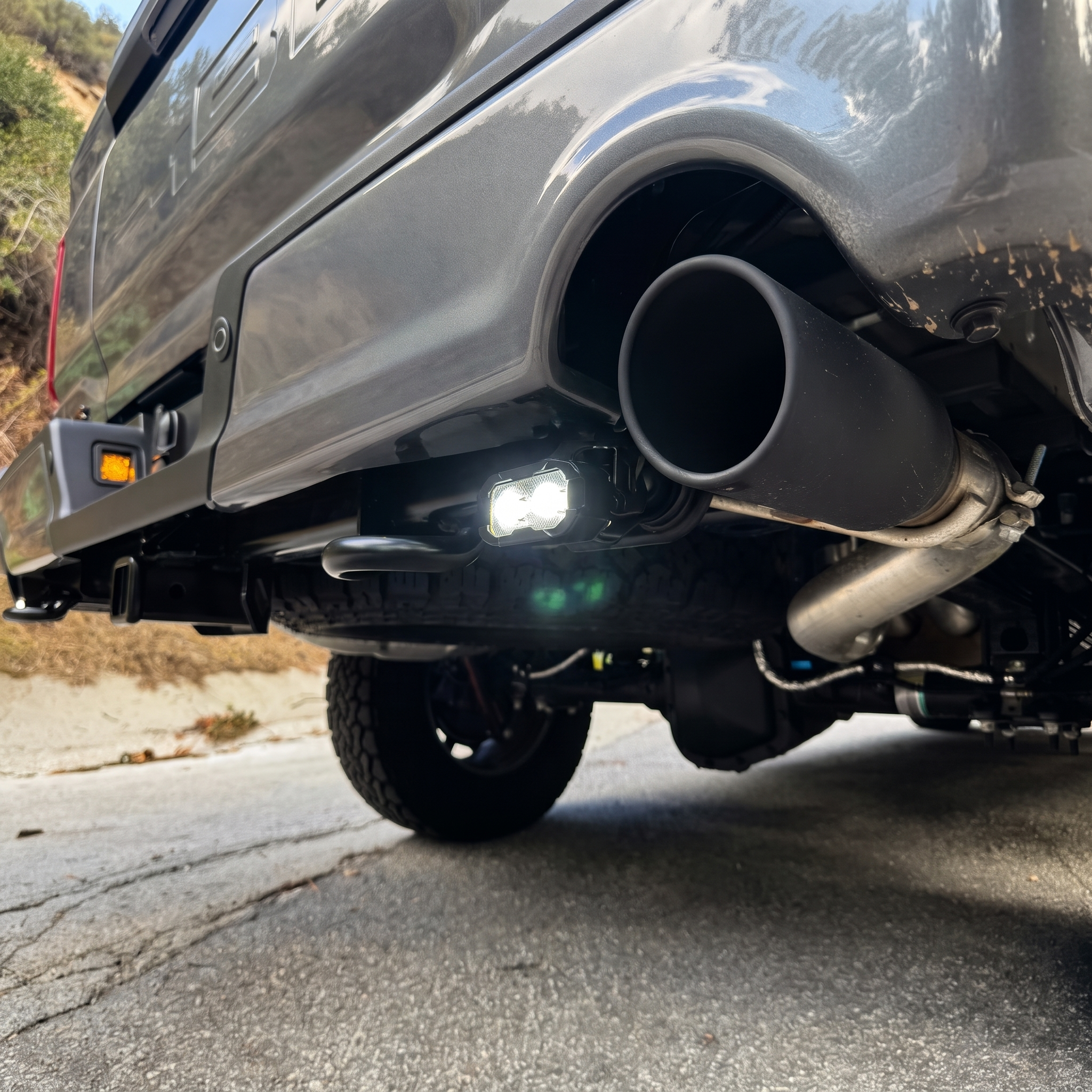

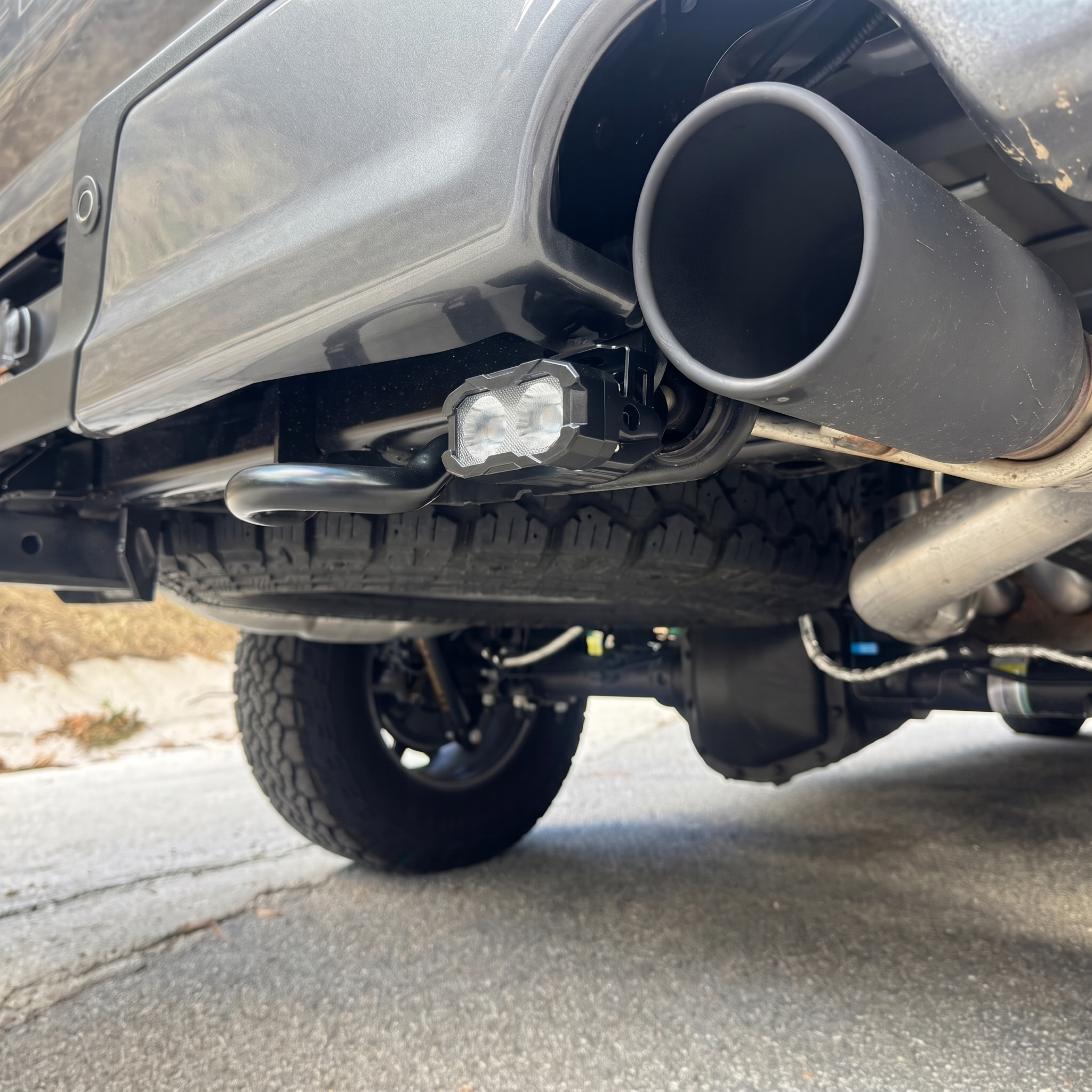

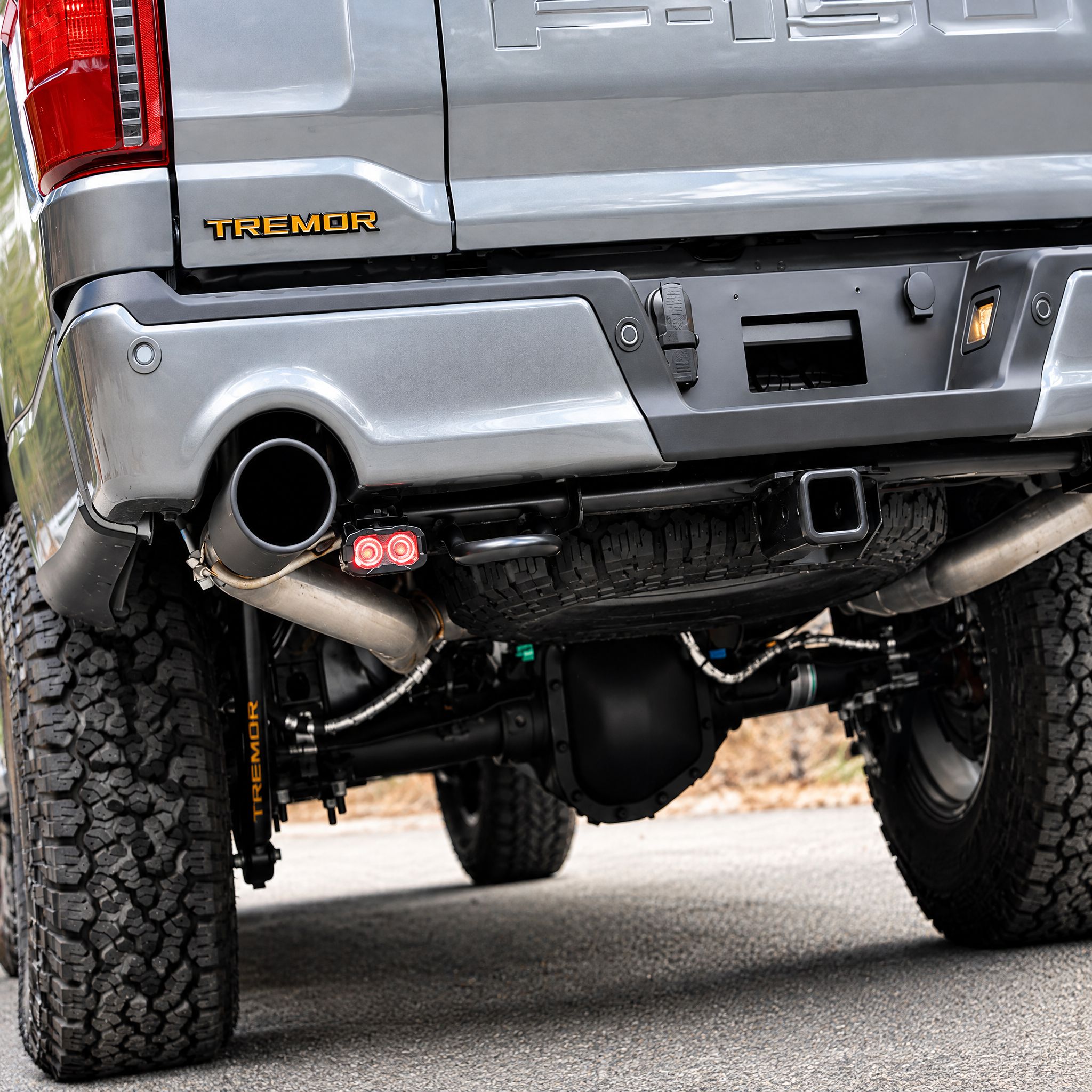

- Each LED light pod is attached to a metal bracket on each side
- Metal bracket is powder coated black

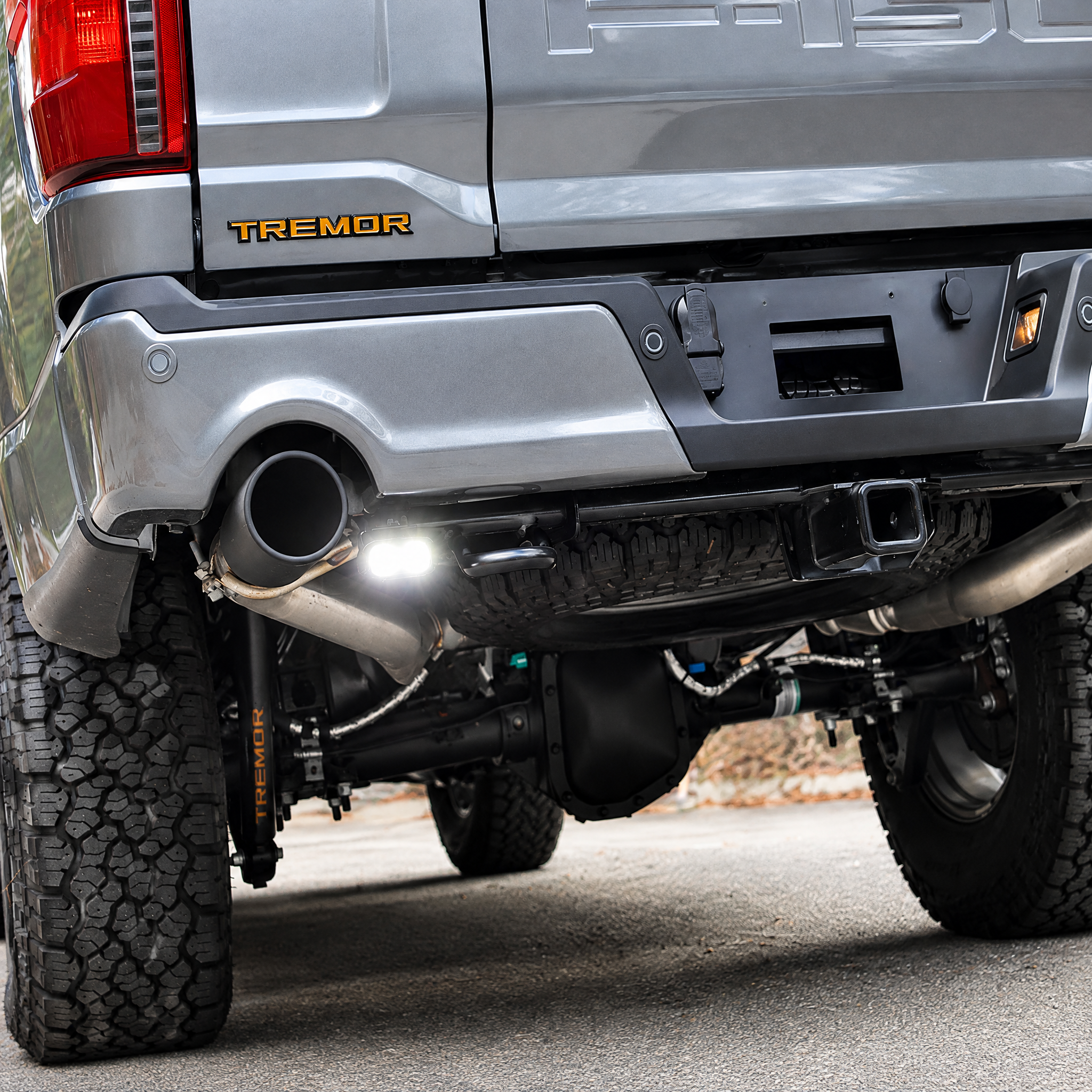

- This is in addition to the factory reverse light. The factory reverse light doesn't provide enough light output at night — the M&R reverse light's powerful white LED makes a huge difference.
- No cutting or drilling required. The kit is a complete bolt-on
BUILD QUALITY:
- Uses a TIR (Total Internal Reflection) lens, which is different from conventional optics that lose light internally and produce glare. The TIR lens collects all of the light from the LED and directs it exactly where you need it, drastically reducing glare and improving total efficiency.
- Higher light efficiency: brighter, longer irradiation distance
- Housing is upgraded to 304 aluminum. The surface is UV polyester powder coated to protect against UV, salt water, corrosion, fading, and scratches.
- Equipped with a thermal management system that automatically adjusts brightness output according to external temperature
- Rated for a 50,000 hour lifespan
20W PRO LED Light Pod
| Beam Pattern | Flood |
| Theoretical Max Power | 20 watts |
| Actual Power | 19.8 watts |
| Voltage / Current (Main) | DC 12V / 2.06A |

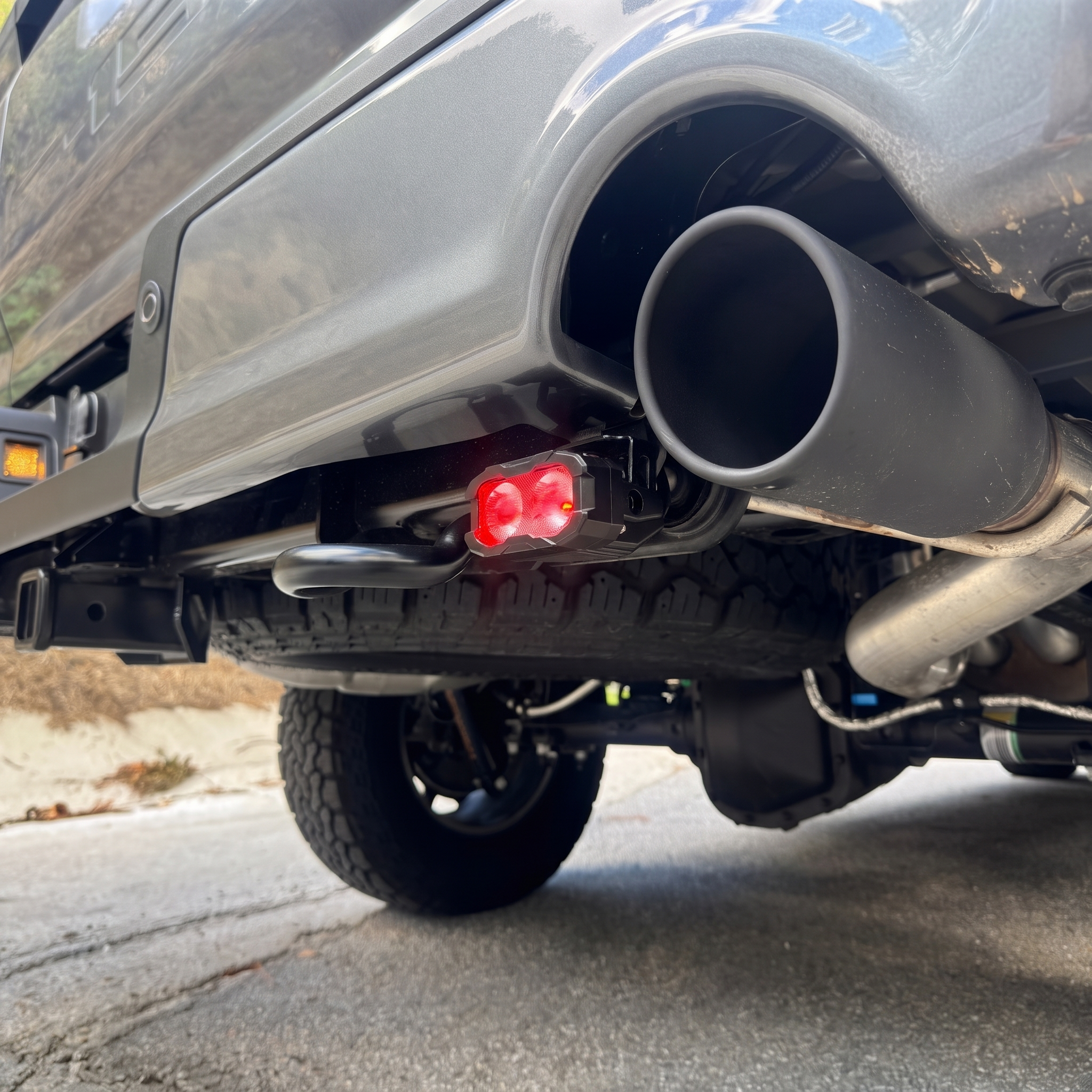

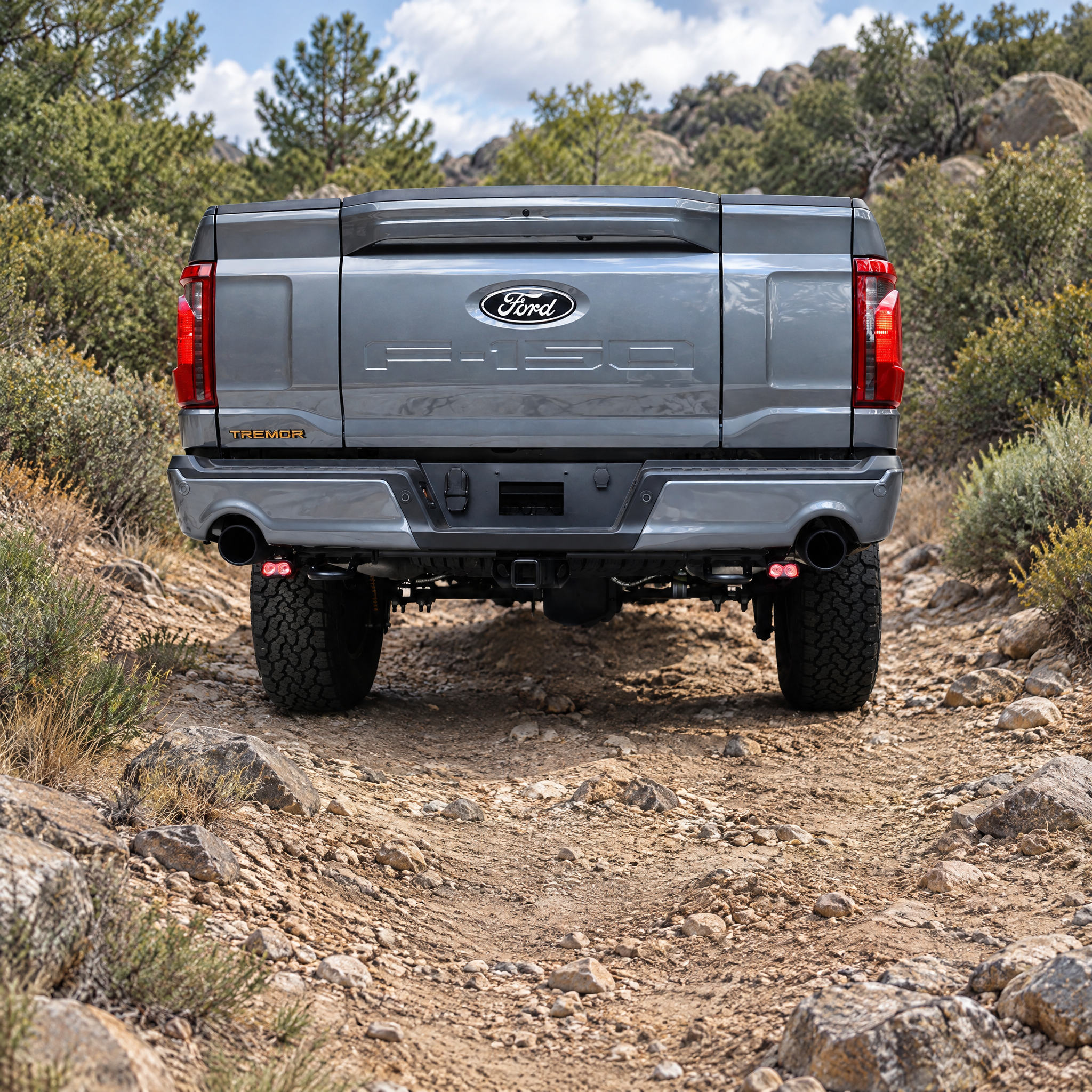

| Voltage / Current (Backlight) | DC 12V / 0.03A |
| Theoretical Max Luminous Flux | 2,184 lm |
| Measured Flux (without lens) | 1,970 lm |
| Measured Flux (with lens) | 1,474 lm |
| LED Type | Luminus SST-20 |
| Color Temperature | 6000K |
| Number of LEDs | 2 pcs |
| Product Size (L × W × D) | 3.25 × 1.69 × 2.78 in |
Free ground shipping on all orders within the continental United States.
We process and ship orders within 3–5 business days. If we anticipate any delay, we'll reach out via email.
- Hawaii, Alaska & Puerto Rico — $20 flat rate for ground shipping.
- Canada & International — Shipping rates calculated at checkout. Customs fees, duties, and import taxes are the responsibility of the customer.
- Overnight & 2nd Day Air — Available at checkout. Orders must be placed by 12:00 PM Pacific Time for same-day shipment.
You'll receive a tracking number via email once your order ships. If you have a special request about your order, reach out — we'll do our best to accommodate. For our complete shipping policy, [click here].
Warranty
We have a lifetime warranty on all our light kits. We stand behind every kit we build — our lifetime warranty isn't fine print, it's a promise. For more information about our warranty and disclaimer, [click here].
M&R Automotive is not responsible for misuse or improper installation of the product. Professional installation is recommended.
