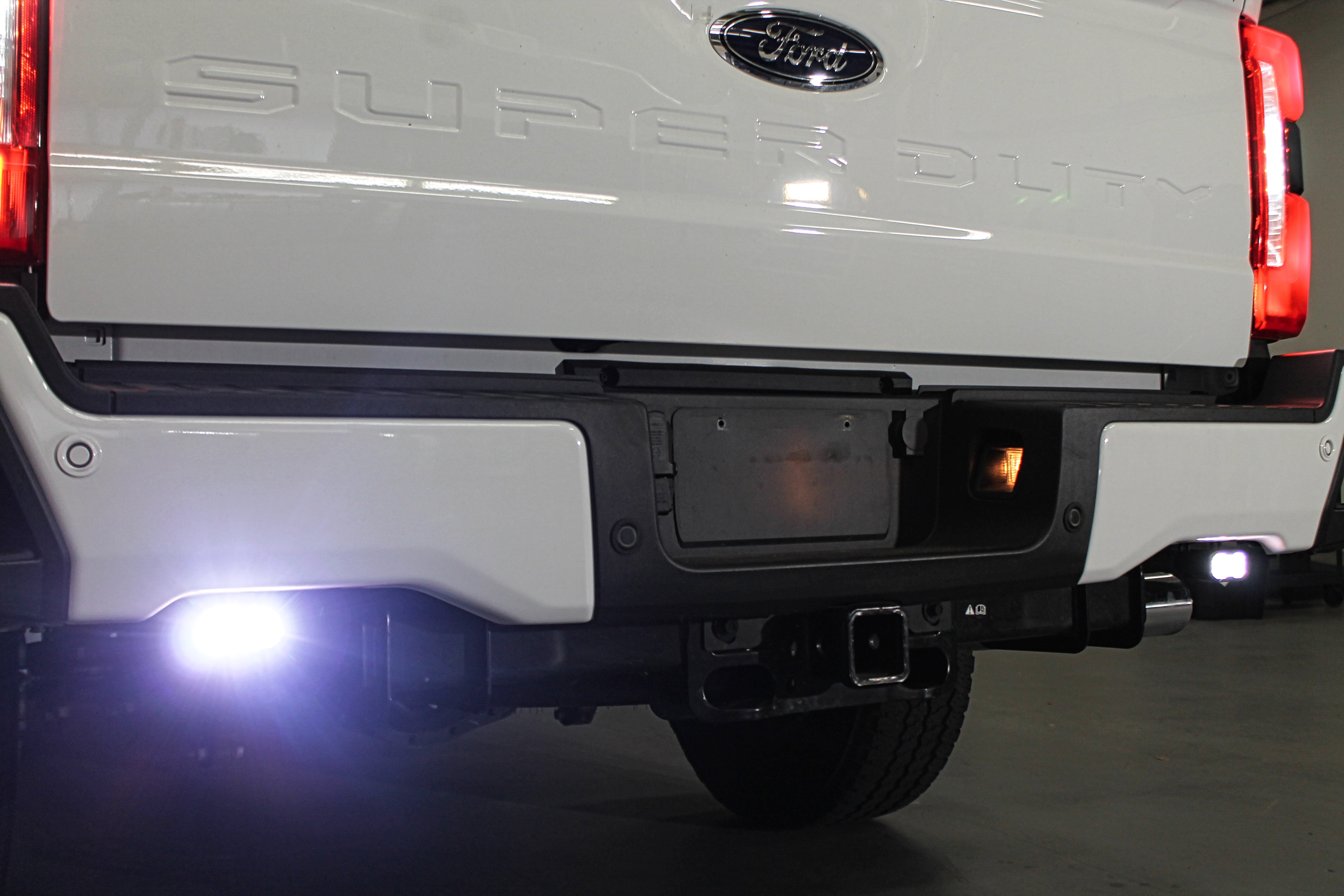

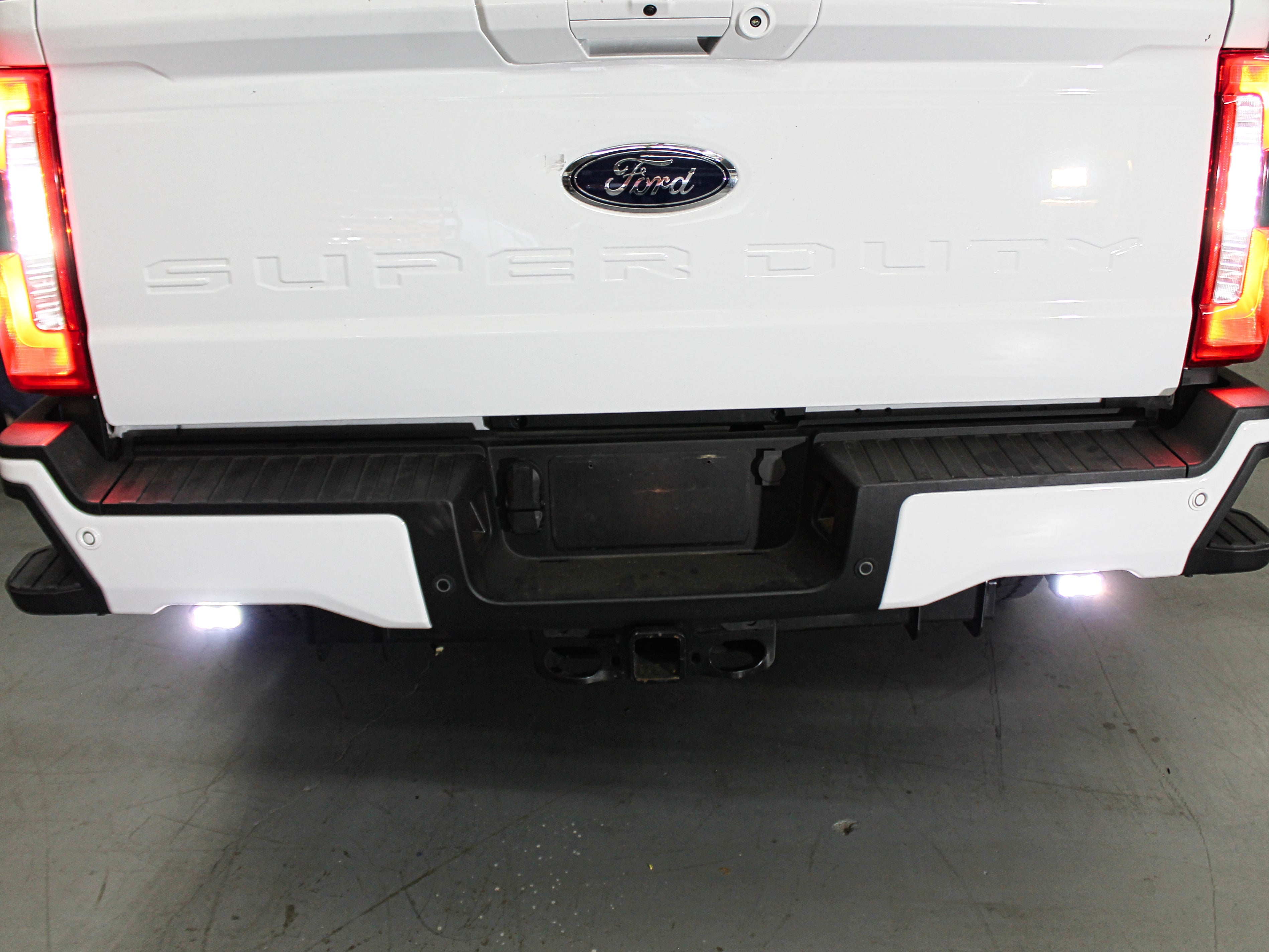

2023+ Ford Super Duty F250 F350 F450 Reverse Light
What's in the Box
- (2) 20w PRO pods
- All mounting hardware included
Off-road use only
Bolt On, No Drilling
Vehicle Specific Design
Lifetime Warranty
Fits: 2023–2026 Ford Super Duty F250/350/450
Trims: F250XL, F350XL, F450XL F250XLT, F350XLT, F450XLT F250 Lariat, F350 Lariat, F450 Lariat F250 King Ranch, F350 King Ranch, F450 King Ranch F250 Platinum, F350 Platinum, F450 Platinum F250 Limited, F350 Limited, F450 Limited
- Each kit comes as a PAIR of pods

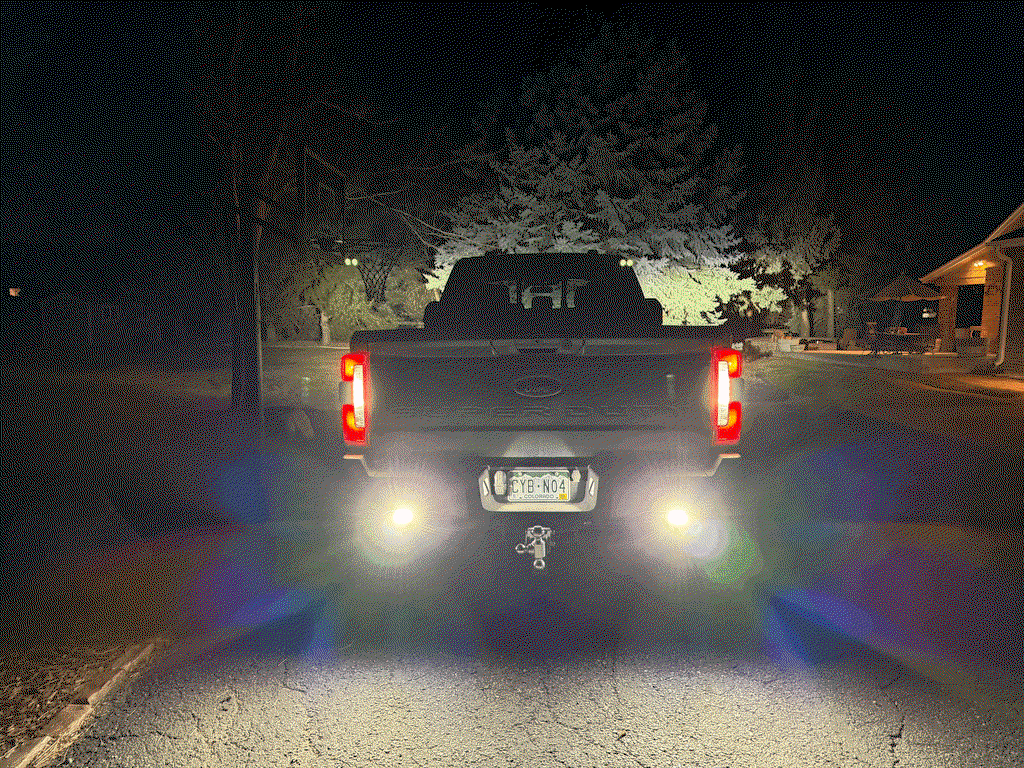

- Flood Pattern: longer and wider beam focuses for illumination further down the trail or road as well as peripheral angles
- main White LED light -- you choose your backlight (amber or red)

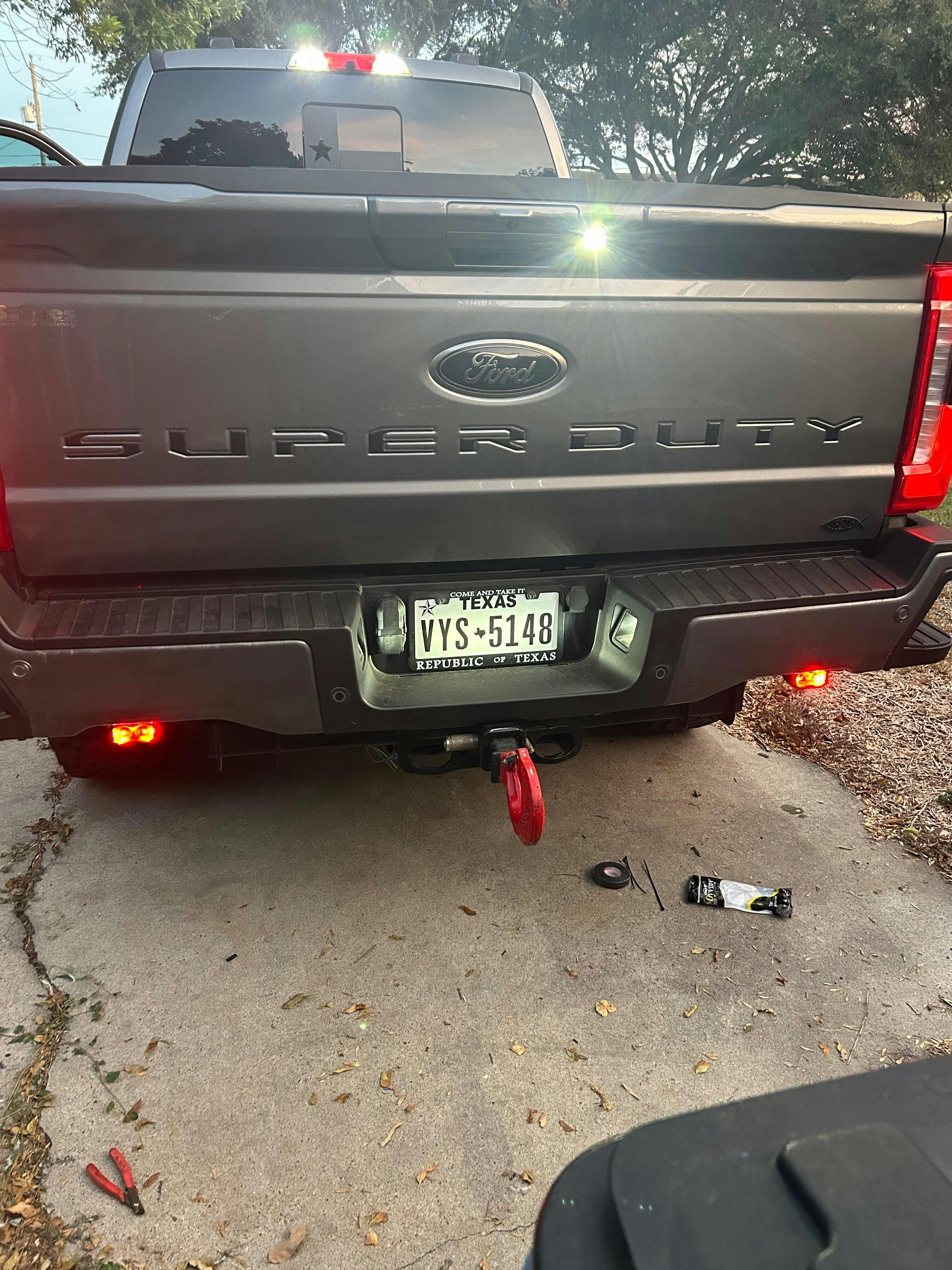

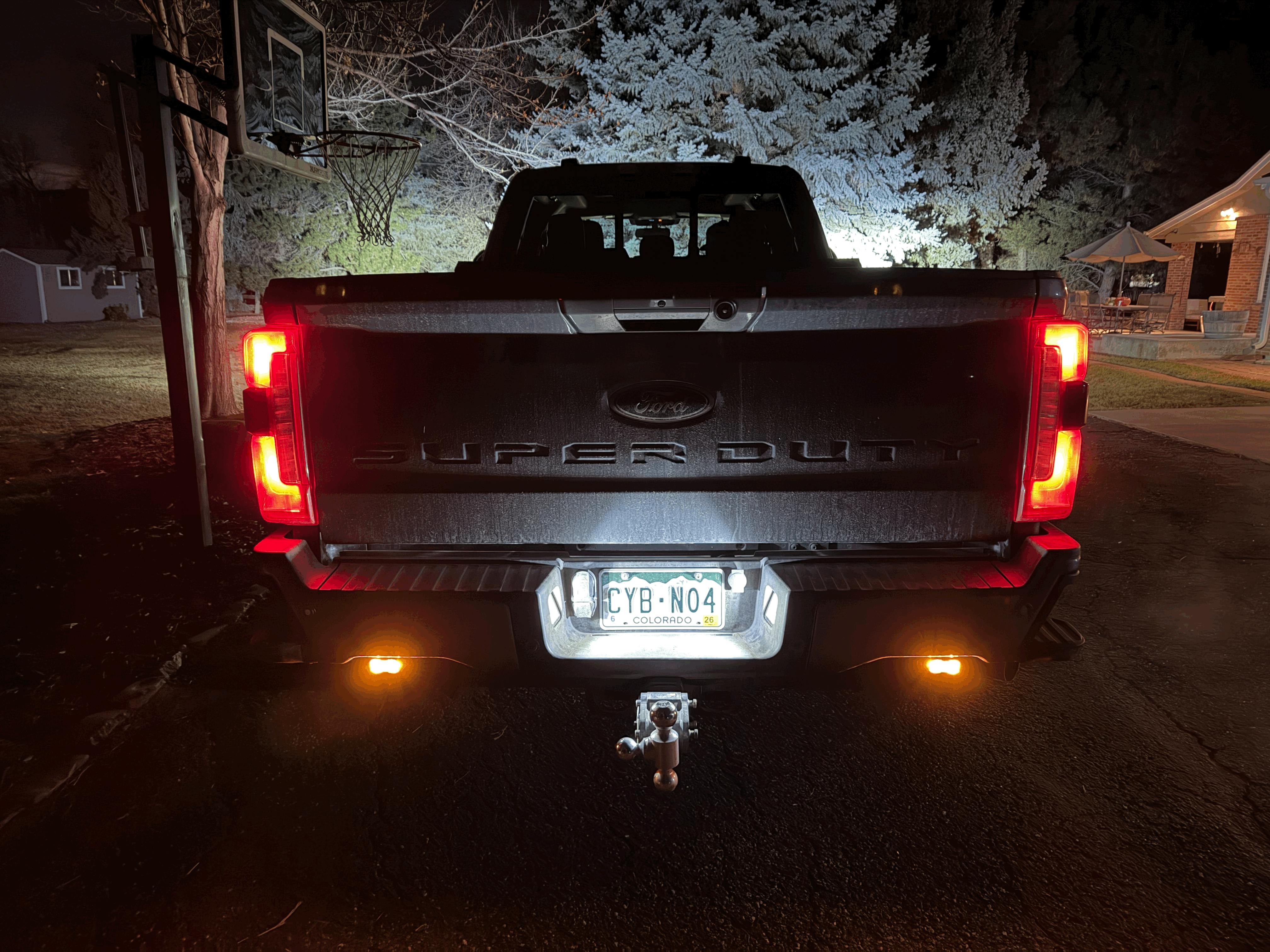

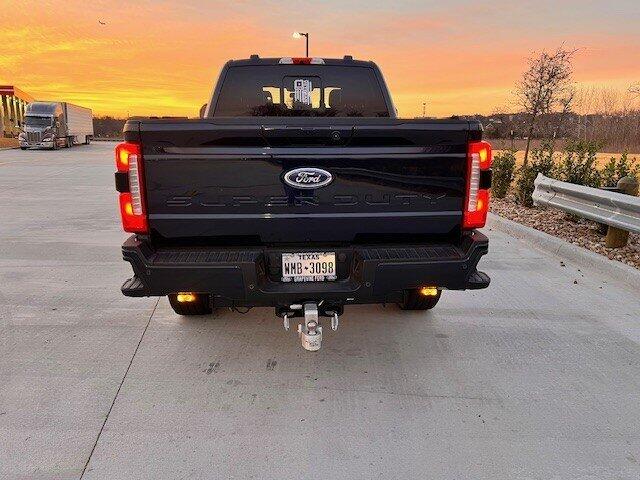

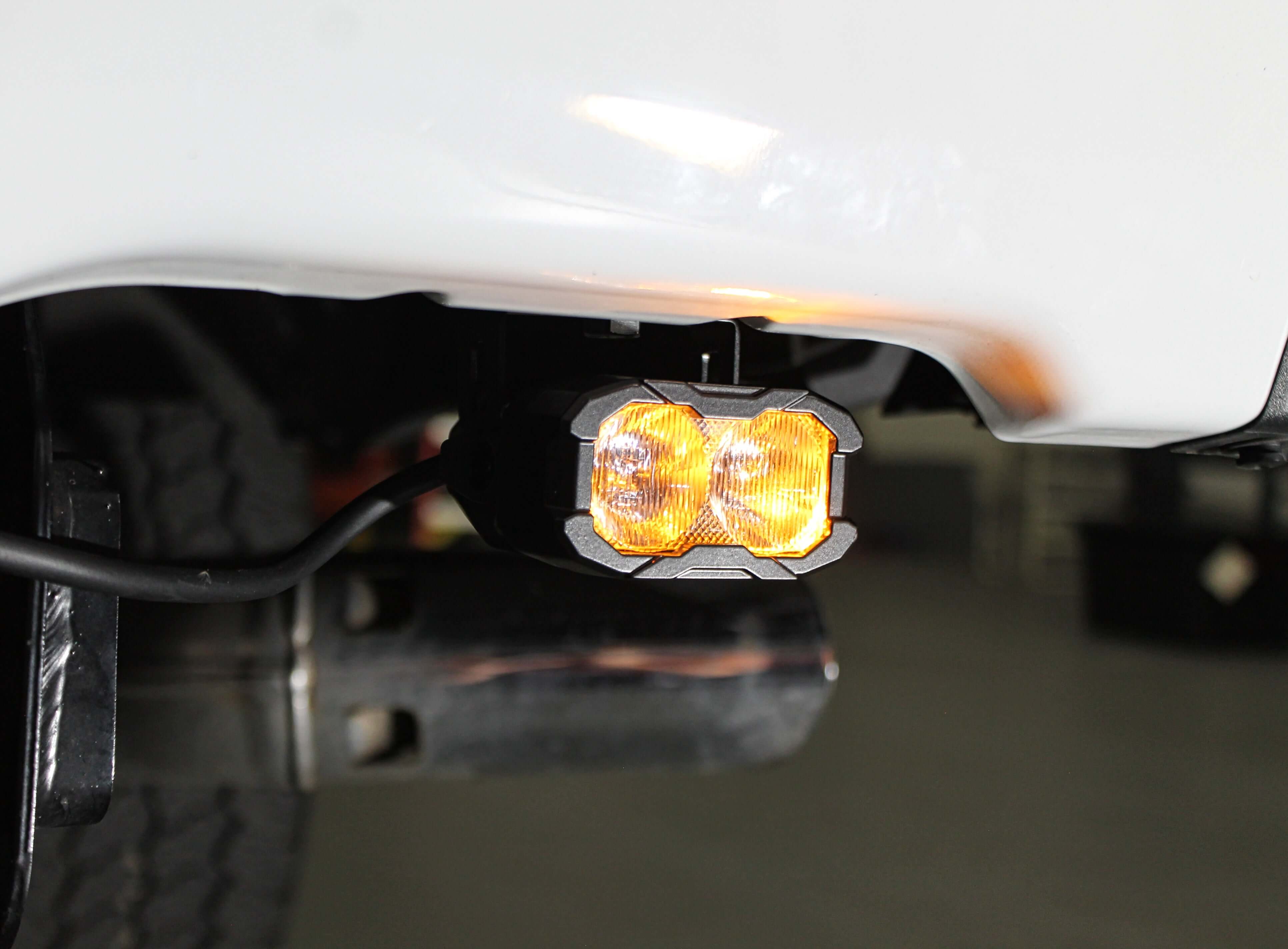

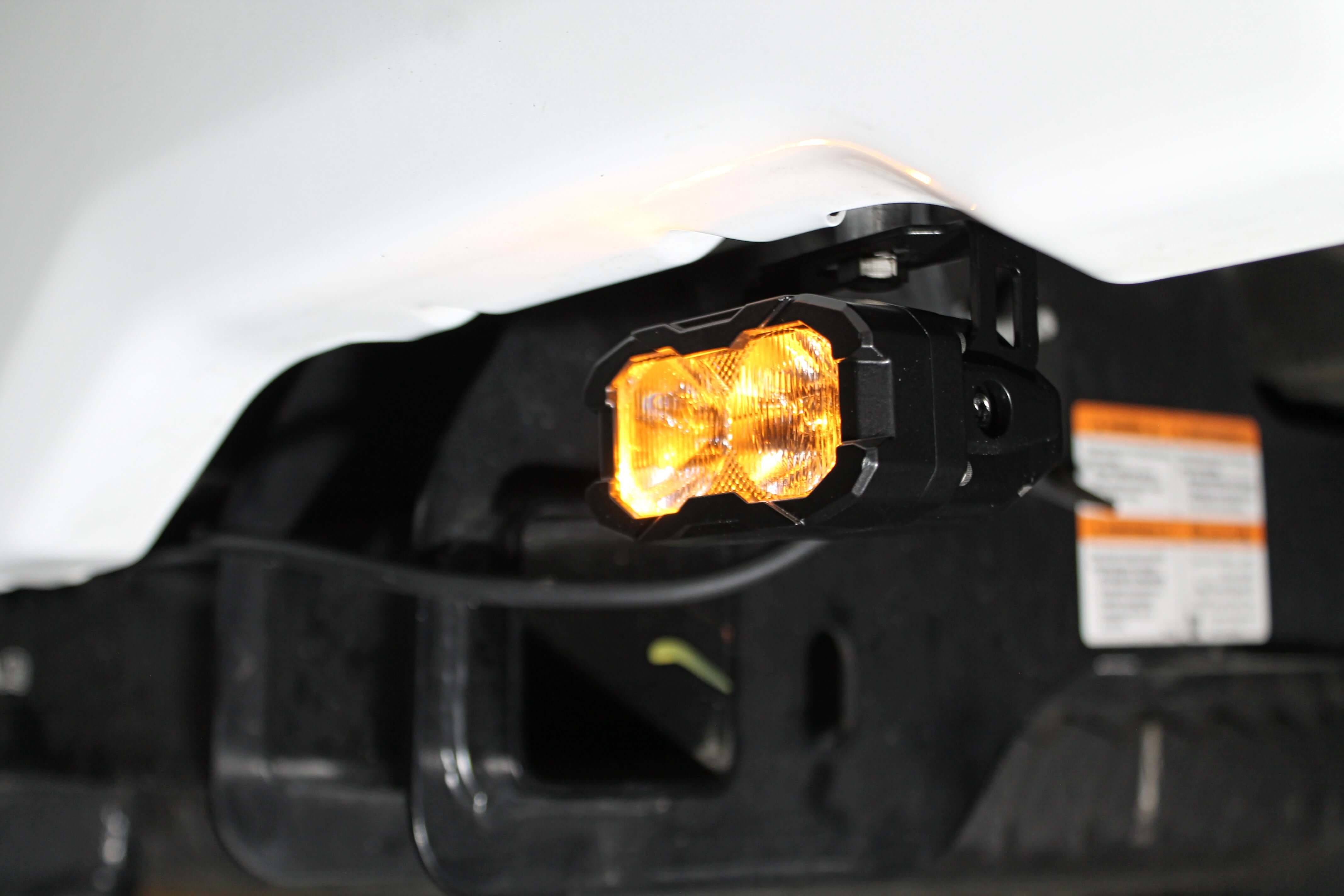

- 1) Amber back light that can be wired as turn signals
or
-

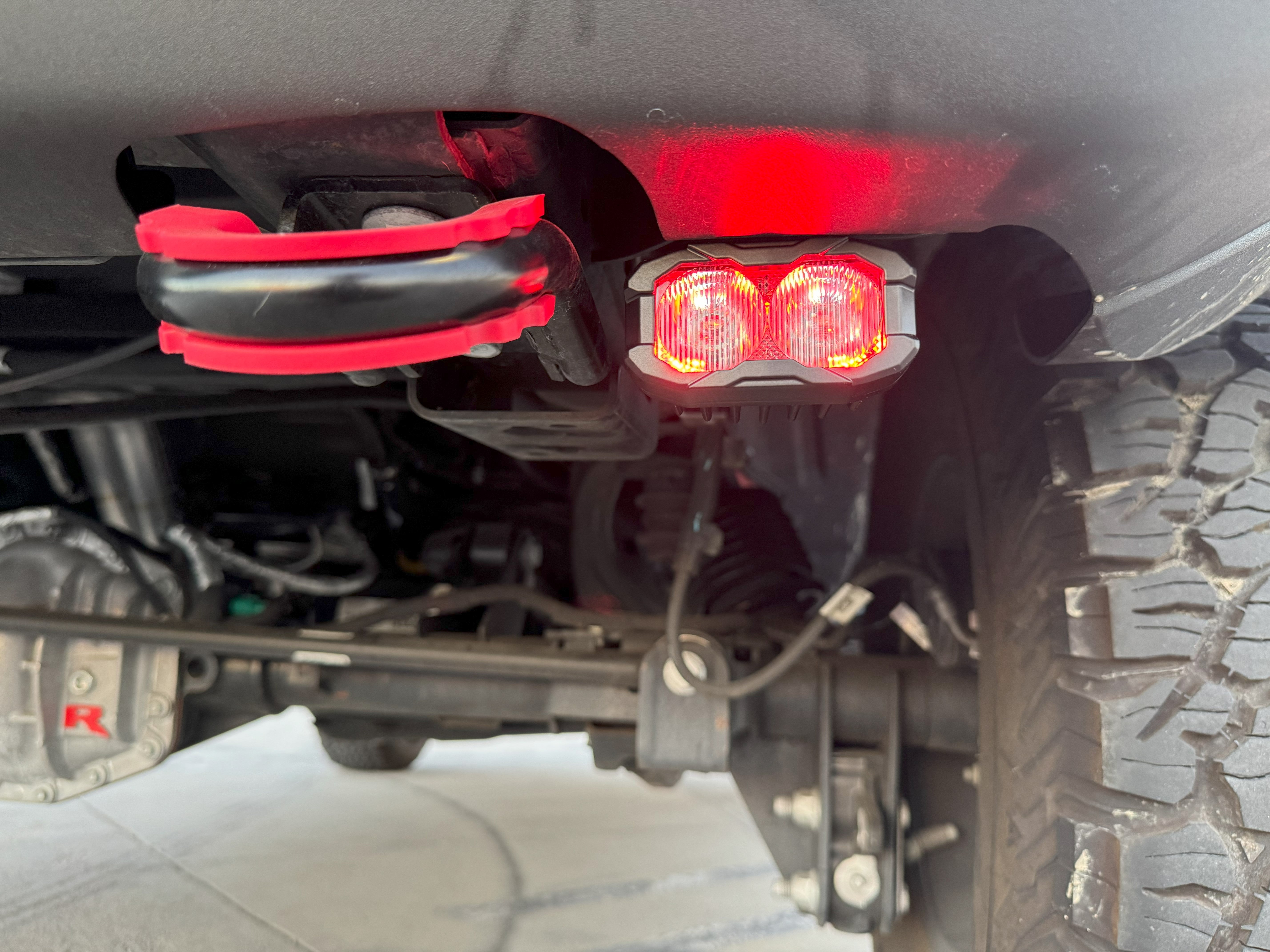

- 2) Red backlight that can be wired as turn signals or brake light

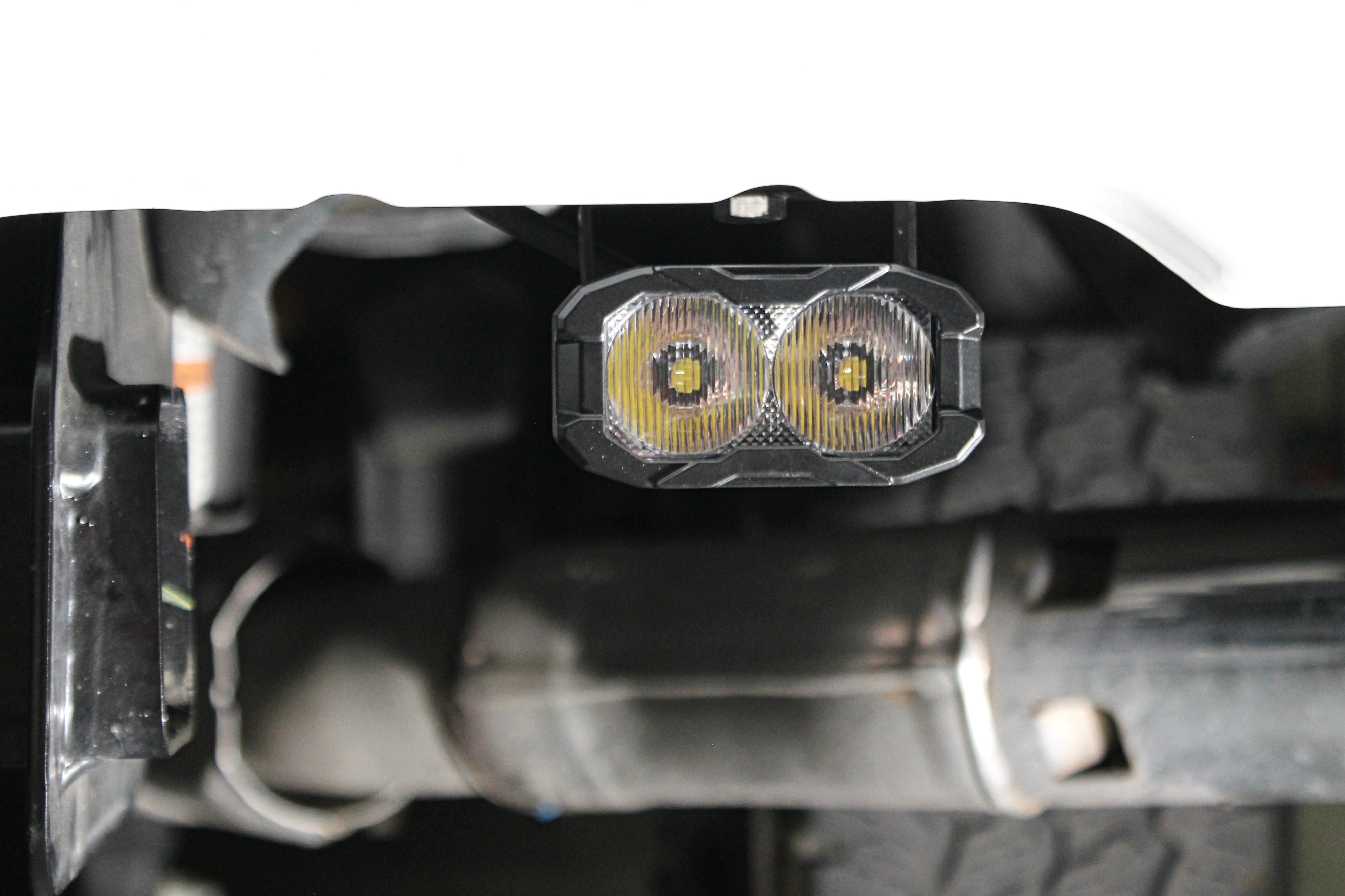

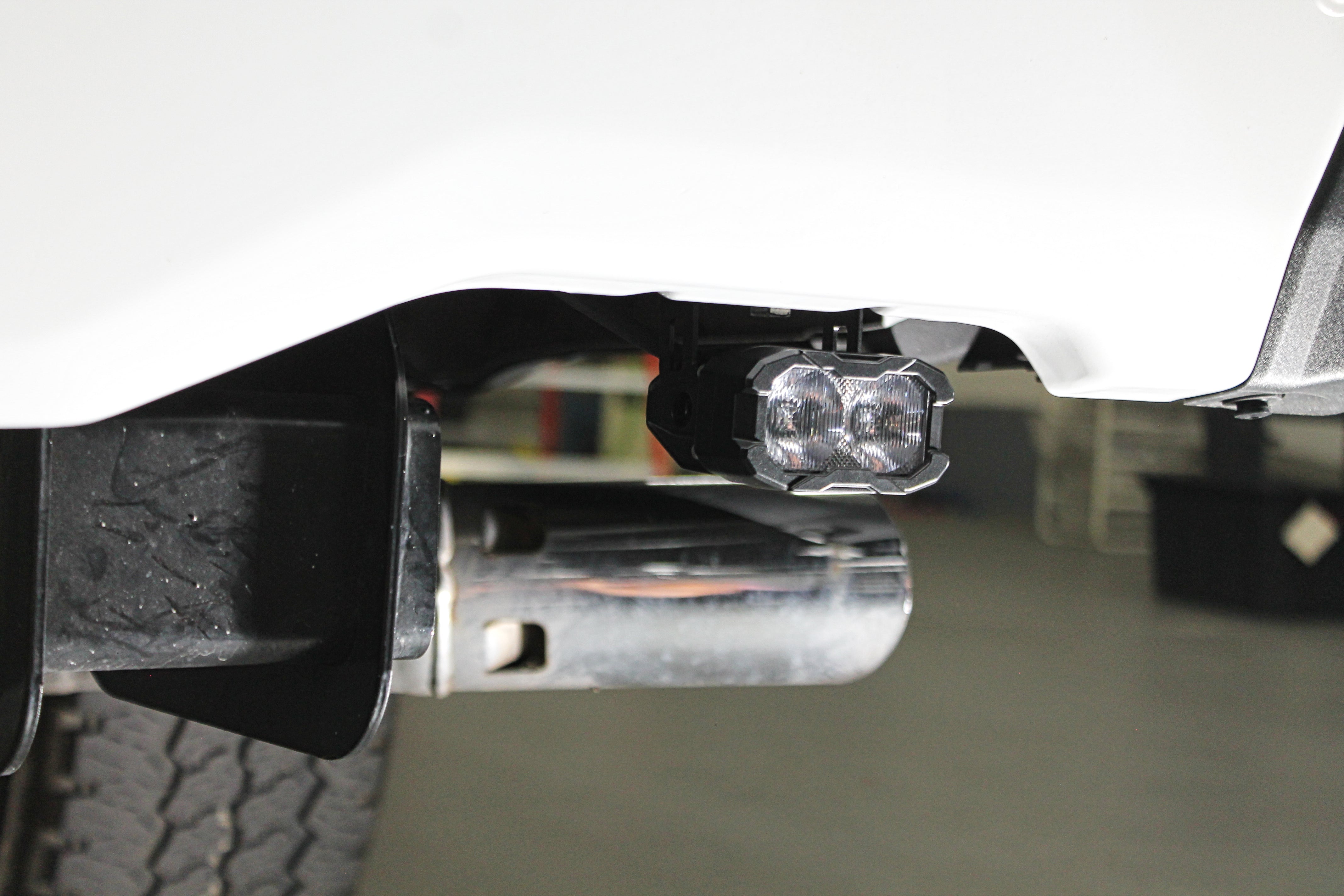

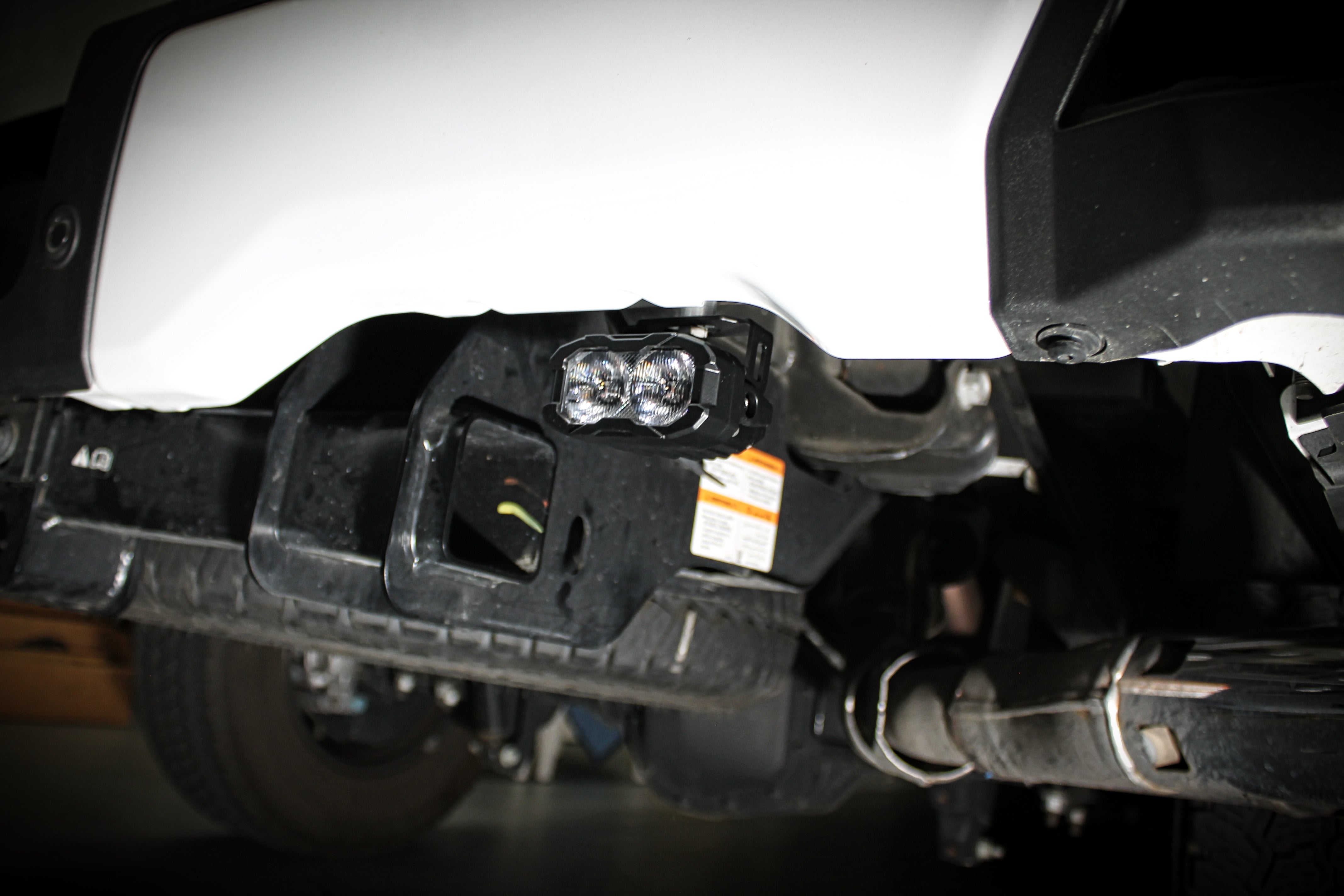

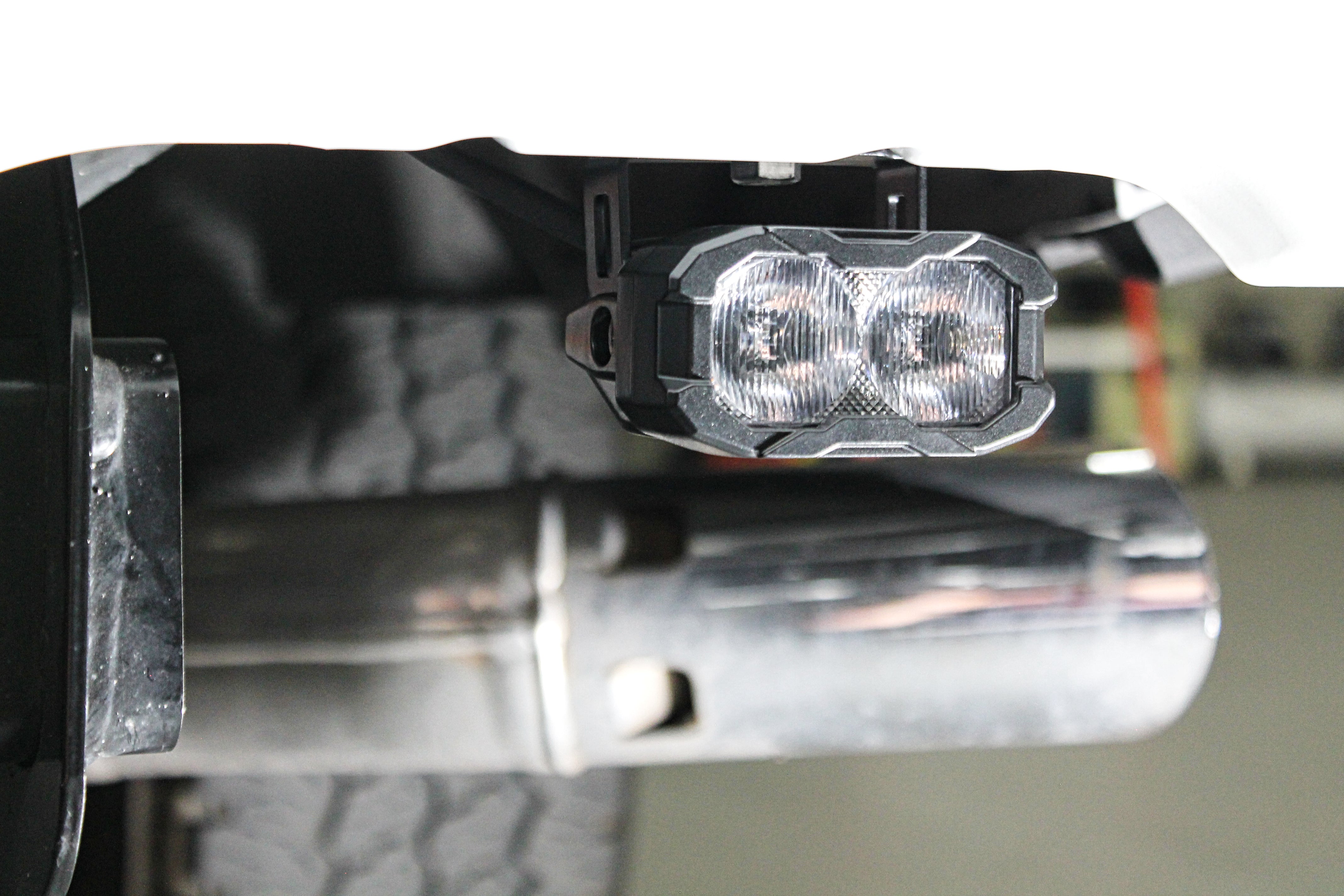

- Each LED light pod is attached to a metal bracket on each side
- Size: 3.2in wide x 2.8in depth
- No cutting or drilling required. The kit is a complete bolt on
- Uses a TIR (Total Internal Reflection) lens, which is different from the conventional optics parts, which lose some light internally and produce glare. The TIR lens collects all of the light from the LED and directly leads them to where you need, drastically reducing glare and improving total efficiency.
- Higher light efficiency: brighter, longer irradiation distance
- Housing is upgraded to 304 aluminum. The surface is UV polyester powder coated to protect against UV, salt water, corrosion, fading and scratch resistant.
- Equipped with thermal management system that automatically adjusts the brightness output according to the external temperatures
20W PRO LED Light Pod
| Beam Pattern | Driving |
| Theoretical Max Power | 20 watts |
| Actual Power | 19.8 watts |
| Voltage / Current (Main) | DC 12V / 2.06A |
| Voltage / Current (Backlight) | DC 12V / 0.03A |
| Theoretical Max Luminous Flux | 2,184 lm |
| Measured Flux (without lens) | 1,970 lm |
| Measured Flux (with lens) | 1,474 lm |
| LED Type | Luminus SST-20 |
| Color Temperature | 6000K |
| Number of LEDs | 2 pcs |
| Product Size (L × W × D) | 3.25 × 1.69 × 2.78 in |
Free ground shipping on all orders within the continental United States.
We process and ship orders within 3–5 business days. If we anticipate any delay, we'll reach out via email.
- Hawaii, Alaska & Puerto Rico — $20 flat rate for ground shipping.
- Canada & International — Shipping rates calculated at checkout. Customs fees, duties, and import taxes are the responsibility of the customer.
- Overnight & 2nd Day Air — Available at checkout. Orders must be placed by 12:00 PM Pacific Time for same-day shipment.
You'll receive a tracking number via email once your order ships. If you have a special request about your order, reach out — we'll do our best to accommodate. For our complete shipping policy, [click here].
Warranty
We have a lifetime warranty on all our light kits. We stand behind every kit we build — our lifetime warranty isn't fine print, it's a promise. For more information about our warranty and disclaimer, [click here].
M&R Automotive is not responsible for misuse or improper installation of the product. Professional installation is recommended.
HOW TO INSTALL?
Install Video

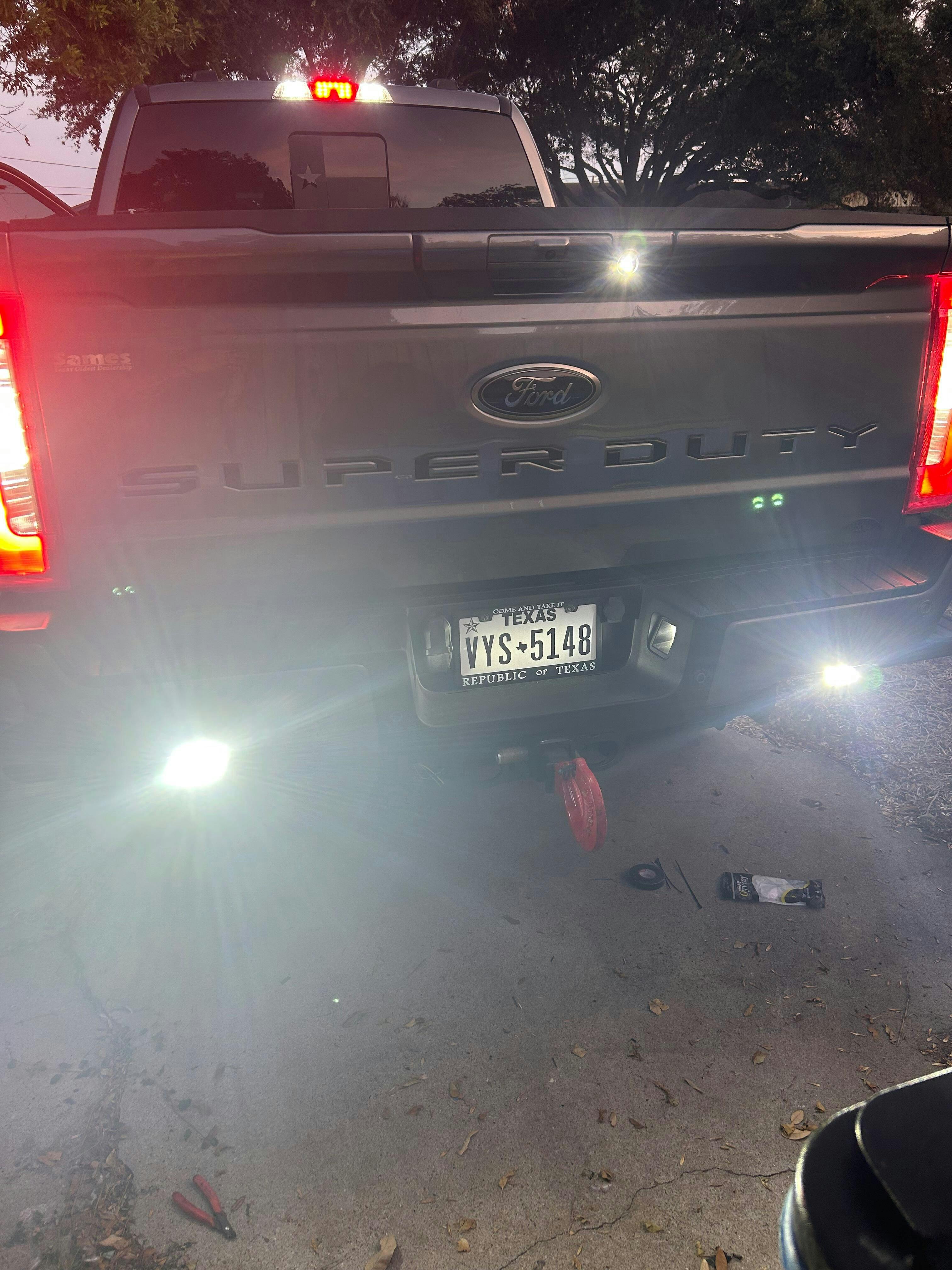

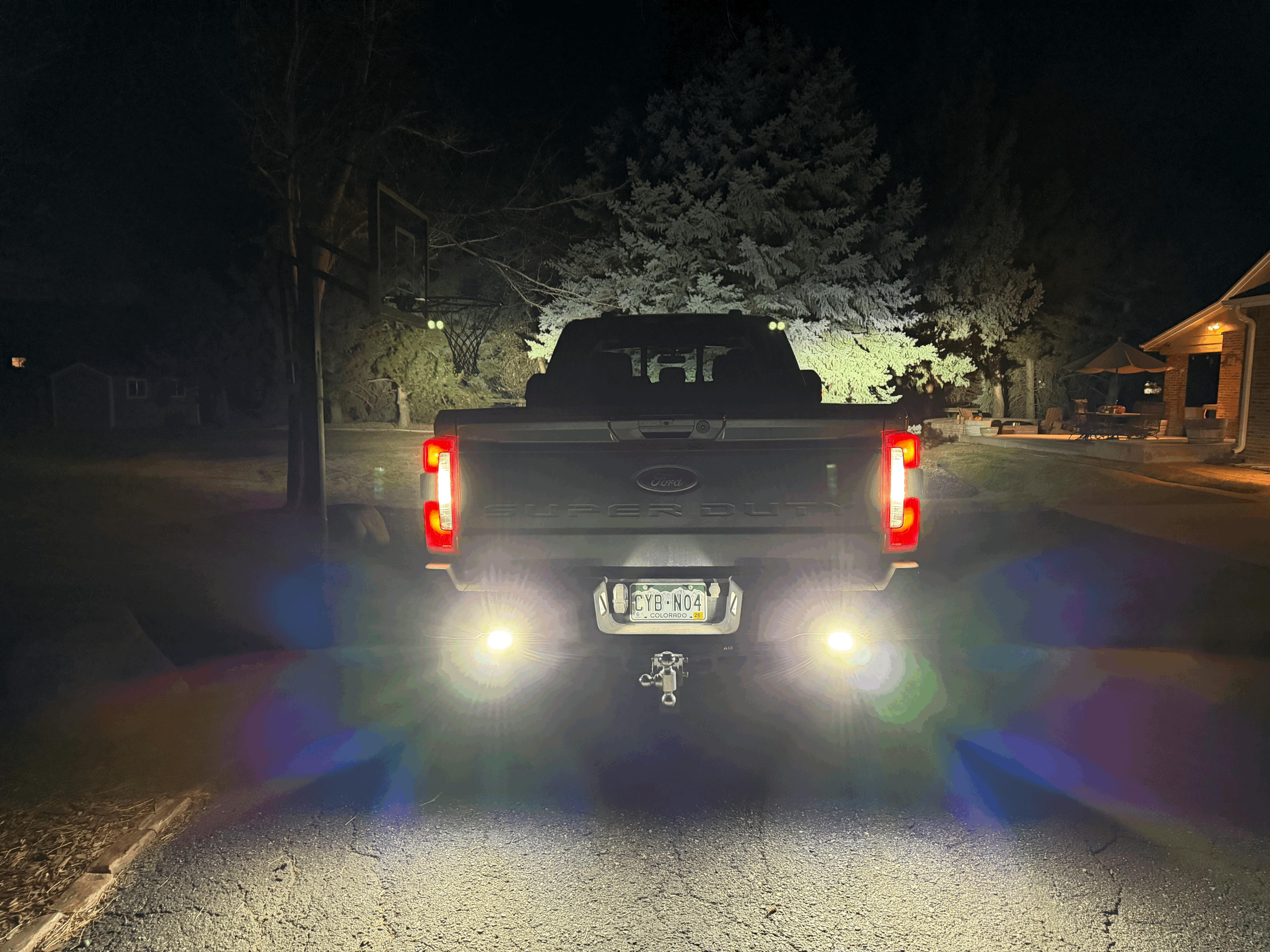

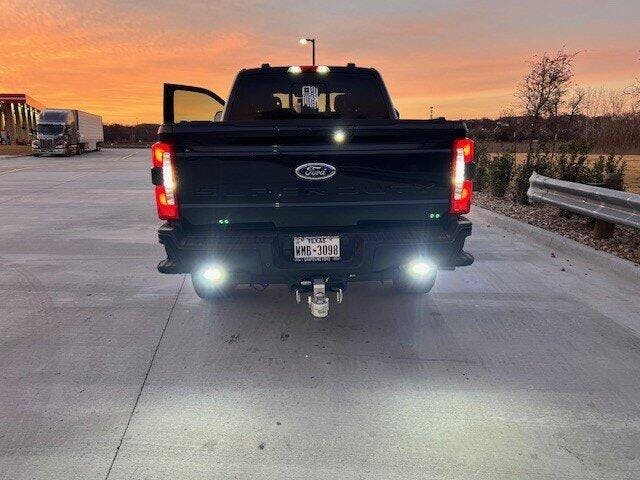

Light Output
