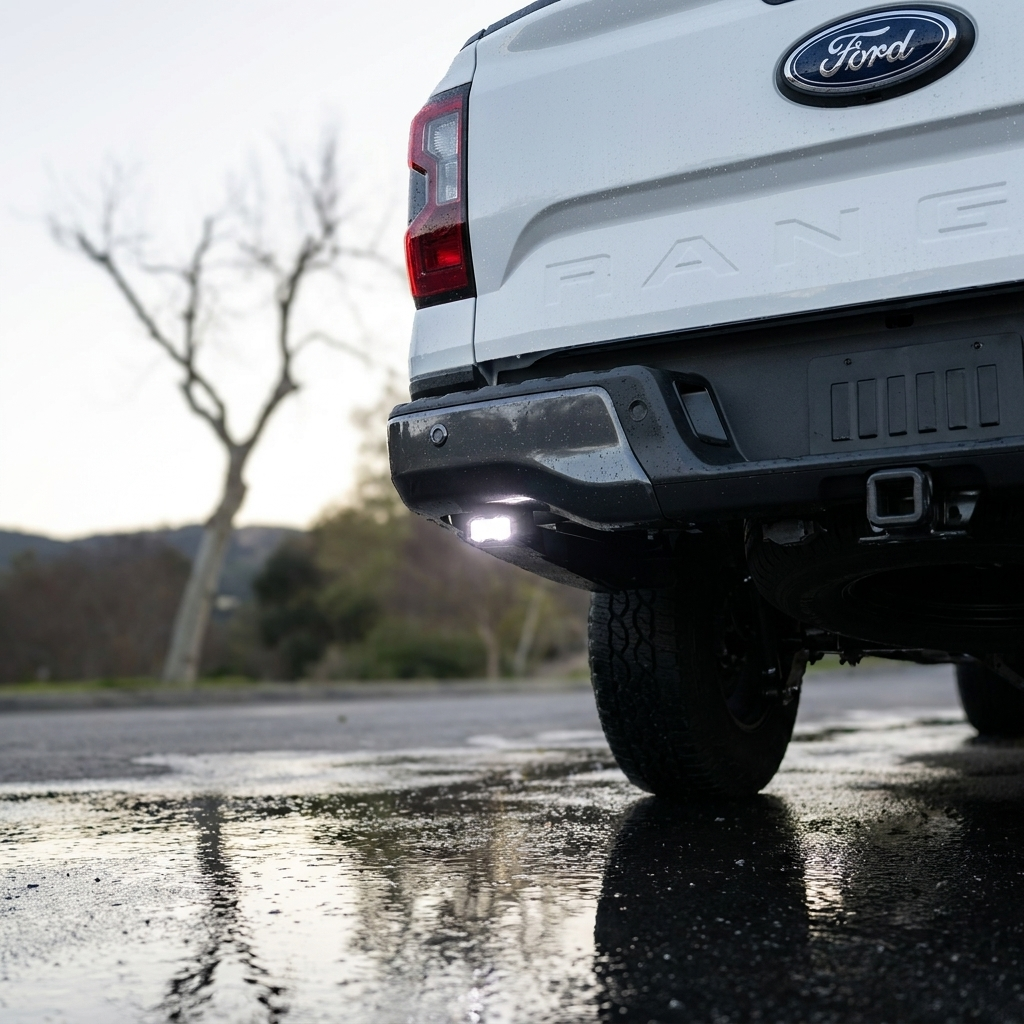

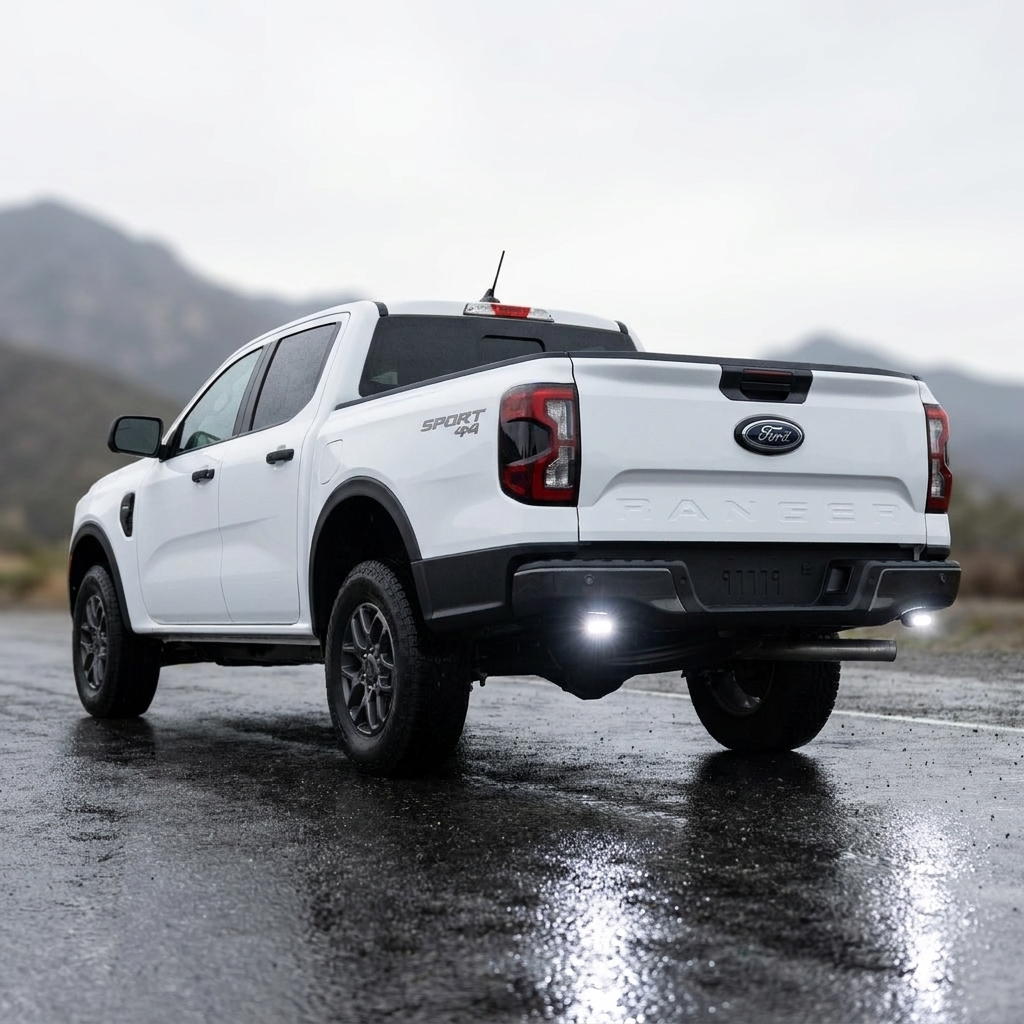

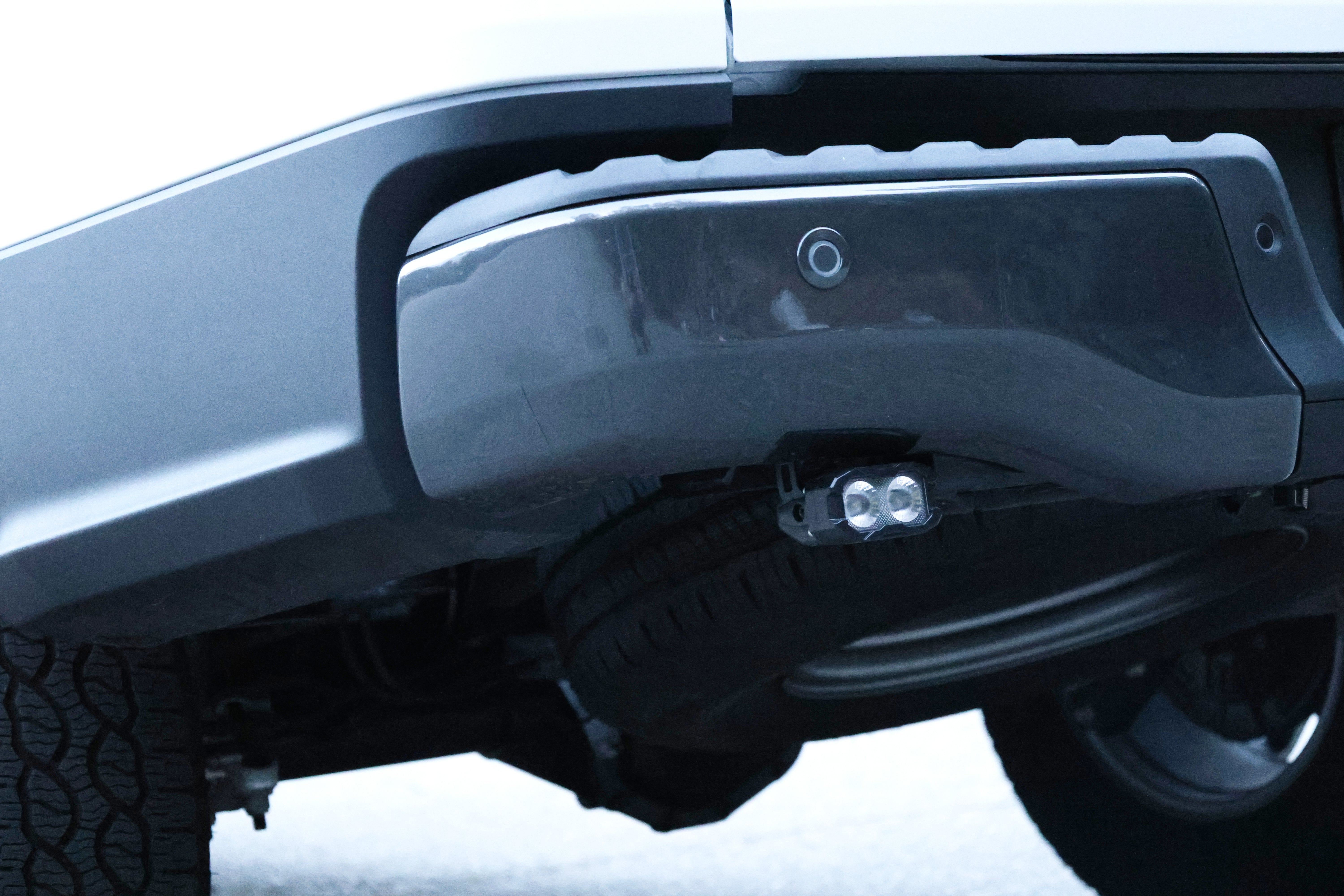

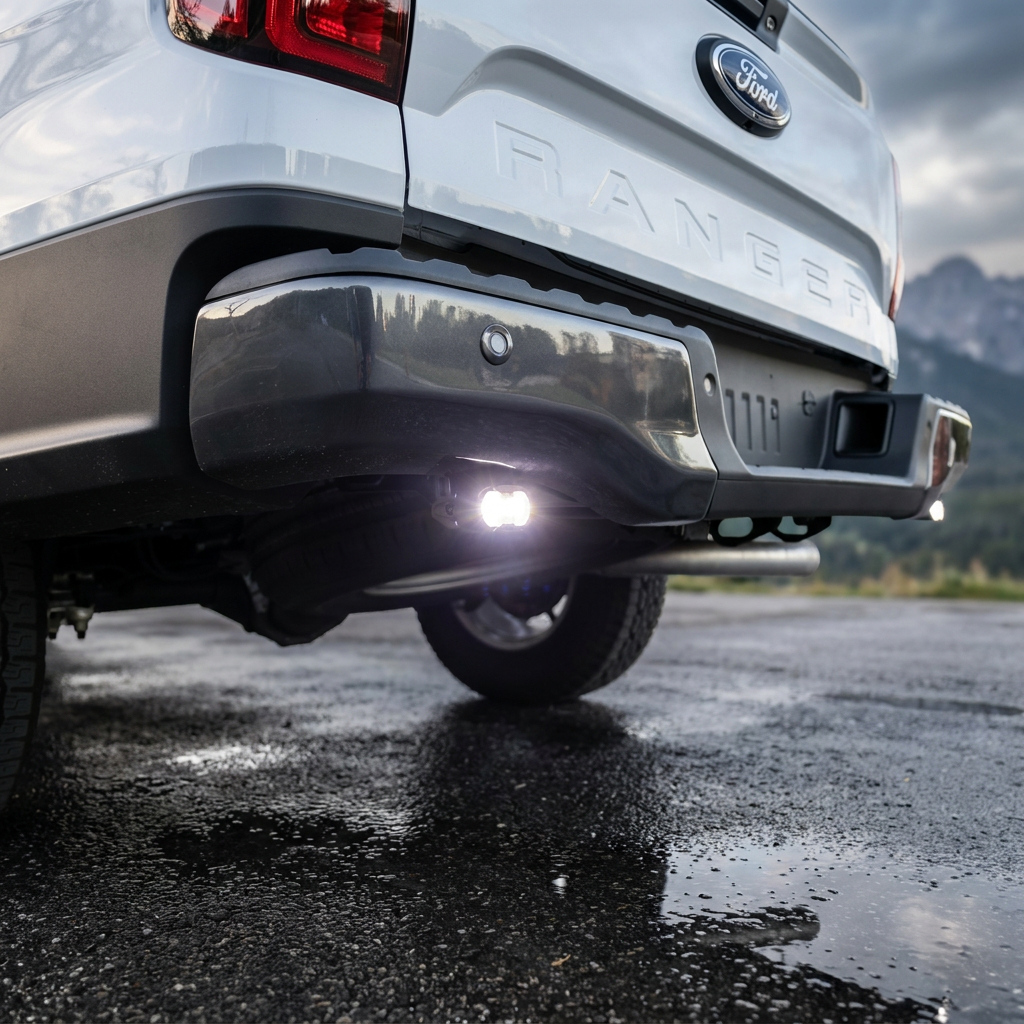

2024+ Ford Ranger Reverse Light Kit
What's in the Box
- (2) 20w PRO pods
- (2) metal brackets
- All mounting hardware included
Off-road use only
Bolt On, No Drilling
Vehicle Specific Design
Lifetime Warranty

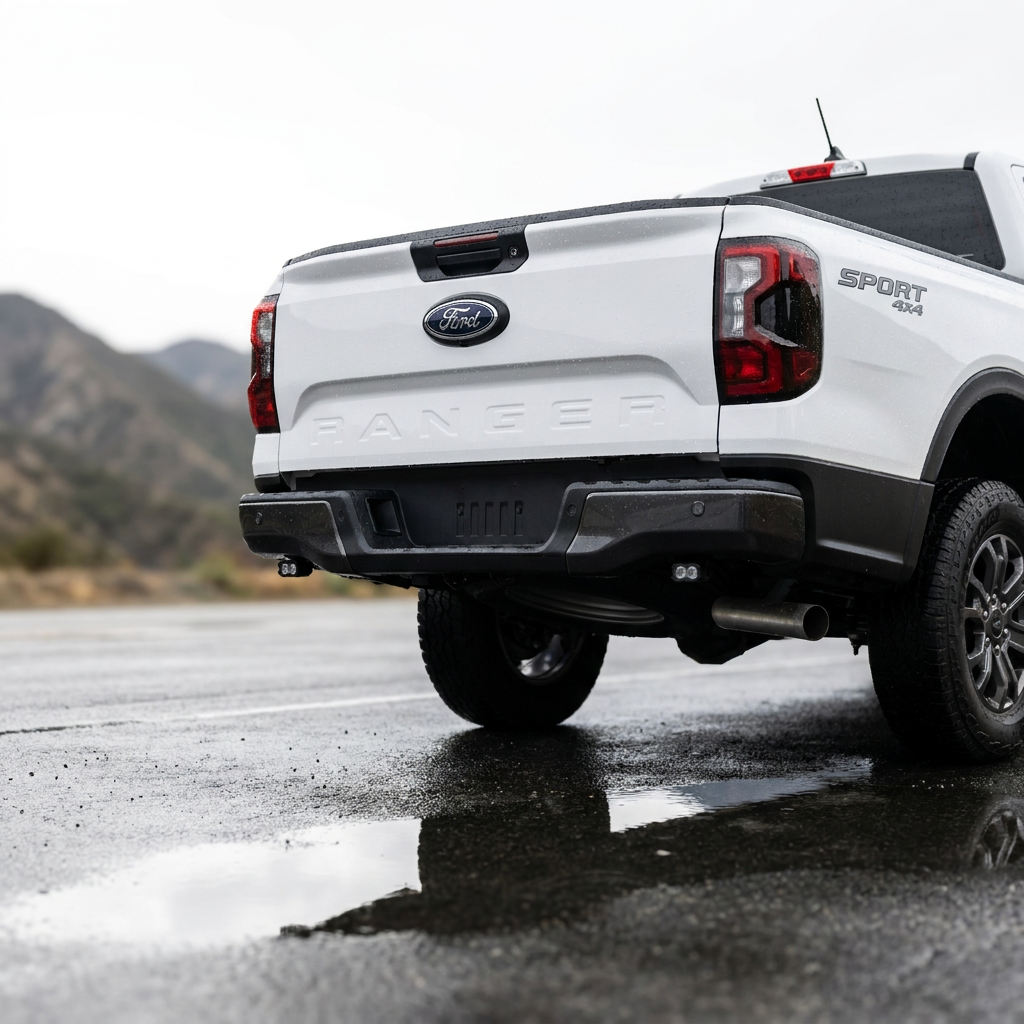

Fits: 2024–2026 Ford Ranger
Trims: XL, STX, XLT, Lariat
- Each kit comes as a PAIR of pods

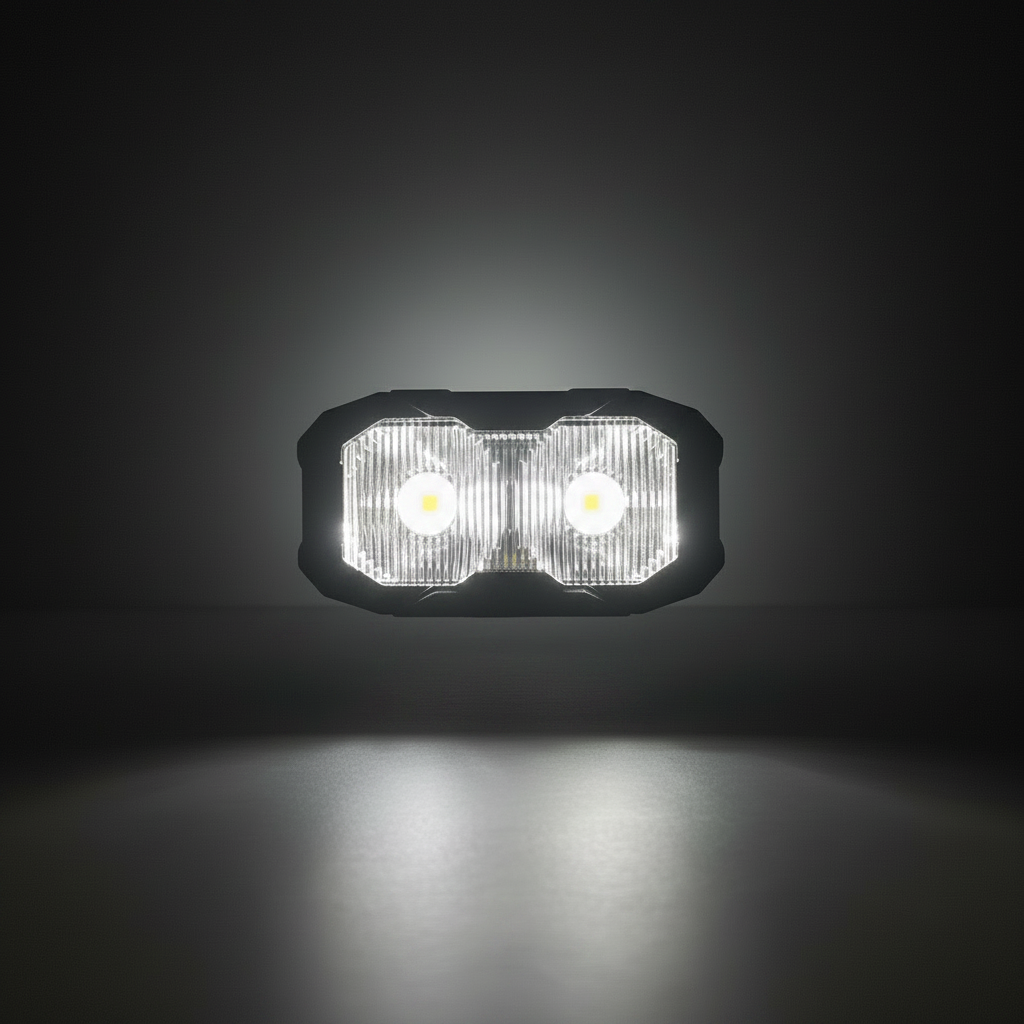

- Flood Pattern: longer and wider beam focuses for illumination further down the trail or road as well as peripheral angles

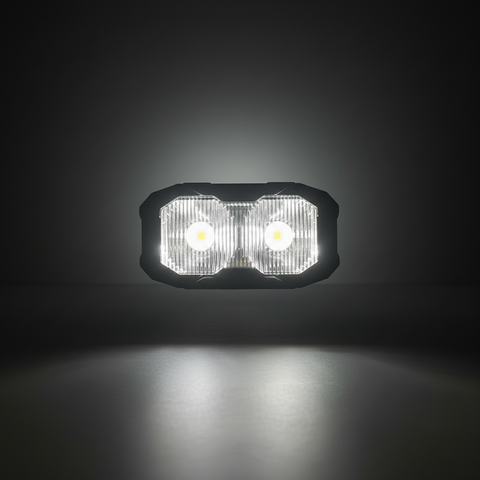

- main White LED light -- you choose your backlight (amber or red)

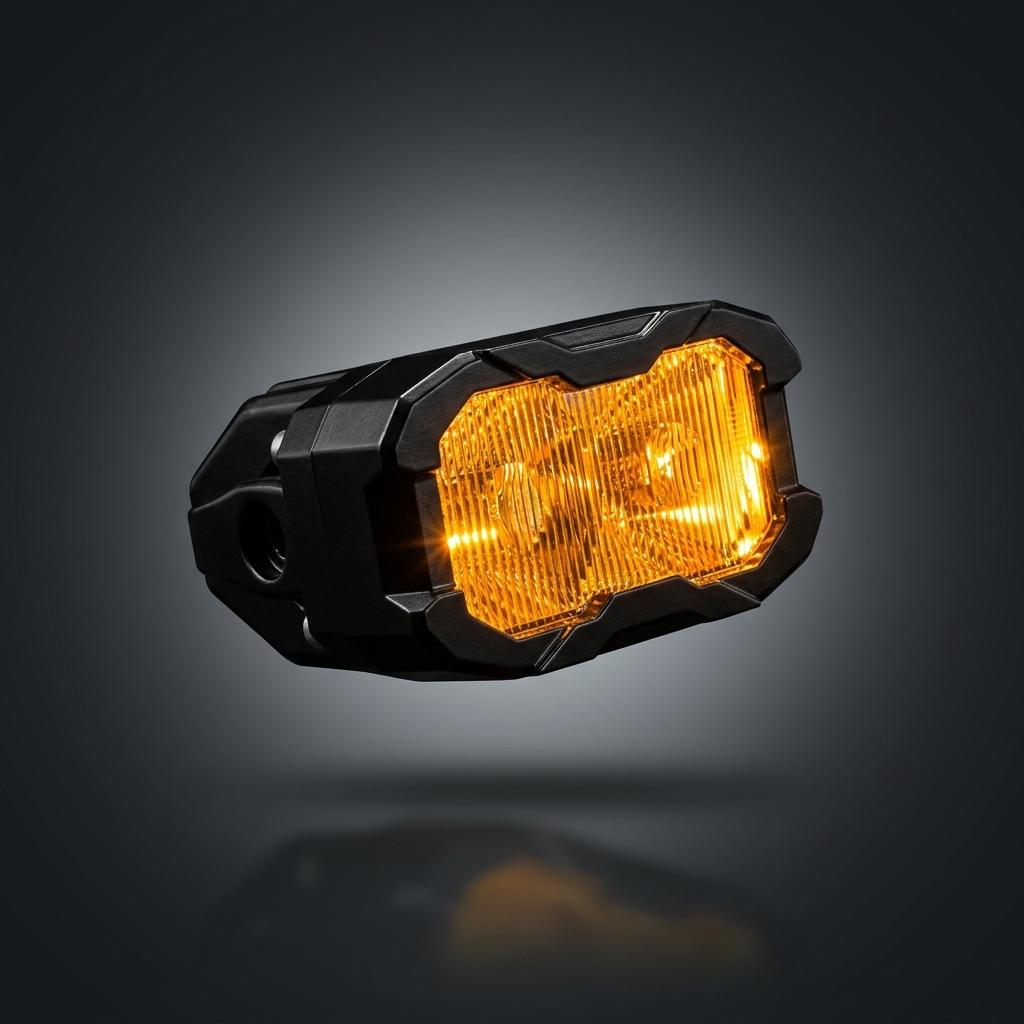

- 1) Amber back light that can be wired as turn signals
or
-

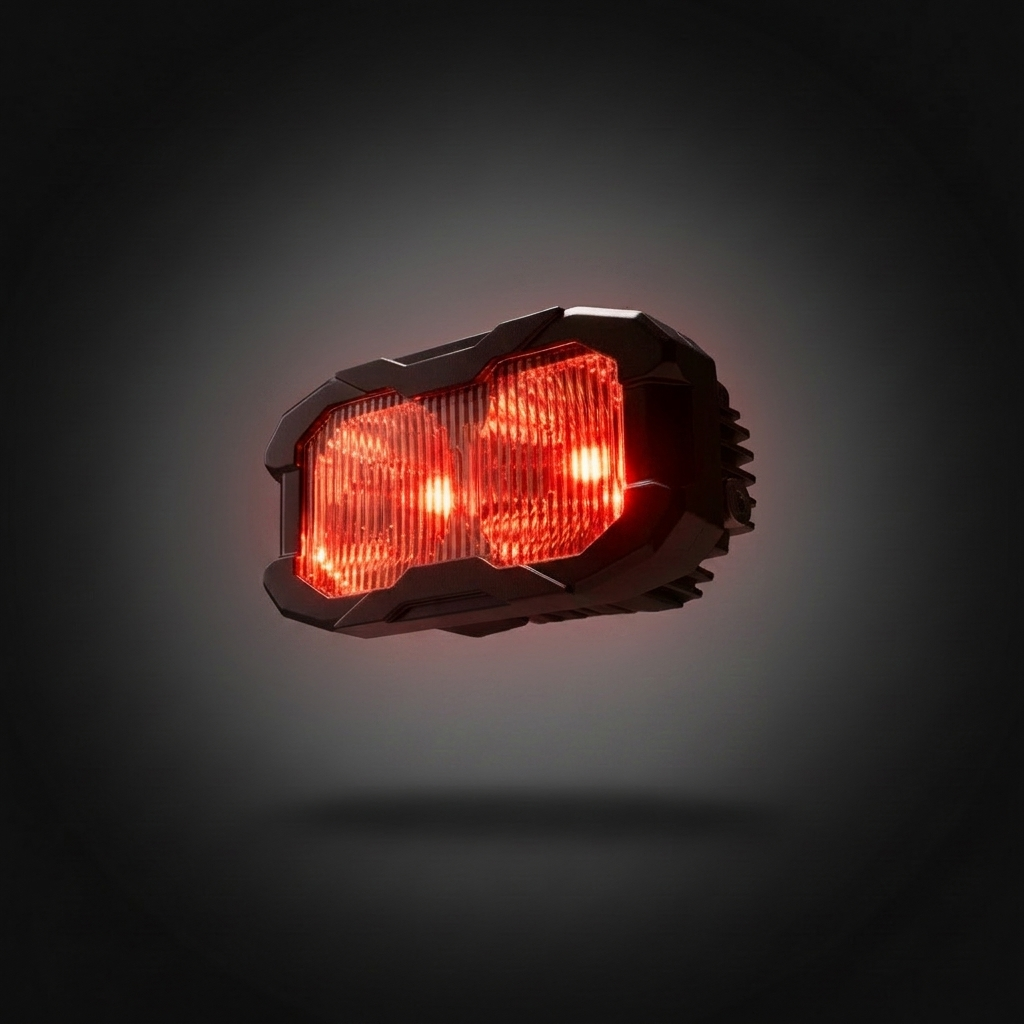

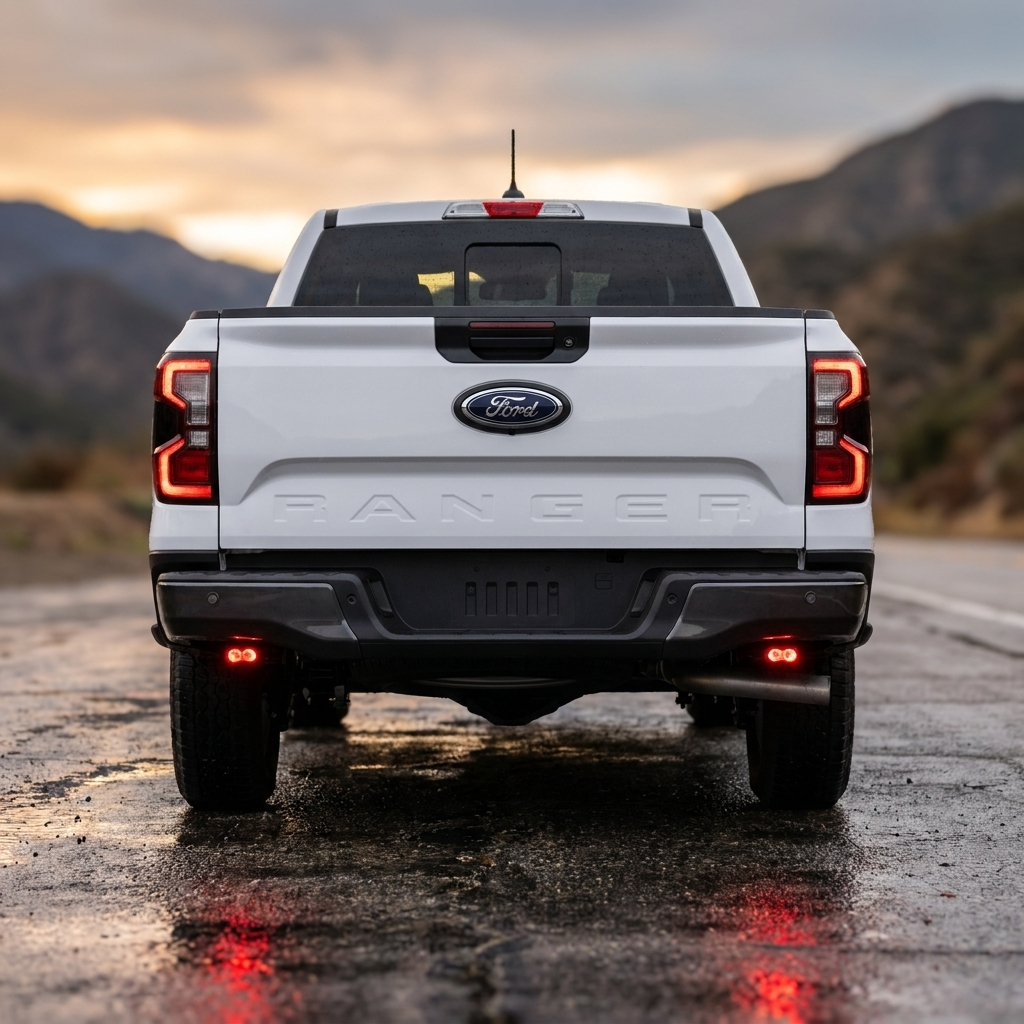

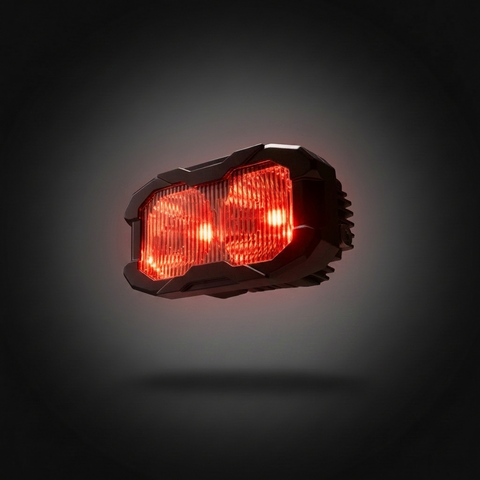

- 2) Red backlight that can be wired as turn signals or brake light

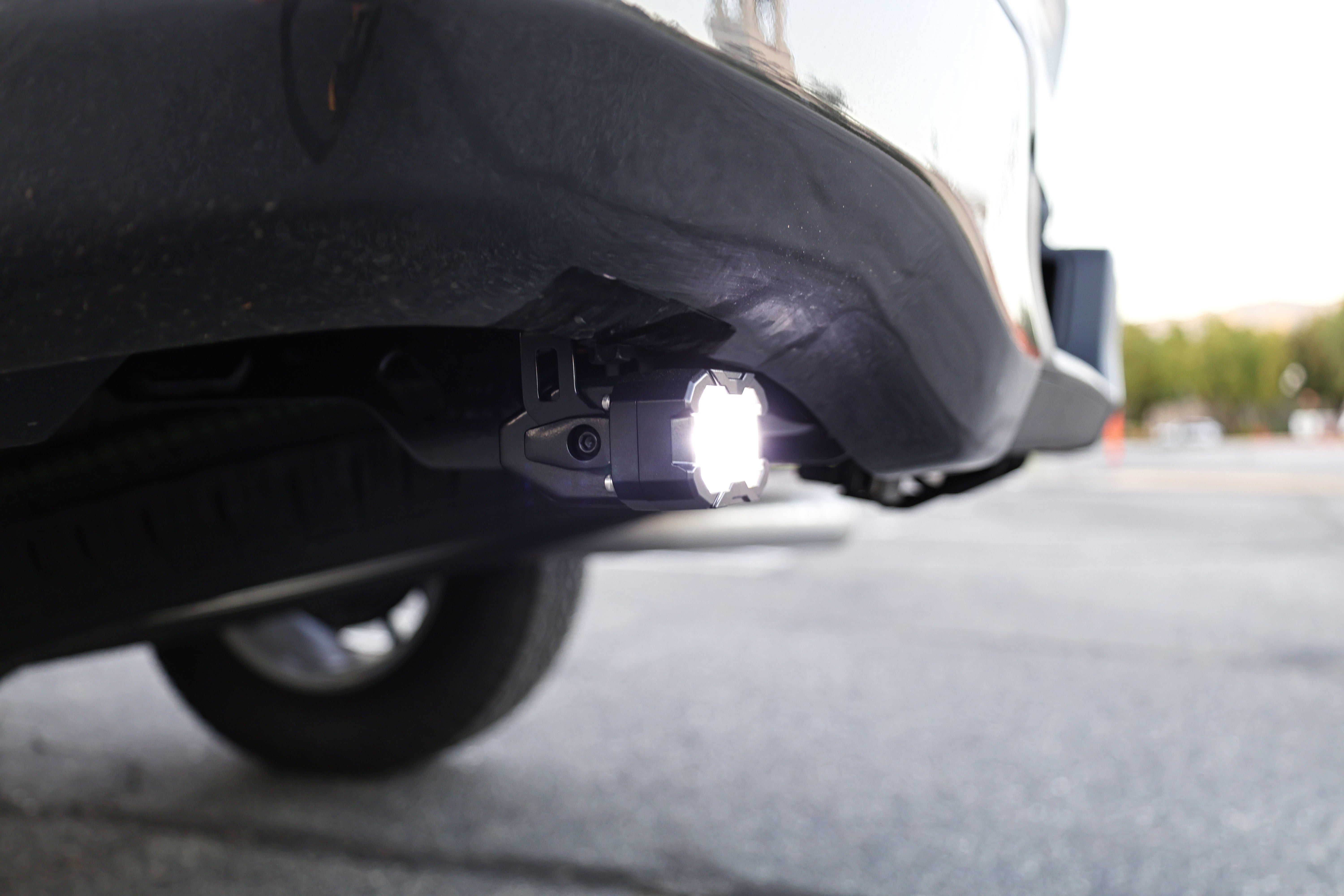

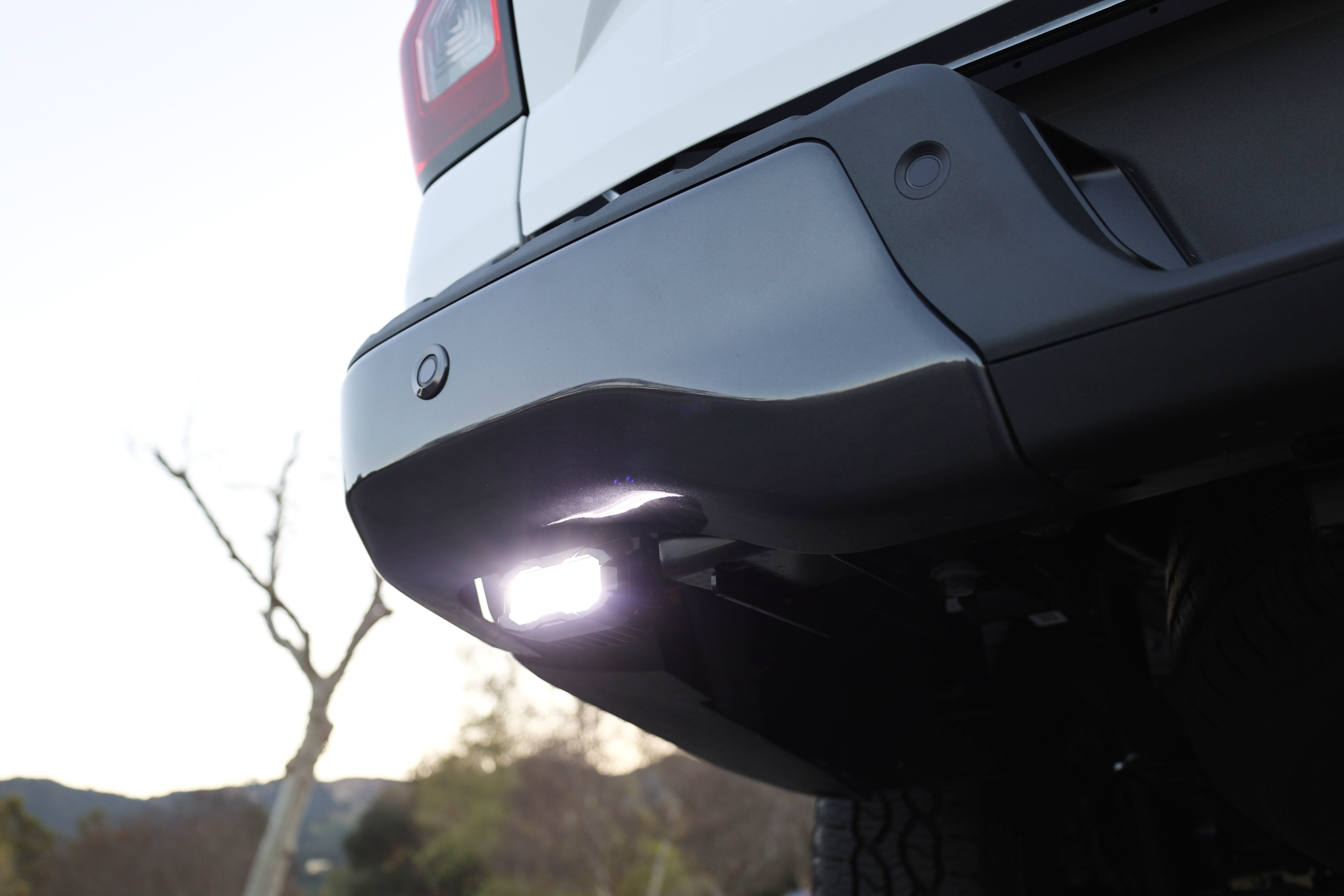

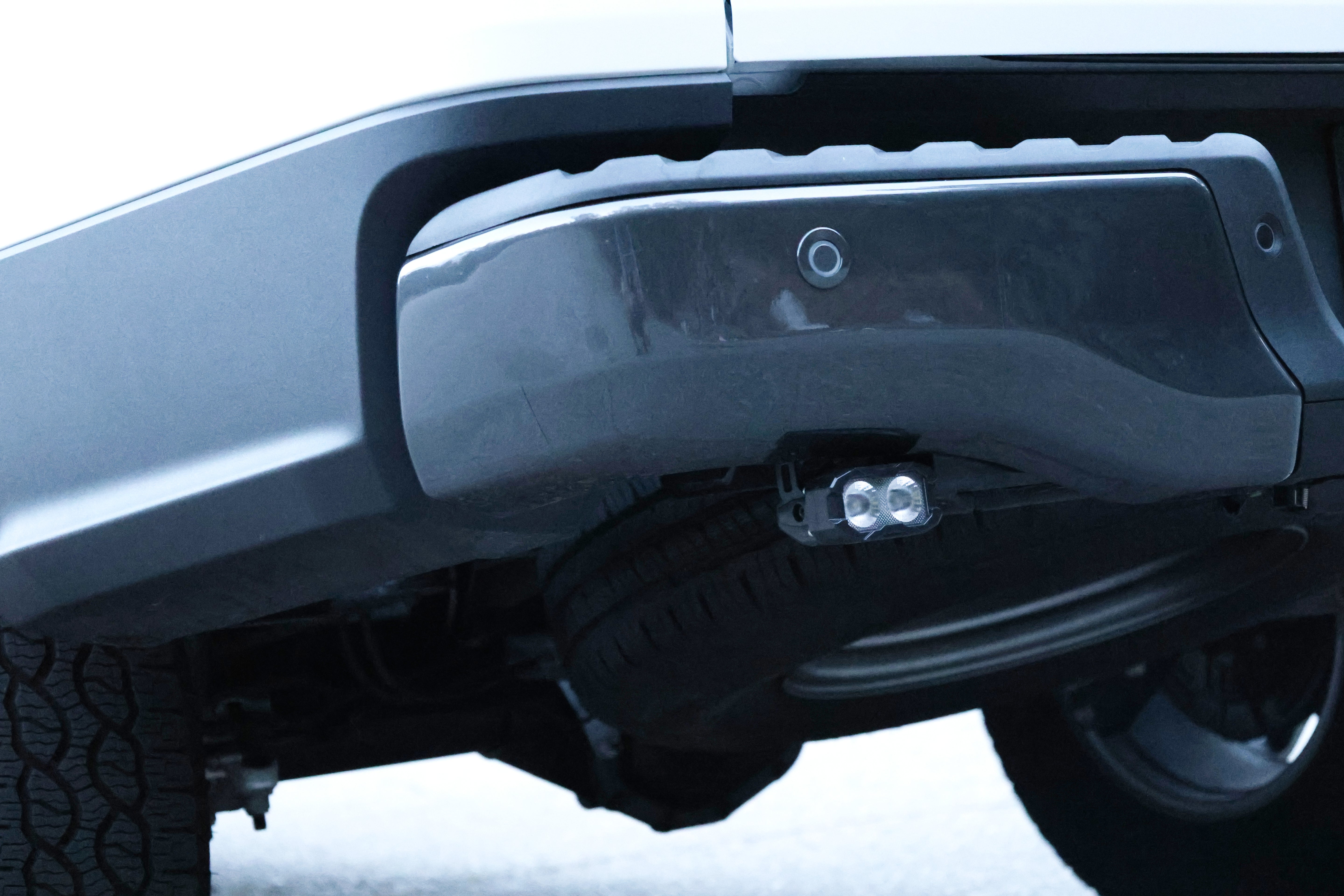

- Each LED light pod is attached to a metal bracket on each side
- No cutting or drilling required. The kit is a complete bolt on

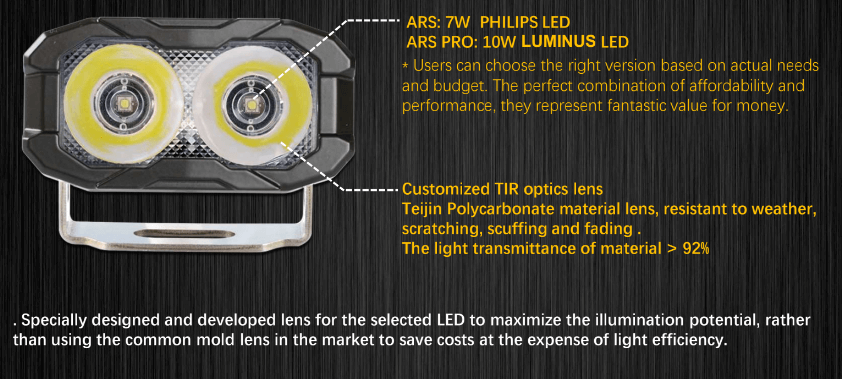

- Uses a TIR (Total Internal Reflection) lens, which is different from the conventional optics parts, which lose some light internally and produce glare. The TIR lens collects all of the light from the LED and directly leads them to where you need, drastically reducing glare and improving total efficiency.
- Higher light efficiency: brighter, longer irradiation distance
- Housing is upgraded to 304 aluminum. The surface is UV polyester powder coated to protect against UV, salt water, corrosion, fading and scratch resistant.

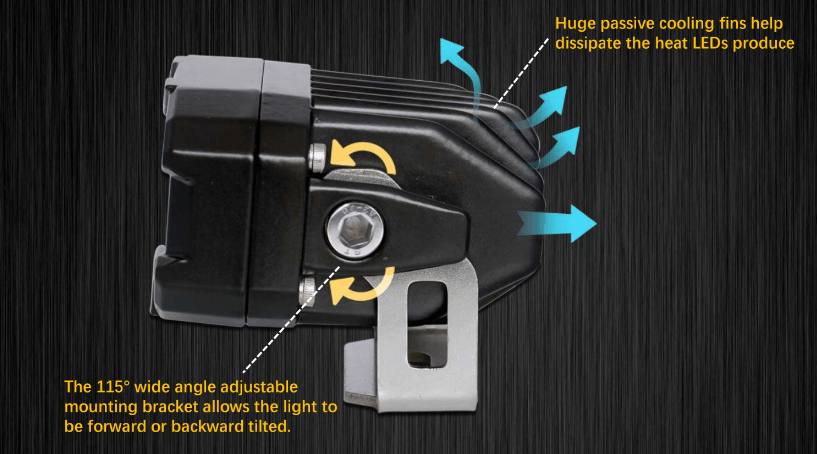

- Equipped with thermal management system that automatically adjusts the brightness output according to the external temperatures

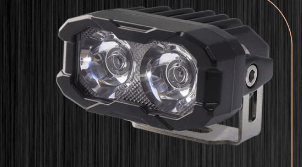

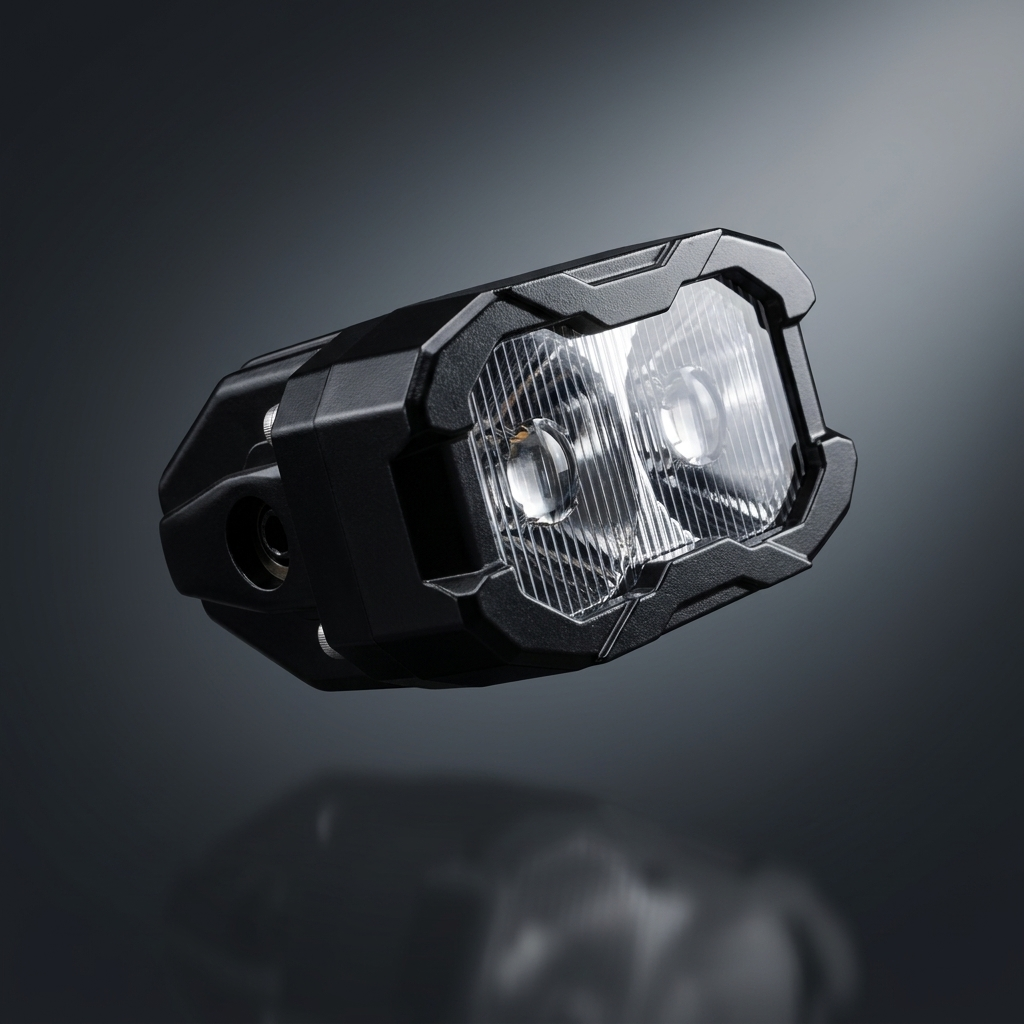

20W PRO LED Light Pod
| Beam Pattern | Driving |
| Theoretical Max Power | 20 watts |
| Actual Power | 19.8 watts |
| Voltage / Current (Main) | DC 12V / 2.06A |
| Voltage / Current (Backlight) | DC 12V / 0.03A |
| Theoretical Max Luminous Flux | 2,184 lm |
| Measured Flux (without lens) | 1,970 lm |
| Measured Flux (with lens) | 1,474 lm |
| LED Type | Luminus SST-20 |
| Color Temperature | 6000K |
| Number of LEDs | 2 pcs |

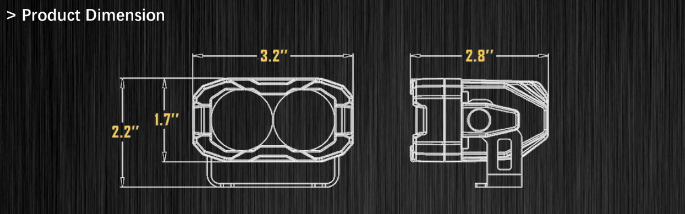

| Product Size (L × W × D) | 3.25 × 1.69 × 2.78 in |
