2020-24 Subaru Outback Reverse Light
What's in the Box
- (2) 20w PRO pods
- (2) metal brackets
- All mounting hardware included
Off-road use only
Bolt On, No Drilling
Vehicle Specific Design
Lifetime Warranty
FAQ
Frequently asked question

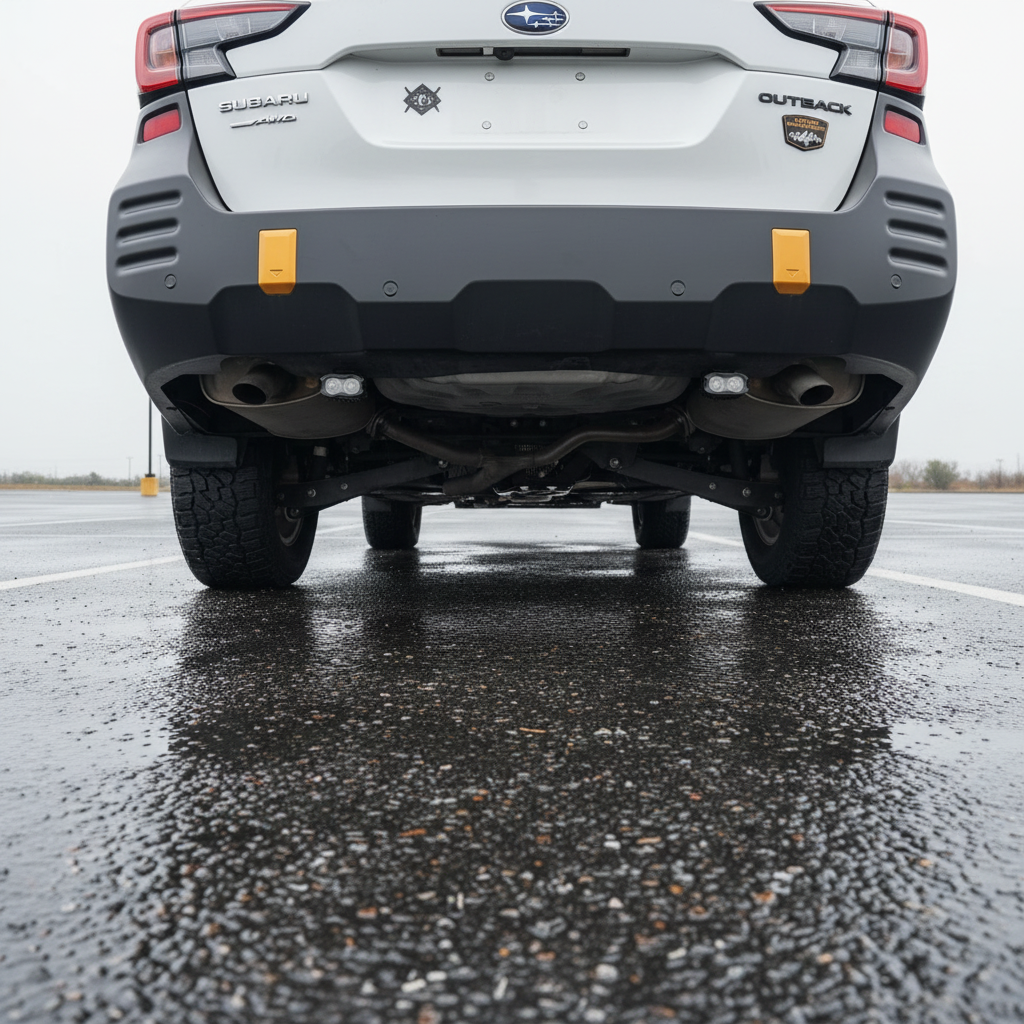

Fits: 2020–2024 Subaru Outback
Trims: Base, Premium, Onyx Edition, Onyx Edition XT, Limited, Limited XT, Touring, Touring XT, Wilderness
- Each kit comes as a PAIR of pods

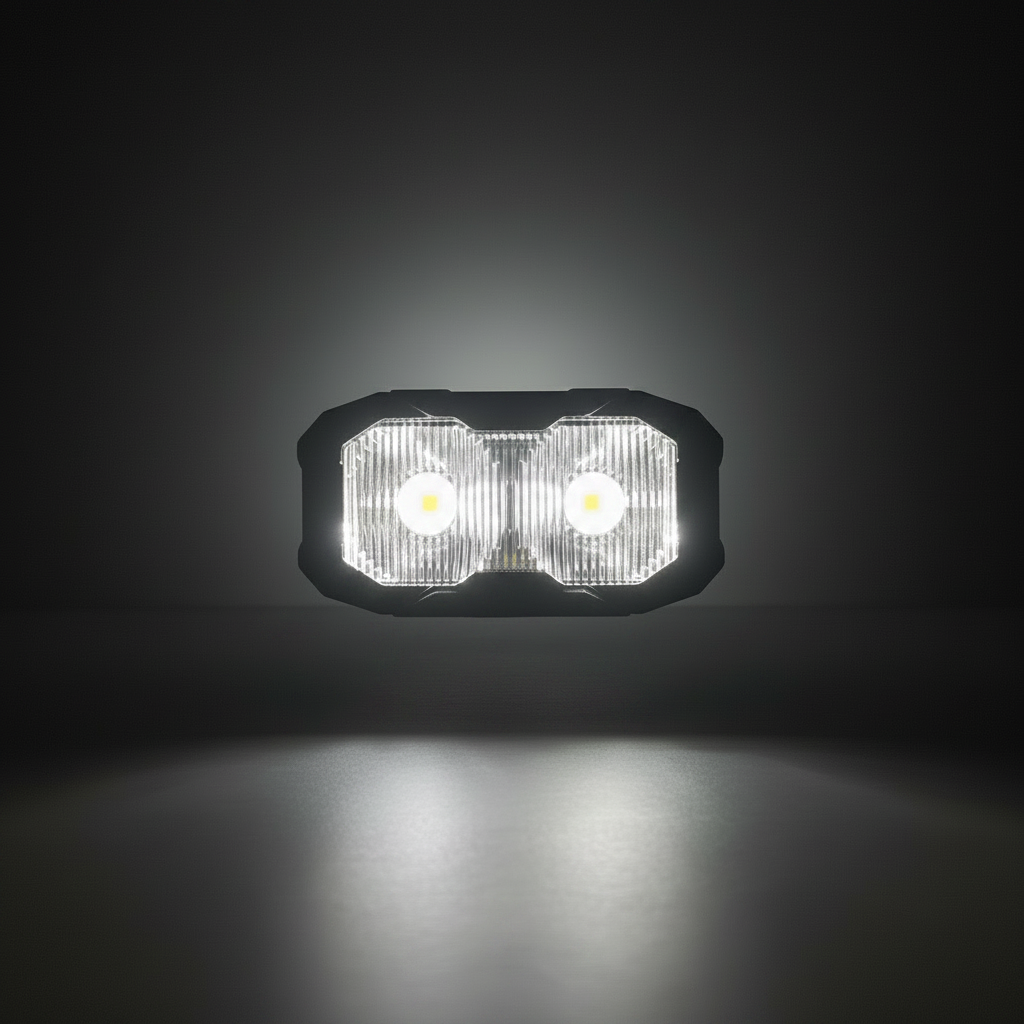

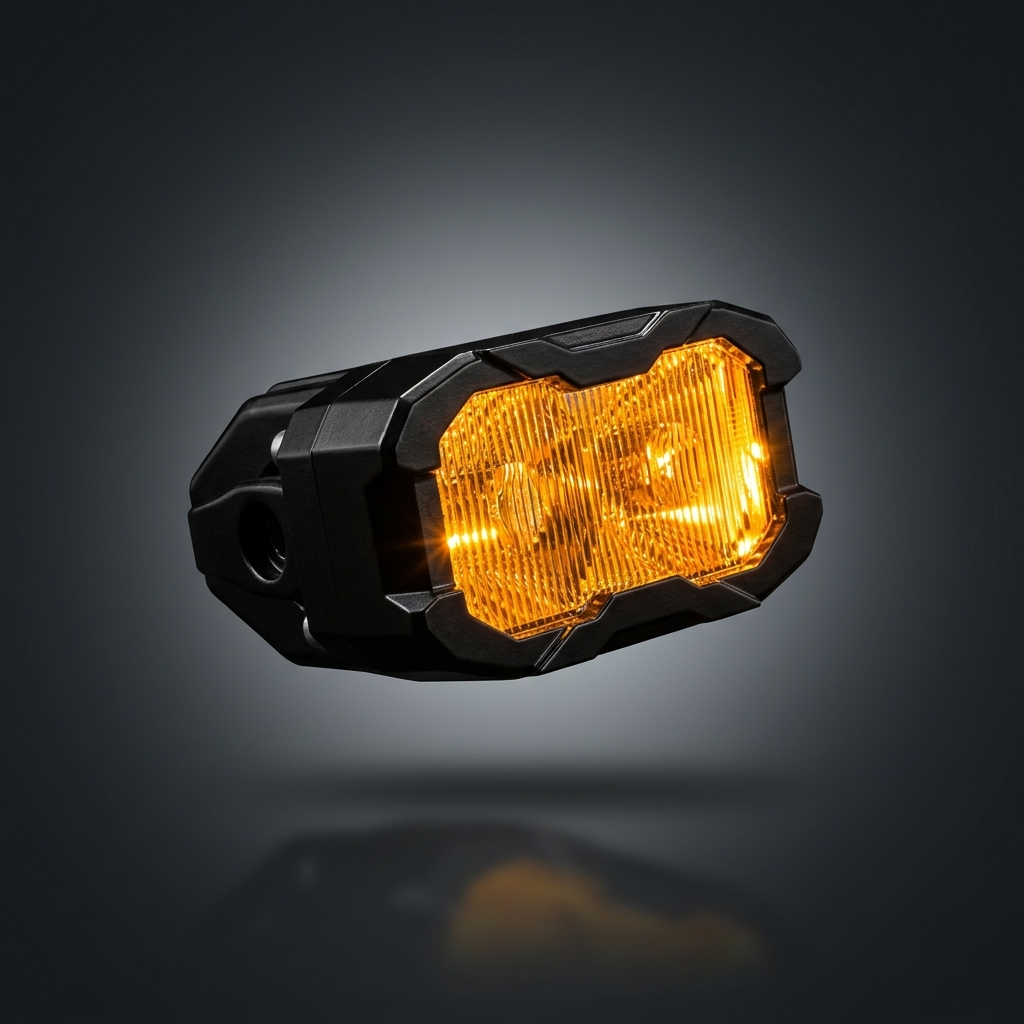

- main White LED light -- you choose your backlight (amber or red)1) Amber back light that can be wired as turn signals
or
-

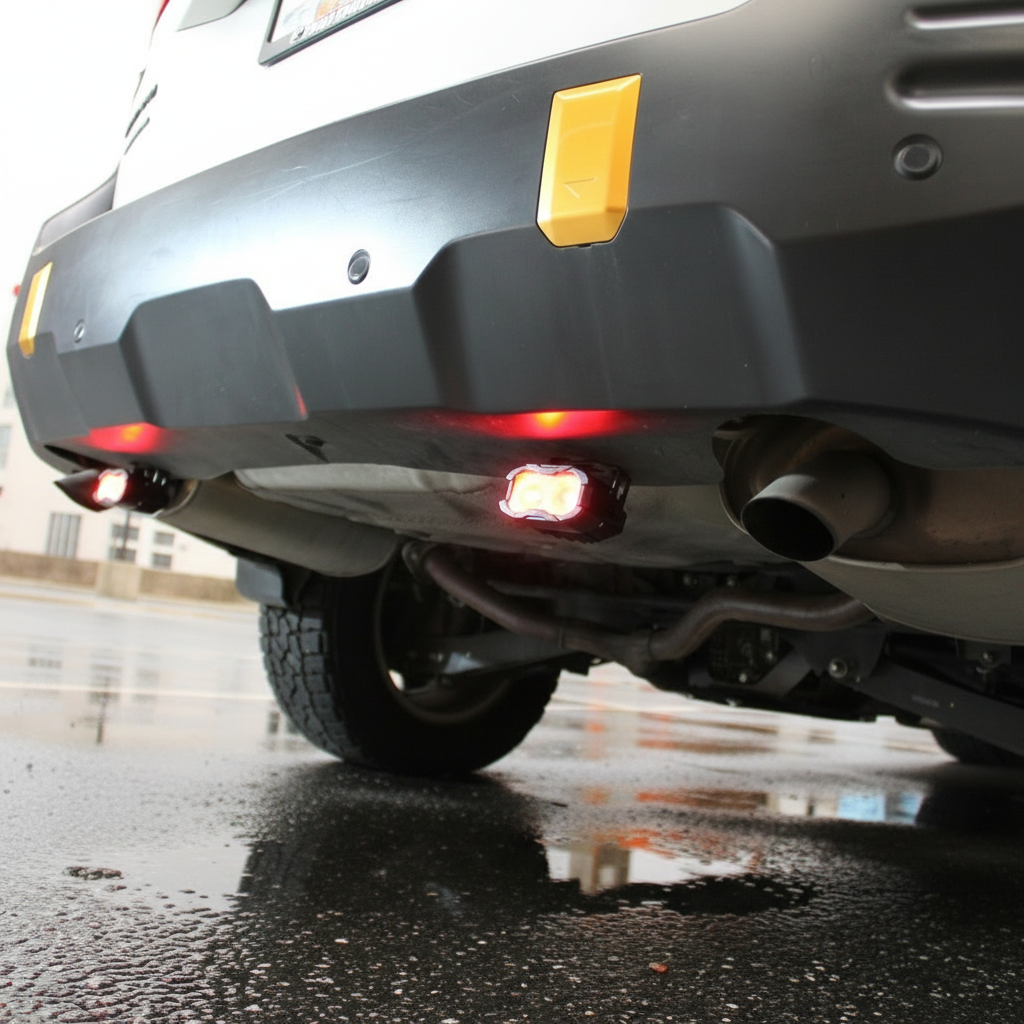

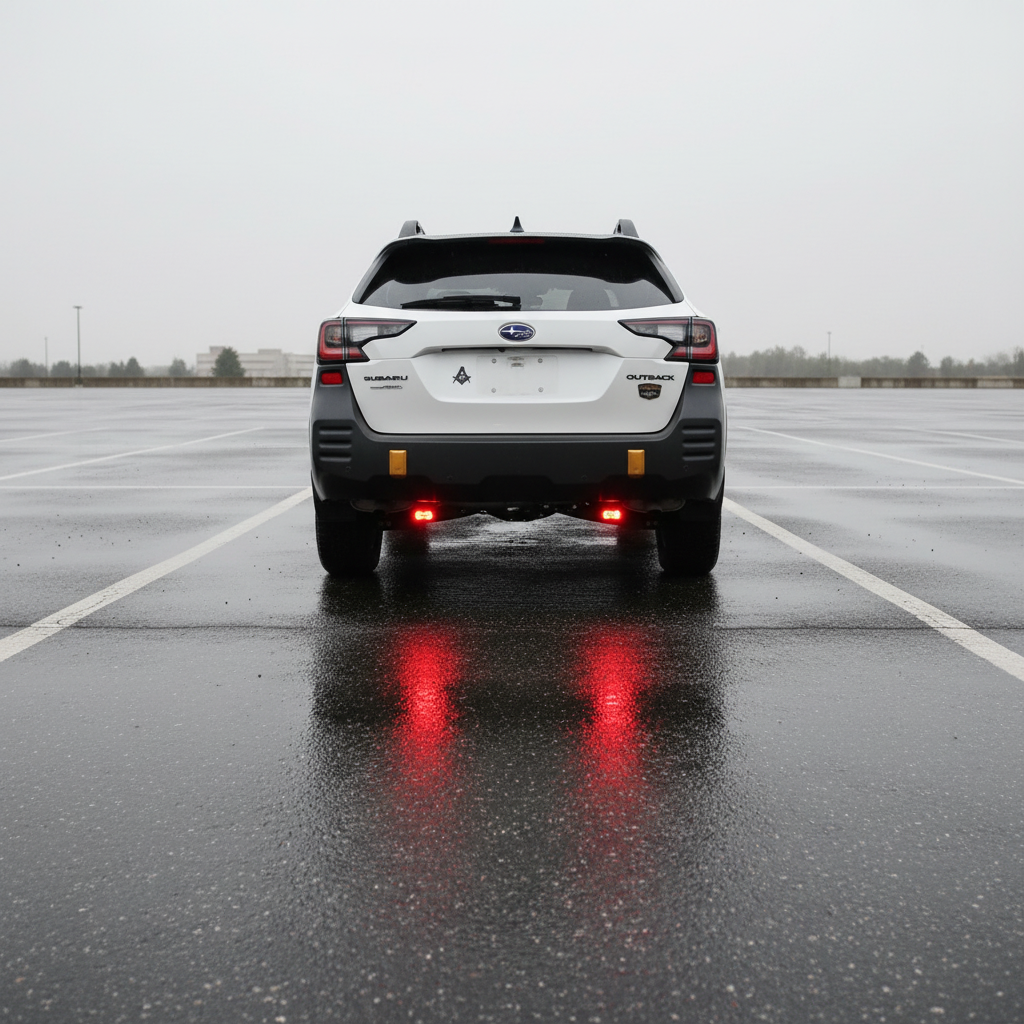

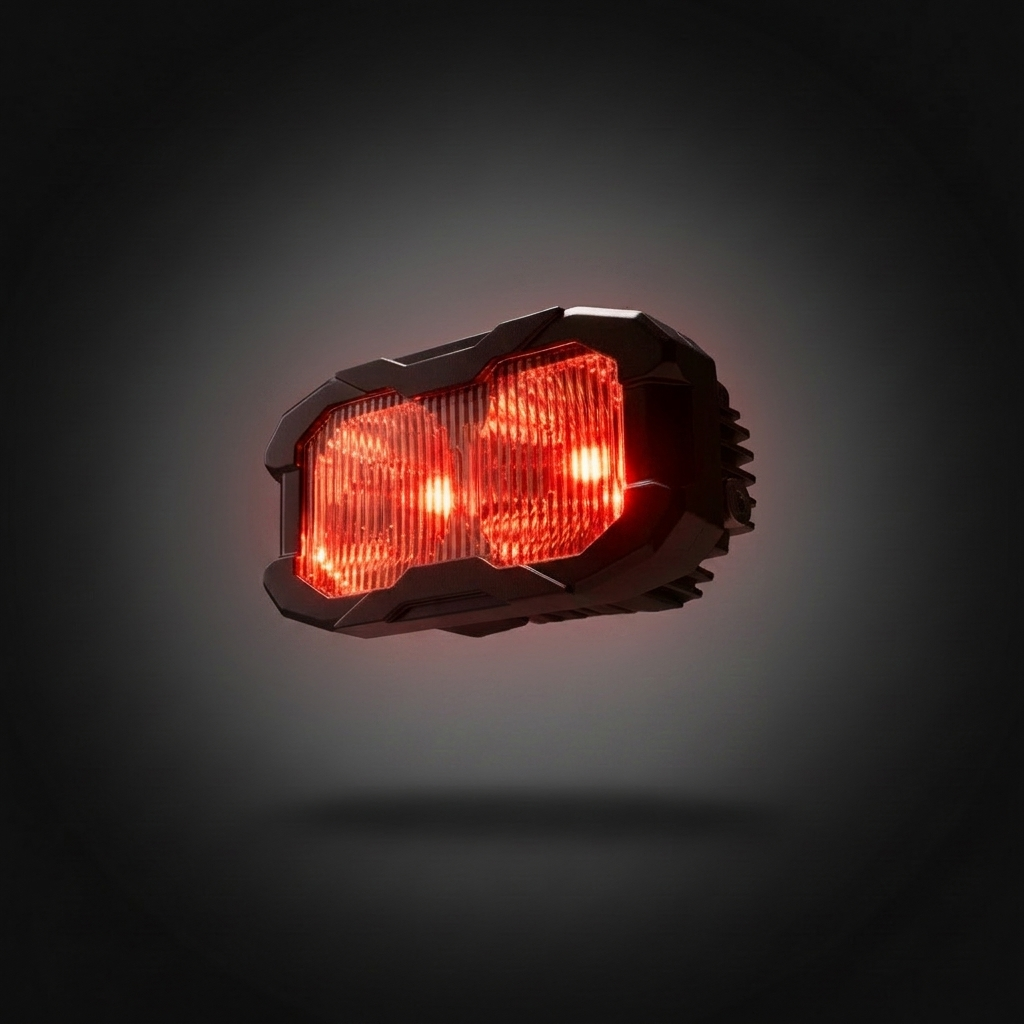

- 2) Red backlight that can be wired as turn signals or brake light
- Flood Pattern: wider beam focuses for illumination further down the trail or road as well as peripheral angles

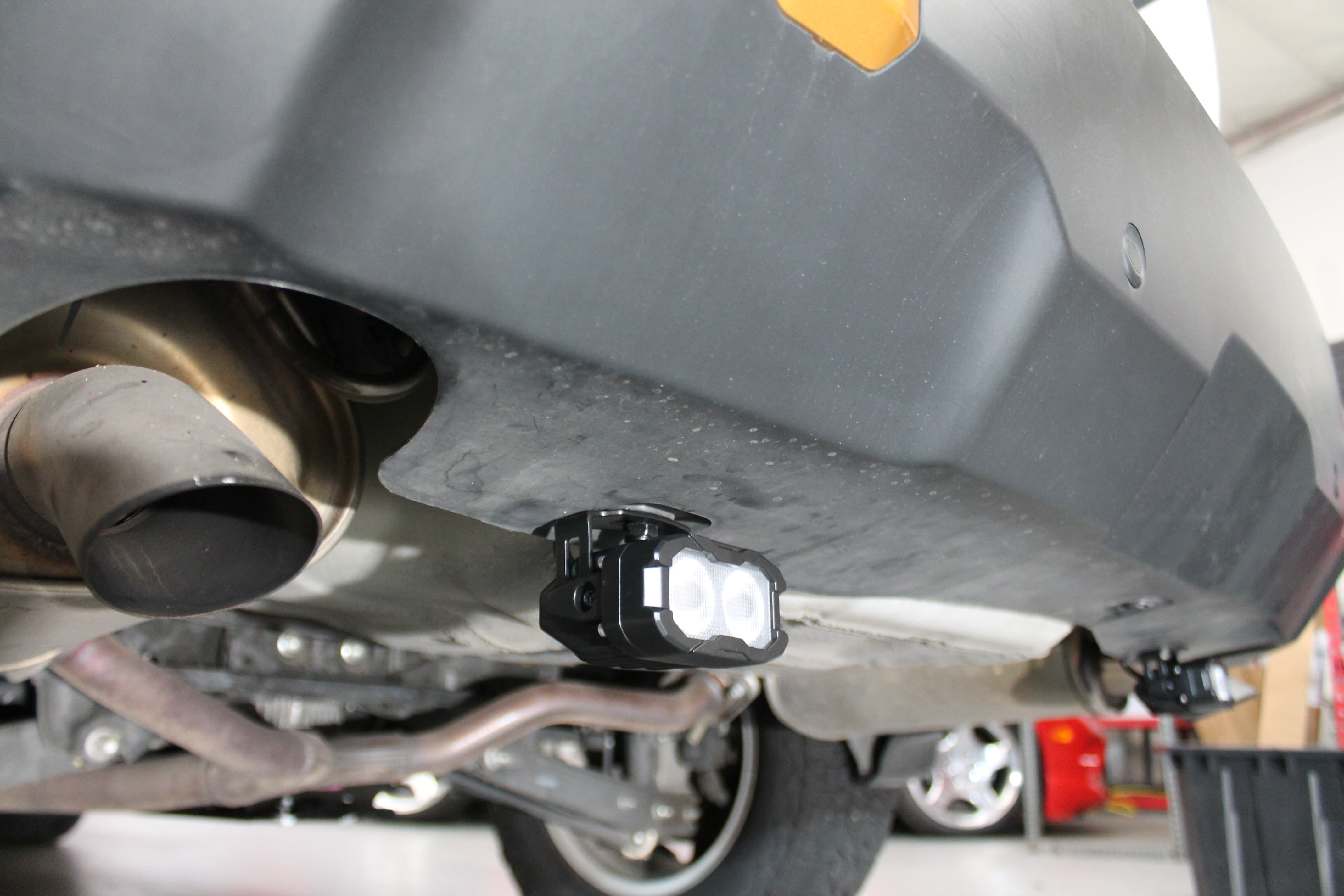

- Each LED light pod is attached to a metal bracket on each side
- Metal bracket is powder coated black

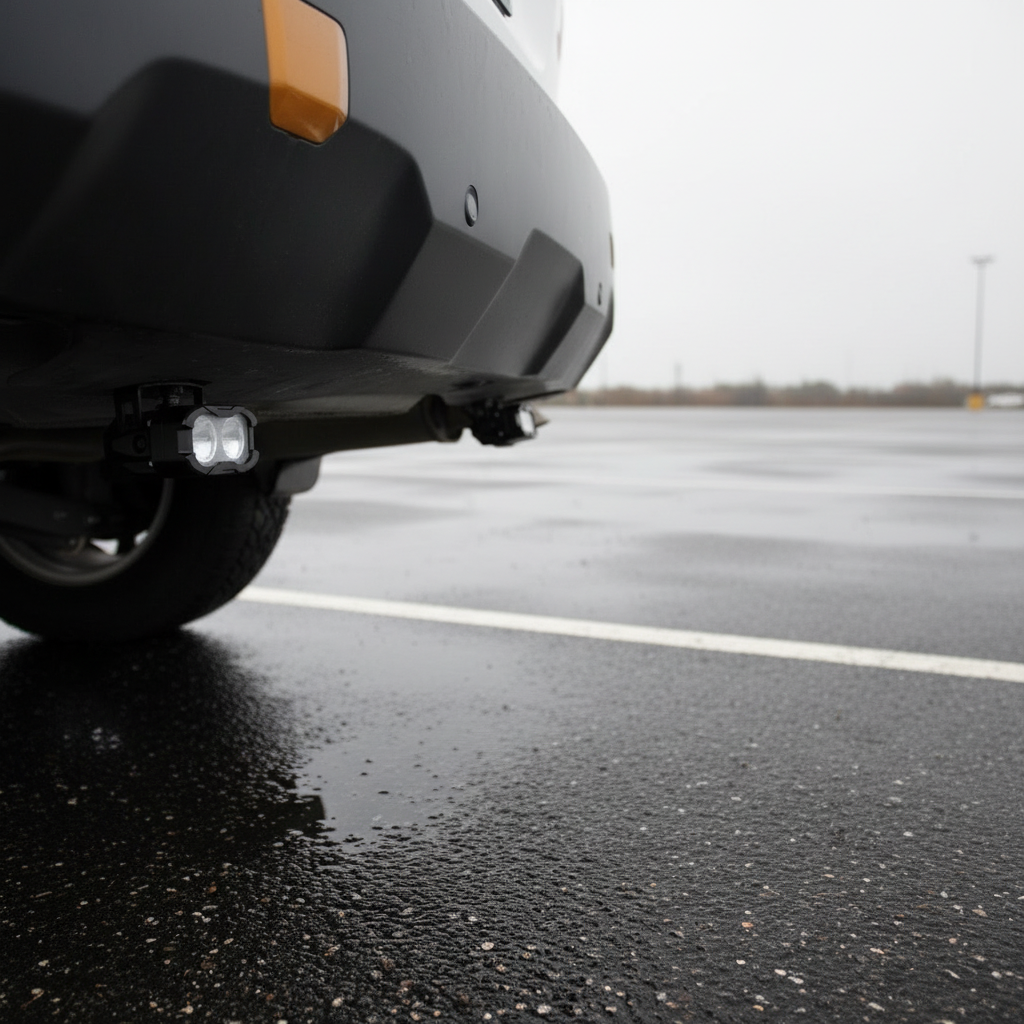

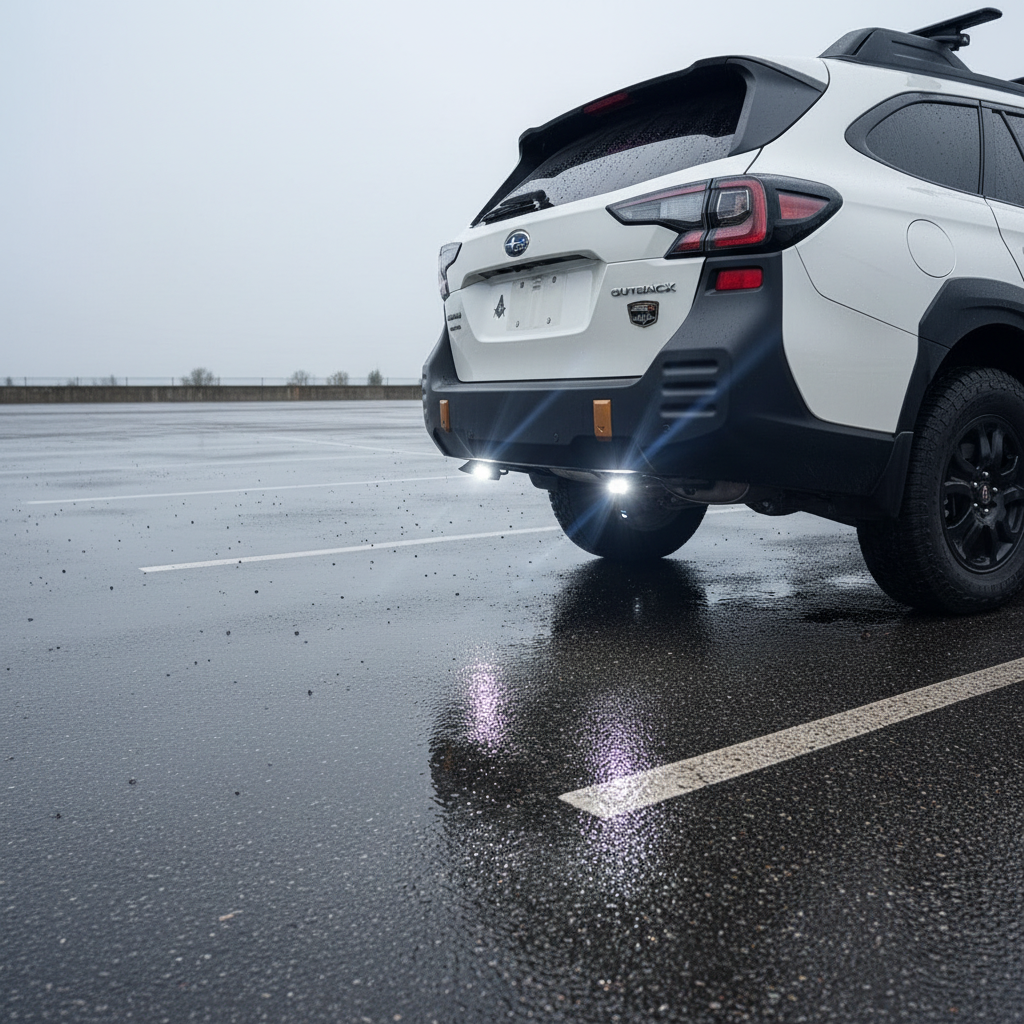

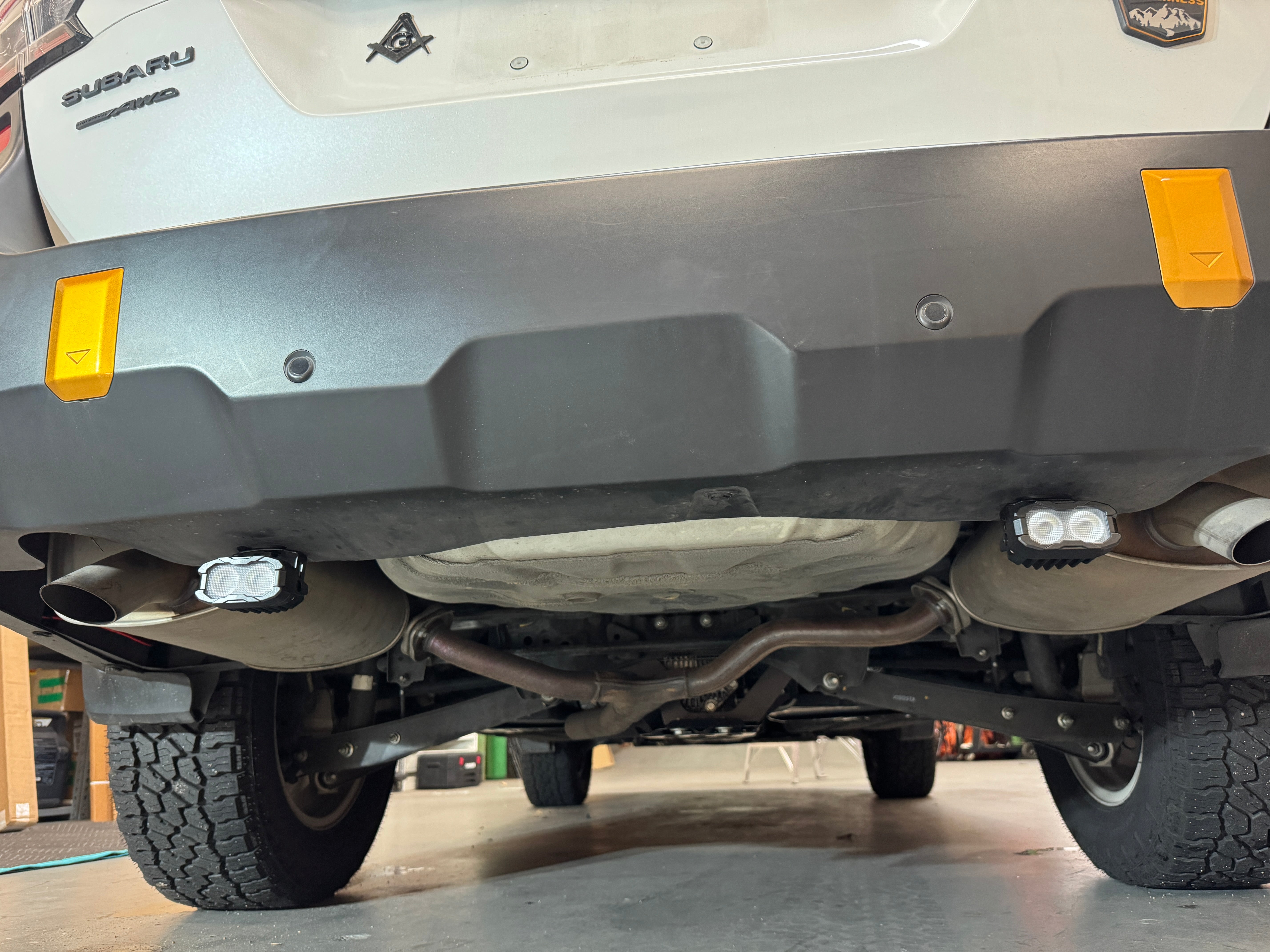

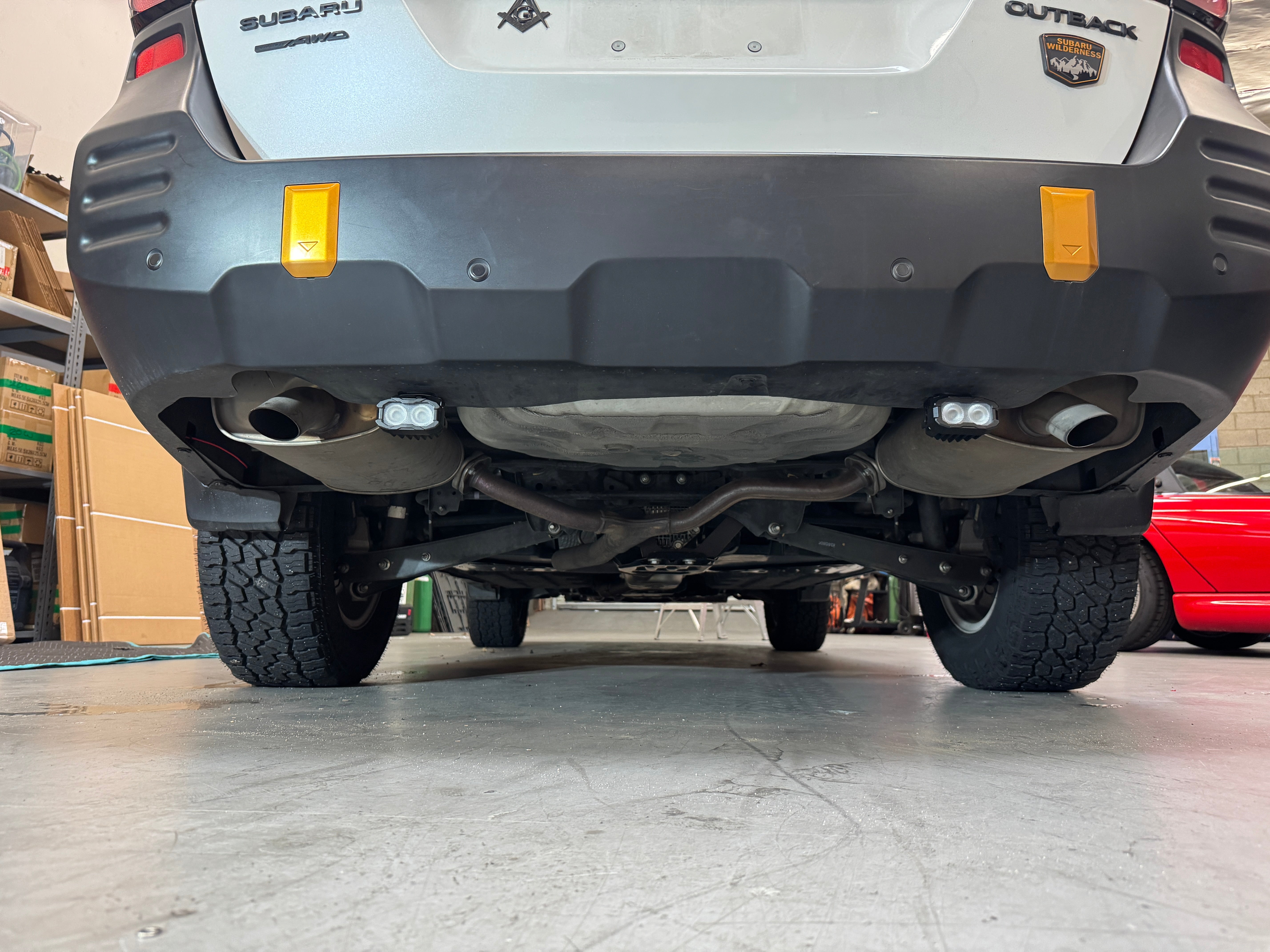

- This in addition to factory reverse light. The factory reverse light doesn't provide enough light output at night. Install M&R reverse light with powerful white LED light that makes a huge difference.

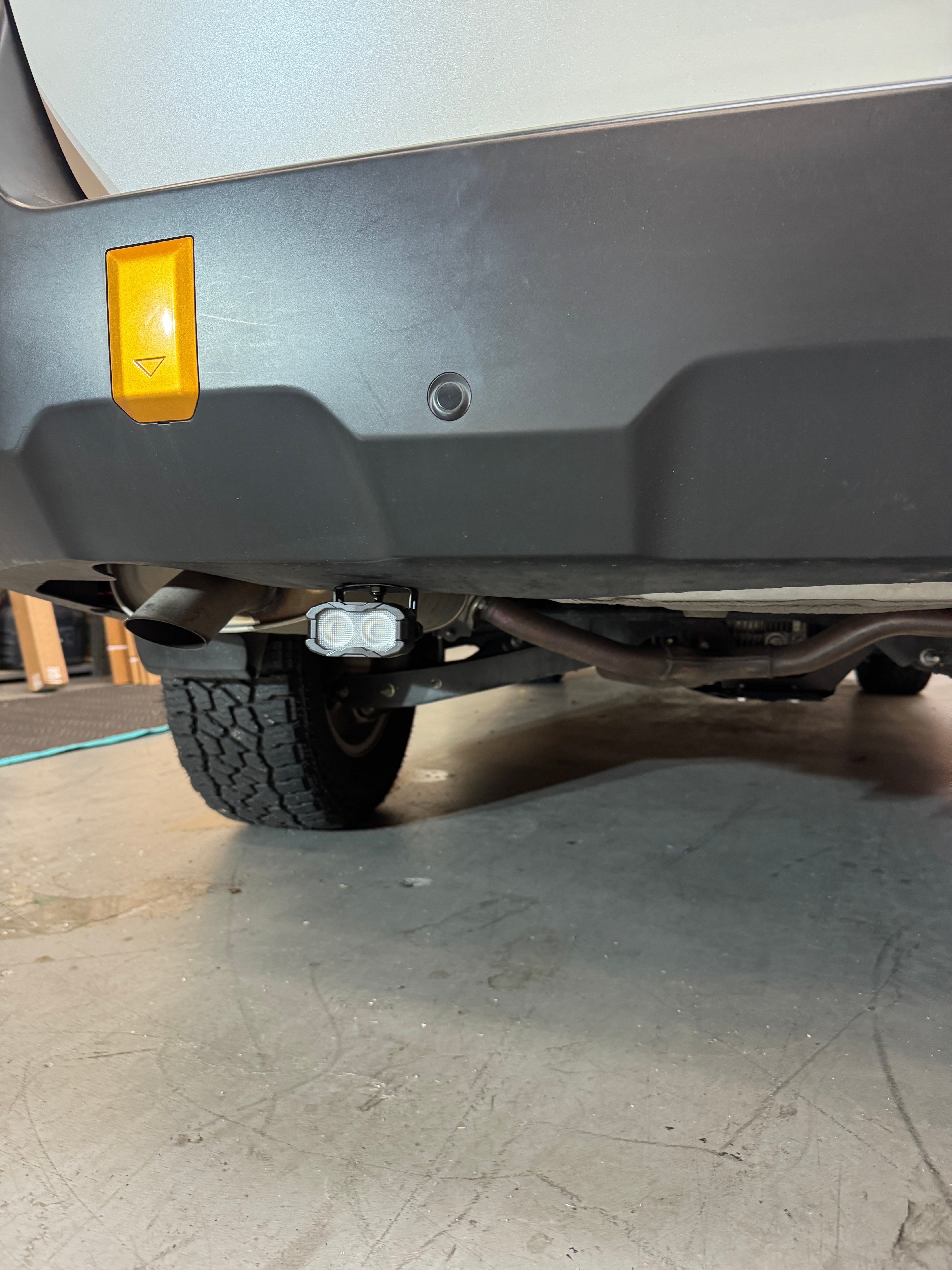

- No cutting or drilling required. The kit is a complete bolt on
Introducing our new LED light bar-PRO with a unique appearance and optimal performance.
- Combo Pattern: combined spot and driving optics offer a balance between distance and width
- Uses a TIR (Total Internal Reflection) lens, which is different from our regular slim light bar. The TIR lens collects all of the light from the LED and directly leads them to where you need, drastically reducing glare and improving total efficiency.
- Higher light efficiency: brighter, longer irradiation distance
- Housing is upgraded to 304 aluminum. The surface is UV polyester powder coated to protect against UV, salt water, corrosion, fading and scratch resistant.
- Equipped with thermal management system that automatically adjusts the brightness output according to the external temperatures

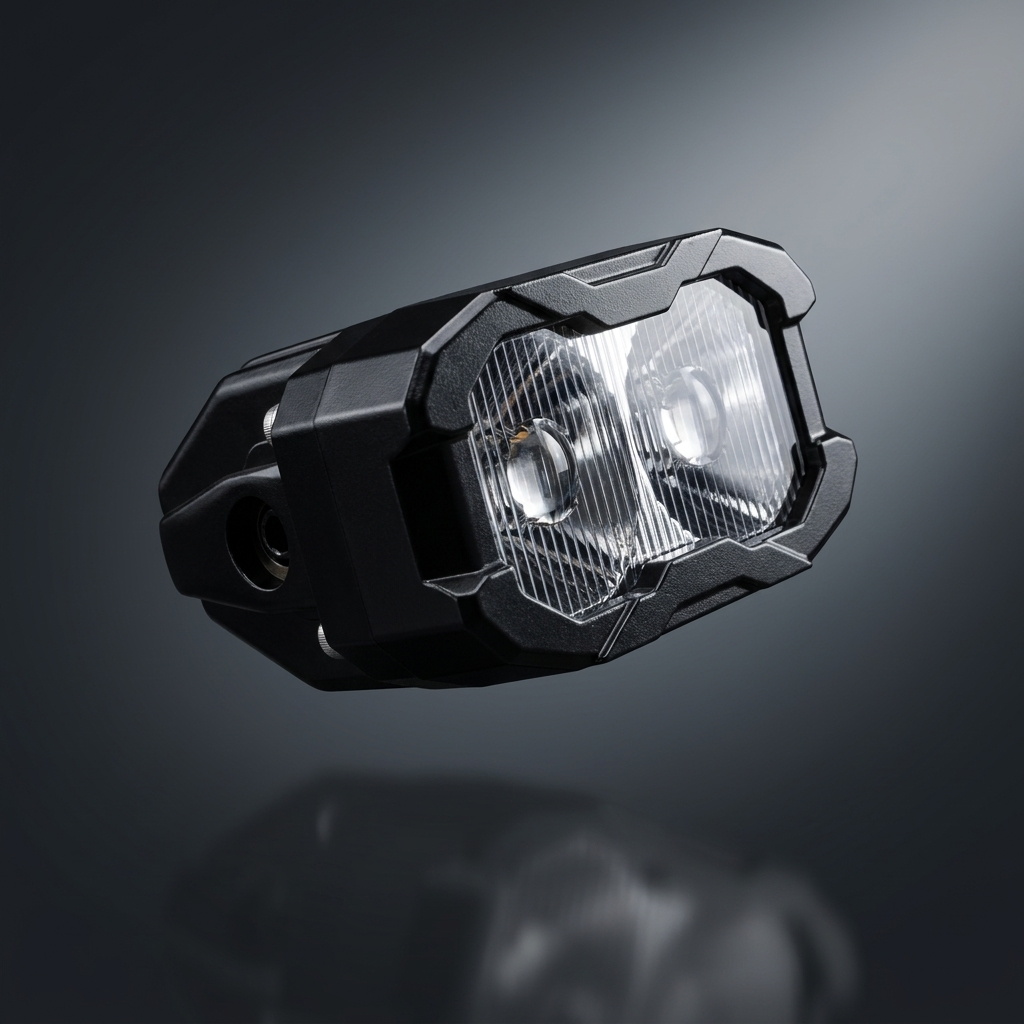

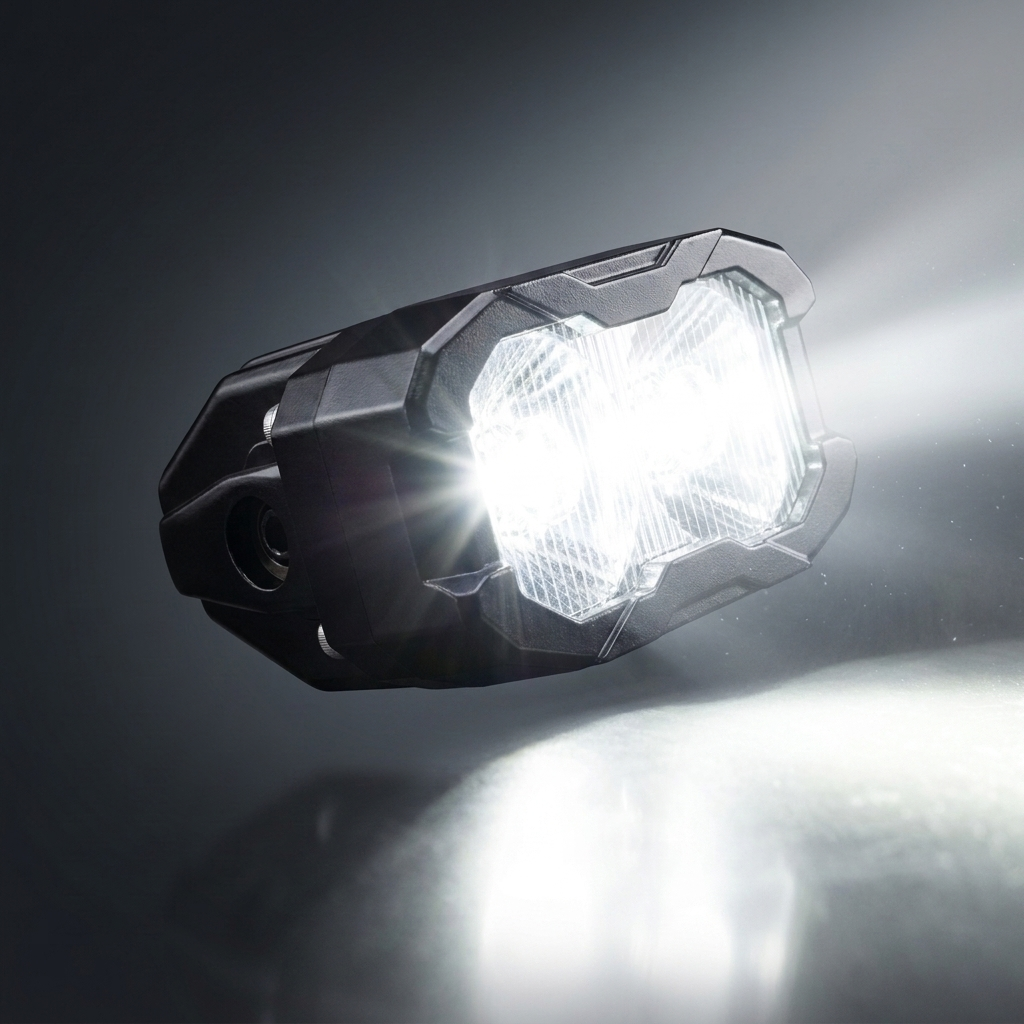

20W PRO LED Light Pod
| Beam Pattern | Driving |
| Theoretical Max Power | 20 watts |
| Actual Power | 19.8 watts |
| Voltage / Current (Main) | DC 12V / 2.06A |
| Voltage / Current (Backlight) | DC 12V / 0.03A |
| Theoretical Max Luminous Flux | 2,184 lm |
| Measured Flux (without lens) | 1,970 lm |
| Measured Flux (with lens) | 1,474 lm |
| LED Type | Luminus SST-20 |
| Color Temperature | 6000K |
| Number of LEDs | 2 pcs |
| Product Size (L × W × D) | 3.25 × 1.69 × 2.78 in |
