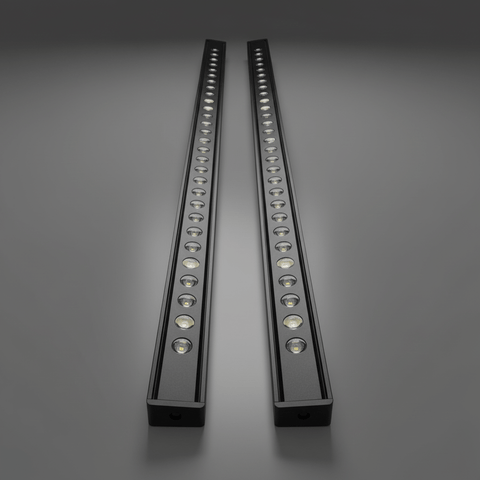

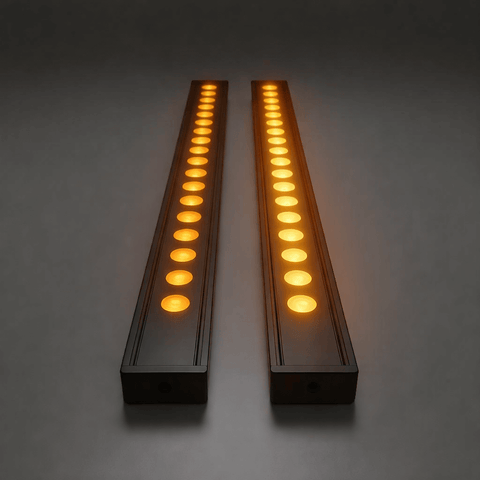

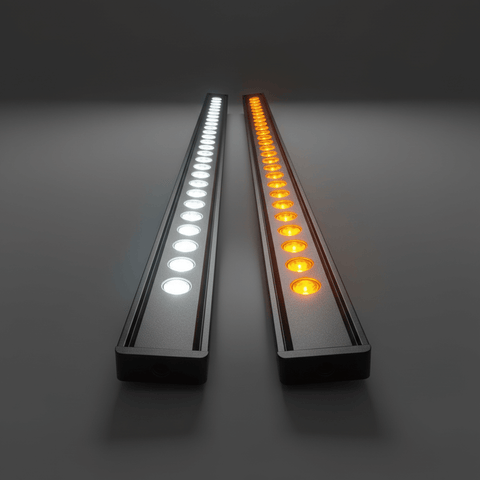

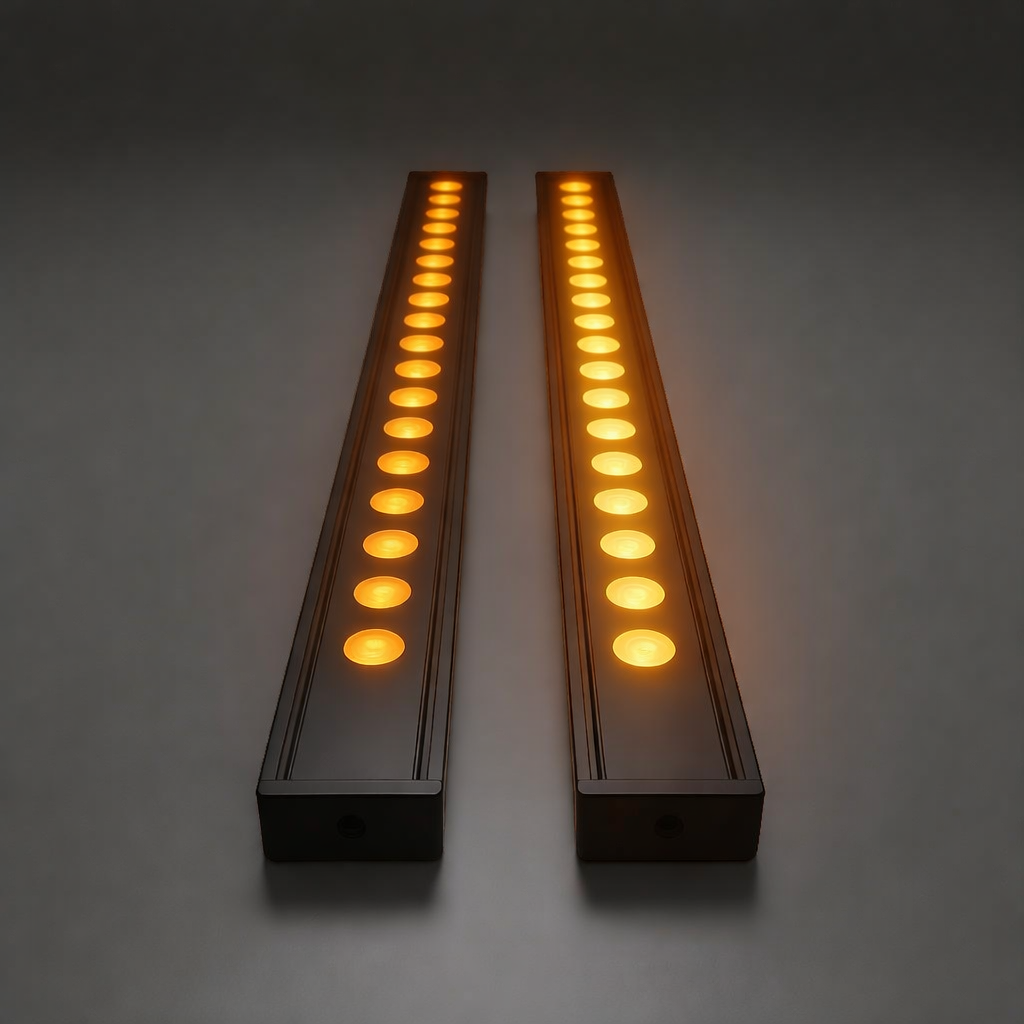

Tesla Cybertruck 40in Light Bar - Slim
What's in the Box
- (1) 40in curved light bar SLIM
- (2) metal brackets
- All mounting hardware included
Need a shop to install it? Find a trusted installer near you →
Off-road Use Only
Bolt On, No Drilling
Lifetime Warranty
Fits: 2024–2026 Tesla Cybertruck

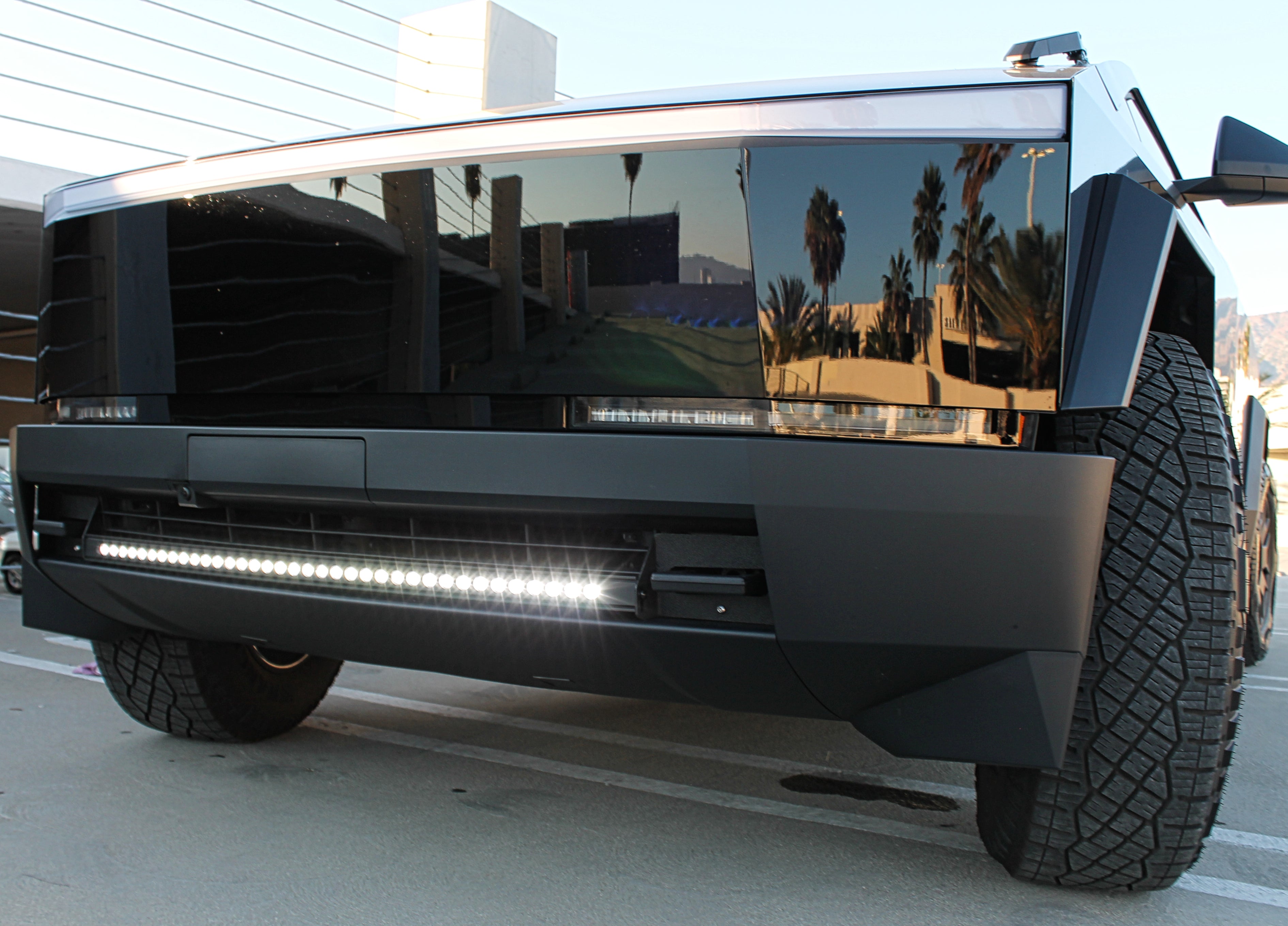

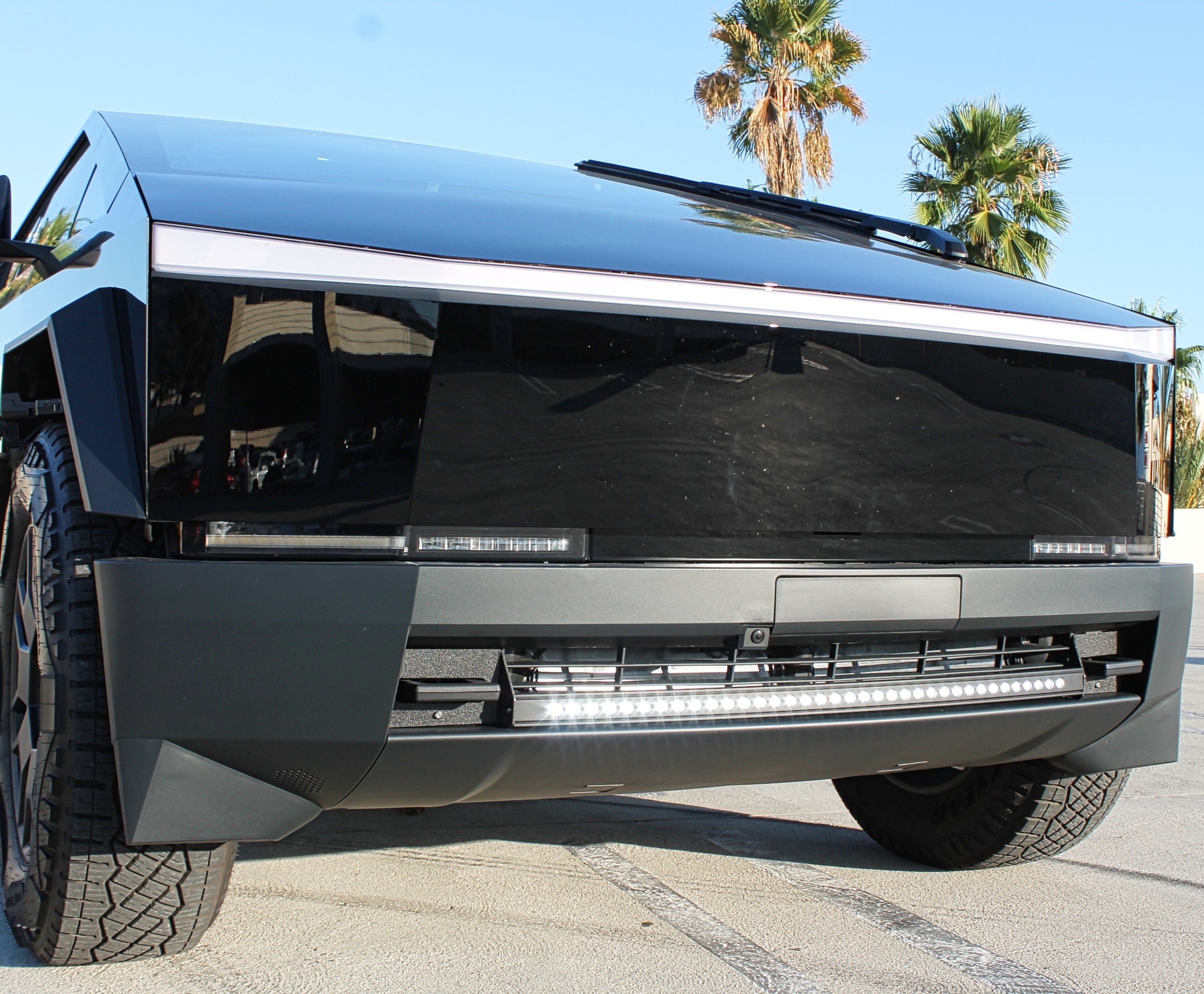

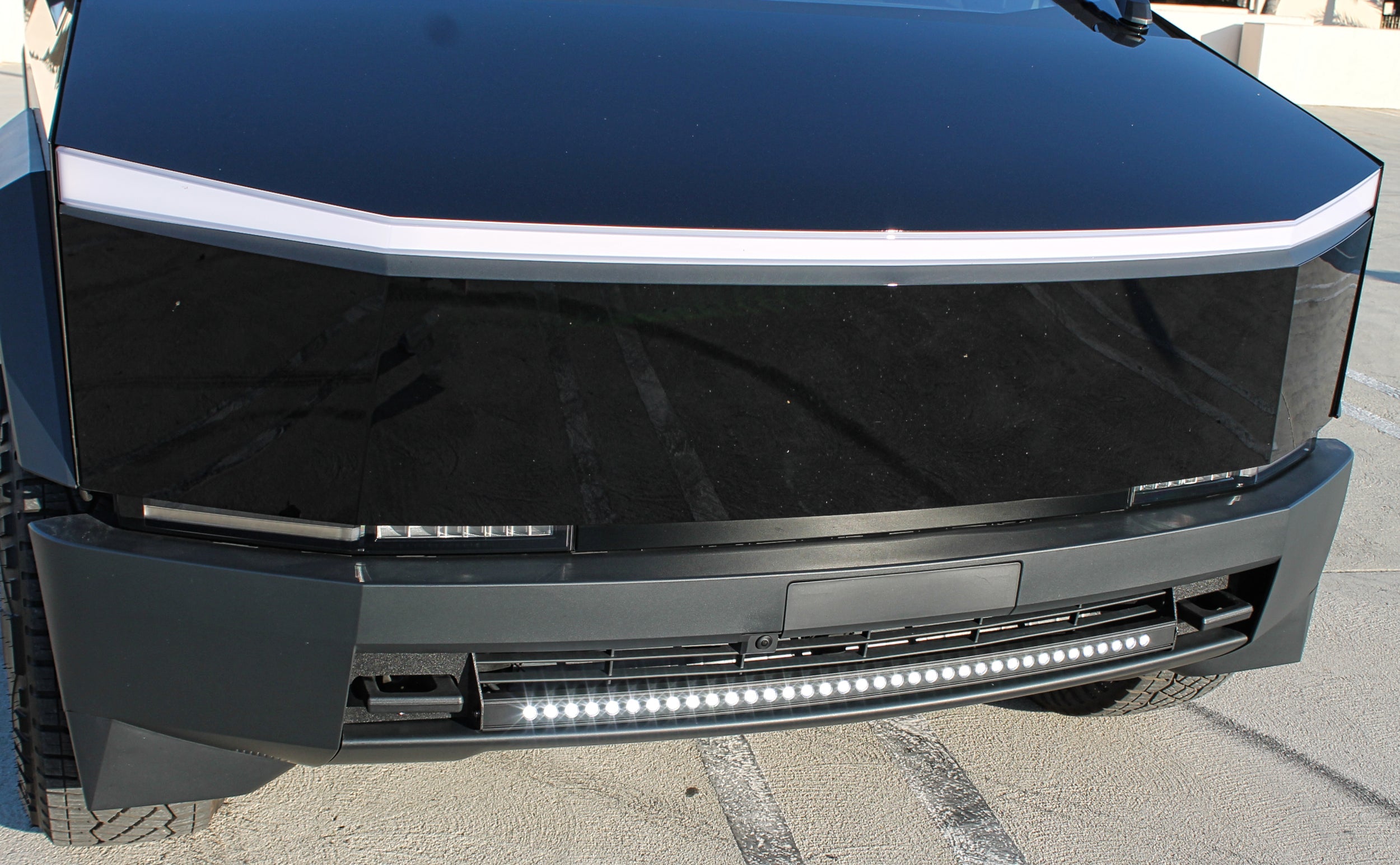

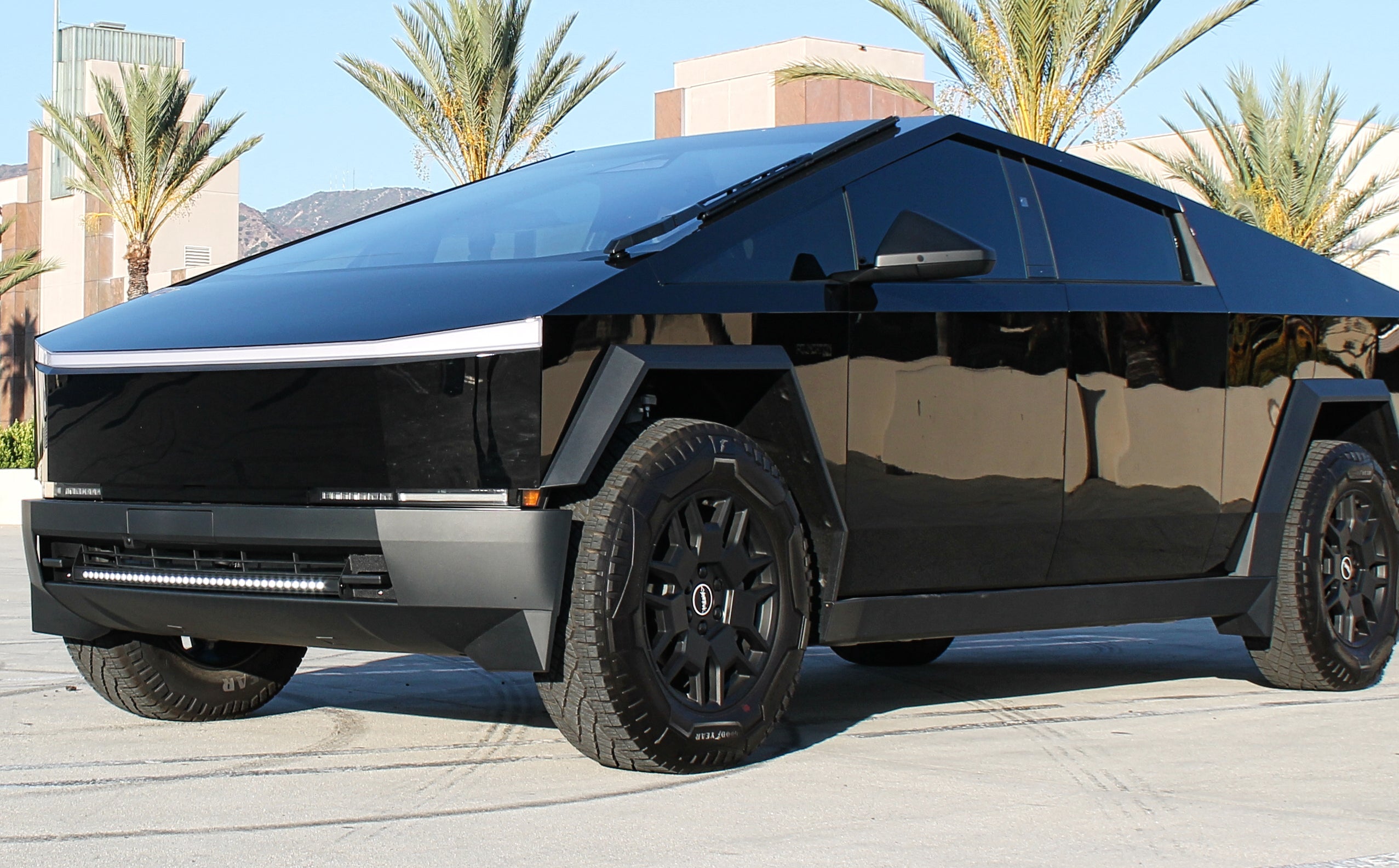

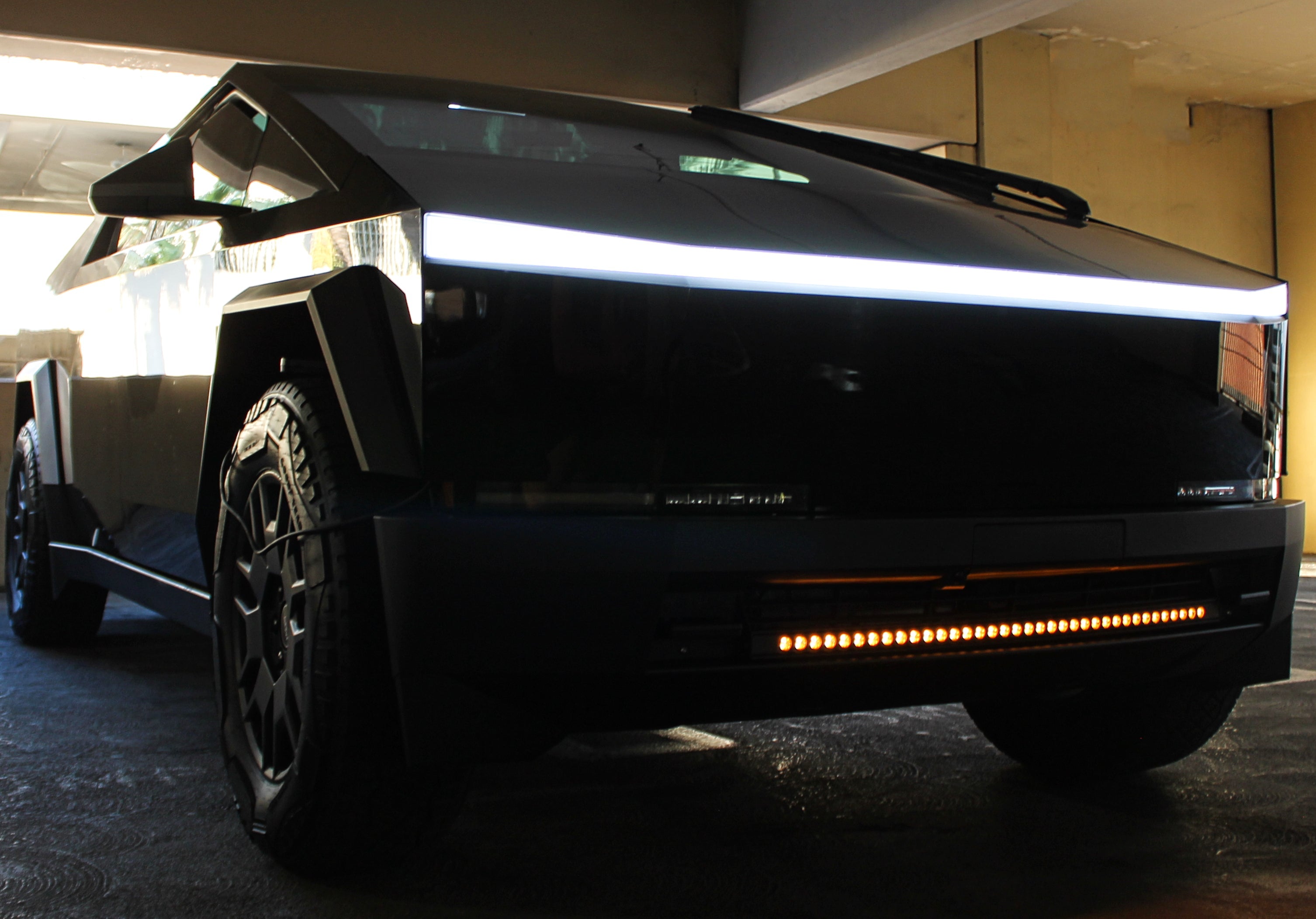

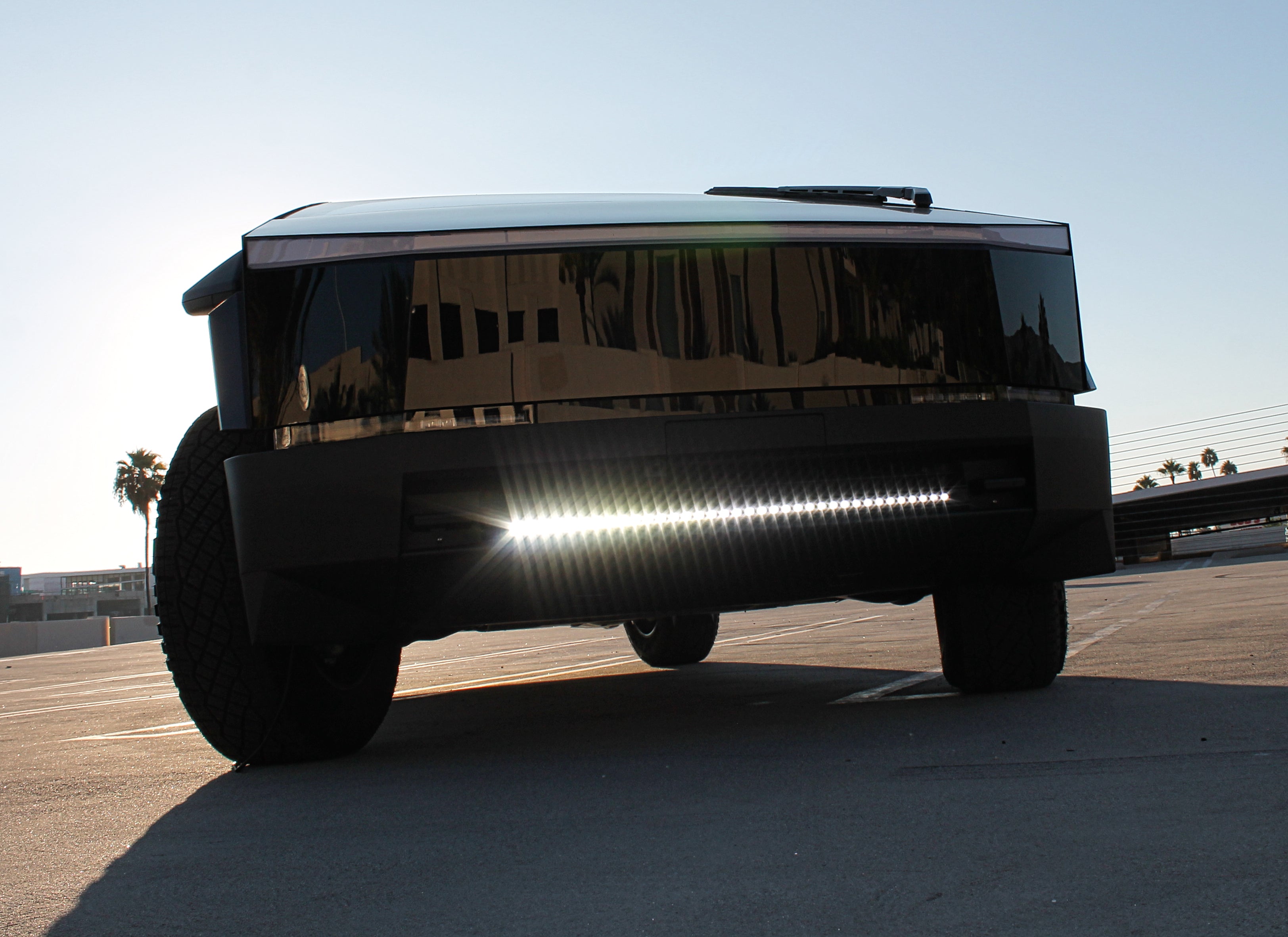

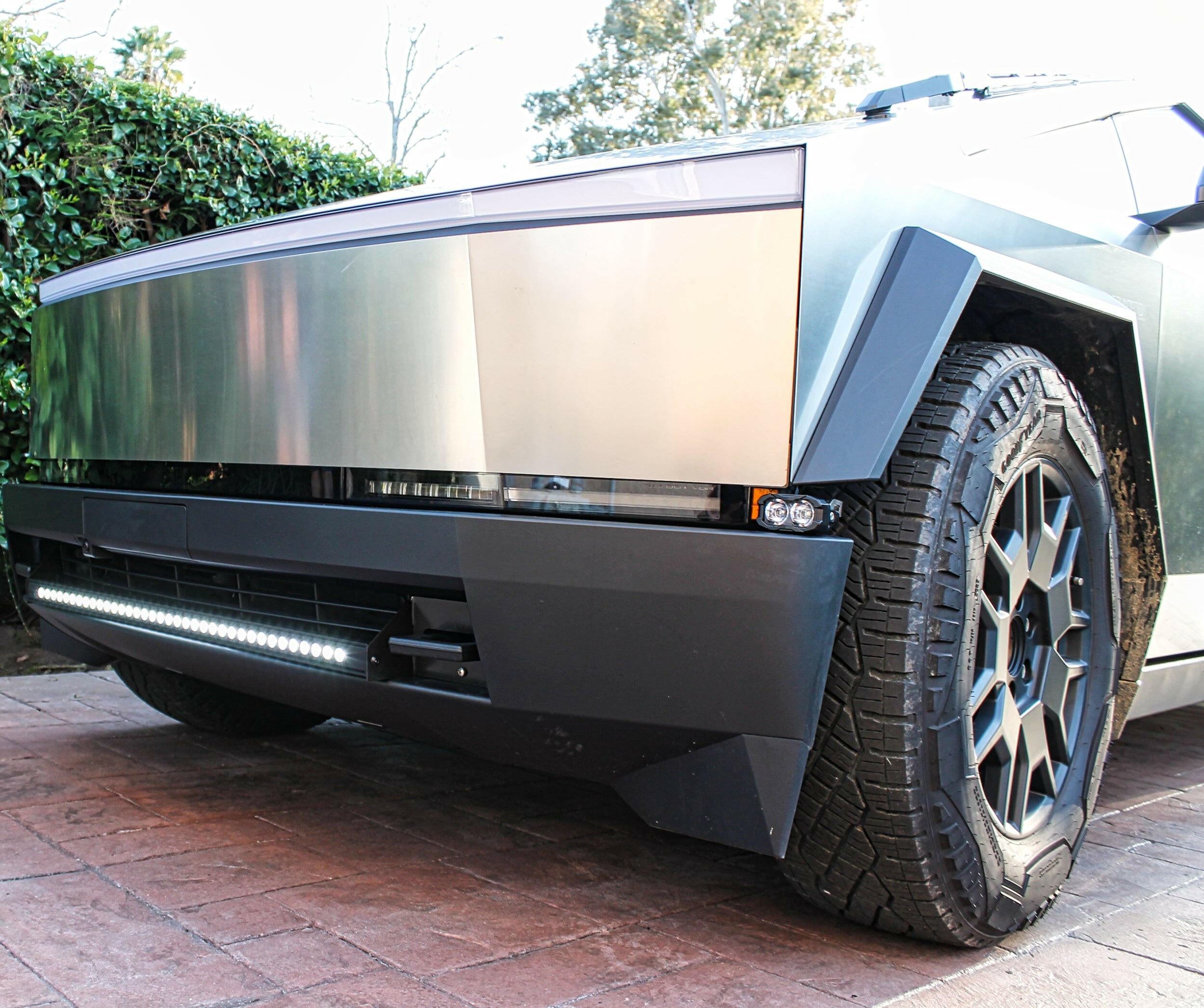

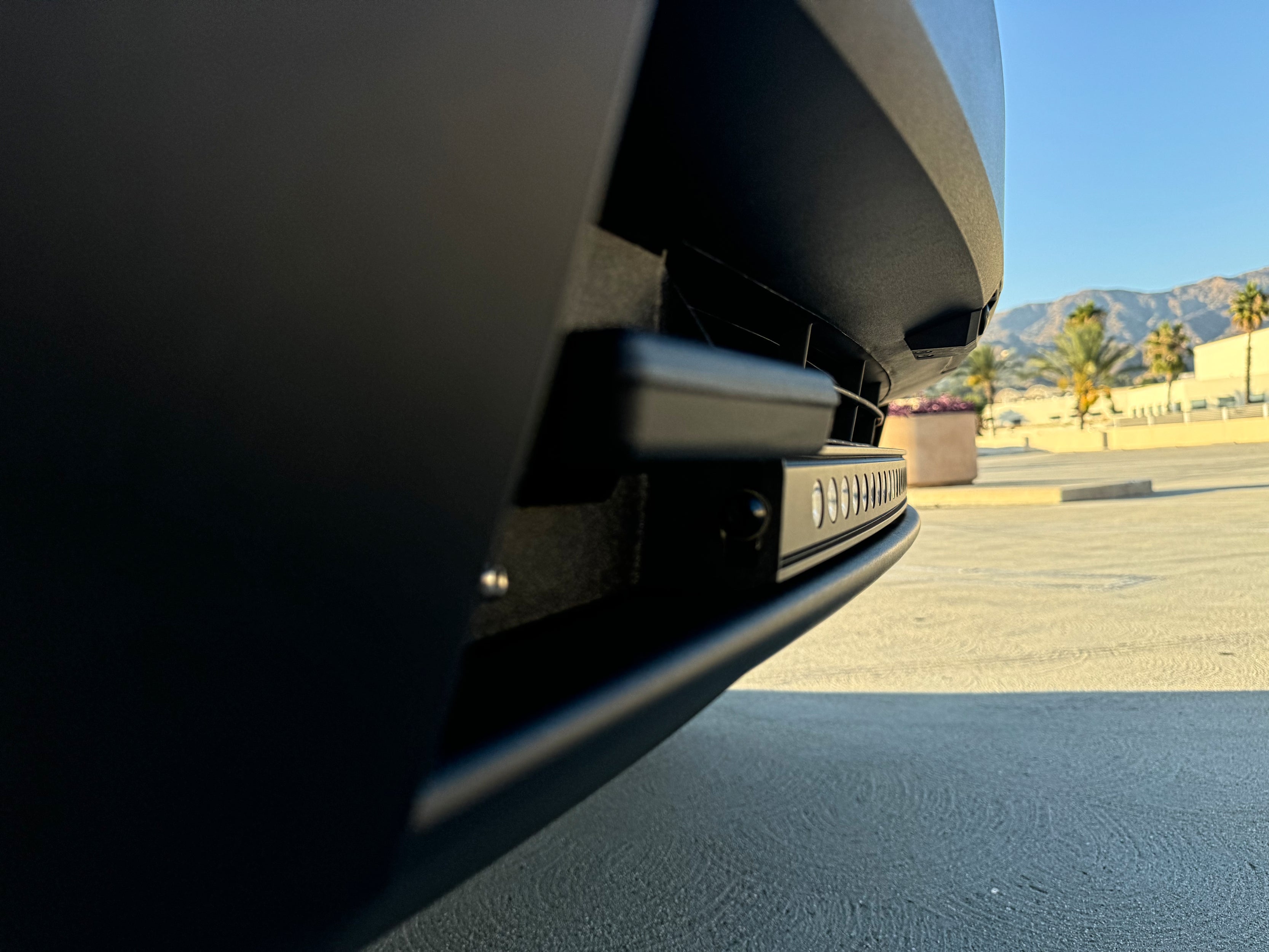

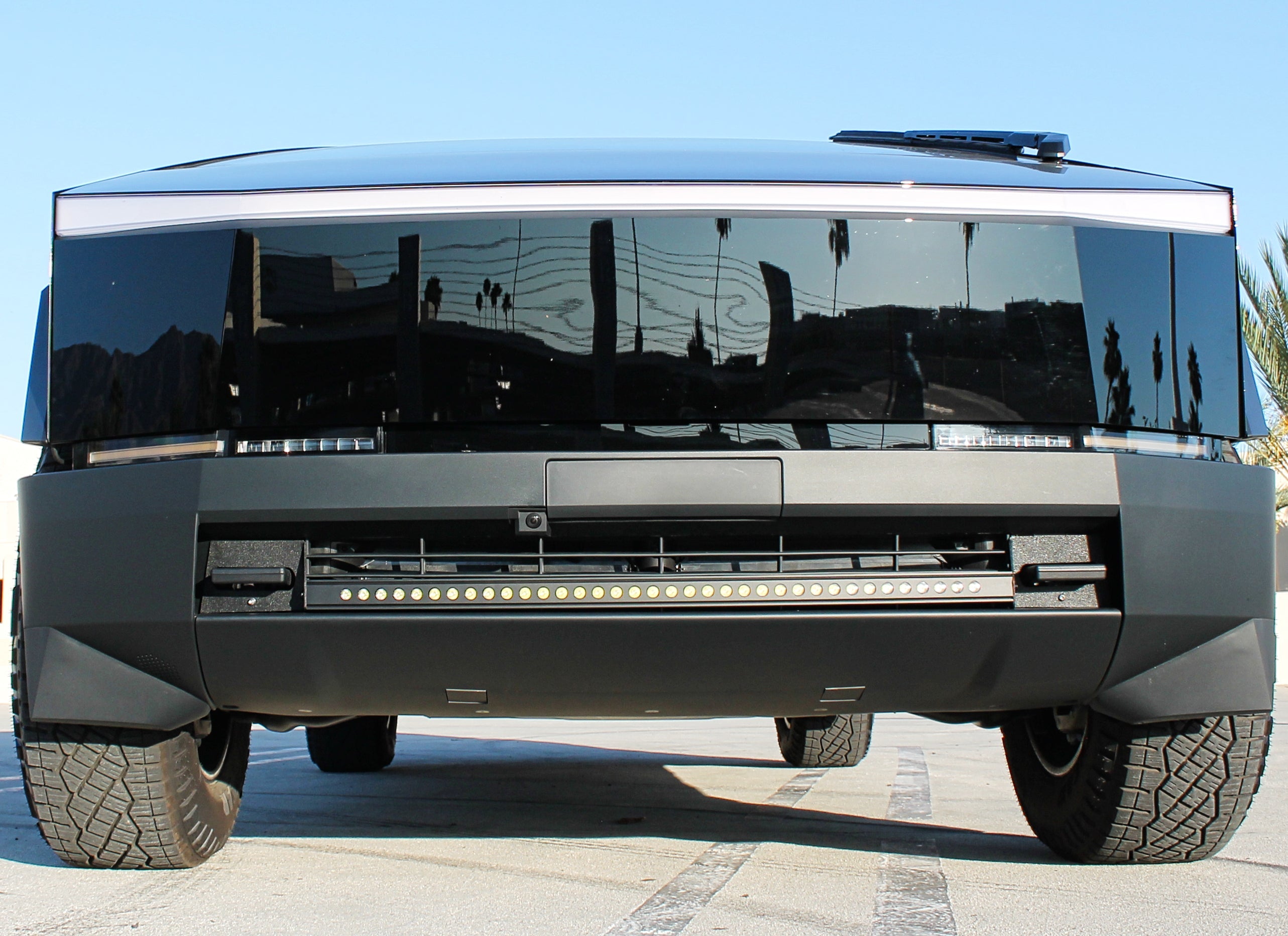

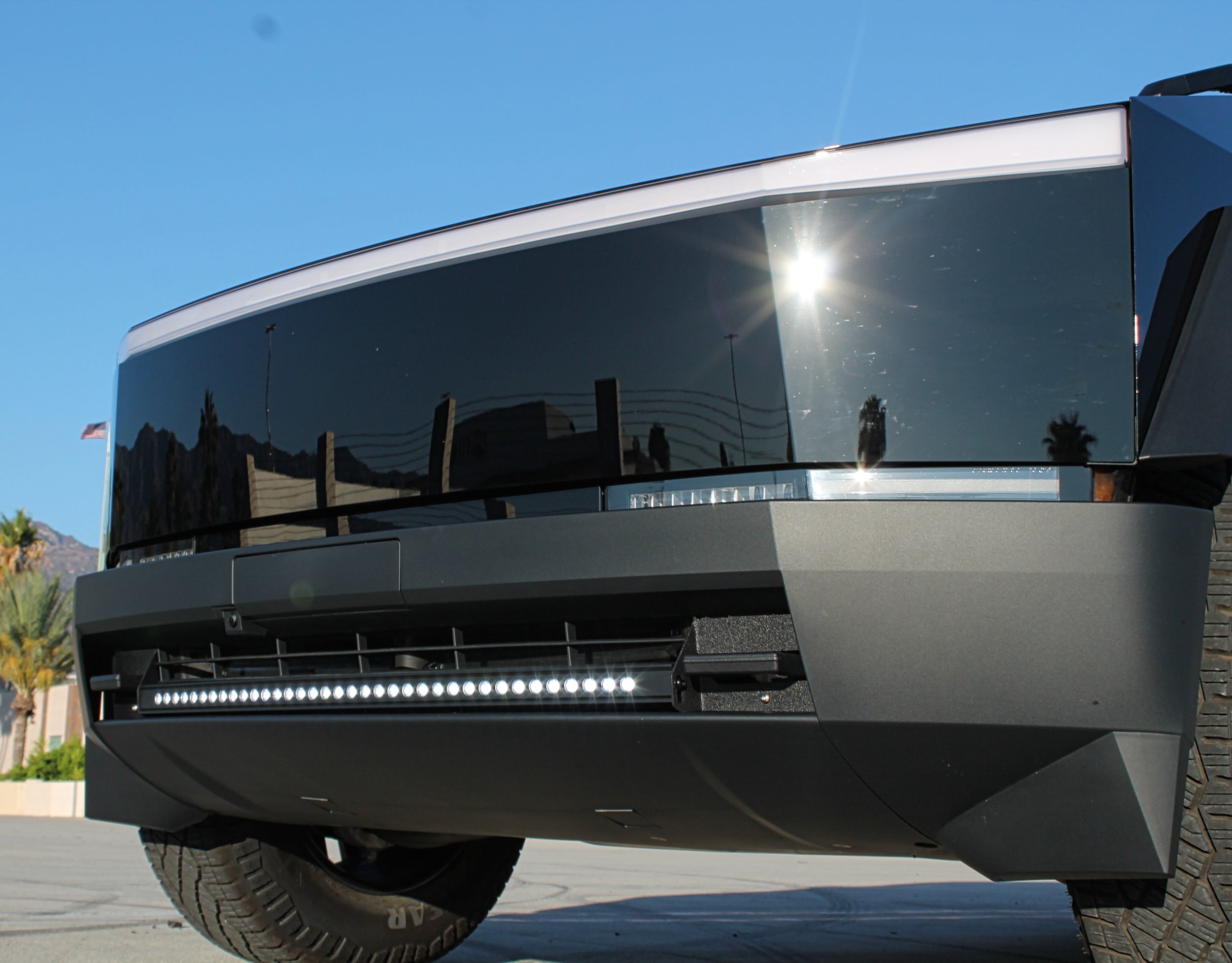

- Perfectly follows the Cybertruck bumper curvature, sleek/built-in look

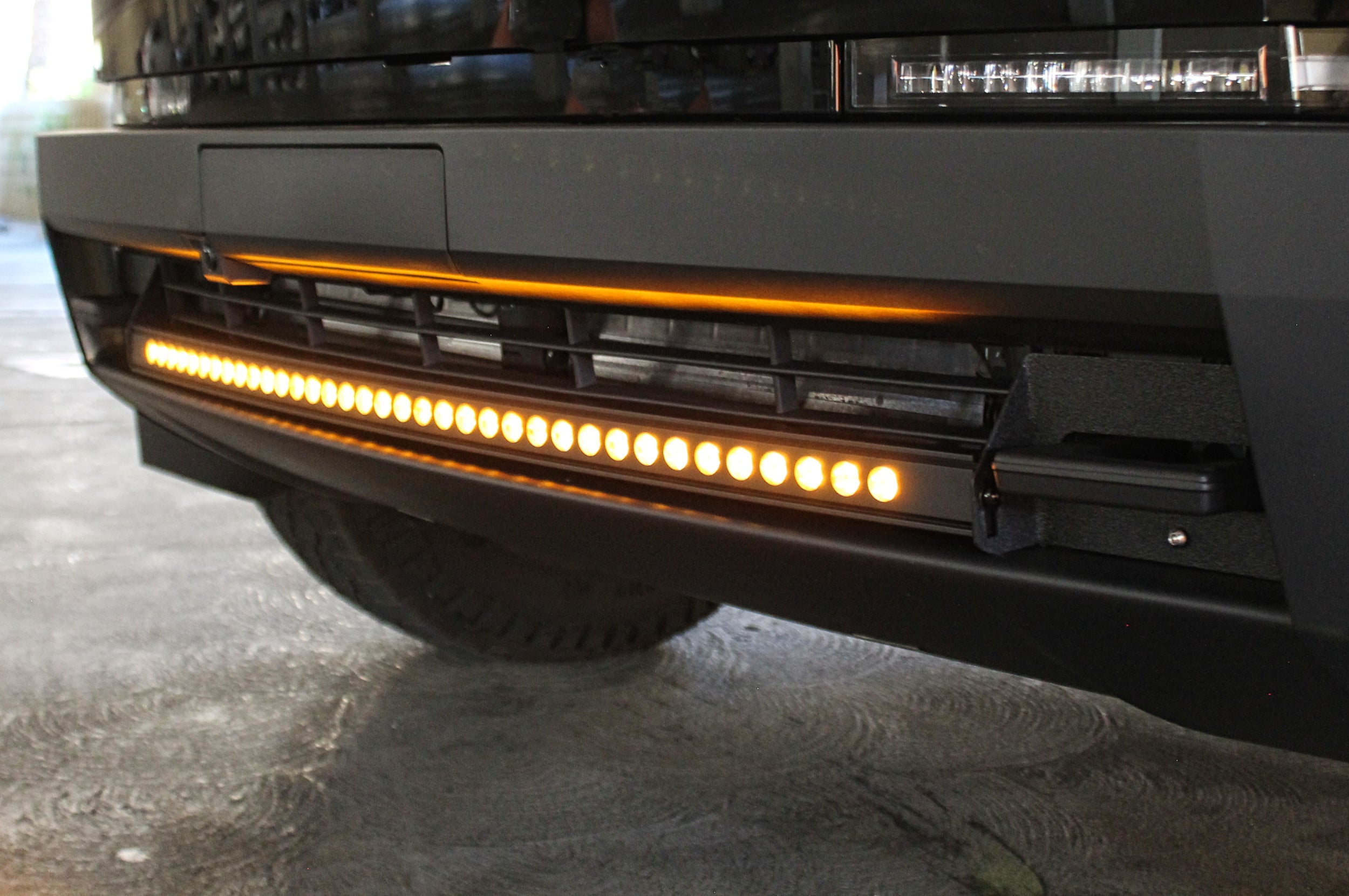

- No cutting or drilling required. The kit is a complete bolt on using factory openings and hardware

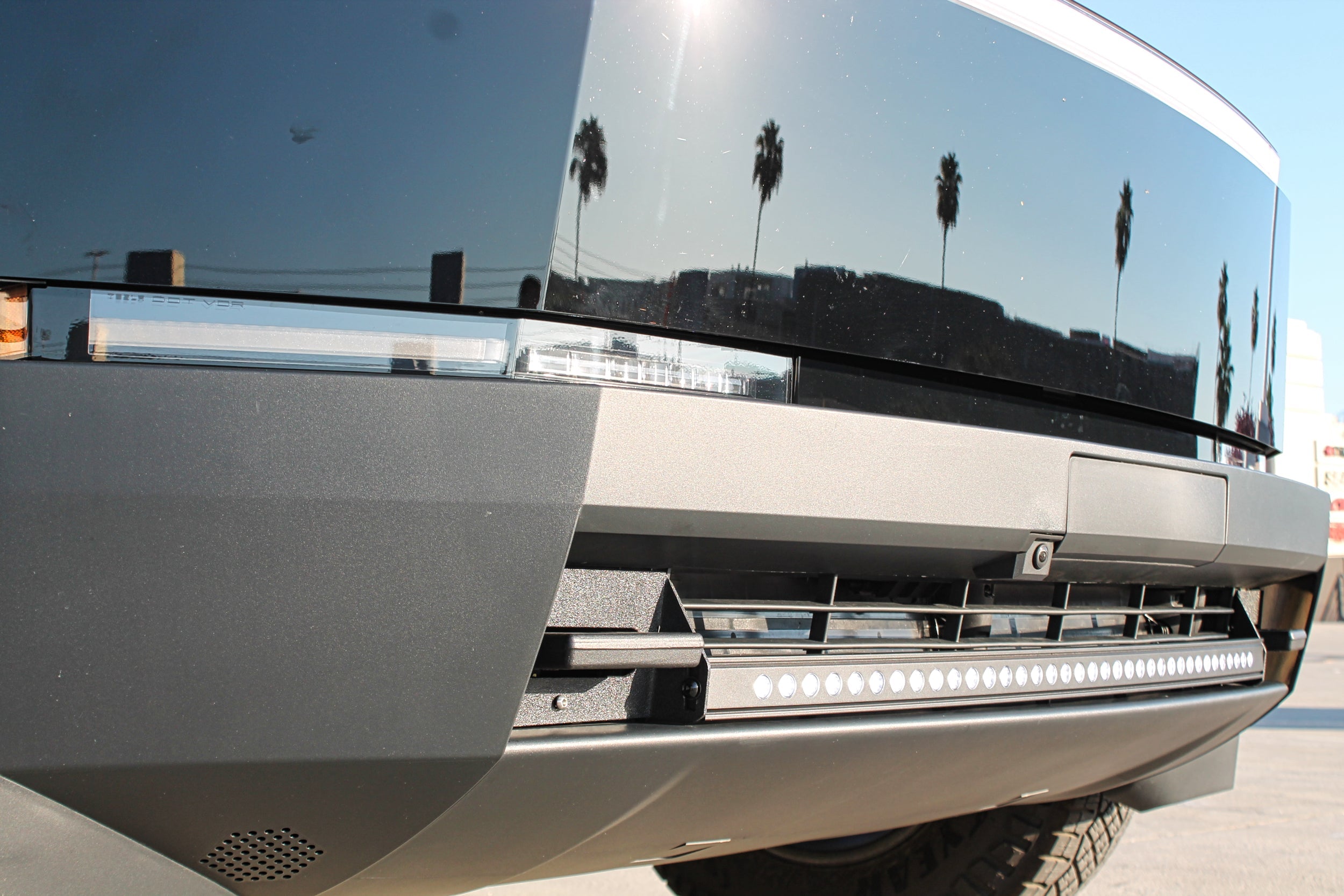

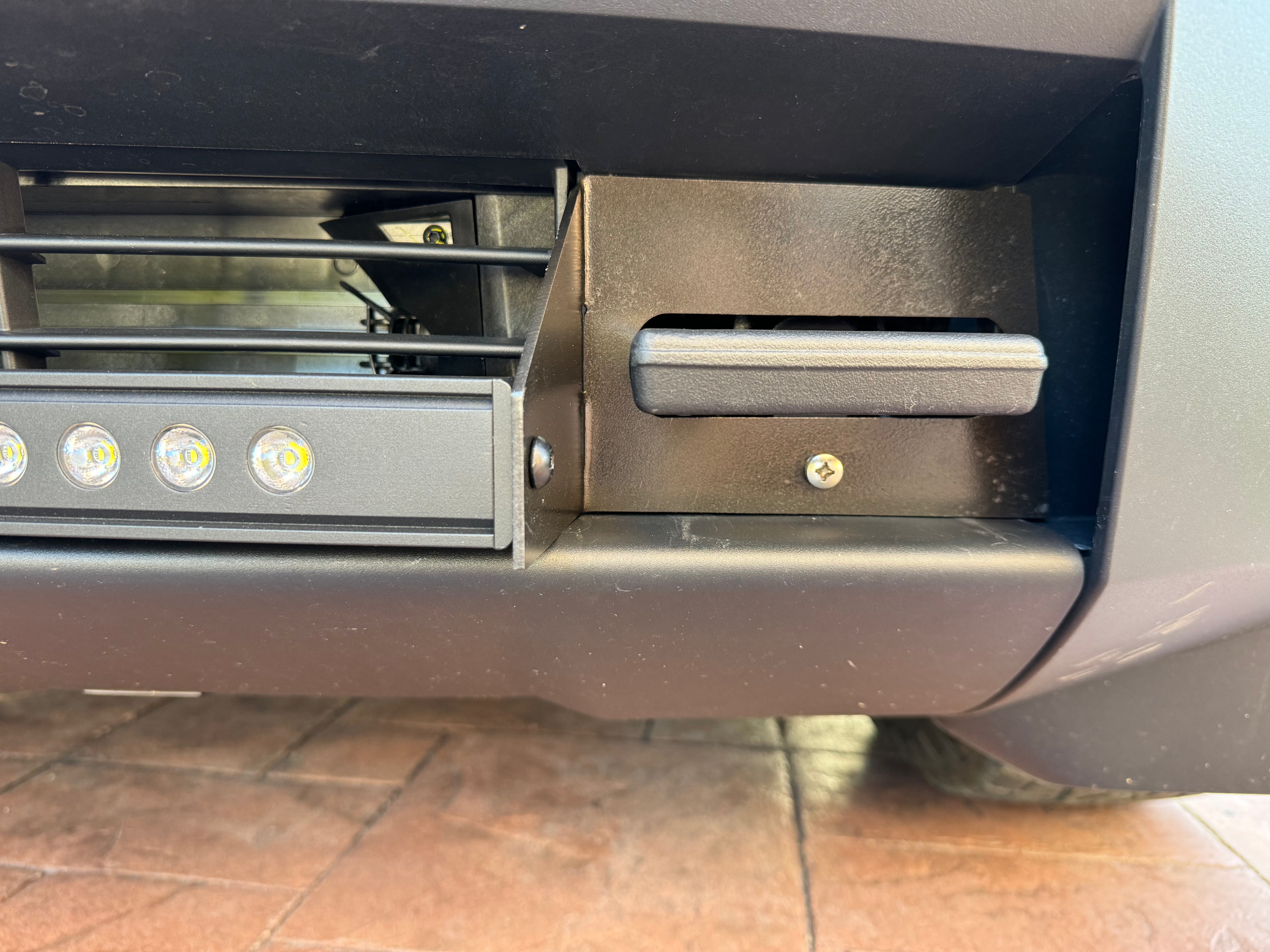

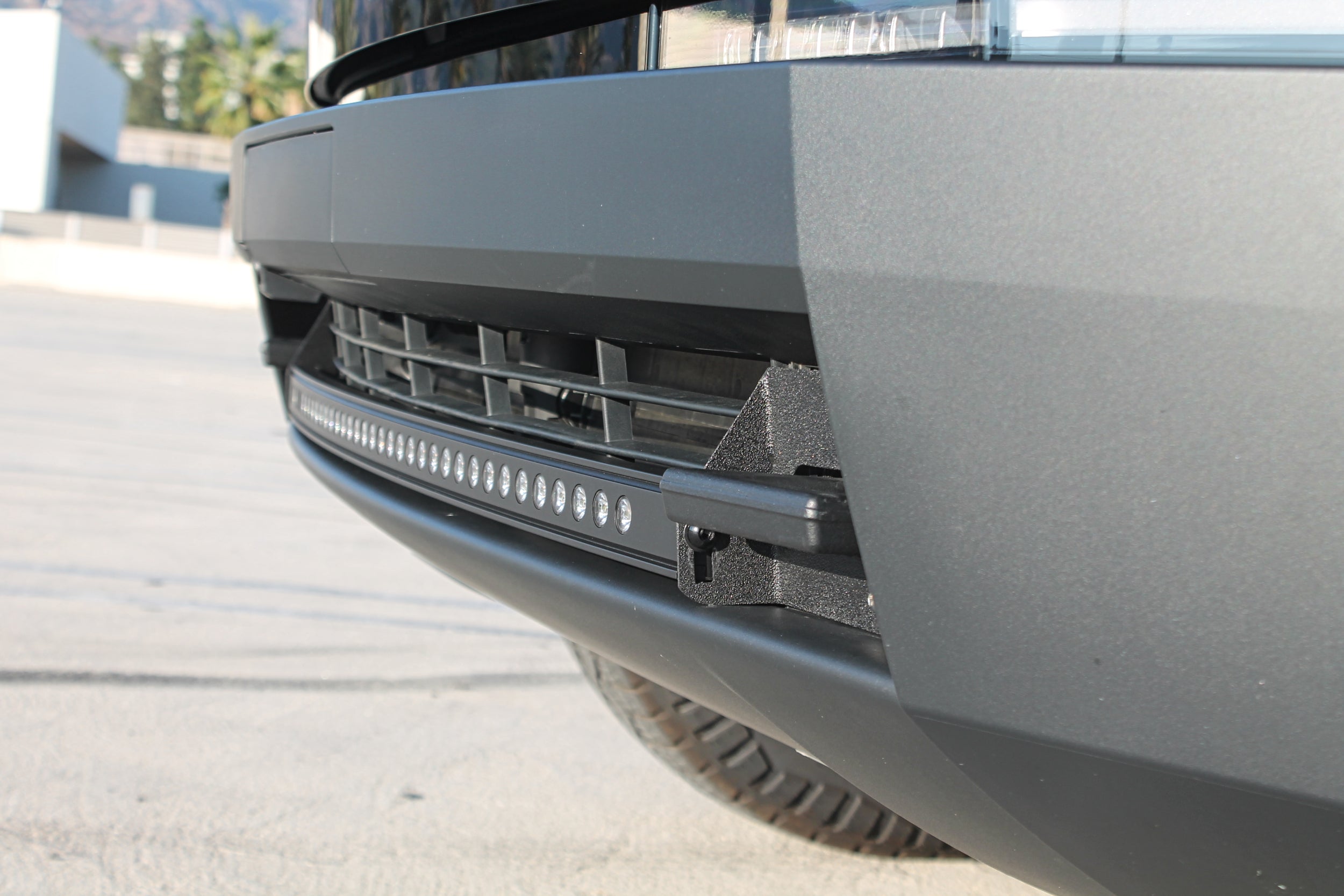

- Metal bracket is powder coated black which replaces the factory plastic caps
- Simple and quick install
- You will need to remove the frunk lining to extend the light bar wire to the AUX hookups.

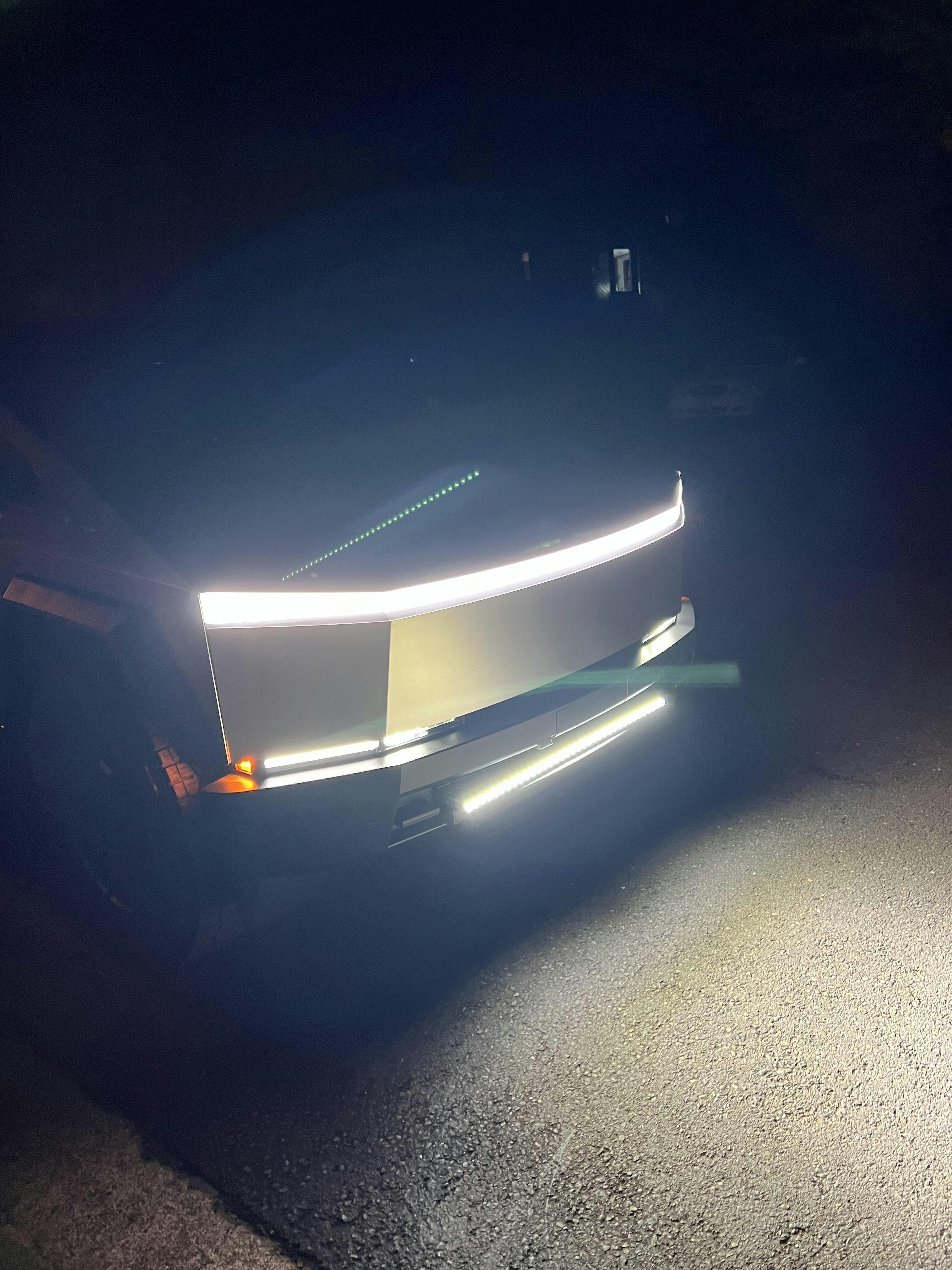

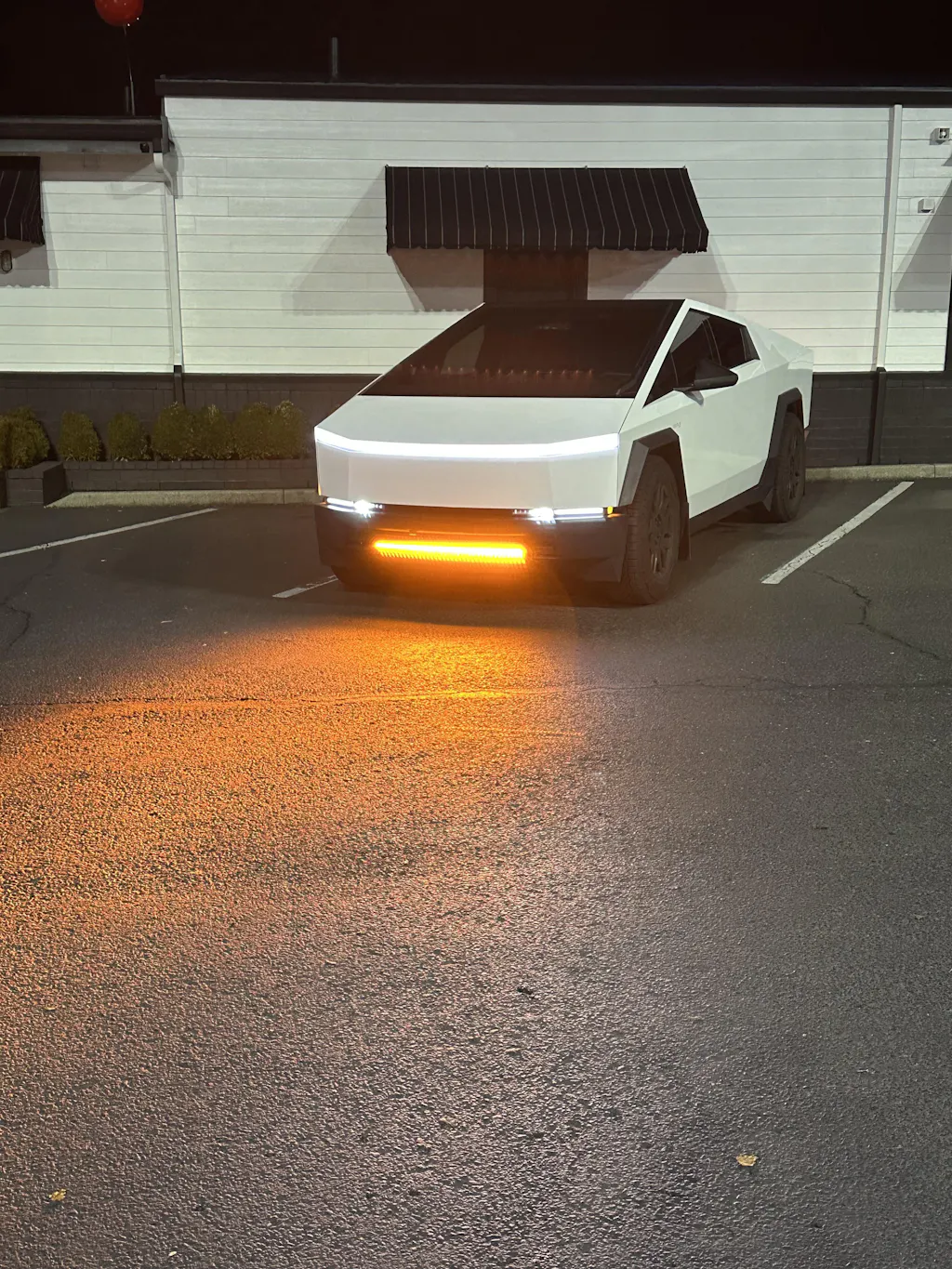

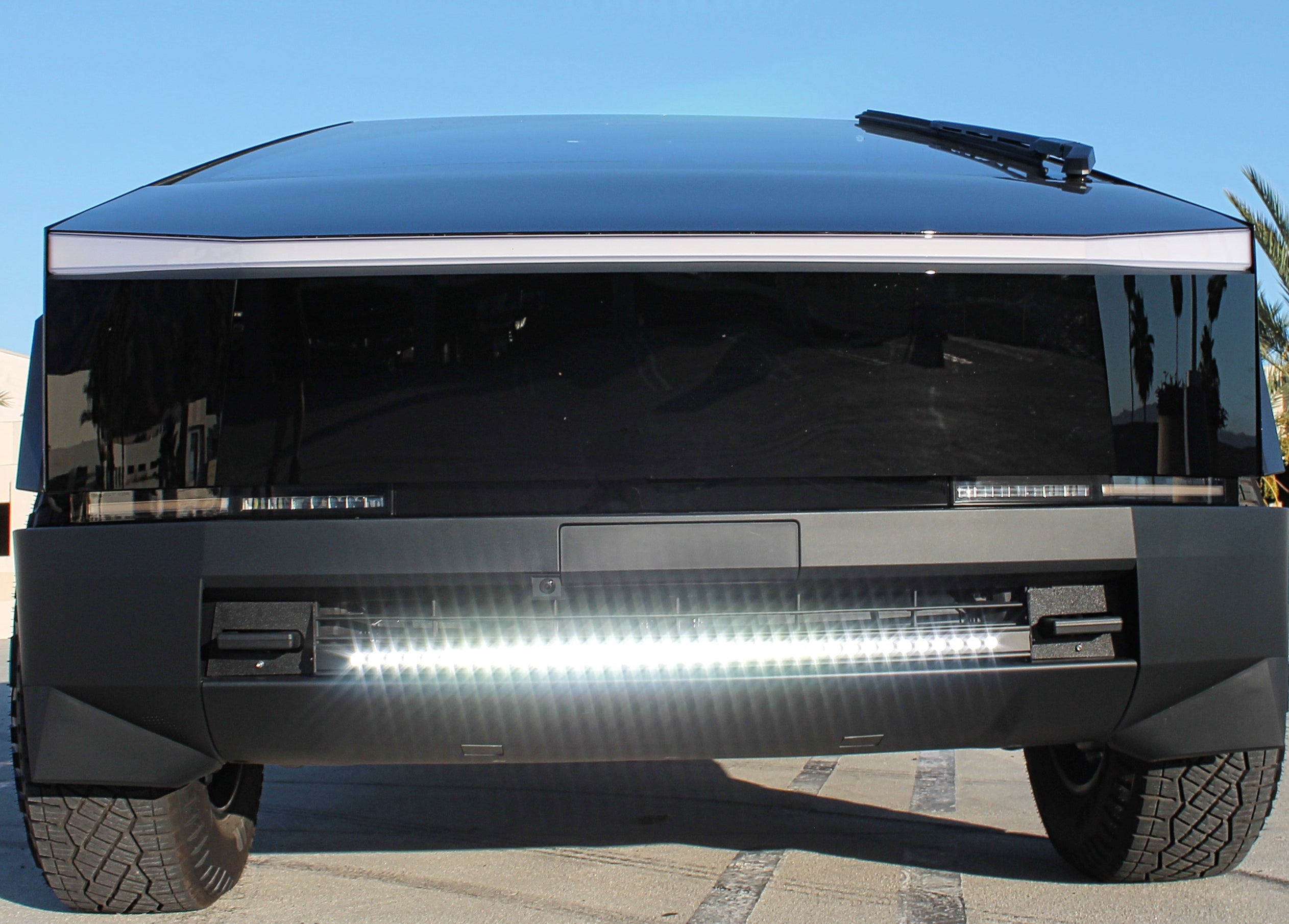

- Very powerful and bright, plenty of light

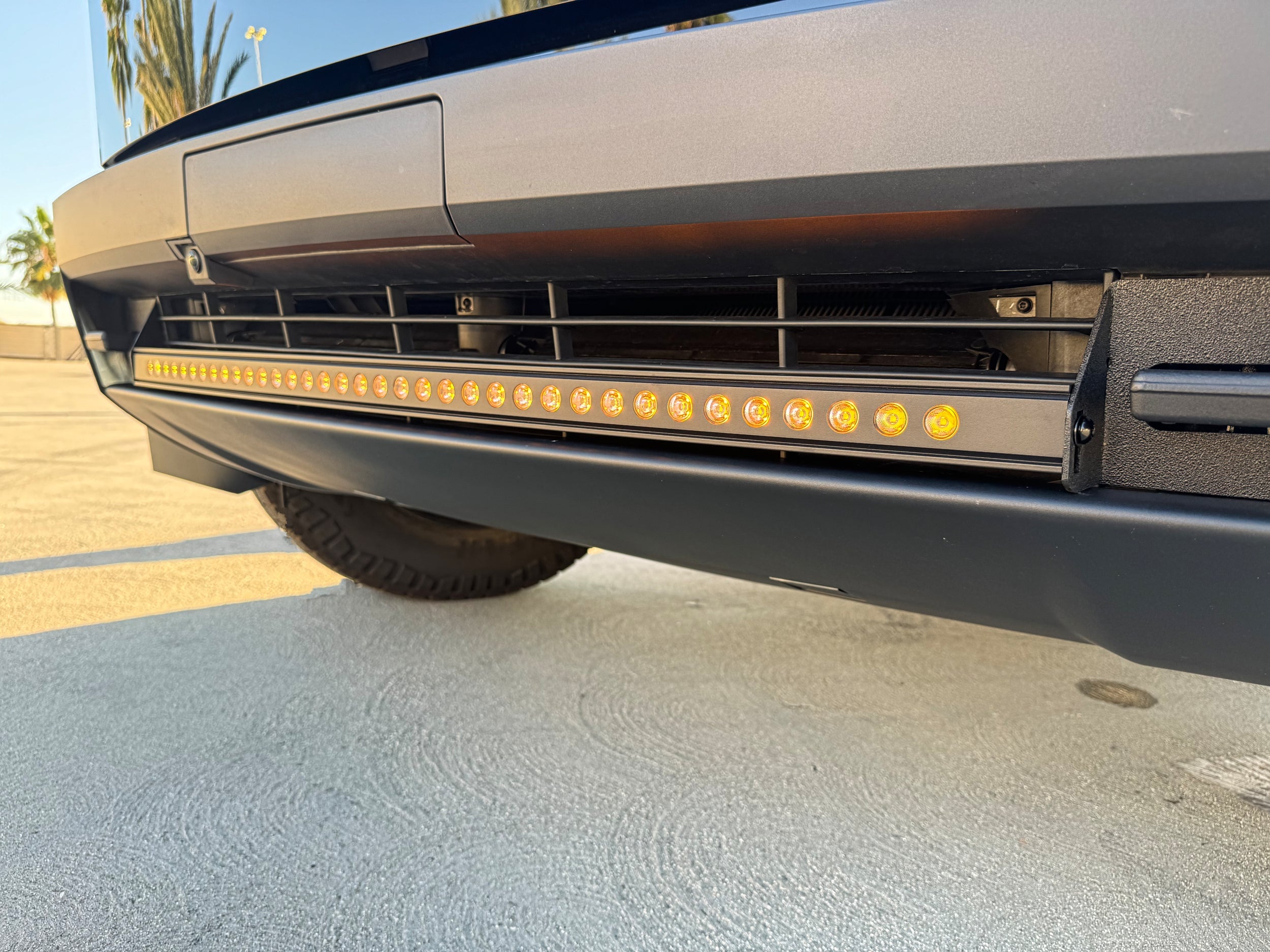

- The light bar covers only a small portion of the front intake opening, leaving the surrounding area open for full airflow to the battery cooling system.

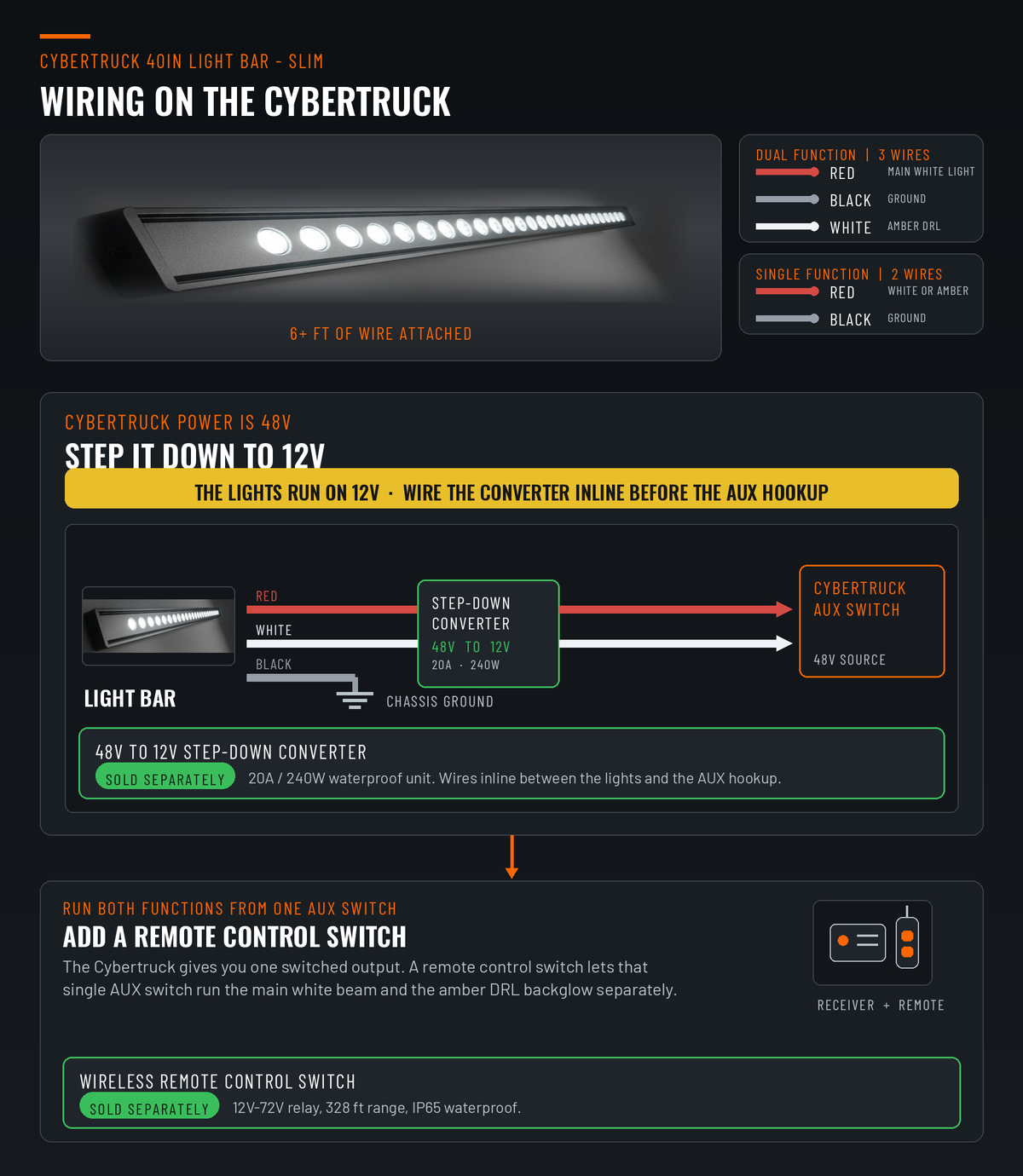

***PLEASE NOTE*** Cybertruck wiring for the power switch is 48v. You will need to purchase a step-down converter to decrease the voltage from 48v to 12v. The converter attaches in line to AUX hookups for easy installation. Here is an example you can purchase on Amazon.
BUILD QUALITY:

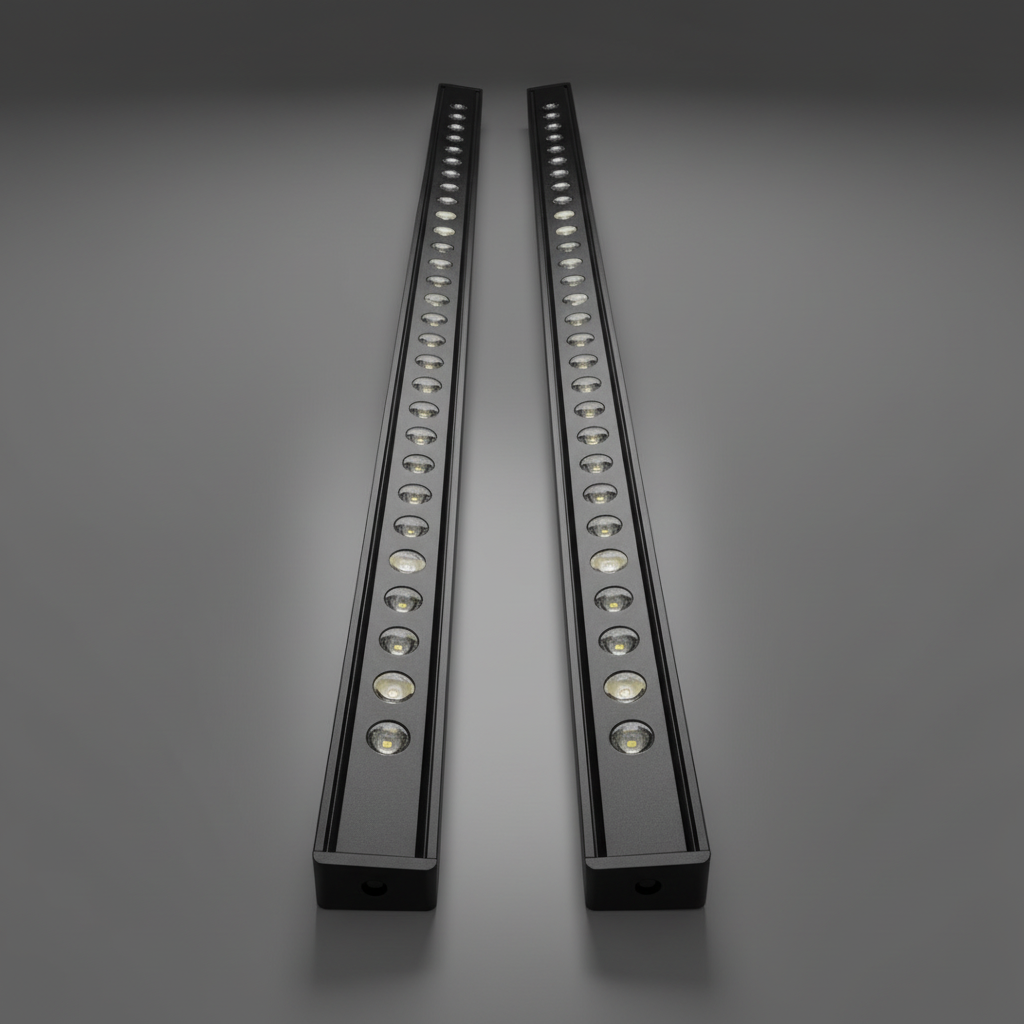

- Reflector-style optics with CREE XT-E LED chips for consistent, efficient output
- Housing is UV black powder coated to protect against fading, corrosion, and weather exposure
- Rated for a 50,000 hour lifespan

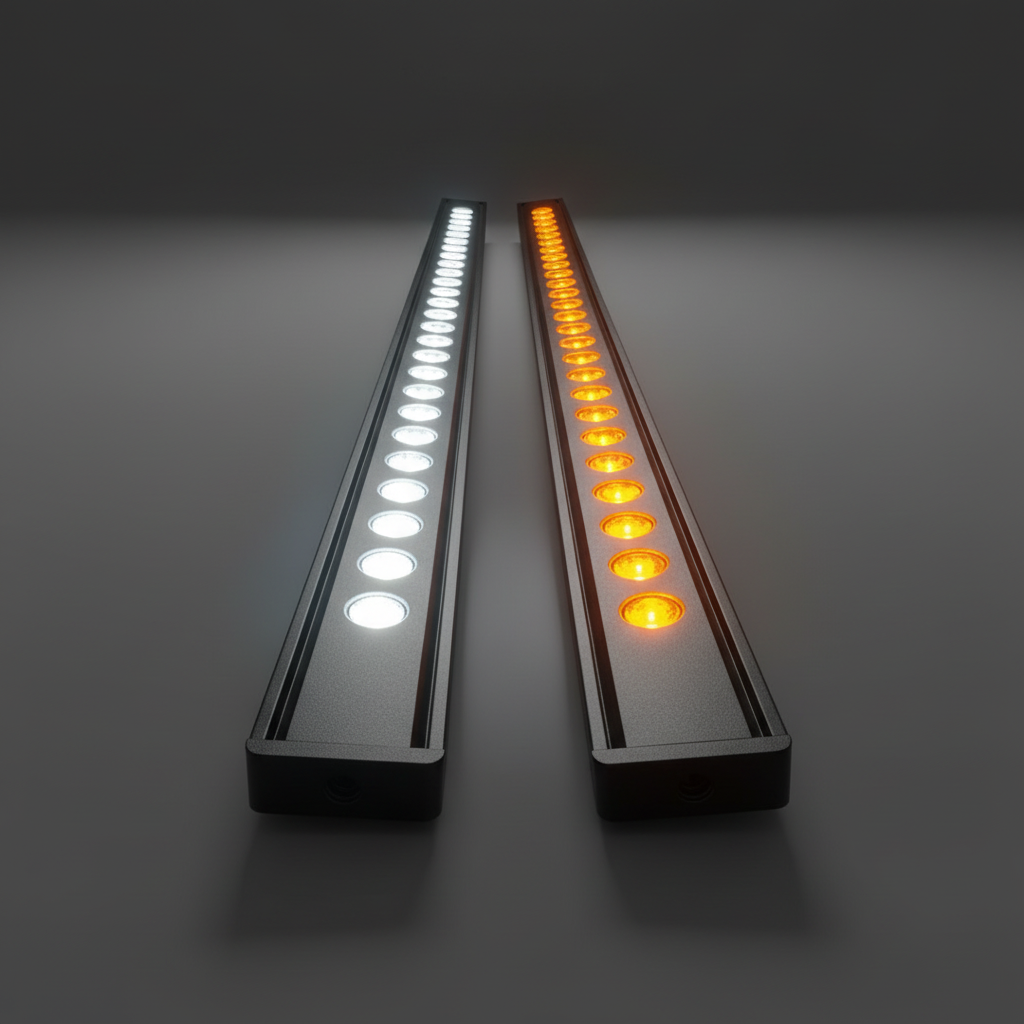

40in SLIM Light Bar
| Specification | White w/ Amber DRL | White | Amber |
|---|---|---|---|
| Beam Pattern | Spot & Flood | Spot & Flood | Spot & Flood |
| Theoretical Max Power | 180 watts | 180 watts | 140 watts |
| Actual Power | 102 watts | 102 watts | 78 watts |
| Voltage / Current (Main) | DC 12V / 8.5A | DC 12V / 8.5A | DC 12V / 6.5A |
| Voltage / Current (Backlight) | DC 12V / 0.46A | — | — |
| Theoretical Max Luminous Flux | 21,060 lm | 21,060 lm | 11,160 lm |
| Measured Flux (without lens) | 11,376 lm | 11,376 lm | 7,380 lm |
| Measured Flux (with lens) | 8,340 lm | 8,340 lm | 5,387 lm |
| LED Type | CREE XTE | CREE XTE | CREE XP-E2 Amber |
| Color Temperature | 6000K | 6000K | — |
| Number of LEDs | 36 pcs | 36 pcs | 36 pcs |
| Product Size (L × W × D) | 38.93 × 0.75 × 1.63 in | 38.93 × 0.75 × 1.63 in | 38.93 × 0.75 × 1.63 in |
