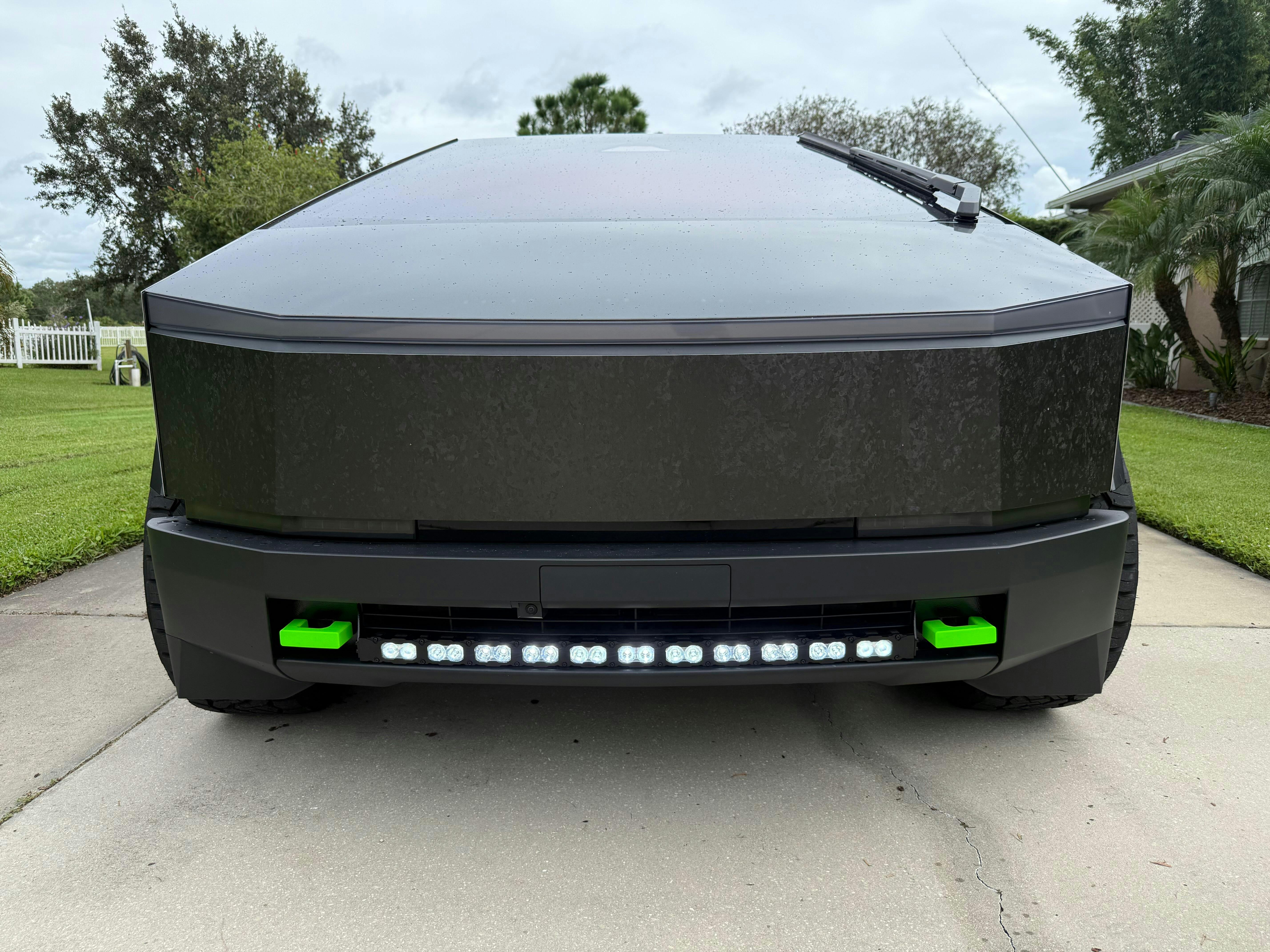

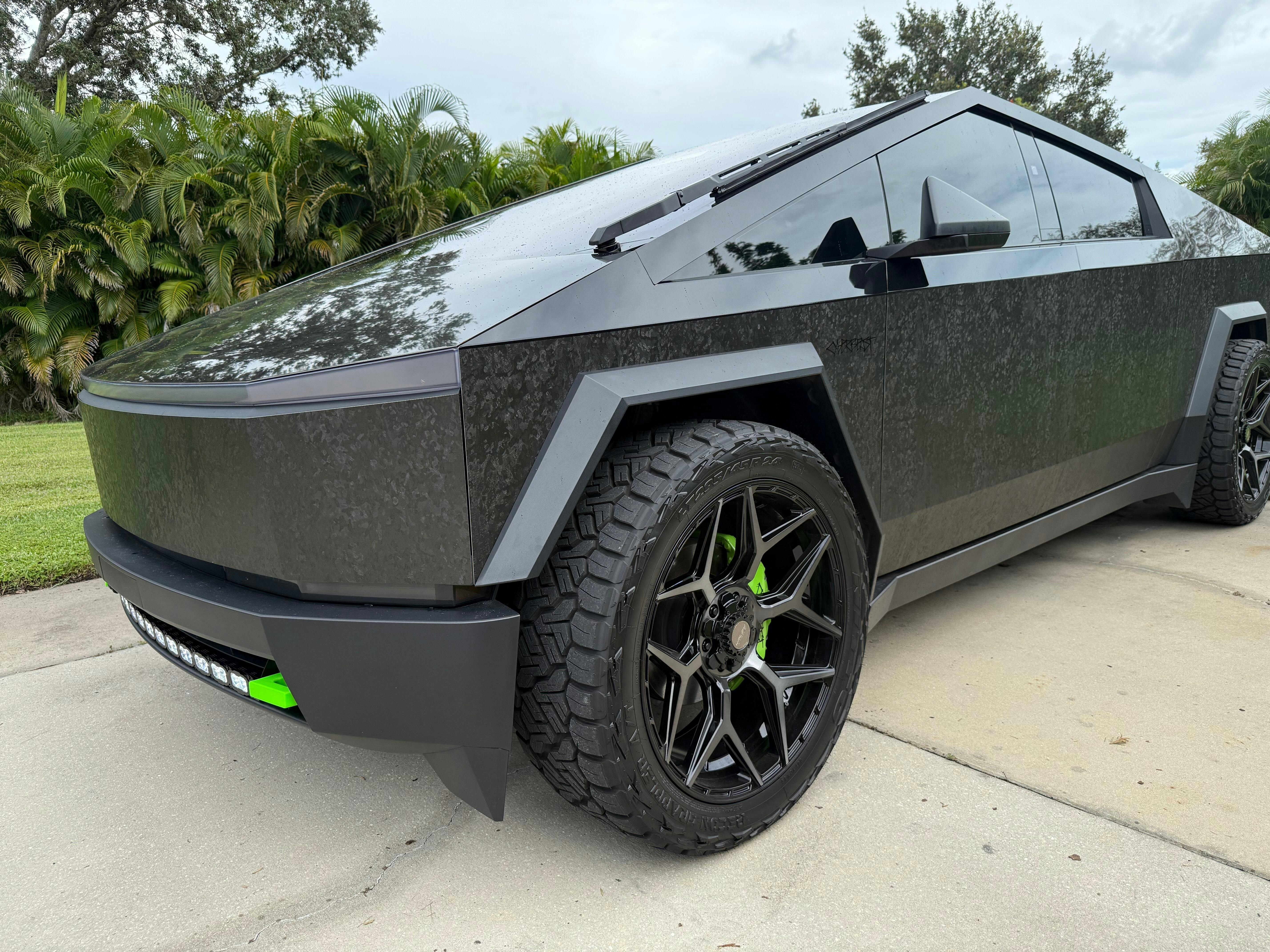

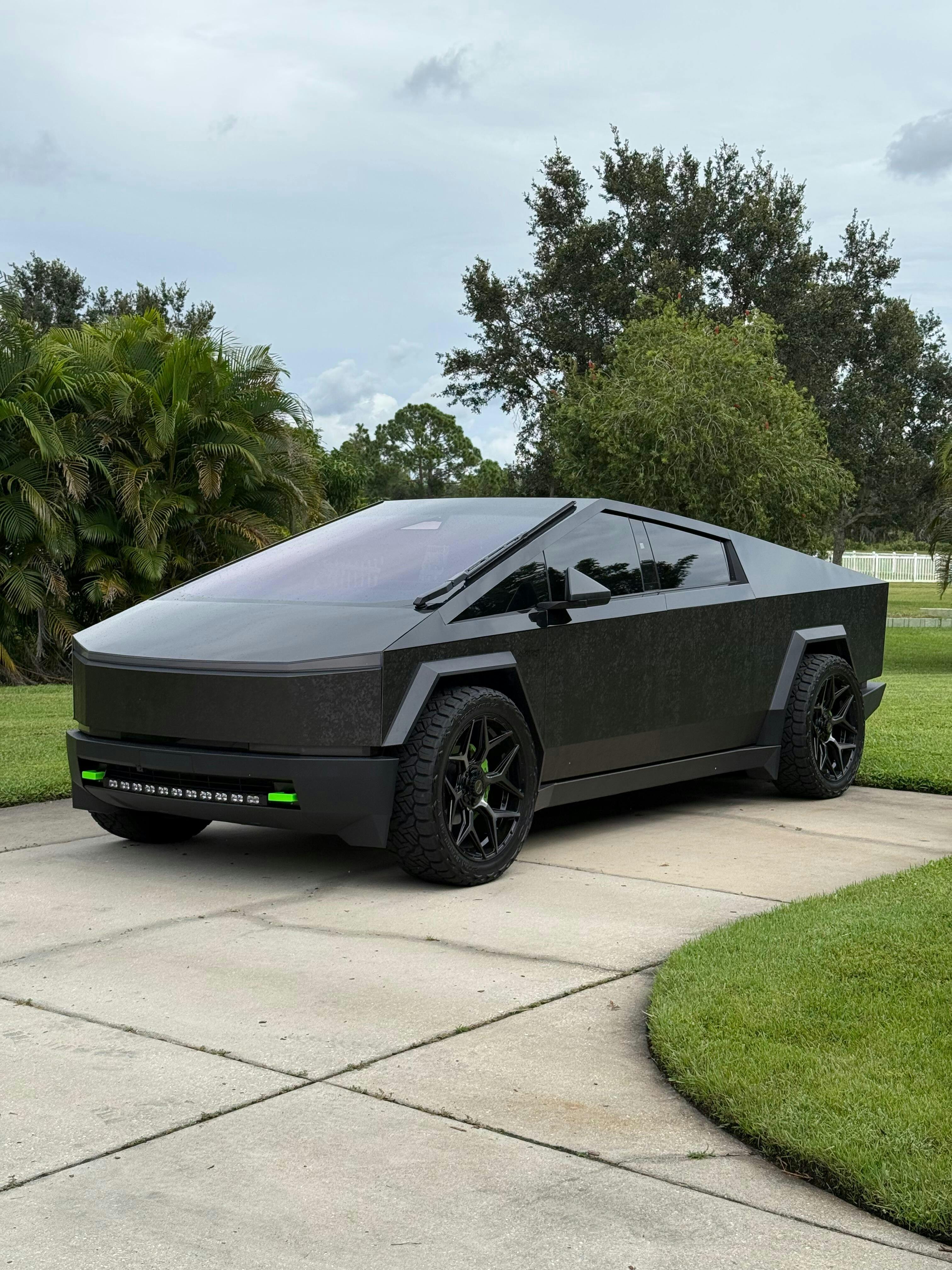

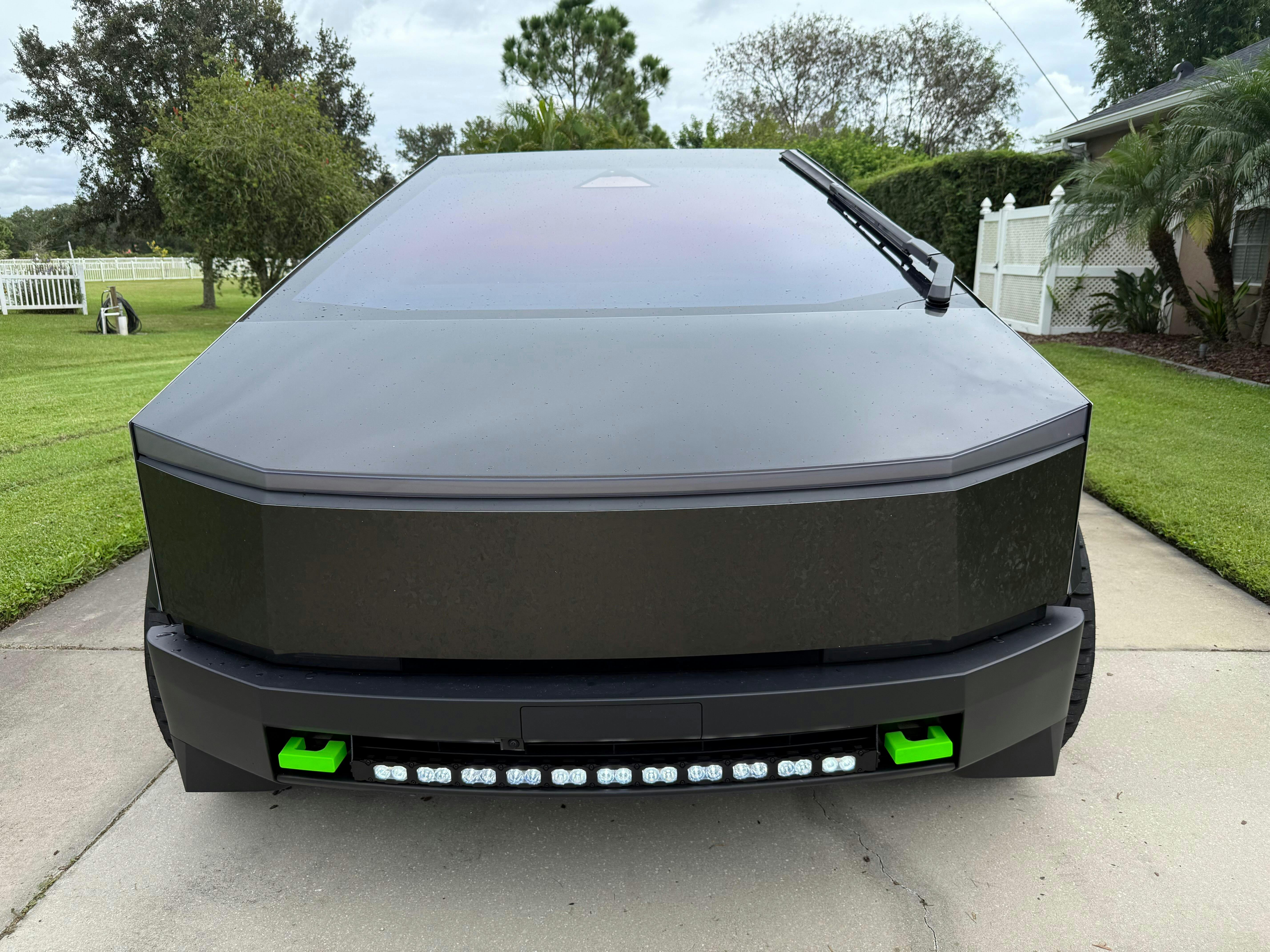

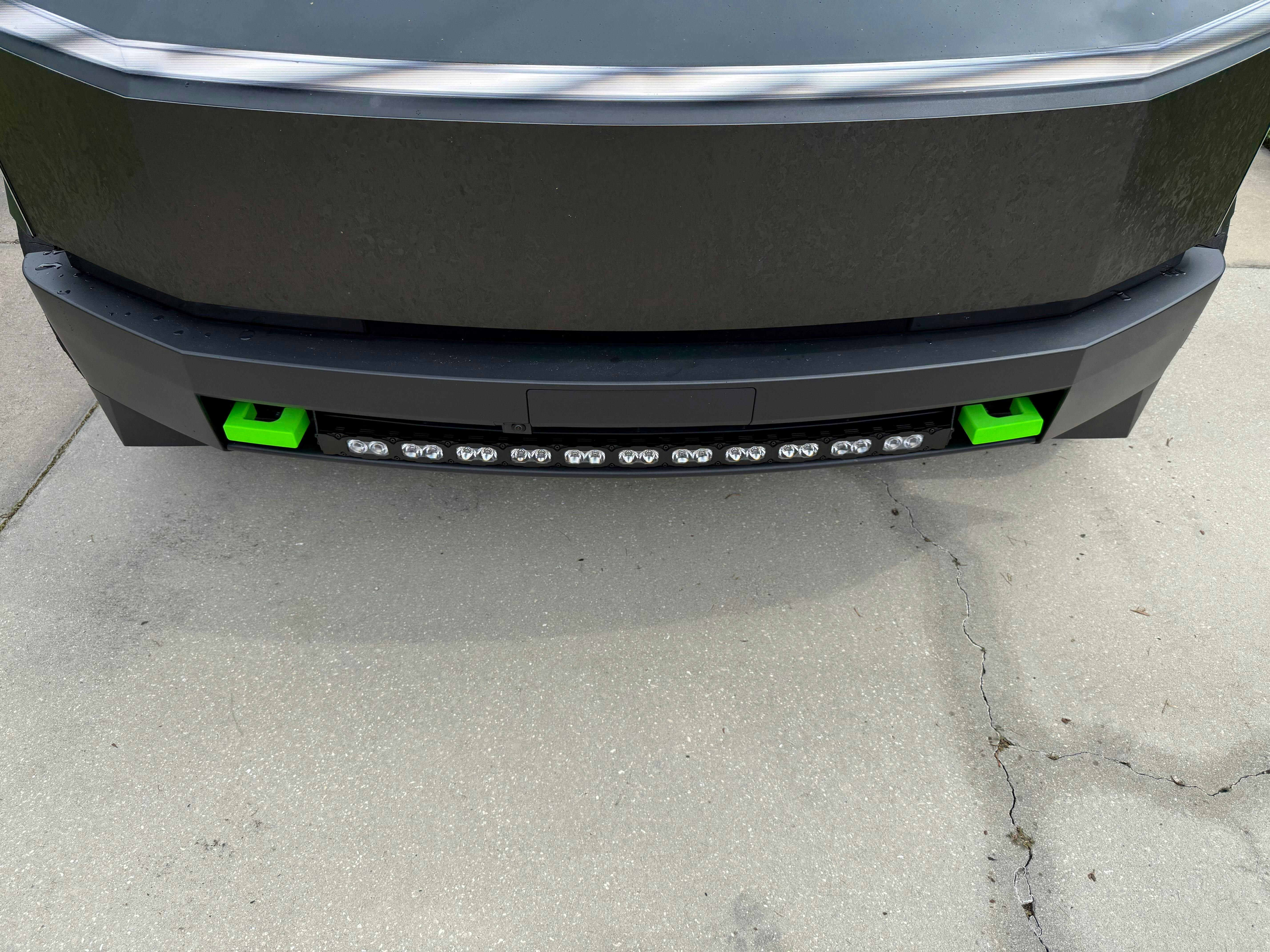

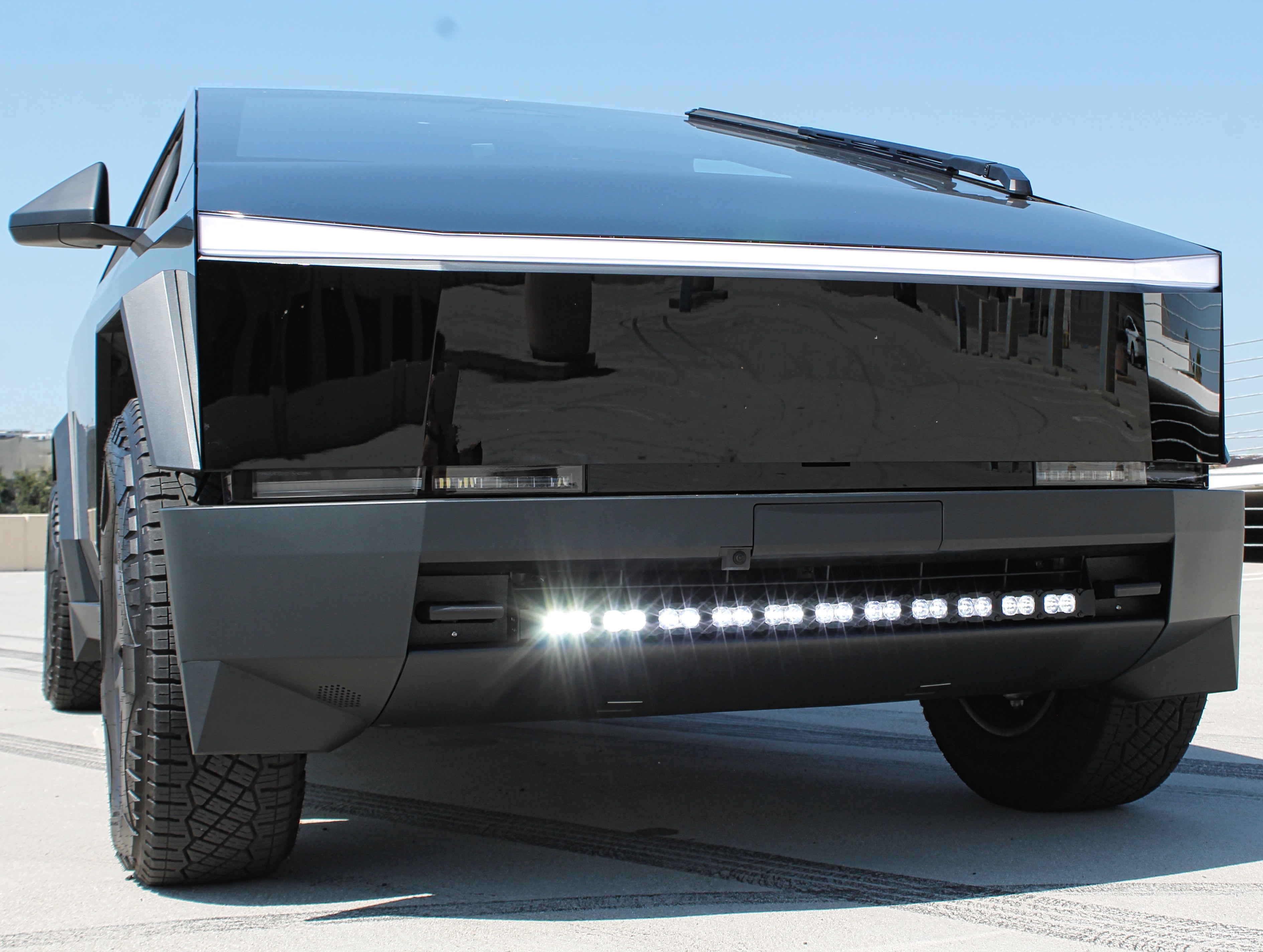

Tesla Cybertruck 40in Light Bar - PRO
What's in the Box
- (1) 40in curved light bar PRO
- (2) metal brackets
- All mounting hardware included
Off-road use only
Bolt On, No Drilling
Vehicle Specific Design
Lifetime Warranty

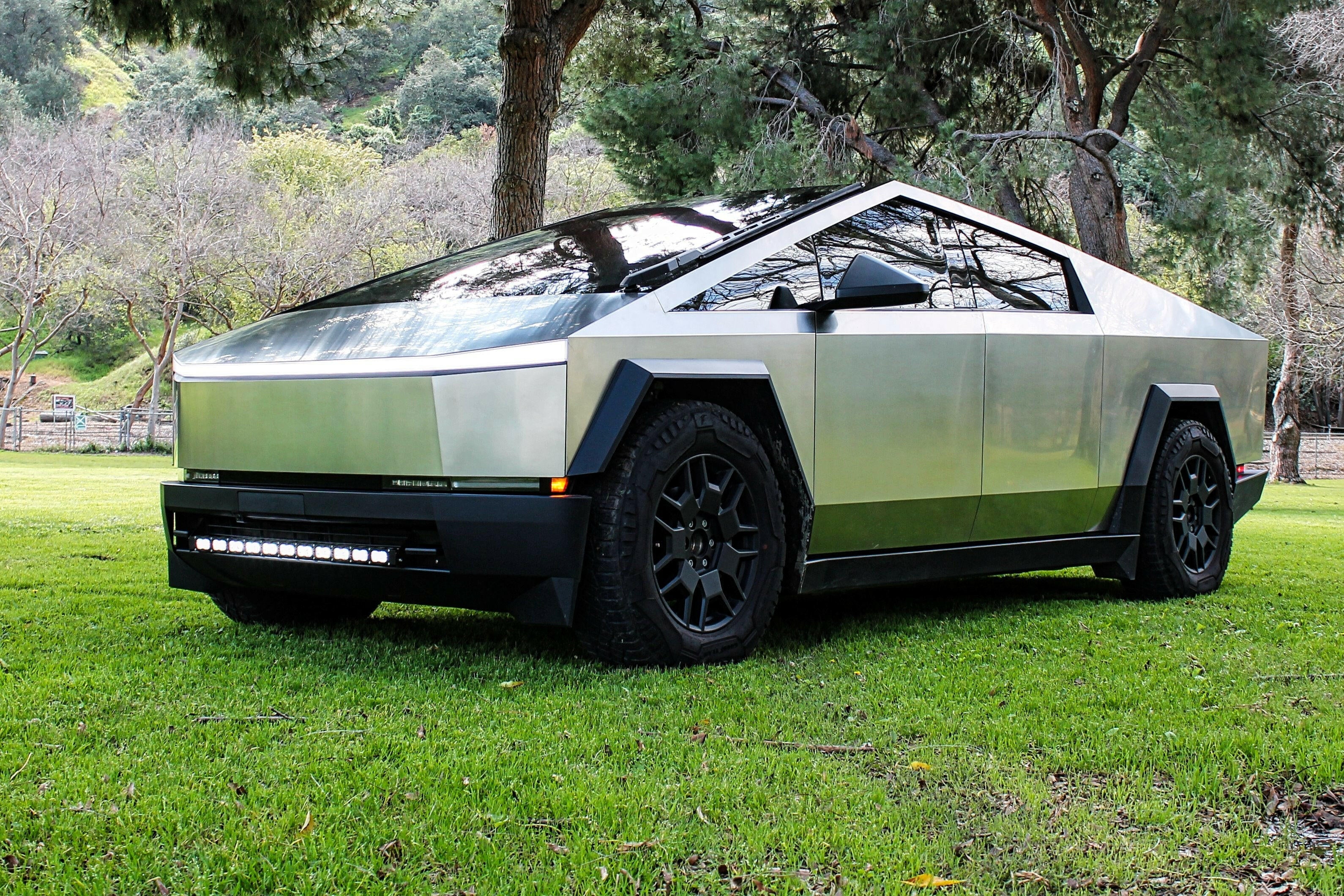

Fits: 2024–2026 Tesla Cybertruck
- Simple and quick install

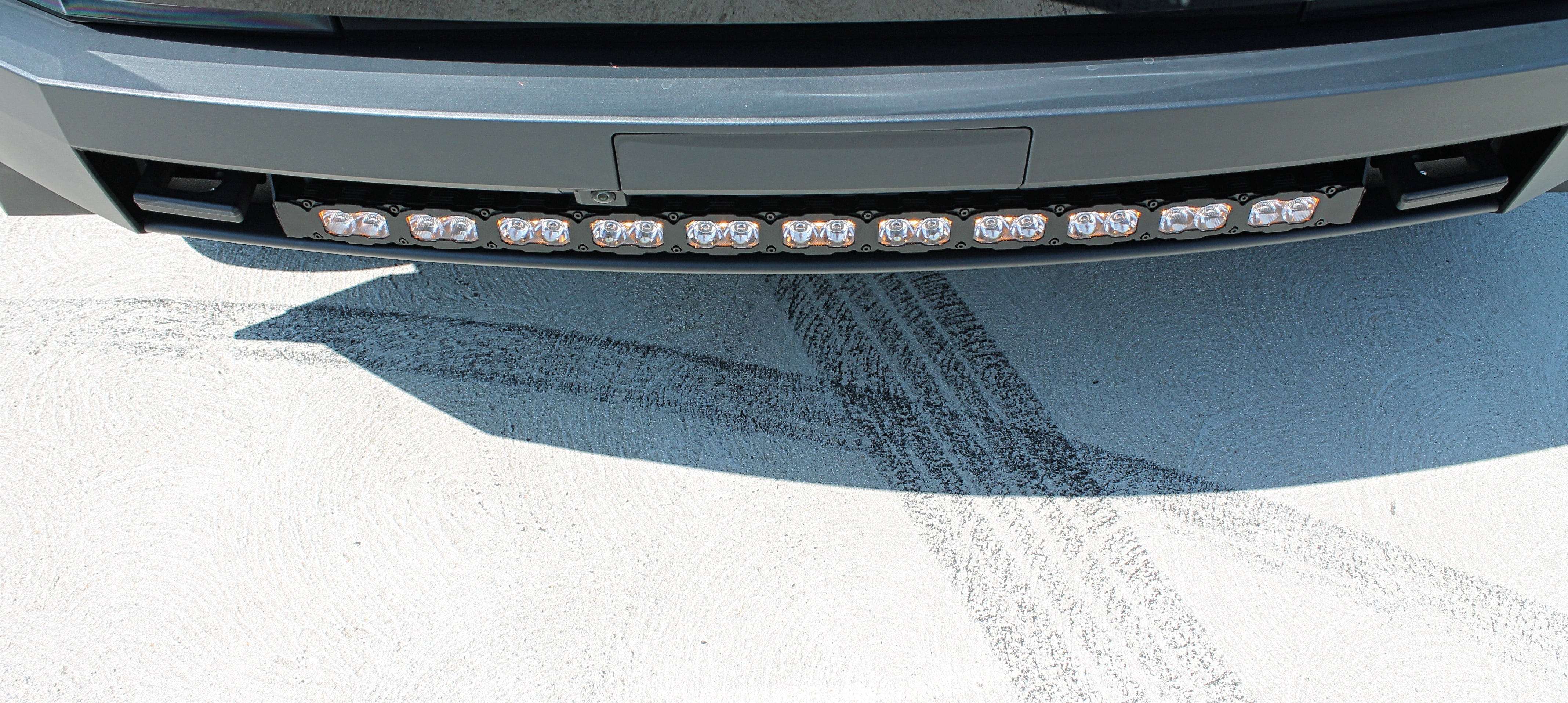

- No cutting or drilling required. Complete bolt on using factory openings and all hardware is provided

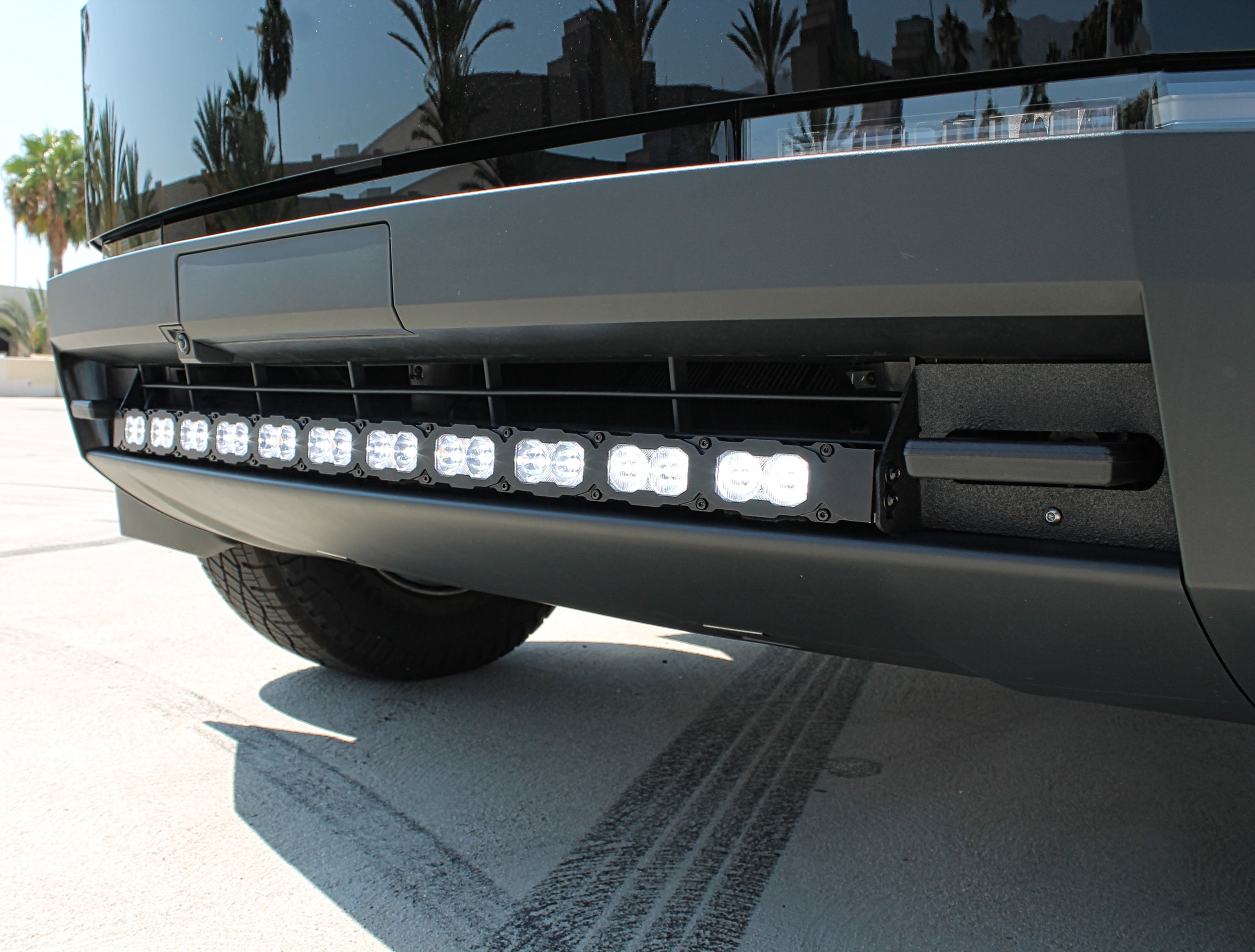

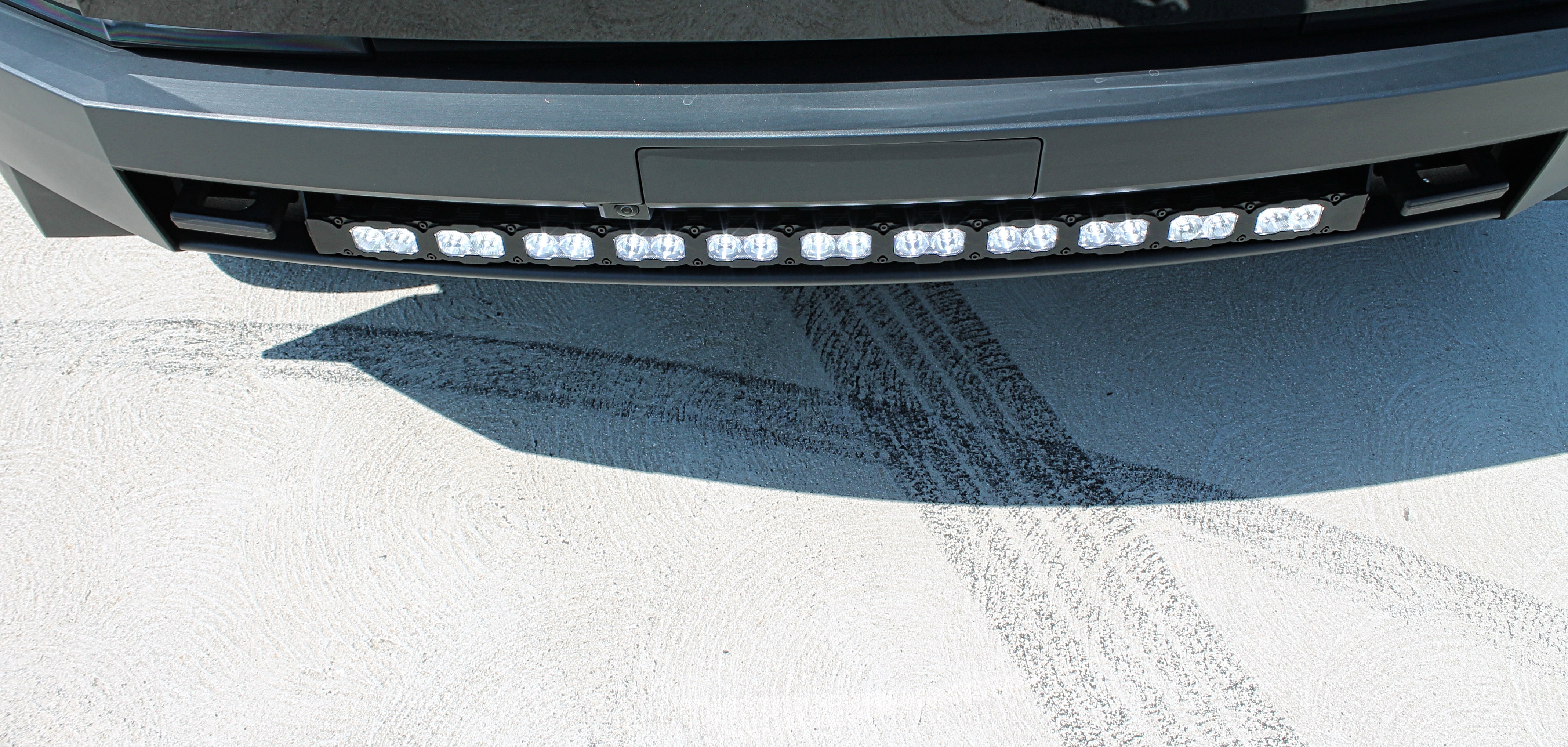

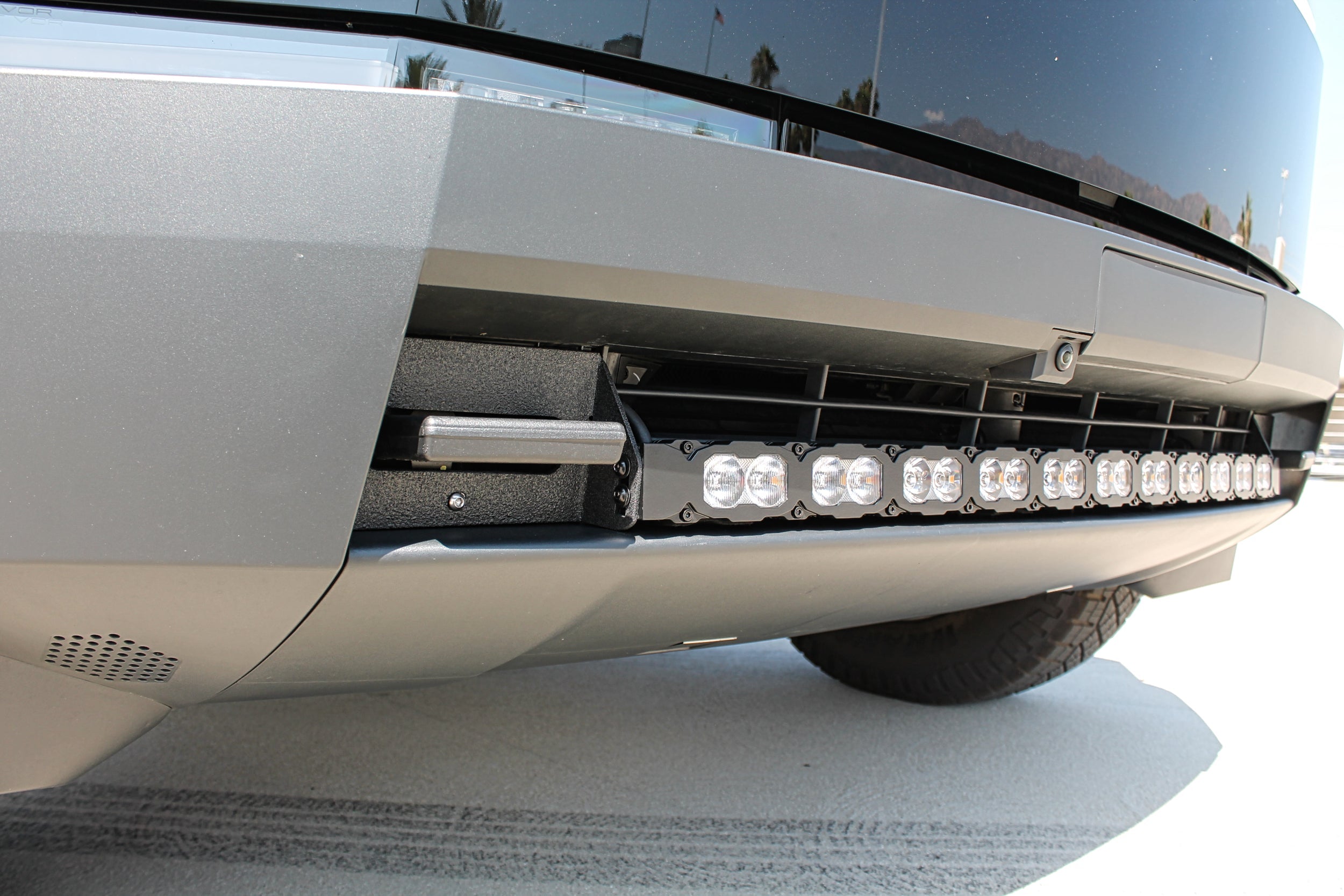

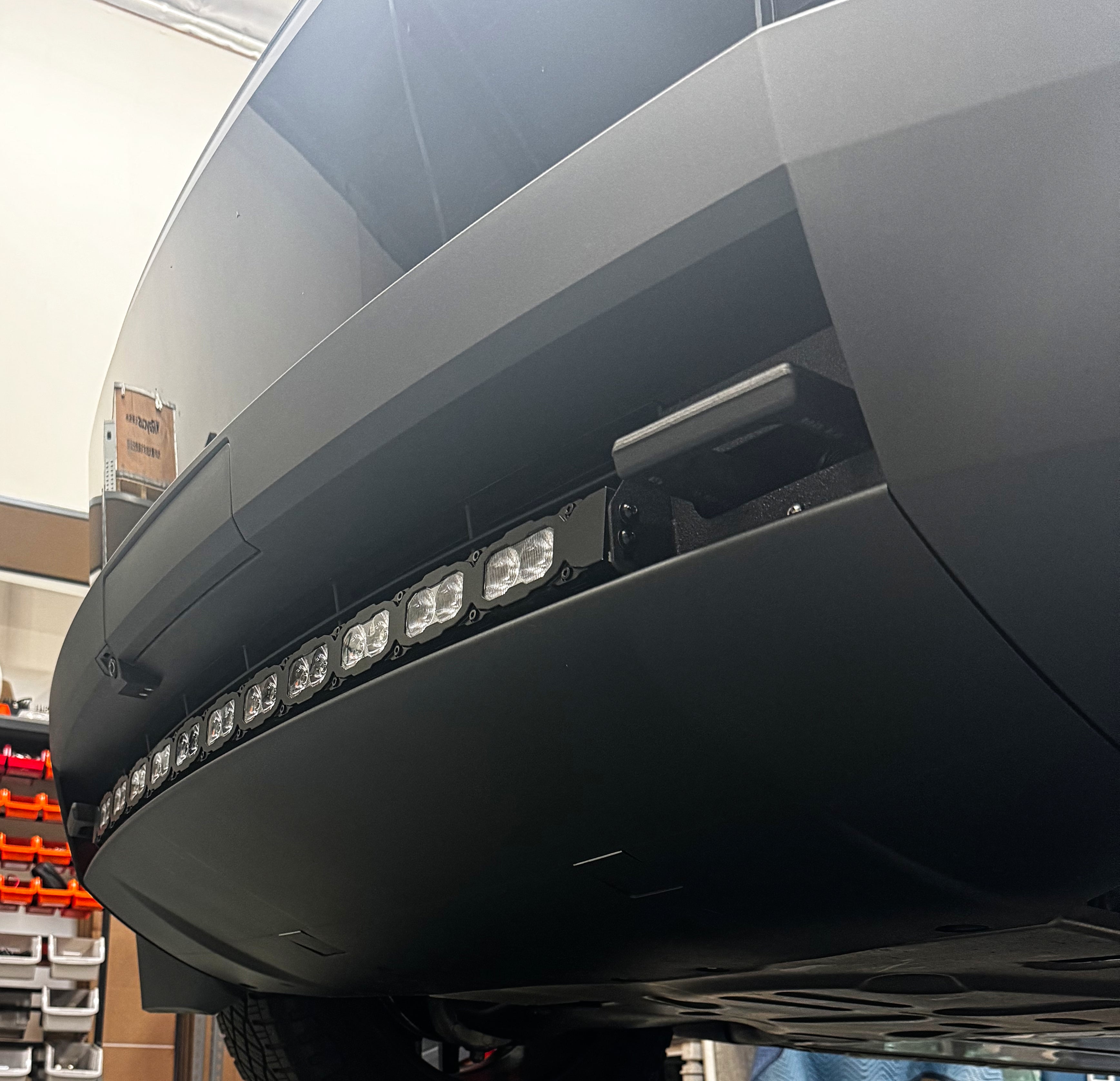

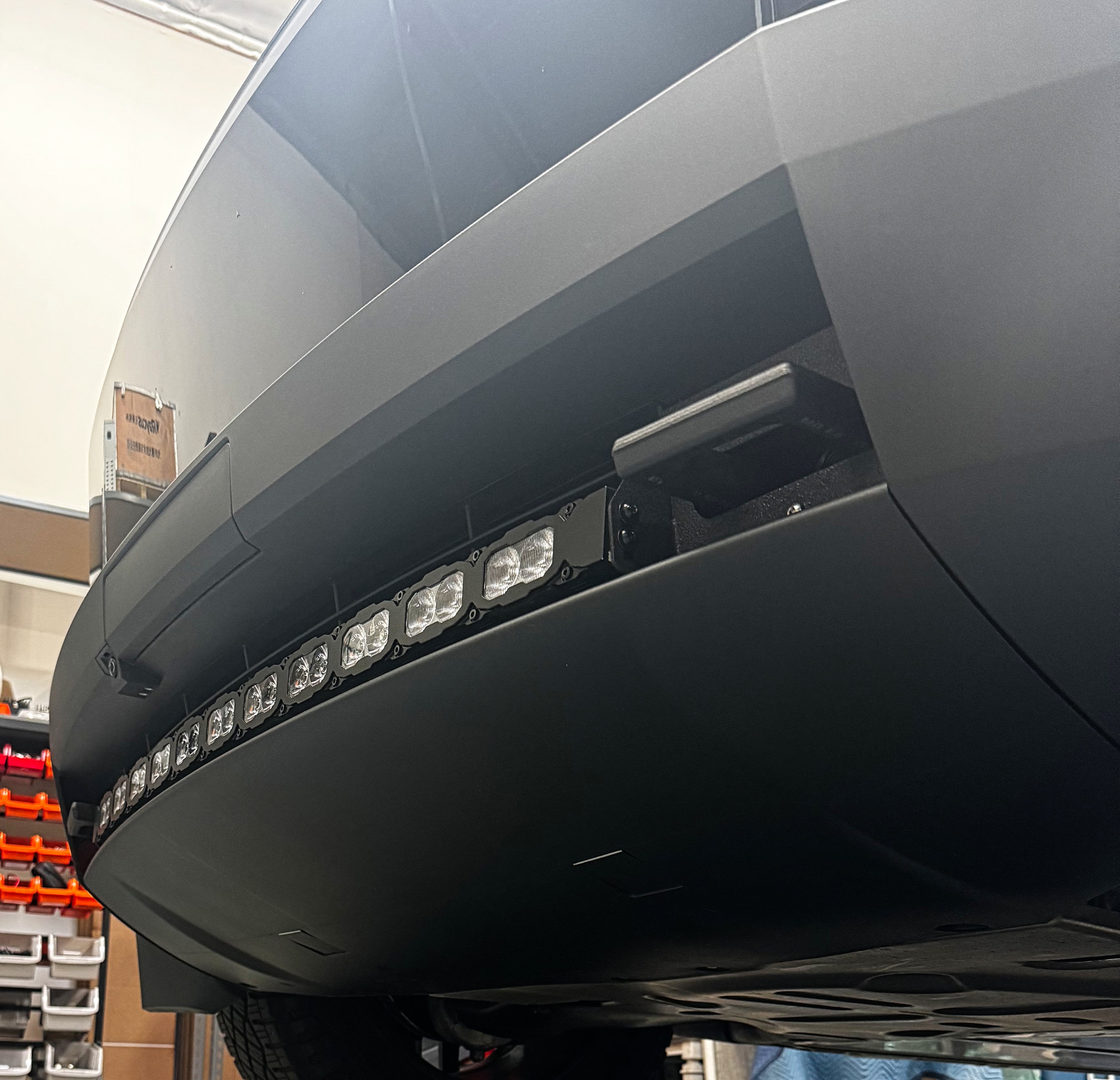

- Metal bracket is powder coated black which replaces the factory plastic caps
- You will need to remove the frunk lining to extend the light bar wire to the AUX wire.
***PLEASE NOTE*** Cybertruck wiring for the power switch is 48v. You will need to purchase a step-down converter to decrease the voltage from 48v to 12v. The converter attaches in line to AUX hookups for easy installation. Here is an example you can purchase on Amazon.
CHOOSE LIGHT OUTPUT COLOR:

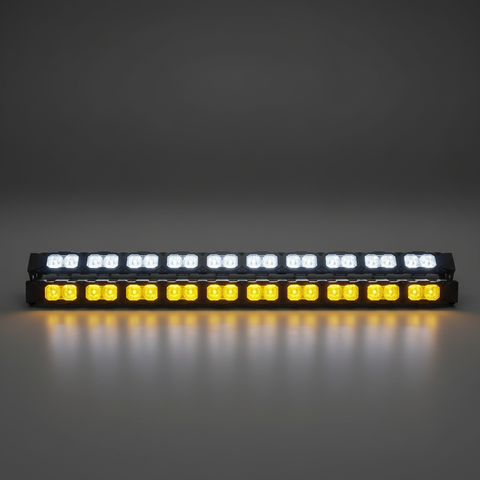

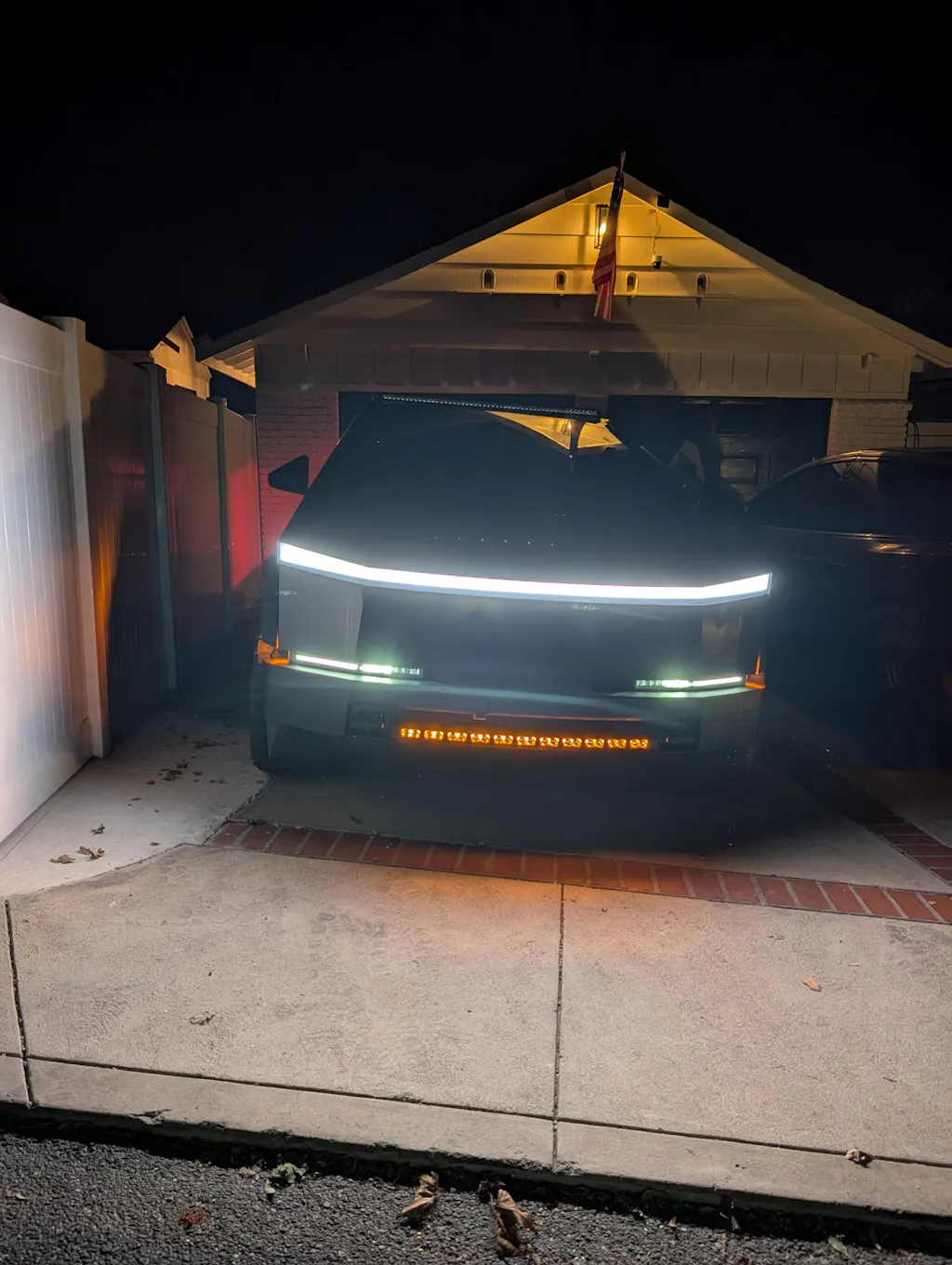

This PRO bar is dual-color — a white beam plus a soft amber DRL (daytime running light) backglow.

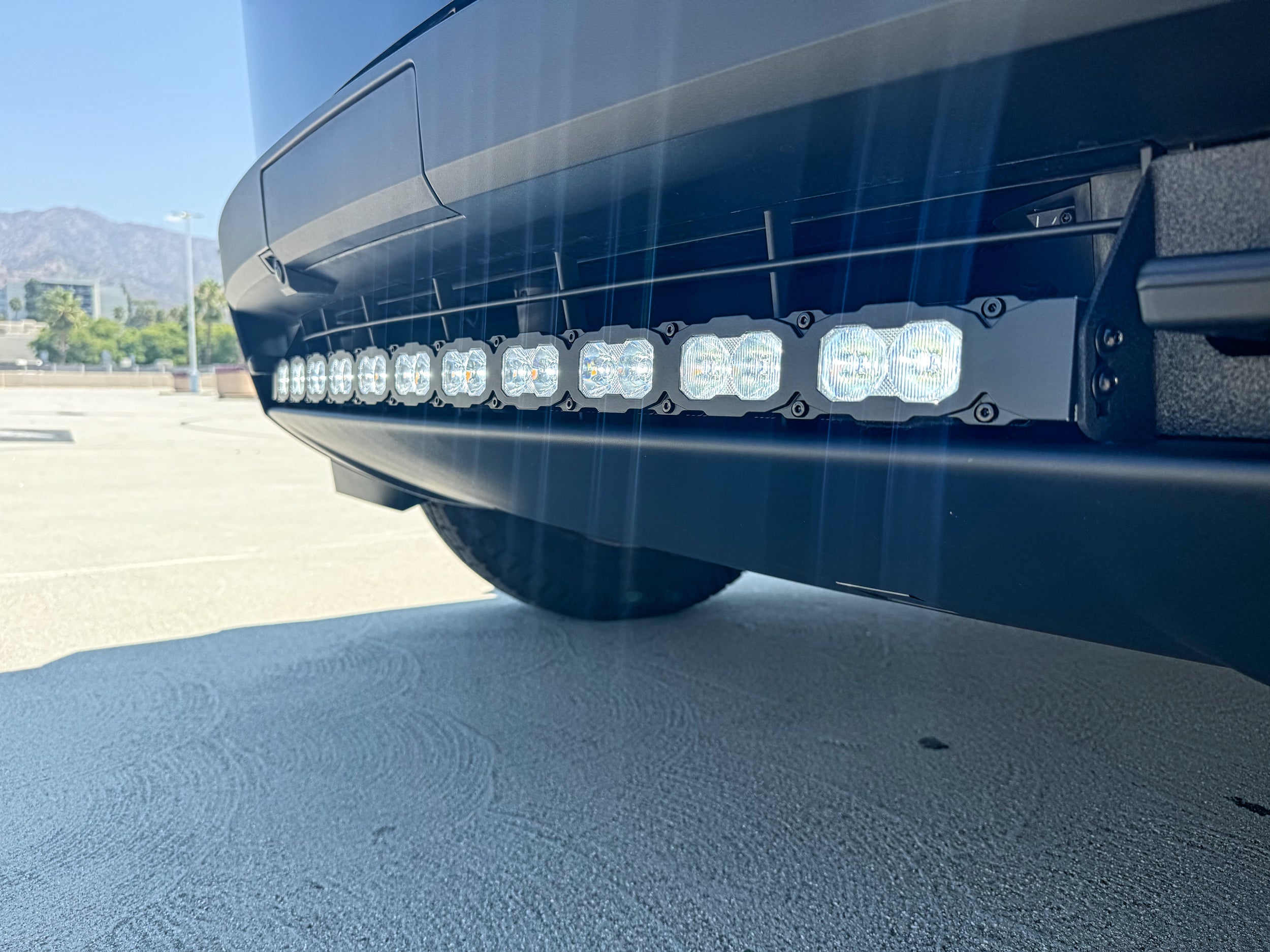

- White LED — Super bright, crisp white beam with plenty of light for any adventure. Off-road use only — it blinds oncoming traffic and isn't street-legal.

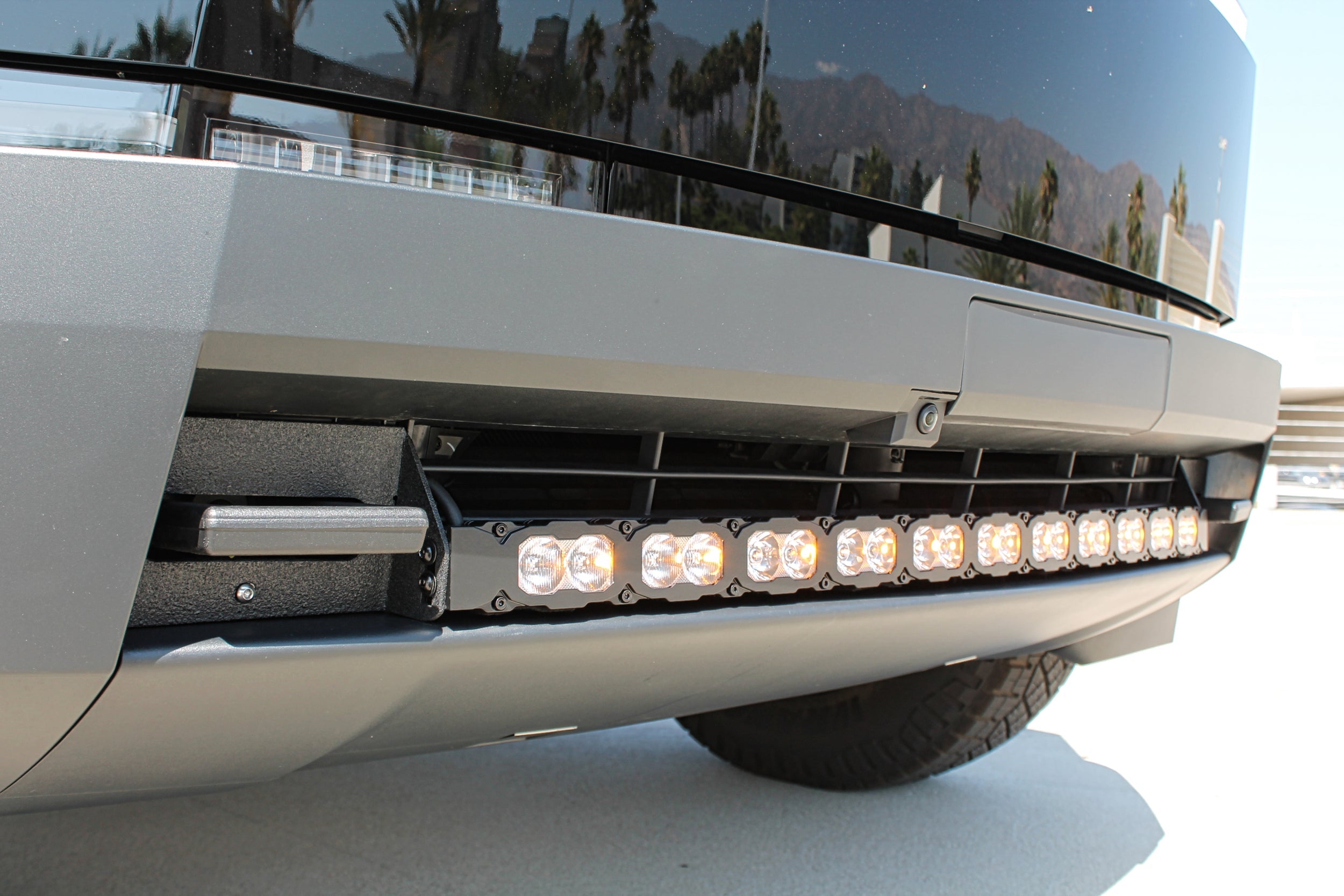

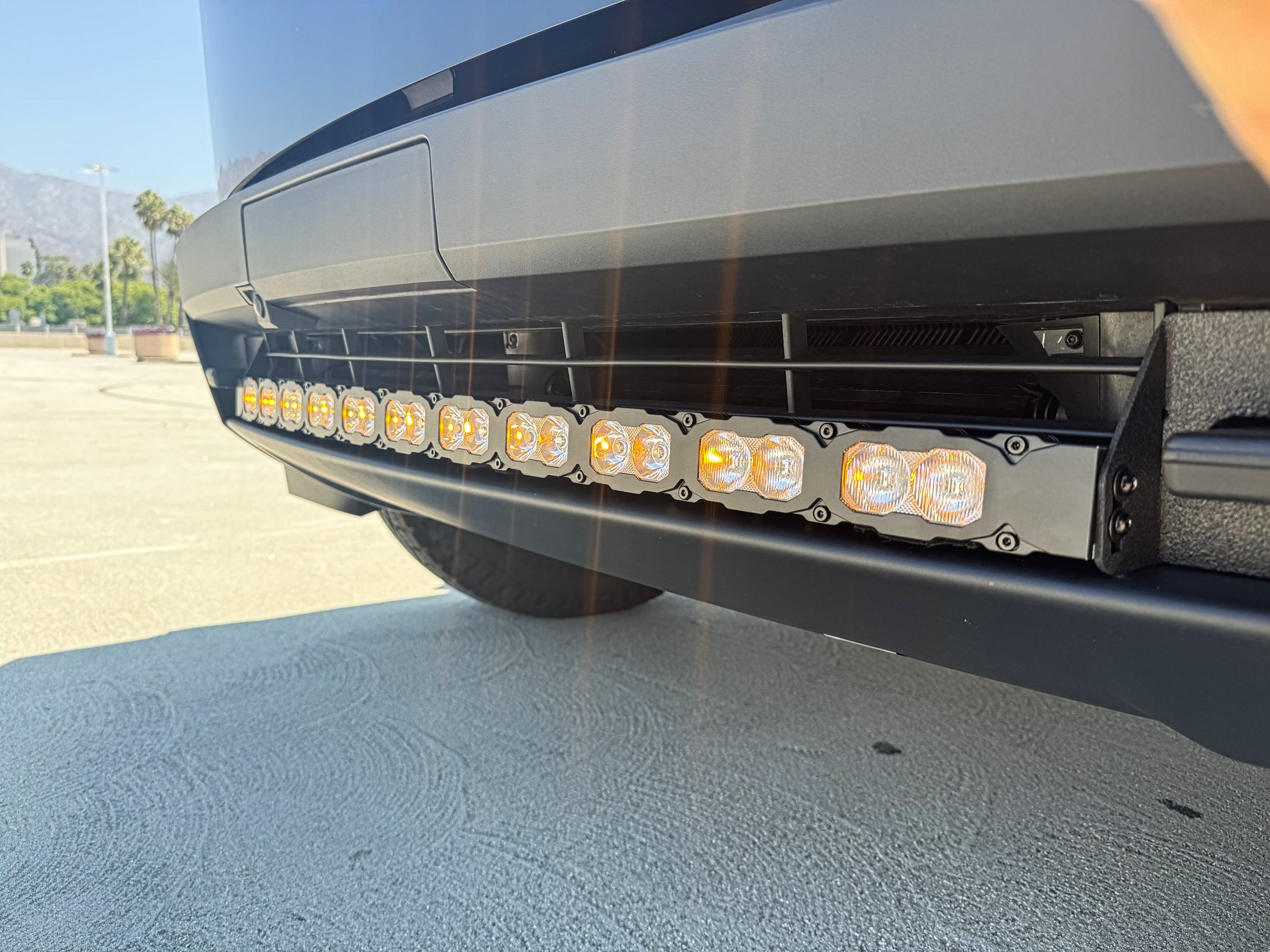

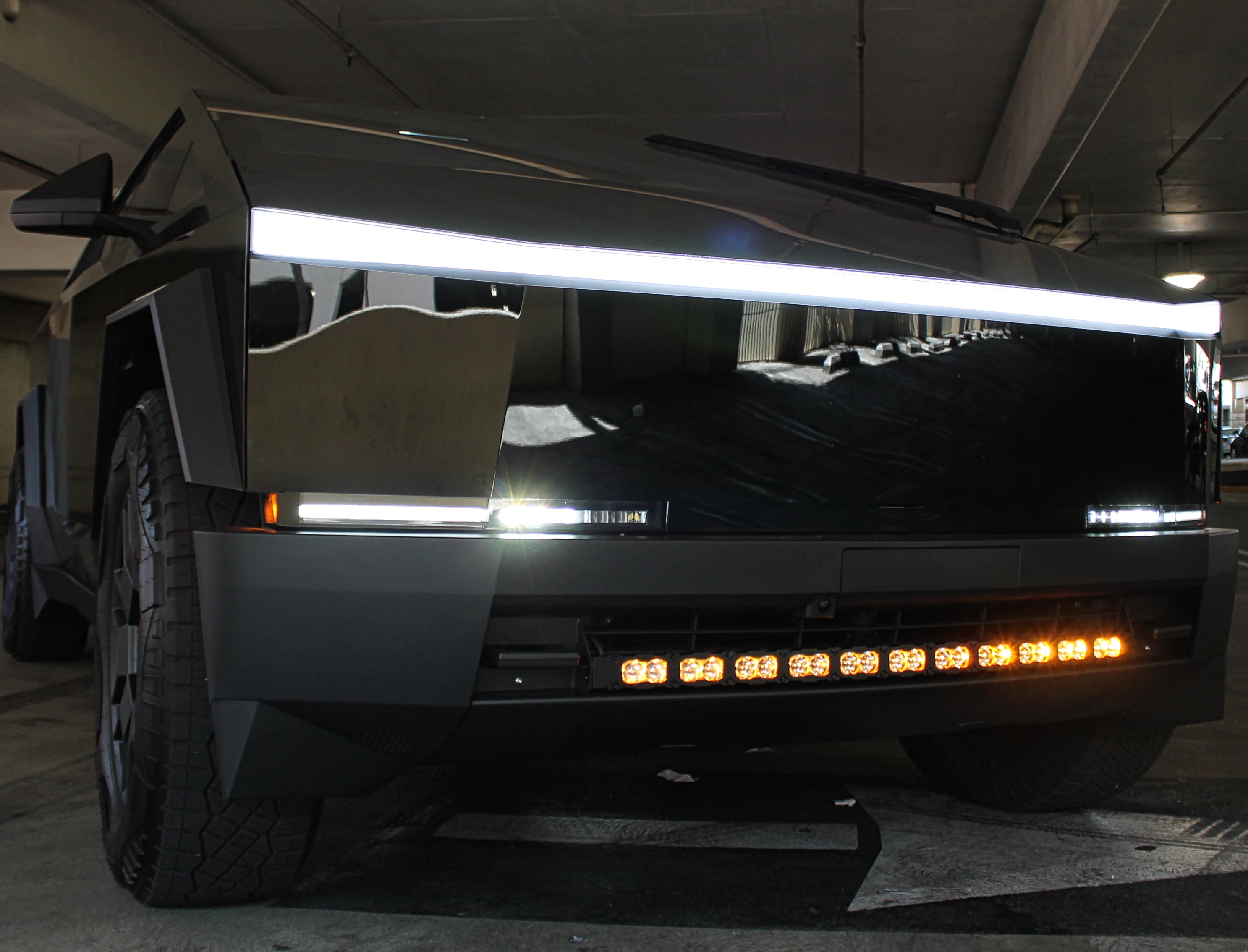

- Amber DRL — Purely cosmetic amber glow. Street-safe — gives off little light and won't blind oncoming traffic, so you can run it on the road.

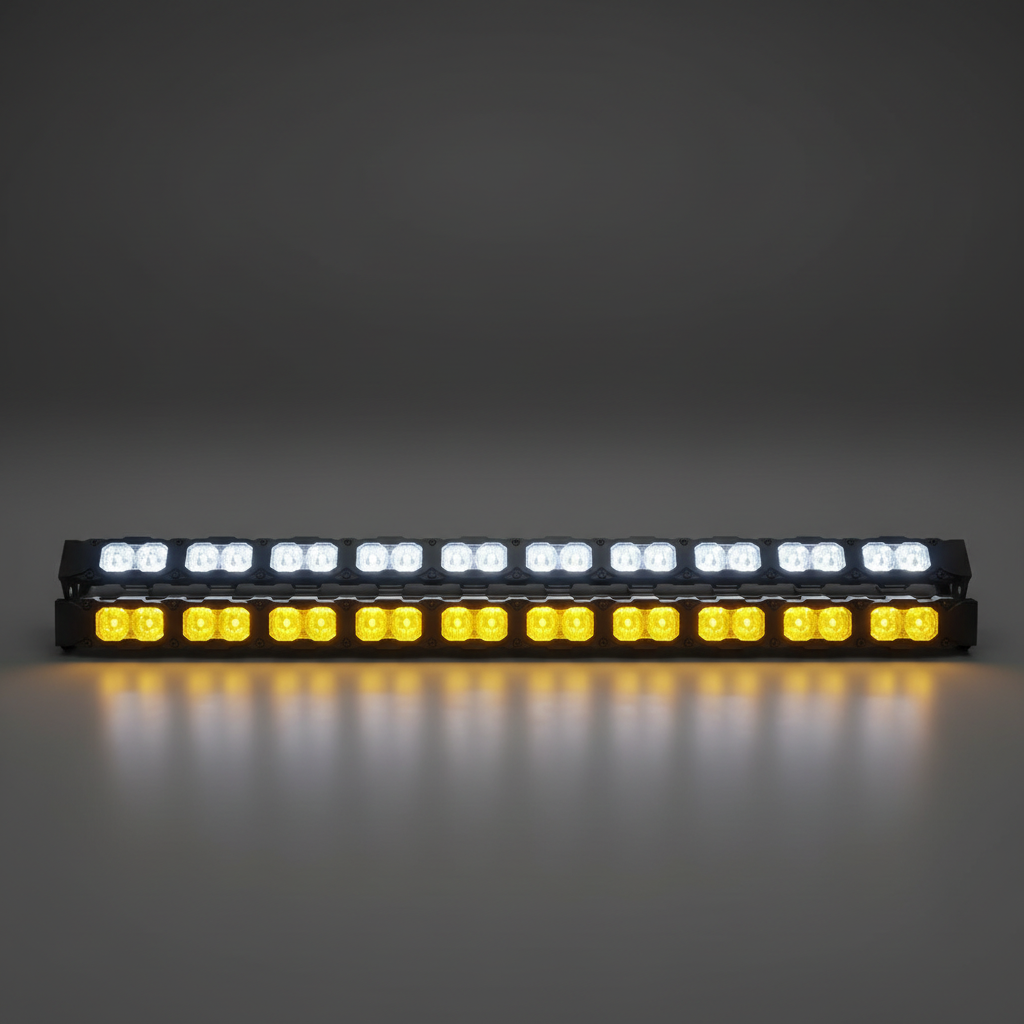

DUAL COLOR: Yellow with Amber DRL
Main Yellow LED Light with Amber DRL (daytime running lights)
- Yellow LED — used in poor driving conditions such as dust, fog, snow and rain. It reflects through air particles much less than the white light, making it ideal for poor driving conditions. For off road use only.
- Amber DRL — amber DRL "daytime running lights" acts purely for aesthetics. Since it doesn't give out much light, you can use this amber DRL feature on regular roads; it doesn't blind oncoming traffic.
**Please note** The yellow lens alters the look of the amber DRL, making it appear a little darker than with the white lens. Check the photos to see the difference.
- Combo Pattern: combined spot and driving optics offer a balance between distance and width

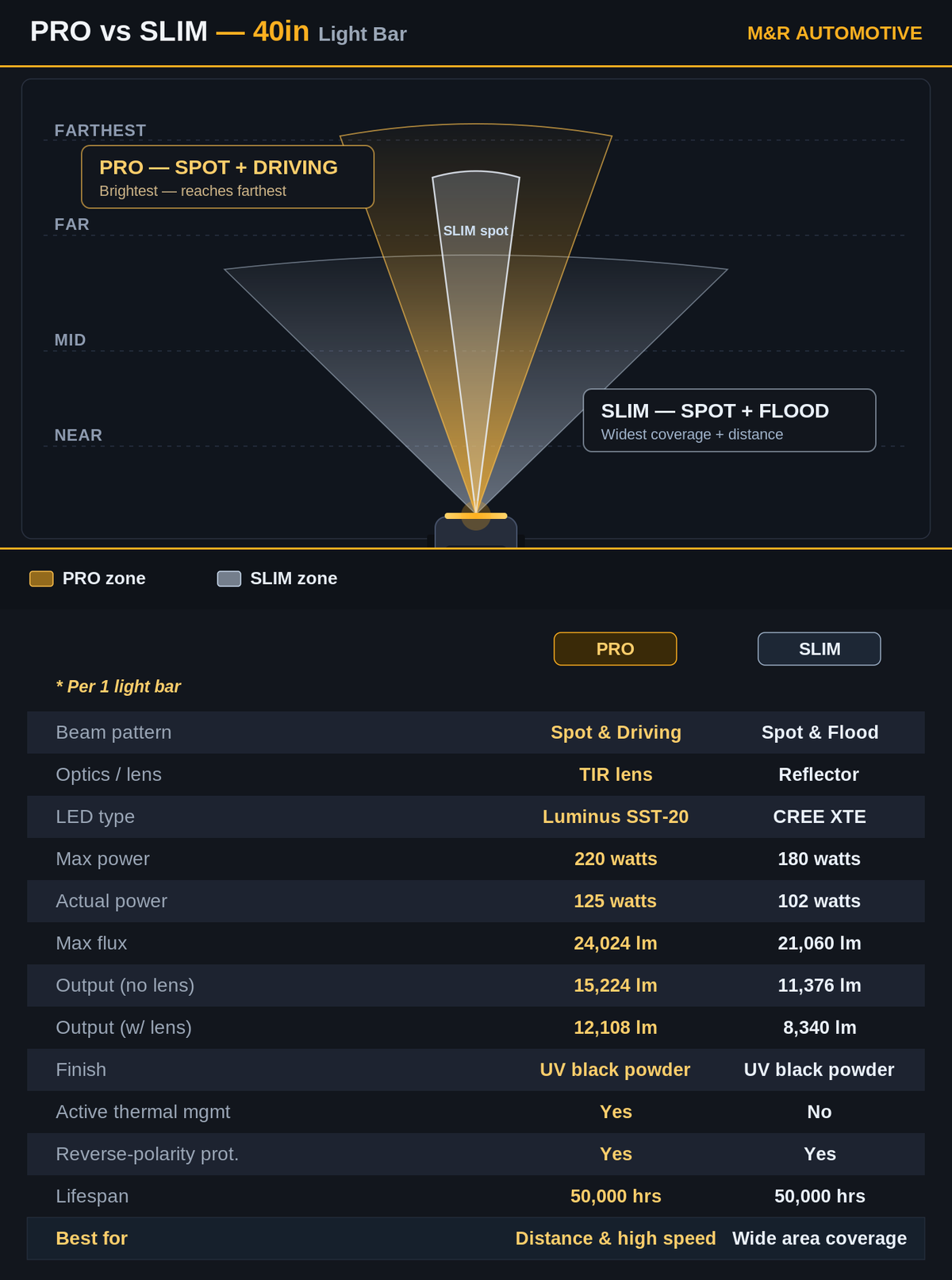

- Uses a TIR (Total Internal Reflection) lens, which is different from our Slim light bar. The TIR lens collects all of the light from the LED and directly leads them to where you need, drastically reducing glare and improving total efficiency.
- Higher light efficiency: brighter, longer irradiation distance

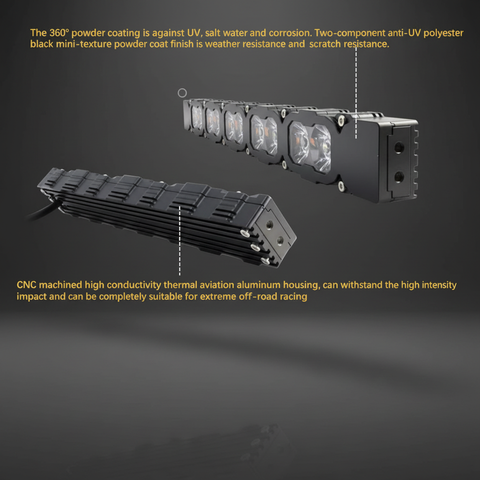

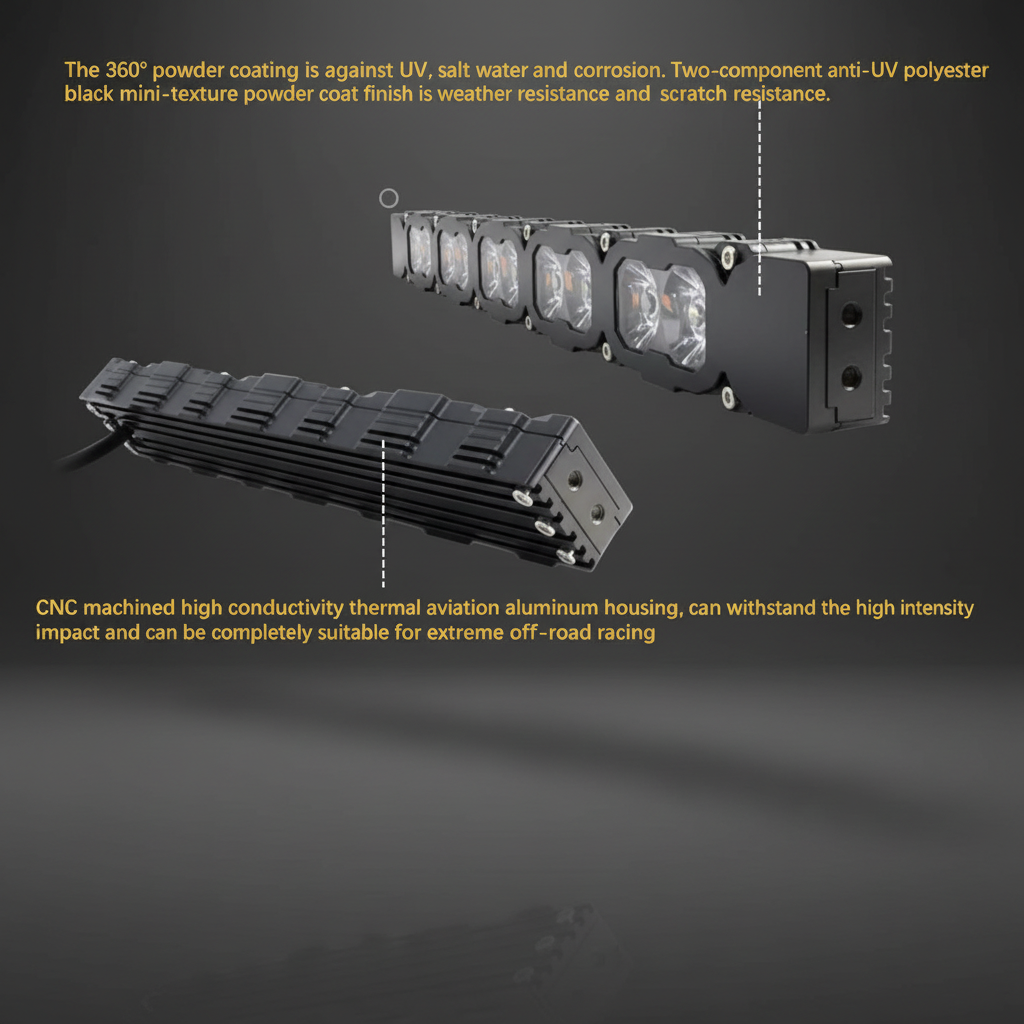

- Housing is upgraded to 304 aluminum. The surface is UV polyester powder coated to protect against UV, salt water, corrosion, fading and scratch resistant.
- Equipped with thermal management system that automatically adjusts the brightness output according to the external temperatures
40in PRO Light Bar
| Beam Pattern | Spot & Driving |
| Theoretical Max Power | 220 watts |
| Actual Power | 125 watts |
| Voltage / Current (Main) | DC 12V / 10.42A |
| Voltage / Current (Backlight) | DC 12V / 0.25A |
| Theoretical Max Luminous Flux | 24,024 lm |
| Measured Flux (without lens) | 15,224 lm |
| Measured Flux (with clear lens) | 12,108 lm |
| Measured Flux (with yellow lens) | 9,505 lm |
| LED Type | Luminus SST-20 |
| Color Temperature | 6000K |
| Number of LEDs | 22 pcs |
| Product Size (L × W × D) | 38.90 × 1.89 × 1.00 in |
Free ground shipping on all orders within the continental United States.
We process and ship orders within 3–5 business days. If we anticipate any delay, we'll reach out via email.
- Hawaii, Alaska & Puerto Rico — $20 flat rate for ground shipping.
- Canada & International — Shipping rates calculated at checkout. Customs fees, duties, and import taxes are the responsibility of the customer.
- Overnight & 2nd Day Air — Available at checkout. Orders must be placed by 12:00 PM Pacific Time for same-day shipment.
You'll receive a tracking number via email once your order ships. If you have a special request about your order, reach out — we'll do our best to accommodate. For our complete shipping policy, [click here].
Warranty
We have a lifetime warranty on all our light kits. We stand behind every kit we build — our lifetime warranty isn't fine print, it's a promise. For more information about our warranty and disclaimer, [click here].
M&R Automotive is not responsible for misuse or improper installation of the product. Professional installation is recommended.
HOW TO INSTALL?
Install Video

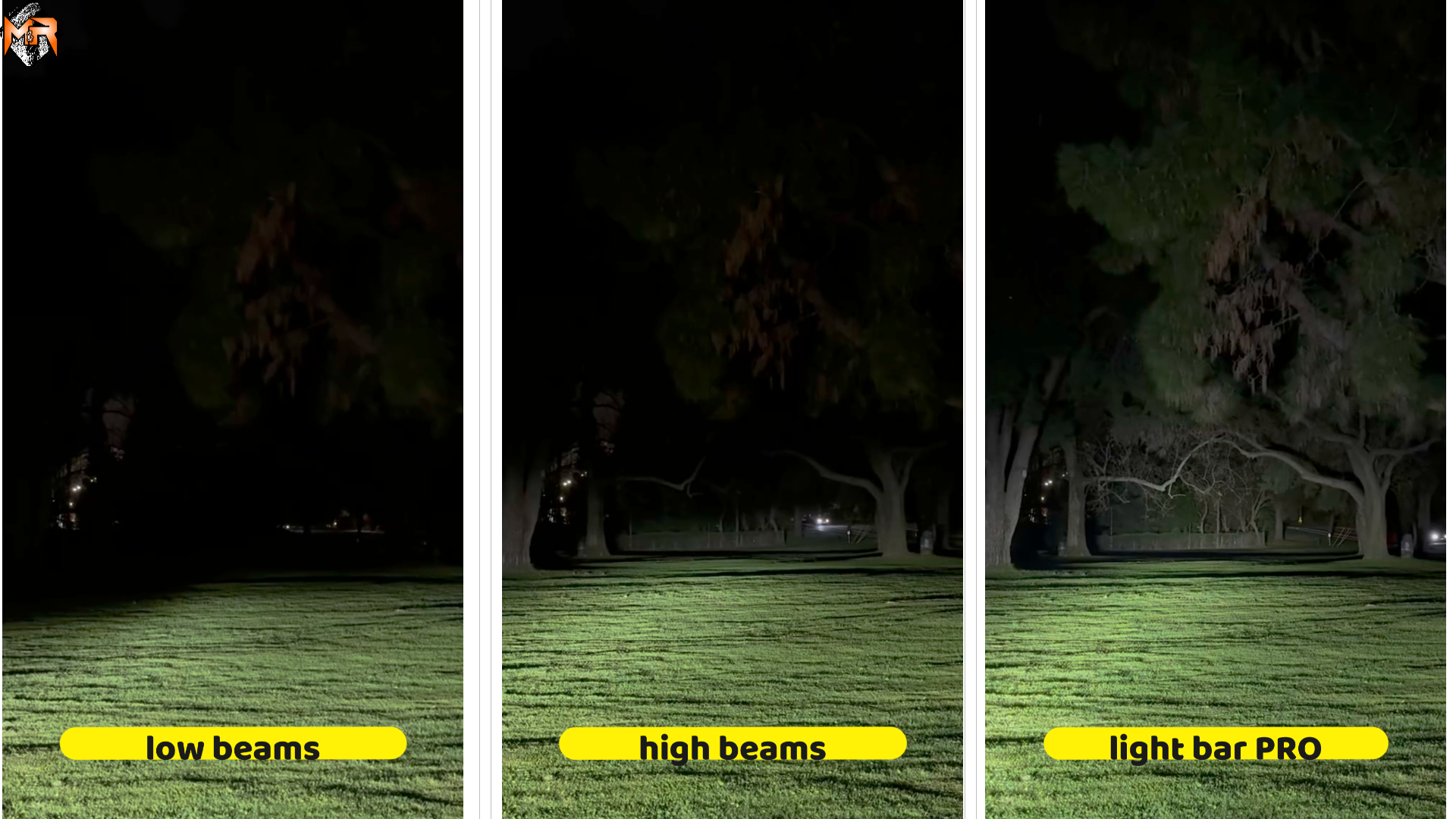

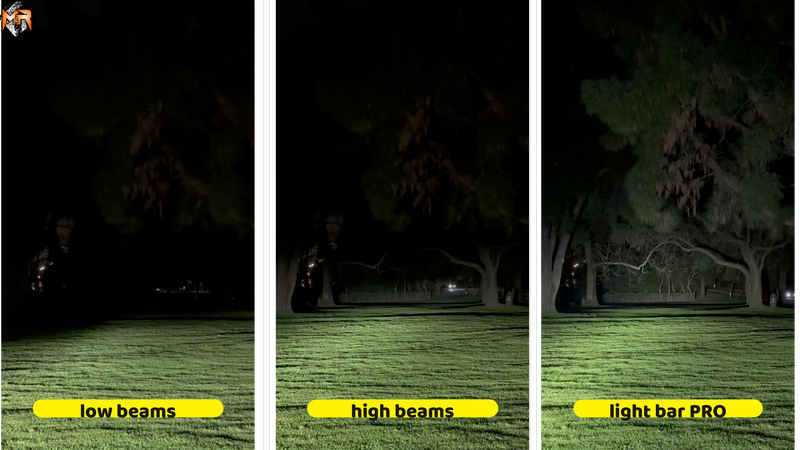

Light Output
