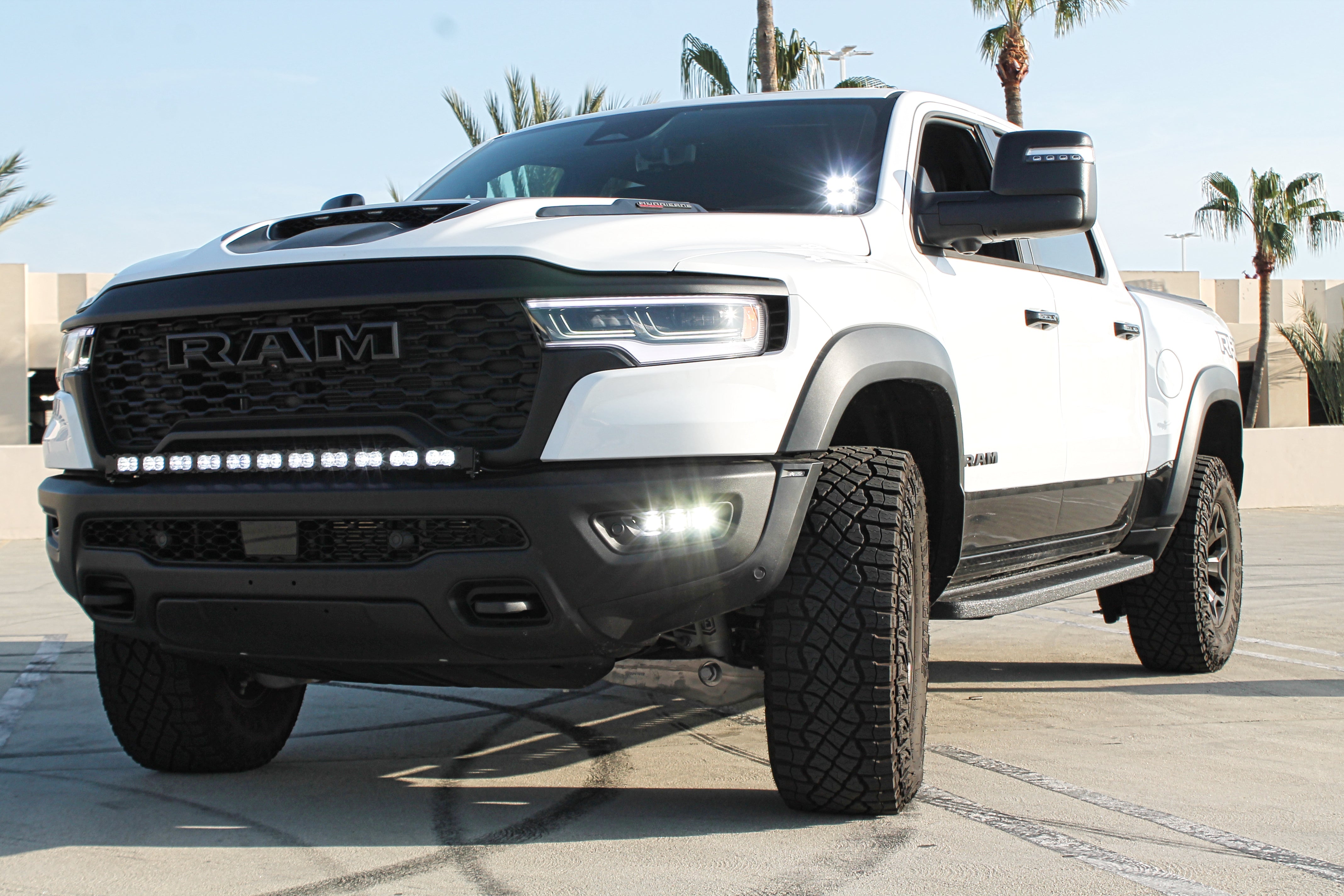

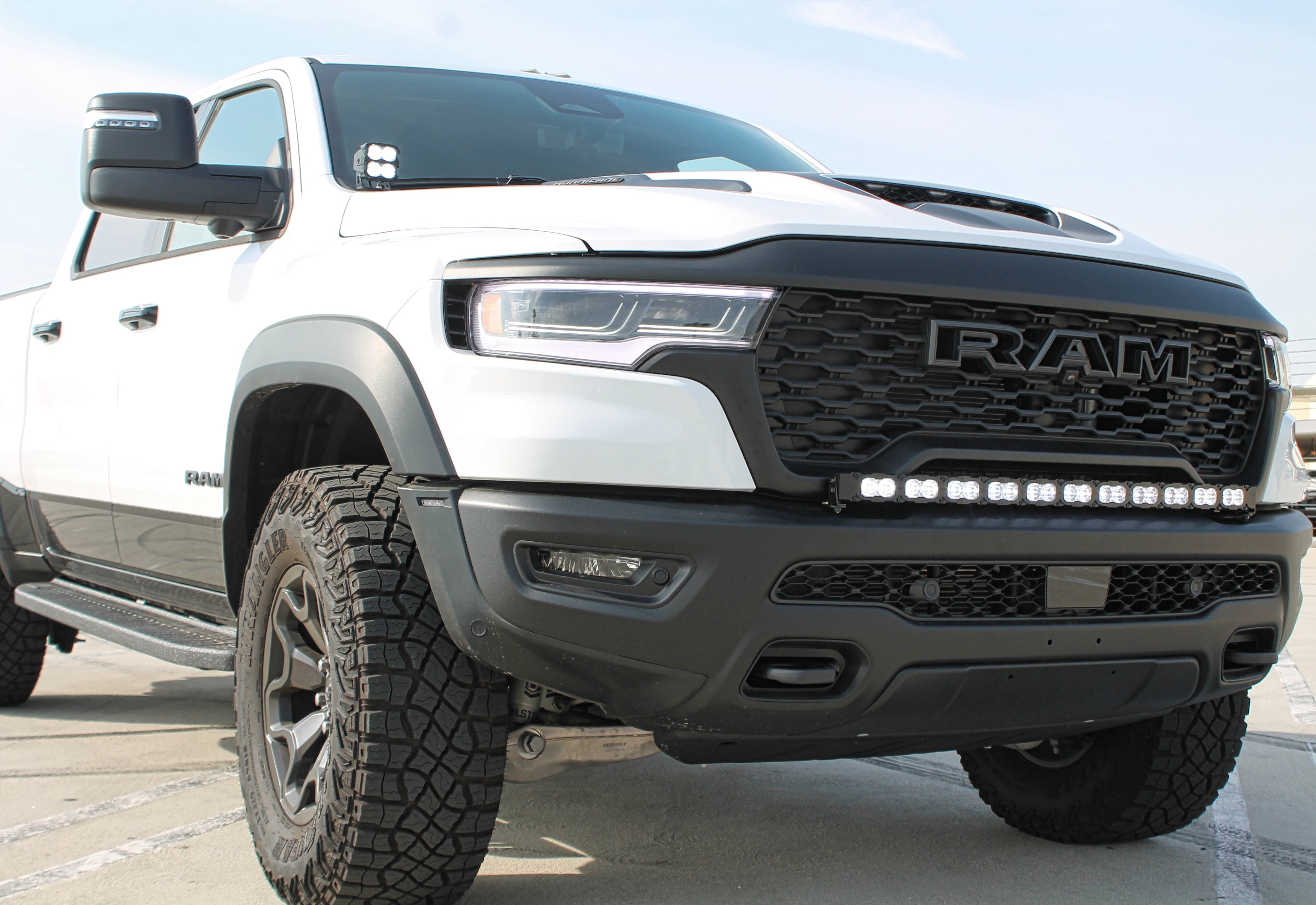

Fits 2025+ RAM 1500 RHO model only
- Curved LED light bar PRO

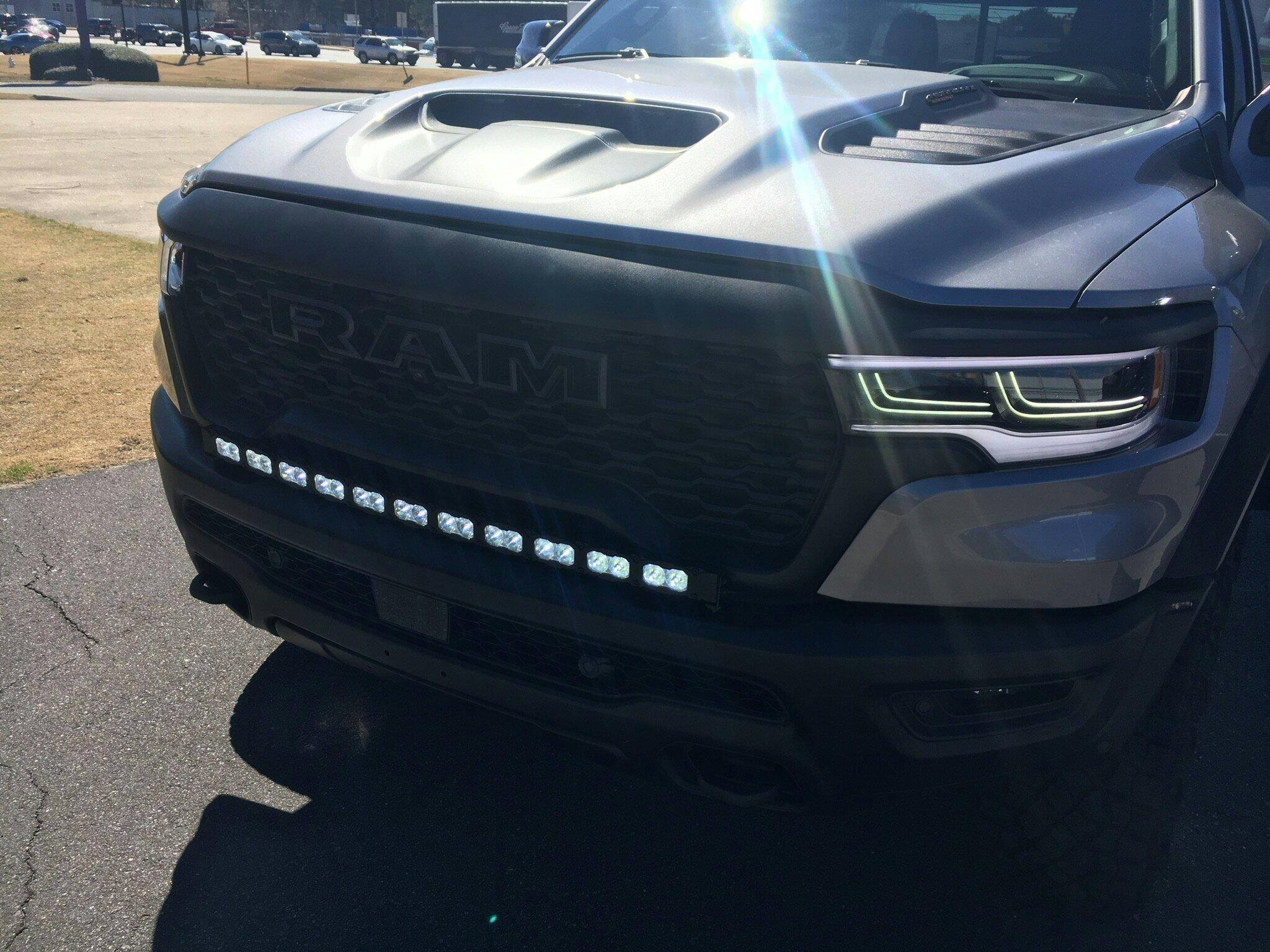

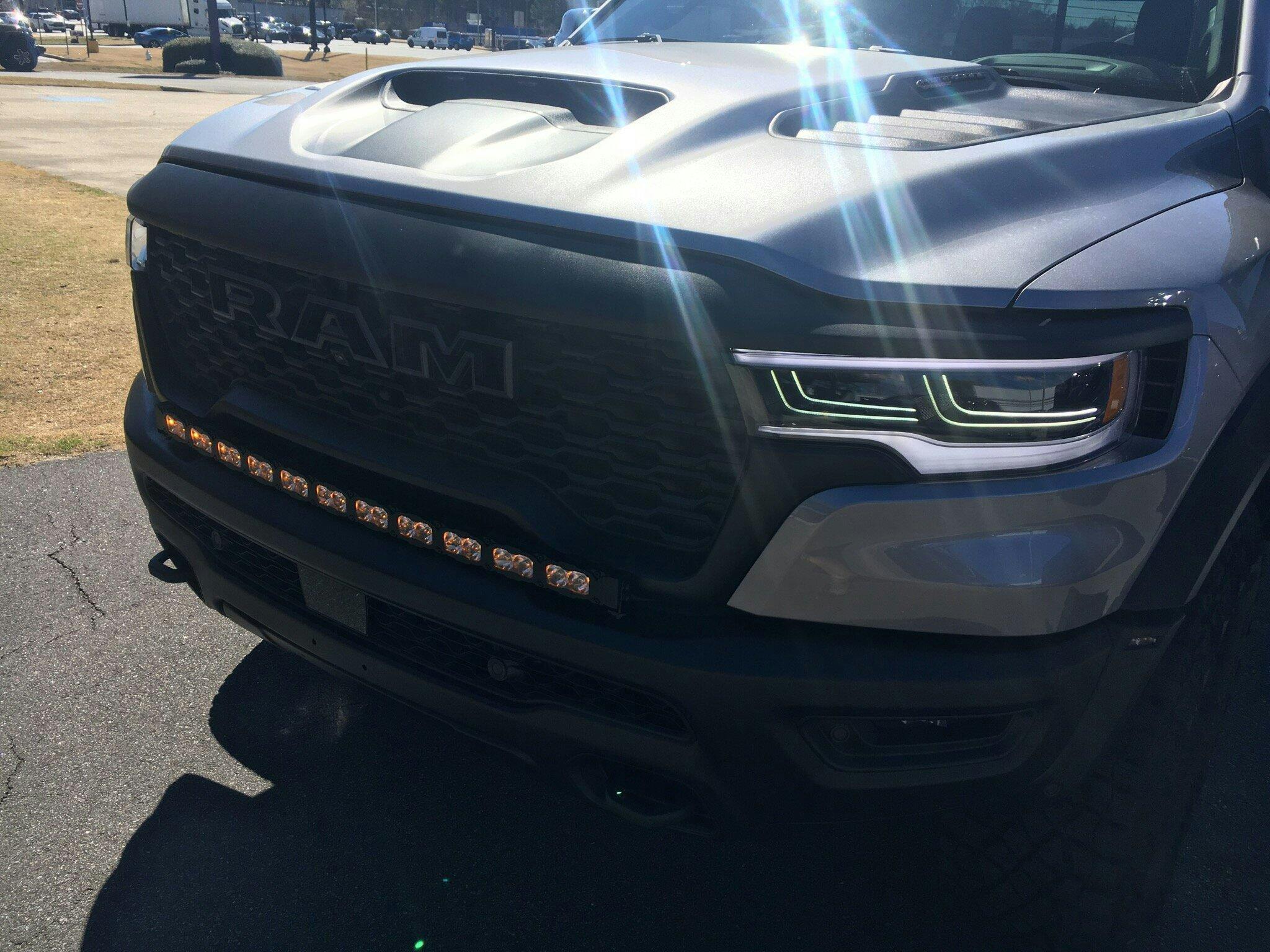

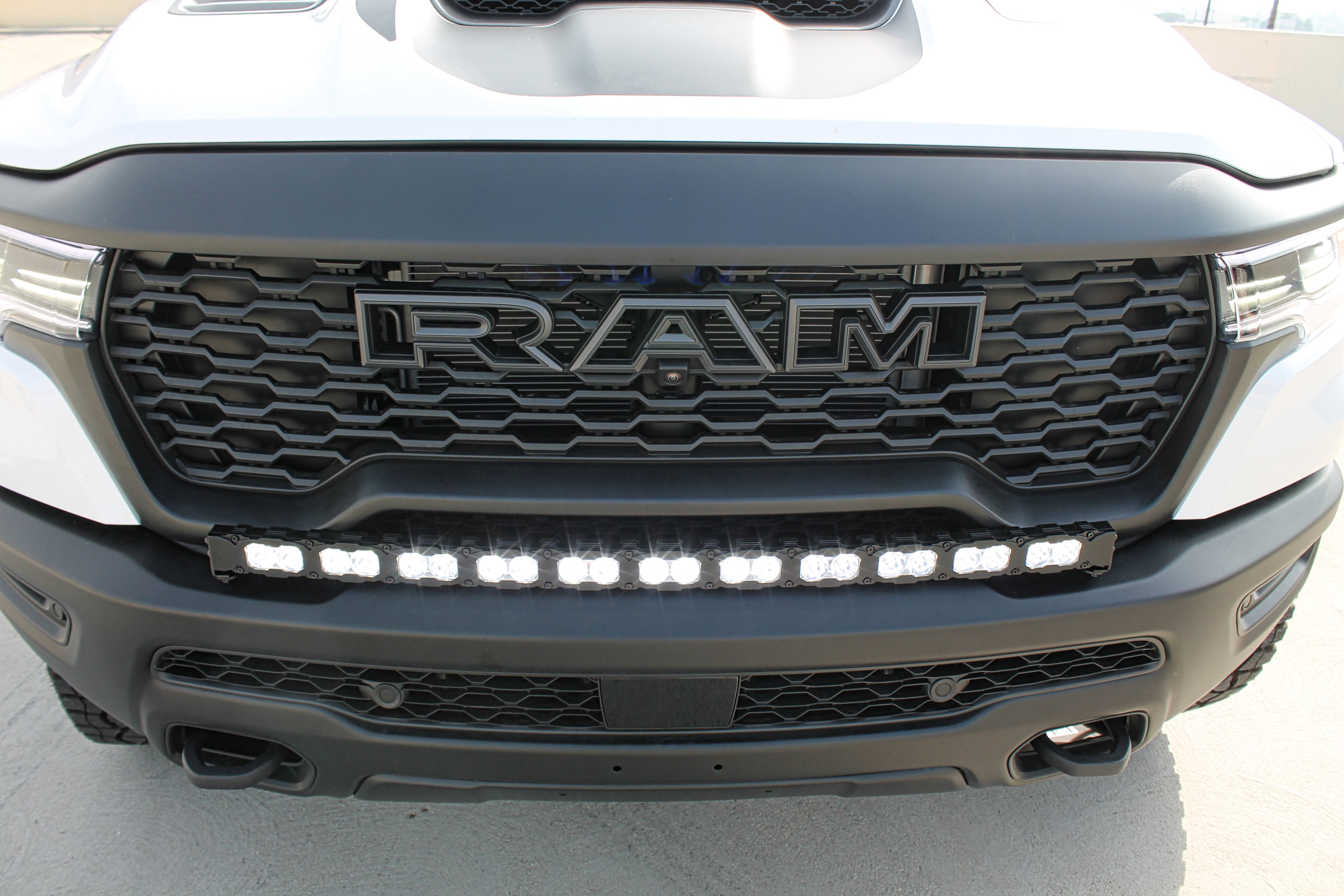

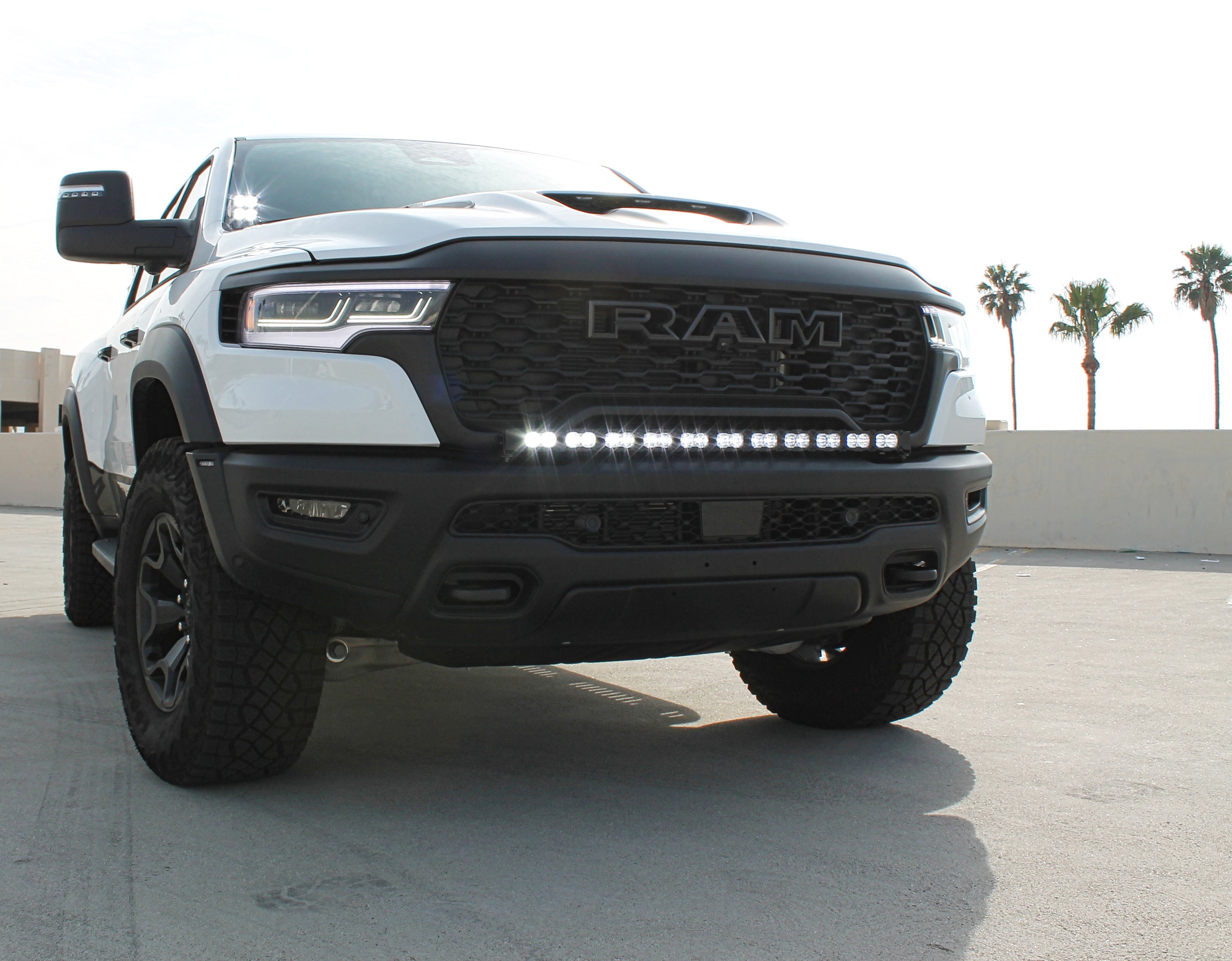

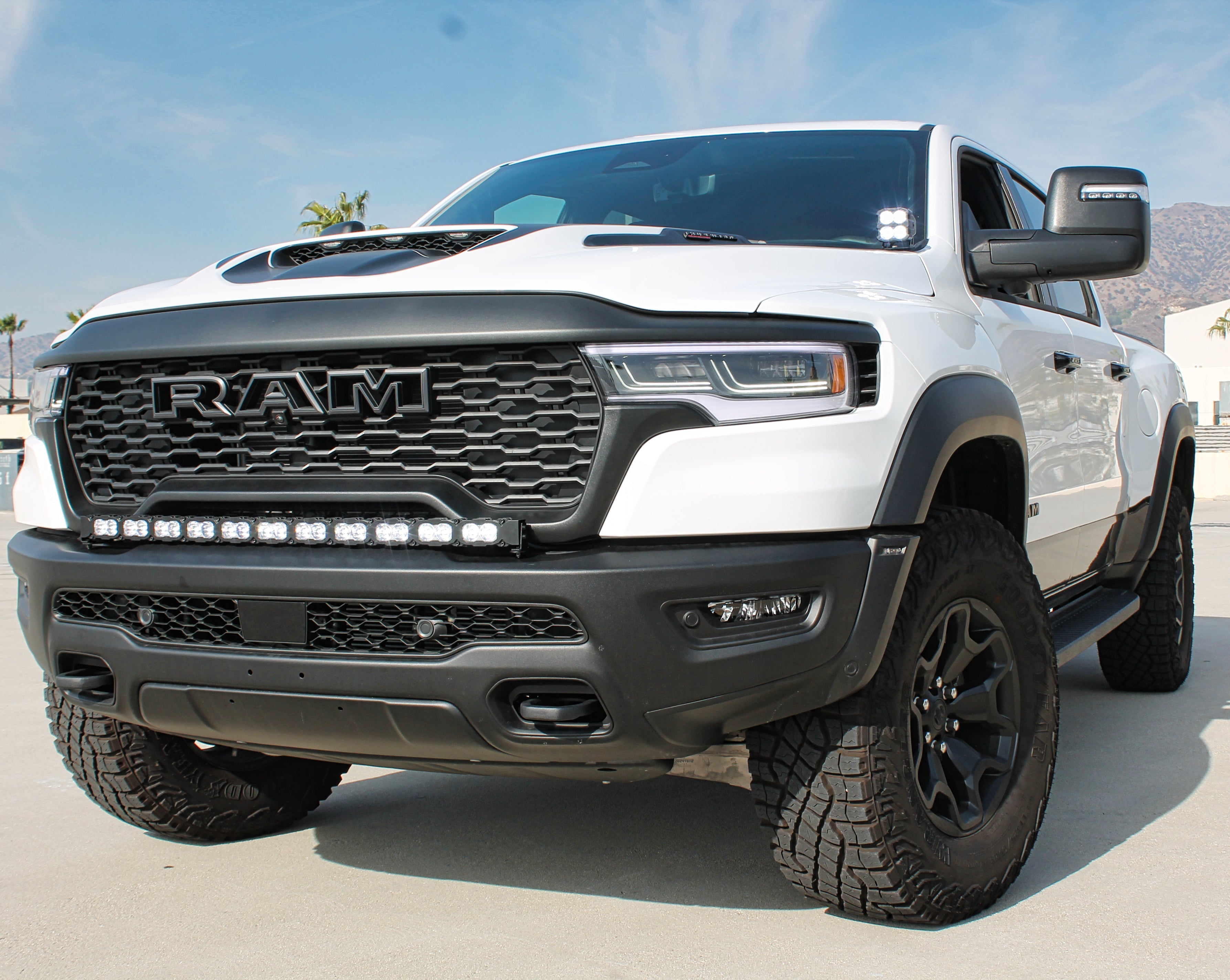

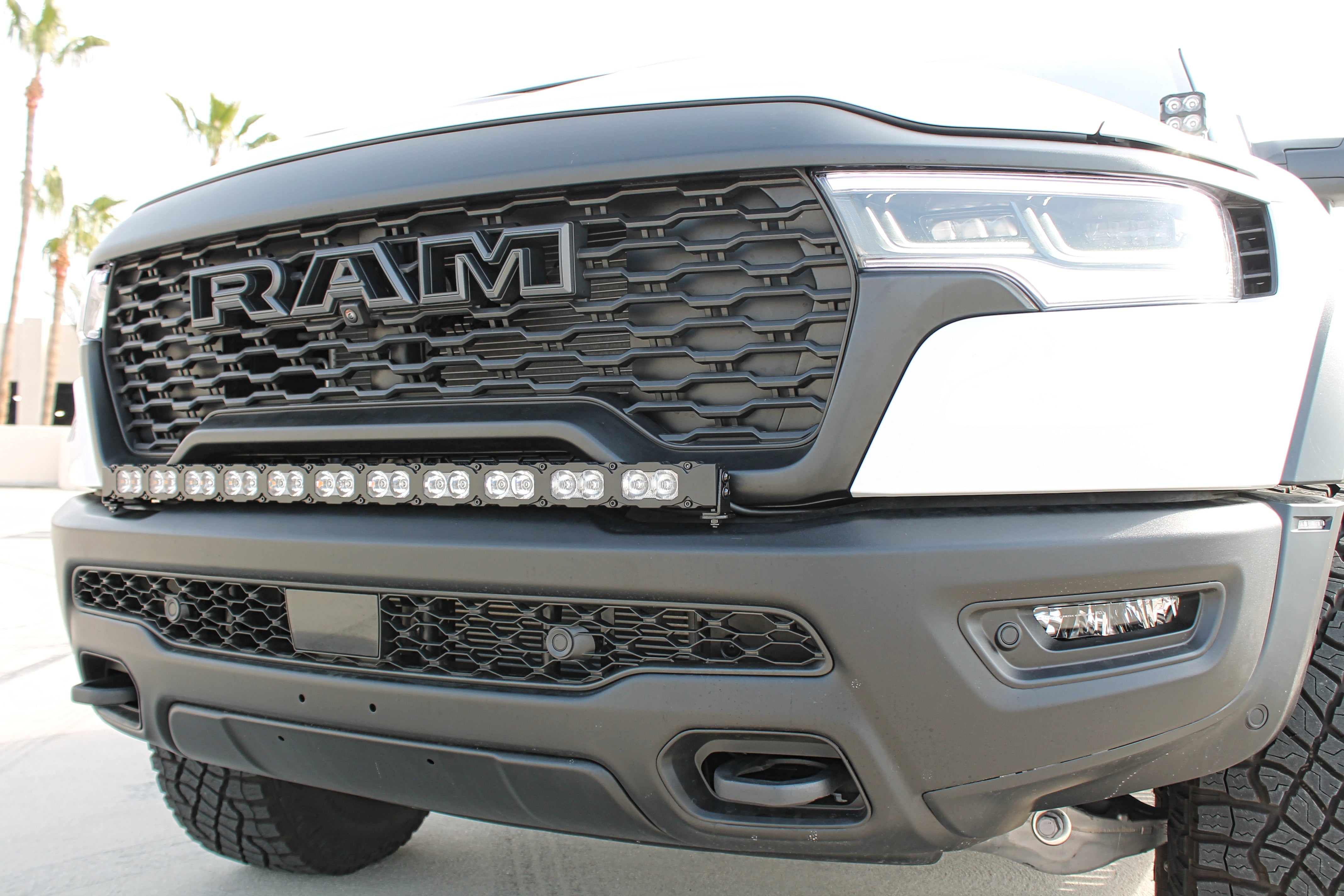

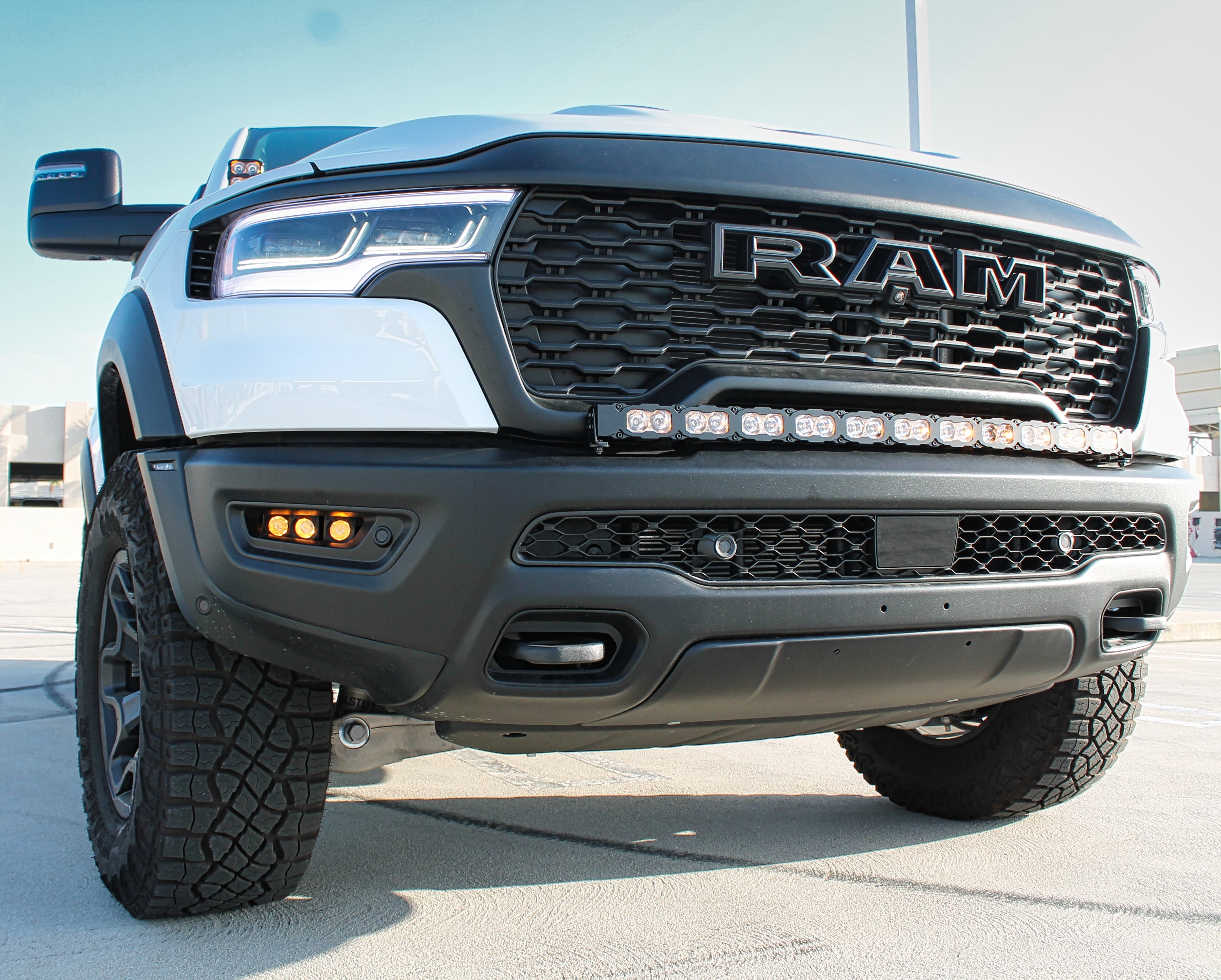

- Perfectly follows the RAM 1500 RHO bumper and grille factory curvature

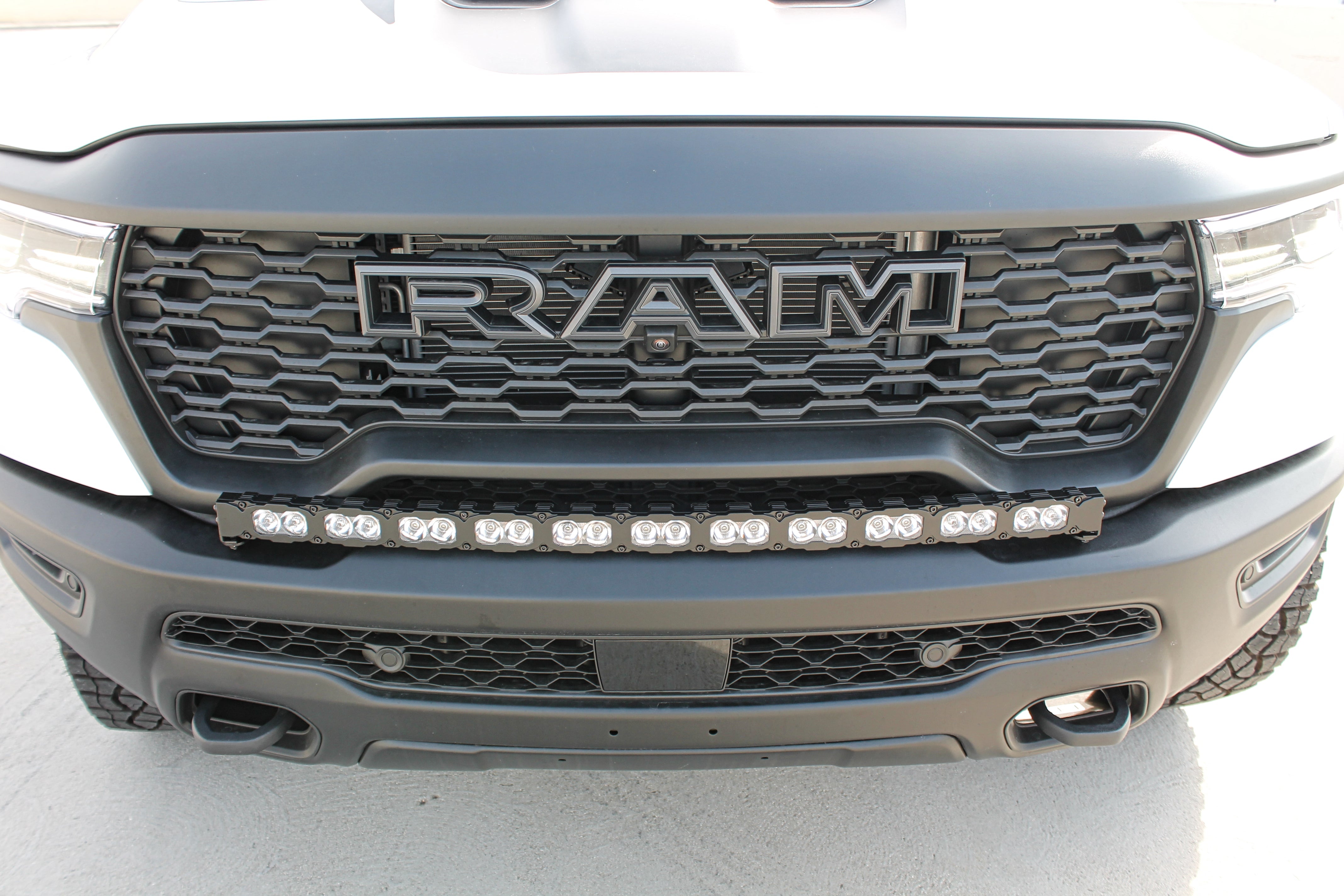

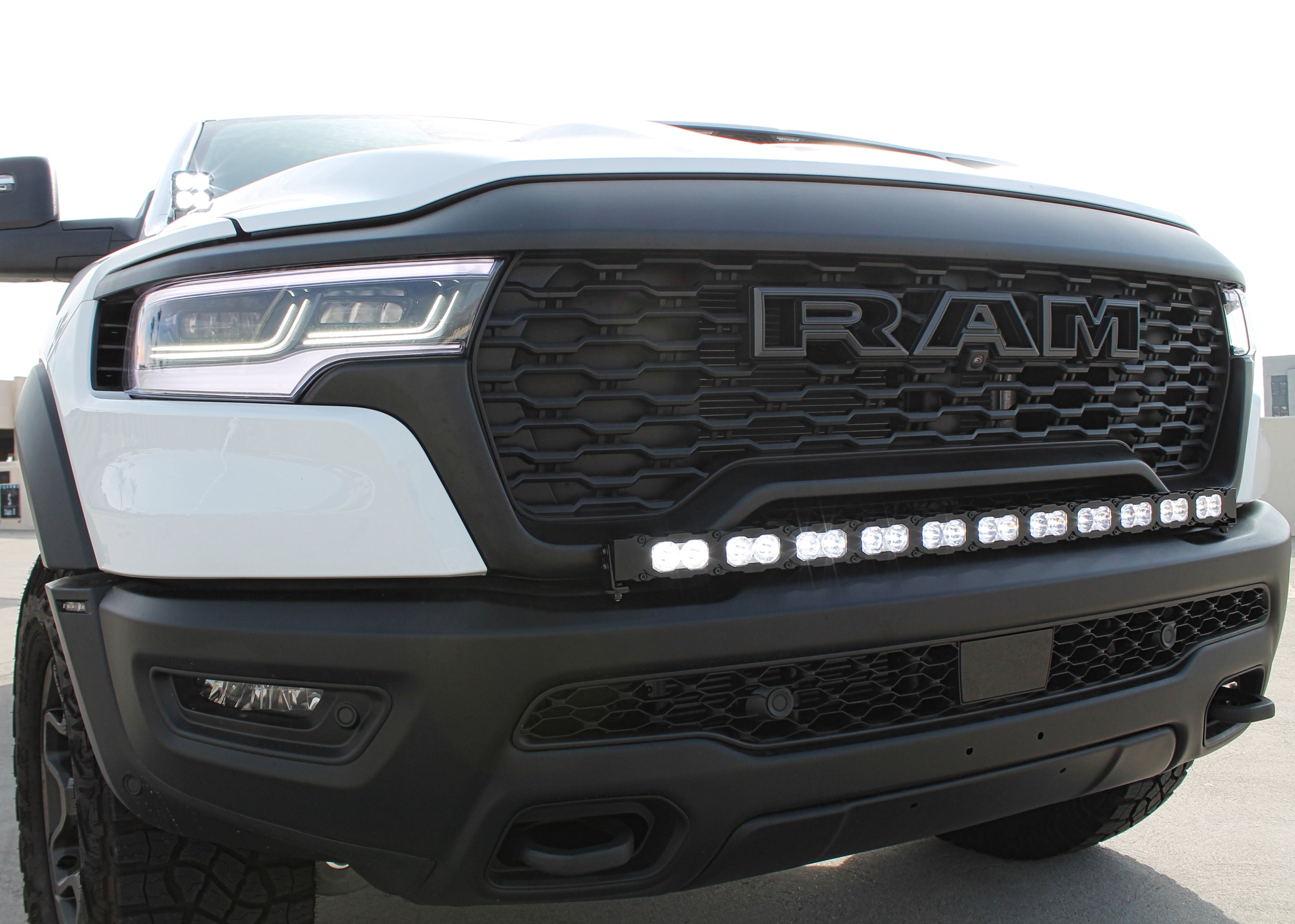

- Stays slim to the bumper for a sleek, built in look
- Must remove grille
- No cutting or drilling required. The kit is a complete bolt on using factory openings and hardware.
- Doesn't interfere with radiator air flow

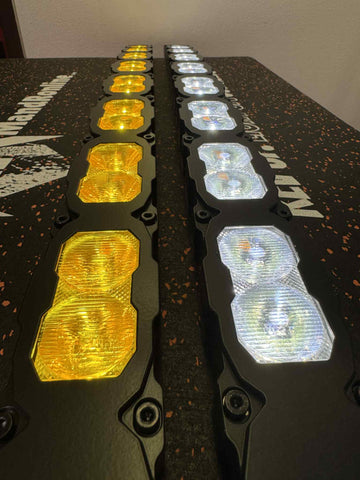

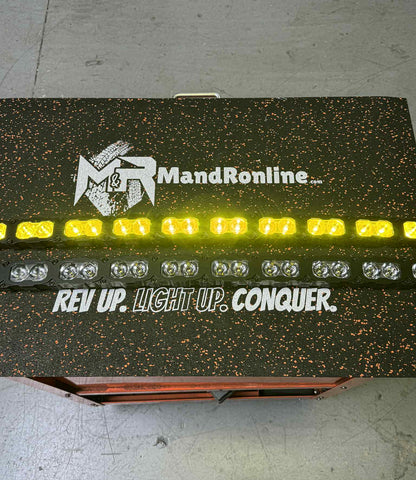

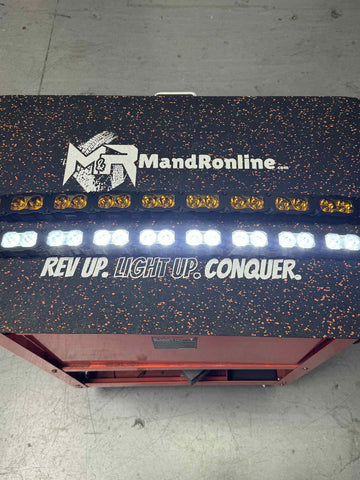

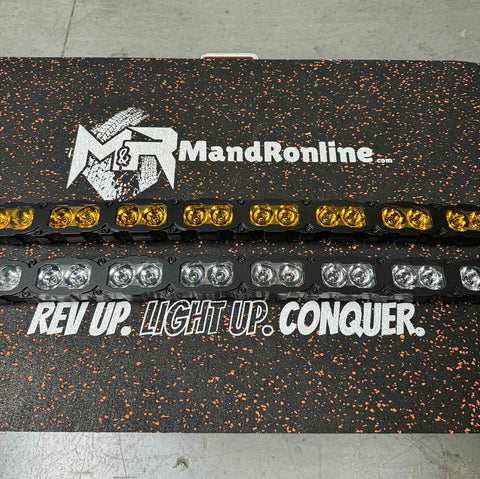

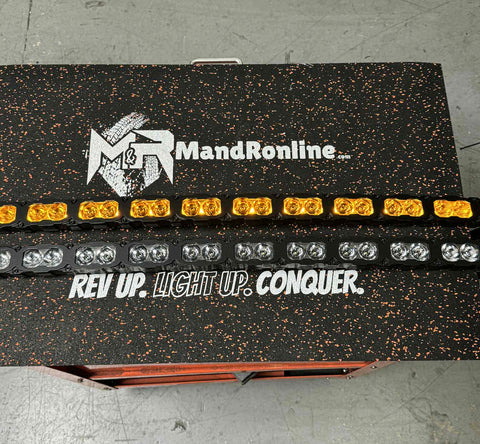

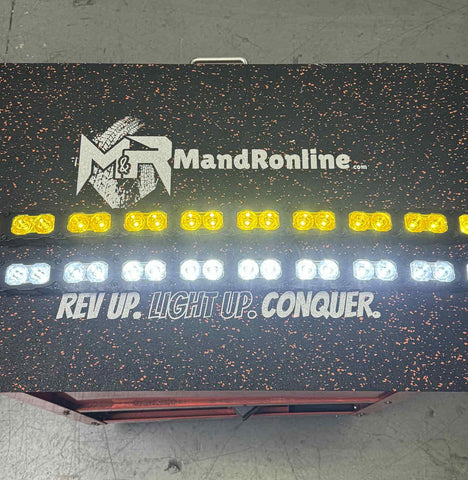

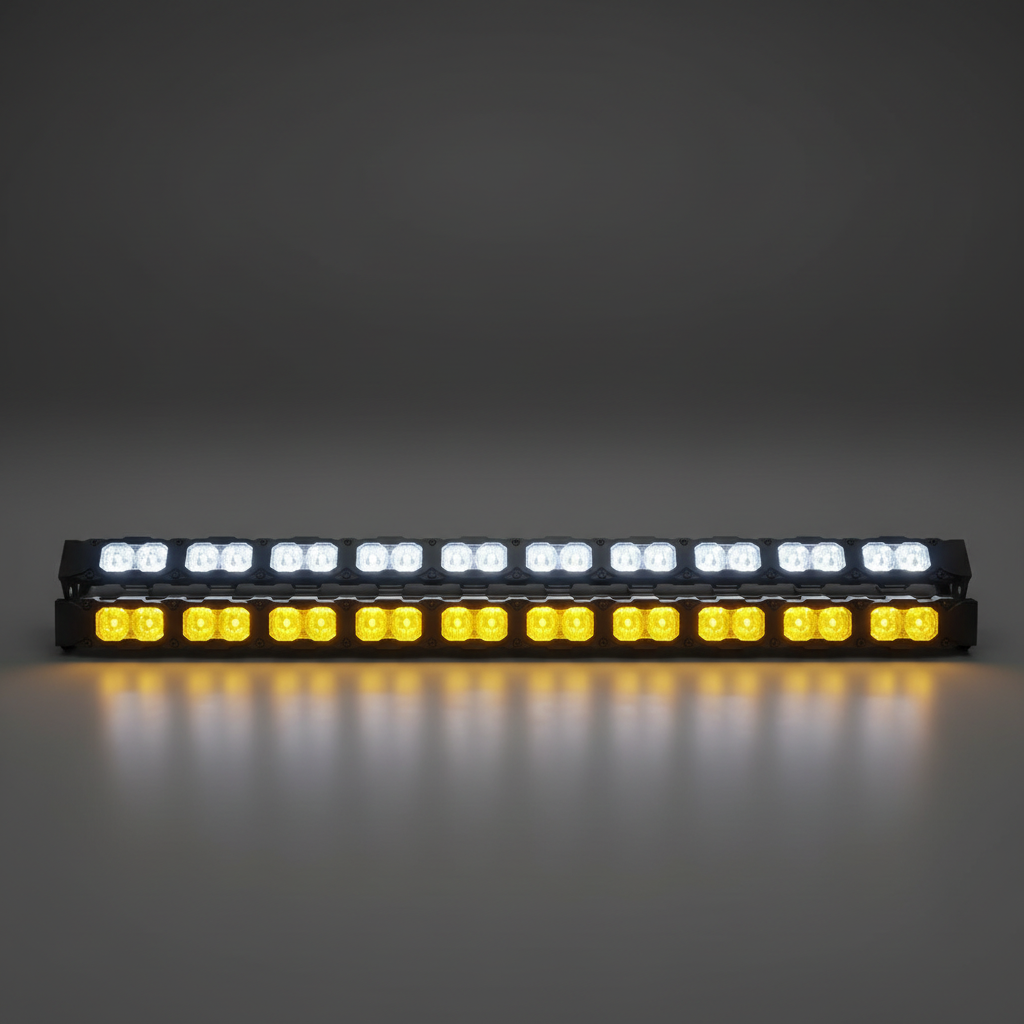

DUAL COLOR
Main White LED Light with Amber DRL (daytime running lights)
-

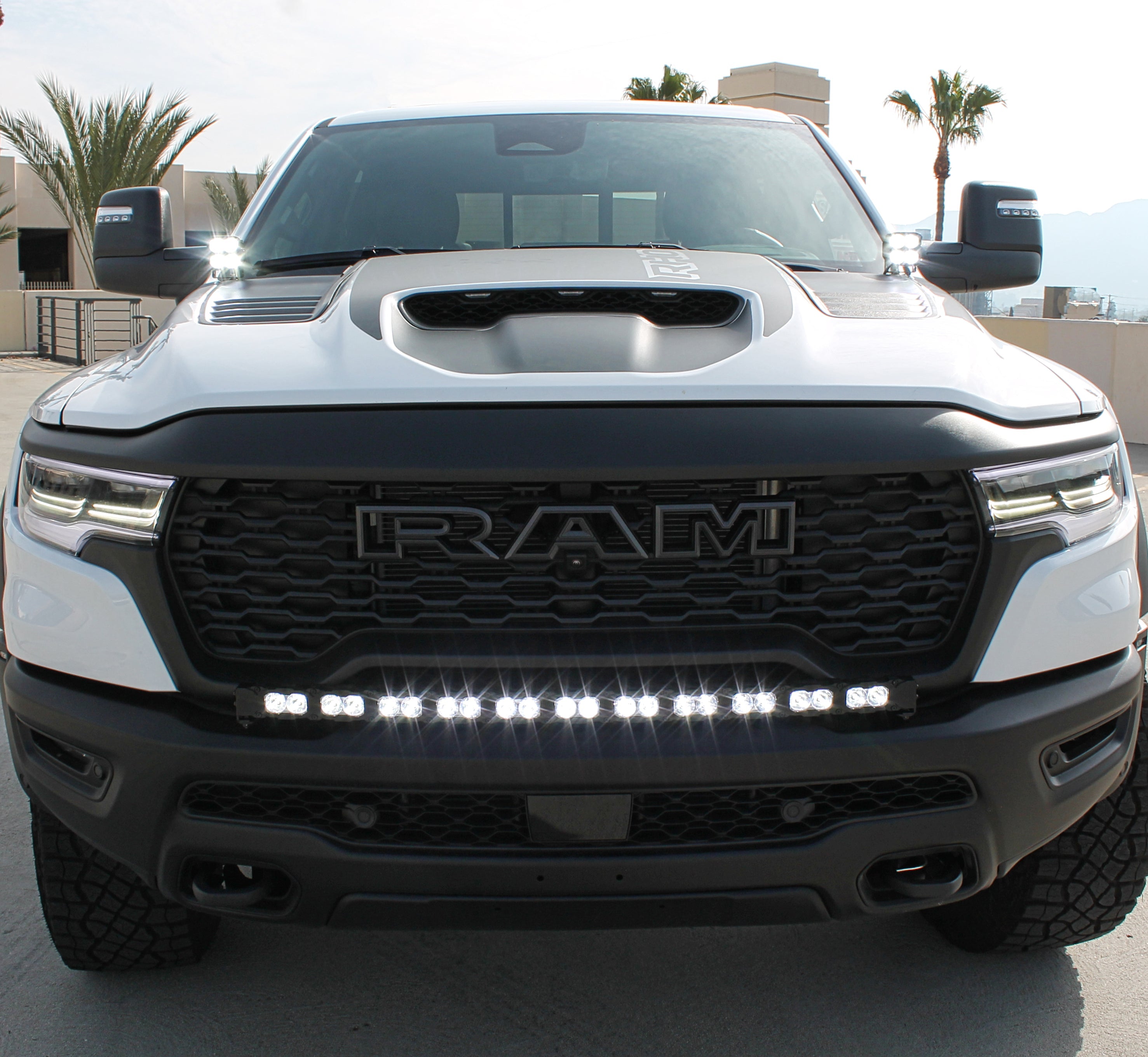

White LED -- Super bright and crisp white beam pattern. It will definitely provide you with enough light needed for all of your adventures. However, these are only for off-roading and can’t be used on the regular road. They will blind the in-coming traffic and also violates road safety.

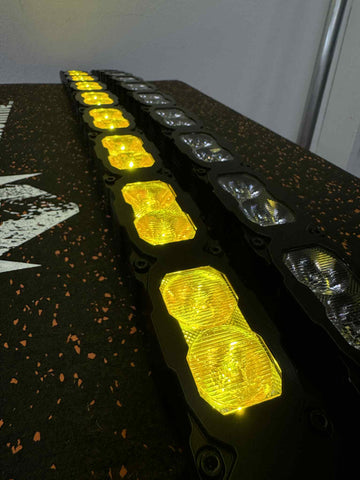

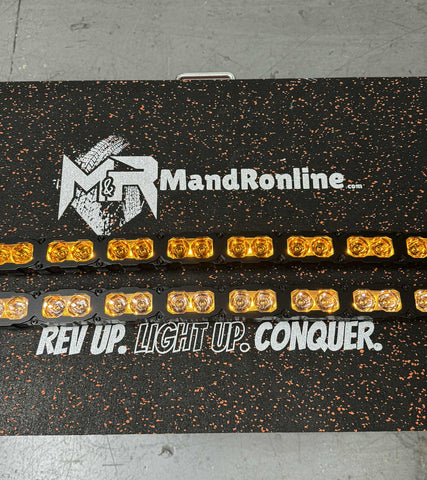

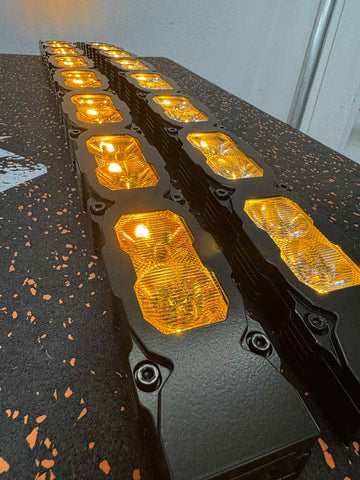

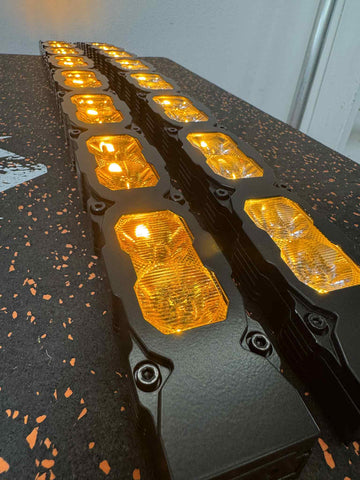

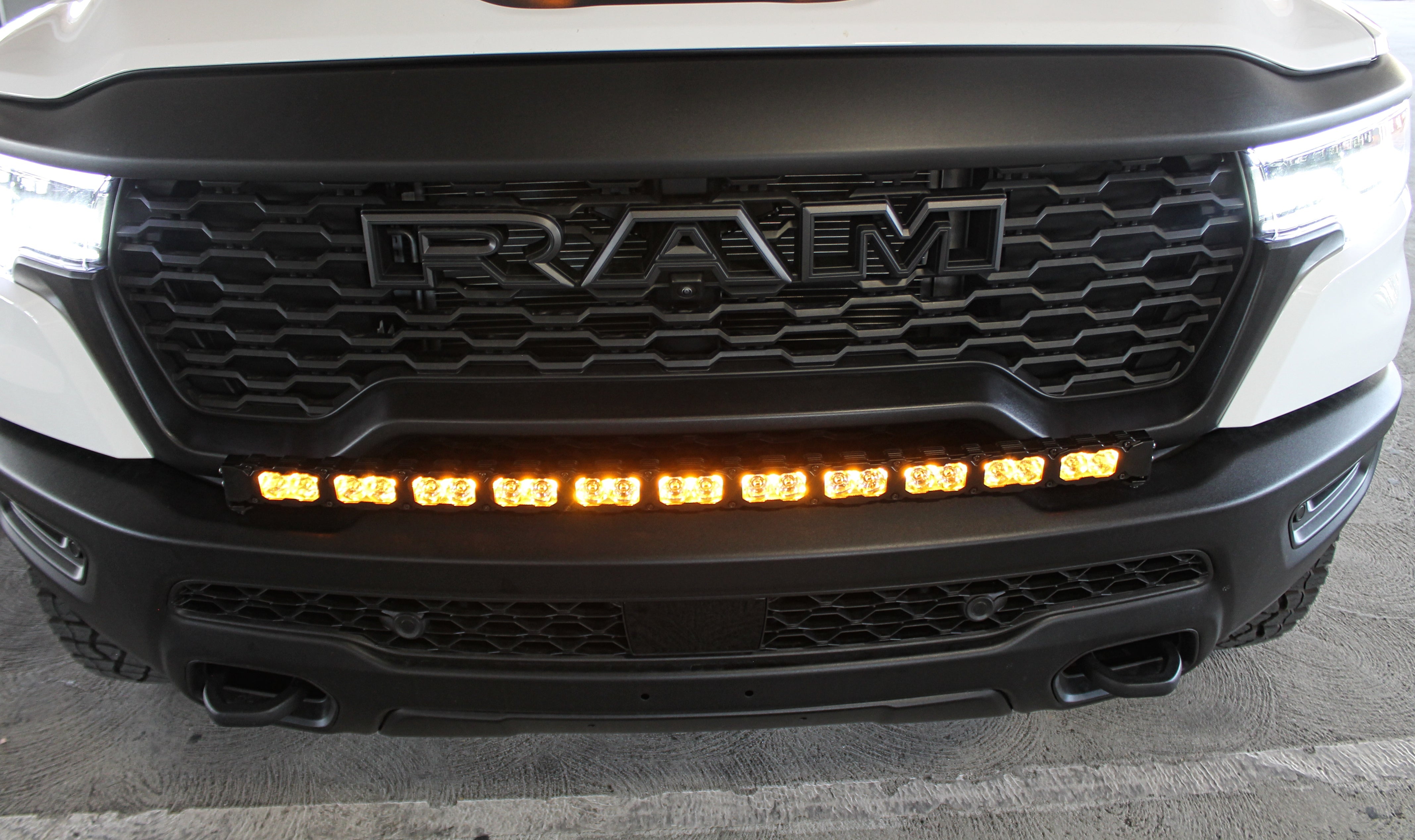

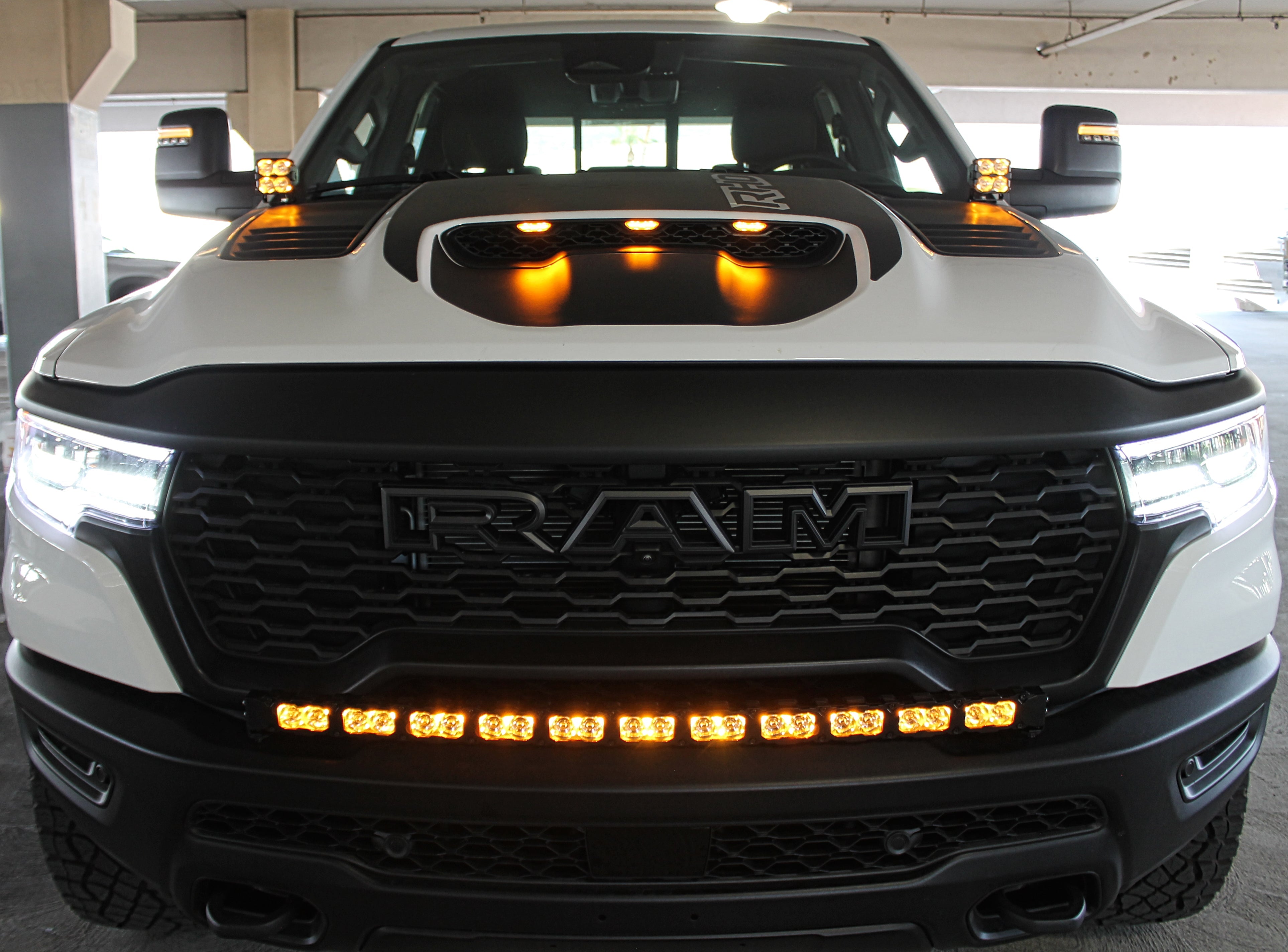

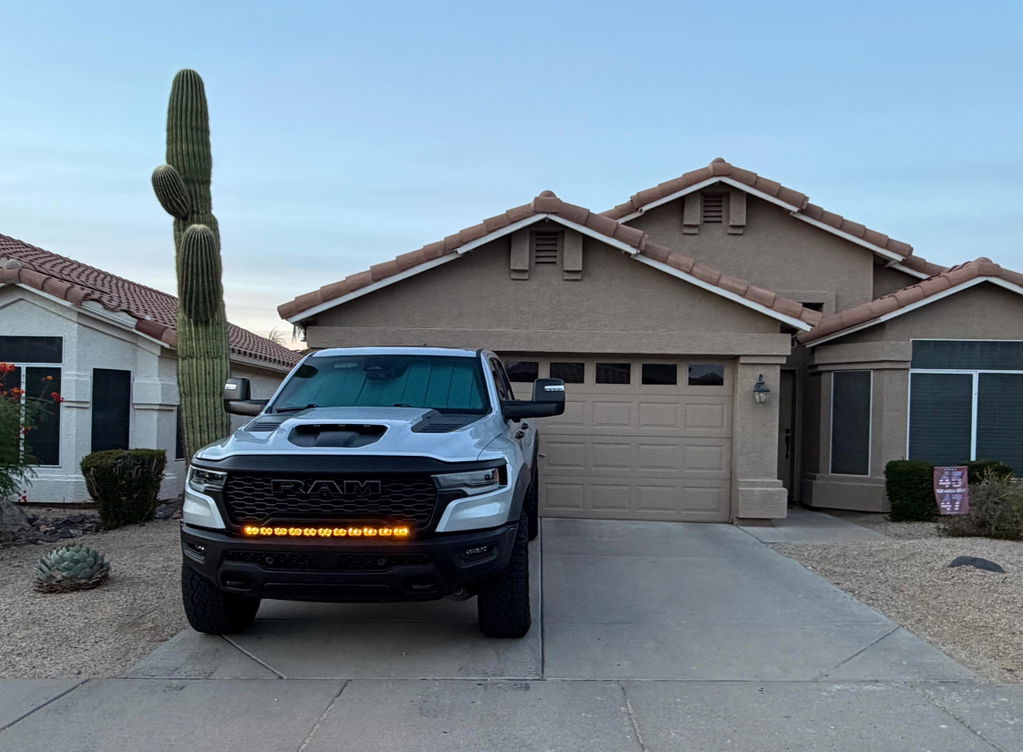

- Amber DRL -- amber DRL “daytime running lights” acts purely for aesthetics. Since it doesn’t give out much light, you can use this amber DRL feature on regular roads, it doesn't blind in-coming traffic.
Introducing our new LED light bar-PRO wiTh a unique appearance and optimal performance.
- Combo Pattern: combined spot and driving optics offers a balance between the distance and width
- Uses TIR (Total Internal Reflection) lens is different from our the regular slim light bar. The TIR lens collects all of the light from the LED and directly leads them to where you need, drastically reducing glare and improving total efficiency.
- Higher light efficiency: brighter, longer irradiation distance

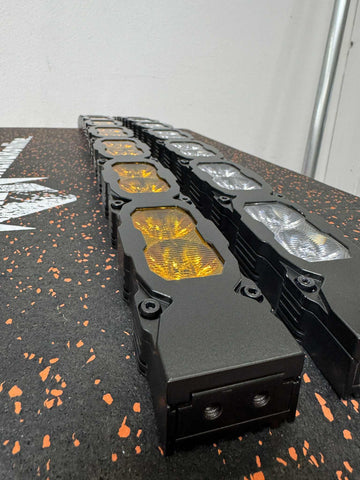

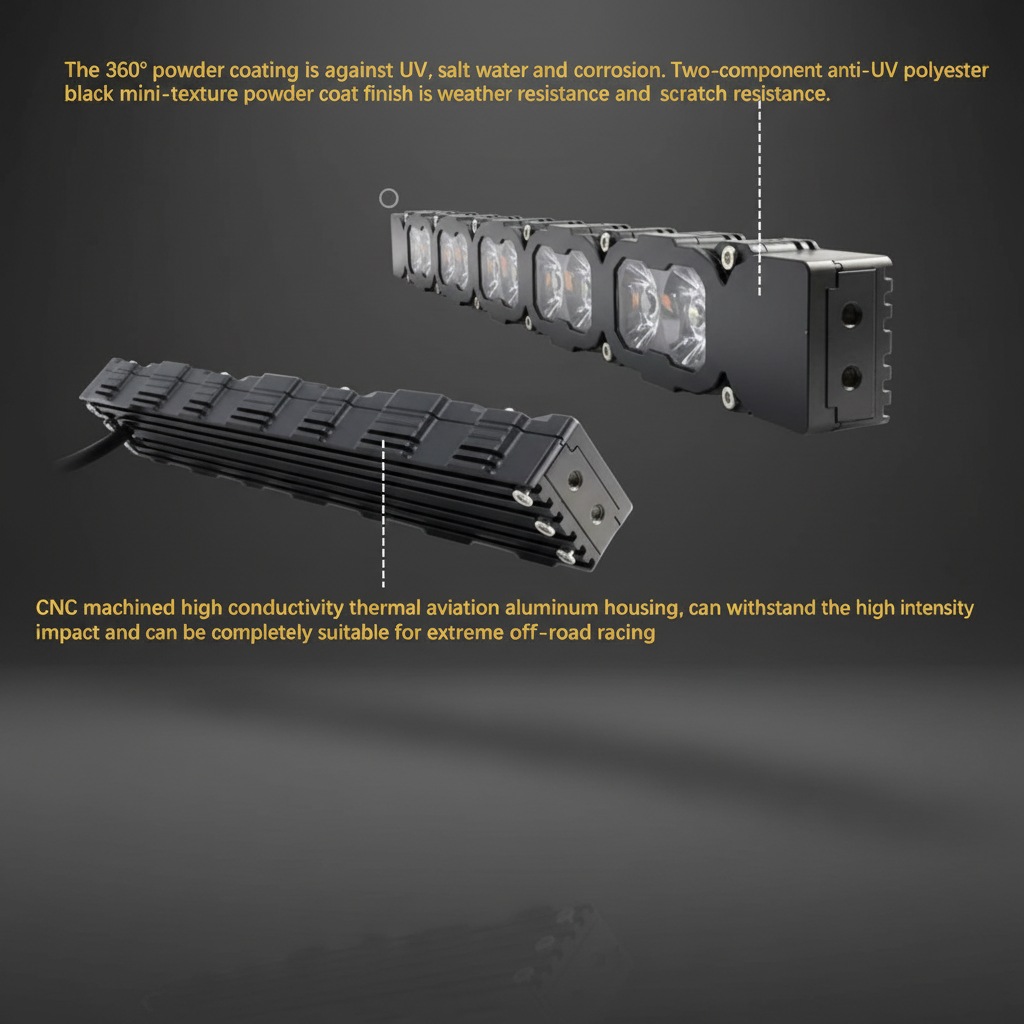

- Housing is upgraded to 304 aluminum. The surface is UV polyester powder coated to prevent against UV, salt water, corrosion, fading and scratch resistant.
- Equipped with thermal management system that automatically adjusts the brightness output according to the external temperatures
👍Our light kits are for off-road use only.
WHAT'S INCLUDED?
(1) 40in light bar - PRO
(4) mounting brackets
All mounting hardware
WIRING
The RAM 1500 RHO has AUX switches for easy wiring installation. The light bar has 6ft of wire which is enough to reach AUX wires.
INSTALLATION INSTRUCTIONS
Full video install and light output coming soon. New Product
40in Light Bar PRO
- Theoretical max power 220watts
- Actual power 125watts
- Main White light is 10.42amps at 12v
- Backlight Amber is 0.25amps at 12v
- Theoretical max luminous flux 24,024 lm
- Measured luminous flux (without lens) 15,224 lm
- Measured luminous flux (with lens) 12,108 lm
- LEDs type: luminus SST-20 Ra70
- Temperature: 6000k
- LEDs number: 22pcs
We have a lifetime warranty on our light kits. We truly want our truck enthusiastic customers to enjoy their products as much as we enjoy designing them. However, we also understand that different situations arise with brackets or lights. For more information about our warranty and disclaimer click here.
*M&R Automotive is not responsible for misuse or improper installation of the product. Professional installation is recommended.
