Fits 2024 2025 Toyota Land Cruiser
Trims: Land Cruiser 1958 and Land Cruiser

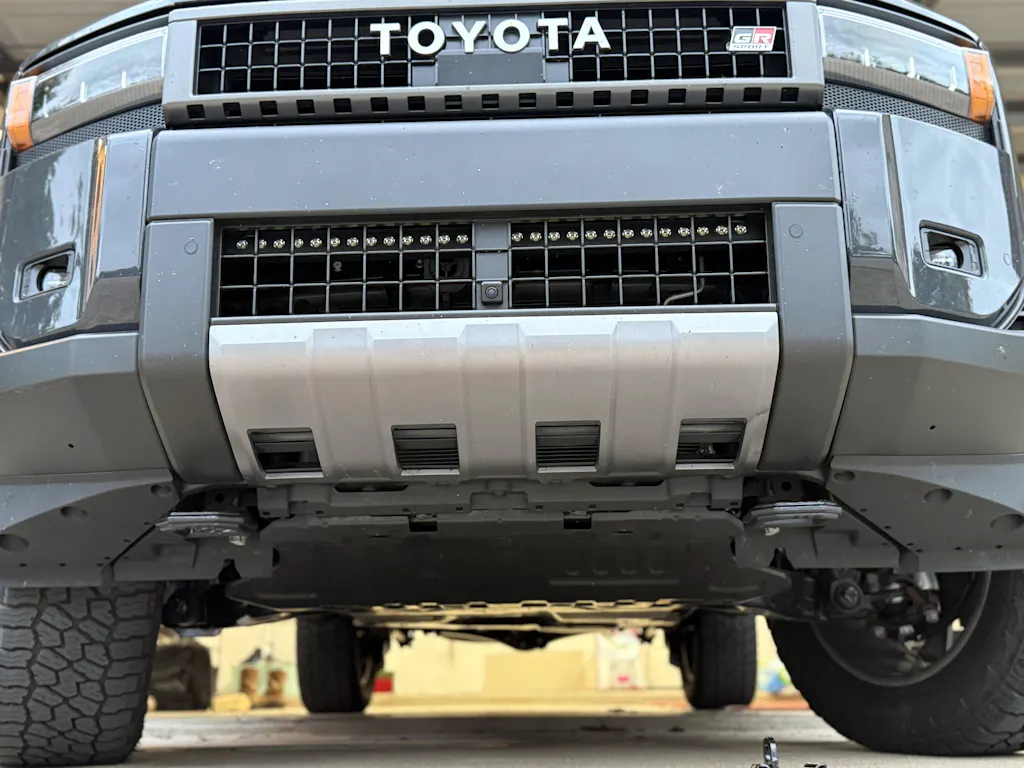

- Installs behind the lower grille

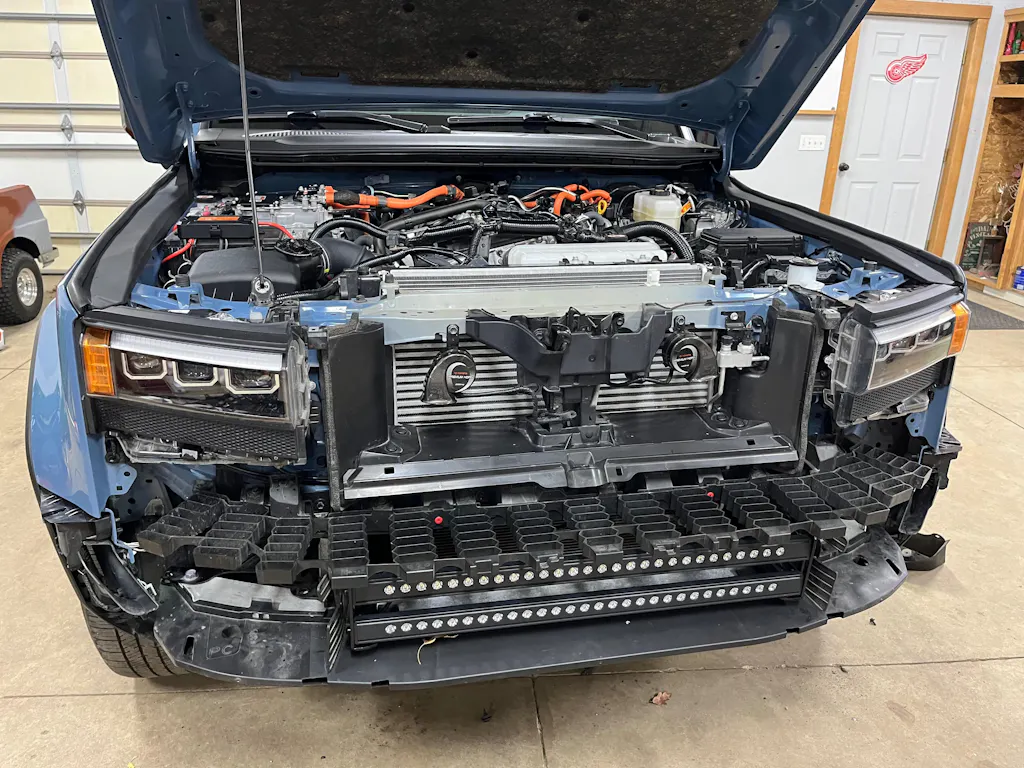

- Must remove whole front grille for installation
- DOES NOT affect cooling of the radiator
- DOES NOT interfere with active shutters

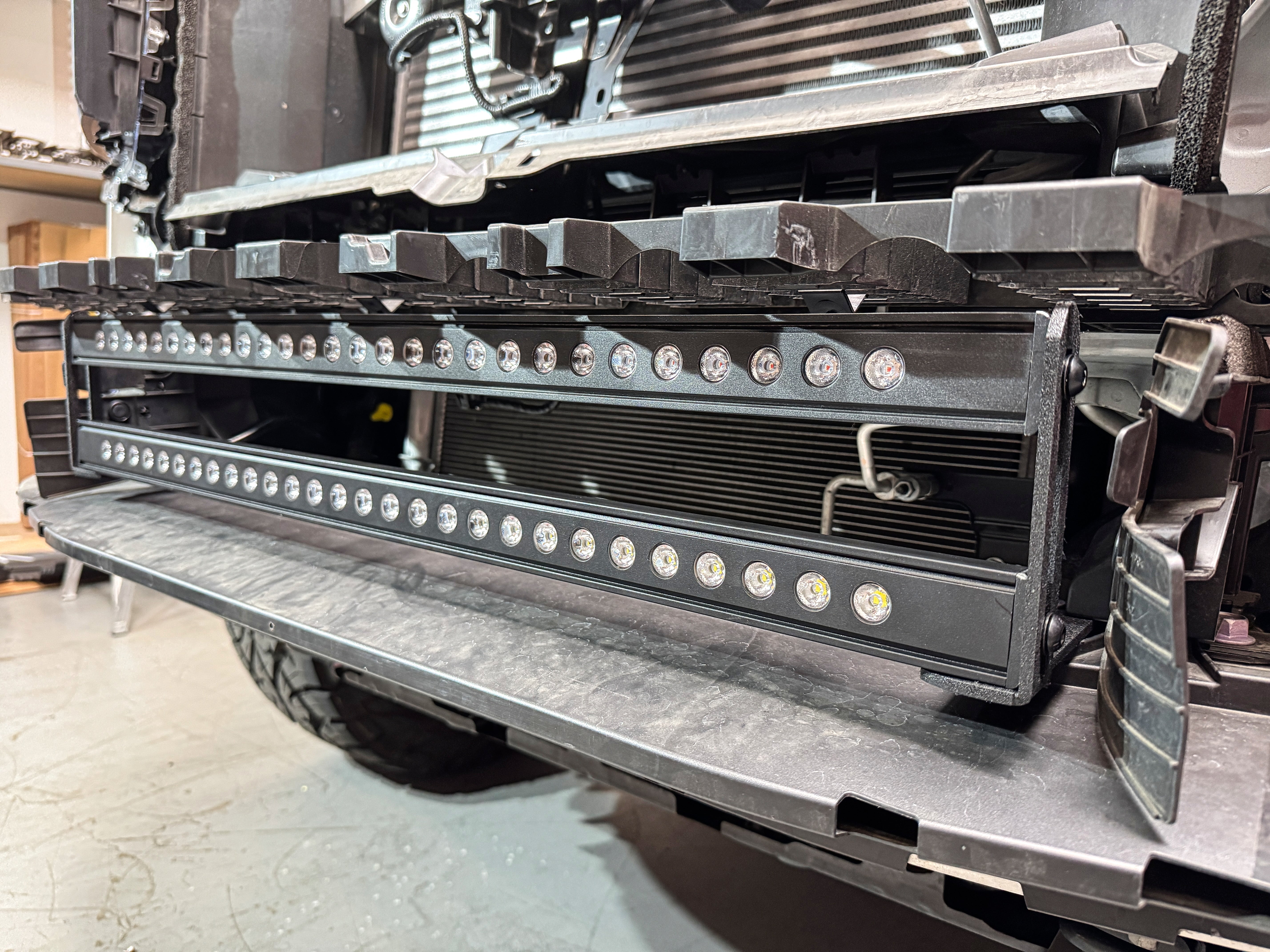

- Metal bracket has a rail system that allows you to move the light bars up/down to your liking
-
Metal bracket is powder coated black
- No cutting or drilling required. The kit is a complete bolt on using factory openings and hardware.
Choose your light bars colors:

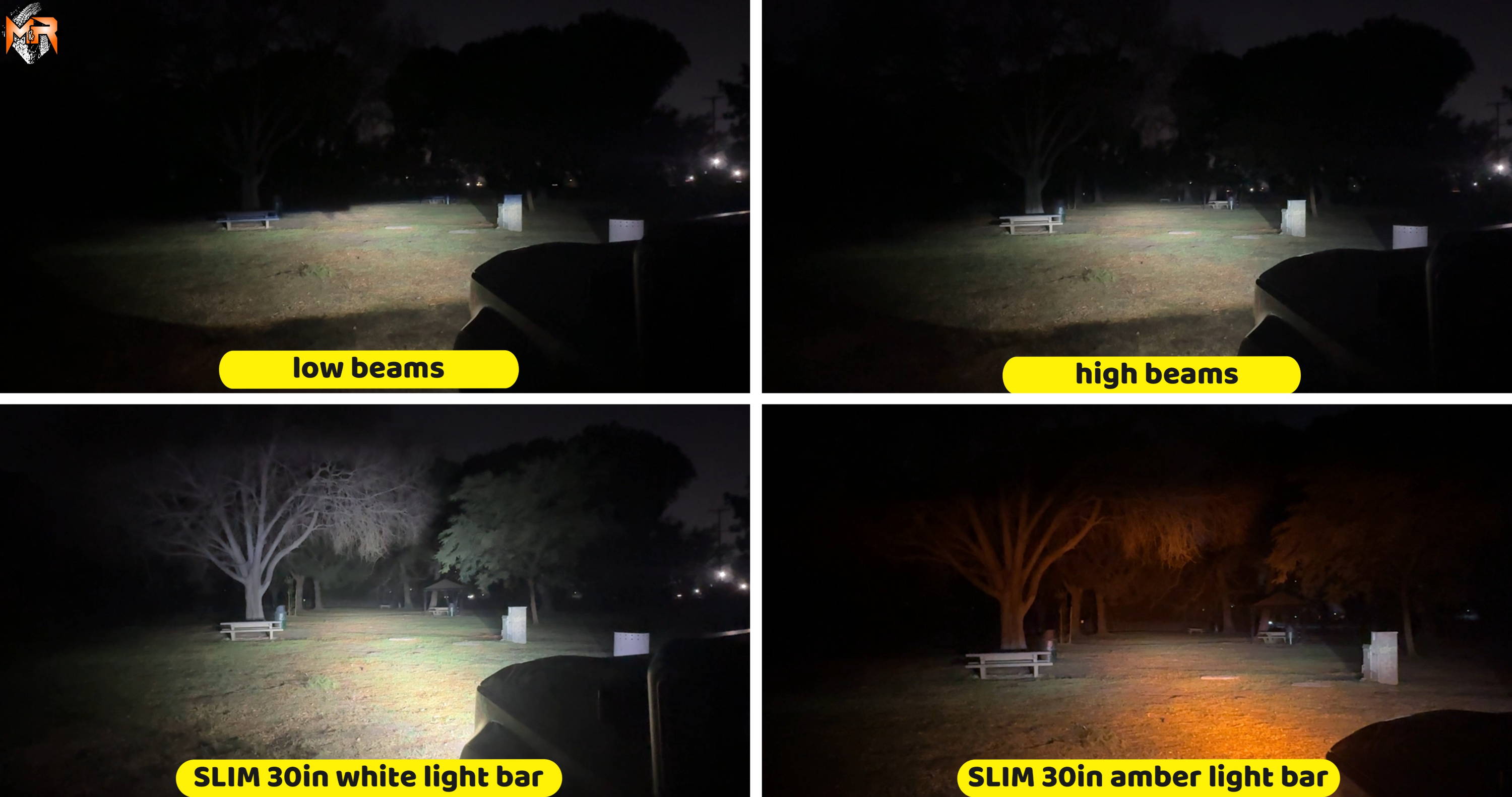

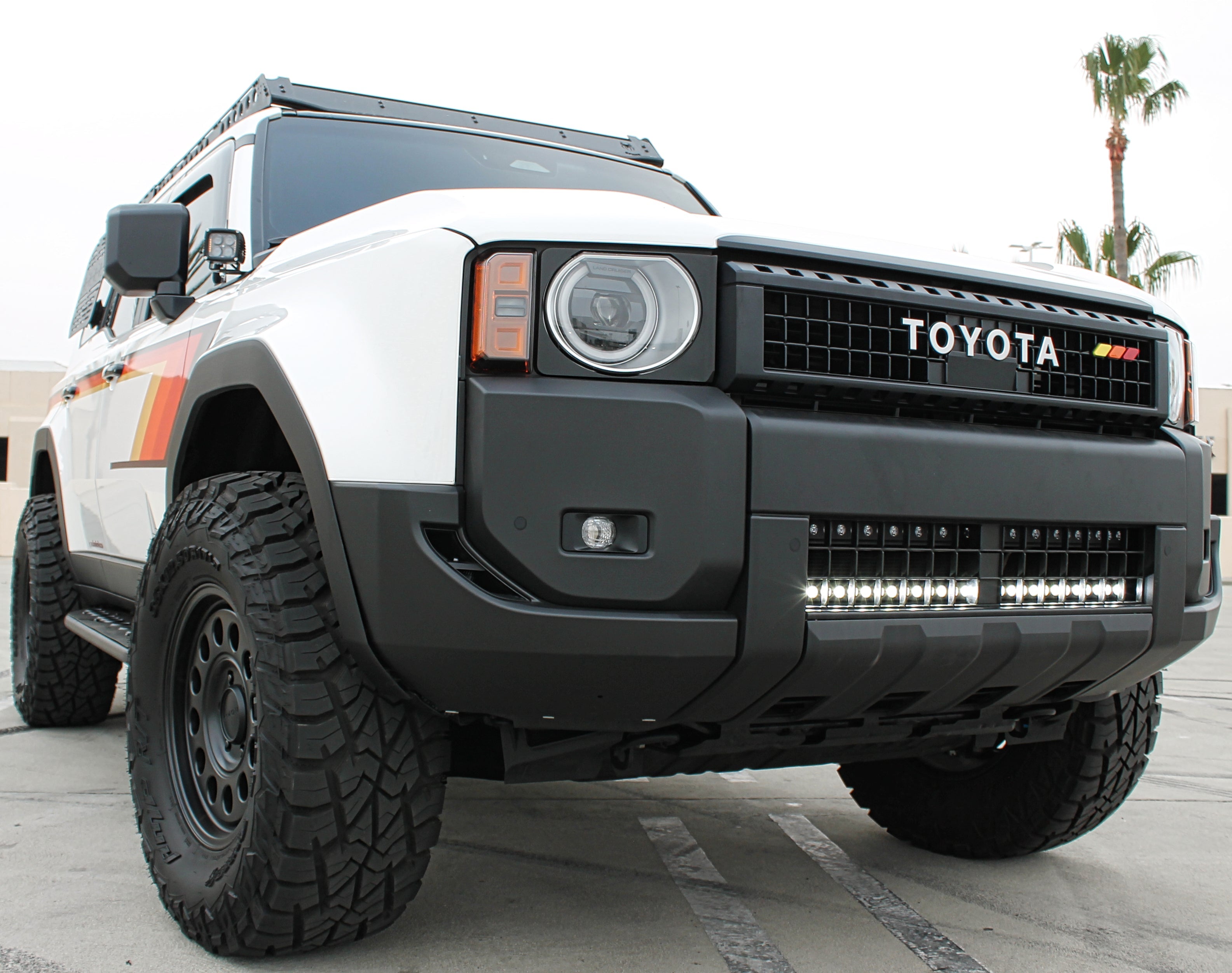

1) White LED -- Each up to 11,760 lumens, bright and powerful. It will definitely provide you with enough light needed for all of your adventures. However, these are only for off-roading and can’t be used on the regular road. They will blind the in-coming traffic and also violates road safety.

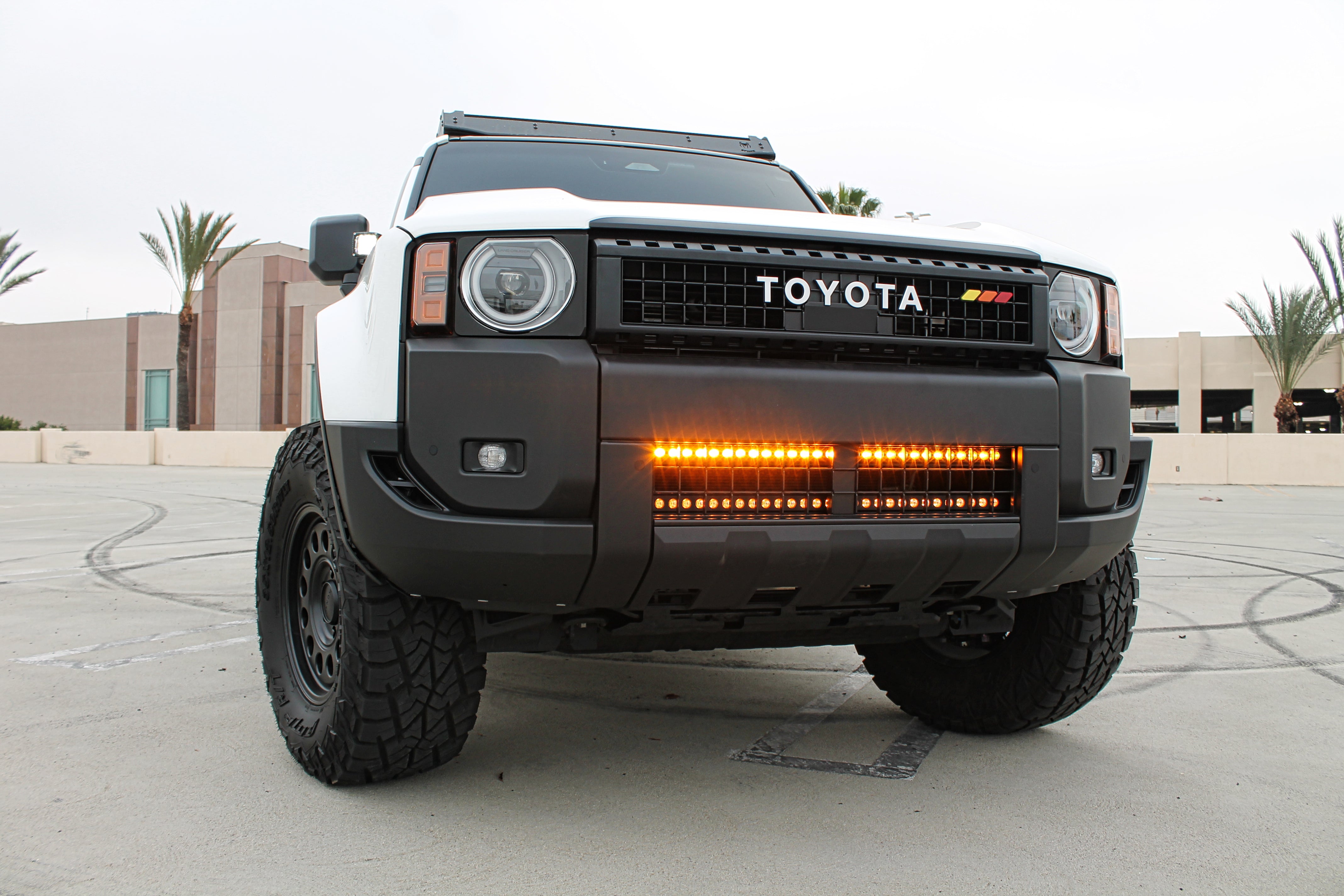

2) Amber LED -- Each up to 5,500 lumens, used in poor driving conditions such as dust, fog, snow and rain. It reflects through air particles much less than the white light. Therefore, making it ideal for poor driving conditions.

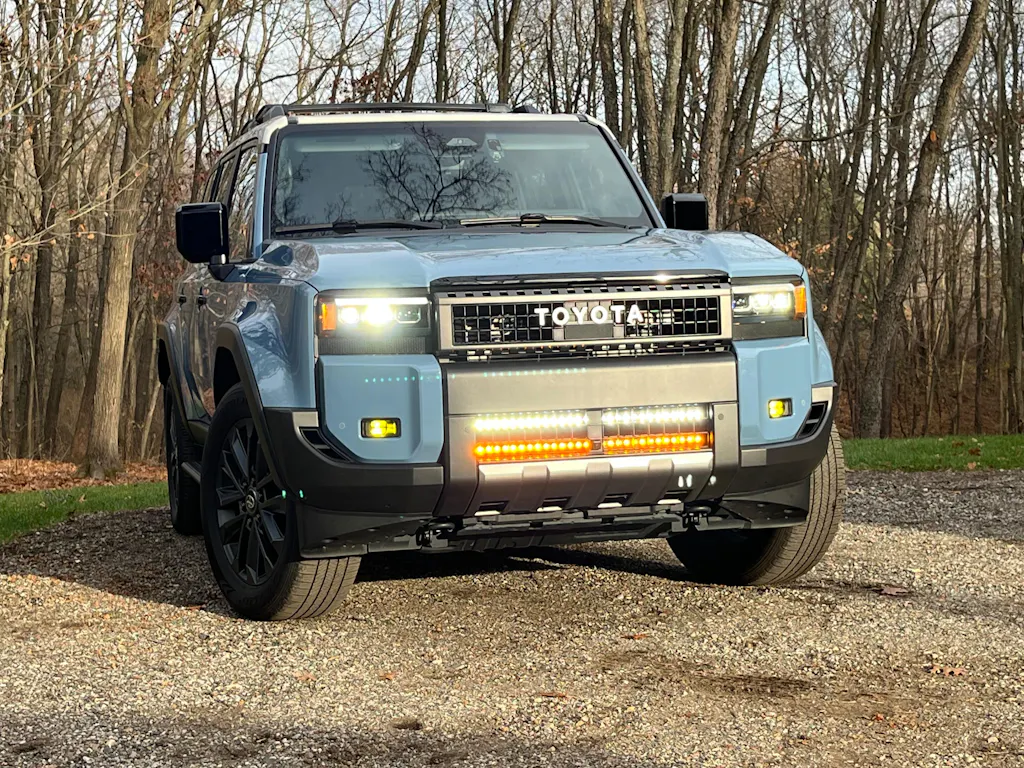

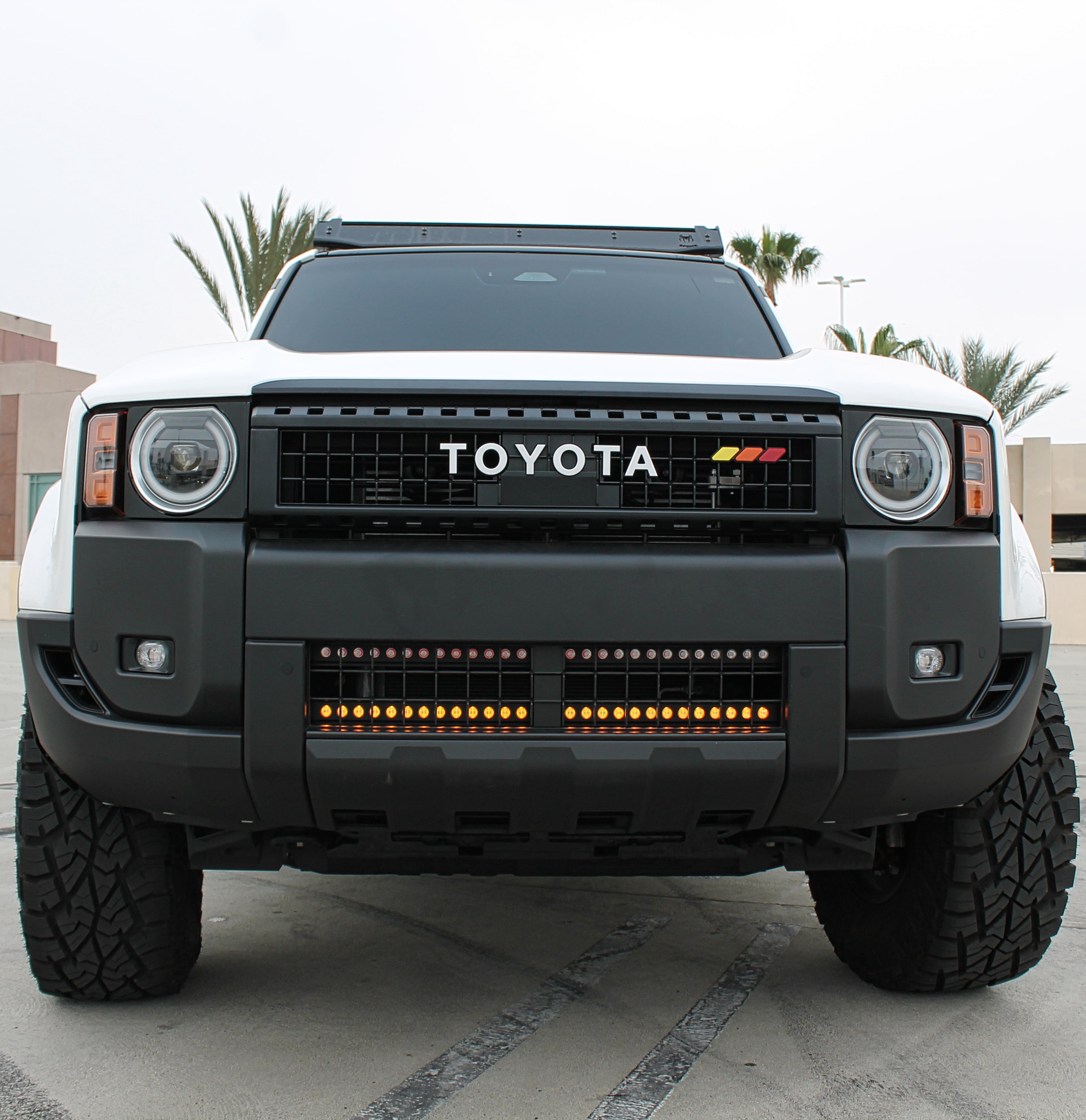

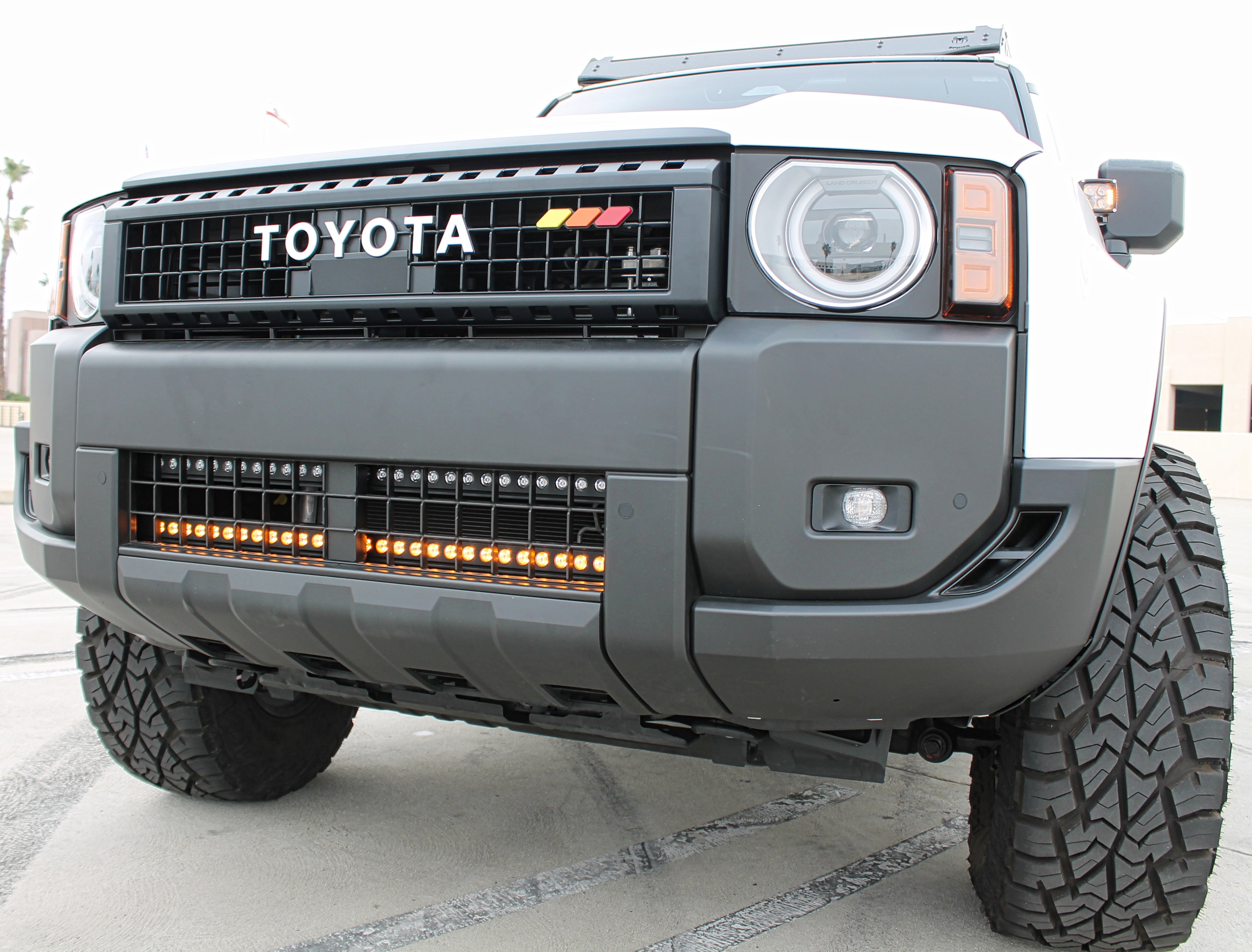

3) dual function: main White LED light with Amber DRL backglow -- the white LED light is same as described above, but the amber DRL “daytime running lights” acts purely for aesthetics. It doesn’t give out much light, but more of a beautiful amber backglow. Since it doesn’t give out much light, you can use this amber DRL feature on regular roads, it doesn't blind in-coming traffic.
Full in-depth video describing our lights bars CLICK HERE
👍Our light kits are for off-road use only.
WHAT'S INCLUDED?
(2) 30in light bars - SLIM
(2) mounting brackets
All mounting hardware
WIRING
- M&R Automotive doesn’t provide a wiring harness.
- The light bars have 6ft of wire which is enough to reach AUX wires if your truck has them. If not, you need to purchase a generic wiring harness from Amazon/Ebay or create your own.

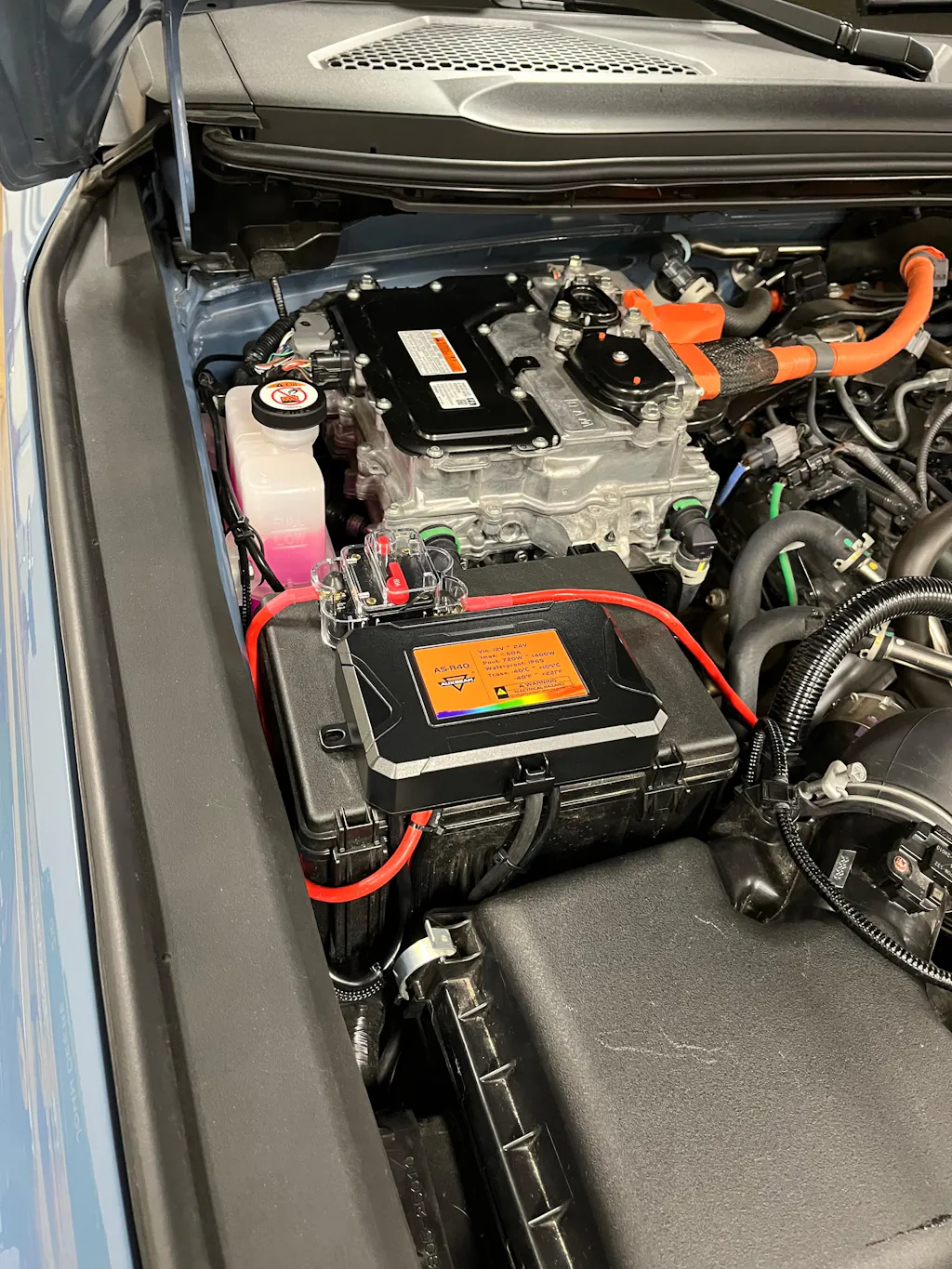

- We sell a wireless wiring harness that delivers a clean, hassle-free install—no need to run wires into the cab.
INSTALLATION INSTRUCTIONS
INCLUDES:
- Rechargeable wireless controller, USB Type-C connector
- Mounting plate that you attach to your preferred place inside the vehicle. The remote is magnetic for easy operation.
- Sticker page to change the key icon to match the device connected to the control box.
Wireless Connectivity: With advanced wireless technology, connect and power various accessories without the need for traditional wiring. Enjoy a cleaner and more organized interior. Wireless remote stays inside your vehicle without the need to run a wire through the firewall.
8 Switches: Total of 8 circuits: (2) 5amps, (2) 10amps, (2) 20amps, (2) 30amps
- Max power: 1200watts
- Max current Rating: 80amps
- Voltage: DC 12V-24V
Plug-and-Play Compatibility: Installing accessories has never been easier. Designed with a user-friendly, plug-and-play interface, eliminating the need for complex wiring setups. Simply connect your accessories to the panel and you're ready for an adventure.
Universal Compatibility: Whether you're adding LED lights, off-road equipment, or other accessories, our wireless wiring harness is universally compatible. Seamlessly integrates with your vehicle's electrical system.
Enhanced Safety: Reduce the risk of electrical issues and potential hazards associated with traditional wiring systems. Engineered with safety in mind, featuring built-in safeguards to protect against overloads, short circuits, and other electrical mishaps.
Weatherproof Design: Built to withstand the toughest conditions, it is fully weatherproof. It has a rubber gasket around the fuse box and covered in epoxy.
The following specs are for one (1) light bar
30in SLIM light bar
White:
- Beam Pattern Spot
- Theotetical max power 140watts
- Actual power 76watts
- Voltage/current DC12v/6.3A
- Theoretical max luminous flux 16,380 lm
- Measured luminous flux (without lens) 8,848 lm
- Measured luminous flux (with lens) 6,380 lm
- LEDs type CREE XTE
- Temperature 6000k
- LEDs number 28pcs
- Product size LxWxD (in) 31 x 0.75 x 1.63
30in SLIM light bar
Amber:
- Beam Pattern Spot
- Theotetical max power 109watts
- Actual power 56watts
- Voltage/current DC12v/4.7A
- Theoretical max luminous flux 8,680 lm
- Measured luminous flux (without lens) 5,740 lm
- Measured luminous flux (with lens) 4,133 lm
- LEDs type CREE XP - E2 Amber
- Temperature
- LEDs number 28pcs
- Product size LxWxD (in) 31 x 0.75 x 1.63
30in SLIM light bar
White with Amber DRL
- Beam Pattern Spot
- Theotetical max power 140watts
- Actual power 76watts
- Voltage/current main DC12v/6.3A
- Voltage/current backlight 4.3W/0.36A
- Theoretical max luminous flux 16,380 lm
- Measured luminous flux (without lens) 8,848 lm
- Measured luminous flux (with lens) 6,380 lm
- LEDs type CREE XTE
- Temperature 6000k
- LEDs number 28pcs
- Product size LxWxD (in) 31 x 0.75 x 1.63
We have a lifetime warranty on our light kits. We truly want our truck enthusiastic customers to enjoy their products as much as we enjoy designing them. However, we also understand that different situations arise with brackets or lights. For more information about our warranty and disclaimer click here.
*M&R Automotive is not responsible for misuse or improper installation of the product. Professional installation is recommended.
