Fits 2024 2025 2026 Lexus GX550
Fits models: GX550 Premium, GX550 Luxury. GX550 Overtrail
- Installs behind the lower grille
- Must remove whole front grille for installation
- DOES NOT affect cooling of the radiator
- DOES NOT interfere with active shutters
-
Metal bracket is powder coated black
- No cutting or drilling required. The kit is a complete bolt on using factory openings and hardware.
Choose your light bar color:
1) White LED -- Up to 11,760 lumens, bright and powerful. It will definitely provide you with enough light needed for all of your adventures. However, these are only for off-roading and can’t be used on the regular road. They will blind the in-coming traffic and also violates road safety.
2) Amber LED -- Up to 5,500 lumens, used in poor driving conditions such as dust, fog, snow and rain. It reflects through air particles much less than the white light. Therefore, making it ideal for poor driving conditions.
3) dual function: main White LED light with Amber DRL backglow -- the white LED light is same as described above, but the amber DRL “daytime running lights” acts purely for aesthetics. It doesn’t give out much light, but more of a beautiful amber backglow. Since it doesn’t give out much light, you can use this amber DRL feature on regular roads, it doesn't blind in-coming traffic.
Full in-depth video describing our lights bars CLICK HERE
👍Our light kits are for off-road use only.
WHAT'S INCLUDED?
(1) 30in light bar - SLIM
(2) mounting brackets
All mounting hardware
WIRING
- The Lexus GX550 year 2024 does not have AUX wires.
- The Lexus GX550 years 2025+ does have AUX wires only on the Overtrail edition.
- The light bar has 6ft of wire which is enough to reach AUX wires if your Lexus GX550 is equipped with them. If not, you need to purchase a generic wiring harness from Amazon/Ebay or create your own.
INSTALLATION INSTRUCTIONS
Fits 2024 2025 2026 Lexus GX550
Fits models: GX550 Premium, GX550 Luxury. GX550 Overtrail
- Installs behind the lower grille

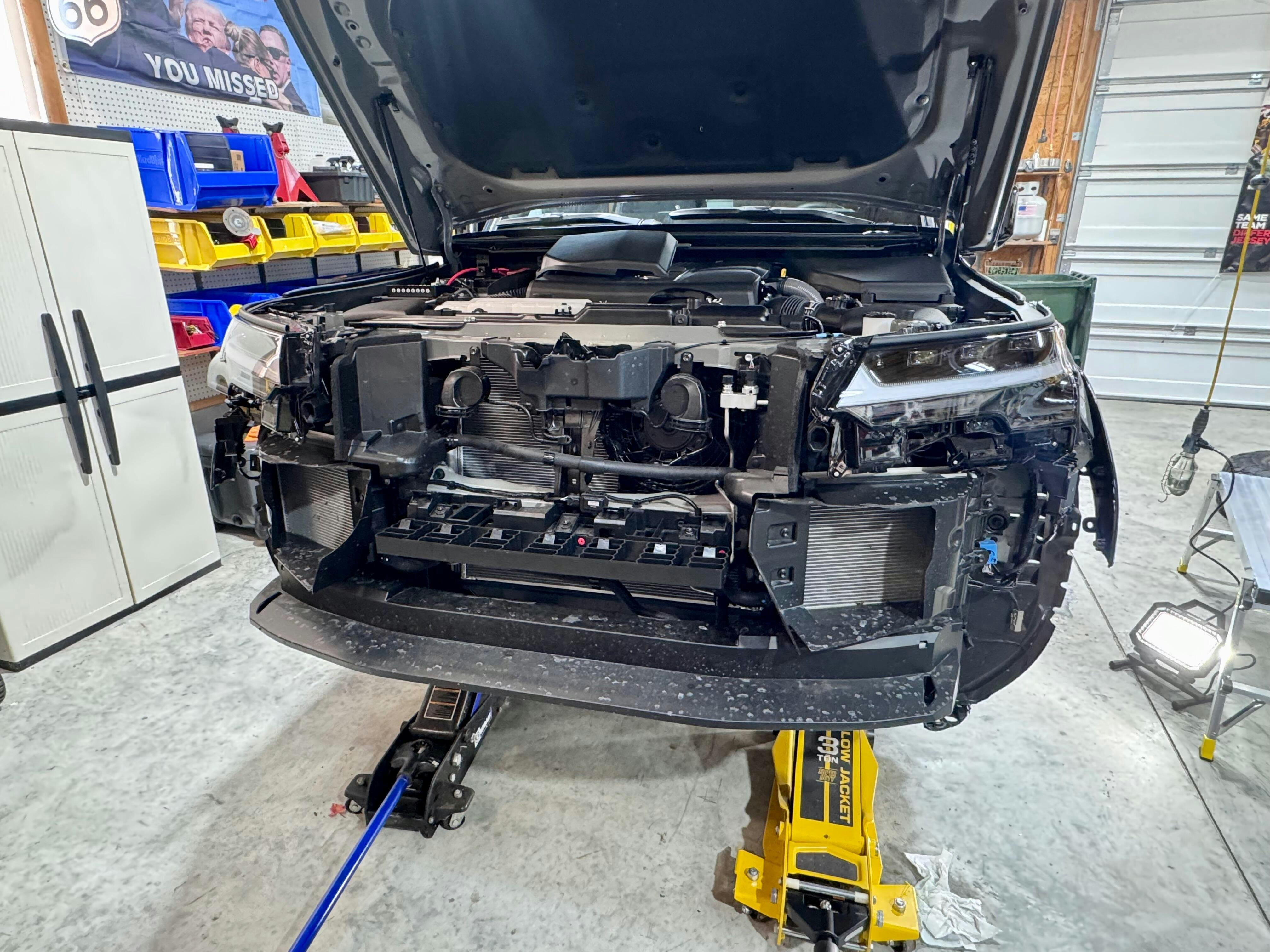

- Must remove whole front grille for installation
- DOES NOT affect cooling of the radiator
- DOES NOT interfere with active shutters
-
Metal bracket is powder coated black
- No cutting or drilling required. The kit is a complete bolt on using factory openings and hardware.
Choose your light bar color:
1) White LED -- Up to 11,760 lumens, bright and powerful. It will definitely provide you with enough light needed for all of your adventures. However, these are only for off-roading and can’t be used on the regular road. They will blind the in-coming traffic and also violates road safety.
2) Amber LED -- Up to 5,500 lumens, used in poor driving conditions such as dust, fog, snow and rain. It reflects through air particles much less than the white light. Therefore, making it ideal for poor driving conditions.
3) dual function: main White LED light with Amber DRL backglow -- the white LED light is same as described above, but the amber DRL “daytime running lights” acts purely for aesthetics. It doesn’t give out much light, but more of a beautiful amber backglow. Since it doesn’t give out much light, you can use this amber DRL feature on regular roads, it doesn't blind in-coming traffic.
Full in-depth video describing our lights bars CLICK HERE
👍Our light kits are for off-road use only.

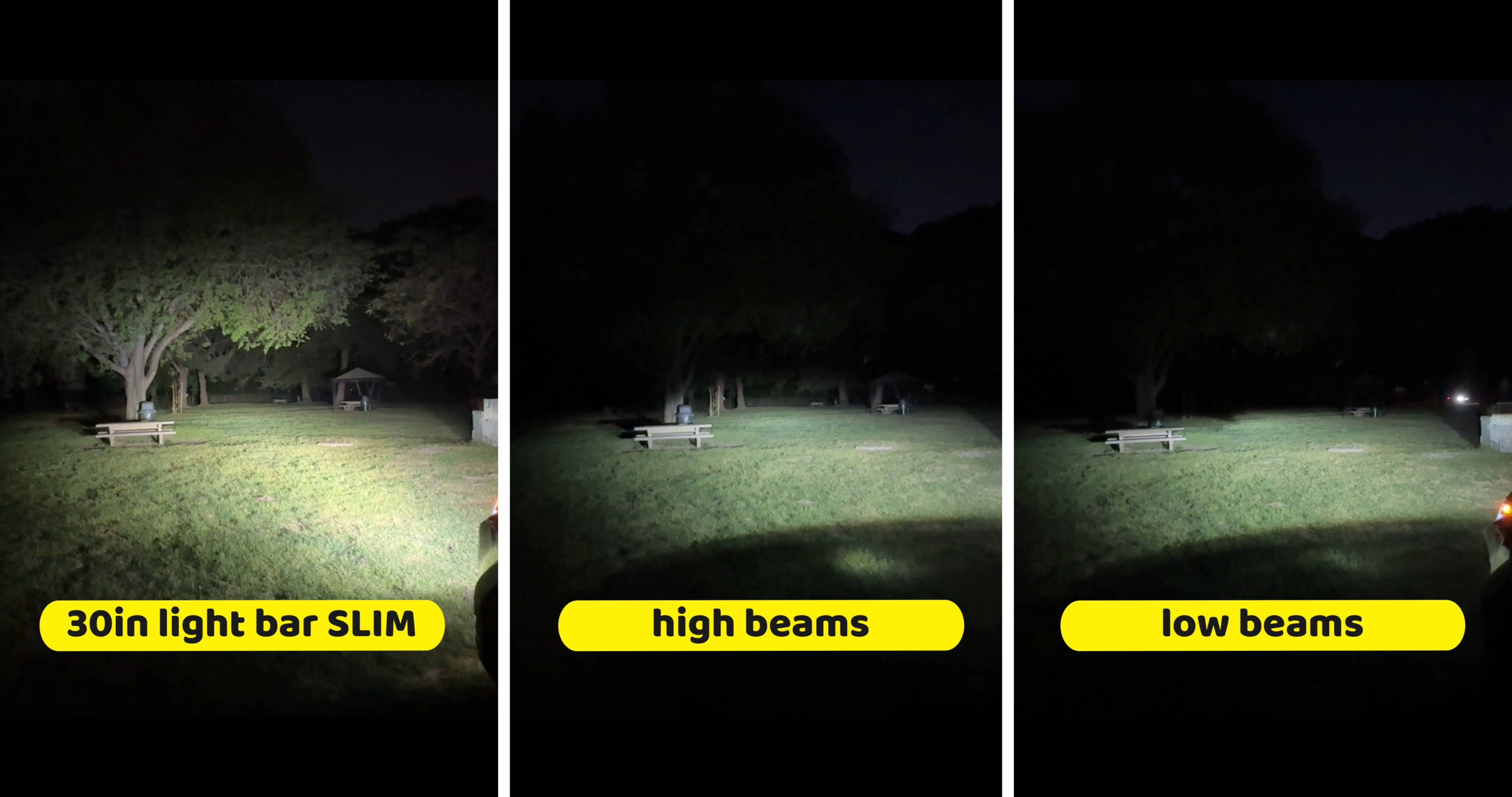

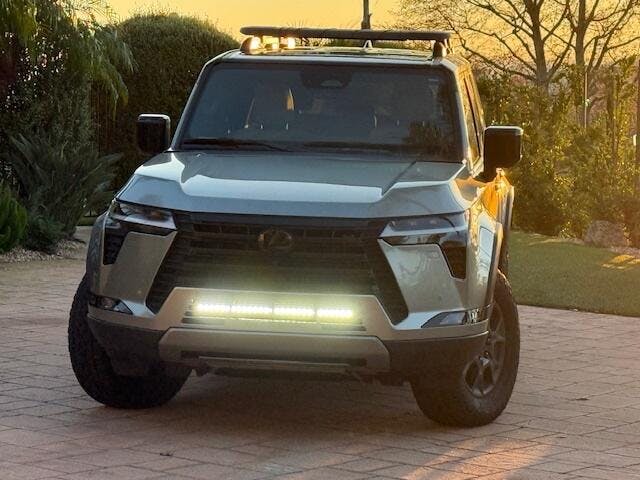

30in SLIM light bar
White:
- Beam Pattern Spot
- Theotetical max power 140watts
- Actual power 76watts
- Voltage/current DC12v/6.3A
- Theoretical max luminous flux 16,380 lm
- Measured luminous flux (without lens) 8,848 lm
- Measured luminous flux (with lens) 6,380 lm
- LEDs type CREE XTE
- Temperature 6000k
- LEDs number 28pcs
- Product size LxWxD (in) 31 x 0.75 x 1.63
30in SLIM light bar
Amber:
- Beam Pattern Spot
- Theotetical max power 109watts
- Actual power 56watts
- Voltage/current DC12v/4.7A
- Theoretical max luminous flux 8,680 lm
- Measured luminous flux (without lens) 5,740 lm
- Measured luminous flux (with lens) 4,133 lm
- LEDs type CREE XP - E2 Amber
- Temperature
- LEDs number 28pcs
- Product size LxWxD (in) 31 x 0.75 x 1.63
30in SLIM light bar
White with Amber DRL
- Beam Pattern Spot
- Theotetical max power 140watts
- Actual power 76watts
- Voltage/current main DC12v/6.3A
- Voltage/current backlight 4.3W/0.36A
- Theoretical max luminous flux 16,380 lm
- Measured luminous flux (without lens) 8,848 lm
- Measured luminous flux (with lens) 6,380 lm
- LEDs type CREE XTE
- Temperature 6000k
- LEDs number 28pcs
- Product size LxWxD (in) 31 x 0.75 x 1.63
We have a lifetime warranty on our light kits. We truly want our truck enthusiastic customers to enjoy their products as much as we enjoy designing them. However, we also understand that different situations arise with brackets or lights. For more information about our warranty and disclaimer click here.
*M&R Automotive is not responsible for misuse or improper installation of the product. Professional installation is recommended.
Customer Reviews

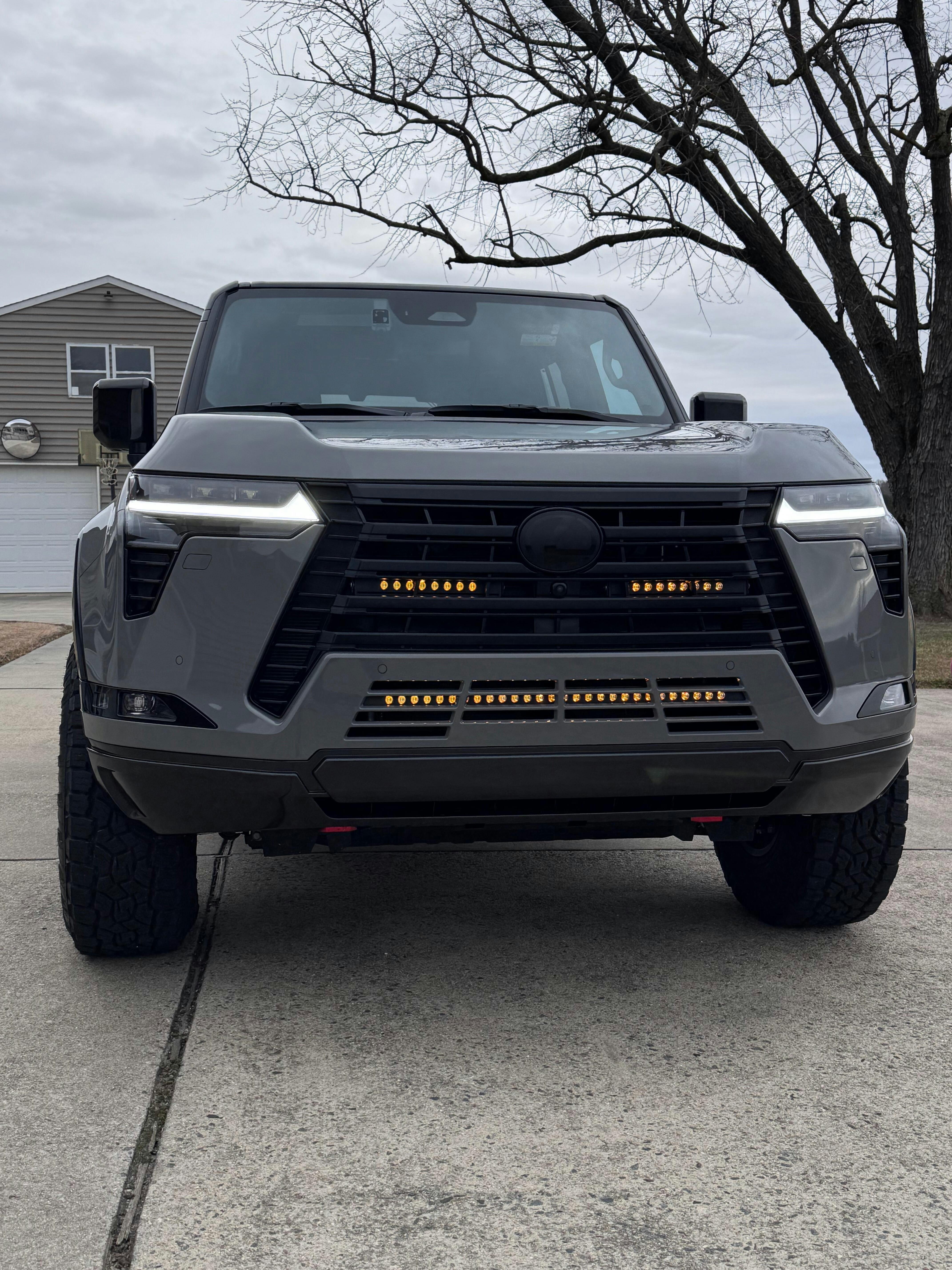

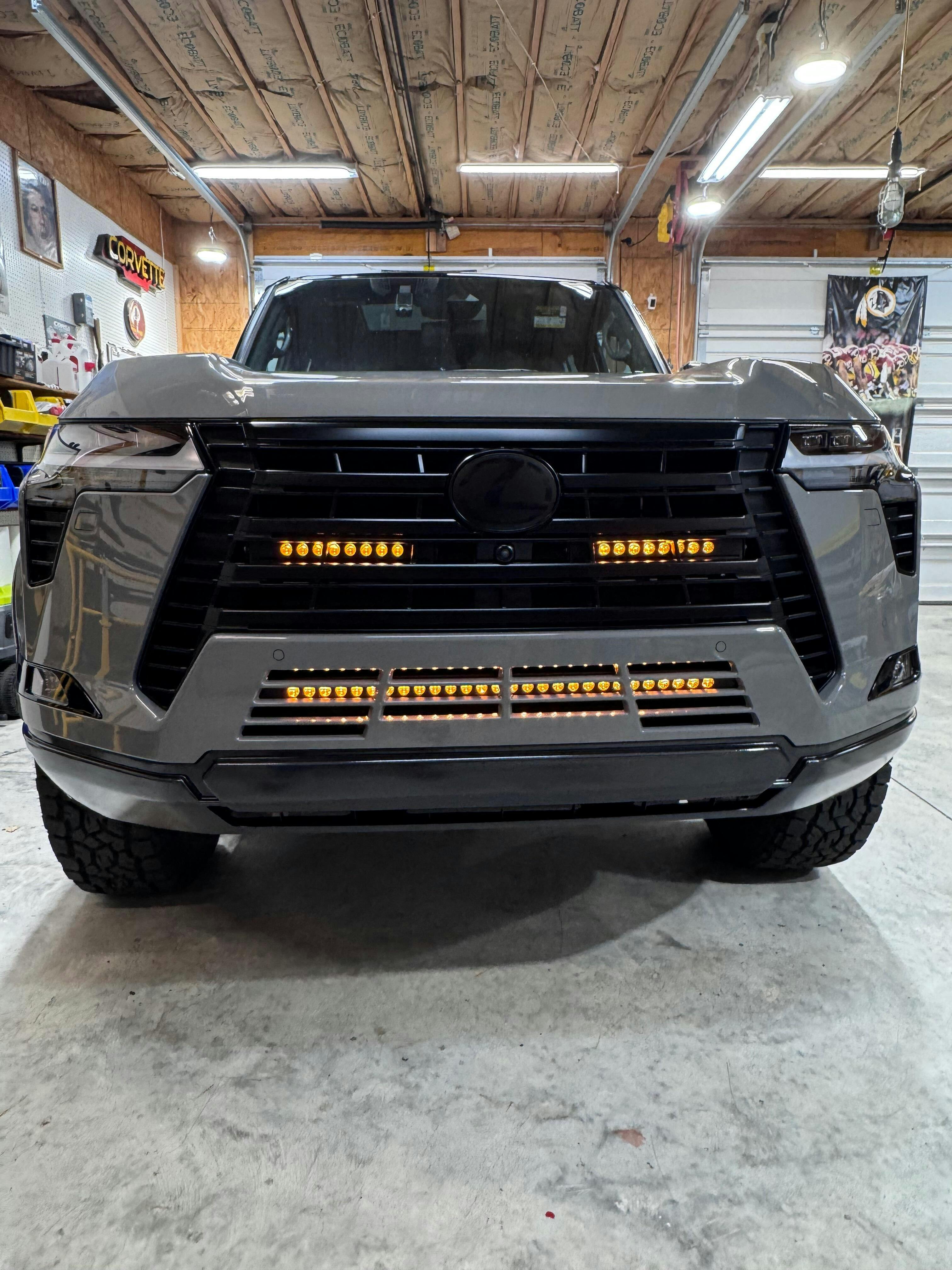

I installed the 30-in Amber bar on my 2025 GX550 Overtrail and the fitment and look are awesome. It cranks plenty of light, very impressed. I was unsure if I would like the light bar look, but this is perfect and subtle, seems like an OEM fit. Used a 2025 4Runner Aux Hi pigtail to connect to the GX550 Aux 1 connector, perfect!

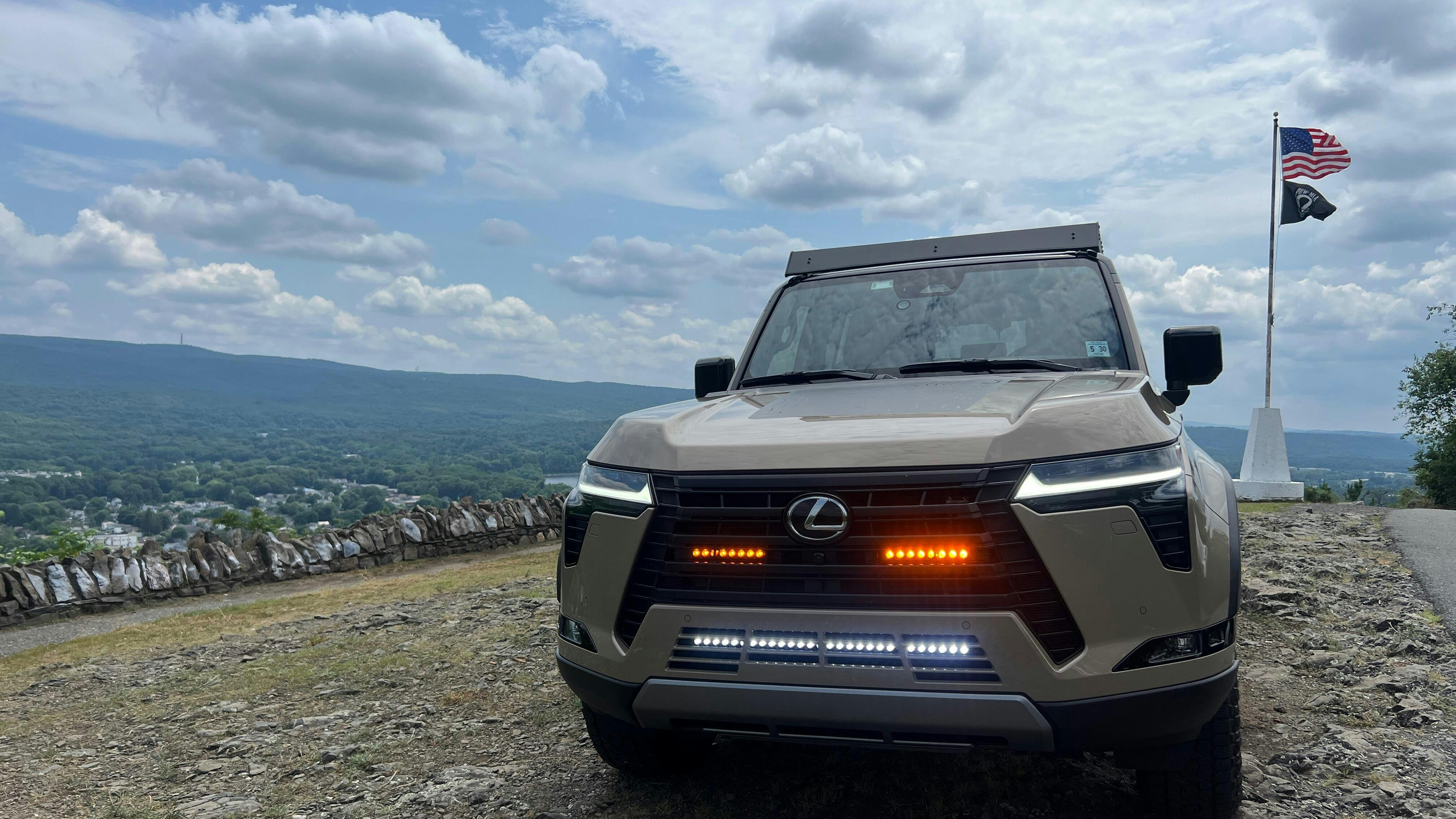

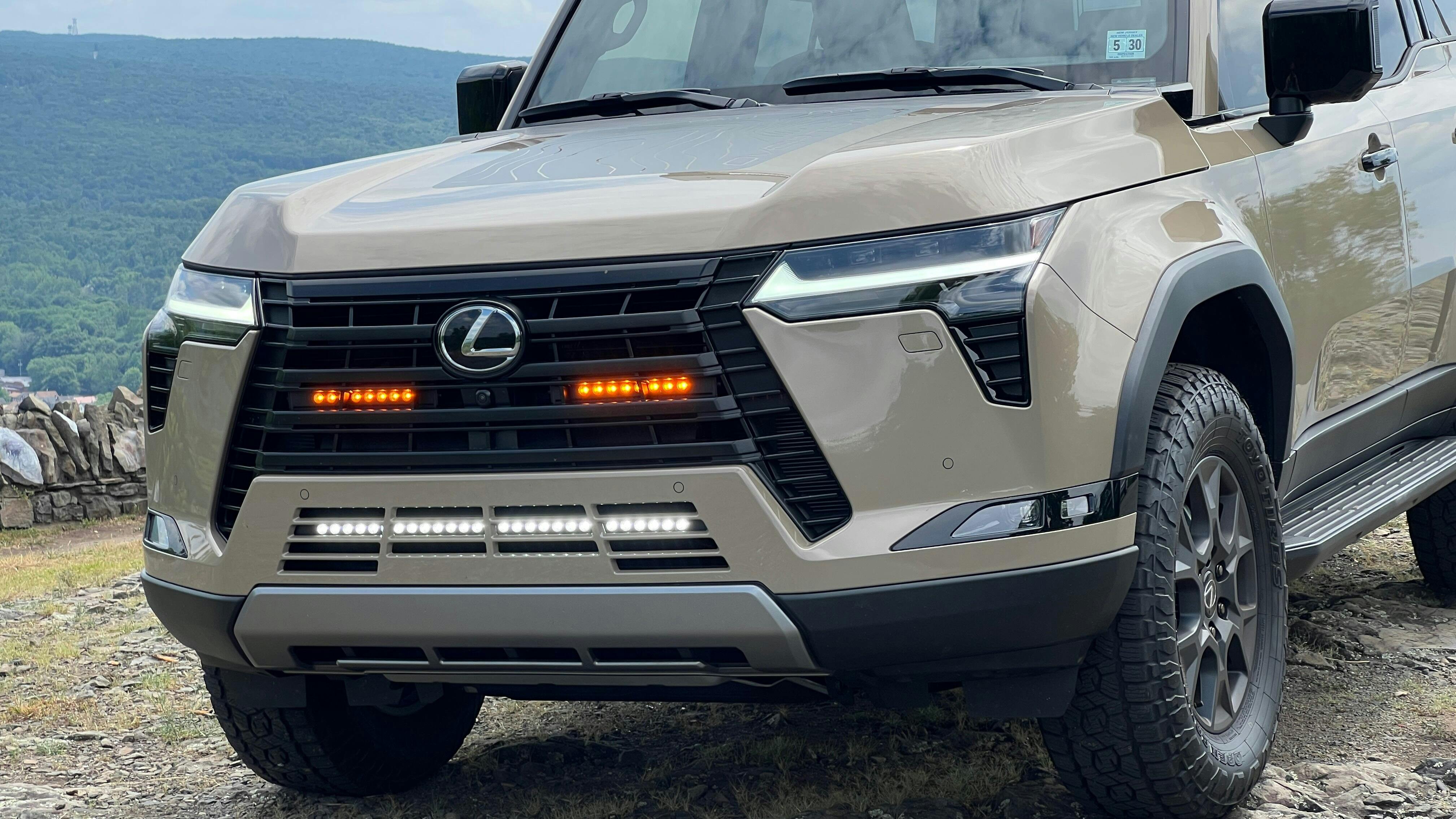

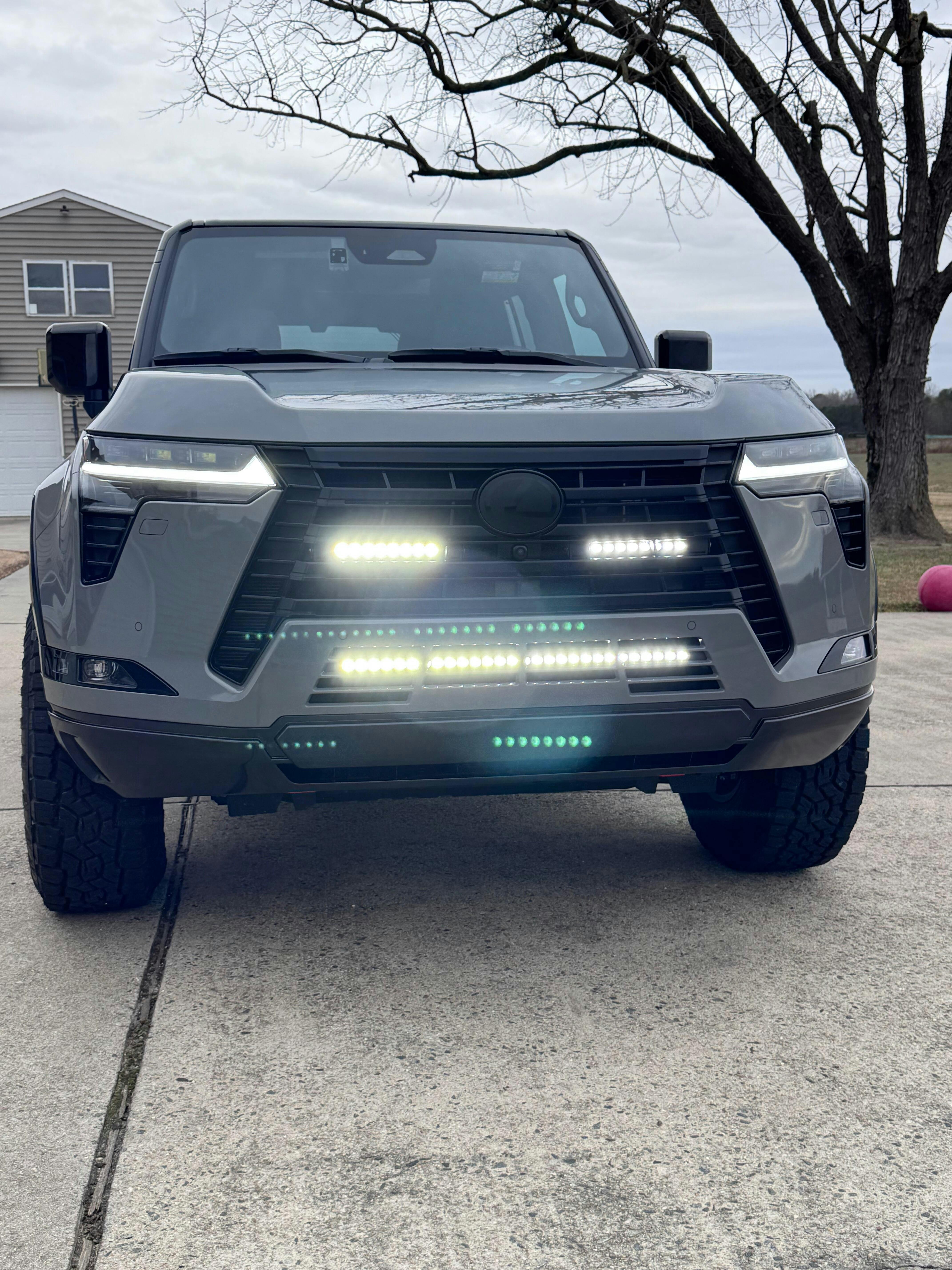

Put two 11” dual color and 1 30” dual color. I would have never attempted this without the great video of installing these on a Lexus GX 550 that y’all made. had no problem pulling the front off vehicle. I also installed the wireless system at the same time. these lights even look good when they’re not on. The DRL are a perfect brightness. Not overpowering. The white lights are unbelievably bright. It’s like the sun is out. I have no regrets buying this brand. The brackets were even perfect. Good job.😎🇺🇸
Super easy install especially since I connected it to the Aux control module that they have as well. Bright and sleek design.
These guys rock. Ordered the front and rear lights for my GX550. Installed the rear ones easily with Mike's videos, and brought my truck to their shop to remove the front end and install the 30" light bar. Outstanding job installing it by Mike and his team - very professional. Would recommend to anyone without hesitation.

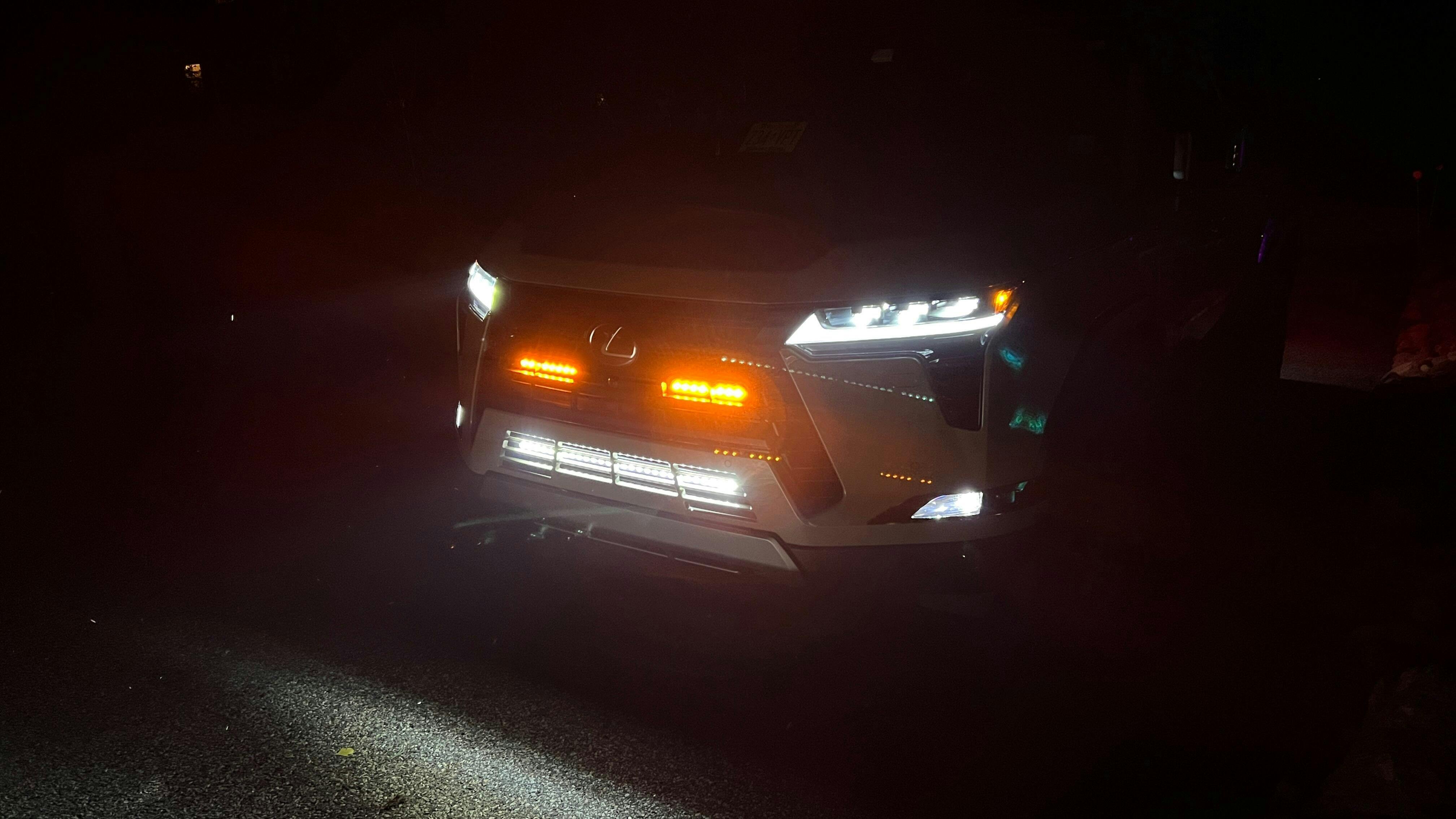

The product looks great in both light modes! Super bright on those dark roads. Installation was easy enough to complete by myself within 2-3 hours. I used the wireless auxiliary kit purchased from M&R also, which was super easy and straightforward to install. I would recommend to anyone looking for some extra light to brighten up the path while also looking aesthetically cool used as an amber dlr.
