- Fits 2023 2024 2025 2026 Ford Super Duty F250 F350 F450
-
Trims:
- F250XL, F350XL, F450XL
- F250XLT, F350XLT, F450XLT
- F250 Lariat, F350 Lariat, F450 Lariat
- F250 King Ranch, F350 King Ranch, F450 King Ranch
- F250 Platinum, F350 Platinum, F450 Platinum
- F250 Limited, F350 Limited, F450 Limited

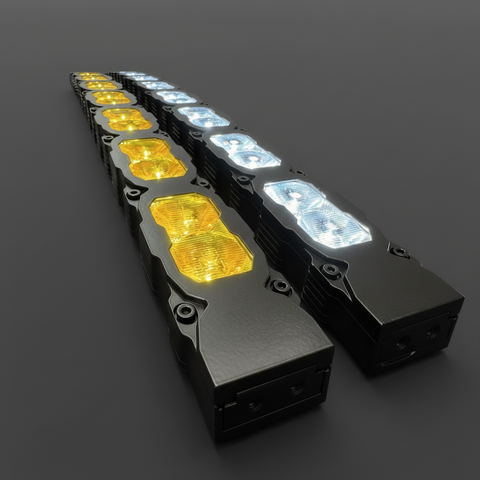

- Curved LED light bar PRO

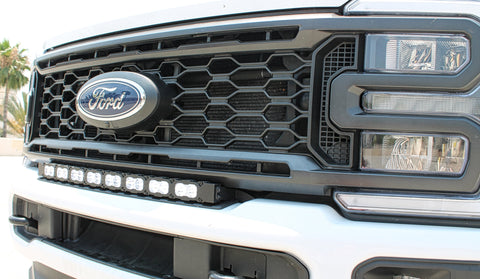

- Perfectly follows the Ford Super Duty bumper and grille factory curvature

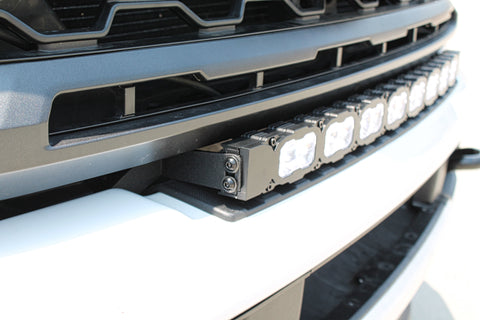

- Stays slim to the bumper for a sleek, built in look
- Must remove grille
- No cutting or drilling required. The kit is a complete bolt on using factory openings and hardware.
- Doesn't interfere with radiator air flow

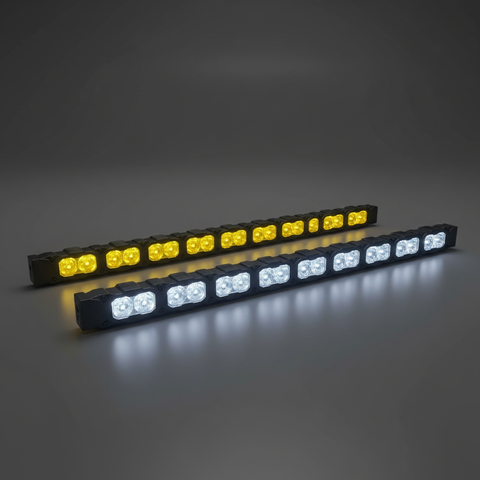

Dual Color:
Main White LED Light with Amber DRL (daytime running lights)
-

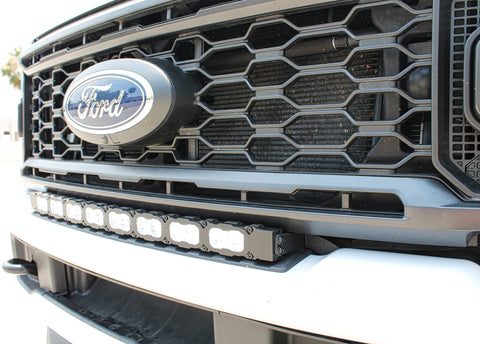

White LED -- Super bright and crisp white beam pattern. It will definitely provide you with enough light needed for all of your adventures. However, these are only for off-roading and can’t be used on the regular road. They will blind the in-coming traffic and also violates road safety.

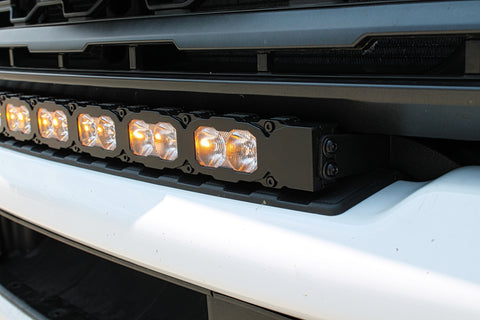

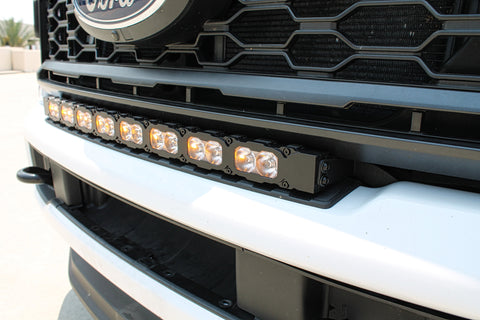

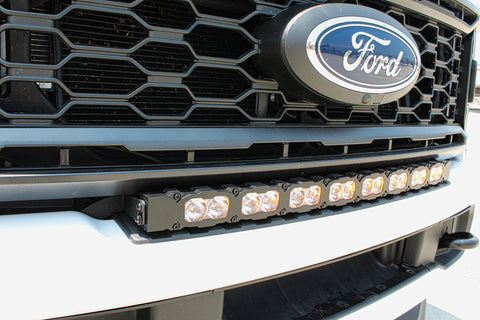

- Amber DRL -- amber DRL “daytime running lights” acts purely for aesthetics. Since it doesn’t give out much light, you can use this amber DRL feature on regular roads, it doesn't blind in-coming traffic.

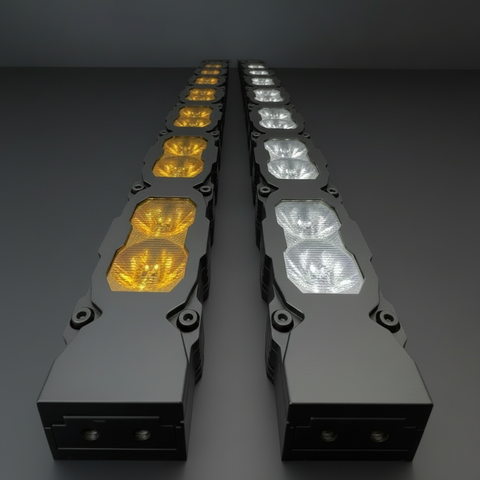

Introducing our new LED light bar-PRO with a unique appearance and optimal performance.
- Combo Pattern: combined spot and driving optics offers a balance between the distance and width
- Uses TIR (Total Internal Reflection) lens is different from our the regular slim light bar. The TIR lens collects all of the light from the LED and directly leads them to where you need, drastically reducing glare and improving total efficiency.
- Higher light efficiency: brighter, longer irradiation distance

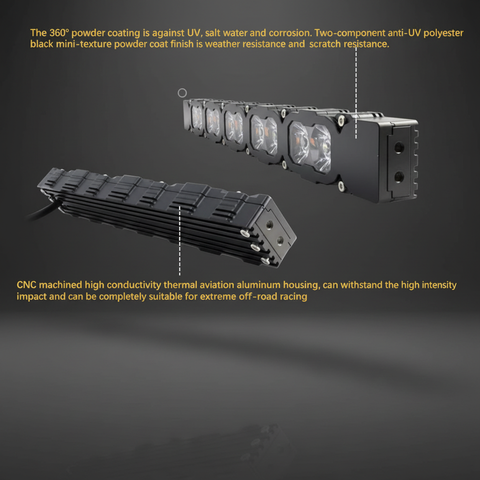

- Housing is upgraded to 304 aluminum. The surface is UV polyester powder coated to prevent against UV, salt water, corrosion, fading and scratch resistant.
- Equipped with thermal management system that automatically adjusts the brightness output according to the external temperatures
👍Our light kits are for off-road use only.
WHAT'S INCLUDED?
(1) 30in light bar curved PRO
(2) mounting brackets
All mounting hardware
WIRING
- M&R Automotive doesn’t provide a wiring harness.
- The light bar has 6ft of wire which is enough to reach AUX switches if your truck has them. Otherwise, you will need to purchase a generic wiring harness from Amazon/Ebay or create your own.
- For this install, we used M&R wireless wiring harness. This makes it an easy, clean install without running wires inside the cab.
DOES YOUR TRUCK HAVE AUX SWITCHES?
INSTALLATION INSTRUCTIONS
30in Light Bar Specs
- Theoretical max power 160watts
- Actual power 90watts
- Main White light is 7.5amps at 12v
- Backlight Amber is 0.19amps at 12v
- Theoretical max luminous flux 17,472 lm
- Measured luminous flux (without lens) 11,072 lm
- Measured luminous flux (with lens) 8,806 lm
- LEDs type: luminus SST-20 Ra70
- Temperature: 6000k
- LEDs number: 16pcs
We have a lifetime warranty on our light kits. We truly want our truck enthusiastic customers to enjoy their products as much as we enjoy designing them. However, we also understand that different situations arise with brackets or lights. For more information about our warranty and disclaimer click here.
*M&R Automotive is not responsible for misuse or improper installation of the product. Professional installation is recommended.

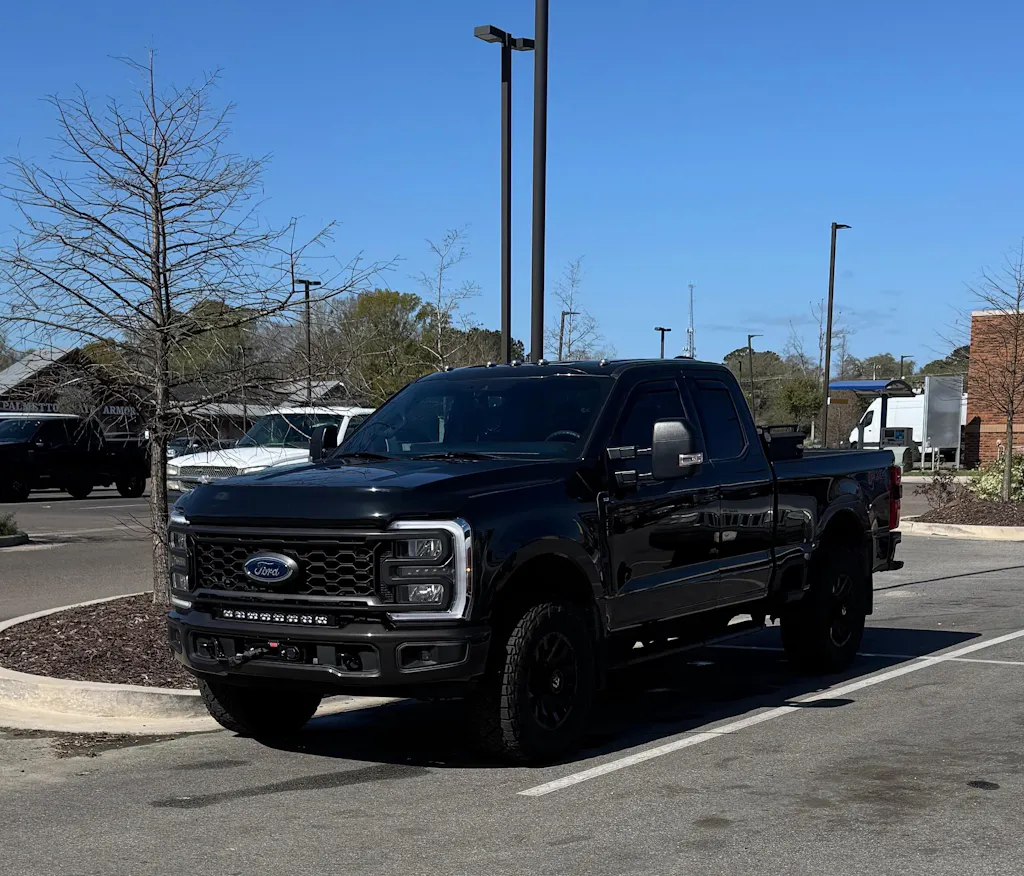

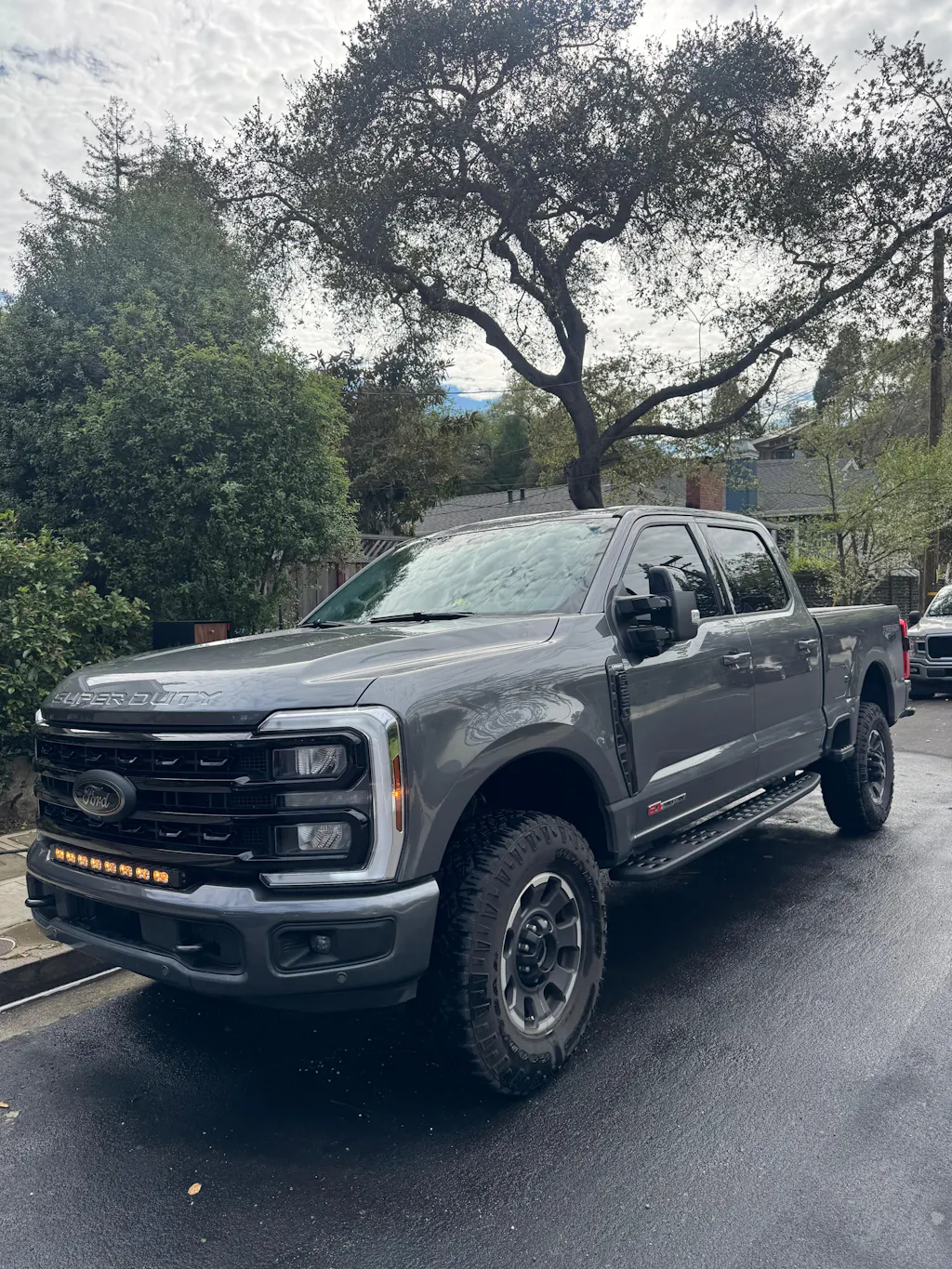

30 inch pro on 2024 F350. Bar fits snug in the recess between grill and bar. Love the ability to run amber as DRL and flood when needed. Great product, highly recommend.

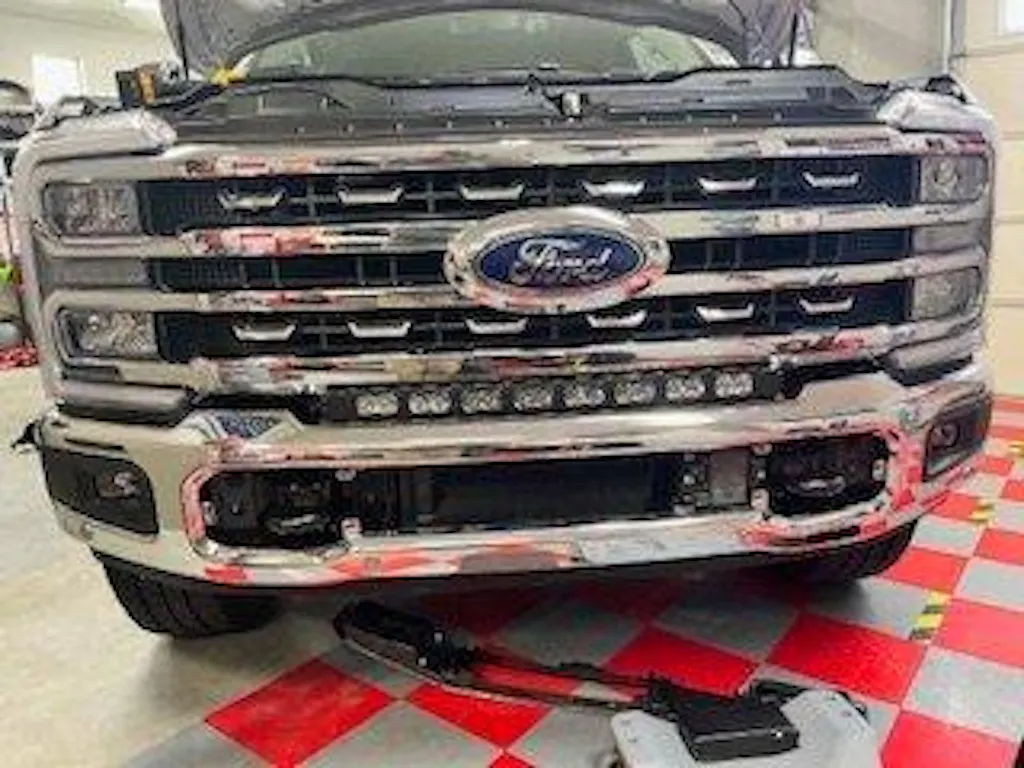

Installed the 30" Lightbar Pro on my 2025 F350 Tremor. Made well and designed for a simple install. Fits perfectly looks like a factory option!!!
I absolutely love it!!! If I had one complaint, it would be the amber lights are too faint and are barelyvisiblein daylight. Should be much brighter. Going to add reverse lights next.
I live in the foothills and always encounter wildlife on the road. To keep them and us safe, I searched for a high impact and slim curved light bar to integrate nicely into the contour of the space between the lower grill and the front bumper. I did not want to remove the grill or drill to install the light bar. I found just what I was looking for at M&R. They promised me it would easily bolt on to a couple of existing pre-drilled holes from the factory. It shipped fast and the install was just as described. Honestly, the biggest PIA is where the genius' at Ford chose to put the connections for the up-fitter switches. I wasn't able to test out the light at night for a few days after installation. Once I did test the lights at night.....WOW, was I impressed. The bright lights on the newer trucks are quite impressive by themselves, but this light bar is another level of light. I'm 110% satisfied.
Thank you so much. The fit and finish is impeccable . Was easier than changing a tire. The tutorial was simple and spot on. The service was….. unreal. I email questions approx 9:30 pm on Sunday night. Hoping for a mid morning response , and in 5 minutes he responded . This was the best transaction I’ve had in 20 years, highly recommend , and will surely be doing more business in the future.
Thanks again,
Ed.
Would buy again. Incredible engineering and customer service
