- Product Description
- Light Bar Specs
- Shipping & Warranty
- Fits 2021 2022 2023 2024 2025 2026 Ford Bronco Raptor
- 40in curved LED light bar PLUS extension 12in light bar
- Stays slim to the bumper for a sleek, built in look
- Metal bracket is powder coated black
- Easy install right on top of the bumper
- Don't need to remove bumper or grille
- No cutting or drilling required. The kit is a complete bolt on using factory openings and hardware.

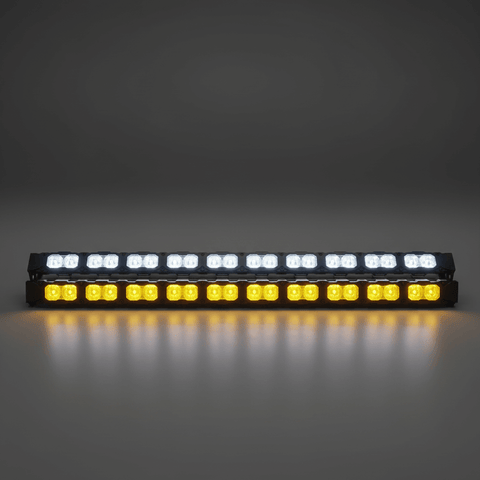

DUAL COLOR
- main White LED Light with Amber DRL (daytime running lights)
- White LED -- Super bright and crisp white beam pattern. It will definitely provide you with enough light needed for all of your adventures. However, these are only for off-roading and can’t be used on the regular road. They will blind the in-coming traffic and also violates road safety.

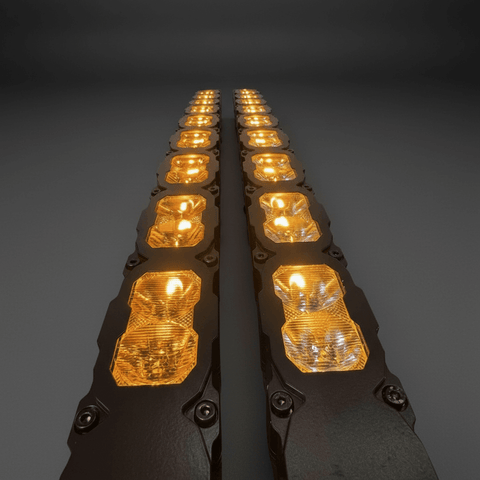

- Amber DRL -- amber DRL “daytime running lights” acts purely for aesthetics. Since it doesn’t give out much light, you can use this amber DRL feature on regular roads, it doesn't blind in-coming traffic. Matches the accent lights on the Ford Bronco Raptor. Amber DRL is the perfect match to drive around town
LED light bar-PRO has a unique appearance and optimal performance.
- Combo Pattern: combined spot and driving optics offers a balance between the distance and width
- Uses TIR (Total Internal Reflection) lens is different from our the regular slim light bar. The TIR lens collects all of the light from the LED and directly leads them to where you need, drastically reducing glare and improving total efficiency.
- Higher light efficiency: brighter, longer irradiation distance

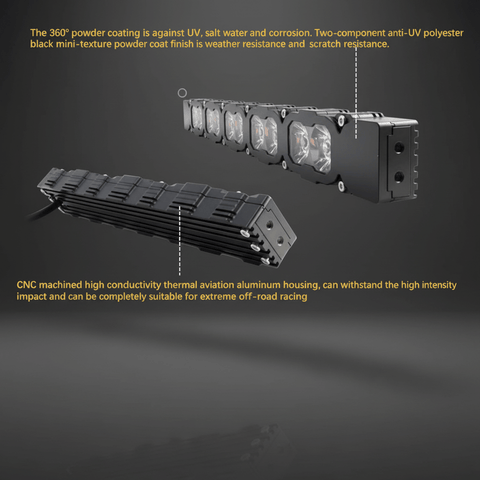

- Housing is upgraded to 304 aluminum. The surface is UV polyester powder coated to prevent against UV, salt water, corrosion, fading and scratch resistant.
- Equipped with thermal management system that automatically adjusts the brightness output according to the external temperatures
👍Our light kits are for off-road use only.
WHAT'S INCLUDED?
(1) 40in light bar curved PRO
(2) 12in extension light bars PRO
All mounting hardware
WIRING
- The 40 in light bar has 8ft of wire which is enough to reach AUX switches if your Bronco has them.
- The 12in light bars have 18in of wire.
- M&R Automotive provides a wiring harness to connect the two 12in light bars together and then extend it to AUX wires.
- We sell a wireless wiring harness that delivers a clean, hassle-free install—no need to run wires into the cab.
INSTALLATION INSTRUCTIONS
- Fits 2021 2022 2023 2024 2025 2026 Ford Bronco Raptor
- 40in curved LED light bar PLUS extension 12in light bar
- Stays slim to the bumper for a sleek, built in look
- Metal bracket is powder coated black
- Easy install right on top of the bumper
- Don't need to remove bumper or grille
- No cutting or drilling required. The kit is a complete bolt on using factory openings and hardware.
DUAL COLOR
- main White LED Light with Amber DRL (daytime running lights)
- White LED -- Super bright and crisp white beam pattern. It will definitely provide you with enough light needed for all of your adventures. However, these are only for off-roading and can’t be used on the regular road. They will blind the in-coming traffic and also violates road safety.
- Amber DRL -- amber DRL “daytime running lights” acts purely for aesthetics. Since it doesn’t give out much light, you can use this amber DRL feature on regular roads, it doesn't blind in-coming traffic. Matches the accent lights on the Ford Bronco Raptor. Amber DRL is the perfect match to drive around town
LED light bar-PRO has a unique appearance and optimal performance.
- Combo Pattern: combined spot and driving optics offers a balance between the distance and width
- Uses TIR (Total Internal Reflection) lens is different from our the regular slim light bar. The TIR lens collects all of the light from the LED and directly leads them to where you need, drastically reducing glare and improving total efficiency.
- Higher light efficiency: brighter, longer irradiation distance
- Housing is upgraded to 304 aluminum. The surface is UV polyester powder coated to prevent against UV, salt water, corrosion, fading and scratch resistant.
- Equipped with thermal management system that automatically adjusts the brightness output according to the external temperatures
👍Our light kits are for off-road use only.
40in Light Bar PRO Specs
- Beam pattern Combo
- Theoretical max power 220watts
- Actual power 125watts
- Main White light is 10.42amps at 12v
- Backlight Amber is 0.25amps at 12v
- Theoretical max luminous flux 24,024 lm
- Measured luminous flux (without lens) 15,224 lm
- Measured luminous flux (with lens) 12,108 lm
- LEDs type: luminus SST-20 Ra70
- Temperature: 6000k
- LEDs number: 22pcs
- Product size LxWxD (in) 38.93 x 1.89 x 2.63
12in Light Bar PRO Specs
- Theoretical max power 60watts
- Actual power 35watts
- Main White light is 2.9amps at 12v
- Backlight Amber is 0.08amps at 12v
- Theoretical max luminous flux 6,552 lm
- Measured luminous flux (without lens) 4,152 lm
- Measured luminous flux (with lens) 3,302 lm
- LEDs type: luminus SST-20 Ra70
- Temperature: 6000k
- LEDs number: 6pcs
- Product size LxWxD (in) 11.92 x 1.89 x 1
All domestic (USA) orders are free shipping via USPS or UPS, depending on product size.
We typically ship in 3-7 business days. If we are anticipating a delay with your shipment due to availability of the product, we will reach out to you via email.
You will receive an email with tracking number when your order is shipped.
If you have a special request about your order, reach out, we try to accommodate as much as we can.
For a complete shipping policy click here.
We have a lifetime warranty on our light kits. We truly want our truck enthusiastic customers to enjoy their products as much as we enjoy designing them. However, we also understand that different situations arise with brackets or lights. For more information about our warranty and disclaimer click here.
*M&R Automotive is not responsible for misuse or improper installation of the product. Professional installation is recommended.
