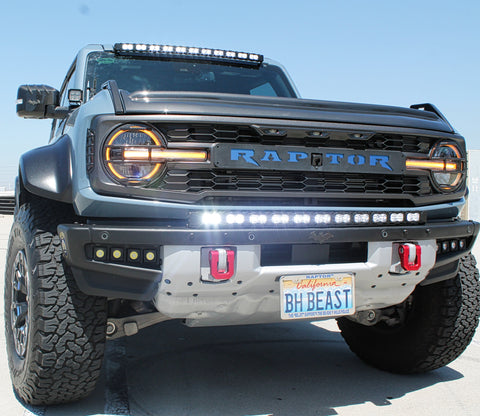

- Fits 2021 2022 2023 2024 Ford Bronco Raptor

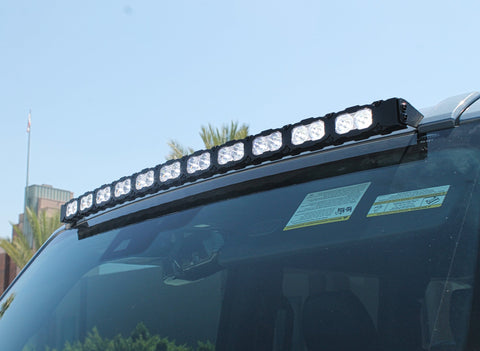

- Curved LED light bar, stays slim to the roof
-
· Theoretical max power 220watts
· Actual power 125watts
· Main White light is 10.42amps at 12v
· Backlight Amber is 0.25amps at 12v
· Theoretical max luminous flux 24,024 lm
· Measured luminous flux (without lens) 15,224 lm
· Measured luminous flux (with lens) 12,108 lm
· LEDs type: luminus SST-20 Ra70
· Temperature: 6000k
· LEDs number: 22pcs
- Fits hard and soft top
- Metal bracket is powder coated black
- Easy install, reuses factory caps

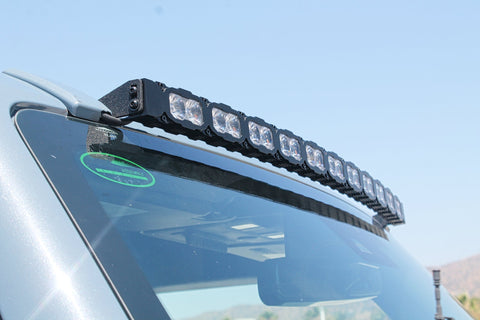

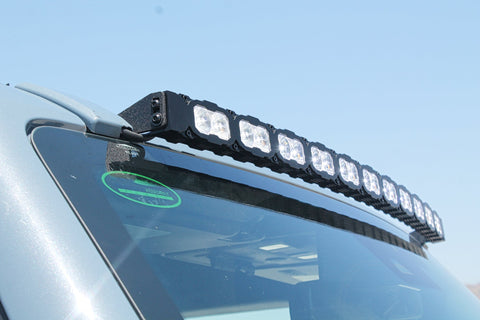

- We have tried to eliminate as much wind noise as possible by designing this as close to the windshield as we can without interfering with anything. However, as with all roof light bars, some wind noise is expected.
- **PLEASE NOTE** If you will be using AUX switches, there is only (1) AUX power wire that is factory behind the visor. You will need two (2) AUX switches and therefore it needs to be connected to the main AUX in the engine bay. This light bar has 8ft of wire.

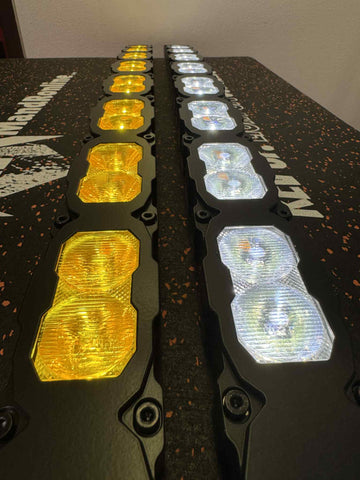

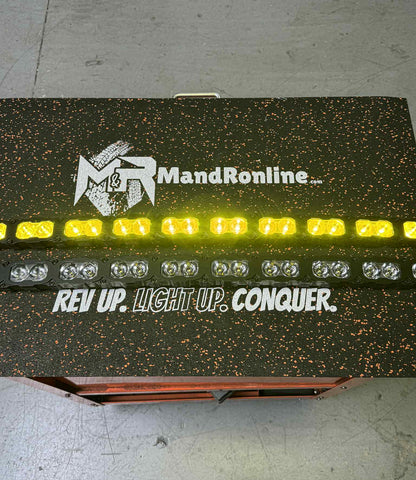

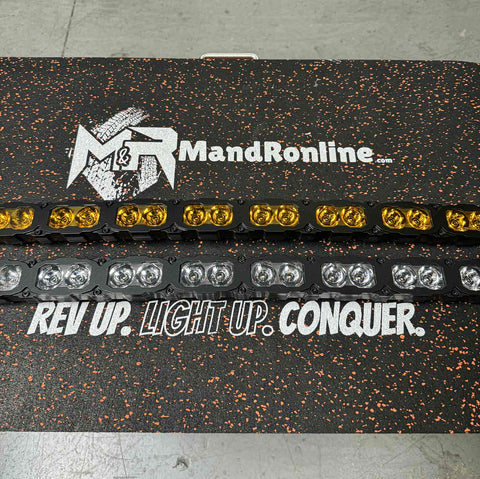

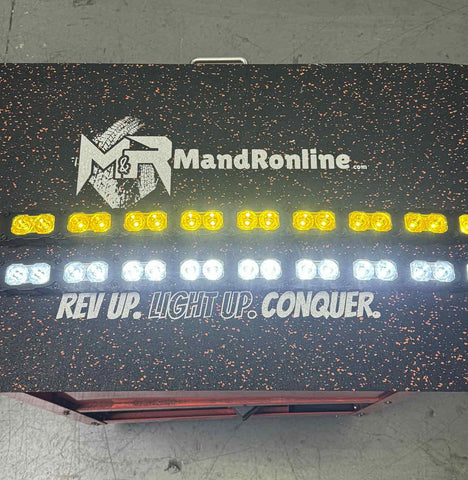

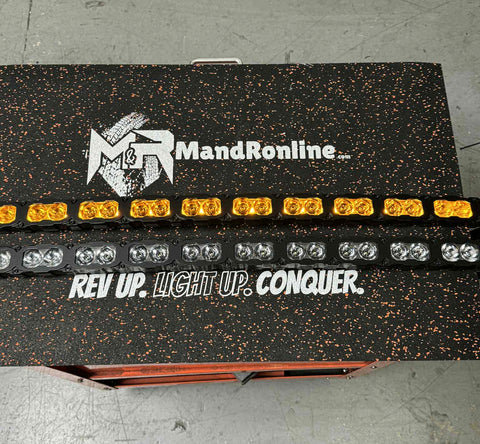

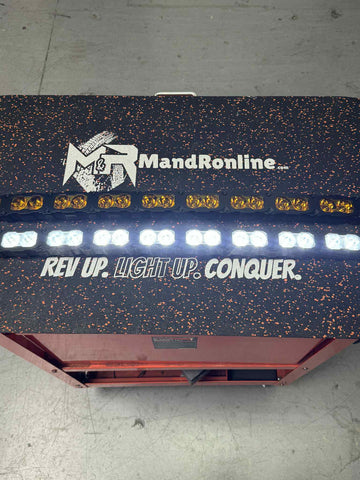

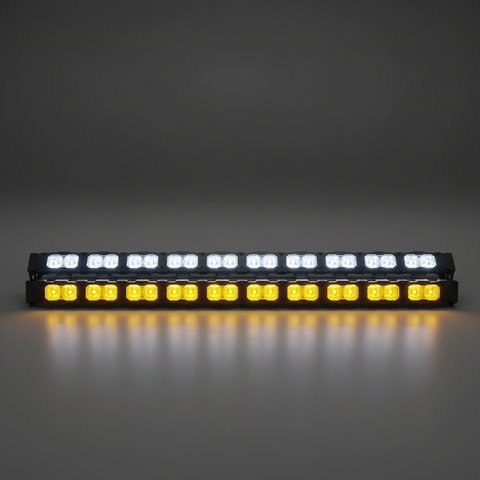

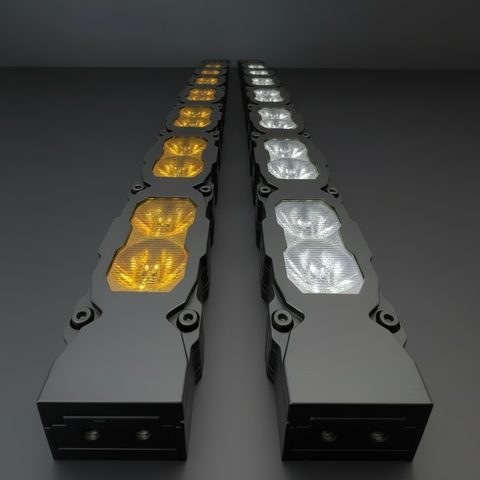

- Dual Color: main White LED Light with Amber DRL (daytime running lights)

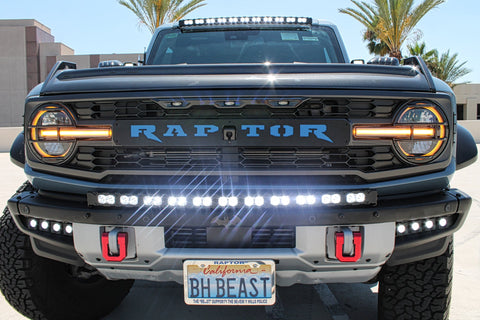

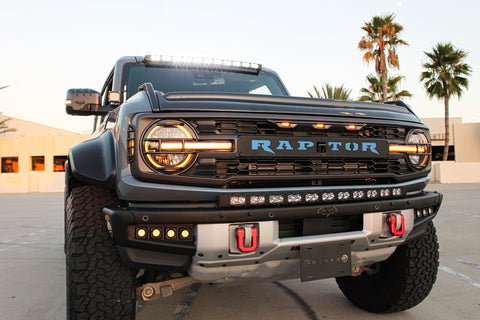

- White LED -- Super bright and crisp white beam pattern. It will definitely provide you with enough light needed for all of your adventures. However, these are only for off-roading and can’t be used on the regular road. They will blind the in-coming traffic and also violates road safety.

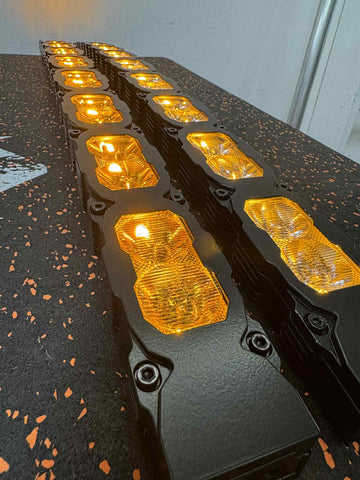

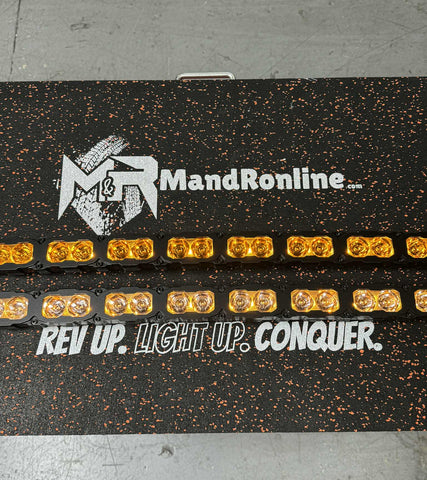

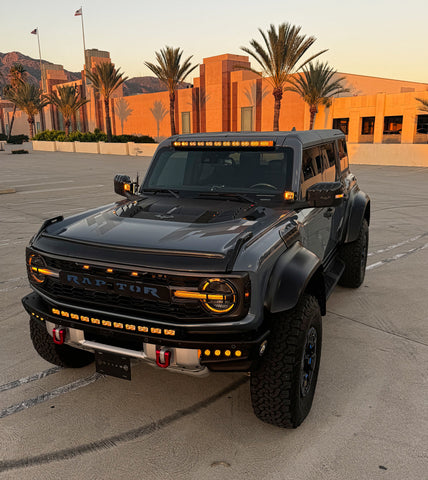

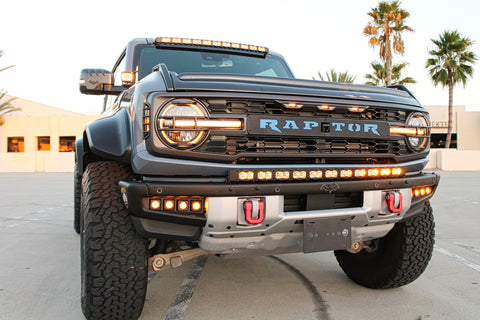

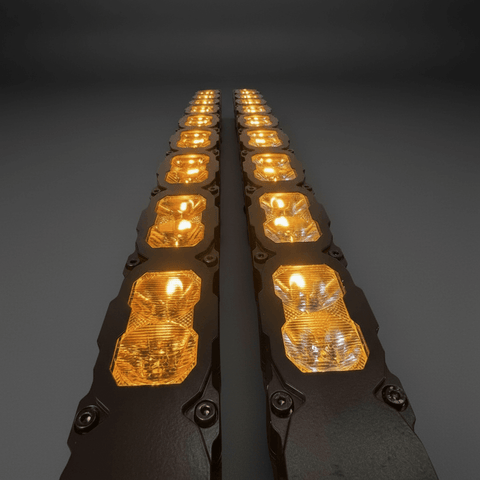

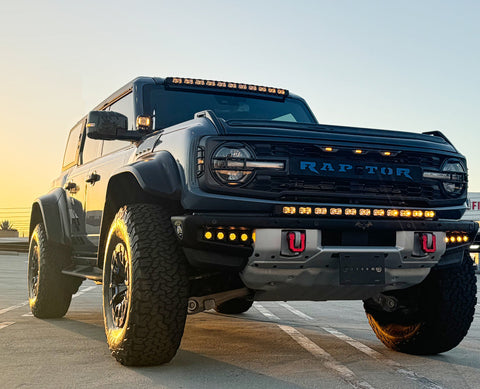

- Amber DRL -- amber DRL “daytime running lights” acts purely for aesthetics. Since it doesn’t give out much light, you can use this amber DRL feature on regular roads, it doesn't blind in-coming traffic. Matches the accent lights on the Ford Bronco Raptor. Amber DRL is the perfect match to drive around town

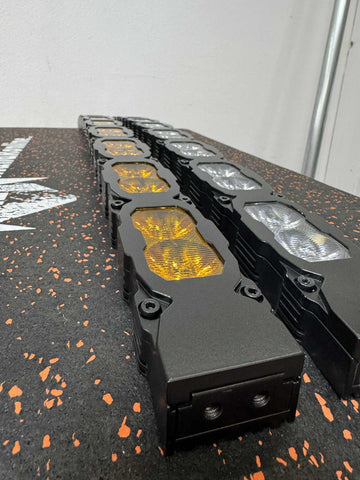

Introducing our new LED light bar-PRO with a unique appearance and optimal performance.
- Uses TIR (Total Internal Reflection) lens is different from our the regular slim light bar. The TIR lens collects all of the light from the LED and directly leads them to where you need, drastically reducing glare and improving total efficiency.
- Higher light efficiency: brighter, longer irradiation distance

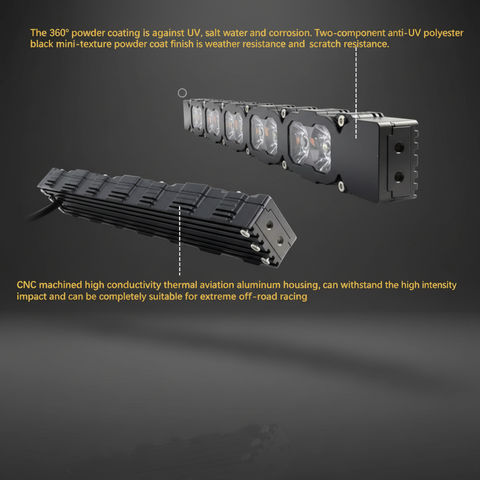

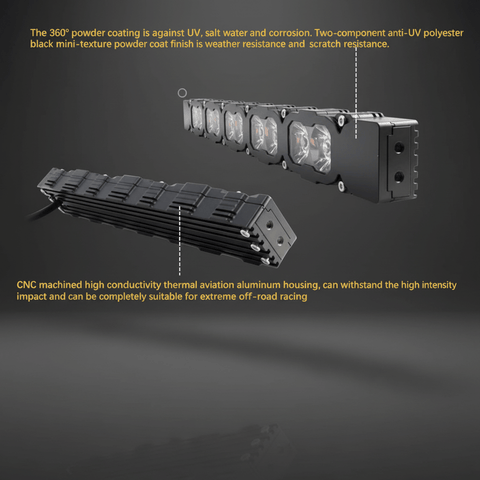

- Housing is upgraded to 304 aluminum. The surface is UV polyester powder coated to prevent against UV, salt water, corrosion, fading and scratch resistant.
- Equipped with thermal management system that automatically adjusts the brightness output according to the external temperatures
- Combo Pattern: combined spot and driving optics offers a balance between the distance and width
👍Our light kits are for off-road use only.
WHAT'S INCLUDED?
(1) 40in light bar curved PRO
(2) mounting brackets
All mounting hardware
WIRING
- M&R Automotive doesn’t provide a wiring harness. The light bar has 8ft of wire which is enough to reach AUX wires if your Bronco Raptor has them.
- We drilled a hole through accessory cap on passenger side and ran the wire down to engine bay to reach AUX wires.
- We now sell Wireless 8 Circuit Wiring Harness. This makes install much easier if you don't have AUX switches. No need to run any wires through the firewall, clean install.
INSTALLATION INSTRUCTIONS
We have a lifetime warranty on our light kits. We truly want our truck enthusiastic customers to enjoy their products as much as we enjoy designing them. However, we also understand that different situations arise with brackets or lights. For more information about our warranty and disclaimer click here.
*M&R Automotive is not responsible for misuse or improper installation of the product. Professional installation is recommended.
