Fits 2020 2021 2022 2023 2024 Subaru Outback
Trims: Base, Premium, Onyx Edition, Onyx Edition XT, Limited, Limited XT, Touring, Touring XT, Wilderness

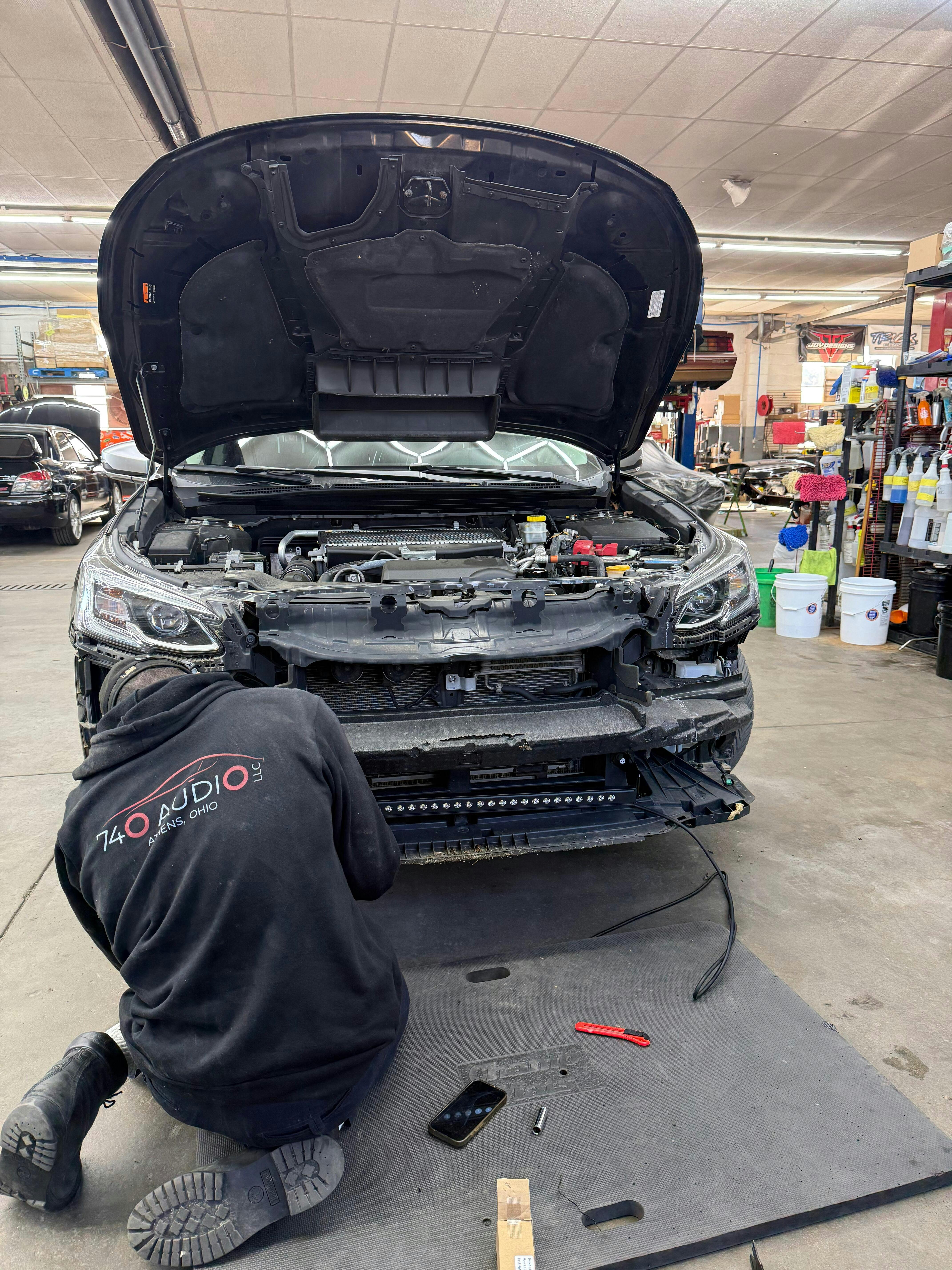

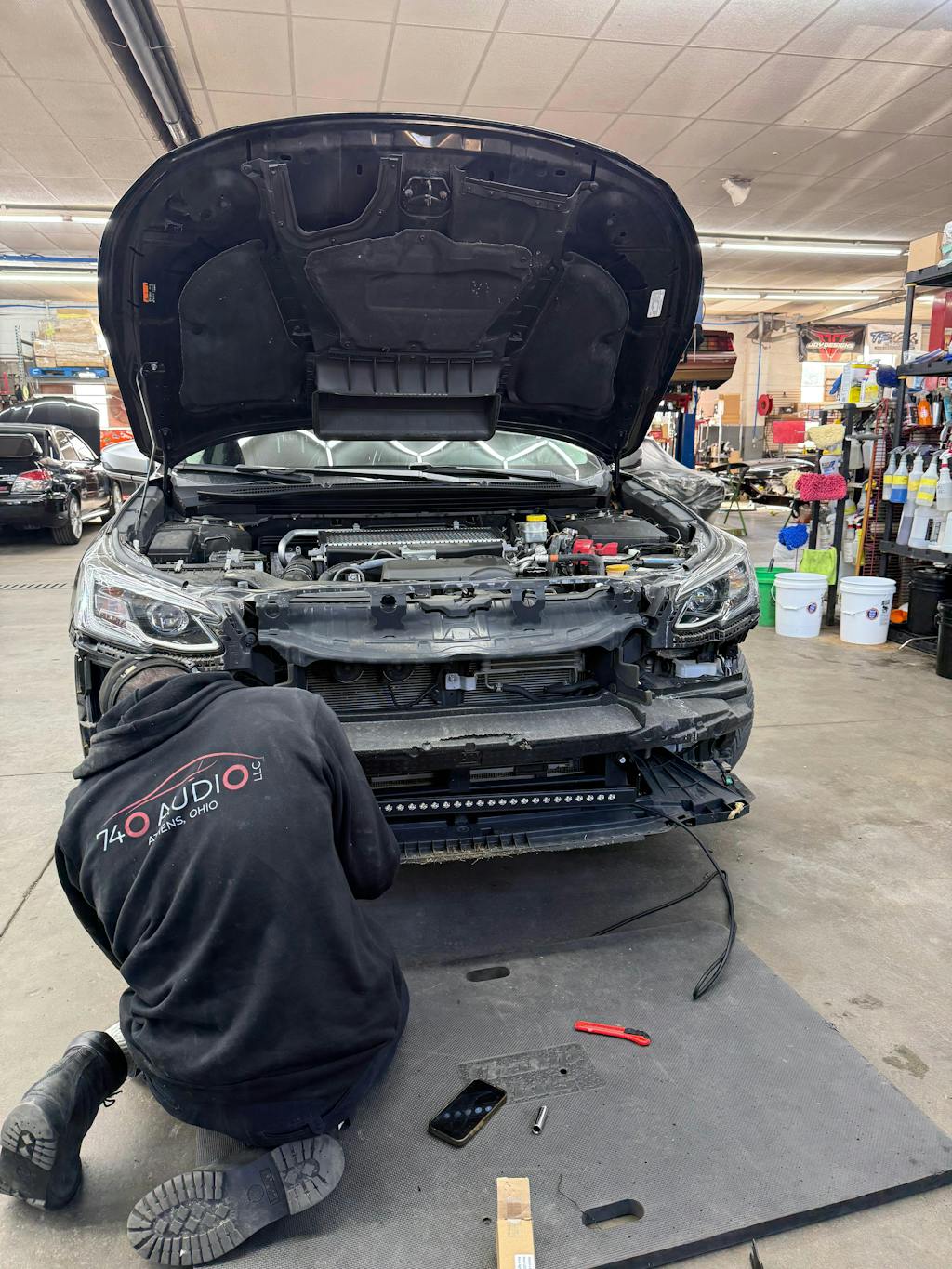

- Must remove front bumper and grille
- No cutting or drilling required. The kit is a complete bolt on
- WILL NOT interfere with active grille shutters. Our light bars are very slim and the metal bracket is designed to be in front of the shutters.
- Metal bracket is powder coated black
👍Our light kits are for off-road use only.

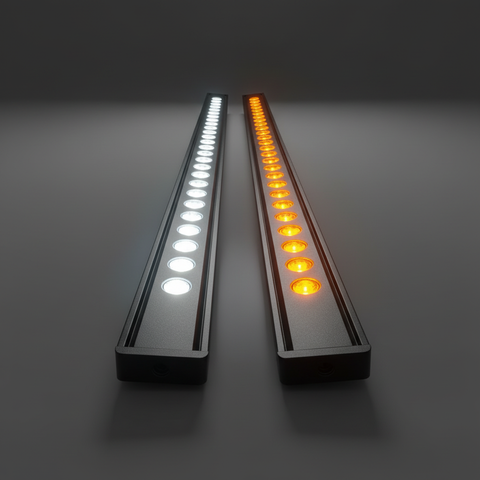

Choose your light bar color:

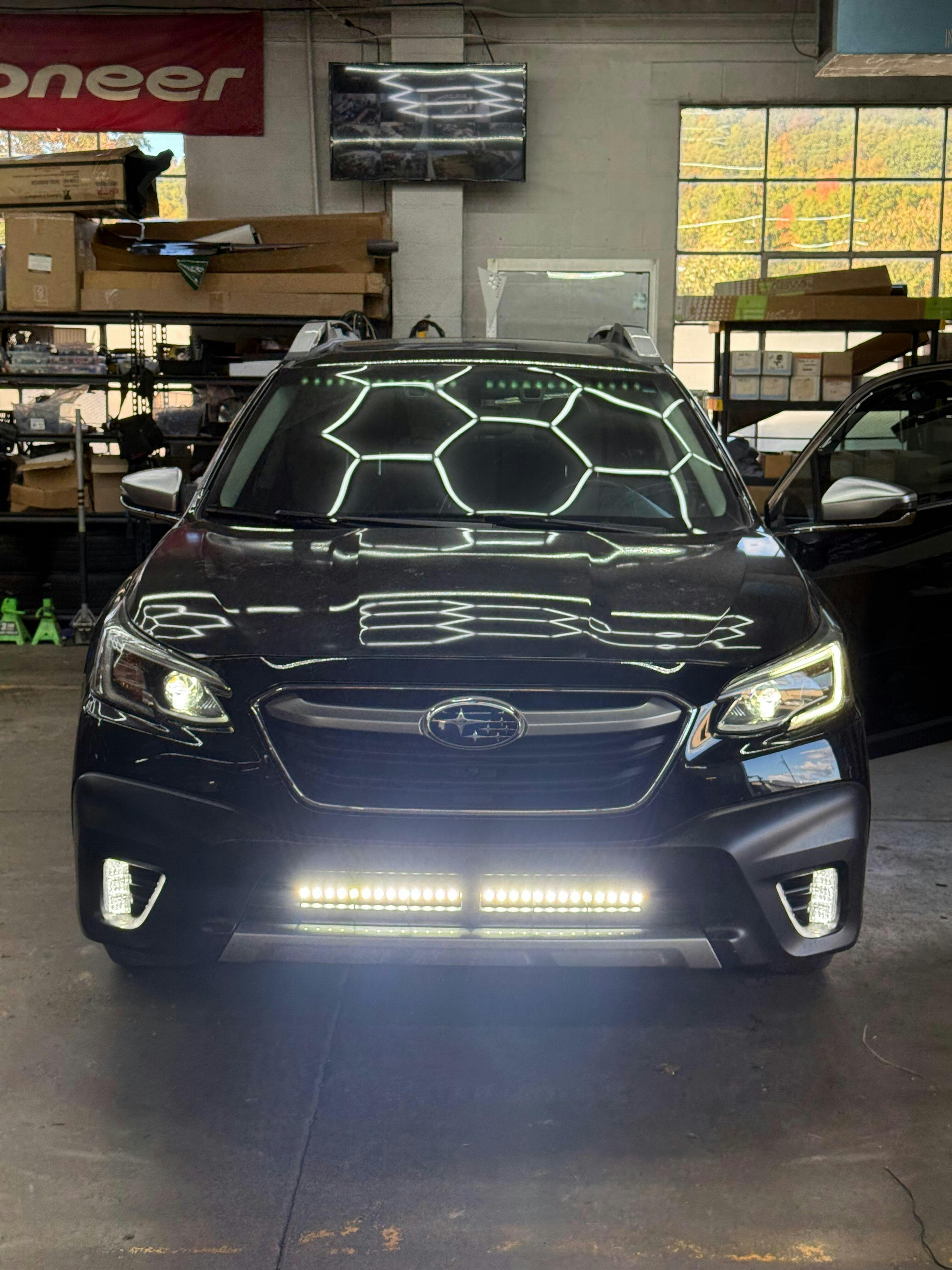

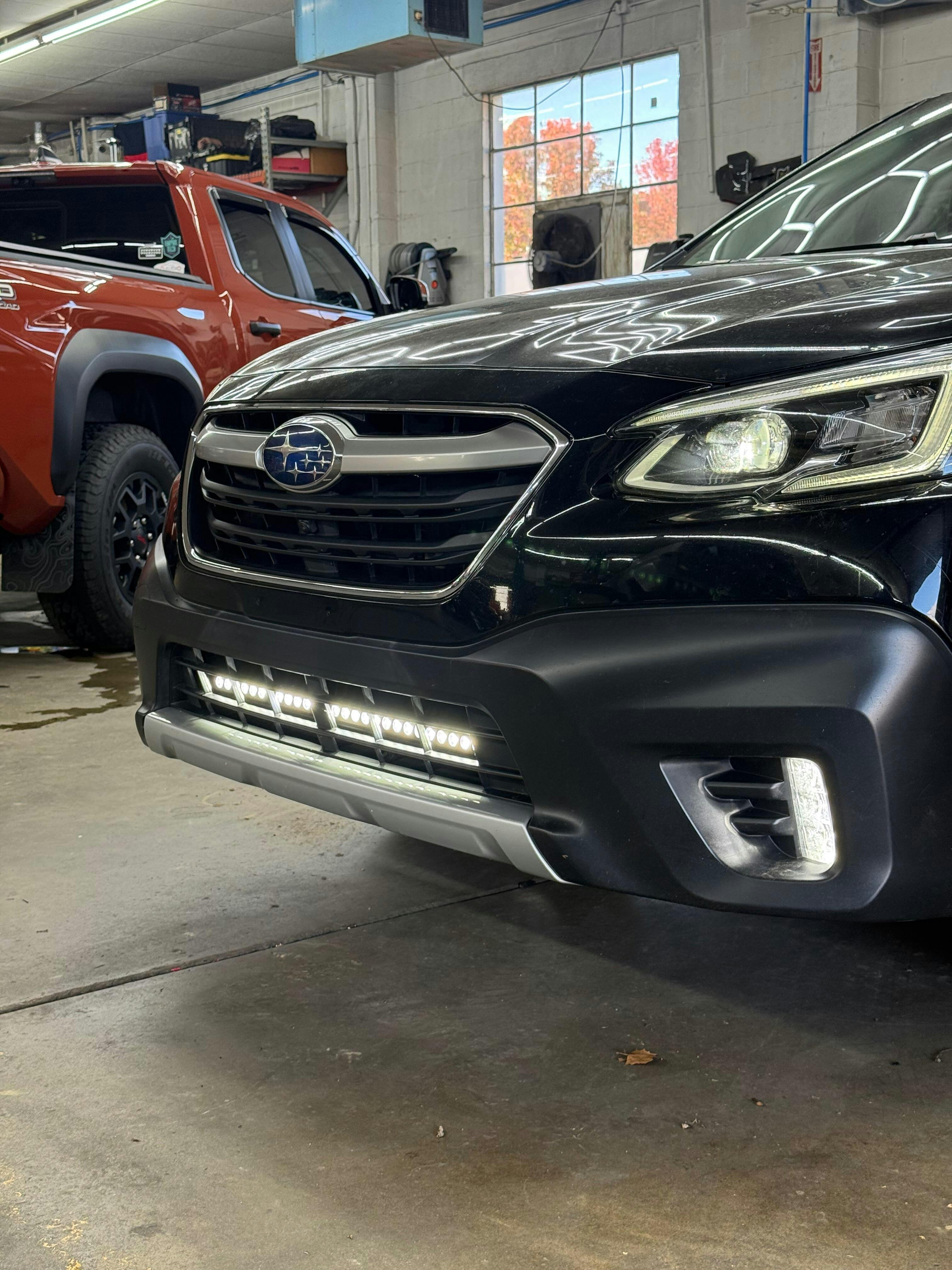

1) White LED -- Up to 11,760 lumens, bright and powerful. It will definitely provide you with enough light needed for all of your adventures. However, these are only for off-roading and can’t be used on the regular road. They will blind the in-coming traffic and also violates road safety.

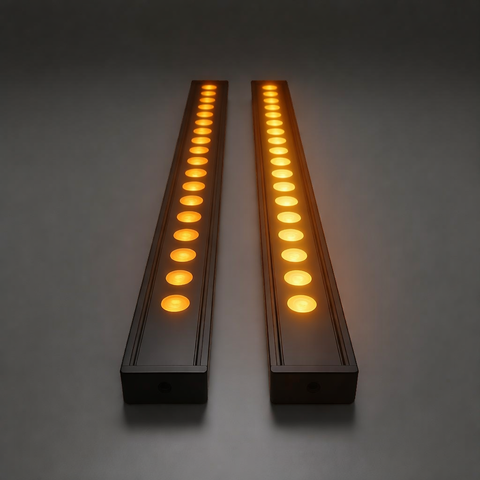

2) Amber LED -- Up to 5,500 lumens, used in poor driving conditions such as dust, fog, snow and rain. It reflects through air particles much less than the white light. Therefore, making it ideal for poor driving conditions.

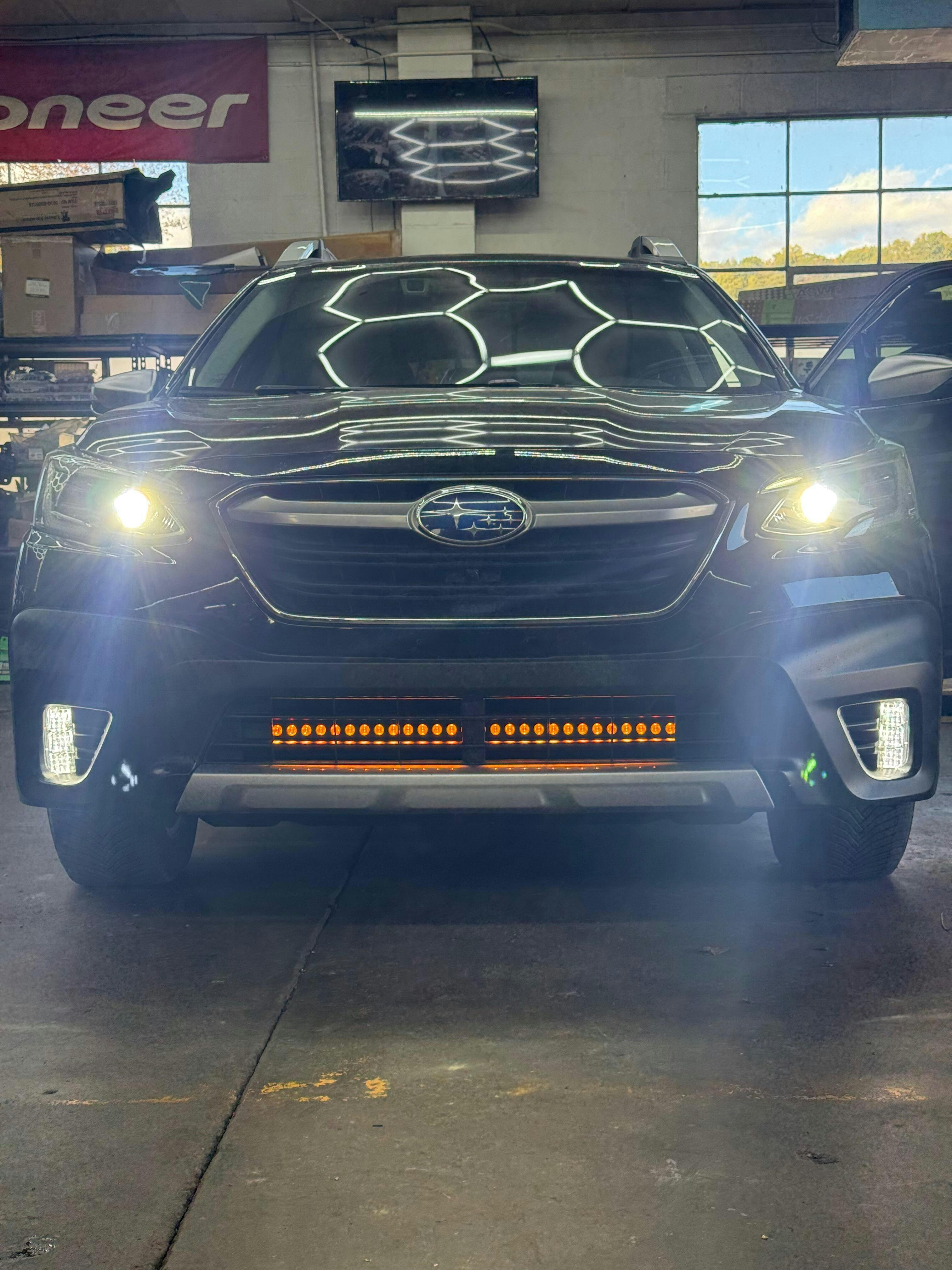

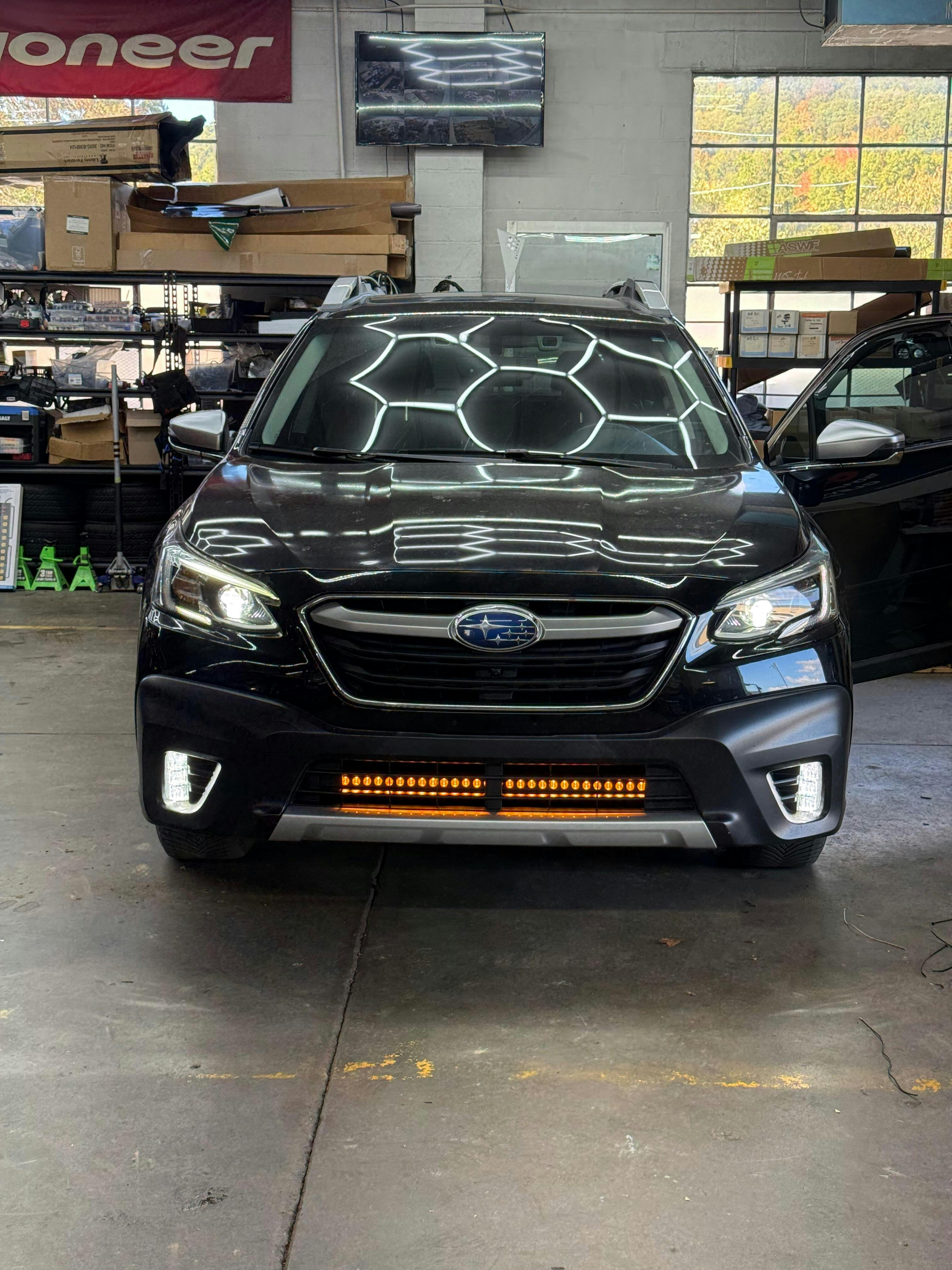

3) dual function: main White LED light with Amber DRL backglow -- the white LED light is same as described above, but the amber DRL “daytime running lights” acts purely for aesthetics. It doesn’t give out much light, but more of a beautiful amber backglow. Since it doesn’t give out much light, you can use this amber DRL feature on regular roads, it doesn't blind in-coming traffic.
Full in-depth video describing our lights bars CLICK HERE
WHAT'S INCLUDED?
(1) 30in light bar - SLIM
(2) mounting brackets
All mounting hardware
WIRING
- M&R Automotive doesn’t provide a wiring harness.
- The light bar has 6ft of wire. You will need to purchase a generic wiring harness to connect the light bar to battery.
- In our install video, we bought this one on amazon.
If you will only have a light bar set up on your Subaru, then a simple wiring harness will totally work.
If you are thinking you will add more accessories, we sell a wireless wiring harness that delivers a clean, hassle-free install—no need to run wires into the cab.
INSTALLATION INSTRUCTIONS
This light bar will fit Subaru Crosstrek Generation 2, years 2018-2023. To remove the grille/bumper is slightly different than generation 3. The installation of the light bar on both, generation 2 and generation 3, is absolutely the same. Please reference the video below even if you have the 2nd generation to know how to install the light bar.
30in SLIM light bar
White:
- Beam Pattern Spot
- Theotetical max power 140watts
- Actual power 76watts
- Voltage/current DC12v/6.3A
- Theoretical max luminous flux 16,380 lm
- Measured luminous flux (without lens) 8,848 lm
- Measured luminous flux (with lens) 6,380 lm
- LEDs type CREE XTE
- Temperature 6000k
- LEDs number 28pcs
- Product size LxWxD (in) 31 x 0.75 x 1.63
30in SLIM light bar
Amber:
- Beam Pattern Spot
- Theotetical max power 109watts
- Actual power 56watts
- Voltage/current DC12v/4.7A
- Theoretical max luminous flux 8,680 lm
- Measured luminous flux (without lens) 5,740 lm
- Measured luminous flux (with lens) 4,133 lm
- LEDs type CREE XP - E2 Amber
- Temperature
- LEDs number 28pcs
- Product size LxWxD (in) 31 x 0.75 x 1.63
30in SLIM light bar
White with Amber DRL
- Beam Pattern Spot
- Theotetical max power 140watts
- Actual power 76watts
- Voltage/current main DC12v/6.3A
- Voltage/current backlight 4.3W/0.36A
- Theoretical max luminous flux 16,380 lm
- Measured luminous flux (without lens) 8,848 lm
- Measured luminous flux (with lens) 6,380 lm
- LEDs type CREE XTE
- Temperature 6000k
- LEDs number 28pcs
- Product size LxWxD (in) 31 x 0.75 x 1.63
We have a lifetime warranty on our light kits. We truly want our truck enthusiastic customers to enjoy their products as much as we enjoy designing them. However, we also understand that different situations arise with brackets or lights. For more information about our warranty and disclaimer click here.
*M&R Automotive is not responsible for misuse or improper installation of the product. Professional installation is recommended.
