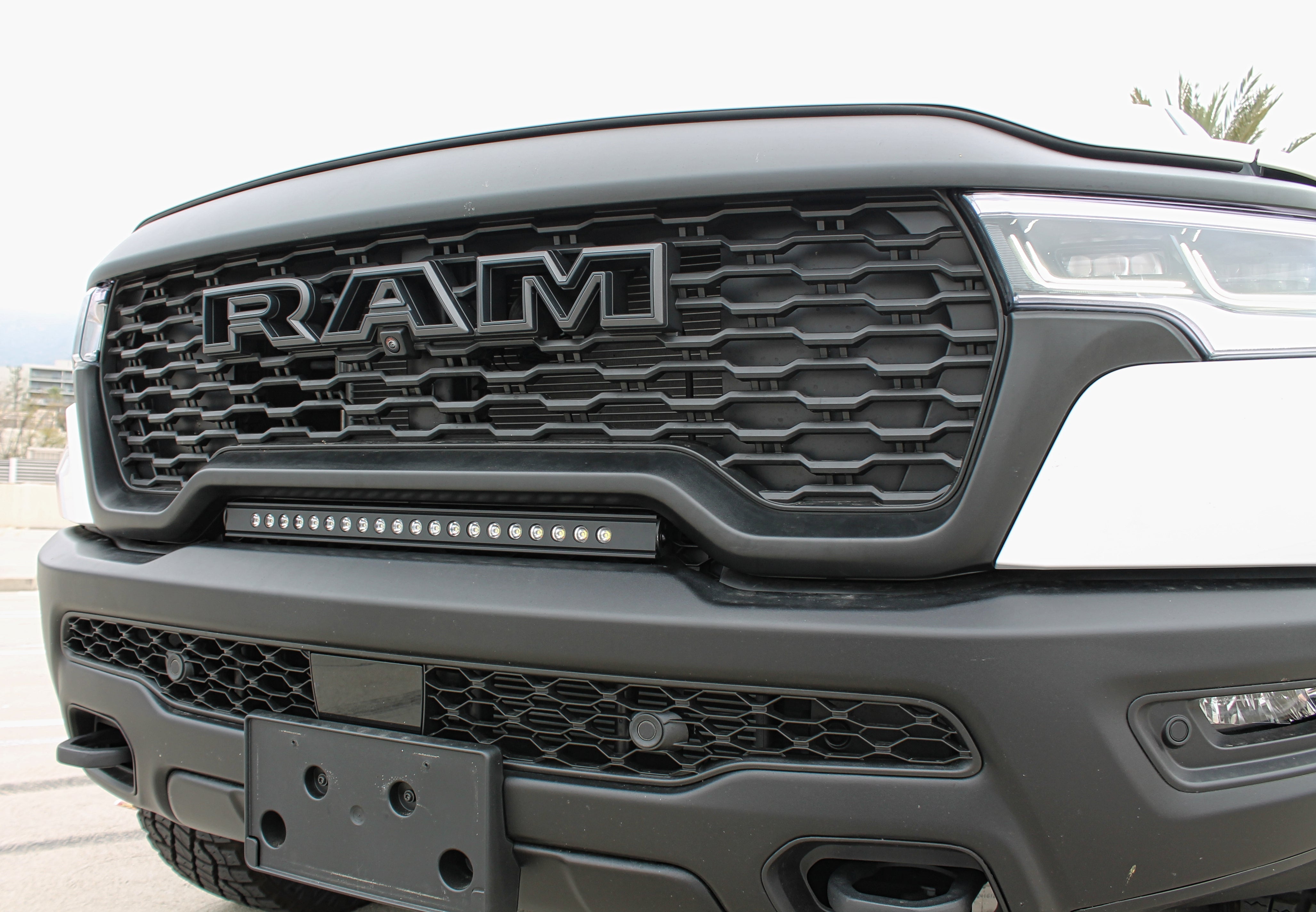

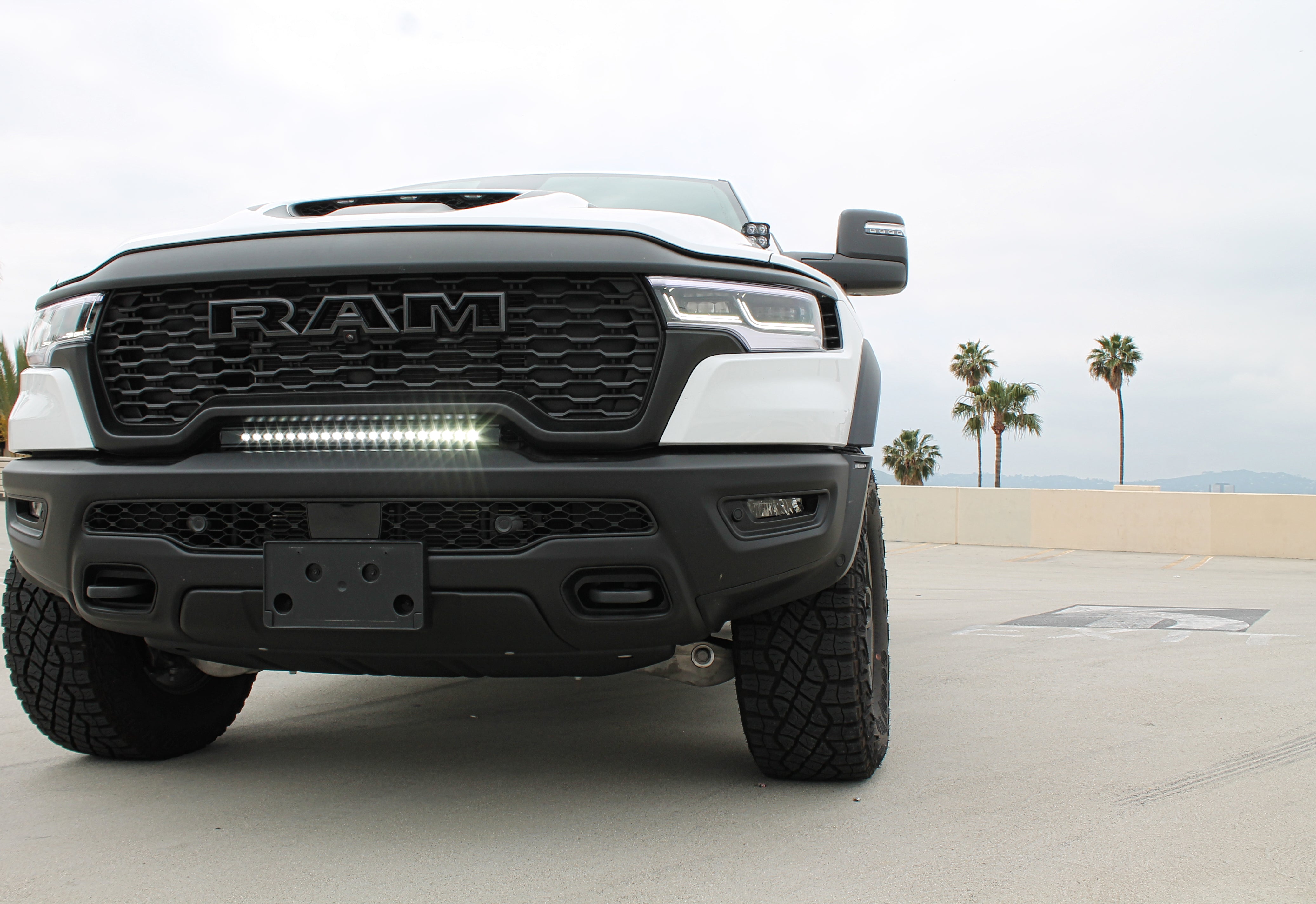

RAM RHO lightbar on 2025+ RAM 1500 Rebel between grille and bumper; slim curved light bar with black powder-coated bracket, 23in length

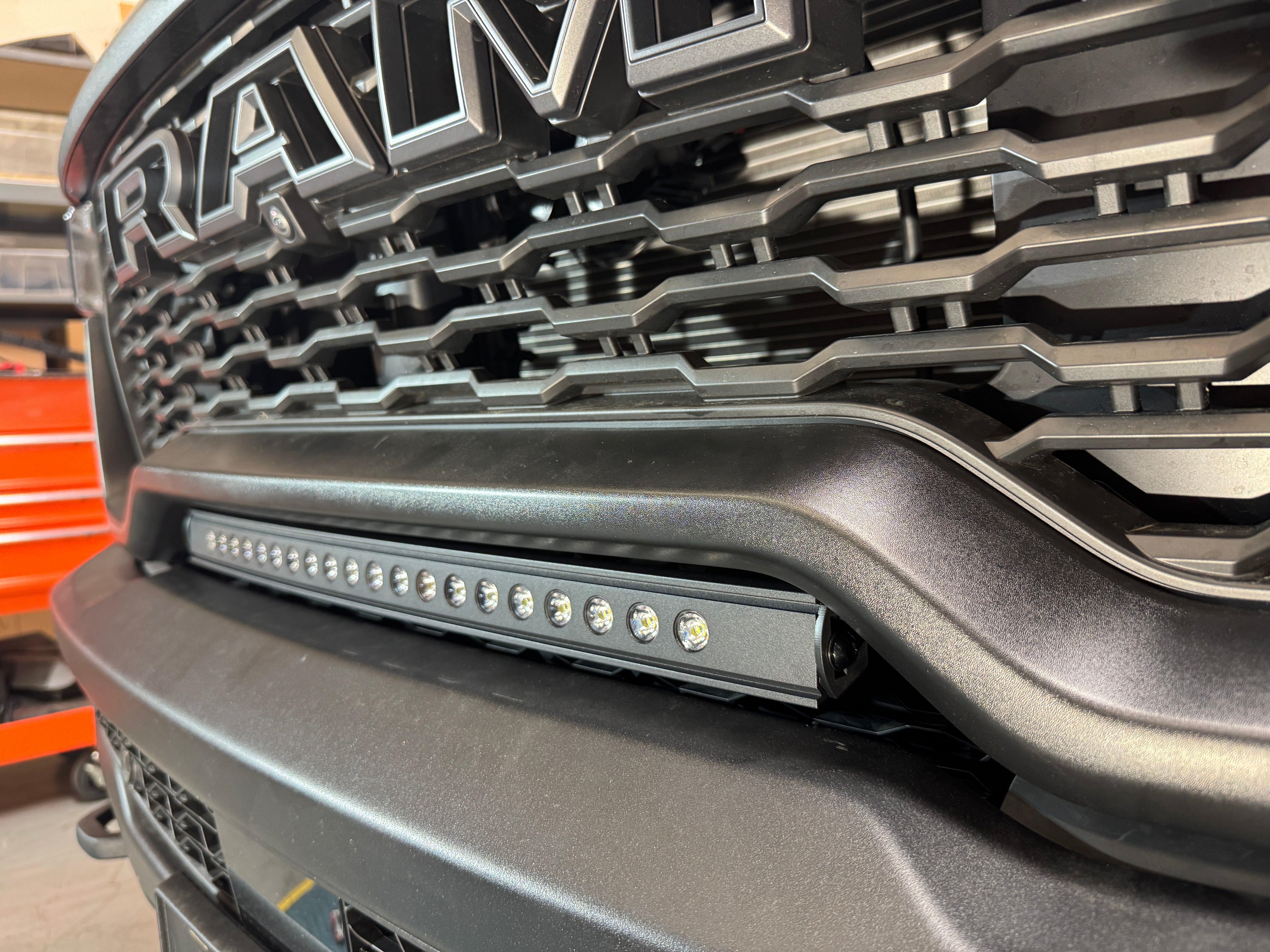

RAM RHO lightbar on 2025+ RAM 1500 Rebel with curved slim design, mounts between grille and bumper, powder-coated black bracket, 23in, RAM RHO lightbar

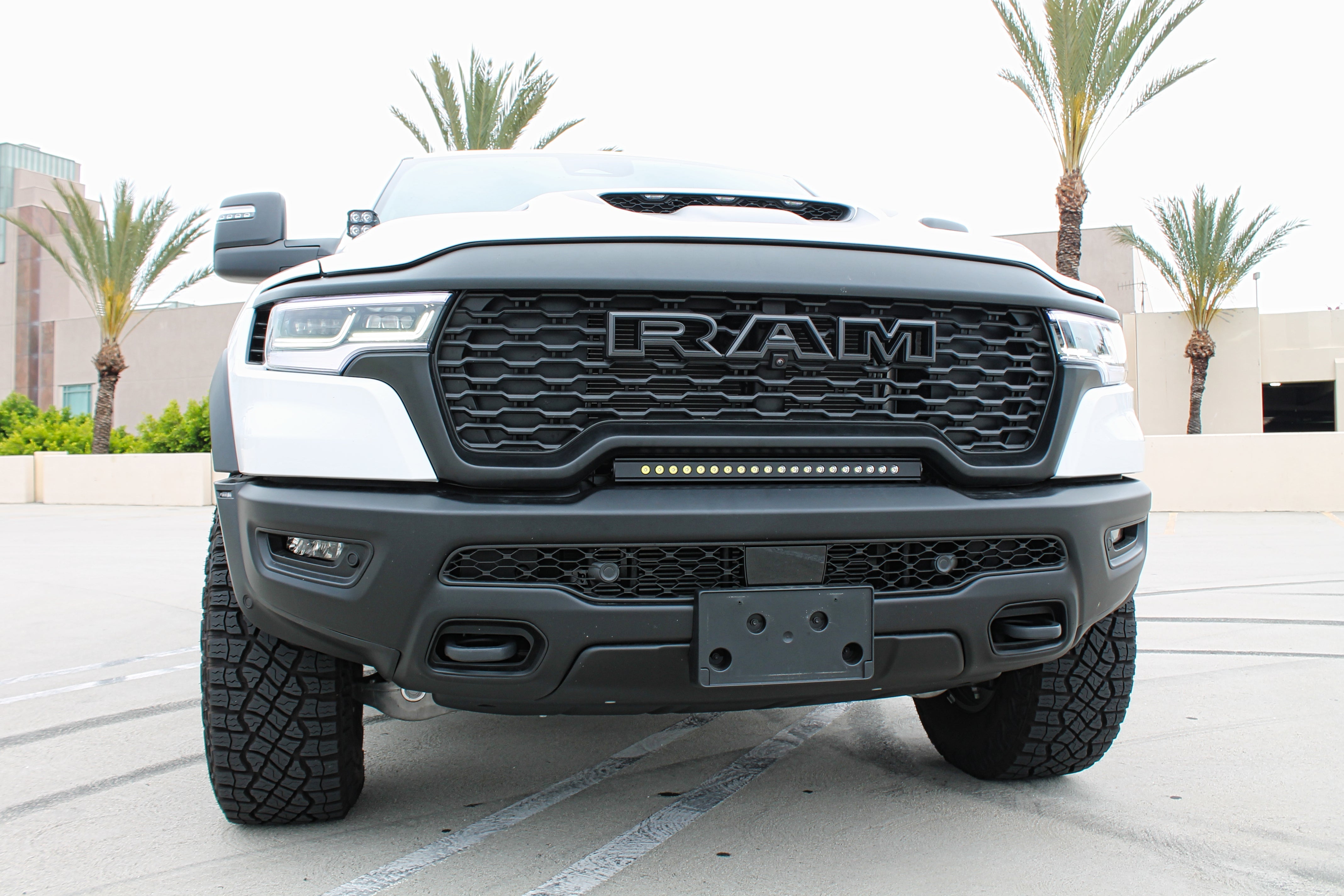

RAM RHO lightbar on 2025+ RAM 1500 Rebel — curved slim light bar between grille and bumper with black powder-coated bracket; RAM RHO lightbar

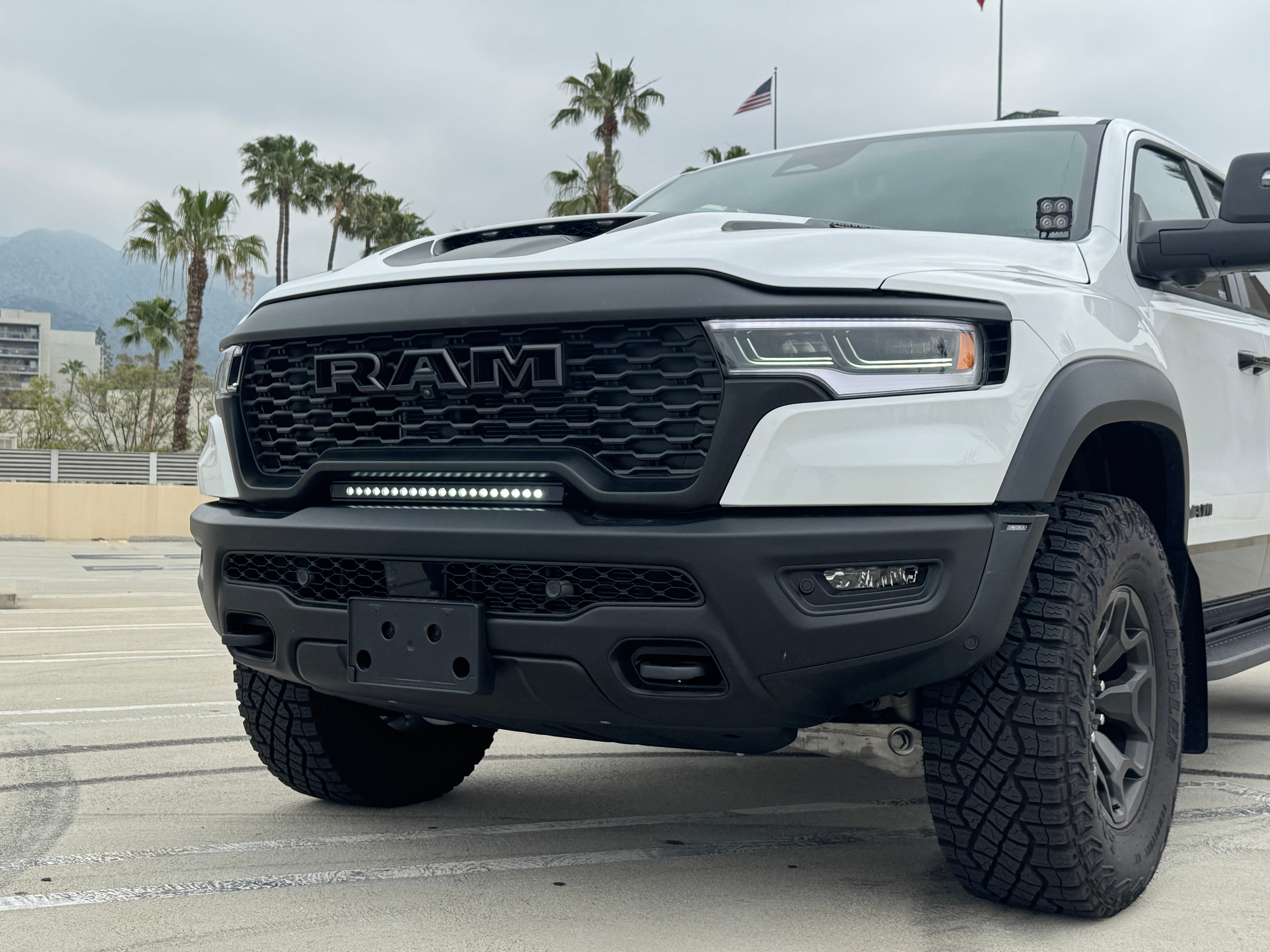

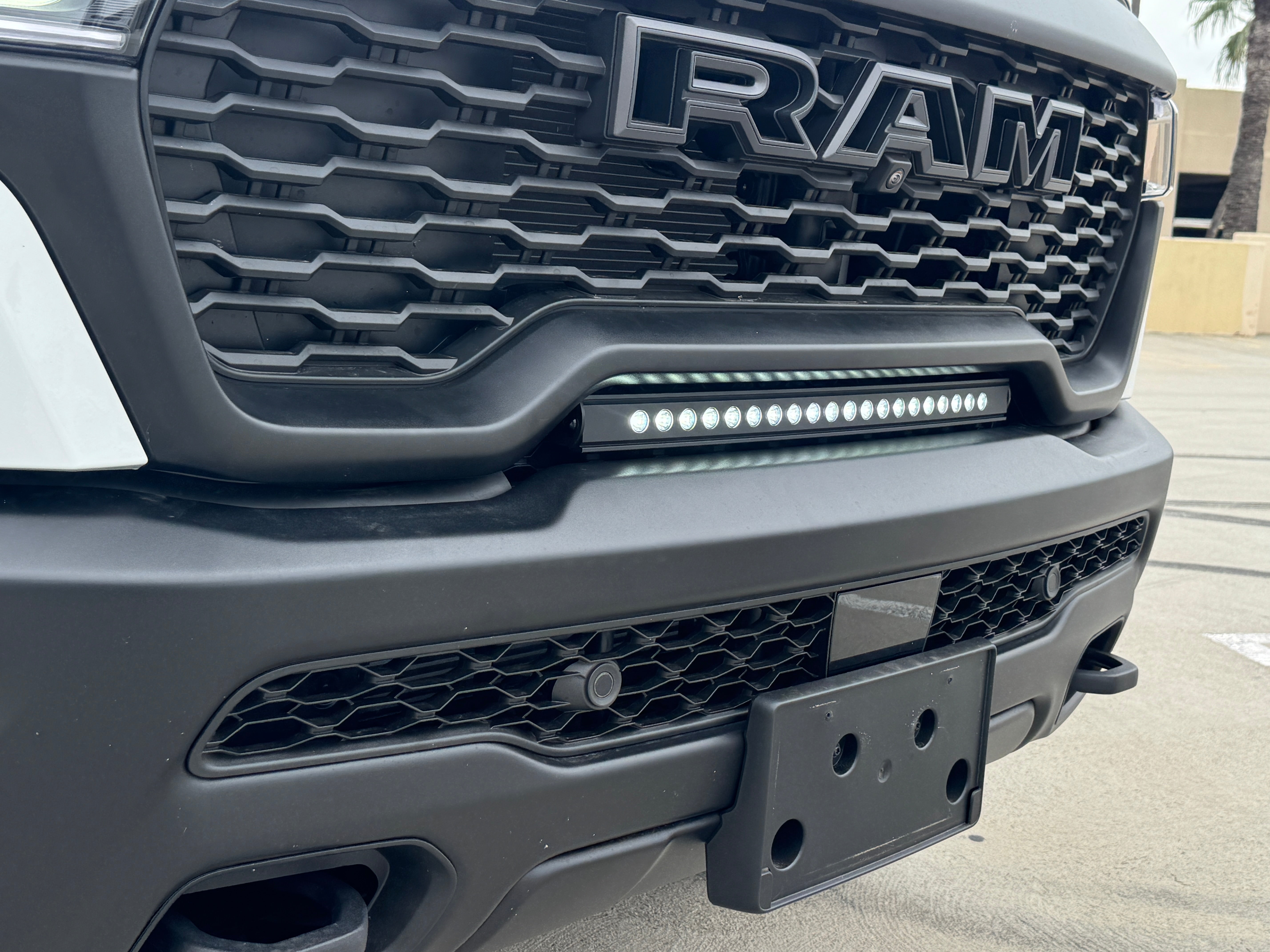

RAM RHO lightbar installed on 2025+ RAM 1500 Rebel between grille and bumper for a slim, built-in look

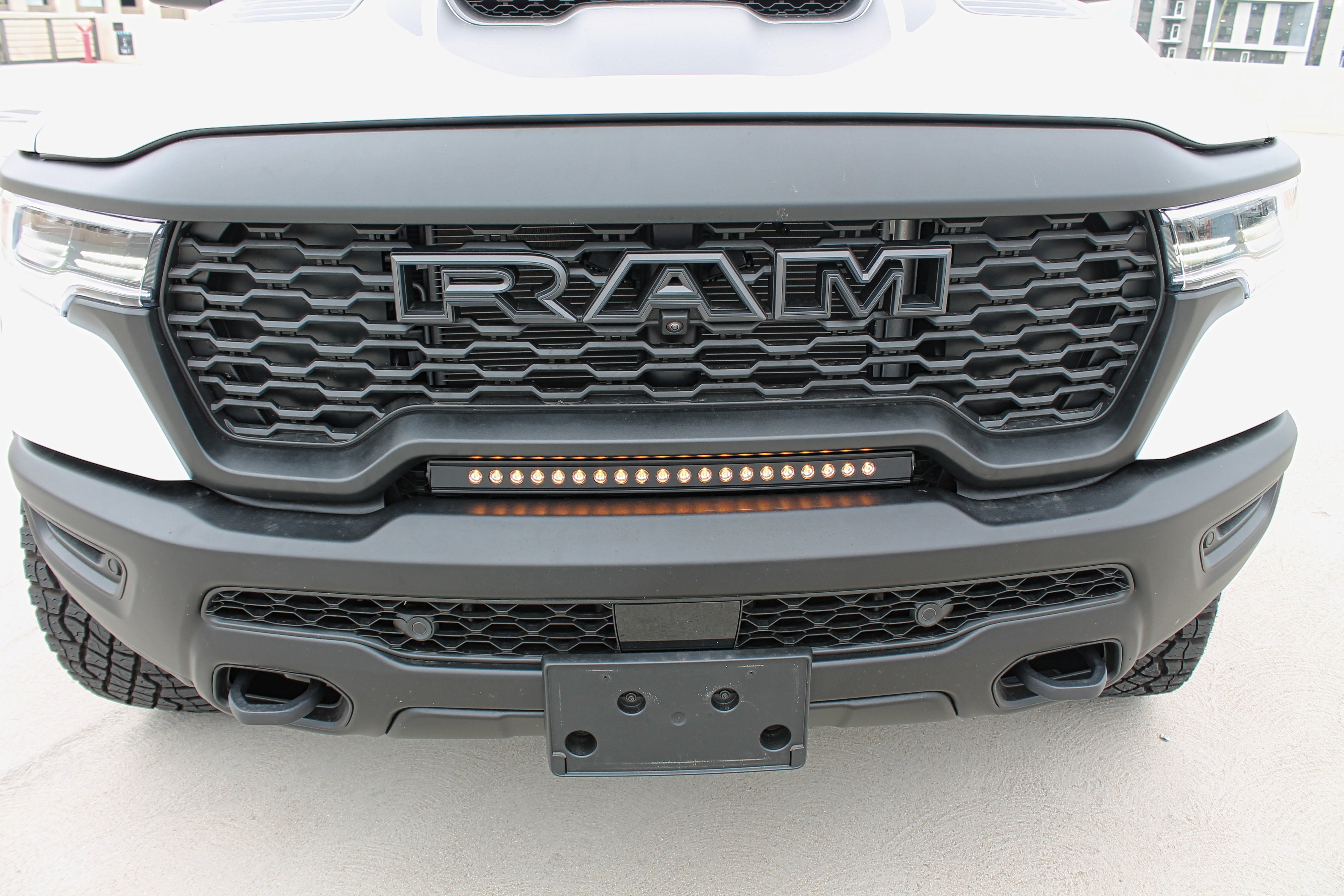

RAM RHO lightbar on 2025+ RAM 1500 Rebel with slim curved installation between grille and bumper, metal black powder-coated bracket, built-in sleek look

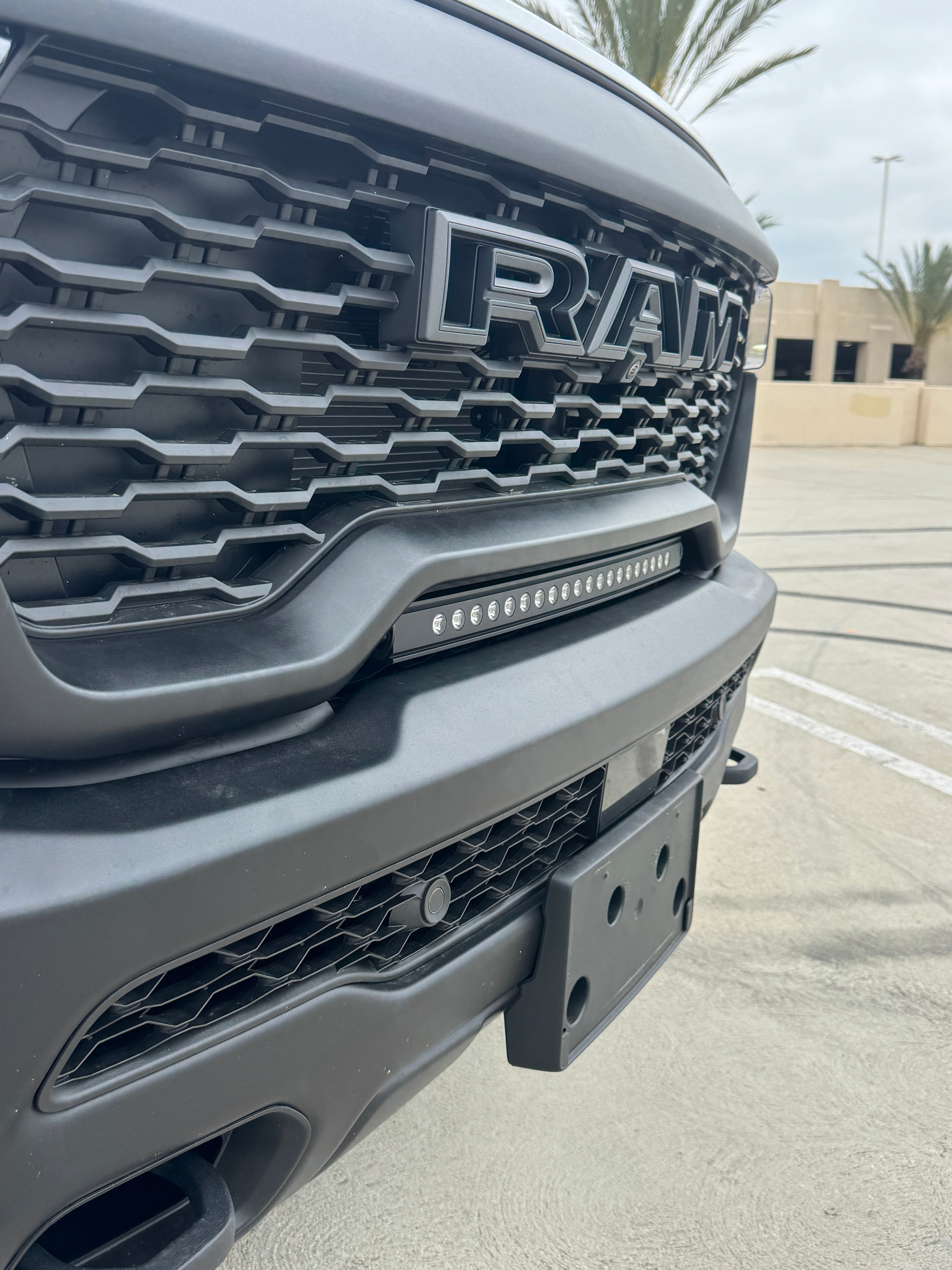

RAM RHO lightbar on 2025 RAM 1500 Rebel, slim curved light bar installed between grille and bumper with black powder-coated bracket

RAM RHO lightbar installed on 2025+ RAM 1500 Rebel, slim curved LED light between grille and bumper with black powder-coated metal bracket

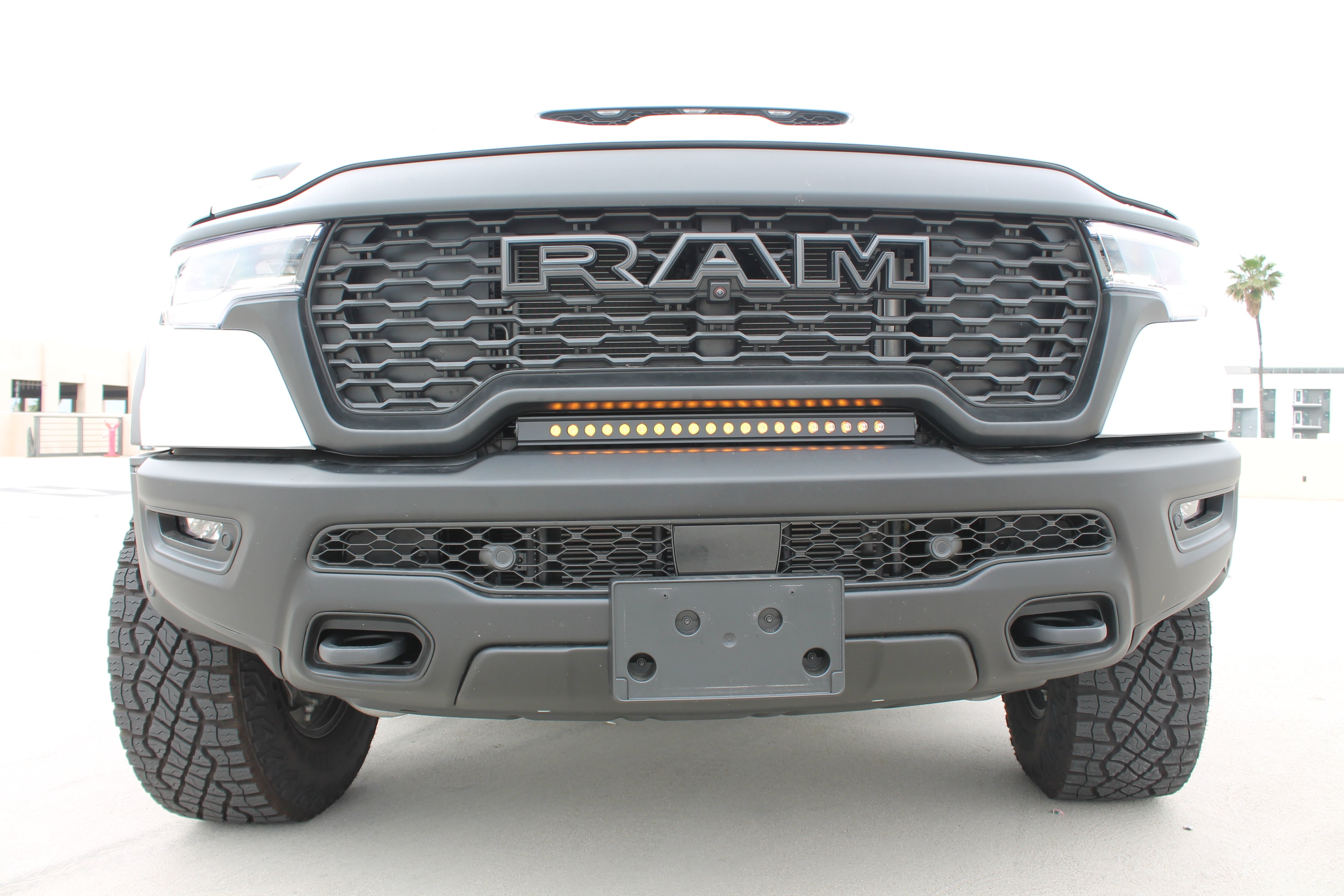

RAM RHO lightbar 2025+ 23in Slim installed on RAM 1500 Rebel; curved slim light bar between grille and bumper, black powder-coated bracket, two installation options

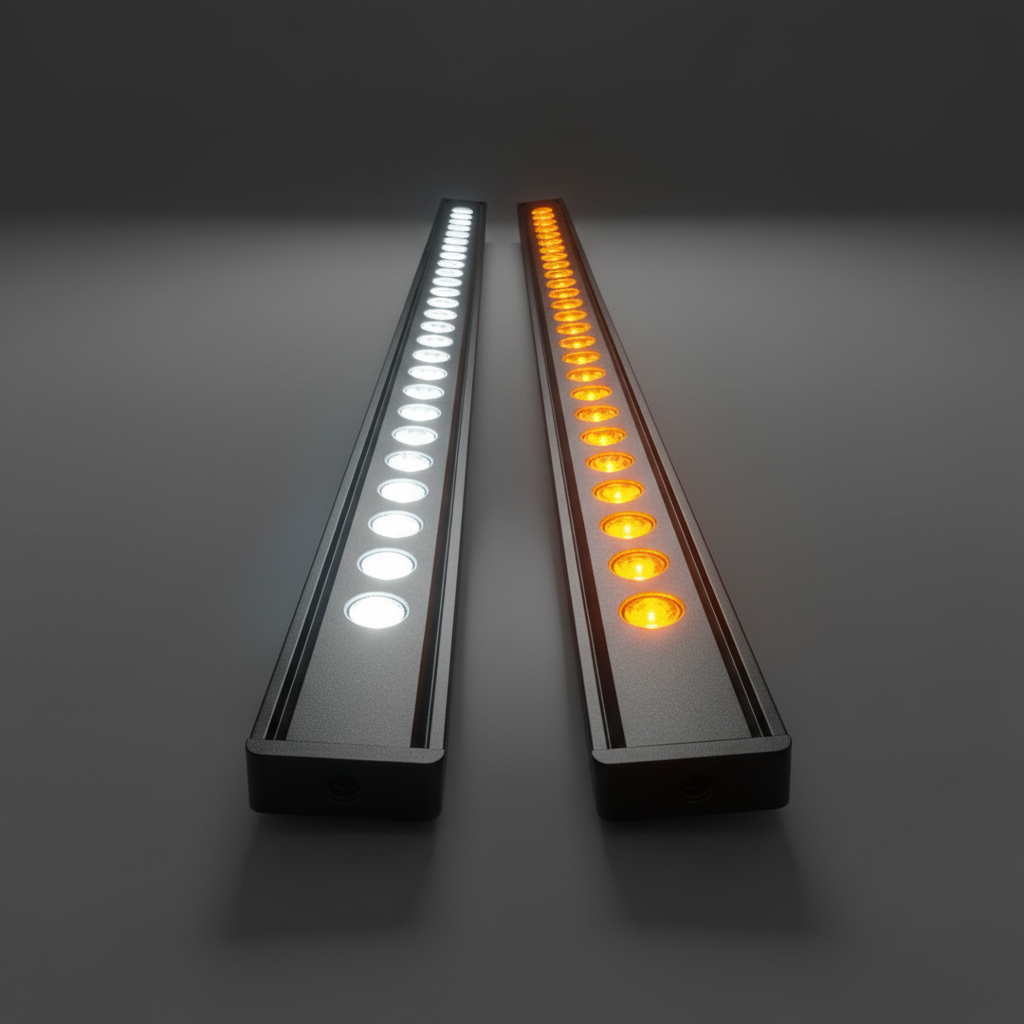

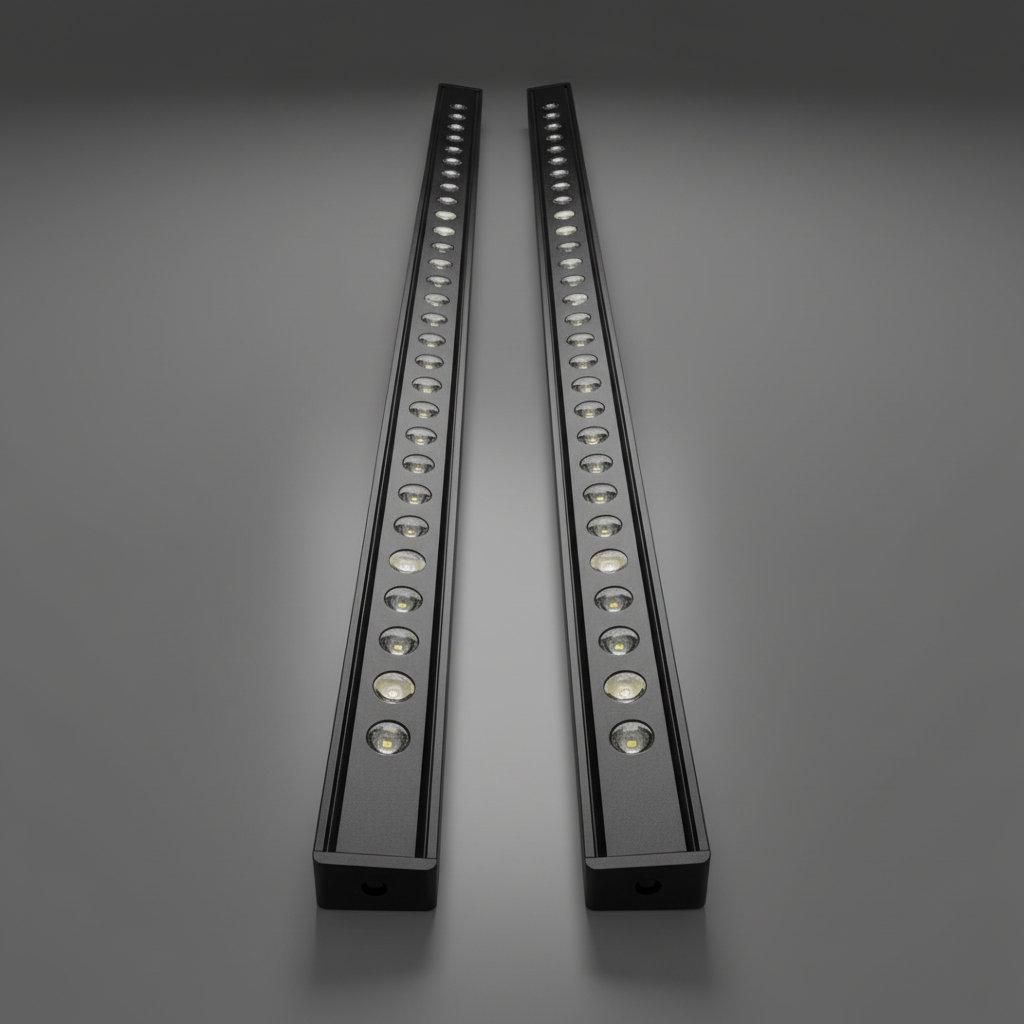

RAM REBEL lightbar slim curved LED bar with dual white and amber lights for 2019-2026 RAM 1500 Rebel

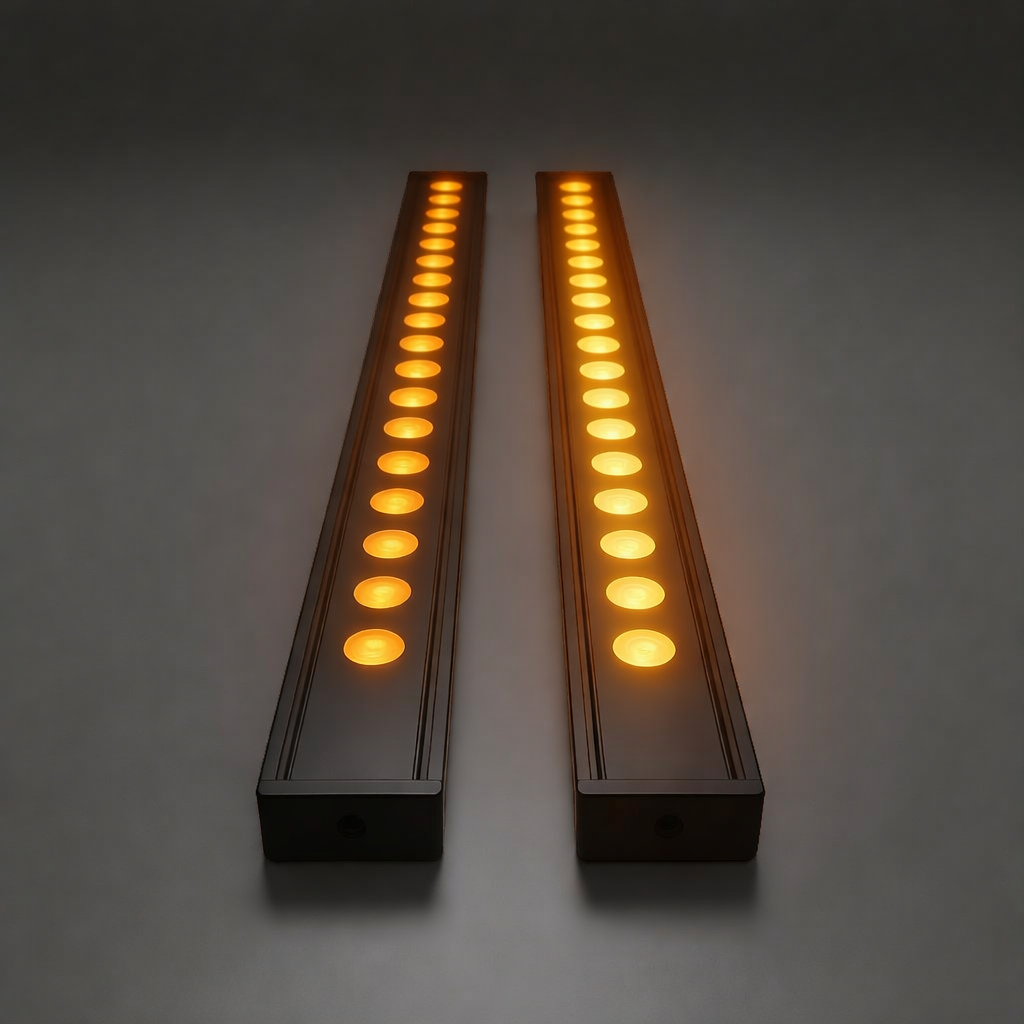

RAM REBEL lightbar slim curved LED bars with white and amber lights for 2019-2026 RAM 1500 Rebel

RAM REBEL lightbar slim curved dual LED bars for 2019-2026 RAM 1500 Rebel front lighting upgrade

2019+ RAM 1500 Rebel 23in Light Bar SLIM

$274.99

Shipping calculated at checkout.

Light Bar ColorWhite

White Amber Dual Function: Main White + Amber DRL Backglow

{"in_cart_html"=>"<span class=\"quantity-cart\">{{ quantity }}</span> in cart", "decrease"=>"Decrease quantity for {{ product }}", "multiples_of"=>"Increments of {{ quantity }}", "minimum_of"=>"Minimum of {{ quantity }}", "maximum_of"=>"Maximum of {{ quantity }}"}

What's in the Box

(1) 23in curved light bar SLIM
(4) metal brackets
All mounting hardware included

Need a shop to install it? Find a trusted installer near you →

Off-road Use Only

Bolt On, No Drilling

Lifetime Warranty

2019+ RAM 1500 Rebel 23in Light Bar SLIM

$274.99

Fits: 2019–2026 RAM 1500 Rebel

This light bar was just tested on the 2019-2024 RAM 1500 Rebel, but we don't have any pictures. Please reference pictures on this listing even though this is on the RAM RHO. It looks absolutely the same.

How it installs:

! There are 2 ways to install this light bar. You can remove the grille or not. Please watch both videos and judge for yourself which way you'd like to do the install
Fits in the factory opening between the grille and bumper
Slim and sleek, built-in look
Metal bracket is powder coated black
Doesn't interfere with radiator airflow
No cutting or drilling required. The kit is a complete bolt on using factory openings and hardware

CHOOSE LIGHT OUTPUT COLOR

Every SLIM bar uses a Spot & Flood pattern, blending a focused spot beam with wide flood coverage for a balance between distance and width.

Option 1 — White

Bright, powerful light for any adventure. Off-road use only — the white beam blinds oncoming traffic and isn't street-legal.

Option 2 — Amber

Cuts through dust, fog, snow, and rain far better than white light. Ideal for poor conditions. Off-road use only — the amber beam blinds oncoming traffic and isn't street-legal.

Option 3 — Dual Function: White + Amber DRL

Full white beam (same as Option 1), plus an amber daytime running light backglow. Doesn't give off much light — just a bold amber glow that makes your vehicle stand out on the road. Off-road use only — the white main beam blinds oncoming traffic and isn't street-legal.

AMP DRAW @ 12V (PER BAR)

White4.50A

Amber3.34A

Amber DRL (dual function only)0.26A

BUILD QUALITY:

Reflector-style optics with CREE XT-E LED chips for consistent, efficient output
Housing is UV black powder coated to protect against fading, corrosion, and weather exposure
Rated for a 50,000 hour lifespan

M&R doesn't provide a wiring harness. The light bar(s) have over 6ft of wire -- enough to reach your vehicle's AUX switch wiring (if equipped). If your vehicle doesn't have AUX wires, you'll need to source a generic harness separately (available on Amazon/eBay) or build your own.

No AUX wires? Easier option — our Wireless Harness. Powers the lights with no AUX switches and no wires run through the firewall. Clean, simple install.

Wireless 8 Switches Harness 2.0 $214.99 View Product • $214.99

Wireless 8 Switches Harness 1.0 $169.99 View Product • $169.99

M&R AUTOMOTIVE

SLIM SERIES

23in SLIM Light Bar

Specification	White w/ Amber DRL	White	Amber
Beam Pattern	Spot & Flood	Spot & Flood	Spot & Flood
Theoretical Max Power	100 watts	100 watts	78 watts
Actual Power	53 watts	53 watts	40 watts
Voltage / Current (Main)	DC 12V / 4.42A	DC 12V / 4.42A	DC 12V / 3.34A
Voltage / Current (Backlight)	DC 12V / 0.27A	—	—
Theoretical Max Luminous Flux	11,700 lm	11,700 lm	6,200 lm
Measured Flux (without lens)	6,720 lm	6,720 lm	4,100 lm
Measured Flux (with lens)	5,004 lm	5,004 lm	2,952 lm
LED Type	CREE XTE	CREE XTE	CREE XP-E2 Amber
Color Temperature	6000K	6000K	—
Number of LEDs	20 pcs	20 pcs	20 pcs
Product Size (L × W × D)	23 × 1.63 × 0.75 in	23 × 1.63 × 0.75 in	23 × 1.63 × 0.75 in

IP68 RATEDLIFESPAN 50,000 HRS

2019+ RAM 1500 Rebel 23in Light Bar SLIM PRO vs SLIM lighting zones

Free ground shipping on all orders within the continental United States.

We process and ship orders within 3–5 business days. If we anticipate any delay, we'll reach out via email.

Hawaii, Alaska & Puerto Rico — $20 flat rate for ground shipping.
Canada & International — Shipping rates calculated at checkout. Customs fees, duties, and import taxes are the responsibility of the customer.
Overnight & 2nd Day Air — Available at checkout. Orders must be placed by 12:00 PM Pacific Time for same-day shipment.

You'll receive a tracking number via email once your order ships. If you have a special request about your order, reach out — we'll do our best to accommodate. For our complete shipping policy, [click here].

Warranty

We have a lifetime warranty on all our light kits. We stand behind every kit we build — our lifetime warranty isn't fine print, it's a promise. For more information about our warranty and disclaimer, [click here].

M&R Automotive is not responsible for misuse or improper installation of the product. Professional installation is recommended.

HOW TO INSTALL?

Install video

About the SLIM light bars

HOW TO WIRE?

No AUX wires? Easier option — our Wireless Harness. Powers the lights with no AUX switches and no wires run through the firewall. Clean, simple install.

Wireless 8 Switches Harness 2.0$214.99 · View Product

Wireless 8 Switches Harness 1.0$169.99 · View Product

LIGHT OUTPUT

Perfect

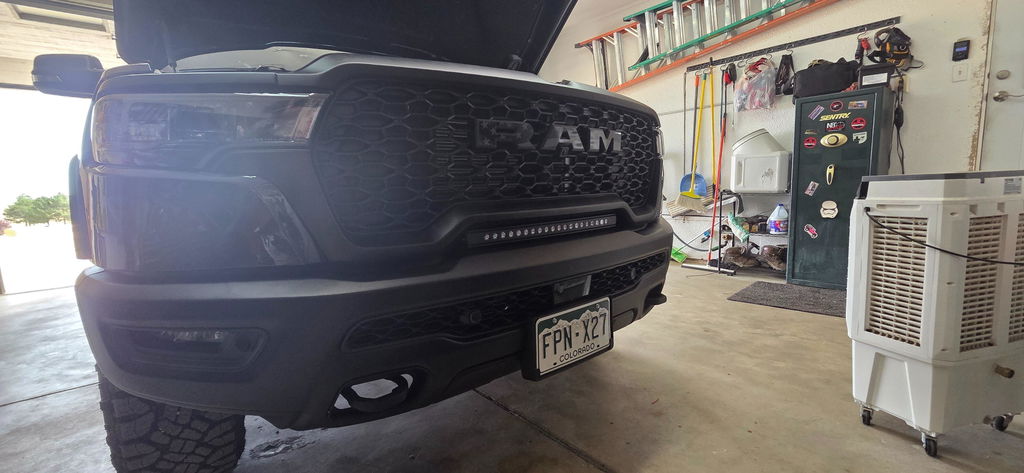

I purchased for my 26 Rebel. Light is stealthy for sure. Amber is perfect for snow and fog here in CO. Install for me had to remove grill. My truck has the grill damper so that's the only way as there is not enough room for your arm and cant reach bolts to put on the nuts. No biggie just took an hour rather then 10 minutes.

23" Slim Light Bar

Great light bar at a great price. High Quality and well built. Needed to change my order and Mike answered the phone on the first ring. He changed my order and emailed me a revised invoice immediately. Sounds simple, but this level of customer service is becoming hard to find these days. Big thanks to Mike and everyone at M&R.

Looks Factory

Excellent quality great fit

Great lights, but...

Great lights, but be aware that if you have shutters, you will have to remove your grill. I mean, maybe if you have incredibly small forearms and long fingers you MAY be able to reach. :)

I'm not sure if would have bought these, if i knew I'd be removing the grill. The video was great for directions, but the tabs for the body pieces under the headlights was a real pain. They were not visible (as mentioned in the video), not very intuitive to get released and mine got pretty mangled releasing them.

With ask of that said, I'm very glad I got these, thinking i could install them while mounted. It forced me to go ahead with the grill removal and I love the lights.

FYI, I used an Auxbeam 6 gang switch and it works great.

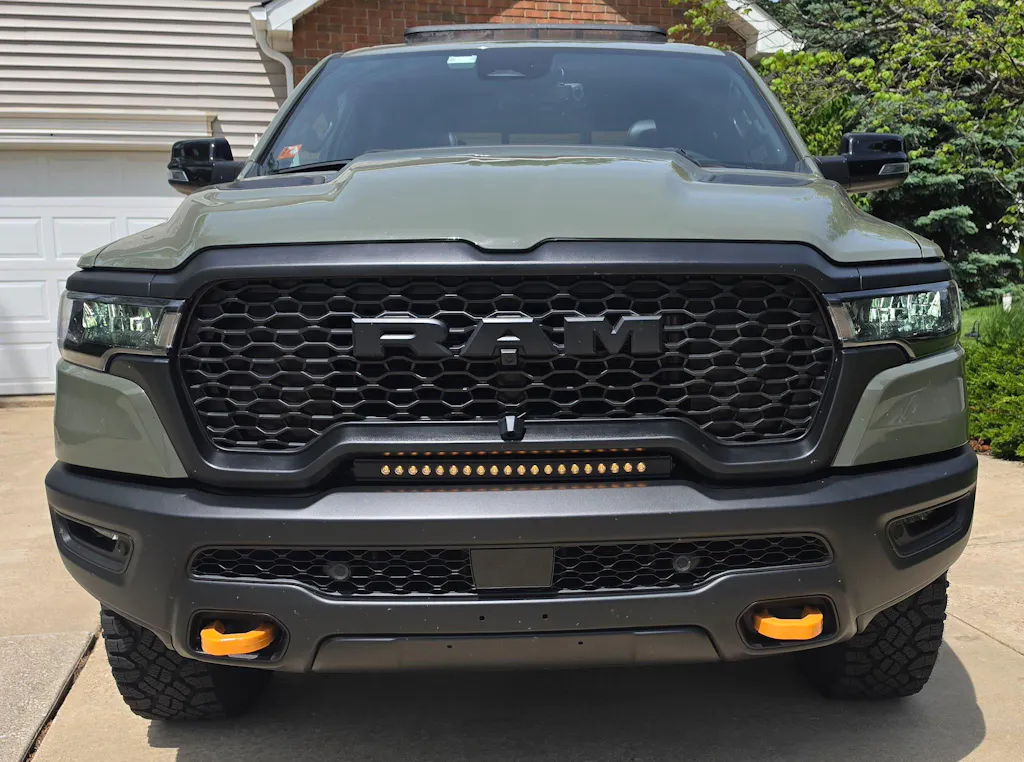

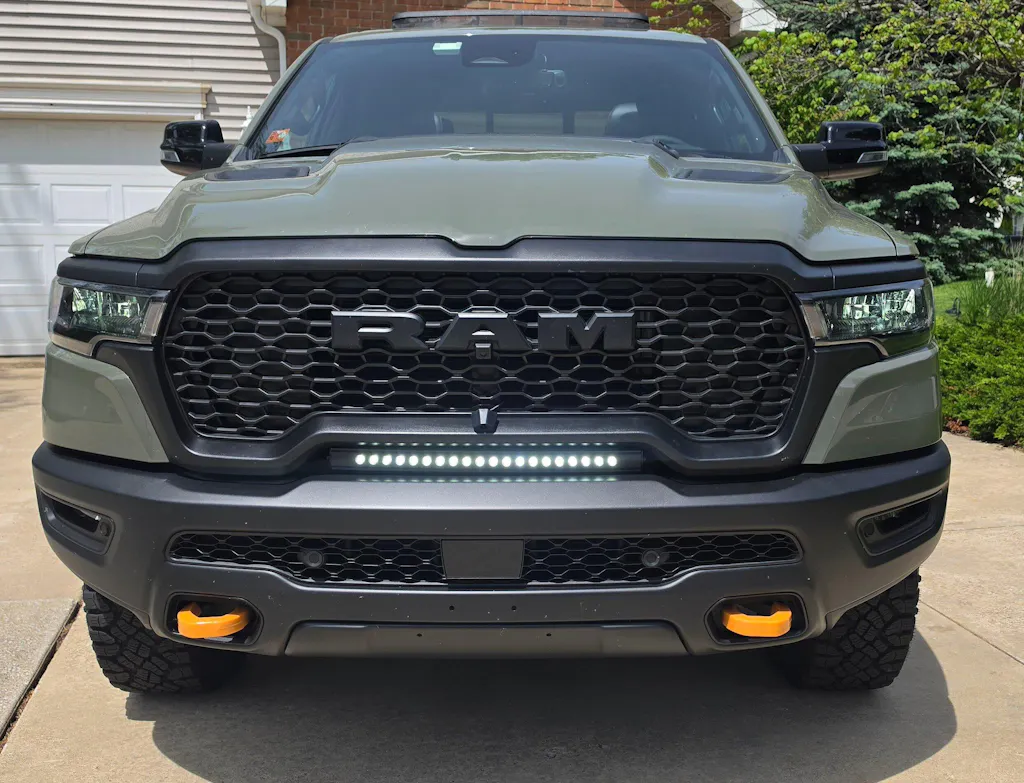

Ram 2023 1500 Rebel

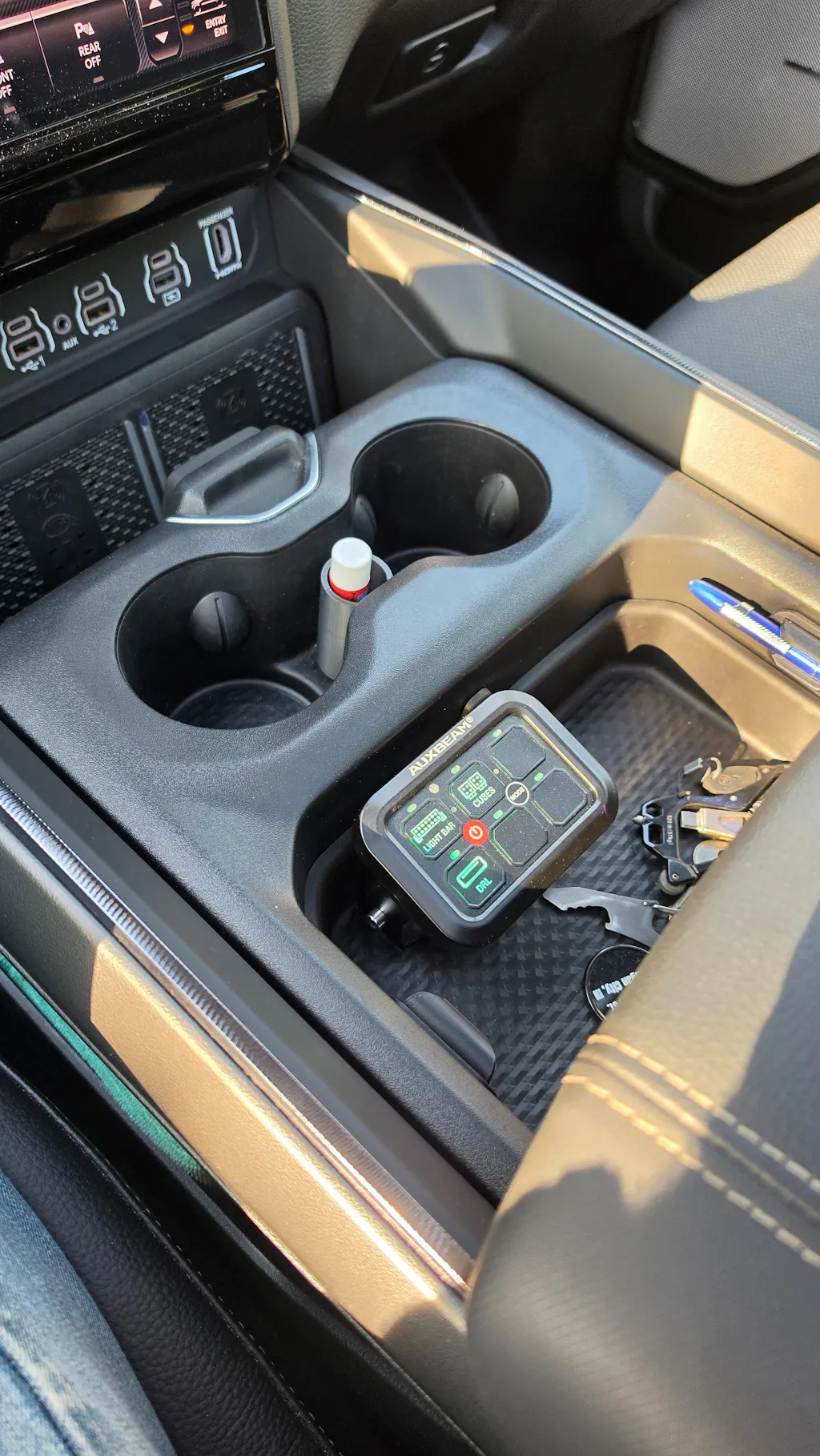

I bought the M&R lights because I wanted lights that fit my truck with no drilling. The hood brackets are a little challenging to mount because there is very little clearance on the hood. The bar was super easy. I just wish the amber lights on the bar were a tad brighter. They wash out a bit in bright daylight. The amber on the ditch lights make good daytime running lights. I also got the 8 gang wireless controller. Which light goes to which button is a little odd depending on which fuses you want to use. Programming was also not super intuitive, but the solution was found with a quick web search. Overall I am very happy with the purchase and install.
