2019+ Mercedes Benz Sprinter 40in Light Bar - SLIM
What's in the Box
- (1) 40in curved light bar SLIM
- (2) metal brackets
- All mounting hardware included
Need a shop to install it? Find a trusted installer near you →
Off-road Use Only
Bolt On, No Drilling
Lifetime Warranty
Fits: 2019–2026 Mercedes-Benz Sprinter
Trims: Cargo Van, Crew Van, Passenger Van — 1500, 2500, 3500, 3500XD (RWD, AWD & 4x4)

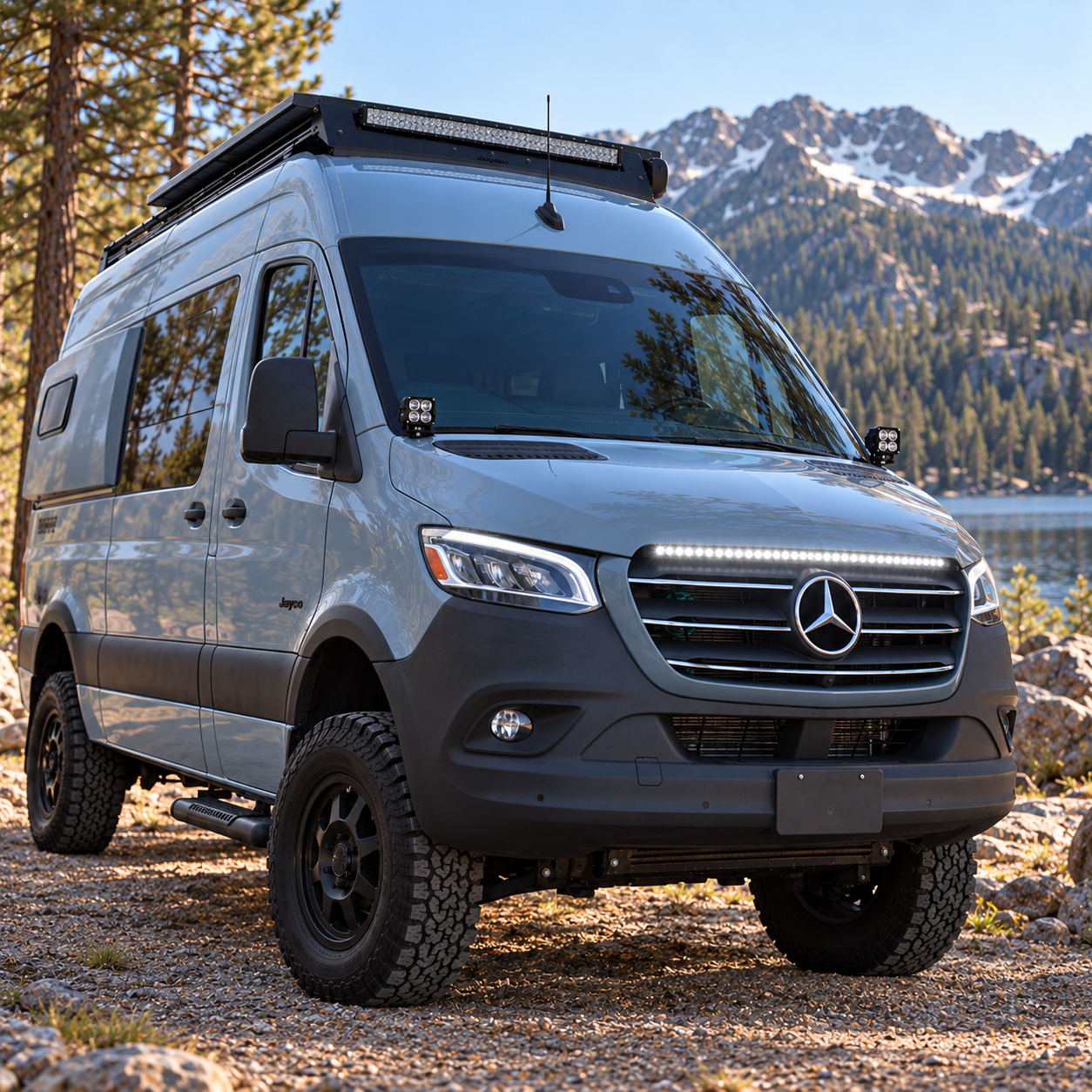

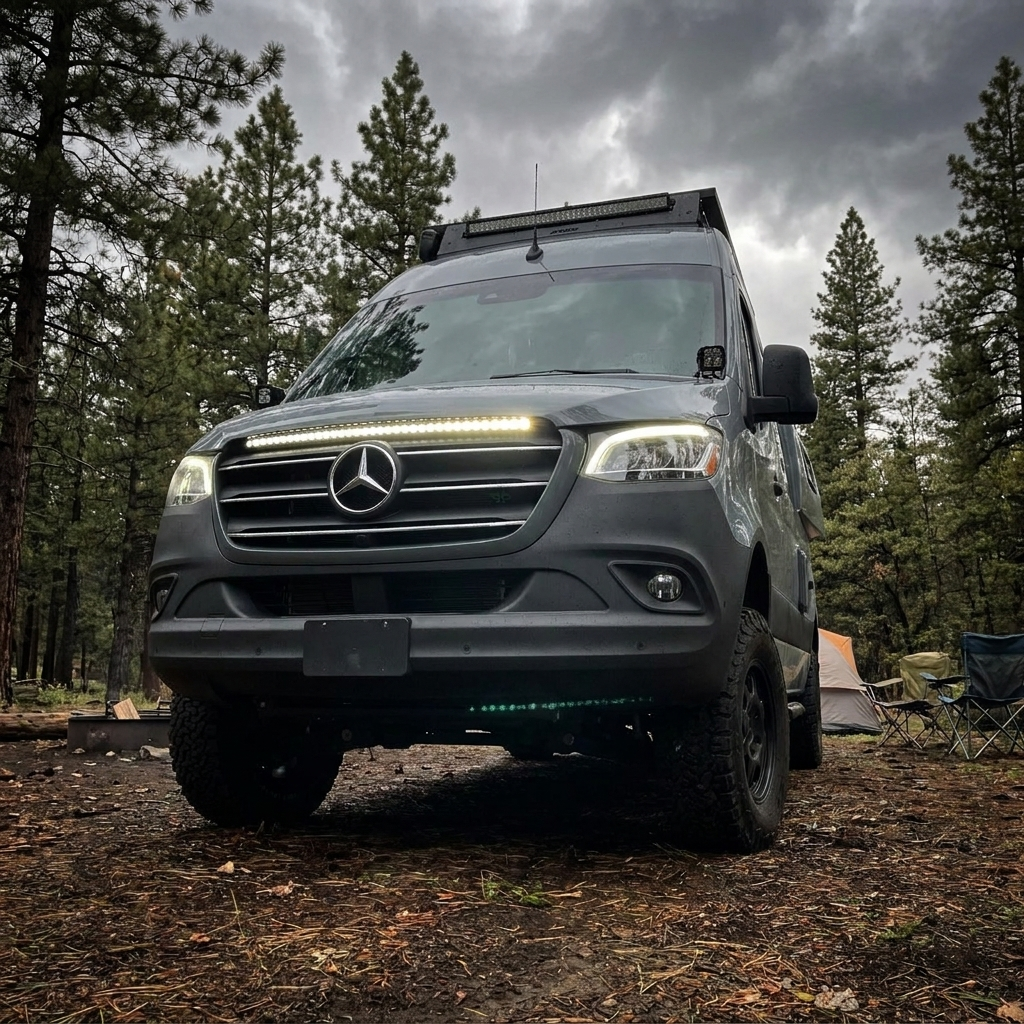

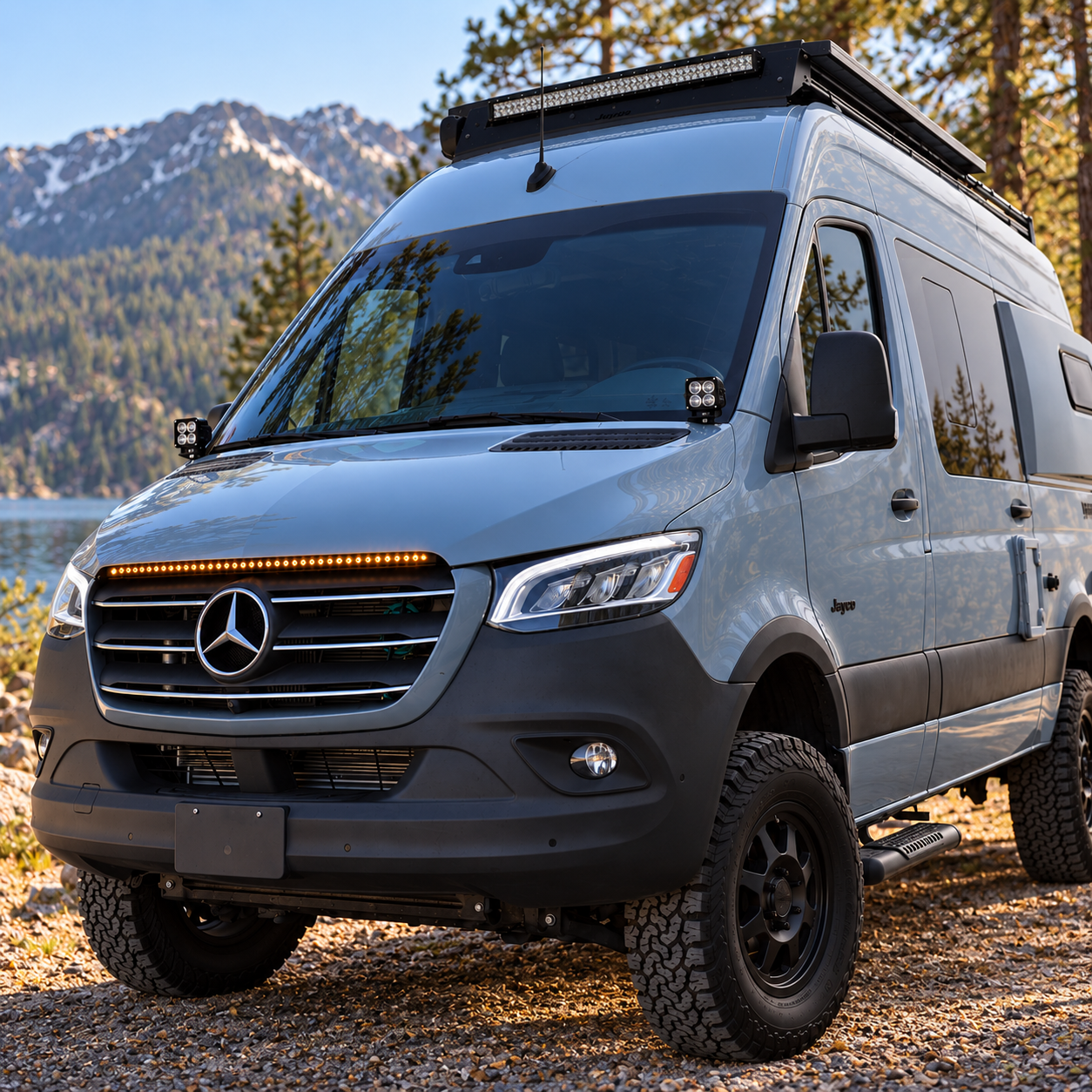

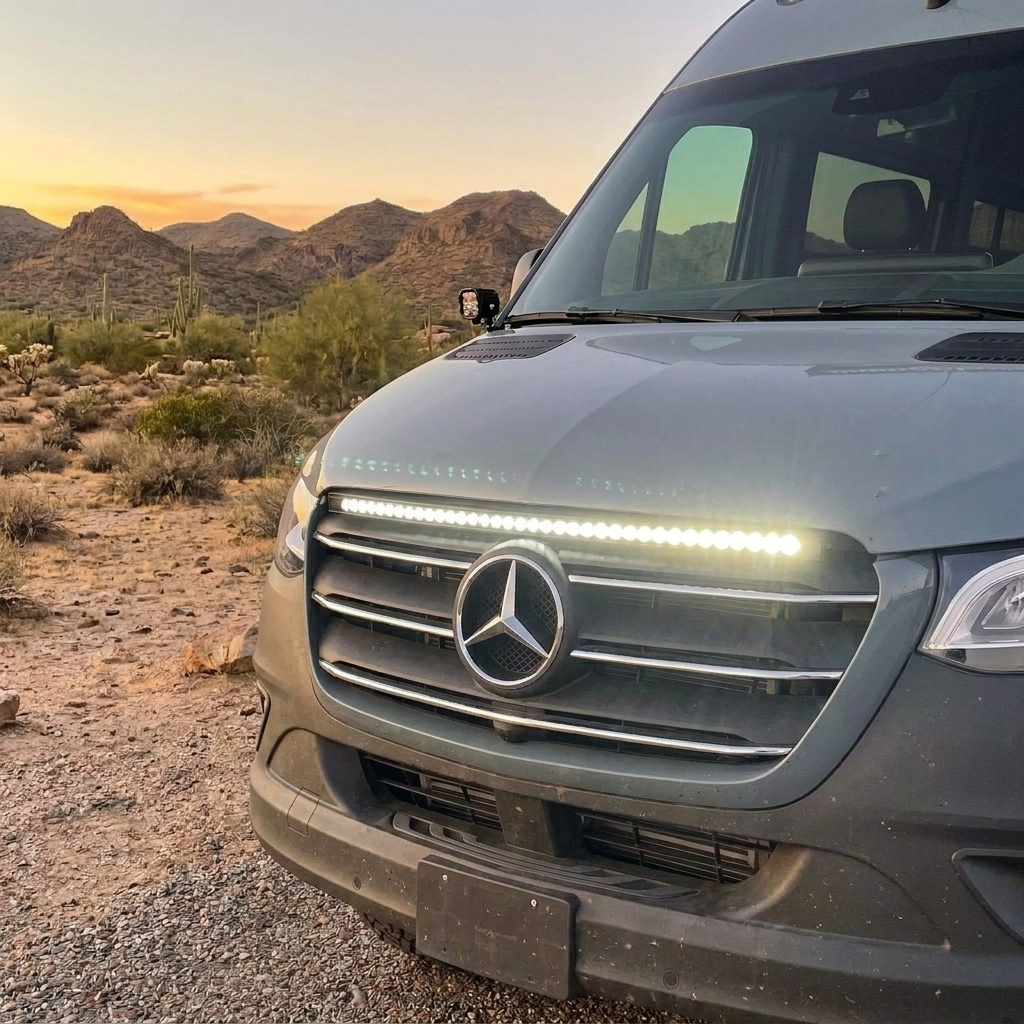

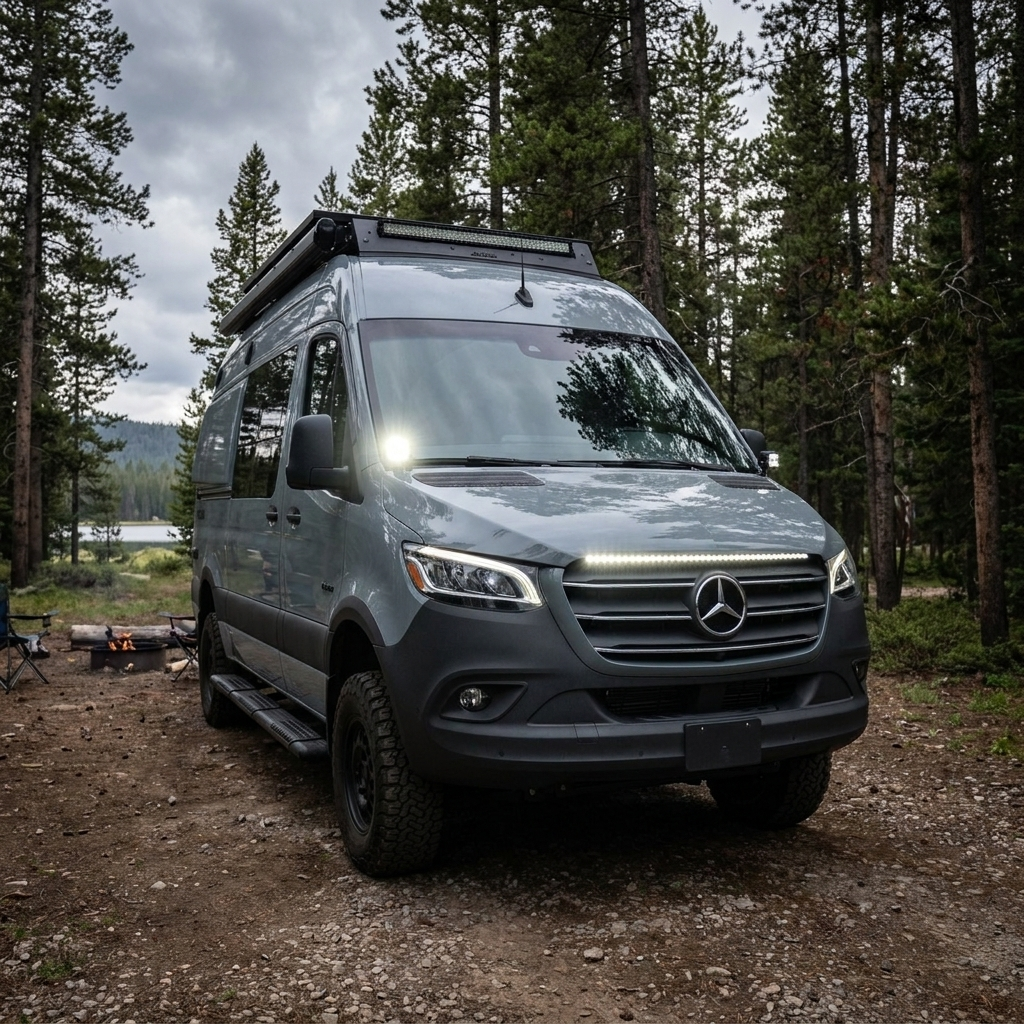

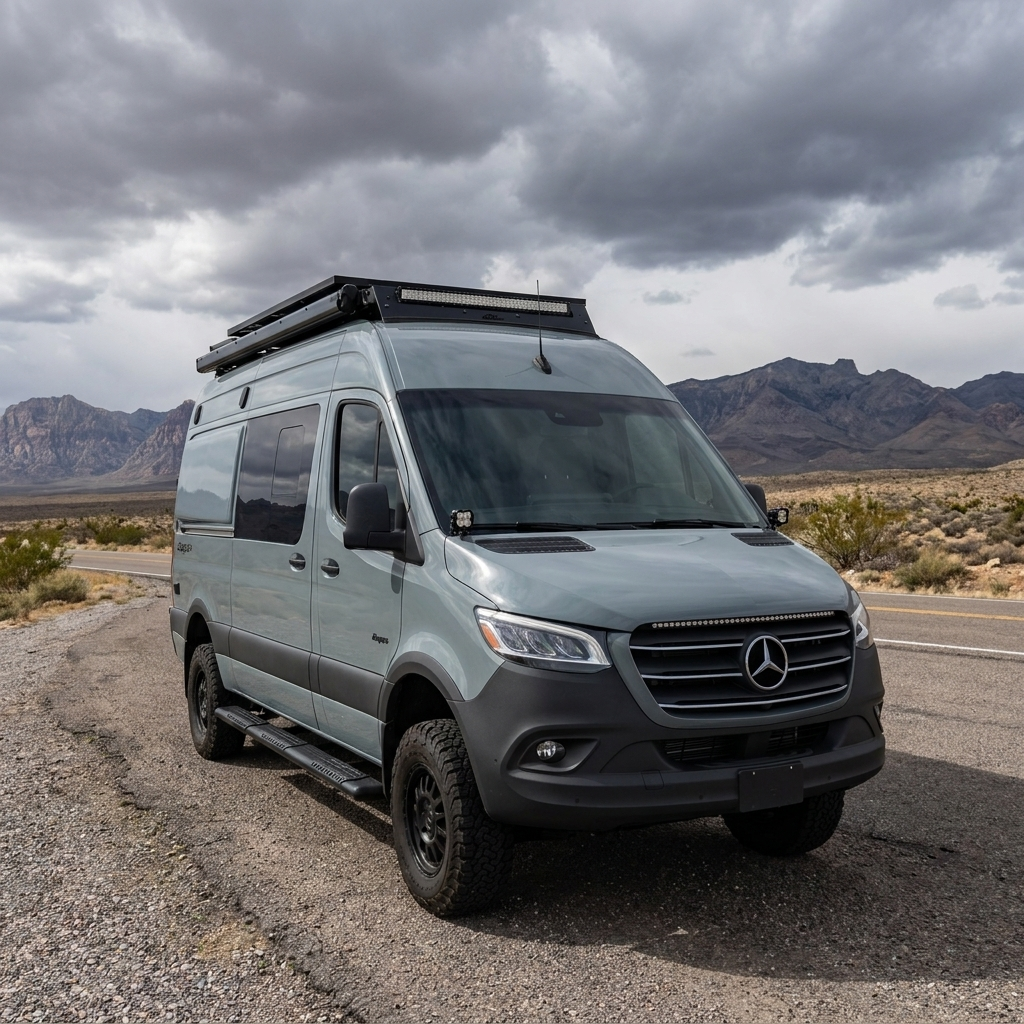

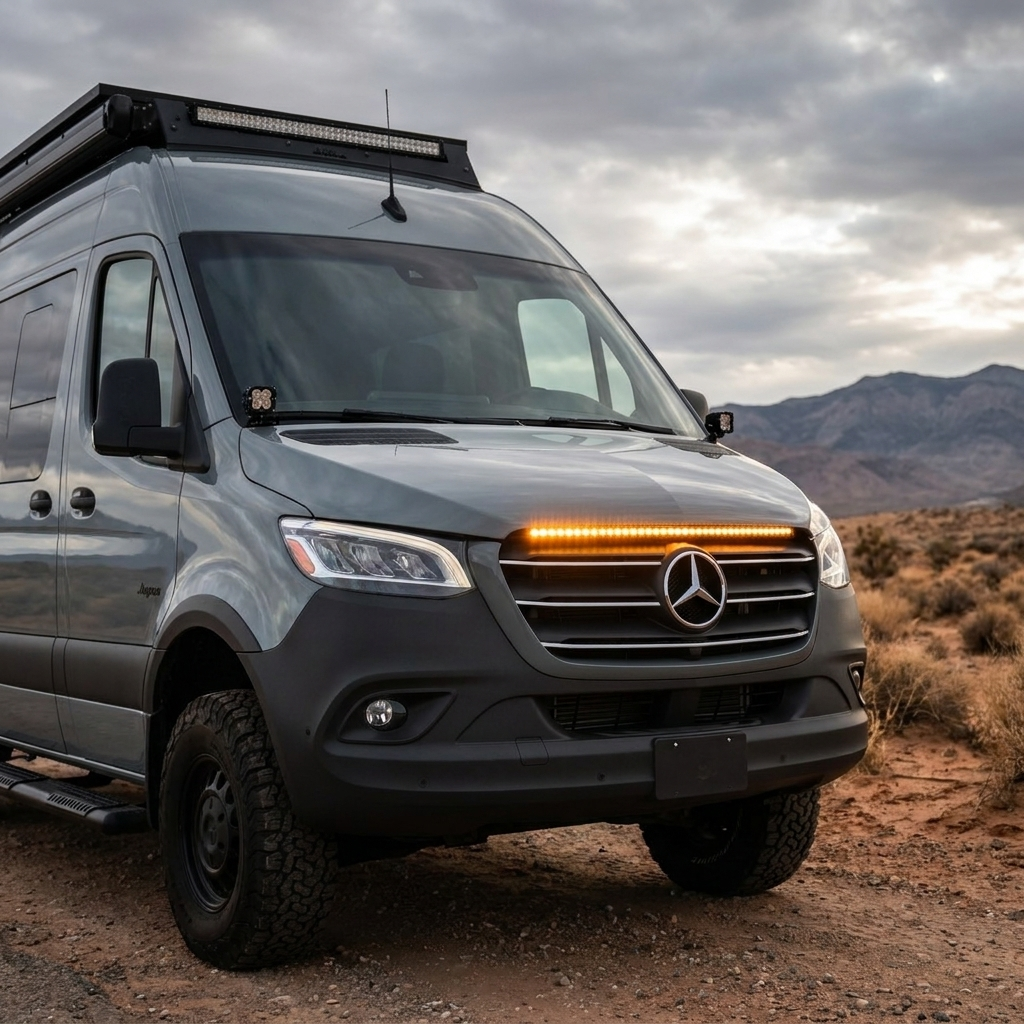

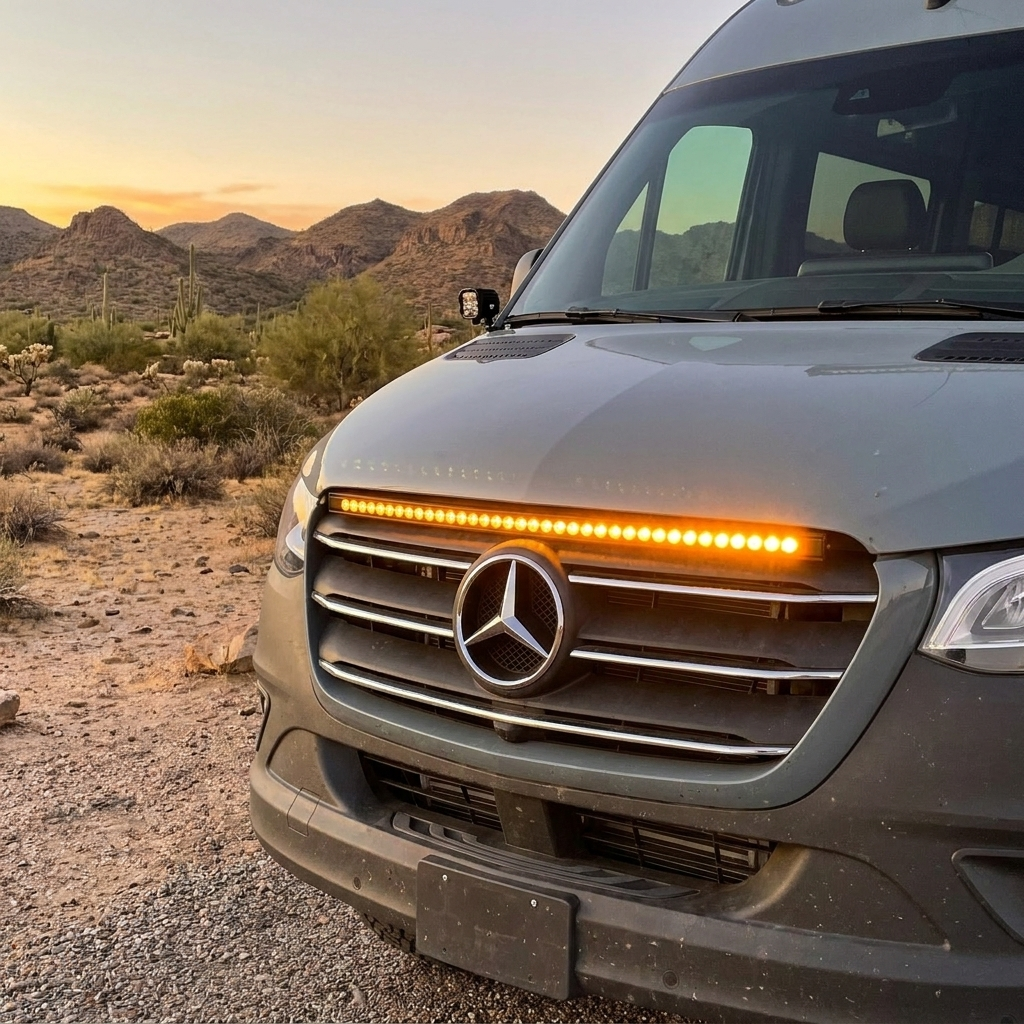

- Curved LED light bar mounts along the top of the grille, right under the hood line, for a sleek, built-in look
- No grille removal required
- Doesn't interfere with opening the hood. The hood latch stays fully accessible.
- No cutting or drilling required. The kit is a complete bolt on that reuses the factory bolts.
- Metal brackets are powder coated black
- The light bar covers only a small portion of the total grille opening, leaving the surrounding mesh open for full radiator airflow and factory cooling performance.
BUILD QUALITY:
- Reflector-style optics with CREE XT-E LED chips for consistent, efficient output
- Housing is UV black powder coated to protect against fading, corrosion, and weather exposure
- Rated for a 50,000 hour lifespan

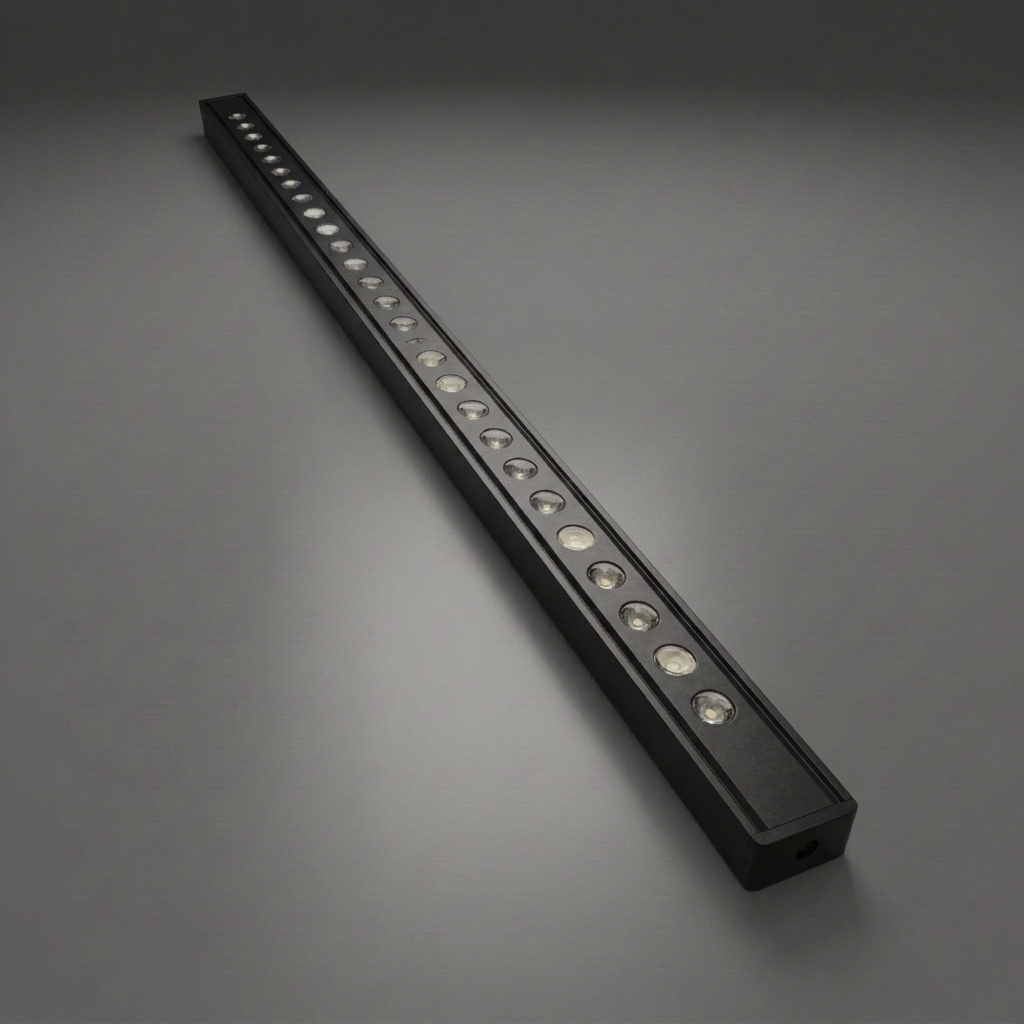

40in SLIM Light Bar
| Specification | White w/ Amber DRL | White | Amber |
|---|---|---|---|
| Beam Pattern | Spot & Flood | Spot & Flood | Spot & Flood |
| Theoretical Max Power | 180 watts | 180 watts | 140 watts |
| Actual Power | 102 watts | 102 watts | 78 watts |
| Voltage / Current (Main) | DC 12V / 8.5A | DC 12V / 8.5A | DC 12V / 6.5A |
| Voltage / Current (Backlight) | DC 12V / 0.46A | — | — |
| Theoretical Max Luminous Flux | 21,060 lm | 21,060 lm | 11,160 lm |
| Measured Flux (without lens) | 11,376 lm | 11,376 lm | 7,380 lm |
| Measured Flux (with lens) | 8,340 lm | 8,340 lm | 5,387 lm |
| LED Type | CREE XTE | CREE XTE | CREE XP-E2 Amber |
| Color Temperature | 6000K | 6000K | — |
| Number of LEDs | 36 pcs | 36 pcs | 36 pcs |
| Product Size (L × W × D) | 38.93 × 0.75 × 1.63 in | 38.93 × 0.75 × 1.63 in | 38.93 × 0.75 × 1.63 in |
