2019+ RAM 1500 Rebel 23in Light Bar PRO
What's in the Box
- (1) 23in light bar PRO
- (4) metal brackets
- All mounting hardware included
Off-road use only
Bolt On, No Drilling
Vehicle Specific Design
Lifetime Warranty
Fits: 2019–2026 RAM 1500 Rebel
- Curved LED light bar PRO
- Fits in the factory opening between the grille and bumper
- Slim and sleek, built-in look
- Metal bracket is powder coated black
- There are 2 ways to install this light bar. You can remove the grille or not. Please watch both videos and judge for yourself which way you'd like to do the install.
- No cutting or drilling required. The kit is a complete bolt on using factory openings and hardware.
- Doesn't interfere with radiator air flow
CHOOSE LIGHT OUTPUT COLOR:
This PRO bar is dual-color — a white beam plus a soft amber DRL (daytime running light) backglow.

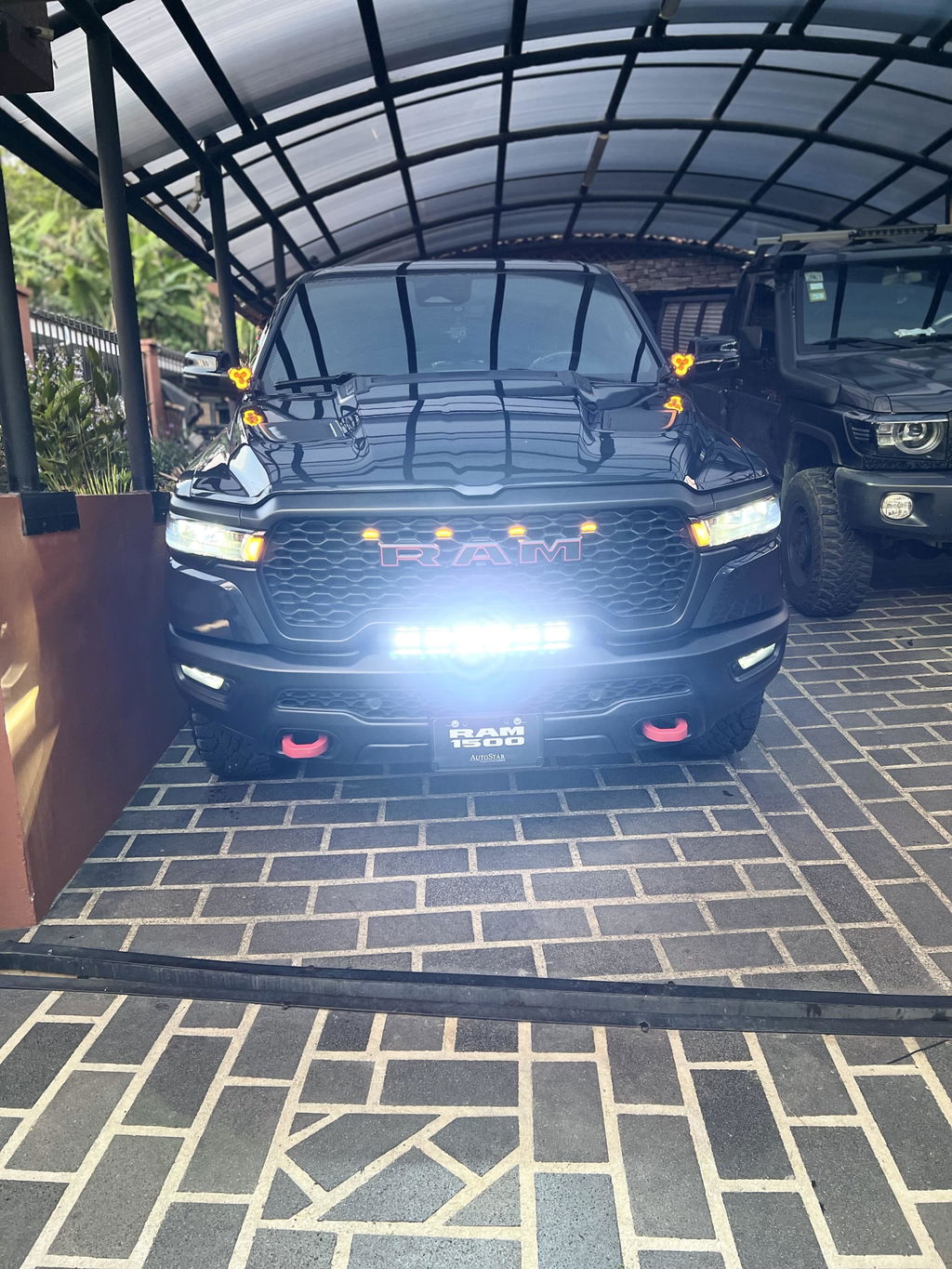

- White LED — Super bright, crisp white beam with plenty of light for any adventure. Off-road use only — it blinds oncoming traffic and isn't street-legal.

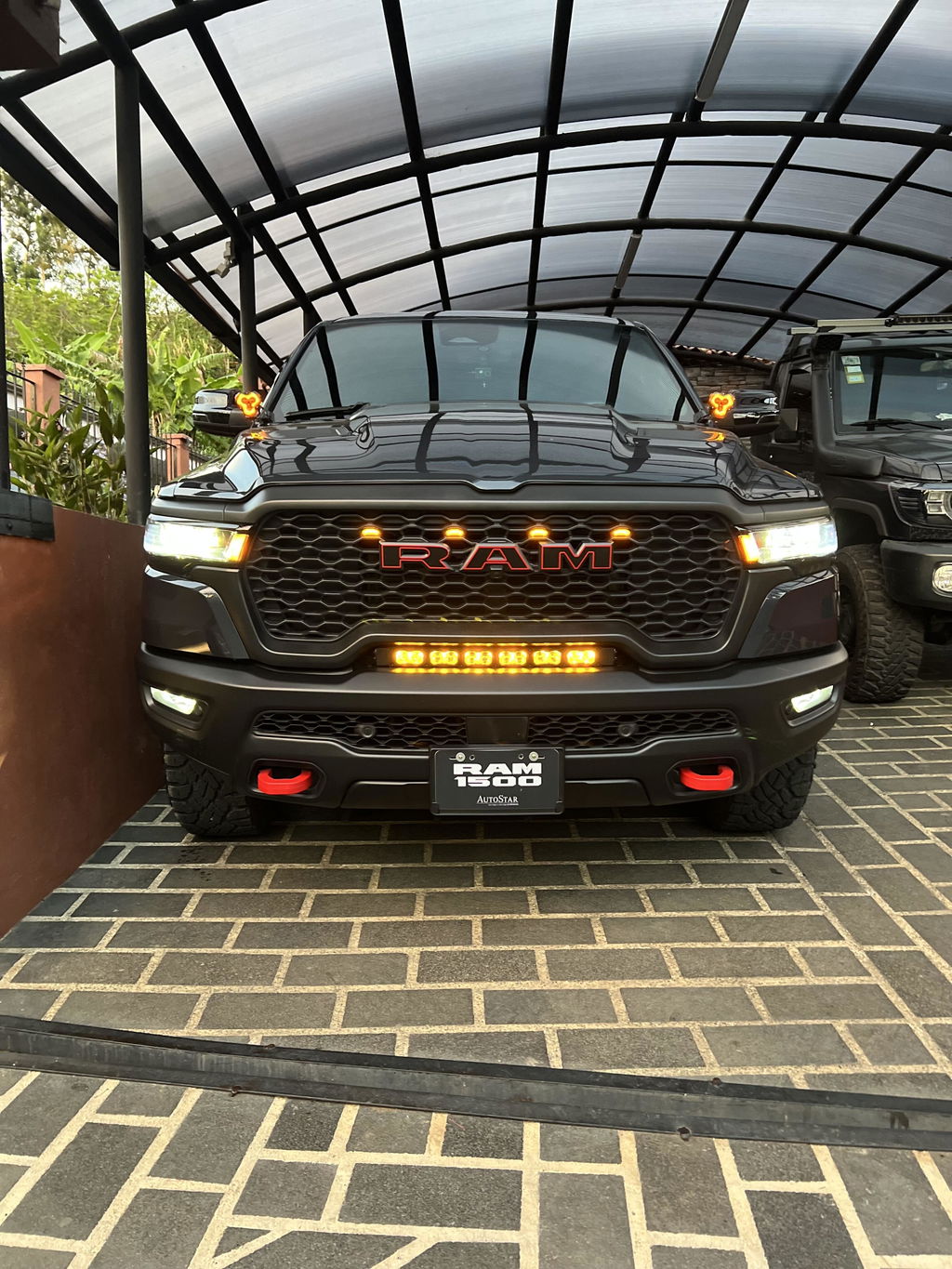

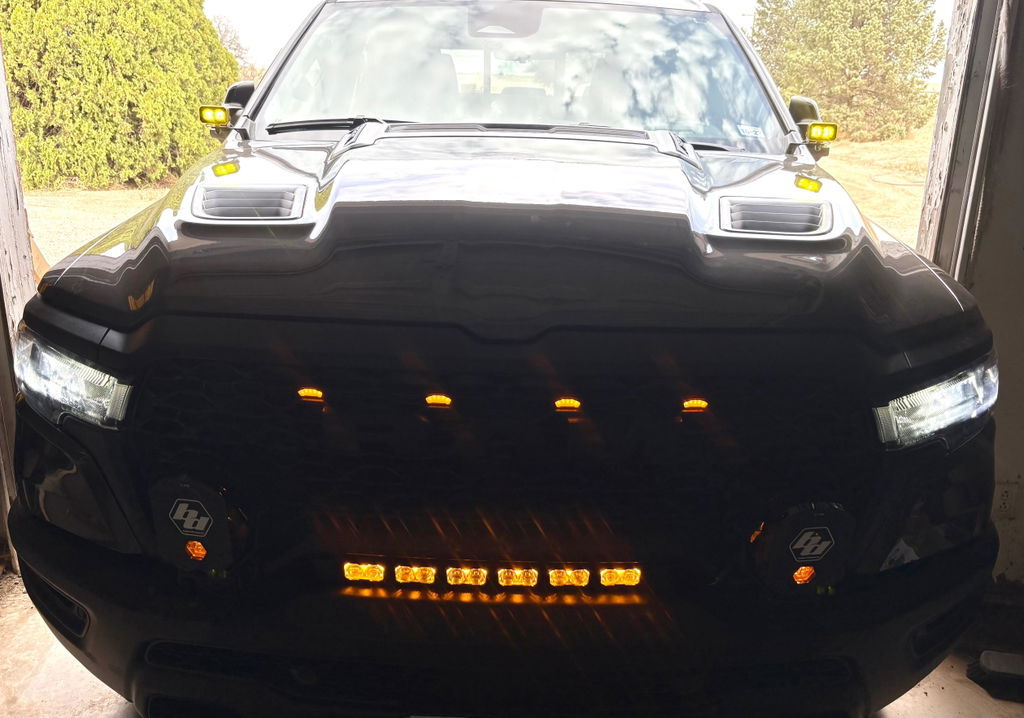

- Amber DRL — Purely cosmetic amber glow. Street-safe — gives off little light and won't blind oncoming traffic, so you can run it on the road.
- Combo Pattern: combined spot and driving optics offer a balance between distance and width
- Uses a TIR (Total Internal Reflection) lens, which is different from our regular slim light bar. The TIR lens collects all of the light from the LED and directly leads them to where you need, drastically reducing glare and improving total efficiency.
- Higher light efficiency: brighter, longer irradiation distance
- Housing is upgraded to 304 aluminum. The surface is UV polyester powder coated to protect against UV, salt water, corrosion, fading and scratch resistant.
- Equipped with thermal management system that automatically adjusts the brightness output according to the external temperatures
23in PRO Light Bar
| Beam Pattern | Spot & Driving |
| Theoretical Max Power | 120 watts |
| Actual Power | 72 watts |
| Voltage / Current (Main) | DC 12V / 6A |
| Voltage / Current (Backlight) | DC 12V / 0.17A |
| Theoretical Max Luminous Flux | 13,080 lm |
| Measured Flux (without lens) | 8,832 lm |
| Measured Flux (with clear lens) | 7,024 lm |
| Measured Flux (with yellow lens) | 5,155 lm |
| LED Type | Luminus SST-20 |
| Color Temperature | 6000K |
| Number of LEDs | 12 pcs |
| Product Size (L × W × D) | 23 × 1.81 × 1.00 in |
Free ground shipping on all orders within the continental United States.
We process and ship orders within 3–5 business days. If we anticipate any delay, we'll reach out via email.
- Hawaii, Alaska & Puerto Rico — $20 flat rate for ground shipping.
- Canada & International — Shipping rates calculated at checkout. Customs fees, duties, and import taxes are the responsibility of the customer.
- Overnight & 2nd Day Air — Available at checkout. Orders must be placed by 12:00 PM Pacific Time for same-day shipment.
You'll receive a tracking number via email once your order ships. If you have a special request about your order, reach out — we'll do our best to accommodate. For our complete shipping policy, [click here].
Warranty
We have a lifetime warranty on all our light kits. We stand behind every kit we build — our lifetime warranty isn't fine print, it's a promise. For more information about our warranty and disclaimer, [click here].
M&R Automotive is not responsible for misuse or improper installation of the product. Professional installation is recommended.
HOW TO INSTALL?
Install Video
Light Output
