White with amber DRLYellow with amber DRL
$604.99
  • Product Description
  • Light Bar Specs
  • Shipping & Warranty
  • Fits 2019 2020 2021 2022 2023 2024 2025 2026 GMC Sierra 1500
  • Trims: PRO, SLE, Elevation, SLT, AT4, Refresh, and Denali. This will not fit Limited

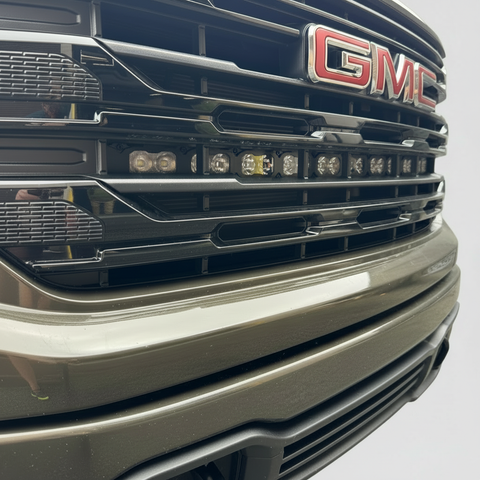

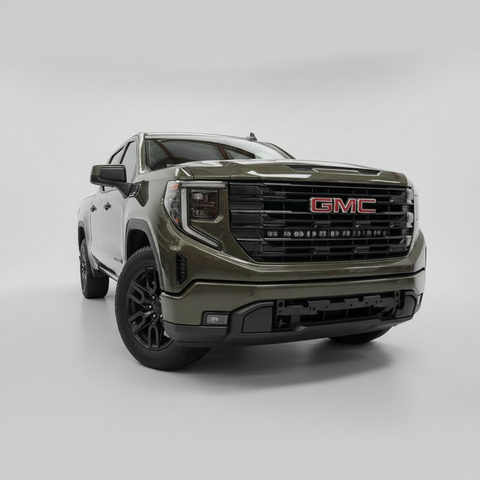

  • The mounting bracket is on a rail system (see photo). This allows you to move the light bar up or down of about 6in. You choose where you want the light bar to shine through the grille
  • Only one (1) light bar PRO can be installed
  • No cutting or drilling required. The kit is a complete bolt on using factory openings and hardware
  • WILL NOT interfere with active grille shutters. Our light bars are very slim and the metal bracket is designed to be in front of the shutters.

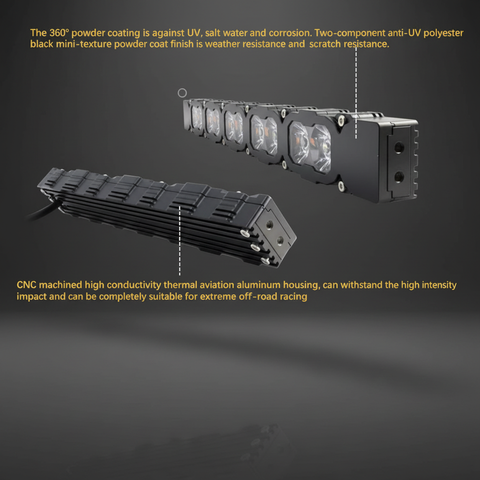

  • Metal bracket is powder coated black

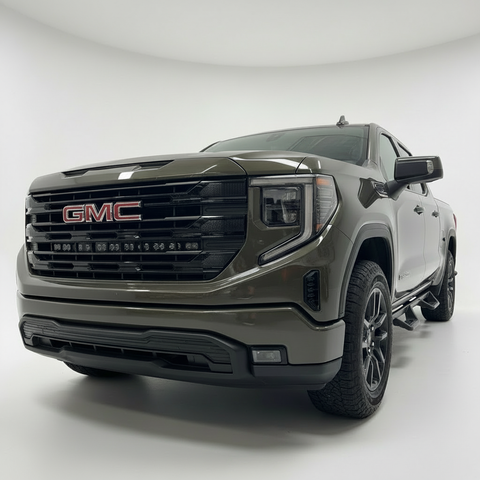

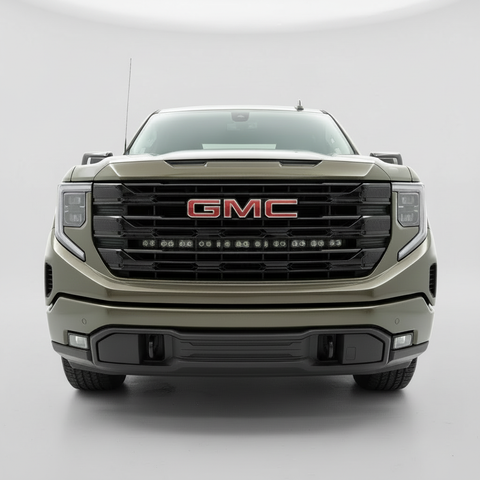

👌M&R promises fitment of the light bars with the grille as pictured. If you have a different type of grille, please reach out with pictures for confirmation.

👍Our light kits are for off-road use only.

WHAT'S INCLUDED?

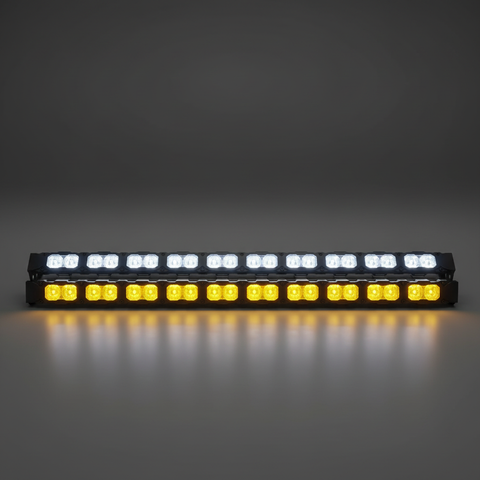

(1) 40in light bar curved - PRO

(2) mounting brackets

All mounting hardware

WIRING

  • M&R Automotive doesn’t provide a wiring harness.
  •  The light bar has 6ft of wire which is enough to reach AUX switches if your truck has them. Otherwise, you will need to purchase a generic wiring harness from Amazon/Ebay or create your own.

  • We sell a wireless harness that delivers a clean, hassle-free install—no need to run wires into the cab.



INSTALLATION INSTRUCTIONS


40in PRO light bar specs

  • Beam pattern                                 Combo
  • Theoretical max power                220watts
  • Actual power                                  125watts
  • Main White light is                        10.42amps at 12v
  • Backlight Amber is                         0.25amps at 12v
  • Theoretical max luminous flux                   24,024 lm
  • Measured luminous flux (without lens)    15,224 lm
  • Measured luminous flux (with lens)           12,108 lm
  • LEDs type:                  luminus SST-20 Ra70
  • Temperature:            6000k
  • LEDs number:            22pcs
  • Product size LxWxD (in)   38.93 x 1.89 x 2.63

All domestic (USA) orders are free shipping via USPS or UPS, depending on product size.
We typically ship in 3-7 business days. If we are anticipating a delay with your shipment due to availability of the product, we will reach out to you via email.

Canada, international or express shipping costs are calculated at checkout.

You will receive an email with tracking number when your order is shipped.

If you have a special request about your order, reach out, we try to accommodate as much as we can.

For a complete shipping policy click here.


We have a lifetime warranty on our light kits. We truly want our truck enthusiastic customers to enjoy their products as much as we enjoy designing them. However, we also understand that different situations arise with brackets or lights. For more information about our warranty and disclaimer click here.




*M&R Automotive is not responsible for misuse or improper installation of the product. Professional installation is recommended.
