Fits RAM 2500/3500, years 2025 2026

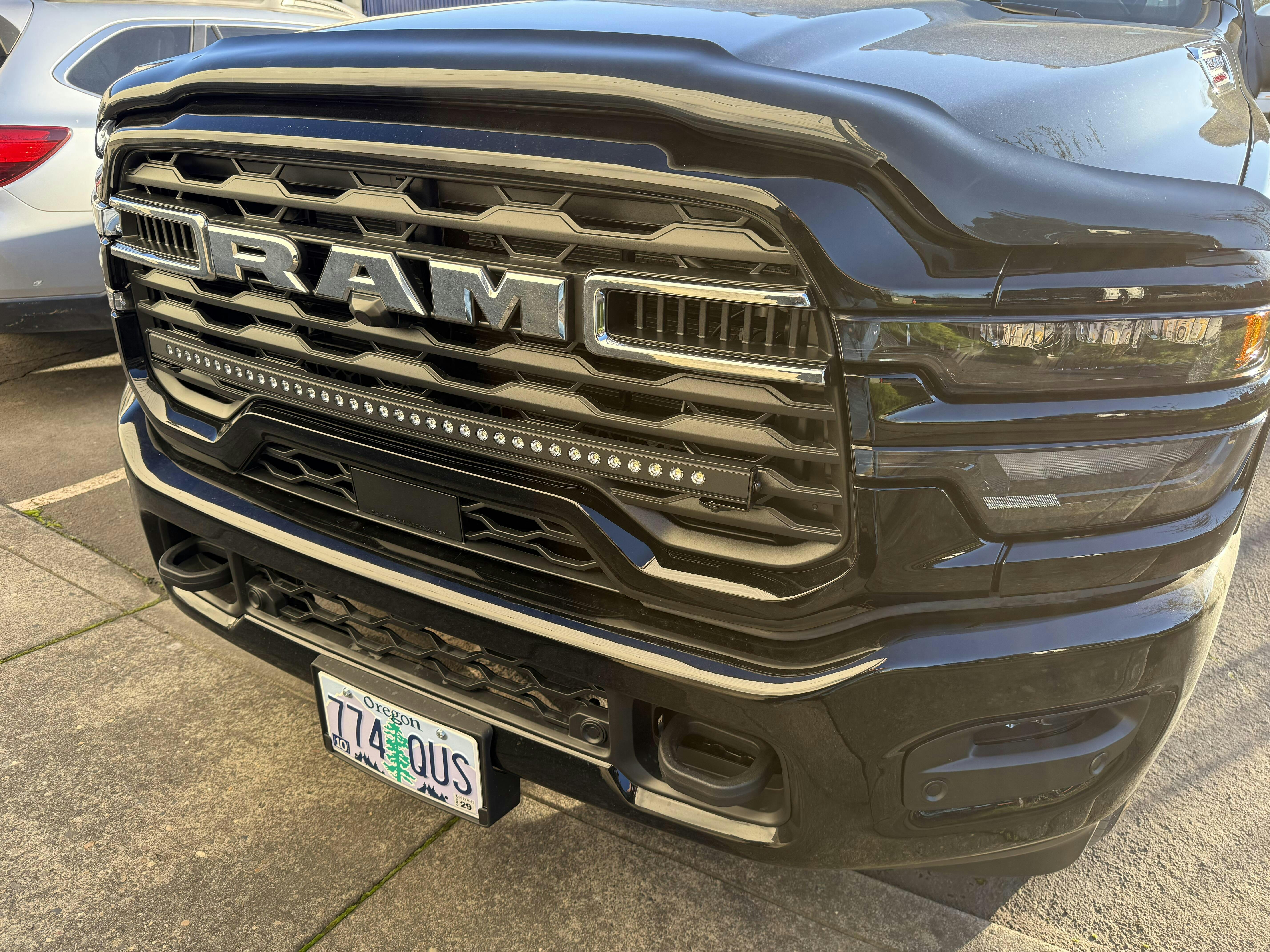

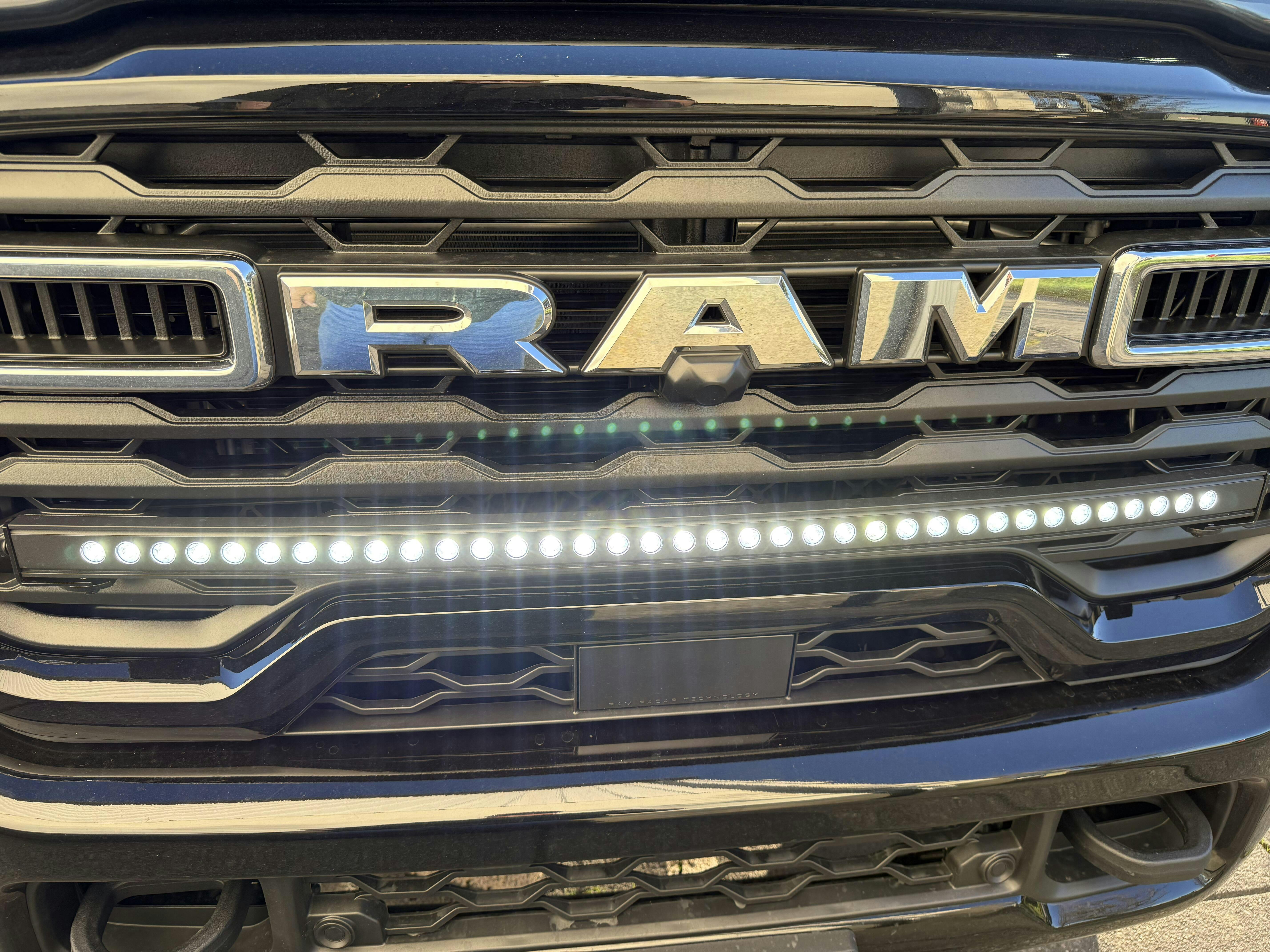

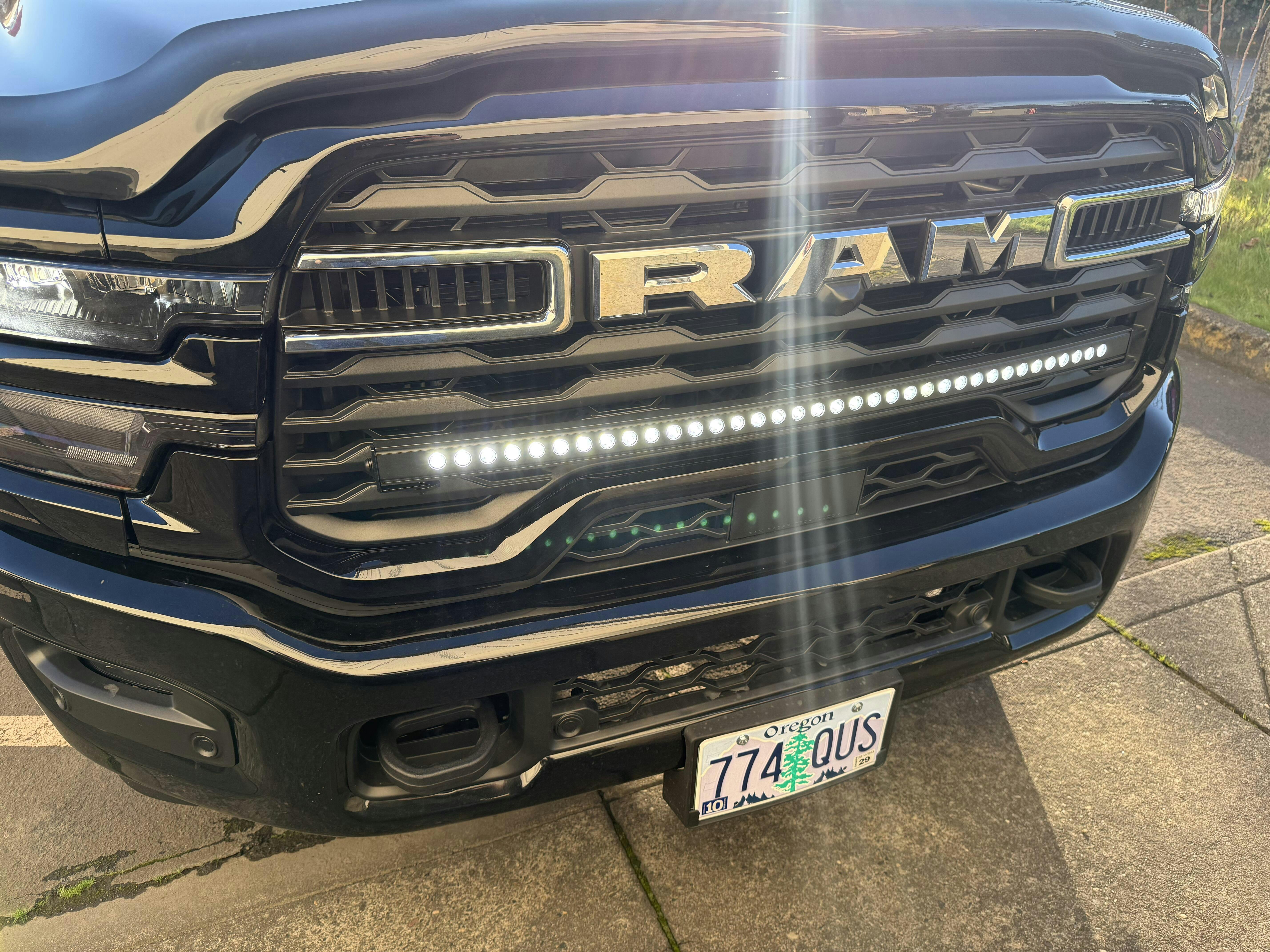

- Curved LED light bar SLIM
- Perfectly follows the RAM HD bumper and grille factory curvature
- Stays slim to the bumper for a sleek, built in look
- Must remove grille
- No cutting or drilling required. The kit is a complete bolt on using factory openings and hardware.
- Doesn't interfere with radiator air flow
Choose your light bar color:
1) White LED -- Up to 15,000 lumens, bright and powerful. It will definitely provide you with enough light needed for all of your adventures. However, these are only for off-roading and can’t be used on the regular road. They will blind the in-coming traffic and also violates road safety.
2) Amber LED -- Up to 7,000 lumens, used in poor driving conditions such as dust, fog, snow and rain. It reflects through air particles much less than the white light. Therefore, making it ideal for poor driving conditions. For off road use only.
3) dual function: main White LED light with Amber DRL backglow -- the white LED light is same as described above, but the amber DRL “daytime running lights” acts purely for aesthetics. Since it doesn’t give out much light, you can use this amber DRL feature on regular roads, it doesn't blind in-coming traffic.
Full in-depth video describing our lights bars CLICK HERE
👍Our light kits are for off-road use only.
WHAT'S INCLUDED?
(1) 40in curved light bar - SLIM
(4) mounting brackets
All mounting hardware
WIRING
- M&R Automotive doesn’t provide a wiring harness.
- The light bar has 6ft of wire which is enough to reach AUX switches if your truck has them. Otherwise, you will need to purchase a generic wiring harness from Amazon/Ebay or create your own.
- We also sell a wireless wiring harness. This makes it an easy, clean install since you don't have to run wires inside the cab.
INSTALLATION INSTRUCTIONS
40in SLIM light bar
White:
- Beam Pattern Spot
- Theotetical max power 180watts
- Actual power 102watts
- Voltage/current DC12v/6.5A
- Theoretical max luminous flux 21,060 lm
- Measured luminous flux (without lens) 11,376 lm
- Measured luminous flux (with lens) 8,340 lm
- LEDs type CREE XTE Ra70
- Temperature 6000k
- LEDs number 36pcs
- Product size LxWxD (in) 38.75 x 1 x 1.81
40in SLIM light bar
Amber:
- Beam Pattern Spot
- Theotetical max power 140watts
- Actual power 78watts
- Voltage/current DC12v/6.5A
- Theoretical max luminous flux 11,160 lm
- Measured luminous flux (without lens) 7,380 lm
- Measured luminous flux (with lens) 5,387 lm
- LEDs type CREE XP - E2 Amber
- Temperature 6000k
- LEDs number 36pcs
- Product size LxWxD (in) 38.75 x 1 x 1.81
40in SLIM light bar
White with Amber DRL
- Beam Pattern Spot
- Theotetical max power 180watts
- Actual power 102watts
- Voltage/current main DC12v/6.5A
- Voltage/current backlight 5.5Wv/0.46A
- Theoretical max luminous flux 21,060 lm
- Measured luminous flux (without lens) 11,376 lm
- Measured luminous flux (with lens) 8,340 lm
- LEDs type CREE XTE Ra70
- Temperature 6000k
- LEDs number 36pcs
- Product size LxWxD (in) 38.75 x 1 x 1.81
We have a lifetime warranty on our light kits. We truly want our truck enthusiastic customers to enjoy their products as much as we enjoy designing them. However, we also understand that different situations arise with brackets or lights. For more information about our warranty and disclaimer click here.
*M&R Automotive is not responsible for misuse or improper installation of the product. Professional installation is recommended.
Customer Reviews
I had bought this to install some lights on my 2015 Chevy Tahoe, the installation went great, was very easy to set up, my only problem was it didn’t work. There was no power to any of the circuits. I did try to call with no answer, but I will give the benefit of the doubt since it is a weekend.

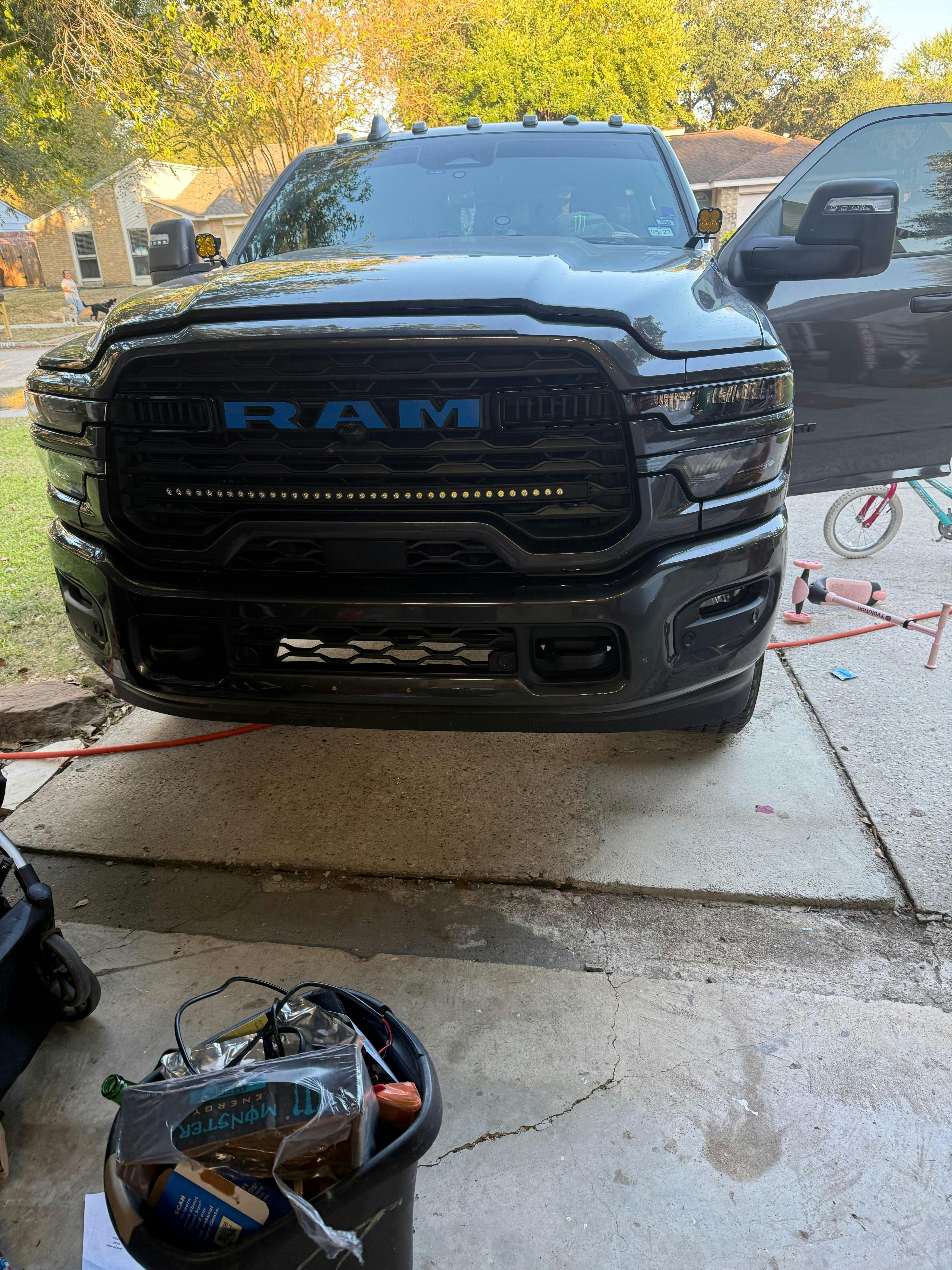

Install was easy with the great video instructions, and this light bar and harness is a great package. It turns a pitch black Montana highway that could have any form of wildlife on it into daylight, and the remote makes it quick to turn off when an approaching car appears. I could put a grill guard on the truck or it would not fit in the garage, but his is great insurance also to see clearly at night. Thanks!
