Fits 2025 2026 RAM 1500 RHO. This will fit the Rebel model
- Curved LED light bar PRO

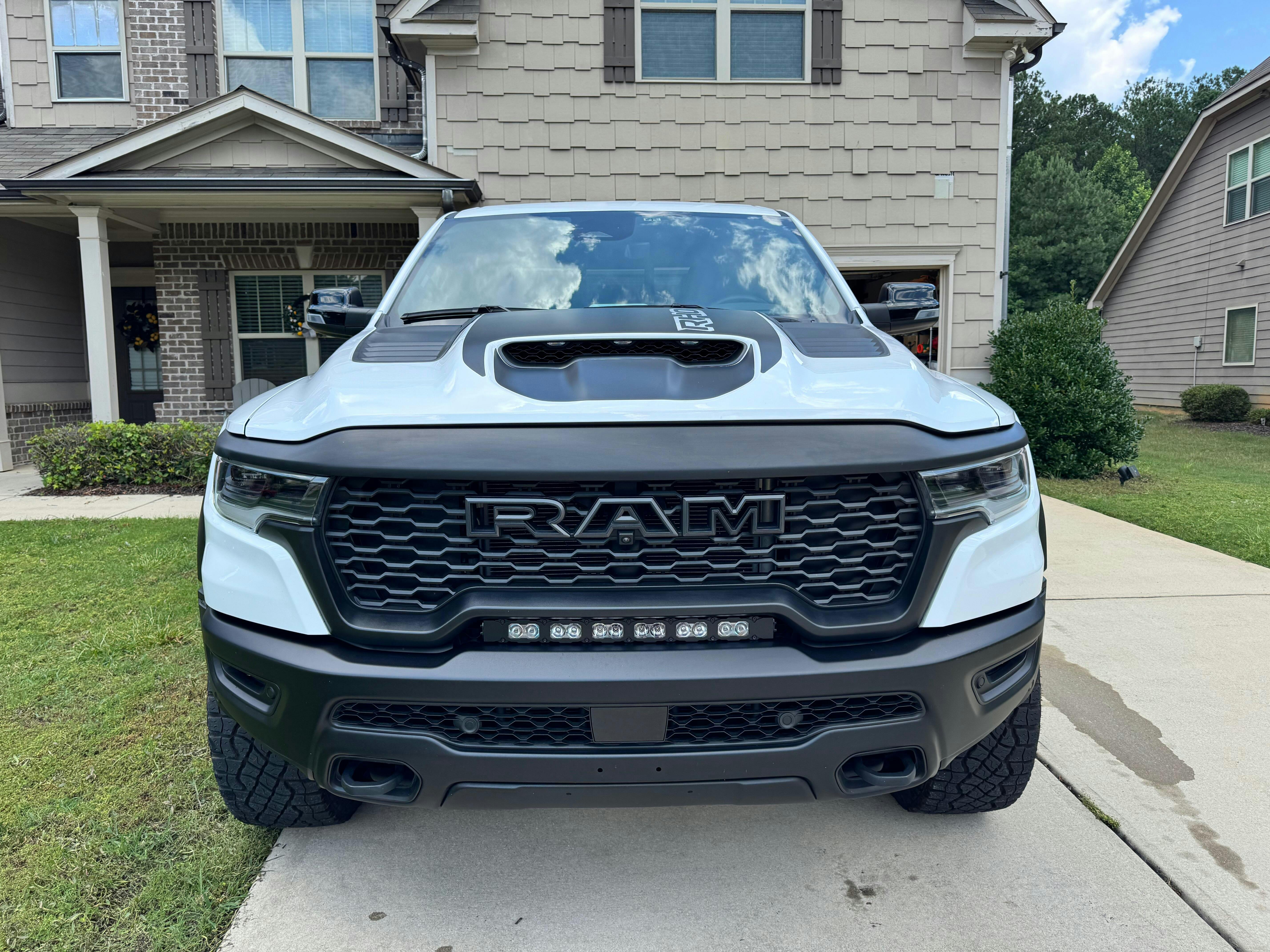

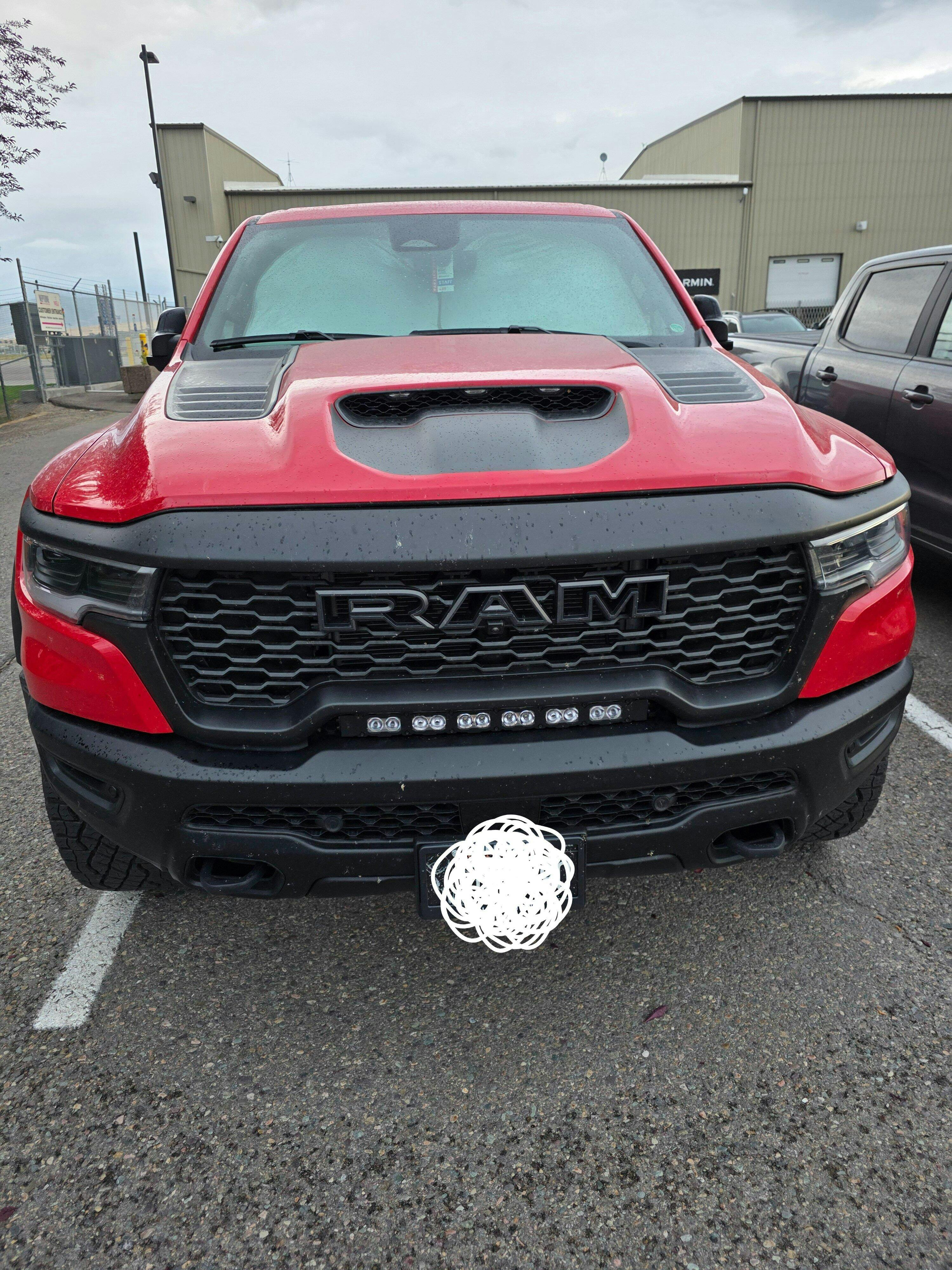

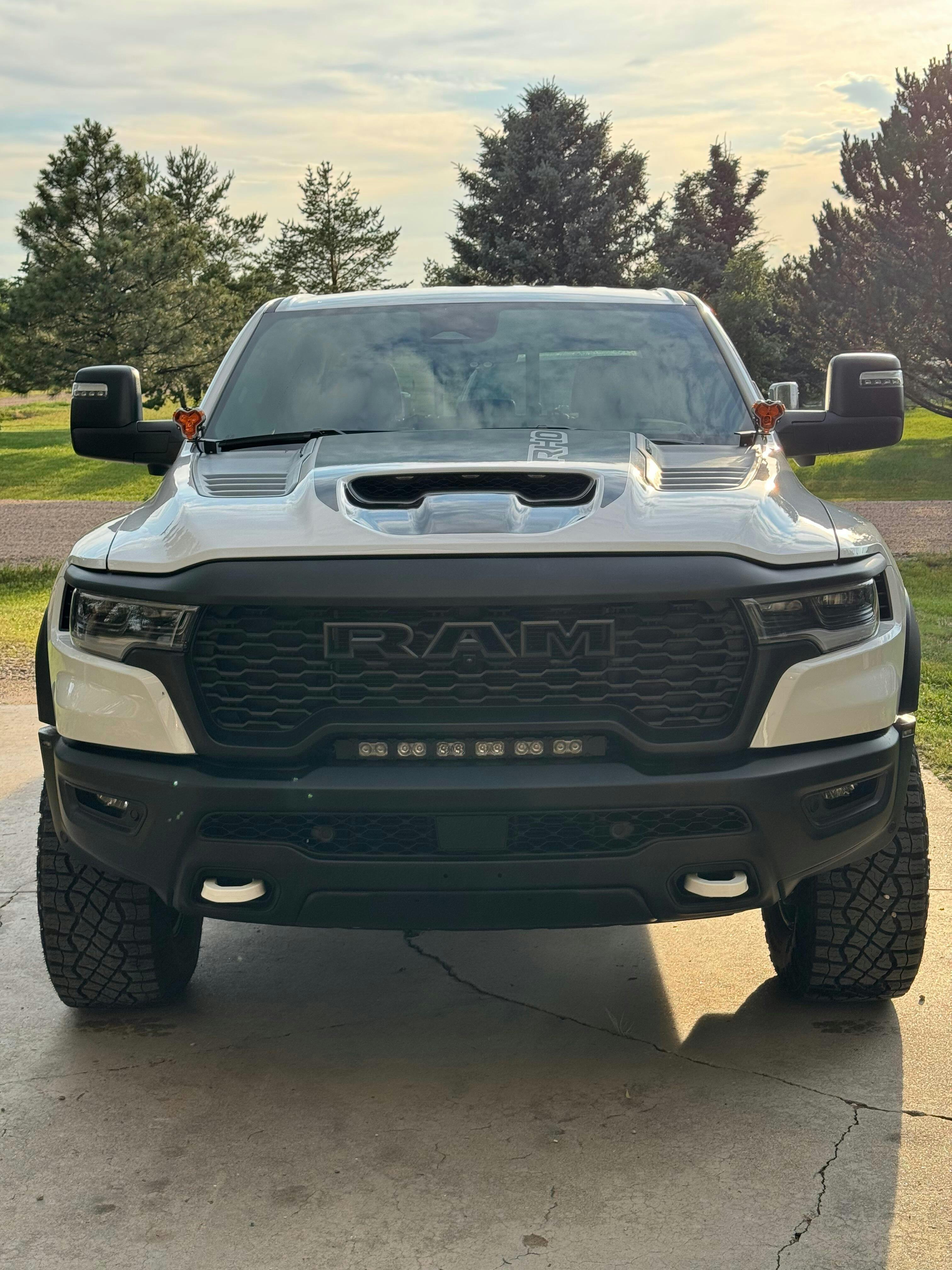

- Fits in between the grille and bumper
-
Slim and sleek, built in look
- Metal bracket is powder coated black

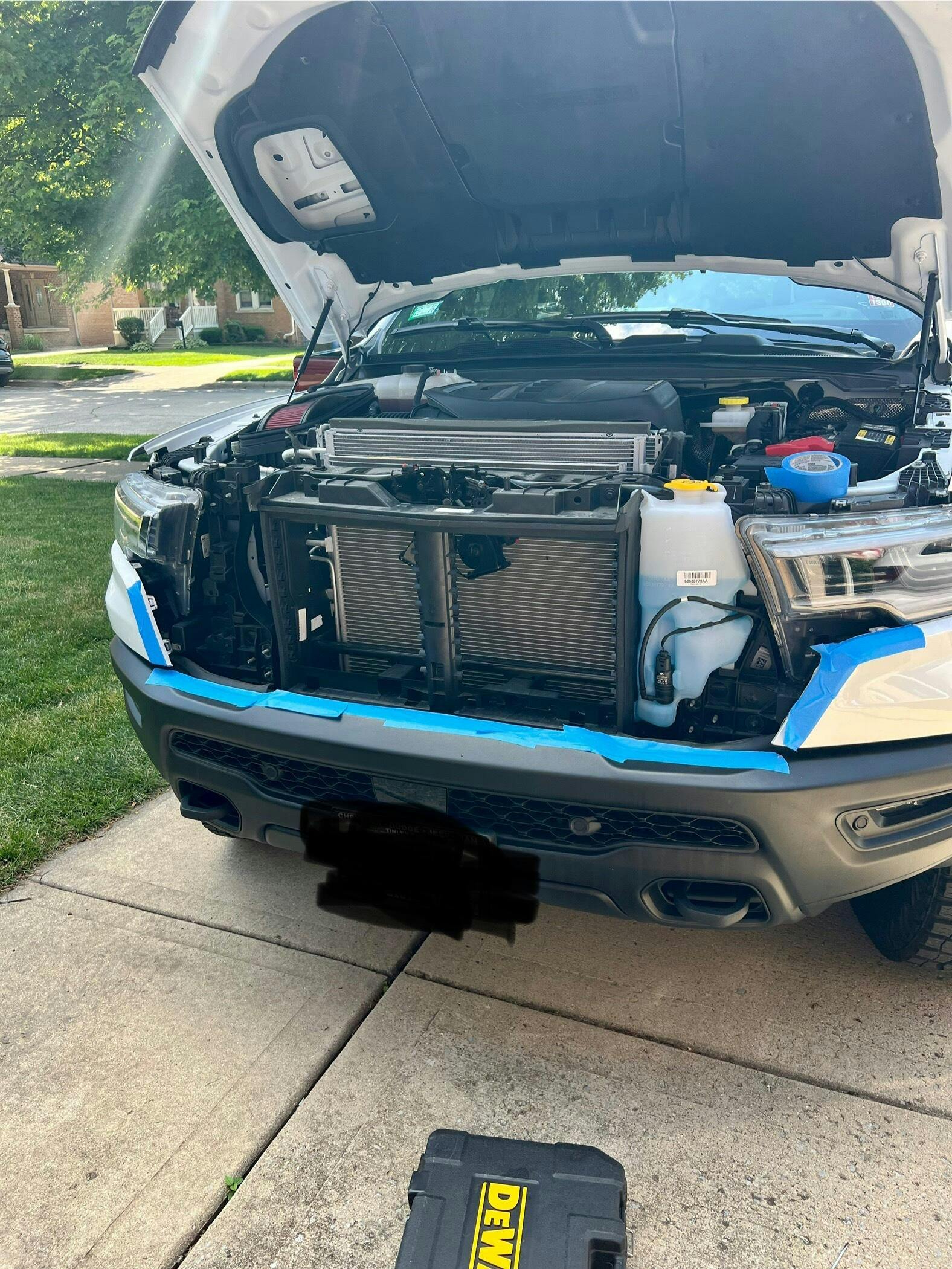

- There are 2 ways to install this light bar. You can remove the grille or not. Please watch both videos and judge for yourself which way you'd like to do the install.
- No cutting or drilling required. The kit is a complete bolt on using factory openings and hardware.
- Doesn't interfere with radiator air flow
DUAL COLOR
Main White LED Light with Amber DRL (daytime running lights)
-

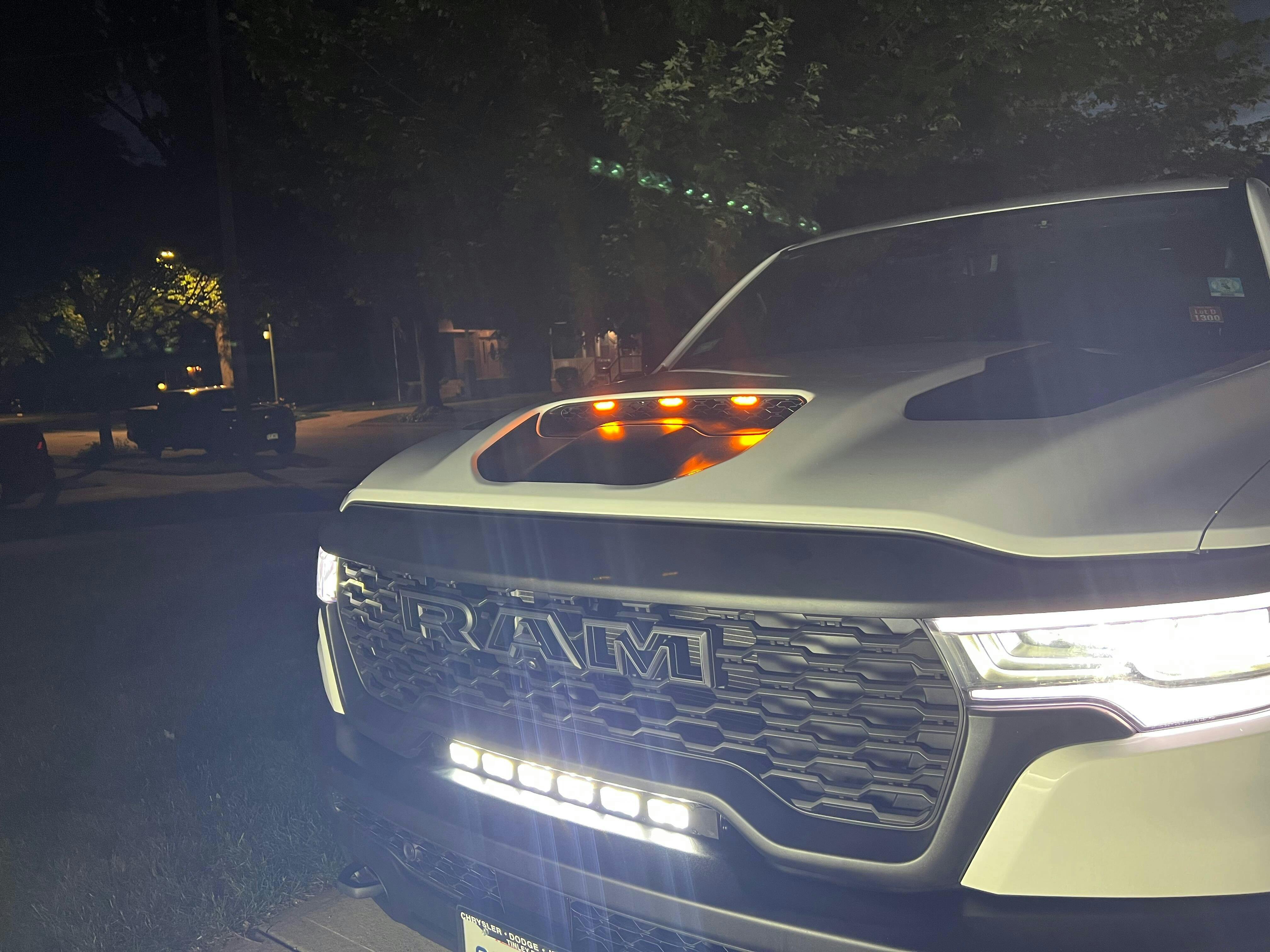

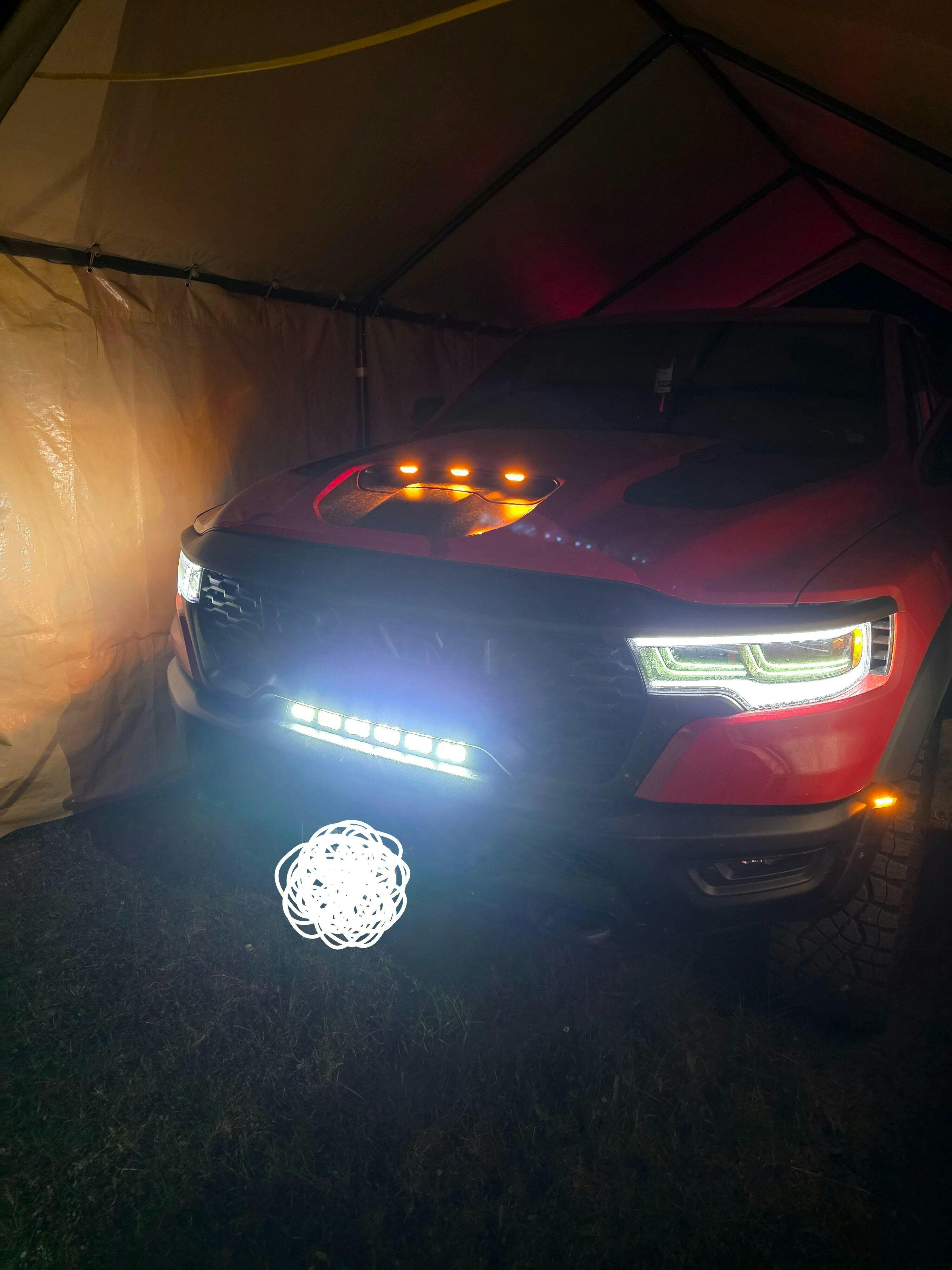

White LED -- Super bright and crisp white beam pattern. It will definitely provide you with enough light needed for all of your adventures. However, these are only for off-roading and can’t be used on the regular road. They will blind the in-coming traffic and also violates road safety.

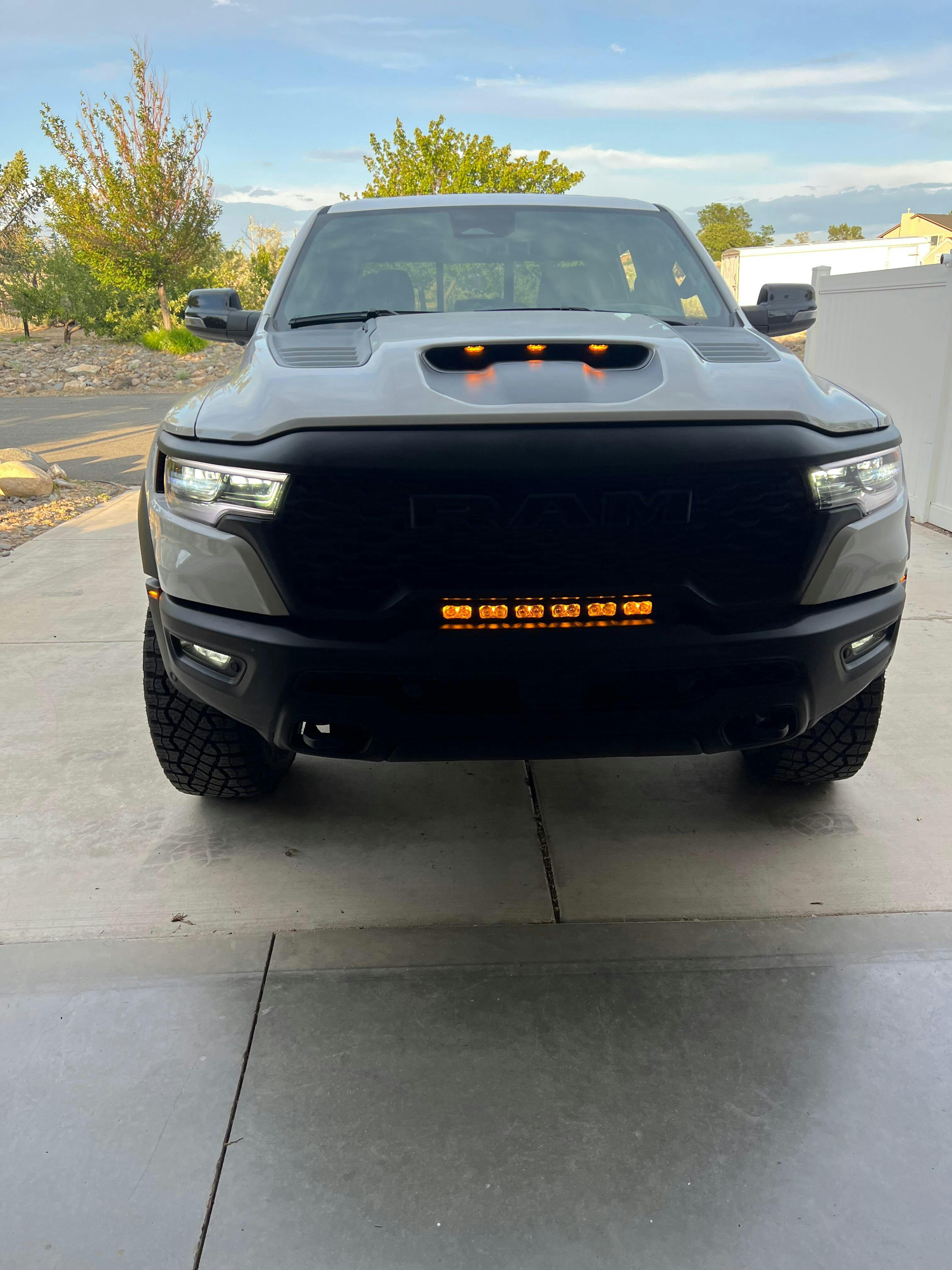

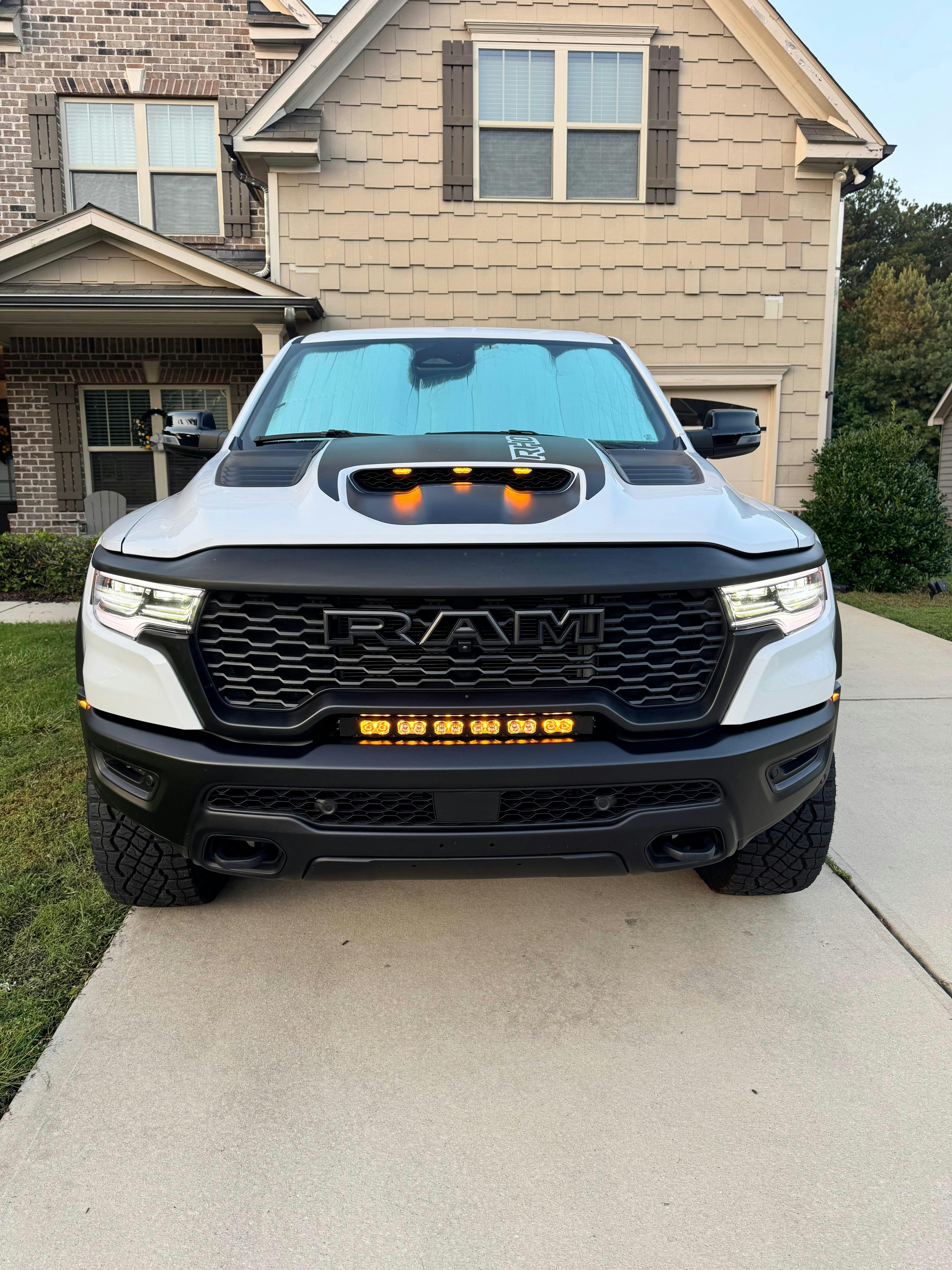

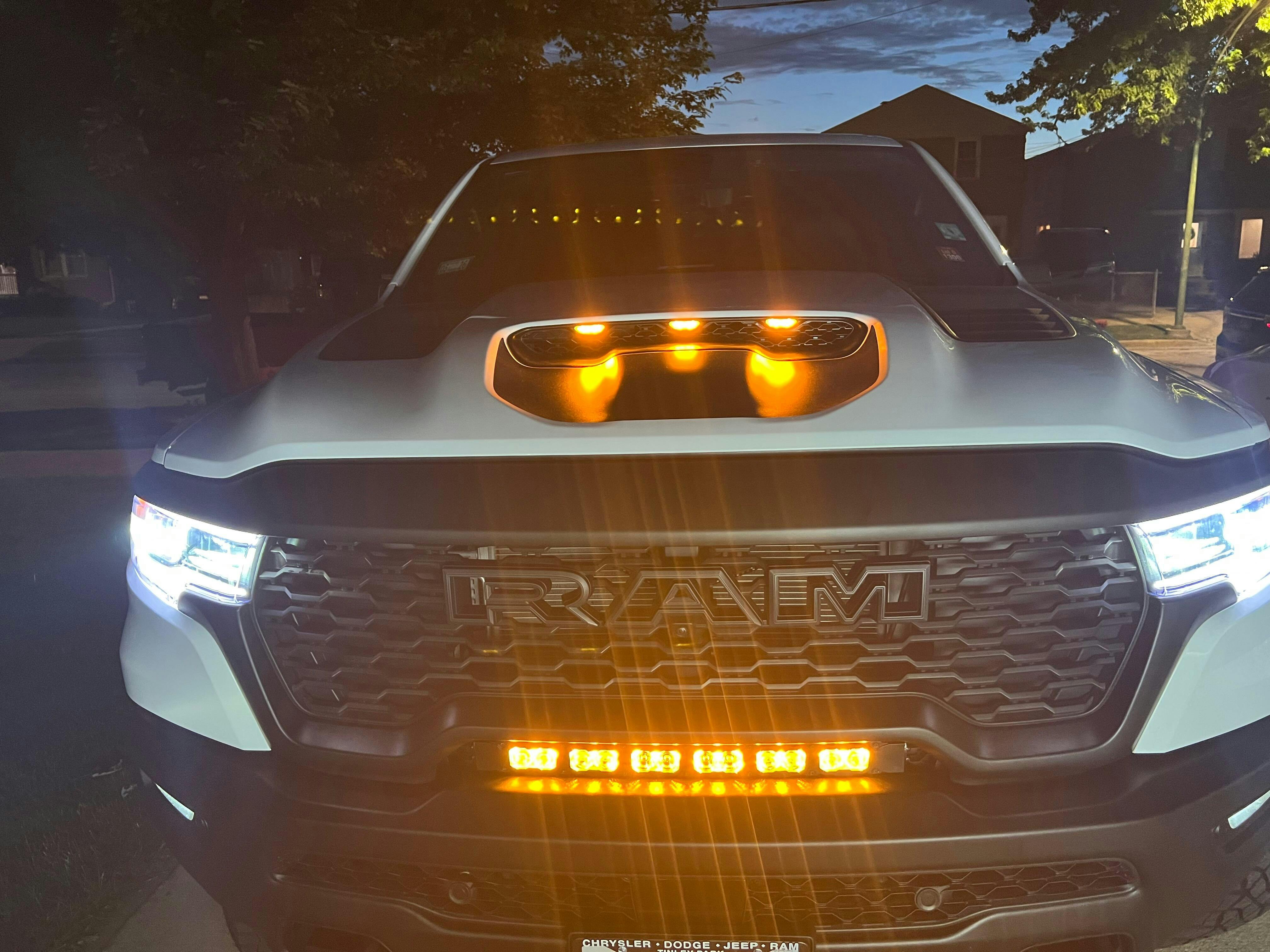

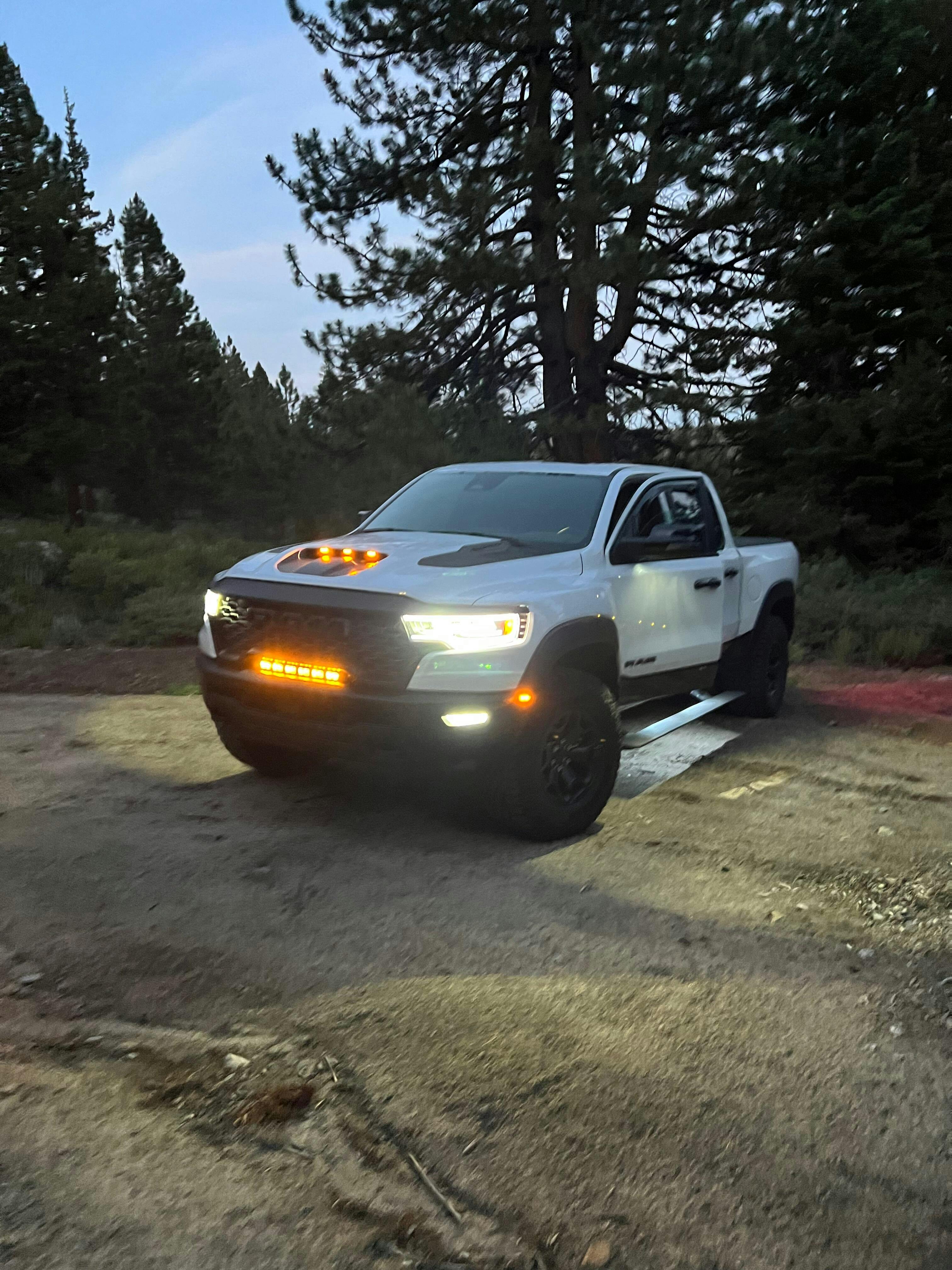

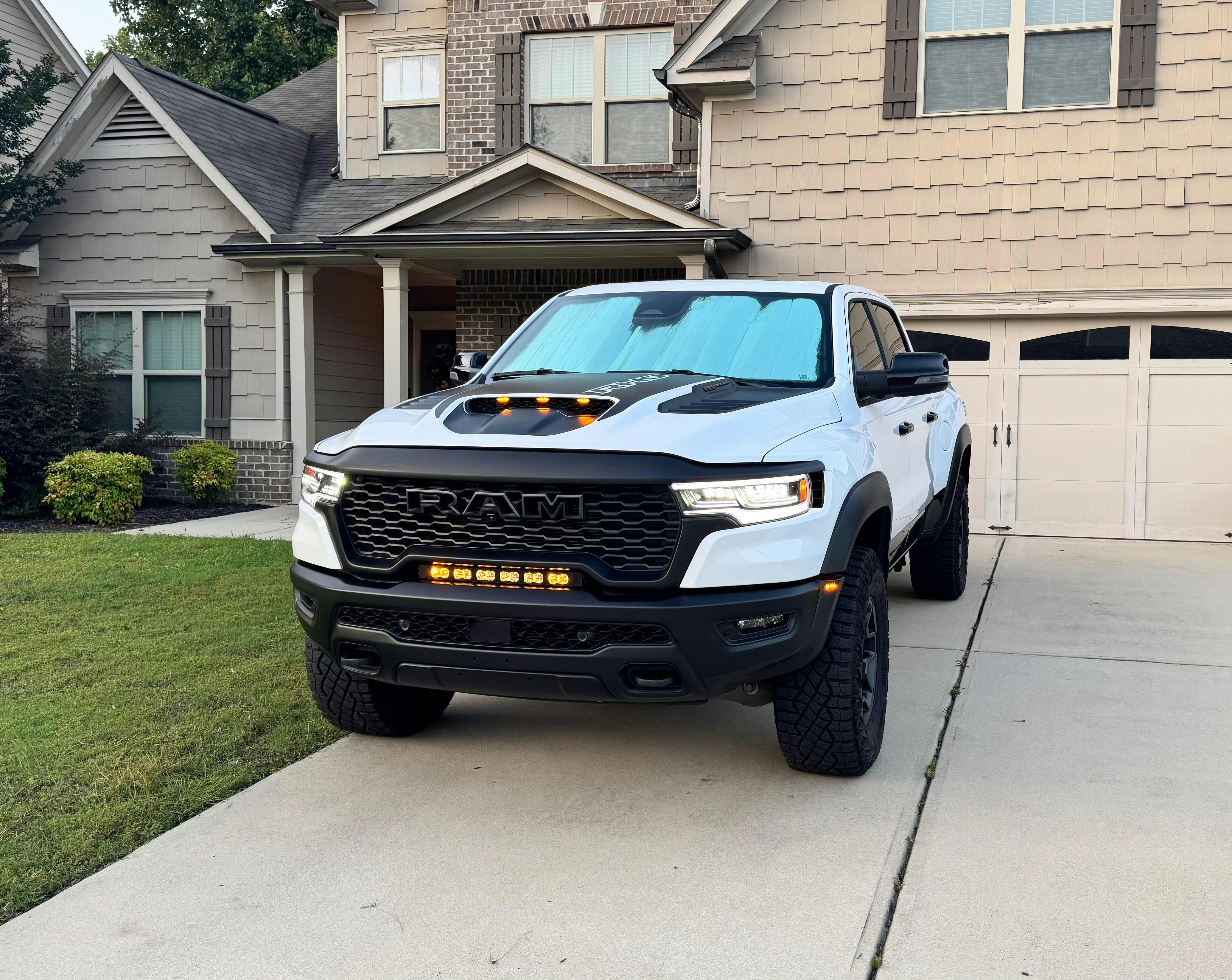

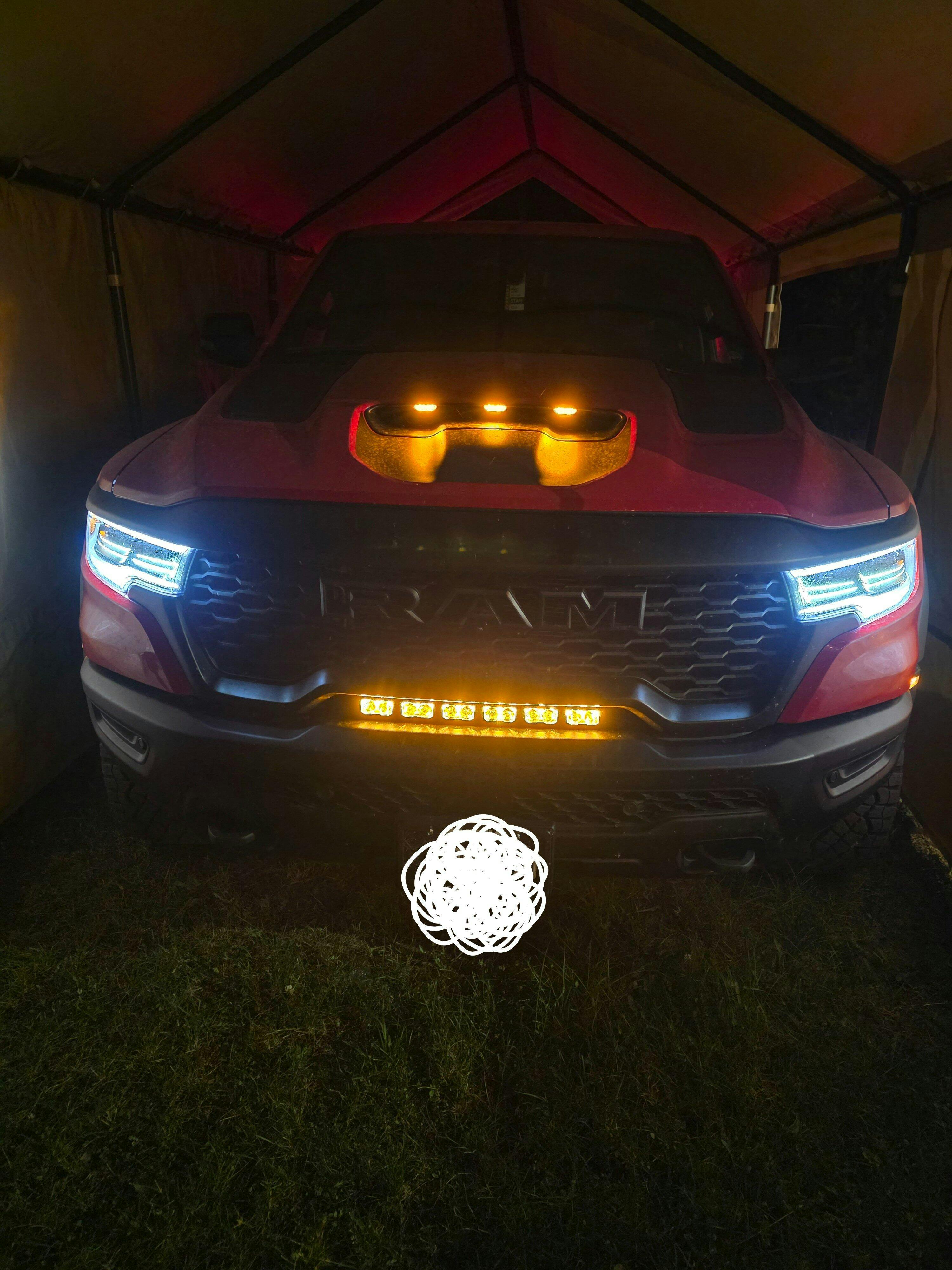

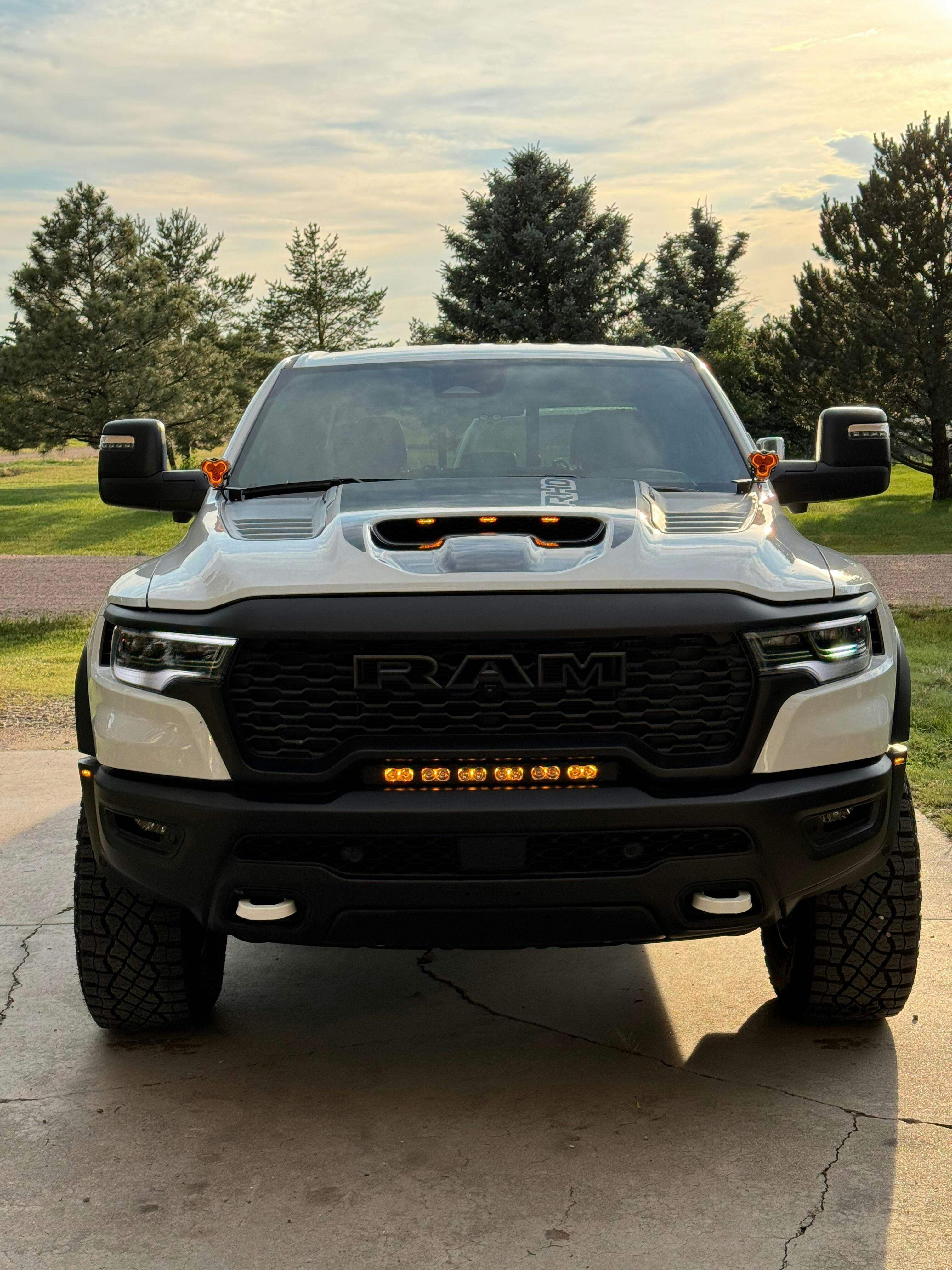

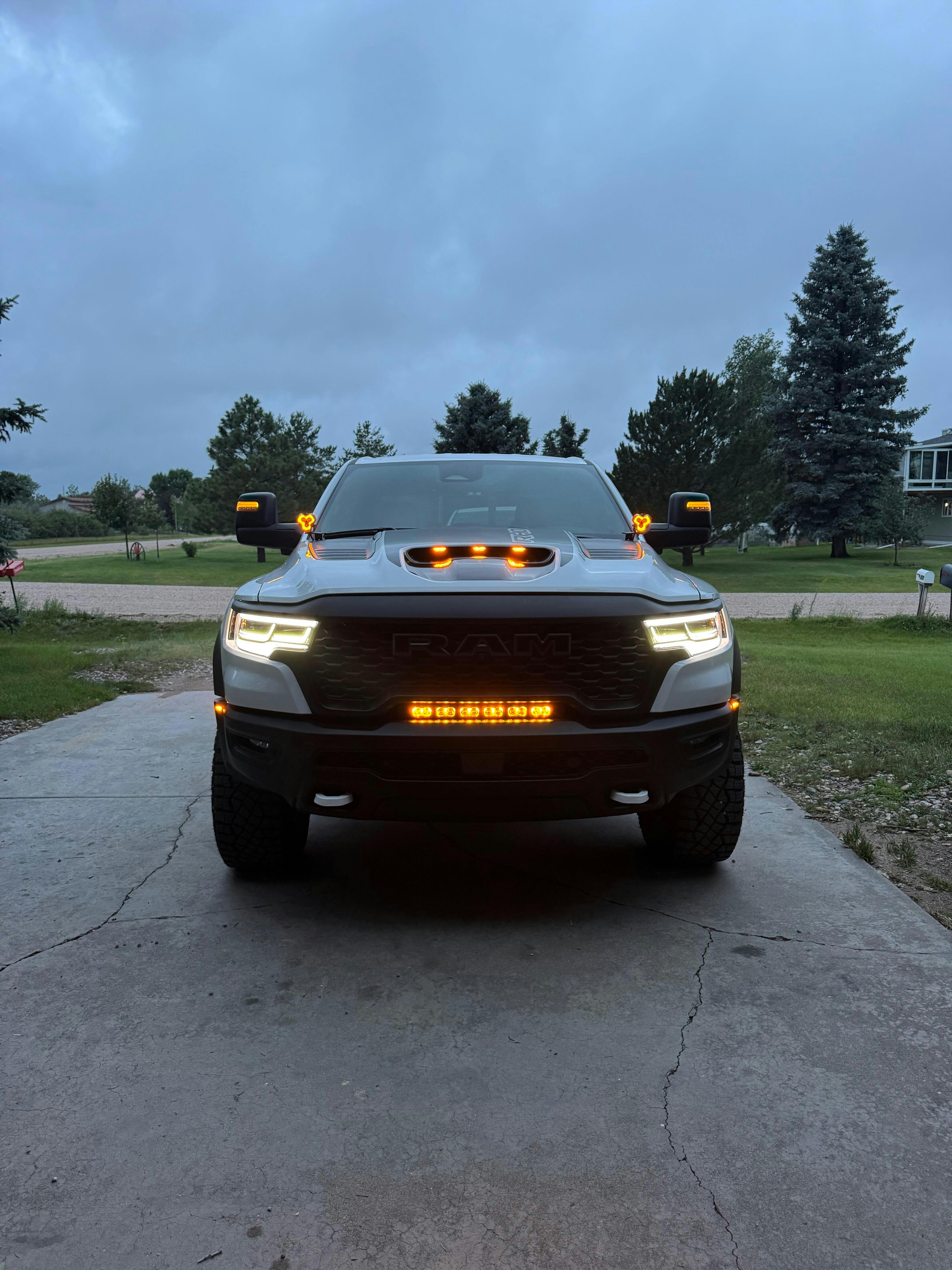

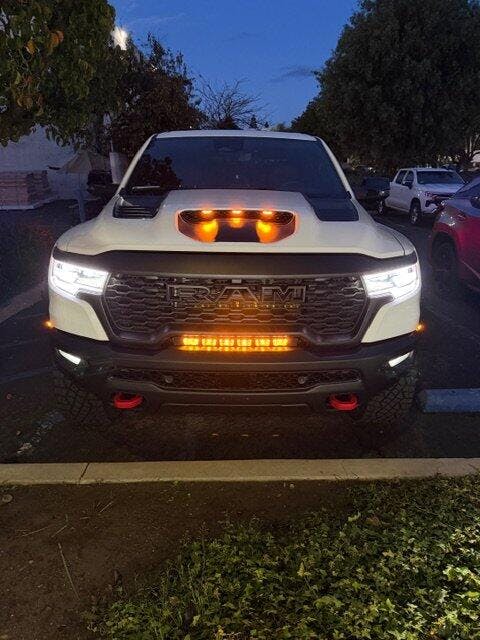

- Amber DRL -- amber DRL “daytime running lights” acts purely for aesthetics. Since it doesn’t give out much light, you can use this amber DRL feature on regular roads, it doesn't blind in-coming traffic.
Introducing our new LED light bar-PRO wiTh a unique appearance and optimal performance.
- Combo Pattern: combined spot and driving optics offers a balance between the distance and width
- Uses TIR (Total Internal Reflection) lens is different from our the regular slim light bar. The TIR lens collects all of the light from the LED and directly leads them to where you need, drastically reducing glare and improving total efficiency.
- Higher light efficiency: brighter, longer irradiation distance
- Housing is upgraded to 304 aluminum. The surface is UV polyester powder coated to prevent against UV, salt water, corrosion, fading and scratch resistant.
- Equipped with thermal management system that automatically adjusts the brightness output according to the external temperatures
👍Our light kits are for off-road use only.
RAM RHO light bar
WHAT'S INCLUDED?
(1) 23in curved light bar - PRO
(2) mounting brackets
All mounting hardware
WIRING
- M&R Automotive doesn’t provide a wiring harness.
- The light bar has 6ft of wire which is enough to reach AUX wires.
- We used AUX wires for a clean install.
INSTALLATION INSTRUCTIONS
23in Light Bar PRO
- Theoretical max power 120watts
- Actual power 72watts
- Main White light is 6amps at 12v
- Backlight Amber is .17amps at 12v
- Theoretical max luminous flux 13,080 lm
- Measured luminous flux (without lens) 8,832 lm
- Measured luminous flux (with lens) 7,024 lm
- LEDs type: luminus SST-20 Ra70
- Temperature: 6000k
- LEDs number: 12pcs
We have a lifetime warranty on our light kits. We truly want our truck enthusiastic customers to enjoy their products as much as we enjoy designing them. However, we also understand that different situations arise with brackets or lights. For more information about our warranty and disclaimer click here.
*M&R Automotive is not responsible for misuse or improper installation of the product. Professional installation is recommended.
Installation was easy for anyone with some mechanical skills… looks like it should have came this way from Ram. Light output is amazing
2025+ RAM 1500 RHO 23in Light Bar - PRO
Awesome!

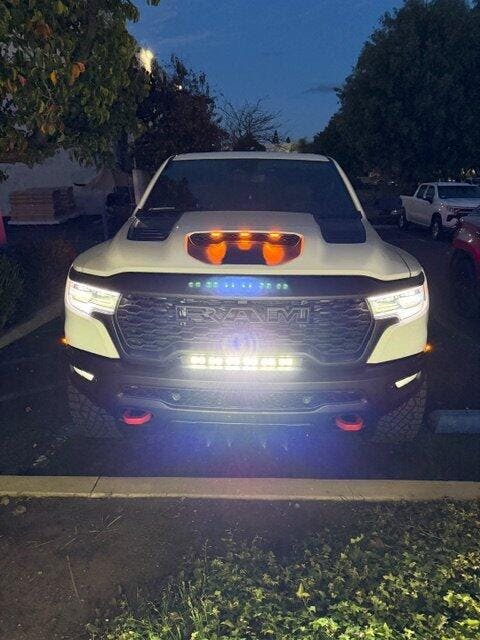

Installed the 23” PRO Light Bar on my 2026 Ram RHO and I couldn’t be more impressed. Straight up — this thing performs better than advertised.
Install:
Super easy DIY job. Everything lined up clean, wiring was straightforward, and the brackets felt solid — no sketchy fitment or “make it work” moments. If you’re even a little handy, you can knock this out in your driveway and feel like a pro doing it.
Build Quality:
Right out of the box you can tell it’s legit. Housing is sturdy, lens is crystal clear, and it doesn’t feel cheap or lightweight like some other bars out there.
Performance:
This is where it really shines (literally). The beam pattern is wide and bright with serious throw down the road. Night driving, back roads, job sites — it lights up everything. Way brighter and cleaner output than I expected for the size.
Looks:

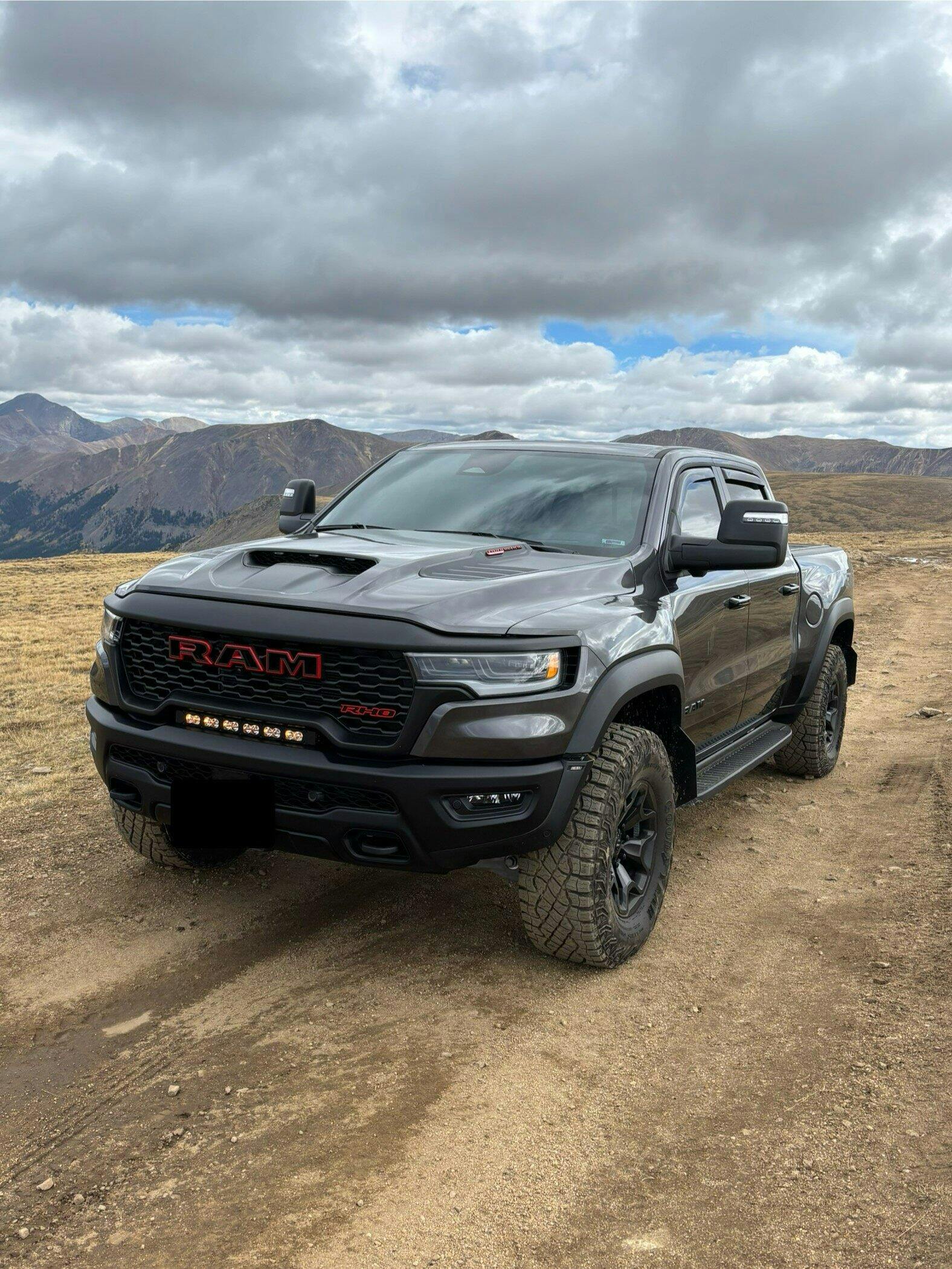

Fits the RHO perfectly and gives the truck that aggressive, ready-for-anything look without being overkill.
Bottom line:
Easy install ✅
Professional look ✅
Insane brightness ✅

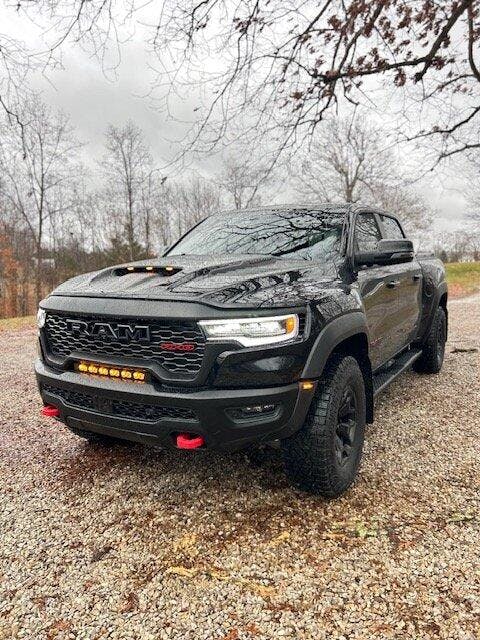

Very Happy with the 20 inch Pro light bar for my 2026 Ram Rebel. Fit perfectly in the grille Albeit I would recommend removing the grille as mounting with grille installed is a little challenging due to the space constraints. Mike was very helpful with several wiring questions I had and the end result is exactly what I was looking for.
