icon 2024+ Ford Raptor Gen 3 Modular Bumper 40in Light Bar - PRO
main White light with Amber DRLmain Yellow light with Amber DRL
2
$604.99
  • Product Description
  • Light Bar Specs
  • Shipping & Warranty

Fits 2024 2025 Ford Raptor Gen 3 Refresh Modular Bumper ONLY.

This includes 37, R package, and Tremor.

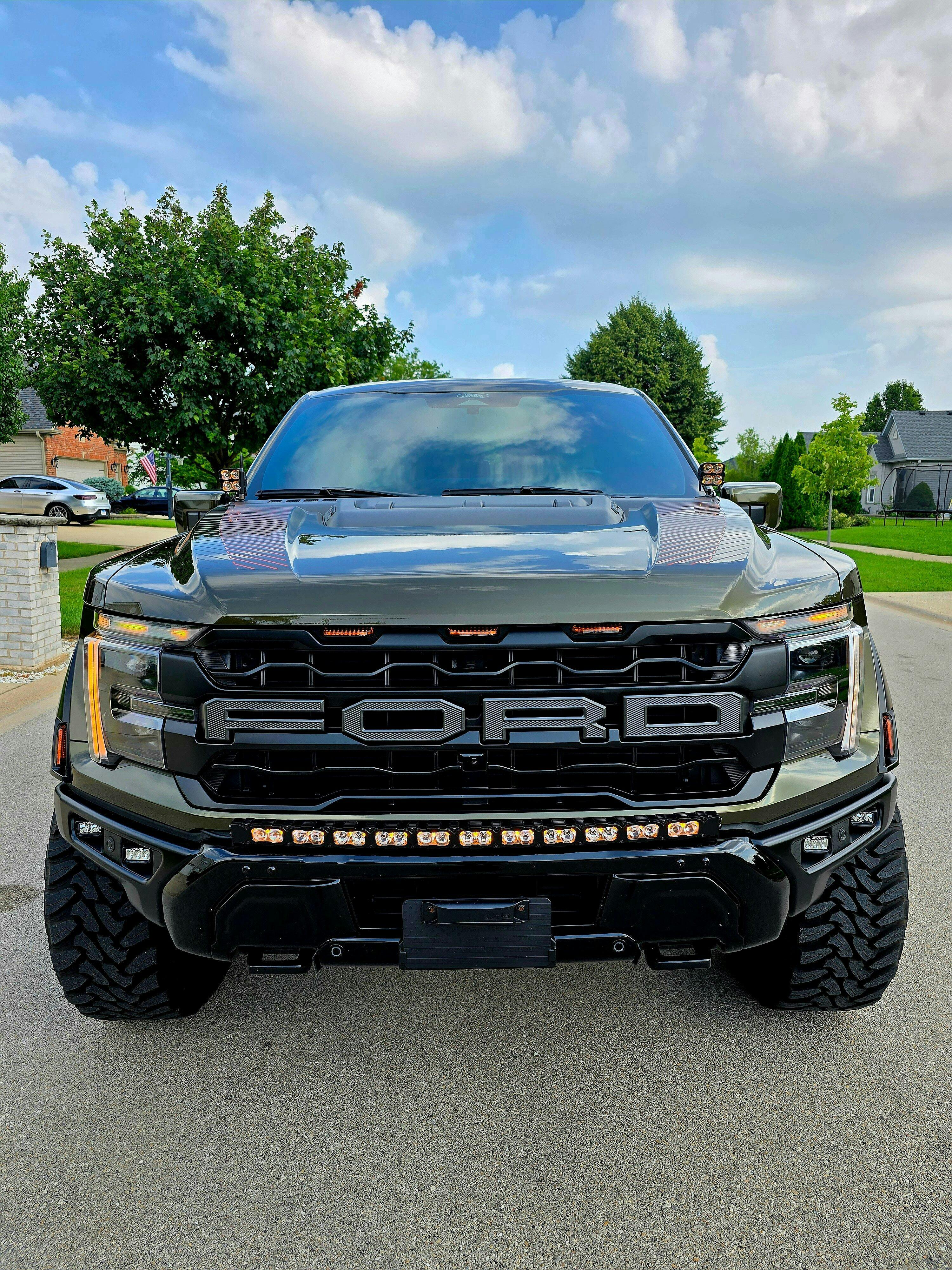

    • Curved LED light bar PRO

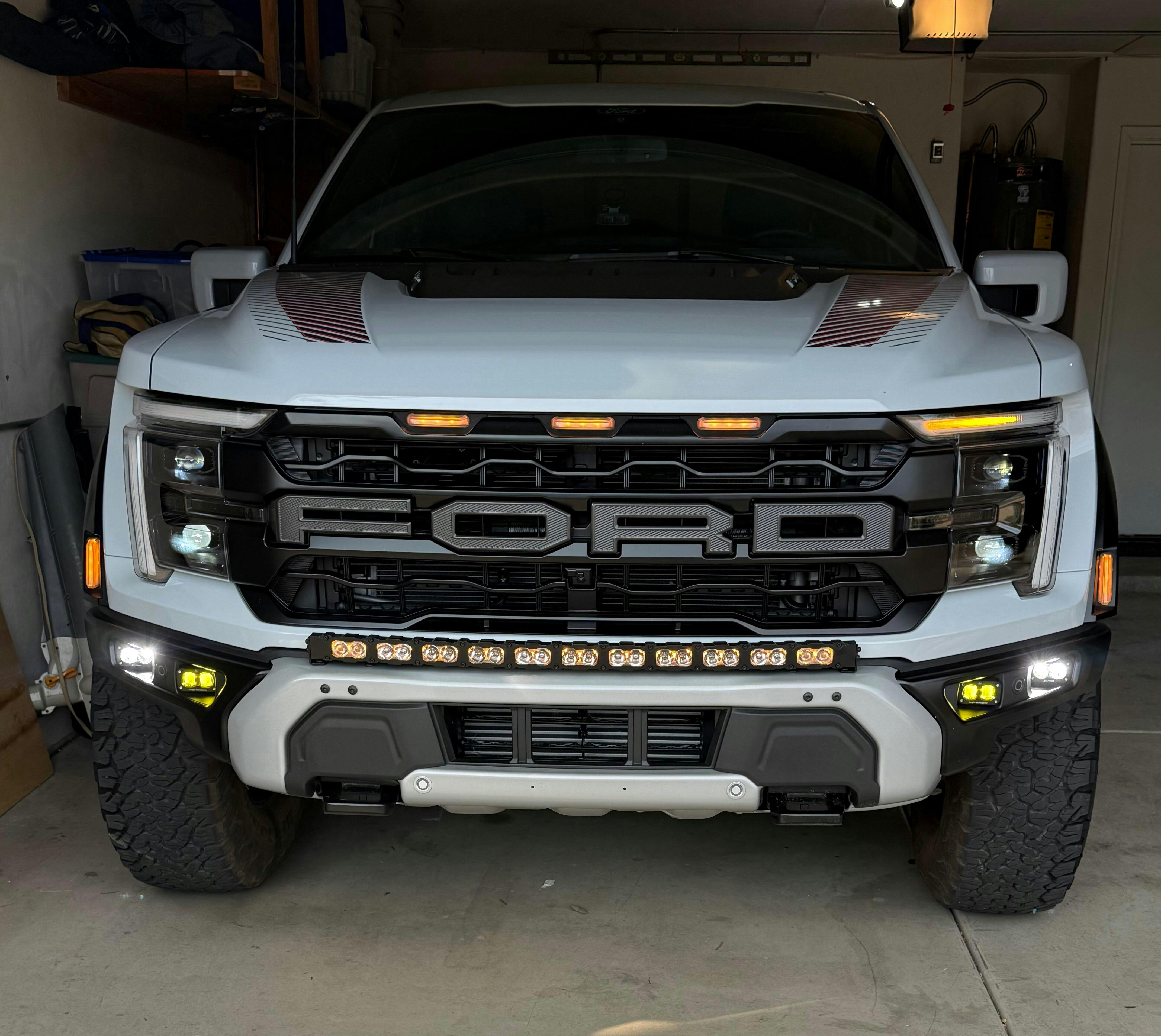

    • Perfectly follows the Ford Raptor bumper and grille factory curvature
    • Stays slim to the bumper for a sleek, built in look
    • Don't need to remove grille or bumper
    • No cutting or drilling required. The kit is a complete bolt on using factory openings and hardware.

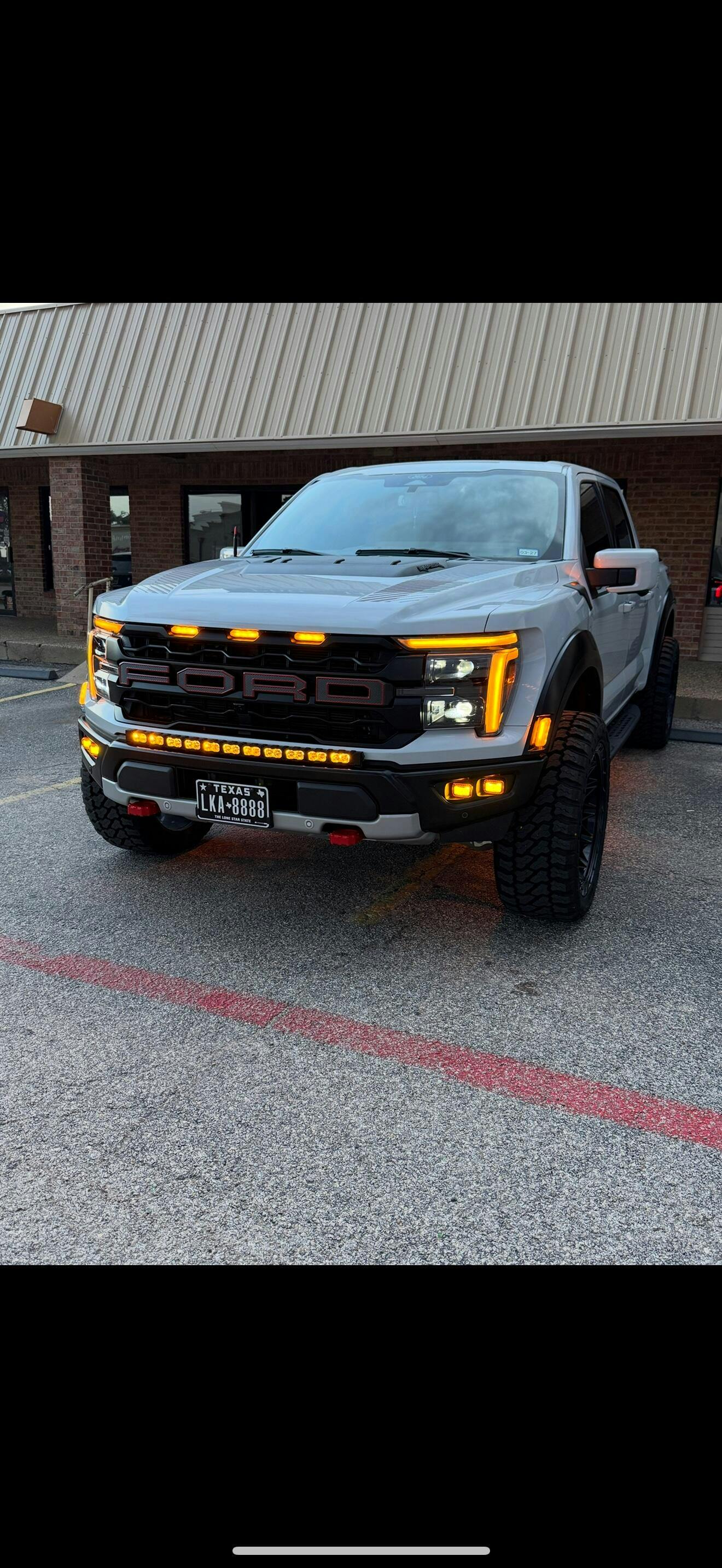

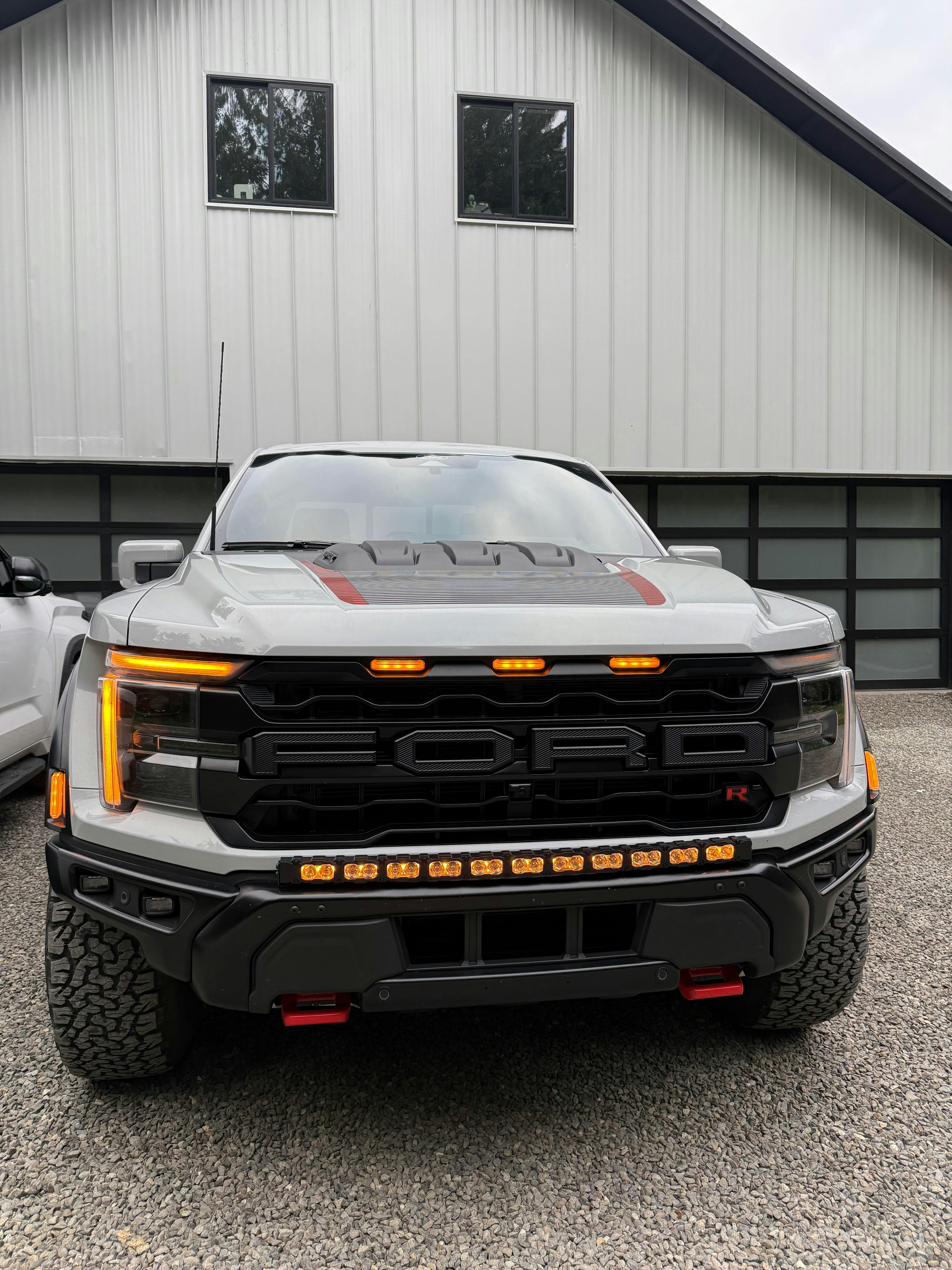

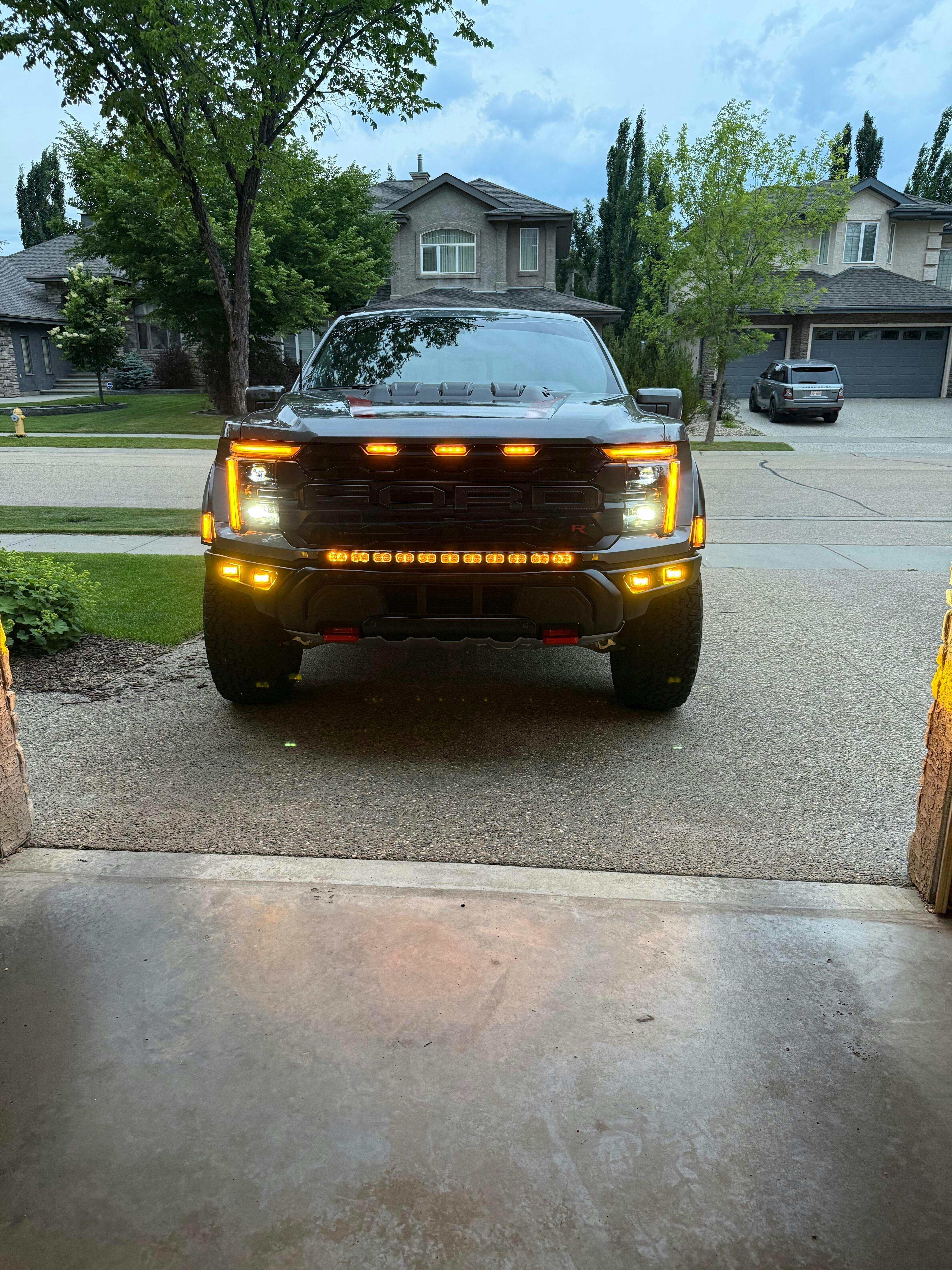

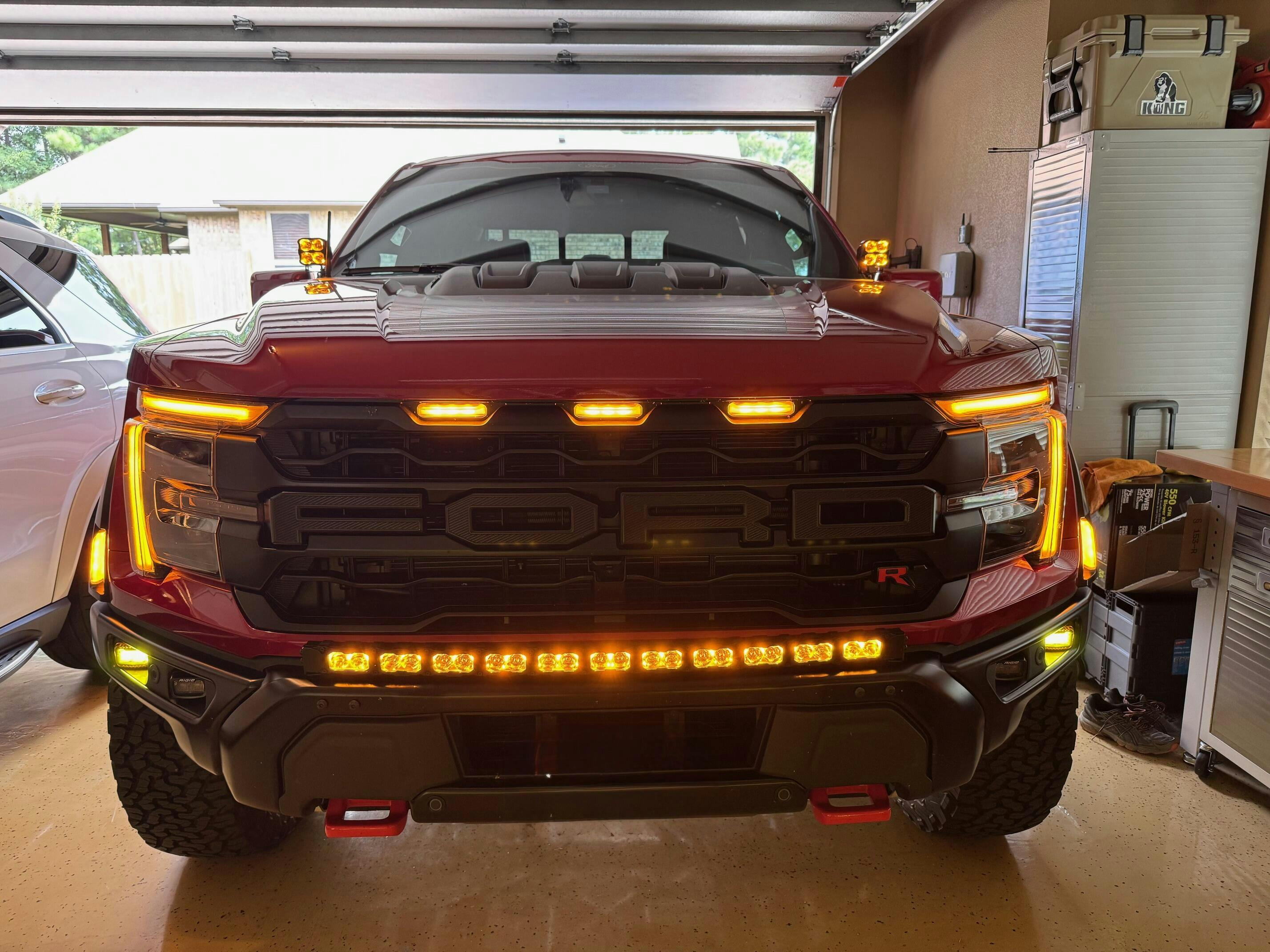

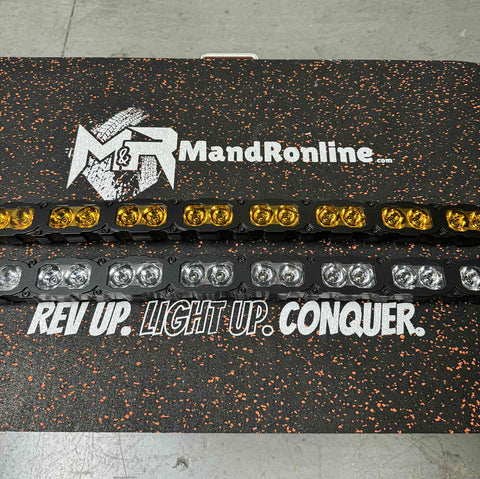

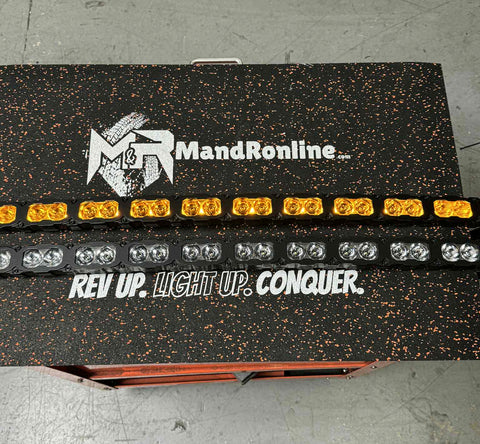

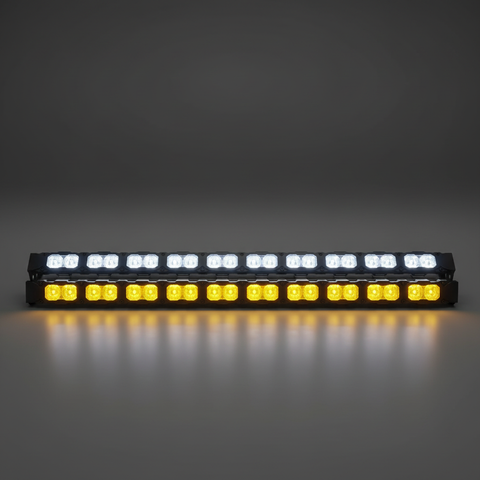

    DUAL COLOR: White with Amber DRL

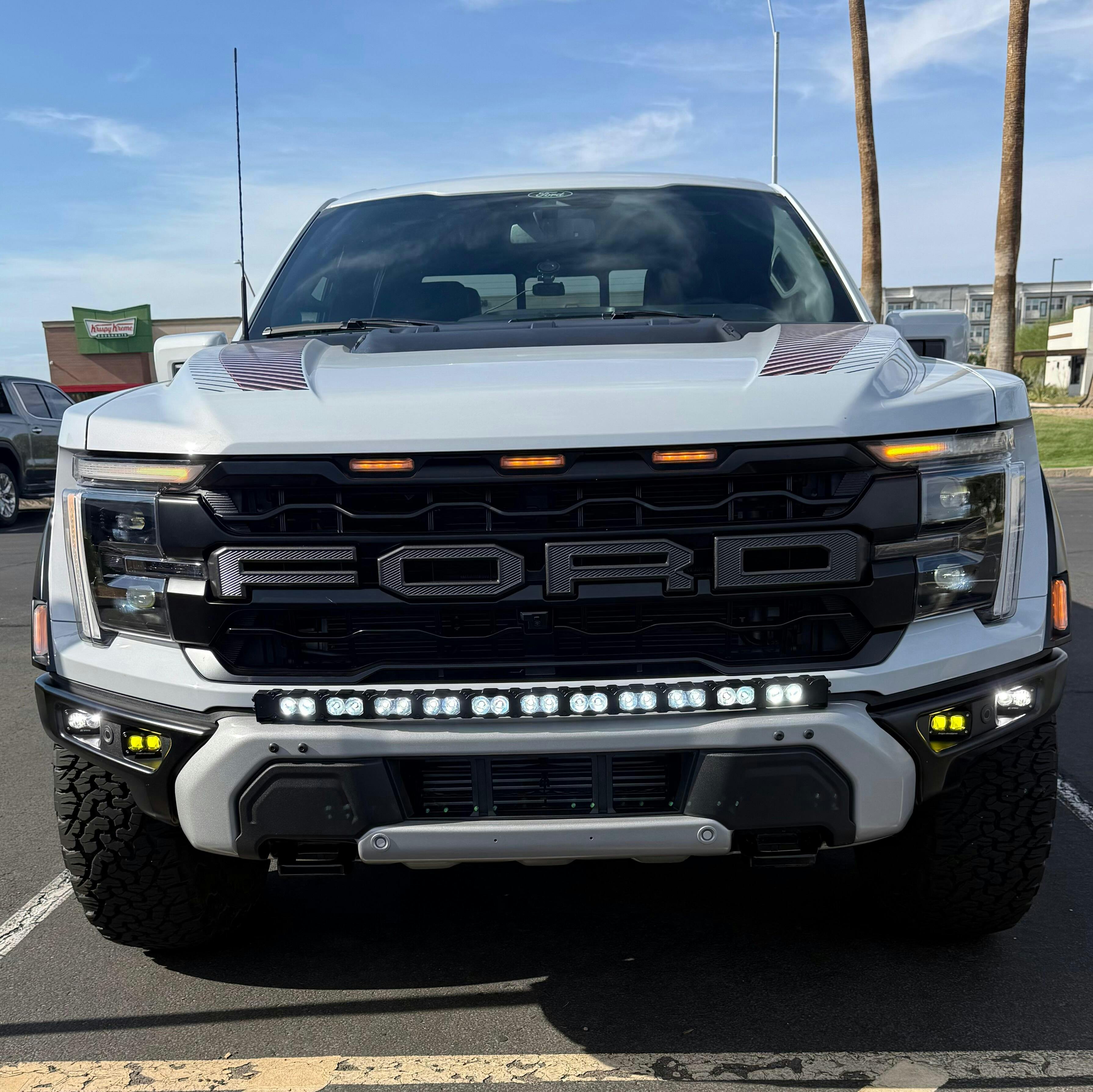

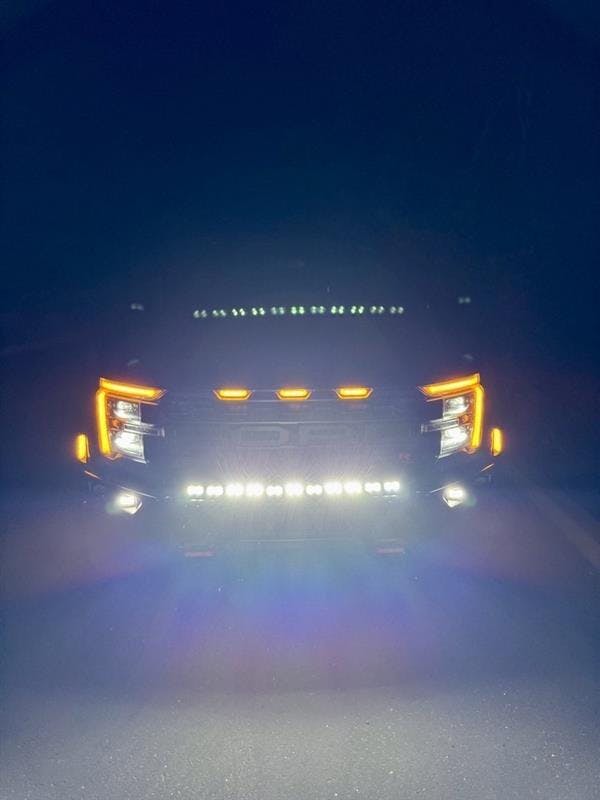

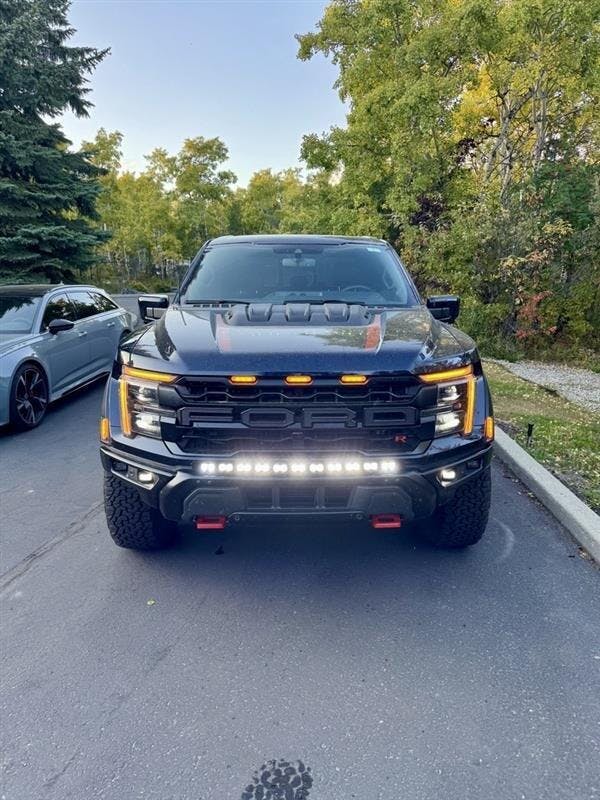

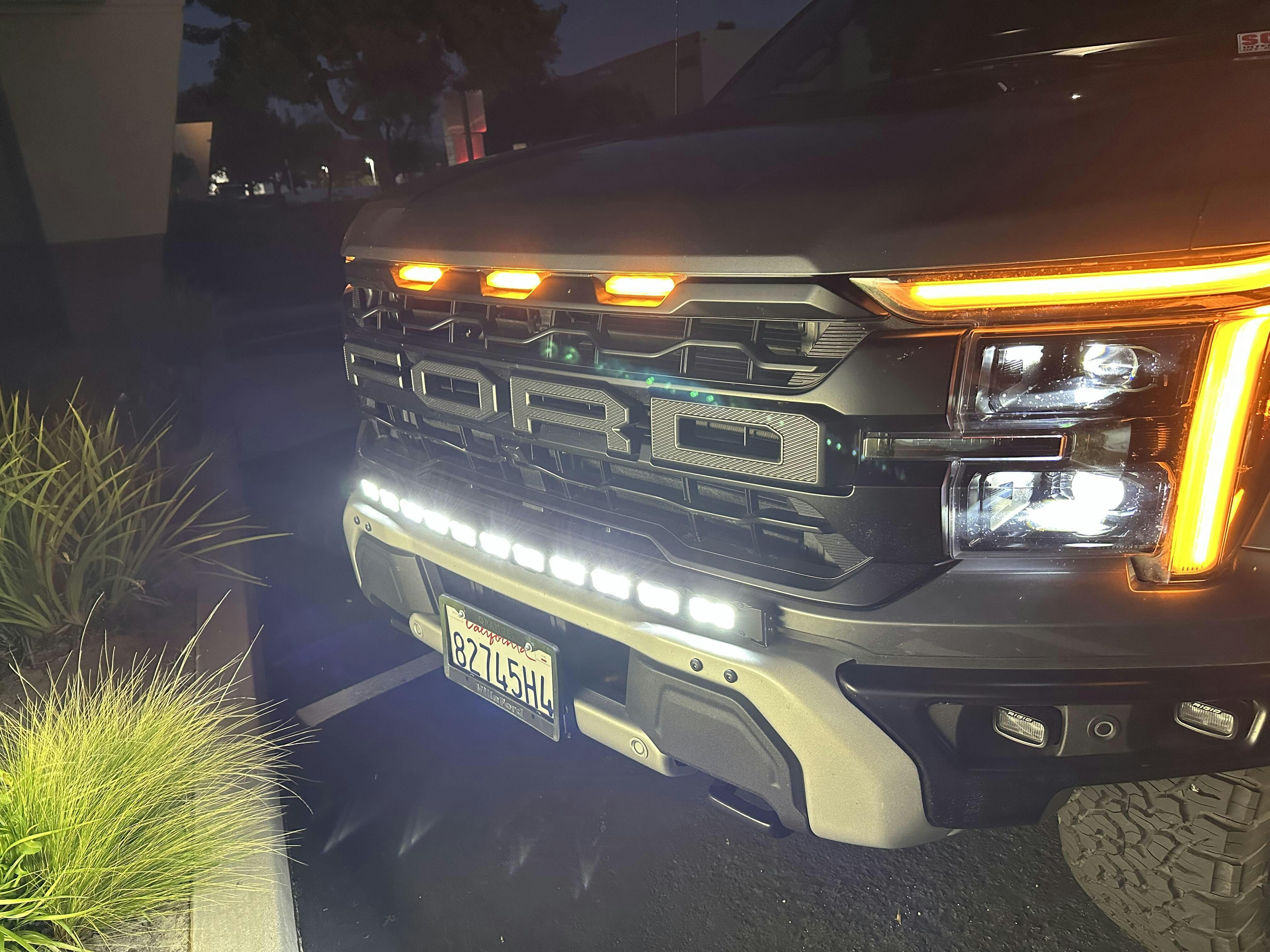

    Main White LED Light with Amber DRL (daytime running lights)

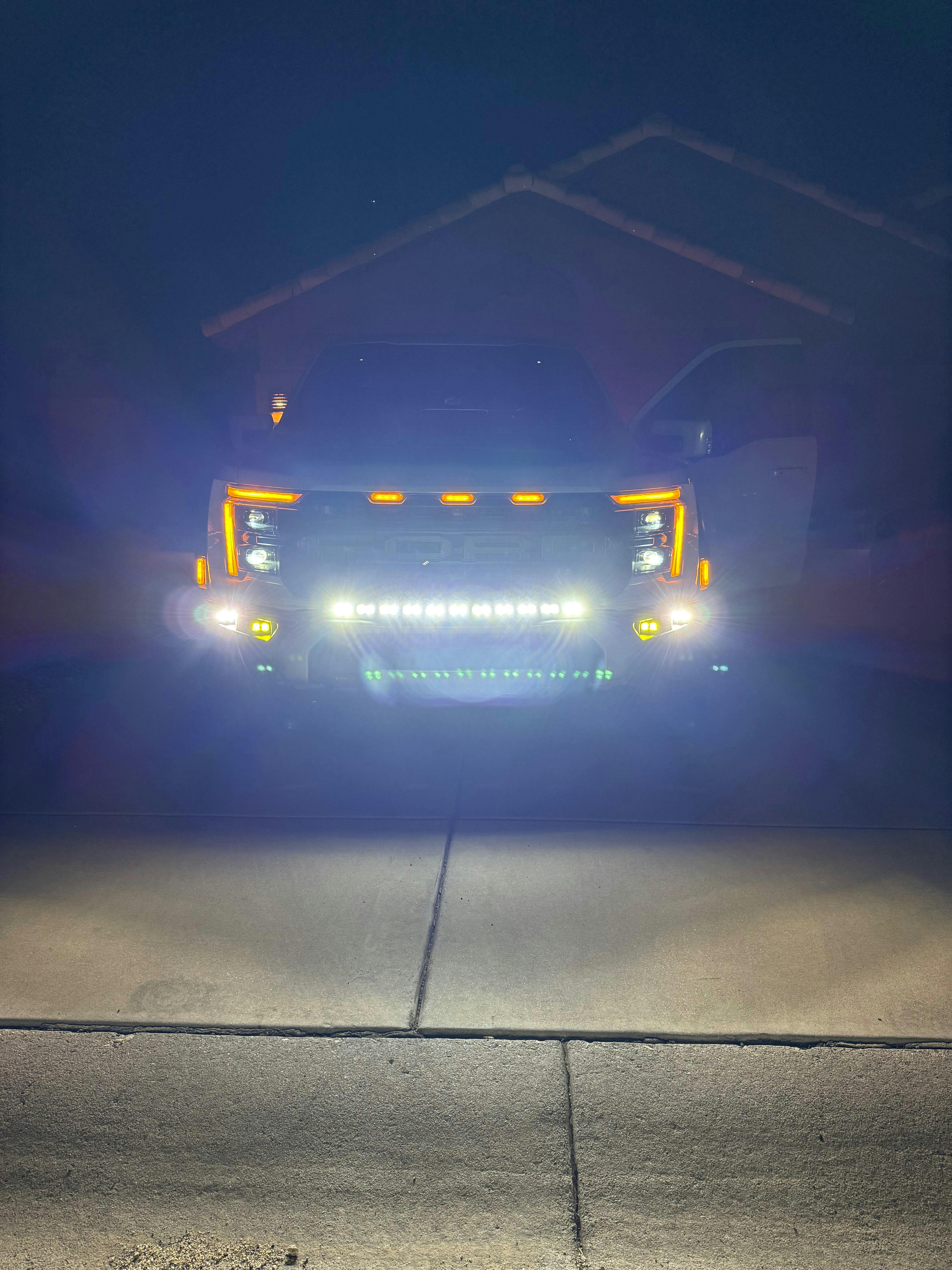

    • White LED -- Super bright and crisp white beam pattern. It will definitely provide you with enough light needed for all of your adventures. However, these are only for off-roading and can’t be used on the regular road. They will blind the in-coming traffic and also violates road safety.

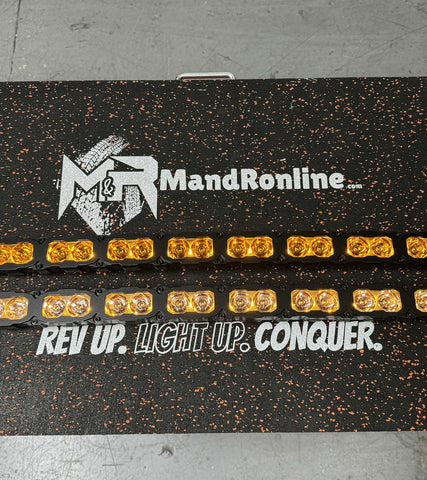

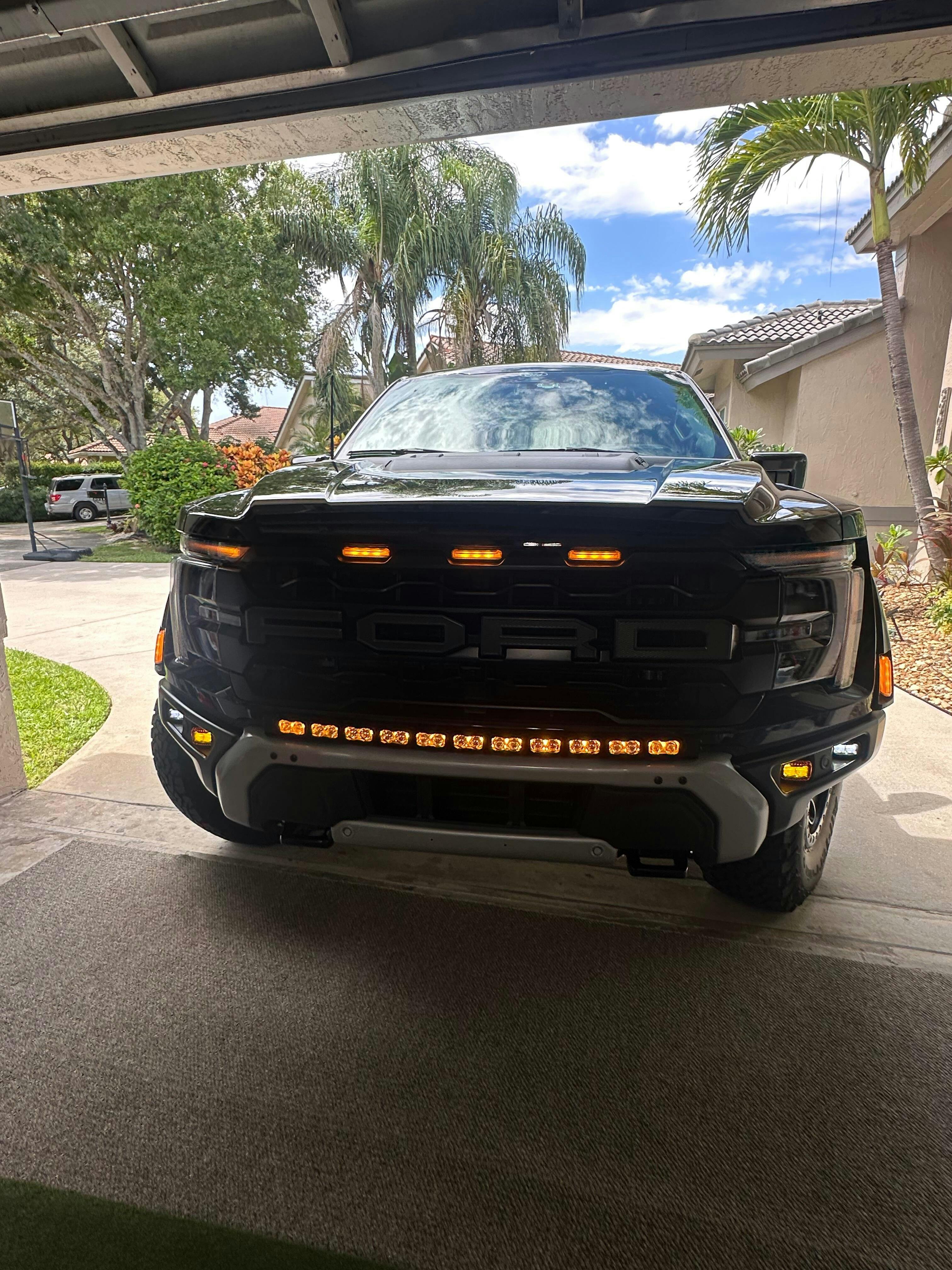

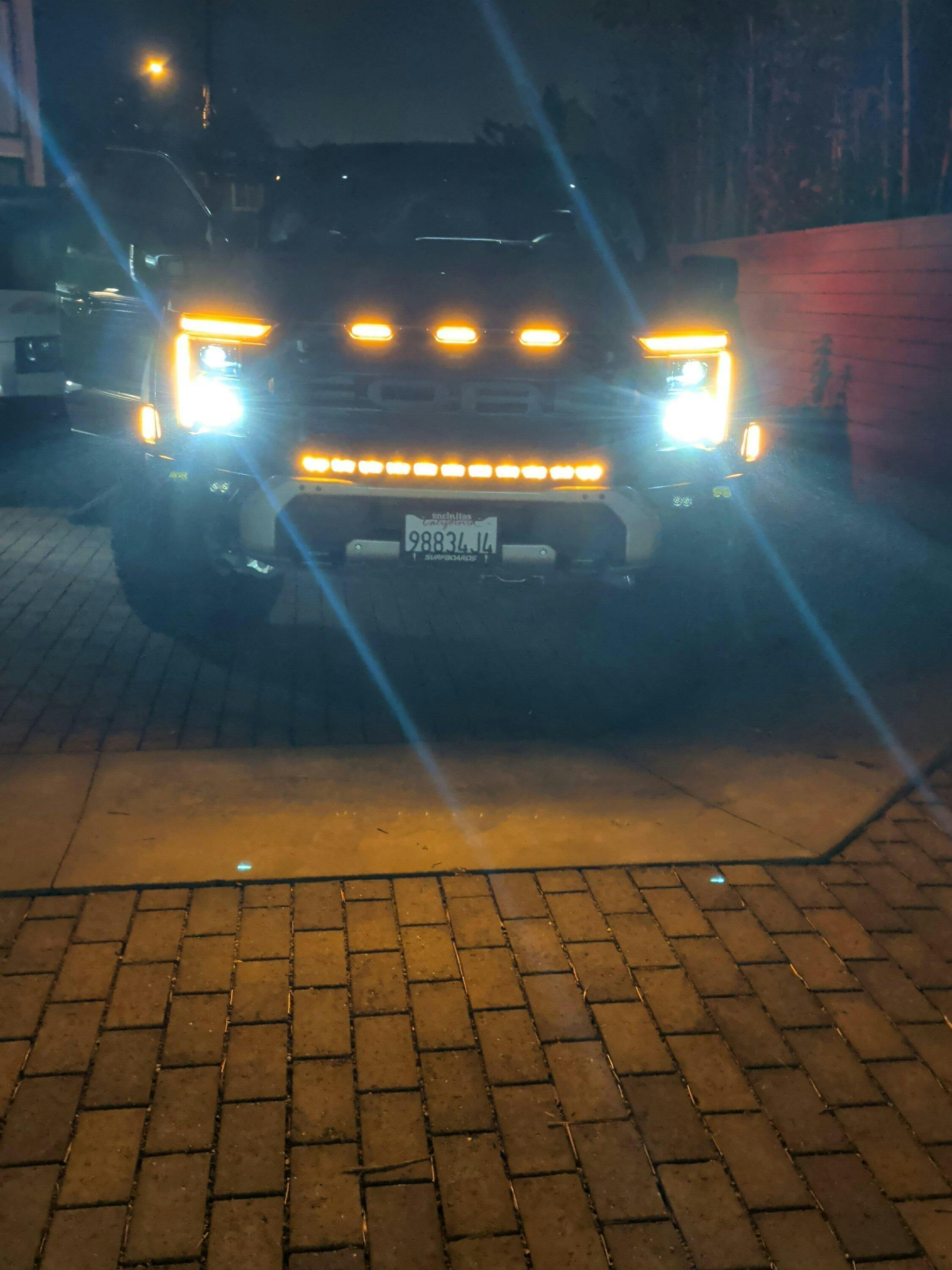

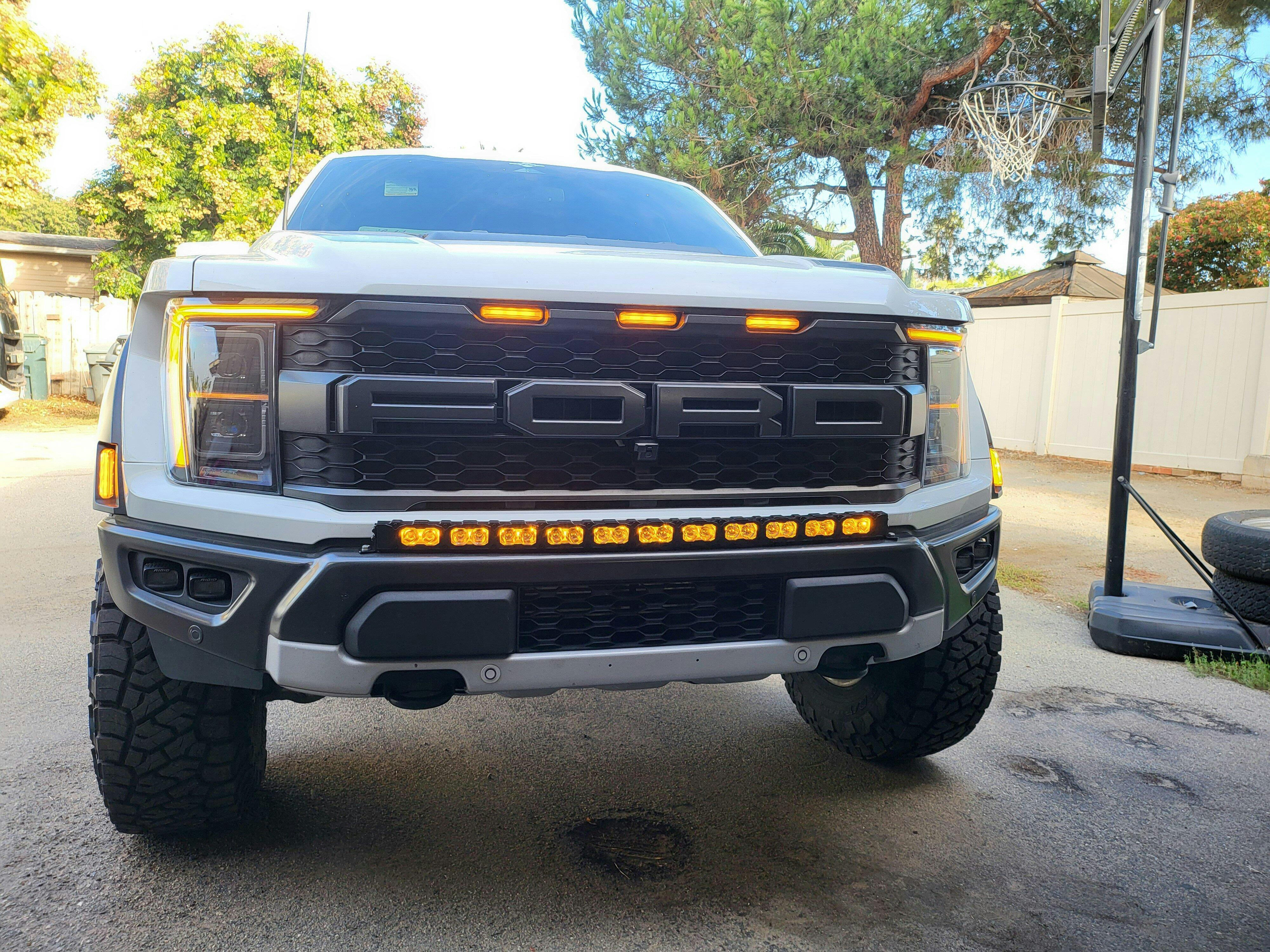

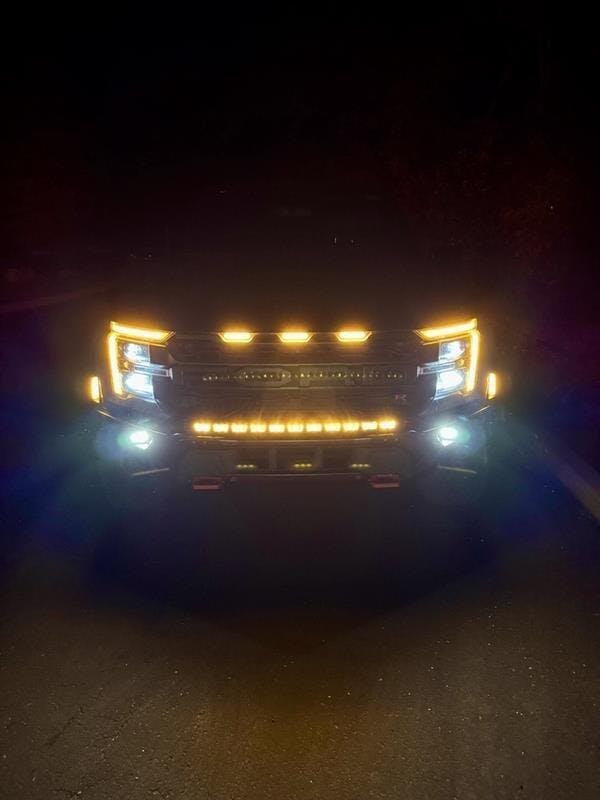

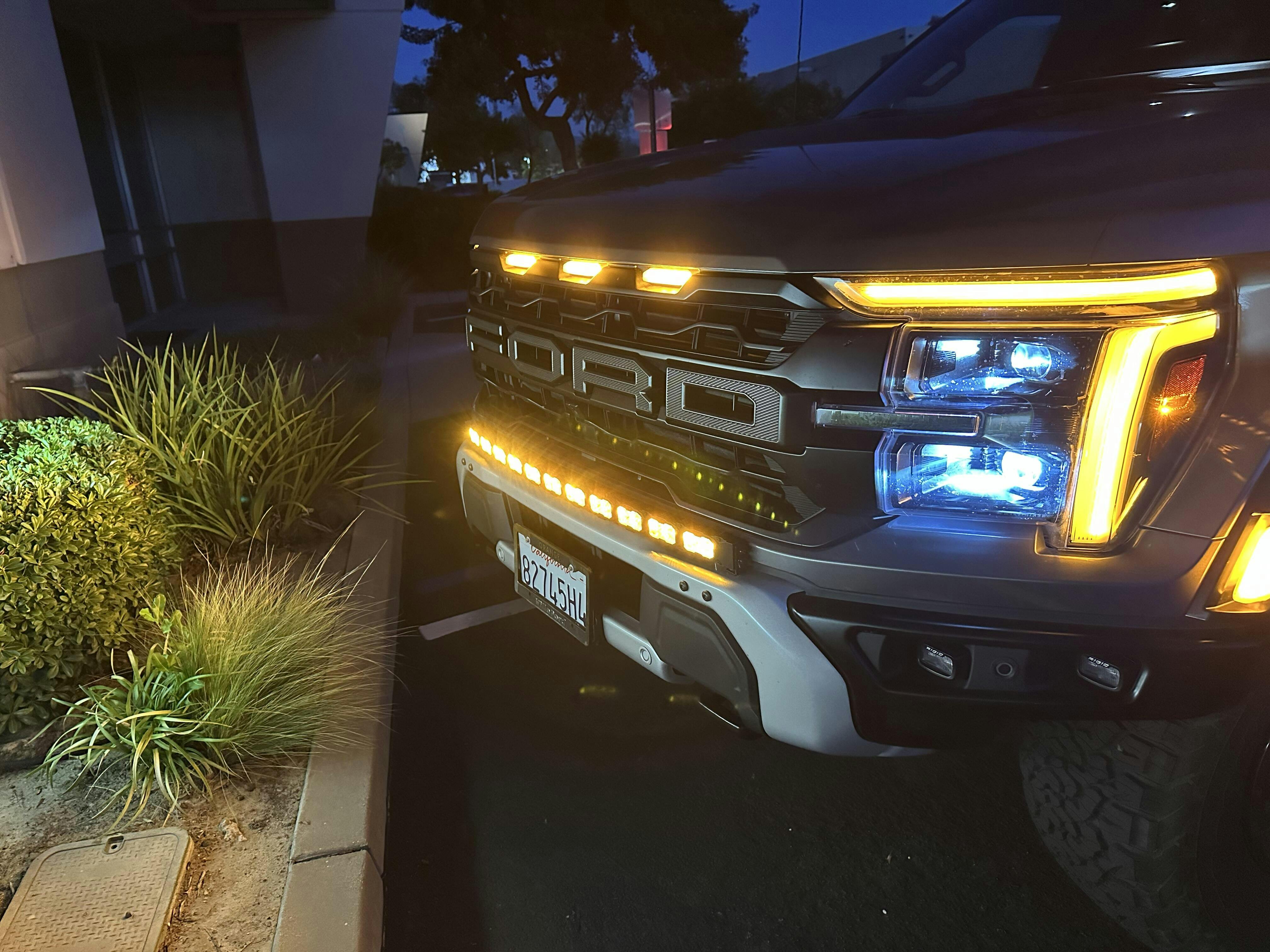

    • Amber DRL -- amber DRL “daytime running lights” acts purely for aesthetics. Since it doesn’t give out much light, you can use this amber DRL feature on regular roads, it doesn't blind in-coming traffic.

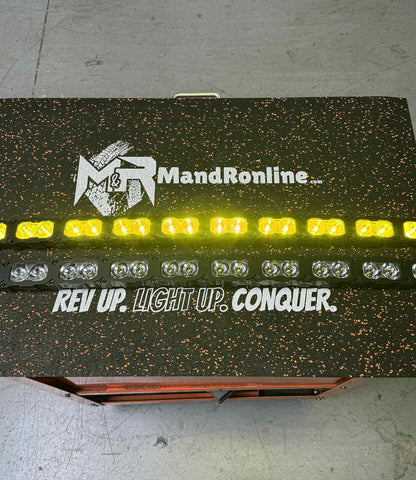

    DUAL COLOR: Yellow with Amber DRL

    Main Yellow LED Light with Amber DRL (daytime running lights)

    • Yellow LED -- used in poor driving conditions such as dust, fog, snow and rain. It reflects through air particles much less than the white light. Therefore, making it ideal for poor driving conditions. For off road use only.
    • Amber DRL -- amber DRL “daytime running lights” acts purely for aesthetics. Since it doesn’t give out much light, you can use this amber DRL feature on regular roads, it doesn't blind in-coming traffic.

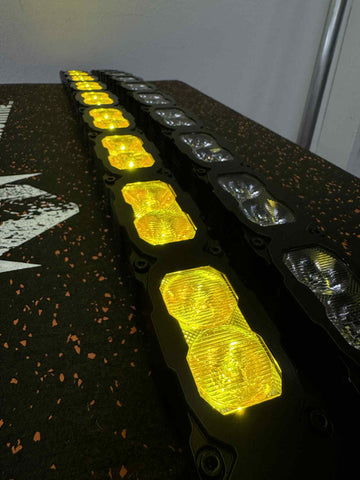

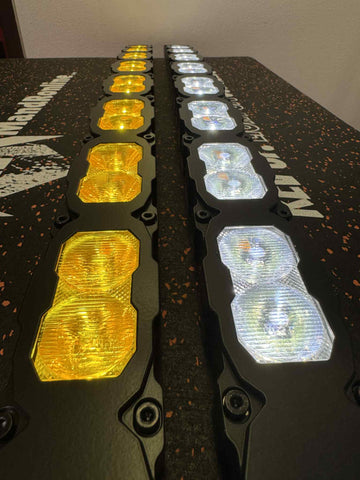

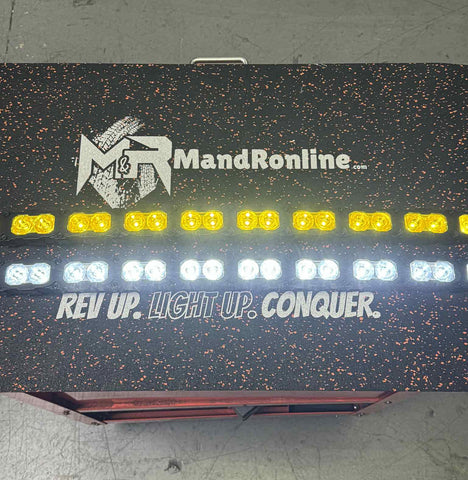

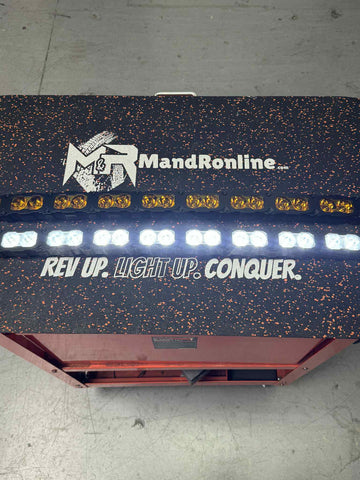

    **Please note** The yellow lens alters the look of the amber DRL, making it appear a little darker than with the white lens. Check the photos to see the difference.



    • Combo Pattern: combined spot and driving optics offers a balance between the distance and width
    • Uses TIR (Total Internal Reflection) lens is different from our the regular slim light bar. The TIR lens collects all of the light from the LED and directly leads them to where you need, drastically reducing glare and improving total efficiency.
    • Higher light efficiency: brighter, longer irradiation distance

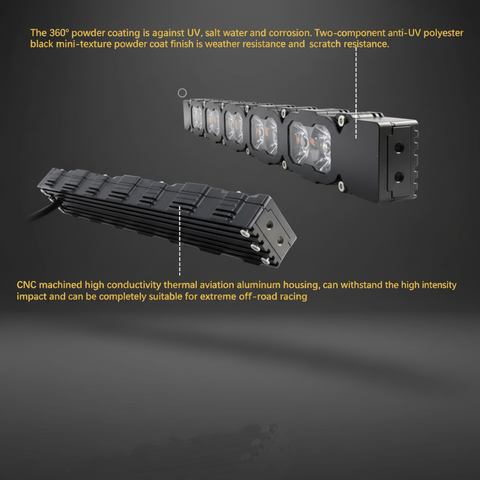

    • Housing is upgraded to 304 aluminum. The surface is UV polyester powder coated to prevent against UV, salt water, corrosion, fading and scratch resistant.
    • Equipped with thermal management system that automatically adjusts the brightness output according to the external temperatures



    👍Our light kits are for off-road use only.


    WHAT'S INCLUDED?

    (1) 40in curved light bar - PRO

    (4) mounting brackets

    All mounting hardware

    WIRING

    M&R Automotive doesn’t provide a wiring harness. The light bar has 6ft of wire which is enough to reach AUX switches.


    INSTALLATION INSTRUCTIONS


    40in PRO Light Bar Specs

    • Theoretical max power                220watts
    • Actual power                                  125watts
    • Main White light is                        10.42amps at 12v
    • Backlight Amber is                         0.25amps at 12v
    • Theoretical max luminous flux                   24,024 lm
    • Measured luminous flux (without lens)    15,224 lm
    • Measured luminous flux (with lens)           12,108 lm
    • LEDs type:                  luminus SST-20 Ra70
    • Temperature:            6000k
    • LEDs number:            22pcs


    All domestic (USA) orders are free shipping via USPS or UPS, depending on product size.
    We typically ship in 3-7 business days. If we are anticipating a delay with your shipment due to availability of the product, we will reach out to you via email.

    Canada, international or express shipping costs are calculated at checkout.

    You will receive an email with tracking number when your order is shipped.

    If you have a special request about your order, reach out, we try to accommodate as much as we can.

    For a complete shipping policy click here.


    We have a lifetime warranty on our light kits. We truly want our truck enthusiastic customers to enjoy their products as much as we enjoy designing them. However, we also understand that different situations arise with brackets or lights. For more information about our warranty and disclaimer click here.




    *M&R Automotive is not responsible for misuse or improper installation of the product. Professional installation is recommended.


    Customer Reviews

    Based on 13 reviews
    92%
    (12)
    8%
    (1)
    0%
    (0)
    0%
    (0)
    0%
    (0)
    E
    E.B.
    40 in curved lightbar

    Amazing light! Easy install and fast shipping need i say more?

    G
    G.R.
    Awesome light bar

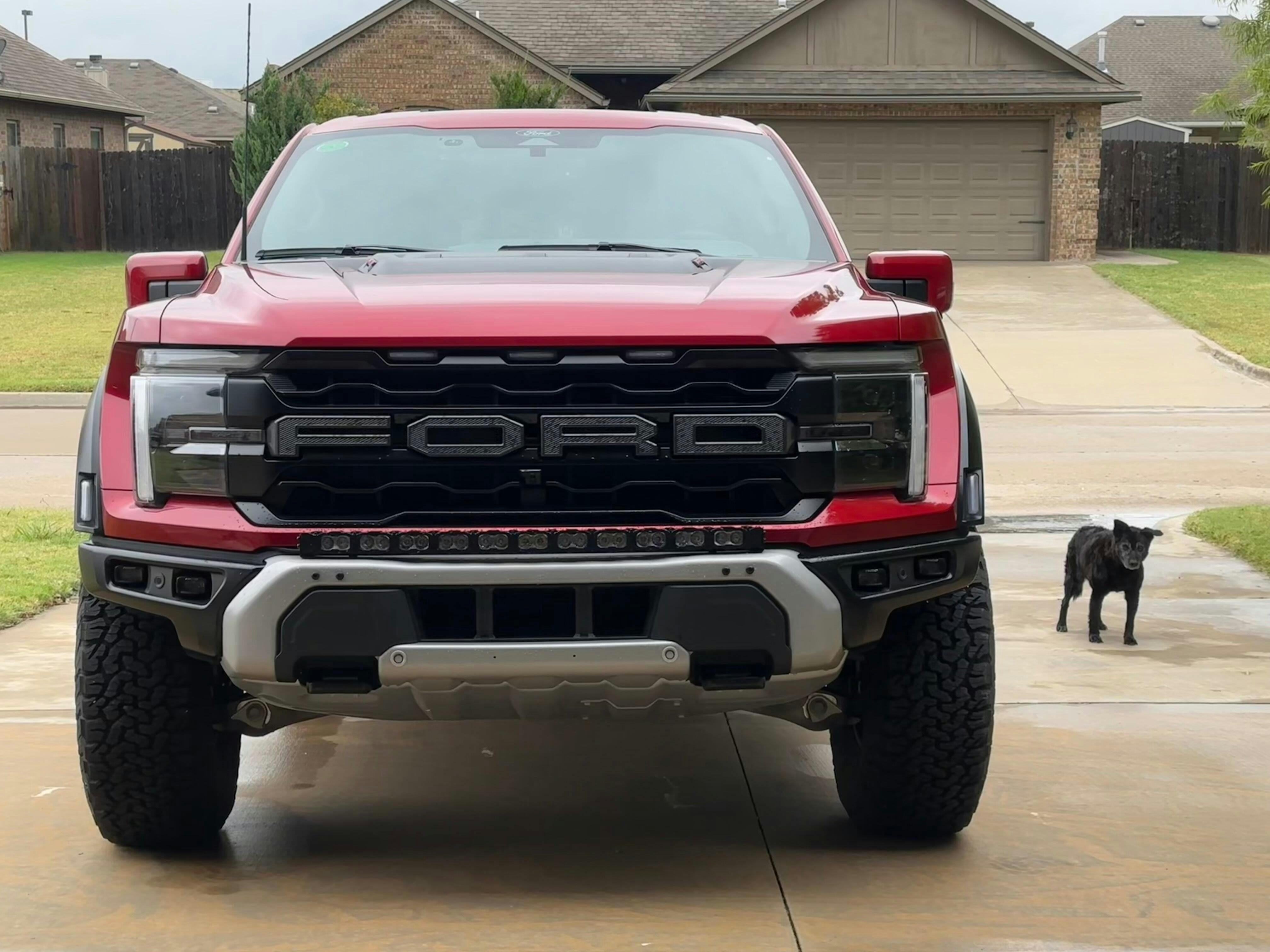

    The light bar from M&R exceeded expectations. Quick and easy install utilizing what makes Raptors great. It bolted right on and had plenty of wire to connect to the factory switches. The video instructions made everything a piece of cake. Highly recommend.

    J
    J.P.
    2024+ Ford Raptor Gen 3 Refresh (Modular Bumper) 40in Light Bar - PRO

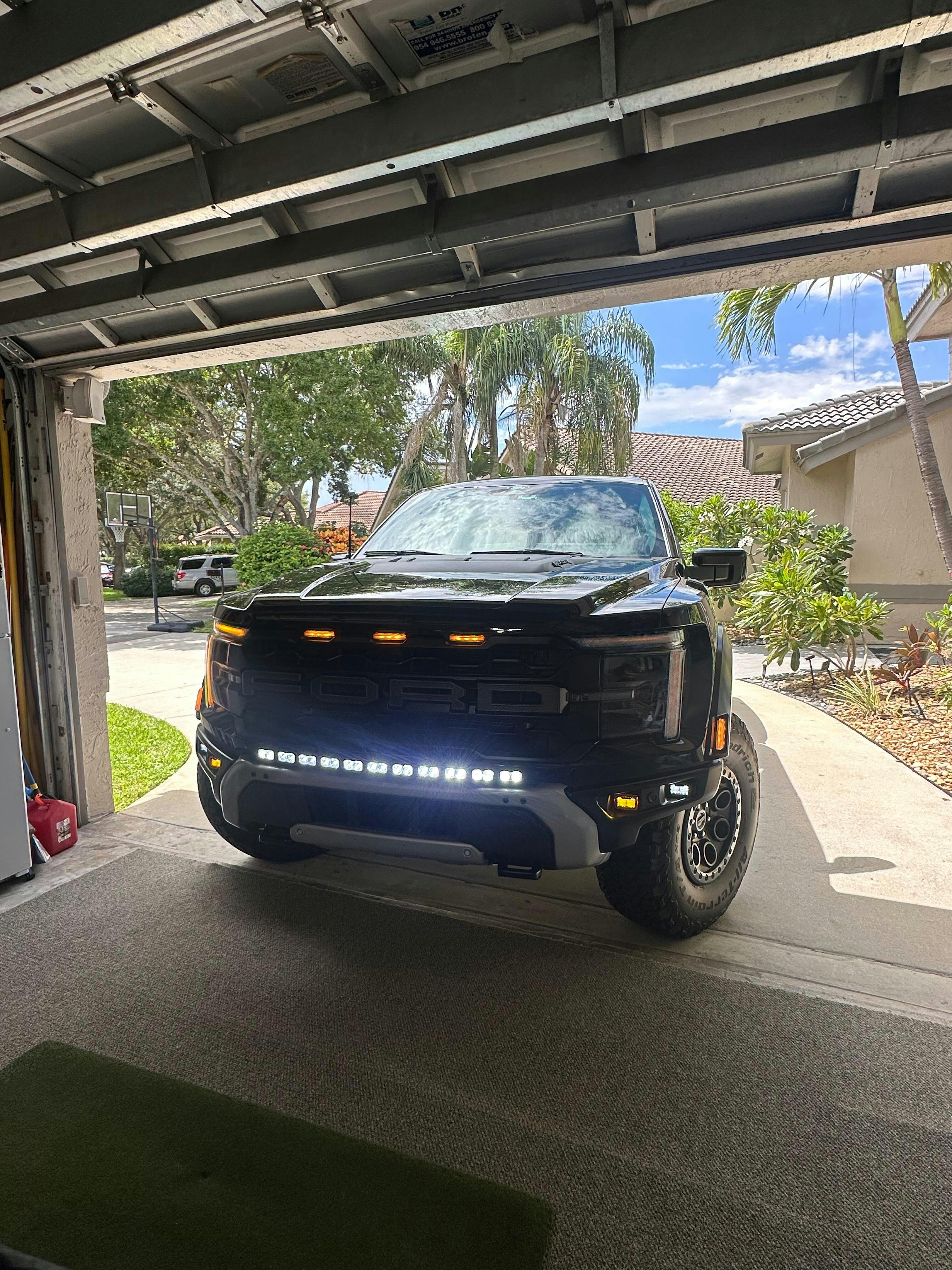

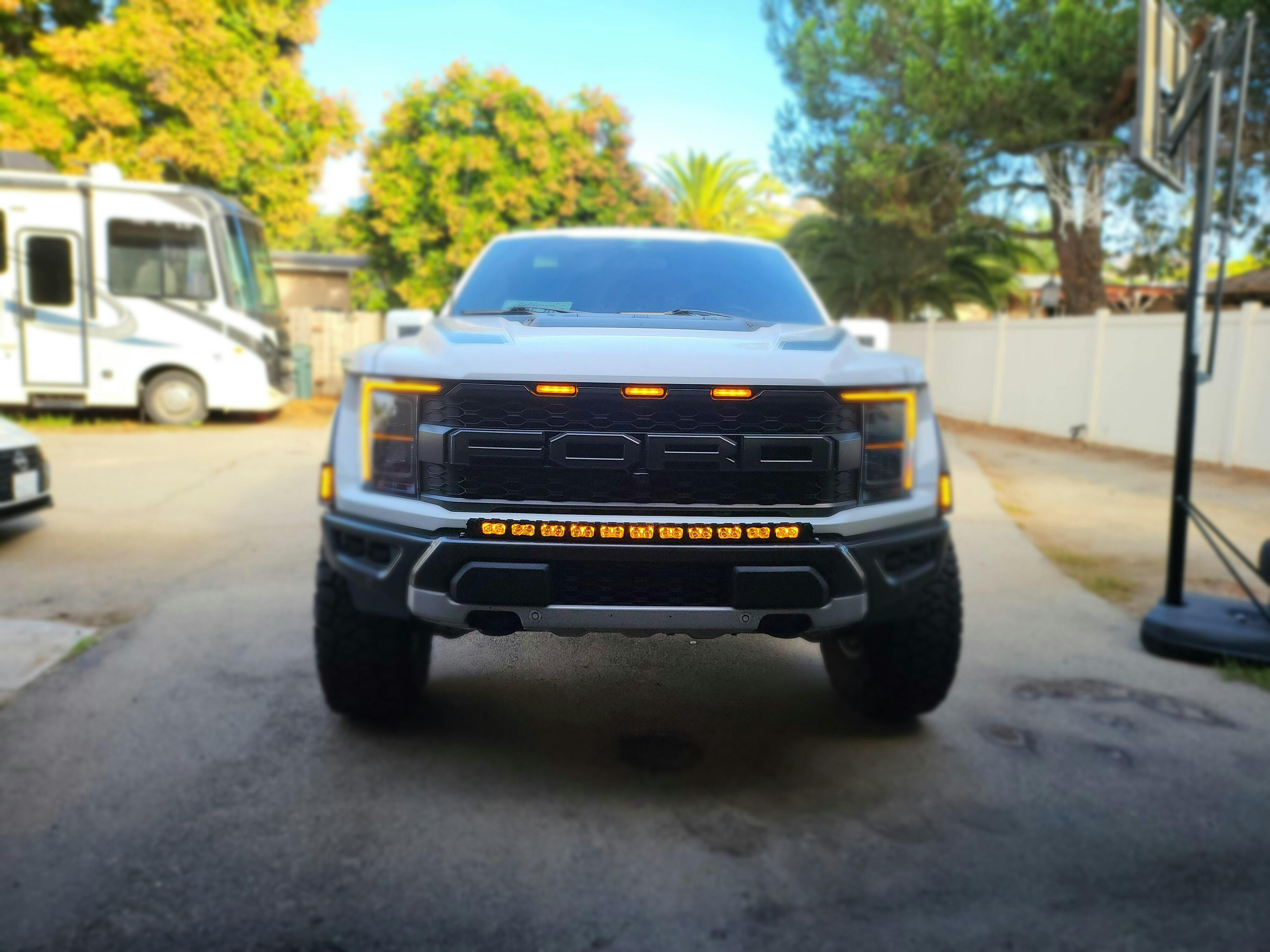

    Awesome! I love this light bar. It’s very bright and looks awesome! The best part is that it doesn’t stick out beyond the front bumper so I can still fit my truck in the garage and close the garage door without the door, hitting the lights. The light bar looks great on the truck! It’s slim and sleek and not obnoxious like most off-road lights.
