$549.99
  • Product Description
  • Shipping & Warranty
  • Fits 2023 2024 2025 Ford Super Duty F250 F350 F450
  • Trims:
    • F250XL, F350XL, F450XL
    • F250XLT, F350XLT, F450XLT
    • F250 Lariat, F350 Lariat, F450 Lariat
    • F250 King Ranch, F350 King Ranch, F450 King Ranch
    • F250 Platinum, F350 Platinum, F450 Platinum
    • F250 Limited, F350 Limited, F450 Limited



    • Curved LED light bar PRO

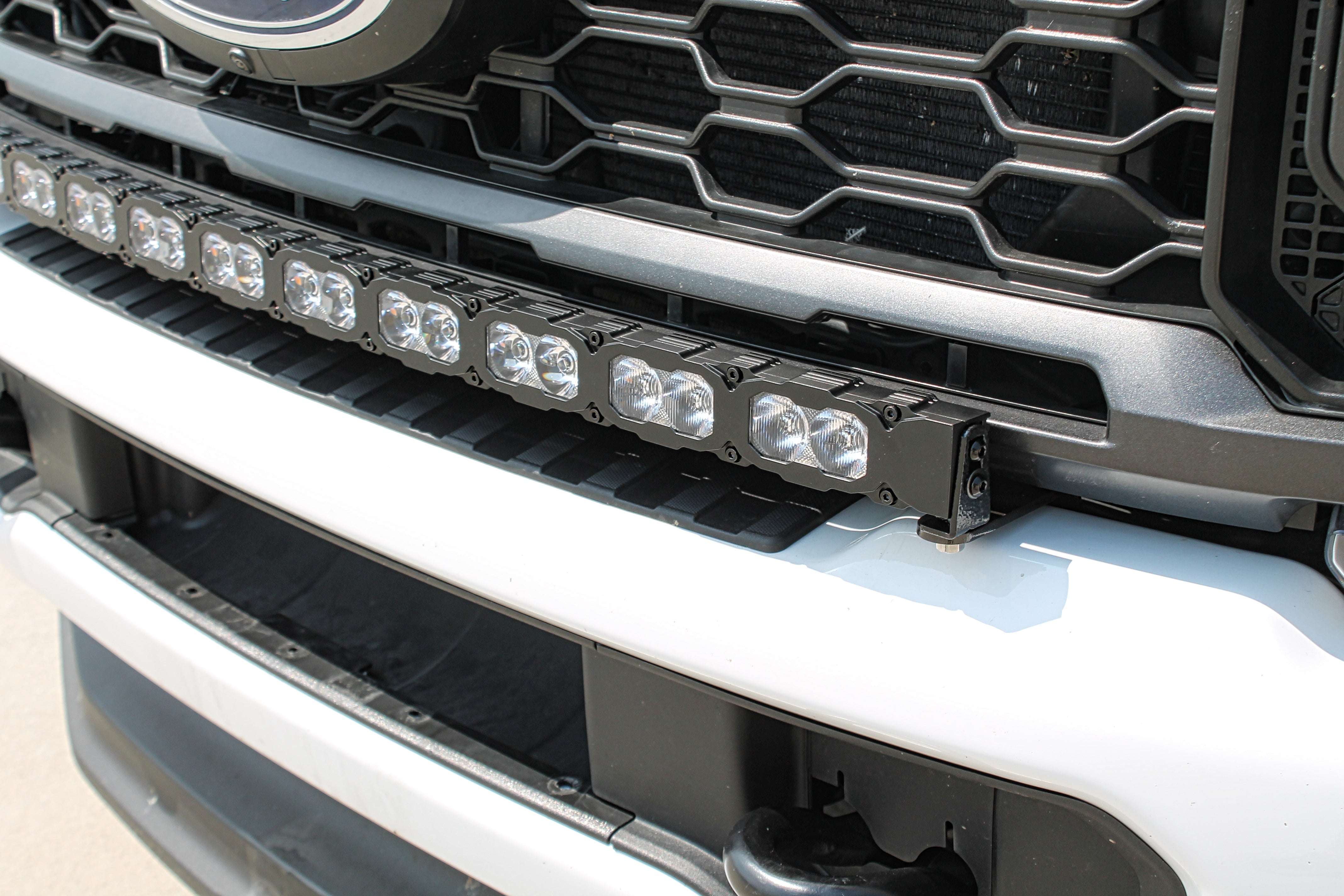

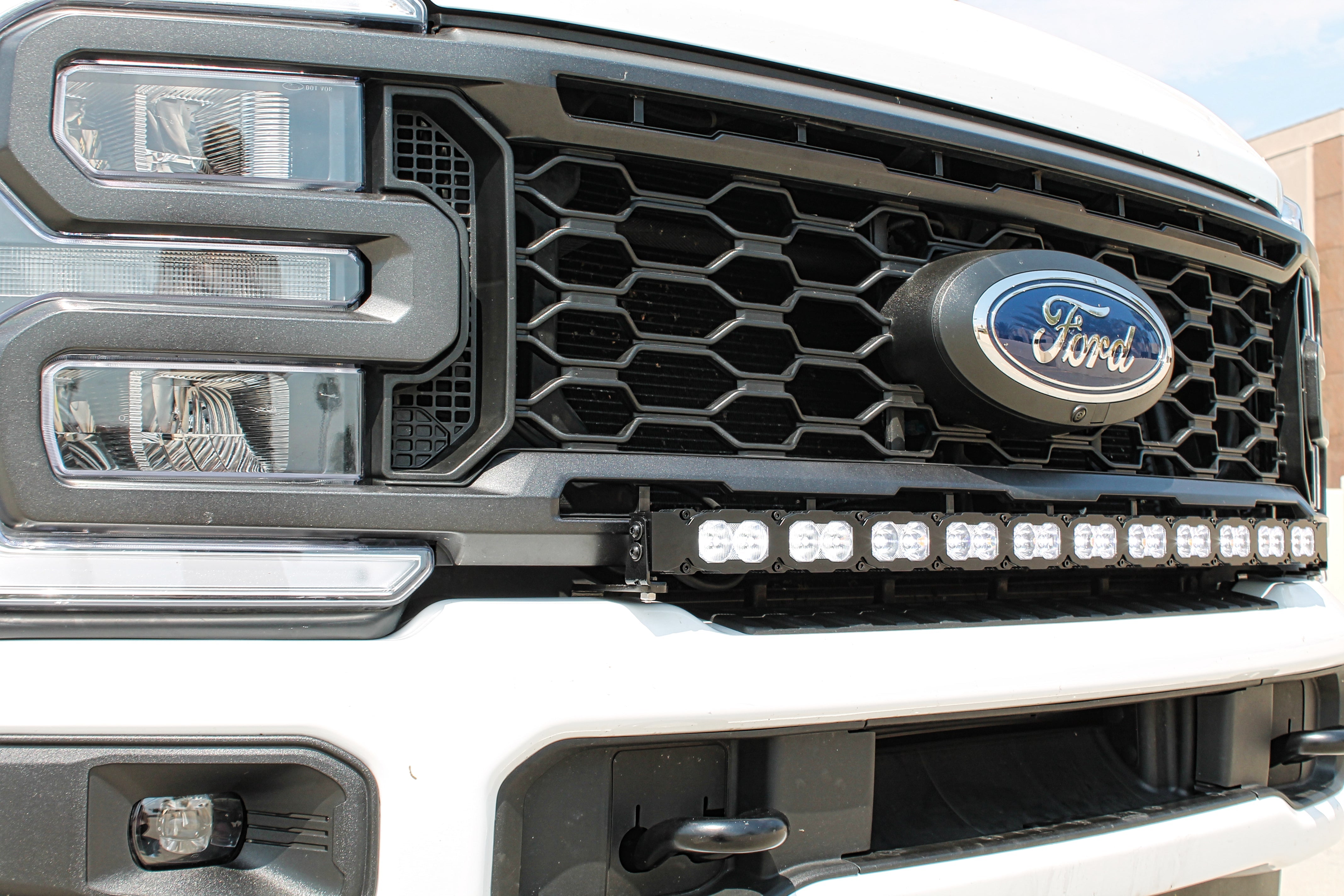

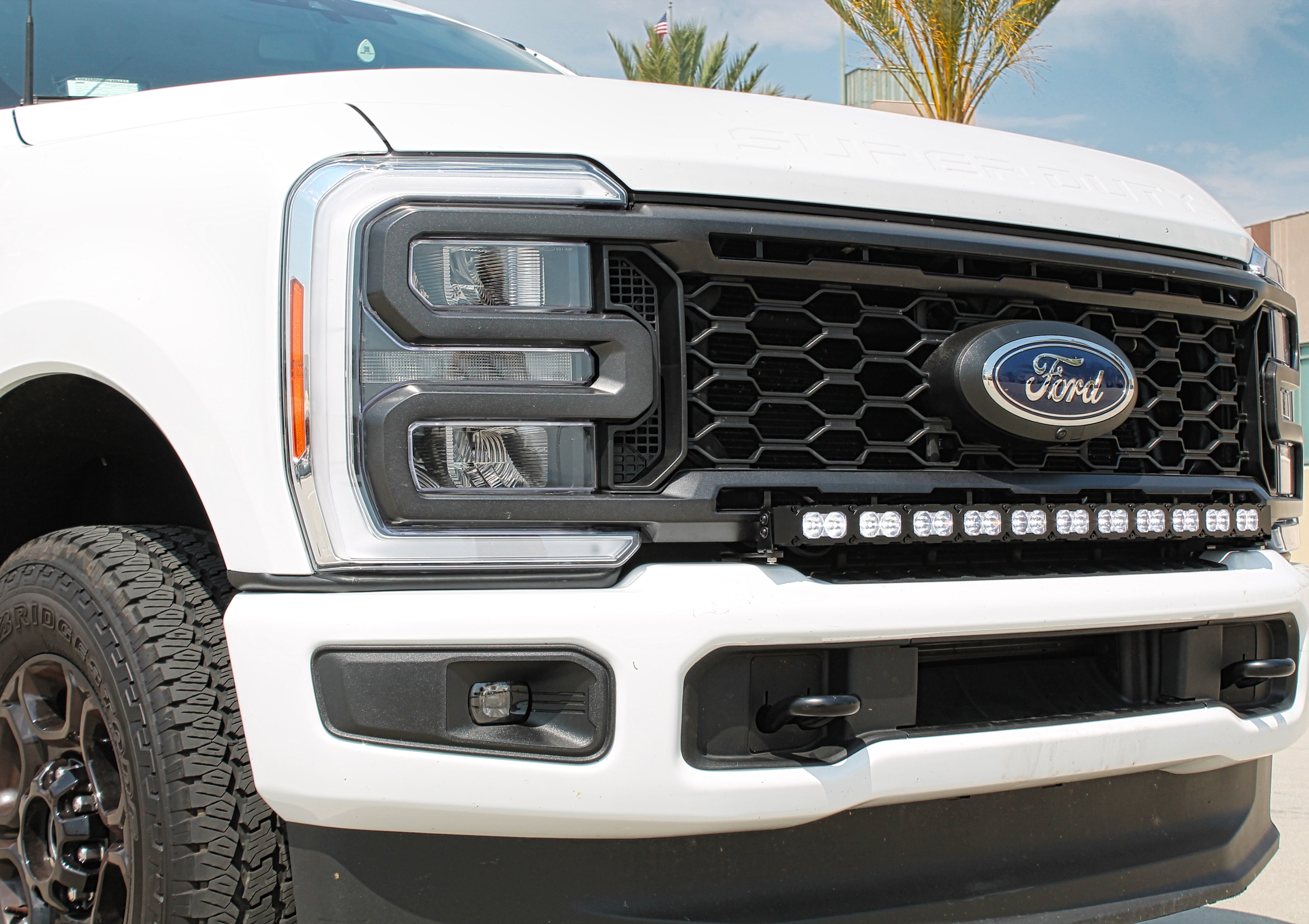

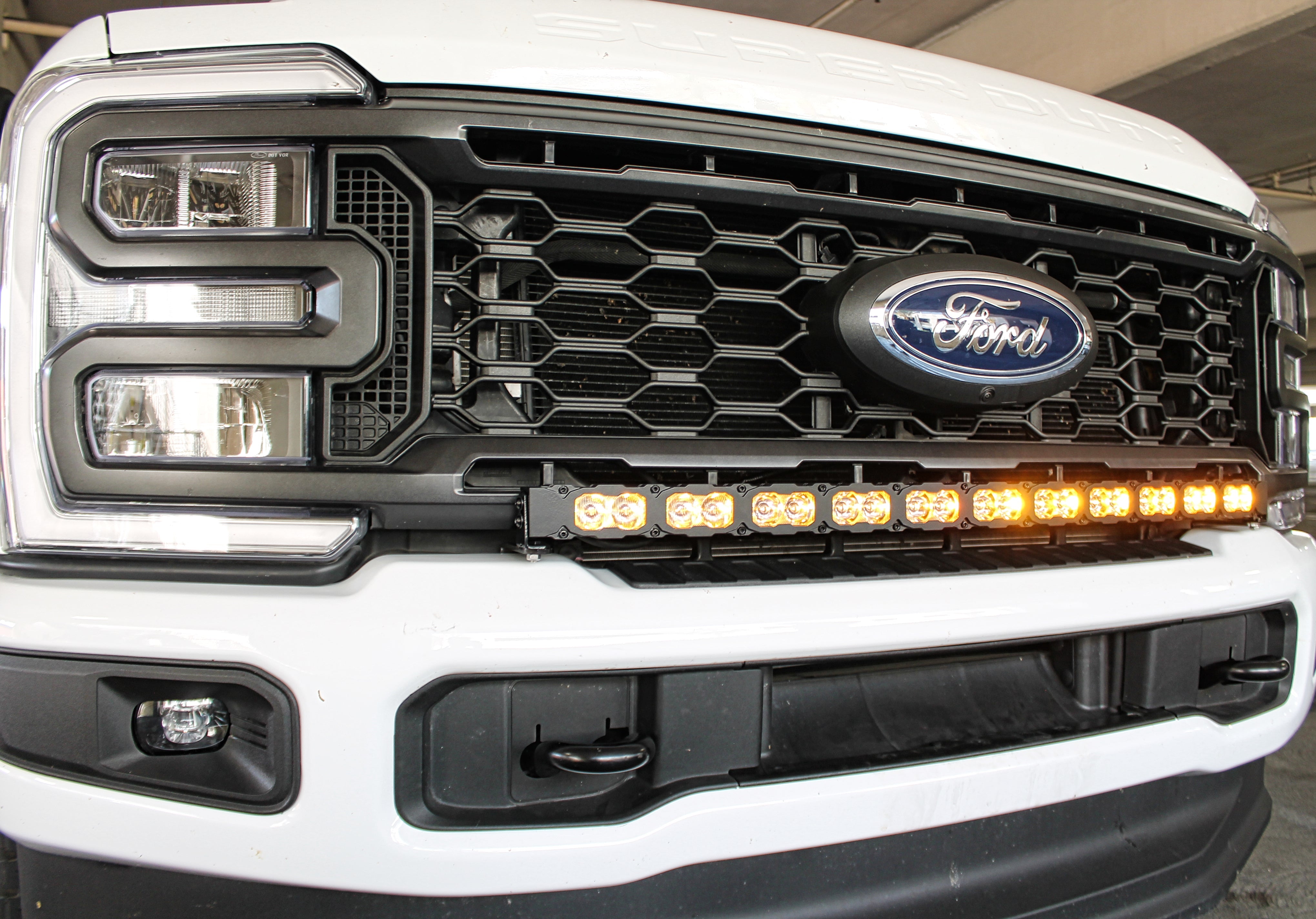

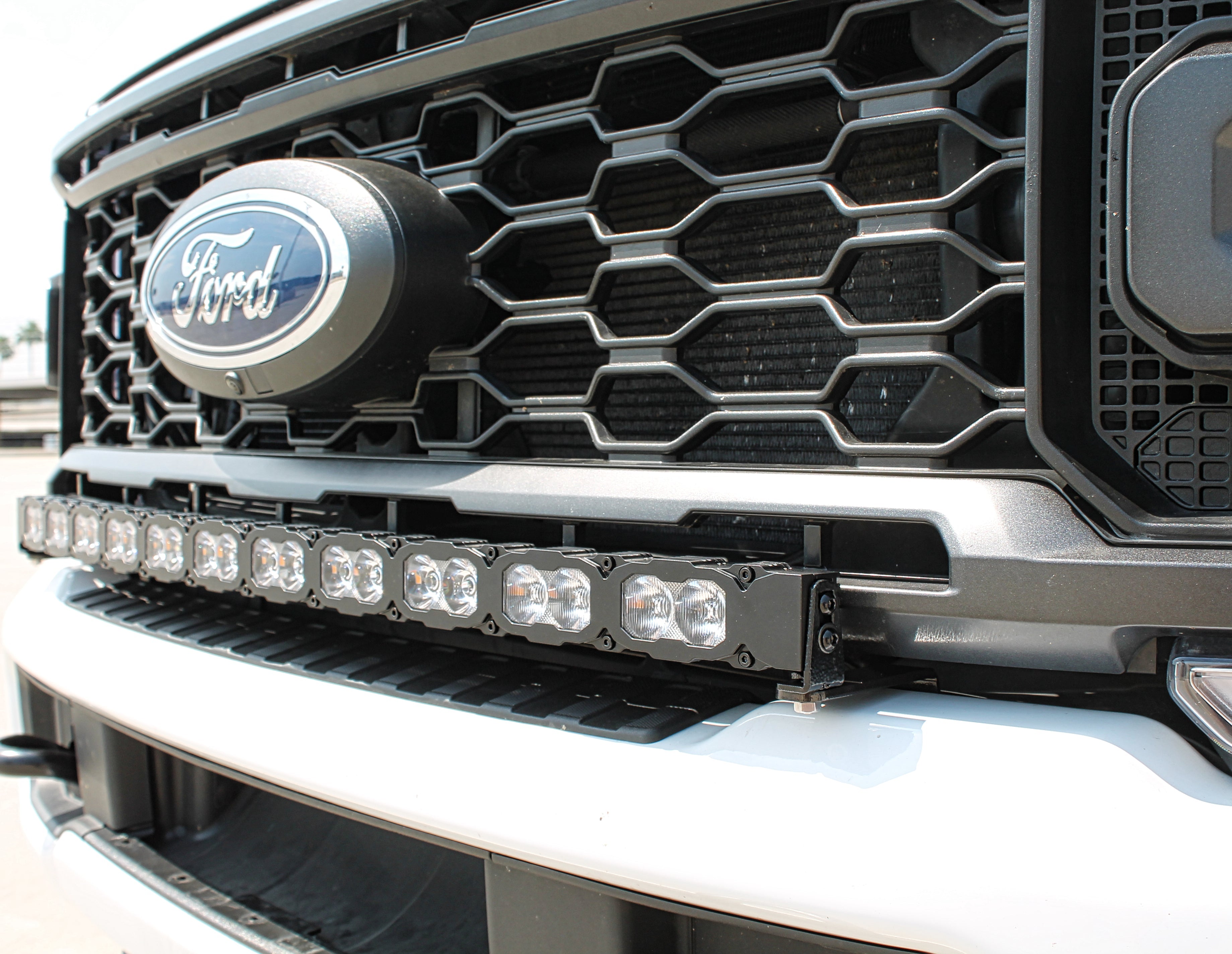

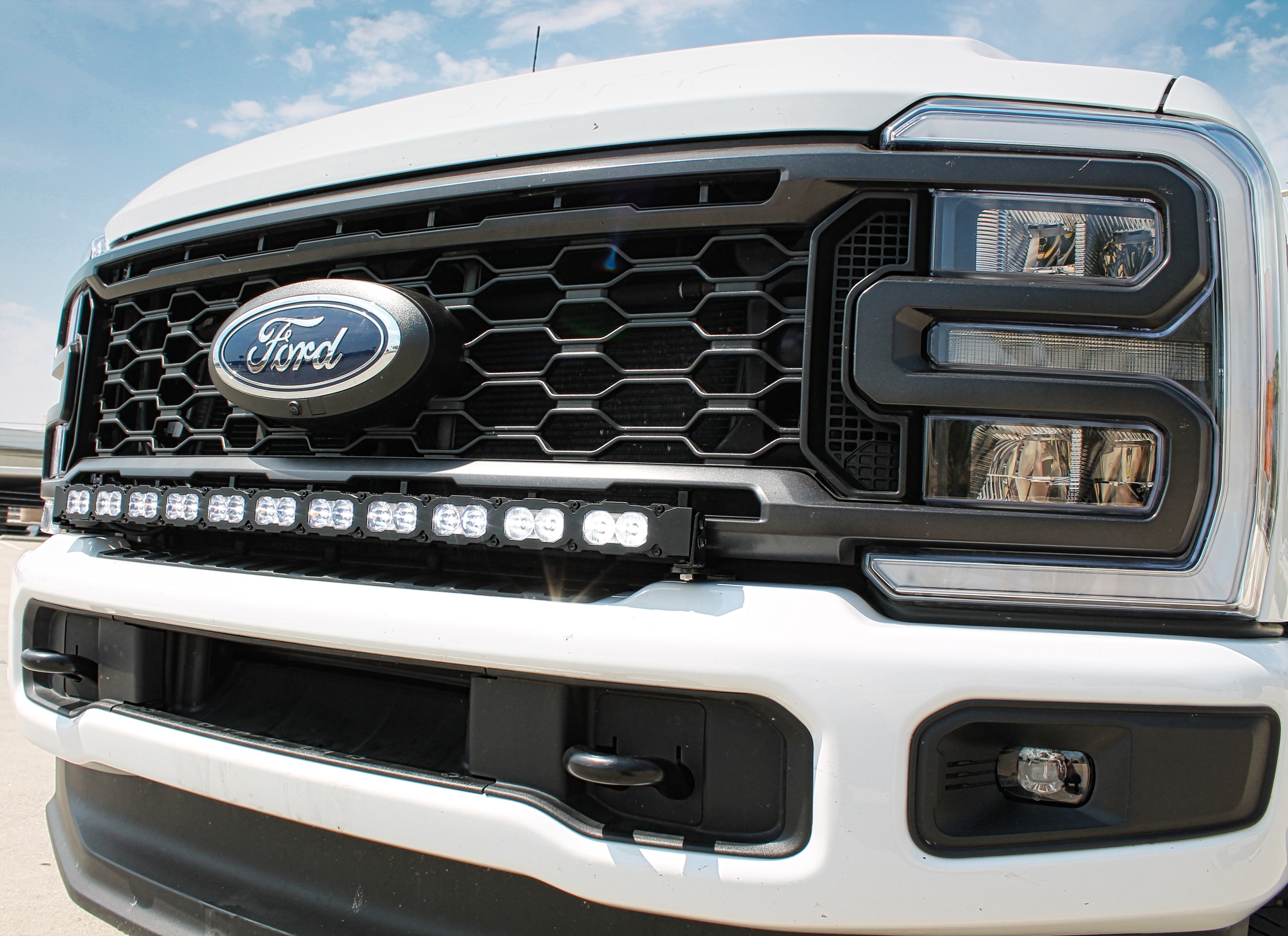

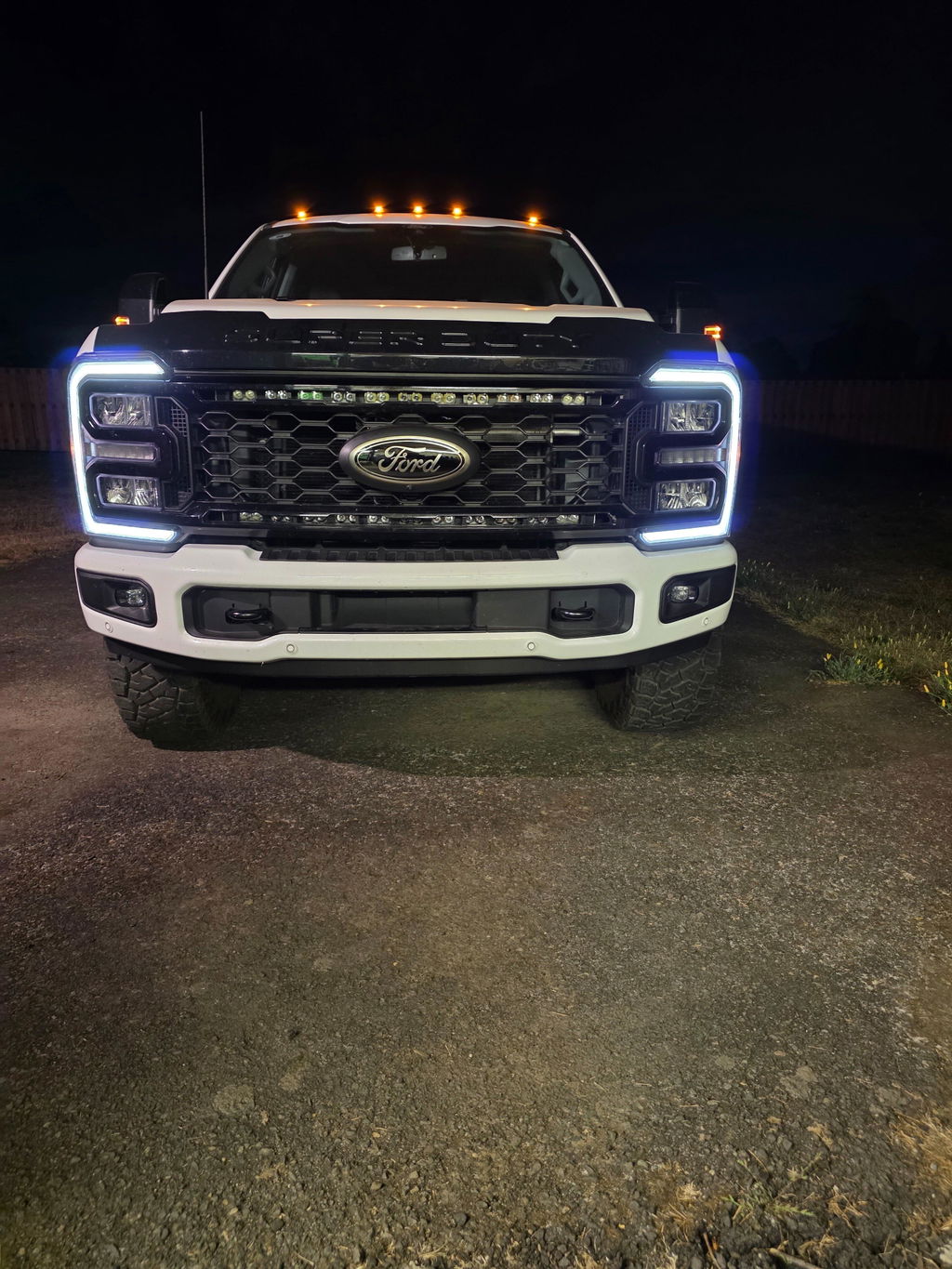

    • Perfectly follows the Ford Super Duty bumper and grille factory curvature
    • Stays slim to the bumper for a sleek, built in look
    • Must remove grille
    • No cutting or drilling required. The kit is a complete bolt on using factory openings and hardware.
    • Doesn't interfere with radiator air flow

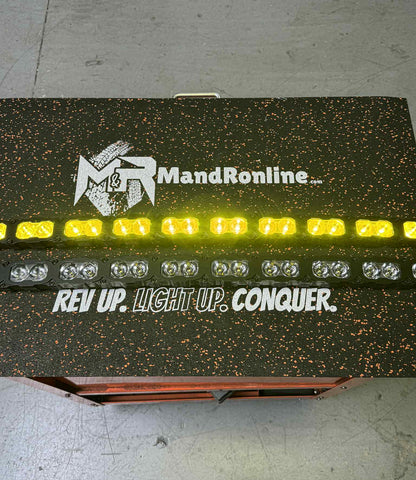

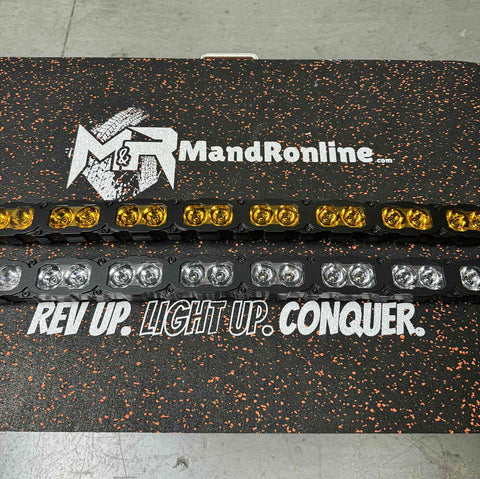

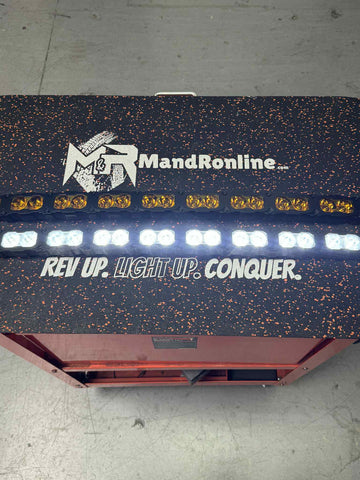

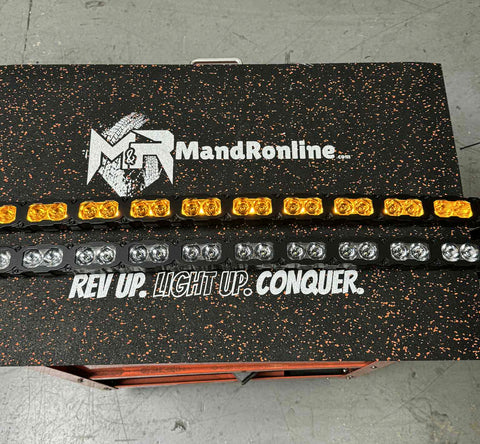

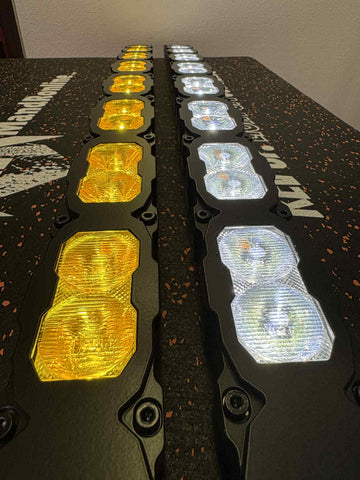

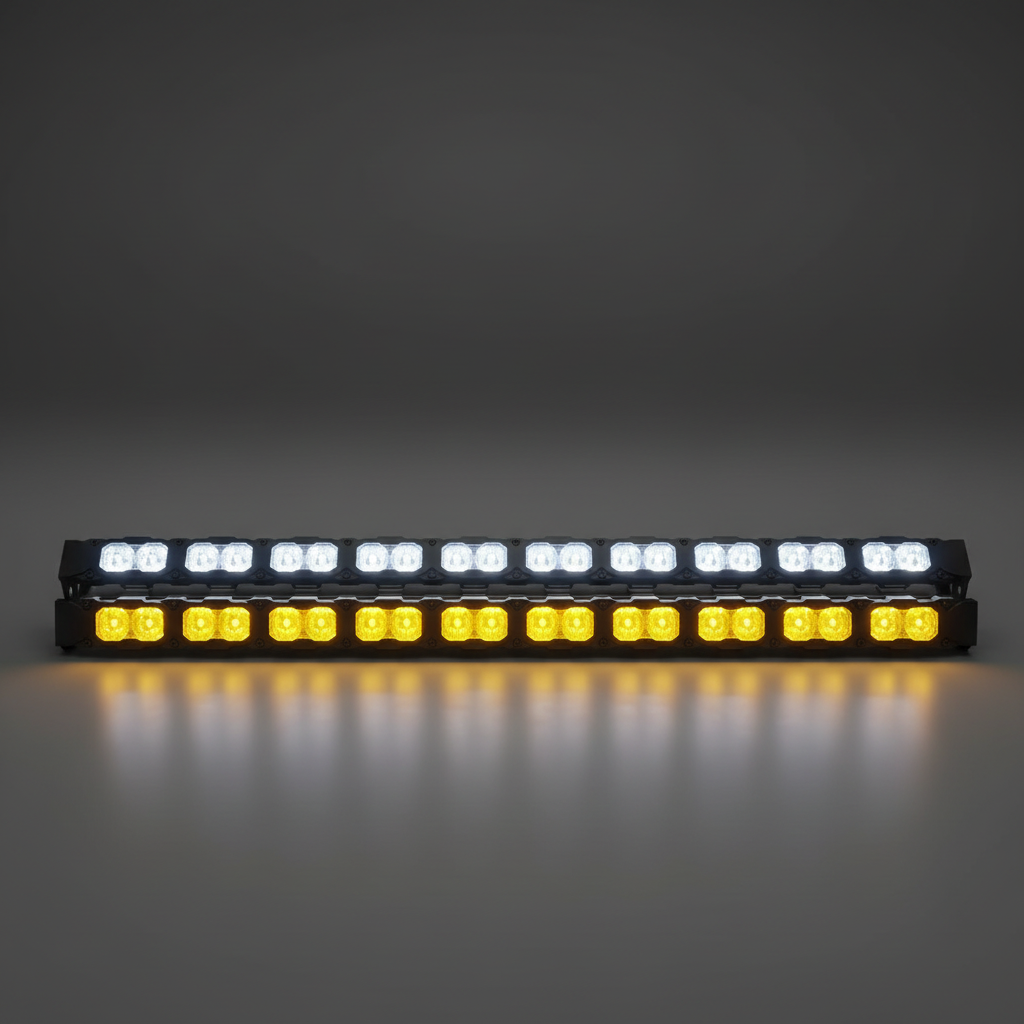

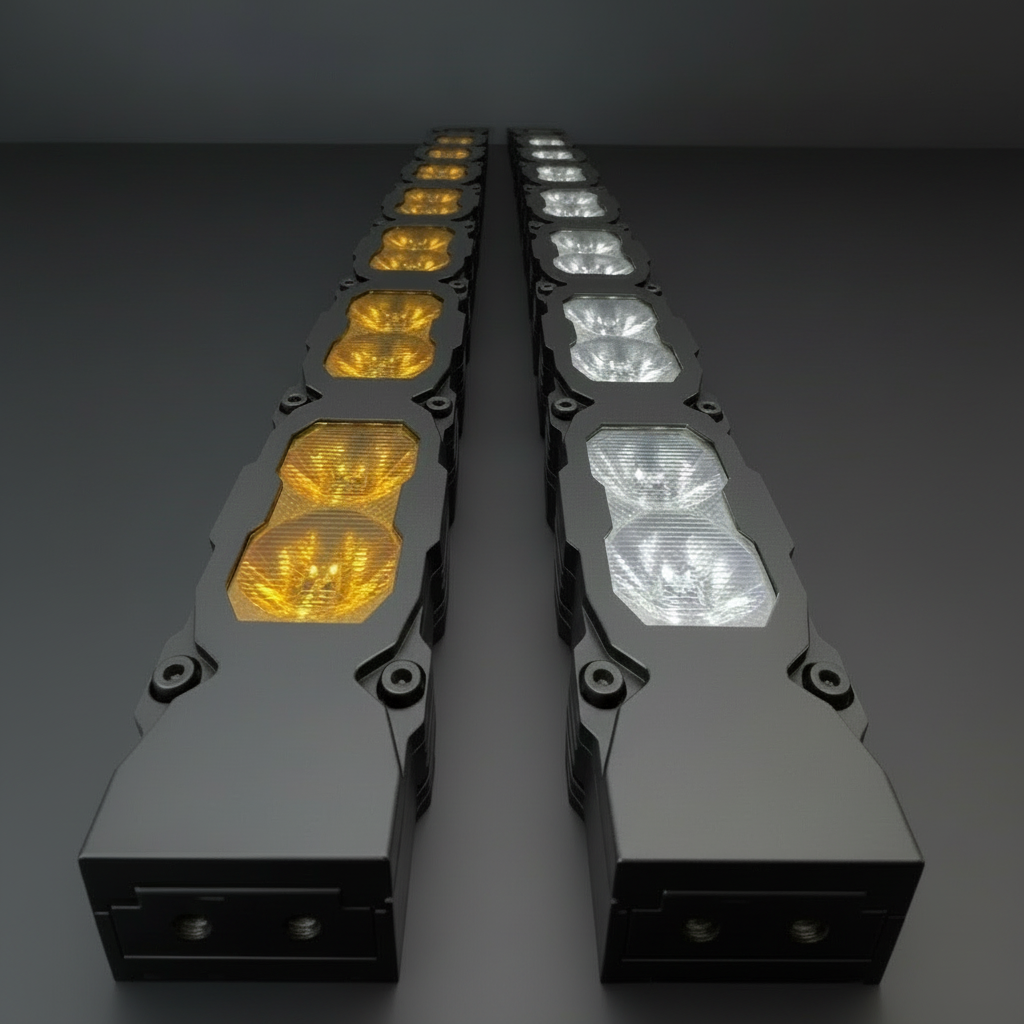

    Dual Color:

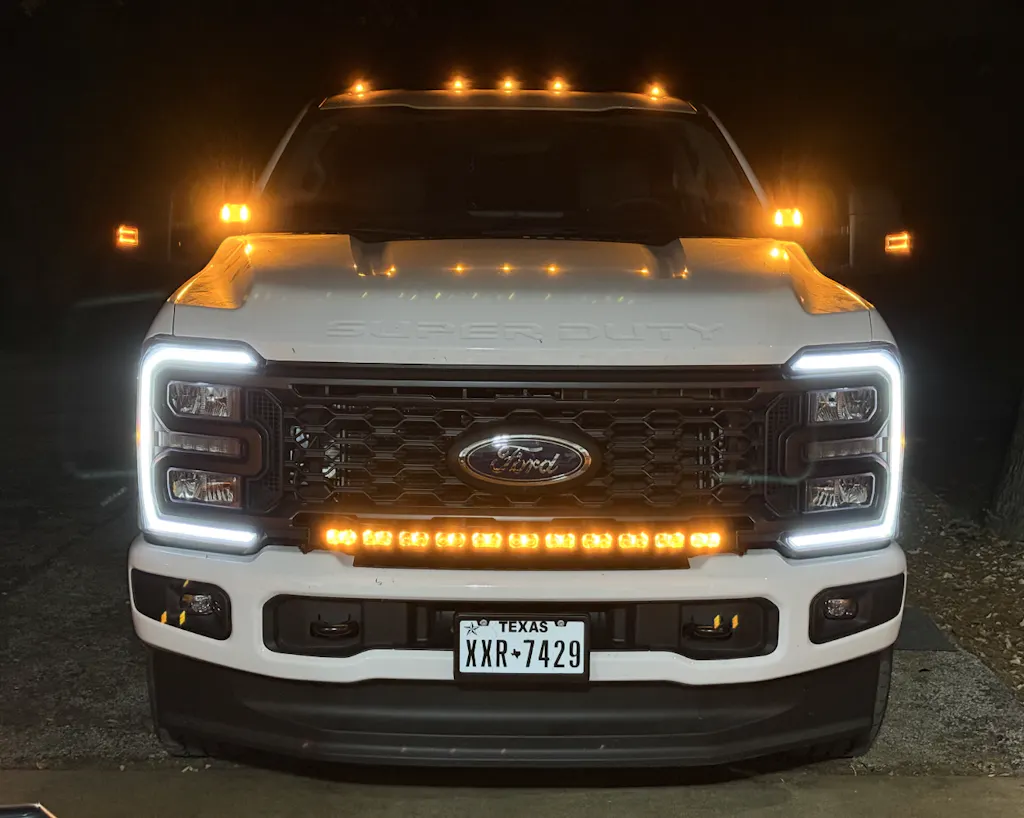

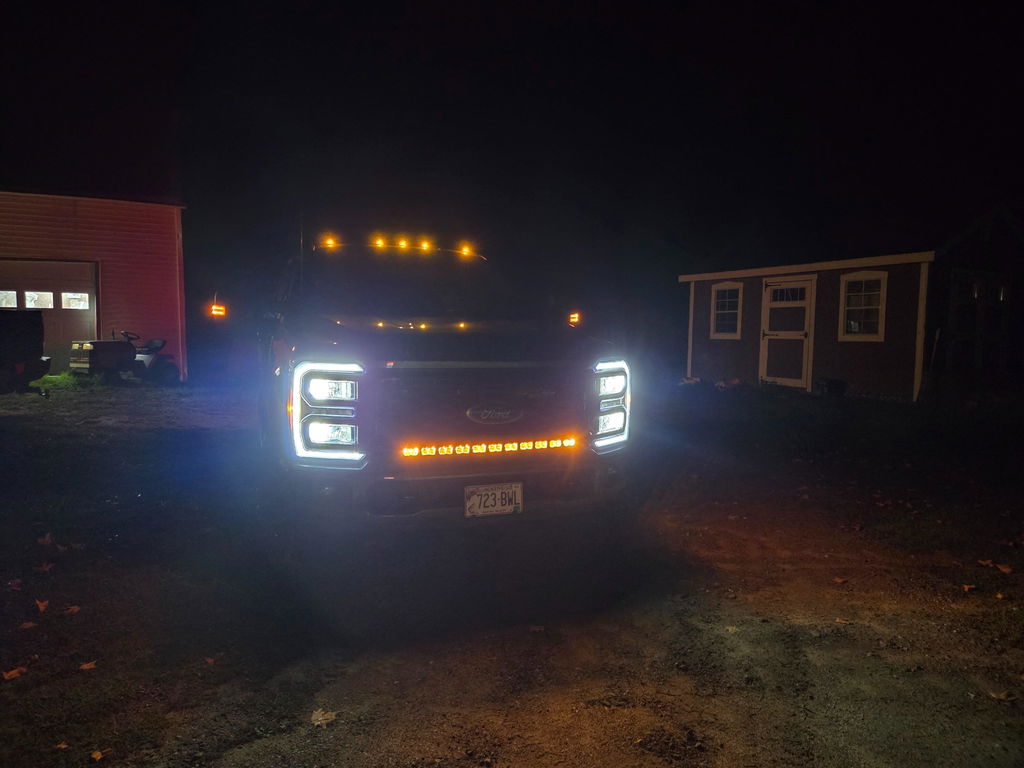

    Main White LED Light with Amber DRL (daytime running lights)

    • White LED -- Super bright and crisp white beam pattern. It will definitely provide you with enough light needed for all of your adventures. However, these are only for off-roading and can’t be used on the regular road. They will blind the in-coming traffic and also violates road safety.

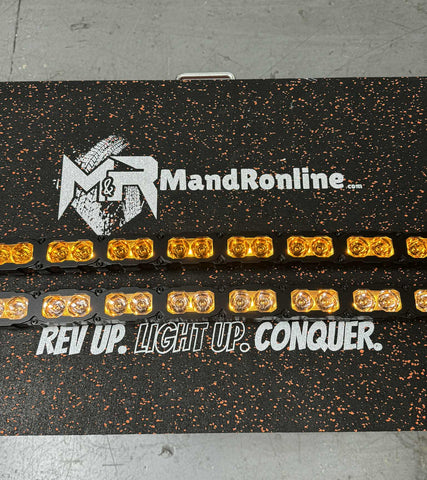

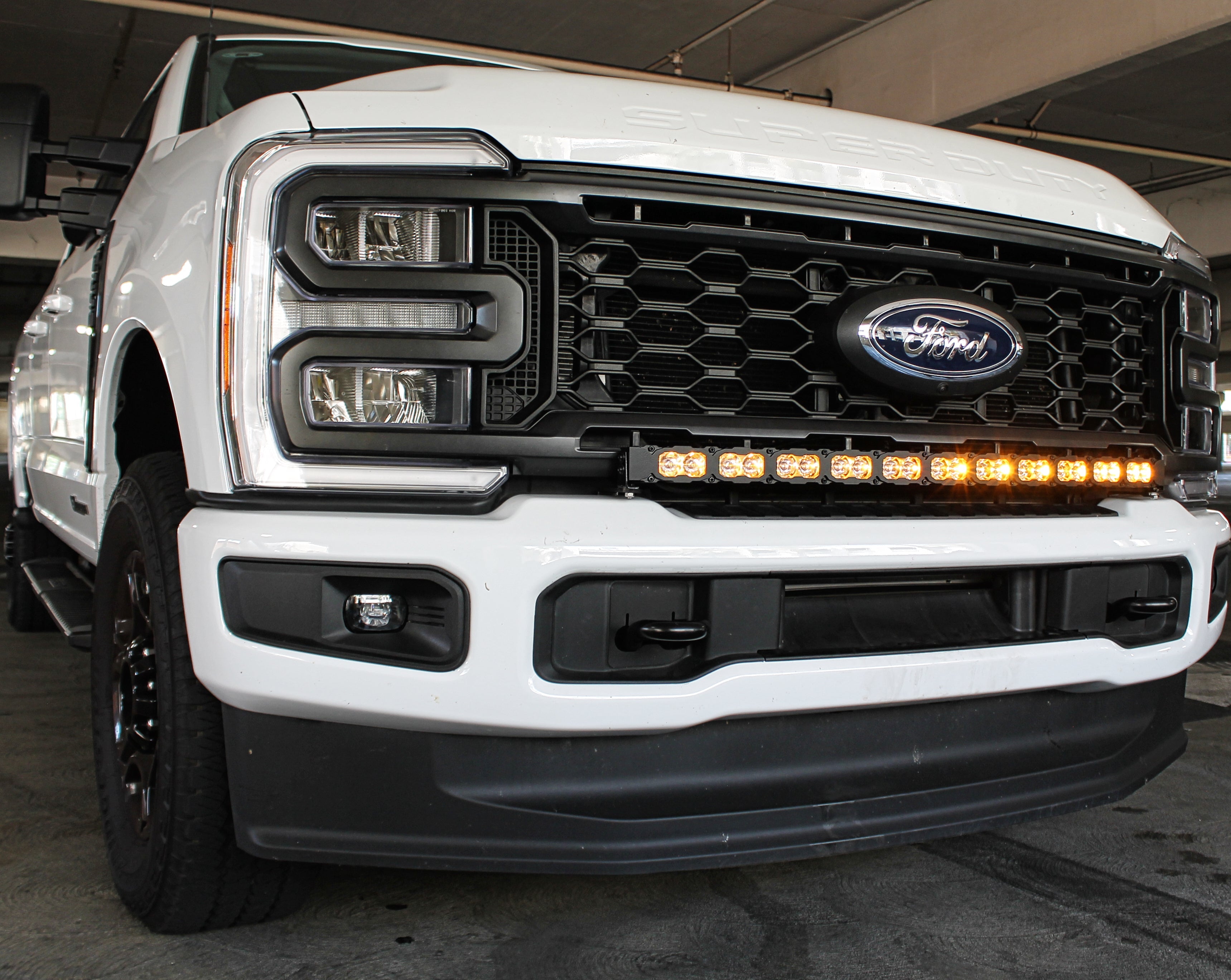

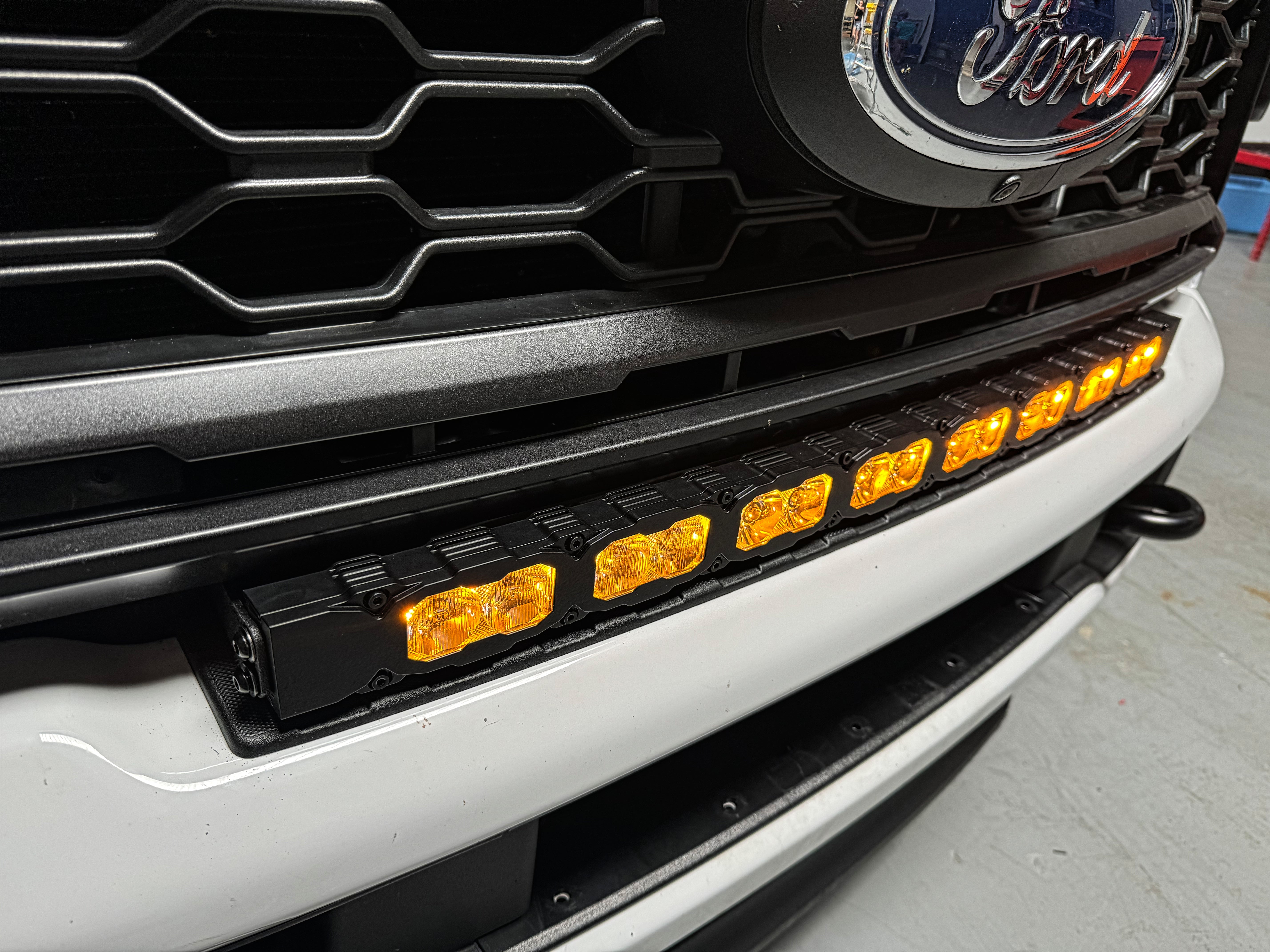

    • Amber DRL -- amber DRL “daytime running lights” acts purely for aesthetics. Since it doesn’t give out much light, you can use this amber DRL feature on regular roads, it doesn't blind in-coming traffic.



    LIGHT BAR SPECS:

    ·         Theoretical max power 220watts

    ·         Actual power 125watts

    ·         Main White light is 10.42amps at 12v

    ·         Backlight Amber is 0.25amps at 12v

    ·         Theoretical max luminous flux 24,024 lm

    ·         Measured luminous flux (without lens) 15,224 lm

    ·         Measured luminous flux (with lens) 12,108 lm

    ·         LEDs type: luminus SST-20 Ra70

    ·         Temperature: 6000k

    ·         LEDs number: 22pcs

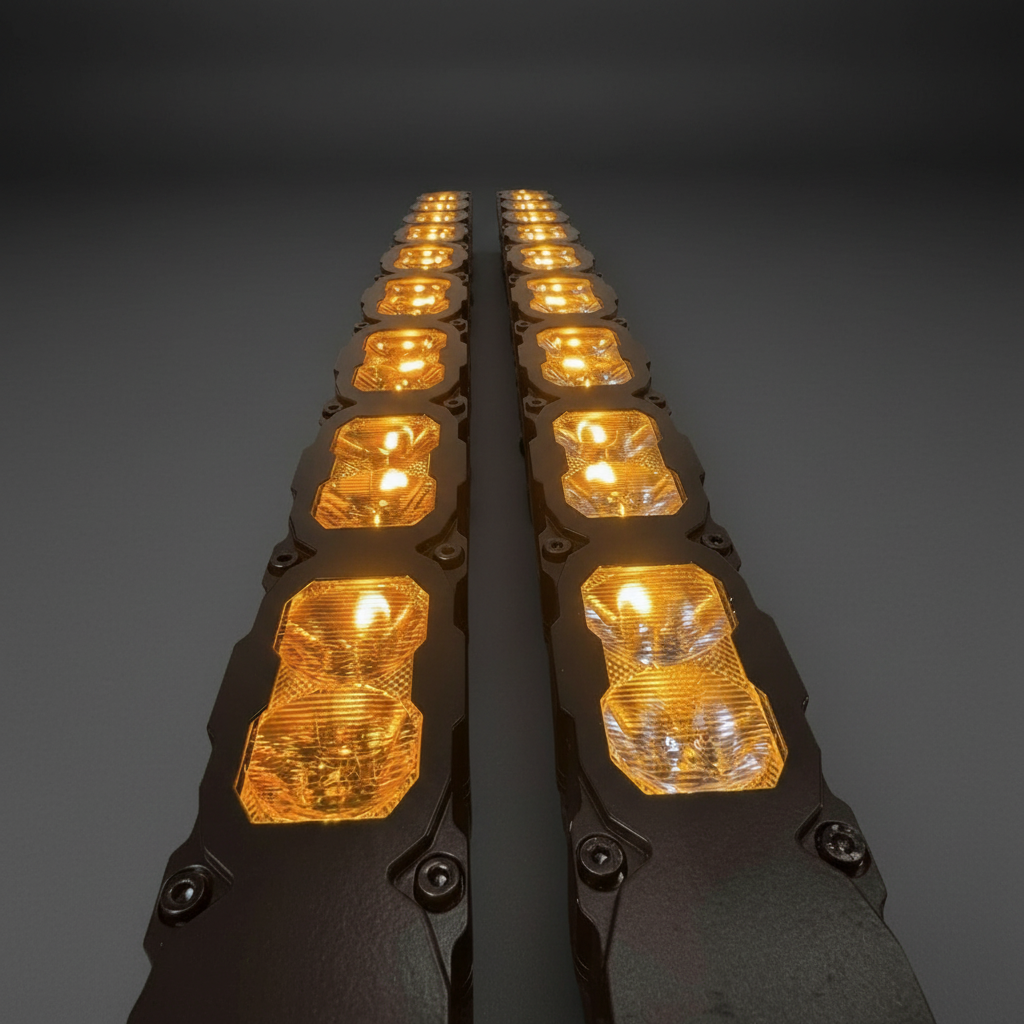

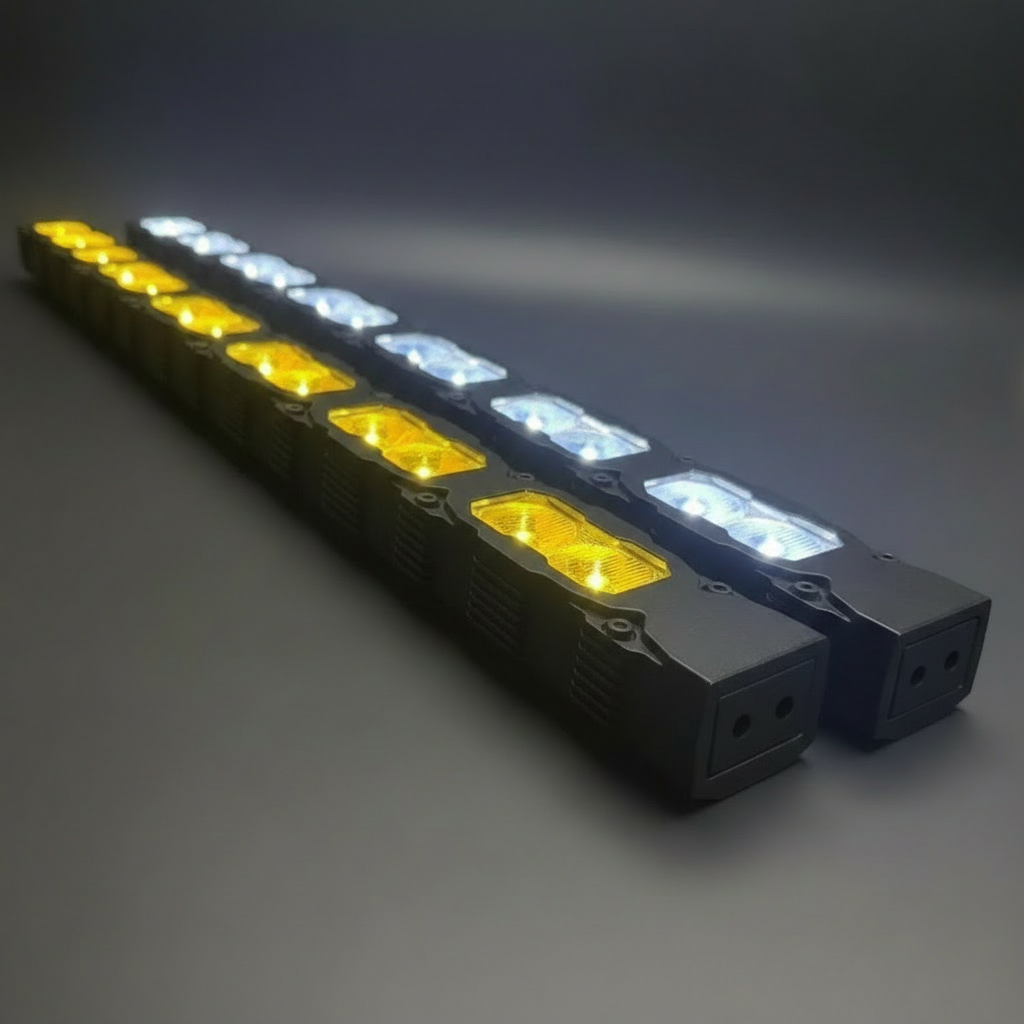

    Introducing our new LED light bar-PRO wiTh a unique appearance and optimal performance.

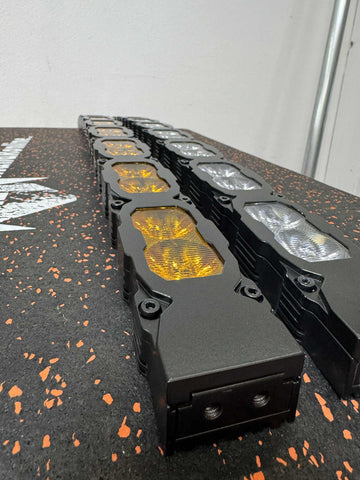

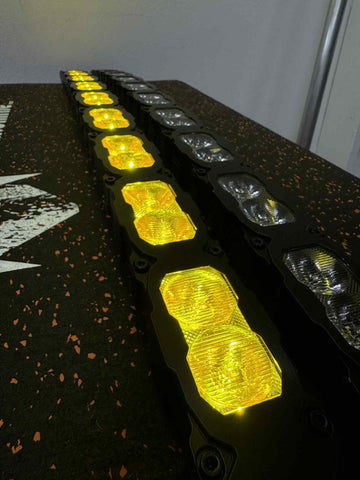

    • Uses TIR (Total Internal Reflection) lens is different from our the regular slim light bar. The TIR lens collects all of the light from the LED and directly leads them to where you need, drastically reducing glare and improving total efficiency.
    • Higher light efficiency: brighter, longer irradiation distance

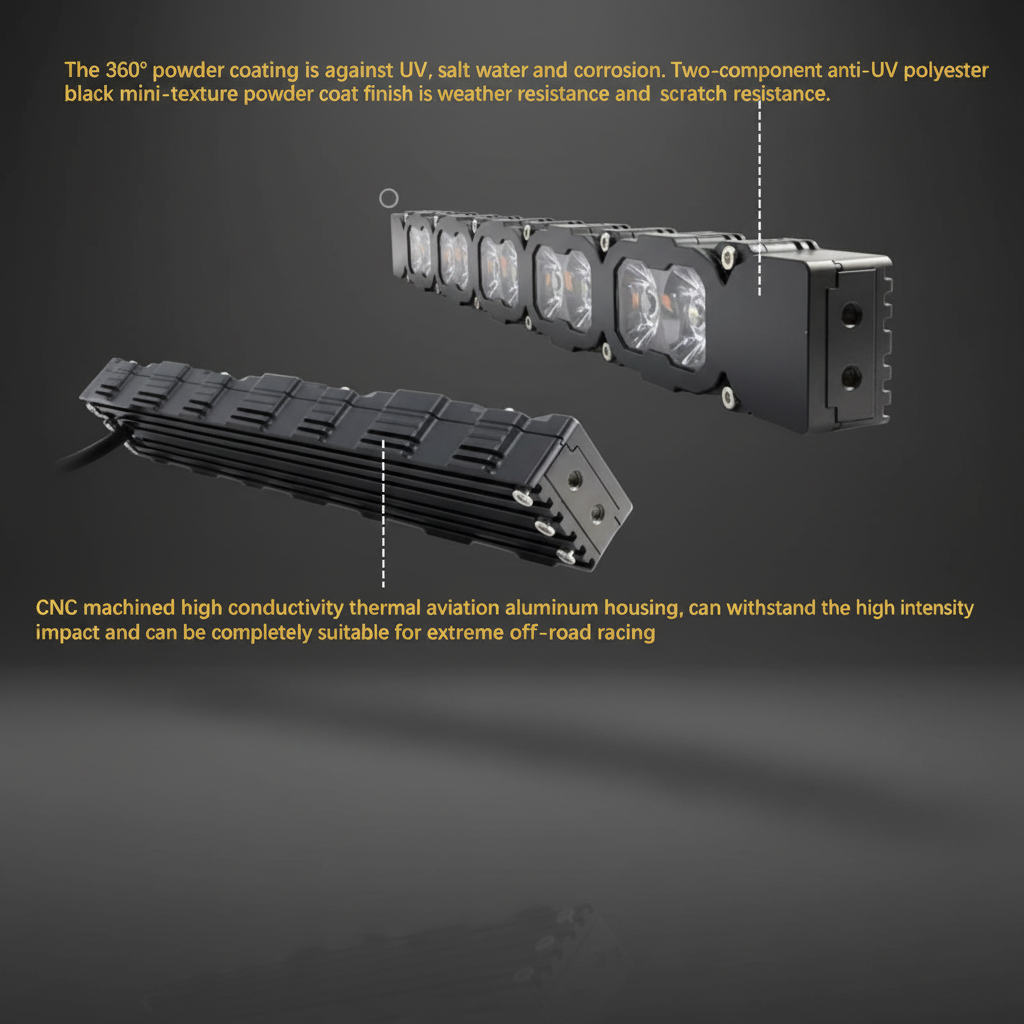

    • Housing is upgraded to 304 aluminum. The surface is UV polyester powder coated to prevent against UV, salt water, corrosion, fading and scratch resistant.
    • Equipped with thermal management system that automatically adjusts the brightness output according to the external temperatures
    • Combo Pattern: combined spot and driving optics offers a balance between the distance and width



    👍Our light kits are for off-road use only.

    WHAT'S INCLUDED?

    (1) 40in light bar Curved PRO

    (4) mounting brackets

    All mounting hardware

    WIRING

    • M&R Automotive doesn’t provide a wiring harness.
    • The light bar has 6ft of wire which is enough to reach AUX switches if your truck has them. Otherwise, you will need to purchase a generic wiring harness from Amazon/Ebay or create your own.

    • For this install, we used M&R wireless wiring harness. This makes it an easy, clean install without running wires inside the cab.


    INSTALLATION INSTRUCTIONS

    All domestic (USA) orders are free shipping via USPS or UPS, depending on product size.
    We typically ship in 3-7 business days. If we are anticipating a delay with your shipment due to availability of the product, we will reach out to you via email.

    Canada, international or express shipping costs are calculated at checkout.

    You will receive an email with tracking number when your order is shipped.

    If you have a special request about your order, reach out, we try to accommodate as much as we can.

    For a complete shipping policy click here.


    We have a lifetime warranty on our light kits. We truly want our truck enthusiastic customers to enjoy their products as much as we enjoy designing them. However, we also understand that different situations arise with brackets or lights. For more information about our warranty and disclaimer click here.




    *M&R Automotive is not responsible for misuse or improper installation of the product. Professional installation is recommended.




    Customer Reviews

    Be the first to write a review
    0%
    (0)
    0%
    (0)
    0%
    (0)
    0%
    (0)
    0%
    (0)

    INCLUDES:

    • Rechargeable wireless controller, USB Type-C connector
    • Mounting plate that you attach to your preferred place inside the vehicle. The remote is magnetic for easy operation.
    • Sticker page to change the key icon to match the device connected to the control box.

    Wireless Connectivity: With advanced wireless technology, connect and power various accessories without the need for traditional wiring. Enjoy a cleaner and more organized interior.  Wireless remote stays inside your vehicle without the need to run a wire through the firewall.

    8 Switches: Total of 8 circuits: (2) 5amps, (2) 10amps, (2) 20amps, (2) 30amps

    • Max power: 1200watts
    • Max current Rating: 80amps
    • Voltage: DC 12V-24V

    Plug-and-Play Compatibility: Installing accessories has never been easier. Designed with a user-friendly, plug-and-play interface, eliminating the need for complex wiring setups. Simply connect your accessories to the panel and you're ready for an adventure.



    Universal Compatibility: Whether you're adding LED lights, off-road equipment, or other accessories, our wireless wiring harness is universally compatible. Seamlessly integrates with your vehicle's electrical system.



    Enhanced Safety: Reduce the risk of electrical issues and potential hazards associated with traditional wiring systems. Engineered with safety in mind, featuring built-in safeguards to protect against overloads, short circuits, and other electrical mishaps.



    Weatherproof Design: Built to withstand the toughest conditions, it is fully weatherproof. It has a rubber gasket around the fuse box and covered in epoxy.
