- Fits 2023 2024 2025 2026 Ford Super Duty F250/350/450
- Trims:
- F250XL, F350XL, F450XL
- F250XLT, F350XLT, F450XLT
- F250 Lariat, F350 Lariat, F450 Lariat
- F250 King Ranch, F350 King Ranch, F450 King Ranch
- F250 Platinum, F350 Platinum, F450 Platinum
- F250 Limited, F350 Limited, F450 Limited
- Curved LED light bar slim
- Perfectly follows the Ford Super Duty bumper and grille factory curvature
- Stays slim to the bumper for a sleek, built in look
- Don't need to remove grille
- No cutting or drilling required. The kit is a complete bolt on using factory openings and hardware.
- Doesn't interfere with radiator air flow
Choose your light bar color:
1) White LED --Up to 11,760 lumens, bright and powerful. It will definitely provide you with enough light needed for all of your adventures. However, these are only for off-roading and can’t be used on the regular road. They will blind the in-coming traffic and also violates road safety.
2) Amber LED --Up to 5,500 lumens, used in poor driving conditions such as dust, fog, snow and rain. It reflects through air particles much less than the white light. Therefore, making it ideal for poor driving conditions.
3) dual function: main White LED light with Amber DRL backglow -- the white LED light is same as described above, but the amber DRL “daytime running lights” acts purely for aesthetics. It doesn’t give out much light, but more of a beautiful amber backglow. Since it doesn’t give out much light, you can use this amber DRL feature on regular roads, it doesn't blind in-coming traffic.
Full in-depth video describing our lights bars CLICK HERE
👍Our light kits are for off-road use only.
WHAT'S INCLUDED?
(1) 30in curved light bar - SLIM
(2) mounting brackets
All mounting hardware
WIRING
- M&R Automotive doesn’t provide a wiring harness for this light bar kit.
- The light bar has 6ft of wire which is enough to reach AUX wires if your truck has them. If not, you need to purchase a generic wiring harness from Amazon/Ebay or create your own.
- We sell a wireless wiring harness that delivers a clean, hassle-free install—no need to run wires into the cab.
INSTALLATION INSTRUCTIONS
30in SLIM light bar
White:
- Beam Pattern Spot
- Theotetical max power 135watts
- Actual power 73watts
- Voltage/current DC12v/6.08A
- Theoretical max luminous flux 15,795 lm
- Measured luminous flux (without lens) 8,532lm
- Measured luminous flux (with lens) 5,844 lm
- LEDs type CREE XTE
- Temperature 6000k
- LEDs number 27pcs
- Product size LxWxD (in) 30 x 0.75 x 1.63
30in SLIM light bar
Amber:
- Beam Pattern Spot
- Theotetical max power 105watts
- Actual power 54watts
- Voltage/current DC12v/4.5A
- Theoretical max luminous flux 8,370 lm
- Measured luminous flux (without lens) 5,535 lm
- Measured luminous flux (with lens) 3,792 lm
- LEDs type CREE XP - E2 Amber
- Temperature
- LEDs number 27pcs
- Product size LxWxD (in) 30 x 0.75 x 1.63
30in SLIM light bar
White with Amber DRL
- Beam Pattern Spot
- Theotetical max power 135watts
- Actual power 73watts
- Voltage/current main DC12v/6.08A
- Voltage/current backlight 4.1W/0.34A
- Theoretical max luminous flux 15,795 lm
- Measured luminous flux (without lens) 8,532 lm
- Measured luminous flux (with lens) 5,844 lm
- LEDs type CREE XTE
- Temperature 6000k
- LEDs number 27pcs
- Product size LxWxD (in) 30 x 0.75 x 1.63
We have a lifetime warranty on our light kits. We truly want our truck enthusiastic customers to enjoy their products as much as we enjoy designing them. However, we also understand that different situations arise with brackets or lights. For more information about our warranty and disclaimer click here.
*M&R Automotive is not responsible for misuse or improper installation of the product. Professional installation is recommended.

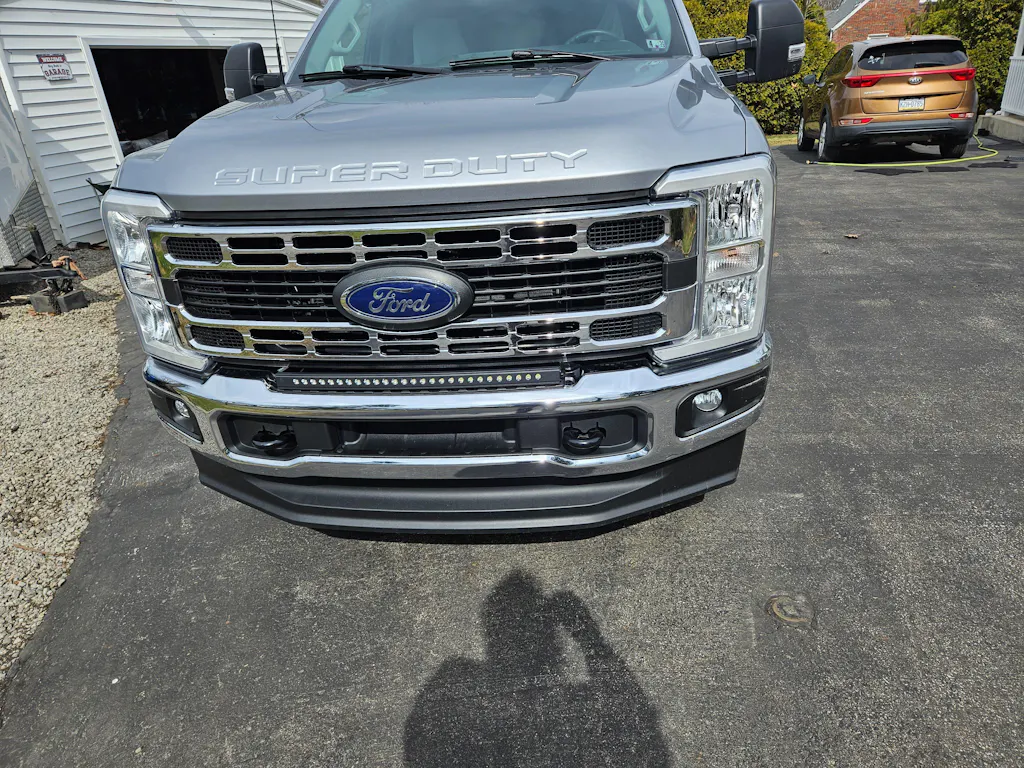

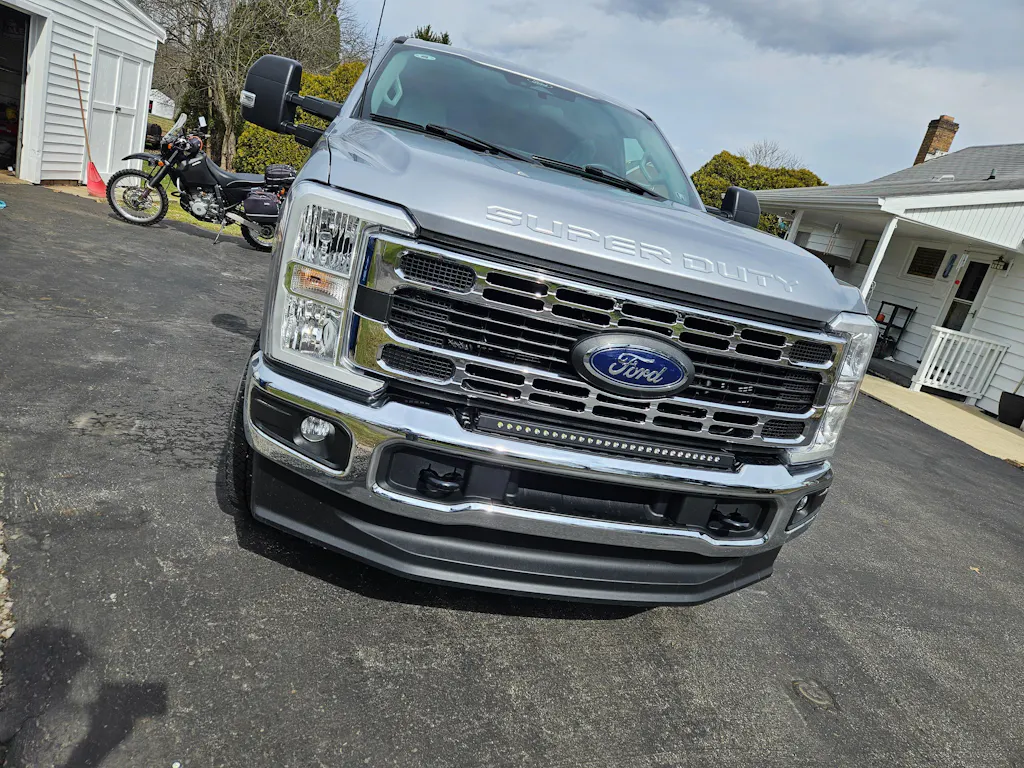

Worked and mounted up perfect with OEM holes in bumper mount with the supplied mounting brackets. Sweet little install.

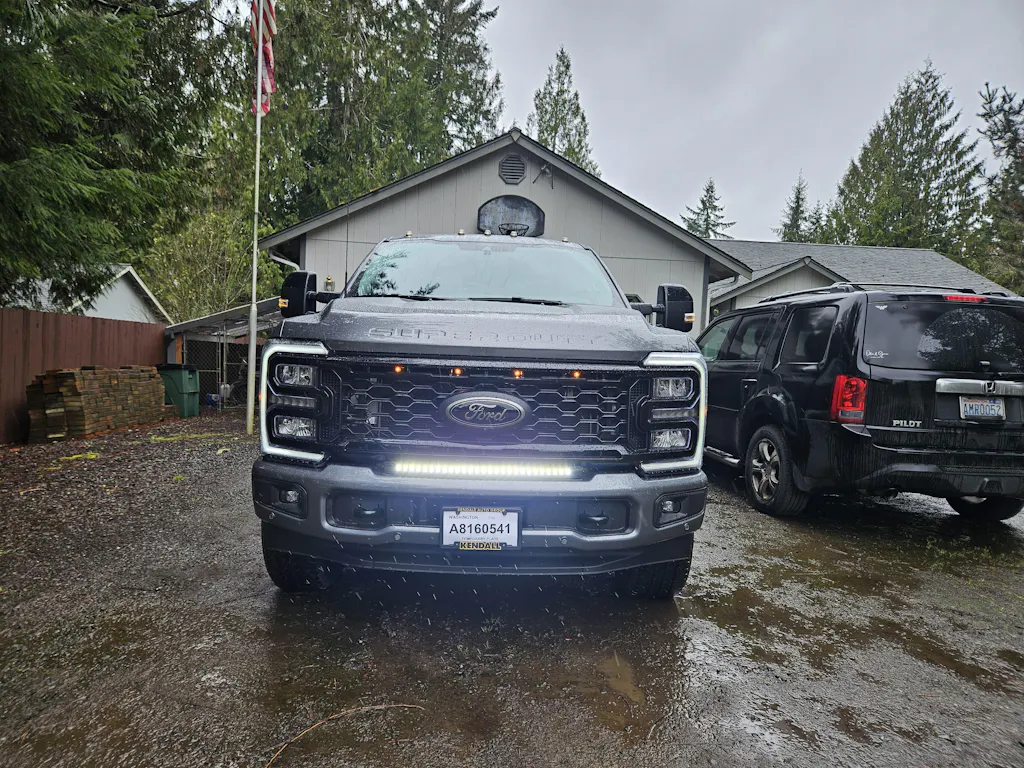

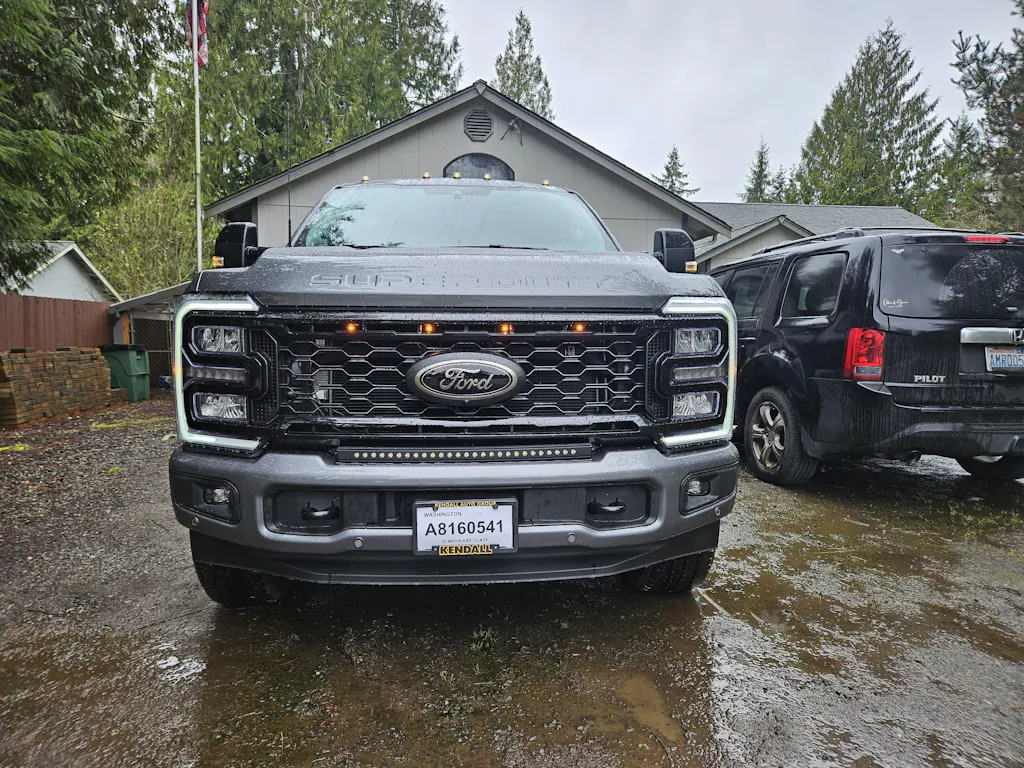

Installed the light bar on my honeycomb grill F350. It fit and looks great. The plug and play harness works perfectly. Great product.
Hay I really like the looks of the 30in light bar I think installing may have been easier if I removed the grill but I got the job done do you offer a light bar for the air intake on the bumper like a 17in slim thank you Robert Berquist bessemer pa.

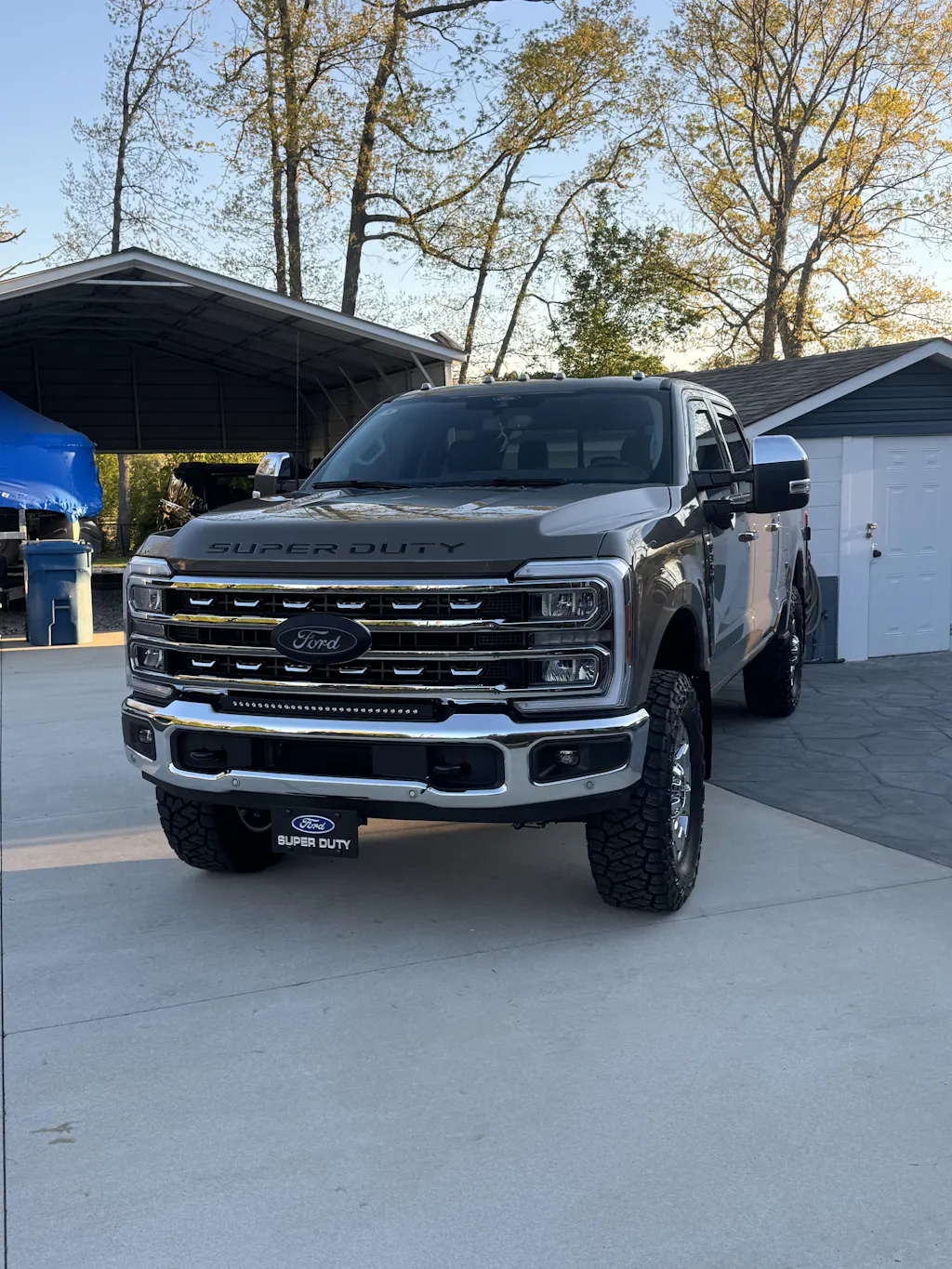

Really like my new light bar it’s slim, sleek and very bright

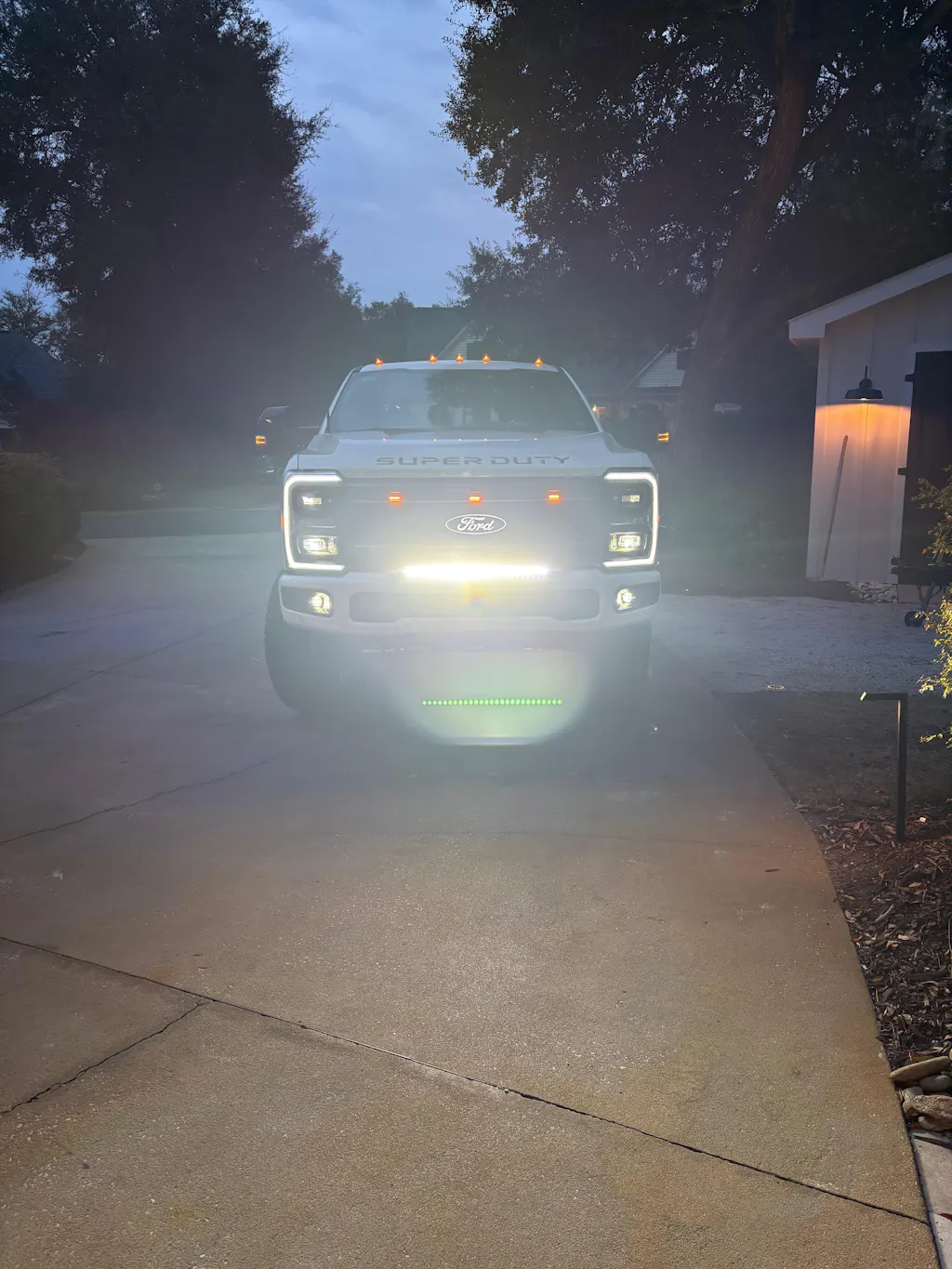

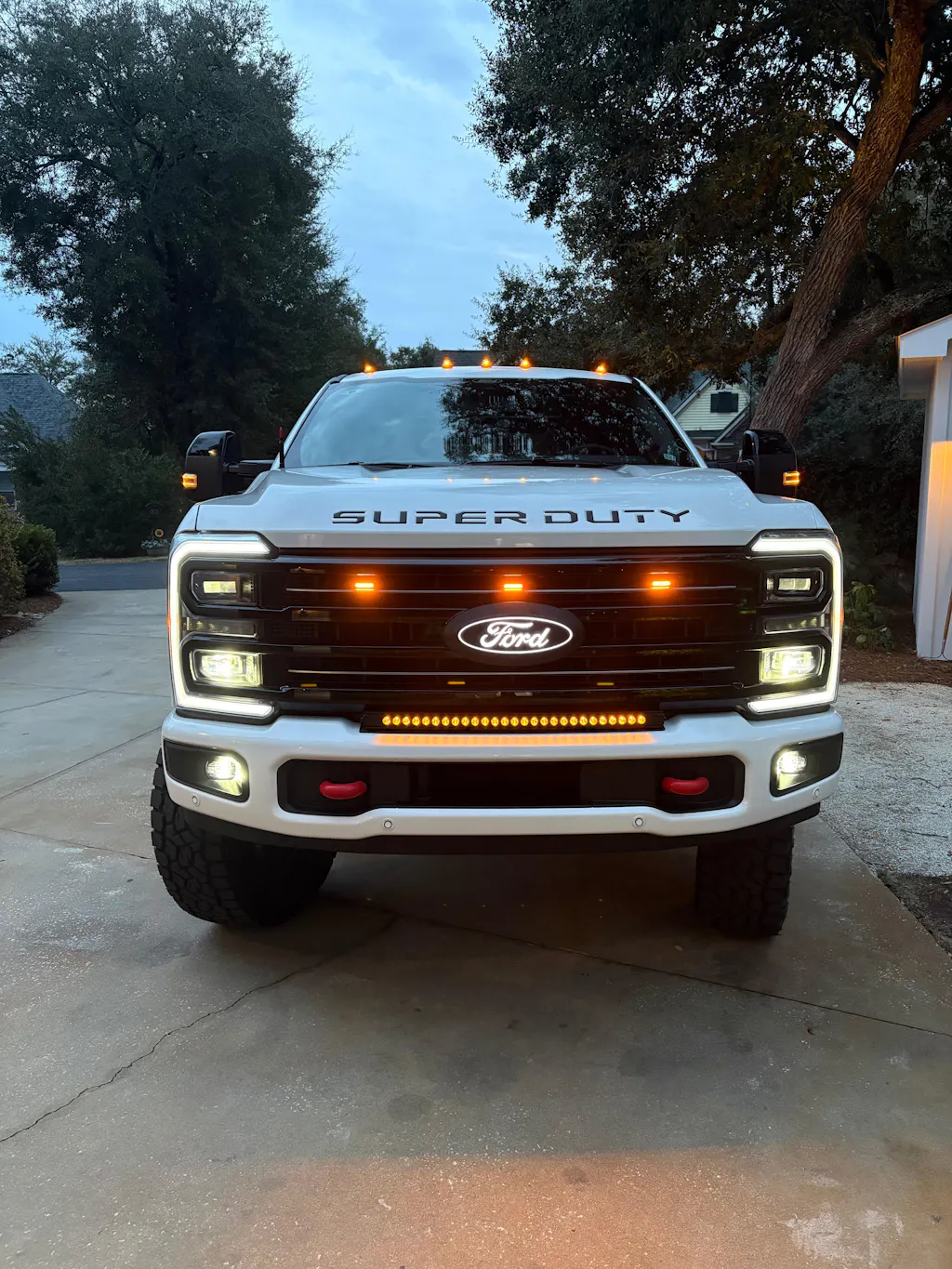

This looks awesome- super streamlined and looks very form fitting to the truck. Also incredibly bright! I wouldn’t hesitate to buy from them again!
