icon 2022+ Hummer EV 60in Roof Light Bar-PRO
  • Product Description
  • Shipping & Warranty
  • Fits 2022 2023 2024 2025 GMC Hummer EV

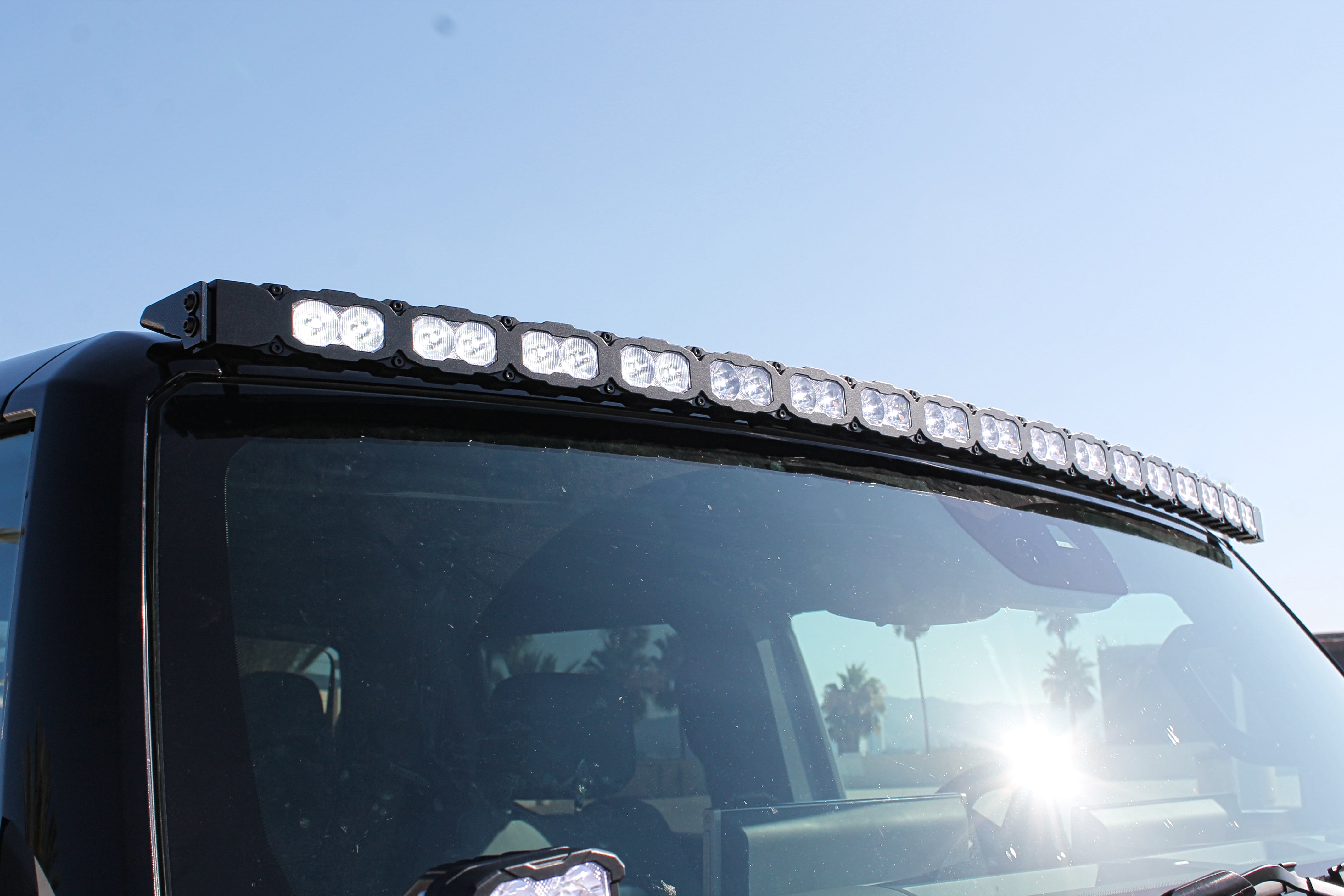

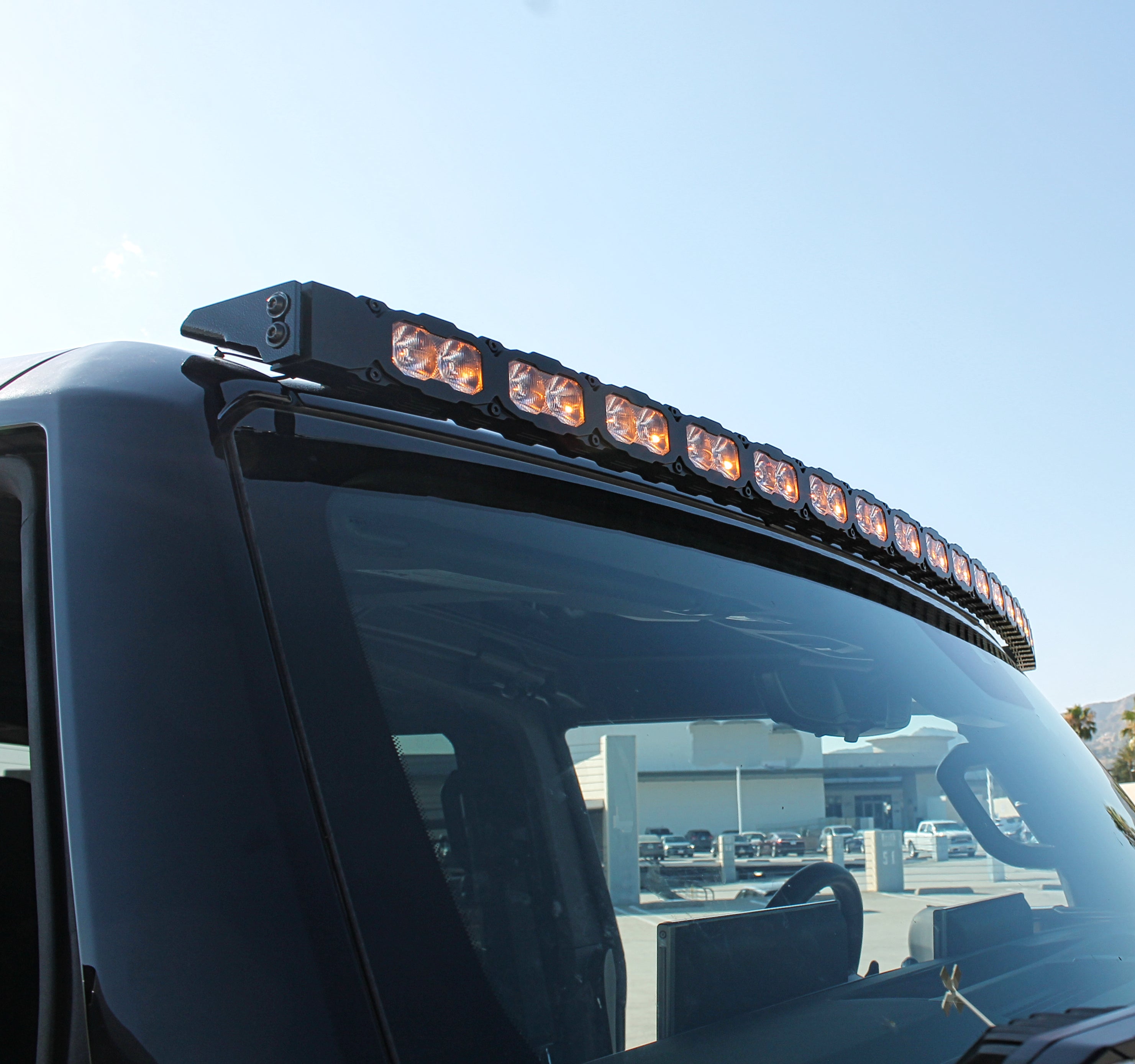

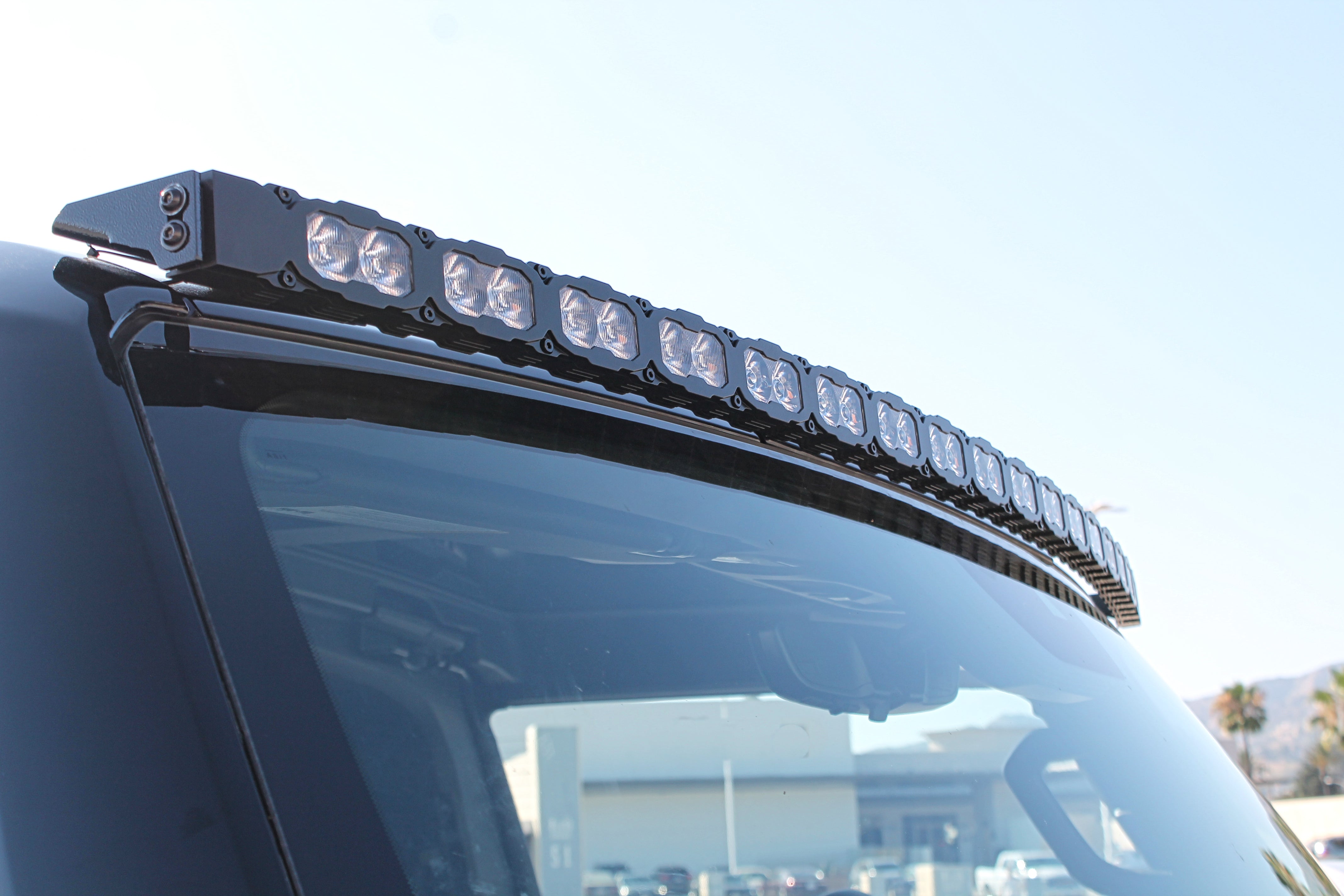

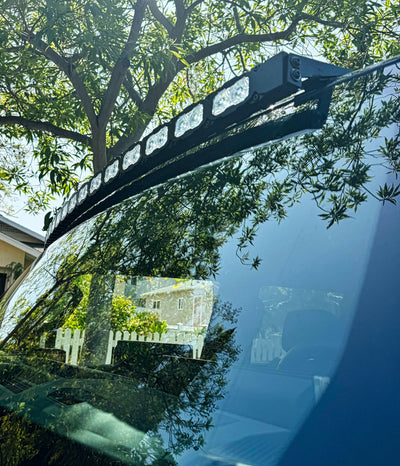

  • 60in curved light bar, stays slim to the windshield for a sleek integrated look

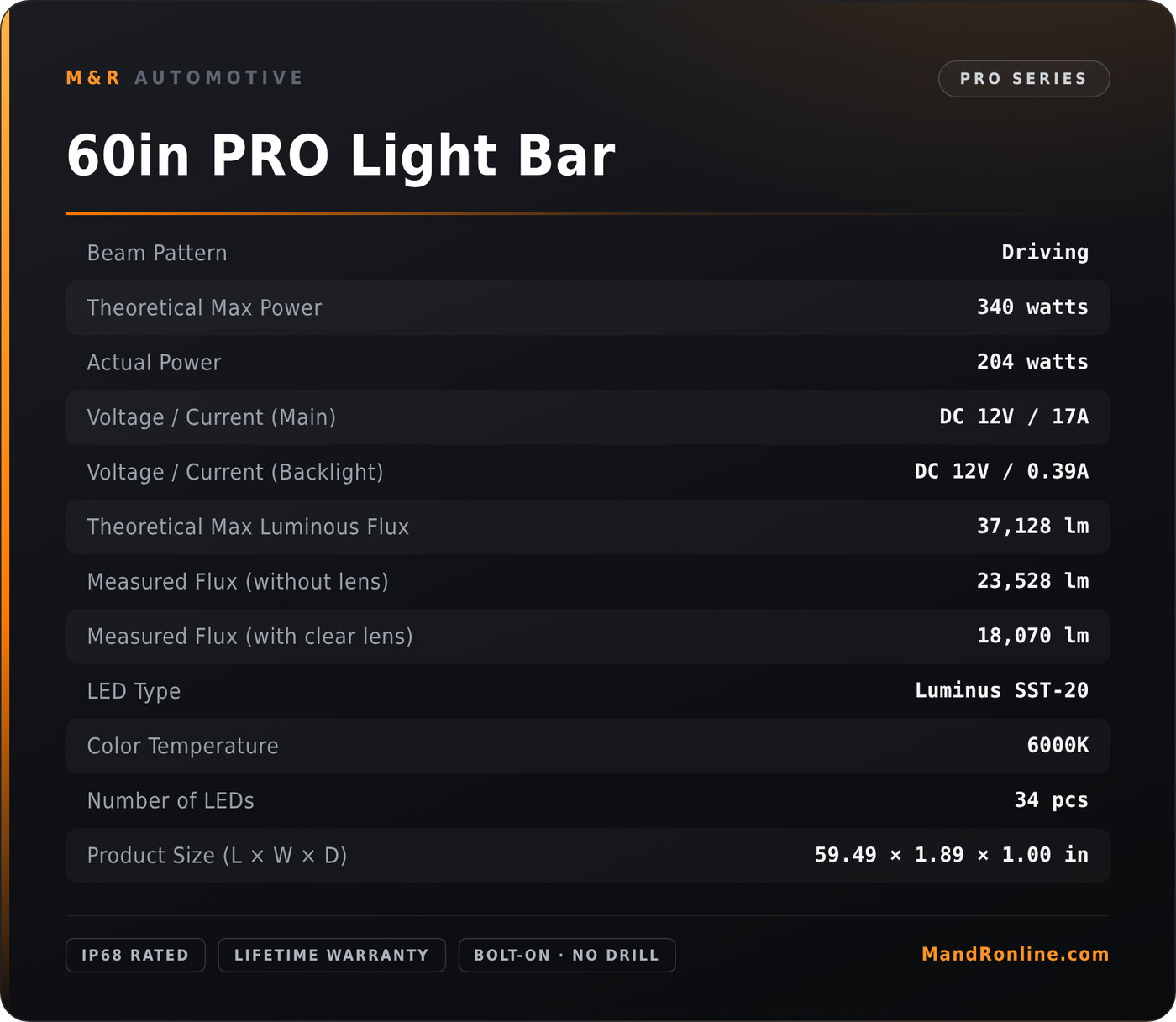

  • ·         Theoretical max power 340watts

    ·         Actual power 204watts

    ·         Main White light is 17amps at 12v

    ·         Backlight Amber is 0.39amps at 12v

    ·         Theoretical max luminous flux 37,128 lm

    ·         Measured luminous flux (without lens) 23,528 lm

    ·         Measured luminous flux (with lens) 18,070 lm

    ·         LEDs type: luminus SST-20 Ra70

    ·         Temperature: 6000k

    ·         LEDs number: 34pcs

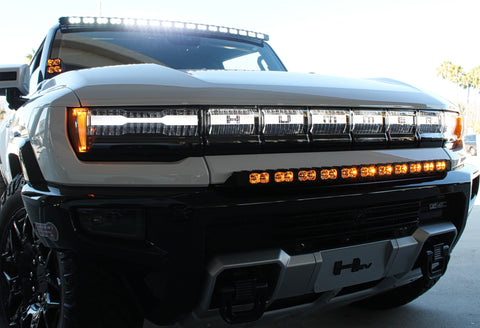

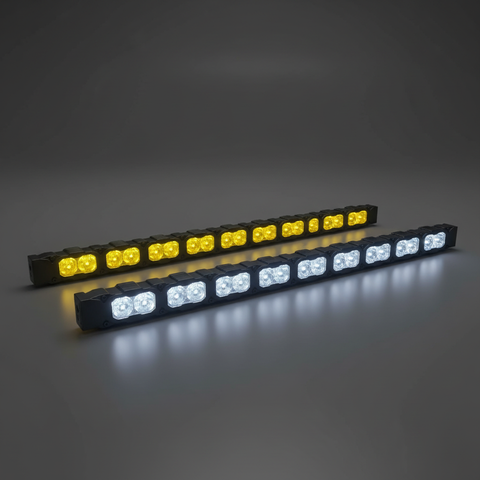

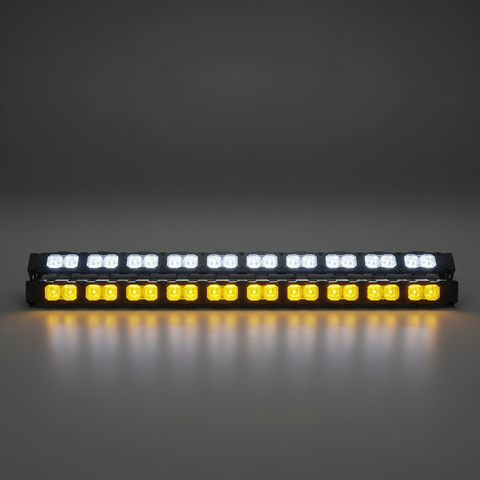

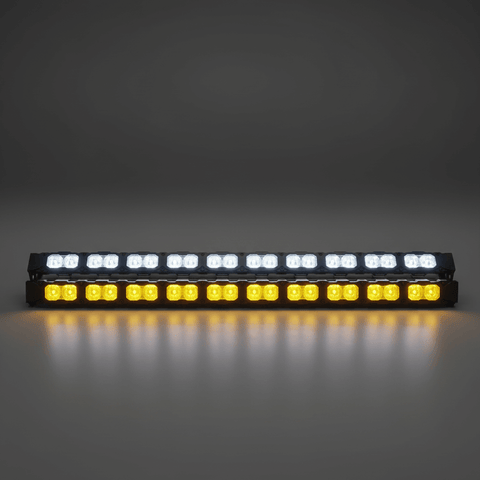

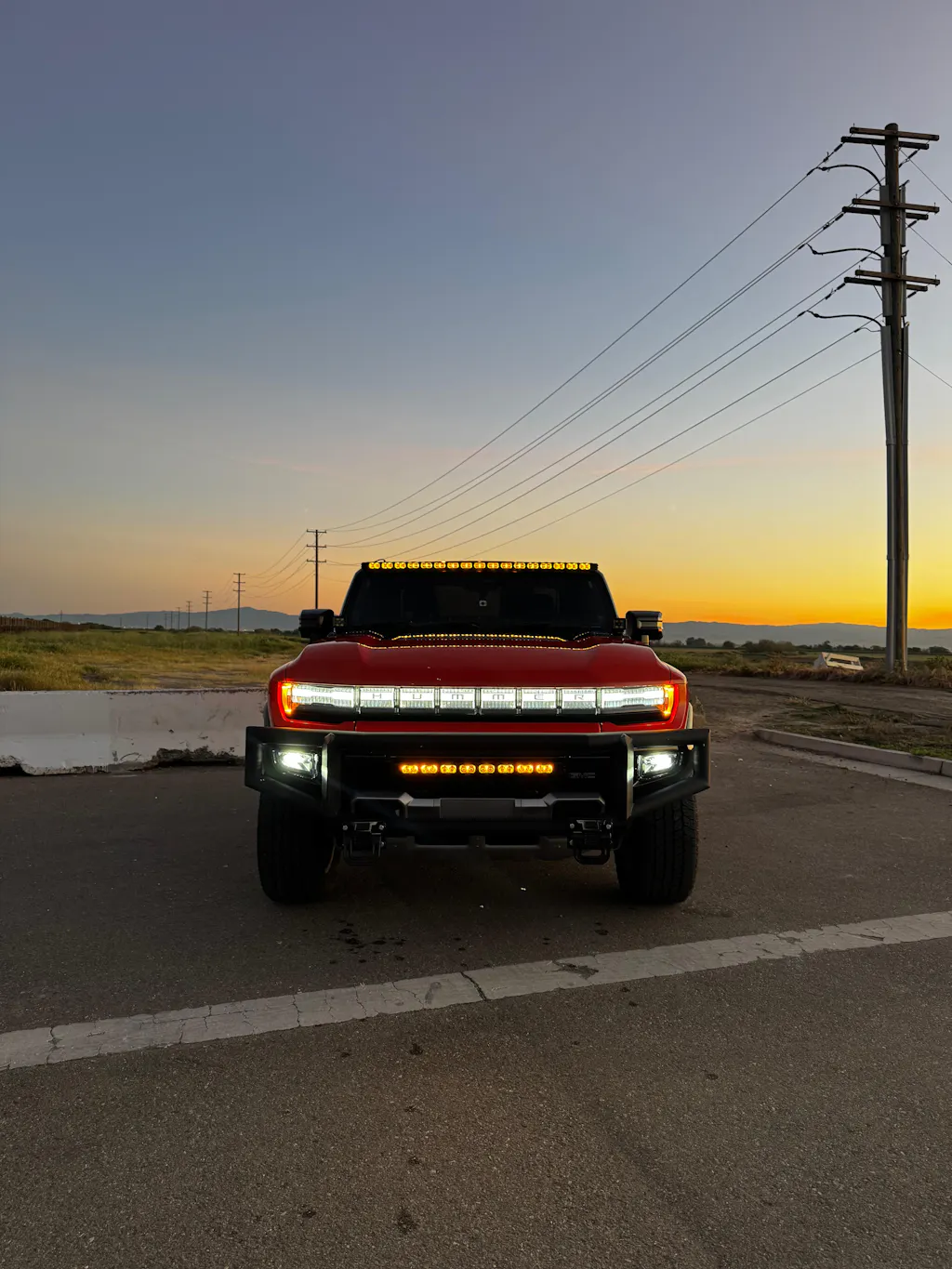

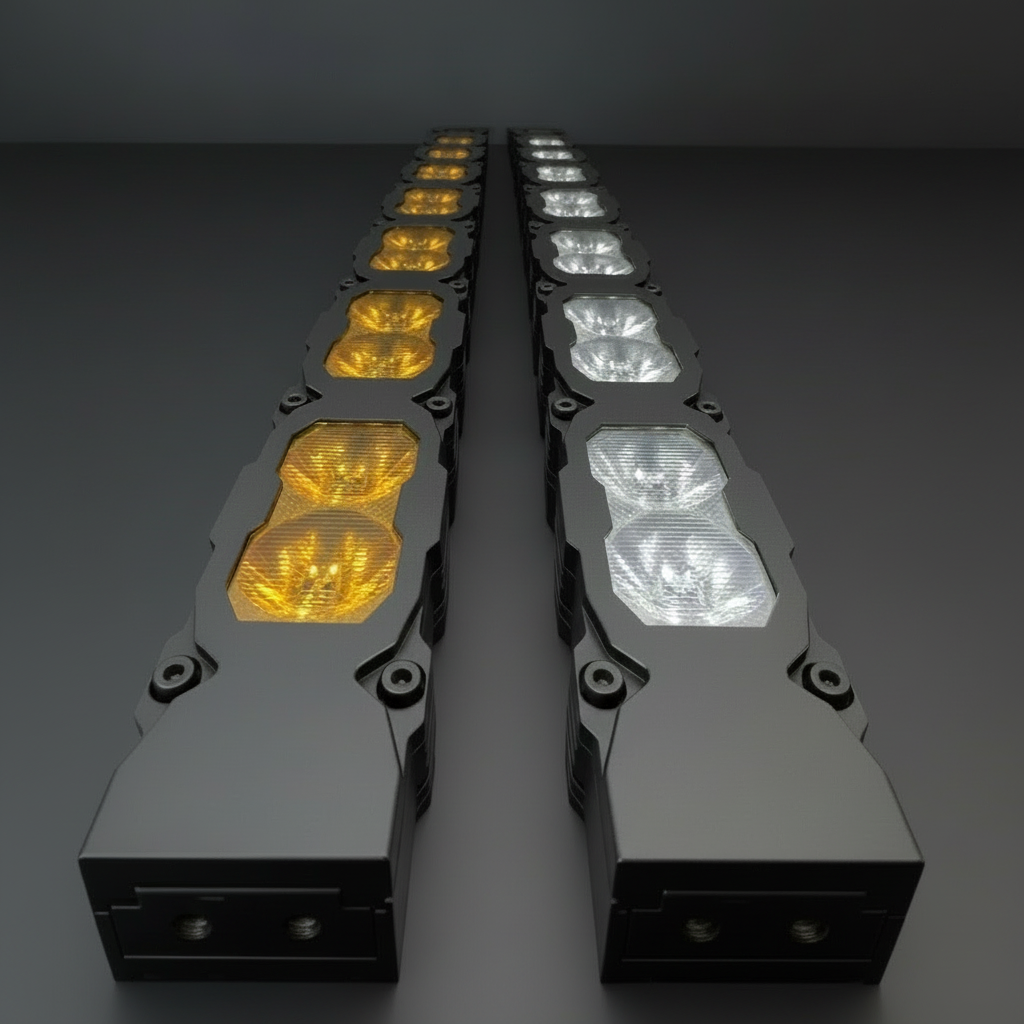

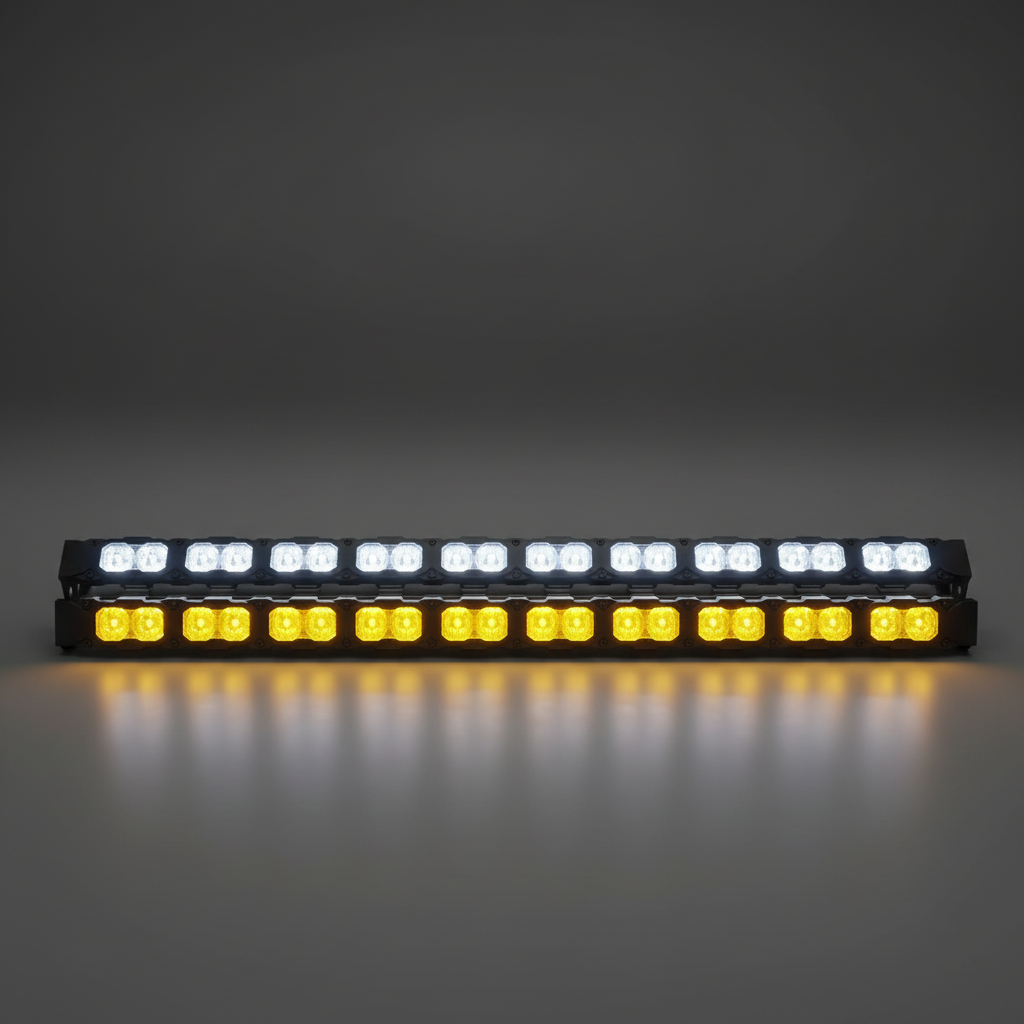

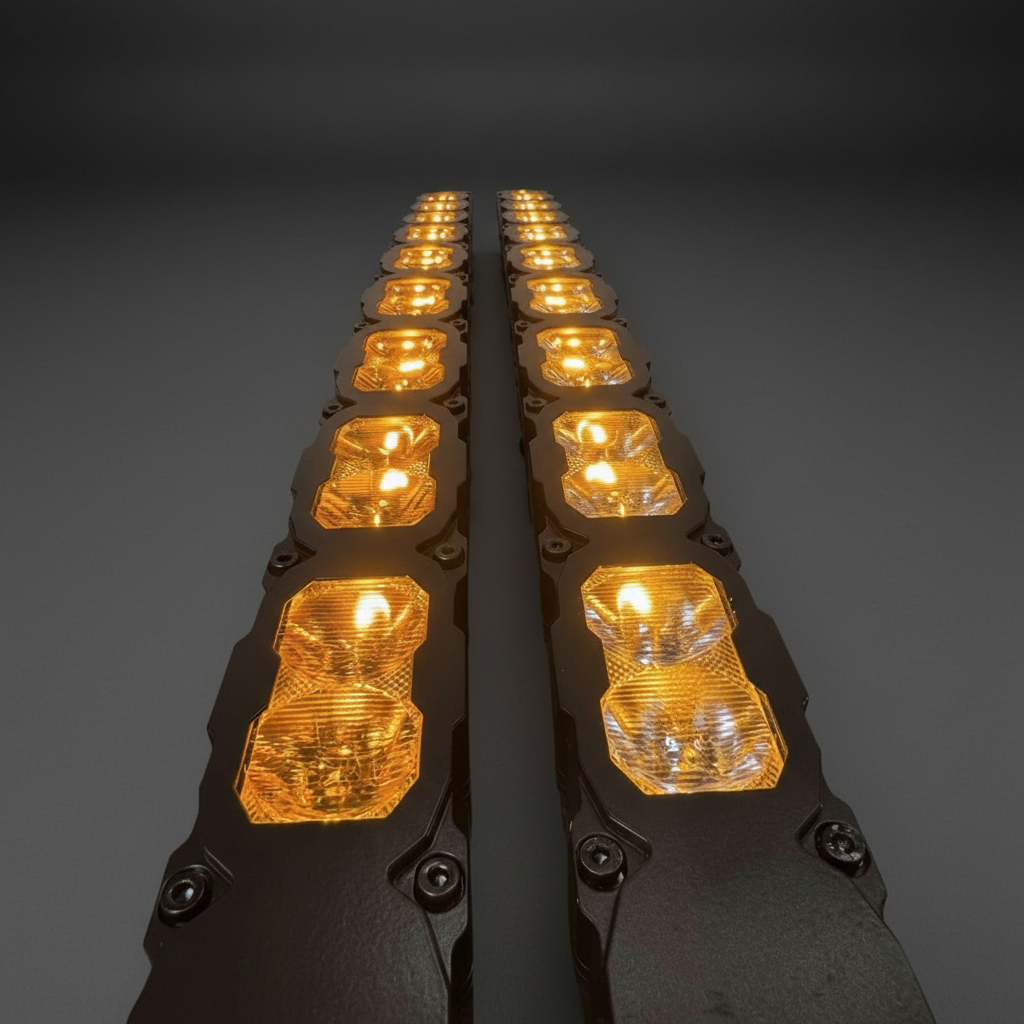

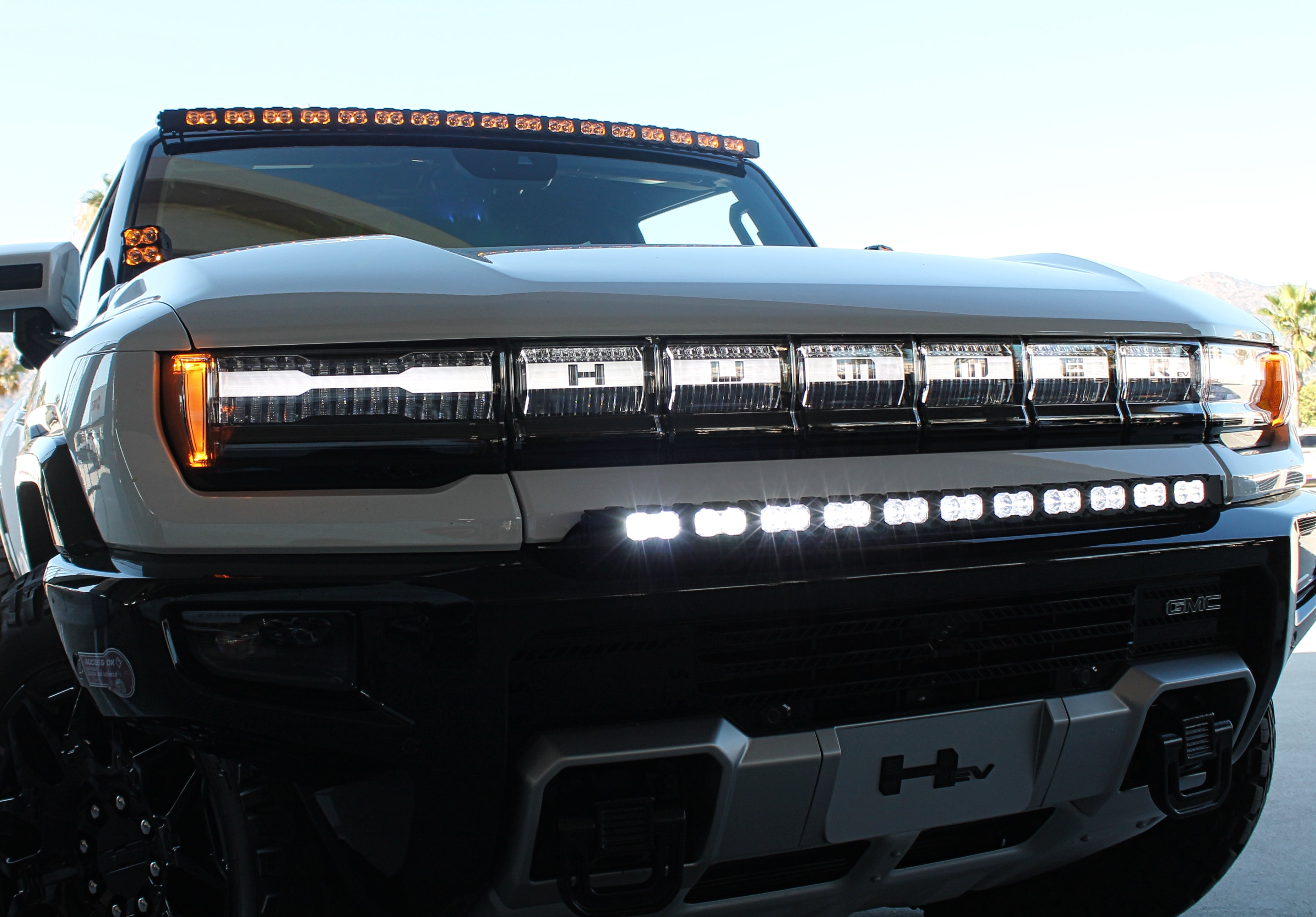

  • Dual Color: Main White LED Light with Amber DRL (daytime running lights)
  • White LED --Super bright and crisp white beam pattern. It will definitely provide you with enough light needed for all of your adventures. However, these are only for off-roading and can’t be used on the regular road. They will blind the in-coming traffic and also violates road safety.

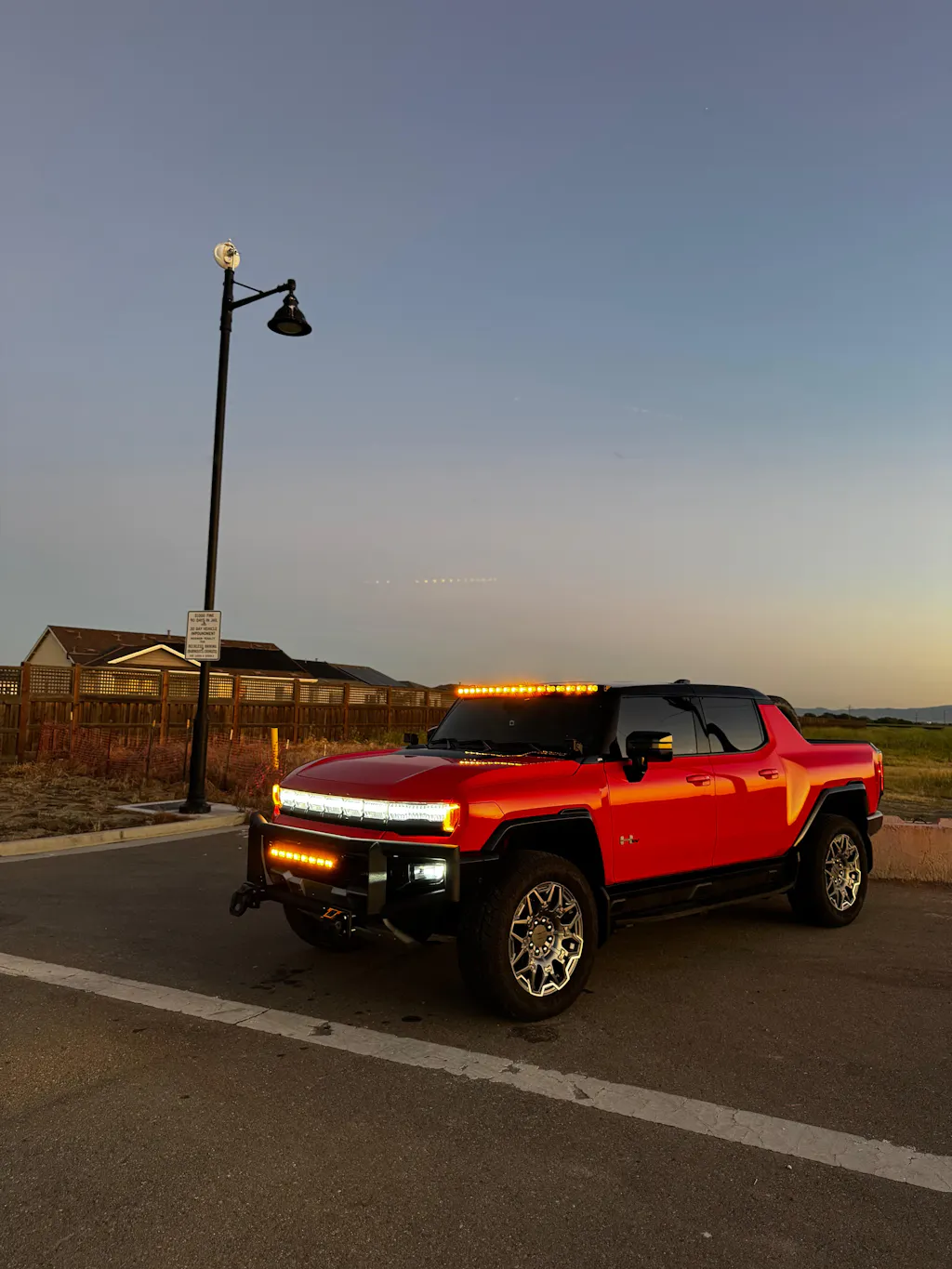

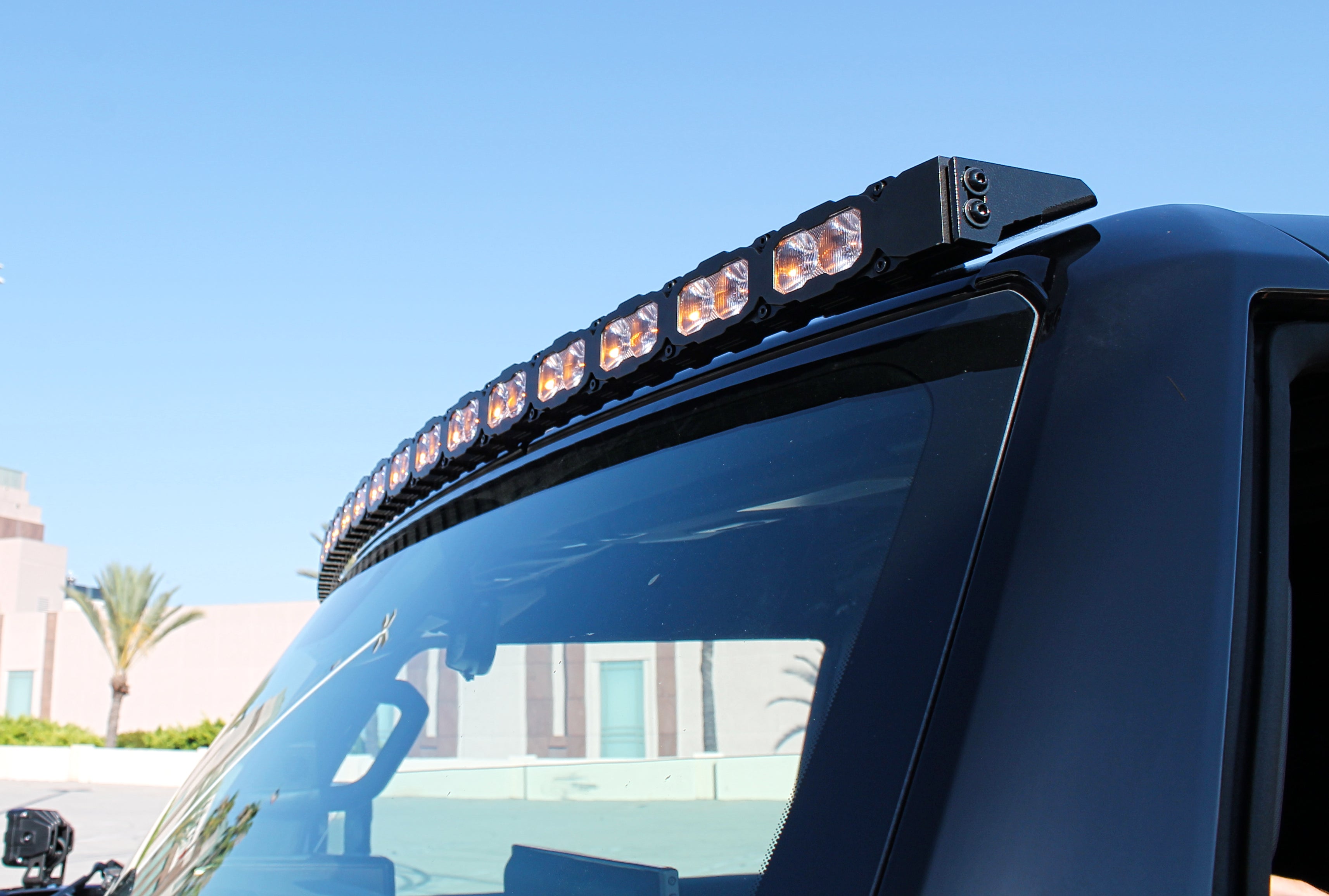

  • Amber DRL -- amber DRL “daytime running lights” acts purely for aesthetics.  Since it doesn’t give out much light, you can use this amber DRL feature on regular roads, it doesn't blind in-coming traffic. Matches the accent lights on the Hummer EV. Amber DRL is the perfect match to drive around town
  • Metal bracket is powder coated black and has a waterproof design

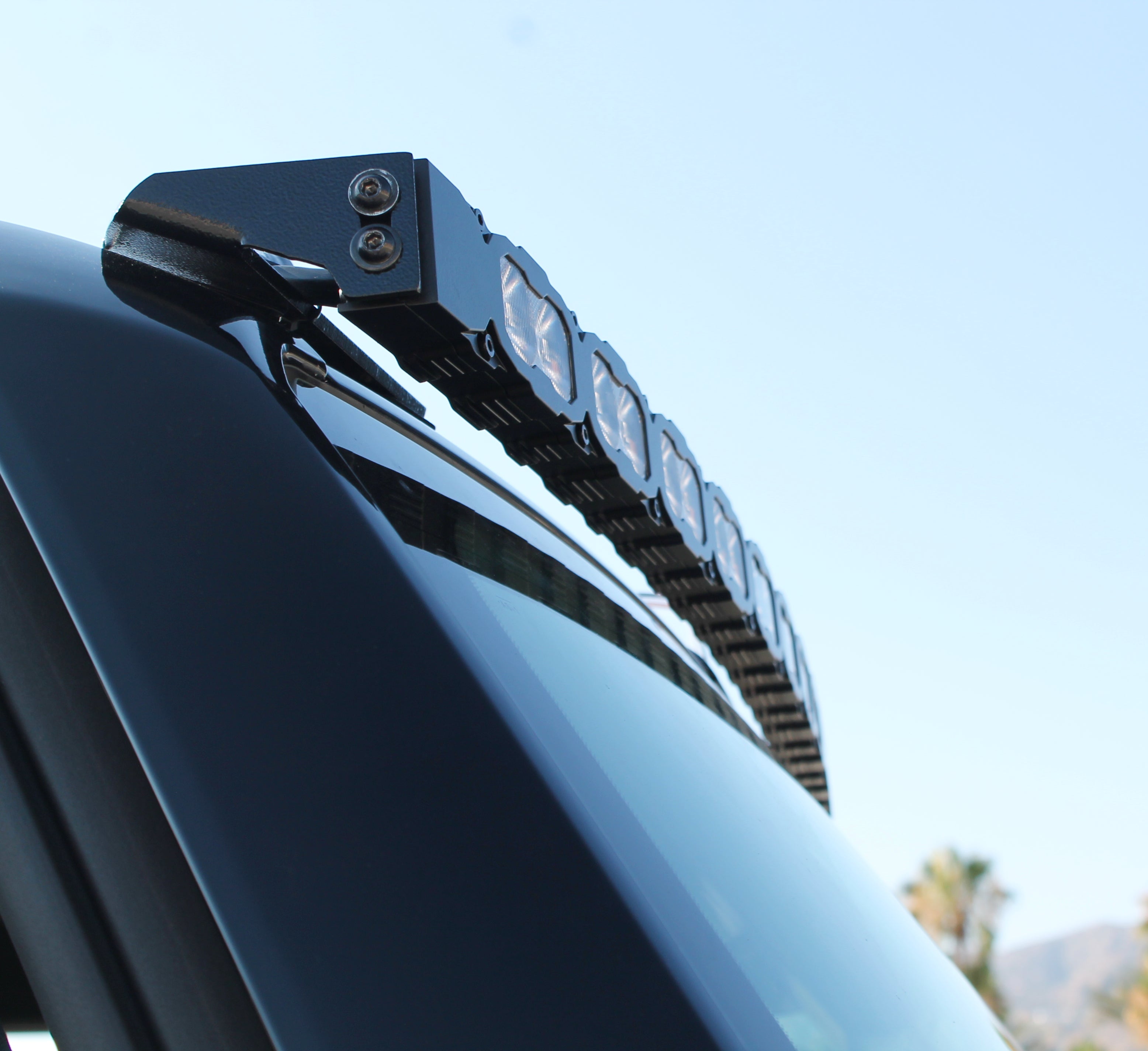

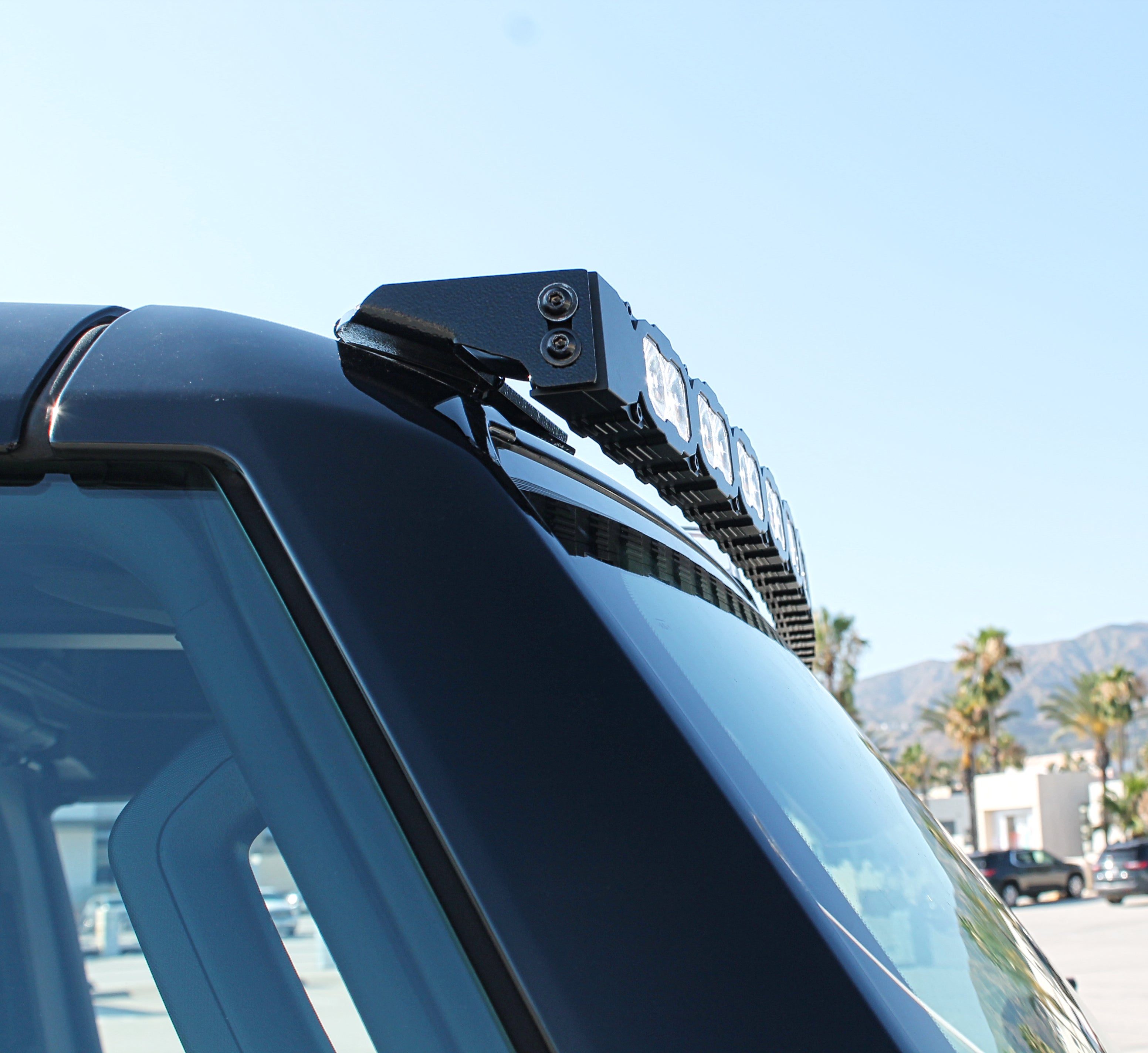

  • The mounting brackets are bolted onto the factory accessory bolts and the wiring is fed through the A-pillar ready to be connect to the AUX switches
  • Easy install
  • No cutting or drilling required. The kit is a complete bolt on using factory openings and hardware.
  • Does not interfere with factory windshield wipers
  • Designed and positioned strategically for minimum wind noise



Introducing our new curved LED light bar-PRO series. Unveils our brand new light bar-PRO series with a unique appearance and optimal performance.

  • Uses TIR (Total Internal Reflection) lens is different from our the regular slim light bar. The TIR lens collects all of the light from the LED and directly leads them to where you need, drastically reducing glare and improving total efficiency.
  • Higher light efficiency: brighter, longer irradiation distance

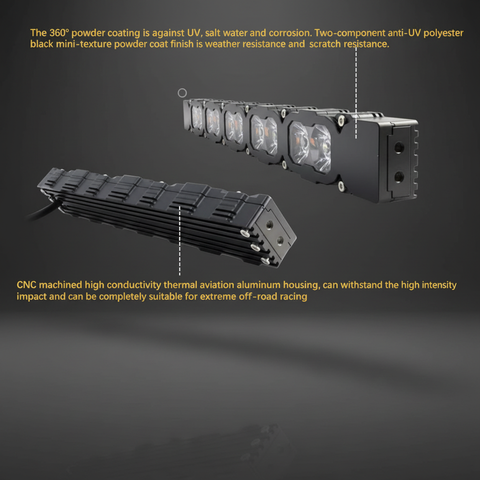

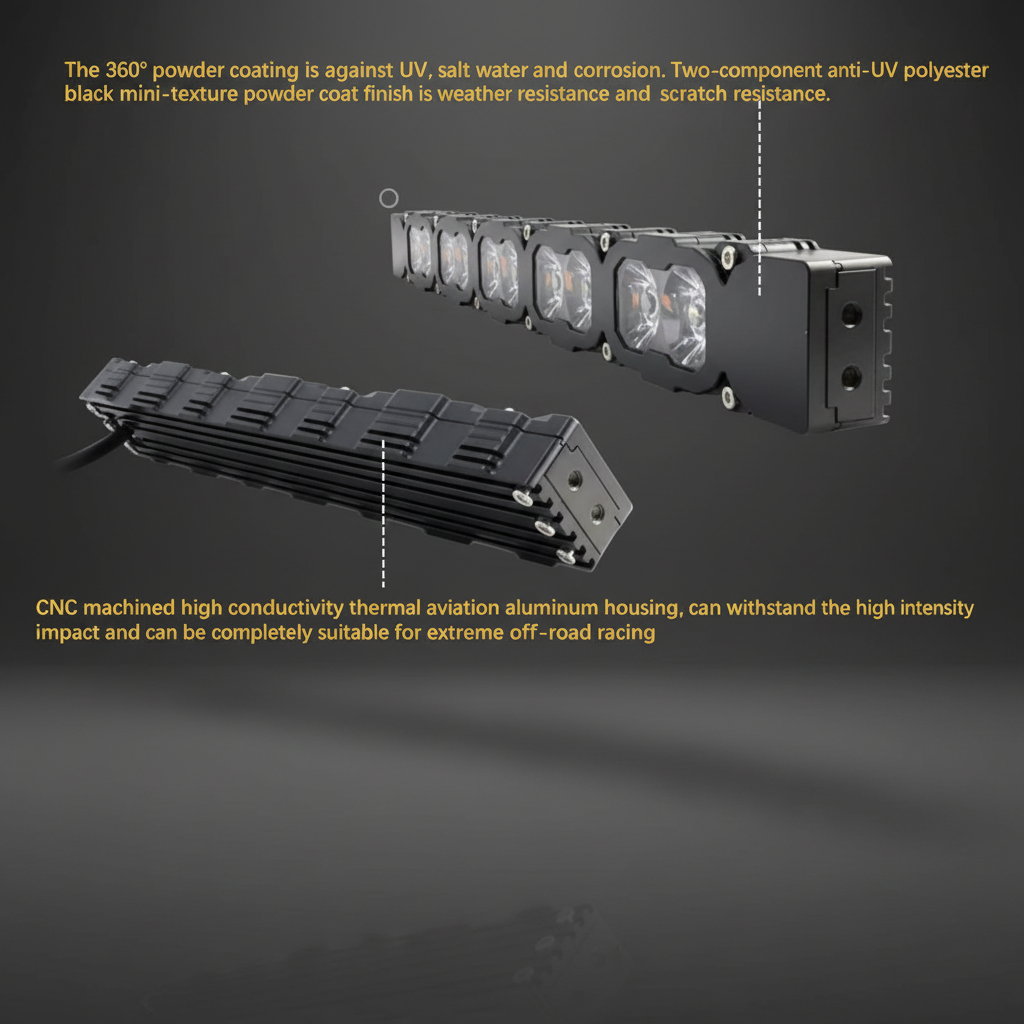

  • Housing is upgraded to 304 aluminum. The surface is UV polyester powder coated to prevent against UV, salt water, corrosion, fading and scratch resistant.
  • Equipped with thermal management system that automatically adjusts the brightness output according to the external temperatures
  • Combo Pattern: combined spot and driving optics offers a balance between the distance and width



👍Our light kits are for off-road use only.


WHAT'S INCLUDED?

(1) 60in curved light bar-PRO Series

(2) mounting brackets

All mounting hardware

WIRING

  • M&R Automotive doesn’t provide a wiring harness. The light bar has 8ft of wire. This is long enough to be run inside the cab down the passenger side panel.


  • If you don't have AUX switches, we suggest you use M&R Wireless 8 Circuit Wiring Harness. This makes install much easier, no need to run any wires through the firewall, clean install.


INCLUDES:

  • Rechargeable wireless controller, USB Type-C connector
  • Mounting plate that you attach to your preferred place inside the vehicle. The remote is magnetic for easy operation.
  • Sticker page to change the key icon to match the device connected to the control box.

Wireless Connectivity: With advanced wireless technology, connect and power various accessories without the need for traditional wiring. Enjoy a cleaner and more organized interior.  Wireless remote stays inside your vehicle without the need to run a wire through the firewall.

8 Switches: Total of 8 circuits: (2) 5amps, (2) 10amps, (2) 20amps, (2) 30amps

  • Max power: 1200watts
  • Max current Rating: 80amps
  • Voltage: DC 12V-24V

Plug-and-Play Compatibility: Installing accessories has never been easier. Designed with a user-friendly, plug-and-play interface, eliminating the need for complex wiring setups. Simply connect your accessories to the panel and you're ready for an adventure.



Universal Compatibility: Whether you're adding LED lights, off-road equipment, or other accessories, our wireless wiring harness is universally compatible. Seamlessly integrates with your vehicle's electrical system.



Enhanced Safety: Reduce the risk of electrical issues and potential hazards associated with traditional wiring systems. Engineered with safety in mind, featuring built-in safeguards to protect against overloads, short circuits, and other electrical mishaps.



Weatherproof Design: Built to withstand the toughest conditions, it is fully weatherproof. It has a rubber gasket around the fuse box and covered in epoxy.

$154.99

USING FACTORY AUX?

If you want to use factory AUX switches you need to purchase "Accessory Touch Screen Control Switch Module" LINK HERE. M&R doesn't sell this module.


You will need one of each for every positive wire connections


1. Wire pin

https://www.corsa-technic.com/item.php?item_id=1105


2. Relay part number GM 13598343 or similar


3. Mini fuse that does not exceed amperage of the accessory If you don't have AUX switches, we suggest you use M&R Wireless 8 Circuit Wiring Harness. This makes install much easier, no need to run any wires through the firewall, clean install.



INSTALLATION INSTRUCTIONS


All domestic (USA) orders are free shipping via USPS or UPS, depending on product size.
We typically ship in 3-7 business days. If we are anticipating a delay with your shipment due to availability of the product, we will reach out to you via email.

Canada, international or express shipping costs are calculated at checkout.

You will receive an email with tracking number when your order is shipped.

If you have a special request about your order, reach out, we try to accommodate as much as we can.

For a complete shipping policy click here.


We have a lifetime warranty on our light kits. We truly want our truck enthusiastic customers to enjoy their products as much as we enjoy designing them. However, we also understand that different situations arise with brackets or lights. For more information about our warranty and disclaimer click here.




*M&R Automotive is not responsible for misuse or improper installation of the product. Professional installation is recommended.


Customer Reviews

Based on 3 reviews
100%
(3)
0%
(0)
0%
(0)
0%
(0)
0%
(0)
j
j.g.

Looks amazing, very bright and well priced

W
W.W.

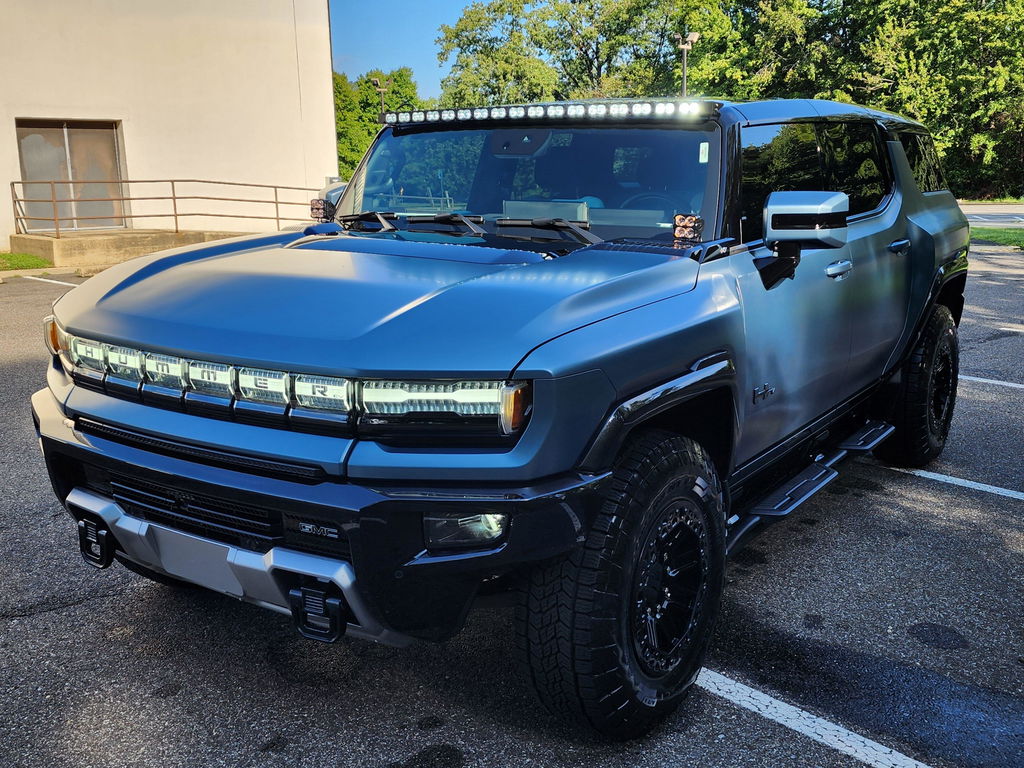

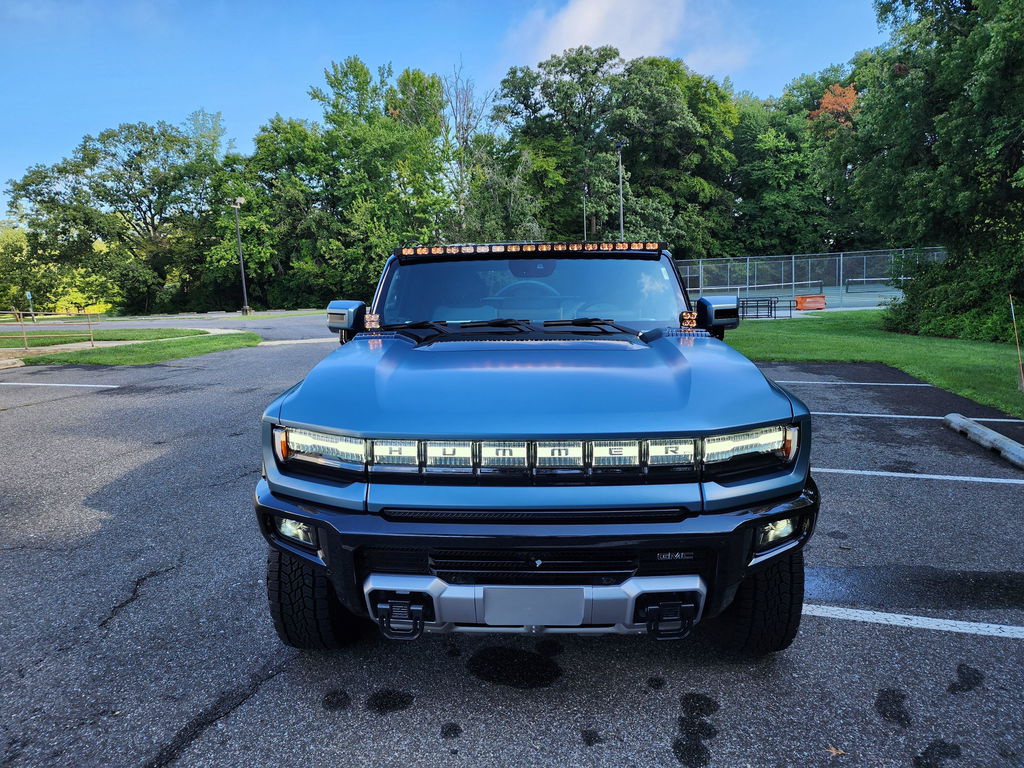

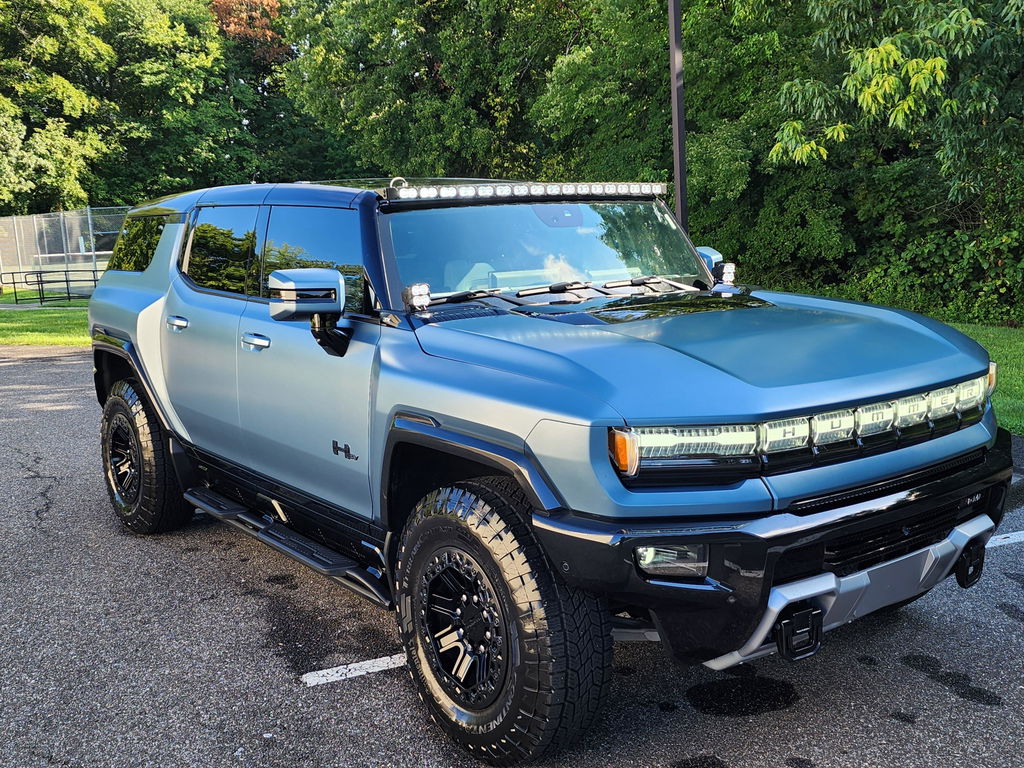

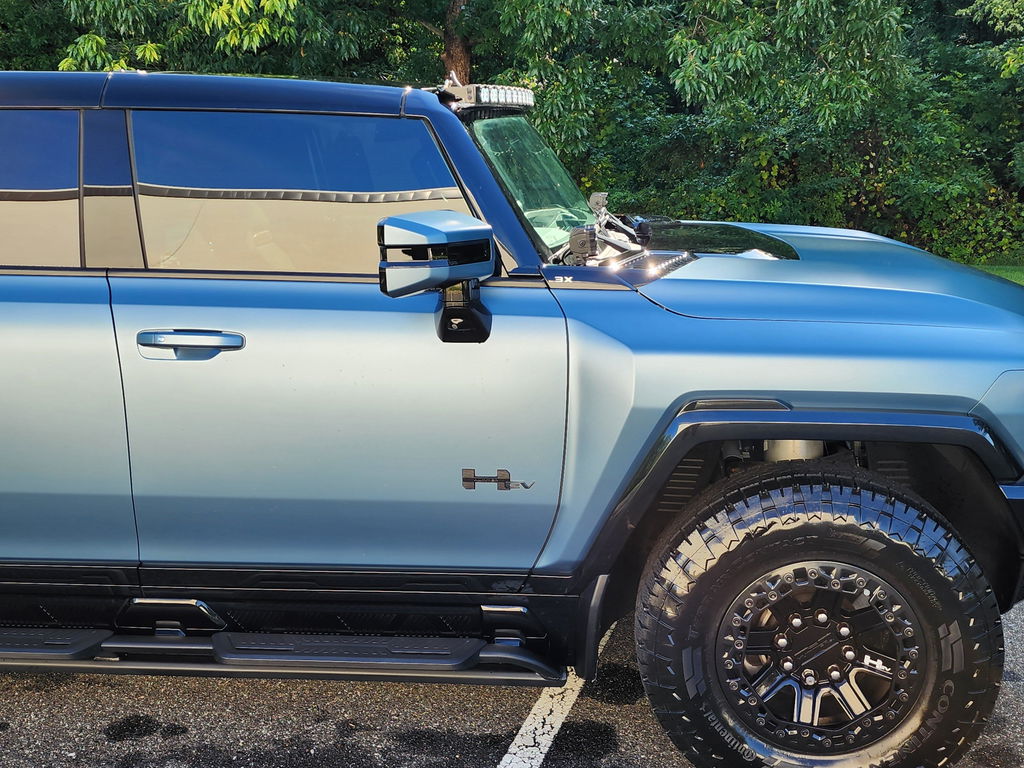

Perfect fit for an Omega Truck

These lights are awesome. Easy install and perfect fit.

R
R.G.

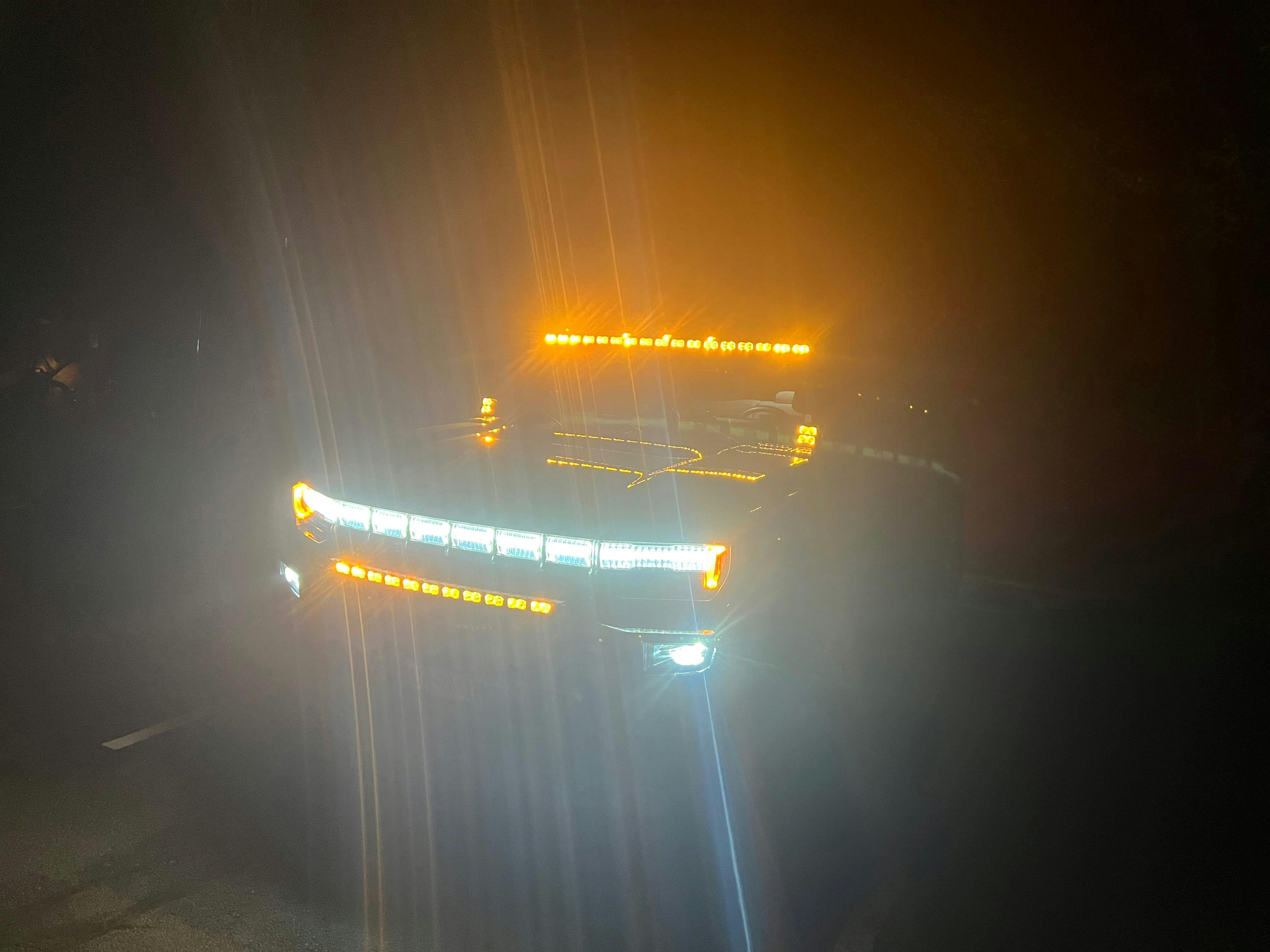

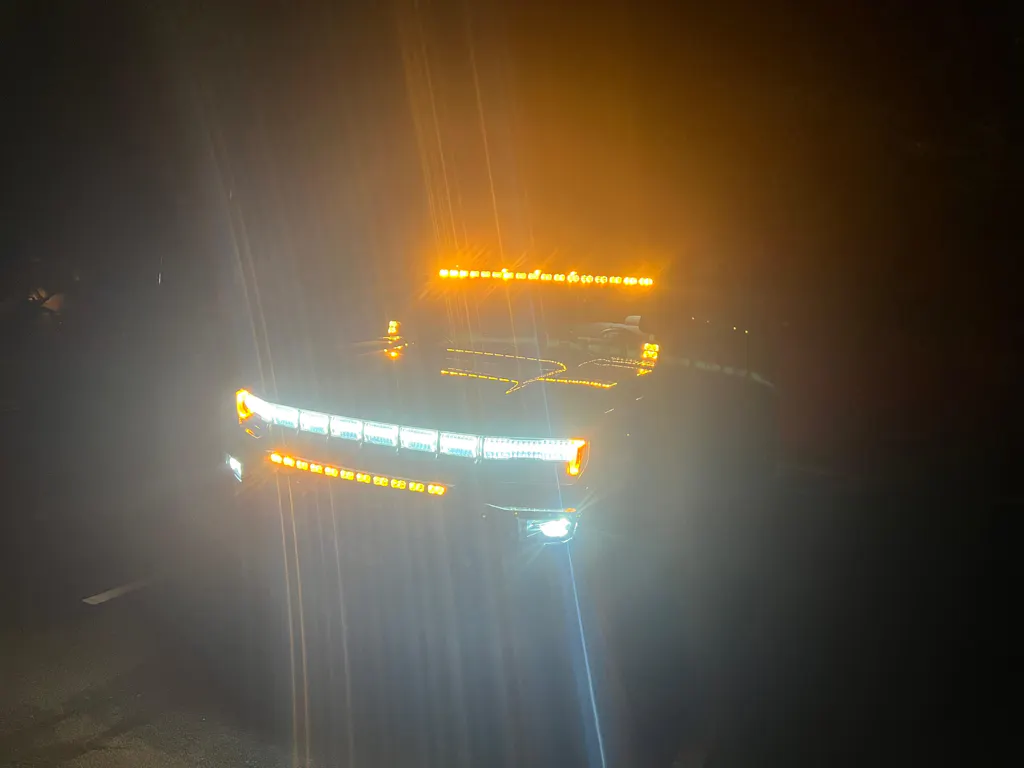

2025 Hummer ev 60in, puddle lights and front grill light
