Name: 2022+ GMC Hummer EV Bumper 40in Light Bar-PRO
Brand: M&R Automotive
Price: 604.99 USD
Availability: InStock
Rating: 5.0 (19 reviews)

Product Description
Light Bar Specs
Shipping & Warranty

Fits 2022 2023 2024 2025 GMC Hummer EV

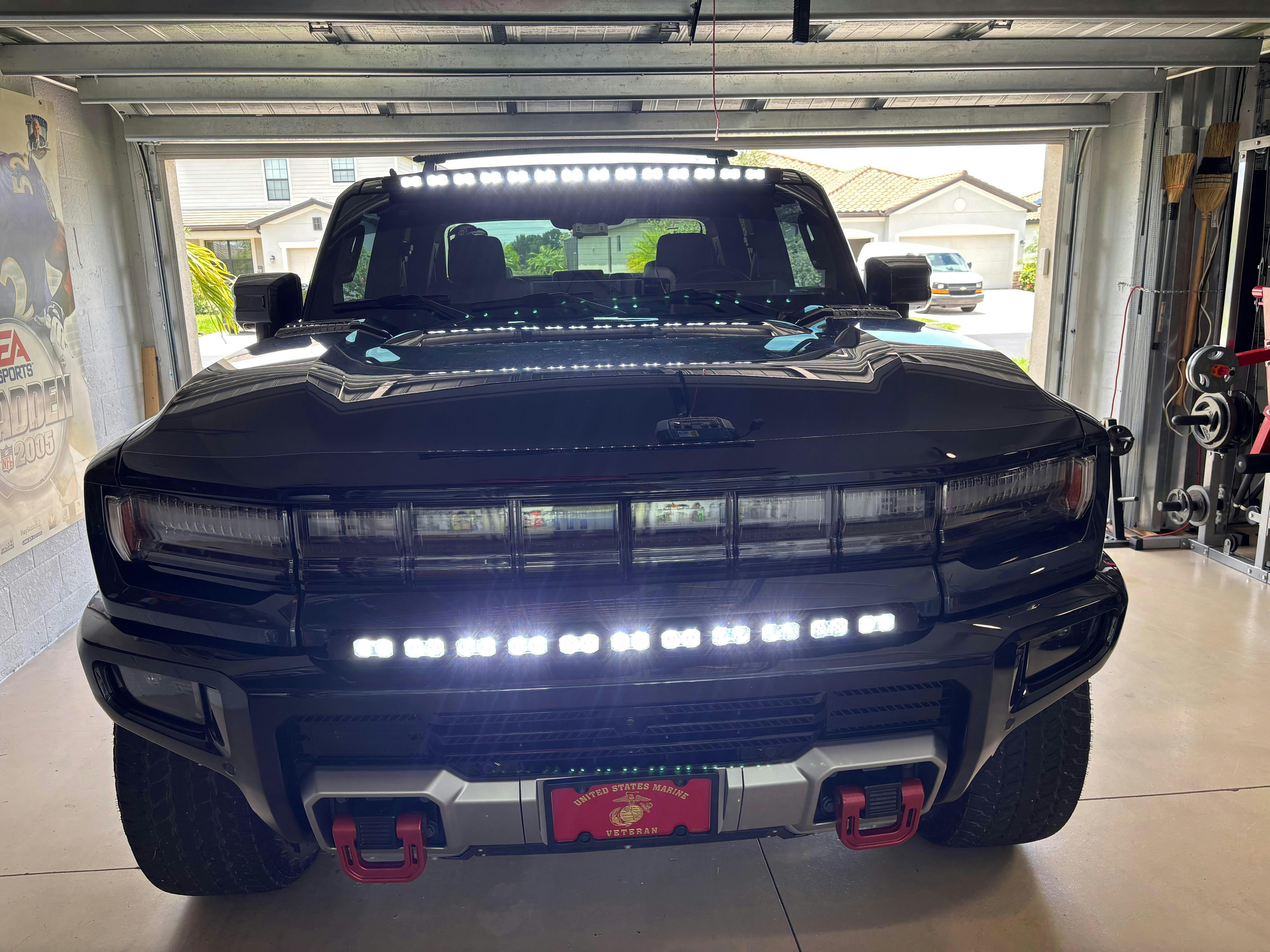

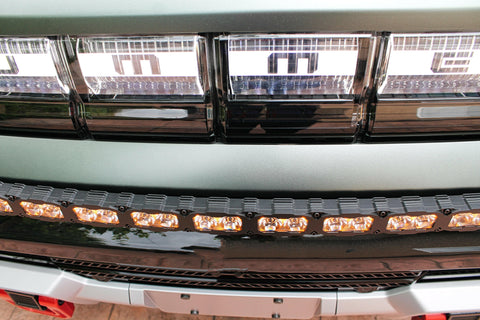

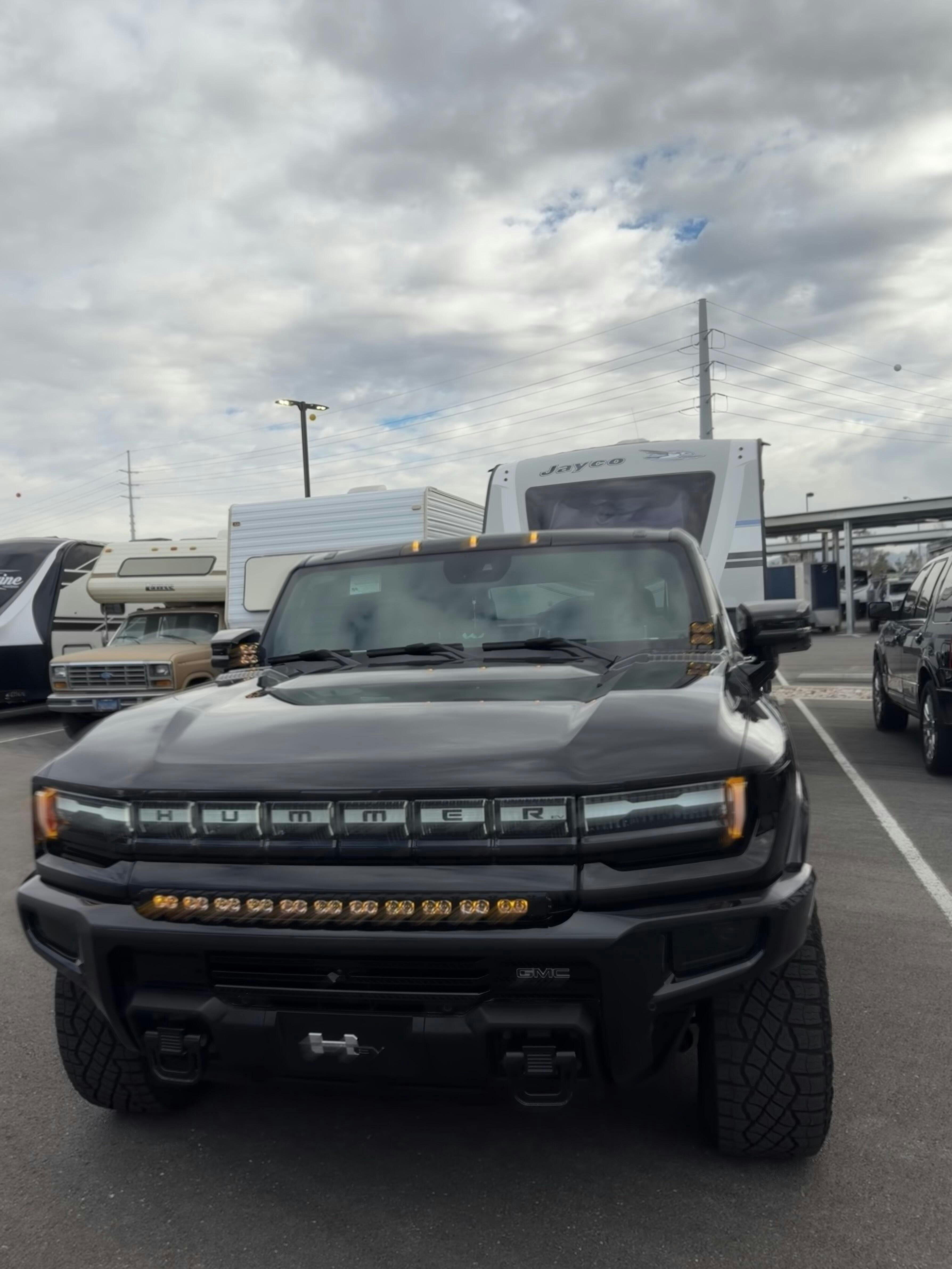

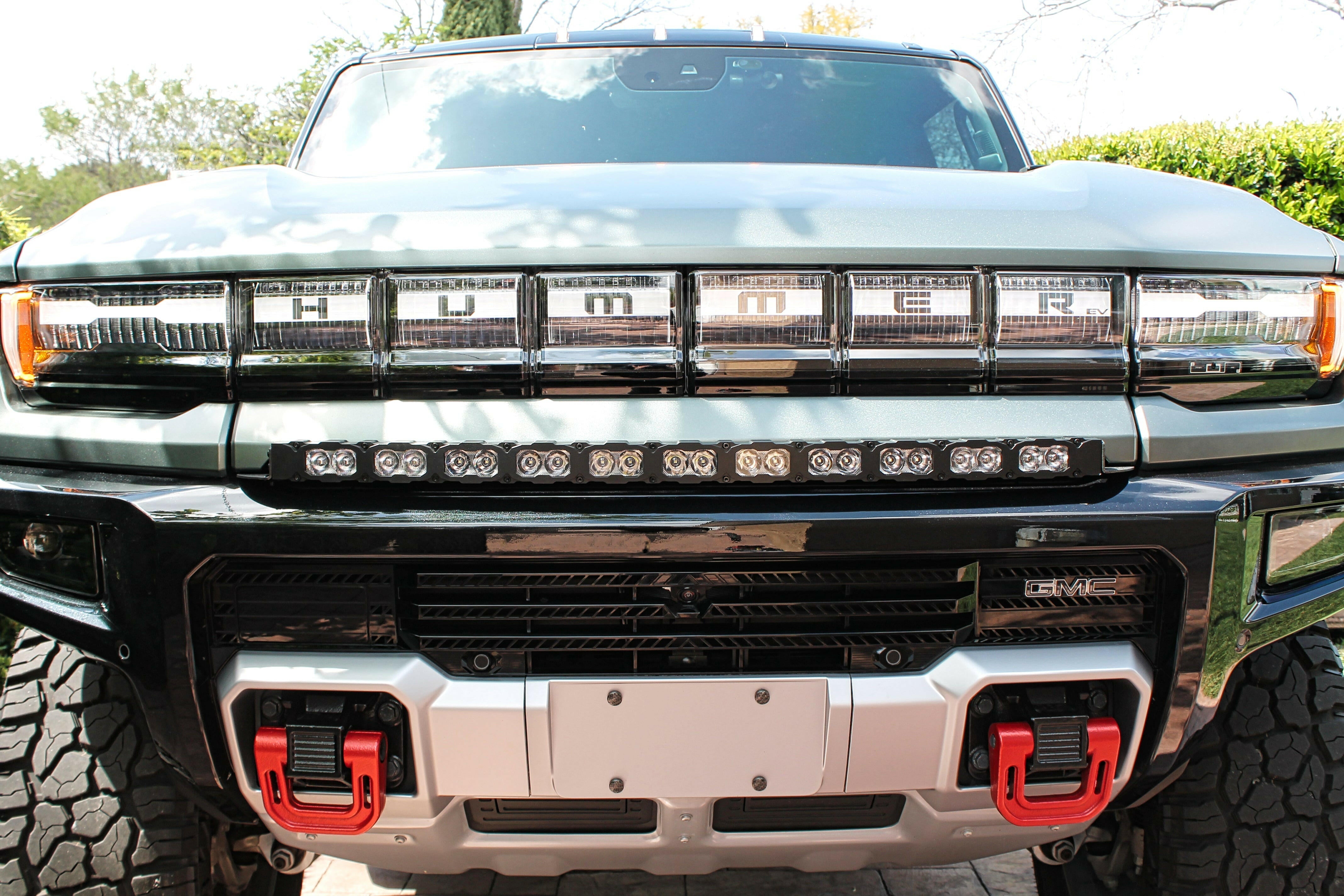

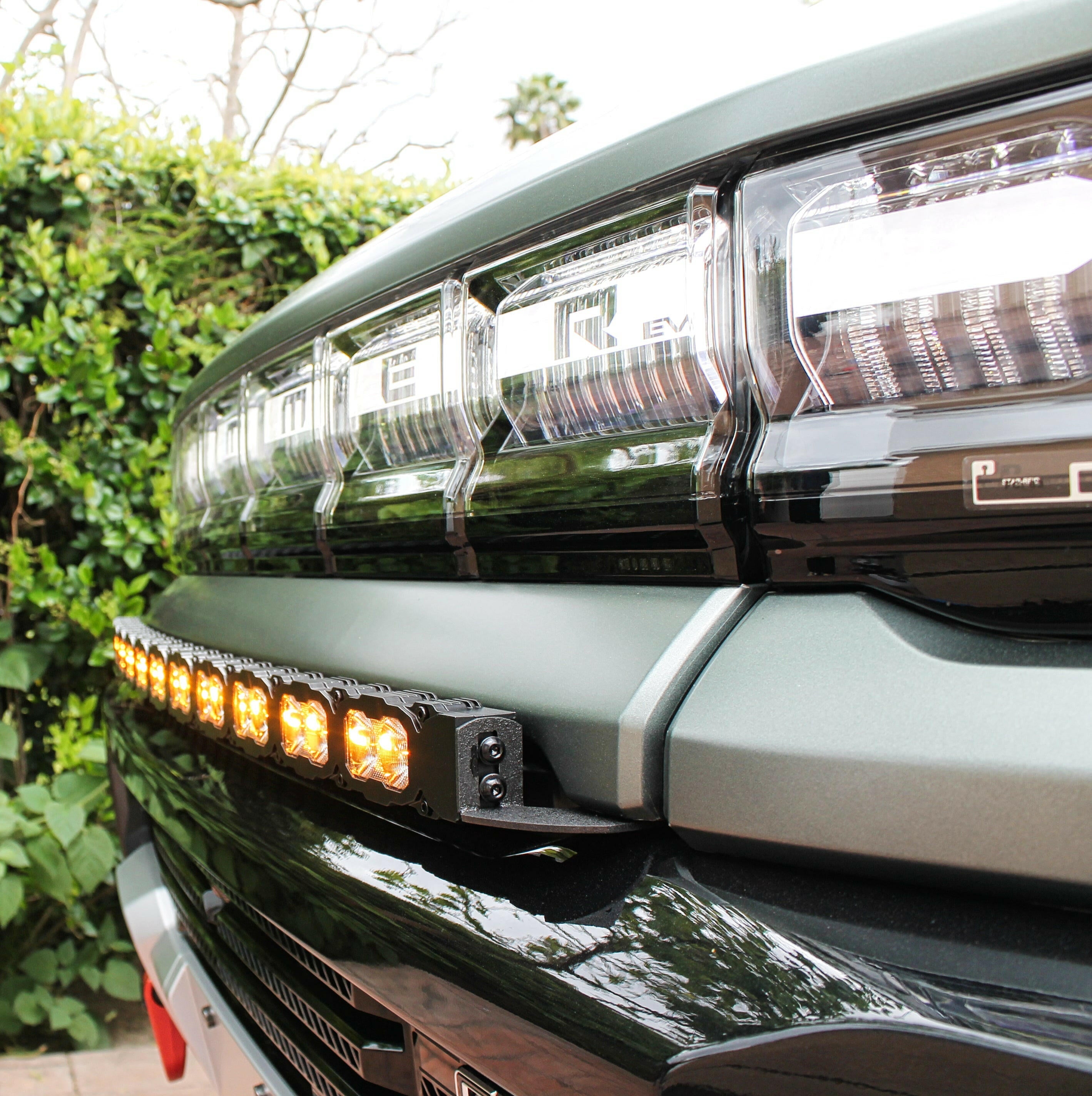

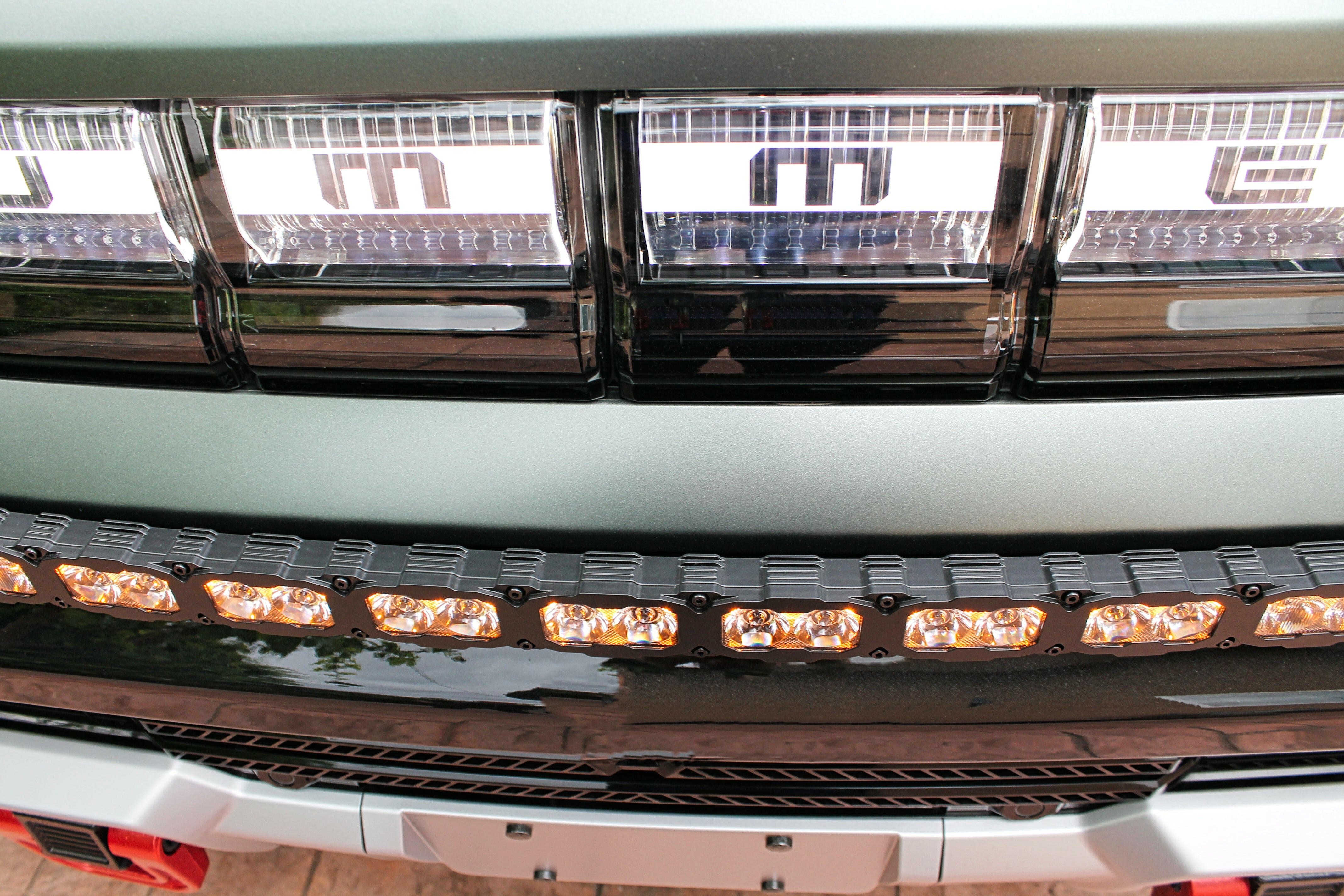

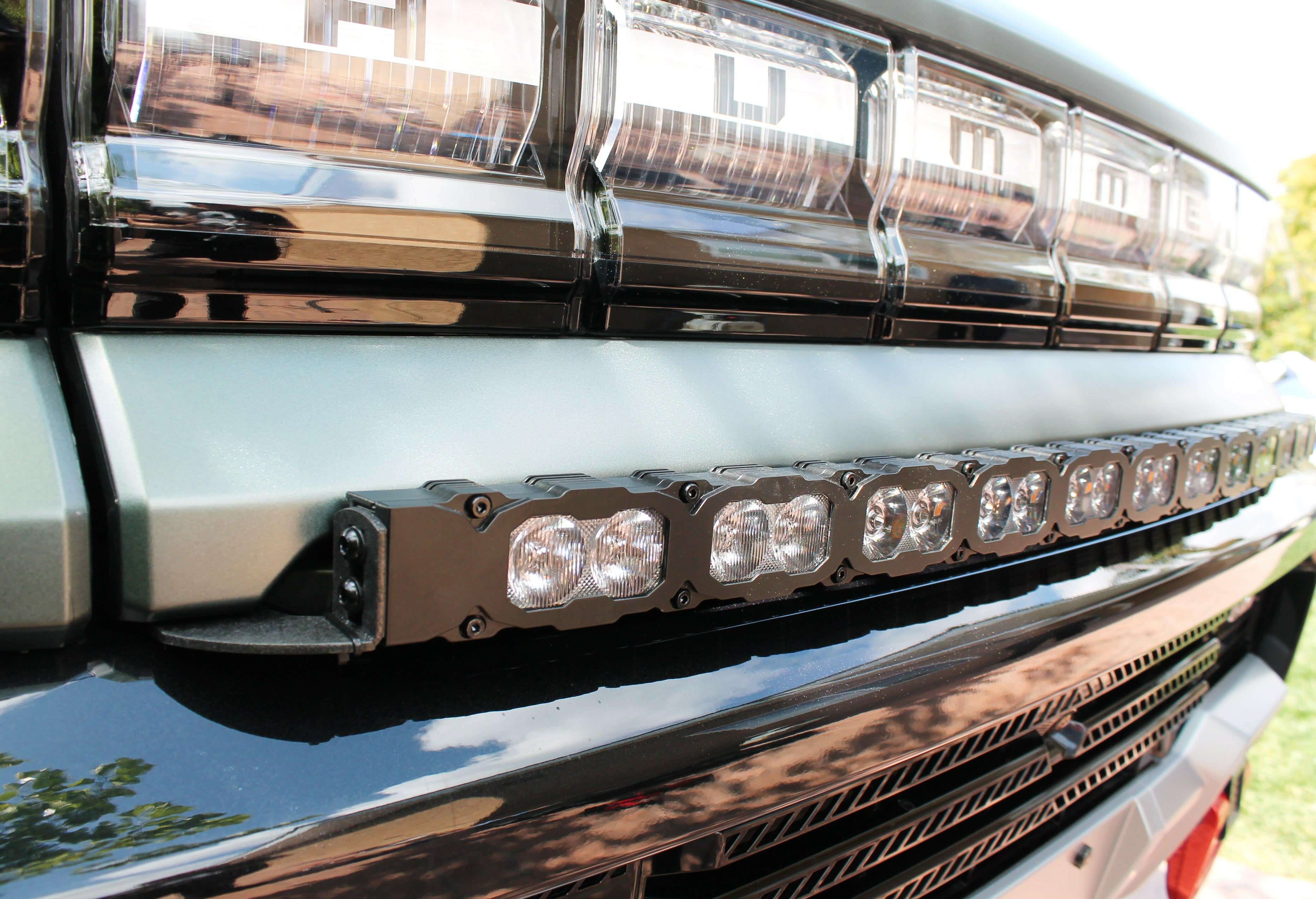

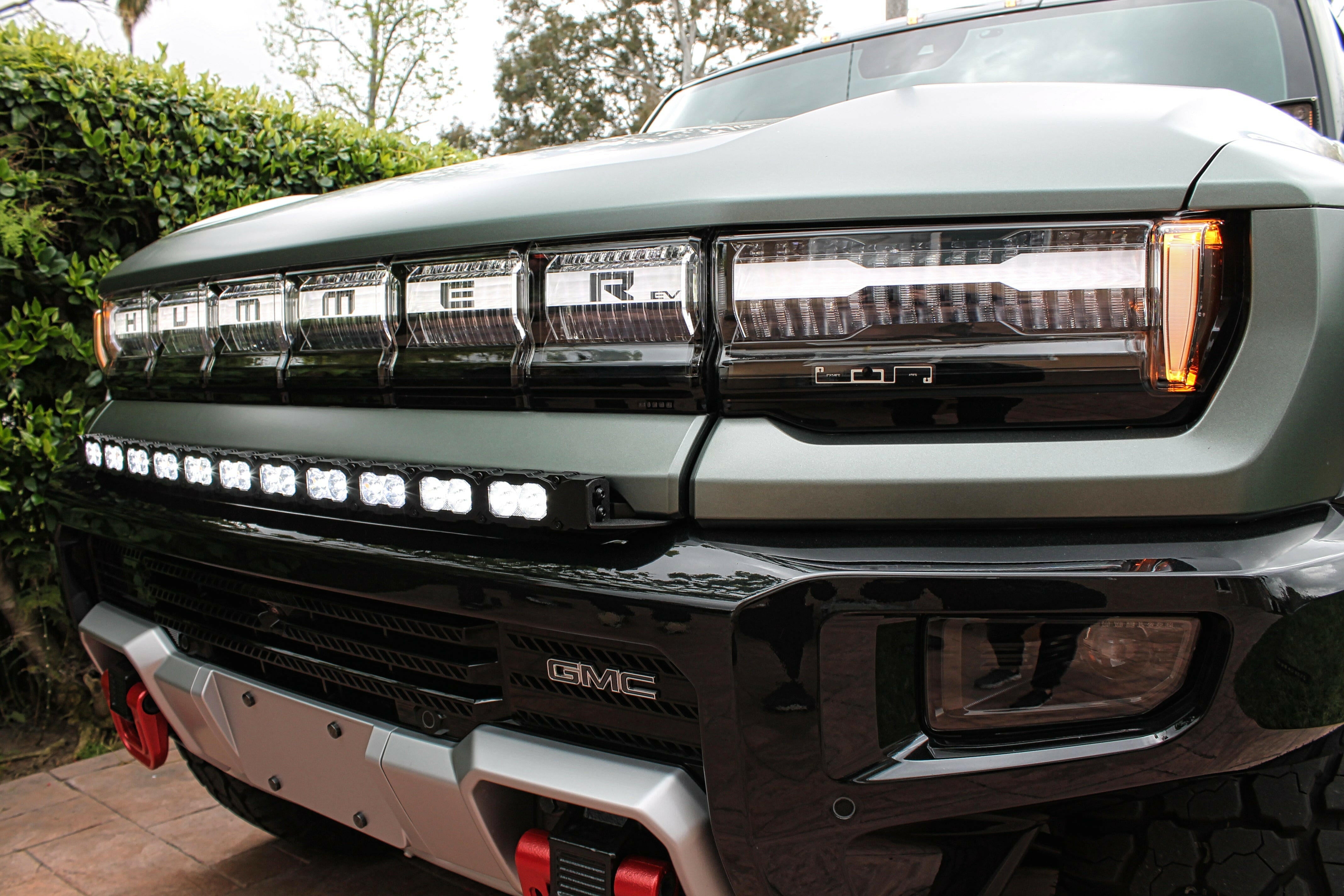

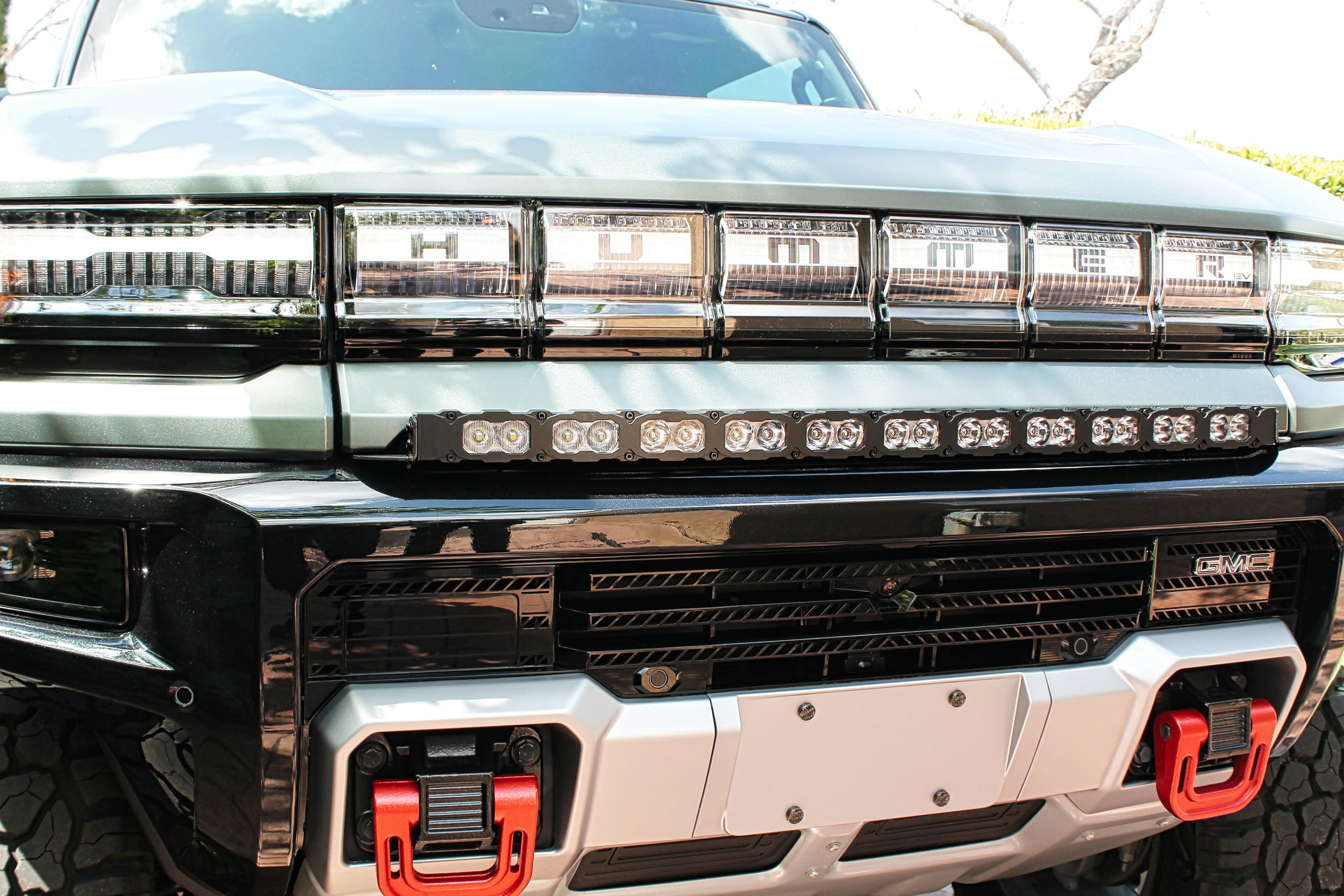

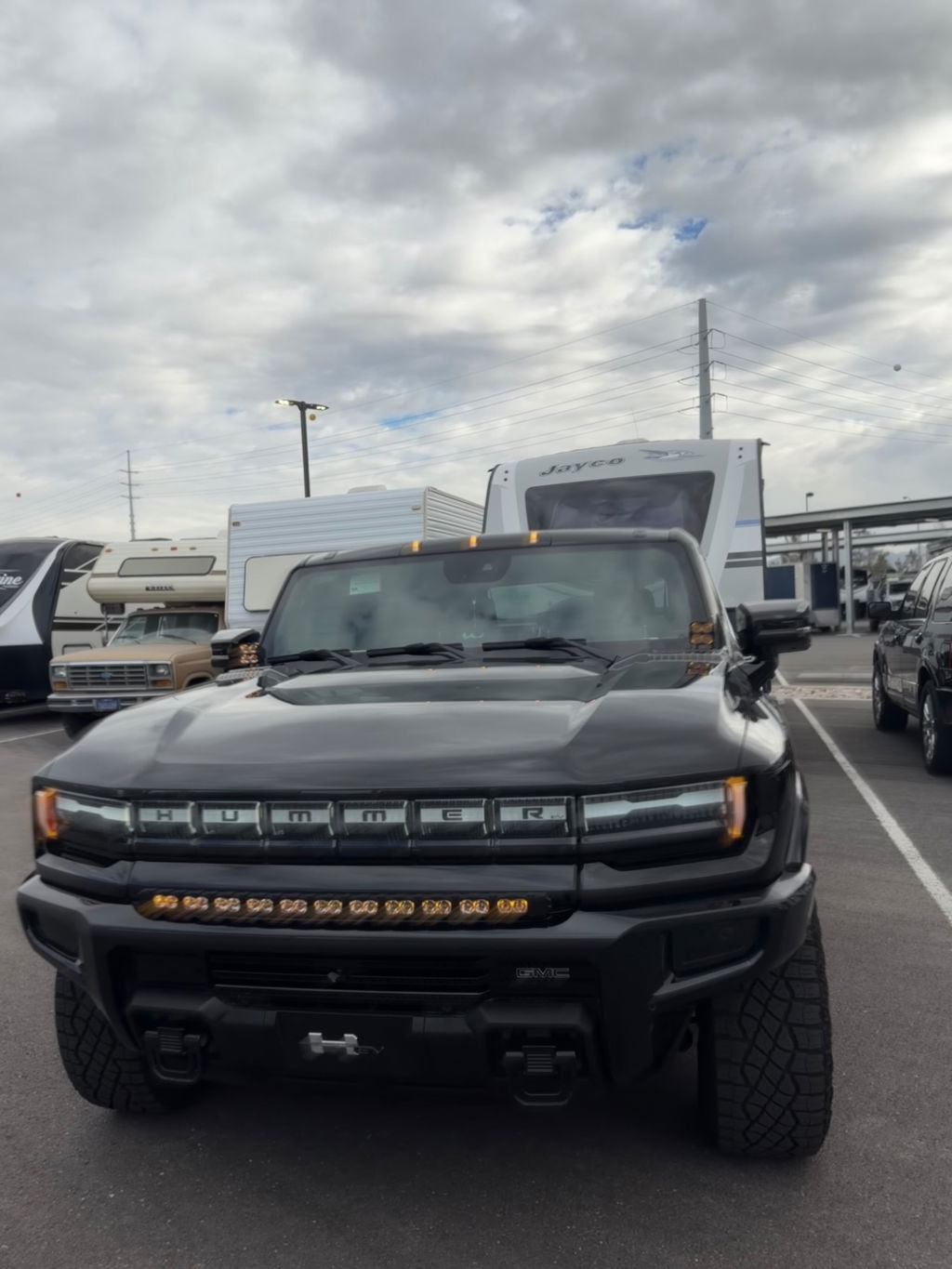

Curved LED light bar, stays slim to the bumper for a sleek, built in look
Metal bracket is powder coated black

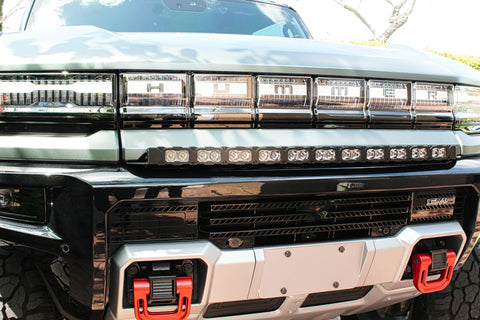

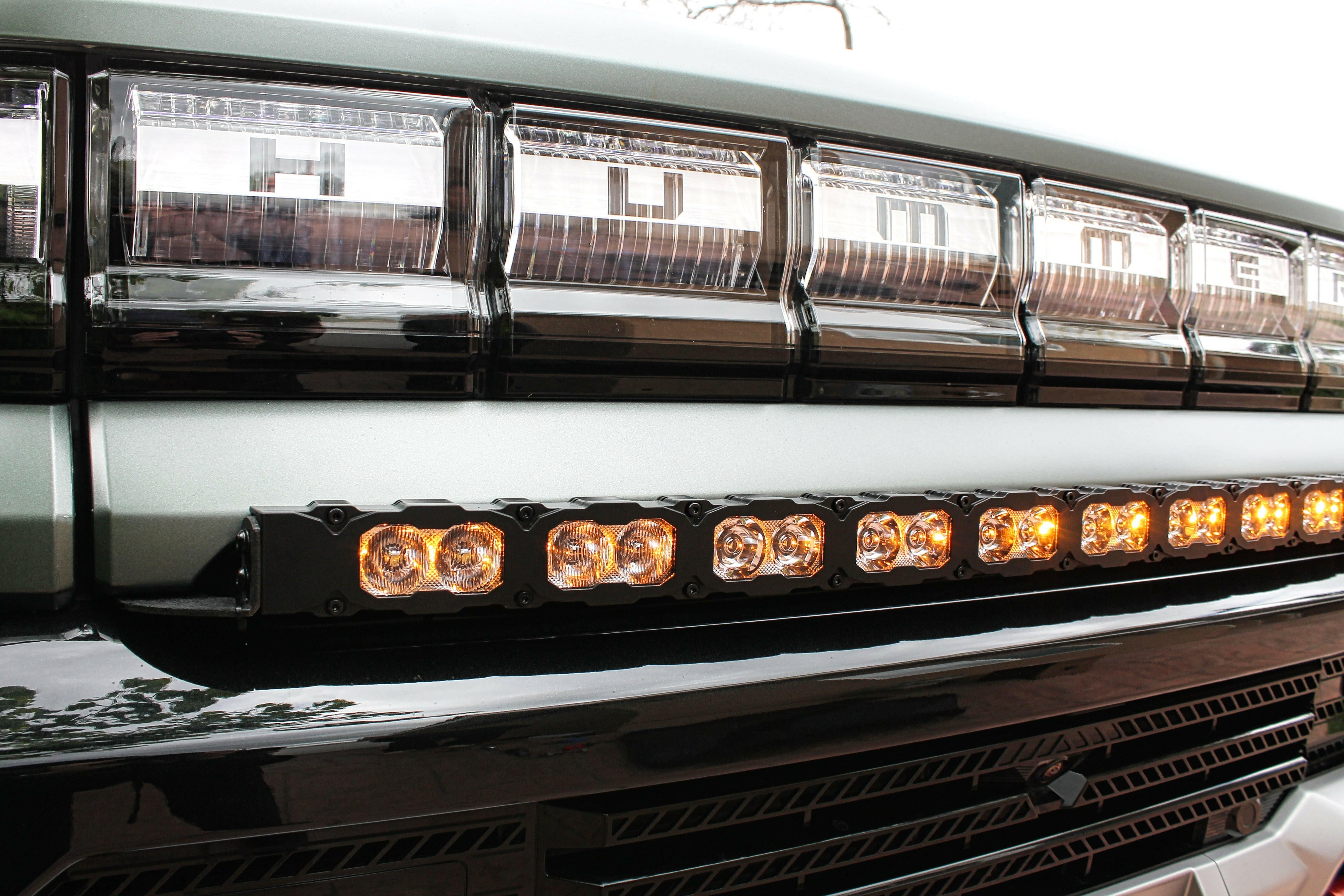

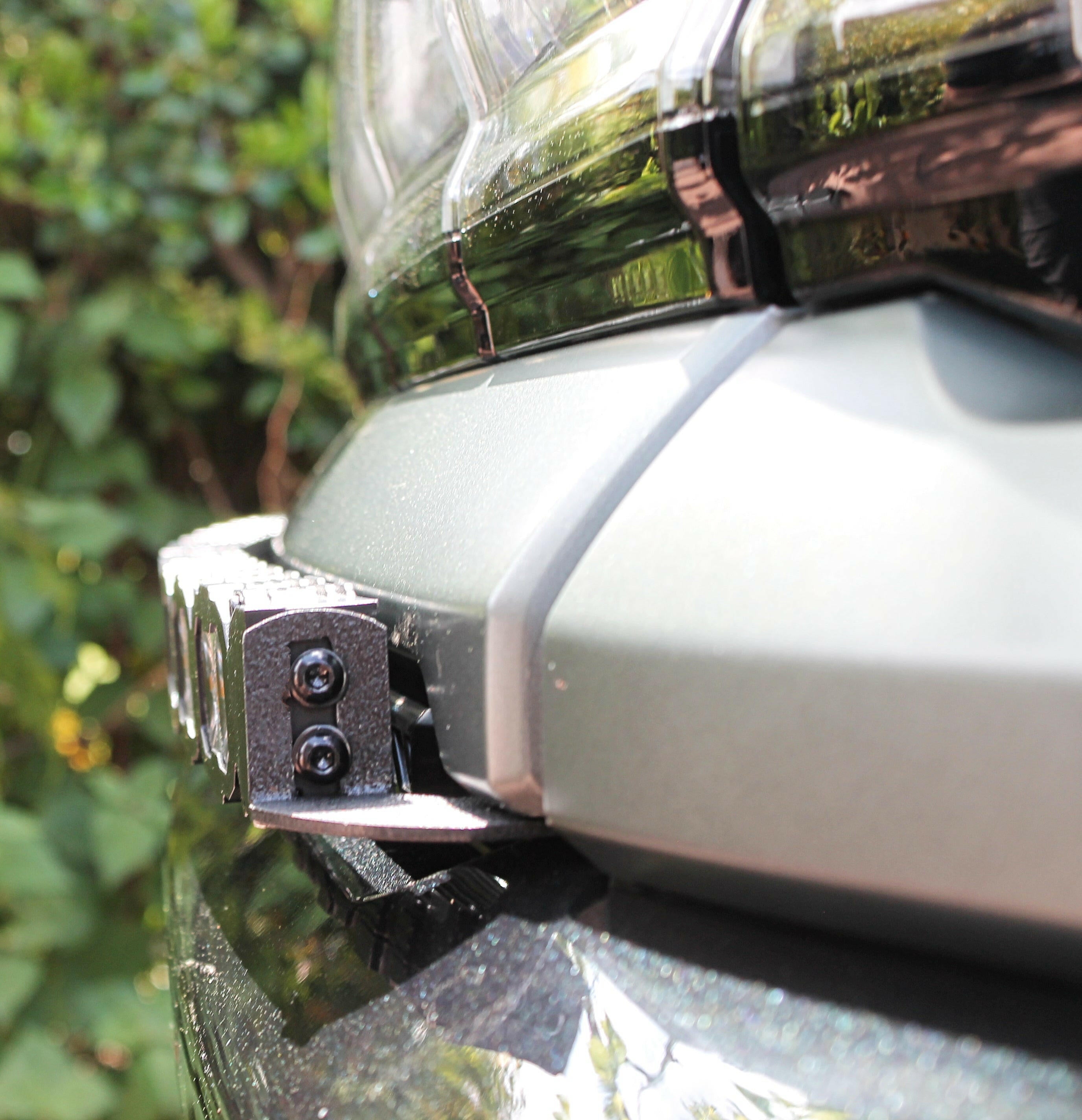

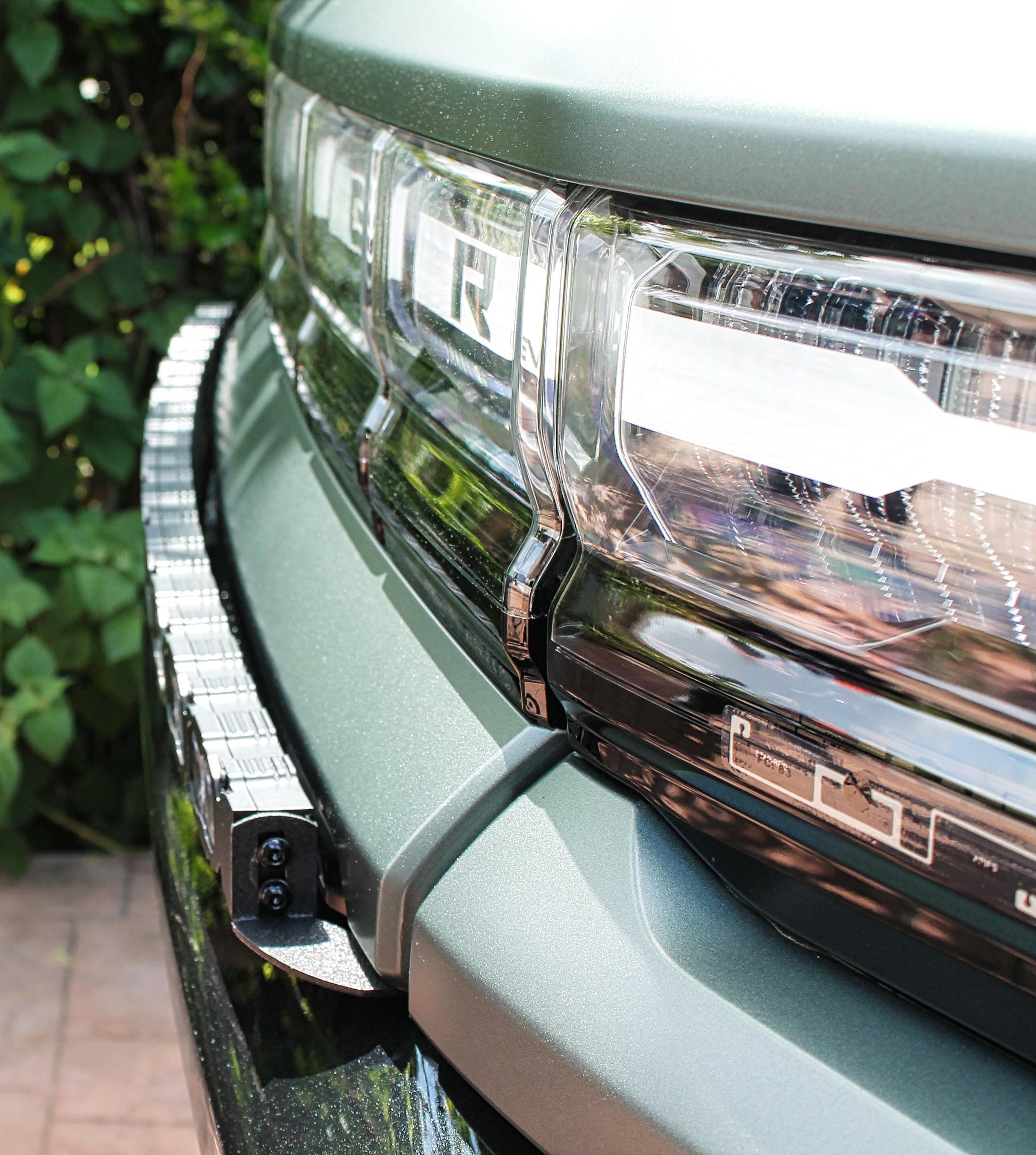

The mounting bracket is bolted onto the frunk using factory hardware. The light bar weights around 5 pounds and doesn't interfere with the opening of the frunk.
Easy install
No cutting or drilling required. The kit is a complete bolt on using factory openings and hardware.

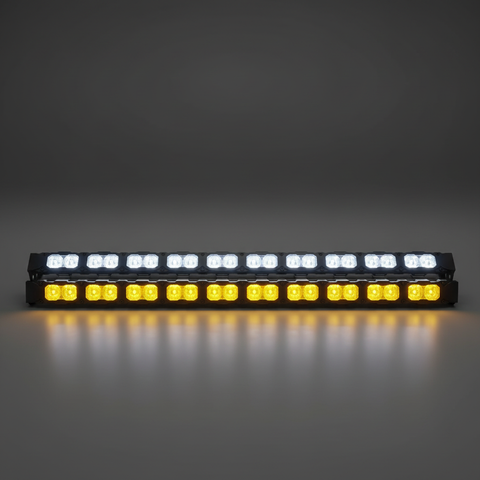

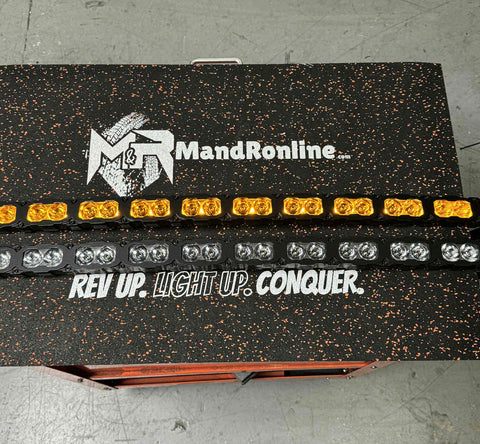

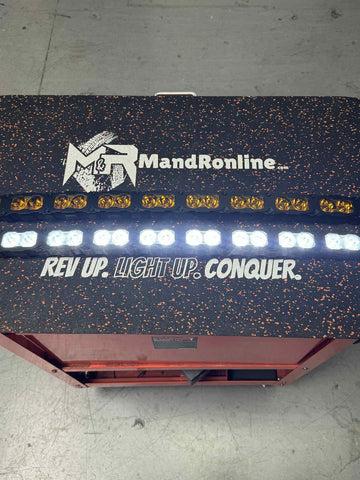

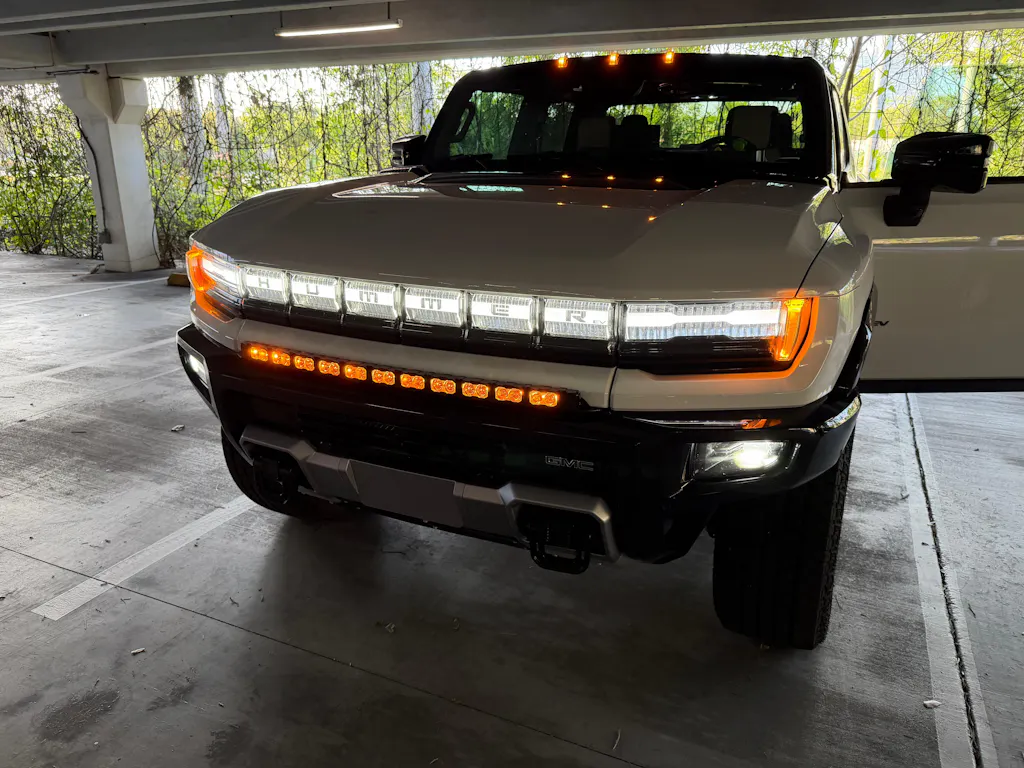

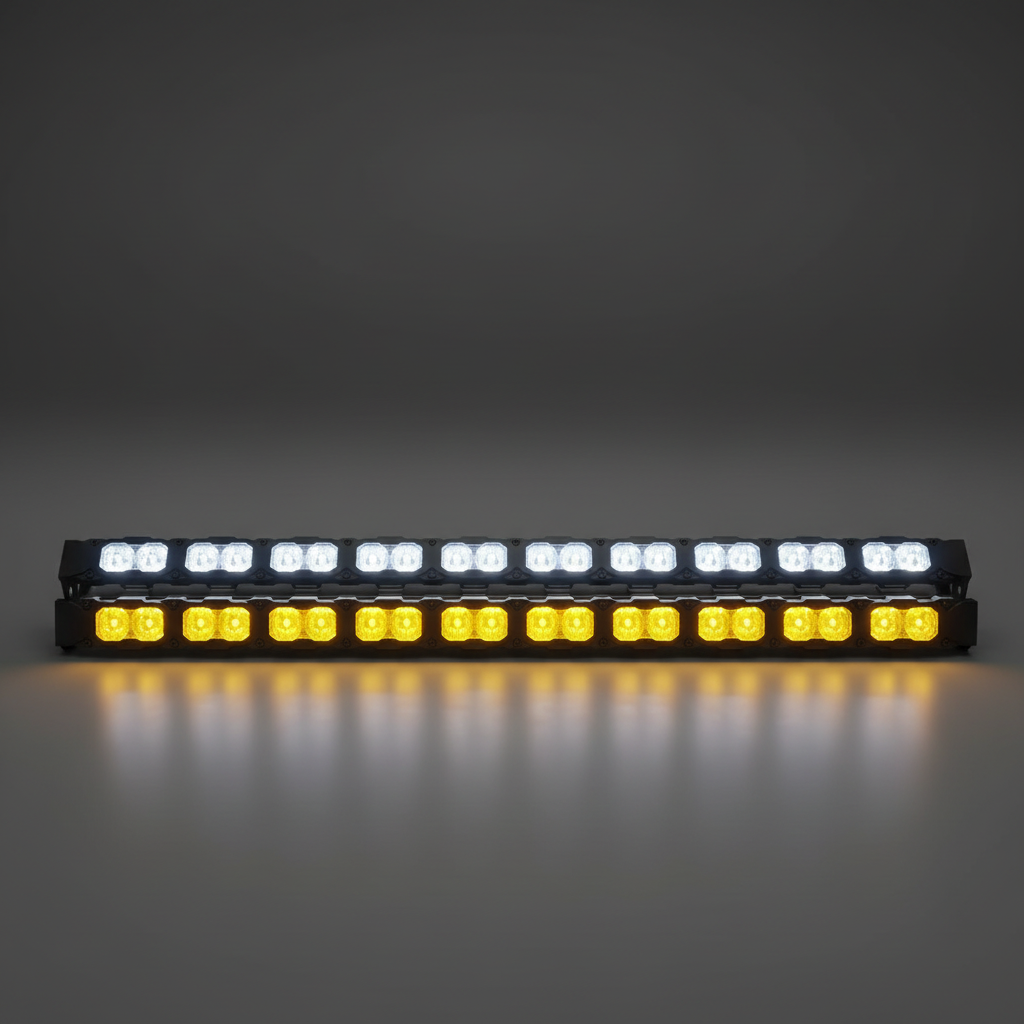

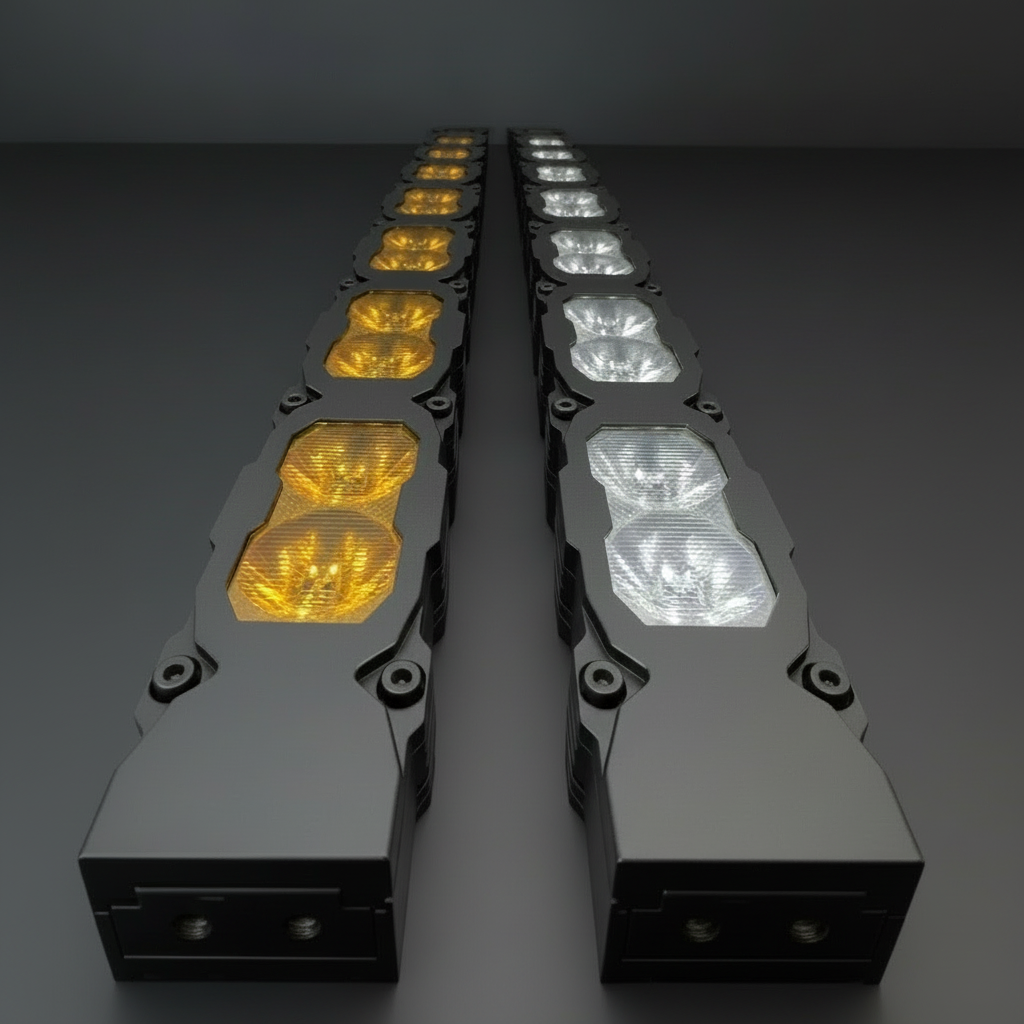

DUAL COLOR: White with Amber DRL

Main White LED Light with Amber DRL (daytime running lights)

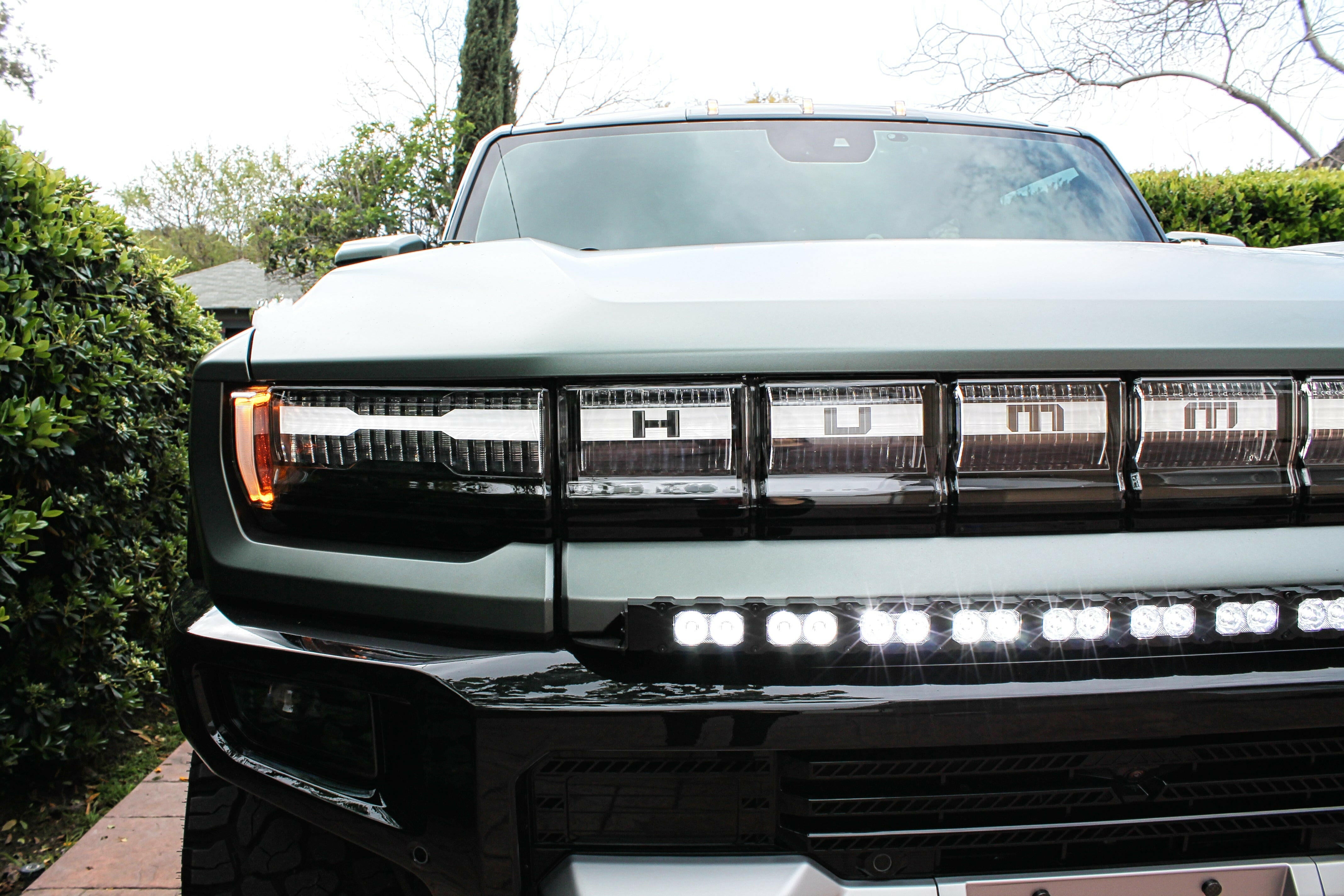

White LED -- Super bright and crisp white beam pattern. It will definitely provide you with enough light needed for all of your adventures. However, these are only for off-roading and can’t be used on the regular road. They will blind the in-coming traffic and also violates road safety.

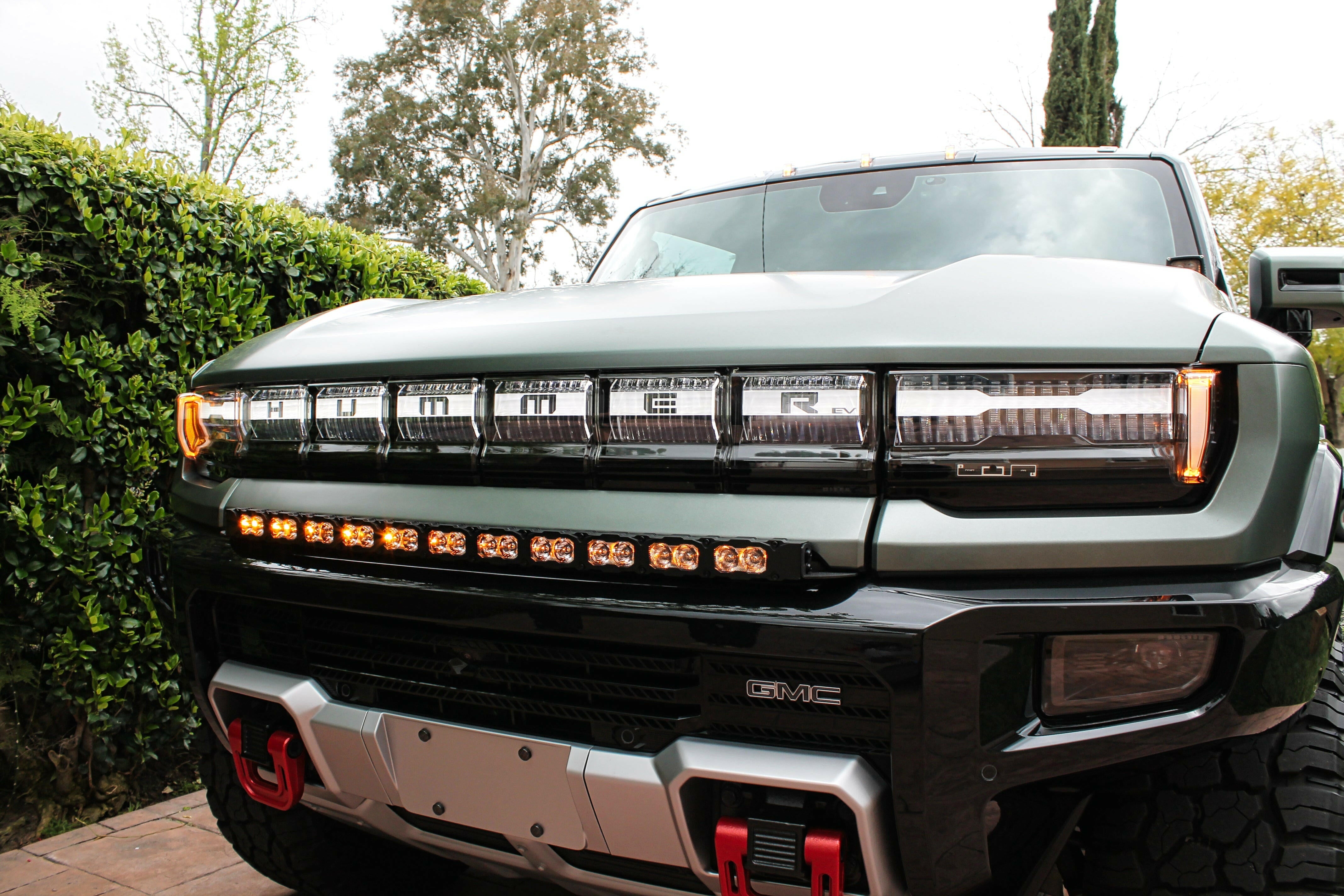

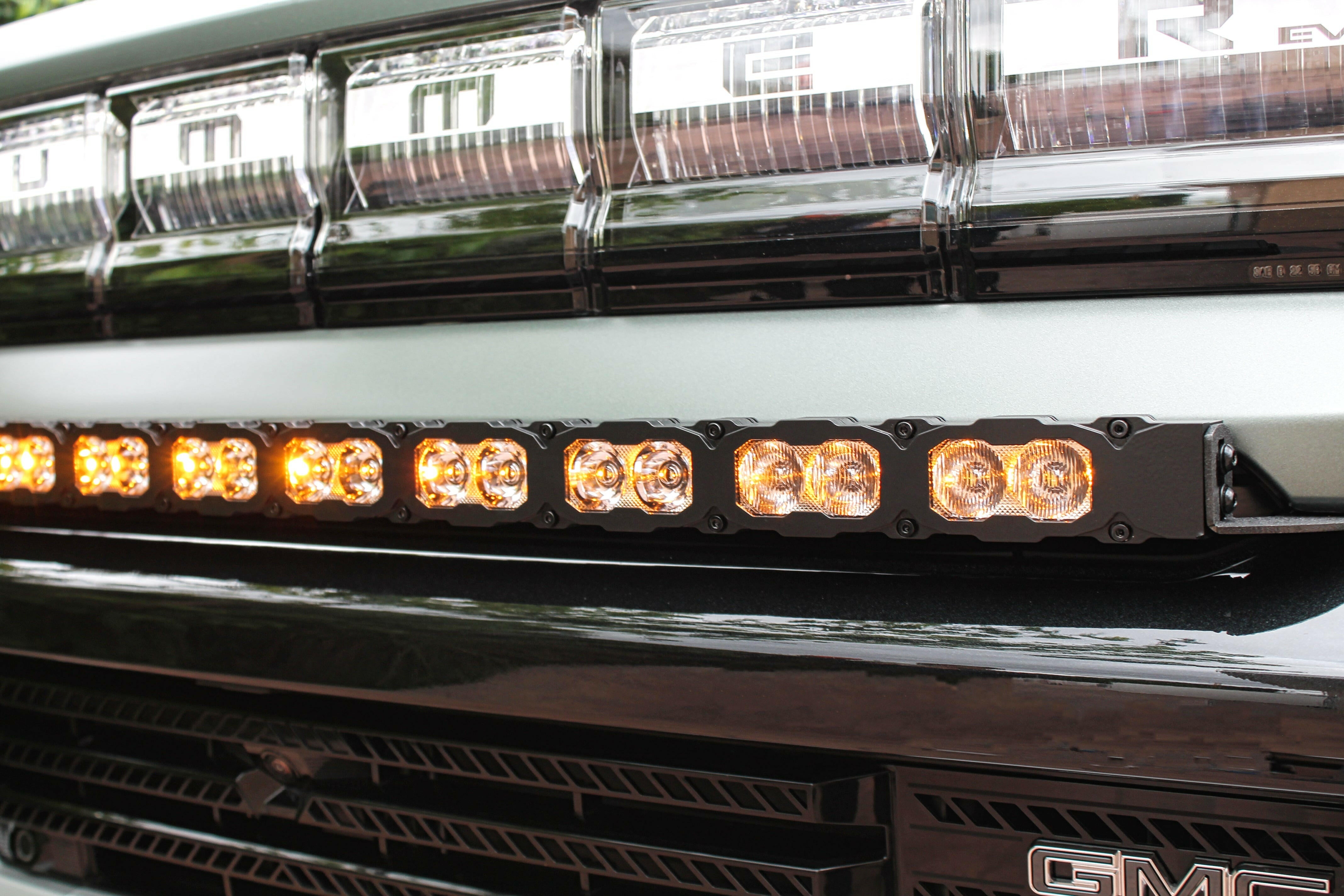

Amber DRL -- amber DRL “daytime running lights” acts purely for aesthetics. Since it doesn’t give out much light, you can use this amber DRL feature on regular roads, it doesn't blind in-coming traffic.

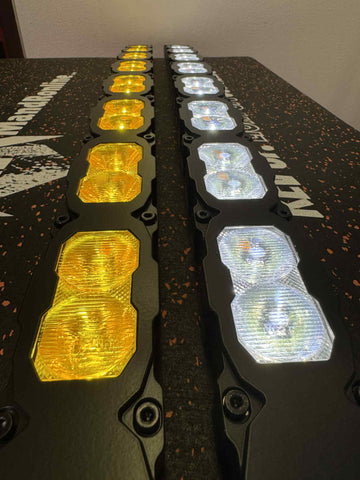

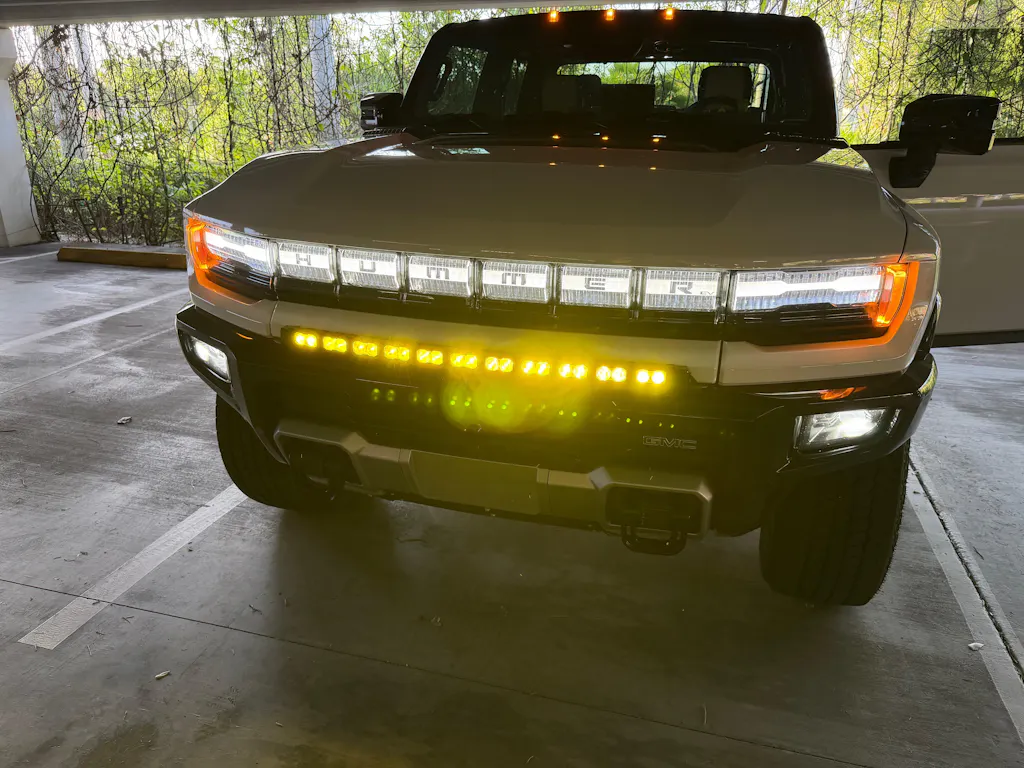

DUAL COLOR: Yellow with Amber DRL

Main Yellow LED Light with Amber DRL (daytime running lights)

Yellow LED -- used in poor driving conditions such as dust, fog, snow and rain. It reflects through air particles much less than the white light. Therefore, making it ideal for poor driving conditions. For off road use only.
Amber DRL -- amber DRL “daytime running lights” acts purely for aesthetics. Since it doesn’t give out much light, you can use this amber DRL feature on regular roads, it doesn't blind in-coming traffic.

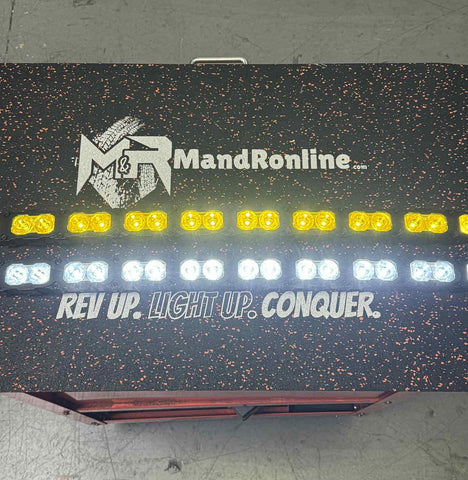

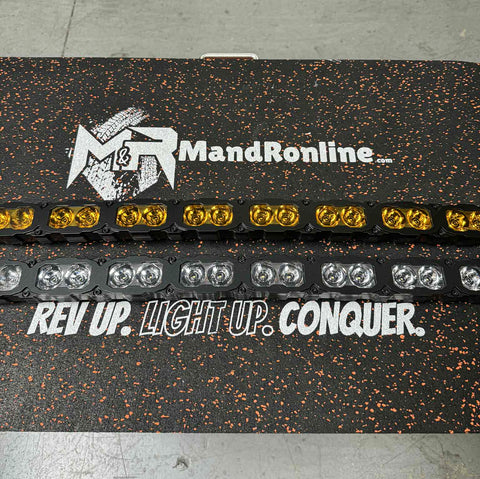

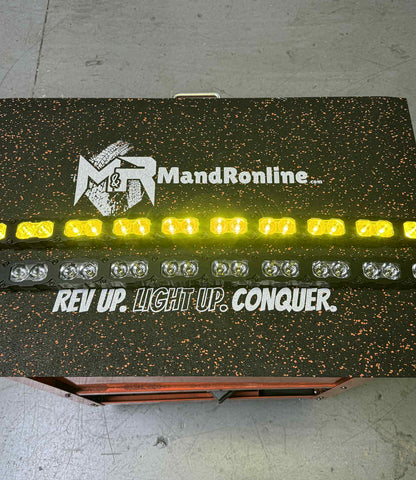

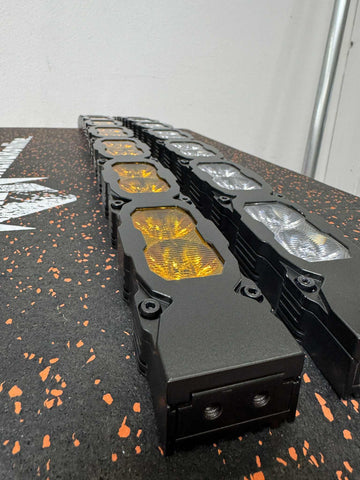

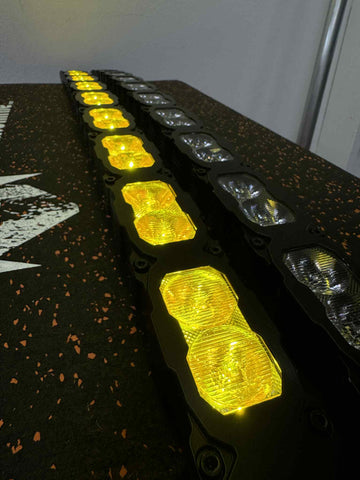

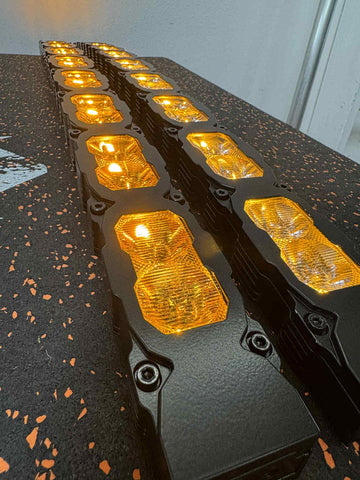

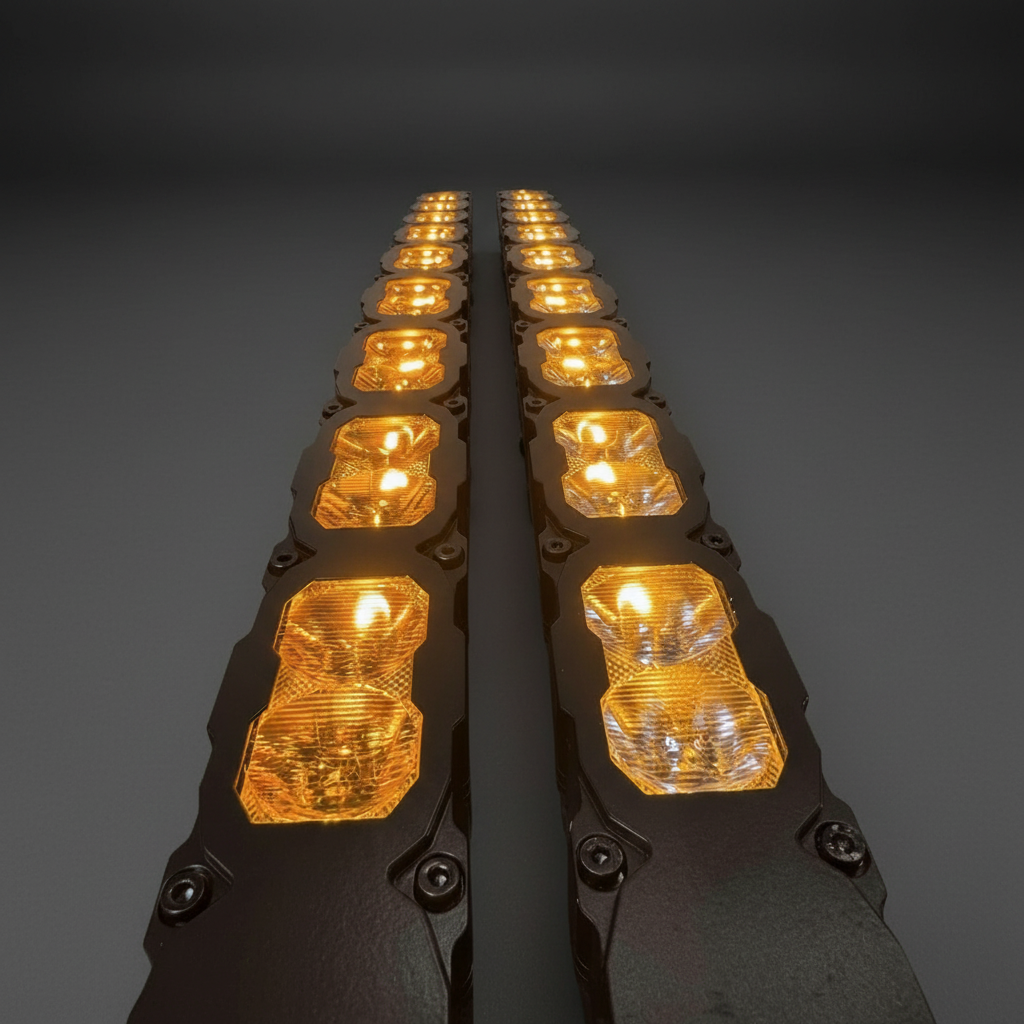

**Please note** The yellow lens alters the look of the amber DRL, making it appear a little darker than with the white lens. Check the photos to see the difference.

Combo Pattern: combined spot and driving optics offers a balance between the distance and width
Uses TIR (Total Internal Reflection) lens is different from our the regular slim light bar. The TIR lens collects all of the light from the LED and directly leads them to where you need, drastically reducing glare and improving total efficiency.
Higher light efficiency: brighter, longer irradiation distance

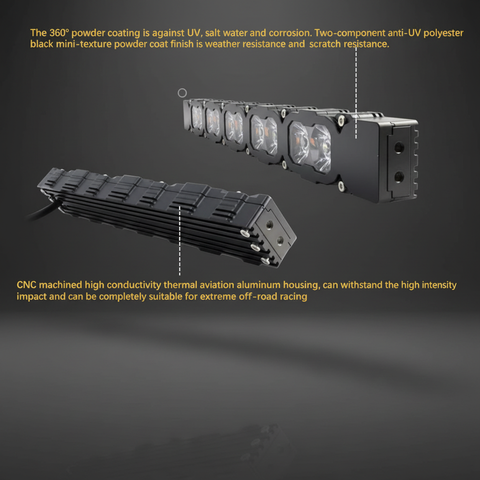

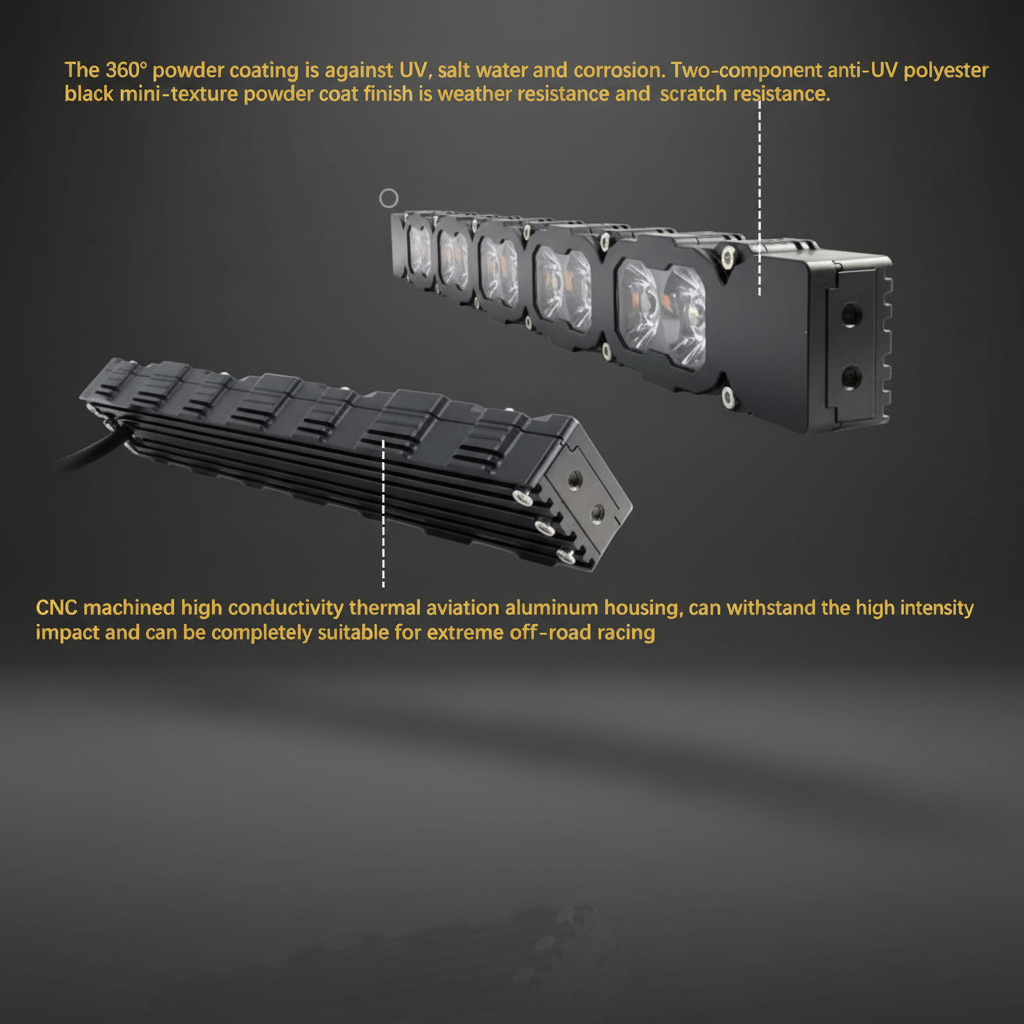

Housing is upgraded to 304 aluminum. The surface is UV polyester powder coated to prevent against UV, salt water, corrosion, fading and scratch resistant.
Equipped with thermal management system that automatically adjusts the brightness output according to the external temperatures

👍Our light kits are for off-road use only.

WHAT'S INCLUDED?

(1) 40in curved light bar PRO

(2) mounting brackets

All mounting hardware

WIRING

M&R Automotive doesn’t provide a wiring harness. The light bar has 8ft of wire. This is long enough to be run under the hood to a power source (see pictures).

In our install, we used M&R Wireless 8 Circuit Wiring Harness. This makes install much easier, no need to run any wires through the firewall, clean install.

Wireless 8 Circuit Wiring Harness 1.0

INCLUDES:

Rechargeable wireless controller, USB Type-C connector
Mounting plate that you attach to your preferred place inside the vehicle. The remote is magnetic for easy operation.
Sticker page to change the key icon to match the device connected to the control box.

Wireless Connectivity: With advanced wireless technology, connect and power various accessories without the need for traditional wiring. Enjoy a cleaner and more organized interior. Wireless remote stays inside your vehicle without the need to run a wire through the firewall.

8 Switches: Total of 8 circuits: (2) 5amps, (2) 10amps, (2) 20amps, (2) 30amps

Max power: 1200watts
Max current Rating: 80amps
Voltage: DC 12V-24V

Plug-and-Play Compatibility: Installing accessories has never been easier. Designed with a user-friendly, plug-and-play interface, eliminating the need for complex wiring setups. Simply connect your accessories to the panel and you're ready for an adventure.

Universal Compatibility: Whether you're adding LED lights, off-road equipment, or other accessories, our wireless wiring harness is universally compatible. Seamlessly integrates with your vehicle's electrical system.

Enhanced Safety: Reduce the risk of electrical issues and potential hazards associated with traditional wiring systems. Engineered with safety in mind, featuring built-in safeguards to protect against overloads, short circuits, and other electrical mishaps.

Weatherproof Design: Built to withstand the toughest conditions, it is fully weatherproof. It has a rubber gasket around the fuse box and covered in epoxy.

$169.99

Wireless 8 Circuit Wiring Harness 2.0

➡️Special Features (only featured in this wireless 2.0)

Sleep Mode (Power-Saving Mode): If the input voltage of the Control Box falls below 13V (±0.2V), the Control Box will enter the sleep mode after 6 hours (default) of consecutively inactivity, then all loads will be shut down immediately and the Control Box will not respond to any commands from the Wireless Control Panel. When the input voltage rises above 13V (±0.2V), the Control Box will be awoken.

Low Voltage Protection: If the input voltage of the Control Box falls below 12.2V (±0.2V), the Control Box will enter the low voltage timing mode. After exceeding 30 minutes, the Control Box will start the low voltage protection, then all loads will be shut down immediately and the Control Box will not respond to any commands from the Wireless Control Panel. When the input voltage rises above 13V (±0.2V), the Control Box will exit the low voltage protection.

Ultra-Low Voltage Protection: If the input voltage of the Control Box falls below 11.6V (±0.2V), the Control Box will enter the ultra-low voltage timing mode. After exceeding 10 seconds, the Control Box will start the ultra-low voltage protection, then all loads will be shut down immediately and the Control Box will not respond to any commands from the Wireless Control Panel. When the input voltage rises above 13V (±0.2V), the Control Box will exit the ultra-low voltage protection.

High Temperature Protection: If the temperature at the center of the Control Box's circuit board exceeds 100°C (±5°C), the Control Box will start the high temperature protection and immediately shut down all loads.

➡️Wireless Harness Specs

The main control box has 8 circuits, ranging in different amps.

(3) 10amps

(2) 20amps

(3) 30amps

The fuse box is made out of high thermal conductivity die-case aviation aluminum housing. Allowing it to resist high-intensity impacts and is fully suitable for extreme off-road conditions. The surface is powder coated with UV-resistant polyester for weather resistance. The internal two-component thermally conductive mixture conducts and dissipates the heat generated by the circuity more quickly and effectively.

INCLUDES:

Rechargeable wireless controller, USB Type-C connector
Mounting plate that you attach to your preferred place inside the vehicle. The remote is magnetic for easy operation.
Sticker page to change the key icon to match the device connected to the control box.

8 Switches: Total of 8 circuits: (3) 10amps, (2) 20amps, (3) 30amps

Max power: 1200watts
Max current Rating: 100amps
Voltage: DC 12V-24V

Weatherproof Design: Built to withstand the toughest conditions, it is fully weatherproof. It has a rubber gasket around the fuse box and covered in epoxy.

$214.99

USING FACTORY AUX?

If you want to use factory AUX switches you need to purchase "Accessory Touch Screen Control Switch Module" LINK HERE. M&R doesn't sell this module.

You will need one of each for every positive wire connections

1. Wire pin

https://www.corsa-technic.com/item.php?item_id=1105

2. Relay part number GM 13598343 or similar

3. Mini fuse that does not exceed amperage of the accessory

INSTALLATION INSTRUCTIONS

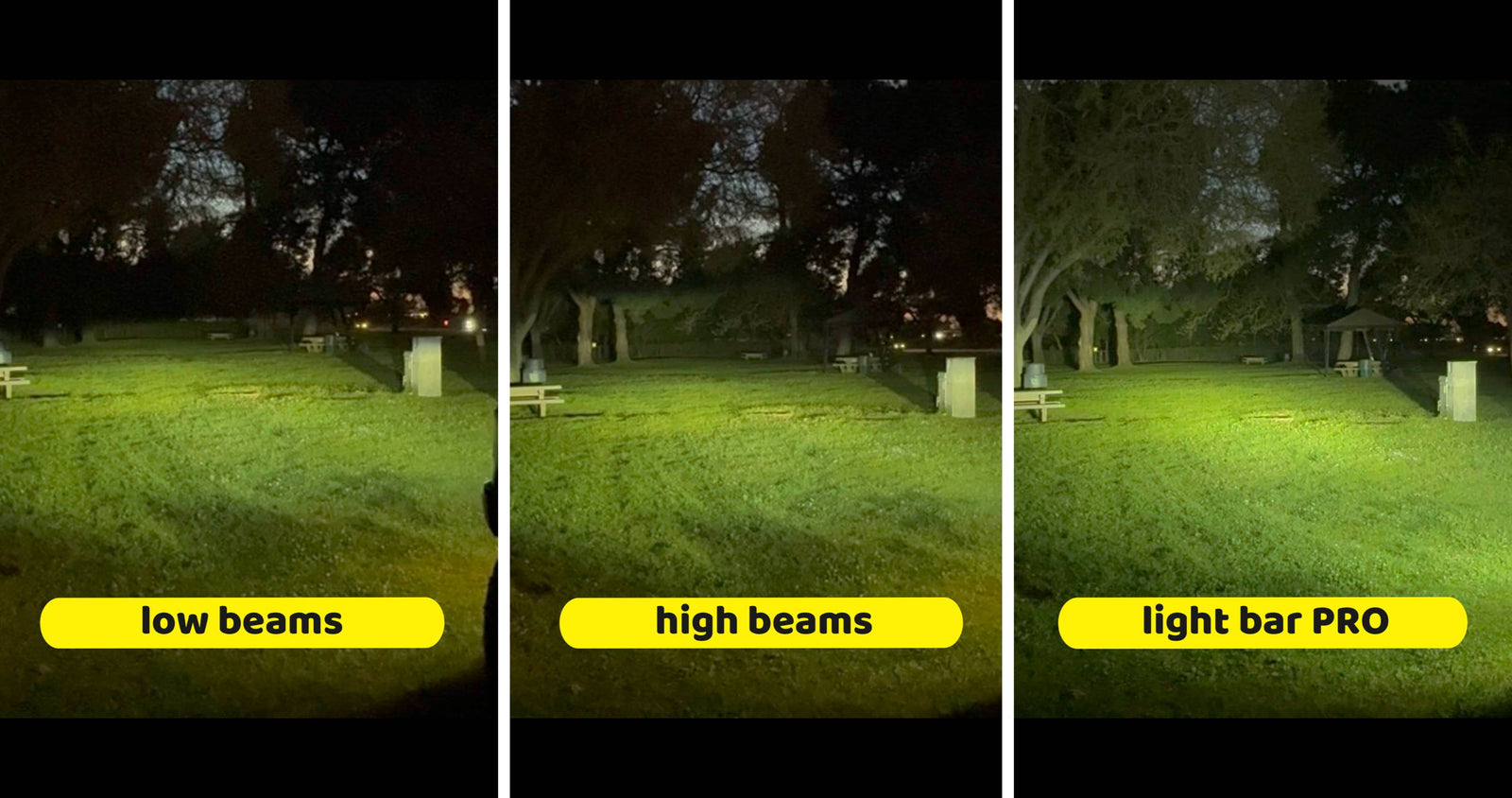

hummer ev led light by m&r automotive light output

40in Light Bar PRO

Theoretical max power 220watts
Actual power 125watts
Main White light is 10.42amps at 12v
Backlight Amber is 0.25amps at 12v
Theoretical max luminous flux 24,024 lm
Measured luminous flux (without lens) 15,224 lm
Measured luminous flux (with lens) 12,108 lm
LEDs type: luminus SST-20 Ra70
Temperature: 6000k
LEDs number: 22pcs

All domestic (USA) orders are free shipping via USPS or UPS, depending on product size.

We typically ship in 3-7 business days. If we are anticipating a delay with your shipment due to availability of the product, we will reach out to you via email.

Canada, international or express shipping costs are calculated at checkout.

You will receive an email with tracking number when your order is shipped.

If you have a special request about your order, reach out, we try to accommodate as much as we can.

For a complete shipping policy click here.

We have a lifetime warranty on our light kits. We truly want our truck enthusiastic customers to enjoy their products as much as we enjoy designing them. However, we also understand that different situations arise with brackets or lights. For more information about our warranty and disclaimer click here.

*M&R Automotive is not responsible for misuse or improper installation of the product. Professional installation is recommended.

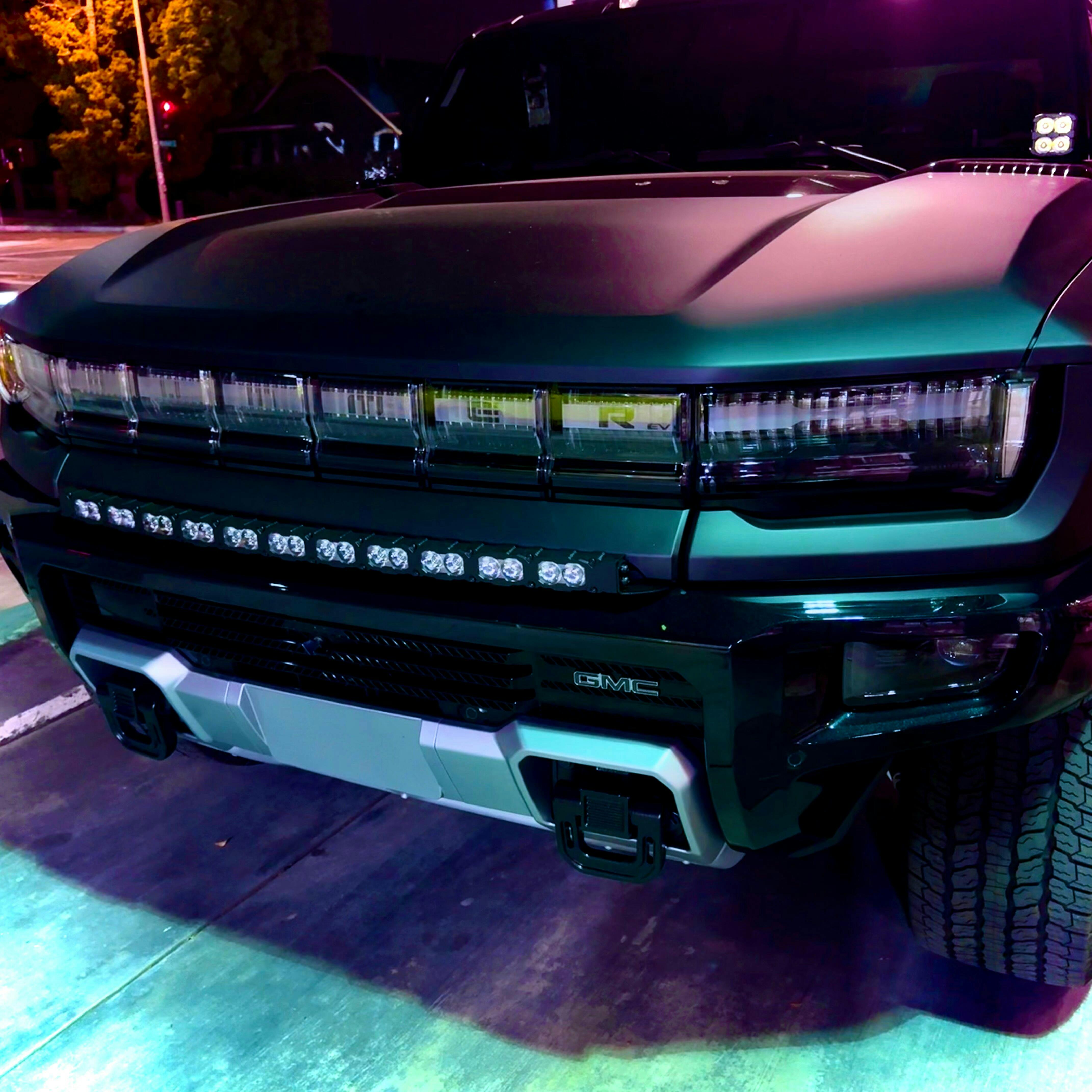

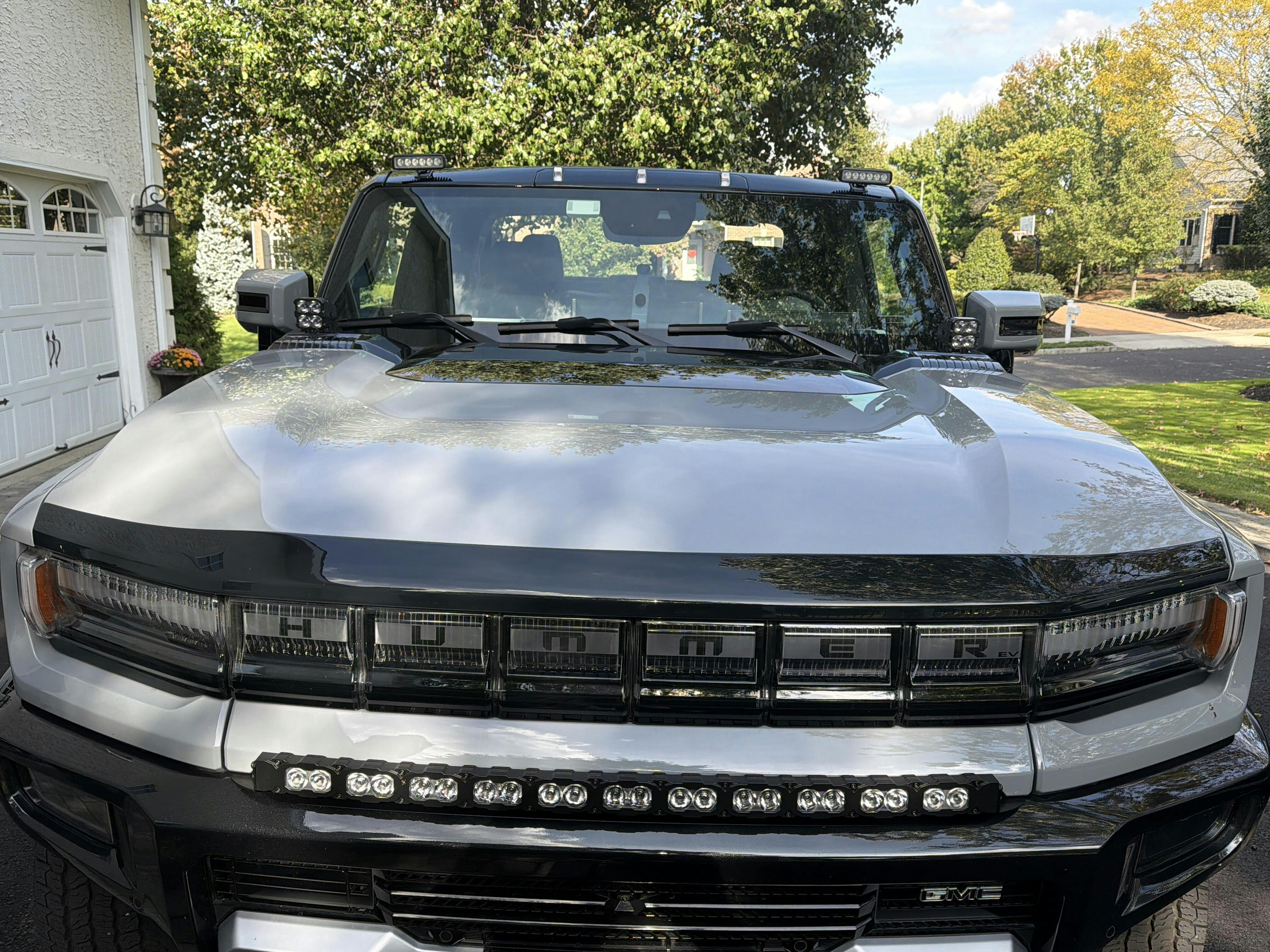

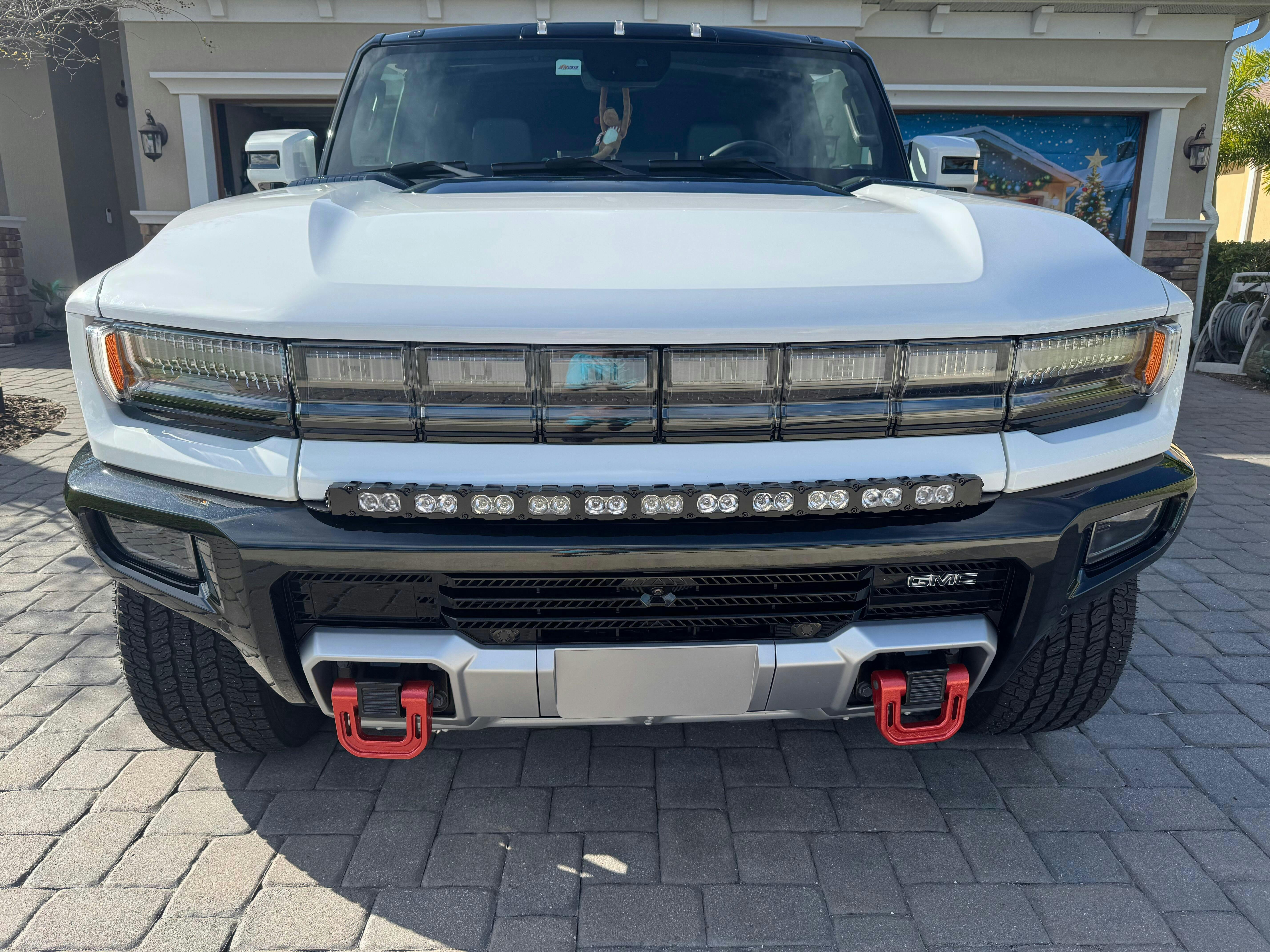

Fantastic curved light bar and great customer service

Ordered and installed the M&R curved light bar for my Hummer EV. I had one install hiccup and Mike cleared it up during the weekend with a quick email reply. Looks and functions perfectly.
