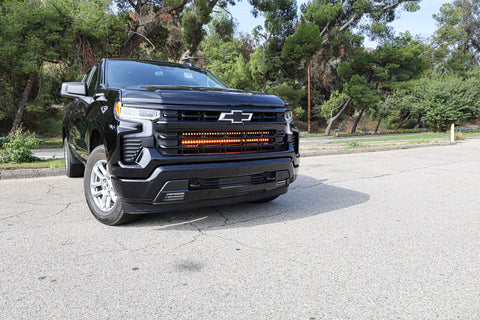

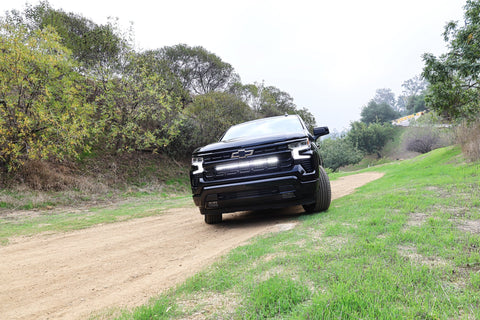

- Fits 2022 2023 2024 2025 2026 Chevrolet Silverado 1500

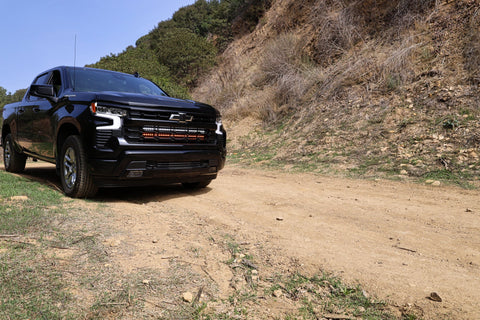

- Trims: WT, Custom Trail Boss, LT, RST, LT Trail Boss, ZR2, LTZ, High Country
- Fits only on the bottom half of the grille

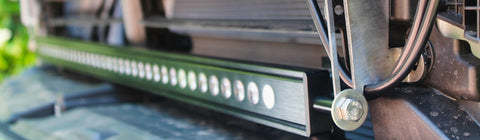

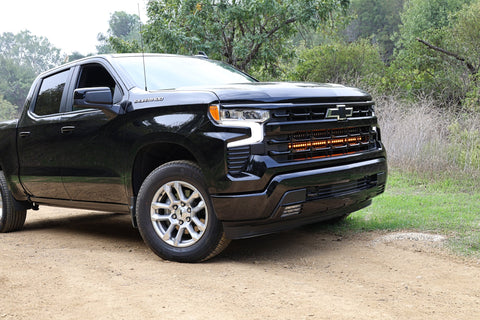

- Due to grille type variations, M&R designed the mounting bracket on a rail system (see photo). This allows you to move the light bar up or down of about 6in, for maximum light output. You choose the location of your light bar.
- No cutting or drilling required. The kit is a complete bolt on using factory openings and hardware.
-
WILL NOT interfere with active grille shutters. Our light bars are very slim and the metal bracket is designed to be in front of the shutters.
👌M&R promises fitment of the light bar with the grille as pictured. If you have a different type of grille, please reach out with pictures for confirmation.
👍Our light kits are for off-road use only.
Choose your light bar color:

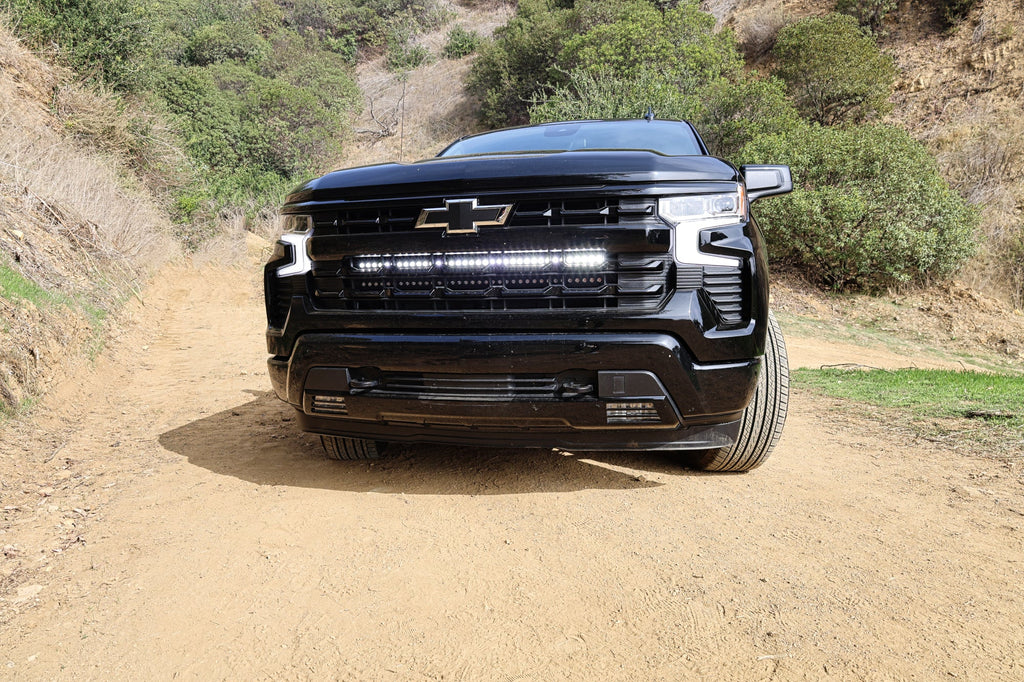

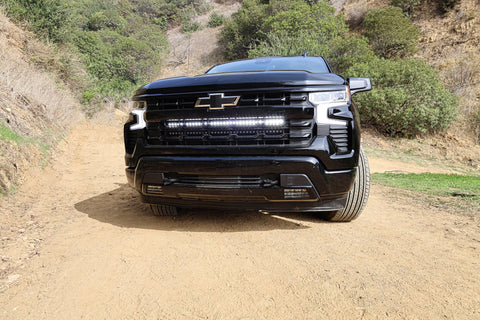

1) White LED -- Up to 15,000 lumens, bright and powerful. It will definitely provide you with enough light needed for all of your adventures. However, these are only for off-roading and can’t be used on the regular road. They will blind the in-coming traffic and also violates road safety.

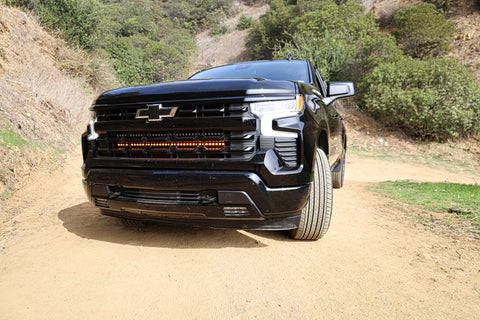

2) Amber LED -- Up to 7,000 lumens, used in poor driving conditions such as dust, fog, snow and rain. It reflects through air particles much less than the white light. Therefore, making it ideal for poor driving conditions. For off road use only.
3) dual function: main White LED light with Amber DRL backglow -- the white LED light is same as described above, but the amber DRL “daytime running lights” acts purely for aesthetics. Since it doesn’t give out much light, you can use this amber DRL feature on regular roads, it doesn't blind in-coming traffic.
Full in-depth video describing our lights bars CLICK HERE
WHAT'S INCLUDED?
(1) 40in light bar - SLIM
(2) mounting brackets
All mounting hardware
WIRING
- M&R Automotive doesn’t provide a wiring harness.
- The light bar has 6ft of wire which is enough to reach AUX wires if your truck has them. If not, you need to purchase a generic wiring harness from Amazon/Ebay or create your own.
- We sell a wireless wiring harness that delivers a clean, hassle-free install—no need to run wires into the cab.
INSTALLATION INSTRUCTIONS
40in SLIM light bar
White:
- Beam Pattern Spot
- Theotetical max power 180watts
- Actual power 102watts
- Voltage/current DC12v/6.5A
- Theoretical max luminous flux 21,060 lm
- Measured luminous flux (without lens) 11,376 lm
- Measured luminous flux (with lens) 8,340 lm
- LEDs type CREE XTE
- Temperature 6000k
- LEDs number 36pcs
- Product size LxWxD (in) 38.93 x 0.75 x 1.63
40in SLIM light bar
Amber:
- Beam Pattern Spot
- Theotetical max power 140watts
- Actual power 78watts
- Voltage/current DC12v/6.5A
- Theoretical max luminous flux 11,160 lm
- Measured luminous flux (without lens) 7,380 lm
- Measured luminous flux (with lens) 5,387 lm
- LEDs type CREE XP - E2 Amber
- Temperature 6000k
- LEDs number 36pcs
- Product size LxWxD (in) 38.93 x 0.75 x 1.63
40in SLIM light bar
White with Amber DRL
- Beam Pattern Spot
- Theotetical max power 180watts
- Actual power 102watts
- Voltage/current main DC12v/6.5A
- Voltage/current backlight 5.5Wv/0.46A
- Theoretical max luminous flux 21,060 lm
- Measured luminous flux (without lens) 11,376 lm
- Measured luminous flux (with lens) 8,340 lm
- LEDs type CREE XTE
- Temperature 6000k
- LEDs number 36pcs
- Product size LxWxD (in) 38.93 x 0.75 x 1.63
We have a lifetime warranty on our light kits. We truly want our truck enthusiastic customers to enjoy their products as much as we enjoy designing them. However, we also understand that different situations arise with brackets or lights. For more information about our warranty and disclaimer click here.
*M&R Automotive is not responsible for misuse or improper installation of the product. Professional installation is recommended.
