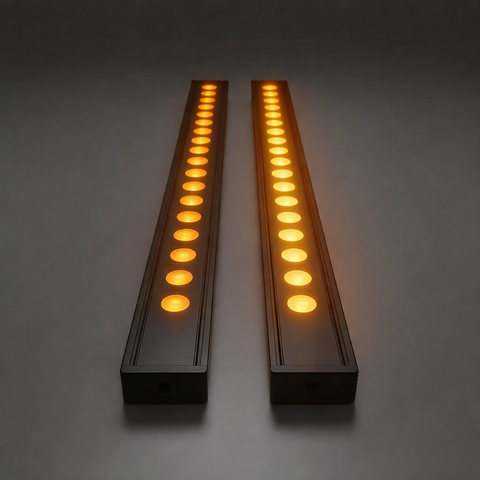

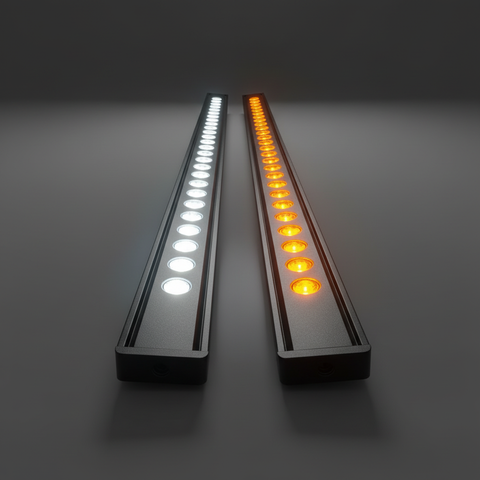

icon RAM TRX Light bar - 23in Slim for 2021-2024 Models
$274.99
WhiteAmberdual function: White light with Amber DRL backglow
3
  • Product Description
  • Light Bar Specs
  • Shipping & Warranty

Fits 2021 2022 2023 2024 RAM 1500 TRX

  • Curved light bar - Slim
  • Fits in the factory opening between the grille and bumper
  • Slim and sleek, built in look
  • Metal bracket is powder coated black
  • Must remove grille, but don't need to remove the bumper
  • No cutting or drilling required. The kit is a complete bolt on using factory openings and hardware
  • Doesn't interfere with radiator air flow



👍Our light kits are for off-road use only.



Choose your light bar color:

1) White LED -- bright and powerful. It will definitely provide you with enough light needed for all of your adventures. However, these are only for off-roading and can’t be used on the regular road. They will blind the in-coming traffic and also violates road safety.

2) Amber LED -- used in poor driving conditions such as dust, fog, snow and rain. It reflects through air particles much less than the white light. Therefore, making it ideal for poor driving conditions. For off road use only.

3) dual function: main White LED light with Amber DRL backglow -- the white LED light is same as described above, but the amber DRL “daytime running lights” acts purely for aesthetics. Since it doesn’t give out much light, you can use this amber DRL feature on regular roads, it doesn't blind in-coming traffic.

Full in-depth video describing our lights bars CLICK HERE


WHAT'S INCLUDED?

(1) 23in curved light bar - Slim

(2) mounting brackets

All mounting hardware

WIRING

  • M&R Automotive doesn’t provide a wiring harness.
  • The light bar has 6ft of wire which is enough to reach AUX switches if your truck has them. Otherwise, you will need to purchase a generic wiring harness from Amazon/Ebay or create your own.
  • We also sell a wireless wiring harness. This makes it an easy, clean install since you don't have to run wires inside the cab.
  • We used AUX wires for a clean install.


INSTALLATION INSTRUCTIONS


23in light bar SLIM

  • Theoretical max power                100watts
  • Actual power                                  53watts
  • Main White light is                        2.42amps at 12v
  • Backlight Amber is                         0.27amps at 12v
  • Theoretical max luminous flux                   11,700 lm
  • Measured luminous flux (without lens)    6,720 lm
  • Measured luminous flux (with lens)           5,004 lm
  • LEDs type:                  luminus SST-20 Ra70
  • Temperature:            6000k
  • LEDs number:            20pcs

All domestic (USA) orders are free shipping via USPS or UPS, depending on product size.
We typically ship in 3-7 business days. If we are anticipating a delay with your shipment due to availability of the product, we will reach out to you via email.

Canada, international or express shipping costs are calculated at checkout.

You will receive an email with tracking number when your order is shipped.

If you have a special request about your order, reach out, we try to accommodate as much as we can.

For a complete shipping policy click here.


We have a lifetime warranty on our light kits. We truly want our truck enthusiastic customers to enjoy their products as much as we enjoy designing them. However, we also understand that different situations arise with brackets or lights. For more information about our warranty and disclaimer click here.




*M&R Automotive is not responsible for misuse or improper installation of the product. Professional installation is recommended.


Customer Reviews

Based on 2 reviews
100%
(2)
0%
(0)
0%
(0)
0%
(0)
0%
(0)
D
D.
Excellent light

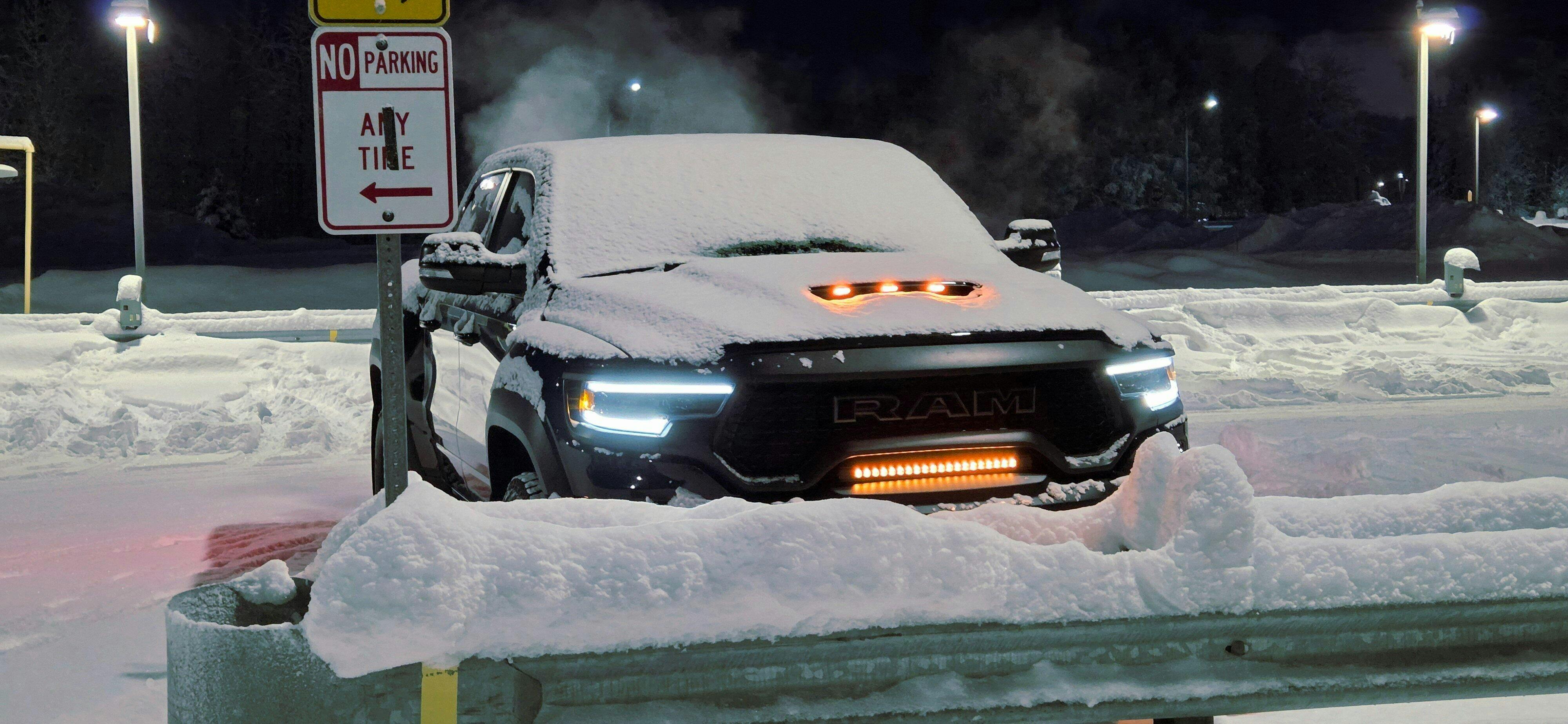

Bright, looks great, easy to install. I have put it right into very stressful hard work conditions here in Fairbanks Alaska. 4 hours of daylight and its 50 below 0 right now. This light is taking it all like a champ and turning night into day. The Amber DRL gives the TRX such a great look too
