- Fits 2021 2022 2023 2024 2025 2026 Ford Bronco
- No cutting or drilling required. The kit is a complete bolt on using factory openings and hardware.
- Very simple install from under the truck
- No need to take off the grille

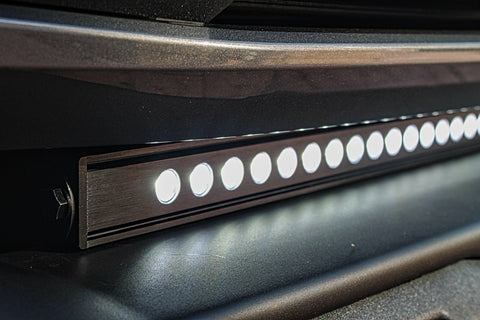

- The light bar installs right on top of the bumper giving it a nice, sleek, built in look
👍Our light kits are for off-road use only.

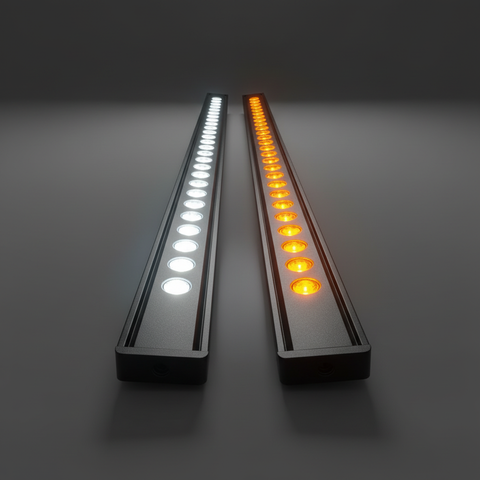

Choose your light bar color:

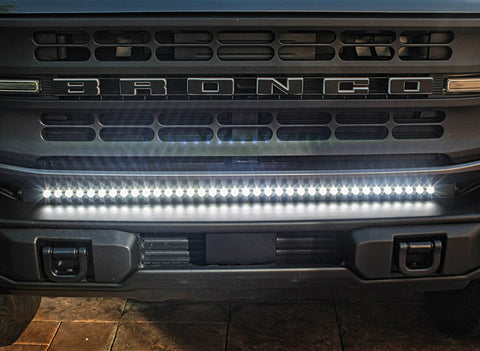

1) White LED --Up to15,000 lumens, bright and powerful. It will definitely provide you with enough light needed for all of your adventures. However, these are only for off-roading and can’t be used on the regular road. They will blind the in-coming traffic and also violates road safety.

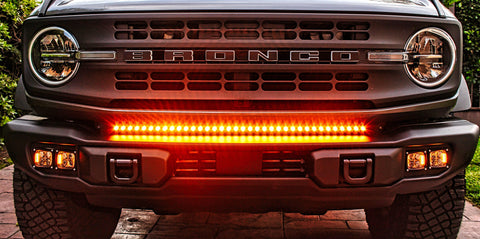

2) Amber LED --Up to 7,000 lumens, used in poor driving conditions such as dust, fog, snow and rain. It reflects through air particles much less than the white light. Therefore, making it ideal for poor driving conditions.

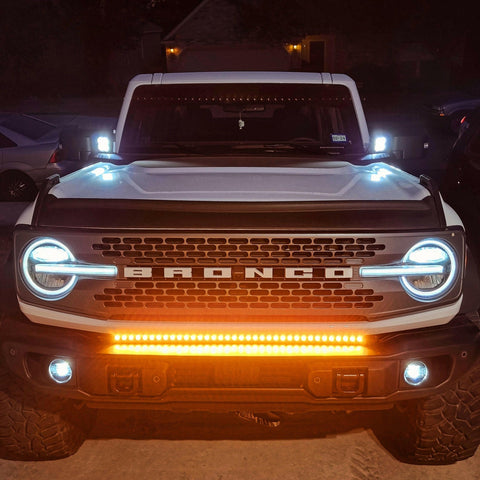

3) dual function: main White LED light with Amber DRL backglow --the white LED light is same as described above, but the amber DRL “daytime running lights” acts purely for aesthetics. It doesn’t give out much light, but more of a beautiful amber backglow. Something extra to make you stand out on the road.
Full in-depth video describing our lights bars CLICK HERE
** CAPABLE BUMPER ONLY**

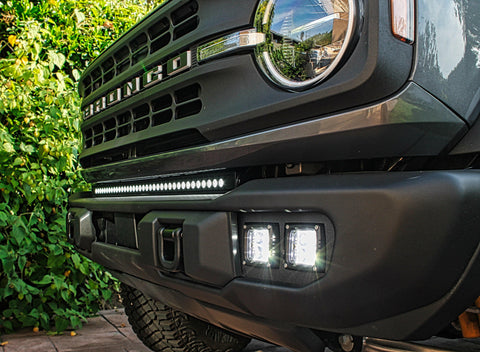

Before purchasing, please confirm that you have a CAPABLE BUMPER that looks similar to this picture. The listing pictures above have M&R Fog light kit installed and therefore looks different than the original capable bumper.
If you need help figuring out your Bronco bumper, send us a picture.
WHAT'S INCLUDED?
(1) 40in light bar - SLIM
(2) mounting brackets
All mounting hardware
WIRING
- M&R Automotive doesn’t provide a wiring harness.
- The light bar has 6ft of wire which is enough to reach AUX wires if your Bronco has them.
- Most Ford Broncos have AUX switches. If not, please purchase a generic wiring harness from Amazon/Ebay or create your own.
- We now sell Wireless 8 Circuit Wiring Harness. This makes install much easier if you don't have AUX switches. No need to run any wires through the firewall, clean install.
40in SLIM light bar
White:
- Beam Pattern Spot
- Theotetical max power 180watts
- Actual power 102watts
- Voltage/current DC12v/6.5A
- Theoretical max luminous flux 21,060 lm
- Measured luminous flux (without lens) 11,376 lm
- Measured luminous flux (with lens) 8,340 lm
- LEDs type CREE XTE
- Temperature 6000k
- LEDs number 36pcs
- Product size LxWxD (in) 38.93 x 0.75 x 1.63
40in SLIM light bar

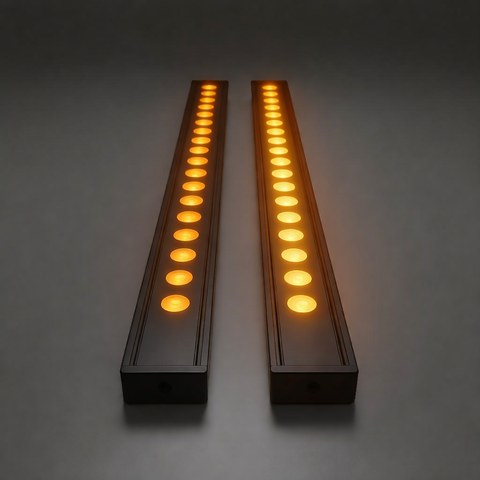

Amber:
- Beam Pattern Spot
- Theotetical max power 140watts
- Actual power 78watts
- Voltage/current DC12v/6.5A
- Theoretical max luminous flux 11,160 lm
- Measured luminous flux (without lens) 7,380 lm
- Measured luminous flux (with lens) 5,387 lm
- LEDs type CREE XP - E2 Amber
- Temperature
- LEDs number 36pcs
- Product size LxWxD (in) 38.93 x 0.75 x 1.63
White with Amber DRL
- Beam Pattern Spot
- Theotetical max power 180watts
- Actual power 102watts
- Voltage/current main DC12v/6.5A
- Voltage/current backlight 5.5W/0.46A
- Theoretical max luminous flux 21,060 lm
- Measured luminous flux (without lens) 11,376 lm
- Measured luminous flux (with lens) 8,340 lm
- LEDs type CREE XTE
- Temperature 6000k
- LEDs number 36pcs
- Product size LxWxD (in) 38.93 x 0.75 x 1.63
We have a lifetime warranty on our light kits. We truly want our truck enthusiastic customers to enjoy their products as much as we enjoy designing them. However, we also understand that different situations arise with brackets or lights. For more information about our warranty and disclaimer click here.
*M&R Automotive is not responsible for misuse or improper installation of the product. Professional installation is recommended.

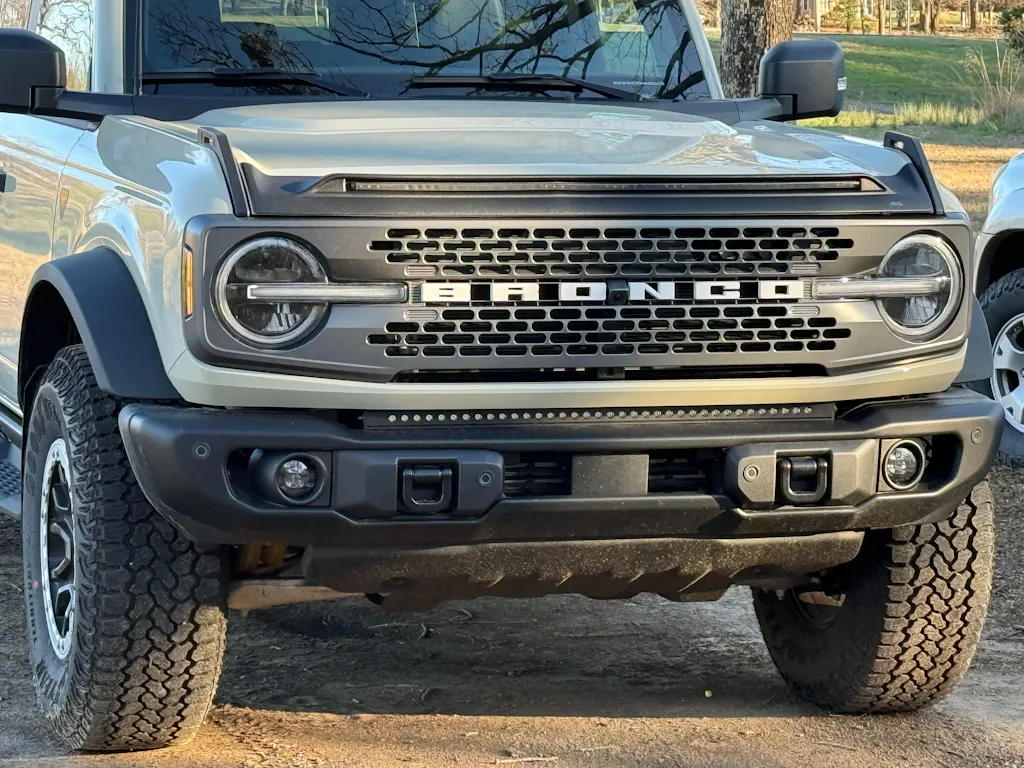

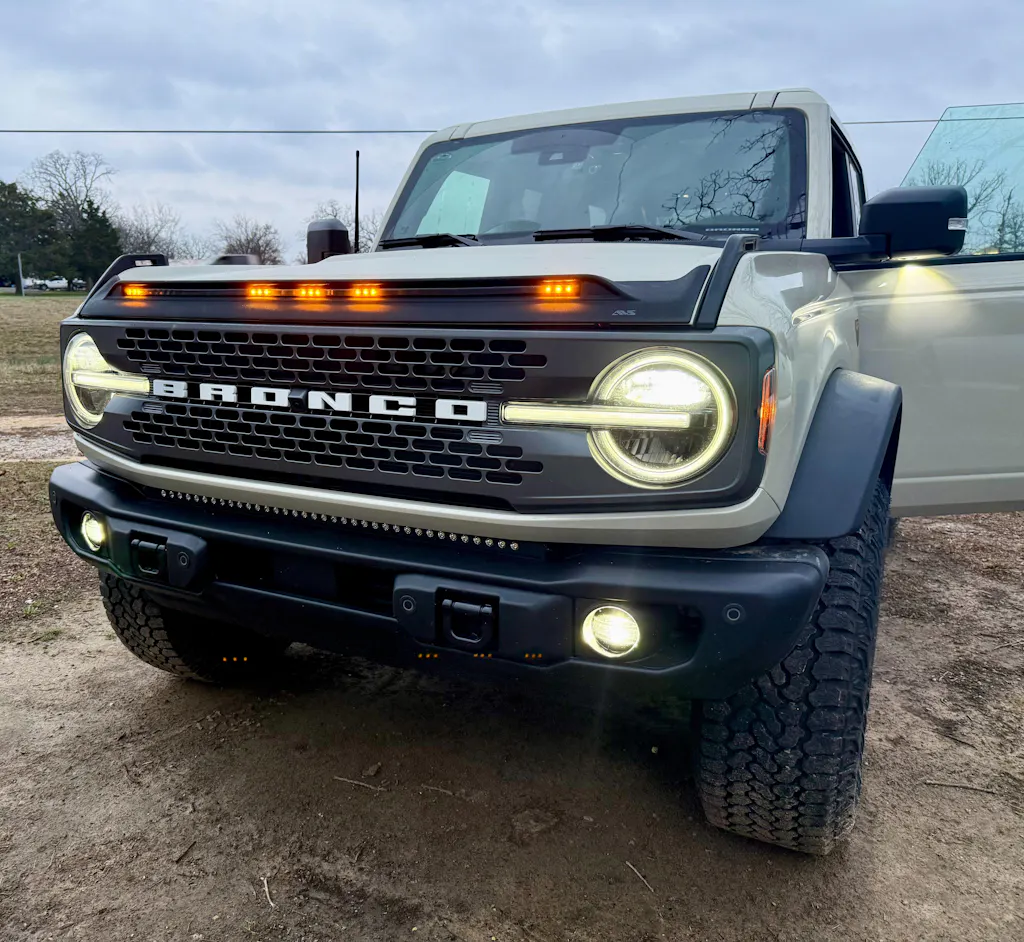

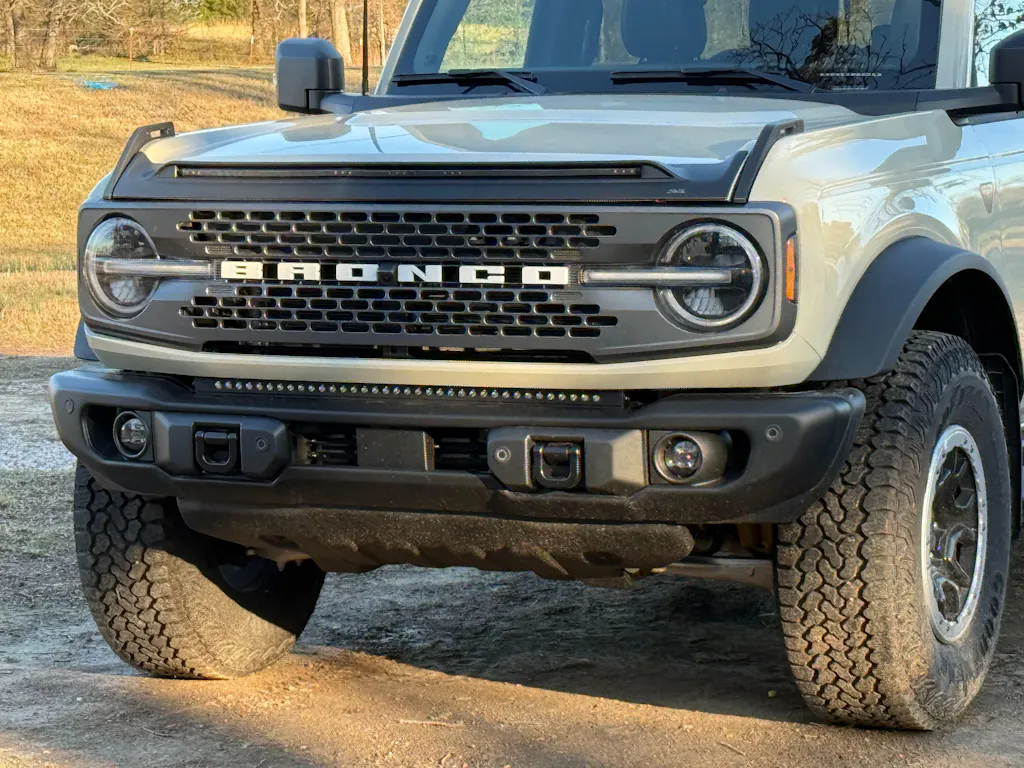

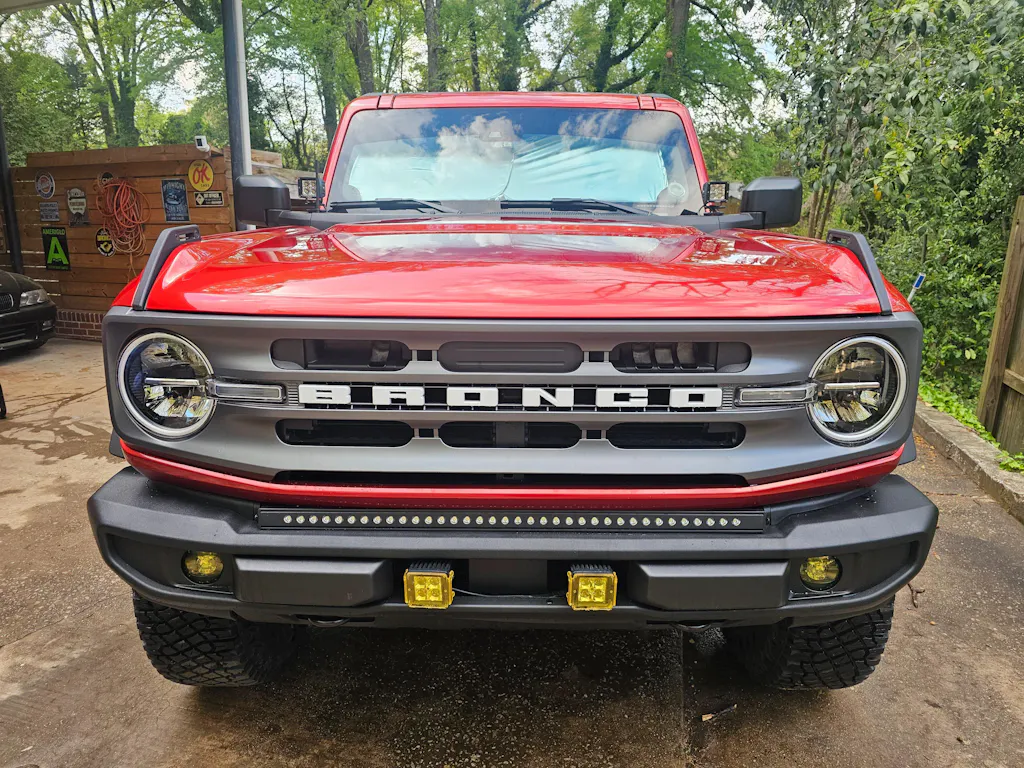

Got the 40 inch in white for my 24 big bend with the base bumper. Awesome add on and brighter than 4 pre existing rigid pod lights, and oem headlights and foglights. Well worth the money!
2025 Badlands Sasquatch Desert Sand
As others have mentioned the instructions are semi shady, so like others I put the brackets on backward the first go round. Quickly realized my mistake, corrected it and had them installed in about an hour. Wiring was super easy, lights are clean and hidden and overall extremely please with them.
This review is in two parts; an original review and then a correction

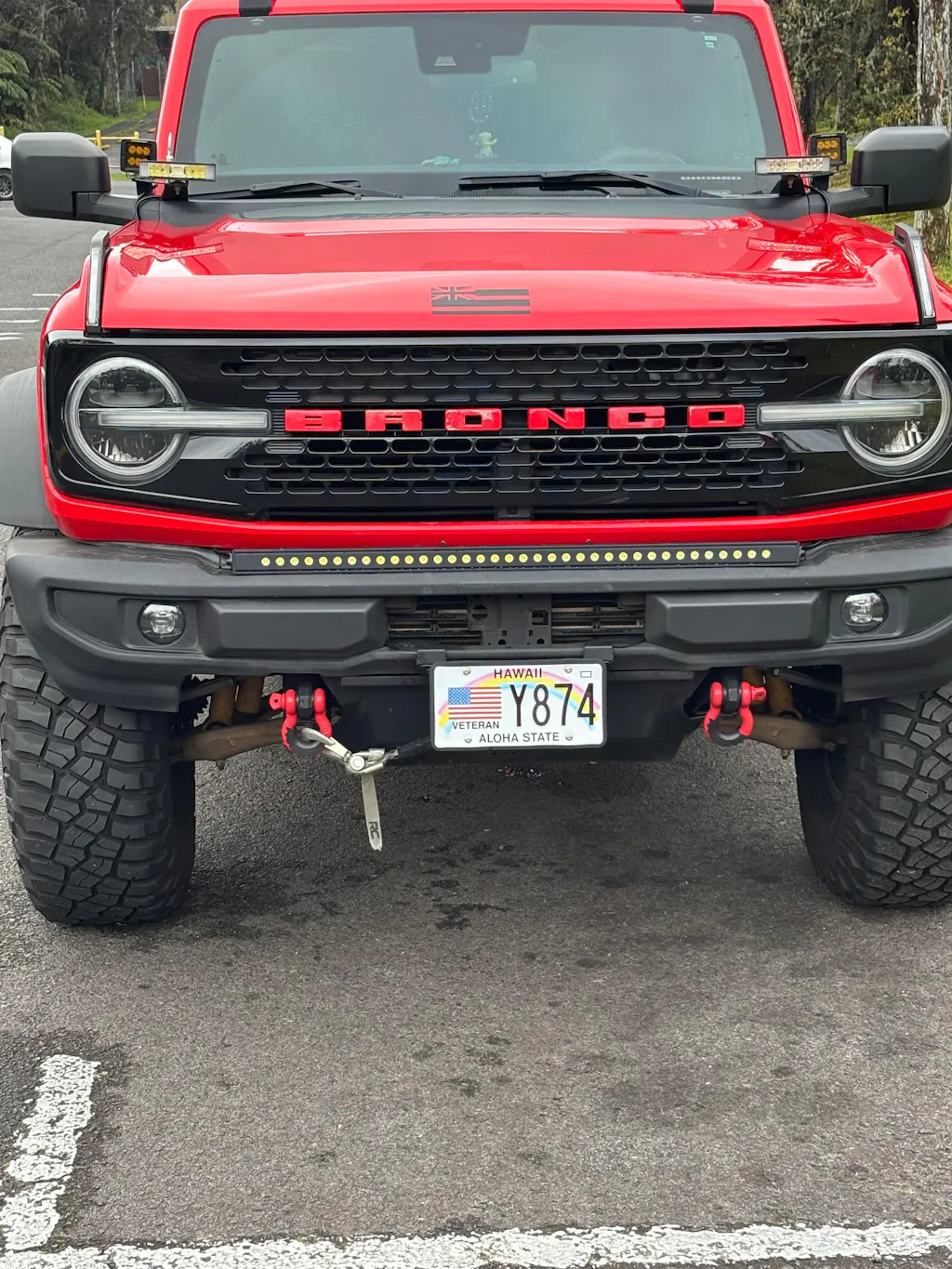

ORIGINAL REVIEW. I have a 2025 Badlands with the Capable bumper. I wanted a general use light bar and this ticked all of the boxes. The key items of note are the provided brackets that streamlines install on the capable bumper, sleek positioning between the bumper and grill fascia, and a reasonable price. For me the star of the show is the brackets, which are meant to make the installation super easy.
The problem for me was that the brackets are not sized properly (they are…read on). Installing them lightly and trying to brute force them still left a gap of approximately 1” on both sides of the light bar on the capable bumper. I had to bend and twist to get them close enough to get the light bar mounting screws to bite. It looks pretty bad if you look at them. Fortunately, they are not terribly visible.
If the brackets were more properly sized this would be an easy 5 star product (they are and it is!)
UPDATE. I left the above in case it can help someone else. After I installed and left my review, I then looked at the higher resolution instructions on line. Only then did it hit me…. I installed the brackets in a reverse orientation by hooking the tab for the light bar to the bumper and vice versa. My bad! Also, this evening I had the chance to use the light bar. It performs better than I could imagine. For the price, it is a serious value. I am definitely going to look here for my next lights.
The 40 inch Slim light fits perfectly and was easy to install very bright. Love it.

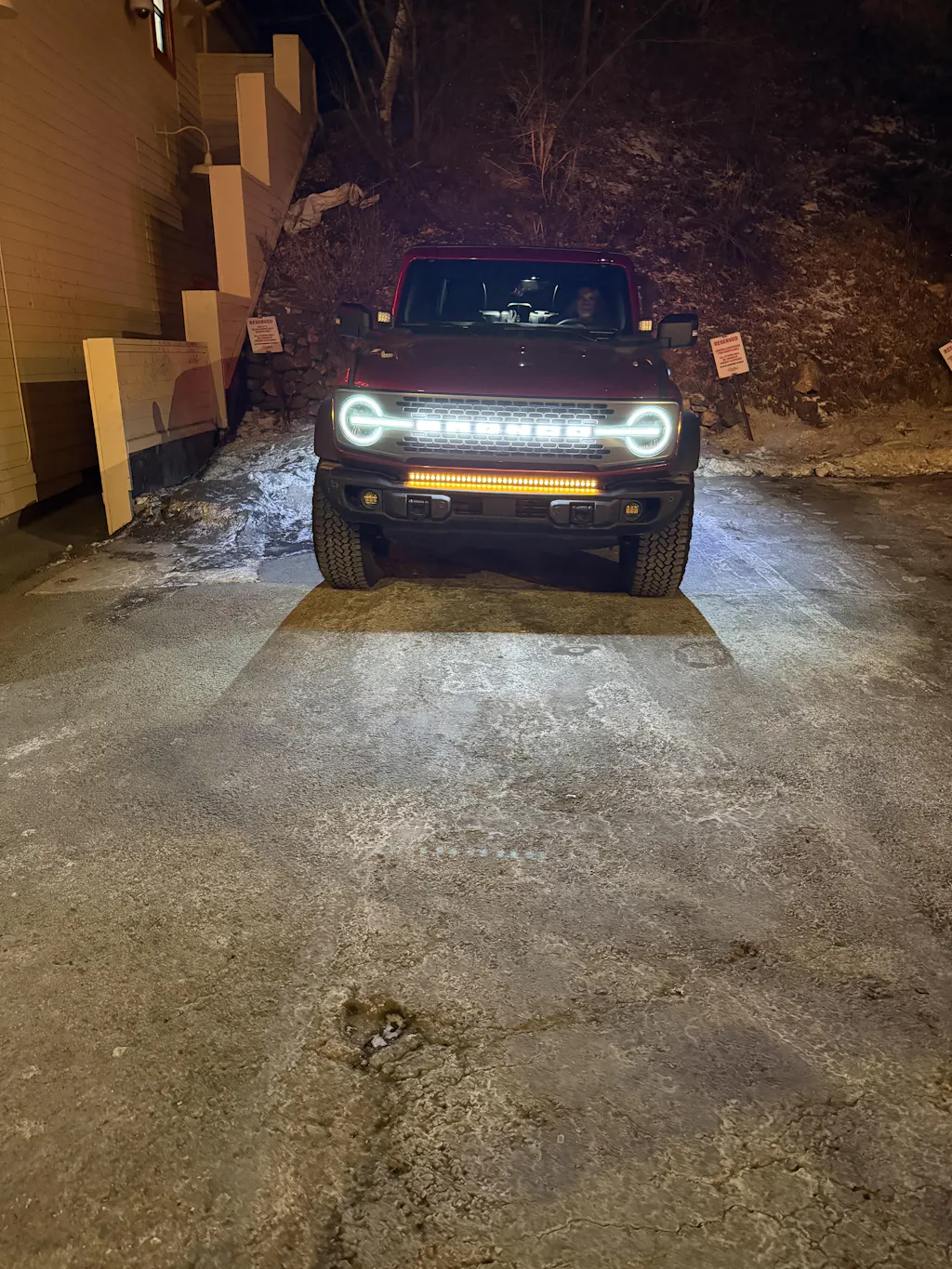

Hooked up my lights and i love it! Makes my Bronco look like a beast
