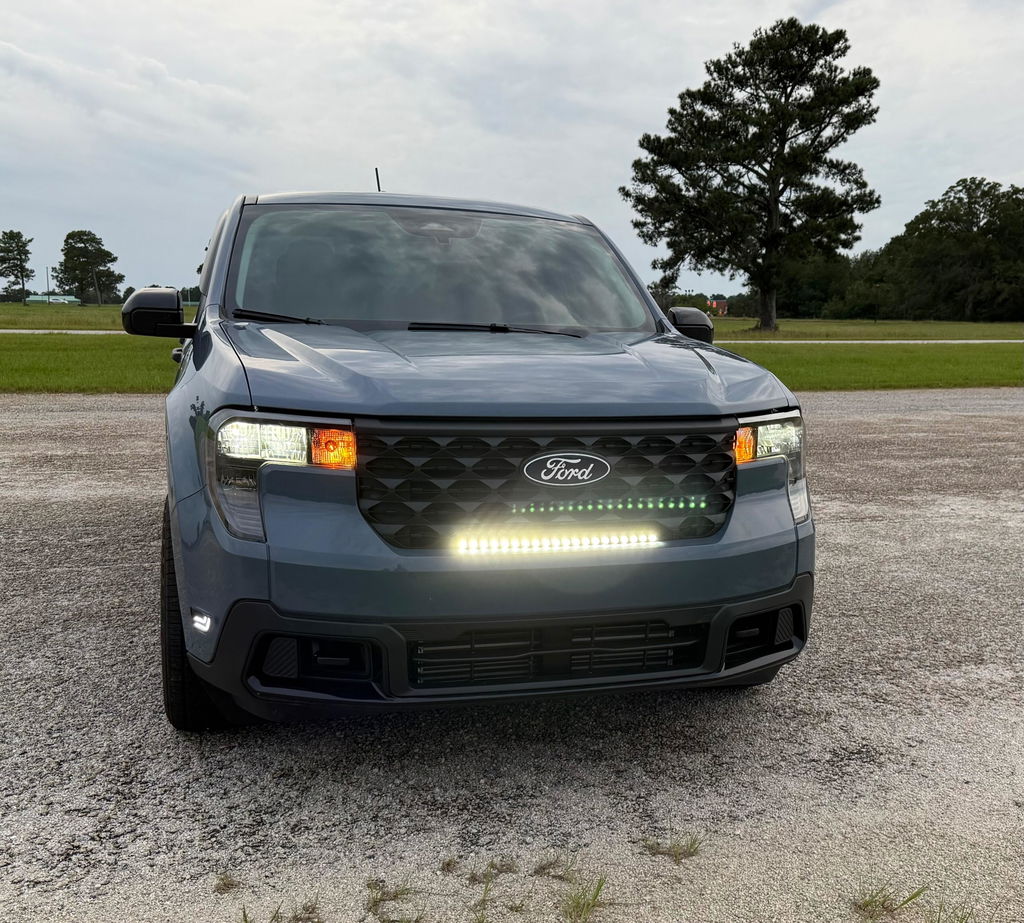

2025+ Ford Maverick 23in Light Bar
What's in the Box
- (1) 23in light bar SLIM
- (2) metal brackets
- All mounting hardware included
Off-road use only
Bolt On, No Drilling
Vehicle Specific Design
Lifetime Warranty
Fits: 2025–2026 Ford Maverick
Trims: XL, XLT, and Lariat.
- Curved light bar - Slim
- Slim and sleek, built-in look
- Must remove grille and bumper
- Metal bracket is powder coated black
- No cutting or drilling required. The kit is a complete bolt on using factory openings and hardware
- Doesn't interfere with radiator air flow
CHOOSE LIGHT OUTPUT COLOR:

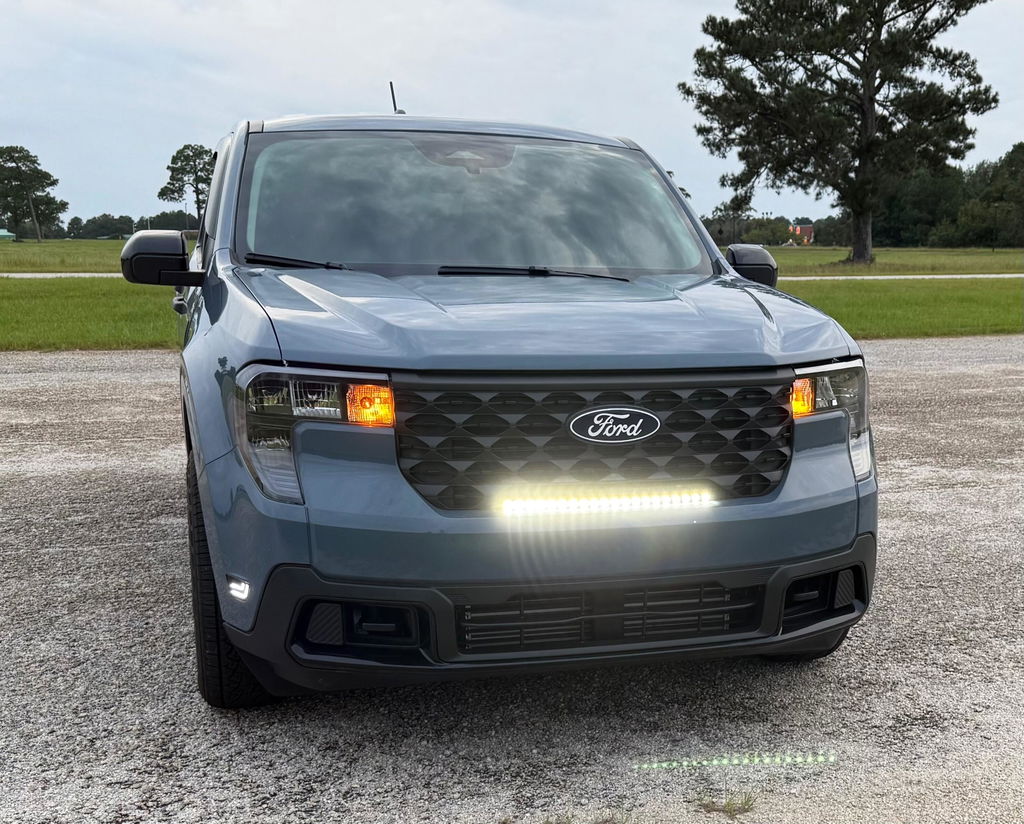

1) White LED — Bright, powerful light for any adventure. Off-road use only — the white beam blinds oncoming traffic and isn't street-legal.

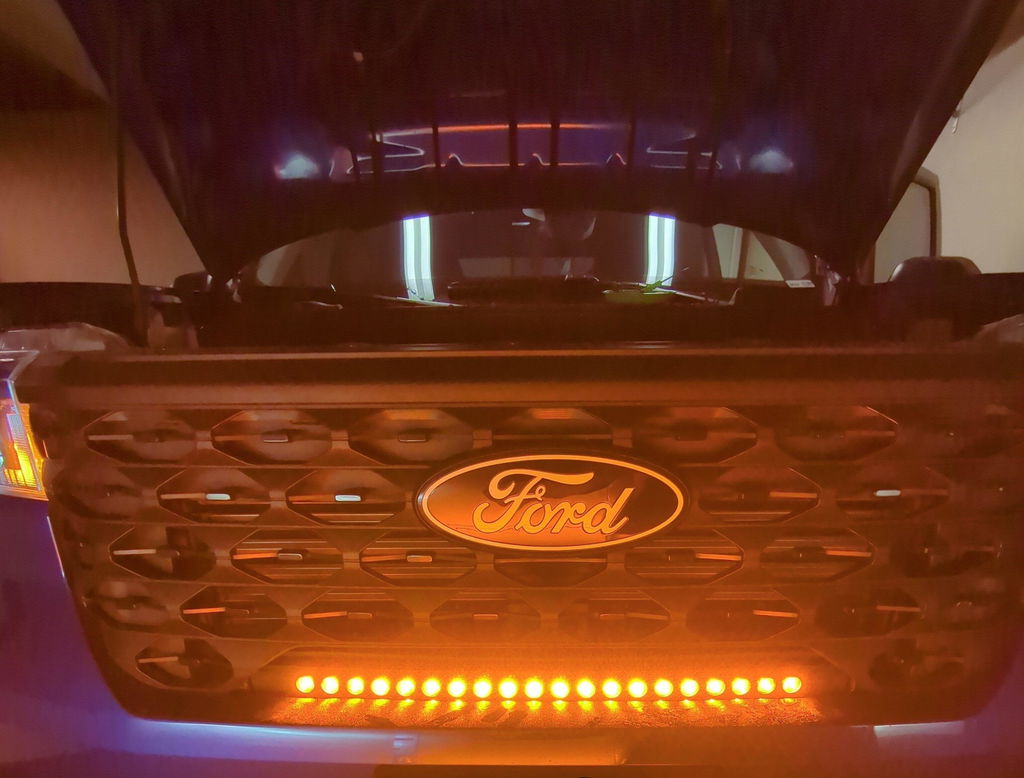

2) Amber LED — Cuts through dust, fog, snow, and rain far better than white light. Ideal for poor conditions. Off-road use only.

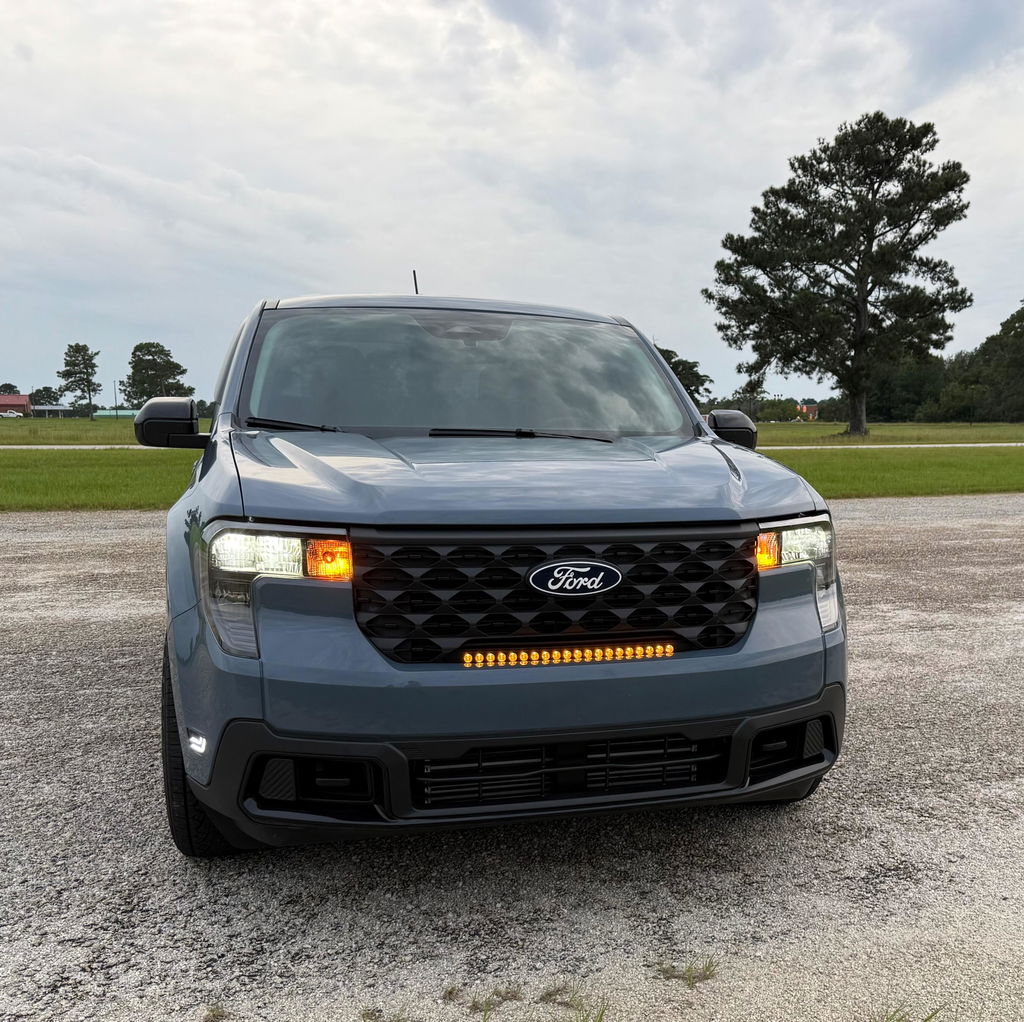

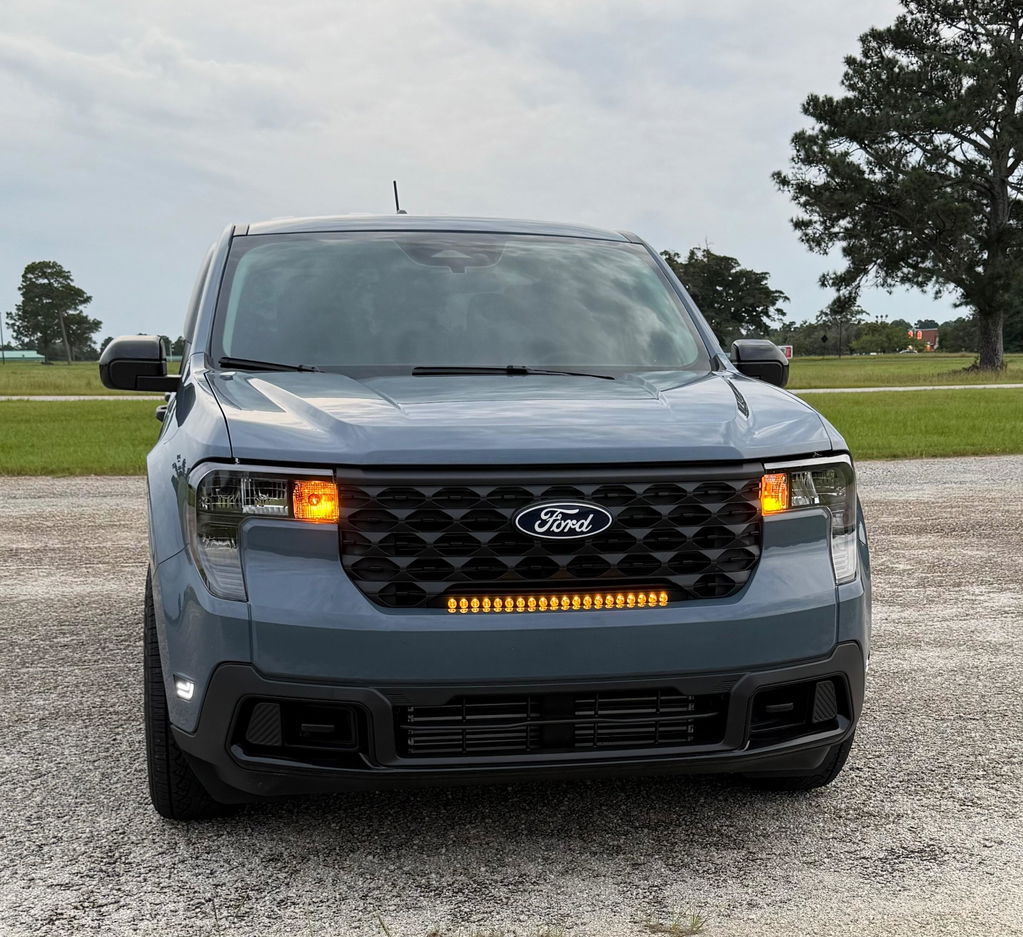

3) Dual Function: White LED + Amber DRL backglow — Full white beam (same as above), plus a soft amber "daytime running light" glow. The DRL is purely cosmetic and street-safe — it won't blind oncoming traffic, so you get a standout amber accent you can run anywhere.
23in SLIM Light Bar
| Specification | White w/ Amber DRL | White | Amber |
|---|---|---|---|
| Beam Pattern | Spot & Flood | Spot & Flood | Spot & Flood |
| Theoretical Max Power | 100 watts | 100 watts | 78 watts |
| Actual Power | 53 watts | 53 watts | 40 watts |
| Voltage / Current (Main) | DC 12V / 2.42A | DC 12V / 2.42A | DC 12V / 3.34A |
| Voltage / Current (Backlight) | DC 12V / 0.27A | — | — |
| Theoretical Max Luminous Flux | 11,700 lm | 11,700 lm | 6,200 lm |
| Measured Flux (without lens) | 6,720 lm | 6,720 lm | 4,100 lm |
| Measured Flux (with lens) | 5,004 lm | 5,004 lm | 2,952 lm |
| LED Type | CREE XTE | CREE XTE | CREE XP-E2 Amber |
| Color Temperature | 6000K | 6000K | — |
| Number of LEDs | 20 pcs | 20 pcs | 20 pcs |
| Product Size (L × W × D) | 23 × 1.63 × 0.75 in | 23 × 1.63 × 0.75 in | 23 × 1.63 × 0.75 in |
Free ground shipping on all orders within the continental United States.
We process and ship orders within 3–5 business days. If we anticipate any delay, we'll reach out via email.
- Hawaii, Alaska & Puerto Rico — $20 flat rate for ground shipping.
- Canada & International — Shipping rates calculated at checkout. Customs fees, duties, and import taxes are the responsibility of the customer.
- Overnight & 2nd Day Air — Available at checkout. Orders must be placed by 12:00 PM Pacific Time for same-day shipment.
You'll receive a tracking number via email once your order ships. If you have a special request about your order, reach out — we'll do our best to accommodate. For our complete shipping policy, [click here].
Warranty
We have a lifetime warranty on all our light kits. We stand behind every kit we build — our lifetime warranty isn't fine print, it's a promise. For more information about our warranty and disclaimer, [click here].
M&R Automotive is not responsible for misuse or improper installation of the product. Professional installation is recommended.
HOW TO INSTALL?
Install Video

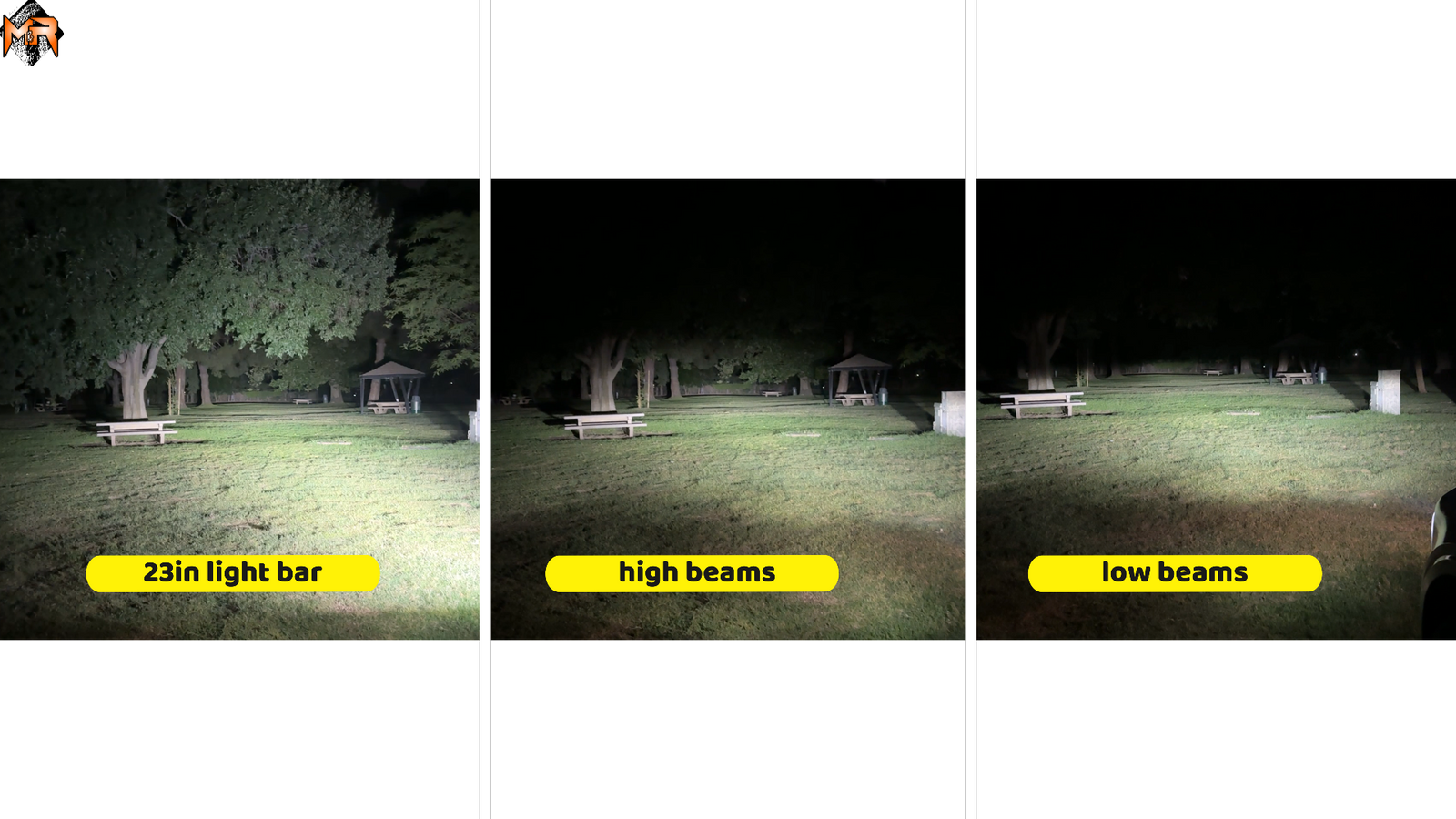

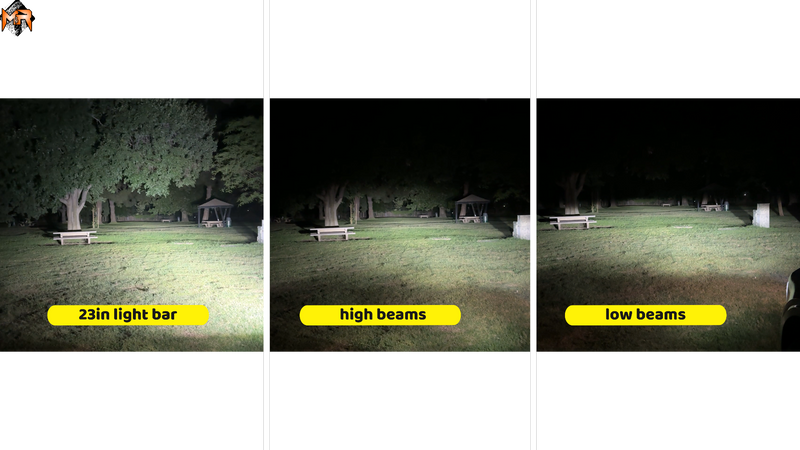

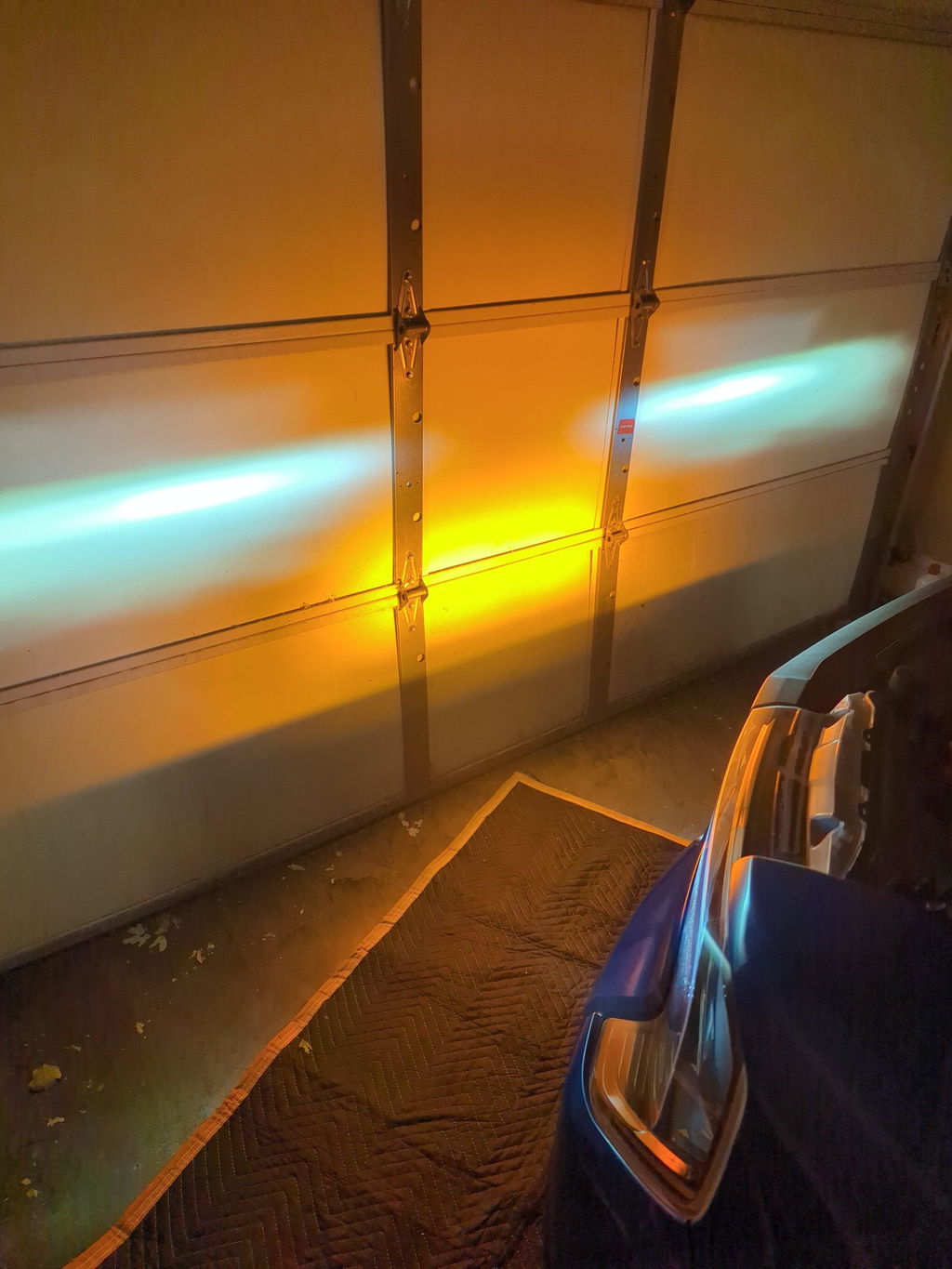

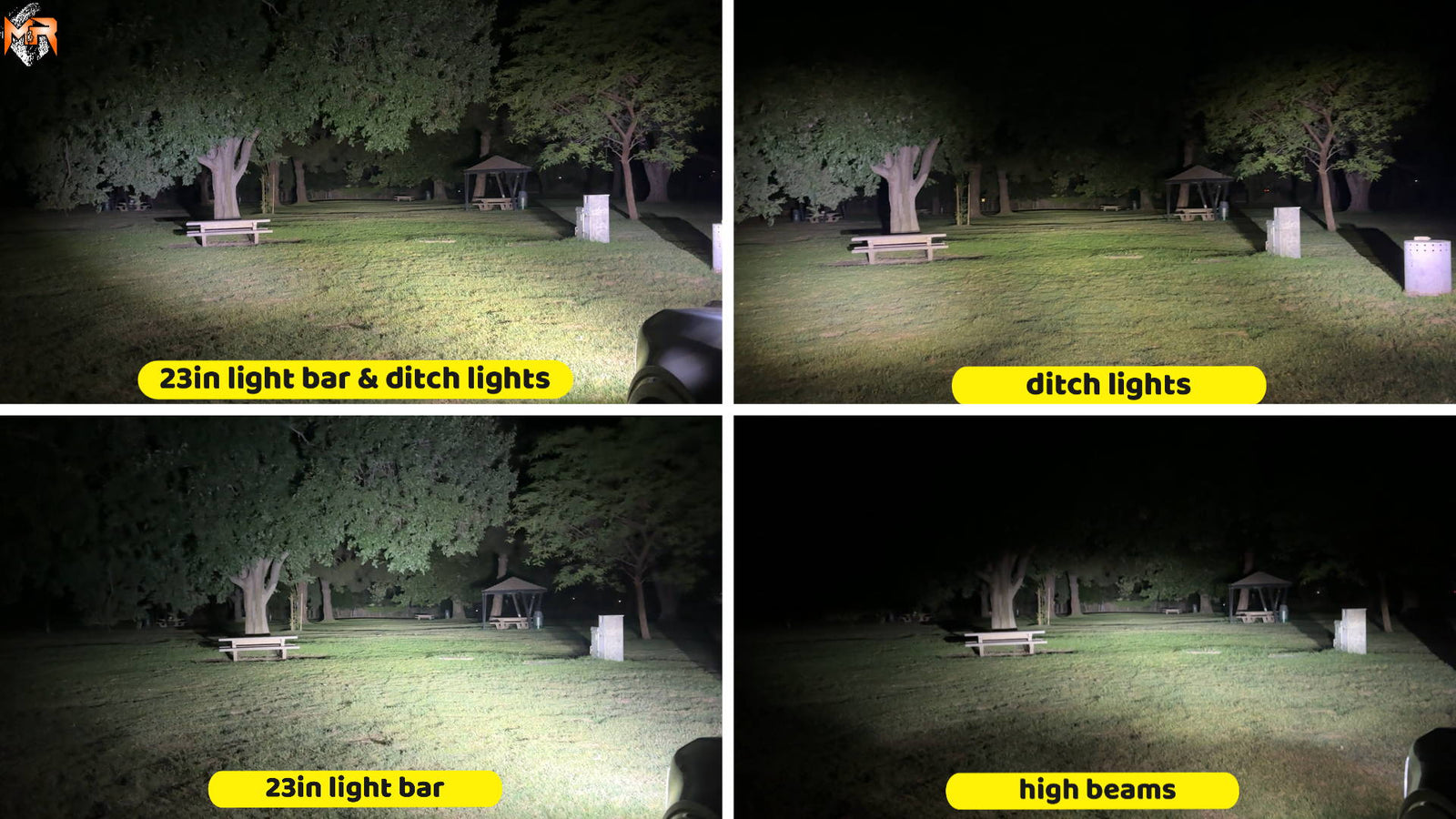

Light Output
