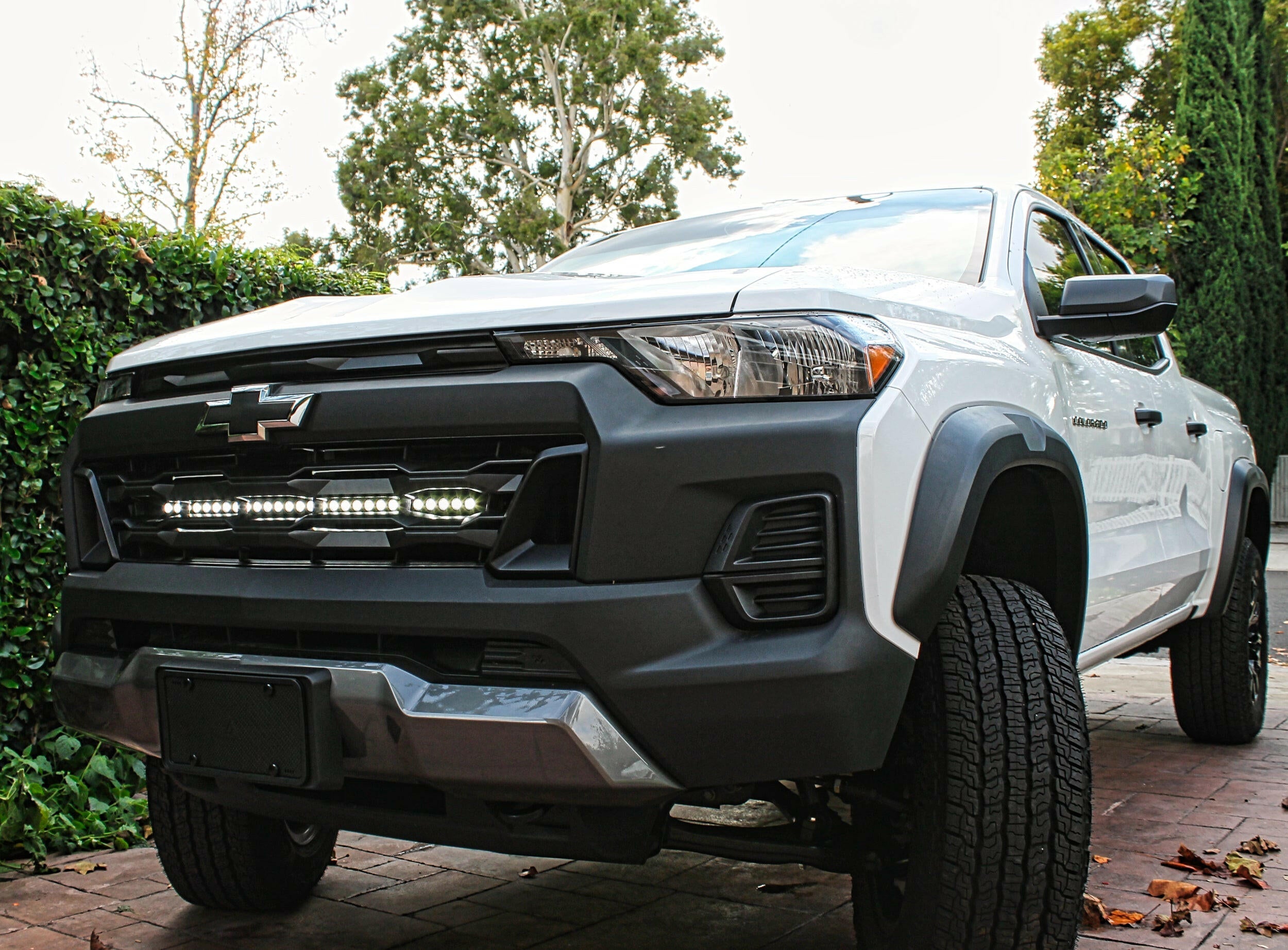

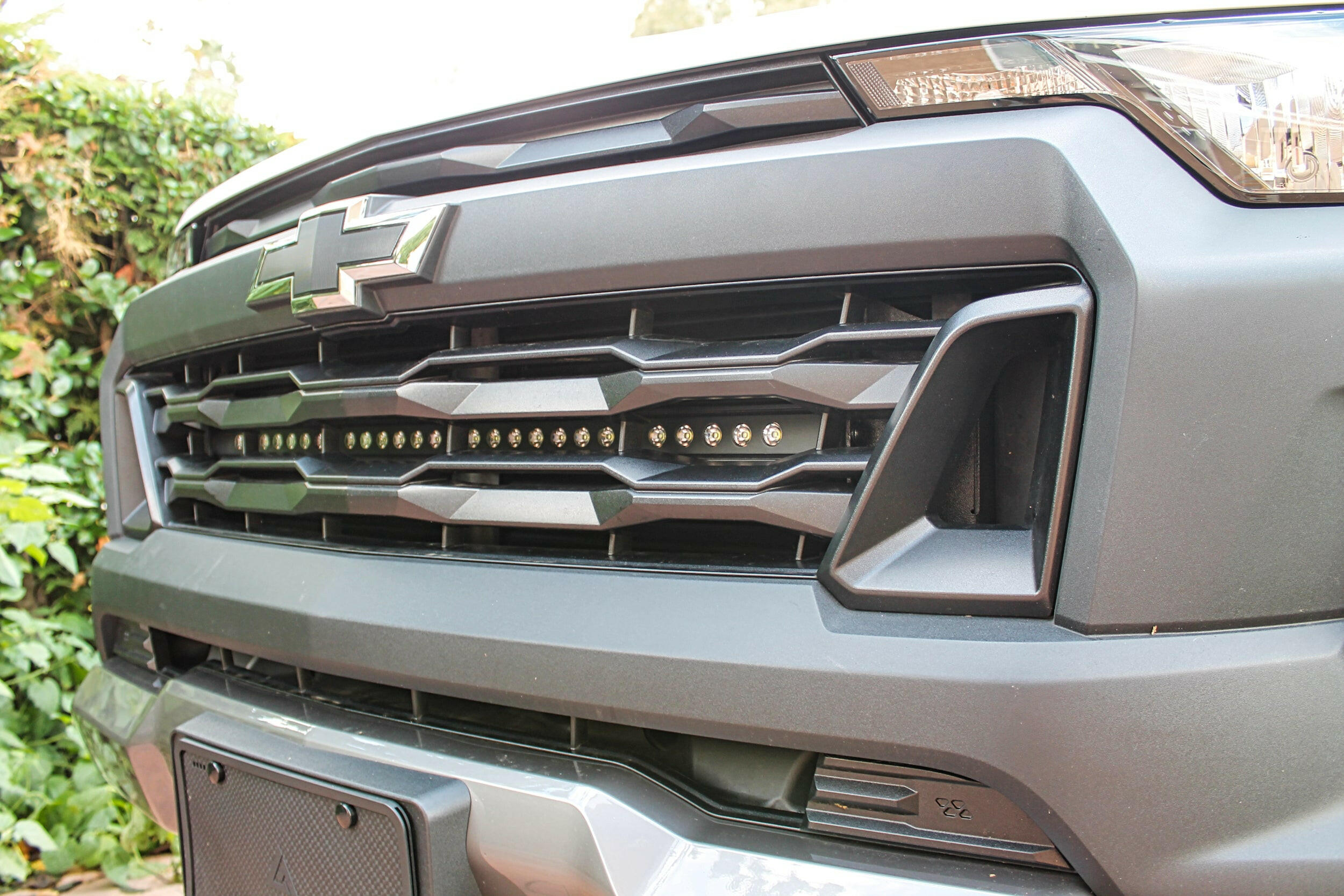

- Fits 2023 2024 2025 2026 Chevrolet Colorado
- Trims: Z71, Trail Boss, LT, WT

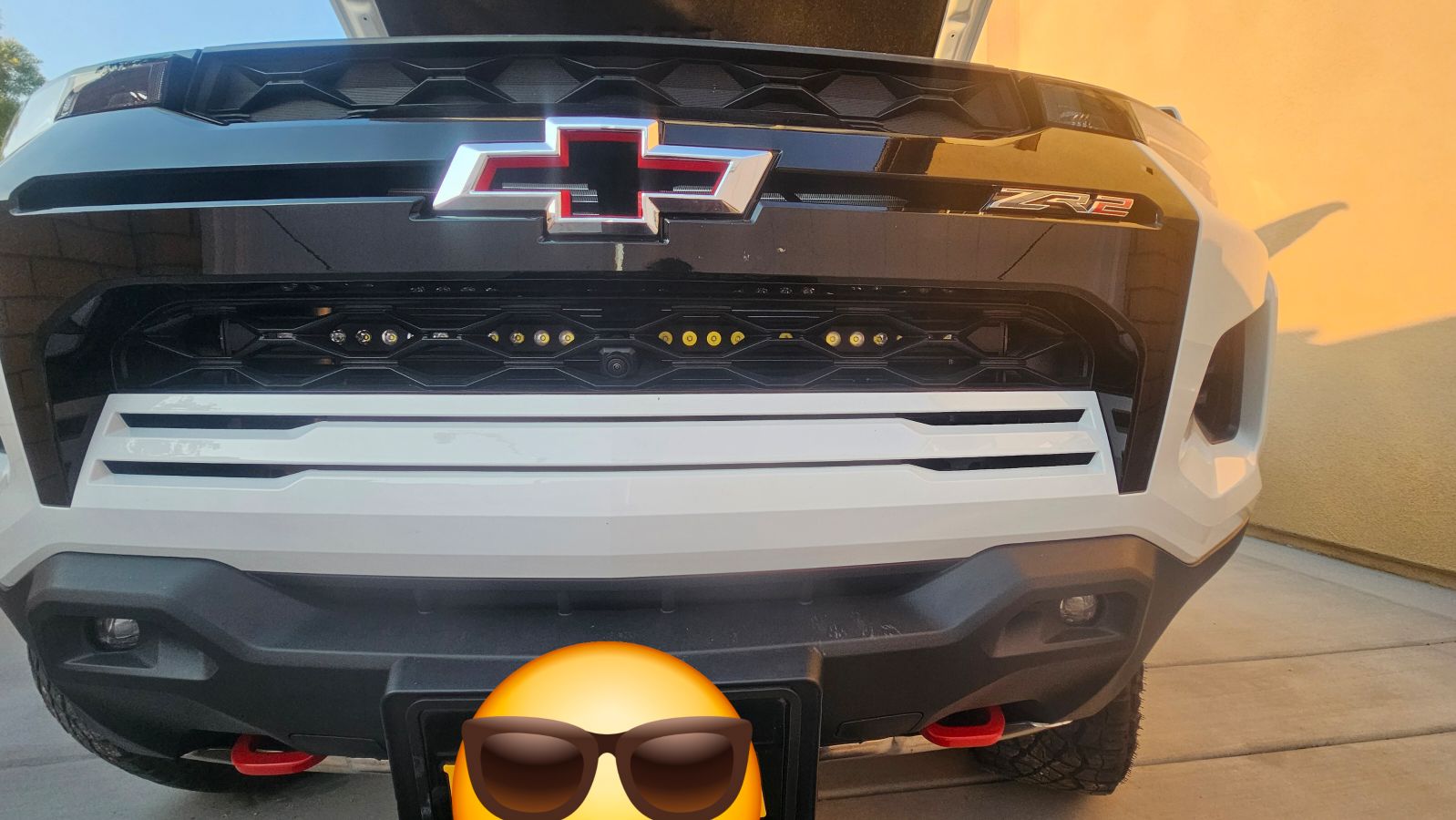

- ***We have confirmed fitment on the ZR2 trim, but only for one (1) light bar.
- WILL NOT interfere with active grille shutters. Our light bars are very slim and the metal bracket is designed to be in front of the shutters.

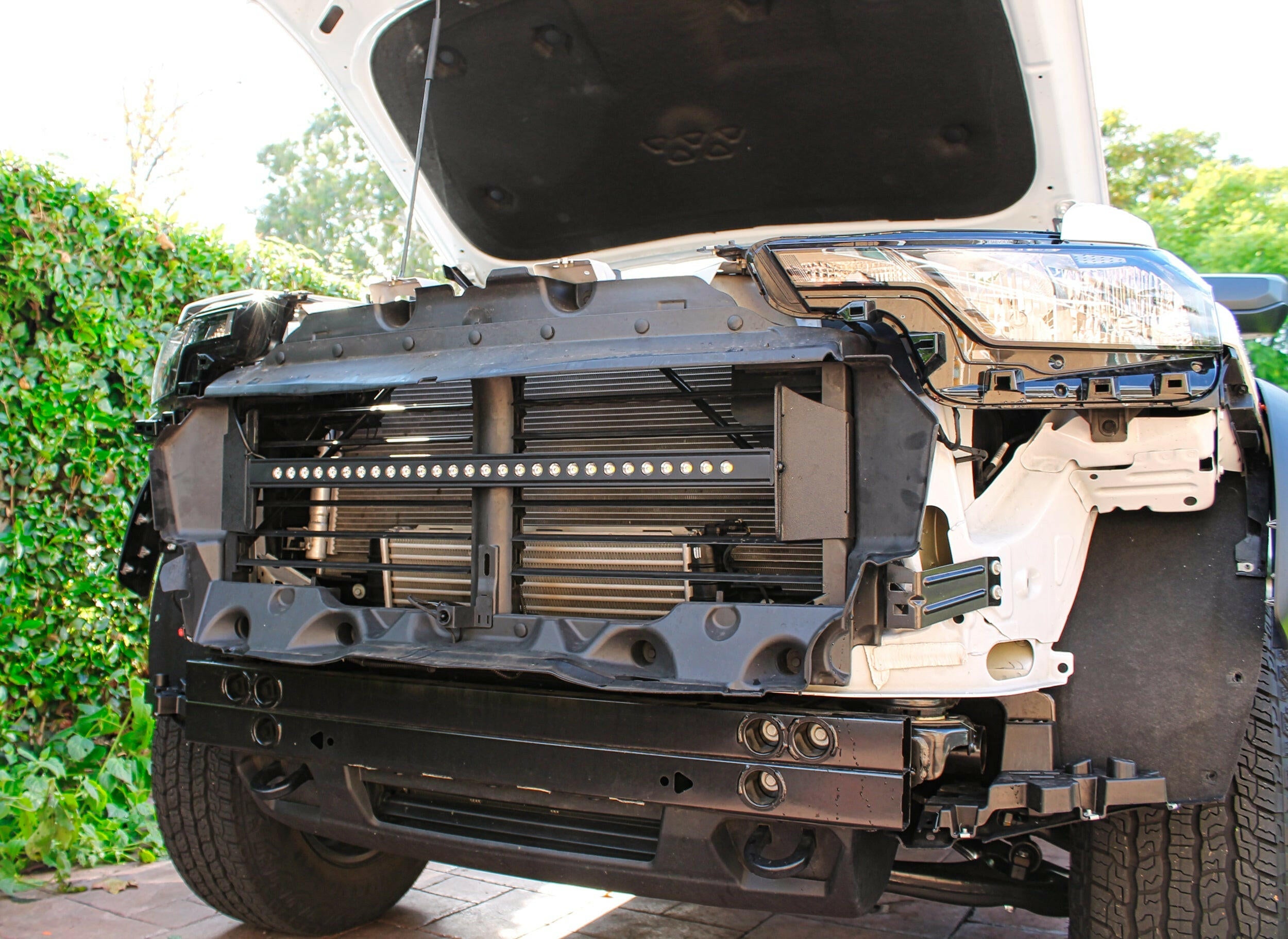

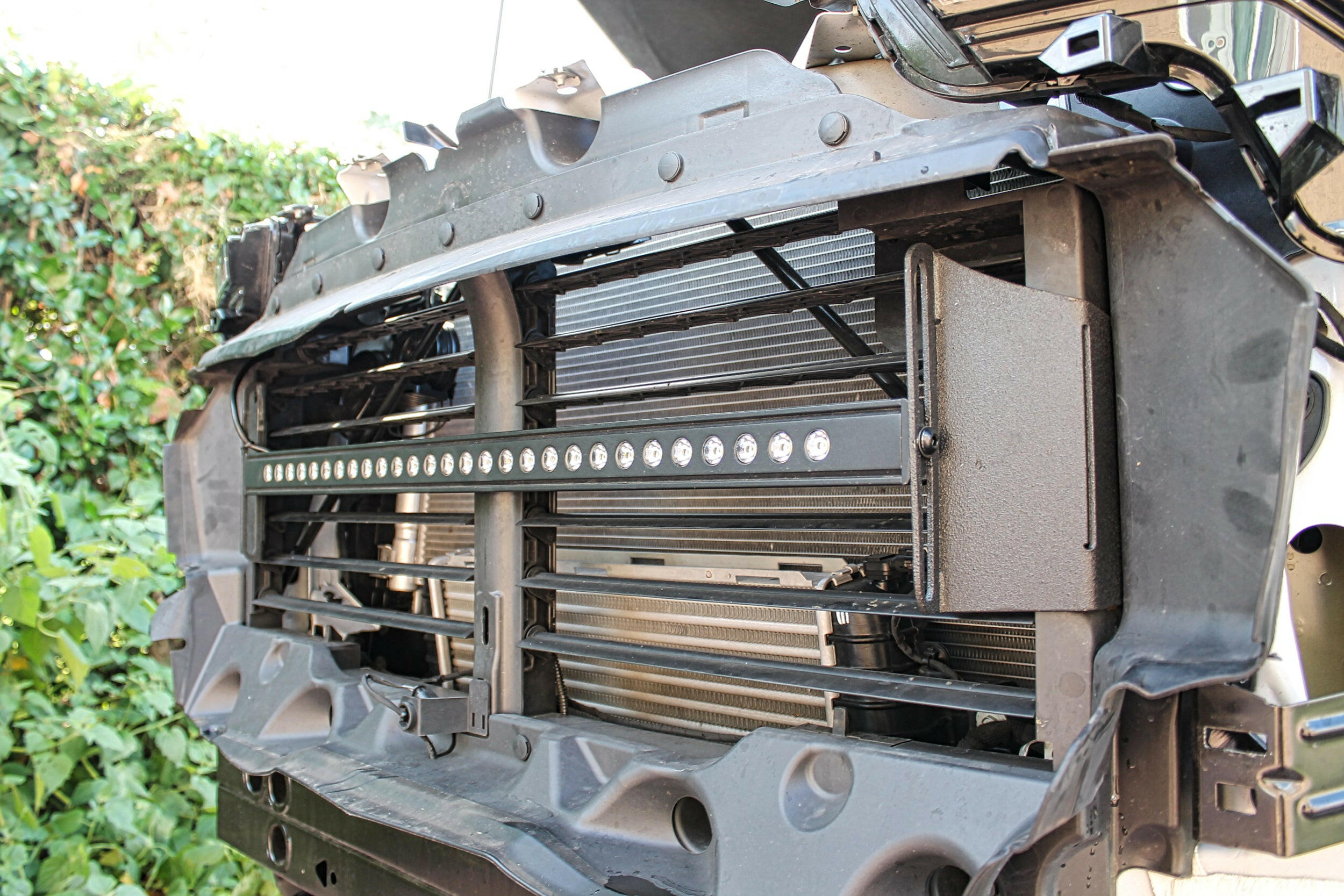

- No cutting or drilling required. The kit is a complete bolt on using factory openings and hardware.
👍Our light kits are for off-road use only.
Choose your light bar color:
1) White LED -- Up to 11,760 lumens, bright and powerful. It will definitely provide you with enough light needed for all of your adventures. However, these are only for off-roading and can’t be used on the regular road. They will blind the in-coming traffic and also violates road safety.
2) Amber LED -- Up to 5,500 lumens, used in poor driving conditions such as dust, fog, snow and rain. It reflects through air particles much less than the white light. Therefore, making it ideal for poor driving conditions.

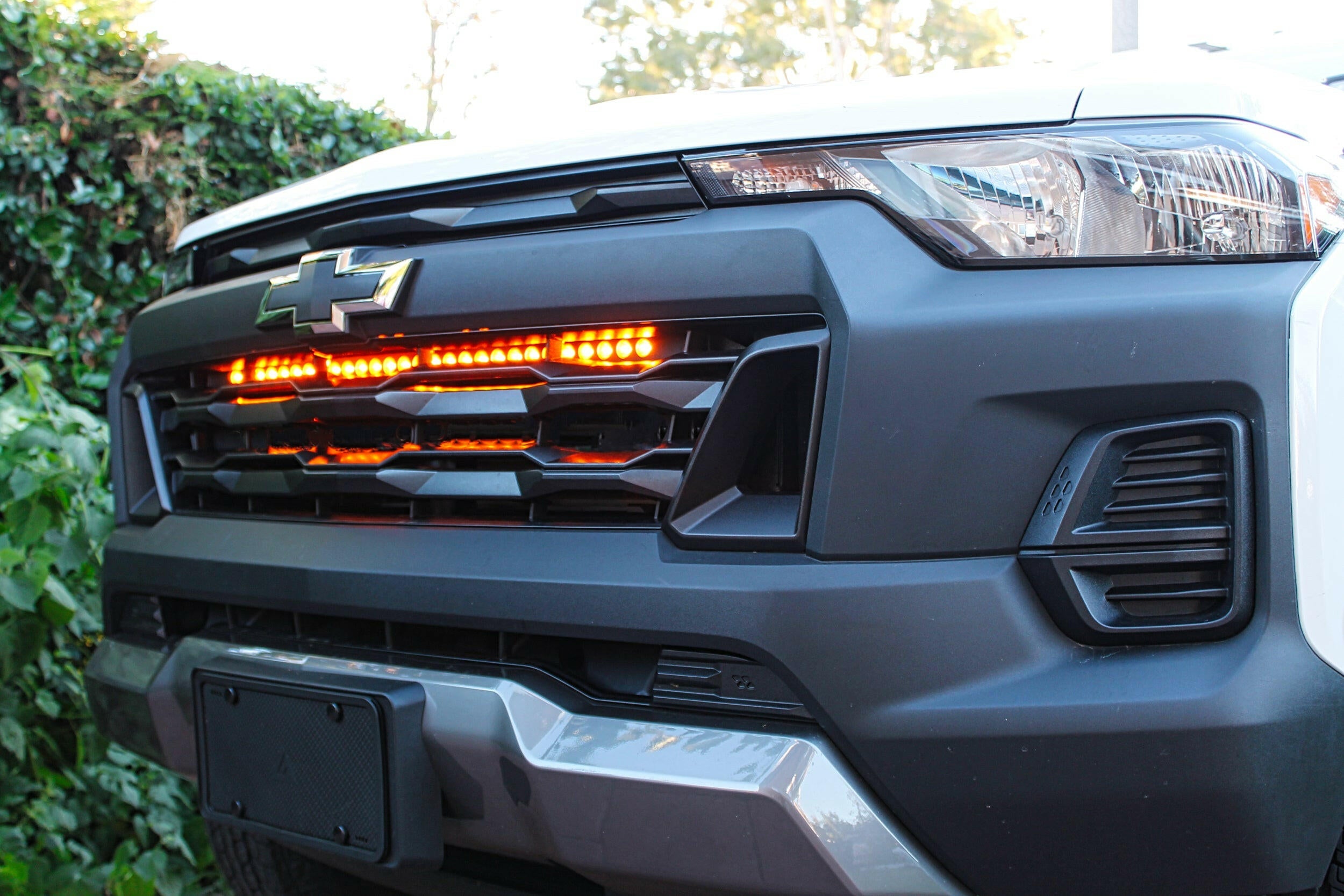

3) dual function: main White LED light with Amber DRL backglow -- the white LED light is same as described above, but the amber DRL “daytime running lights” acts purely for aesthetics. It doesn’t give out much light, but more of a beautiful amber backglow. Something extra to make you stand out on the road.
Full in-depth video describing our lights bars CLICK HERE
WHAT'S INCLUDED?
(1) 30in light bar - SLIM
(2) mounting brackets
All mounting hardware
WIRING
- M&R Automotive doesn’t provide a wiring harness.
- The light bar has 6ft of wire which is enough to reach AUX switches if your truck has them. Otherwise, you will need to purchase a generic wiring harness from Amazon/Ebay or create your own.
- We now sell Wireless 8 Circuit Wiring Harness. This makes install much easier, no need to run any wires through the firewall, clean install.
INSTALLATION INSTRUCTIONS
30in SLIM light bar
White:
- Beam Pattern Spot
- Theotetical max power 140watts
- Actual power 76watts
- Voltage/current DC12v/6.3A
- Theoretical max luminous flux 16,380 lm
- Measured luminous flux (without lens) 8,848 lm
- Measured luminous flux (with lens) 6,380 lm
- LEDs type CREE XTE
- Temperature 6000k
- LEDs number 28pcs
- Product size LxWxD (in) 31 x 0.75 x 1.63
30in SLIM light bar
Amber:
- Beam Pattern Spot
- Theotetical max power 109watts
- Actual power 56watts
- Voltage/current DC12v/4.7A
- Theoretical max luminous flux 8,680 lm
- Measured luminous flux (without lens) 5,740 lm
- Measured luminous flux (with lens) 4,133 lm
- LEDs type CREE XP - E2 Amber
- Temperature
- LEDs number 28pcs
- Product size LxWxD (in) 31 x 0.75 x 1.63
30in SLIM light bar
White with Amber DRL
- Beam Pattern Spot
- Theotetical max power 140watts
- Actual power 76watts
- Voltage/current main DC12v/6.3A
- Voltage/current backlight 4.3W/0.36A
- Theoretical max luminous flux 16,380 lm
- Measured luminous flux (without lens) 8,848 lm
- Measured luminous flux (with lens) 6,380 lm
- LEDs type CREE XTE
- Temperature 6000k
- LEDs number 28pcs
- Product size LxWxD (in) 31 x 0.75 x 1.63
We have a lifetime warranty on our light kits. We truly want our truck enthusiastic customers to enjoy their products as much as we enjoy designing them. However, we also understand that different situations arise with brackets or lights. For more information about our warranty and disclaimer click here.
*M&R Automotive is not responsible for misuse or improper installation of the product. Professional installation is recommended.
Quality part. Quick shipping and even came with some smartees haha. Nice touch. The bumper is no joke to get off but don't let that stop you. The output from a single light bar is impressive and the amber drl looks cool for sure.
M&R got the information I needed to install on the ZR2. Really appreciate them being proactive and communicating to make sure I got everything I needed.
Hi. Unfortunately in our video we didn't have the ZR2 trim level and therefore were not able provide step-by-step instructions for how to remove the front grille. I can direct you to a few videos to help guide you. We have had previous customers who were able to remove it. The light bar brackets are identical and you should not have any issues with light bar installation.
Nice look
Lights look outstanding and very high quality!
Instal was a bit harder than pictured but over all not too bad. If having issues with wireless connectivity make sure to off load all of the voltage in the fuse box then connect and preform paring
