2020+ Chevrolet Silverado 2500/3500HD Single 40in Light Bar
What's in the Box
- (1) 40in light bar SLIM
- (2) metal brackets
- All mounting hardware included
Off-road use only
Bolt On, No Drilling
Vehicle Specific Design
Lifetime Warranty
FAQ
Frequently asked question
Fits: 2020–2026 Chevrolet Silverado 2500 3500HD
Trims: High Country, LTZ, LT, Custom, WT, ZR2

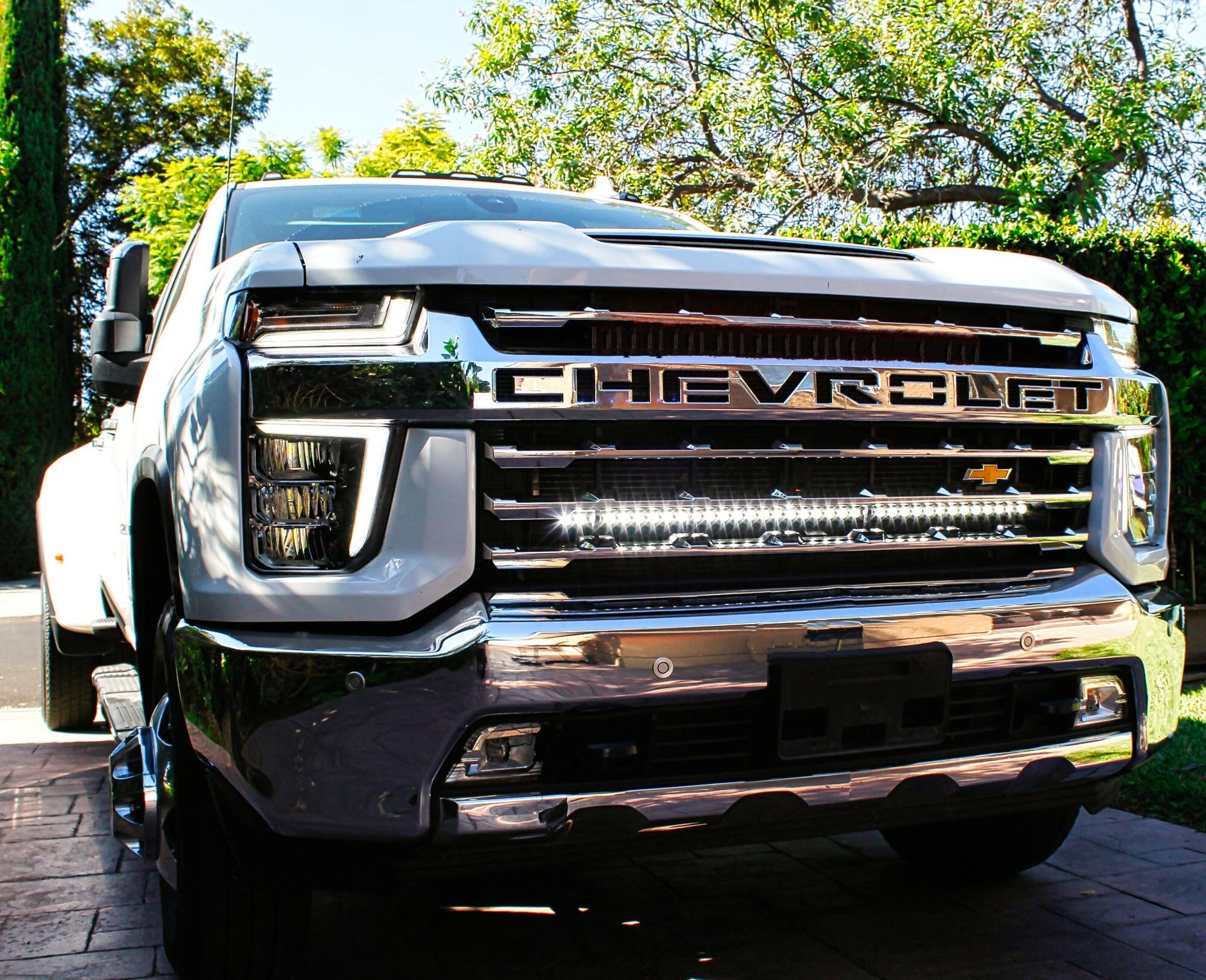

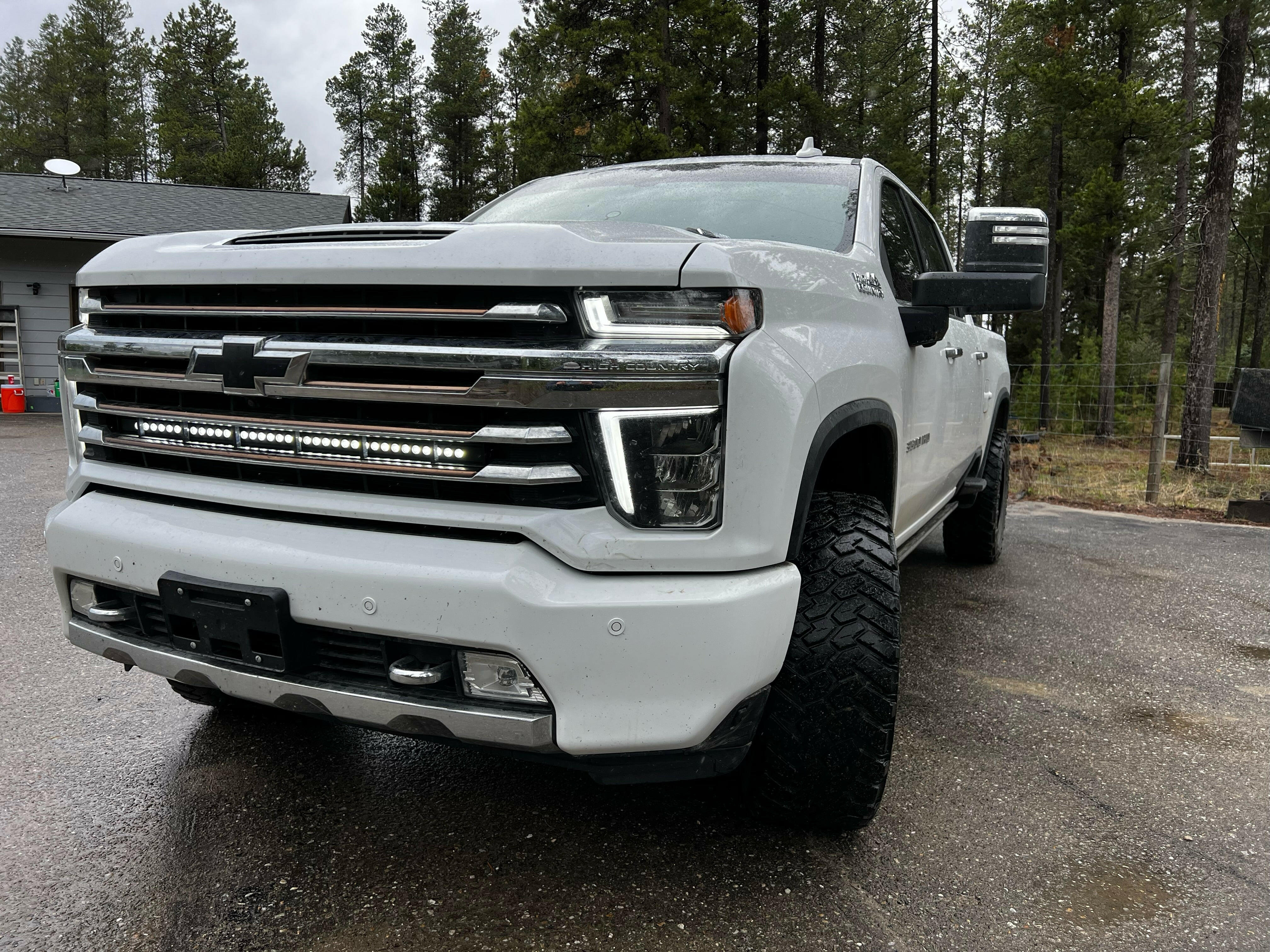

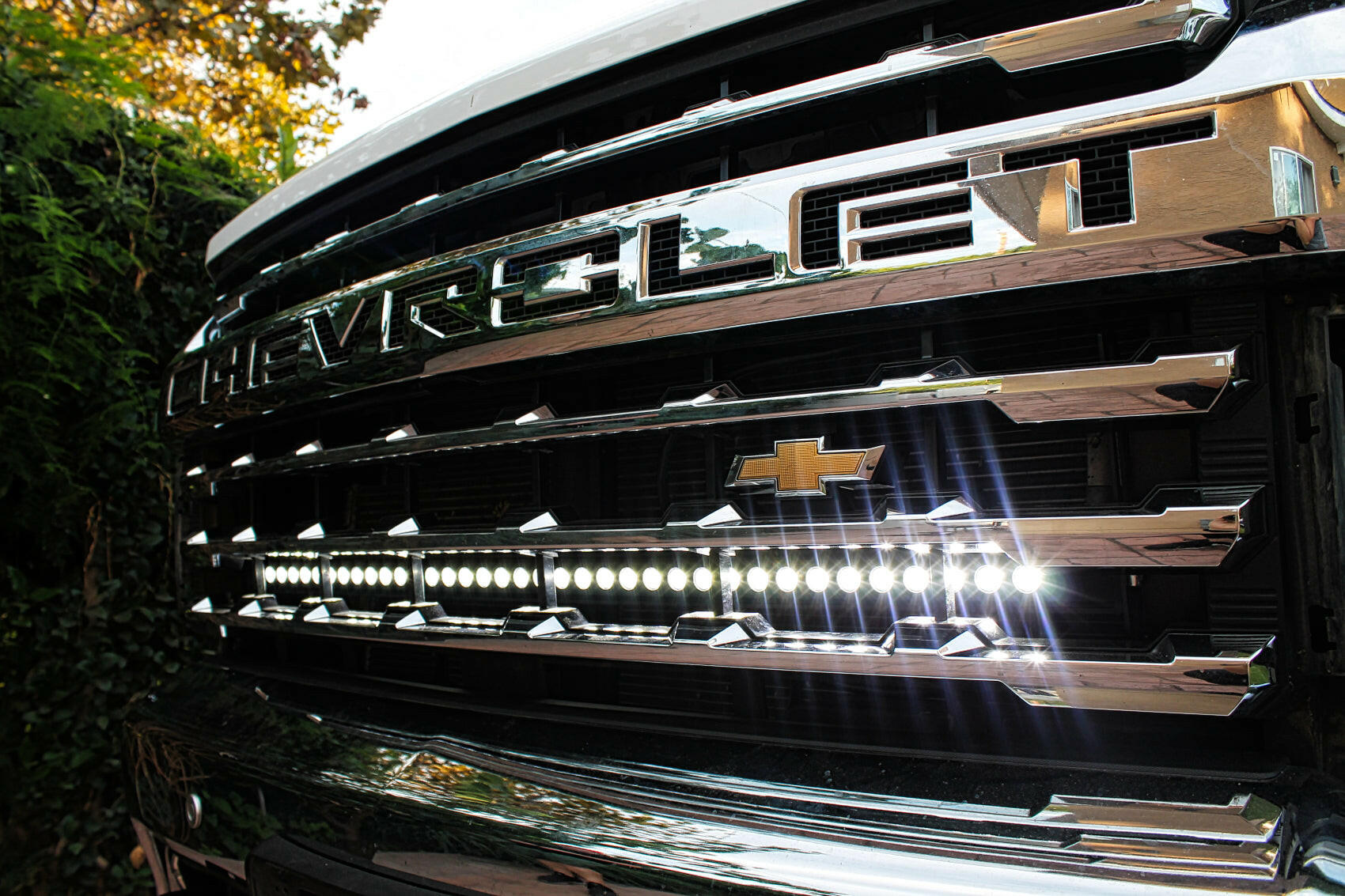

- Fits only on the bottom half of the grille

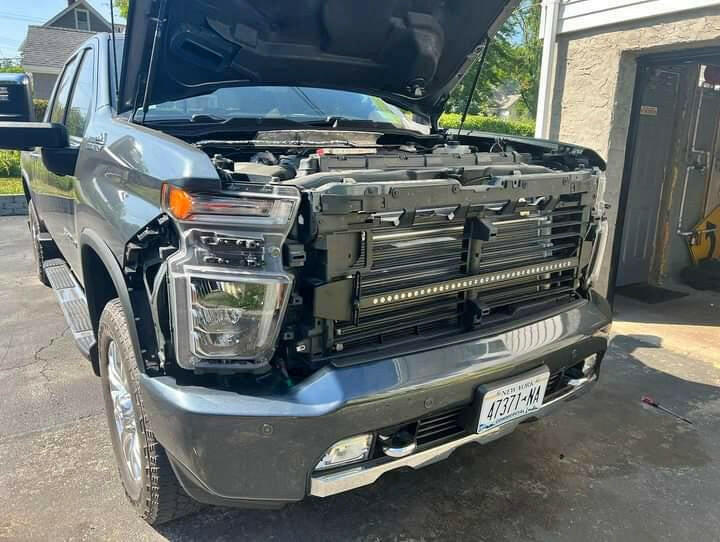

- Must remove grille

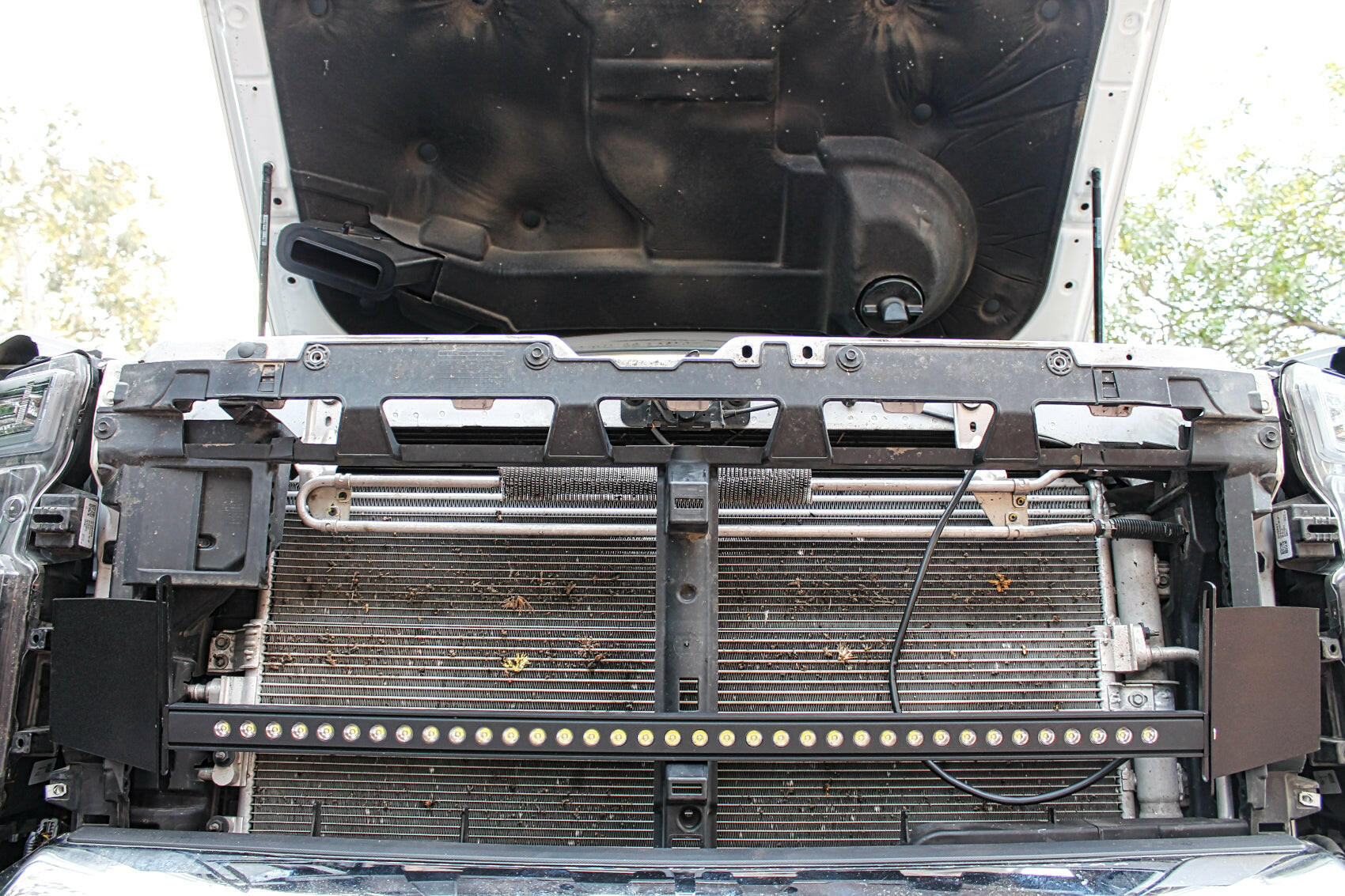

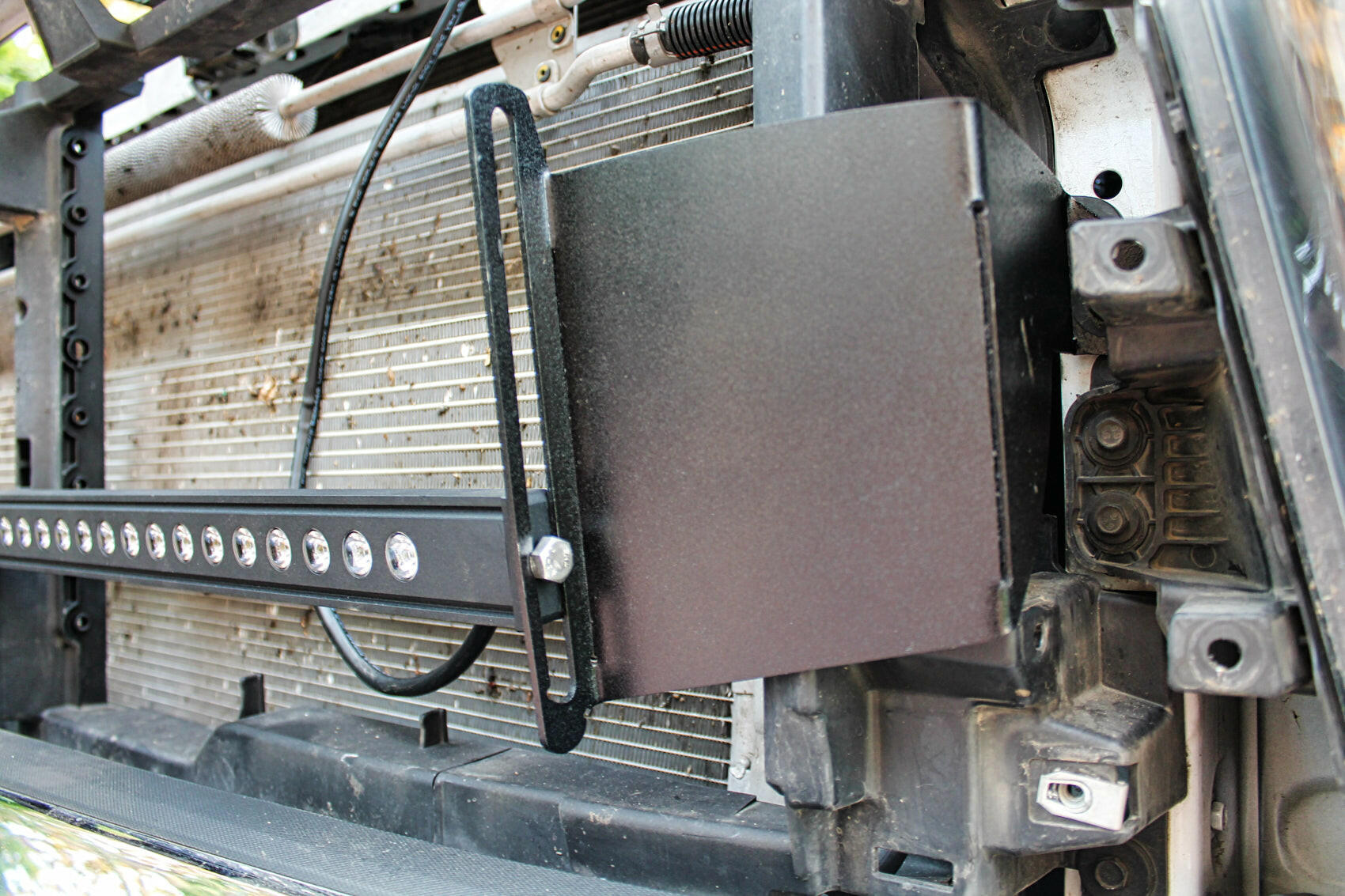

- Due to Silverado's grille type variation, M&R designed the mounting bracket on a rail system (see photo). This allows you to move the light bar up or down by about 8in, for maximum light output. You choose the location of your light bar.
- No cutting or drilling required. The kit is a complete bolt on using factory openings and hardware.
- WILL NOT interfere with active grille shutters. Our light bars are very slim and the metal bracket is designed to be in front of the shutters.
- Doesn't interfere with radiator air flow
- Metal bracket is powder coated black
- **PLEASE NOTE** You can't install a 40in light bar on the top half of the grille, you would need to purchase the 30in light bar, LINK HERE

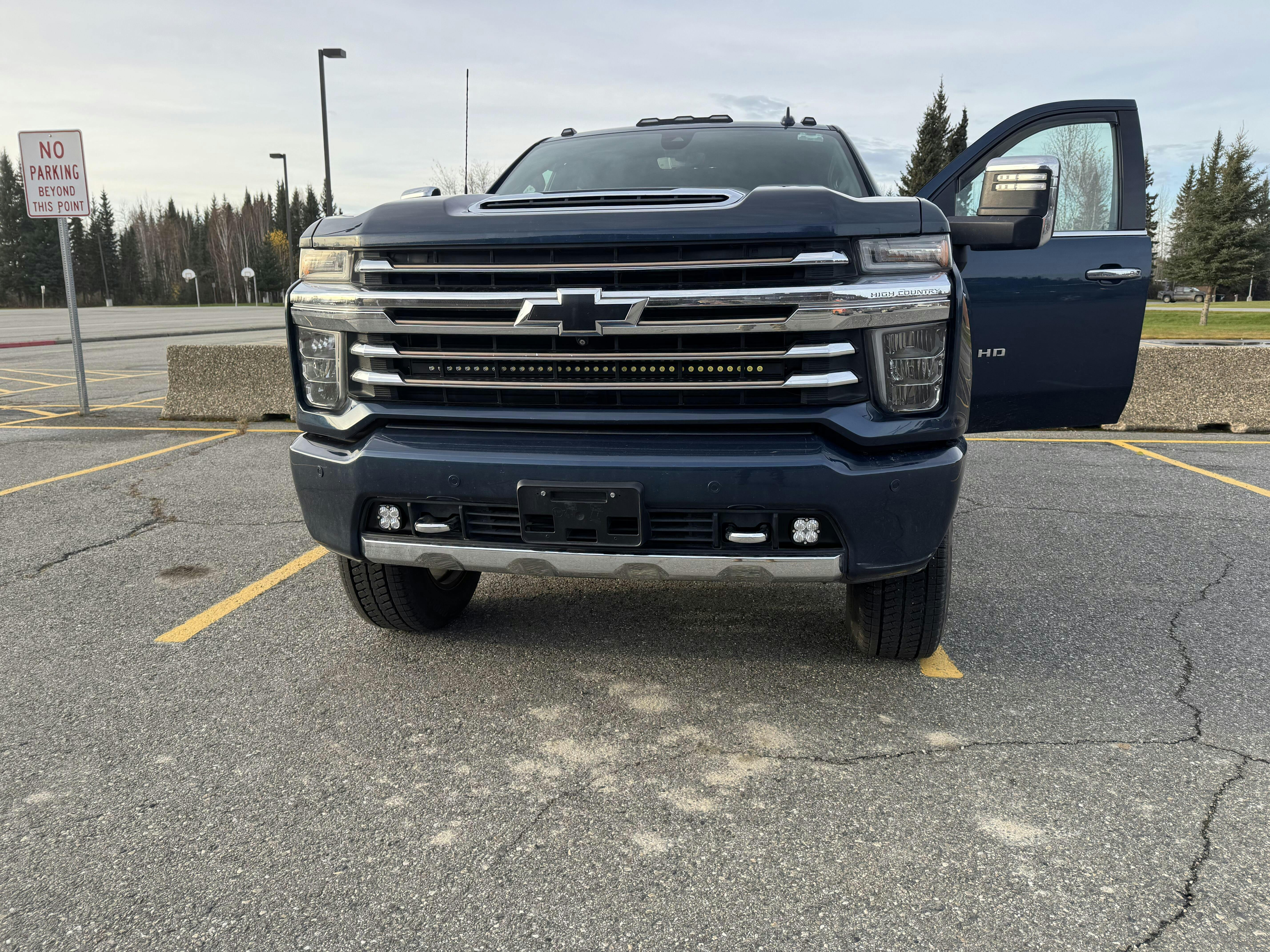

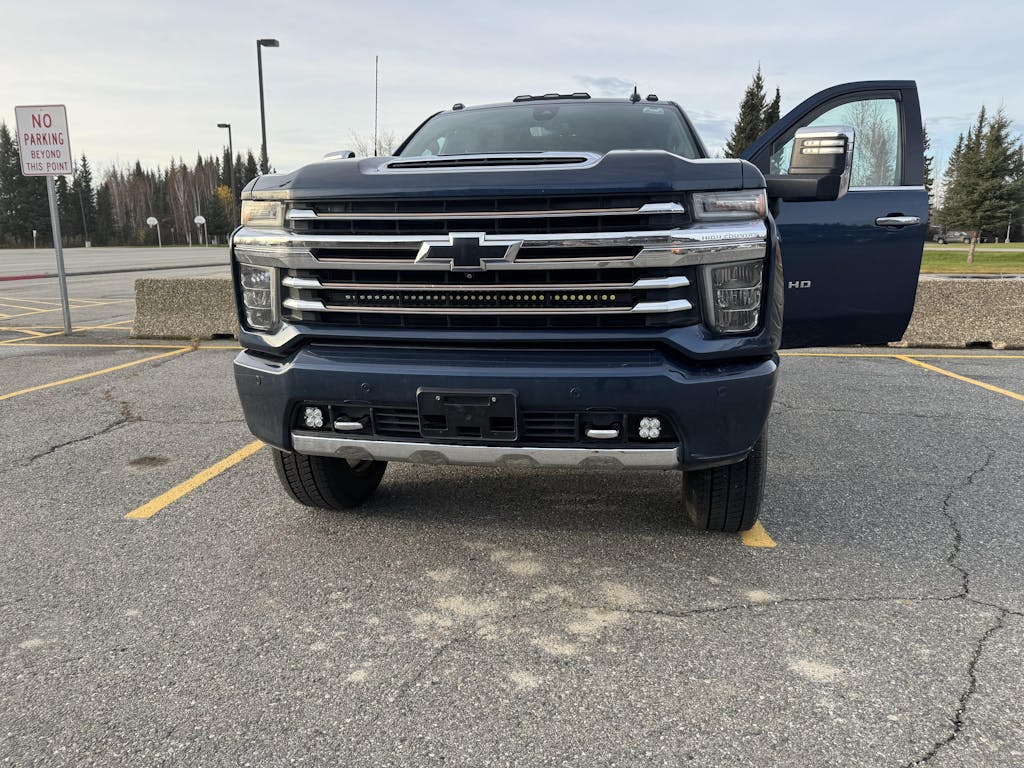

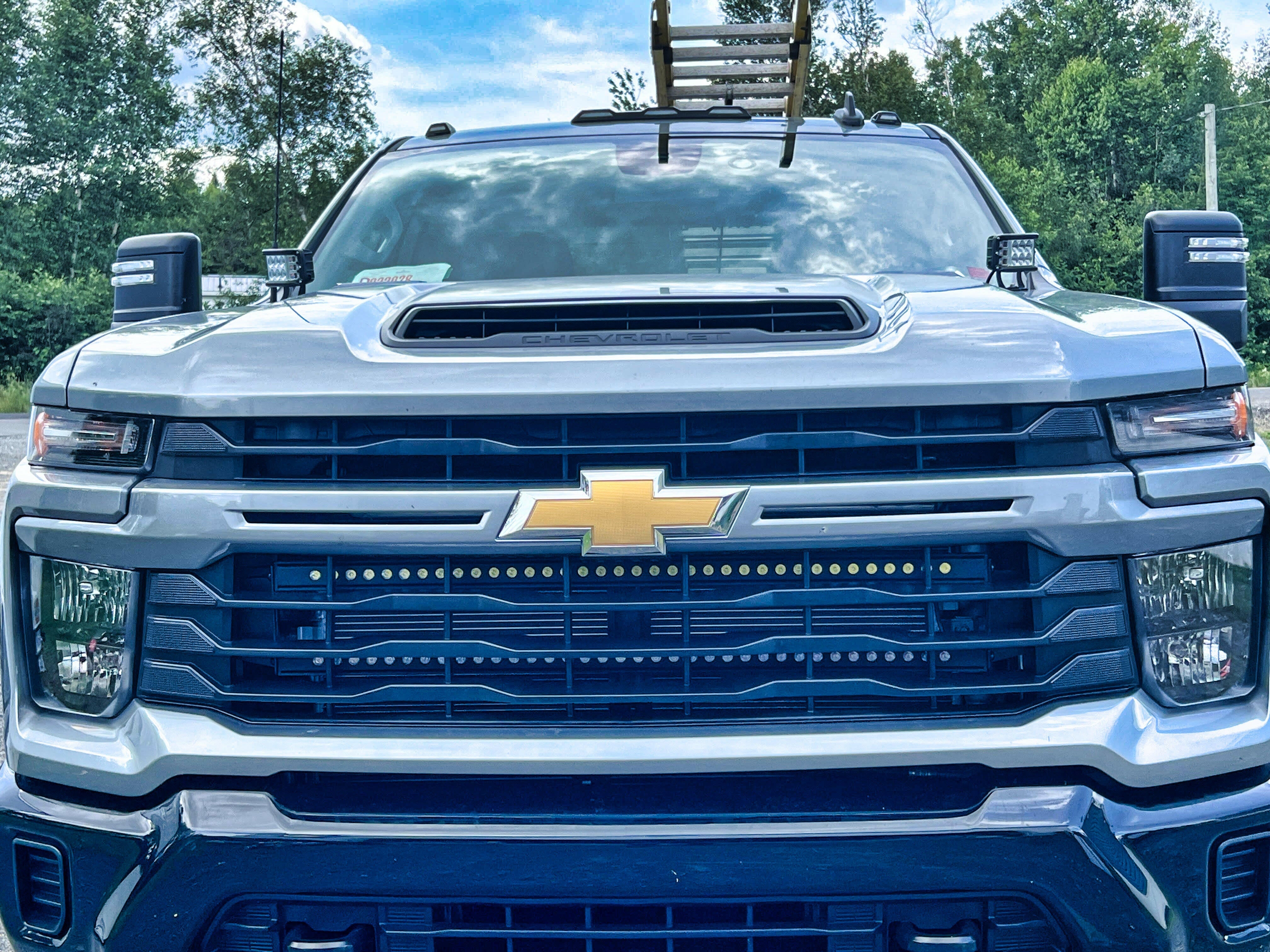

👌M&R promises fitment of the light bar with the grille as pictured. If you have a different type of grille, please reach out with pictures for confirmation.

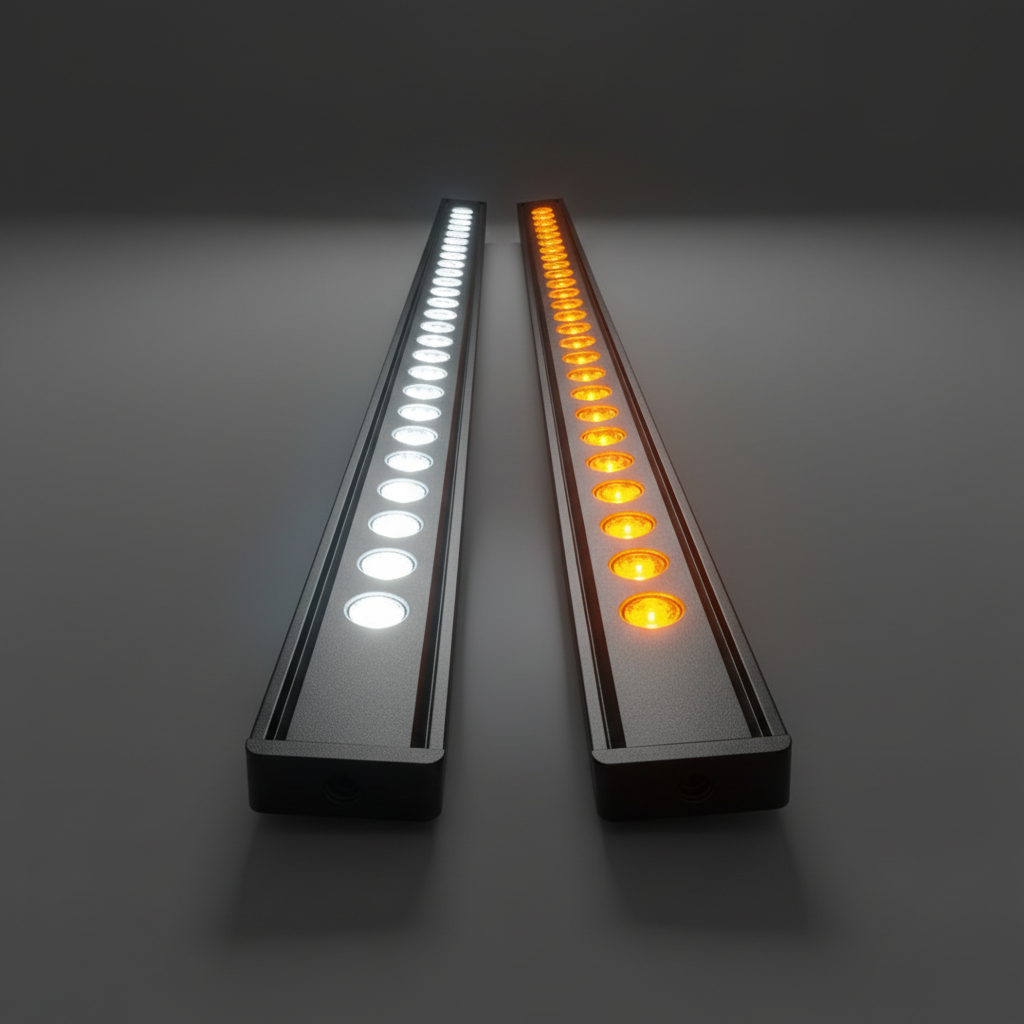

CHOOSE LIGHT OUTPUT COLOR:

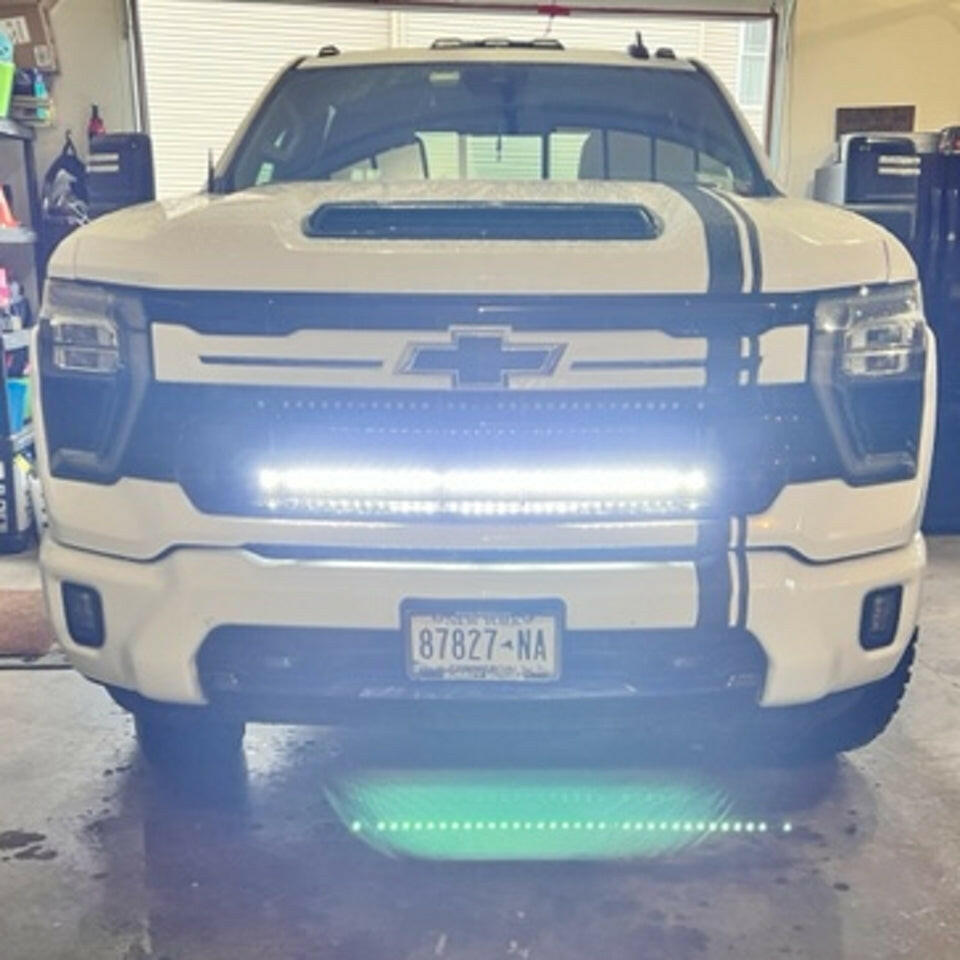

1) White LED — Up to 15,000 lumens. Bright, powerful light for any adventure. Off-road use only — the white beam blinds oncoming traffic and isn't street-legal.

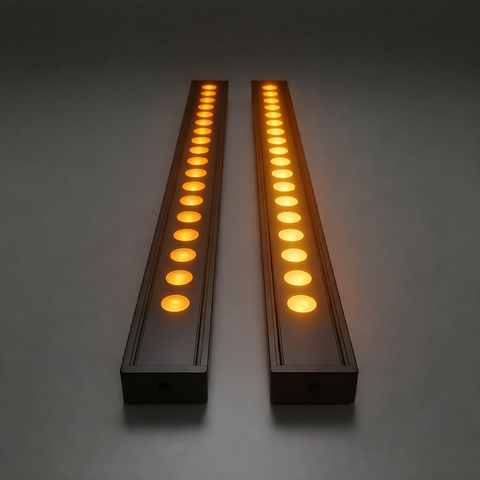

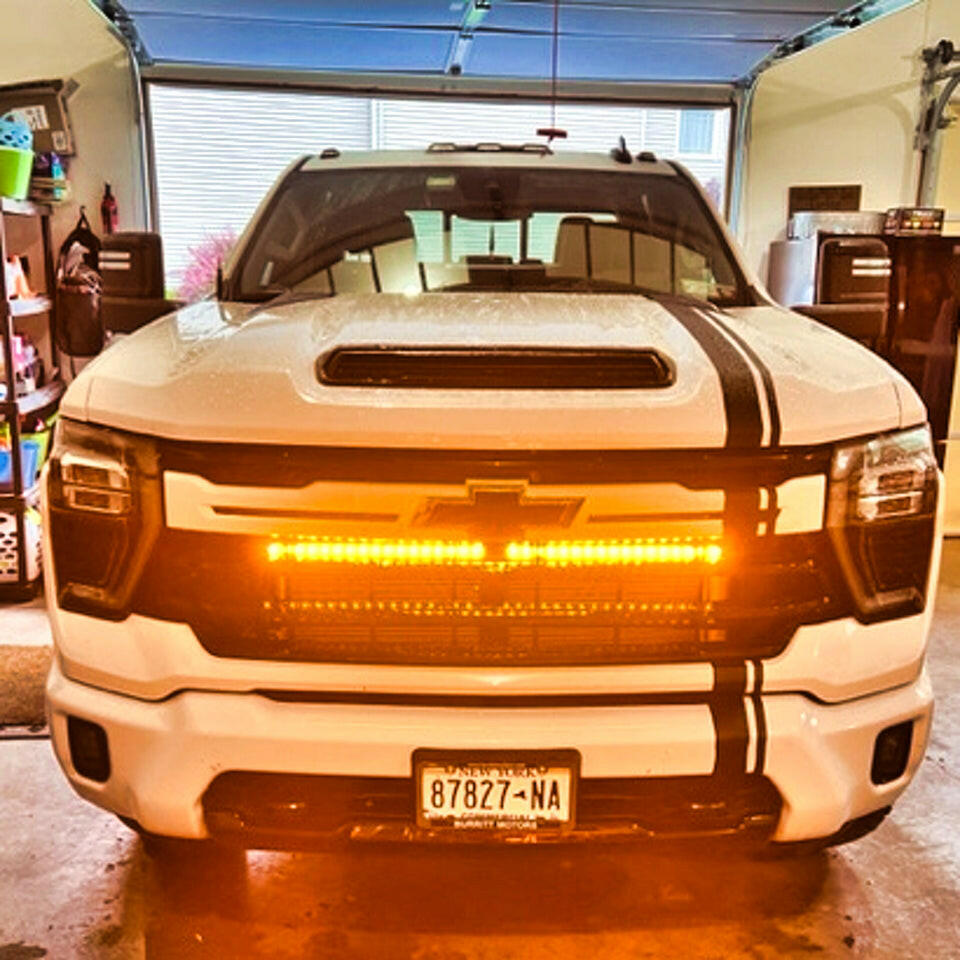

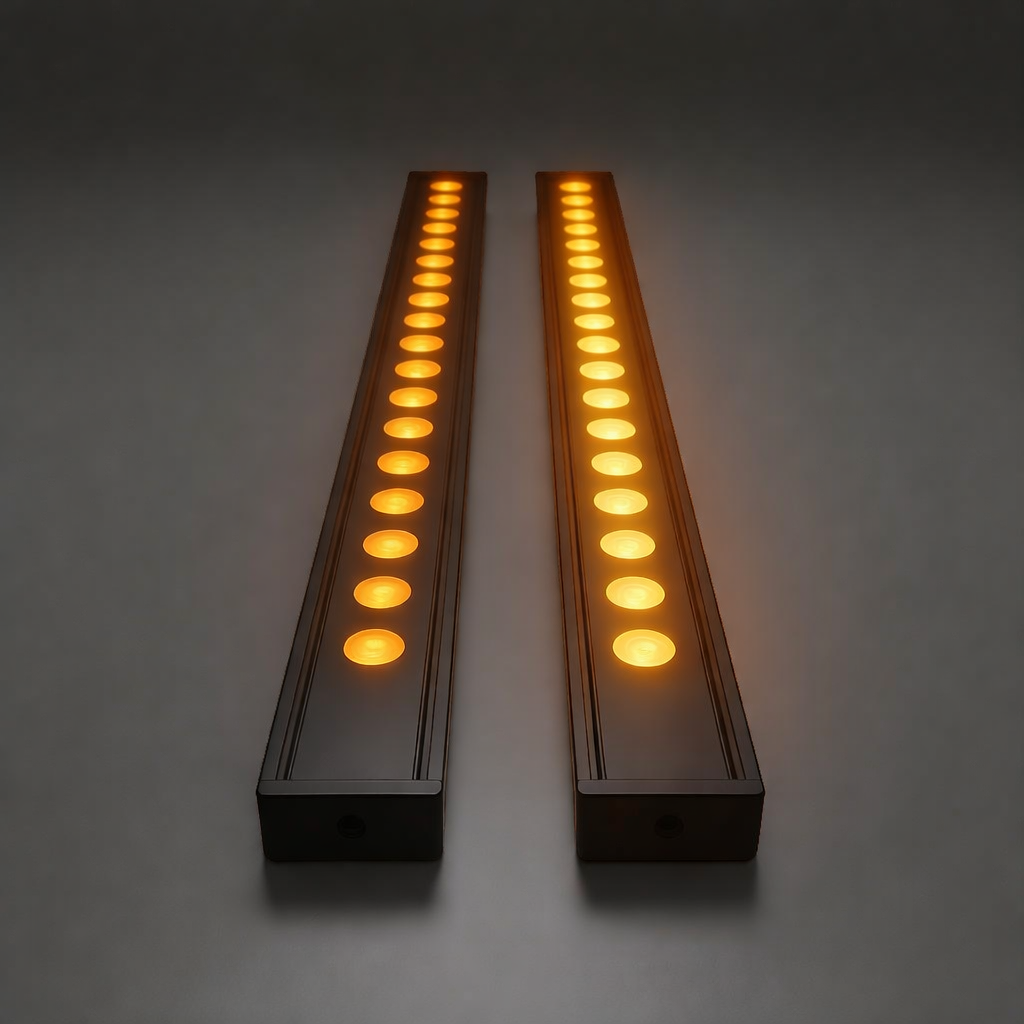

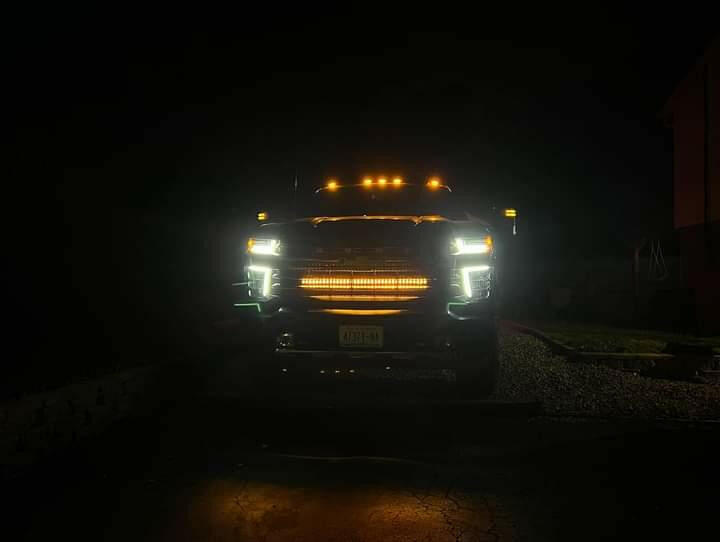

2) Amber LED — Up to 7,000 lumens. Cuts through dust, fog, snow, and rain far better than white light. Ideal for poor conditions. Off-road use only.
3) Dual Function: White LED + Amber DRL backglow — Full white beam (same as above), plus a soft amber "daytime running light" glow. The DRL is purely cosmetic and street-safe — it won't blind oncoming traffic, so you get a standout amber accent you can run anywhere.
40in SLIM Light Bar
| Specification | White w/ Amber DRL | White | Amber |
|---|---|---|---|
| Beam Pattern | Spot & Flood | Spot & Flood | Spot & Flood |
| Theoretical Max Power | 180 watts | 180 watts | 140 watts |
| Actual Power | 102 watts | 102 watts | 78 watts |
| Voltage / Current (Main) | DC 12V / 6.5A | DC 12V / 6.5A | DC 12V / 6.5A |
| Voltage / Current (Backlight) | DC 12V / 0.46A | — | — |
| Theoretical Max Luminous Flux | 21,060 lm | 21,060 lm | 11,160 lm |
| Measured Flux (without lens) | 11,376 lm | 11,376 lm | 7,380 lm |
| Measured Flux (with lens) | 8,340 lm | 8,340 lm | 5,387 lm |
| LED Type | CREE XTE | CREE XTE | CREE XP-E2 Amber |
| Color Temperature | 6000K | 6000K | — |
| Number of LEDs | 36 pcs | 36 pcs | 36 pcs |
| Product Size (L × W × D) | 38.93 × 0.75 × 1.63 in | 38.93 × 0.75 × 1.63 in | 38.93 × 0.75 × 1.63 in |
Free ground shipping on all orders within the continental United States.
We process and ship orders within 3–5 business days. If we anticipate any delay, we'll reach out via email.
- Hawaii, Alaska & Puerto Rico — $20 flat rate for ground shipping.
- Canada & International — Shipping rates calculated at checkout. Customs fees, duties, and import taxes are the responsibility of the customer.
- Overnight & 2nd Day Air — Available at checkout. Orders must be placed by 12:00 PM Pacific Time for same-day shipment.
You'll receive a tracking number via email once your order ships. If you have a special request about your order, reach out — we'll do our best to accommodate. For our complete shipping policy, [click here].
Warranty
We have a lifetime warranty on all our light kits. We stand behind every kit we build — our lifetime warranty isn't fine print, it's a promise. For more information about our warranty and disclaimer, [click here].
M&R Automotive is not responsible for misuse or improper installation of the product. Professional installation is recommended.
HOW TO INSTALL?
Install Video
Light Output
