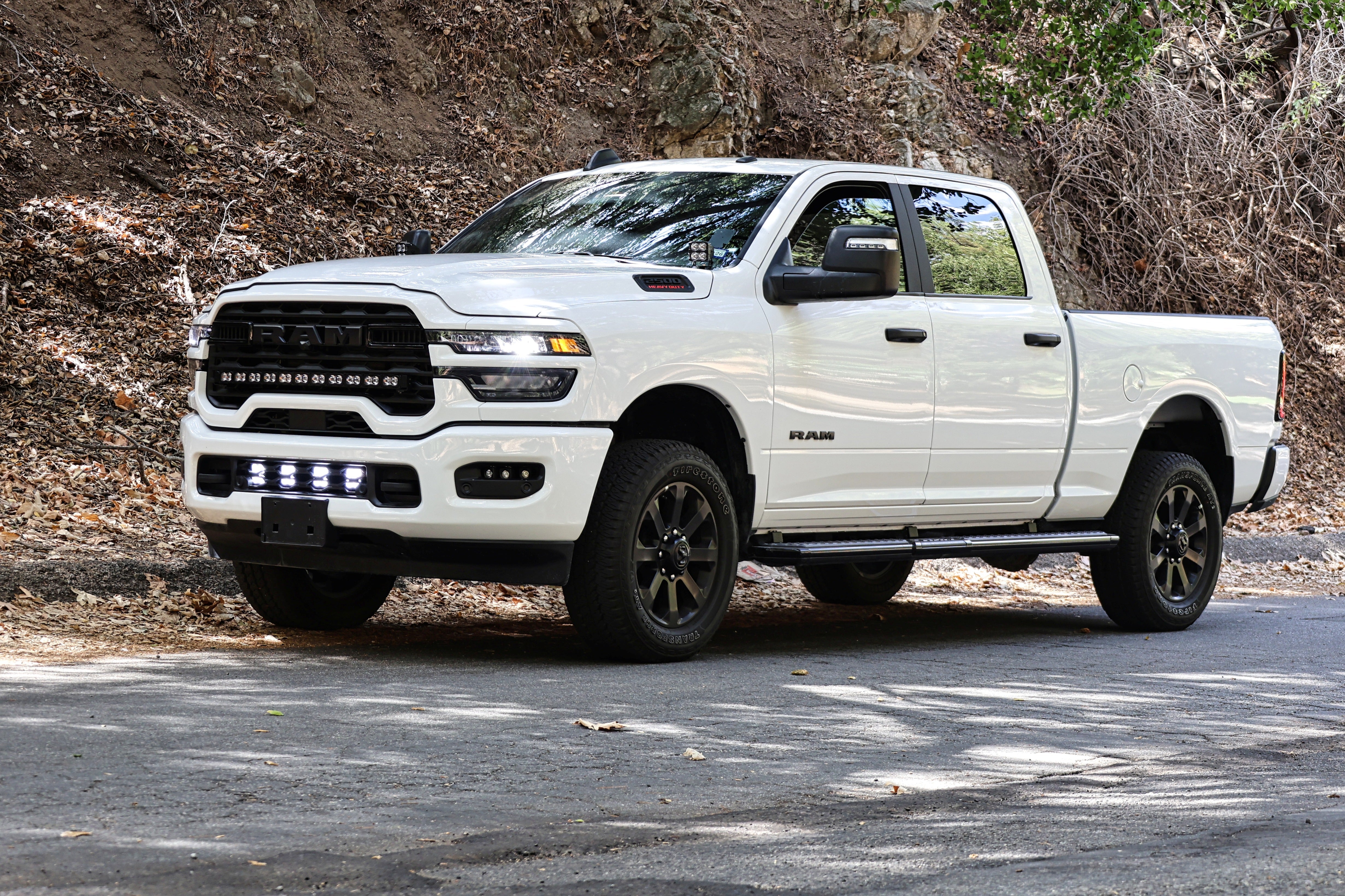

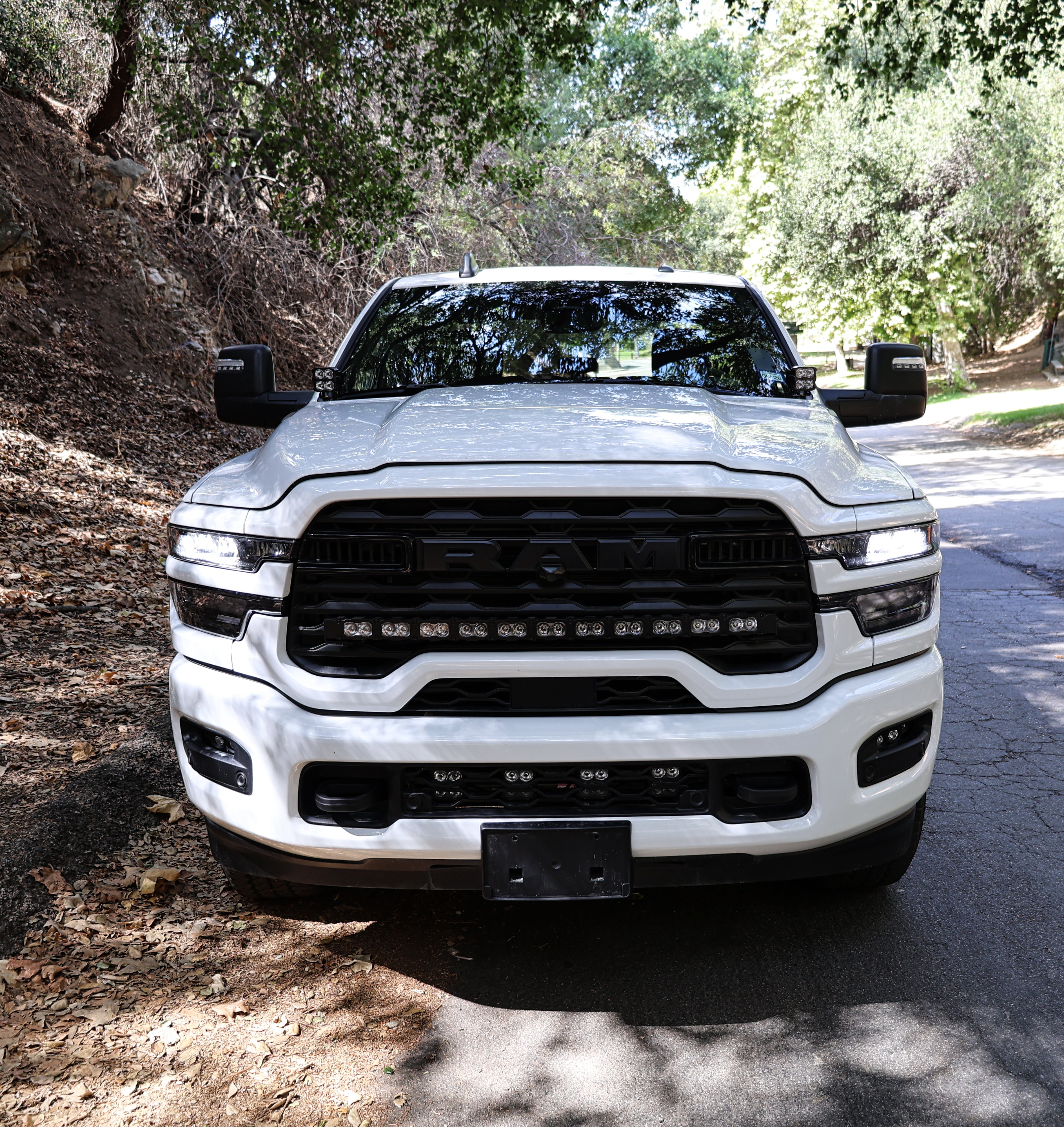

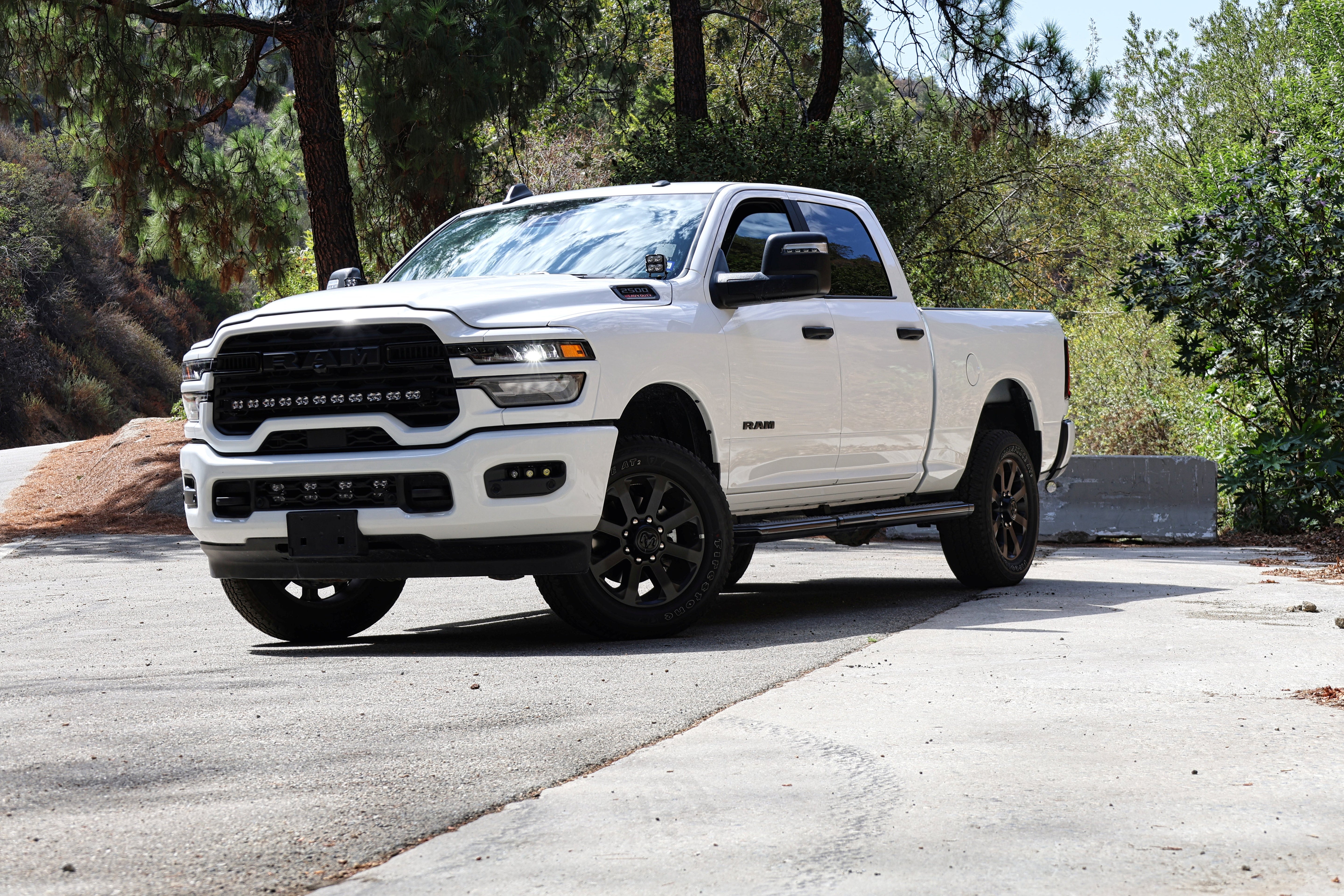

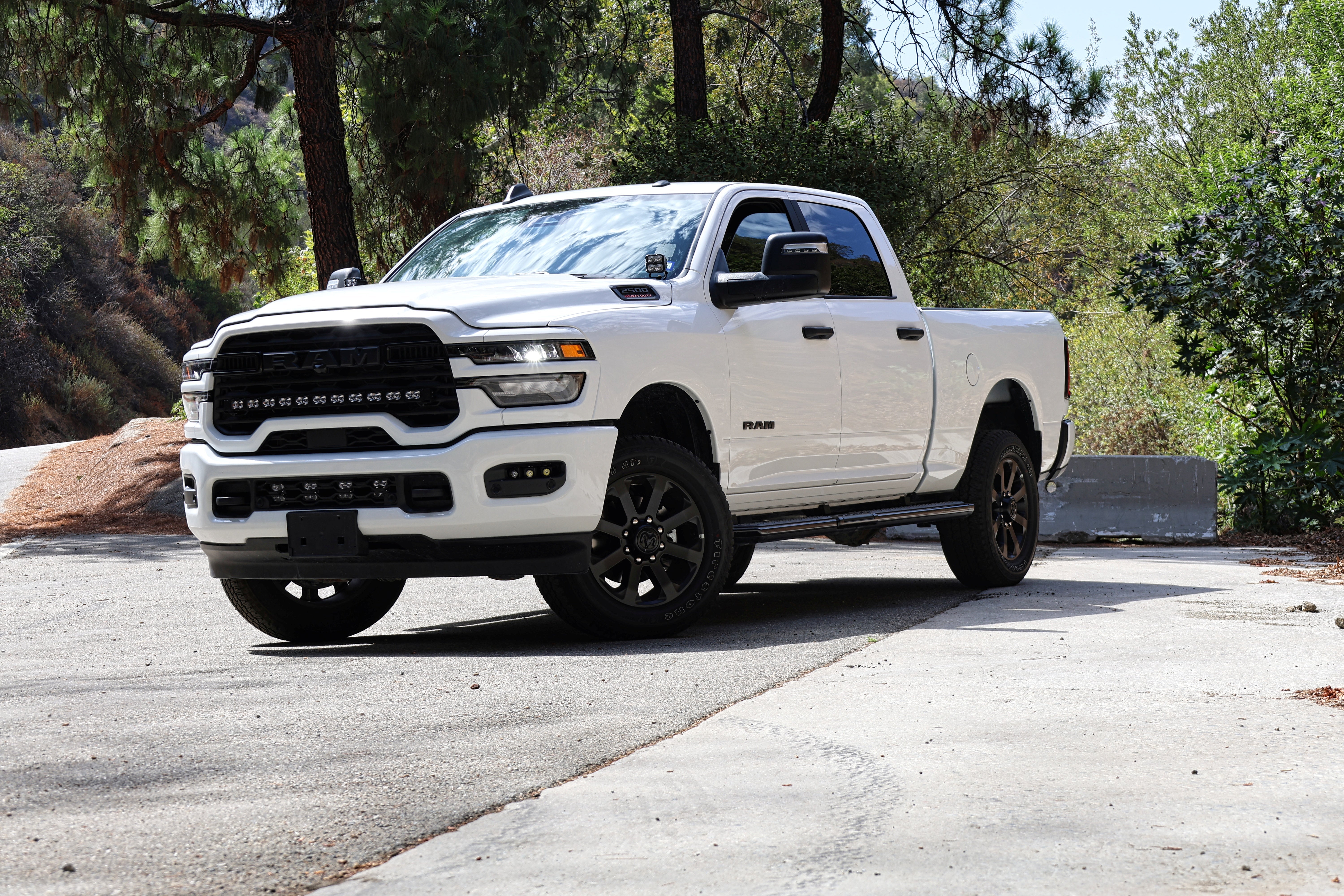

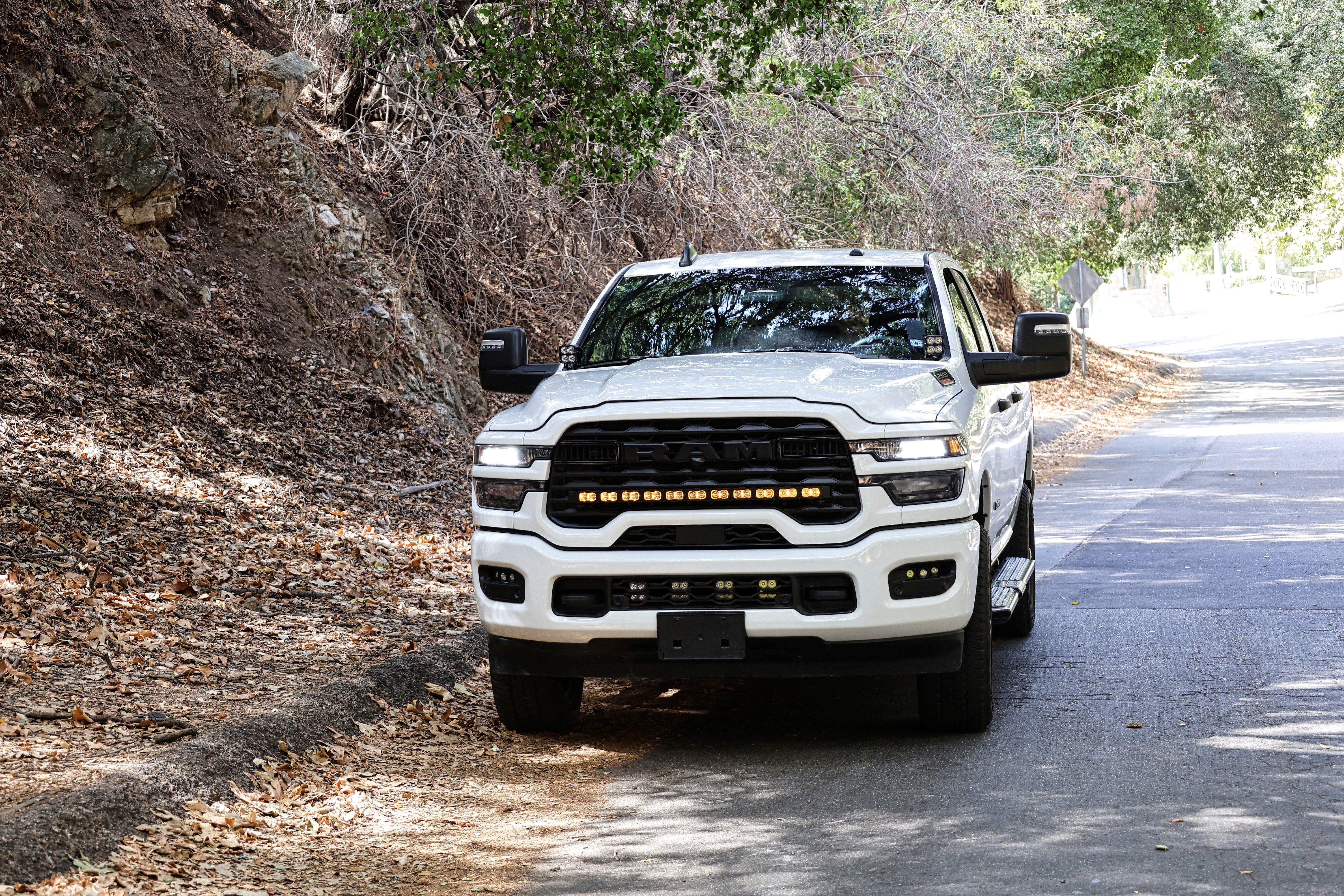

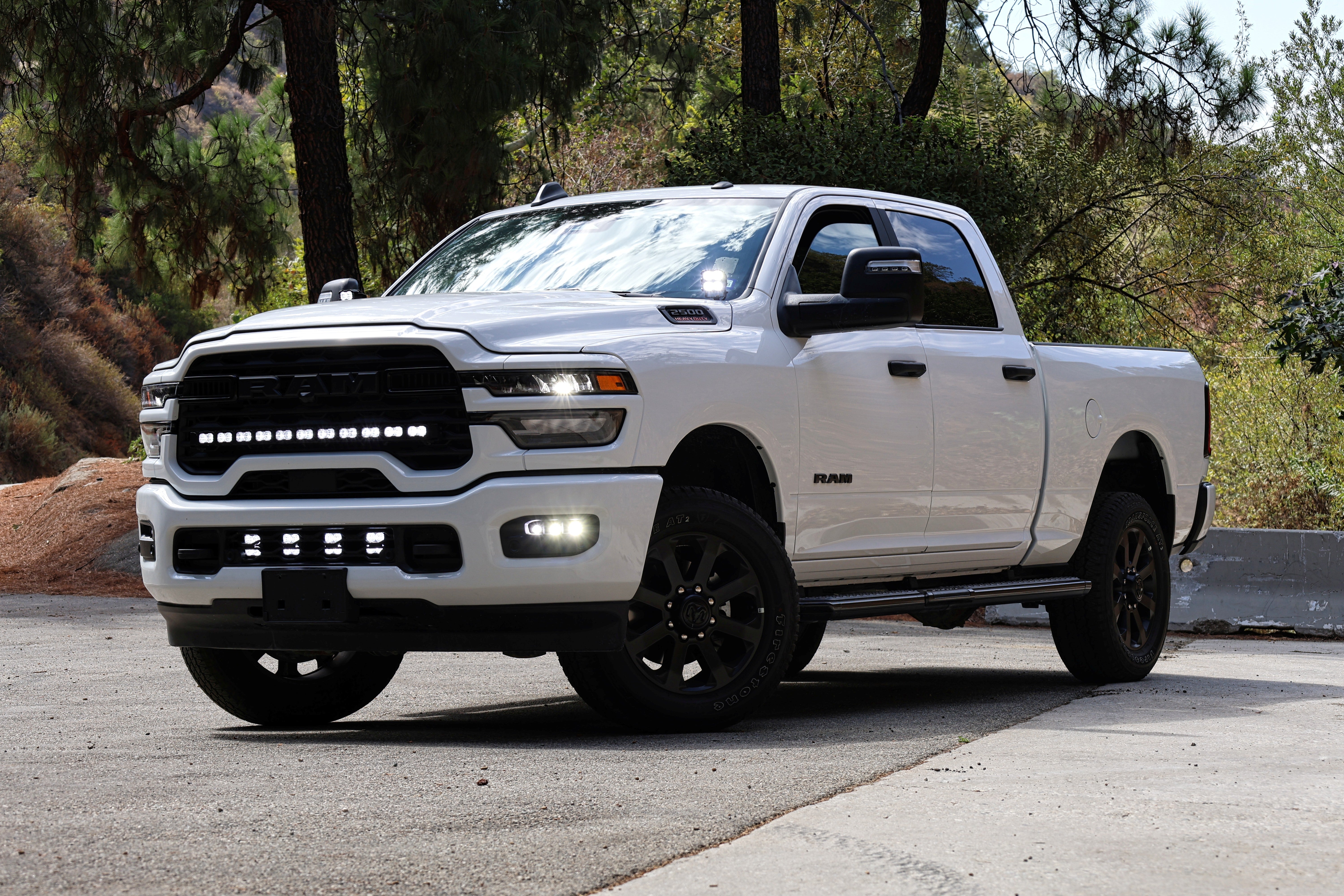

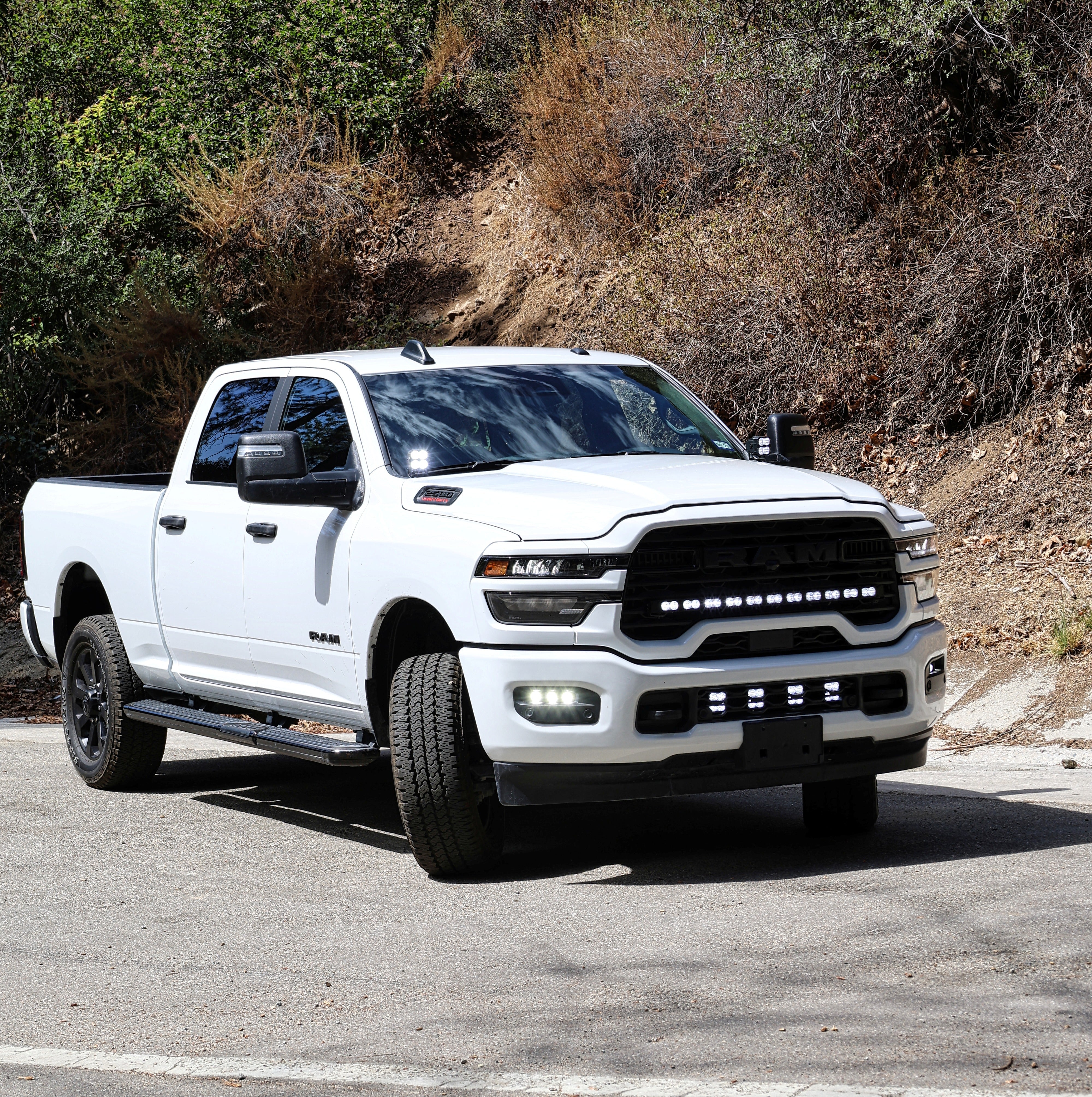

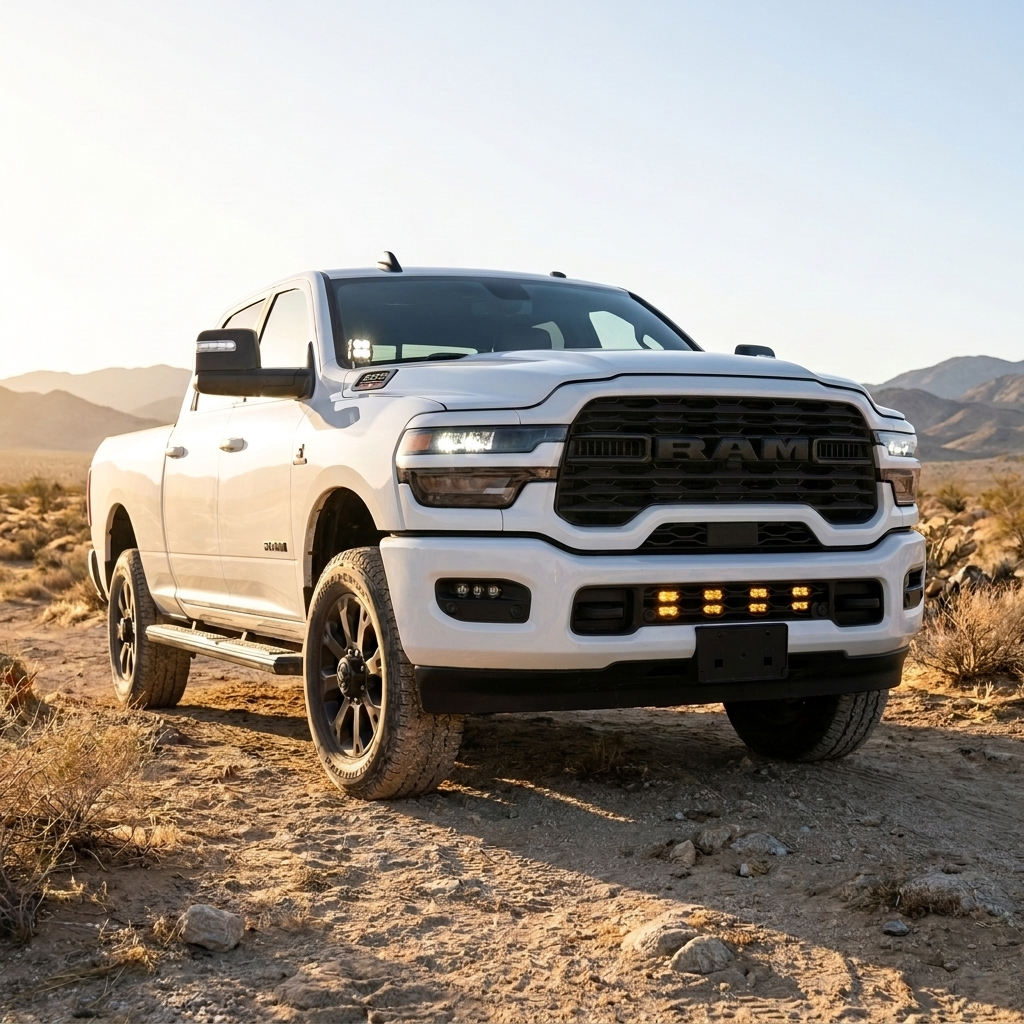

2025+ RAM 2500/3500 Lower Grille Pods
What's in the Box
- (2 or 4) 40w LED PODs PRO
- (2) metal brackets

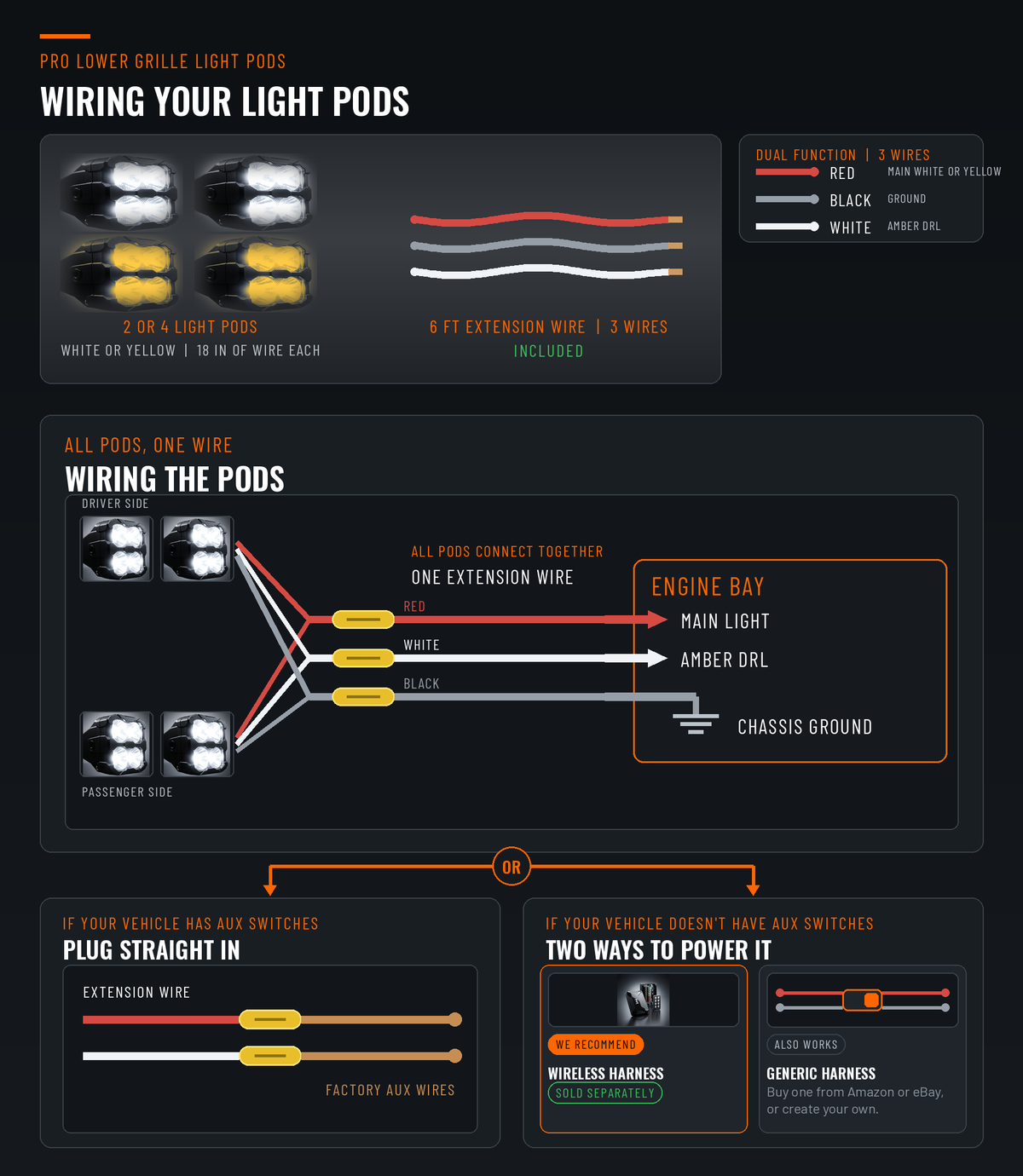

- (1) wiring harness to bridge 2 pods together
- All mounting hardware included
- *Brackets-only orders include just the mounting brackets — no pods or wiring harness.
Off-road use only
Bolt On, No Drilling
Vehicle Specific Design
Lifetime Warranty
Fits: 2025–2026 RAM 2500/3500
- Choose either 2 or 4 LED light pods
- No cutting or drilling required. The kit is a complete bolt on using factory openings and hardware.
- Don't need to remove grille or bumper as it reuses bolts behind the lower grille
- Doesn't interfere with radiator air flow
LIGHT OUTPUT:

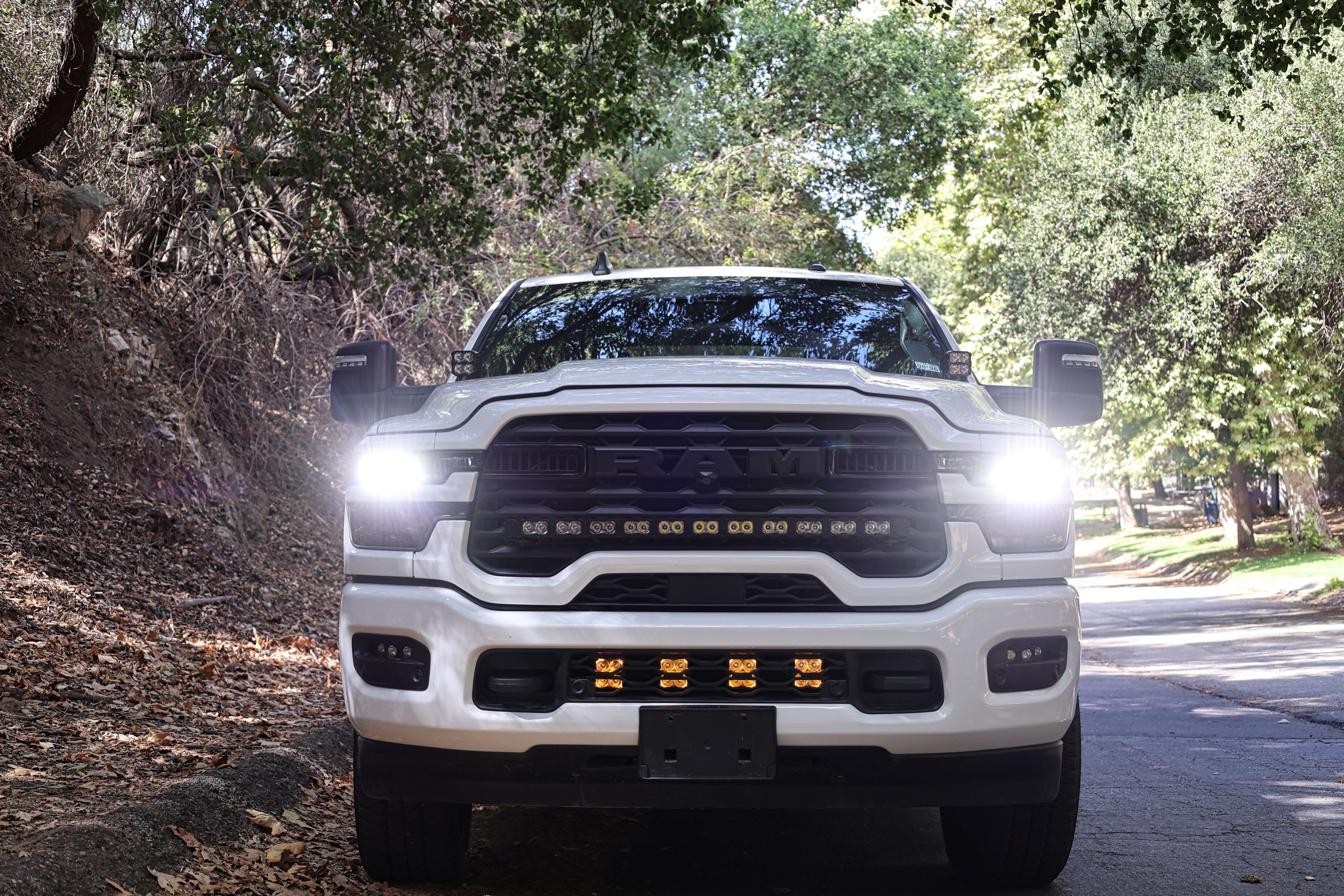

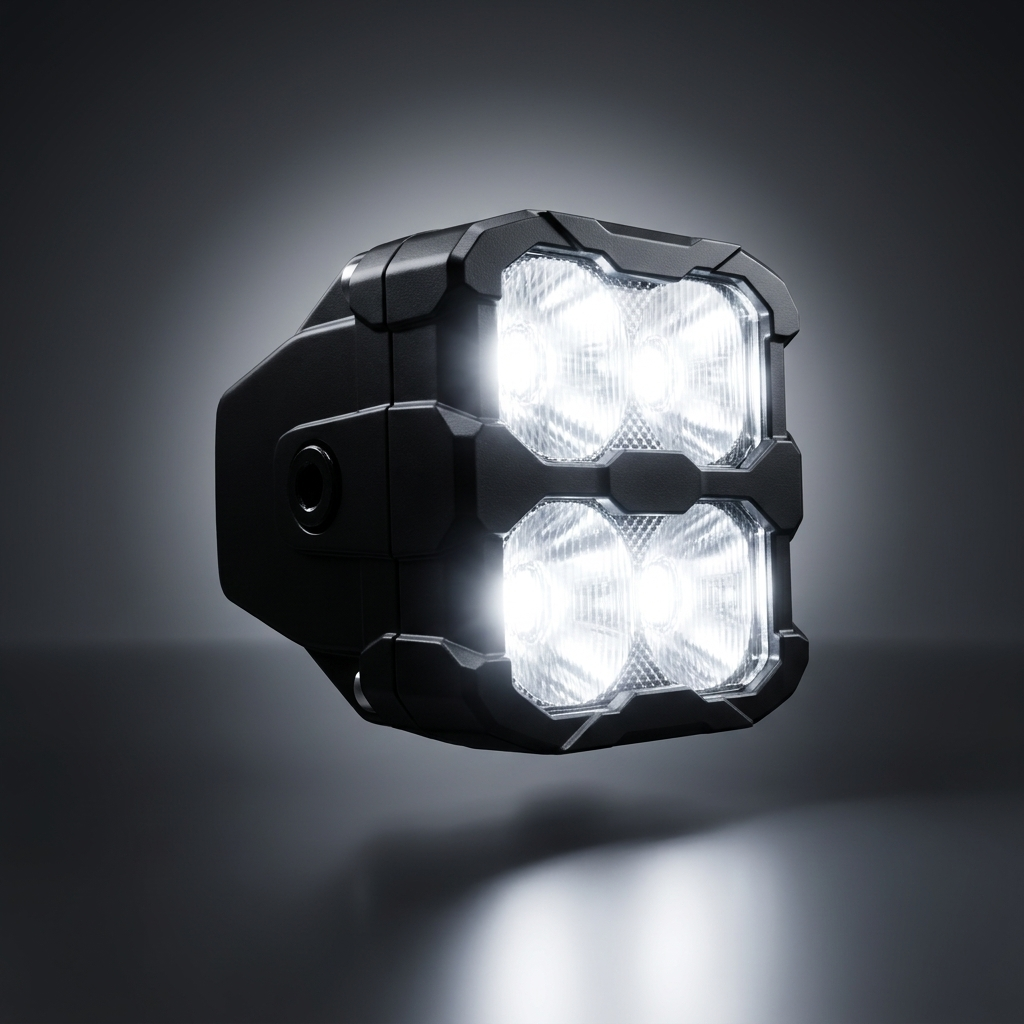

These are our PRO 40w pods. Every PRO pod is dual function — a white main beam that runs alongside a soft amber DRL (daytime running light) backglow.

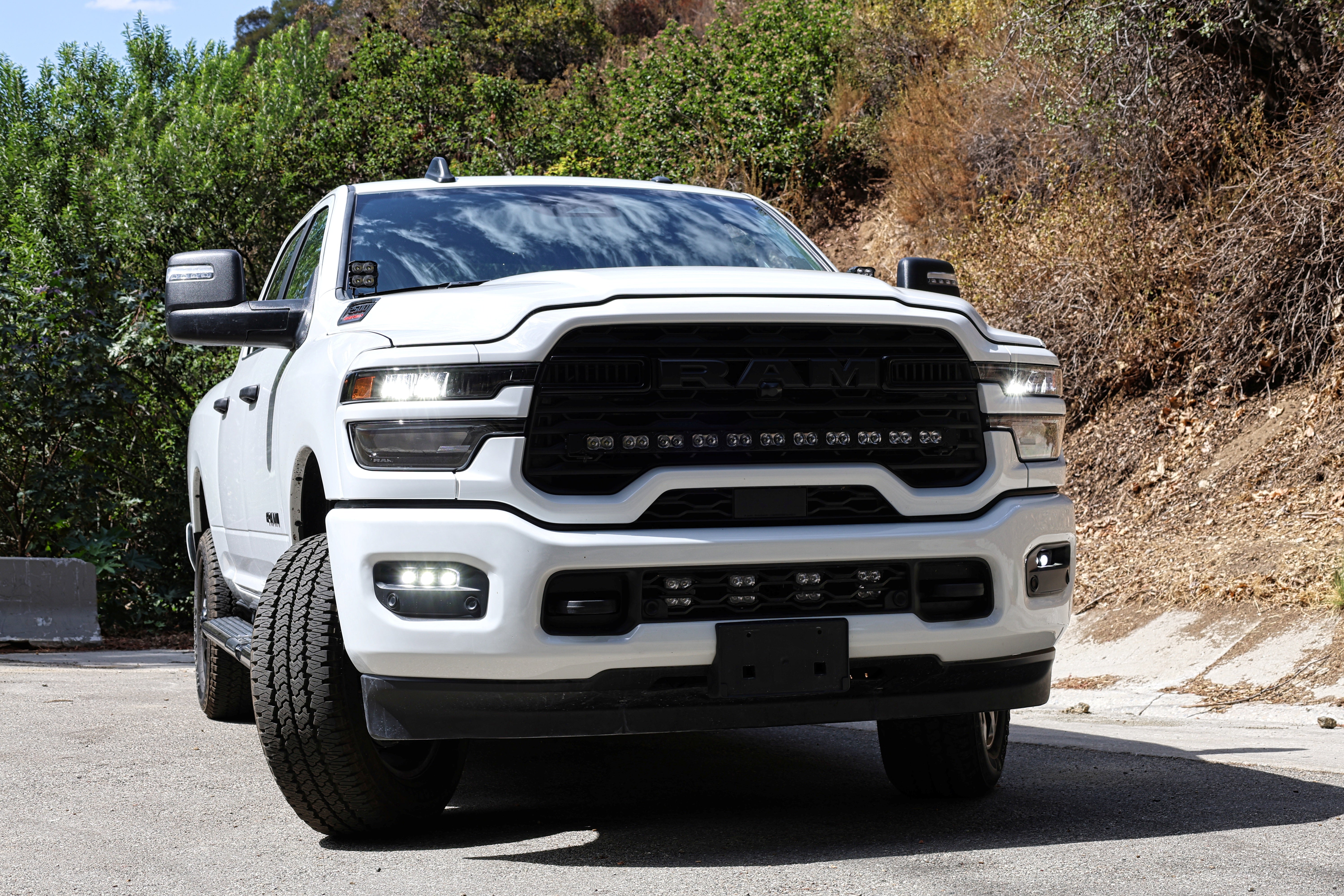

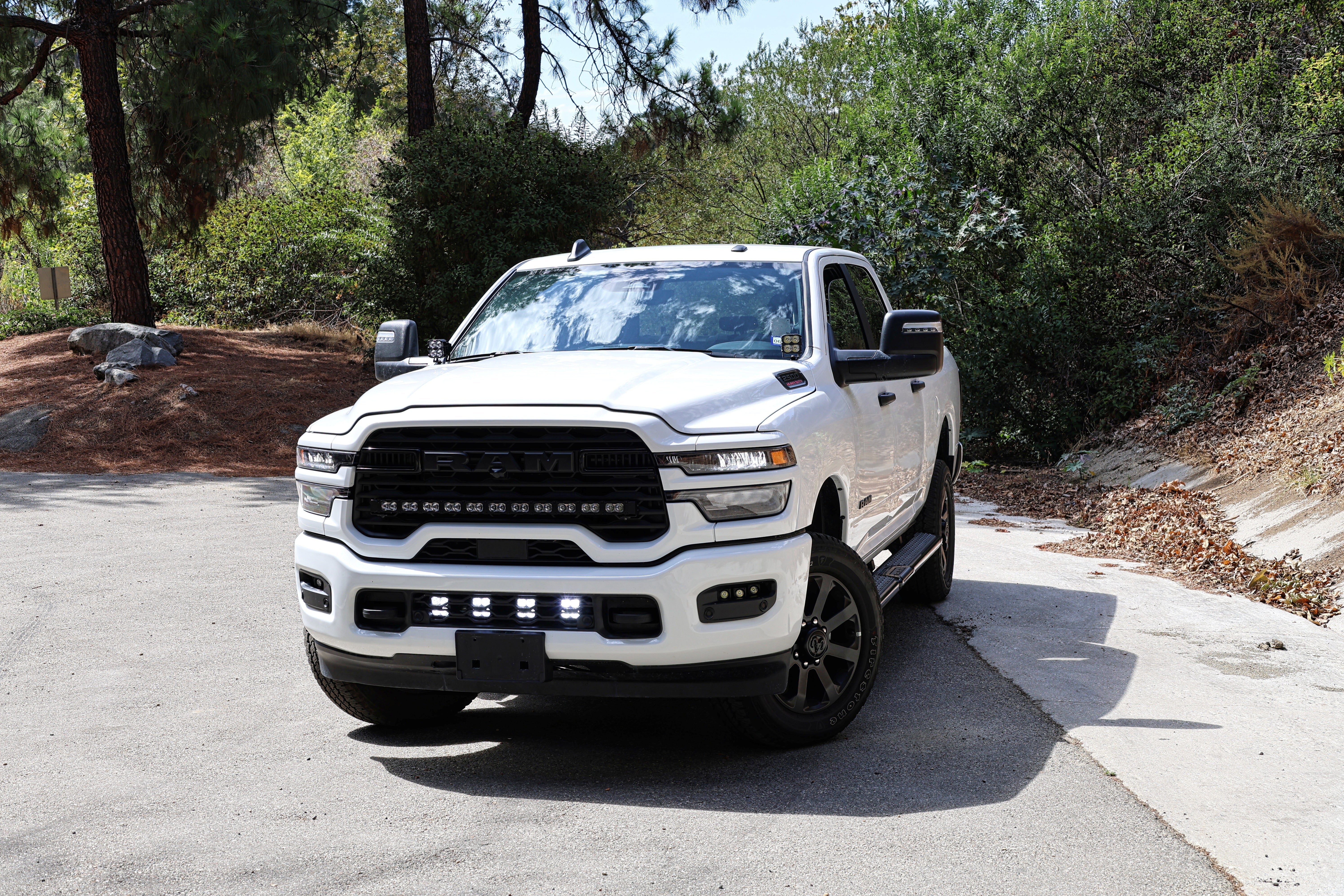

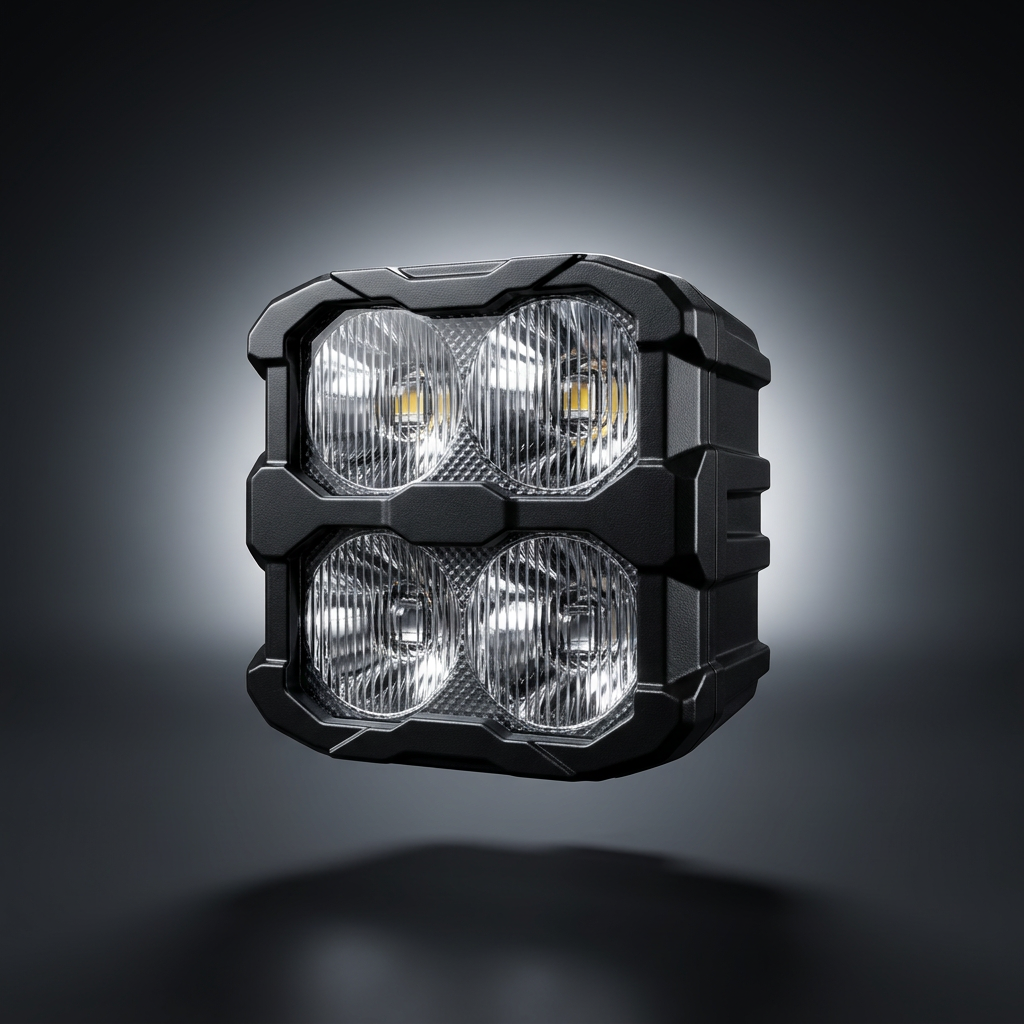

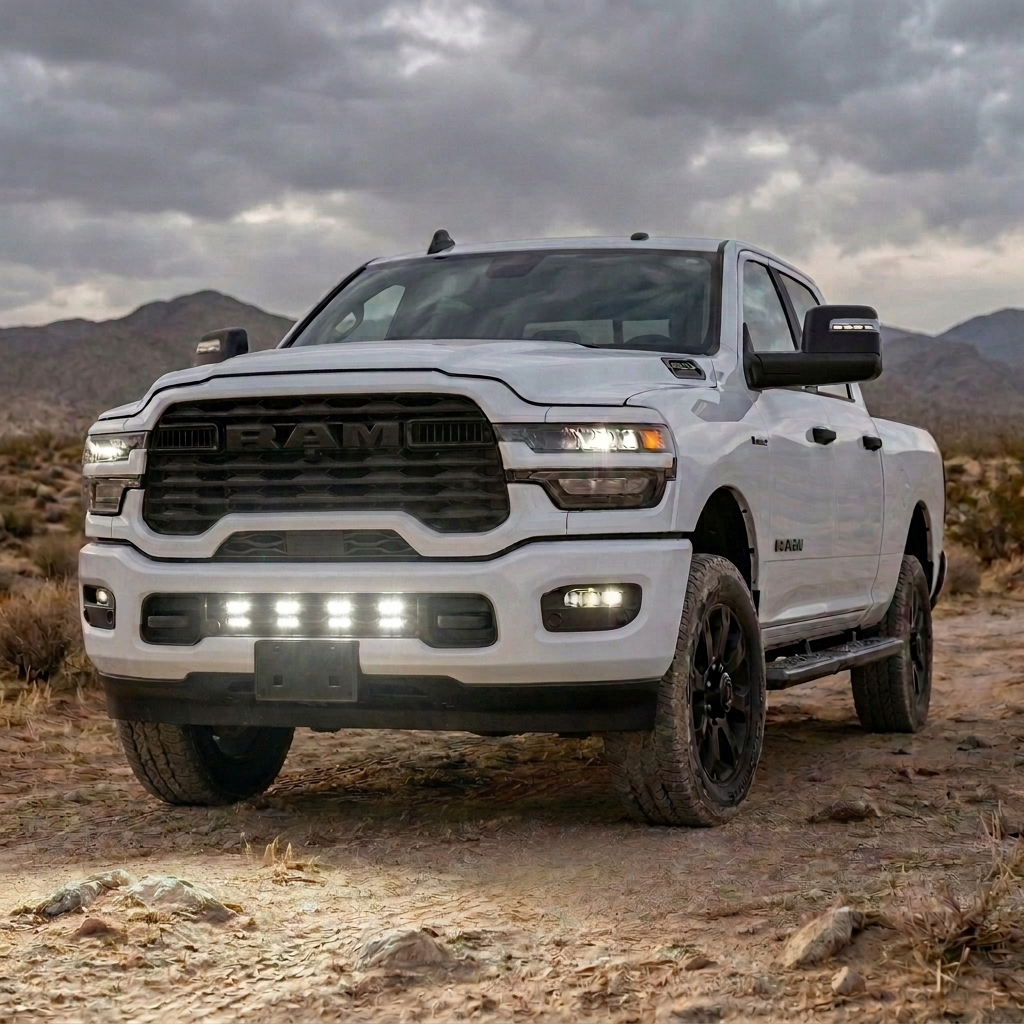

- White LED — Super bright, crisp white beam with plenty of light for any adventure. Off-road use only — the white beam blinds oncoming traffic and isn't street-legal.

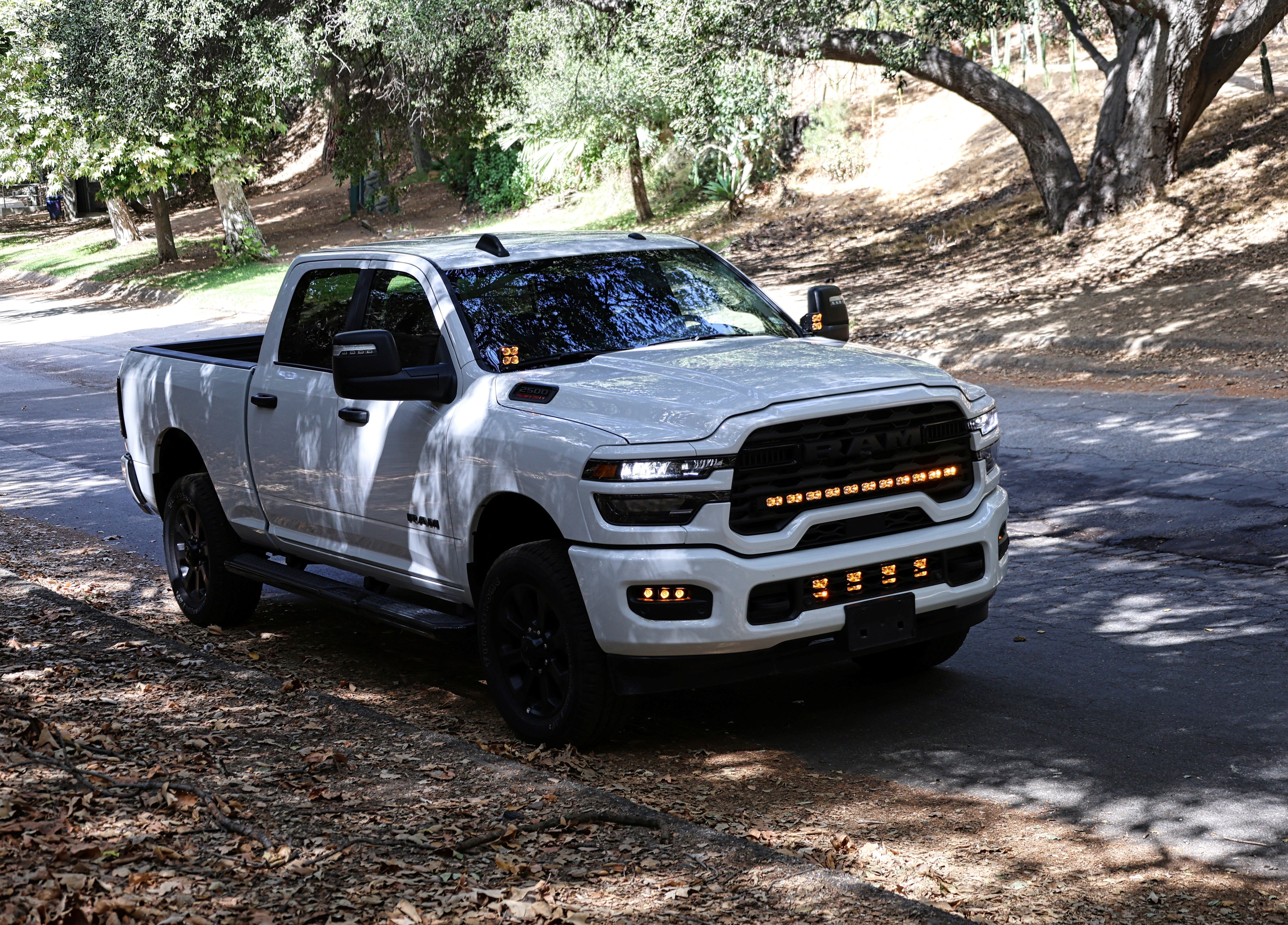

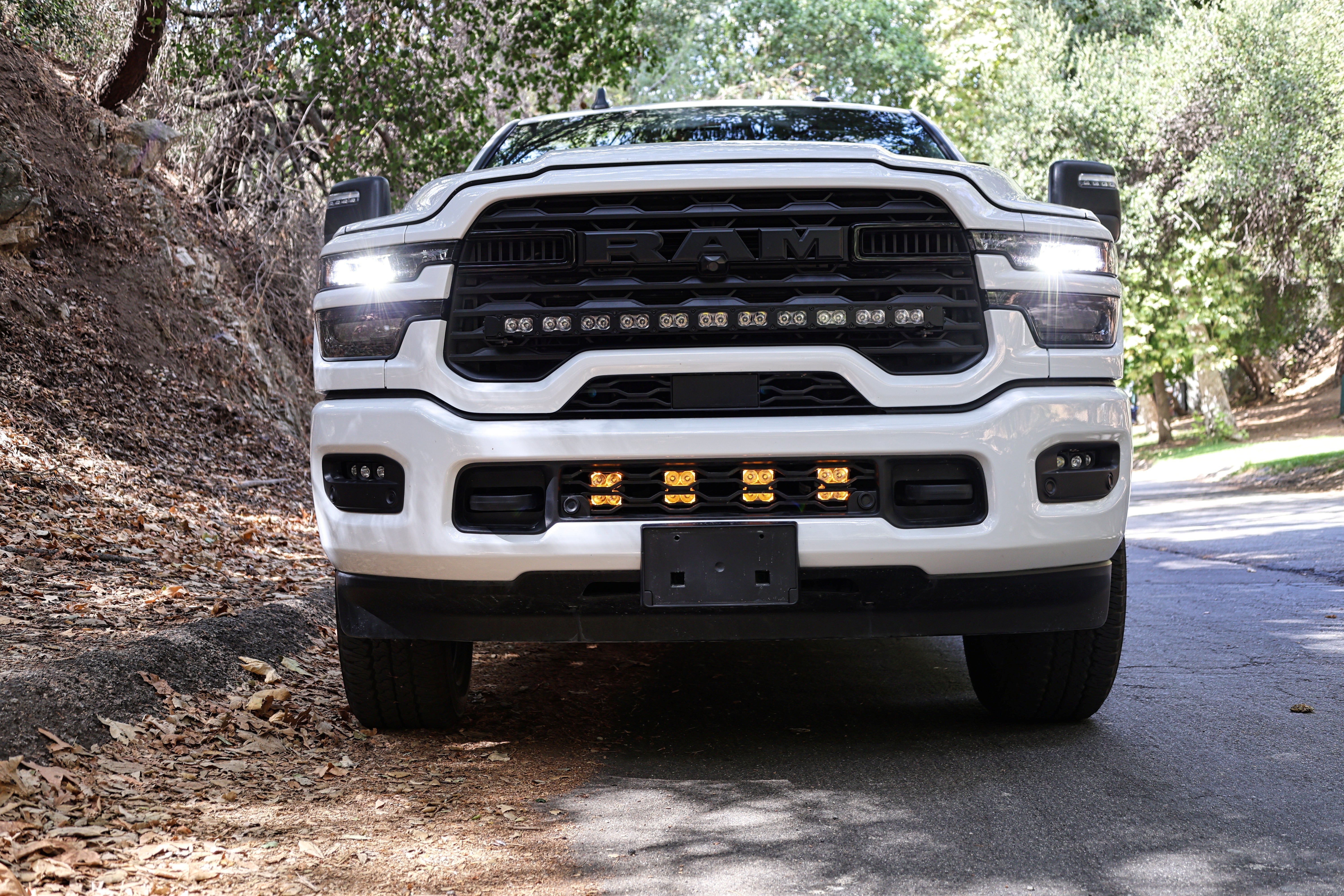

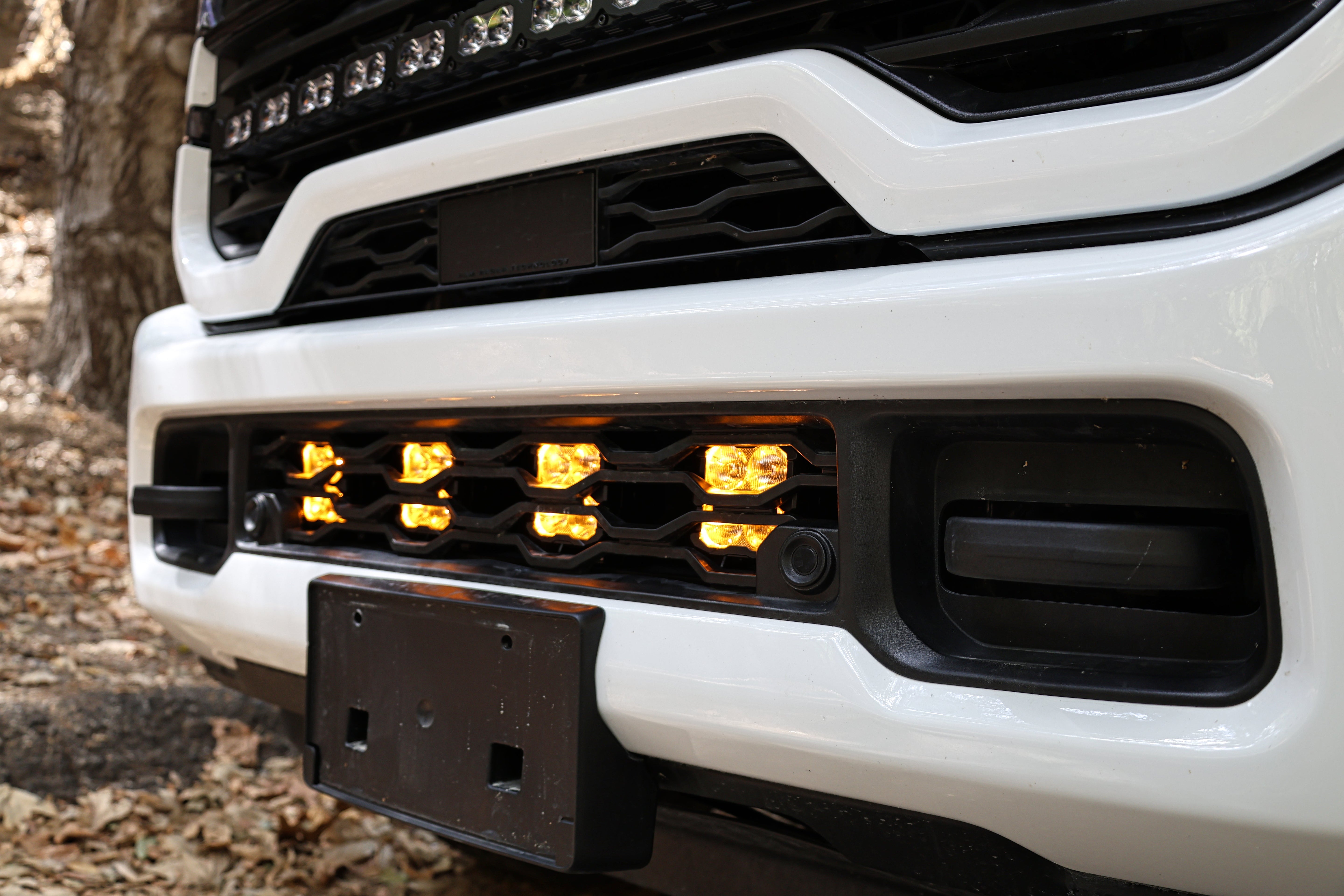

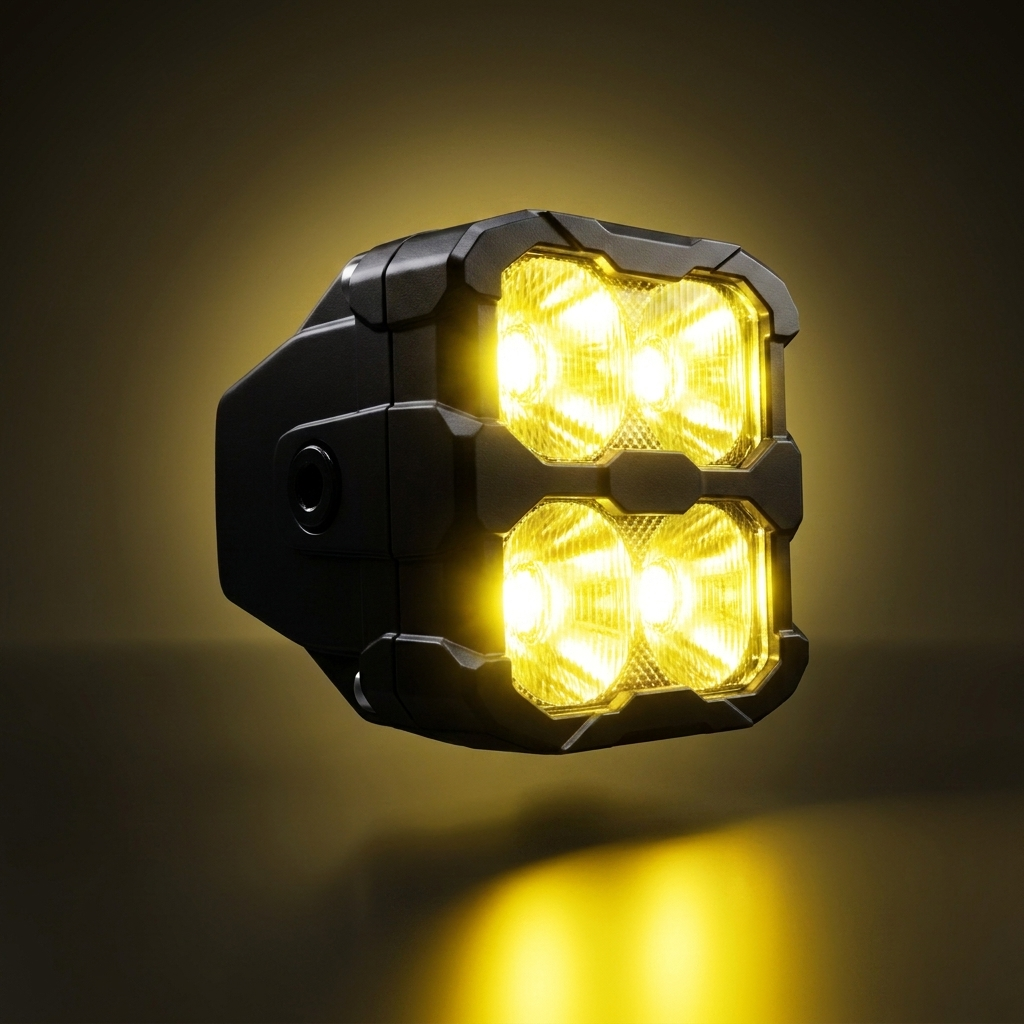

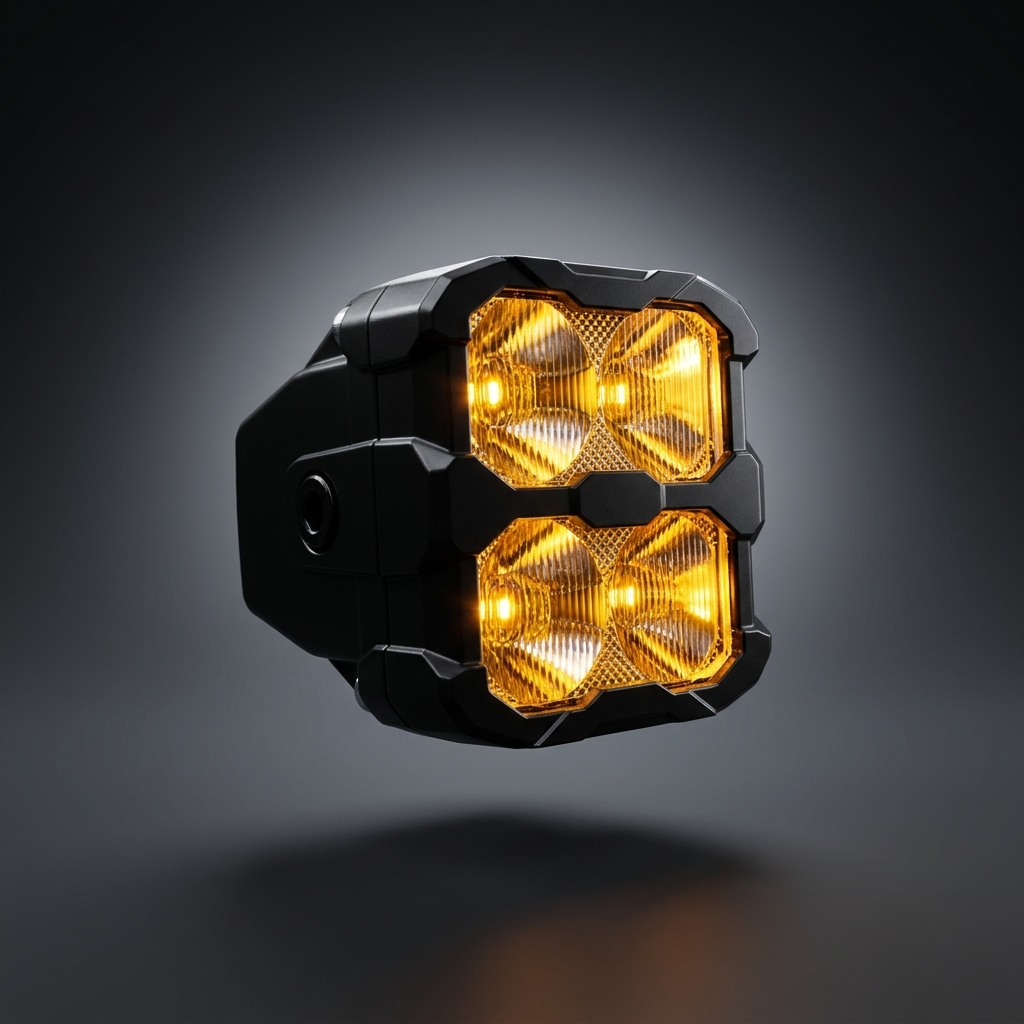

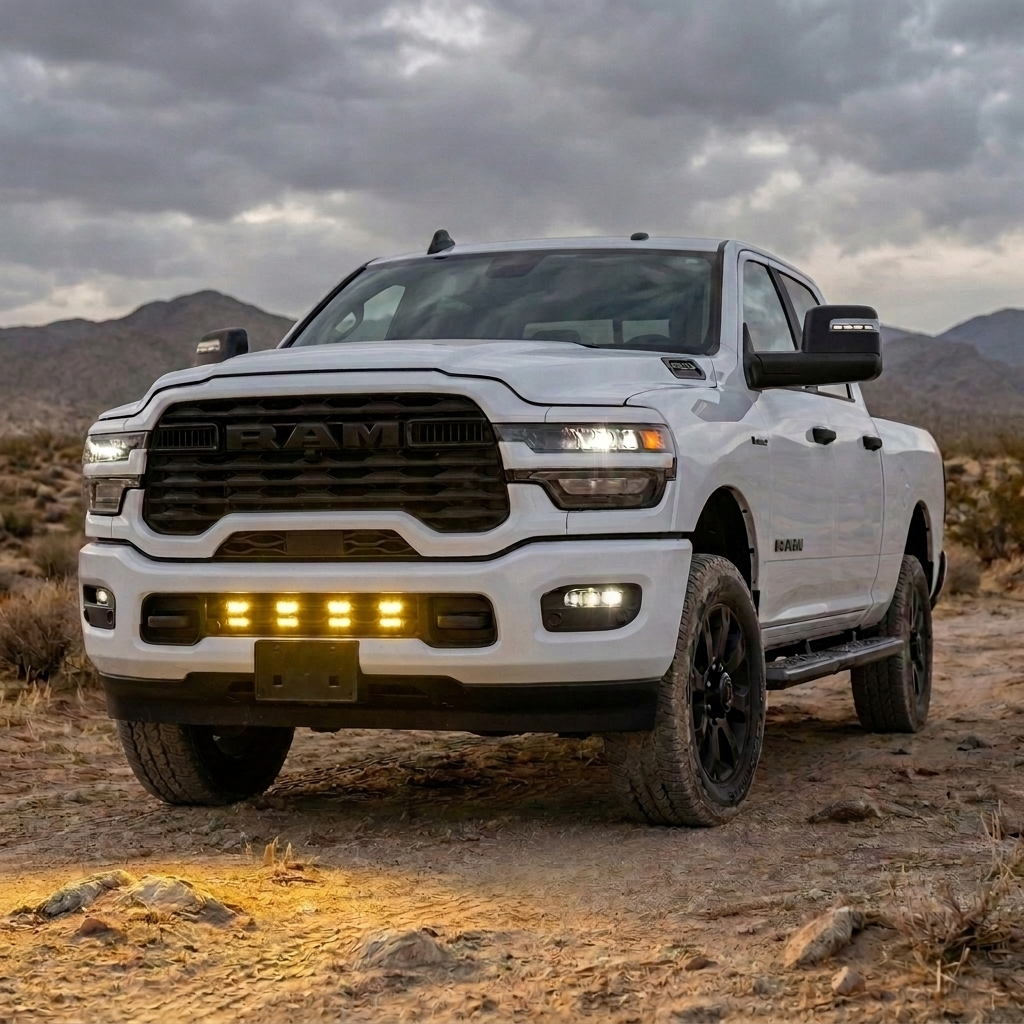

- Amber DRL — A daytime running light you can run day or night. Doesn't give off much light — just a bold amber backglow that makes your vehicle stand out on the road. Street-legal — won't blind oncoming traffic, so you can run it anywhere.
BUILD QUALITY:
- Uses a TIR (Total Internal Reflection) lens, which is different from conventional optics that lose light internally and produce glare. The TIR lens collects all of the light from the LED and directs it exactly where you need it, drastically reducing glare and improving total efficiency.
- Higher light efficiency: brighter, longer irradiation distance
- Housing is upgraded to 304 aluminum. The surface is UV polyester powder coated to protect against UV, salt water, corrosion, fading, and scratches.
- Equipped with a thermal management system that automatically adjusts brightness output according to external temperature
- Rated for a 50,000 hour lifespan
40W Standard LED Light Pod
| Beam Pattern | Spot |
| Theoretical Max Power | 40 watts |
| Actual Power | 38 watts |
| Voltage / Current (Main) | DC 12V / 3.15A |
| Voltage / Current (Backlight) | DC 12V / 0.09A |
| Theoretical Max Luminous Flux | 5,032 lm |
| Measured Flux (without lens) | 3,840 lm |
| Measured Flux (with lens) | 1,944 lm |
| LED Type | Cree XM-L2 |
| Color Temperature | 6000K |
| Number of LEDs | 4 pcs |
| Product Size (L × W × D) | 3.19 × 2.88 × 2.72 in |
40W PRO vs Standard — Beam & Output
How far & how wide each 40W pod throws light
| Beam Pattern | Driving | Spot |
| LED Type | Luminus SST-20 | Cree XM-L2 |
| Color Temperature | 6000K | 6000K |
| Number of LEDs | 4 pcs | 4 pcs |
| Theoretical Max Power | 40 watts | 40 watts |
| Actual Power | 39.2 watts | 38 watts |
| Theoretical Max Luminous Flux | 4,368 lm | 5,032 lm |
| Measured Flux (without lens) | 3,940 lm | 3,840 lm |
| Measured Flux (with lens) | 2,949 lm | 1,944 lm |
| Light that makes it out | 75% | 51% |
| Product Size (L × W × D) | 3.25 × 3.15 × 2.78 in | 3.19 × 2.88 × 2.72 in |
| Best for | Bright, wide coverage | Tight focused spot |
Free ground shipping on all orders within the continental United States.
We process and ship orders within 3–5 business days. If we anticipate any delay, we'll reach out via email.
- Hawaii, Alaska & Puerto Rico — $20 flat rate for ground shipping.
- Canada & International — Shipping rates calculated at checkout. Customs fees, duties, and import taxes are the responsibility of the customer.
- Overnight & 2nd Day Air — Available at checkout. Orders must be placed by 12:00 PM Pacific Time for same-day shipment.
You'll receive a tracking number via email once your order ships. If you have a special request about your order, reach out — we'll do our best to accommodate. For our complete shipping policy, [click here].
Warranty
We have a lifetime warranty on all our light kits. We stand behind every kit we build — our lifetime warranty isn't fine print, it's a promise. For more information about our warranty and disclaimer, [click here].
M&R Automotive is not responsible for misuse or improper installation of the product. Professional installation is recommended.
