Fits 2024 2025 2026 Ford F150 Tremor with Modular Bumper ONLY.
- Curved LED light bar PRO

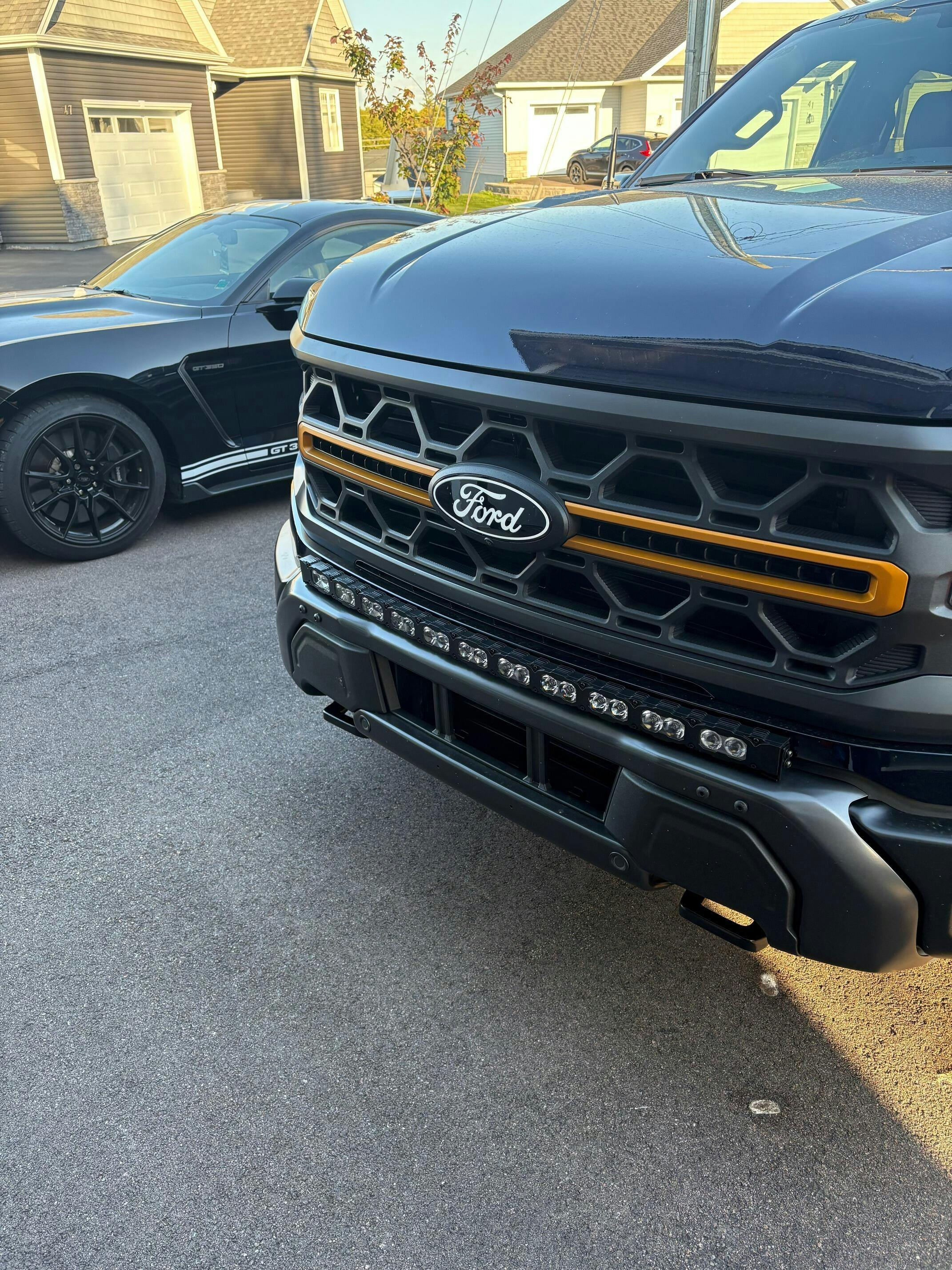

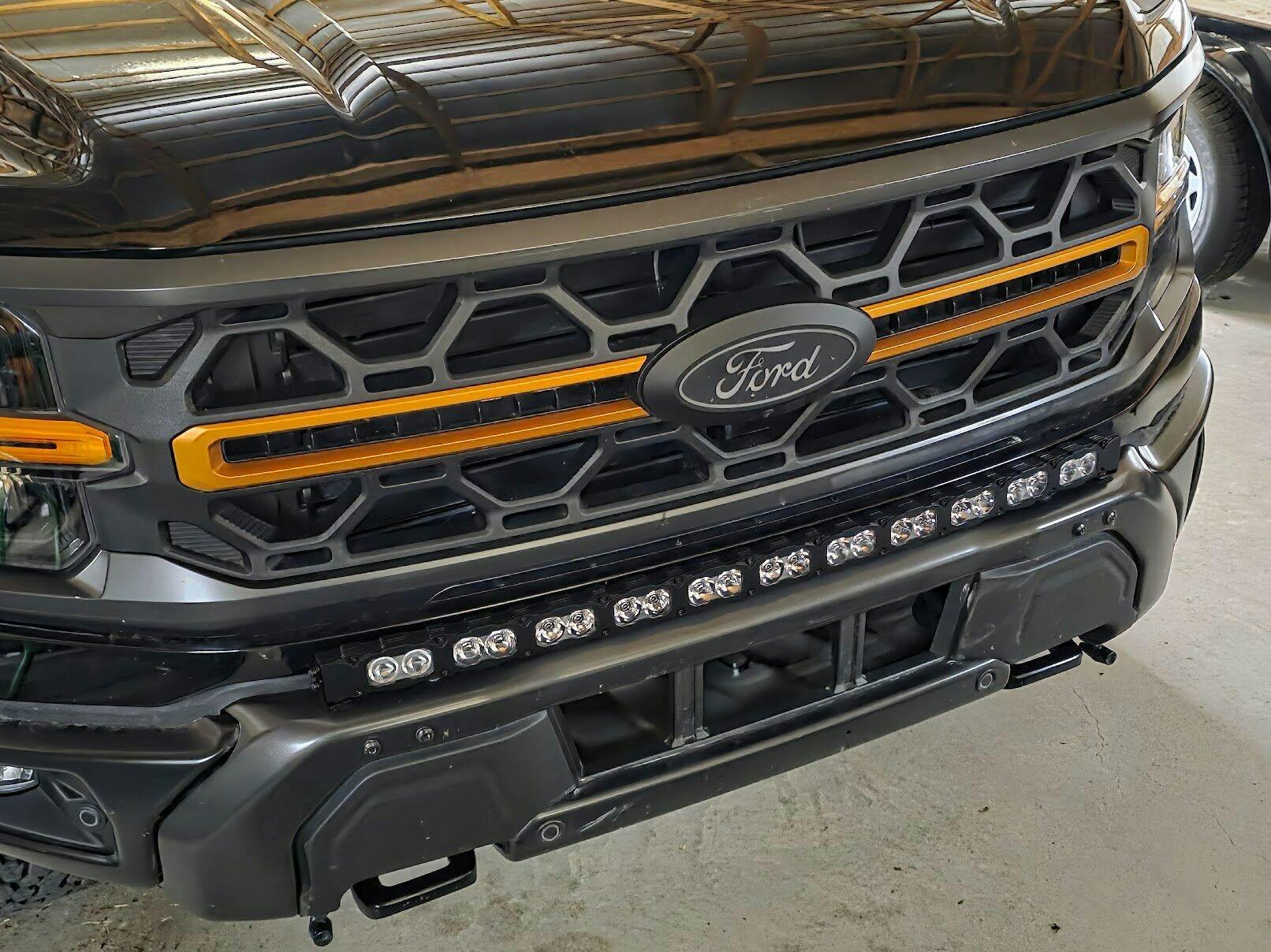

- Perfectly follows the bumper and grille factory curvature
- Stays slim to the bumper for a sleek, built in look
- Don't need to remove grille or bumper
- No cutting or drilling required. The kit is a complete bolt on using factory openings and hardware.

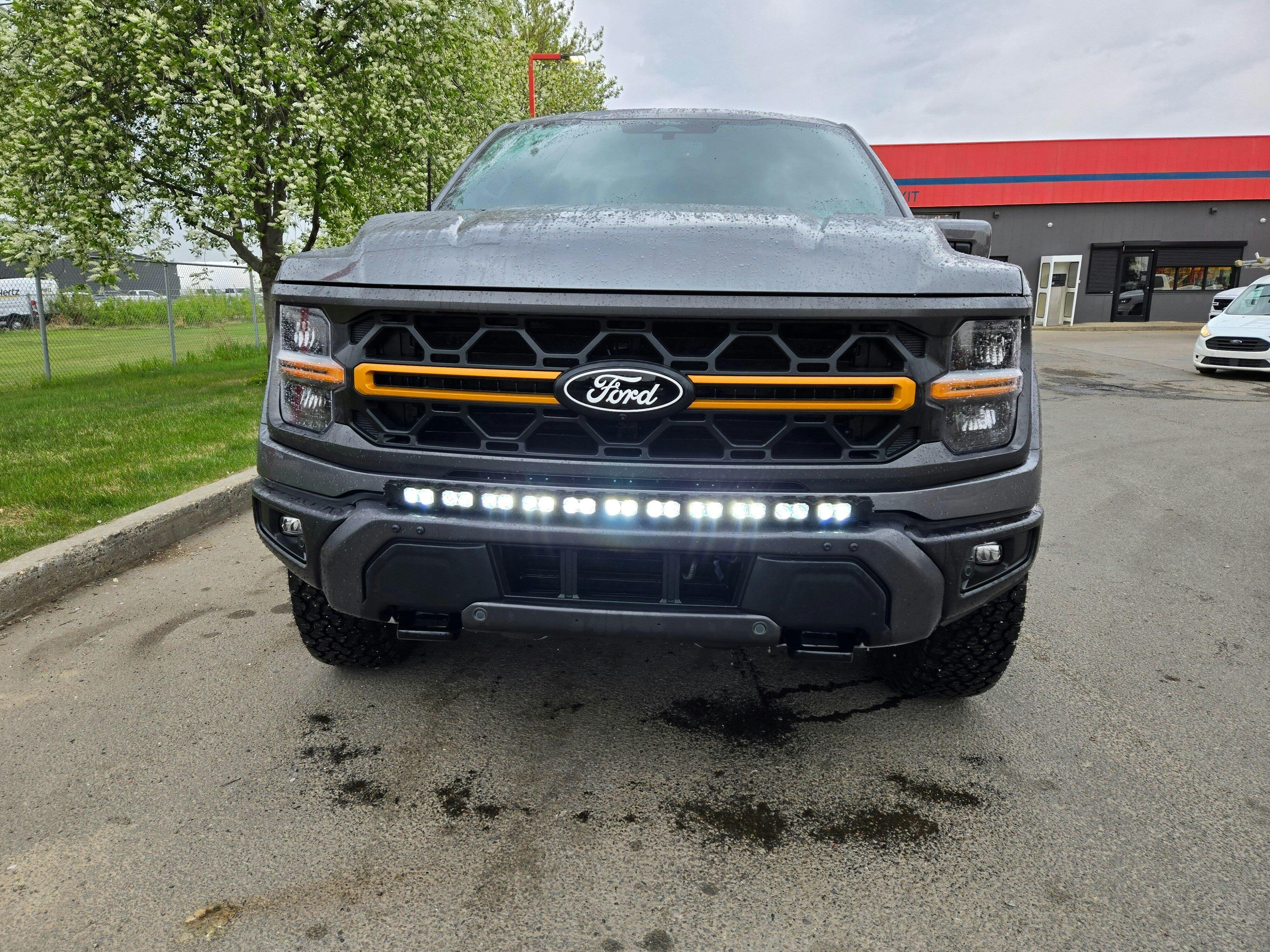

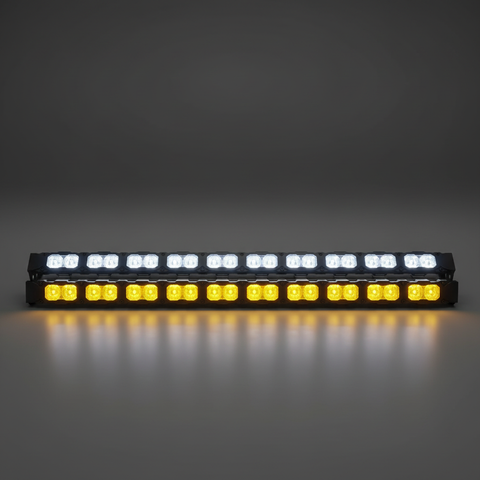

DUAL COLOR: White with Amber DRL
Main White LED Light with Amber DRL (daytime running lights)
-

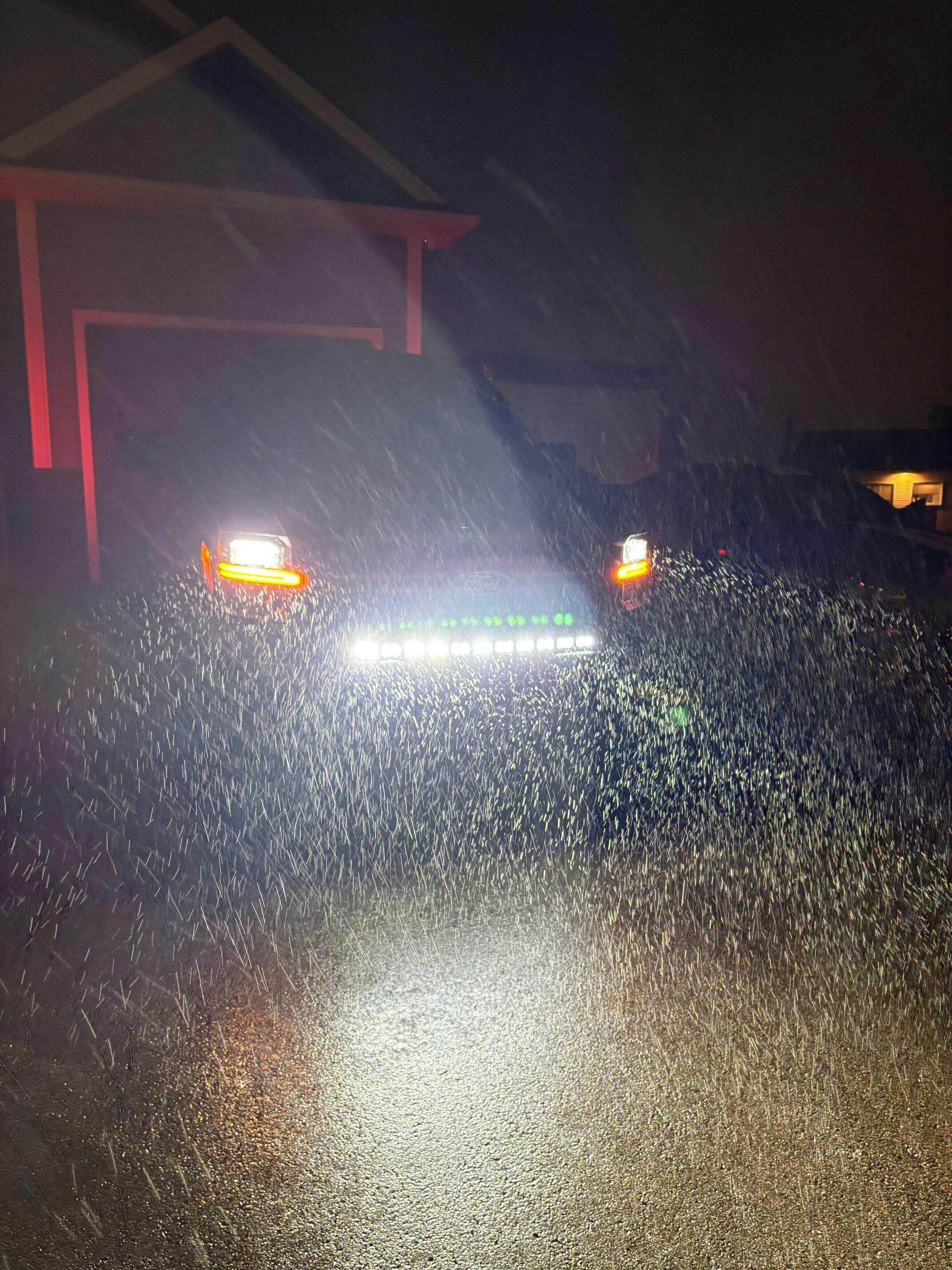

White LED -- Super bright and crisp white beam pattern. It will definitely provide you with enough light needed for all of your adventures. However, these are only for off-roading and can’t be used on the regular road. They will blind the in-coming traffic and also violates road safety.

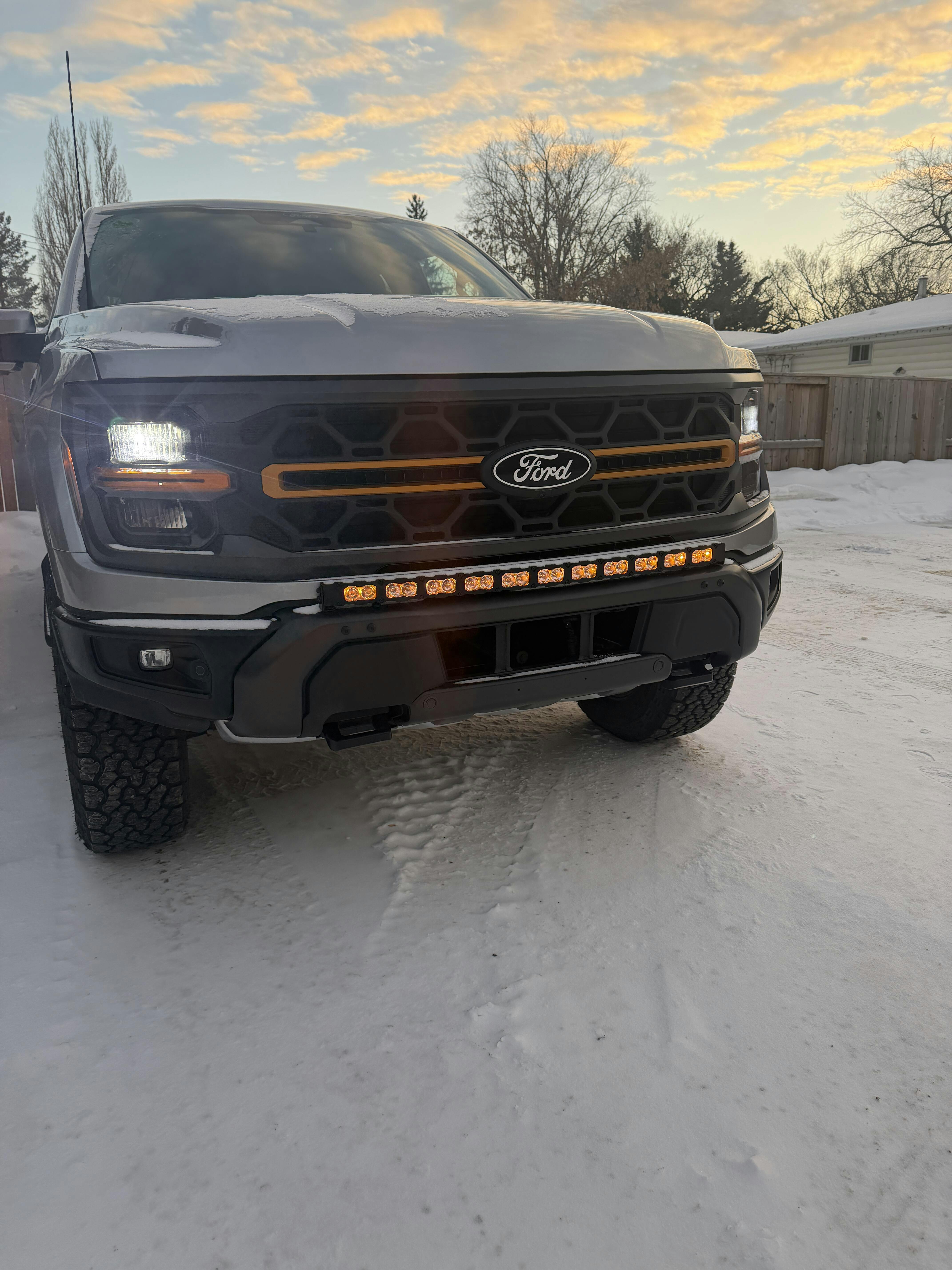

- Amber DRL -- amber DRL “daytime running lights” acts purely for aesthetics. Since it doesn’t give out much light, you can use this amber DRL feature on regular roads, it doesn't blind in-coming traffic.

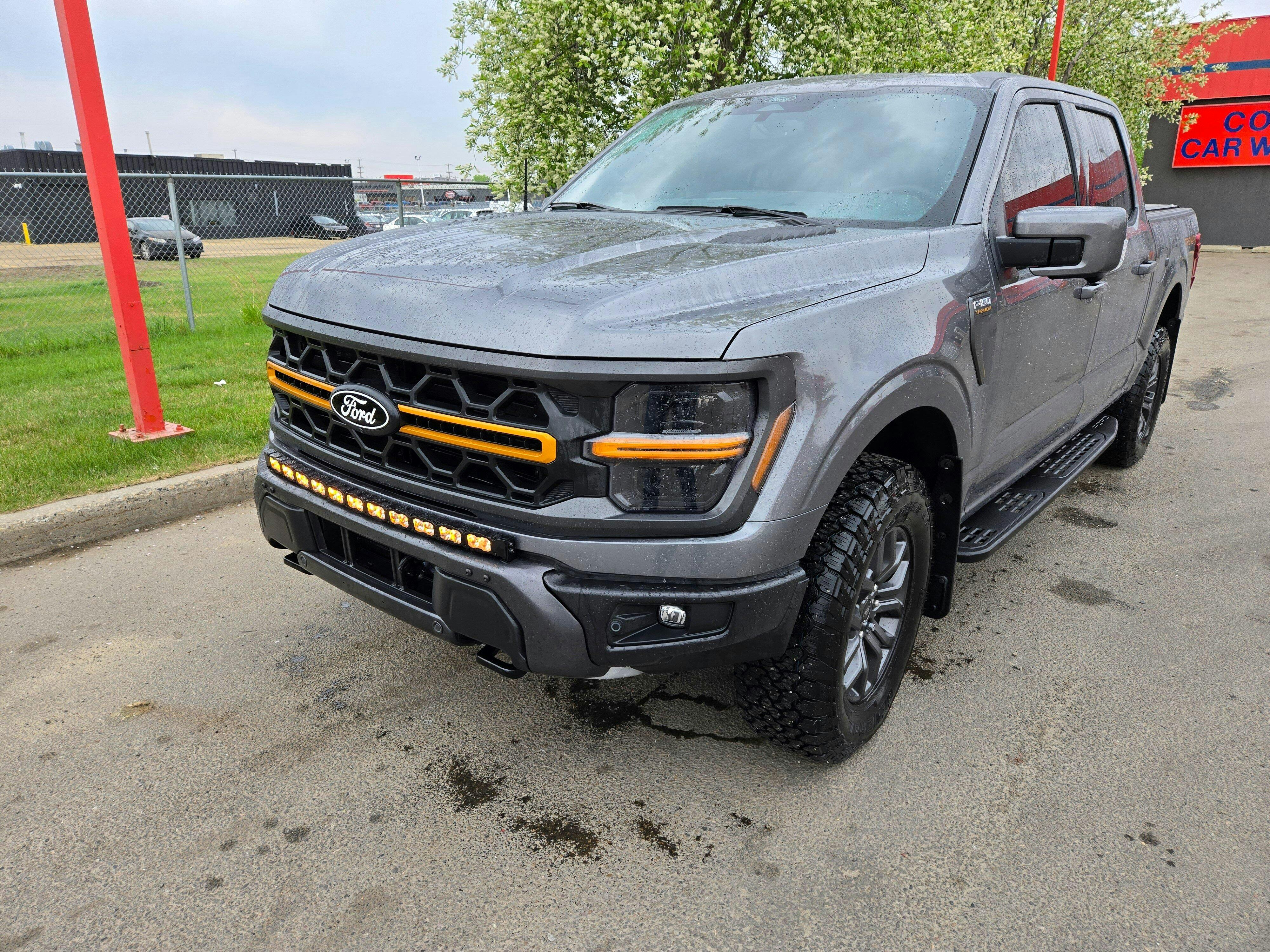

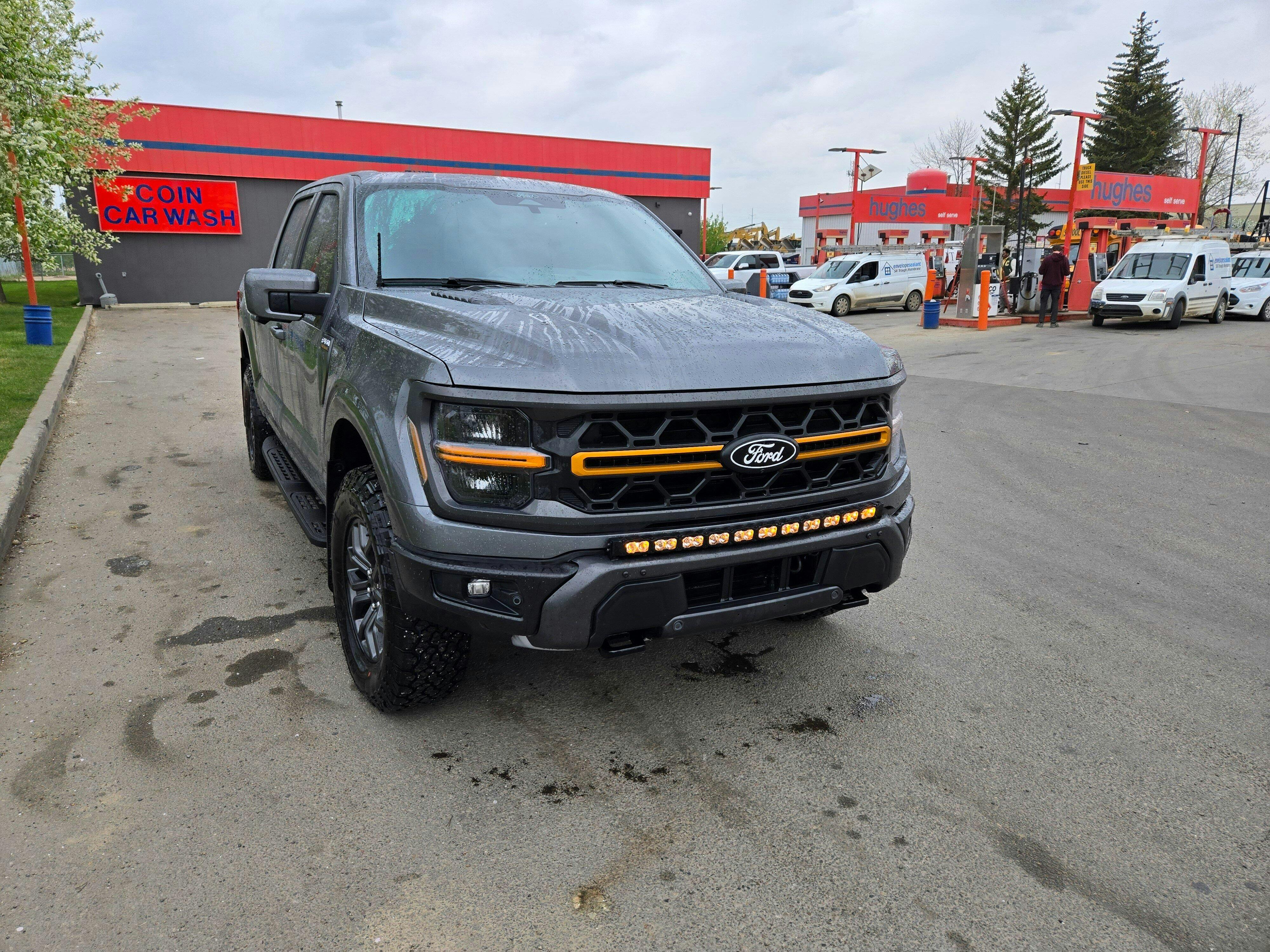

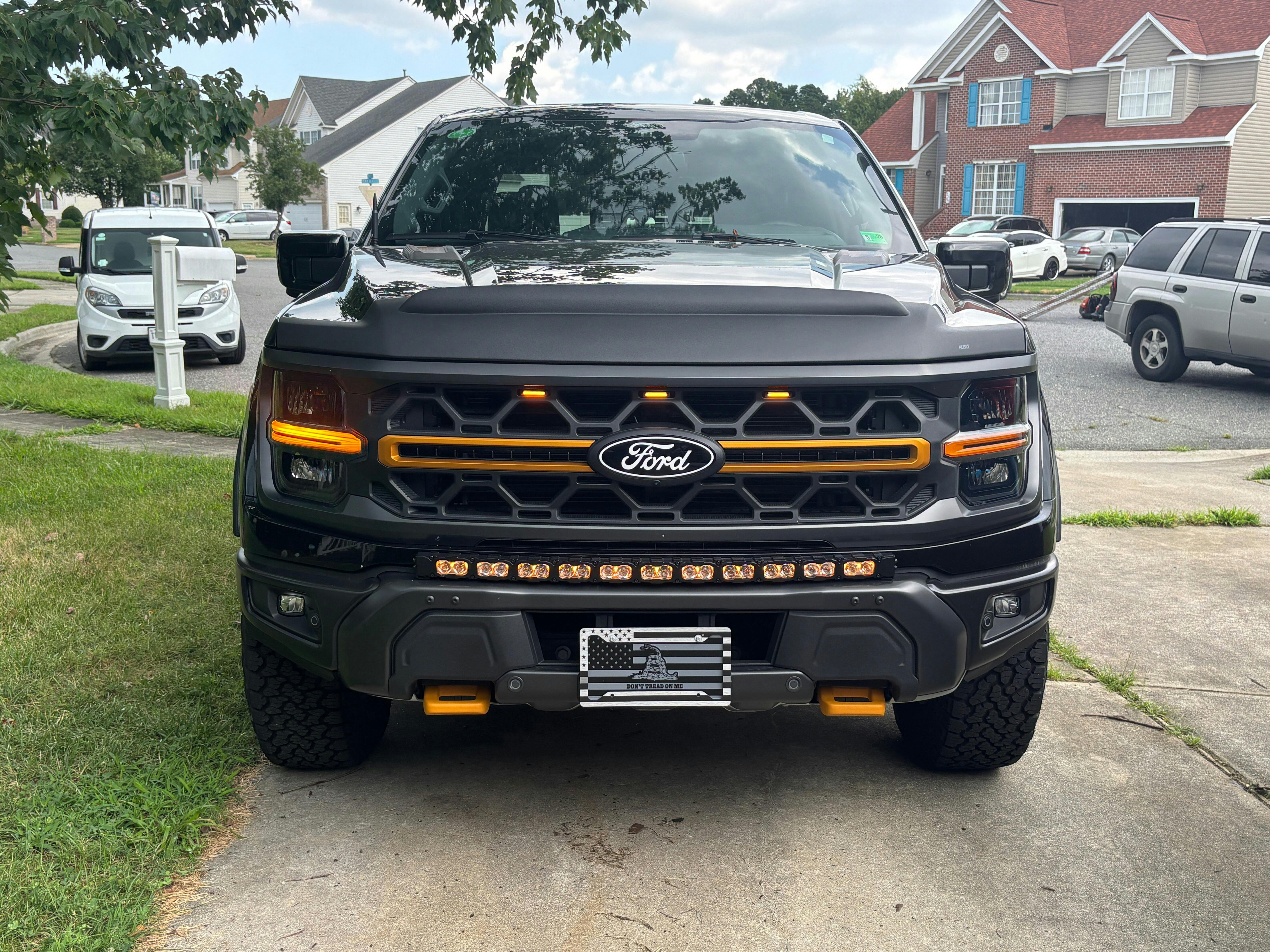

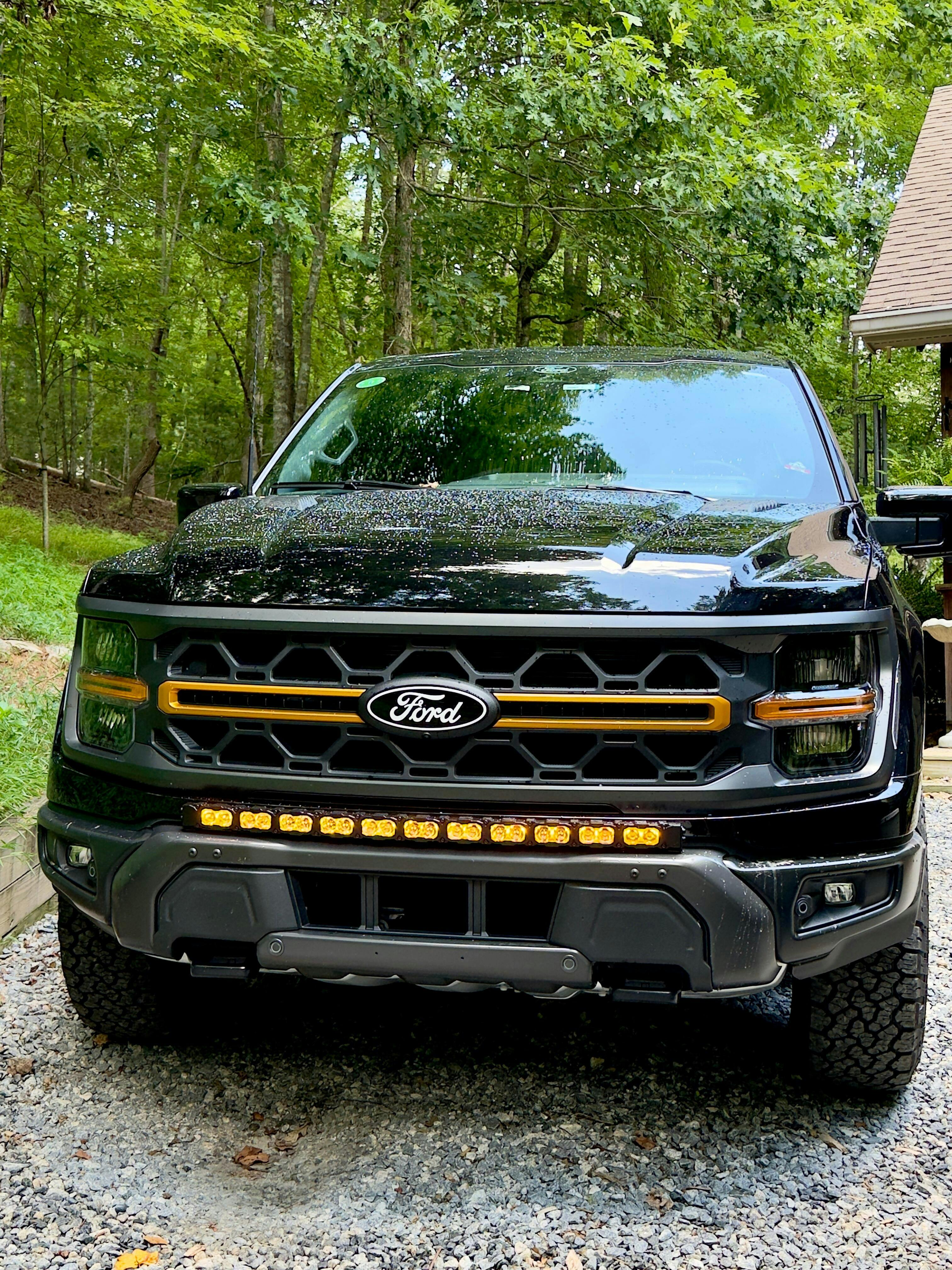

DUAL COLOR: Yellow with Amber DRL
Main Yellow LED Light with Amber DRL (daytime running lights)
-
Yellow LED -- used in poor driving conditions such as dust, fog, snow and rain. It reflects through air particles much less than the white light. Therefore, making it ideal for poor driving conditions. For off road use only.
- Amber DRL -- amber DRL “daytime running lights” acts purely for aesthetics. Since it doesn’t give out much light, you can use this amber DRL feature on regular roads, it doesn't blind in-coming traffic.
**Please note** The yellow lens alters the look of the amber DRL, making it appear a little darker than with the white lens. Check the photos to see the difference.
- Combo Pattern: combined spot and driving optics offers a balance between the distance and width
- Uses TIR (Total Internal Reflection) lens is different from our the regular slim light bar. The TIR lens collects all of the light from the LED and directly leads them to where you need, drastically reducing glare and improving total efficiency.
- Higher light efficiency: brighter, longer irradiation distance

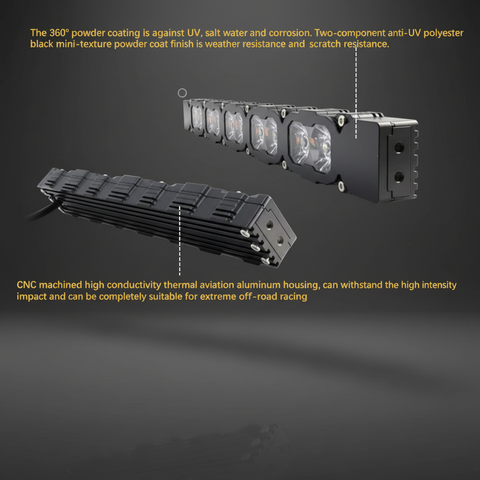

- Housing is upgraded to 304 aluminum. The surface is UV polyester powder coated to prevent against UV, salt water, corrosion, fading and scratch resistant.
- Equipped with thermal management system that automatically adjusts the brightness output according to the external temperatures
👍Our light kits are for off-road use only.
WHAT'S INCLUDED?
(1) 40in curved light bar - PRO
(4) mounting brackets
All mounting hardware
WIRING
M&R Automotive doesn’t provide a wiring harness. The light bar has 6ft of wire which is enough to reach AUX switches.
INSTALLATION INSTRUCTIONS
40in PRO Light Bar Specs
- Theoretical max power 220watts
- Actual power 125watts
- Main White light is 10.42amps at 12v
- Backlight Amber is 0.25amps at 12v
- Theoretical max luminous flux 24,024 lm
- Measured luminous flux (without lens) 15,224 lm
- Measured luminous flux (with lens) 12,108 lm
- LEDs type: luminus SST-20 Ra70
- Temperature: 6000k
- LEDs number: 22pcs
We have a lifetime warranty on our light kits. We truly want our truck enthusiastic customers to enjoy their products as much as we enjoy designing them. However, we also understand that different situations arise with brackets or lights. For more information about our warranty and disclaimer click here.
*M&R Automotive is not responsible for misuse or improper installation of the product. Professional installation is recommended.

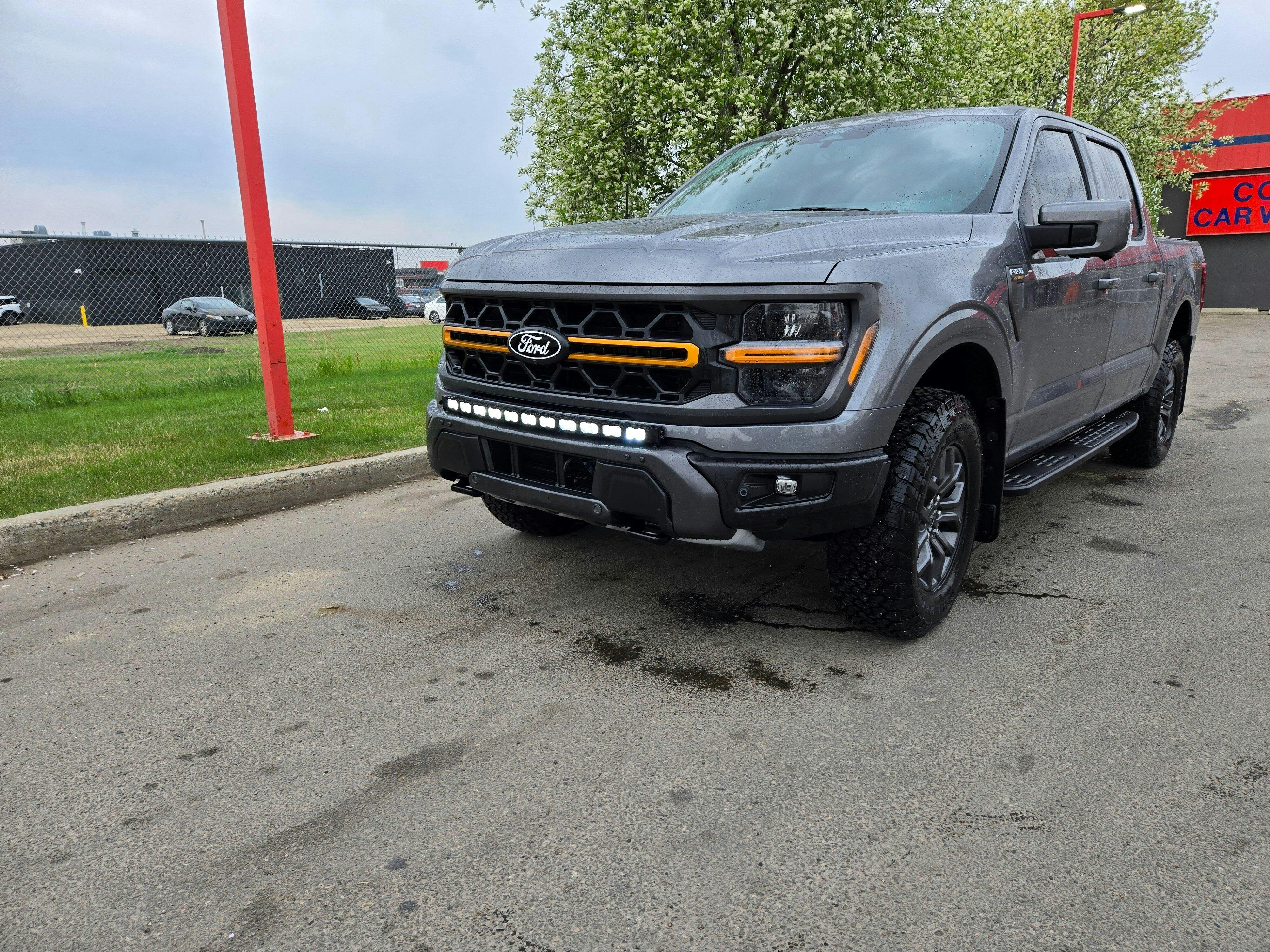

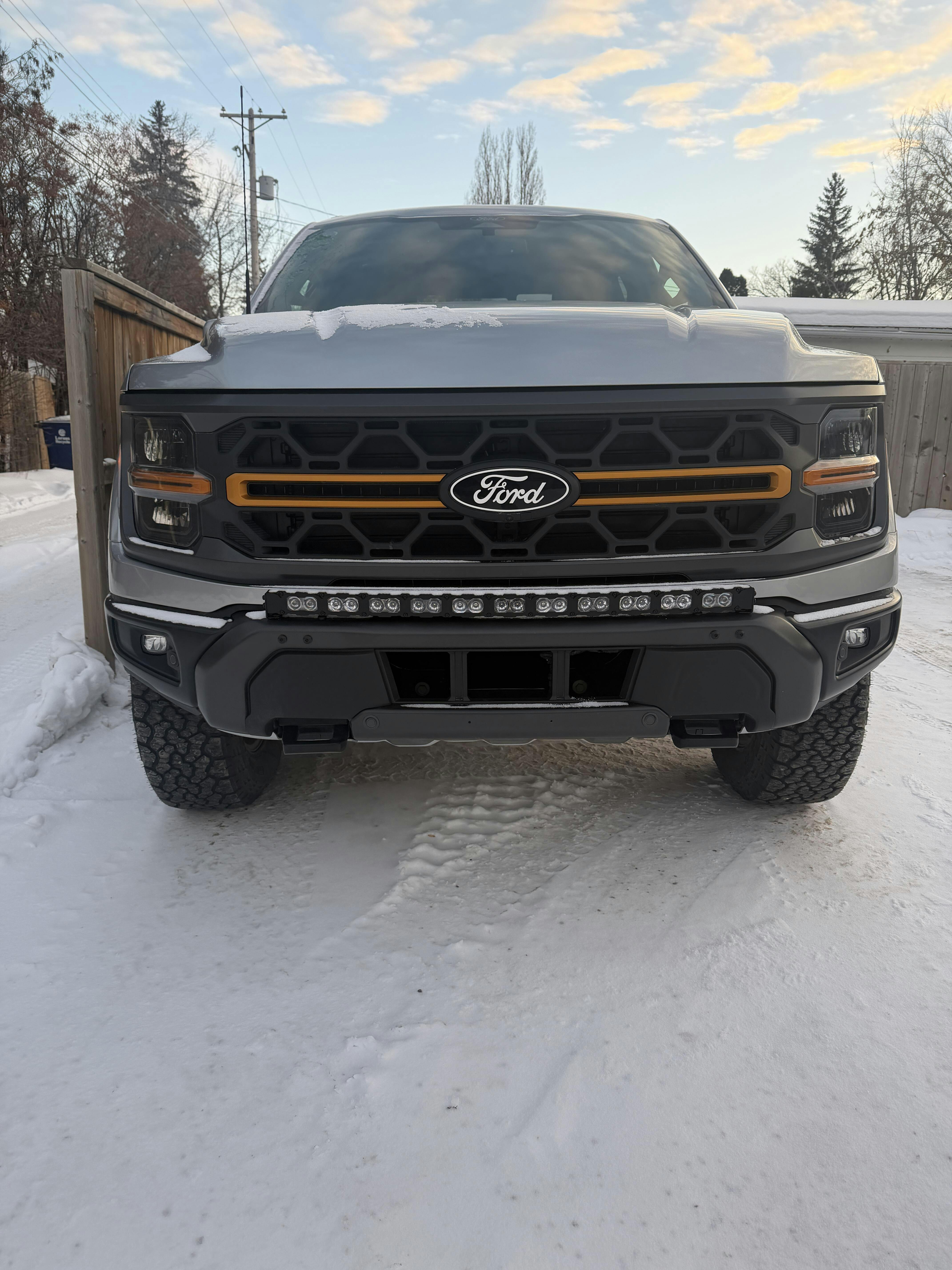

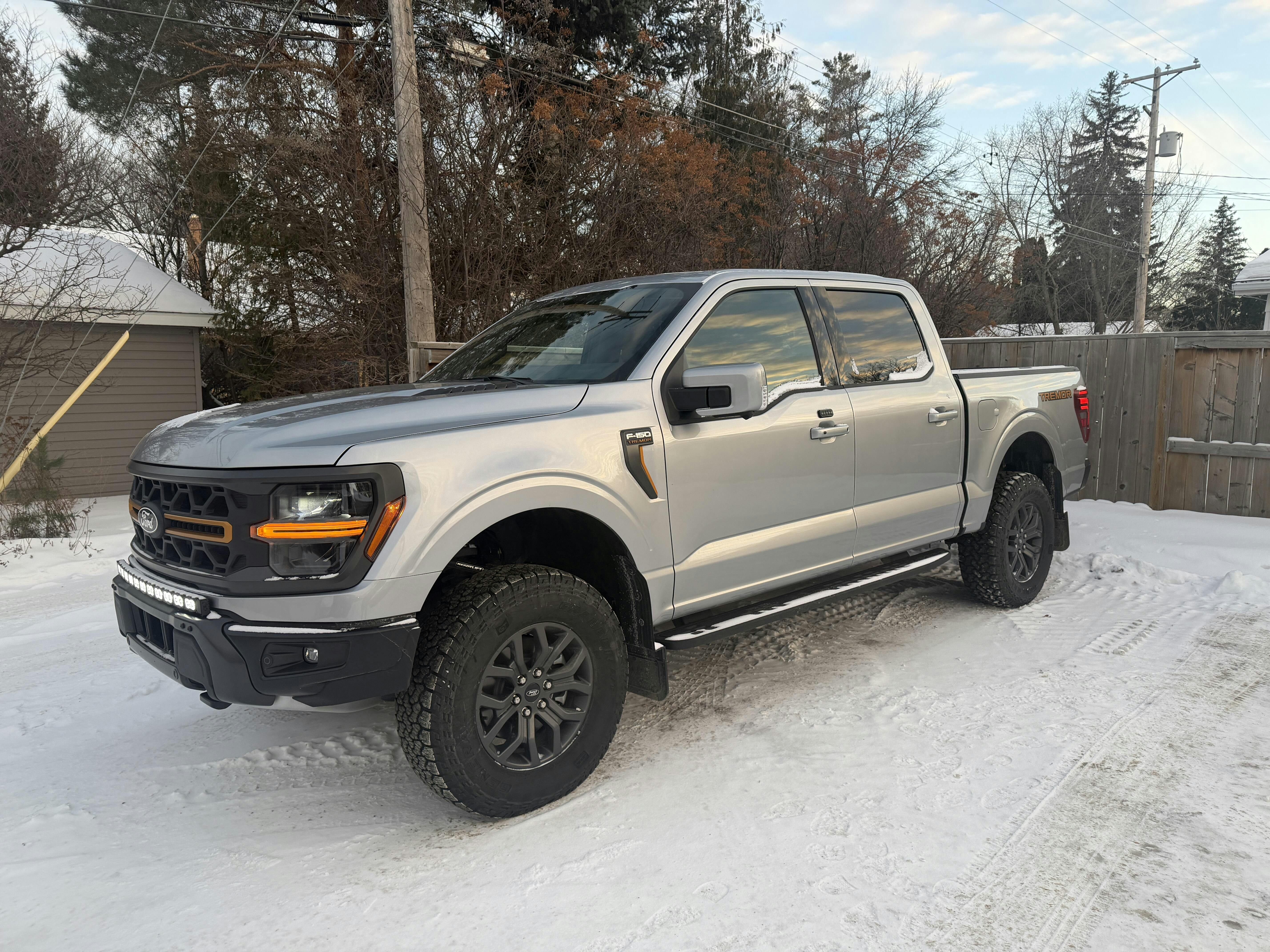

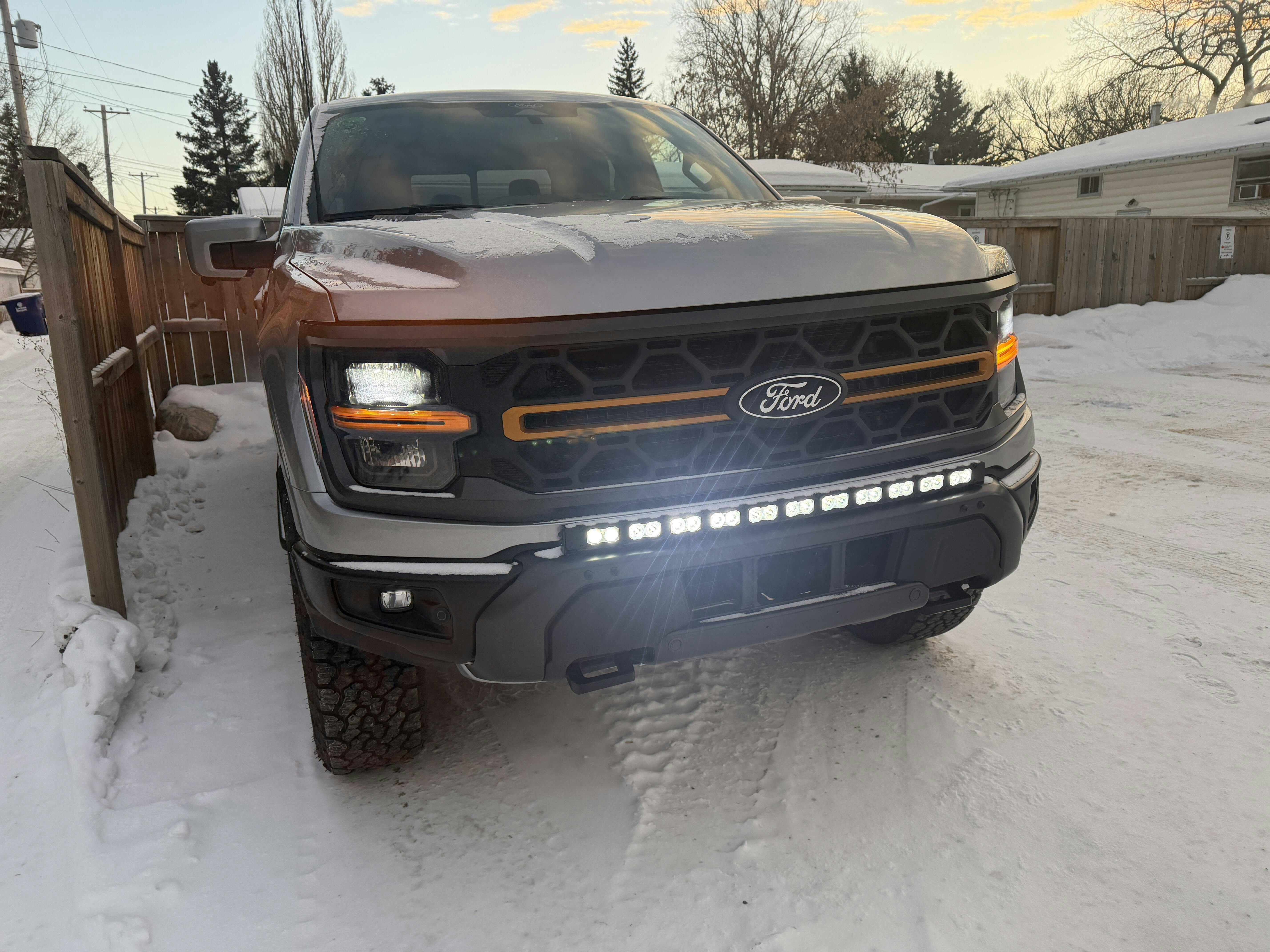

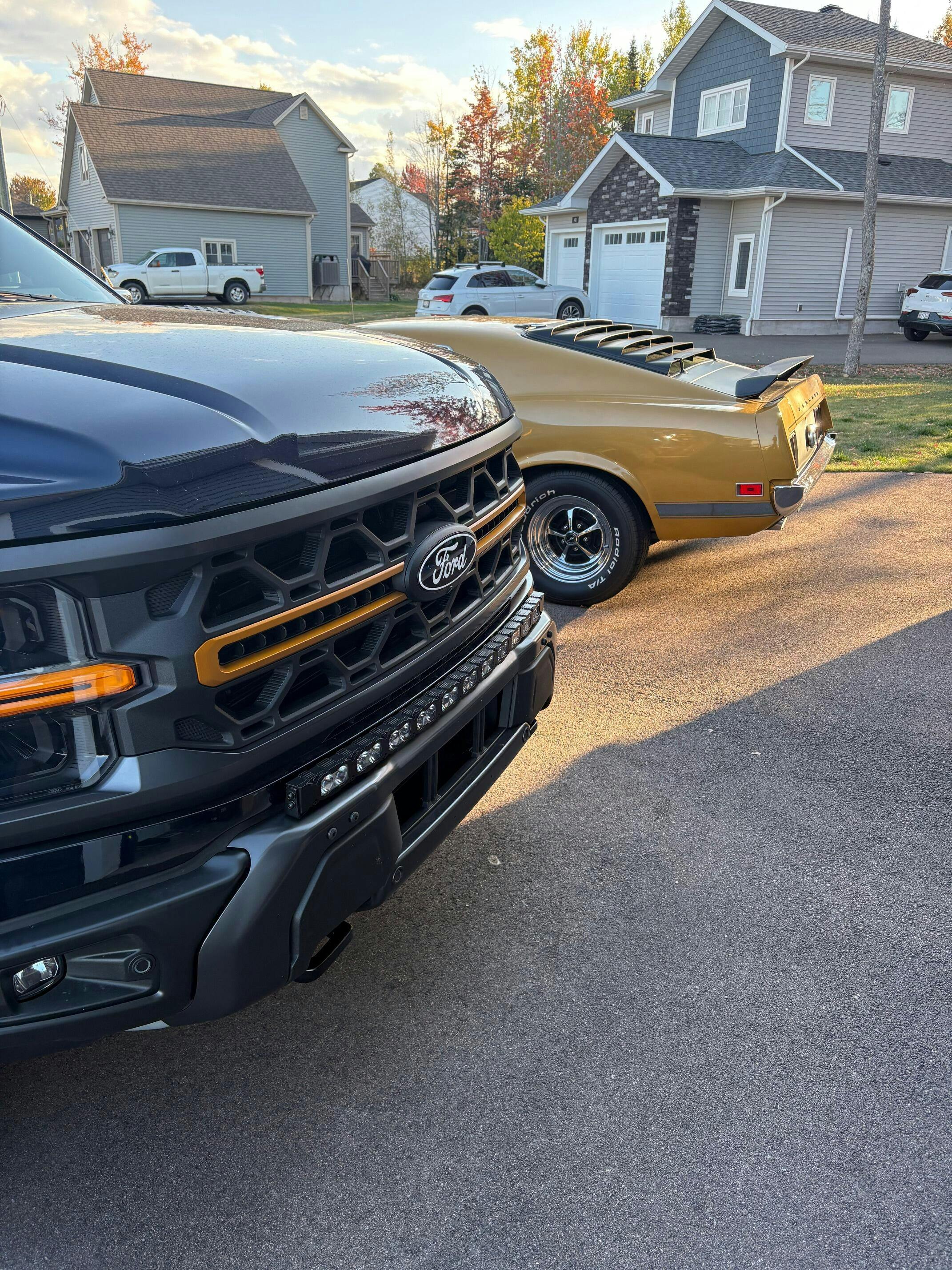

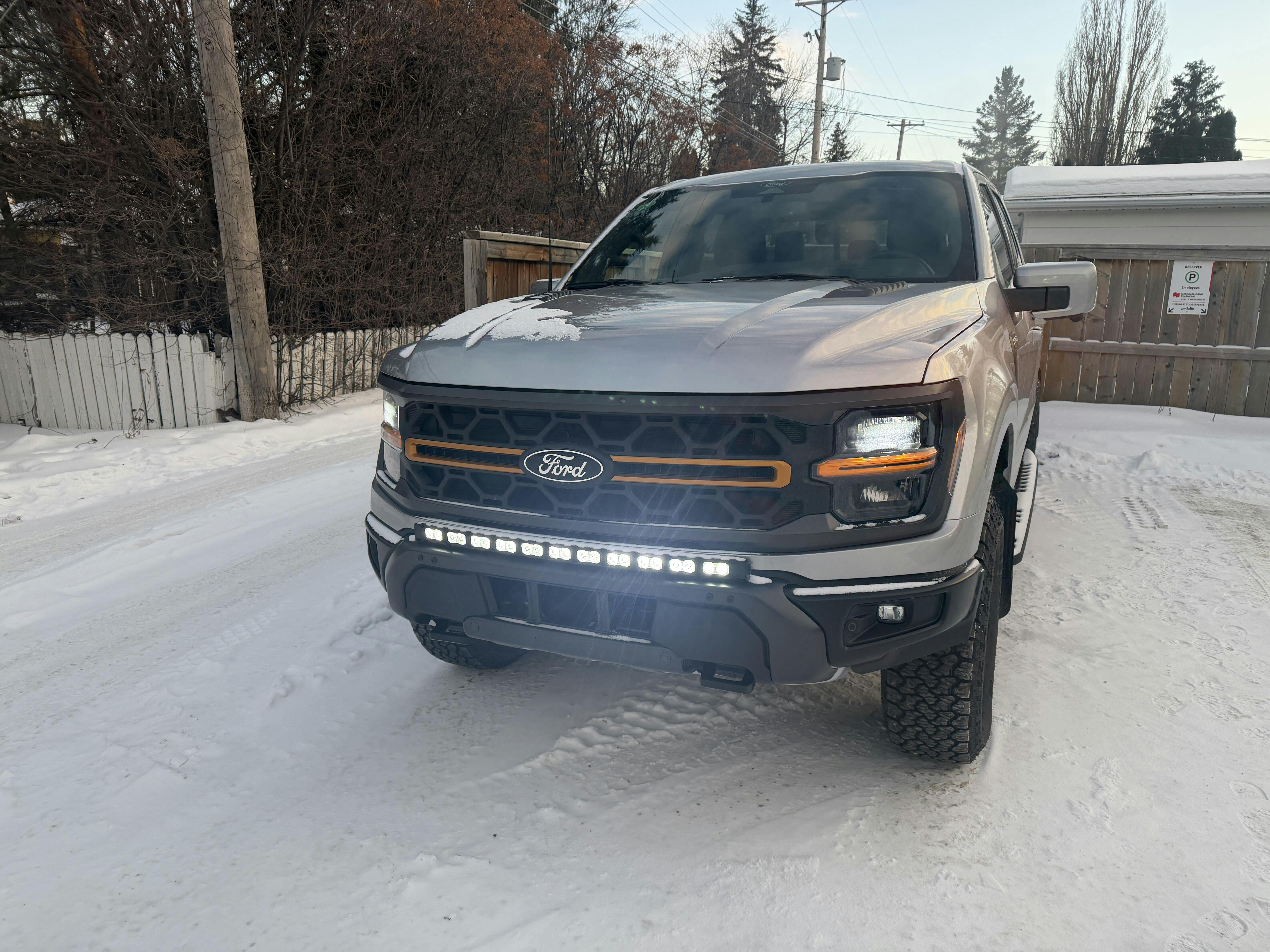

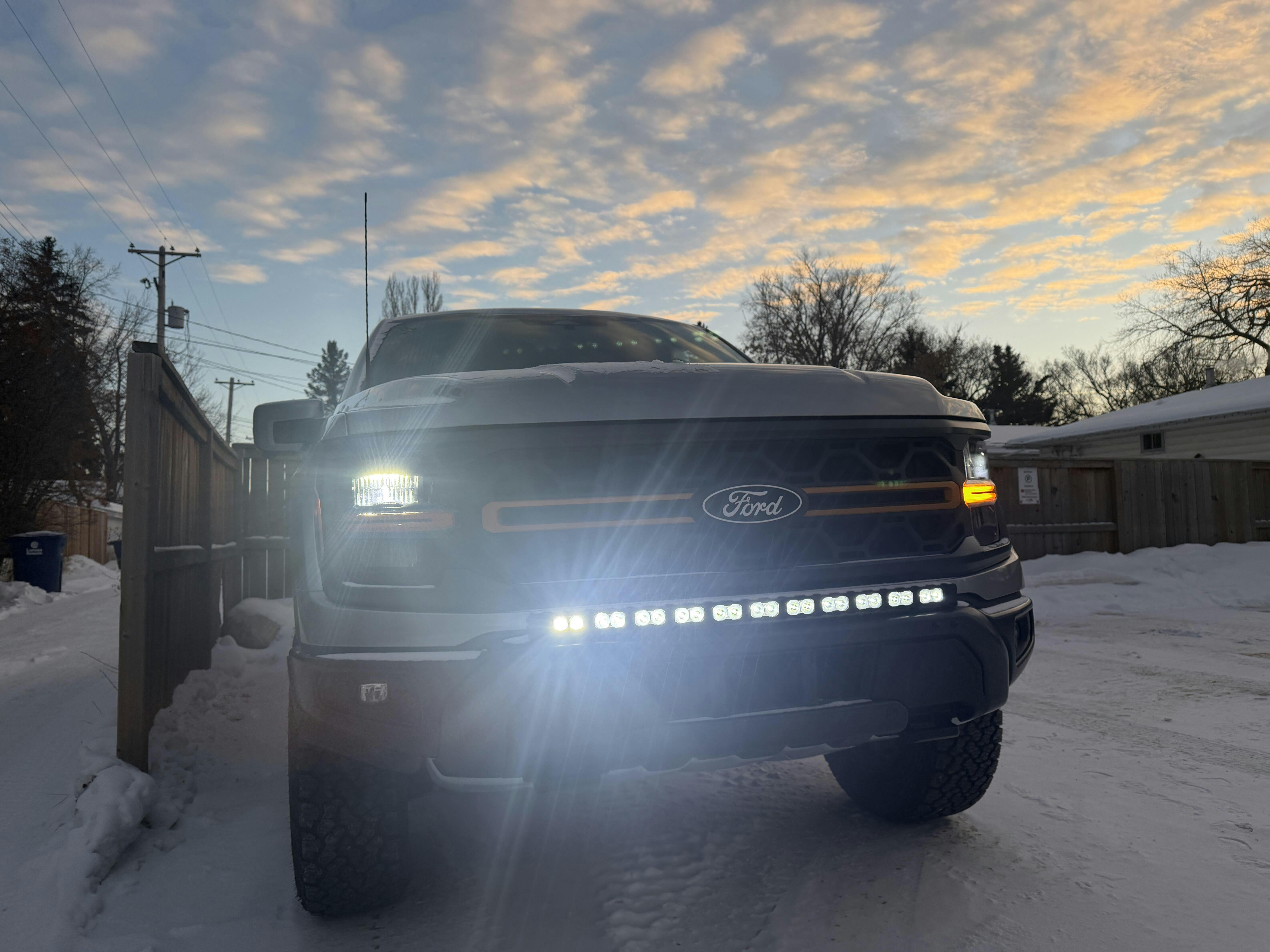

Order arrived on time. Straight forward ordering. Install very straight forward. Clear instructions. Fantastic quality. White Light output is amazing. DRL match. Blends like it was factory installed.

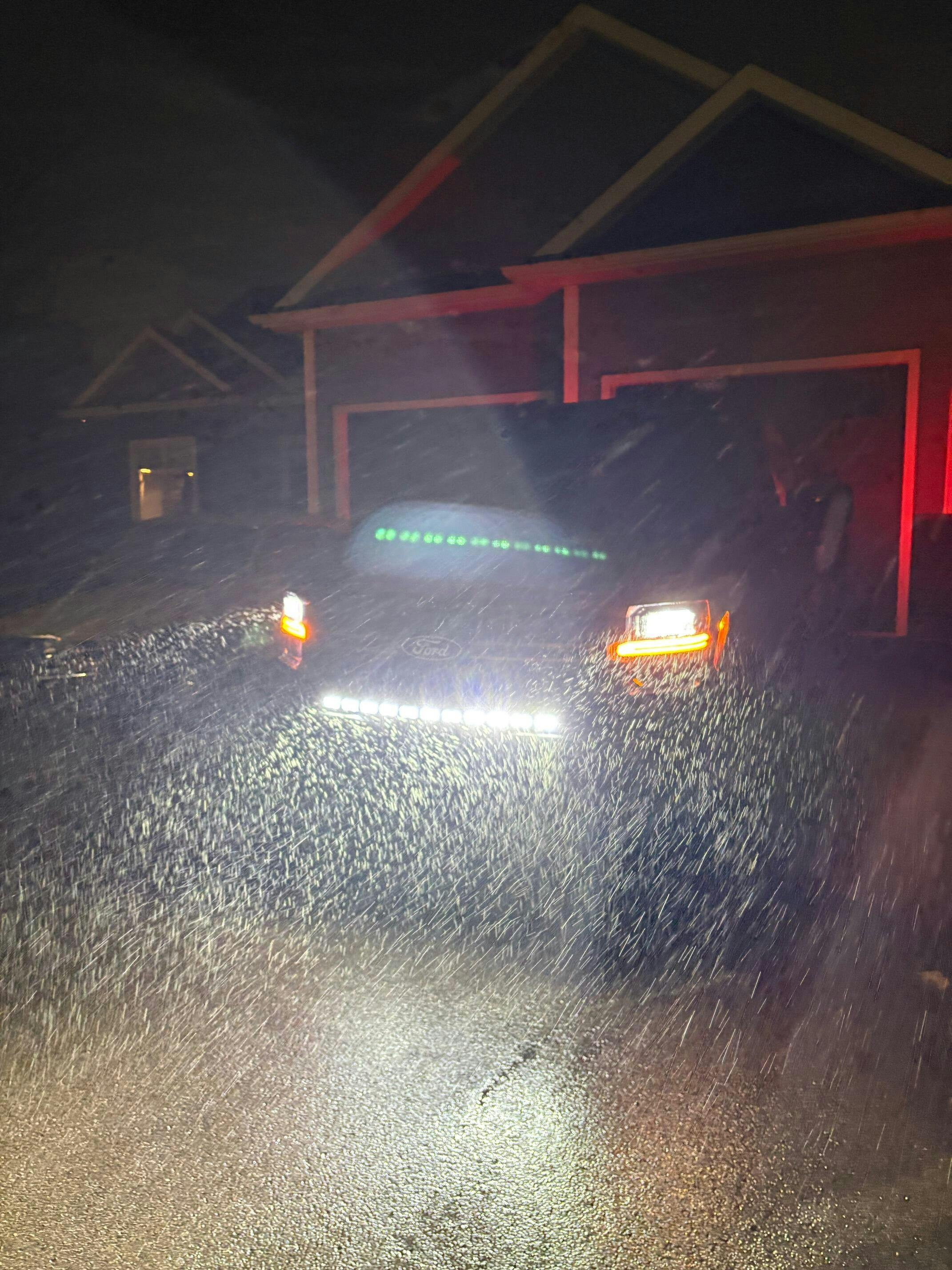

I was on the fence about this product for a few months - so glad I pulled the trigger. Installation was very simple. Took a little work to route wire up into engine compartment without removing skid plate but was completely doable with some long handled pliars. Looks like a factory installed bar - super clean. Wire is hidden. Light output is very strong - most of the output is focused directly ahead. Punches out a little farther than the highbeams and adds considerable light at distance.

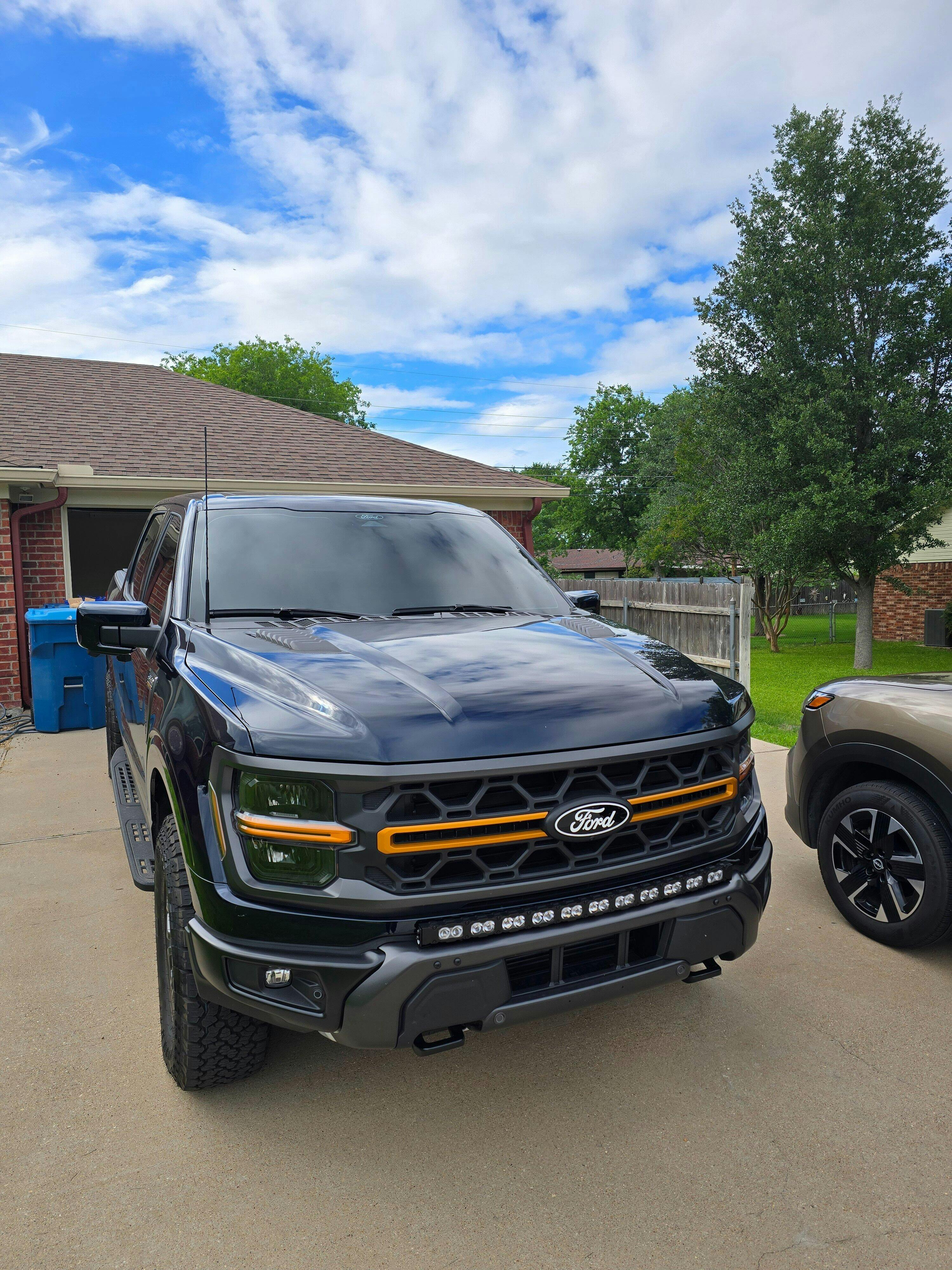

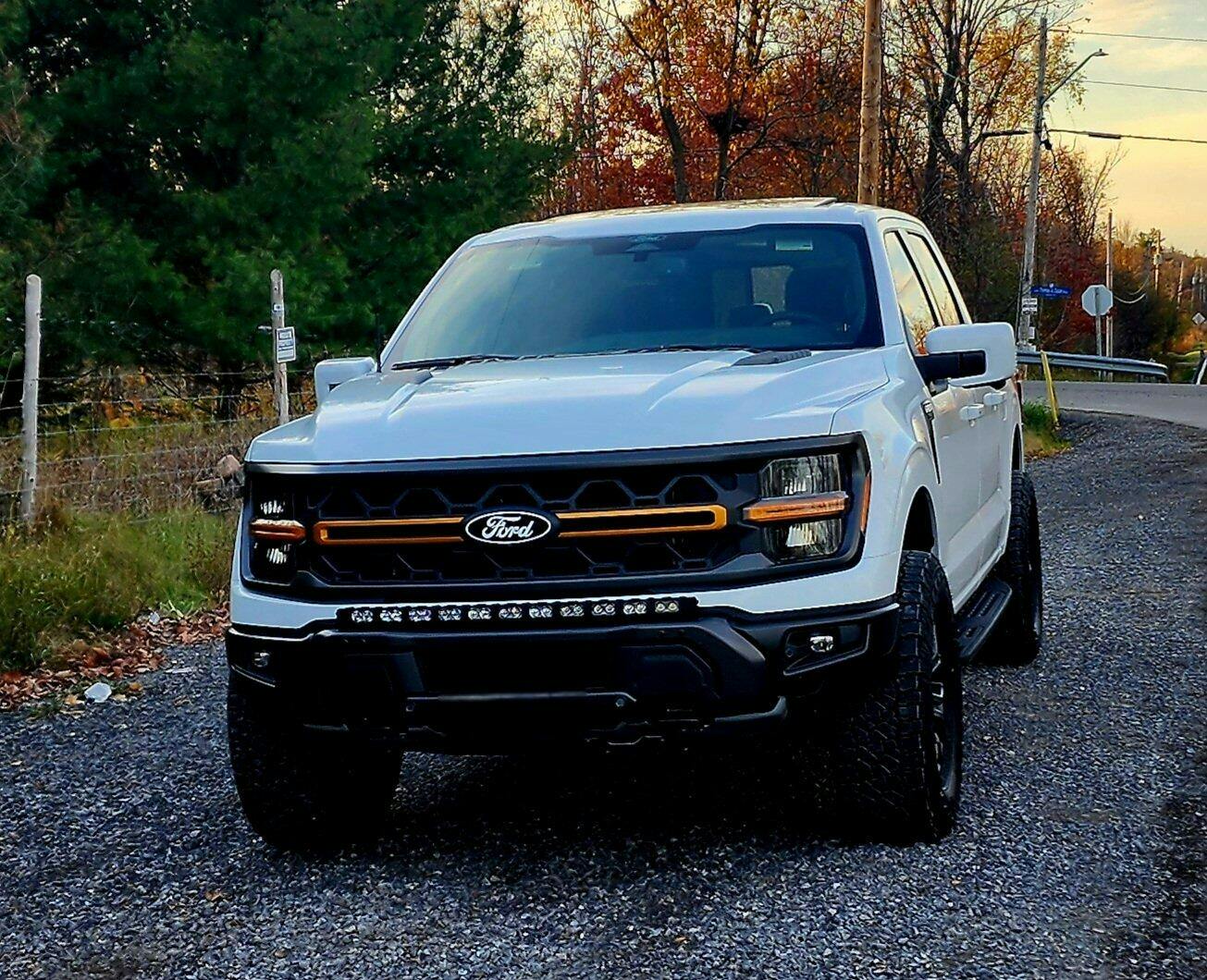

Installed 40” light bar on my Tremor recently. Install was easy and the results are excellent! Very happy with the results!
Best kit overall performance and looks
I purchased and installed this a few weeks ago. The product is great. Super bright output. My only recommendation would be to write some detailed installation instructions. A video install is great, but there are no details about torque specs of the factory bolts, the angle the mount needs to be installed, or what size Torque bit the screws use for the light bar mount. Somthing should also be mentioned about the tilt of the light to ensure that the throw of the light is optimal. Overall this is a great light bar.
