2024+ Ford F150 Tremor Fog Light Kit
What's in the Box
- (2) 20w LED pods
- (2) 40w LED pods
- (2) metal brackets
- (2) 3D printed fog light shrouds (passenger & driver side)
- (1) wiring harness
- (2) H11 factory adapter wiring
Need a shop to install it? Find a trusted installer near you →
Off-road Use Only
Bolt On, No Drilling
Lifetime Warranty
**WILL BE READY FOR SHIPPING STARTING SEPTEMBER 1ST.
Fits: 2024-2026 Ford F150 Tremor
Trims: only fits the MODULAR BUMPER
- A complete replacement for your factory fog lights — a true off-road setup that upgrades output, visibility, and looks in one bolt-on kit.
- Sold as a pair
- No drilling, reuses factory bolts and clips
Two pods per side — fog spread and driving distance
Each shroud houses two PRO pods — four pods total across the kit — so you get both close, wide coverage and long-distance throw at the same time:
- 20w — angled 15 degrees outward for a fog beam pattern for a wider spread
- 40w — angled straight ahead in a driving beam pattern for distance and throw
***Choosing fog beam pattern for the 20w and driving beam pattern for the 40w is our preference for lenses. If you would like a custom beam pattern, please reach out via email.
BUILD QUALITY:
- Uses a TIR (Total Internal Reflection) lens, which is different from conventional optics that lose light internally and produce glare. The TIR lens collects all of the light from the LED and directs it exactly where you need it, drastically reducing glare and improving total efficiency.
- Higher light efficiency: brighter, longer irradiation distance
- Housing is upgraded to 304 aluminum. The surface is UV polyester powder coated to protect against UV, salt water, corrosion, fading, and scratches.
- Equipped with a thermal management system that automatically adjusts brightness output according to external temperature
- Rated for a 50,000 hour lifespan
3D-PRINTED SHROUD:
The shroud is printed in ASA-GF — glass-fiber reinforced ASA, an engineering-grade automotive polymer from the same family used for factory exterior trim and mirror caps. It is not PLA or PETG, the common desktop filaments that warp, fade, and go brittle in the sun.
- ASA-GF (Glass-Fiber Reinforced ASA) — chosen specifically to live outside on the front of a truck
- UV and weather resistant — won't fade, crack, or break down in sun, rain, or extreme temperatures
- Fiber-reinforced strength — rigid and dimensionally stable, built for tough off-road use, impact, and vibration
- OEM-style finish — specifically designed for the 2024+ Ford F150 Tremor modular bumper for a clean, seamless, integrated look
- Heat stable — holds its shape through summer heat and sun load where standard 3D-printed parts soften and sag

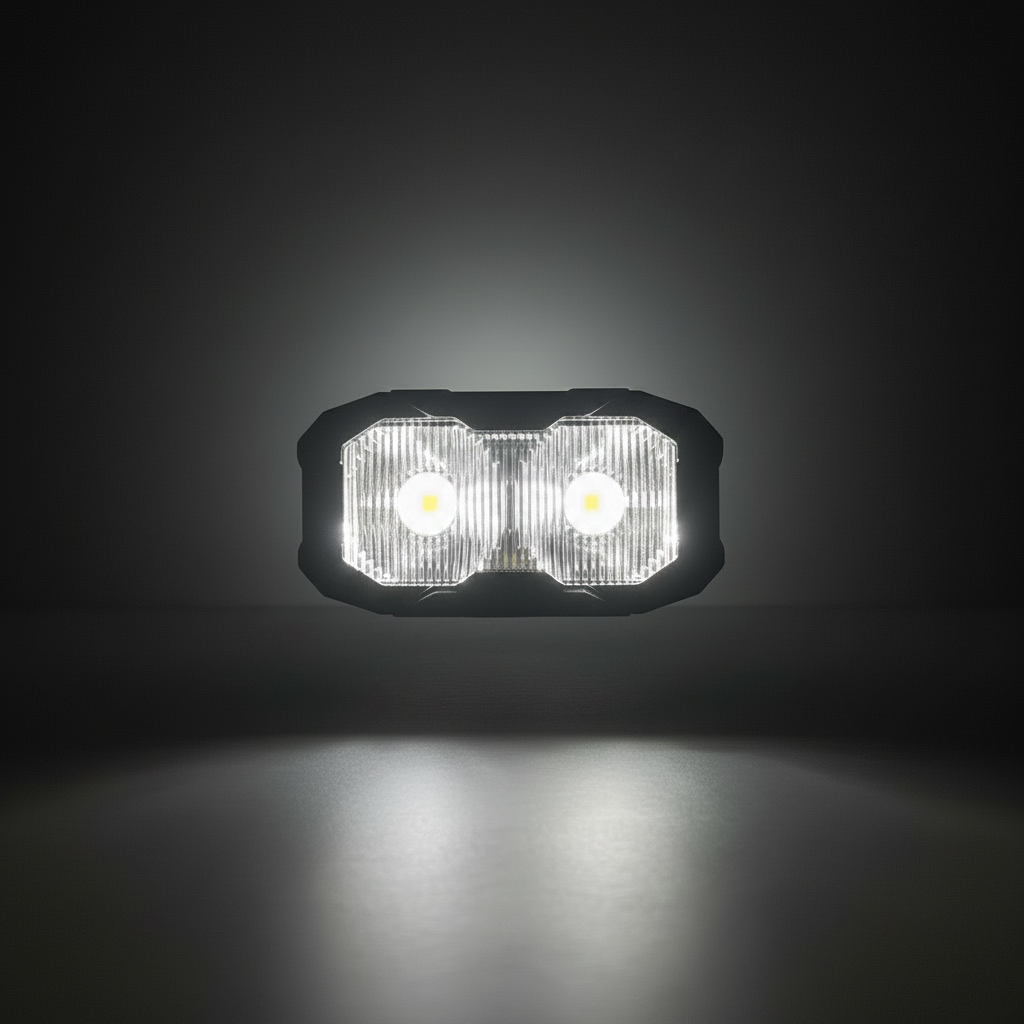

20W PRO LED Light Pod
| Beam Pattern | Flood |
| Theoretical Max Power | 20 watts |
| Actual Power | 19.8 watts |
| Voltage / Current (Main) | DC 12V / 2.06A |
| Voltage / Current (Backlight) | DC 12V / 0.03A |
| Theoretical Max Luminous Flux | 2,184 lm |
| Measured Flux (without lens) | 1,970 lm |
| Measured Flux (with lens) | 1,474 lm |
| LED Type | Luminus SST-20 |
| Color Temperature | 6000K |
| Number of LEDs | 2 pcs |
| Product Size (L × W × D) | 3.25 × 1.69 × 2.78 in |
40W PRO LED Light Pod
| Beam Pattern | Driving |
| Theoretical Max Power | 40 watts |
| Actual Power | 39.2 watts |
| Voltage / Current (Main) | DC 12V / 3.3A |
| Voltage / Current (Backlight) | DC 12V / 0.07A |
| Theoretical Max Luminous Flux | 4,368 lm |
| Measured Flux (without lens) | 3,940 lm |
| Measured Flux (with lens) | 2,949 lm |
| LED Type | Luminus SST-20 |
| Color Temperature | 6000K |
| Number of LEDs | 4 pcs |
| Product Size (L × W × D) | 3.25 × 3.15 × 2.78 in |
Free ground shipping on all orders within the continental United States.
We process and ship orders within 3–5 business days. If we anticipate any delay, we'll reach out via email.
- Hawaii, Alaska & Puerto Rico — $20 flat rate for ground shipping.
- Canada & International — Shipping rates calculated at checkout. Customs fees, duties, and import taxes are the responsibility of the customer.
- Overnight & 2nd Day Air — Available at checkout. Orders must be placed by 12:00 PM Pacific Time for same-day shipment.
You'll receive a tracking number via email once your order ships. If you have a special request about your order, reach out — we'll do our best to accommodate. For our complete shipping policy, [click here].
Warranty
We have a lifetime warranty on all our light kits. We stand behind every kit we build — our lifetime warranty isn't fine print, it's a promise. For more information about our warranty and disclaimer, [click here].
M&R Automotive is not responsible for misuse or improper installation of the product. Professional installation is recommended.
HOW TO INSTALL?
HOW TO WIRE?
LIGHT OUTPUT
