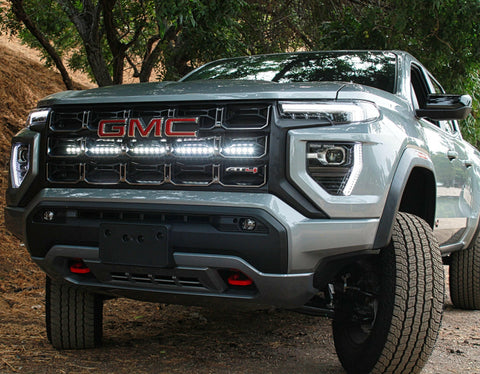

icon 2023+ GMC Canyon Single 40in Light Bar
WhiteAmberdual function: White light with Amber DRL backglow
$349.99
  • Product Description
  • Light Bar Specs
  • Shipping & Warranty
  • Fits 2023 2024 2025 2026 GMC Canyon
  • Trims: Elevation, Standard Elevation & AT4



  • No cutting or drilling required. The kit is a complete bolt on using factory openings and hardware.

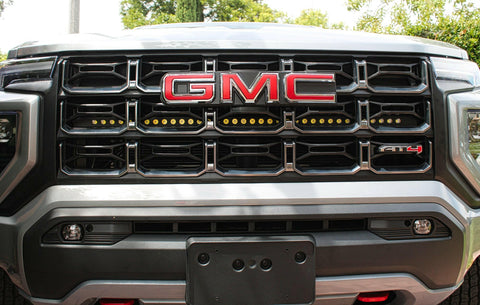

  • We have designed the metal bracket on a rail system which allows you to choose the location of your light bar based on most light output through the grille
  • WILL NOT interfere with active grille shutters. Our light bars are very slim and the metal bracket is designed to be in front of the shutters.
  • The metal bracket is powder coated black


**PLEASE NOTE**  CAN NOT purchase (1) 30in and (1) 40in light bars. Must choose to have either a 30in or 40in set up.



👍Our light kits are for off-road use only.

Choose your light bar color:

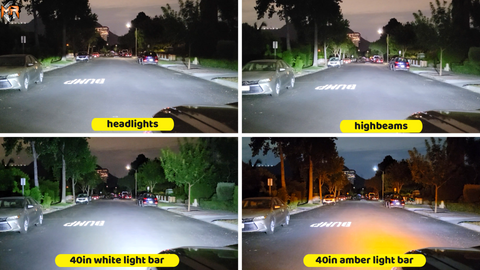

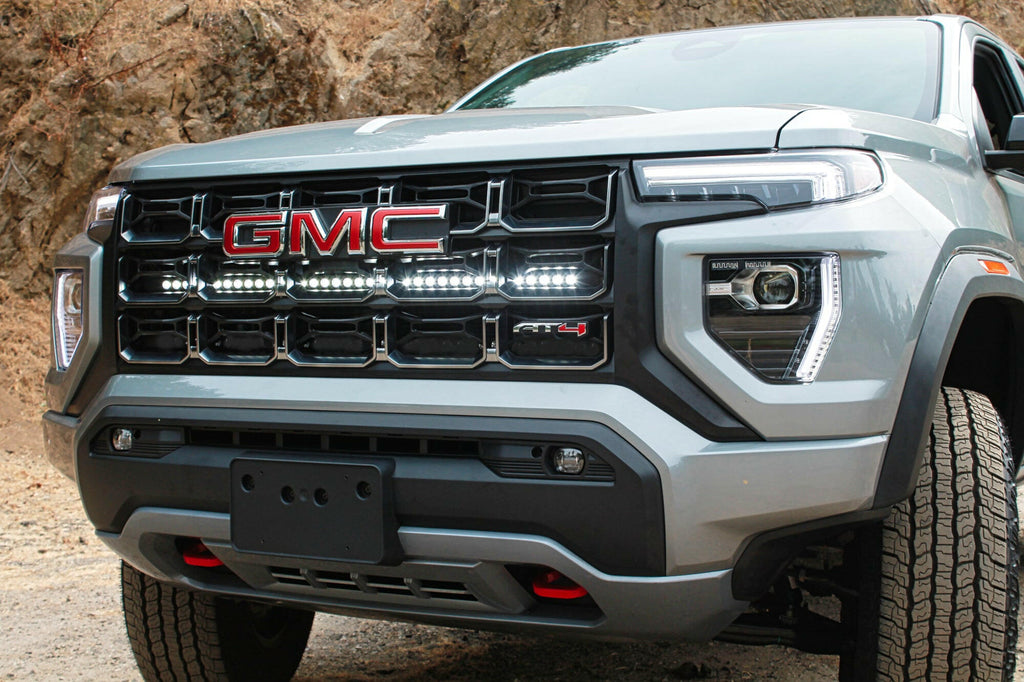

1) White LED -- Up to 15,000 lumens, bright and powerful. It will definitely provide you with enough light needed for all of your adventures. However, these are only for off-roading and can’t be used on the regular road. They will blind the in-coming traffic and also violates road safety.

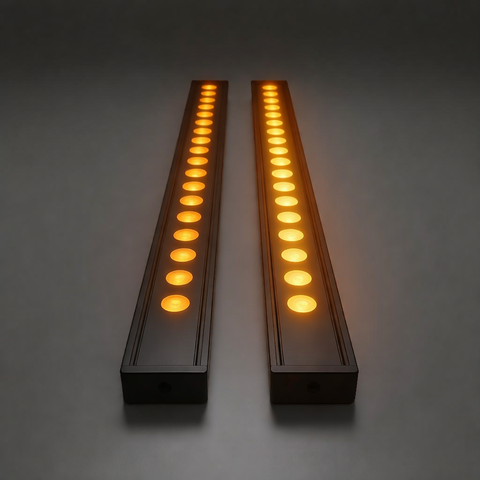

2) Amber LED -- Up to 7,000 lumens, used in poor driving conditions such as dust, fog, snow and rain. It reflects through air particles much less than the white light. Therefore, making it ideal for poor driving conditions.

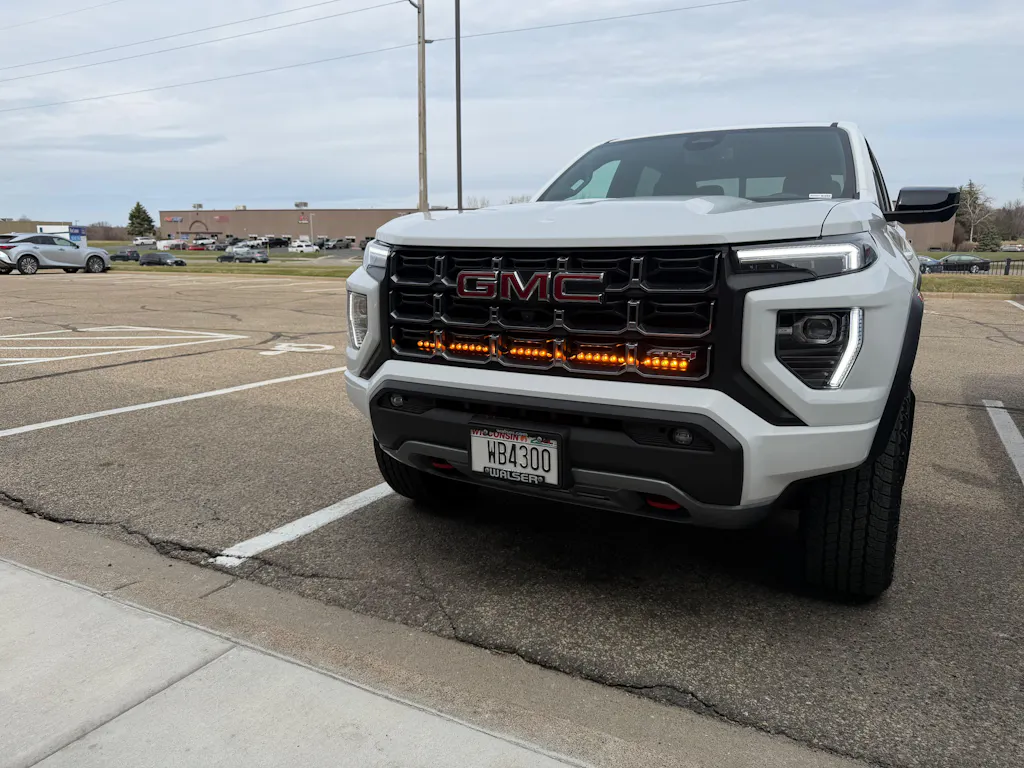

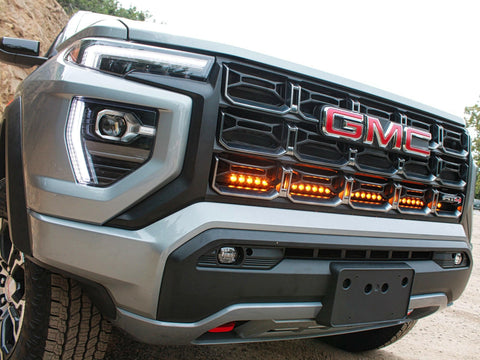

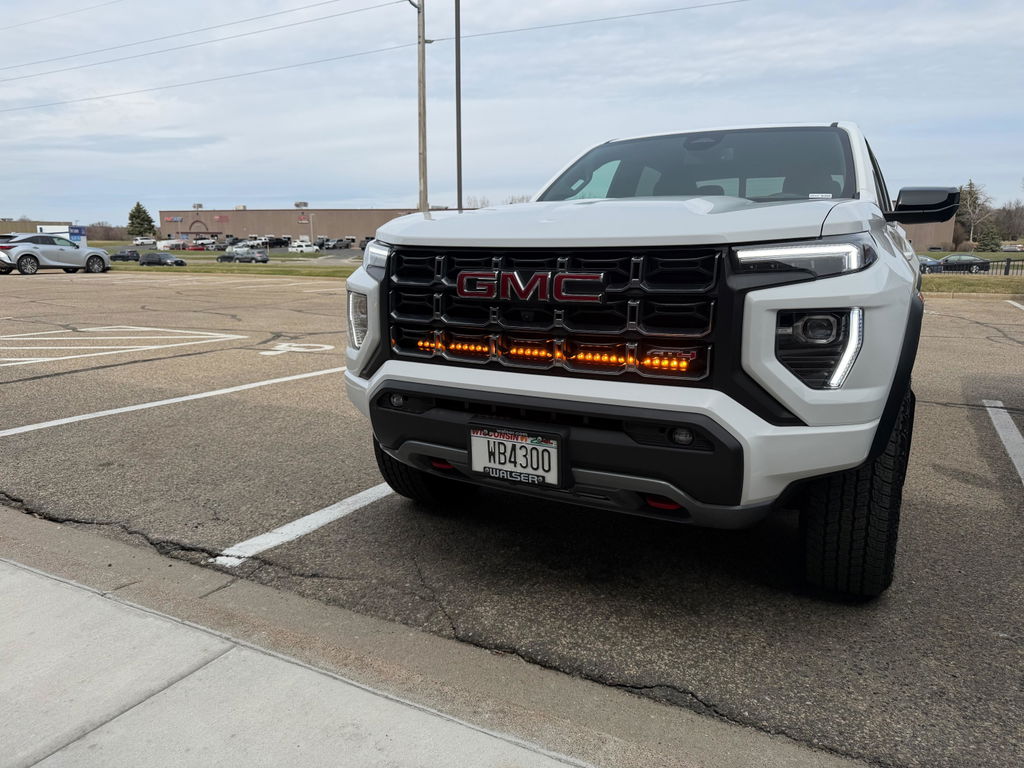

3) dual function: main White LED light with Amber DRL backglow -- the white LED light is same as described above, but the amber DRL “daytime running lights” acts purely for aesthetics. It doesn’t give out much light, but more of a beautiful amber backglow. Since it doesn’t give out much light, you can use this amber DRL feature on regular roads, it doesn't blind in-coming traffic.

Full in-depth video describing our lights bars CLICK HERE


40in SLIM light bar


White:

  • Beam Pattern                               Spot
  • Theotetical max power              180watts
  • Actual power                                102watts
  • Voltage/current                          DC12v/6.5A
  • Theoretical max luminous flux                   21,060 lm
  • Measured luminous flux (without lens)    11,376 lm
  • Measured luminous flux (with lens)           8,340 lm
  • LEDs type                                     CREE XTE
  • Temperature                               6000k
  • LEDs number                               36pcs
  • Product size LxWxD (in)           38.93 x 0.75 x 1.63


40in SLIM light bar


Amber:

  • Beam Pattern                               Spot
  • Theotetical max power              140watts
  • Actual power                                78watts
  • Voltage/current                         DC12v/6.5A
  • Theoretical max luminous flux                   11,160 lm
  • Measured luminous flux (without lens)    7,380 lm
  • Measured luminous flux (with lens)           5,387 lm
  • LEDs type                                     CREE XP - E2 Amber
  • Temperature
  • LEDs number                               36pcs
  • Product size LxWxD (in)           38.93 x 0.75 x 1.63


White with Amber DRL

  • Beam Pattern                               Spot
  • Theotetical max power              180watts
  • Actual power                                102watts
  • Voltage/current main                 DC12v/6.5A
  • Voltage/current backlight          5.5W/0.46A
  • Theoretical max luminous flux                   21,060 lm
  • Measured luminous flux (without lens)    11,376 lm
  • Measured luminous flux (with lens)           8,340 lm
  • LEDs type                                     CREE XTE
  • Temperature                               6000k
  • LEDs number                               36pcs
  • Product size LxWxD (in)          38.93 x 0.75 x 1.63

All domestic (USA) orders are free shipping via USPS or UPS, depending on product size.
We typically ship in 3-7 business days. If we are anticipating a delay with your shipment due to availability of the product, we will reach out to you via email.

Canada, international or express shipping costs are calculated at checkout.

You will receive an email with tracking number when your order is shipped.

If you have a special request about your order, reach out, we try to accommodate as much as we can.

For a complete shipping policy click here.


We have a lifetime warranty on our light kits. We truly want our truck enthusiastic customers to enjoy their products as much as we enjoy designing them. However, we also understand that different situations arise with brackets or lights. For more information about our warranty and disclaimer click here.




*M&R Automotive is not responsible for misuse or improper installation of the product. Professional installation is recommended.


WHAT'S INCLUDED?

(1) 40in light bar - SLIM

(2) mounting brackets

All mounting hardware

WIRING

  • M&R Automotive doesn’t provide a wiring harness for this light bar kit.
  • The light bar has 6ft of wire which is enough to reach AUX switches if your truck has them. Otherwise, you will need to purchase a generic wiring harness from Amazon/Ebay or create your own.


  • We sell a wireless wiring harness that delivers a clean, hassle-free install—no need to run wires into the cab.



INSTALLATION INSTRUCTIONS

Customer Reviews

Based on 6 reviews
100%
(6)
0%
(0)
0%
(0)
0%
(0)
0%
(0)
K
K.

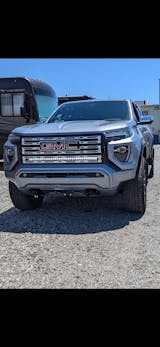

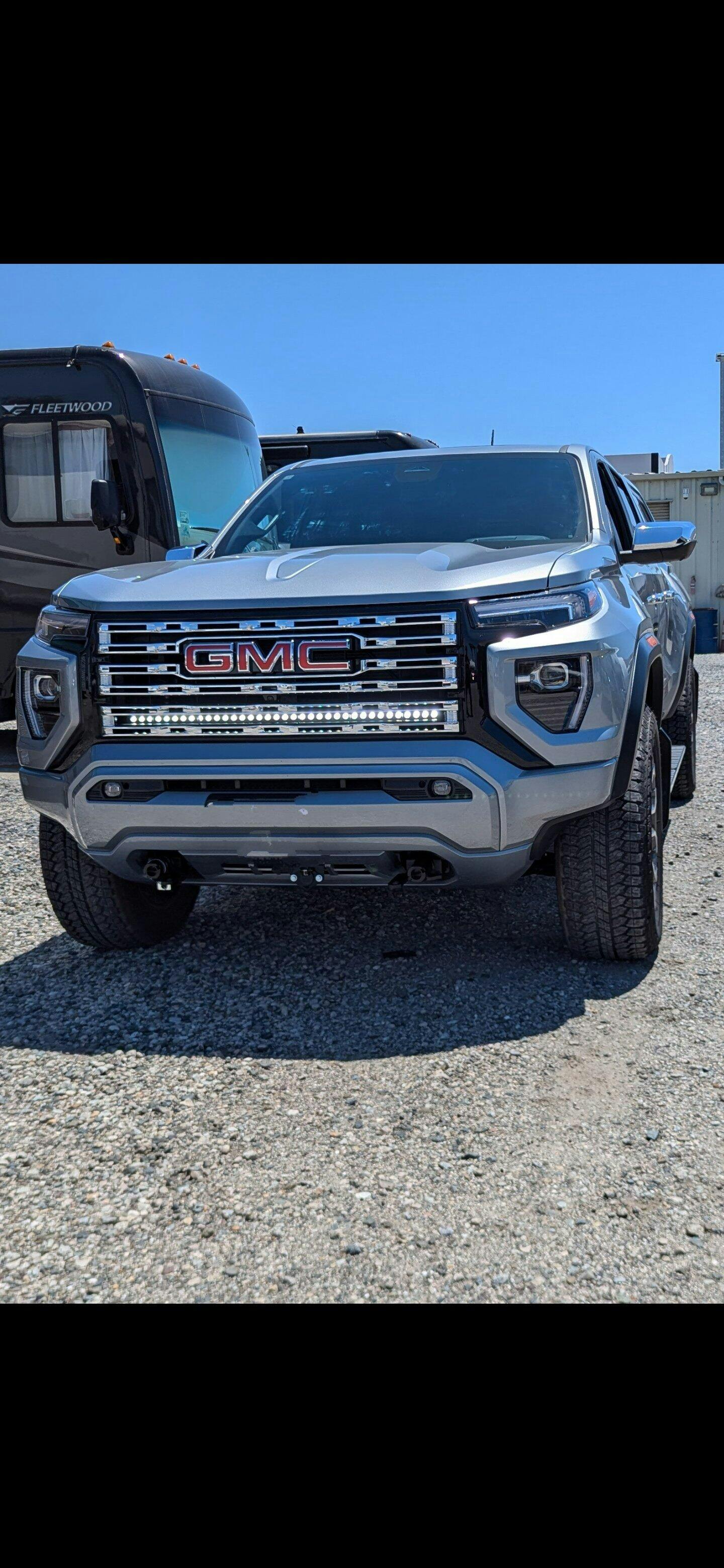

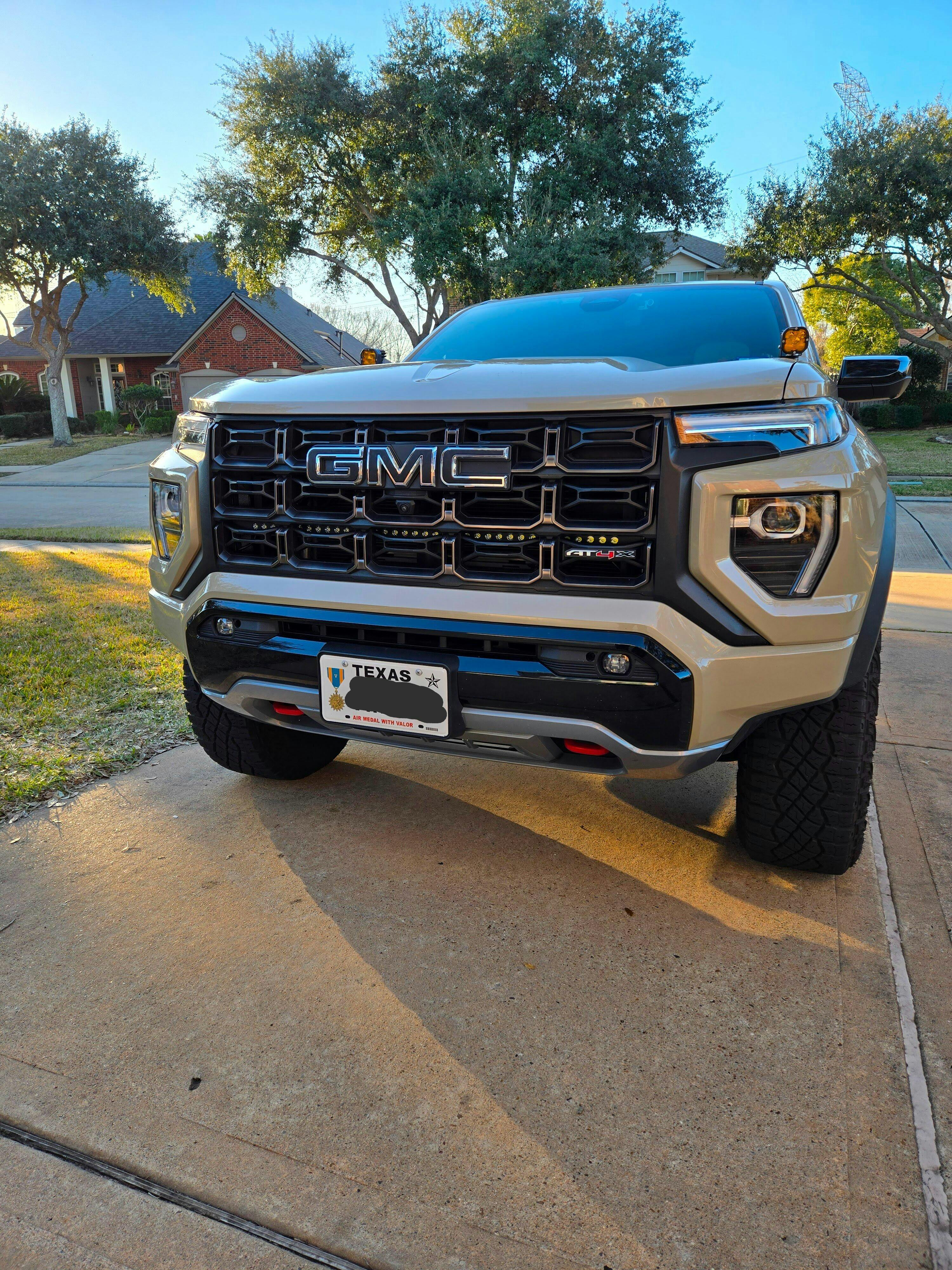

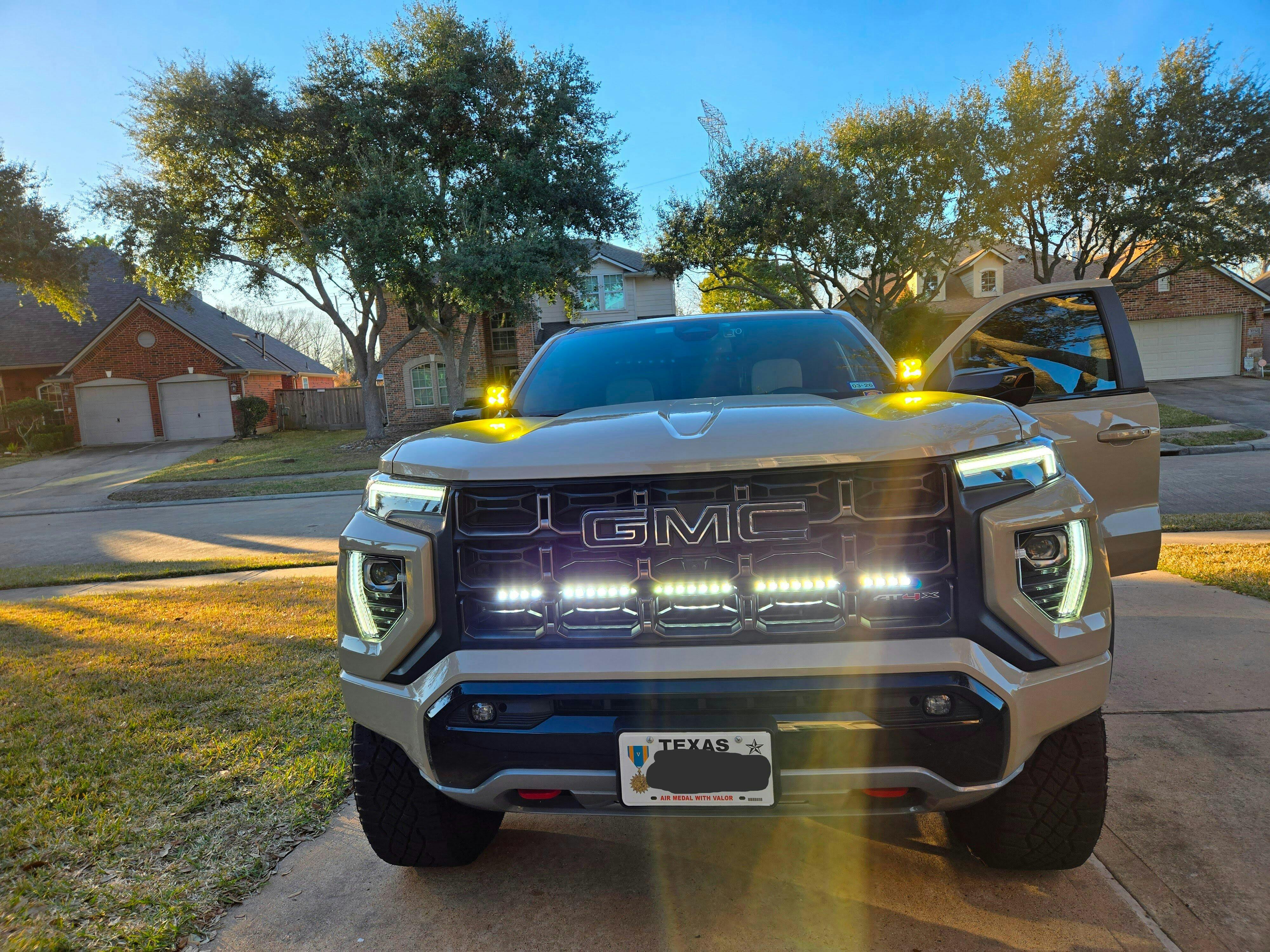

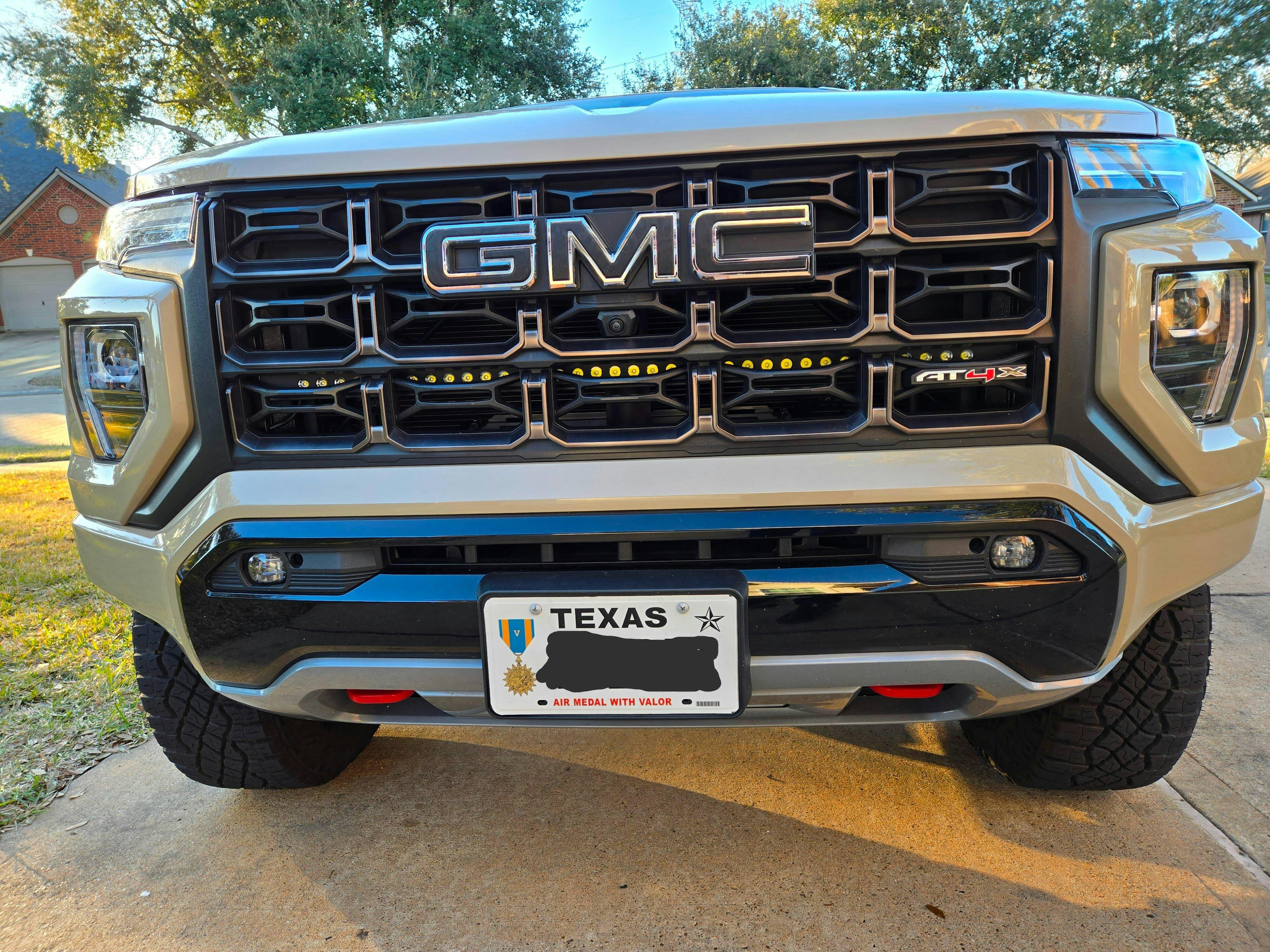

Excellent Quality 40" Light Bar for the 2024 Canyon AT4X

This light bar was exactly what I was looking for! The install took about 2 hours by myself following the install video on YouTube. The build quality is top notch and fits exactly as advertised. I did have to be a little more careful since I have a few more sensors and the front camera being that it is the '24 AT4X. I also recommend using a clip removal tool when dealing with the fender flares rather than just popping them off. I may adjust mine up a little, but I had to hurry reinstalling everything because I got called into work :( I highly recommend M&R for your light bar needs!

D
D.M.
Lighting Up Alaska Winters

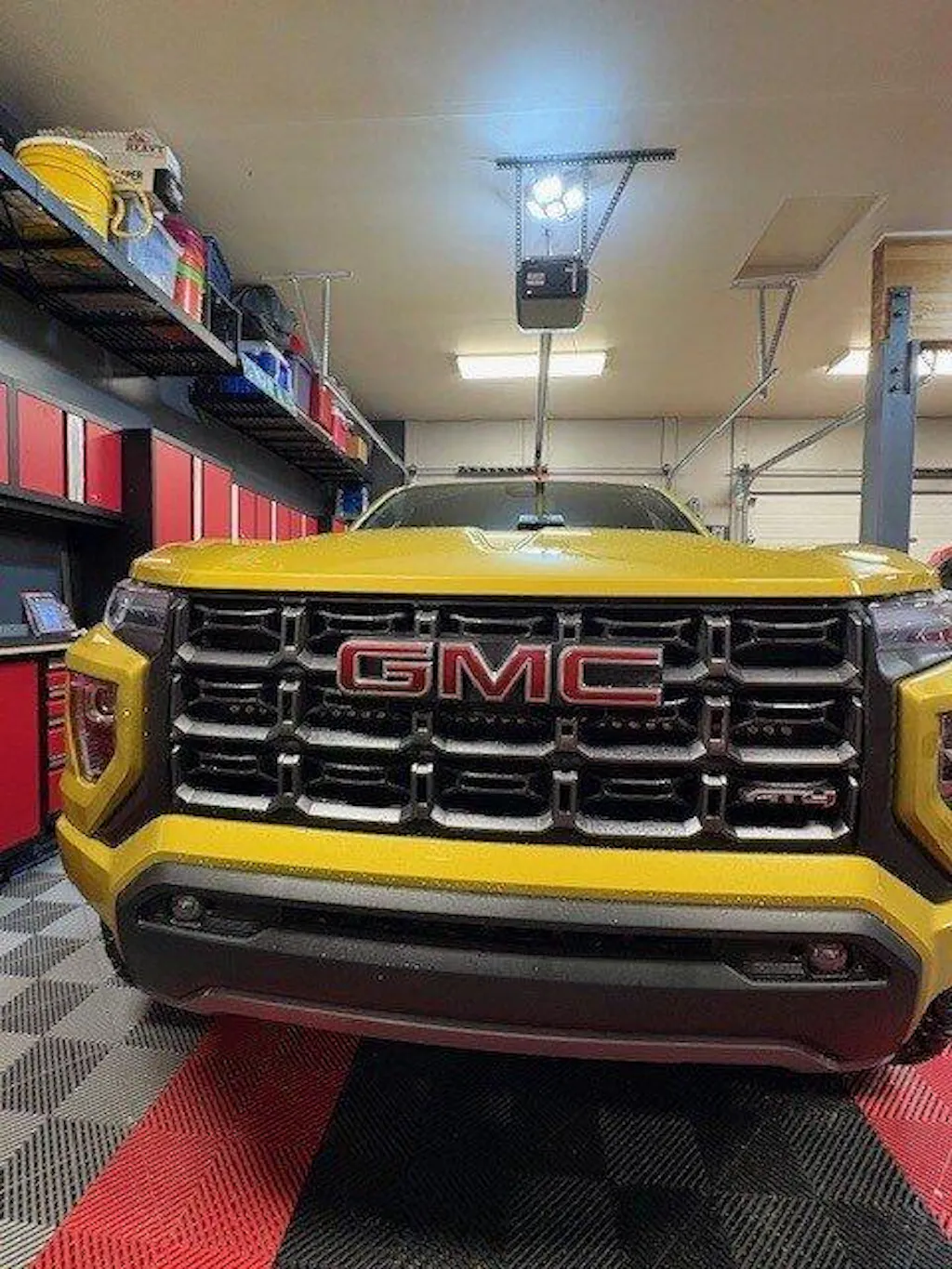

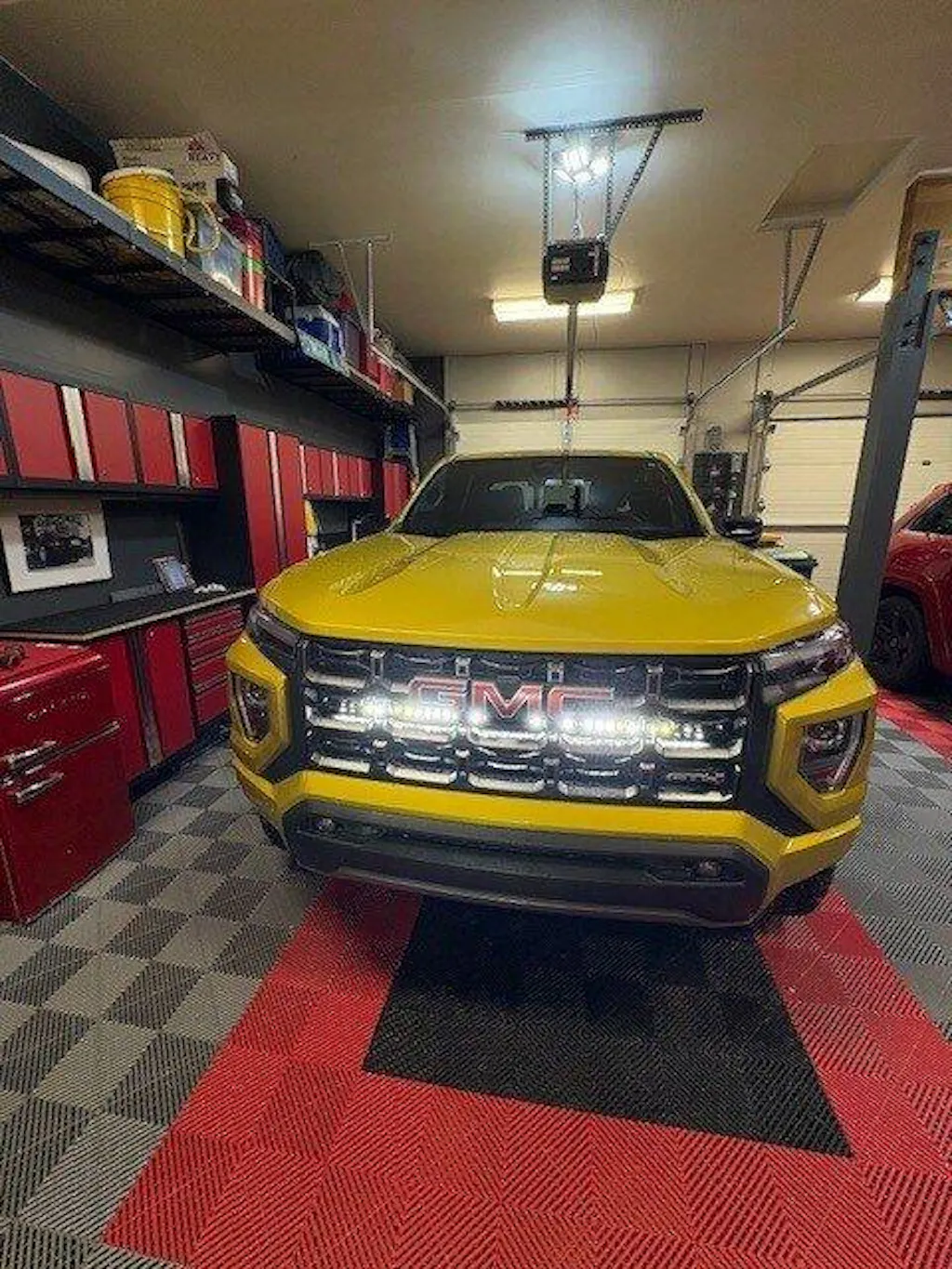

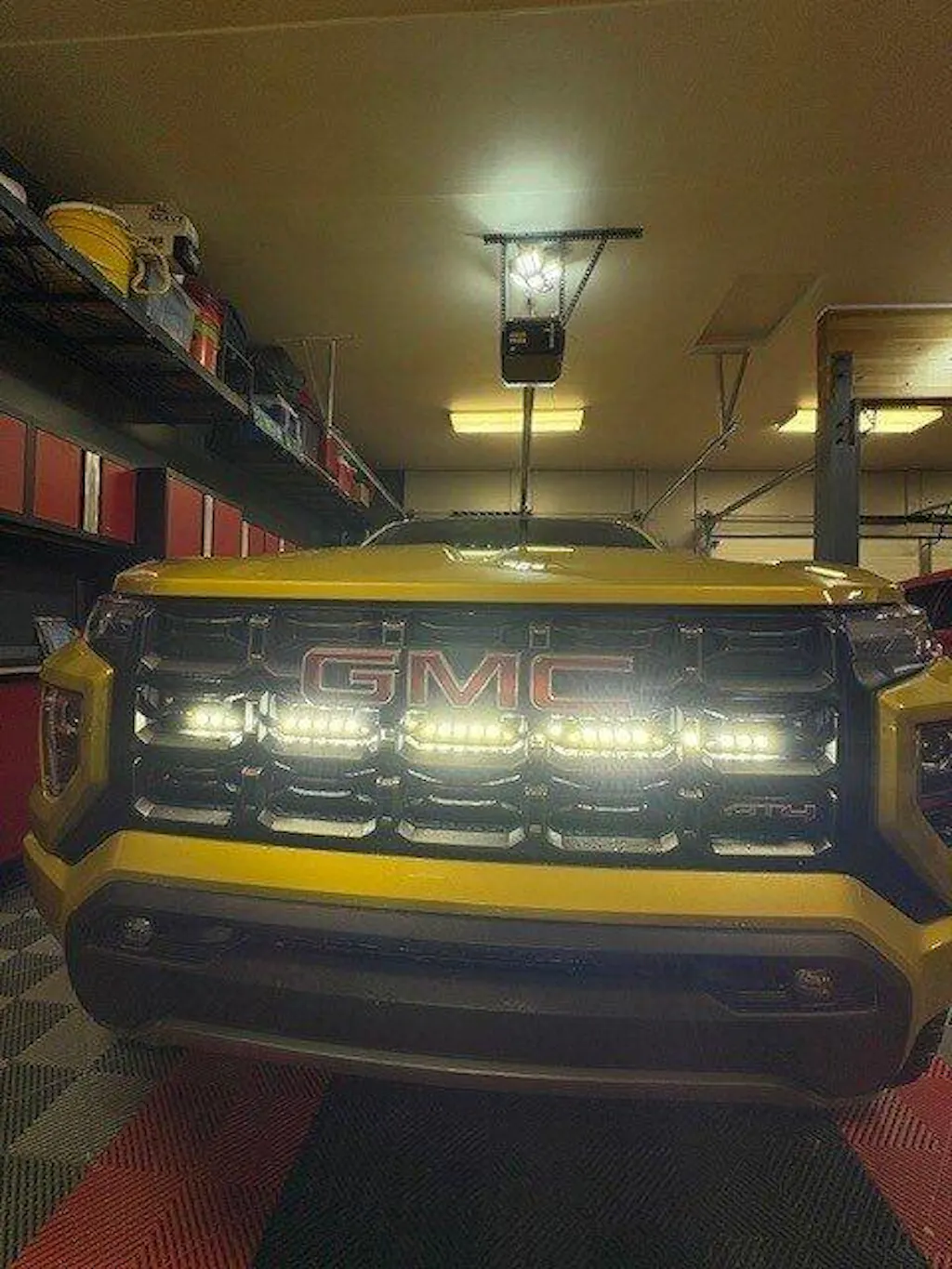

I’m a weekend warrior with these types of projects, but the video M&R produces makes the install very manageable. On my 2024 Canyon, GMC did a nice job providing a hot AUX switch, which I used for this setup. The light bar is super bright and will make seeing critters—namely moose—so much easier. I highly recommend the product, the engineering, and the ease of installation.

Great job, M&R!
—Doug

t
t.k.
Looks great!

Amazing!

M
M.
Awesome Light Bar Package!

I recently installed the 40inch white LED light bar on my GMC Canyon AT4 and absolutely love it. It requires a good amount of work to install but is definitely worth the effort! The light output is amazing and puts the high beams to shame. One recommendation I would have to anyone purchasing and installing is that when you get to the installation step where you need to blindly loosen the 3 bolts above the wheel wells, it helps to pull the wheel well fabric back and reach your hand up behind the bolts so you can help guide the socket onto the bolt head by feeling it

J
J.
Perfect for 2025 Canyon

All kinds of bright and looks like a factory installation. Thumbs up!
