2022+ Ford Bronco Raptor XL
What's in the Box
- (1) 40in curved light bar PRO

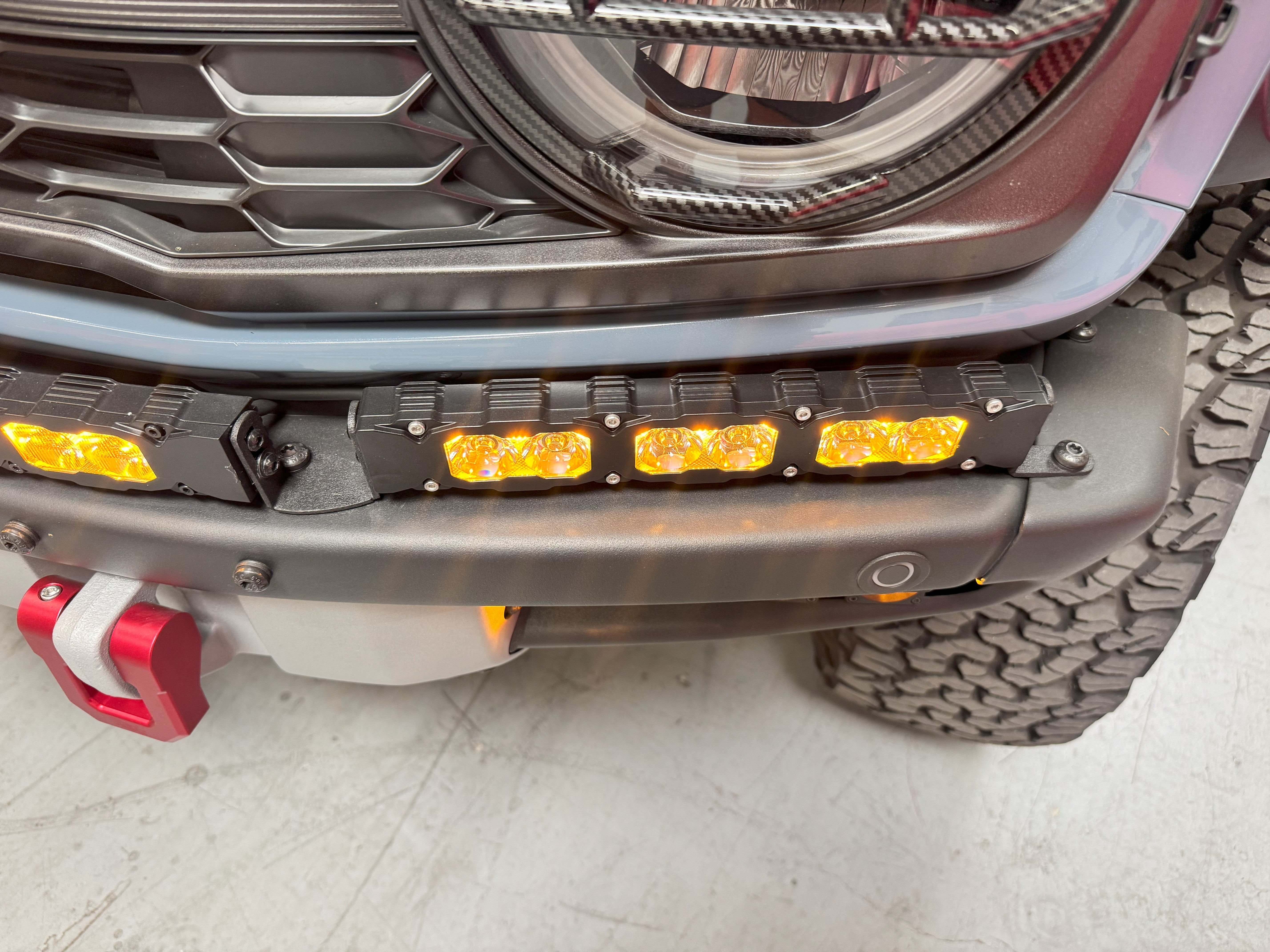

- (2) 12in light bars PRO
- (1) wiring harness
Off-road use only
Bolt On, No Drilling
Vehicle Specific Design
Lifetime Warranty
Fits: 2022–2026 Ford Bronco Raptor

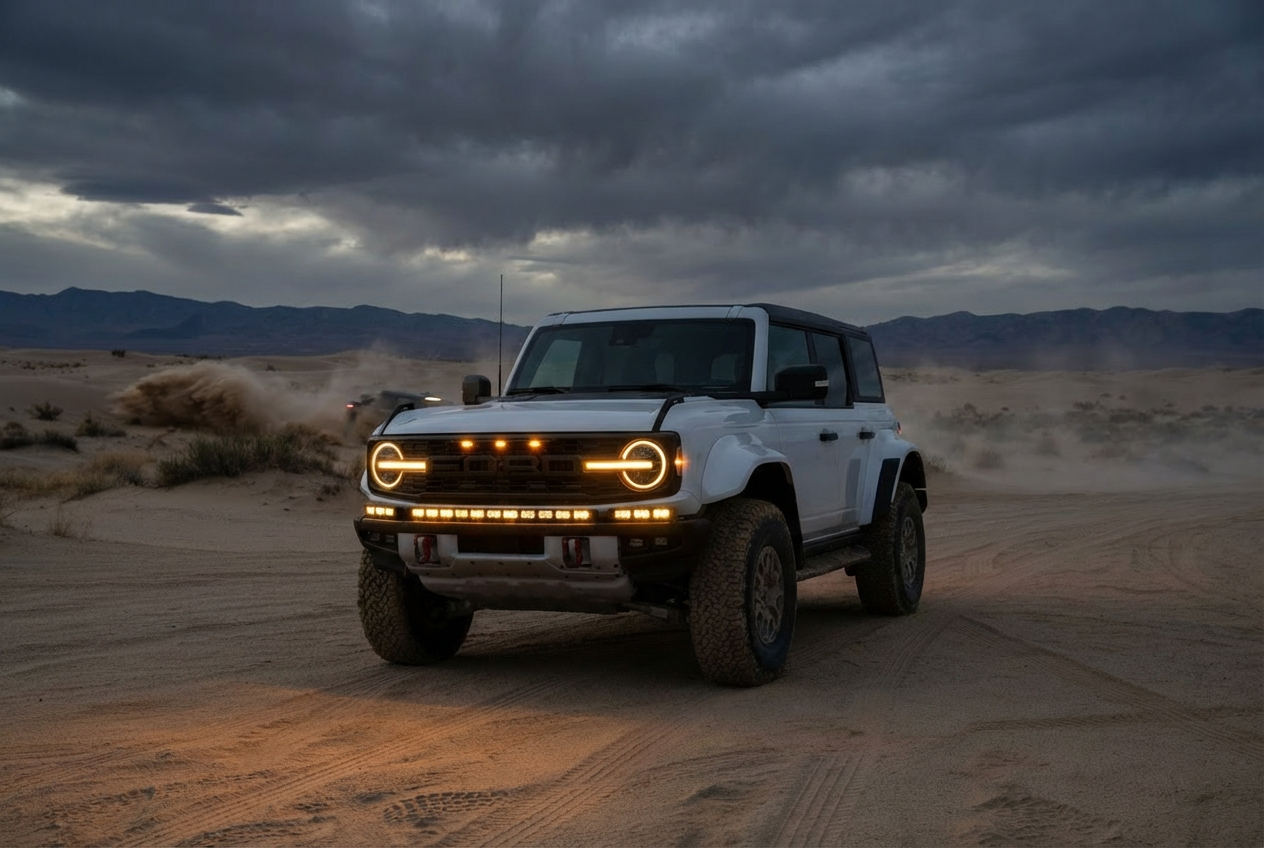

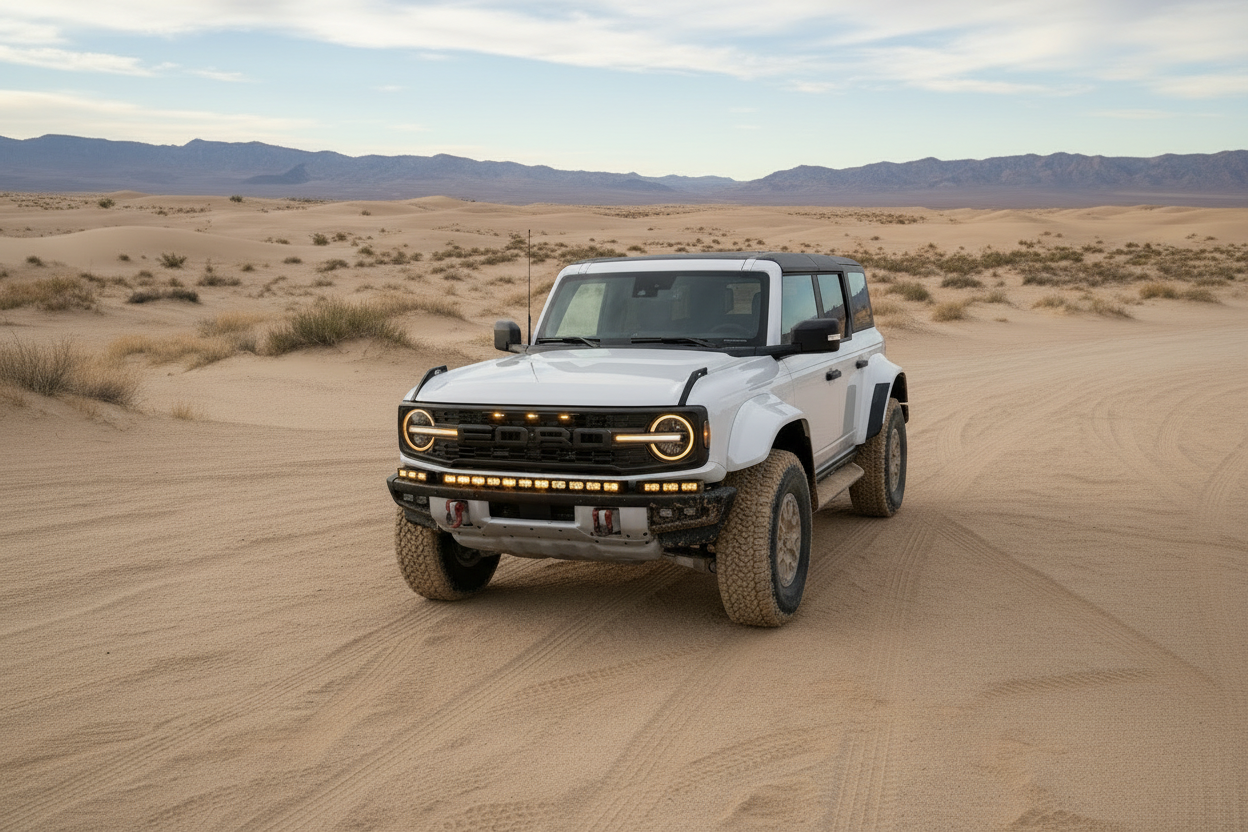

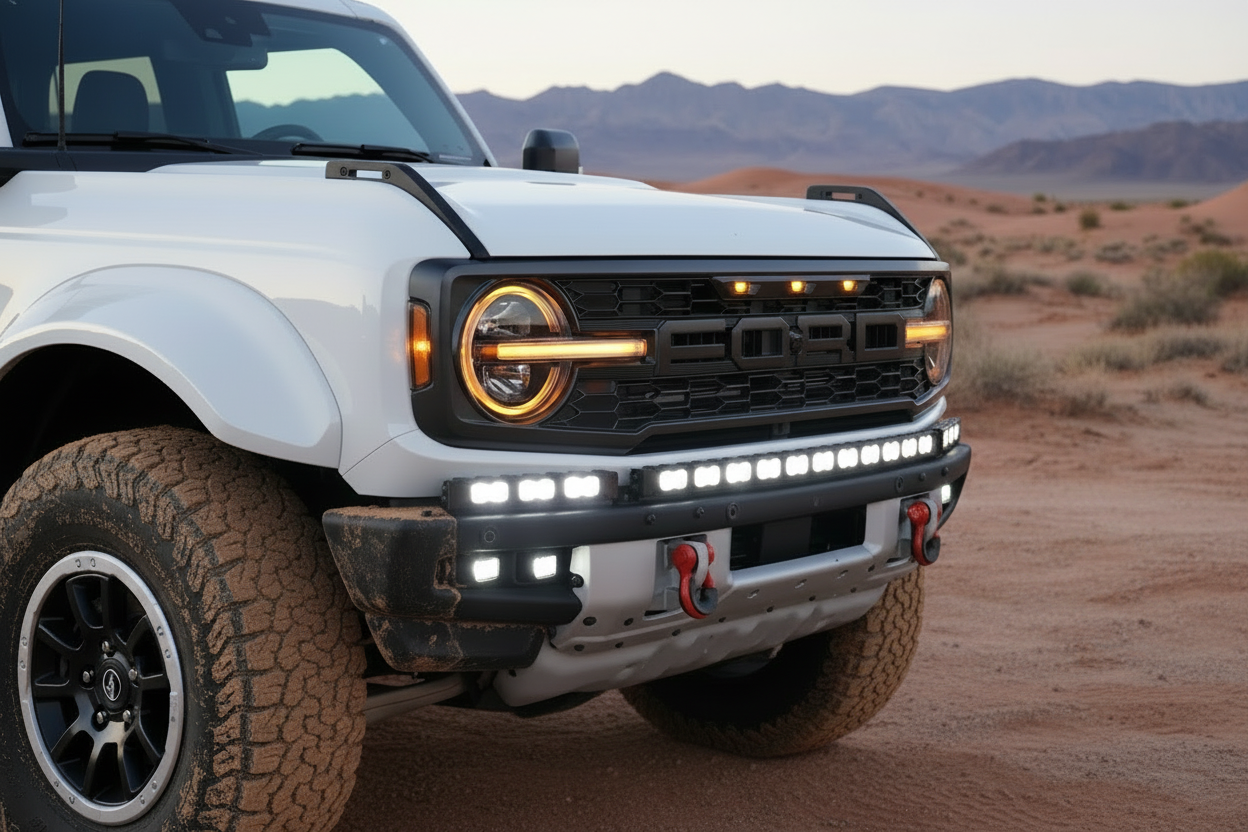

Take your Ford Bronco Raptor to the next level with our XL LED Light Bar Kit — engineered for maximum off-road performance and aggressive style. Built specifically for 2022–2026 Bronco Raptor models, the XL series pairs a powerful 40-inch curved LED light bar with integrated 11-inch extension bars for wider beam spread, sharper peripheral visibility, and a fuller, more complete lighting setup. Designed to follow the factory bumper lines, it delivers a sleek, OEM-inspired look that makes it appear as if it came straight from the factory.

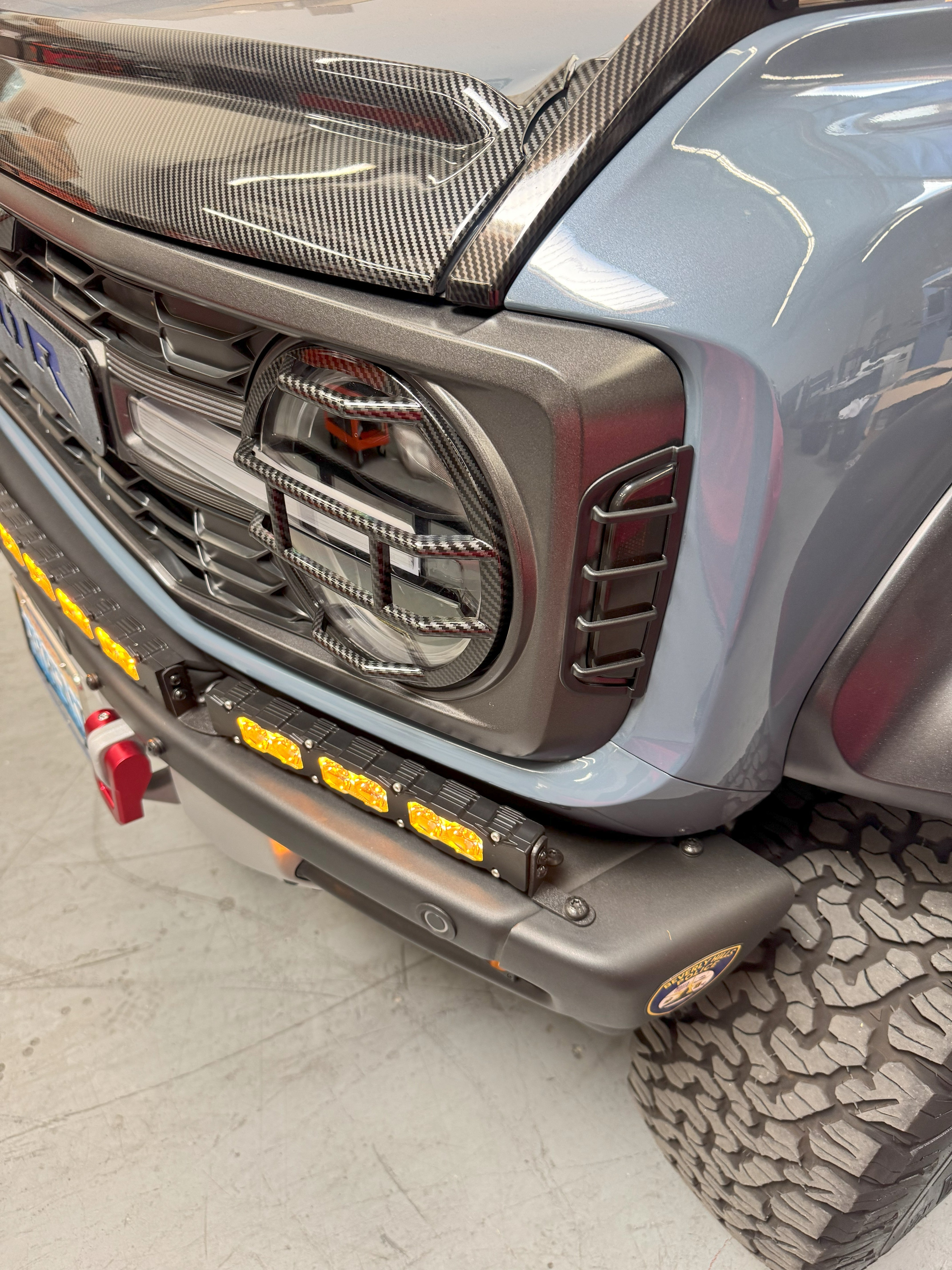

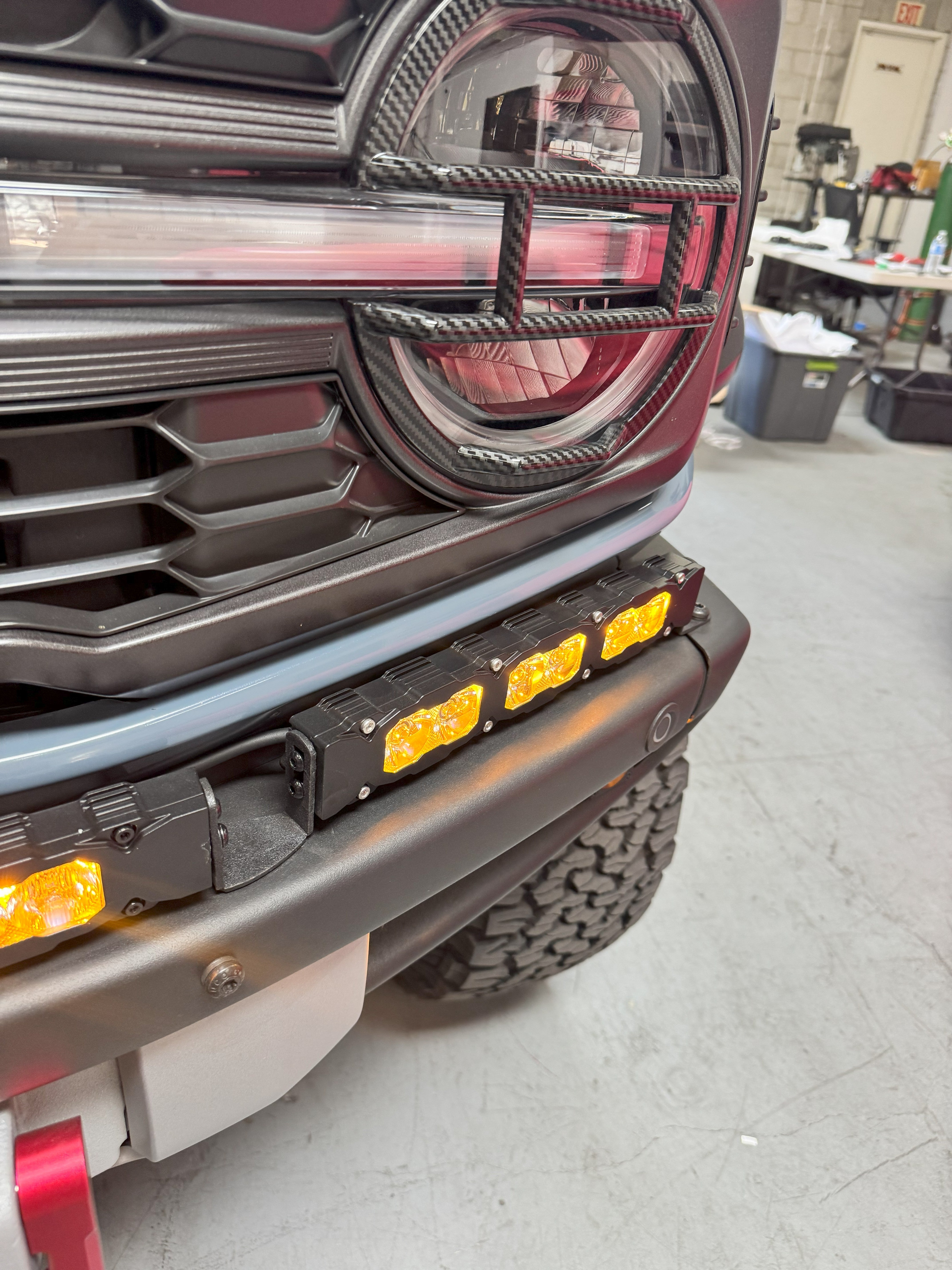

- 40in curved LED light bar PLUS (2) extension 11in light bars

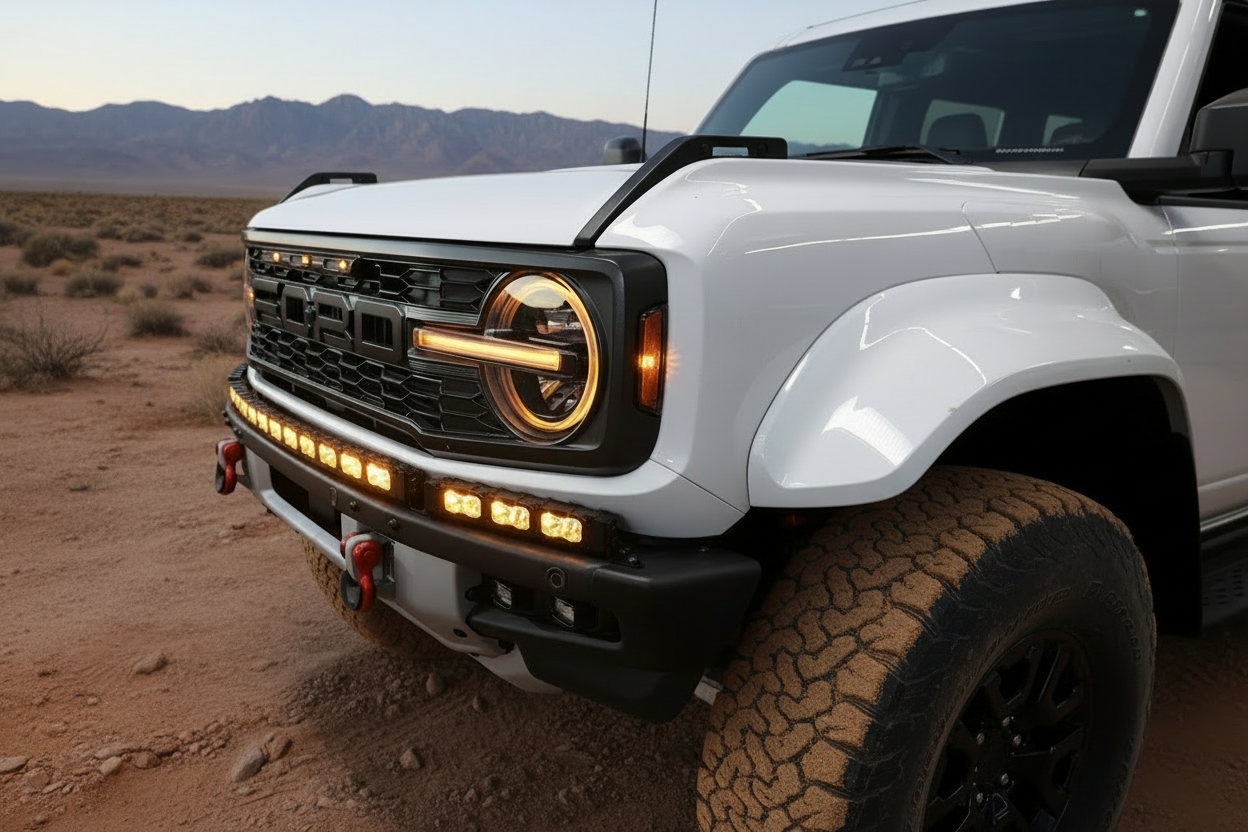

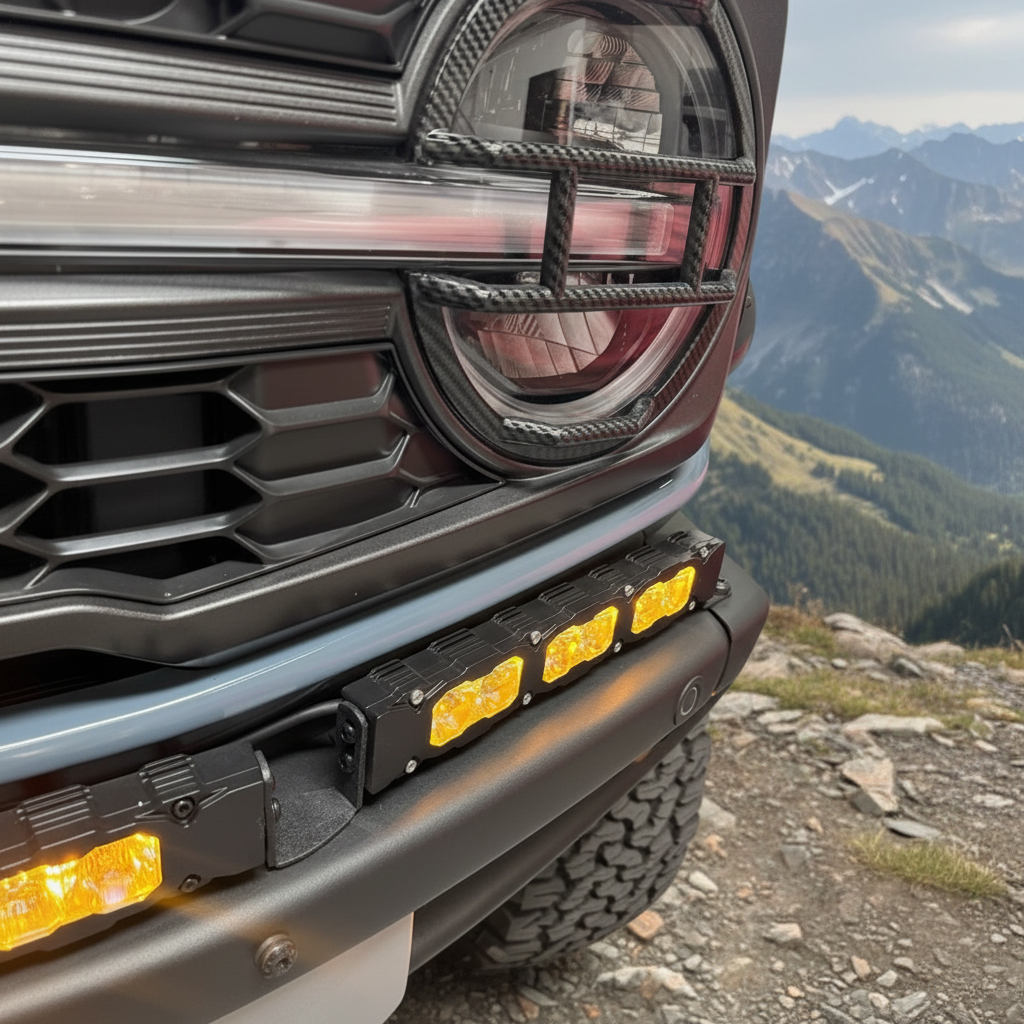

- Stays slim to the bumper for a sleek, built-in look
- Metal bracket is powder coated black

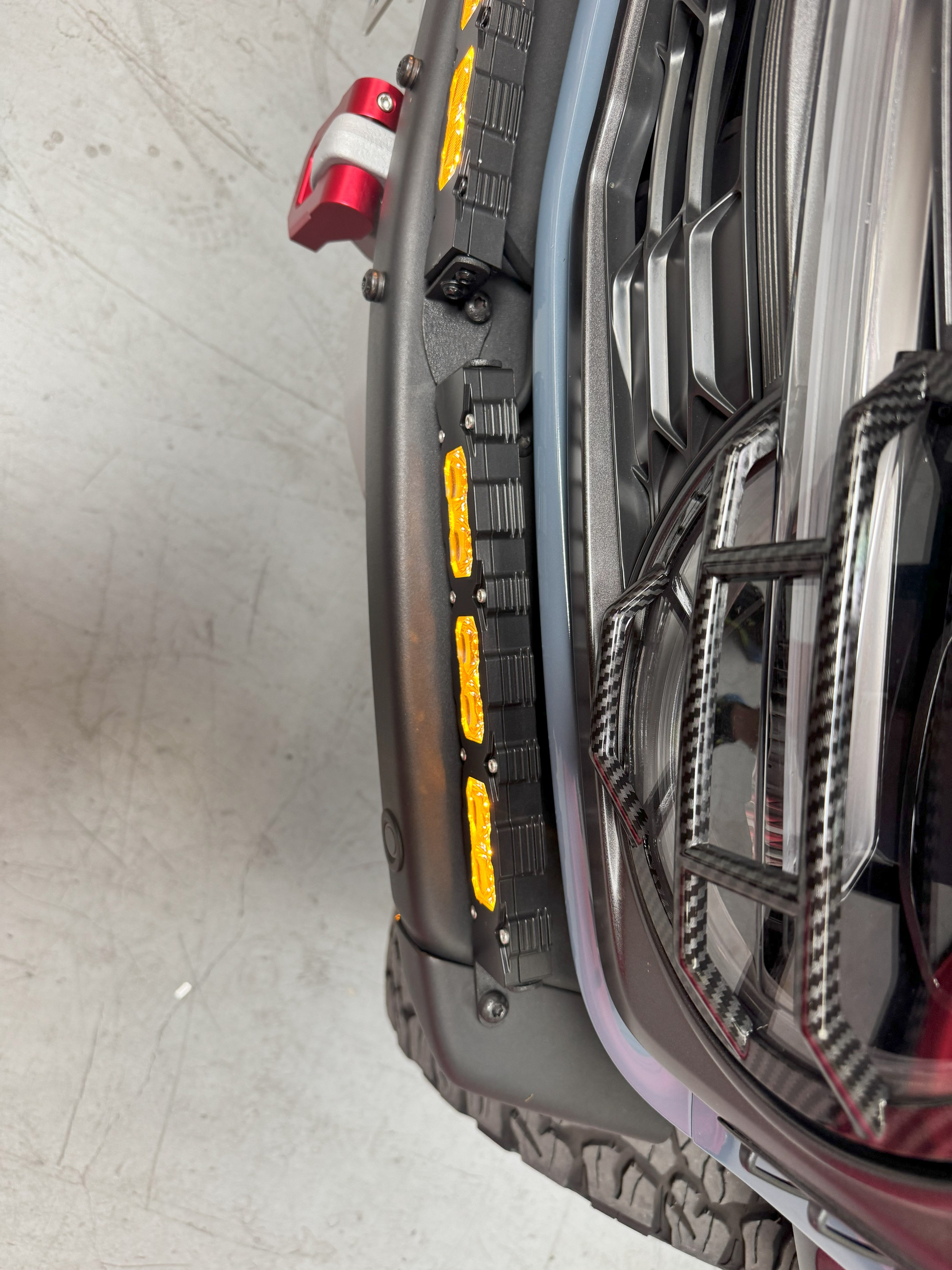

- Easy install right on top of the bumper
- Don't need to remove bumper or grille
- No cutting or drilling required. The kit is a complete bolt on using factory openings and hardware.

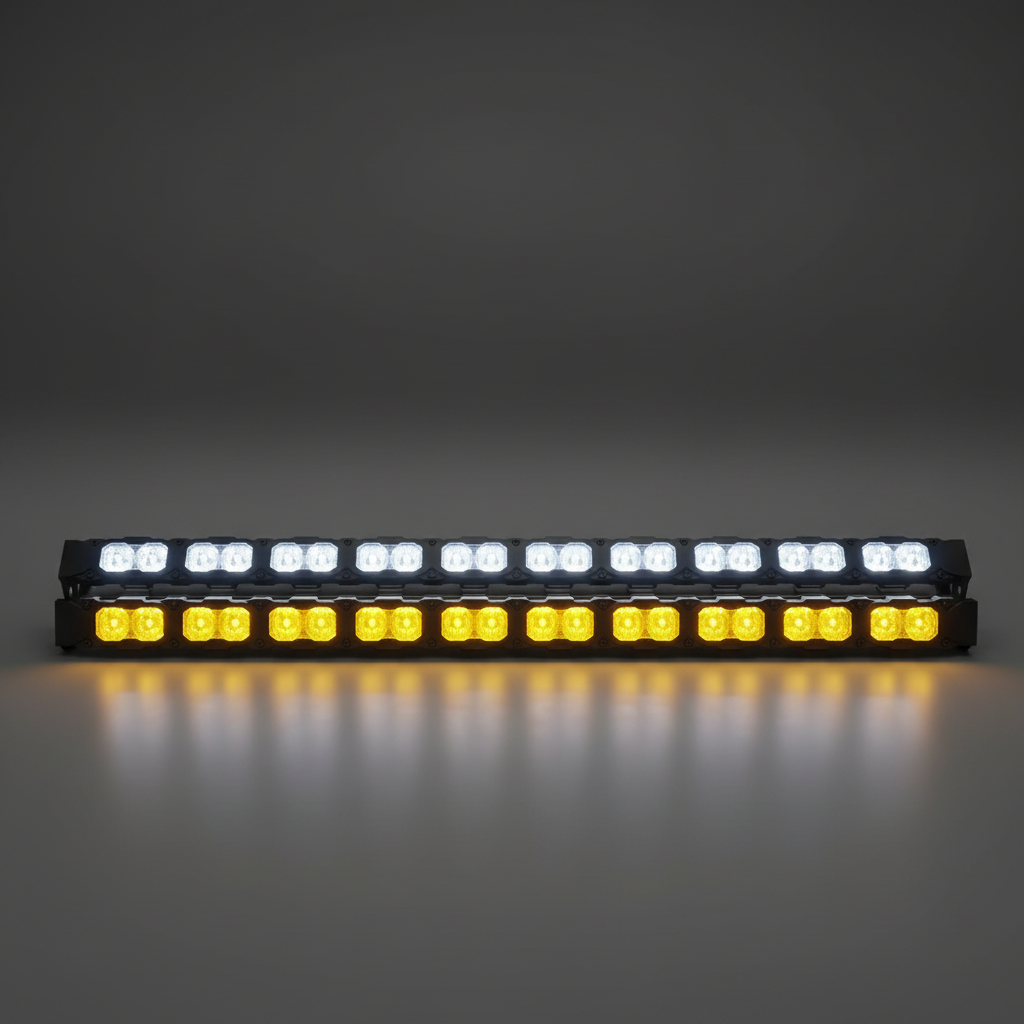

DUAL COLOR
- main White LED Light with Amber DRL (daytime running lights)

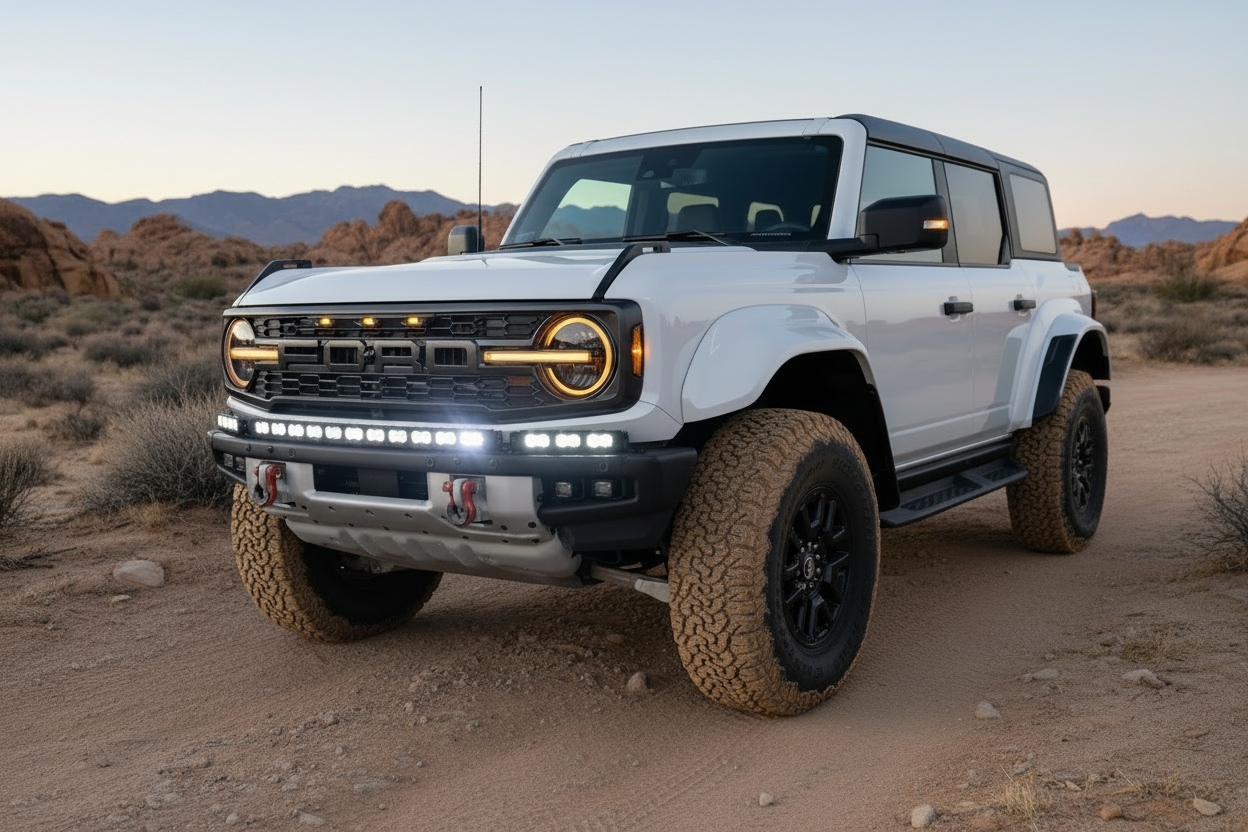

- White LED -- Super bright and crisp white beam pattern. It will definitely provide you with enough light needed for all of your adventures. However, these are only for off-roading and can’t be used on the regular road. They will blind the oncoming traffic and also violate road safety.
- Amber DRL -- amber DRL “daytime running lights” acts purely for aesthetics. Since it doesn’t give out much light, you can use this amber DRL feature on regular roads; it doesn't blind oncoming traffic. Matches the accent lights on the Ford Bronco Raptor. Amber DRL is the perfect match to drive around town

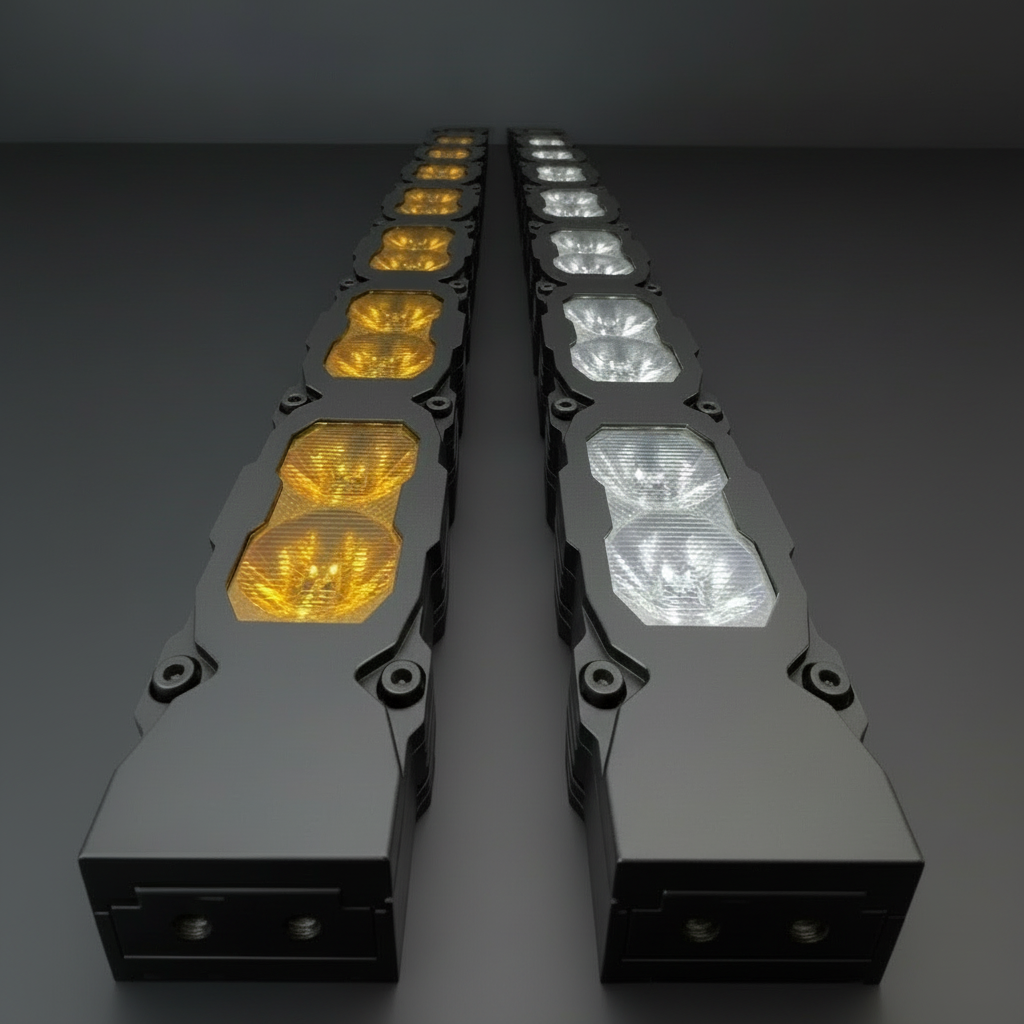

LED light bar-PRO has a unique appearance and optimal performance.
- Combo Pattern: combined spot and driving optics offer a balance between distance and width

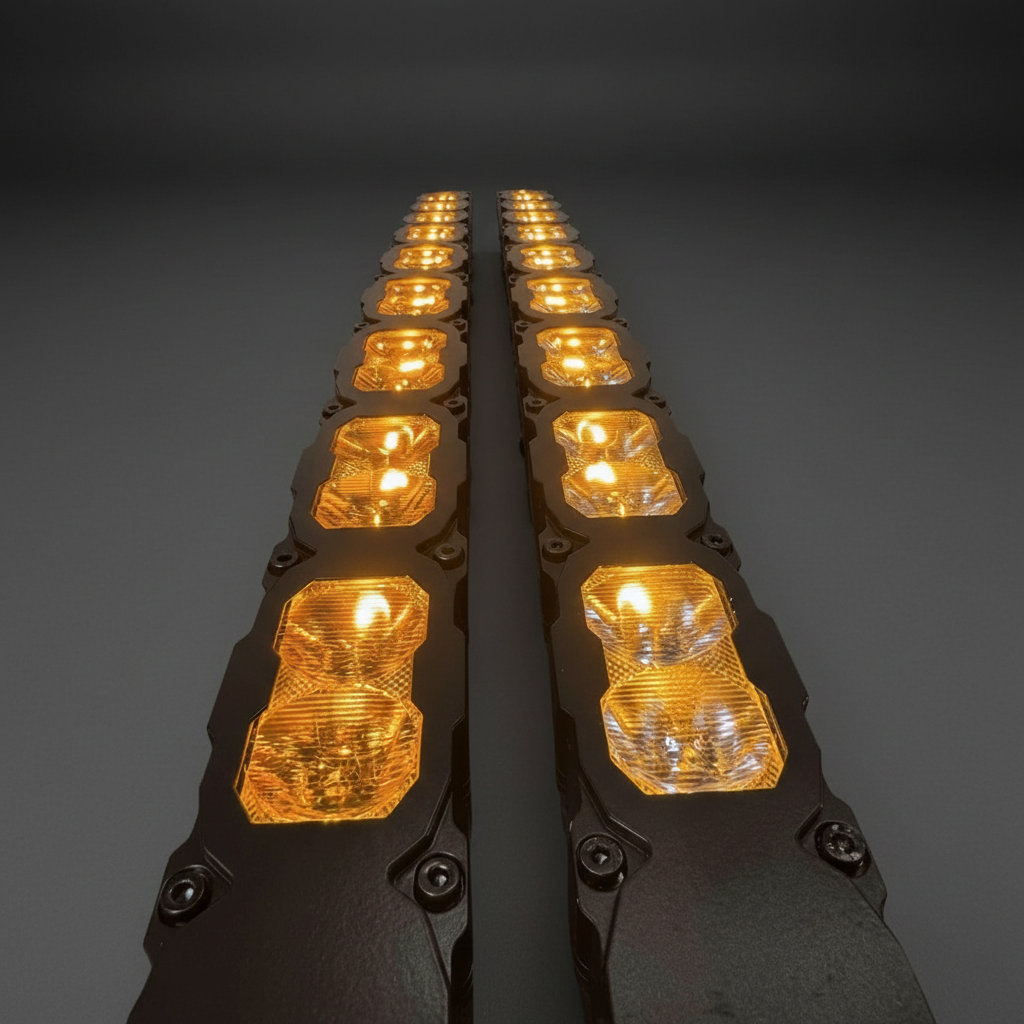

- Uses a TIR (Total Internal Reflection) lens, which is different from our regular slim light bar. The TIR lens collects all of the light from the LED and directly leads them to where you need, drastically reducing glare and improving total efficiency.
- Higher light efficiency: brighter, longer irradiation distance

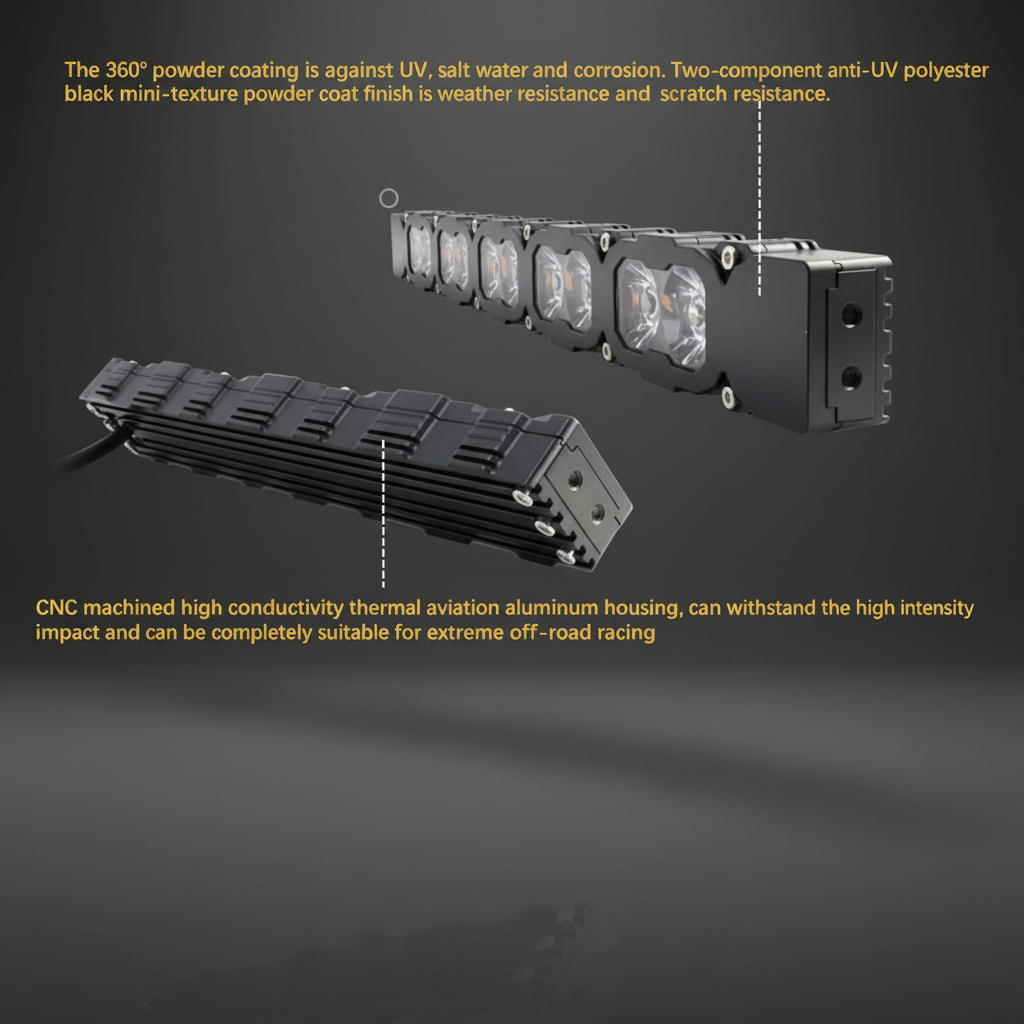

- Housing is upgraded to 304 aluminum. The surface is UV polyester powder coated to protect against UV, salt water, corrosion, fading and scratch resistant.
- Equipped with thermal management system that automatically adjusts the brightness output according to the external temperatures
11in PRO Light Bar
| Beam Pattern | Spot & Driving |
| Theoretical Max Power | 60 watts |
| Actual Power | 35 watts |
| Voltage / Current (Main) | DC 12V / 2.9A |
| Voltage / Current (Backlight) | DC 12V / 0.08A |
| Theoretical Max Luminous Flux | 6,552 lm |
| Measured Flux (without lens) | 4,152 lm |
| Measured Flux (with lens) | 3,302 lm |
| LED Type | Luminus SST-20 |
| Color Temperature | 6000K |
| Number of LEDs | 6 pcs |
| Product Size (L × W × D) | 11.93 × 1.89 × 1.00 in |
40in PRO Light Bar
| Beam Pattern | Spot & Driving |
| Theoretical Max Power | 220 watts |
| Actual Power | 125 watts |
| Voltage / Current (Main) | DC 12V / 10.42A |
| Voltage / Current (Backlight) | DC 12V / 0.25A |
| Theoretical Max Luminous Flux | 24,024 lm |
| Measured Flux (without lens) | 15,224 lm |
| Measured Flux (with clear lens) | 12,108 lm |
| Measured Flux (with yellow lens) | 9,505 lm |
| LED Type | Luminus SST-20 |
| Color Temperature | 6000K |
| Number of LEDs | 22 pcs |
| Product Size (L × W × D) | 38.90 × 1.89 × 1.00 in |
Free ground shipping on all orders within the continental United States.
We process and ship orders within 3–5 business days. If we anticipate any delay, we'll reach out via email.
- Hawaii, Alaska & Puerto Rico — $20 flat rate for ground shipping.
- Canada & International — Shipping rates calculated at checkout. Customs fees, duties, and import taxes are the responsibility of the customer.
- Overnight & 2nd Day Air — Available at checkout. Orders must be placed by 12:00 PM Pacific Time for same-day shipment.
You'll receive a tracking number via email once your order ships. If you have a special request about your order, reach out — we'll do our best to accommodate. For our complete shipping policy, [click here].
Warranty
We have a lifetime warranty on all our light kits. We stand behind every kit we build — our lifetime warranty isn't fine print, it's a promise. For more information about our warranty and disclaimer, [click here].
M&R Automotive is not responsible for misuse or improper installation of the product. Professional installation is recommended.
